Forklifts · Ref LPT-61786

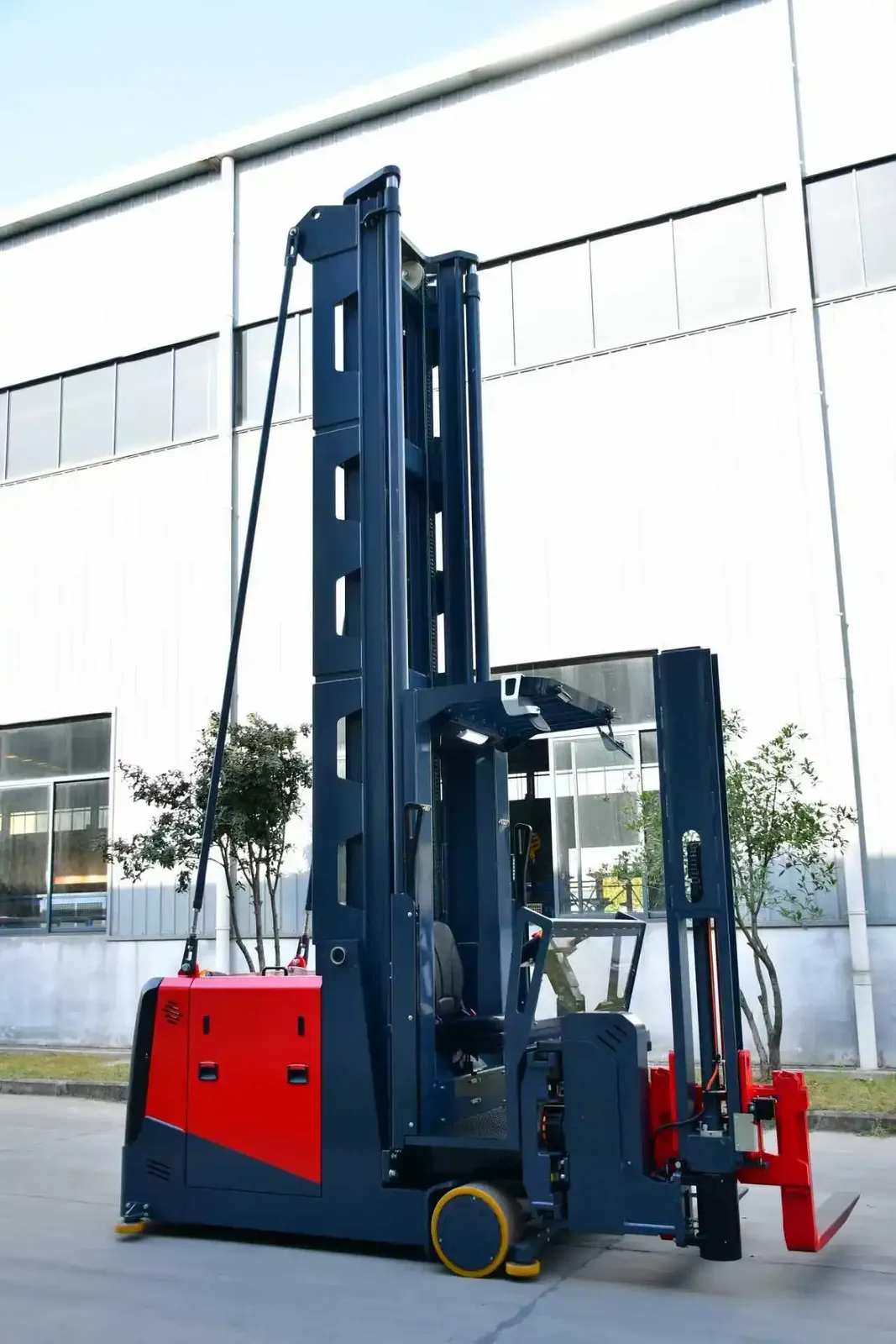

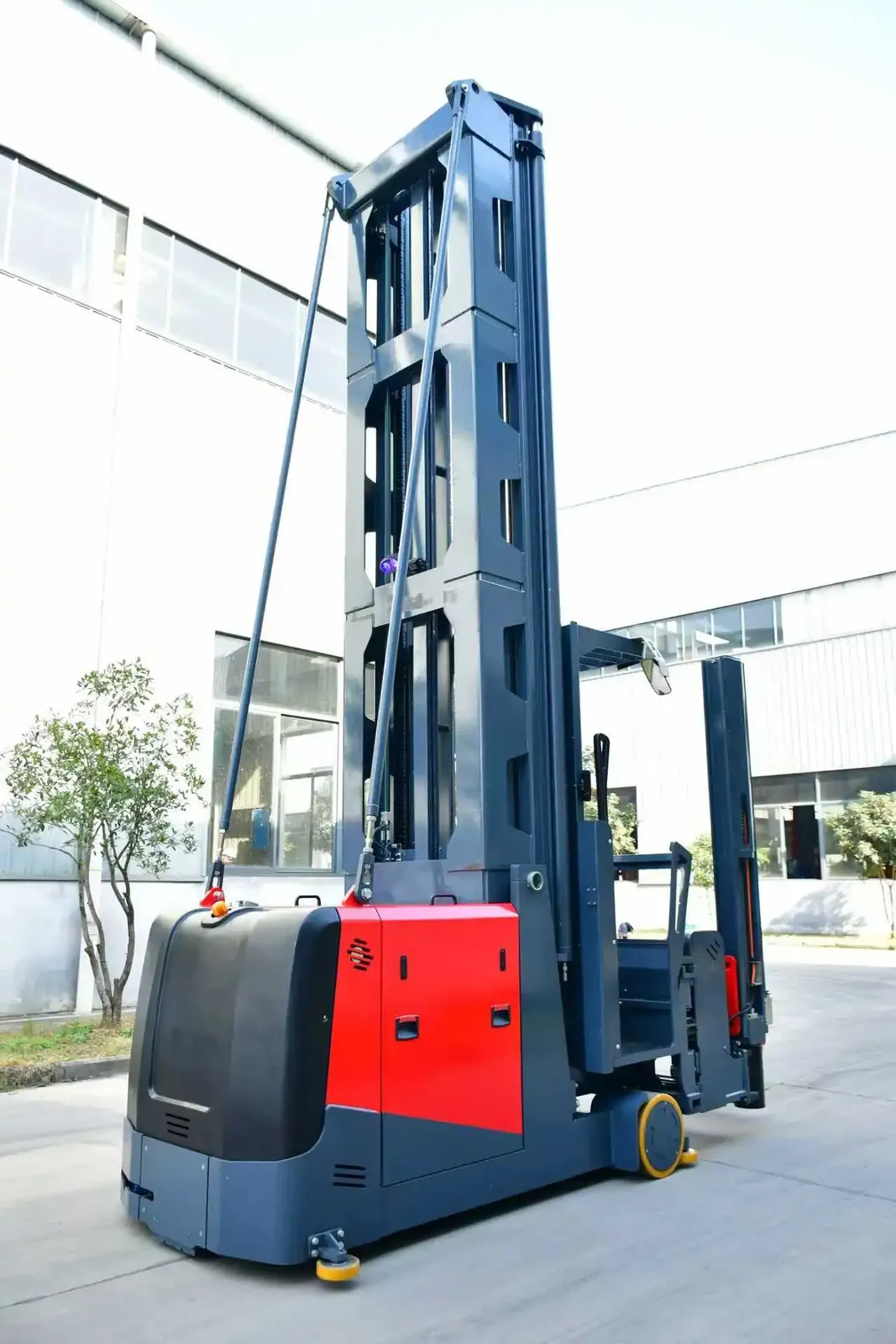

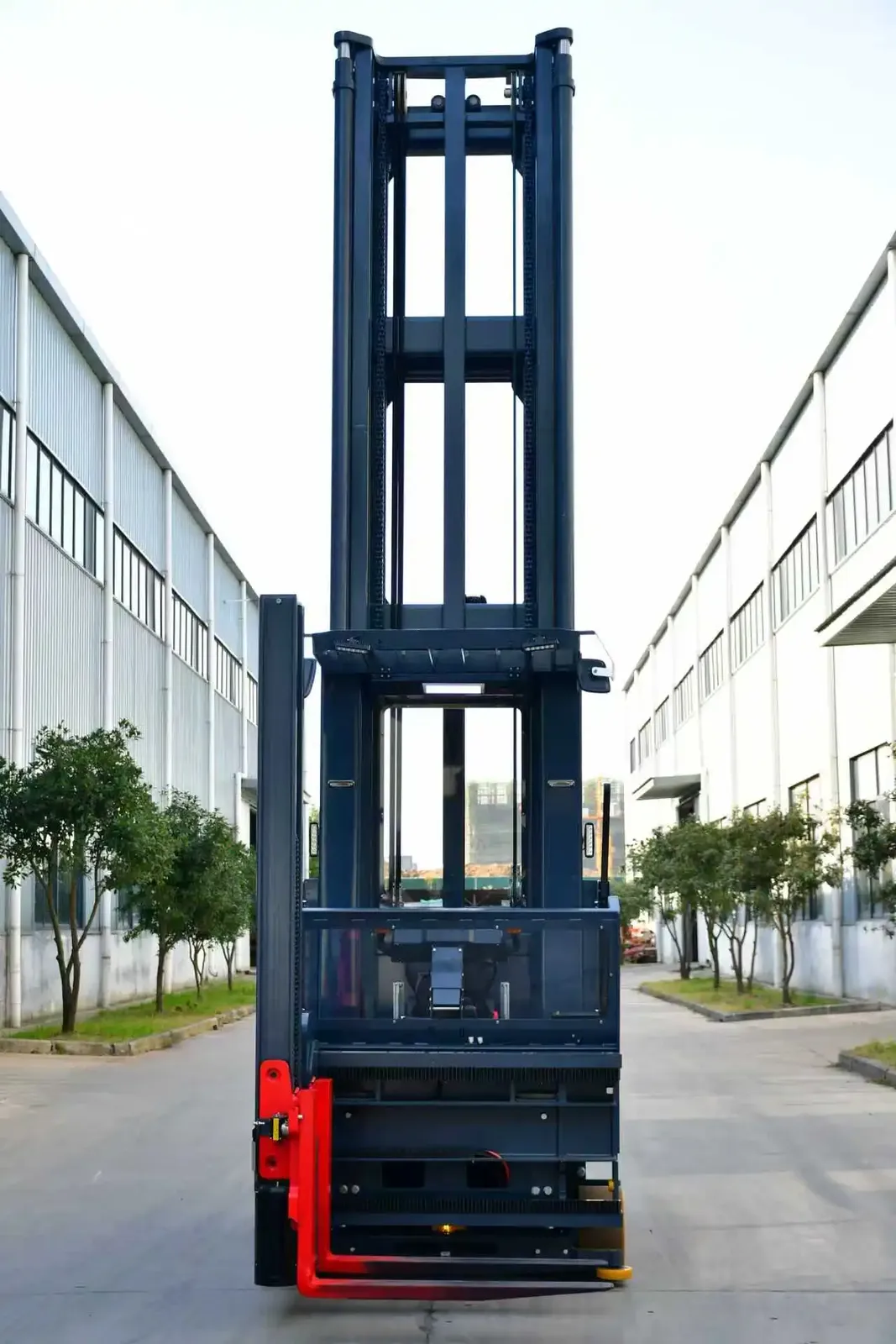

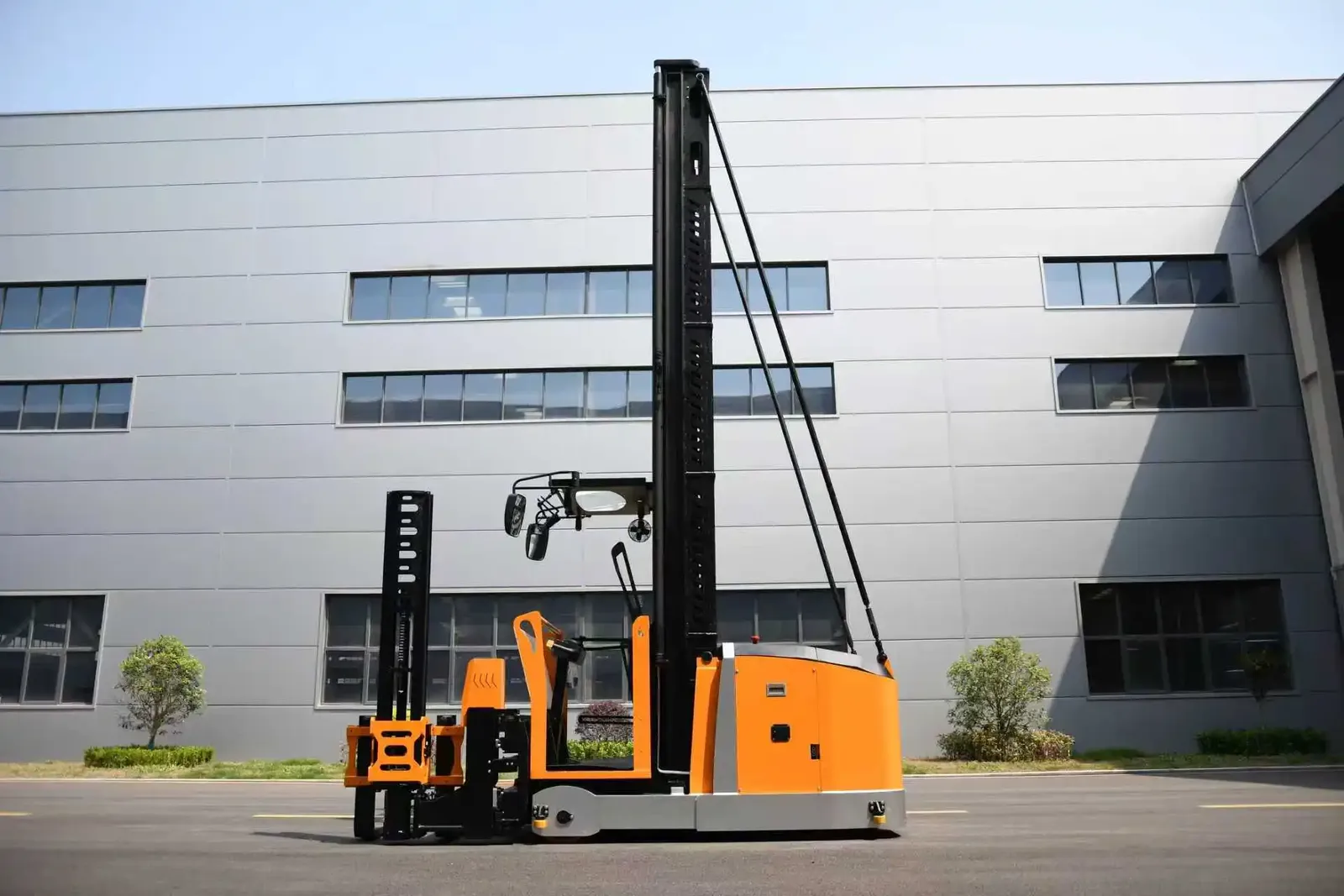

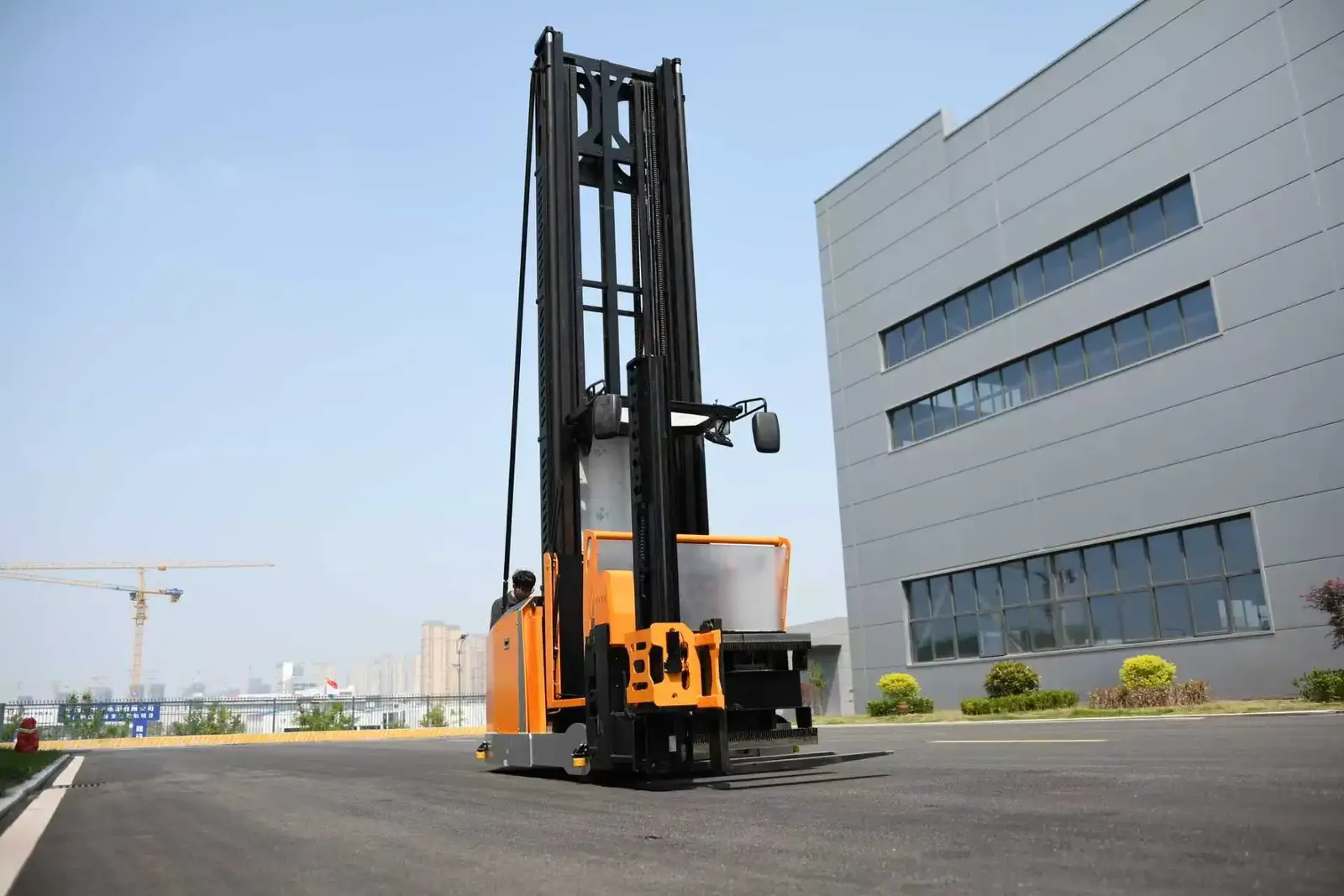

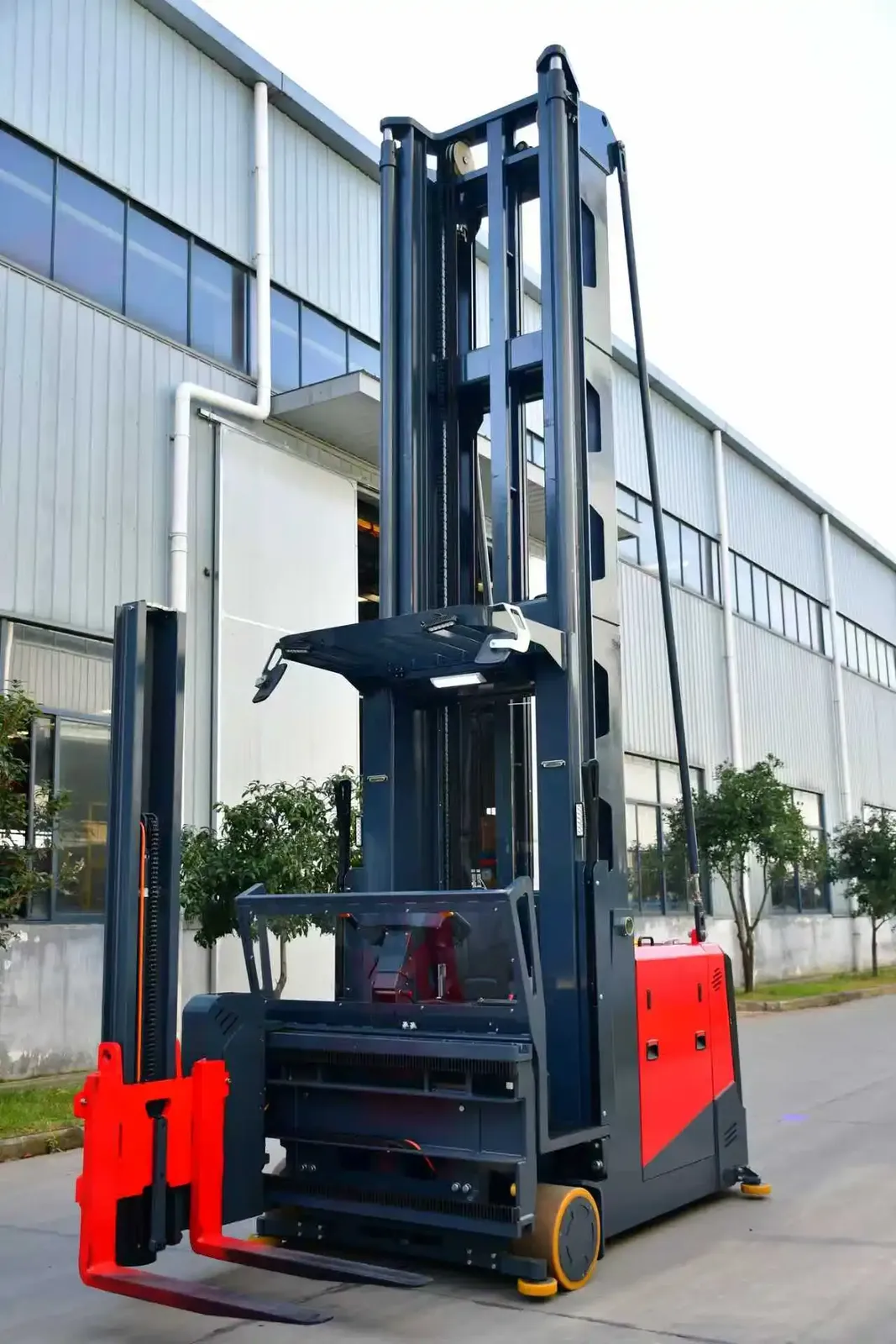

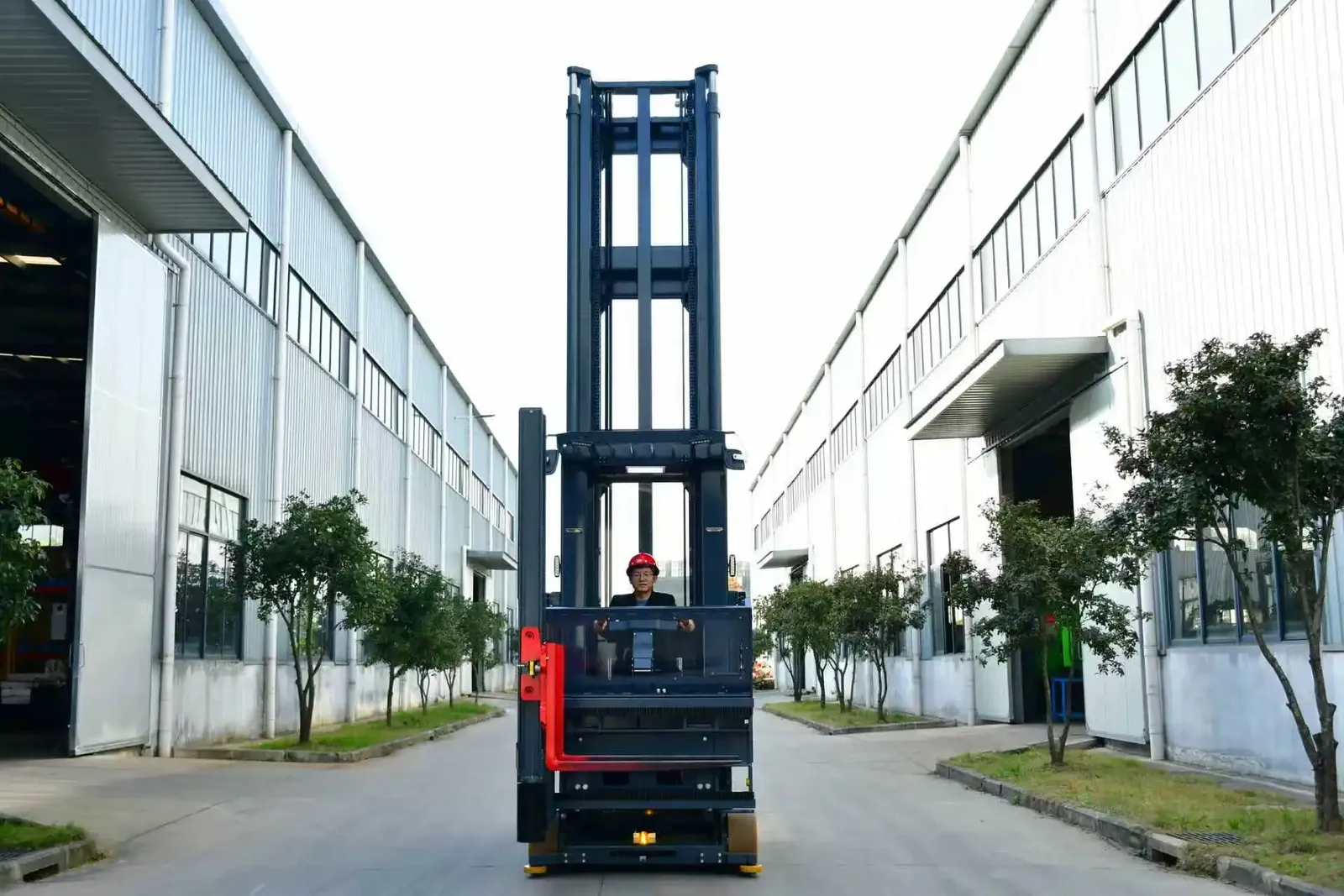

Forklift VNA Forklift Man up Electric 1600 kg
1.6 tLead-acidForks 1070 to 1220 mm
from £23,860per unit, ex VAT
| Quantity | Price per unit |
|---|---|
| 1+ units | £23,860 |
Minimum order 1 unit from the factory; any range minimum is confirmed on your quote. Prices in GBP per unit, ex VAT. We convert the factory list at a buffered exchange rate, so normal day-to-day currency movement does not change the price you see. Your written quote adds freight, duty and VAT and is valid for 30 days.
Rated Loading Capacity1.6 Ton
Truck TypeStacker Forklift
Line total
No online payment. The basket becomes an order request and we reply with a written GBP quote, deposit 30% on order, lead time 8 to 12 weeks.
Or email [email protected]Product Highlights
High Load Capacity: Supports up to 1500kg, ideal for heavy-duty tasks.
3-Way Functionality: Versatile for stacking, retrieving, and reaching.
Electric Power: Efficient and eco-friendly for indoor operations.
Stacking Capacity: Accommodates 1220mm wide pallets for efficient storage.
Seated Operation: Ergonomic design for comfortable and safe use.

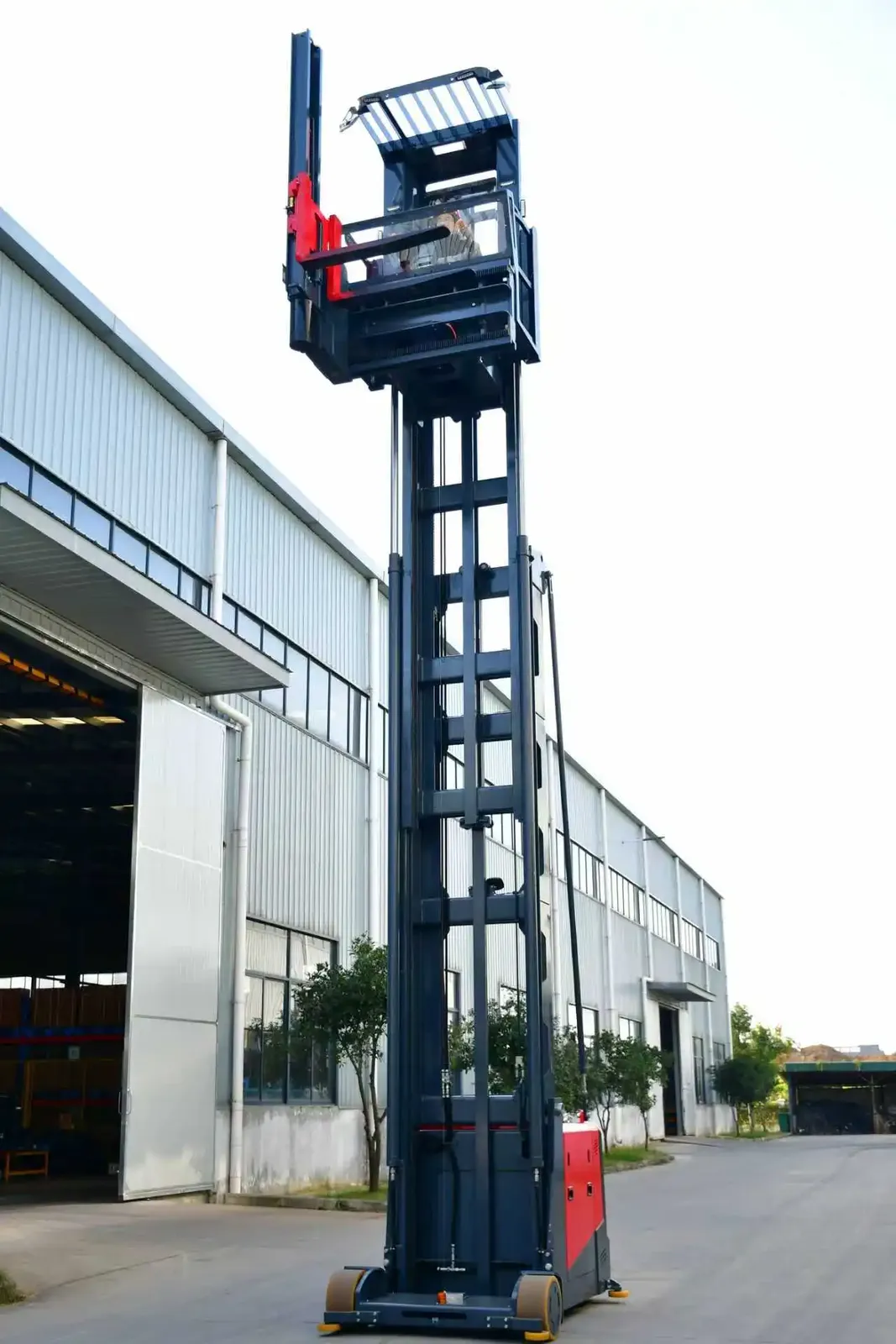

3-level mast, full AC, EPS, all-wheel electromagnetic braking, OPS system with dual-handed sensing and pedal sensing, one-key automatic loading and unloading, configuration of wire code display height and subsequent height increase function, high-definition reverse image function, equipped with rear blue light and front and rear warning lights.
| Condition | New |
|---|---|
| Fork Specifications( L*W*H) | 1220*125*50 |
| Forklift Battery Type | Lead–Acid Battery |
| Side Shifter | Electric Side Shifter |
| Drive Type | Rwd |
| Terrain Adaptability | Offroad, Indoor Flooring, Outdoor Pavement, Rough Terrain |
| Load centre distance | 600 mm |
| Mast Type | Three-Stage Mas, Two-Stage Mast |
| Forklift Turning radius | 2170 mm |
| Fork Width | 125 mm, 150 mm |
| Fork Length | 1070 mm, 1150 mm, 1200mm, 1220 mm |
| Operating Mode | Seated Operation |
| Forklift Tyre | Non-Marking Tyre, Polyurethane Tyre, Pneumatic Tyre, Solid Tyre |
| Grade ability laden) | 0.05 |
| Grade abilityunladen) | 0.05 |
| Forklift Wheelbase | 1250mm |
| Aisle width | 1.7M |
| Model Number | CQD |
| Battery voltage (V/AH) | 80V/680Ah |
| Fork height,lowered | 3000mm |
| Model | CQD |
| Power type | Electric Power |
| Capacity | 1.6T |
| Lifting height | 3m-14.5m |
| Mast | 2 Stage /3 Stage Optional |
| Battery | 80V/680Ah |
| Certification | CE/CE/ISO9001 |
| Rated Loading Capacity options | 1.6 Ton |
| Truck Type options | Stacker Forklift |
| Max. Lifting Height options | 9000mm, 3500 mm, 4000 mm, 4500 mm, 5000 mm, 5500 mm, 6000mm, 7000mm, 8000 mm, 10000 mm, 11000 mm, 12000 mm, 13000 mm, 14000 mm |

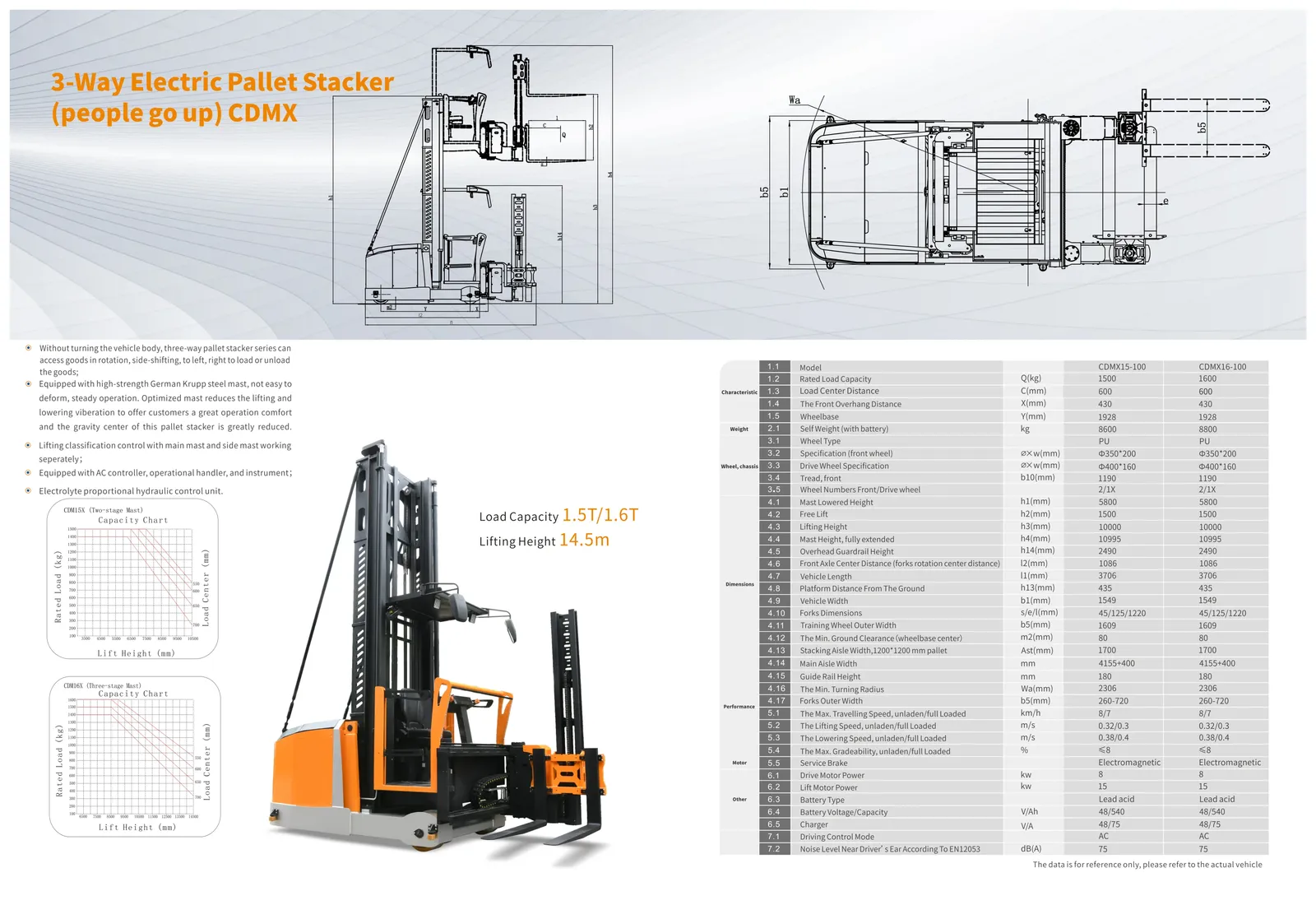

| 1.1 | Model | CQD | |
|---|---|---|---|
| 1.2 | Rated load capacity | Q(kg) | 1600 |
| 1.3 | Load centre distance | C(mm) | 600 |
| 1.4 | Front overhang | X(mm) | 450 |
| 1.5 | Wheelbase | Y(mm) | 2220 |
| 2.1 | Weight with battery | kg | 11670 |
| 3.1 | Wheel type | Polyurethane | |
| 3.2 | Front wheel specifications | ∅×w(mm) | φ380x192 |
| 3.3 | Drive wheel specifications | ∅×w(mm) | φ406x170 |
| 3.4 | Number of tyres (front/drive) | 2/1X | |
| 3.5 | Track, front wheel | b10(mm) | 1310/1460High position |
| 4.1 | Mast closed height | h1(mm) | 4500 |
| 4.2 | Free lift height (auxiliary lift height) | h2(mm) | 1500 |
| 4.3 | Lift height (total lift height) | h3(mm) | 7500 |
| 4.4 | Maximum mast height during operation | h4(mm) | 8995 |
| 4.5 | Overhead guard height | h14(mm) | 2585 |
| 4.6 | Standard height from ground level | h13(mm) | 485 |
| 4.7 | Vehicle length | l1(mm) | 4009 |
| 4.8 | Fork rotation centre distance from front axle centre | l2(mm) | 1105 |
| 4.9 | Vehicle width | b1(mm) | 1540/1660High position |
| 4.10 | Fork width (external) | b5(mm) | 260-725 |
| 4.11 | Fork dimensions | s/e/l(mm) | 50*125*1200 |
| 4.12 | Auxiliary wheel outer width | b5(mm) | 1600/1720High position |
| 4.13 | Minimum ground clearance (centre of wheelbase) | m2(mm) | 80 |
| 4.14 | Stacking aisle width, pallet 1200 x 1200 | Ast(mm) | 1650/1770High position |
| 4.15 | Main aisle width | mm | 4440+400 |
| 4.16 | Guide rail height | mm | 150 |
| 4.17 | Minimum turning radius | Wa(mm) | 2541 |
| 5.1 | Travel speed, unloaded/full | km/h | 10/9 |
| 5.2 | Lifting speed, unloaded/full | m/s | 0.32/0.32 |
| 5.3 | Lowering speed, unloaded/full | m/s | 0.38/0.4 |
| 5.4 | Maximum gradeability, unloaded/full | ≤8 | |
| 5.5 | Types of service brakes | Electromagnetic | |
| 6.1 | Drive motor power | kw | 10 |
| 6.2 | Lift motor power | kw | 21 |
| 6.3 | Battery type | Lead Acid | |
| 6.4 | Battery voltage/capacitance | V/Ah | 80V/630Ah |
| 6.5 | Steering motor | KW | 1.5 |
| 6.6 | Charger | V/A | 80V/80A |
| 7.1 | Drive control method | AC |
| Certificate | Number | Valid |
|---|---|---|
| 2006/42/EC | M.2026.206.C137529 | 30/03/2026 - 29/03/2031 |
| CE | M.2026.206.C134736 | 04/02/2026 - 03/02/2031 |
| CE | 3N251031.NEMS093 | 30/10/2025 - 29/10/2030 |
| EAC | — | 22/10/2023 - 22/10/2028 |
| CE | M.2023.206.C83216 | 22/03/2023 - 21/03/2028 |
| CE | M.2023.206.C83215 | 22/03/2023 - 21/03/2028 |
| CE | M.2023.206.C83222 | 22/03/2023 - 21/03/2028 |
| CE | M.2023.206.C83221 | 22/03/2023 - 21/03/2028 |
Certificates are supplied with your quote on request.
