Forklifts · Ref LPT-48177

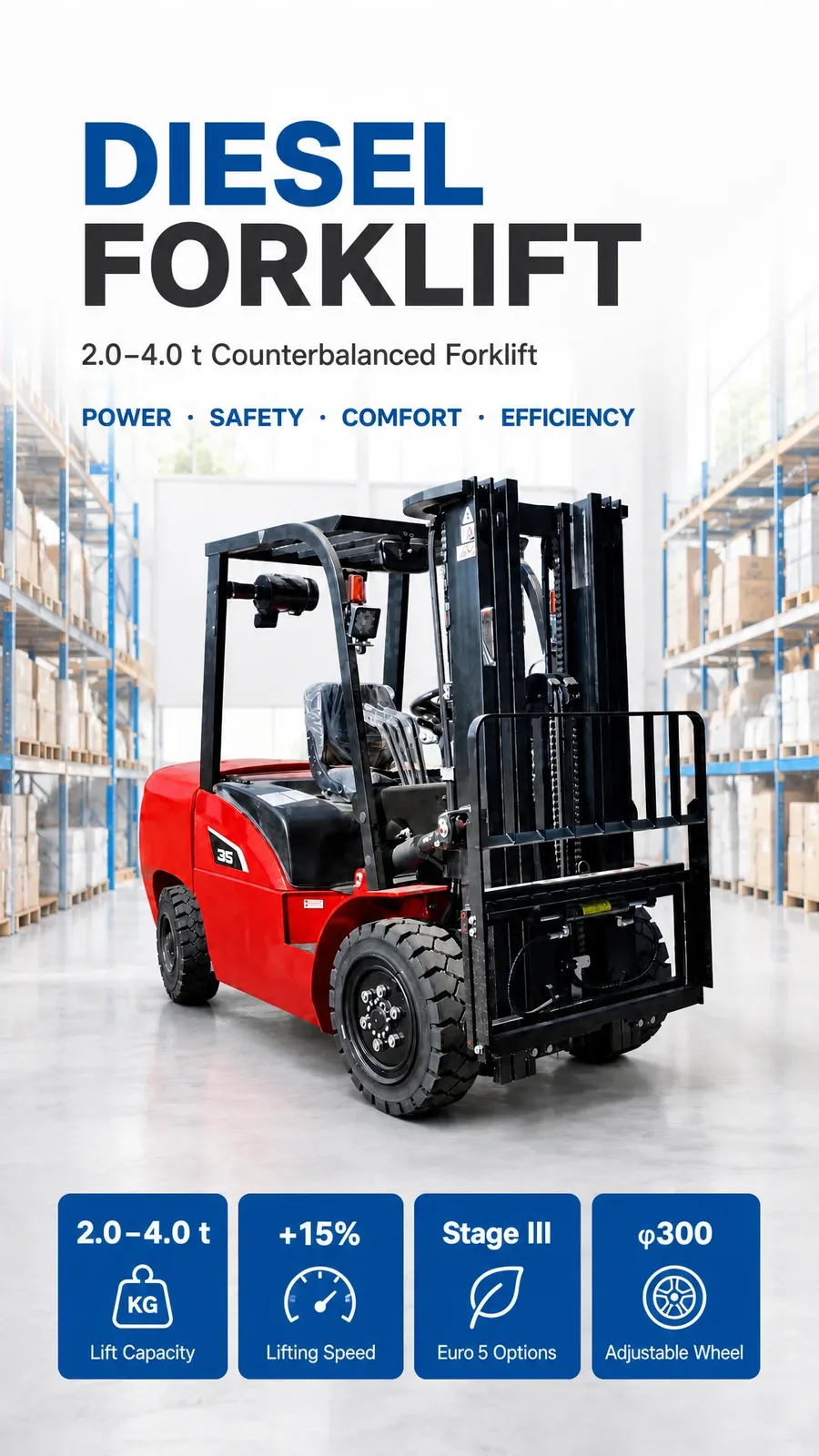

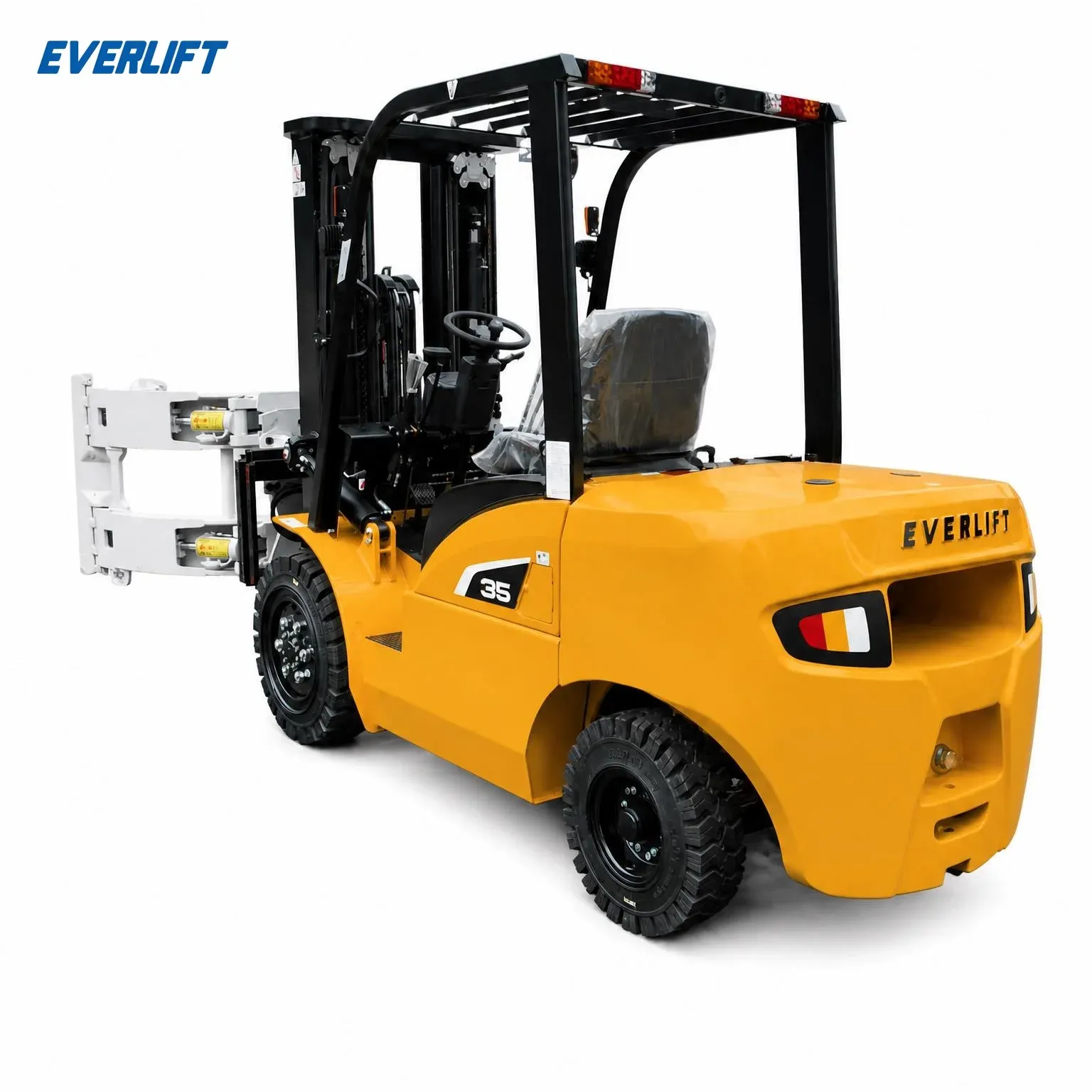

Industrial Forklift 3500 kg (LPT-48177)
3.5 tDieselForks 1220 mm
from £6,590per unit, ex VAT
| Quantity | Price per unit |
|---|---|
| 1 to 9 units | £7,190 |
| 10+ units | £6,590 |
Minimum order 1 unit from the factory; any range minimum is confirmed on your quote. Prices in GBP per unit, ex VAT. We convert the factory list at a buffered exchange rate, so normal day-to-day currency movement does not change the price you see. Your written quote adds freight, duty and VAT and is valid for 30 days.
Rated Loading Capacity3.5 Ton
Truck TypeCounterbalance Forklift
Max. Lifting Height3000mm
Line total
No online payment. The basket becomes an order request and we reply with a written GBP quote, deposit 30% on order, lead time 8 to 12 weeks.
Or email [email protected]Product Highlights

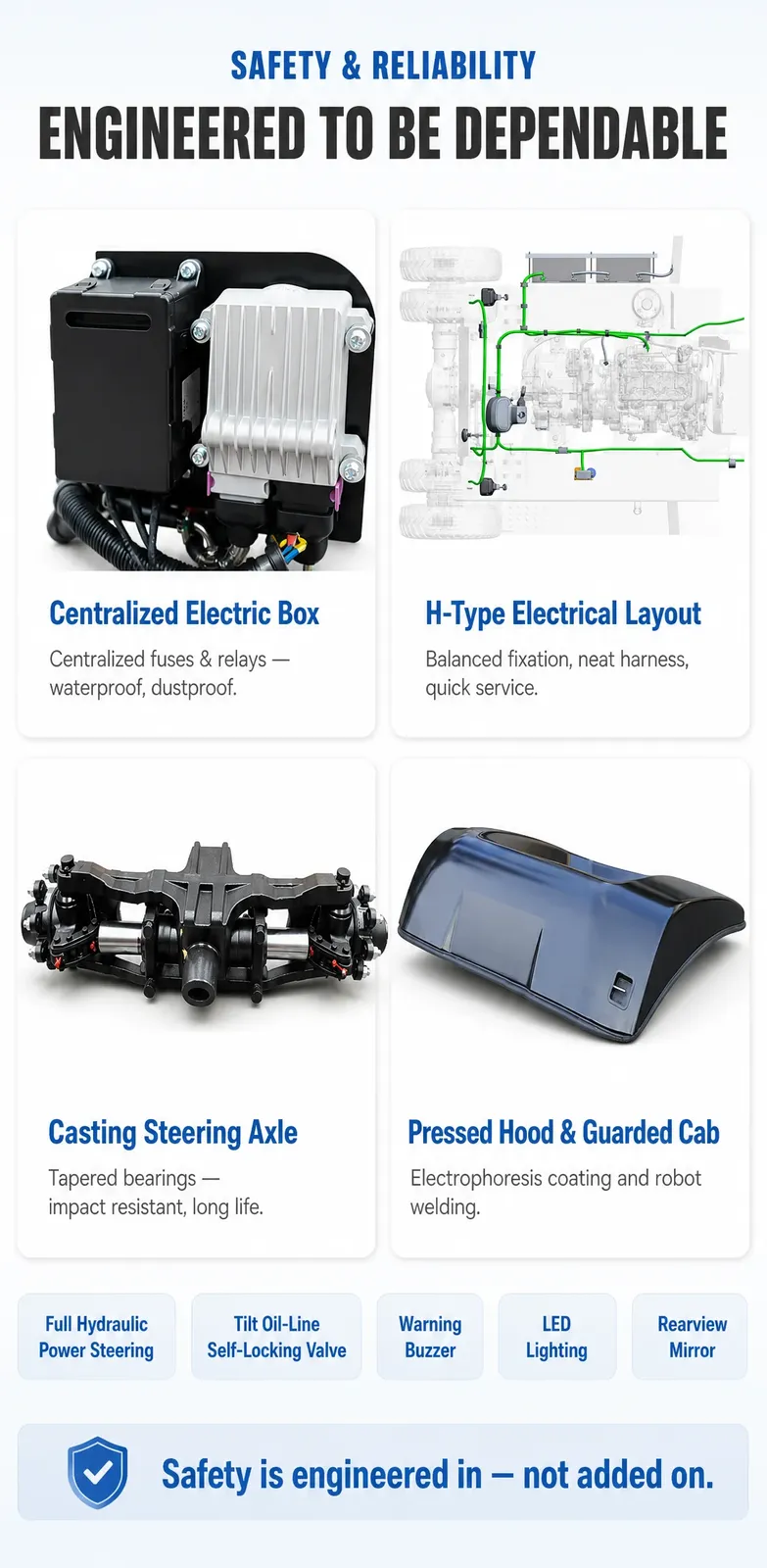

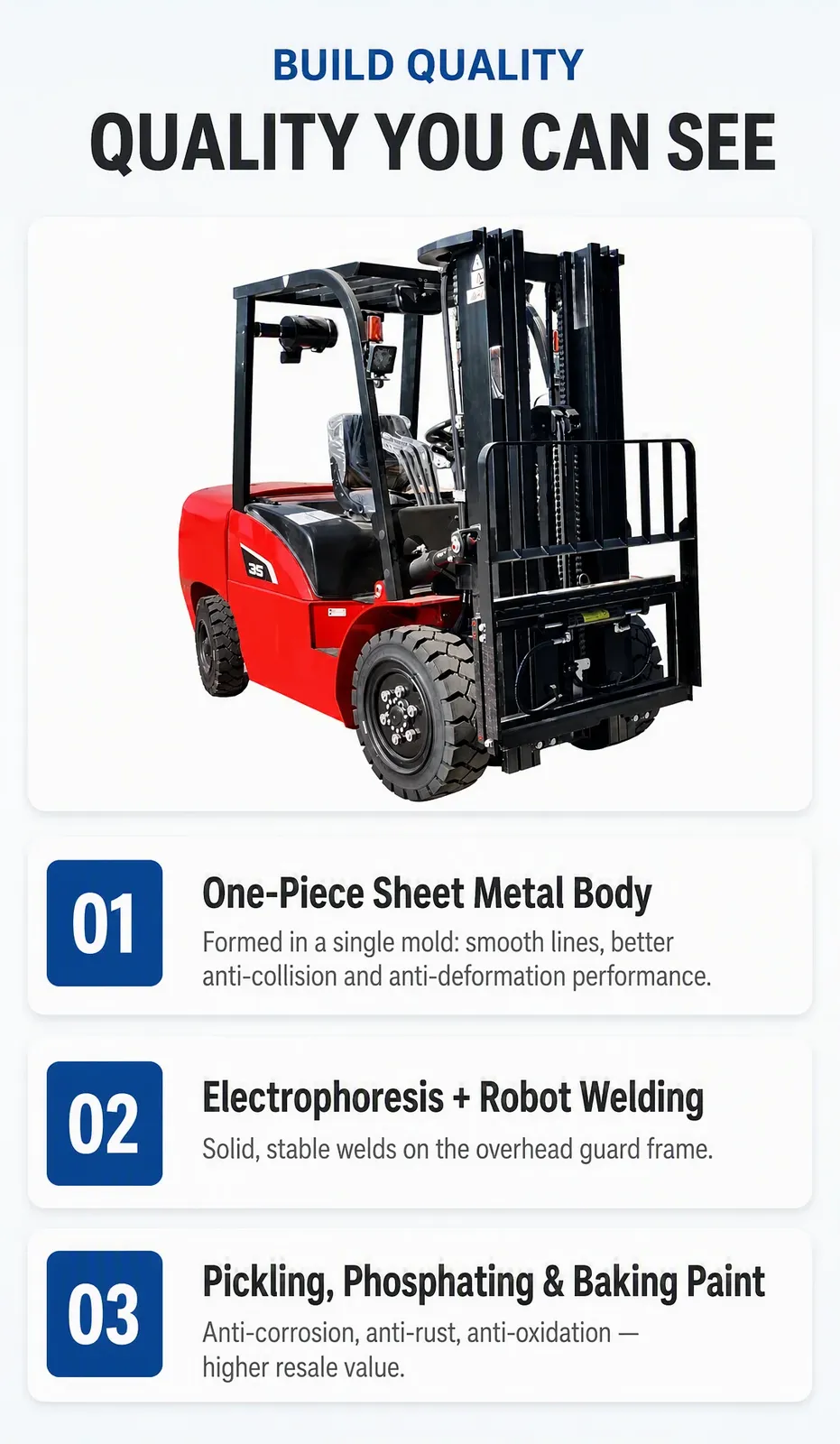

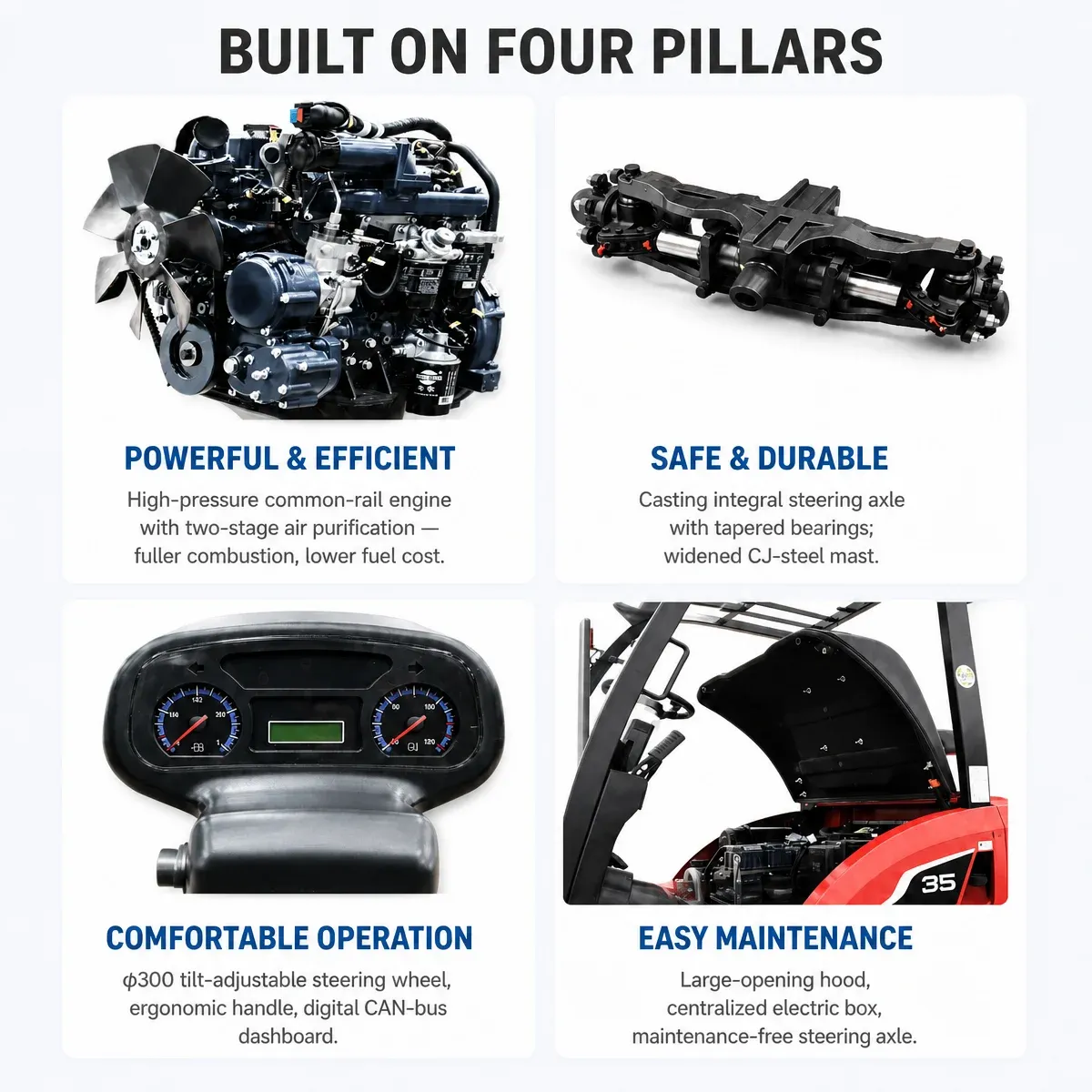

Cast integral steering axle with tapered bearings resists impact. Baking paint finish after pickling and phosphating gives corrosion resistance and high resale value.

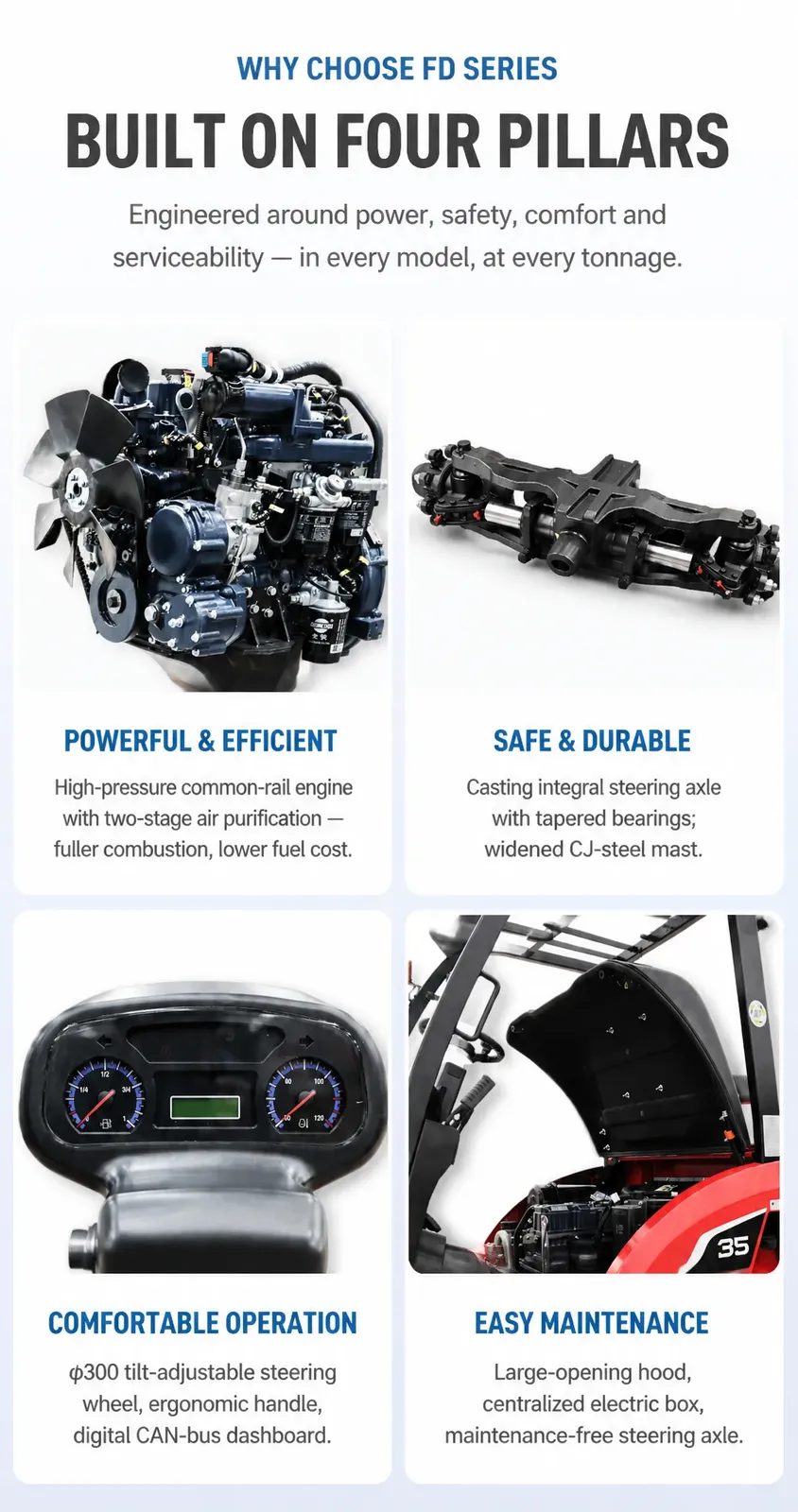

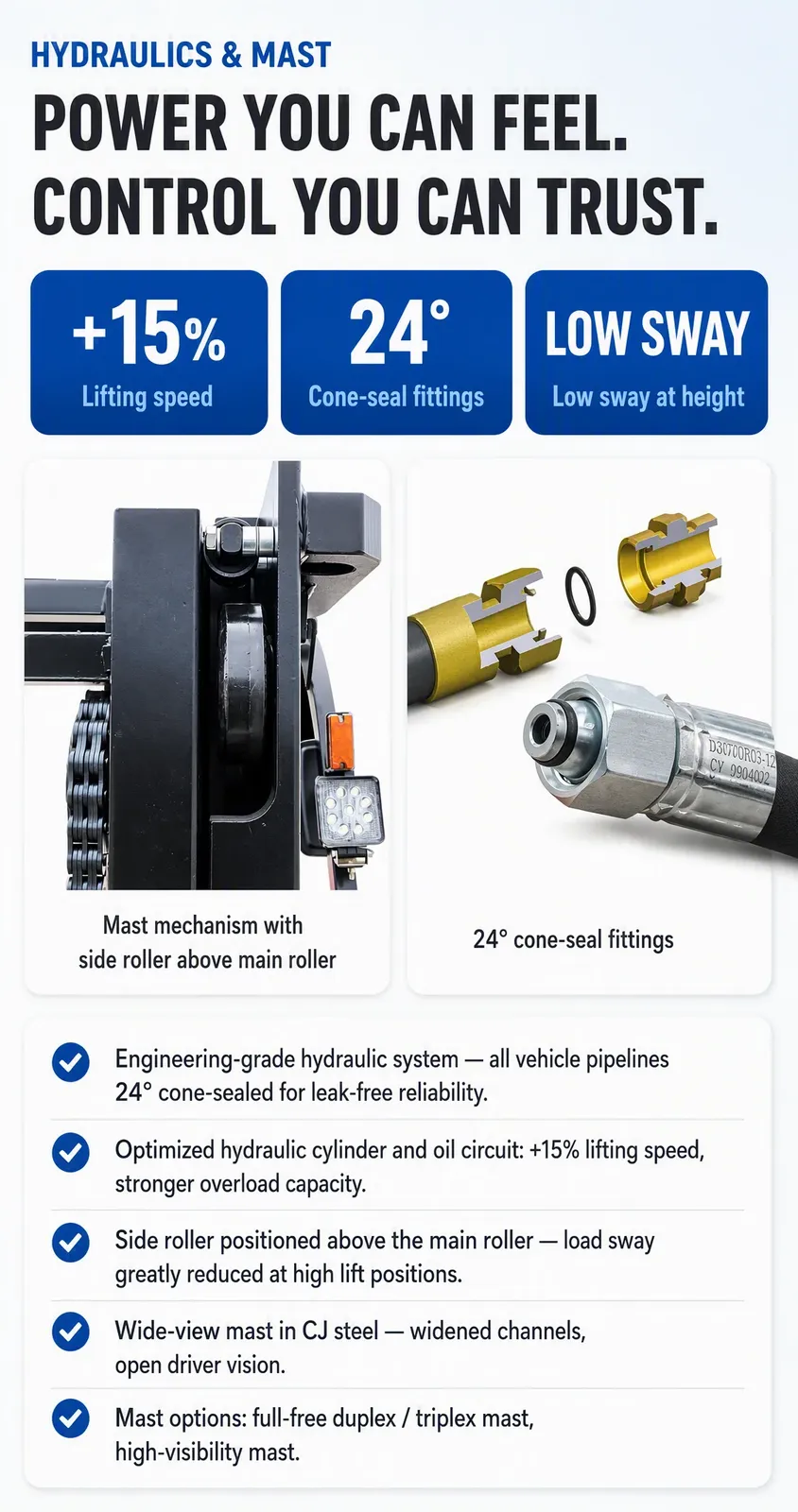

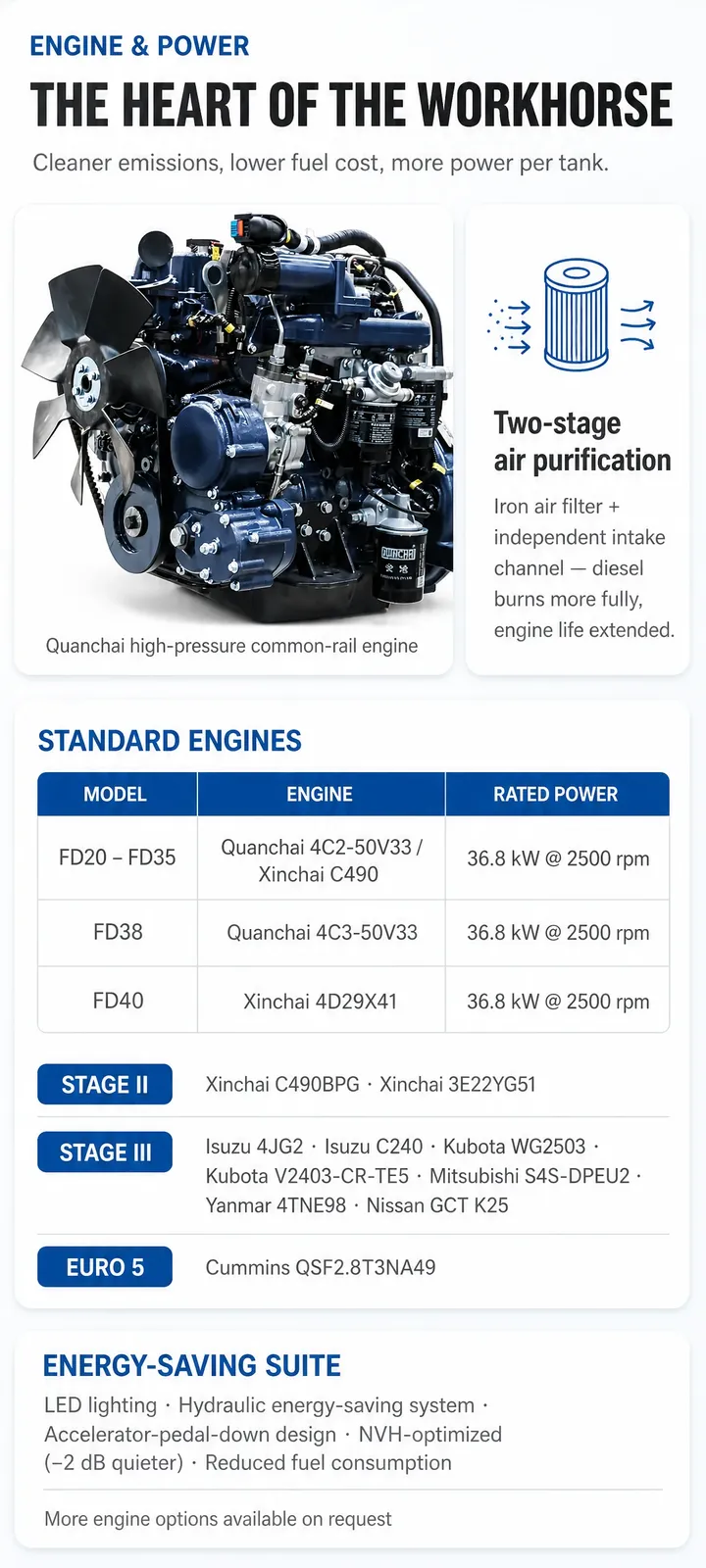

QuanChai 4C4-50V31 common rail diesel engine (36.8kW, Stage III); 24-degree cone seal hydraulics, digital CAN bus panel, maintenance-free cast steering axle.

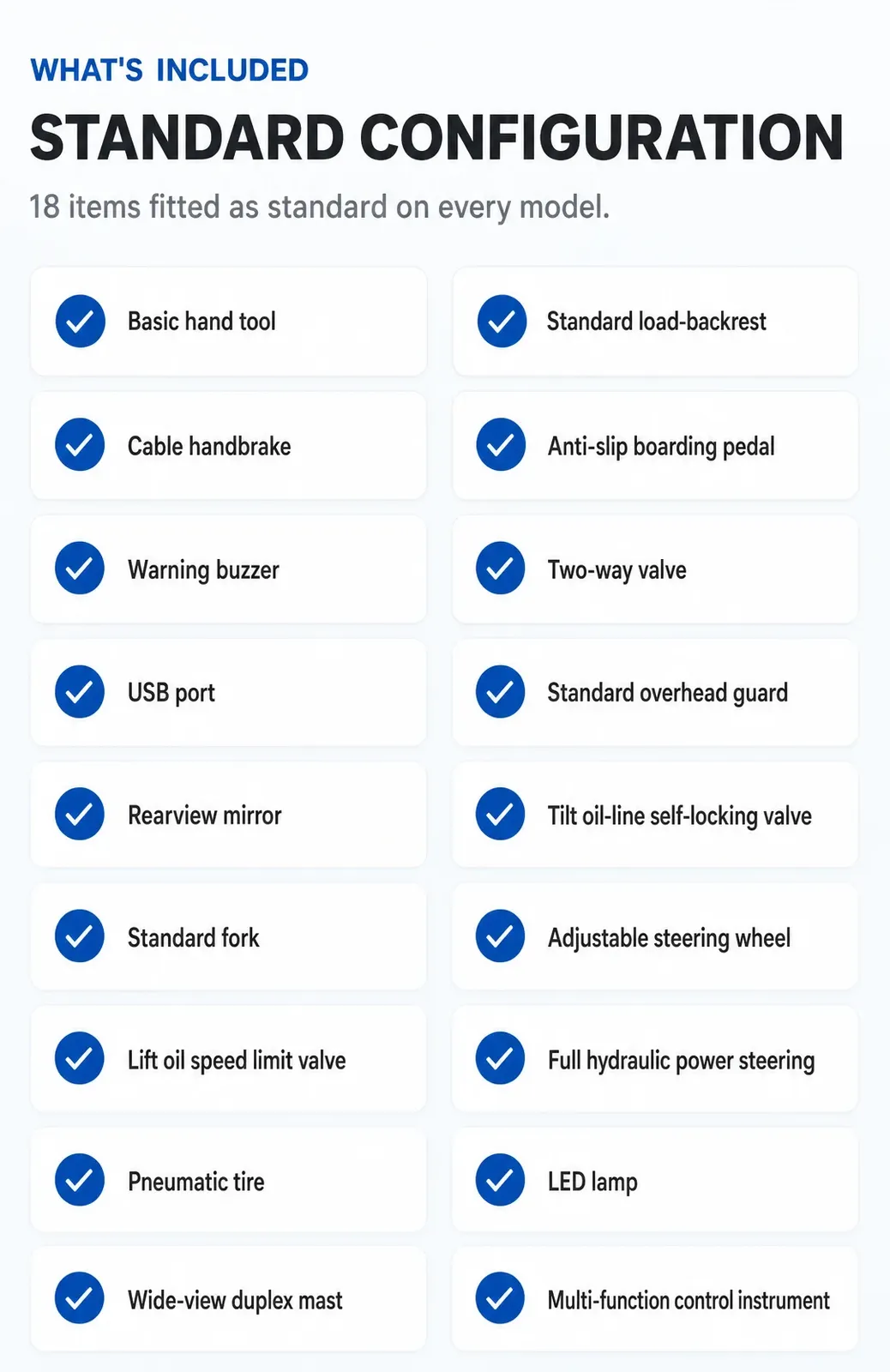

Stage III emission with two-stage iron air purification. Anti-slip pedal, welded handle, overhead guard, warning buzzer and rearview mirror enhance safety.
3.5-ton rated load at 500mm load centre, 3m lift height, 480mm/s lifting speed, 18.5/19km/h travel speed, 2560mm turning radius, 15/20% gradeability.
12V/80Ah battery, digital dashboard. NVH optimisation cuts noise by 2dB; common rail injection, energy-saving hydraulics and LED lighting reduce fuel use.

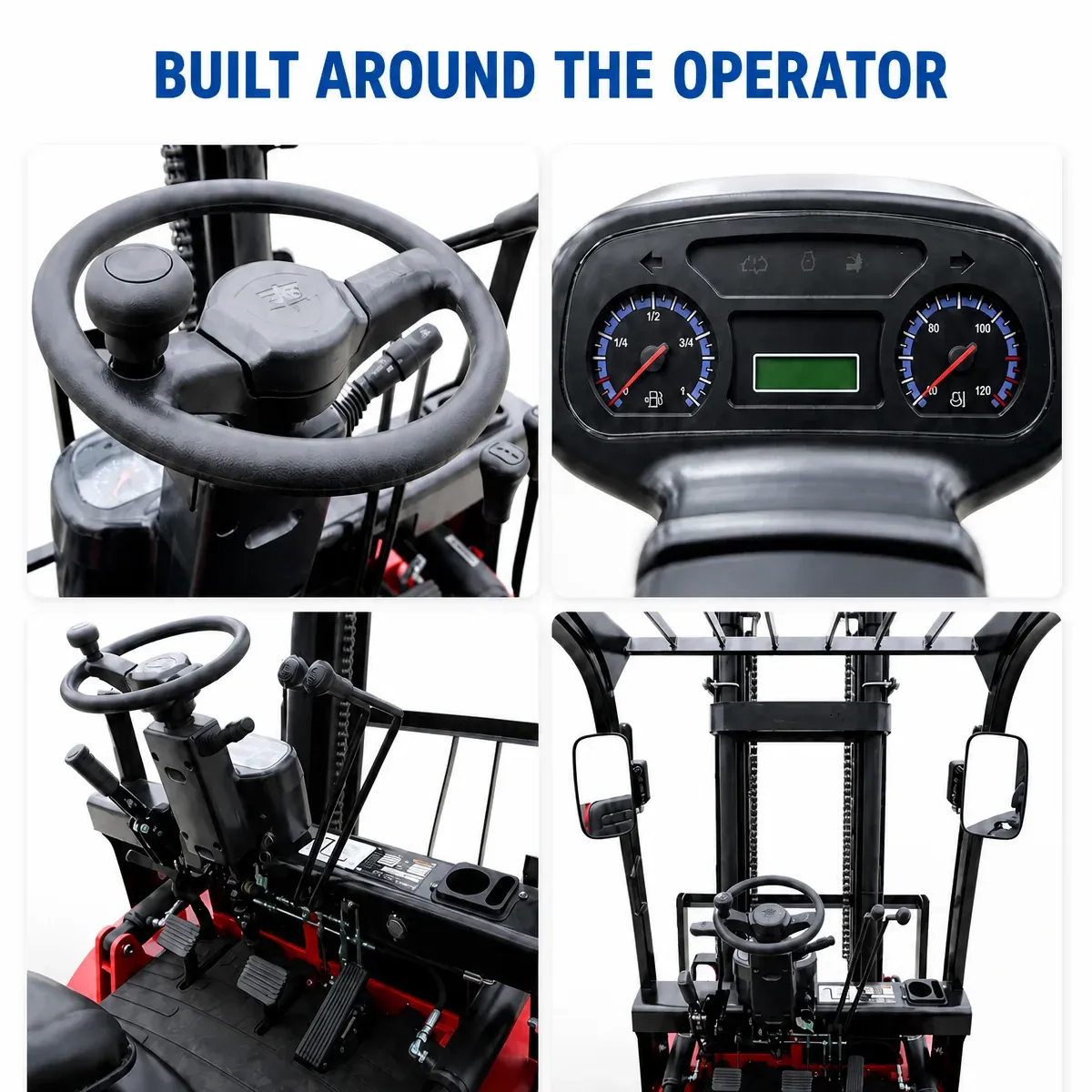

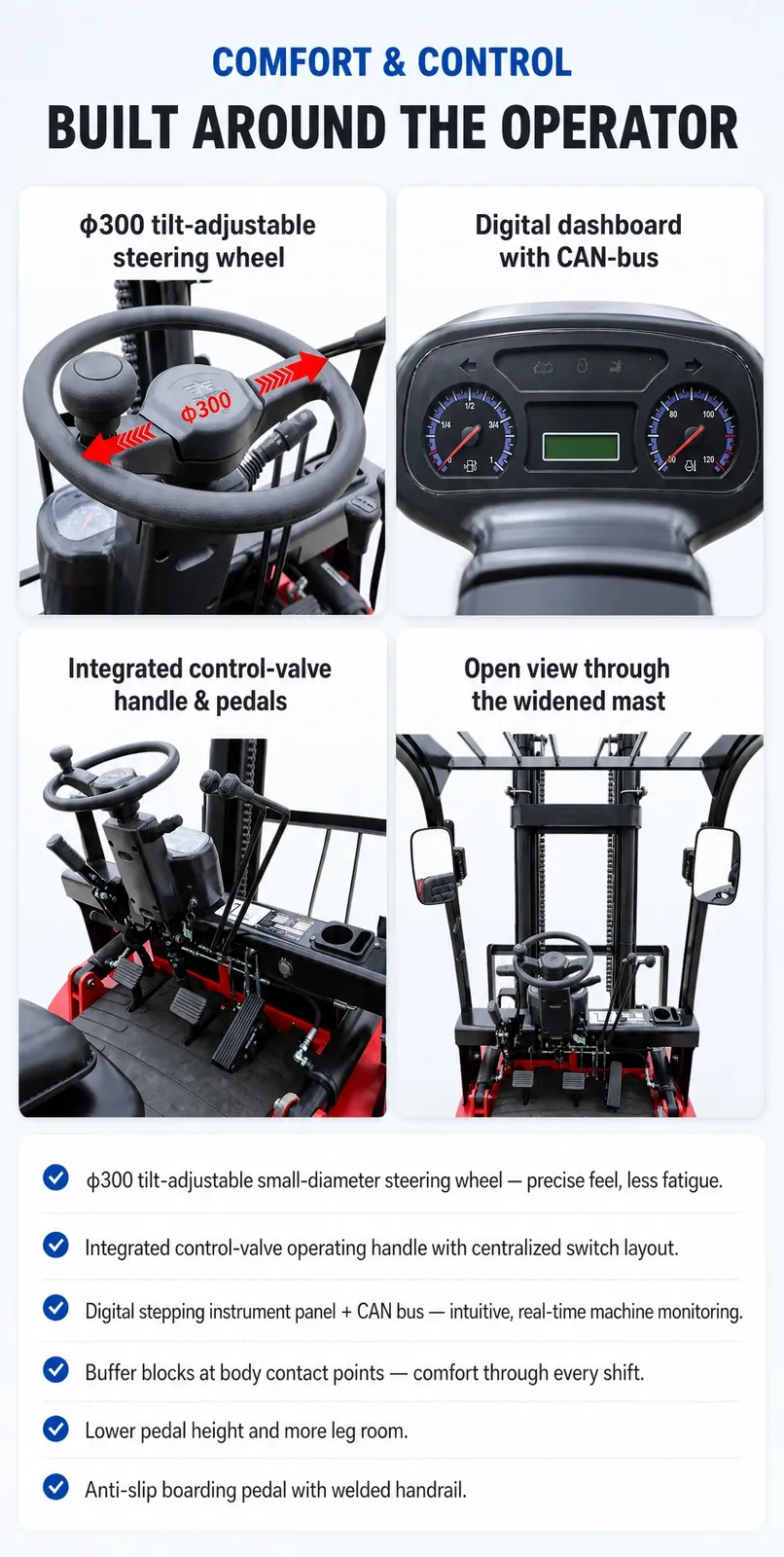

Wide view CJ steel mast, 300mm adjustable steering wheel, hydraulic power steering option, pneumatic tyres (solid optional); for warehouses, factories, docks.

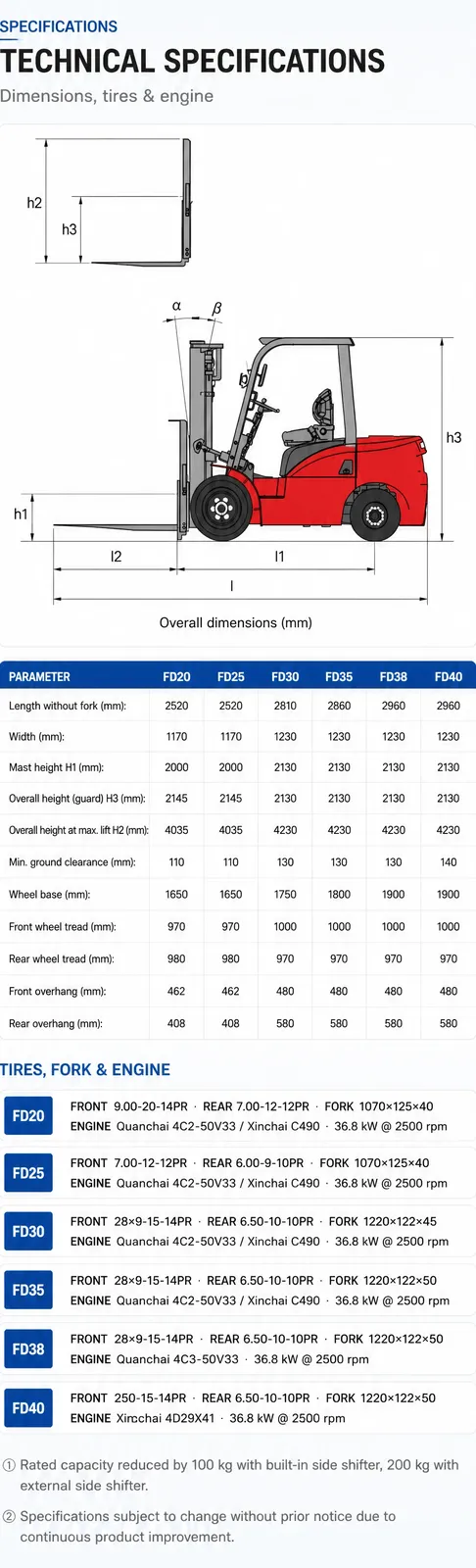

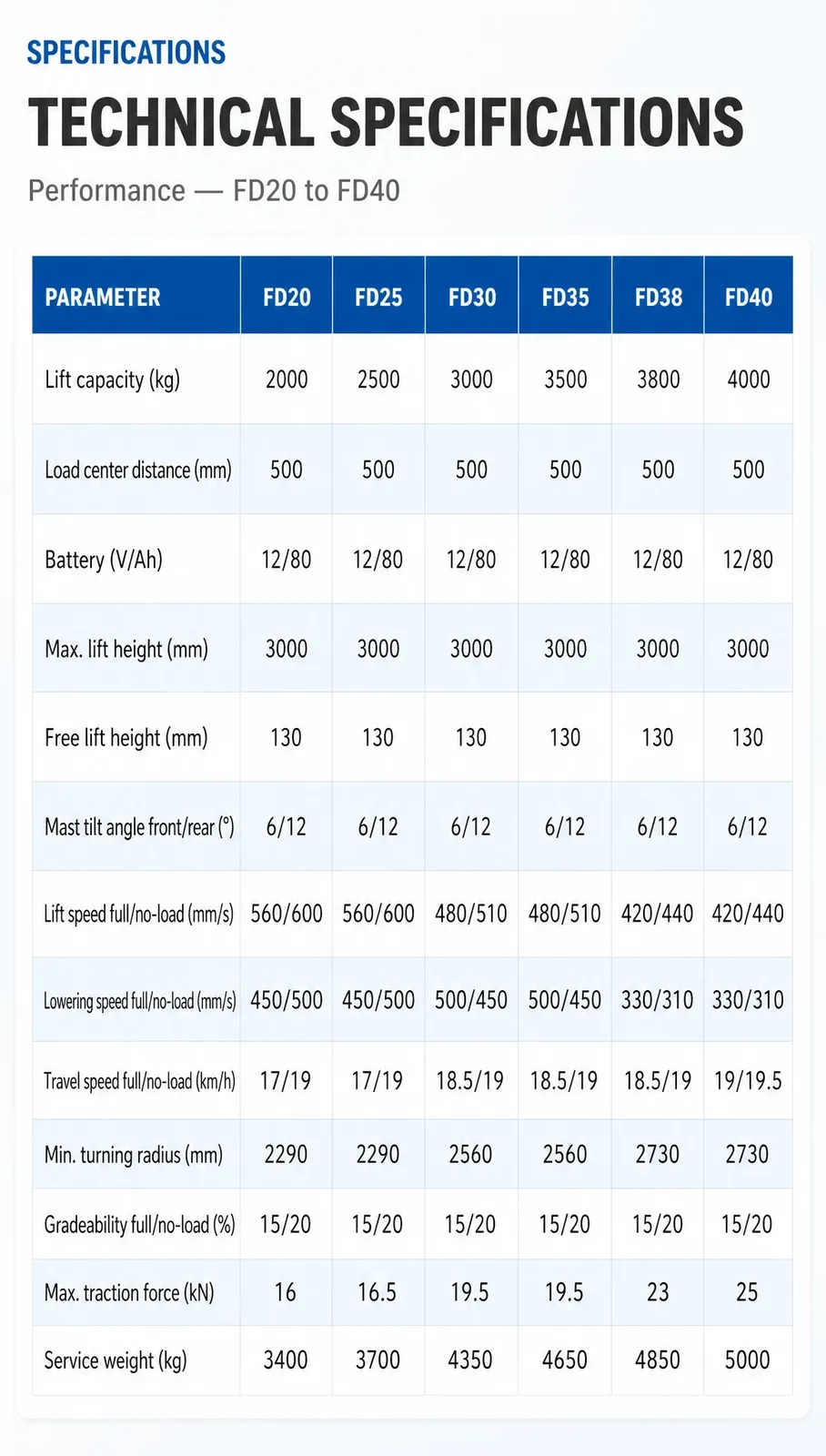

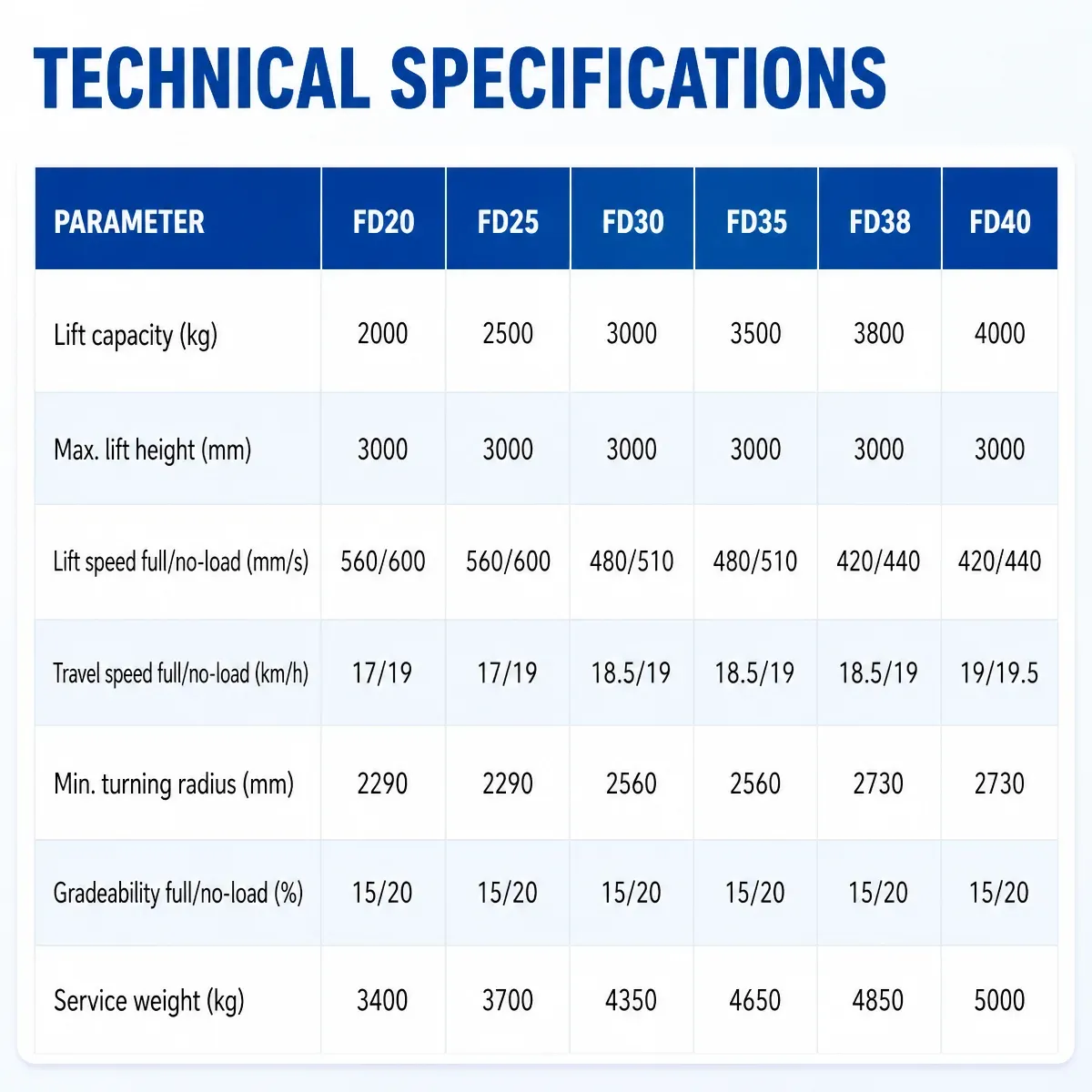

| Condition | New |
|---|---|
| Fork Specifications( L*W*H) | 1220*122*50mm |
| Fork Length | 1220mm |
| Fork Width | 122mm |
| Forklift Turning radius | 2560mm |
| Power Source | Diesel |
| Mast Type | Single Stage Mast, Two Stage Mast, Three Stage Mast |
| Load centre distance | 500mm |
| Forklift Wheelbase | 1800mm |
| Travel speed ( laden) | 18.5 km/h |
| Mast Tilt Angle (Forward Tilt-Rear Tilt) | 6° / 12° |
| Travel speed ( unladen) | 19 km/h |
| Grade ability laden) | 15% |
| Grade ability unladen) | 20% |
| Model Number | FD35 |
| Rated Load Capacity | 3500kg |
| Max. Lifting Height | 3000mm |
| Service Weight | 4650kg |
| Rated Power | 36.8kW @ 2500rpm |
| Rated Torque | 190Nm @ 1500-1850rpm |
| Max. Traction Force | 19.5kN |
| Free Lift Height | 130mm |
| Lifting Speed (Full Load) | 480mm/s |
| Min Ground Clearance | 130mm |
| Battery (Voltage/Capacity) | 12V / 80Ah |
| Rated Loading Capacity options | 3.5 Ton |
| Truck Type options | Counterbalance Forklift |
| Max. Lifting Height options | 3000mm |
| Certificate | Number | Valid |
|---|---|---|
| 2006/42/EC | M.2026.206.C137529 | 30/03/2026 - 29/03/2031 |
| CE | M.2026.206.C134736 | 04/02/2026 - 03/02/2031 |
| CE | 3N251031.NEMS093 | 30/10/2025 - 29/10/2030 |
| EAC | — | 22/10/2023 - 22/10/2028 |
Certificates are supplied with your quote on request.
