Forklifts · Ref LPT-64994

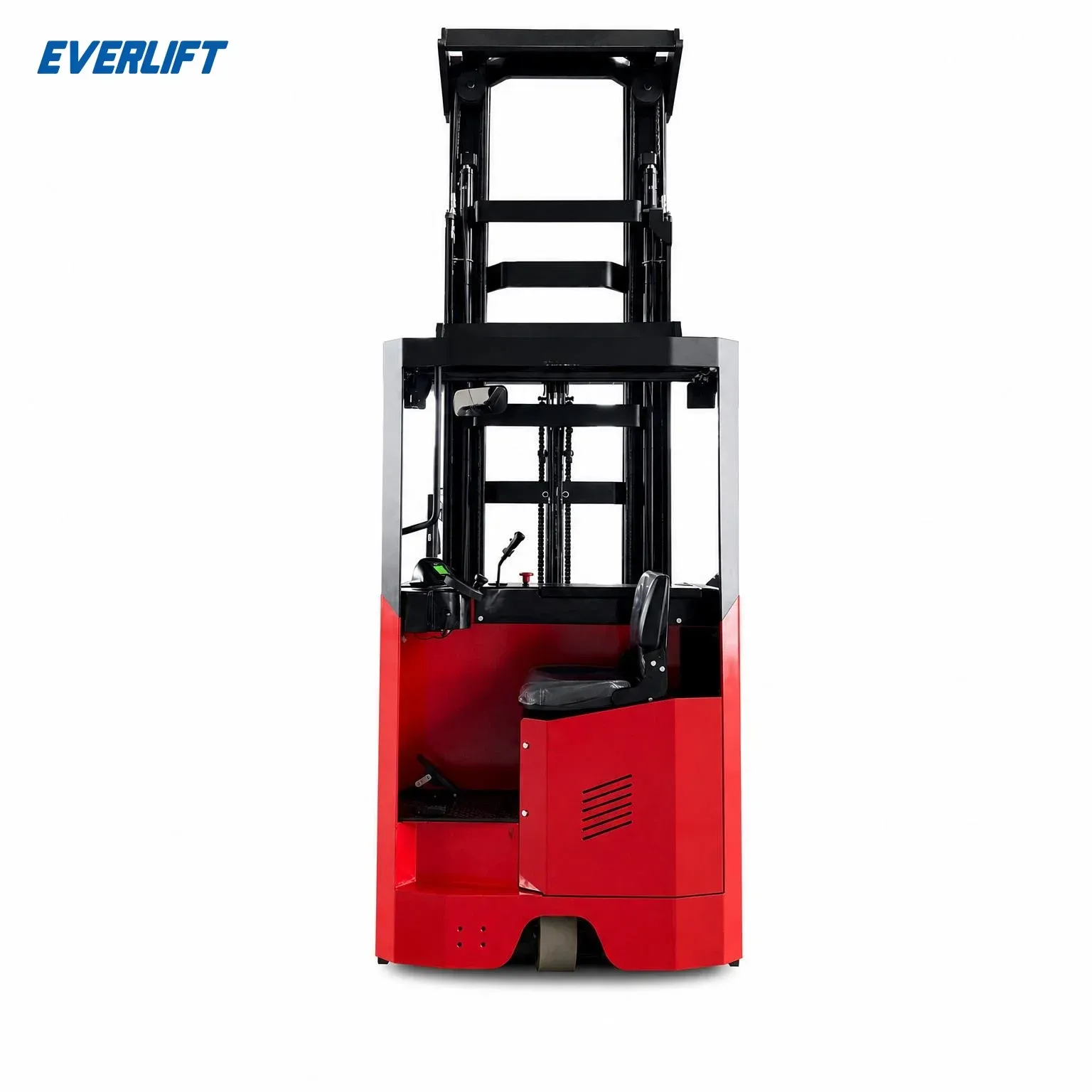

Seated Electric Reach Truck 1600 kg
1.6 tLead-acidForks 1070 mm
from £15,350per unit, ex VAT
| Quantity | Price per unit |
|---|---|
| 1 to 9 units | £16,790 |
| 10+ units | £15,350 |
Minimum order 1 unit from the factory; any range minimum is confirmed on your quote. Prices in GBP per unit, ex VAT. We convert the factory list at a buffered exchange rate, so normal day-to-day currency movement does not change the price you see. Your written quote adds freight, duty and VAT and is valid for 30 days.
Rated Loading Capacity1.6T
Max. Lifting Height6000mm
Truck TypeDouble Deep Reach Truck
Line total
No online payment. The basket becomes an order request and we reply with a written GBP quote, deposit 30% on order, lead time 8 to 12 weeks.
Or email [email protected]Product Highlights
1High-capacity reach stacker forklift featuring a robust 2000kg rated load for heavy-duty material handling efficiency.

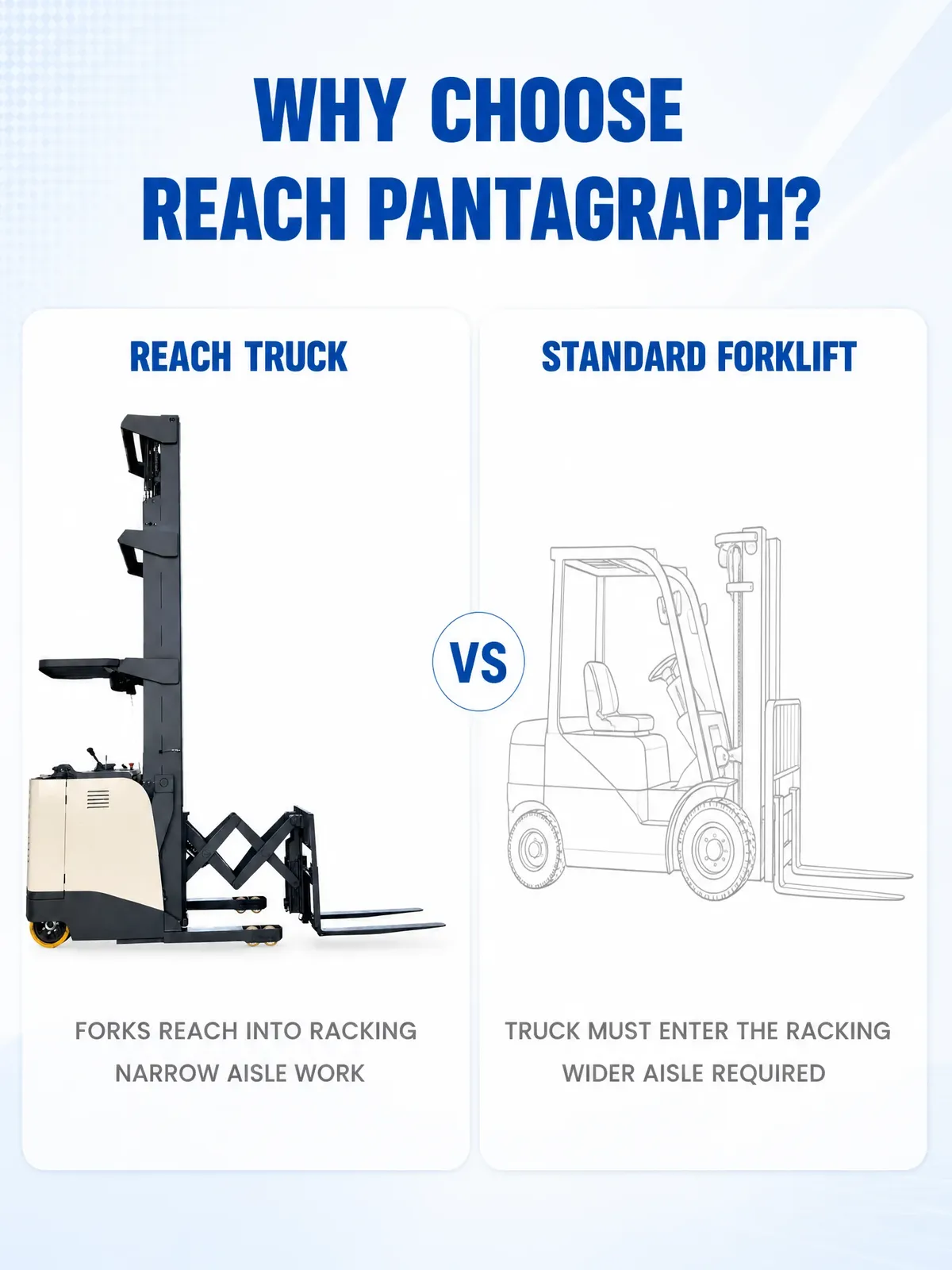

2Advanced reach truck design with a massive 6000mm mast lifting height to maximise high-rack warehouse storage.

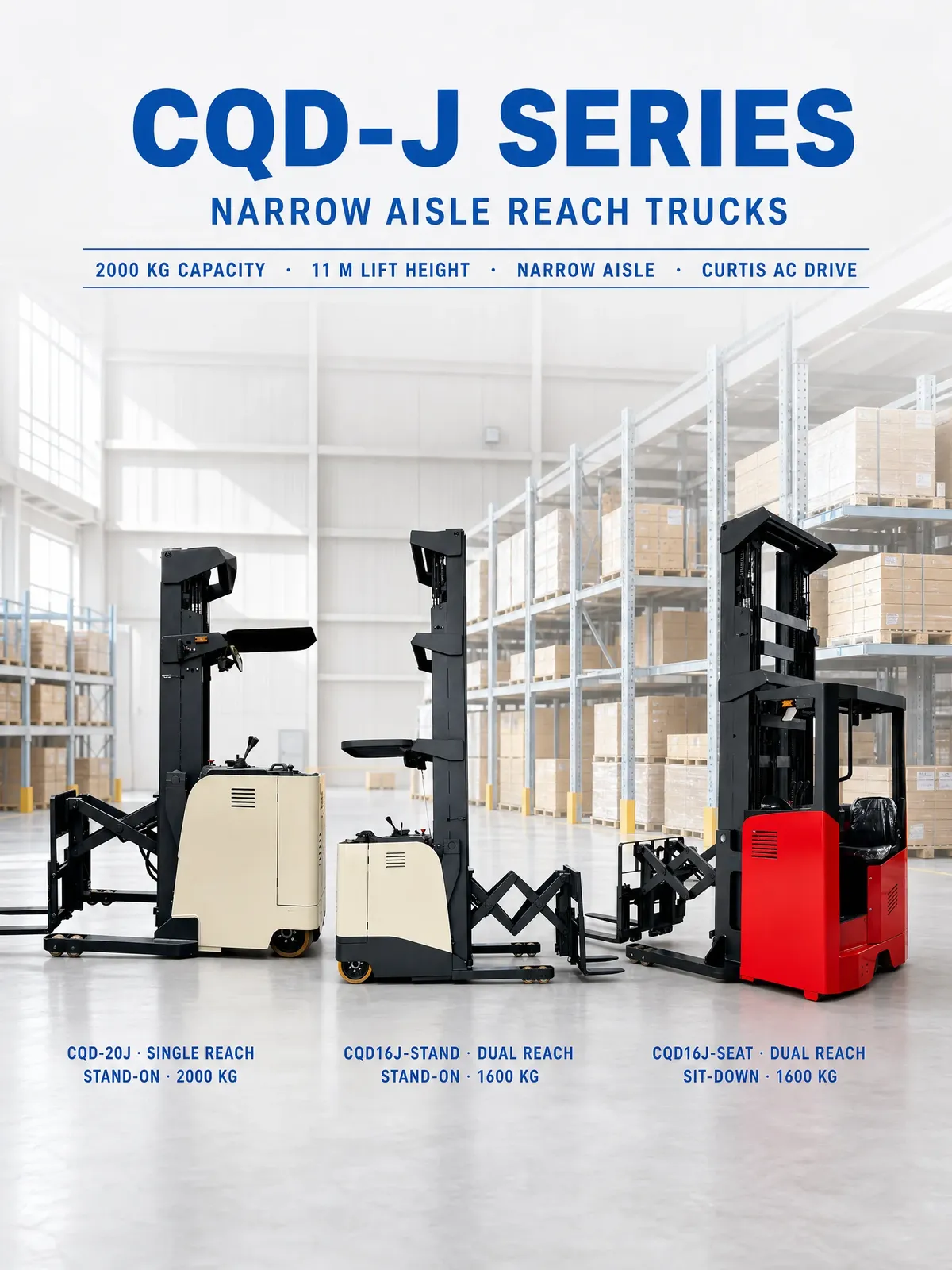

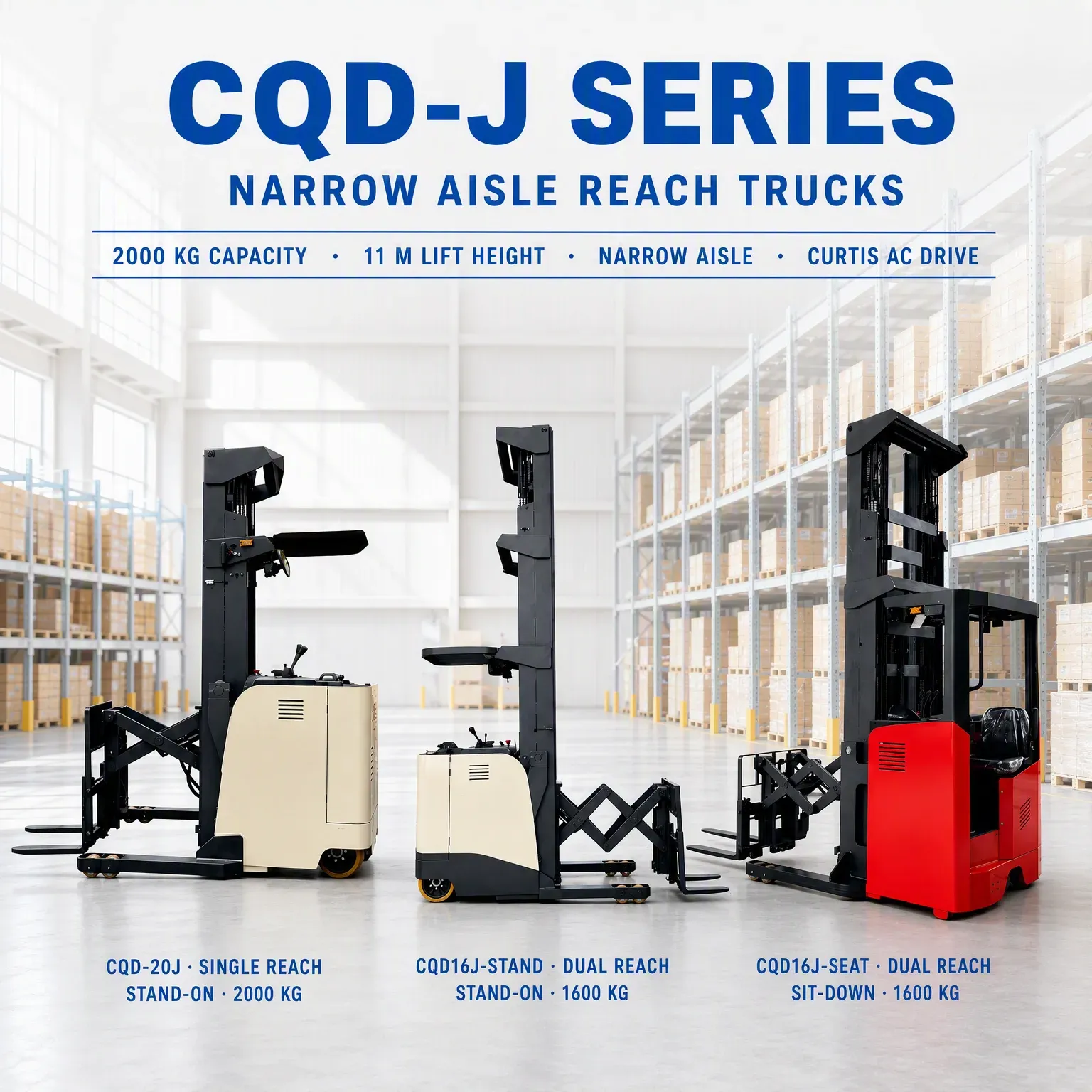

3Versatile ergonomic platform options, including stand-on and seated reach trucks, to reduce operator fatigue.
4Lead-acid battery powered electric forklift engineered for continuous, long-lasting warehouse operations.
5Precision electronic steering and powerful AC drive motors provide excellent manoeuvrability and control.

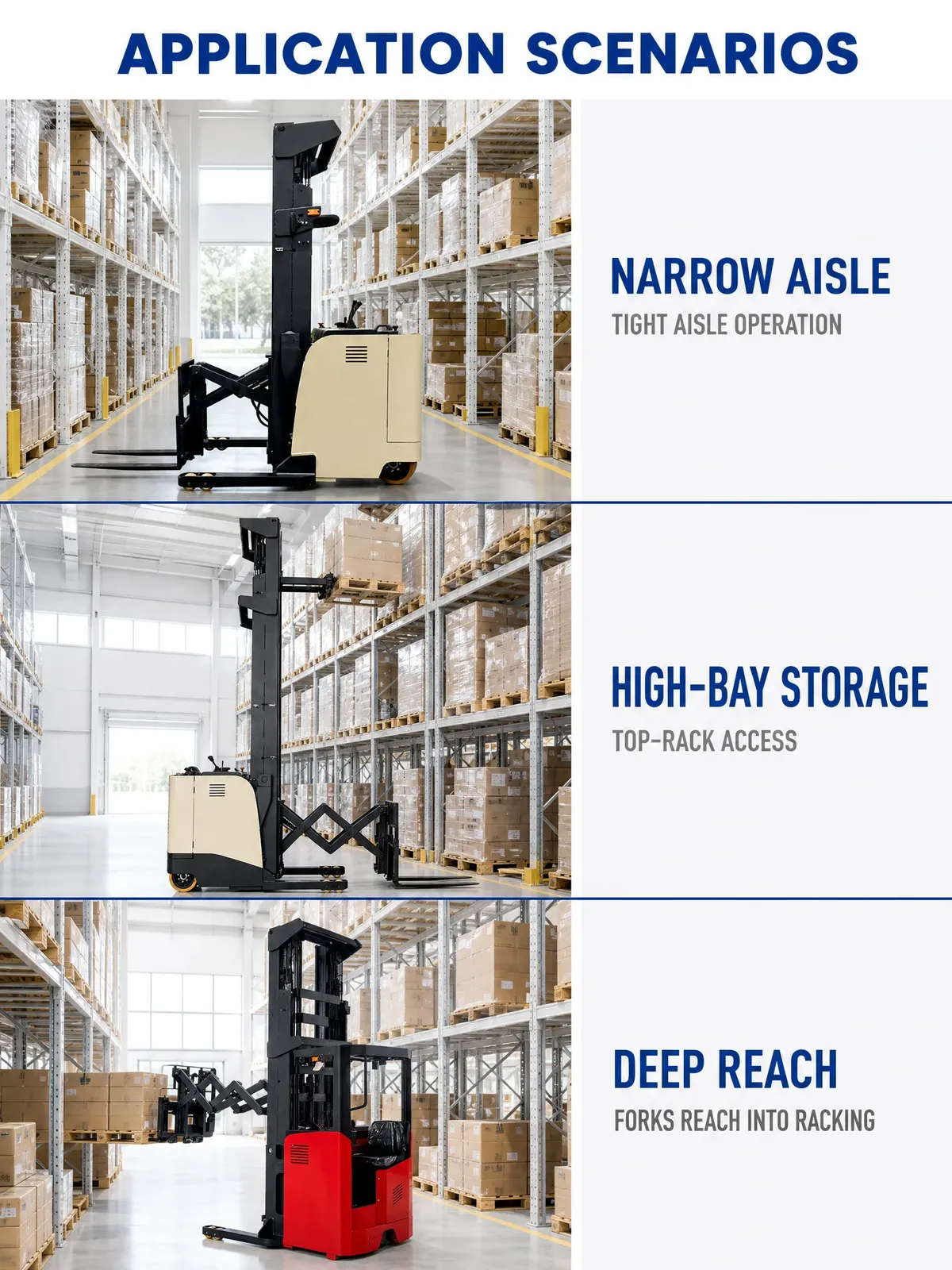

6Space-saving narrow aisle forklift with an optimised turning radius for tight warehouse logistics navigation.
7Polyurethane (PU) tyres ensure smooth mobility and protect the floor surface during high-intensity operations.
8Superior lifting and lowering speeds (up to 300mm/s) significantly boost pallet handling and order picking productivity.
9Electromagnetic braking system with a side-pull battery design ensures high workplace safety and easy maintenance.
10Factory direct supply with MOQ 1. OEM & ODM supported. DM our sales team for the best solution and quote.

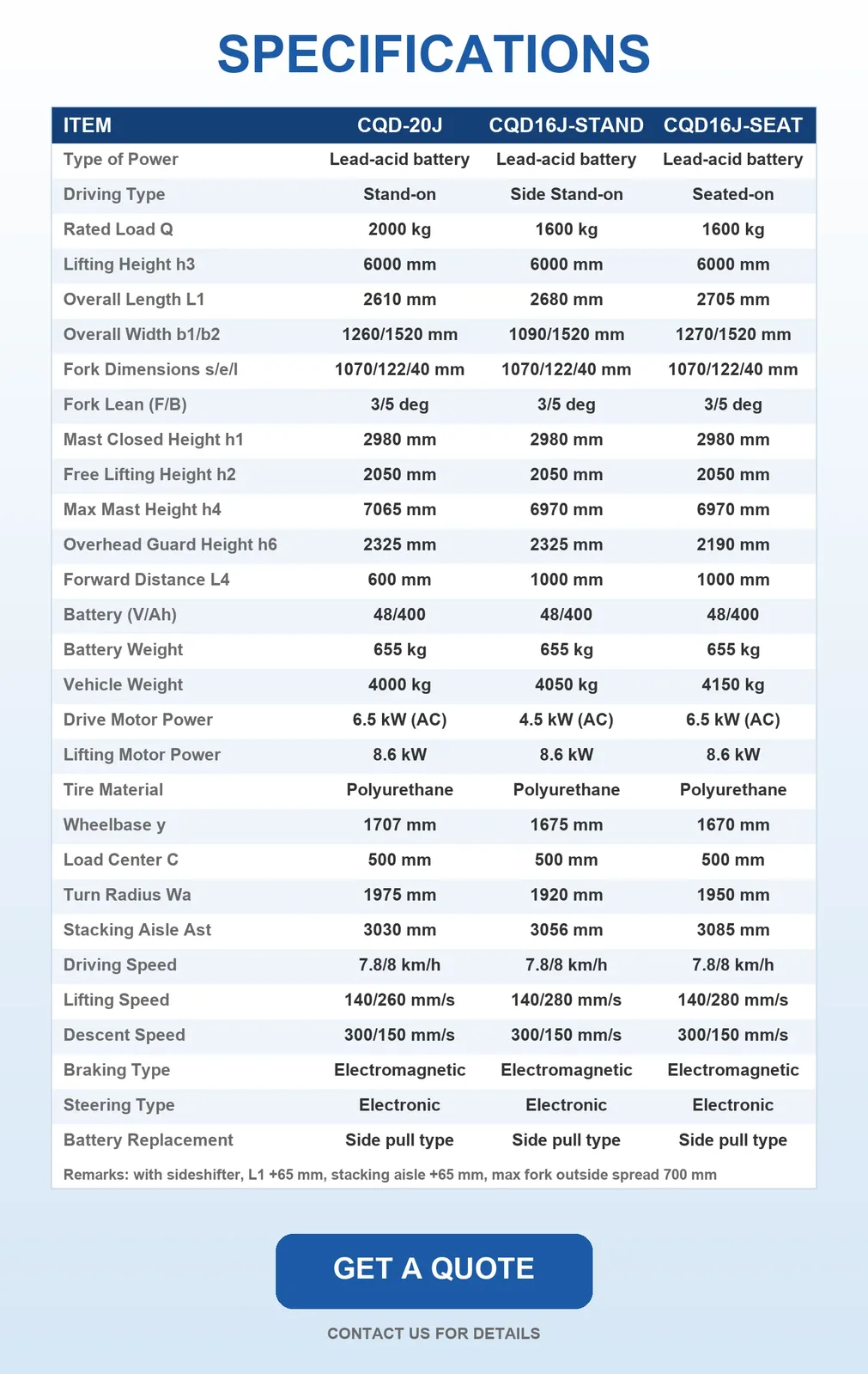

| Condition | New |
|---|---|
| Fork Specifications( L*W*H) | 1070 * 122 * 40 mm |
| Forklift Battery Type | Lead–Acid Battery |
| Drive Type | electric |
| Terrain Adaptability | Indoor Flooring, Offroad, Outdoor Pavement, Rough Terrain, Other |
| Load centre distance | 500 mm |
| Forklift Turning radius | 1950 mm |
| Fork Width | 1270 mm |
| Fork Length | 1070 mm |
| Operating Mode | Seated Operation |
| Forklift Tyre | Polyurethane Tyre |
| Travel speed ( laden) | 7.8 km/h |
| Travel speed ( unladen) | 8 km/h |
| Forklift Wheelbase | 1670 mm |
| Mast Tilt Angle (Forward Tilt-Rear Tilt) | 3 deg / 5 deg |
| Aisle width | 3085 mm |
| Model Number | CQD16J-SEAT |
| Battery voltage (V/AH) | 48V/400Ah |
| Fork height,lowered | 6000 mm / 2980 mm |
| Free Lift Height | 2050 mm |
| Max Mast Extended Height | 6970 mm |
| Overhead Guard Height | 2190 mm |
| Forward Distance (Front Overhang) | 1000 mm |
| Battery Weight | 655 kg |
| Drive Motor Power | 6.5 kW (AC) |
| Lifting Motor Power | 8.6 kW |
| Braking Type | Electromagnetic |
| Steering Type | Electronic |
| Battery Replacement | Side Pull Type |
| Rated Loading Capacity options | 1.6T |
| Max. Lifting Height options | 6000mm |
| Truck Type options | Double Deep Reach Truck |
| Certificate | Number | Valid |
|---|---|---|
| 2006/42/EC | M.2026.206.C137529 | 30/03/2026 - 29/03/2031 |
| CE | M.2026.206.C134736 | 04/02/2026 - 03/02/2031 |
| CE | 3N251031.NEMS093 | 30/10/2025 - 29/10/2030 |
| EAC | — | 22/10/2023 - 22/10/2028 |
| CE | M.2023.206.C83216 | 22/03/2023 - 21/03/2028 |
| CE | M.2023.206.C83215 | 22/03/2023 - 21/03/2028 |
| CE | M.2023.206.C83222 | 22/03/2023 - 21/03/2028 |
| CE | M.2023.206.C83221 | 22/03/2023 - 21/03/2028 |
Certificates are supplied with your quote on request.
