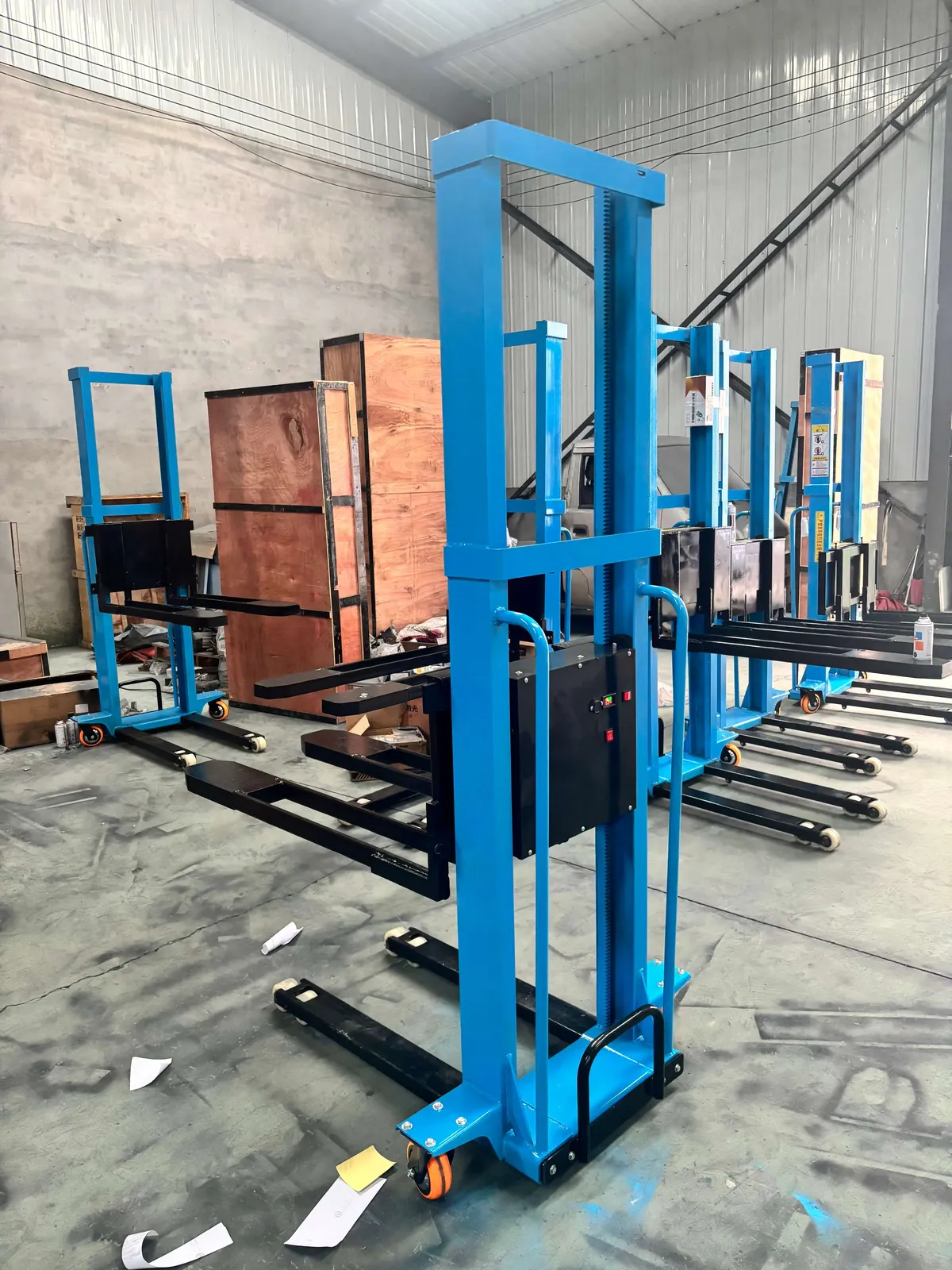

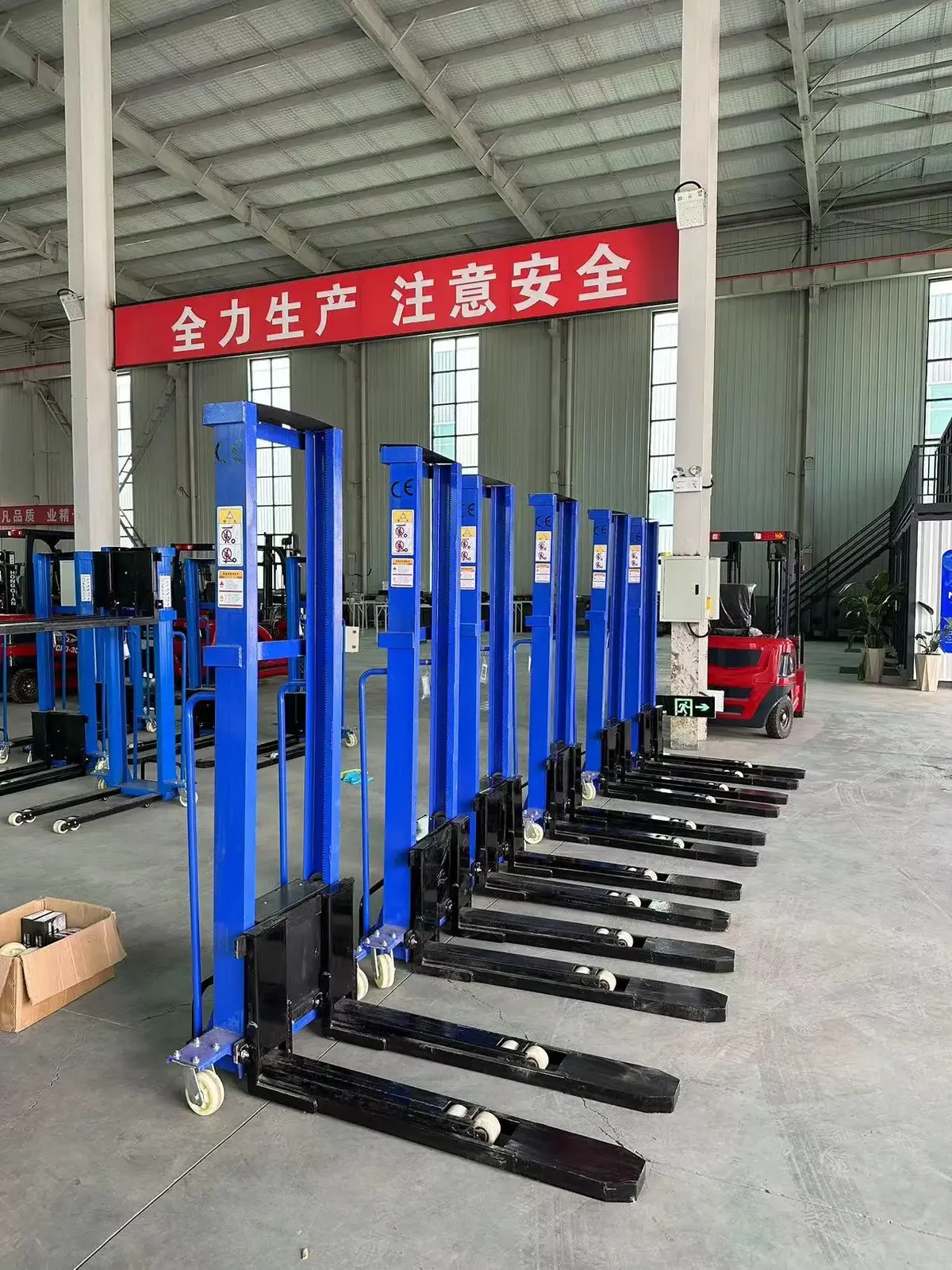

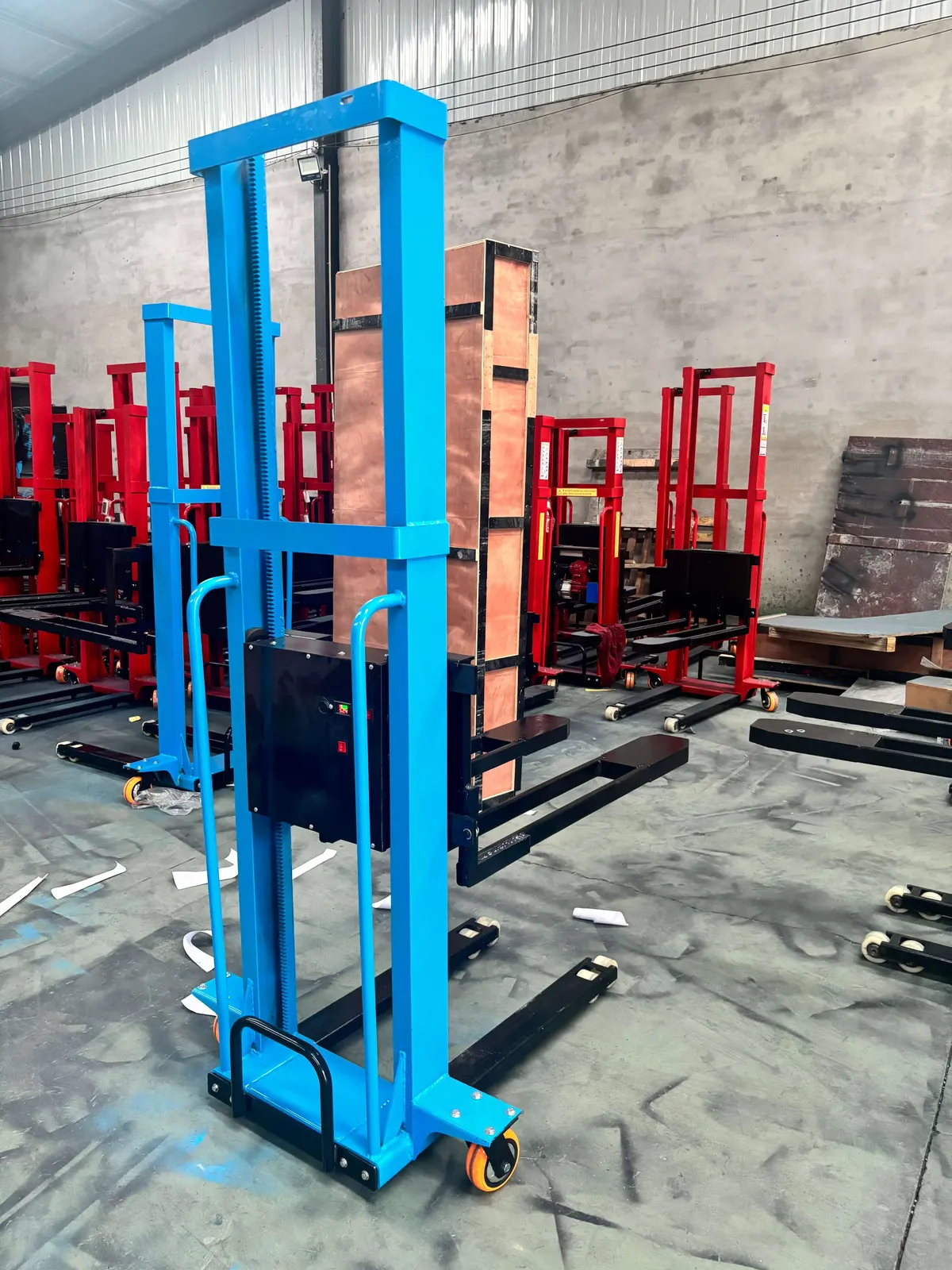

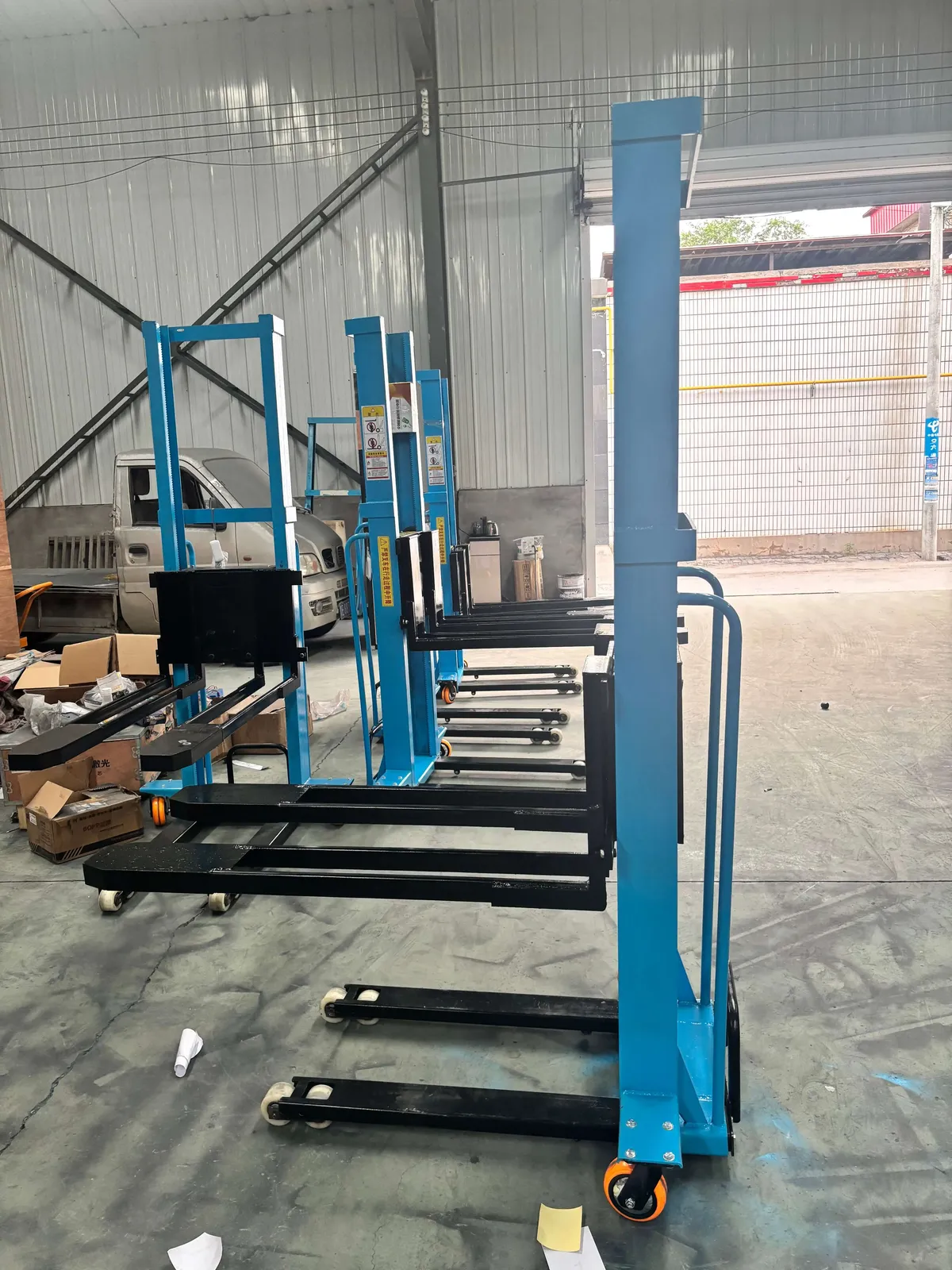

1Ton Full Electric Stacker Self Loading Stacker Forklift
1 tLithium-ionForks 1200 to 1070 mm
Price on requestwritten quote
Minimum order 1 piece from the factory; any range minimum is confirmed on your quote. Prices in GBP per unit, ex VAT. We convert the factory list at a buffered exchange rate, so normal day-to-day currency movement does not change the price you see. Your written quote adds freight, duty and VAT and is valid for 30 days.
Rated Loading Capacity1 Ton
Truck TypeStacker Forklift
Line total
No online payment. The basket becomes an order request and we reply with a written GBP quote, deposit 30% on order, lead time 8 to 12 weeks.
Or email [email protected]Product Highlights
- Heavy-Duty Construction Built for industrial strength lifting tasks.
- Ergonomic Design Easy to manoeuvr for efficient warehouse operations.
- Wide Range of Heights Select between 1.3M and 1.6M for versatile use.

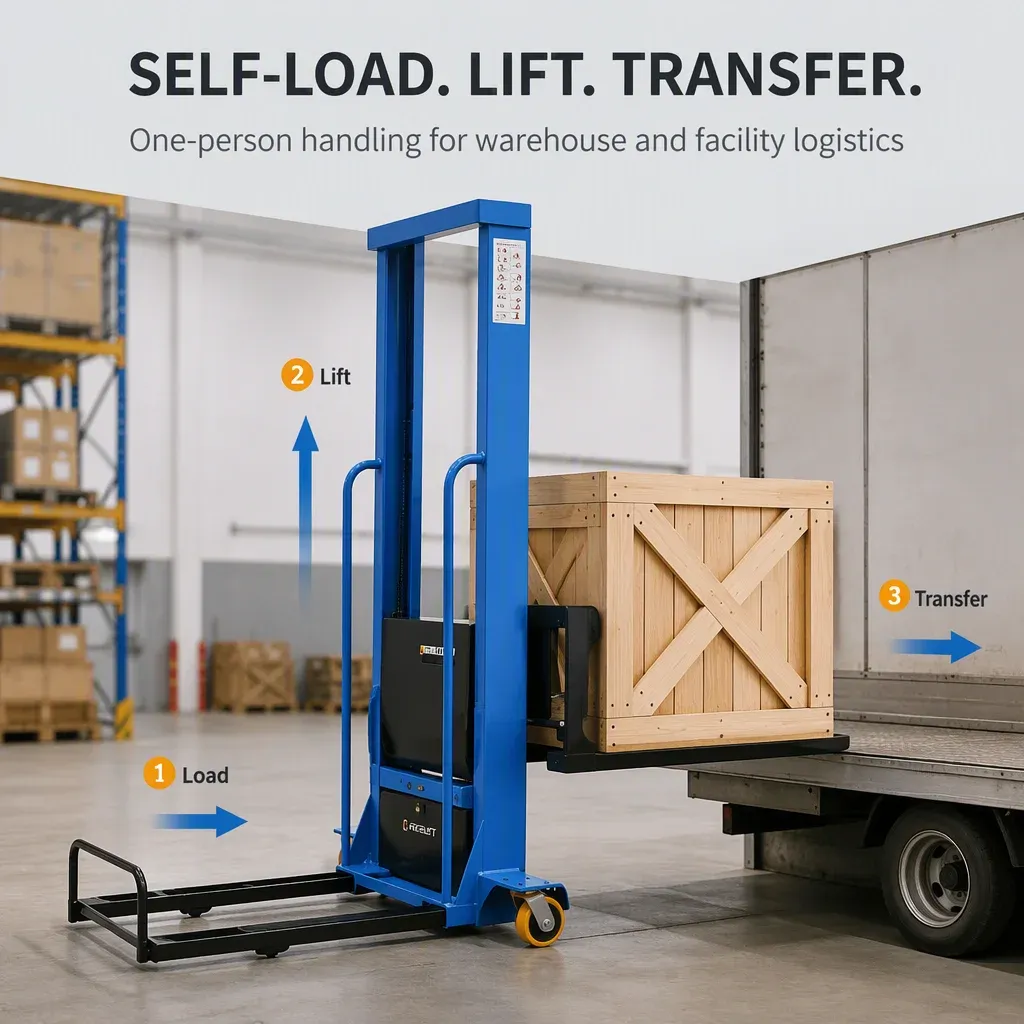

- Self-Loading Functionality Simplifies material handling and loading.
- Scissor Lift Technology Provides stable and smooth vertical movement.

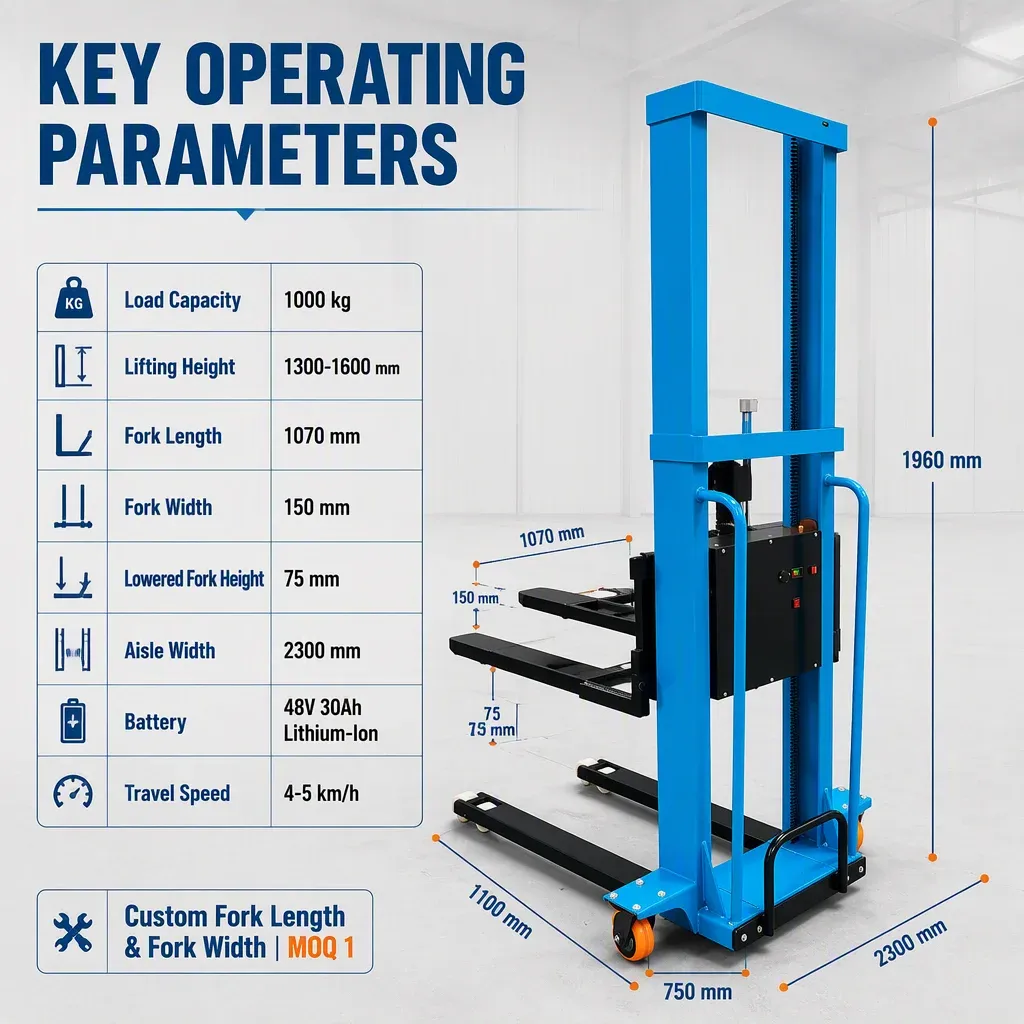

| Condition | New |
|---|---|
| Fork Specifications( L*W*H) | 1220*125*50, 1350*160*100, 1500*150*70, 1500*160*125 |
| Forklift Battery Type | Lithium-Ion Battery |
| Side Shifter | / |
| Drive Type | Fwd |
| Terrain Adaptability | Indoor Flooring, Offroad, Outdoor Pavement |
| Load centre distance | 500 mm, 600 mm |

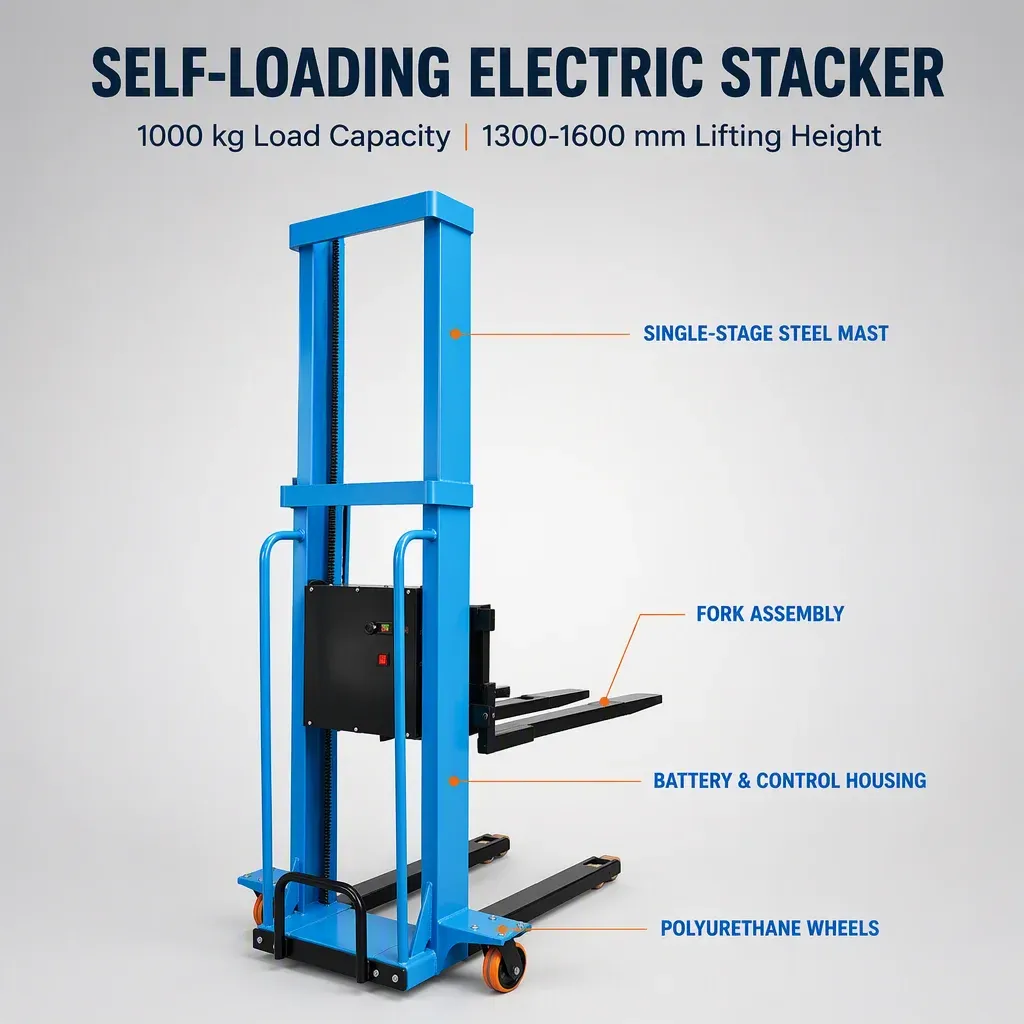

| Mast Type | Single-Stage Mast |
| Forklift Turning radius | 1600 mm |
| Fork Width | 125 mm, 110 mm, 150 mm |
| Fork Length | 1200mm, 1150 mm, 1070 mm |
| Operating Mode | Walkie Operation |

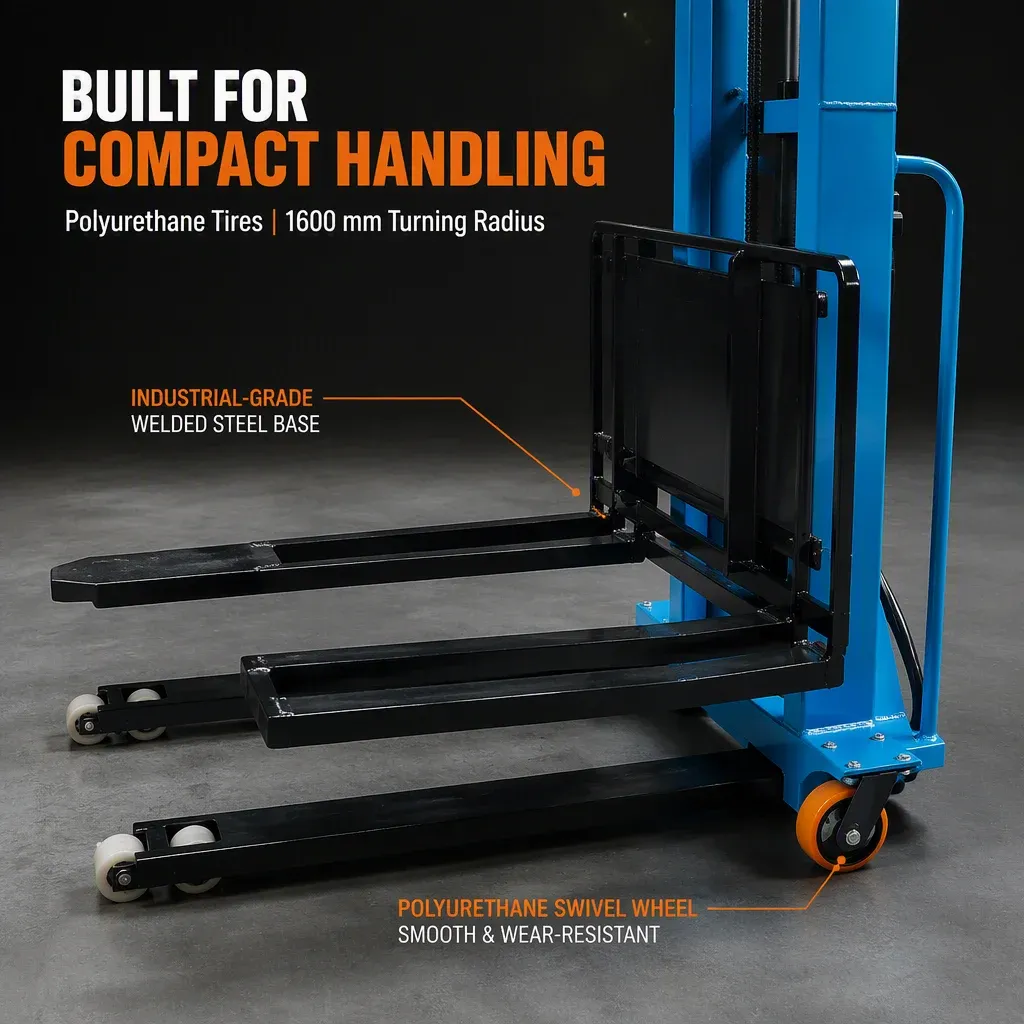

| Forklift Tyre | Polyurethane Tyre |
| Travel speed ( laden) | 4KM/H |
| Grade ability （laden) | 0.05 |
| Travel speed ( unladen) | 5KM/H |
| Grade ability（unladen) | 0.05 |
| Forklift Wheelbase | 1003 mm |
| Mast Tilt Angle (Forward Tilt-Rear Tilt) | NONE |

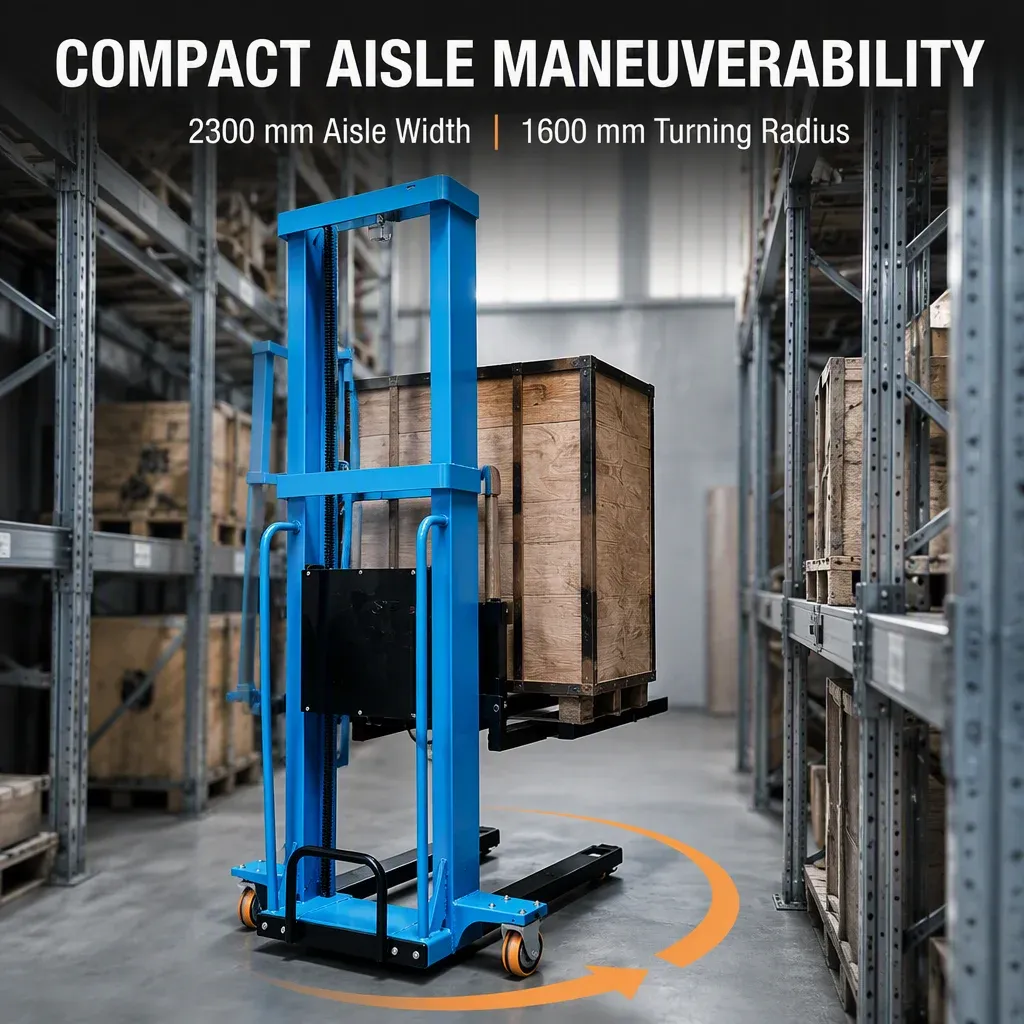

| Aisle width | 2300MM |
| Model Number | ELES-15D |

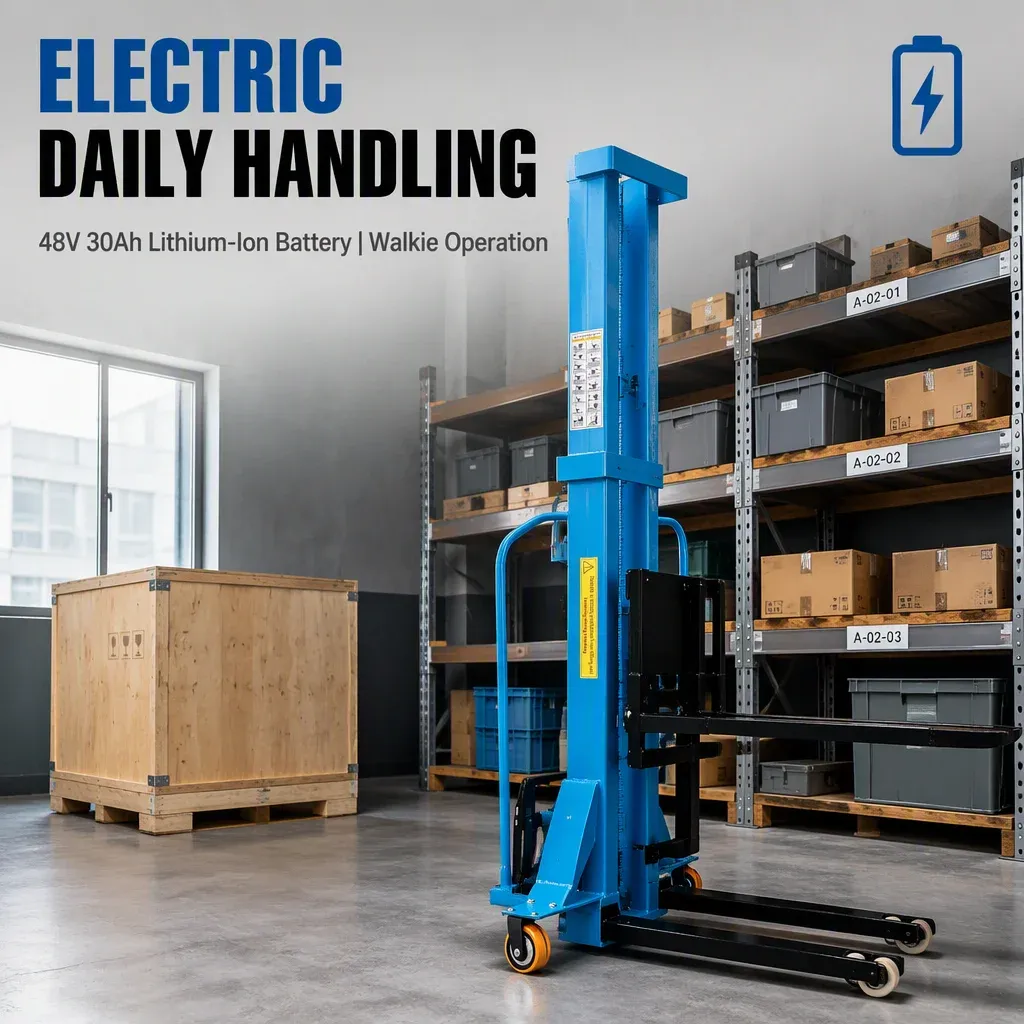

| Battery voltage (V/AH) | 48v30ah |
| Fork height,lowered | 75MM |
| Type | Stacker Forklift |
| Product Name | Self Loading Electric Stacker |
| Loading | 1000 KGS |
| Keywords | STACKER |
| Power type | DC |
| Lifting height | 1300 - 1600 MM |
| Application | Warehouse Material Handling |
| Single package size | 160X85X160 cm |
| Single gross weight | 400.000 kg |
| Rated Loading Capacity options | 1 Ton |
| Truck Type options | Stacker Forklift |
| Max. Lifting Height options | 1 500 mm, 1 600 mm, 1300MM |
| Certificate | Number | Valid |
|---|---|---|
| 2006/42/EC | M.2026.206.C137529 | 30/03/2026 - 29/03/2031 |
| CE | M.2026.206.C134736 | 04/02/2026 - 03/02/2031 |
| CE | 3N251031.NEMS093 | 30/10/2025 - 29/10/2030 |
| EAC | — | 22/10/2023 - 22/10/2028 |
| CE | M.2023.206.C83216 | 22/03/2023 - 21/03/2028 |
| CE | M.2023.206.C83215 | 22/03/2023 - 21/03/2028 |
| CE | M.2023.206.C83222 | 22/03/2023 - 21/03/2028 |
| CE | M.2023.206.C83221 | 22/03/2023 - 21/03/2028 |
Certificates are supplied with your quote on request.
