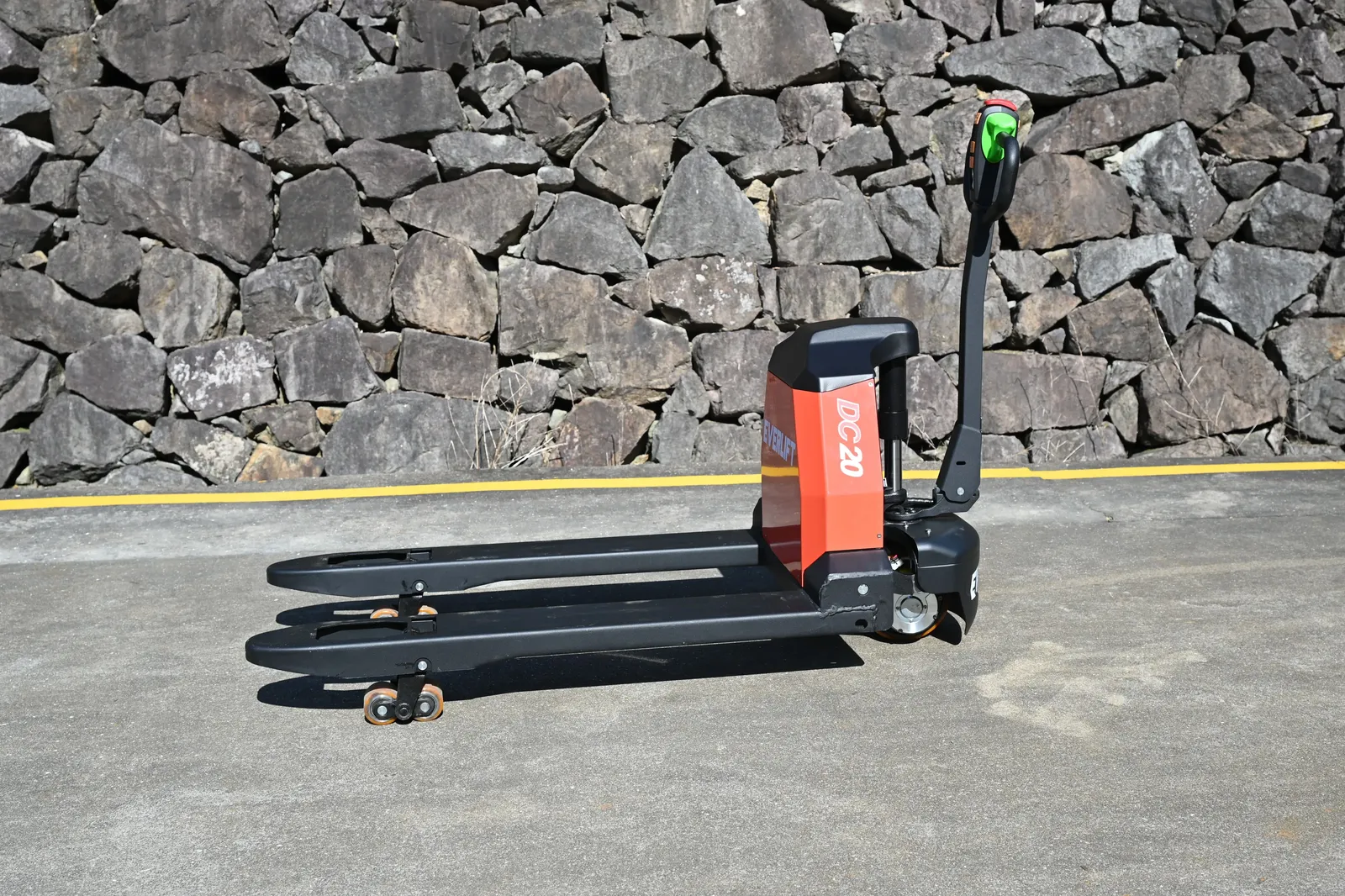

Pallet Truck Electric Powered 1500 to 2000 kg
1.5 to 2 tLithium-ionForks 1150 mm
from £525per piece, ex VAT
| Quantity | Price per piece |
|---|---|
| 1+ pieces | £525 |
Minimum order 1 piece from the factory; any range minimum is confirmed on your quote. Prices in GBP per unit, ex VAT. We convert the factory list at a buffered exchange rate, so normal day-to-day currency movement does not change the price you see. Your written quote adds freight, duty and VAT and is valid for 30 days.
Truck TypePallet Truck
Line total
No online payment. The basket becomes an order request and we reply with a written GBP quote, deposit 30% on order, lead time 8 to 12 weeks.
Or email [email protected]Product Highlights

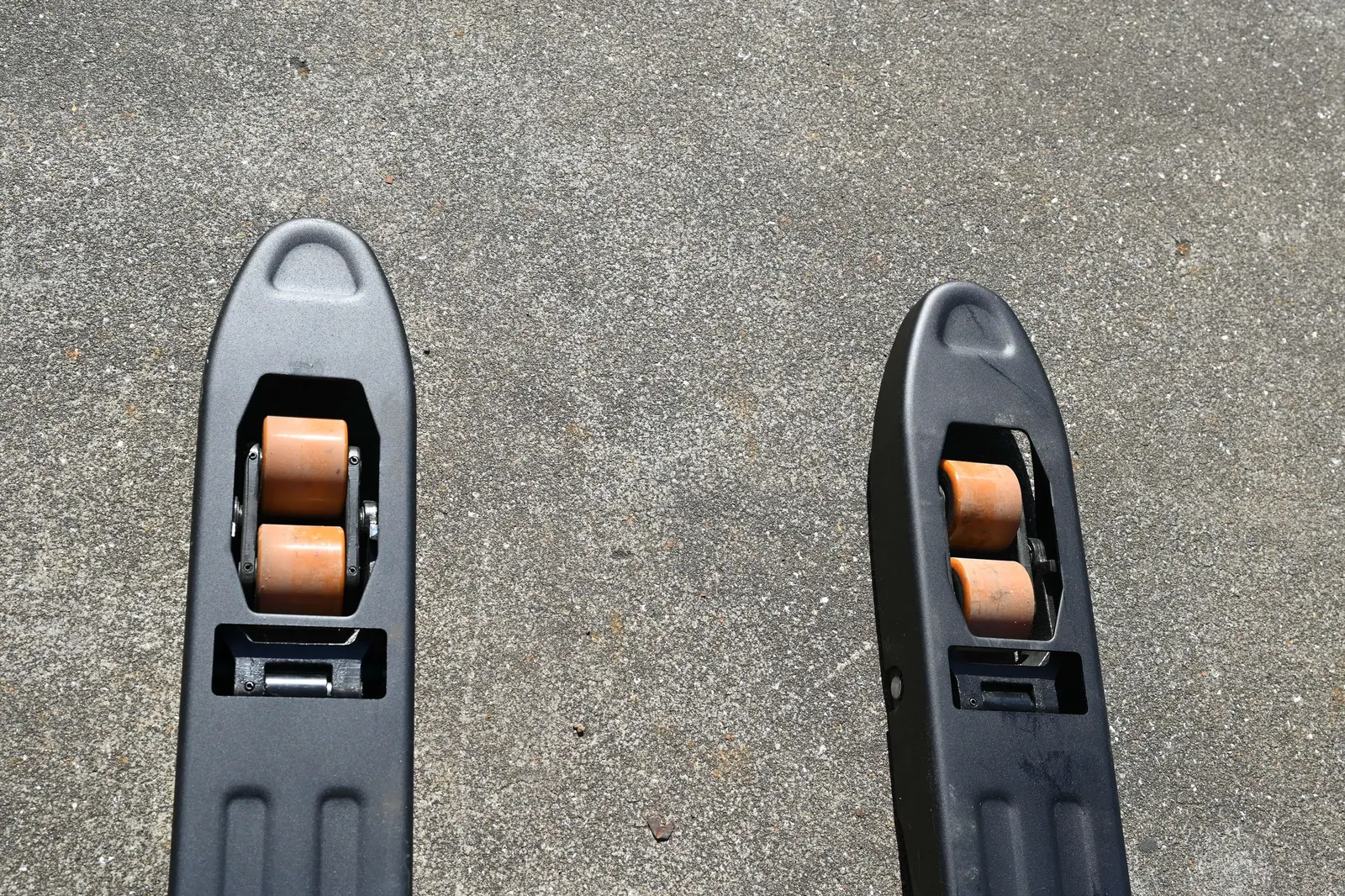

This electric pallet truck adopts a heavy‑duty steel frame for long‑service‑life performance under warehouse material‑handling working conditions. It is equipped with a low‑maintenance DC drive motor and lithium‑ion battery pack. Fitted with PU load wheels with durable seals, this electric pallet jack ensures smooth daily operation.

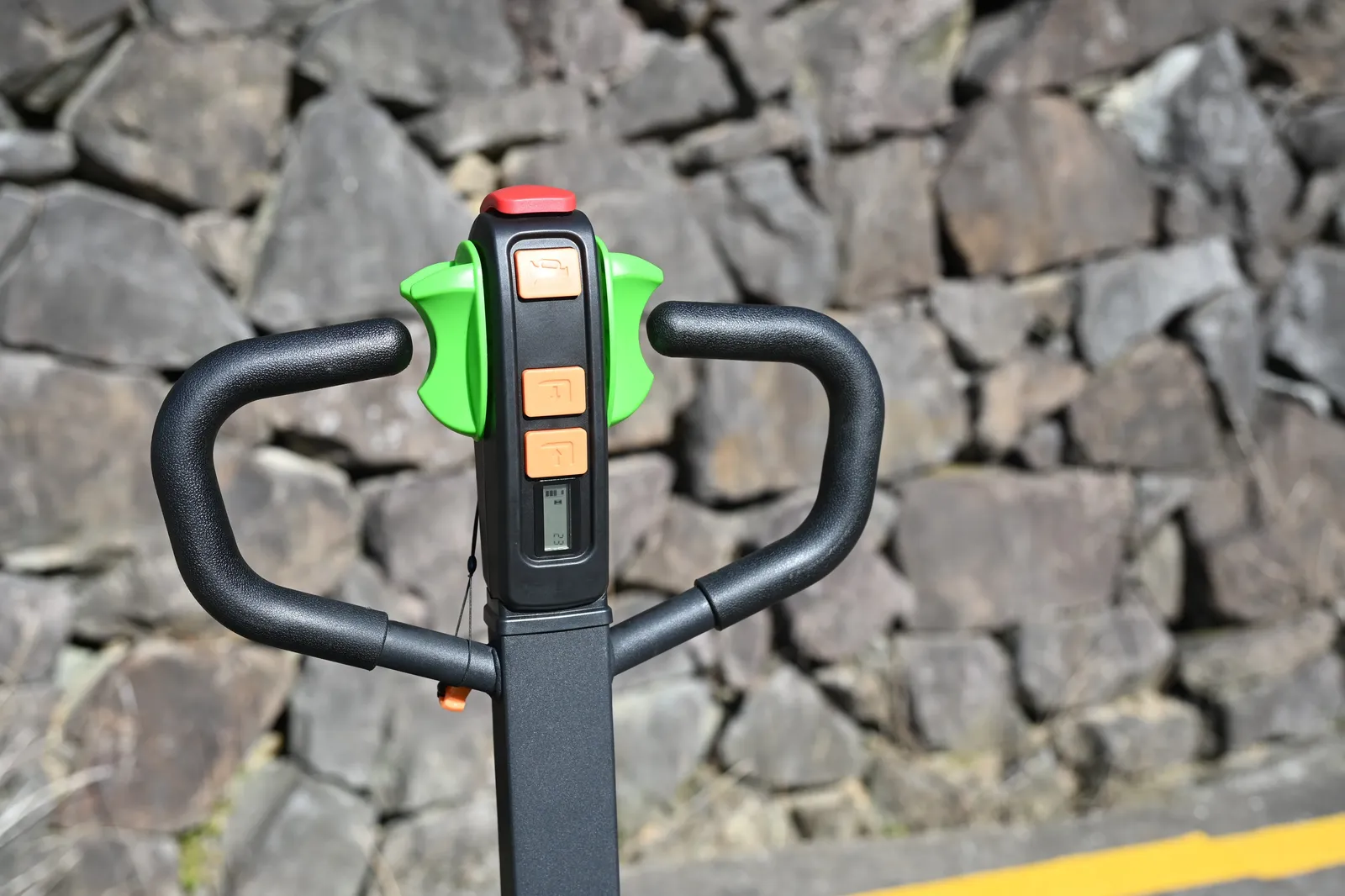

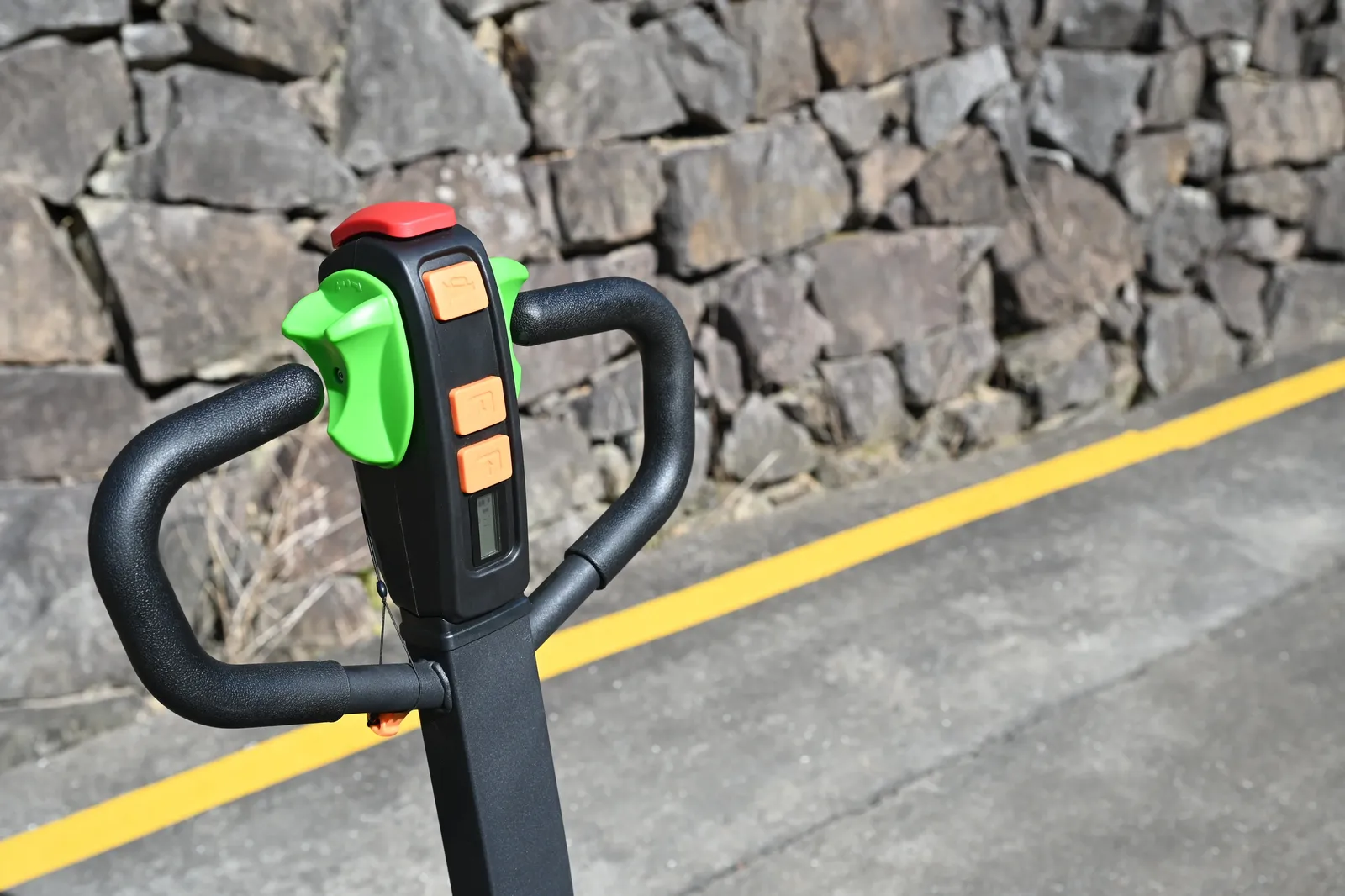

This battery‑powered pallet truck holds CE certification and is equipped with emergency‑stop and brake safety structures to protect operators. It features a rated load capacity of 1500‑2000 kg, a lowered fork height of 75 mm and a maximum lifting height of 205 mm, enabling easy operation in narrow aisles.

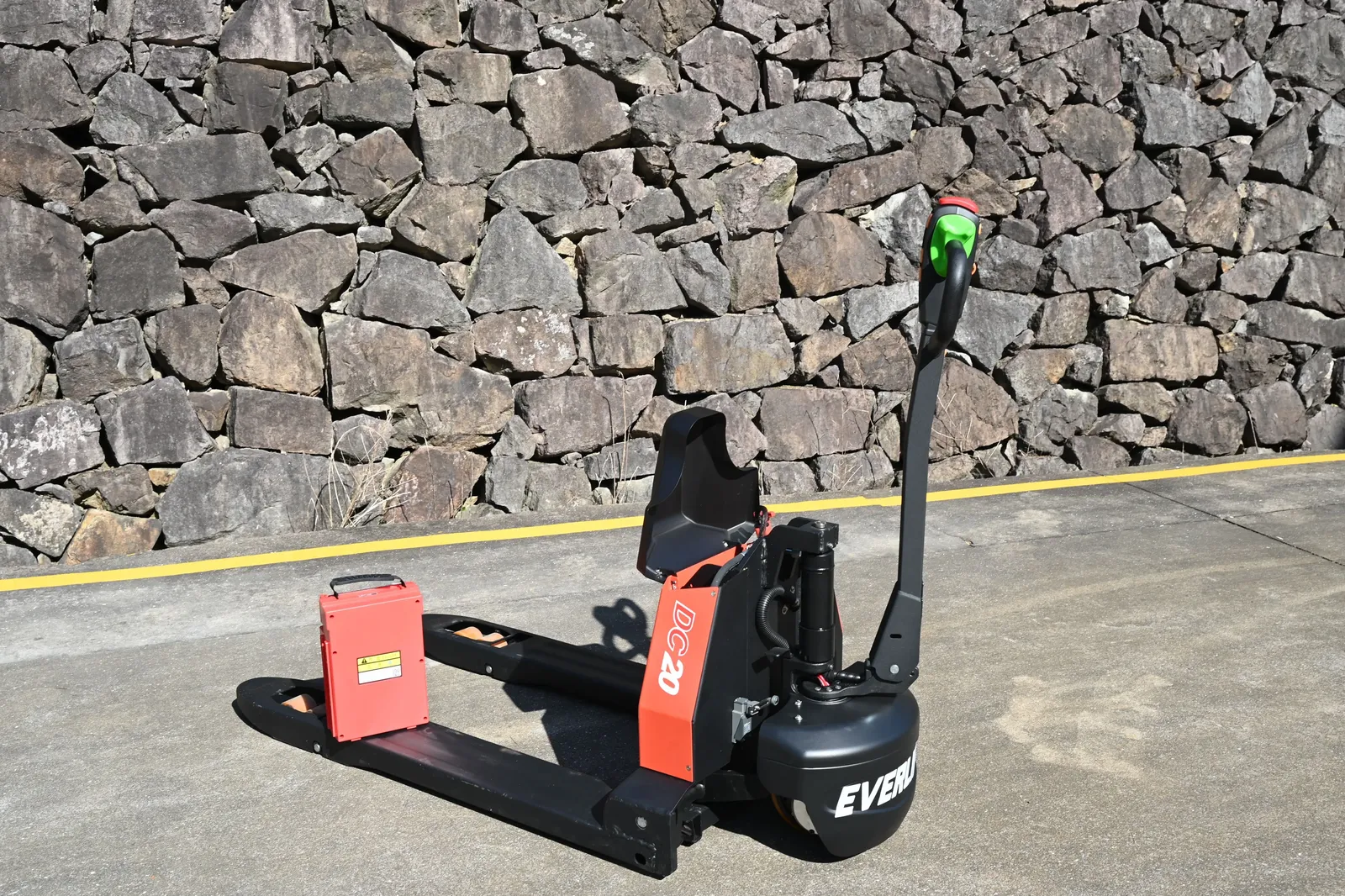

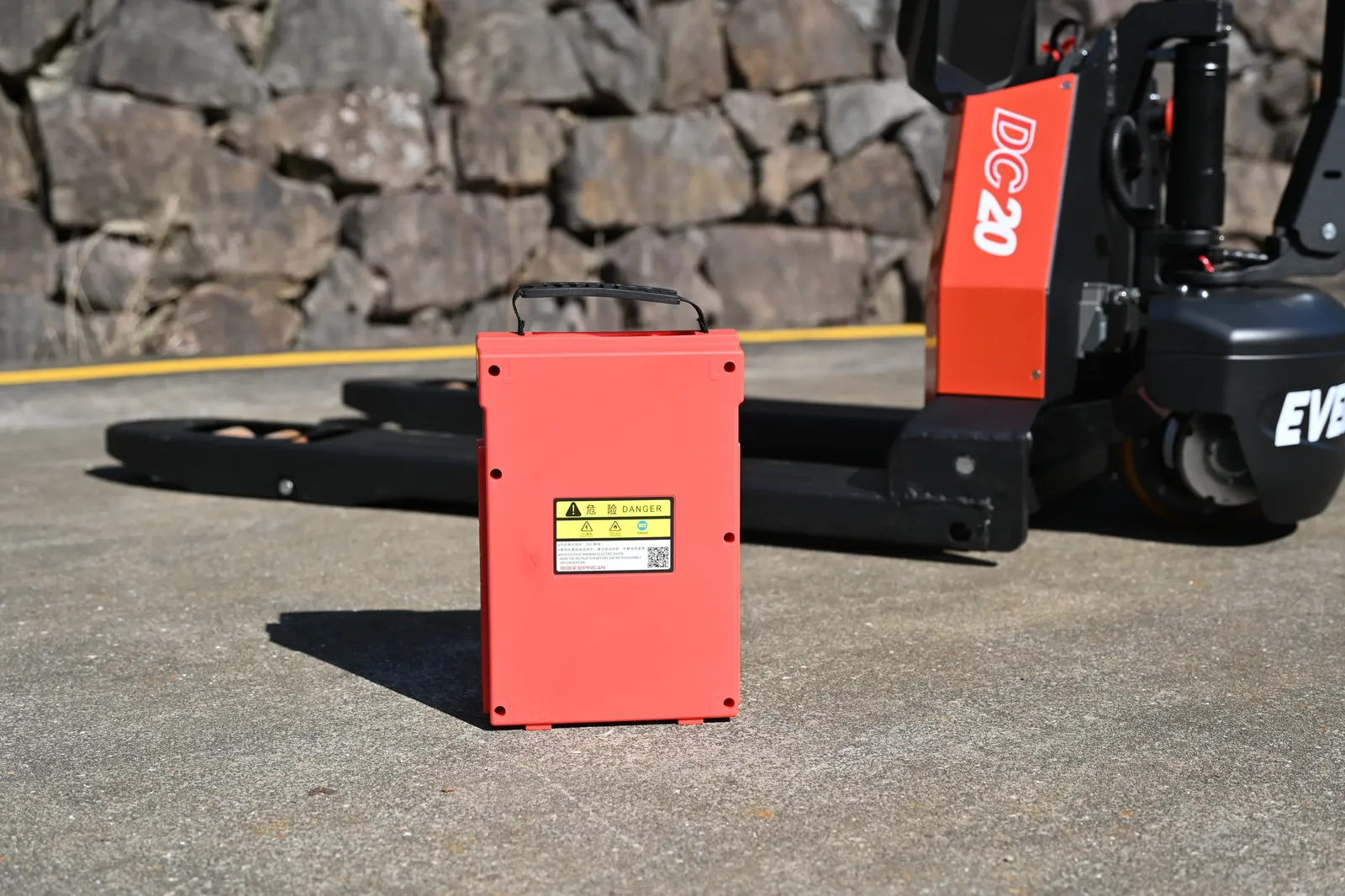

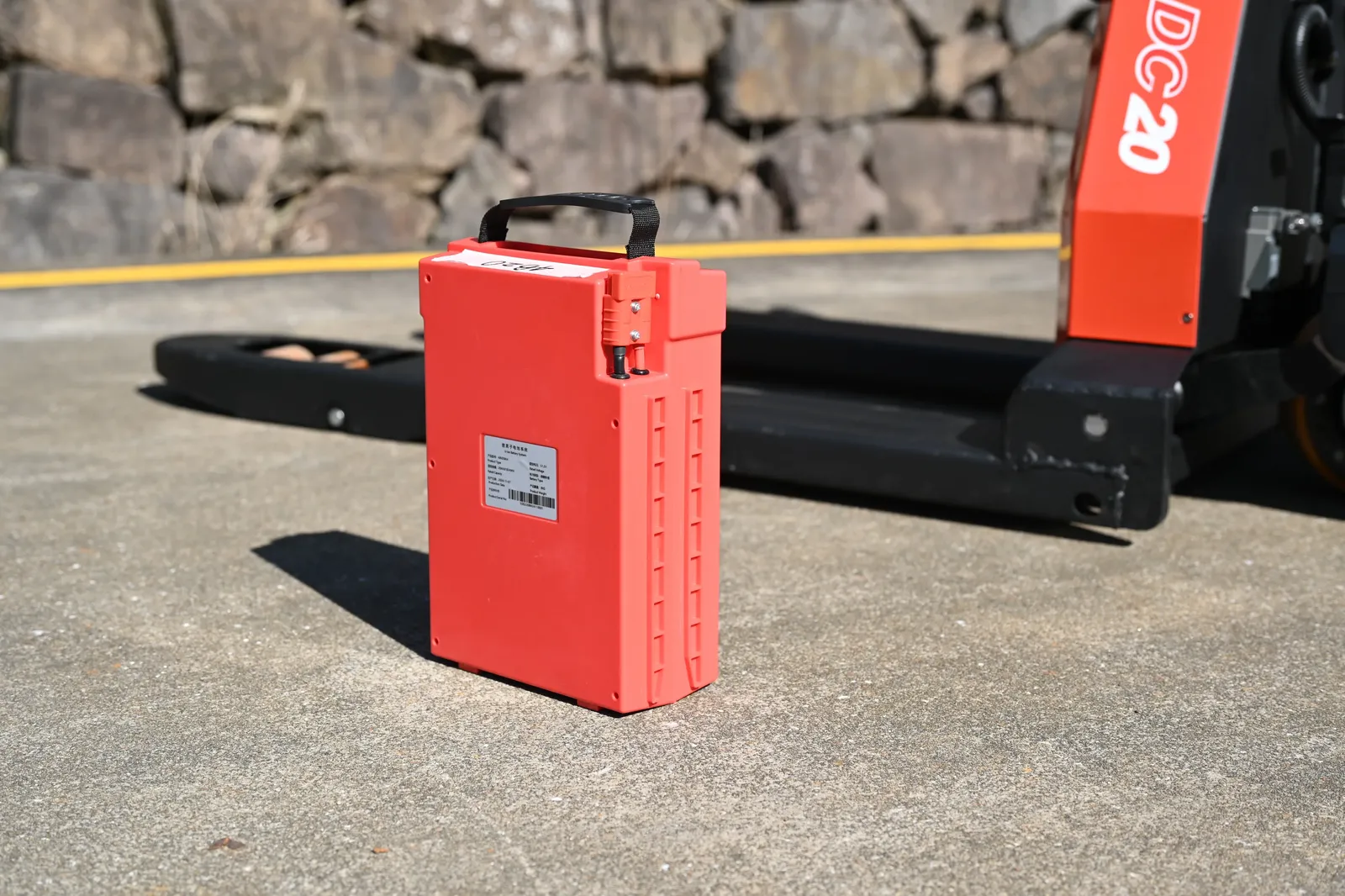

This lithium‑ion pallet truck is fitted with a 24V lithium‑ion battery. Its quiet electric drive delivers stable power to support multi‑shift continuous warehouse operations and suits low‑noise indoor working scenarios. This electric handling equipment applies to warehouses, factories, retail stores and loading docks. PU wheels are suitable for smooth indoor floors, and reserved optional accessory interfaces expand working functions.
Pain point: Manual handling causes high labour intensity and low loading‑unloading efficiency Solution: Designed for warehouse use, this electric pallet jack handles 1500‑2000 kg loads to cut manual labour and improve working efficiency
Pain point: Narrow aisles and cramped dock space hinder pallet‑flow efficiency Solution: This compact narrow‑aisle pallet truck offers flexible steering to ensure smooth goods flow in racking areas and loading‑unloading zones.
The product is packed in robust export packaging with logo and colour customisation available. PU wheels are supplied as standard; solid tyres are optional, and multiple fork sizes are available across the full series.

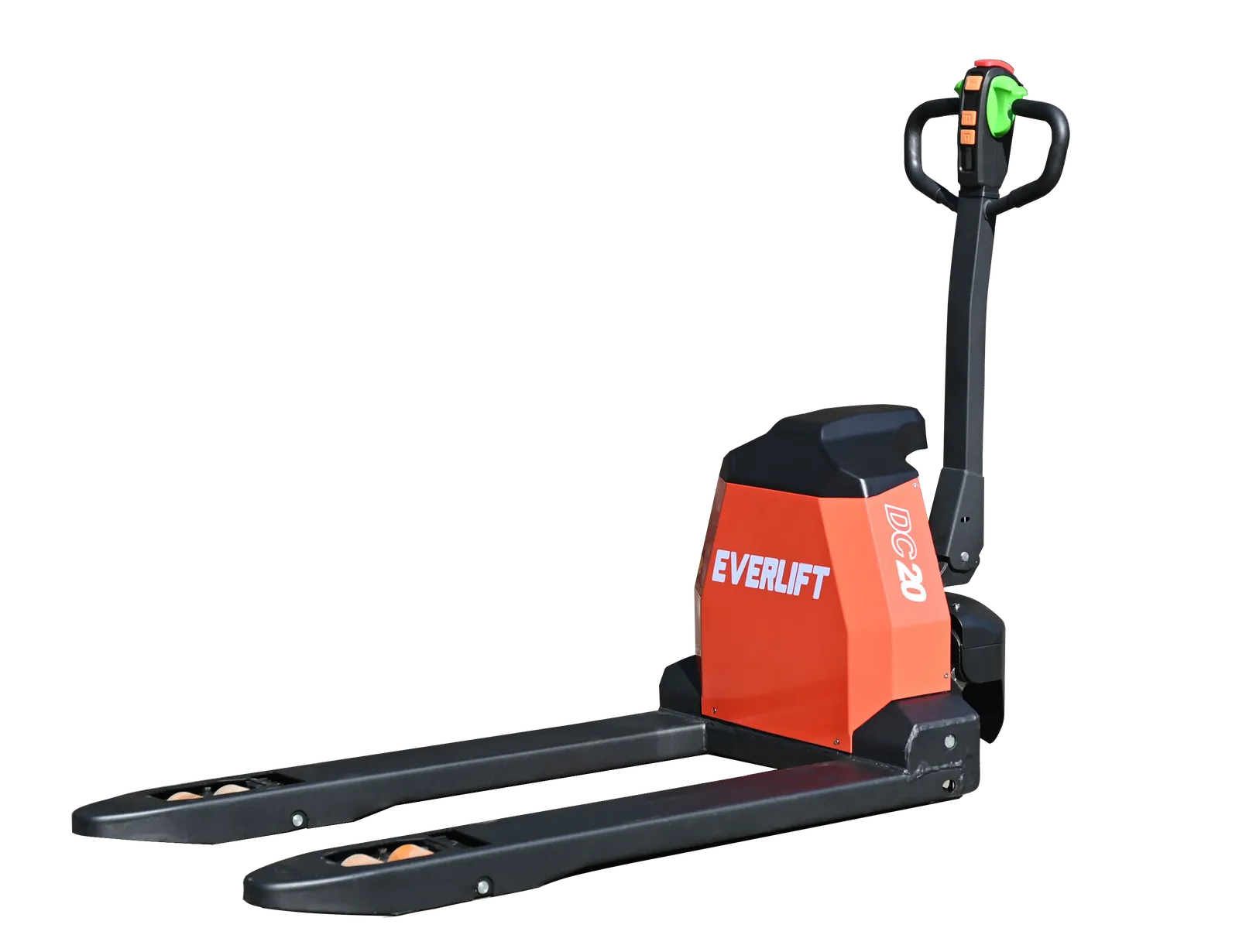

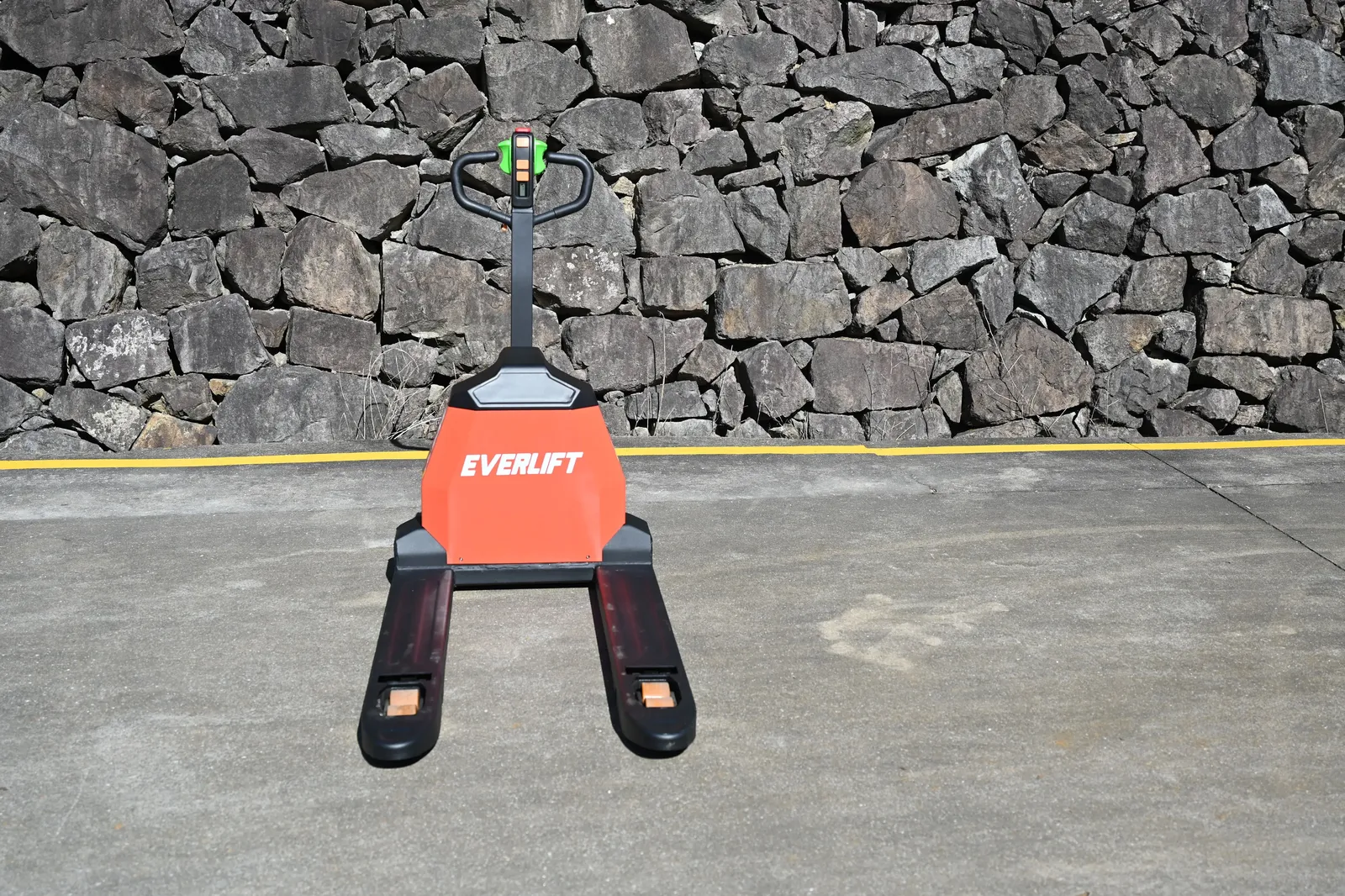

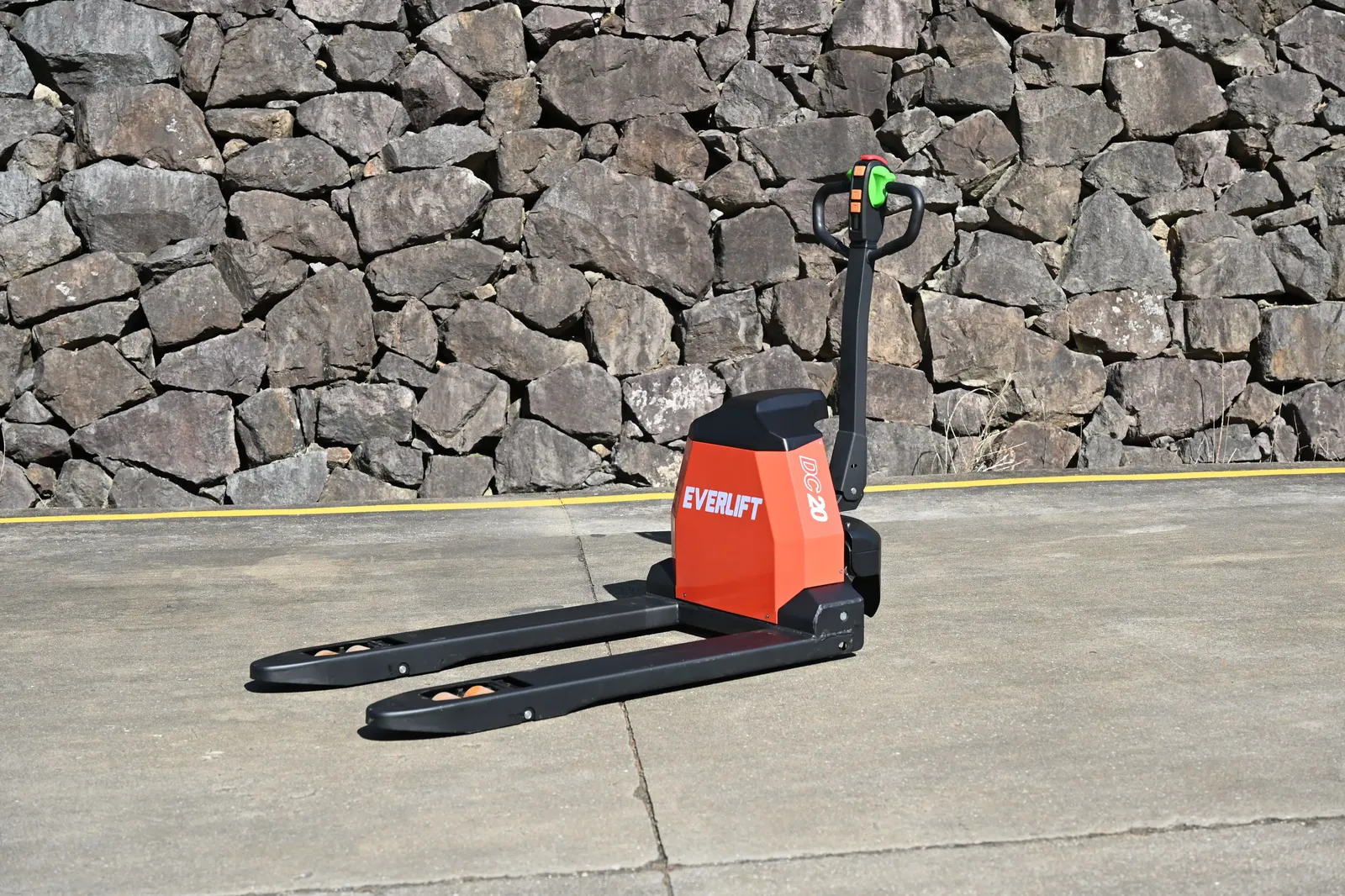

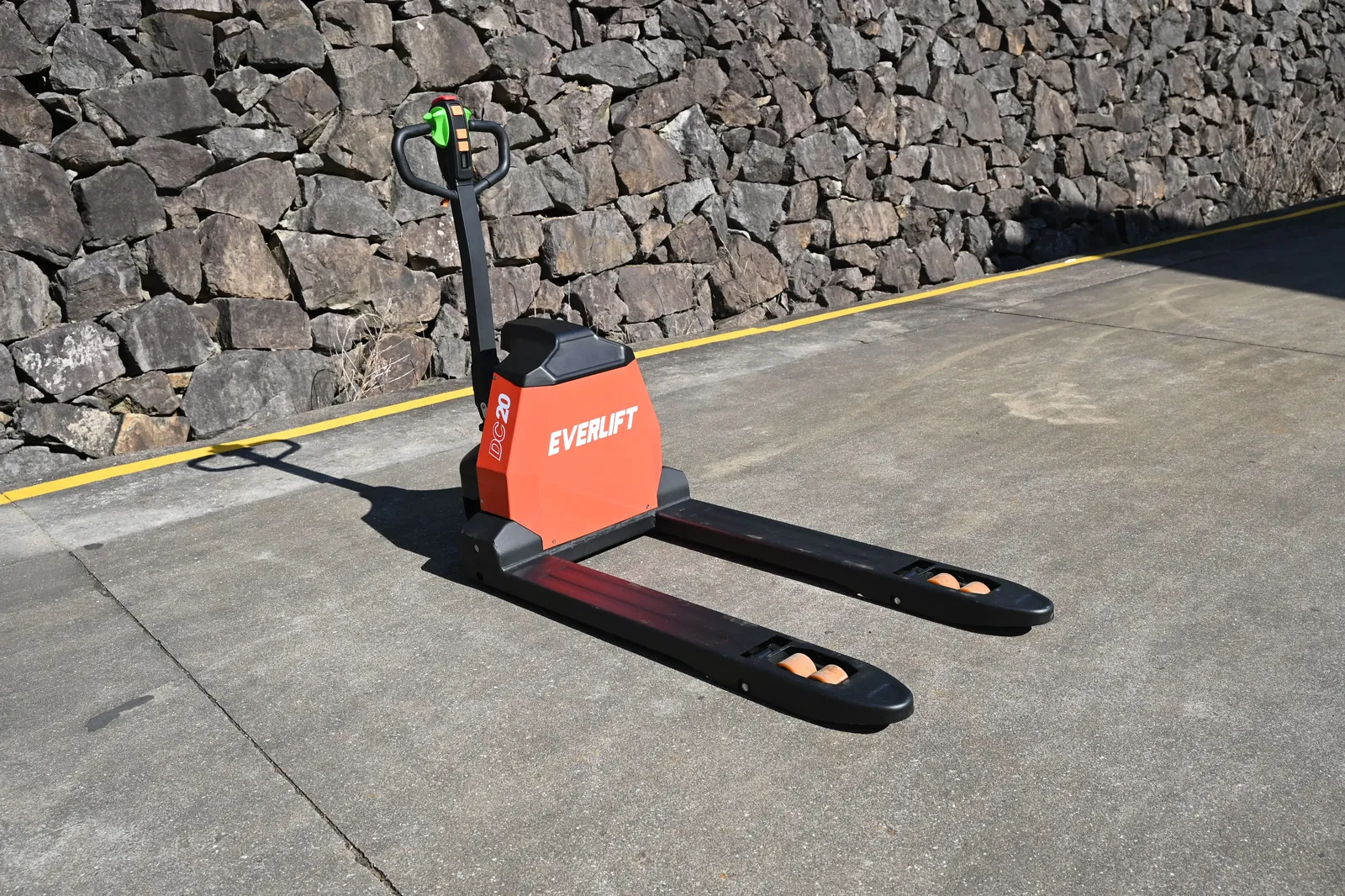

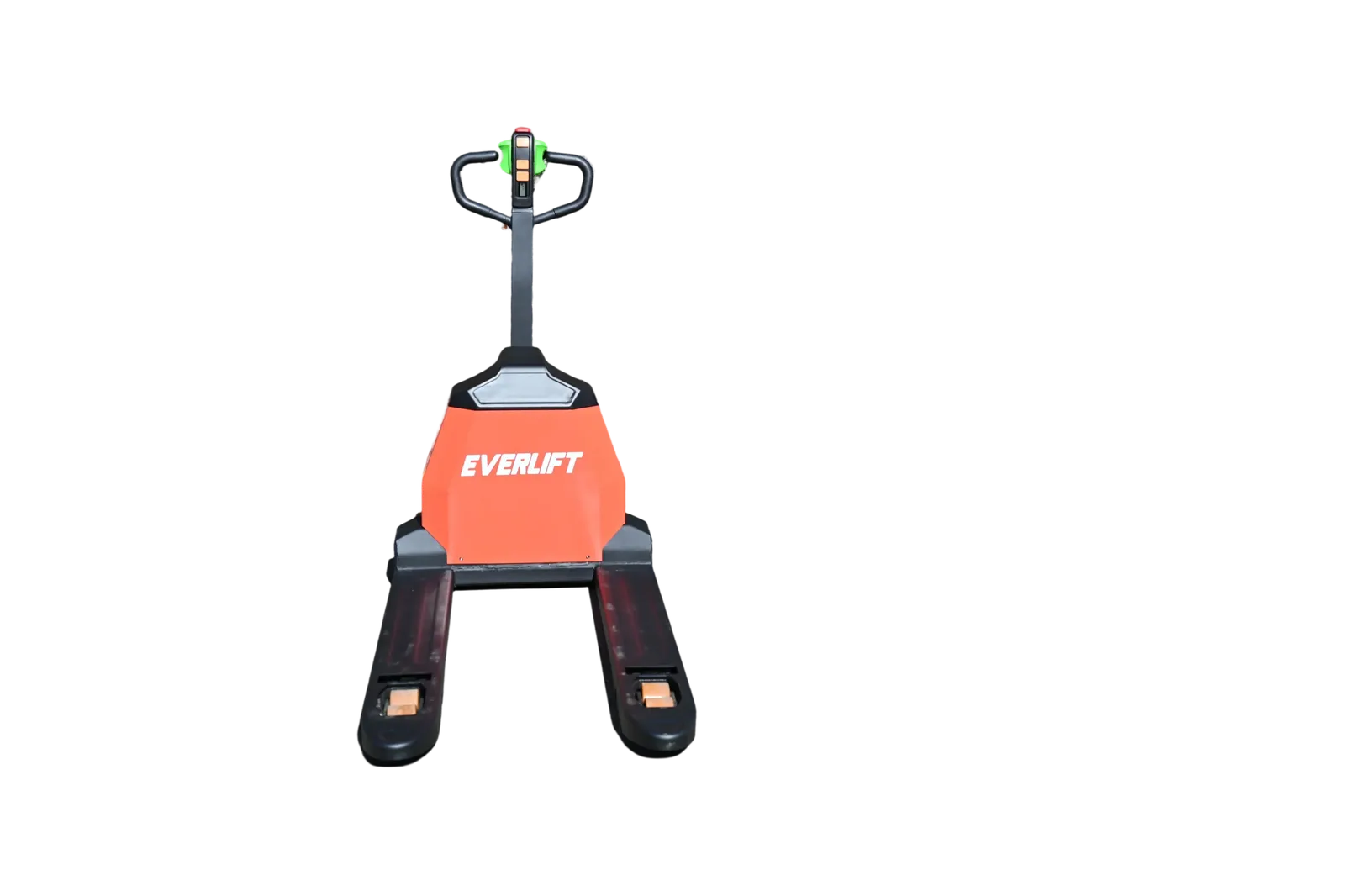

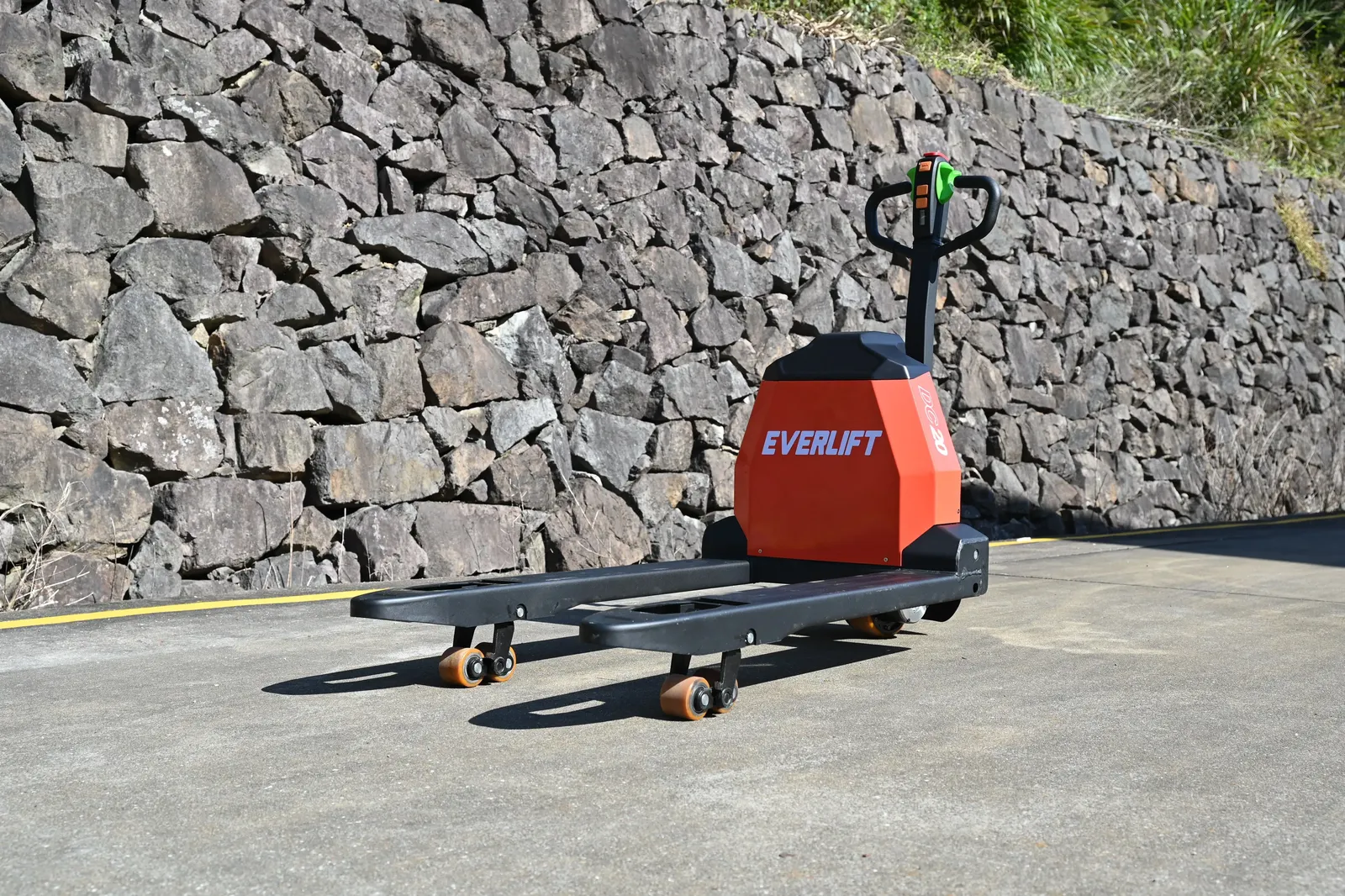

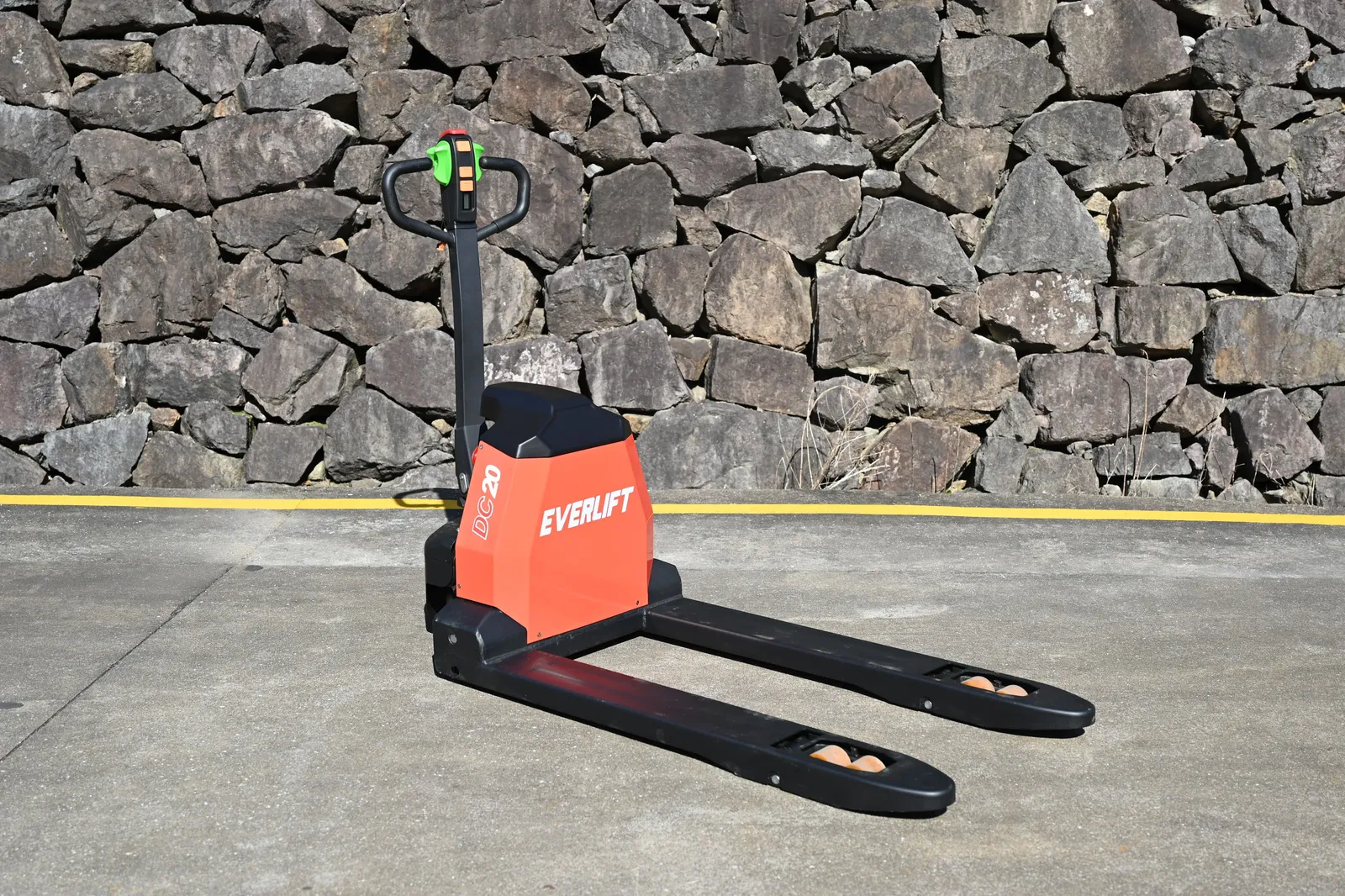

Detail Shot
Overall length
Overall width
Min.Turning radius
1150mm
1660mm
560/685mm
Load capacity
Load centre
Max.lifting height
Wheels type
Wheel base
1.5Ton 2.0Ton
600
115mm
| Condition | New |
|---|---|
| Fork Specifications( L*W*H) | 1150*155*55 |
| Forklift Battery Type | Lithium-Ion Battery |
| Side Shifter | Hydraulic Side Shifter |
| Drive Type | 4Wd |
| Terrain Adaptability | Indoor Flooring, Outdoor Pavement |
| Load centre distance | 600 mm |
| Mast Type | Single-Stage Mast |
| Forklift Turning radius | 1405mm |
| Fork Width | 155mm |
| Fork Length | 1150 mm |
| Operating Mode | Standing Operation |
| Forklift Tyre | Polyurethane Tyre |
| Travel speed ( laden) | 4 km/h |
| Grade ability （laden) | 0.06 |
| Travel speed ( unladen) | 4.5 km/h |
| Grade ability（unladen) | 0.16 |
| Forklift Wheelbase | 1183mm |
| Mast Tilt Angle (Forward Tilt-Rear Tilt) | 6-12° |
| Aisle width | 155mm |
| Model Number | ELEP-15 20(YLI) |
| Battery voltage (V/AH) | 24V/20AH,24V/30AH,48V/15AH |
| Fork height,lowered | 75-195mm |
| Product Name | Electric Pallet Truck |
| Capacity | 1.5-2.0 Ton |
| Wheels | Polyurethane Tyre |
| Battery Type | Lithium Battery |
| Colour | Red |
| Certification | CE/ISO9001 |
| Single package size | 50X50X50 cm |
| Single gross weight | 50.000 kg |
| Rated Loading Capacity options | 1.5 Ton, 2 Ton |
| Truck Type options | Pallet Truck |
| Max. Lifting Height options | 195 mm, 205 mm |
| Fork length | Fork width | Overall length | Overall width | Min.Turning radius |
|---|---|---|---|---|
| 1150mm | 155mm | 1660mm | 560/685mm | 1405mm |
| Load capacity | Load centre | Max.lifting height | Wheels type | Wheel base |
| 1.5Ton 2.0Ton | 600 | 115mm | Polyurethane Tyre | 1183mm |
| Certificate | Number | Valid |
|---|---|---|
| 2006/42/EC | M.2026.206.C137529 | 30/03/2026 - 29/03/2031 |
| CE | M.2026.206.C134736 | 04/02/2026 - 03/02/2031 |
| CE | 3N251031.NEMS093 | 30/10/2025 - 29/10/2030 |
| EAC | — | 22/10/2023 - 22/10/2028 |
| CE | M.2023.206.C83216 | 22/03/2023 - 21/03/2028 |
| CE | M.2023.206.C83215 | 22/03/2023 - 21/03/2028 |
| CE | M.2023.206.C83222 | 22/03/2023 - 21/03/2028 |
| CE | M.2023.206.C83221 | 22/03/2023 - 21/03/2028 |
Certificates are supplied with your quote on request.
