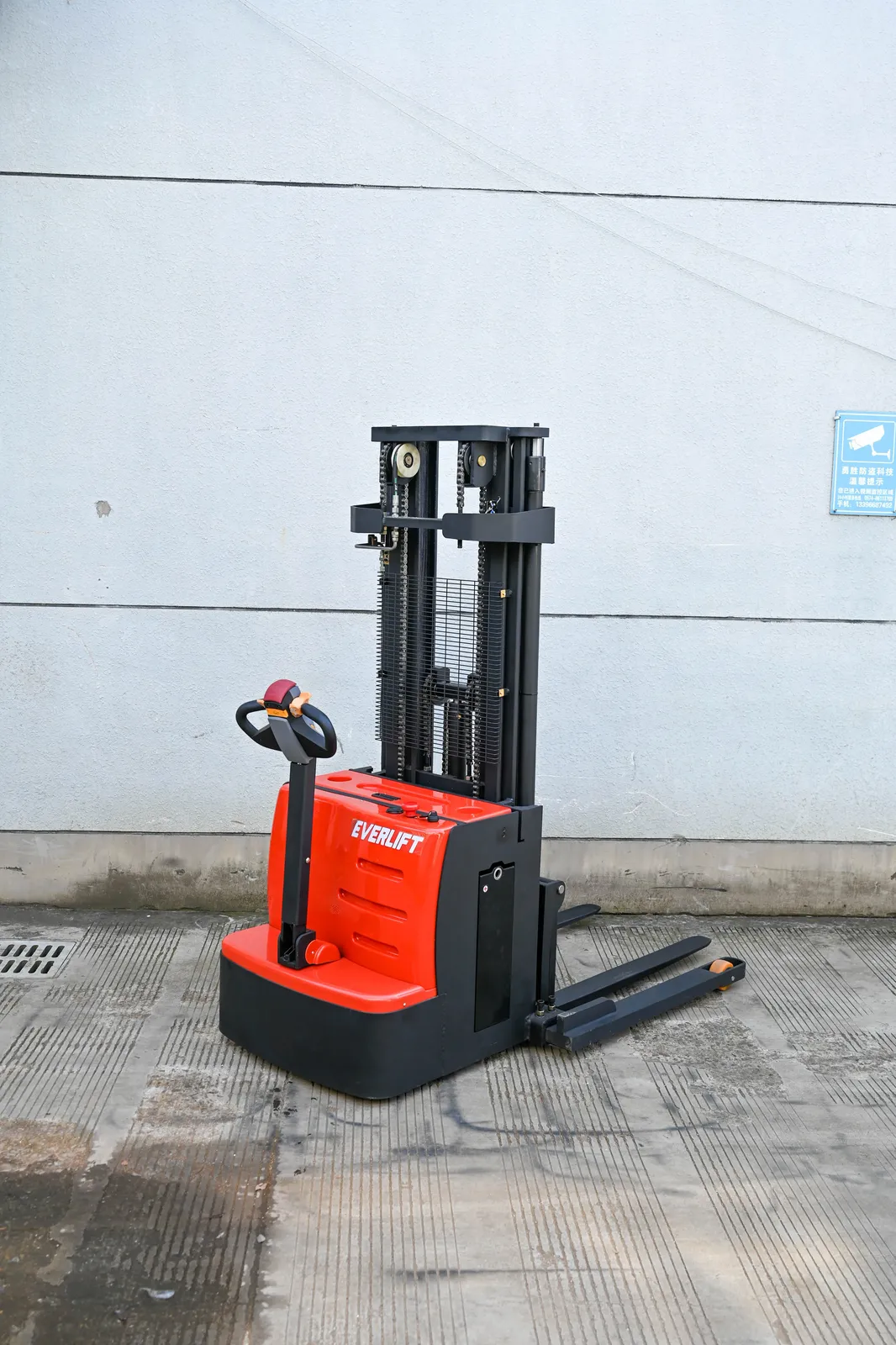

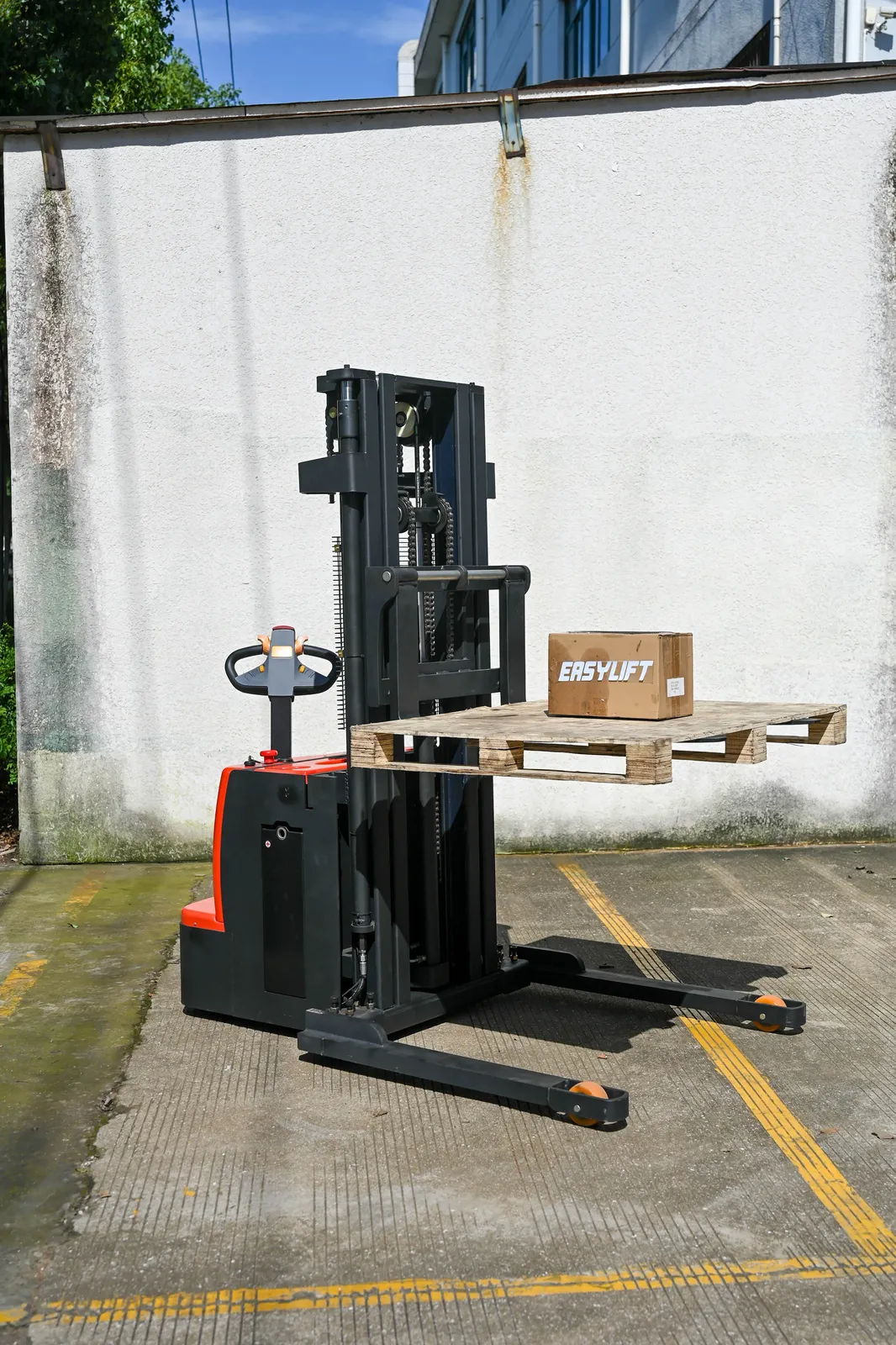

1500 to 2000 kg Full Electric Straddle Stacker 3000mm
1.5 to 2 tLithium-ionForks 1220 to 1150 mm
from £1,875per piece, ex VAT
| Quantity | Price per piece |
|---|---|
| 1+ pieces | £1,875 |
Minimum order 1 piece from the factory; any range minimum is confirmed on your quote. Prices in GBP per unit, ex VAT. We convert the factory list at a buffered exchange rate, so normal day-to-day currency movement does not change the price you see. Your written quote adds freight, duty and VAT and is valid for 30 days.
Truck TypeStacker Forklift
Line total
No online payment. The basket becomes an order request and we reply with a written GBP quote, deposit 30% on order, lead time 8 to 12 weeks.
Or email [email protected]ELES-20E 2 Ton Straddle Leg Electric Stacker 3.5m Wide Leg Pallet Stacker 48V Forklift for Warehouse Logistics
2000kg Heavy Duty Capacity: Reliable 2 ton electric pallet stacker designed for intensive industrial material handling.
3.5m High Level Stacking: Professional 3500mm lift height stacker for efficient high-shelf warehouse racking.
Versatile Straddle Leg Design: 1470mm wide leg stacker allows handling both open and closed pallets with ease.
Powerful 48V DC System: High-performance 48V battery powered stacker ensures strong drive and lifting efficiency.
Efficient 2.2kW Hoisting Motor: Industrial DC motor provides fast and stable vertical handling for heavy loads.
Compact 1520mm Turning Radius: Agile walkie stacker for effortless manoeuvring in narrow aisle warehouse spaces.
Reliable Electromagnetic Brake: Advanced safety braking system ensures immediate stop for secure 2000kg load operation.
Durable PU Wheels & Steel Frame: Robust construction stacker with quality wheels to protect floors and ensure long-term use.

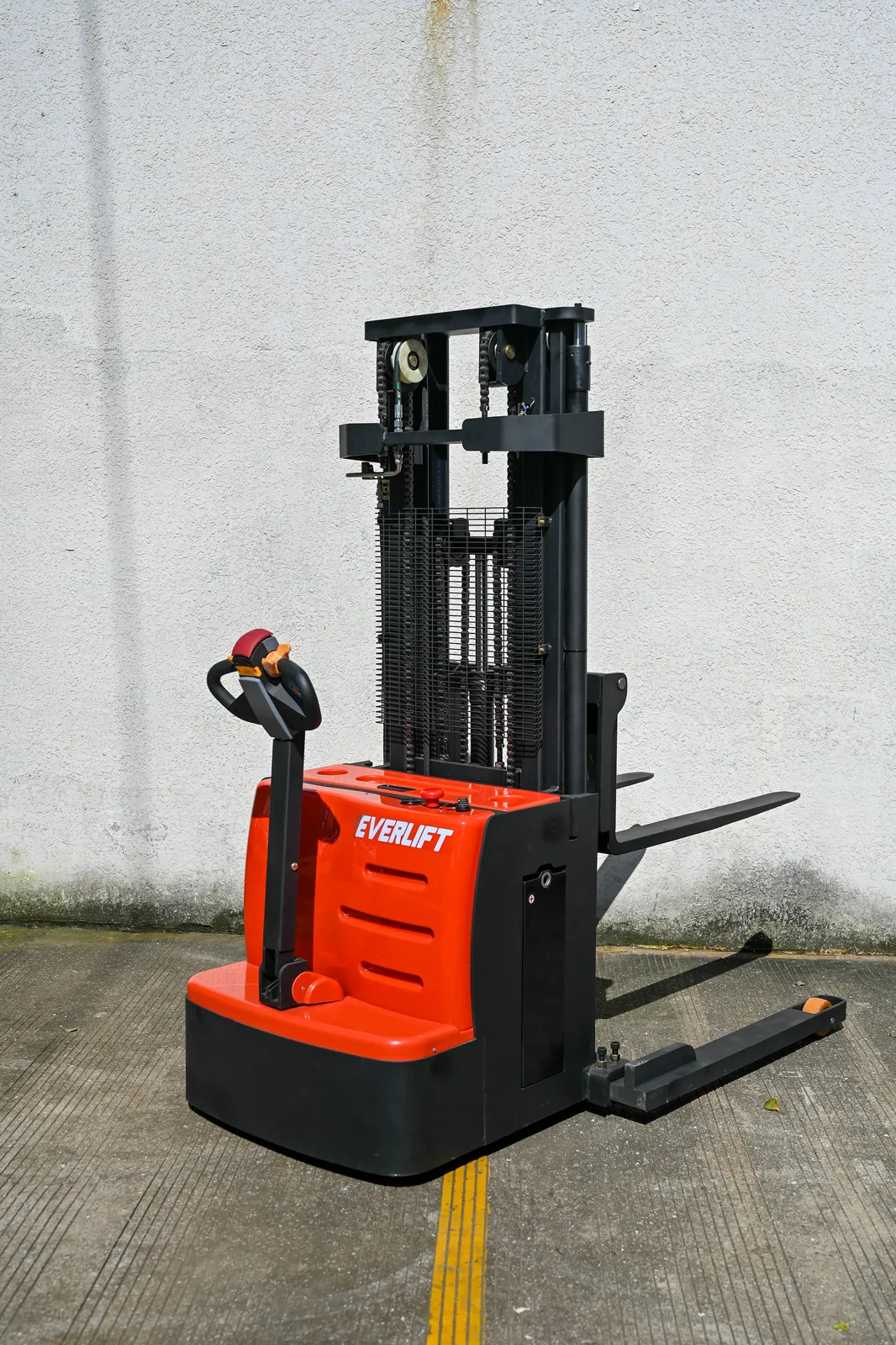

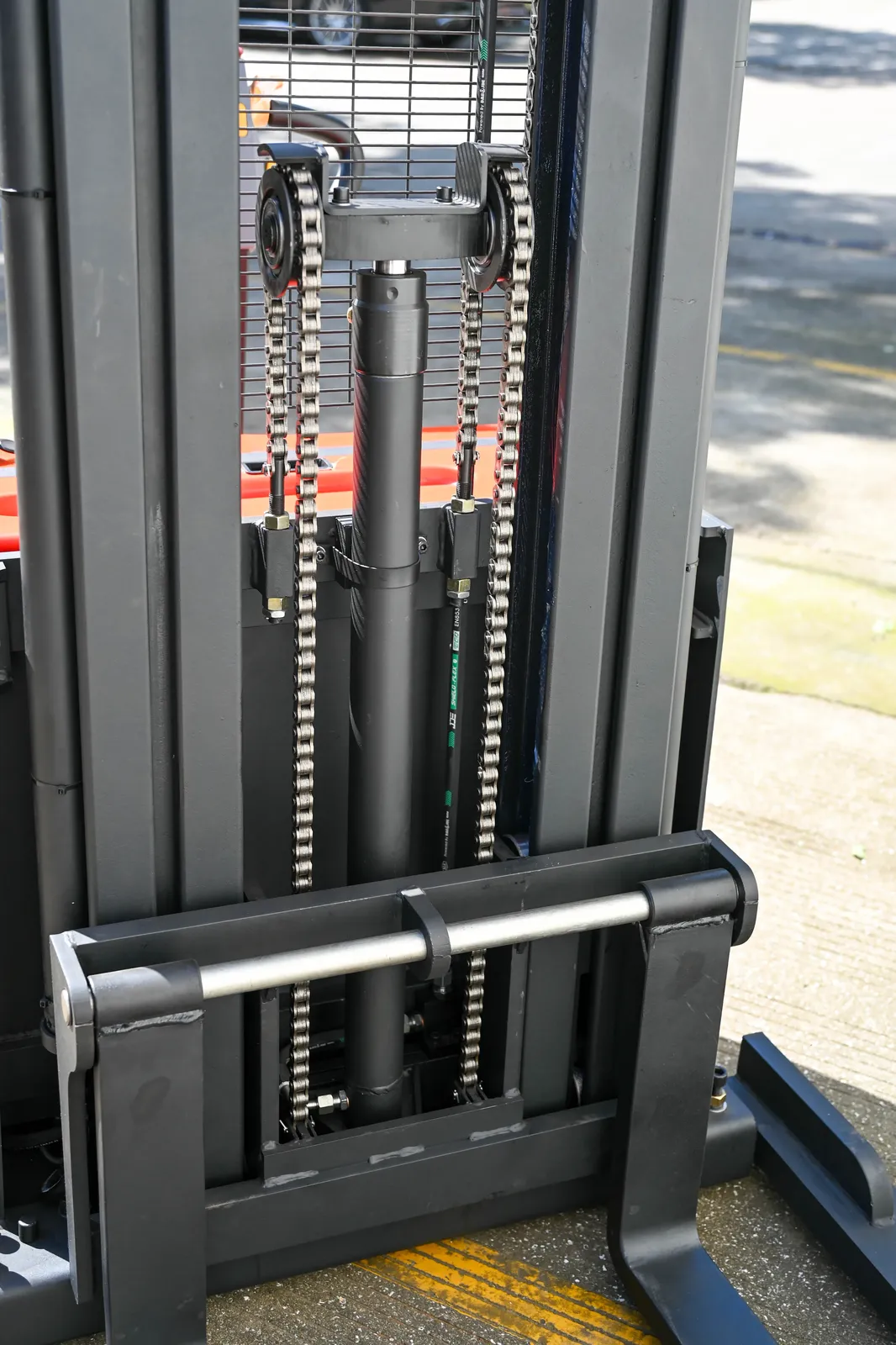

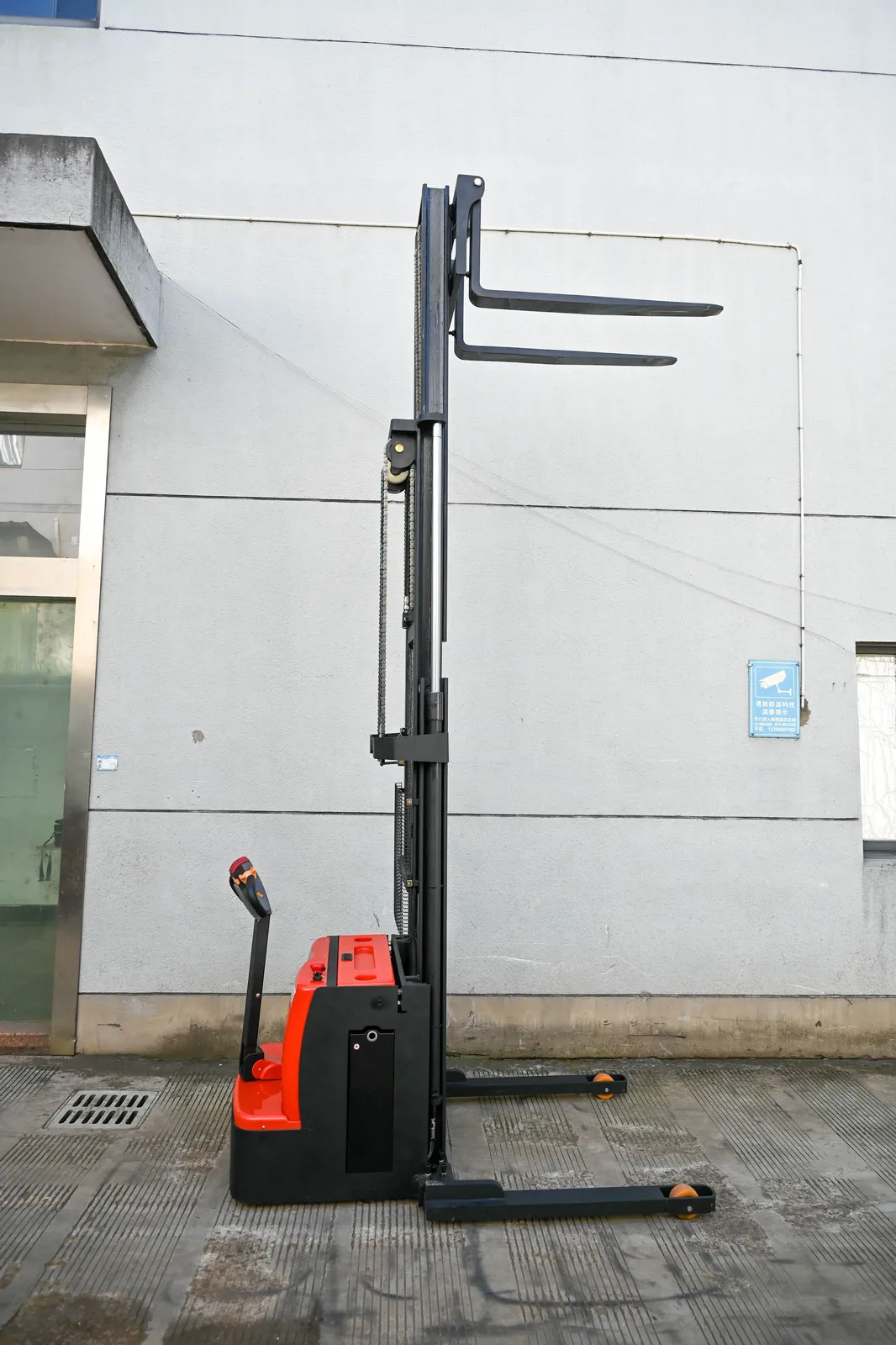

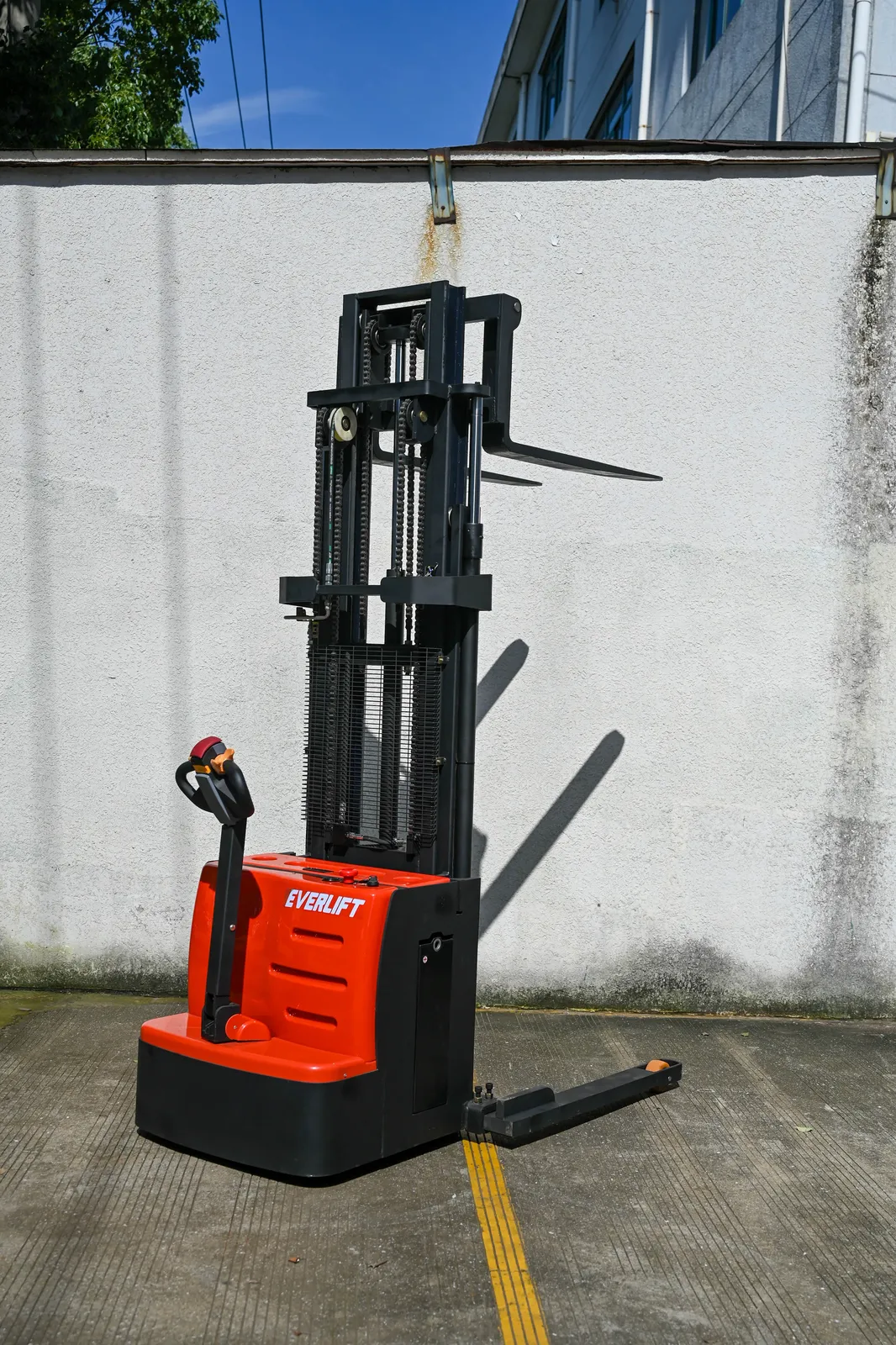

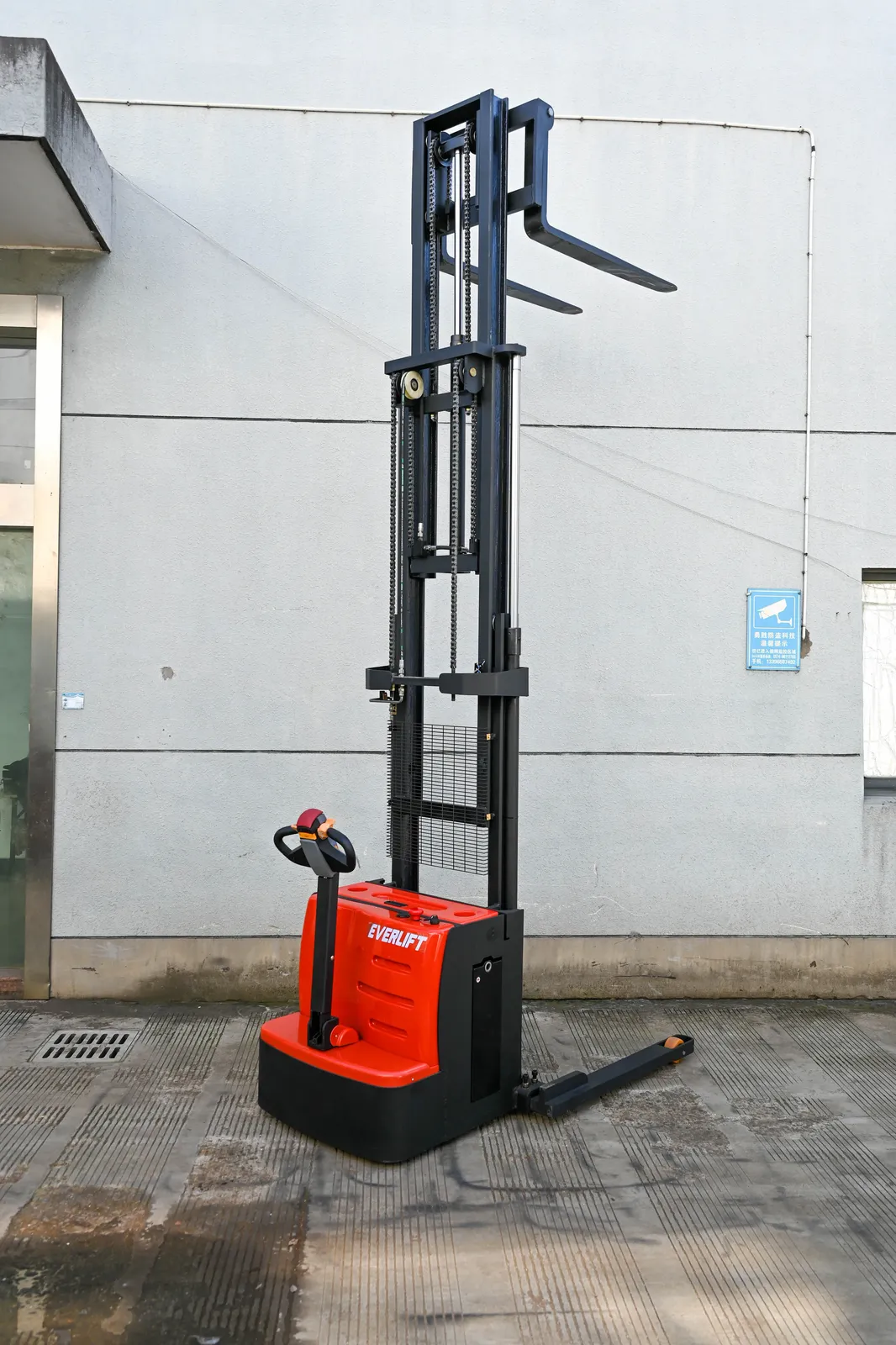

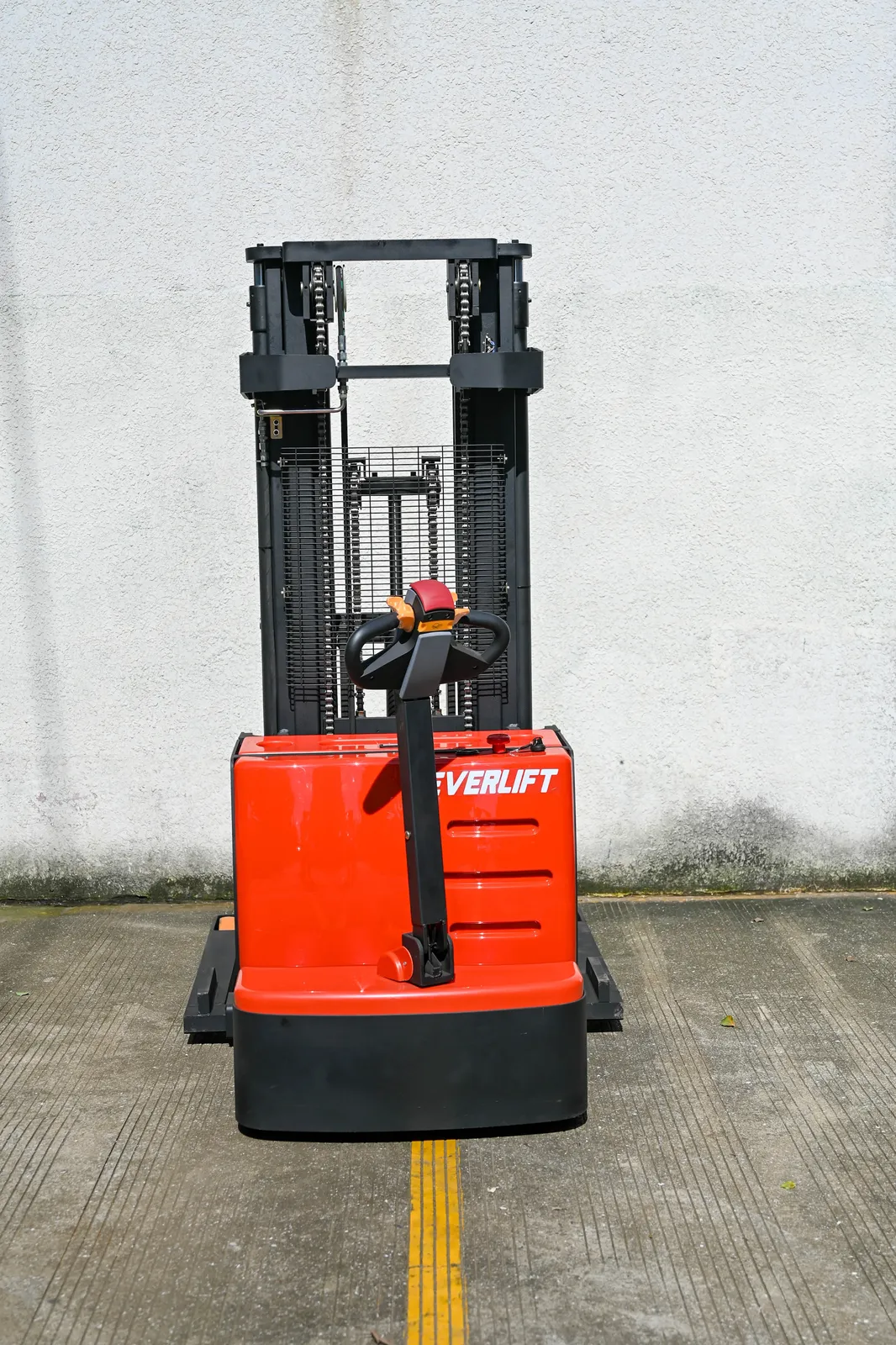

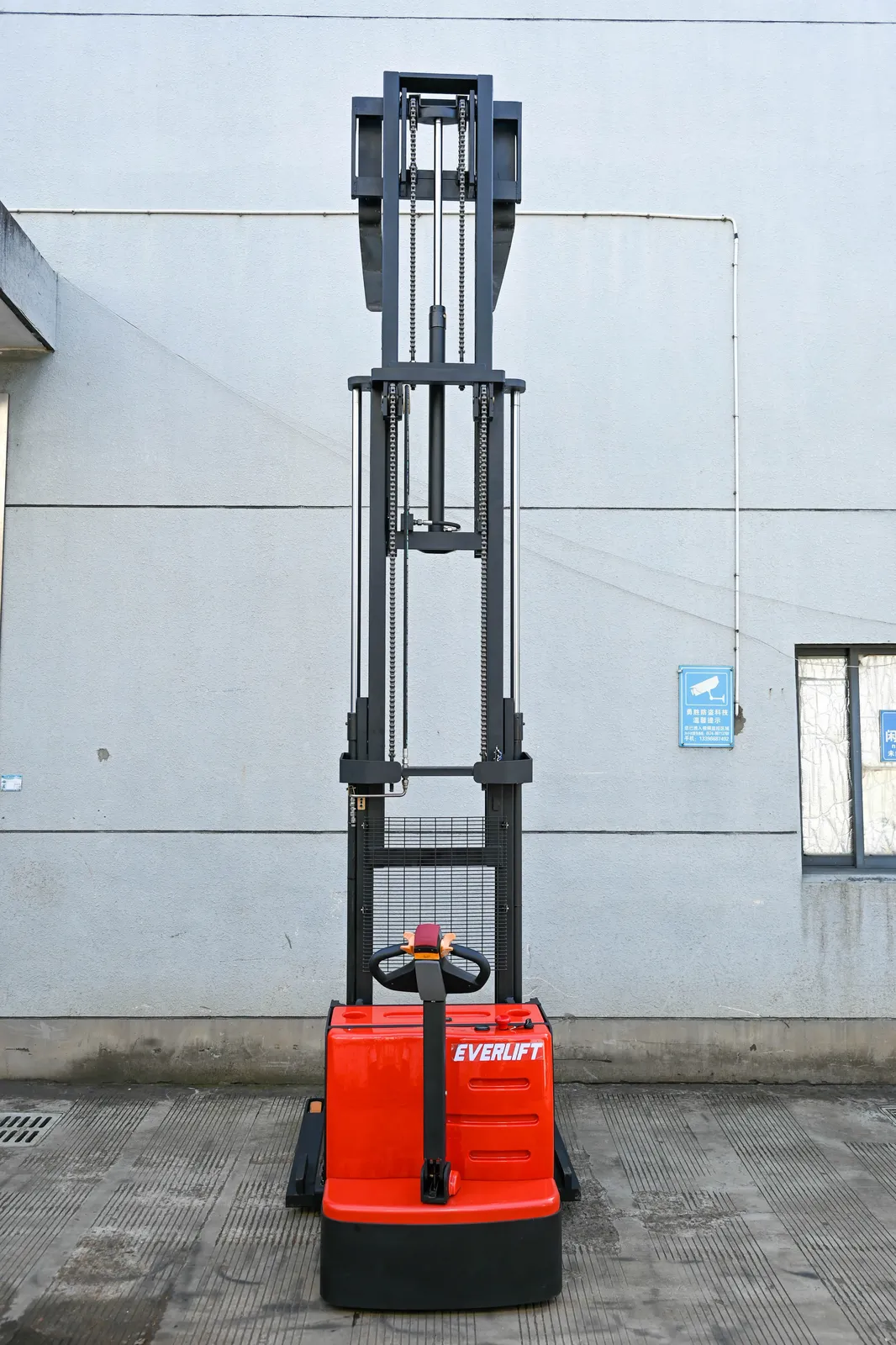

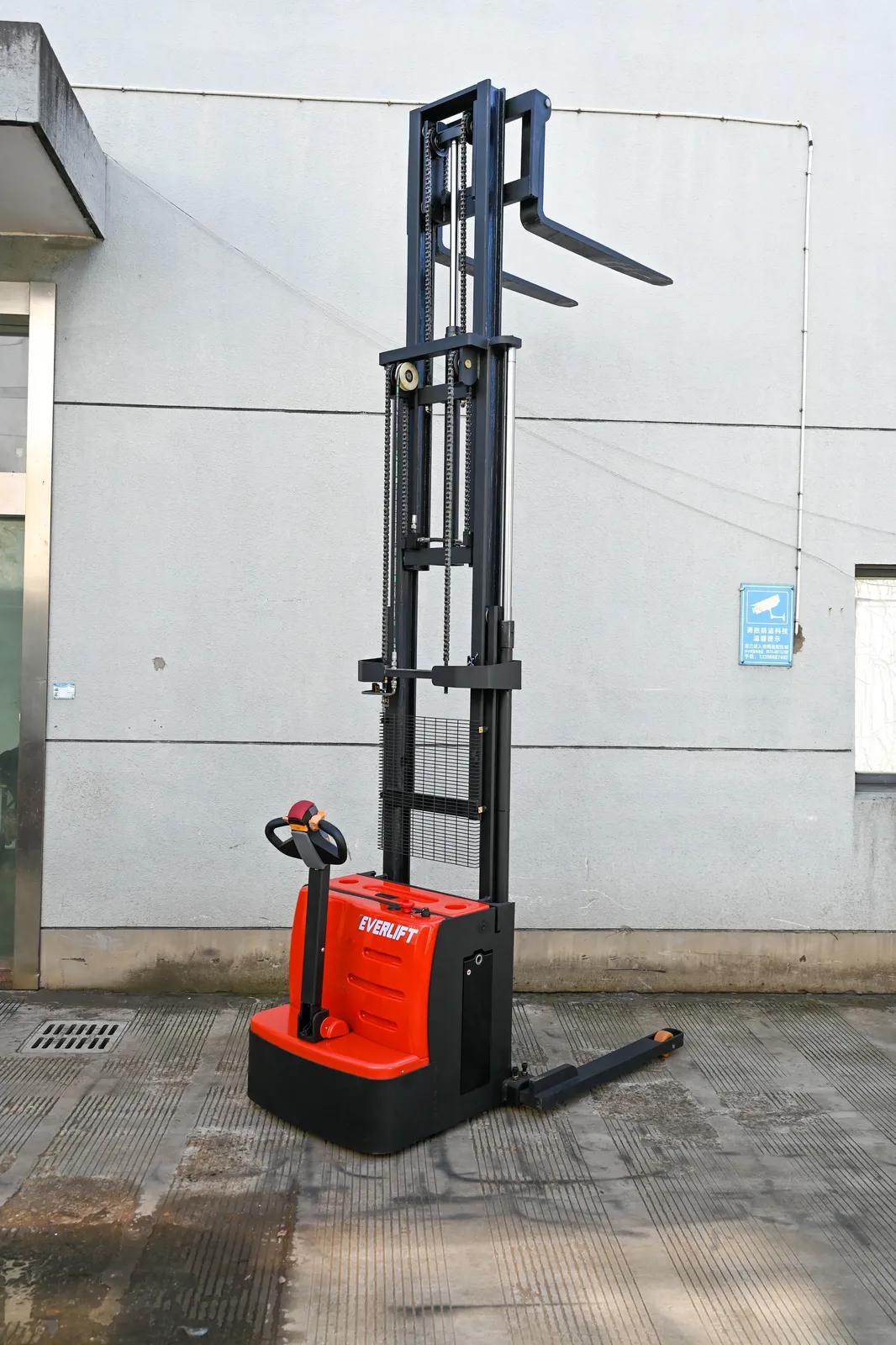

Detail Shot
型号 Model
单位 Unit
ELES-15E
特征
Features
驱动方式
Power type
电动
Battery powered
额定负载
Load capacity
Q(kg)
1500
载荷中心
Load centre
C(mm)
500
门架形式
三级
3-Stages
参数
P arameter
最大起升高度
Max. Lift height
H(mm)
3500/4000/4500
货叉最低离地高度
Min. Lowered of fork height
H1(mm)
88
自由提升高度
Lift height
H2(mm)
1210/1380/1550
标准货叉外宽
Outside width of forks
E(mm)
680
货叉长度
Length of fork
L(mm)
1150
货叉厚度
Thickness of fork
H3(mm)
50
货叉宽度
Width of fork
B1(mm)
180
整车全长
Overall length
A(mm)
2075
车体宽度
Overall width
B(mm)
861
整车静止高度
Height of mast,lowered
H4(mm)
1730/1895/2065
工作时整车最大高度
Height of mast,extended
H5(mm）
3485/4485/4985
最小转弯半径
Wa(mm)
Min.turning radius
性能
Performance
行驶速度
Travel speed,with/without load
Km/h
3-5
起升速度
Lift speed,with/without load
m/s
0.1~0.15
下降速度
Lowering speed,with/without
load
m/s
0.11~0.12
爬坡度
Max. Gradeability laden/unladen
%
3-5
轮子
Wheel
轮子材质
Wheel type
PU
驱动轮尺寸
Driving wheel size
mm
φ210*70
承重轮尺寸
Bearing wheel size
mm
φ80*70
平衡轮尺寸
Balancing wheel size
mm
Φ 115*55
电机
Motor
行走
Drive motor
Kw
AC0.75
起升
Lift motor
Kw
DC2.2
电瓶
Battery
电压
Voltage
V
24
容量/电池类型
Rated capacity
ah
24V210AH
刹车
Brake
制动器
Service brake
电磁制动
Electromagnetic brake
控制器
Controller
控制器
Controller
CURTIS 1212P
| Condition | New |
|---|---|
| Fork Specifications( L*W*H) | 1150*180*50 |
| Forklift Battery Type | Lithium-Ion Battery |
| Side Shifter | Electric Side Shifter, Hydraulic Side Shifter |
| Drive Type | Fwd |
| Terrain Adaptability | Indoor Flooring, Offroad, Outdoor Pavement, Rough Terrain, Other |
| Load centre distance | 500 mm, 600 mm |
| Mast Type | Single-Stage Mast, Three-Stage Mas, Two-Stage Mast |
| Forklift Turning radius | 1750 mm |
| Fork Length | 1220 mm, 1150 mm |
| Operating Mode | Standing Operation |
| Forklift Tyre | Polyurethane Tyre |
| Mast Tilt Angle (Forward Tilt-Rear Tilt) | 6-12° |
| Model Number | ELES-15/20E |
| Product Name | Electric Pallet Stacker |
| Model | ELES-15/20E |
| Tyre | Solid PU |
| Capacity | 1.5T-2T |
| Certification | CE/ISO9001 |
| Lifting height | 1.6m-5.5m |
| Feature | High Efficiency |
| Colour | Customer Demanded |
| Single package size | 50X50X50 cm |
| Single gross weight | 50.000 kg |
| Rated Loading Capacity options | 1.5 Ton, 2 Ton |
| Truck Type options | Stacker Forklift |
| Max. Lifting Height options | 2500 mm, 3000mm, 3500 mm, 4000 mm, 4500 mm, 5000 mm, 5500 mm |
| 型号 Model | 单位 Unit | ELES-15E | |
|---|---|---|---|
| 特征 Features | 驱动方式 Power type | 电动 Battery powered | |
| 额定负载 Load capacity | Q(kg) | 1500 | |
| 载荷中心 Load centre | C(mm) | 500 | |
| 门架形式 Mast type | 三级 3-Stages | ||
| 参数 P arameter | 最大起升高度 Max. Lift height | H(mm) | 3500/4000/4500 |
| 货叉最低离地高度 Min. Lowered of fork height | H1(mm) | 88 | |
| 自由提升高度 Lift height | H2(mm) | 1210/1380/1550 | |
| 标准货叉外宽 Outside width of forks | E(mm) | 680 | |
| 货叉长度 Length of fork | L(mm) | 1150 | |
| 货叉厚度 Thickness of fork | H3(mm) | 50 | |
| 货叉宽度 Width of fork | B1(mm) | 180 | |
| 整车全长 Overall length | A(mm) | 2075 | |
| 车体宽度 Overall width | B(mm) | 861 | |
| 整车静止高度 Height of mast,lowered | H4(mm) | 1730/1895/2065 | |
| 工作时整车最大高度 Height of mast,extended | H5(mm） | 3485/4485/4985 | |
| 最小转弯半径 | Wa(mm) | 1750 | |
| Min.turning radius | |||
| 性能 Performance | 行驶速度 Travel speed,with/without load | Km/h | 3-5 |
| 起升速度 Lift speed,with/without load | m/s | 0.1~0.15 | |
| 下降速度 Lowering speed,with/without load | m/s | 0.11~0.12 | |
| 爬坡度 Max. Gradeability laden/unladen | % | 3-5 | |
| 轮子 Wheel | 轮子材质 Wheel type | PU | |
| 驱动轮尺寸 Driving wheel size | mm | φ210*70 | |
| 承重轮尺寸 Bearing wheel size | mm | φ80*70 | |
| 平衡轮尺寸 Balancing wheel size | mm | Φ 115*55 | |
| 电机 Motor | 行走 Drive motor | Kw | AC0.75 |
| 起升 Lift motor | Kw | DC2.2 | |
| 电瓶 Battery | 电压 Voltage | V | 24 |
| 容量/电池类型 Rated capacity | ah | 24V210AH | |
| 刹车 Brake | 制动器 Service brake | 电磁制动 Electromagnetic brake | |
| 控制器 Controller | 控制器 Controller | CURTIS 1212P |
| Certificate | Number | Valid |
|---|---|---|
| 2006/42/EC | M.2026.206.C137529 | 30/03/2026 - 29/03/2031 |
| CE | M.2026.206.C134736 | 04/02/2026 - 03/02/2031 |
| CE | 3N251031.NEMS093 | 30/10/2025 - 29/10/2030 |
| EAC | — | 22/10/2023 - 22/10/2028 |
| CE | M.2023.206.C83216 | 22/03/2023 - 21/03/2028 |
| CE | M.2023.206.C83215 | 22/03/2023 - 21/03/2028 |
| CE | M.2023.206.C83222 | 22/03/2023 - 21/03/2028 |
| CE | M.2023.206.C83221 | 22/03/2023 - 21/03/2028 |
Certificates are supplied with your quote on request.
