Manual & Semi-Electric Stacker
Forklift 1t 1.2t 1.5t 2t
1 to 2 tLithium-ionForks 1220 mm
Price on requestwritten quote
Manual & Semi-Electric Stackers · Ref LPT-93650

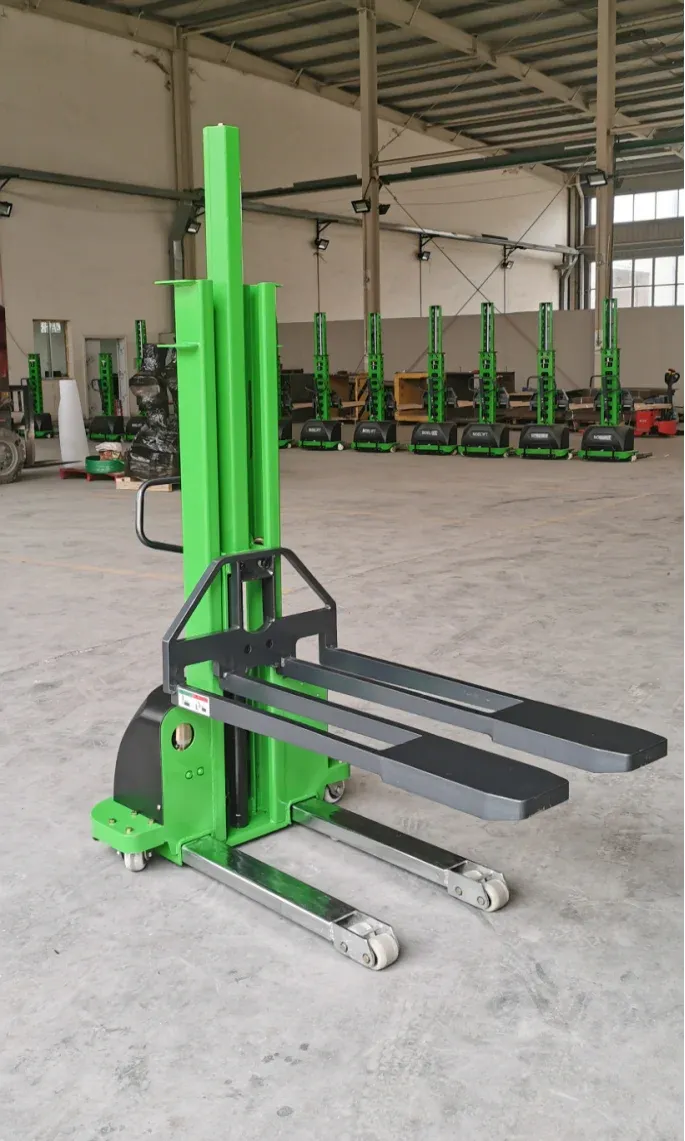

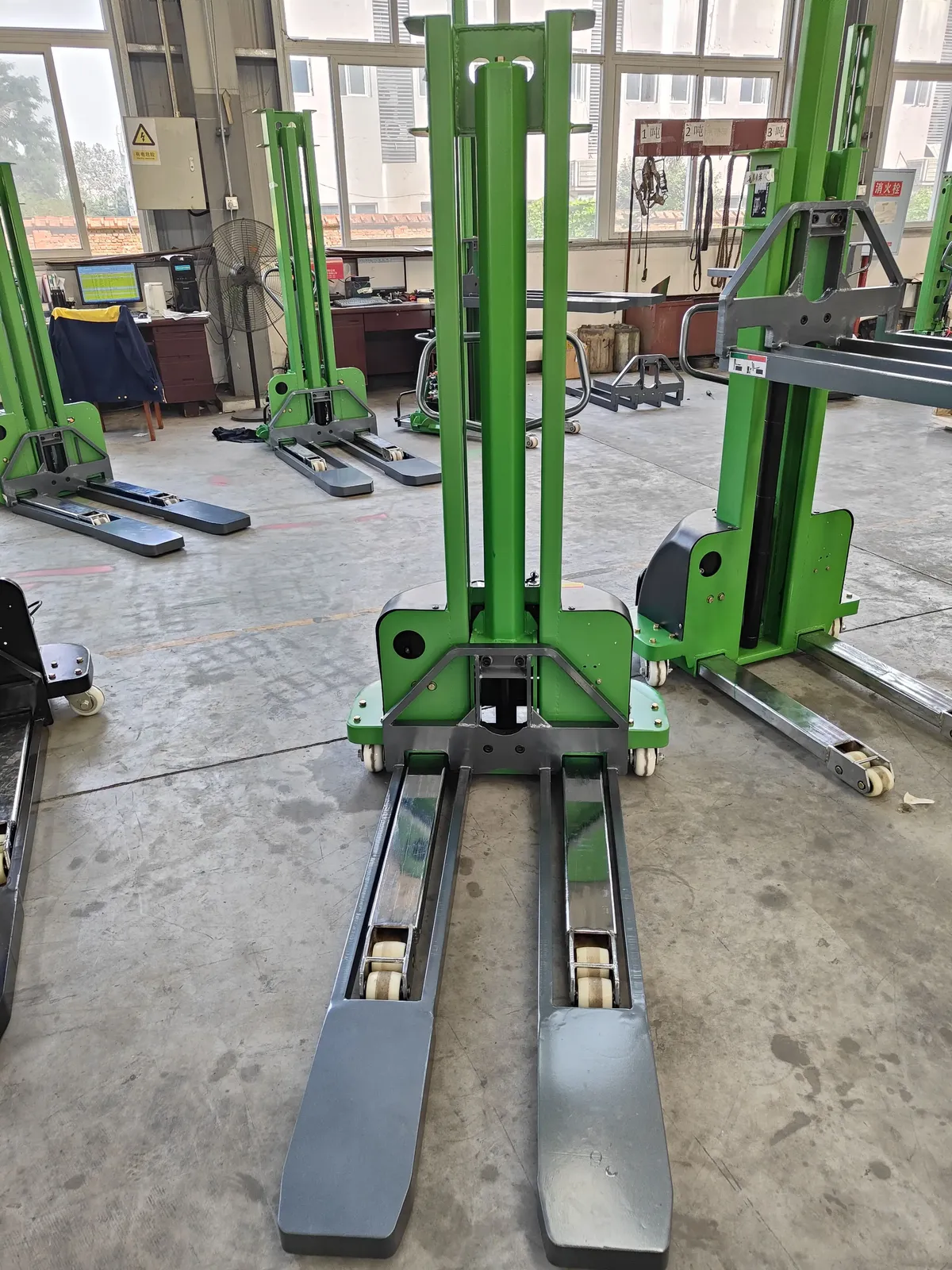

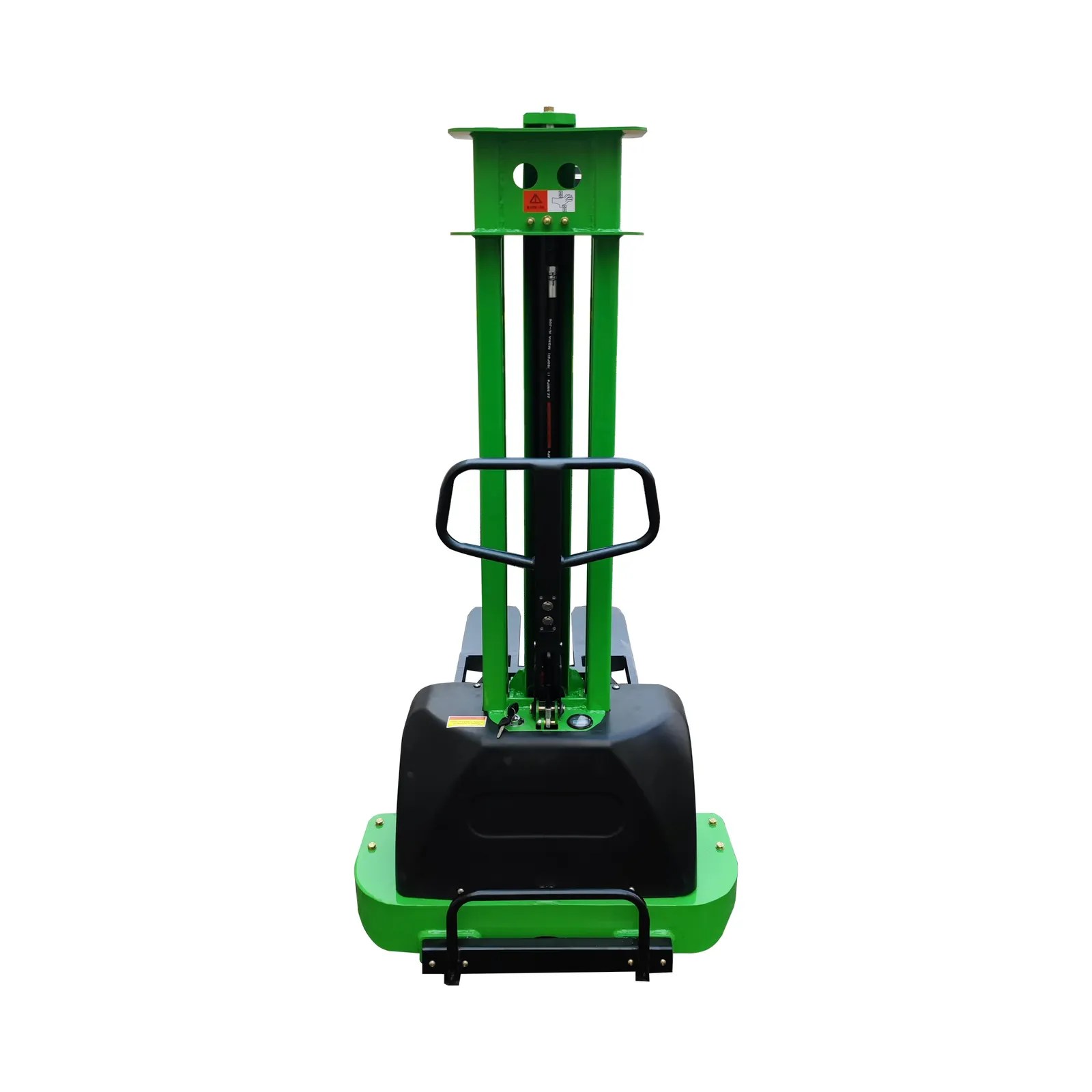

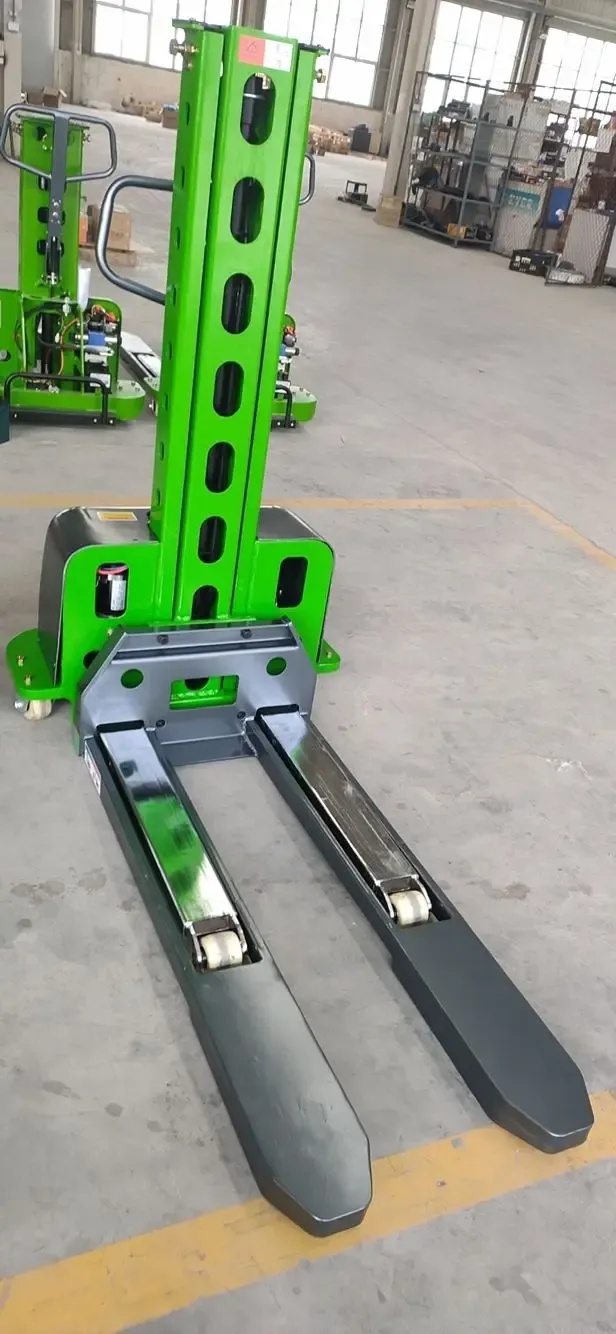

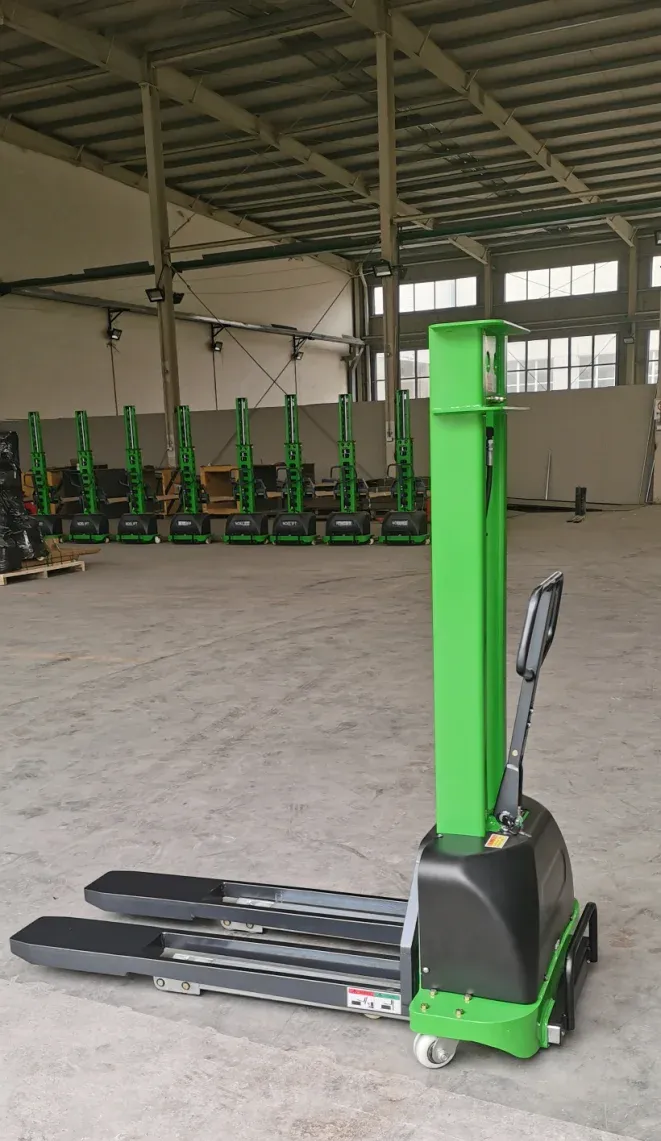

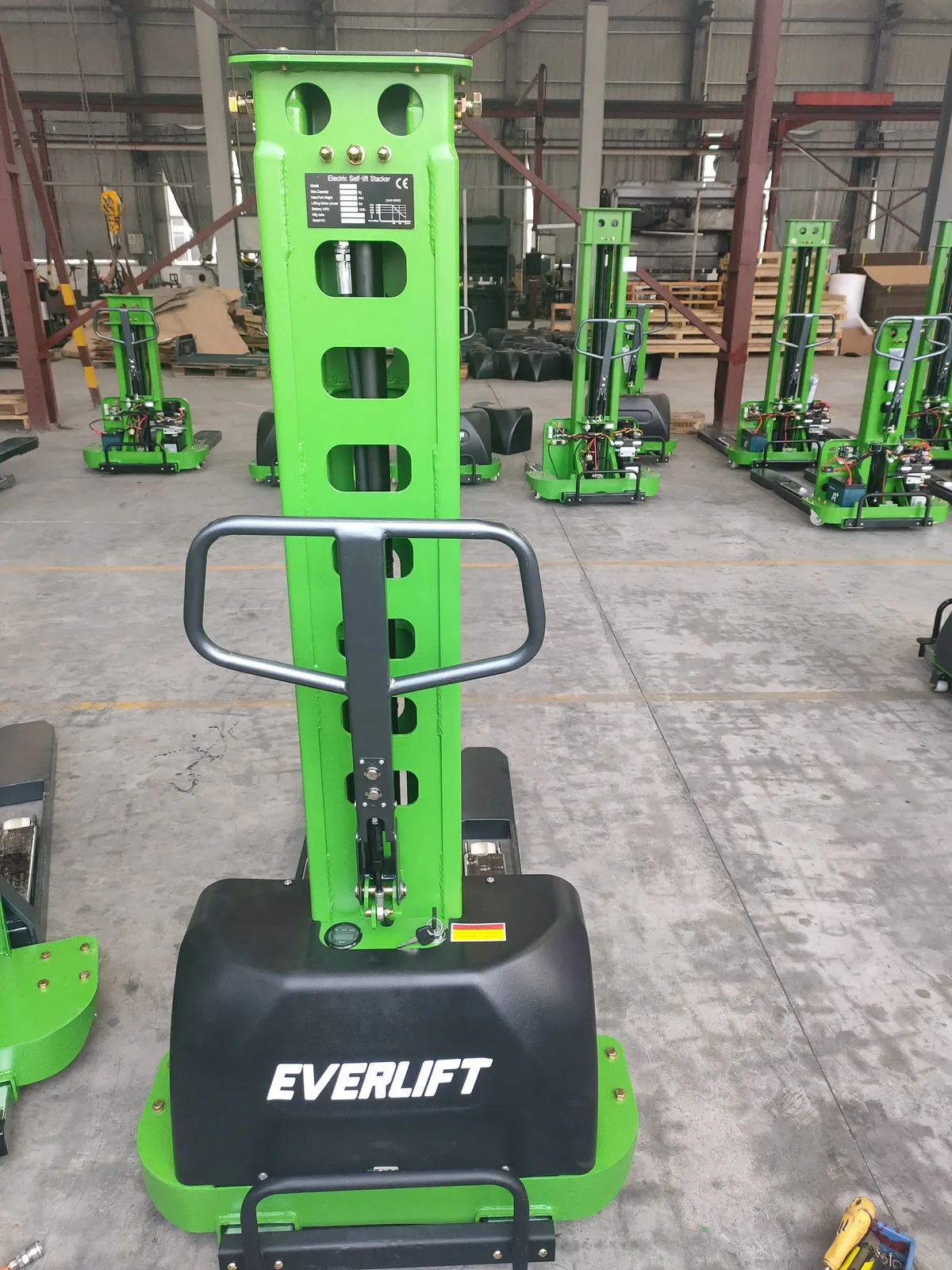

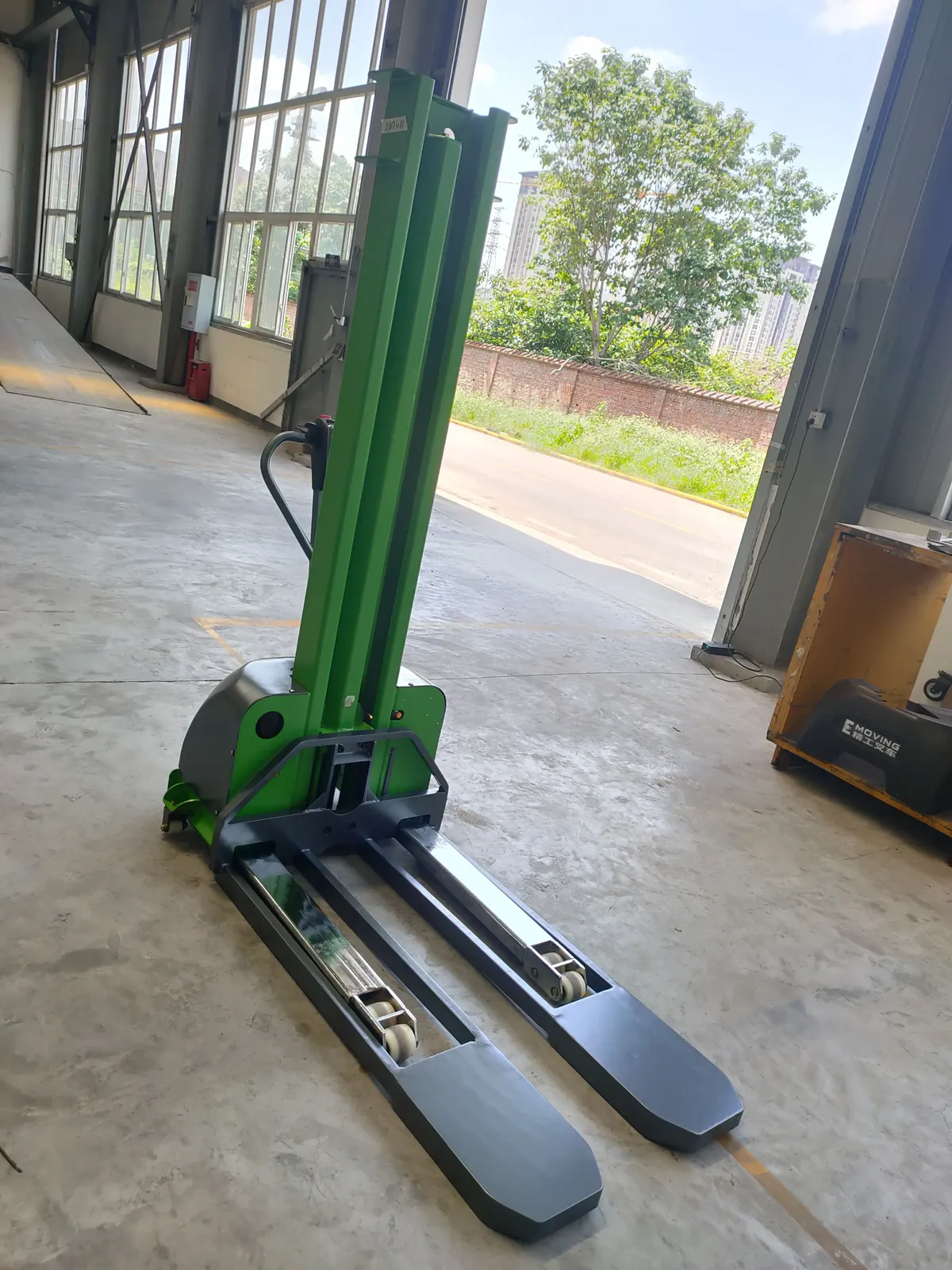

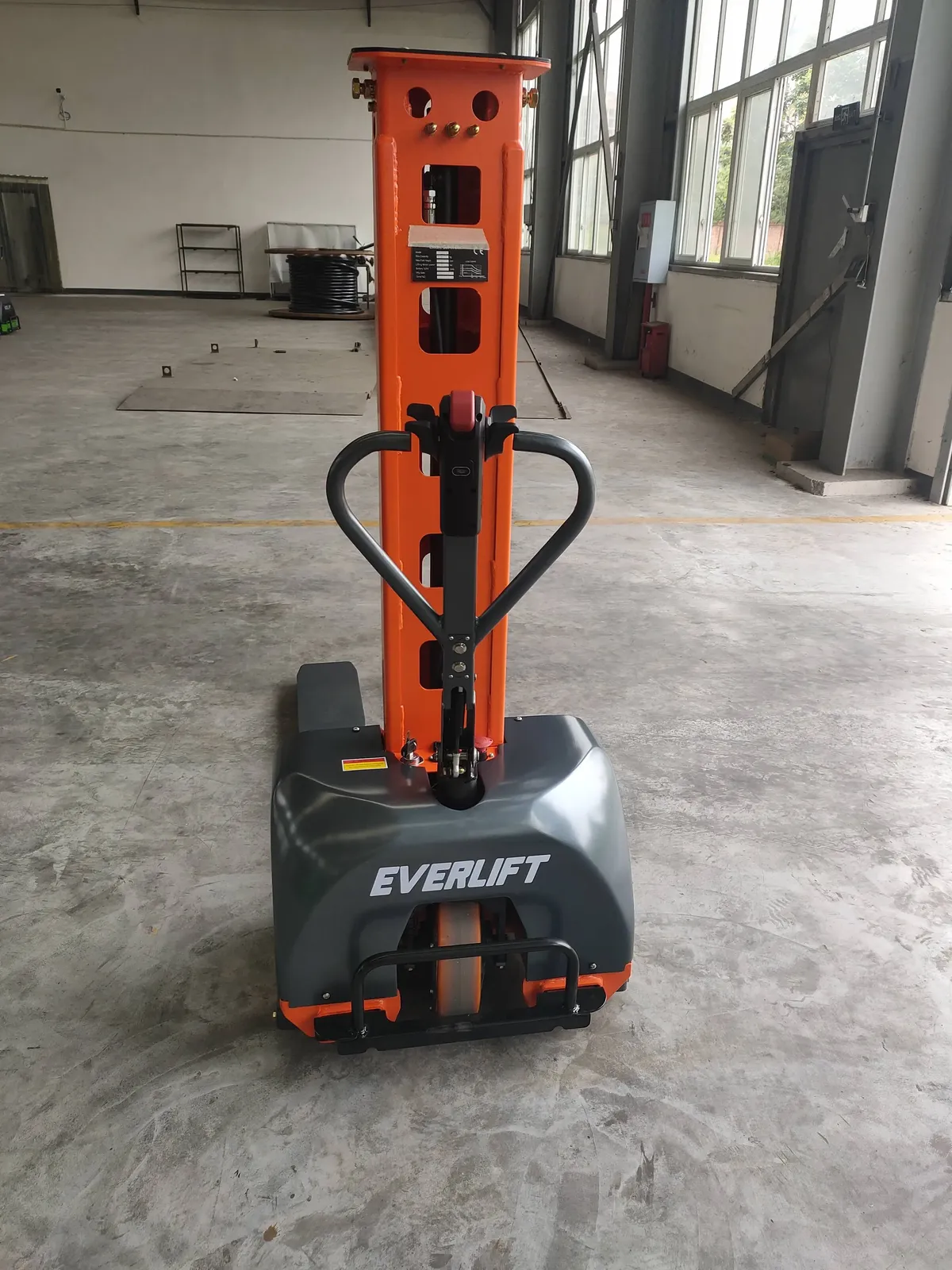

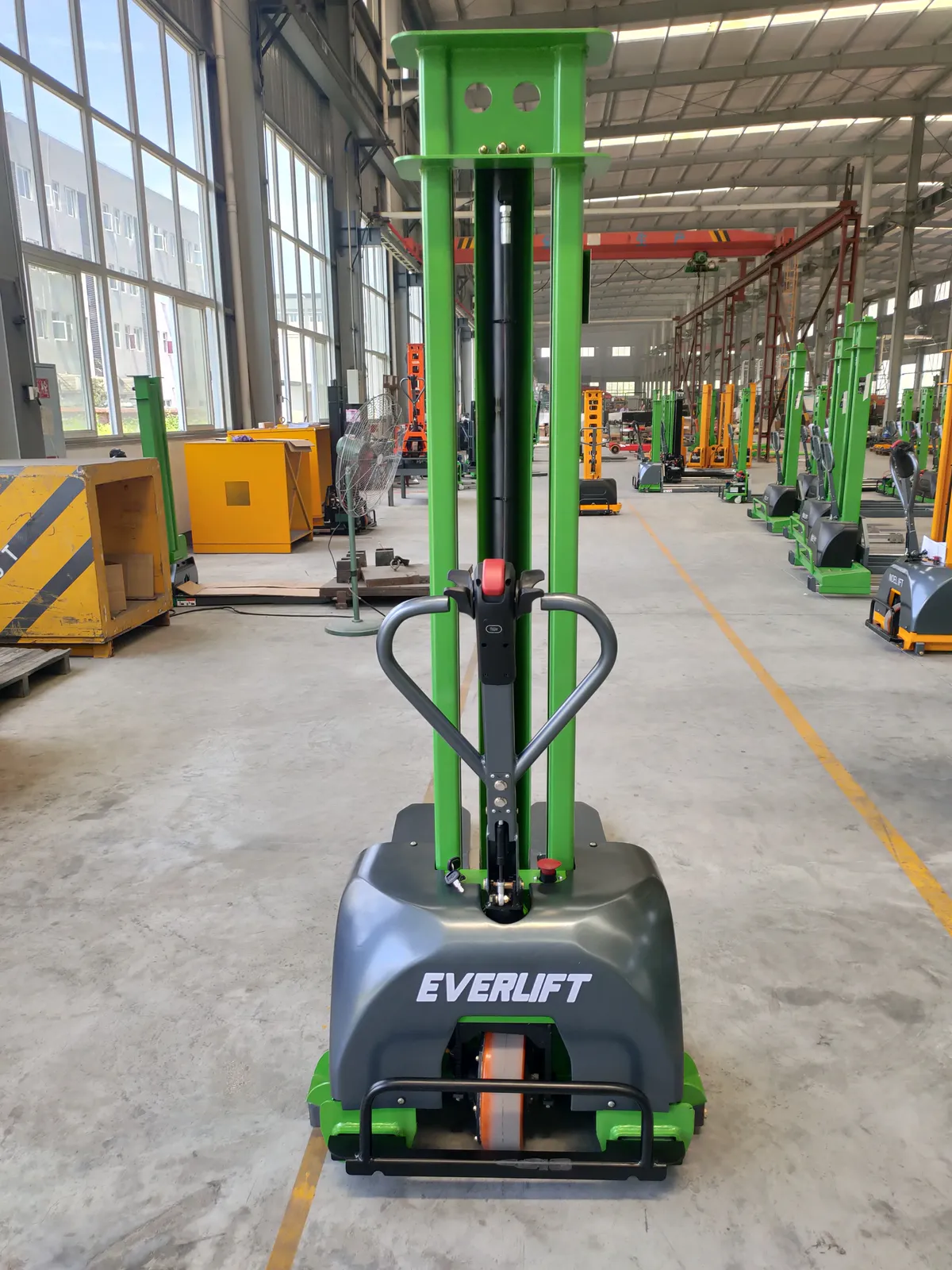

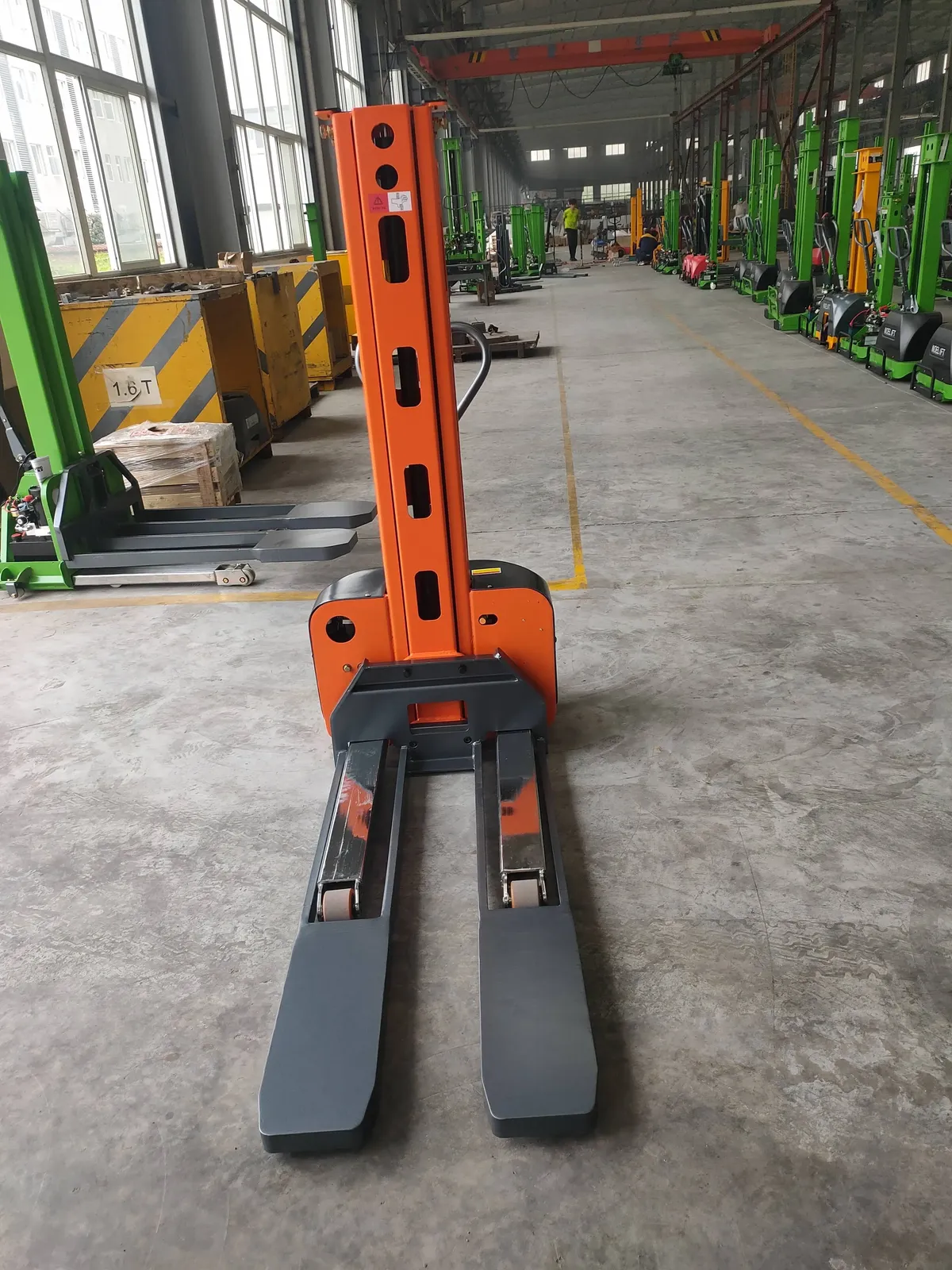

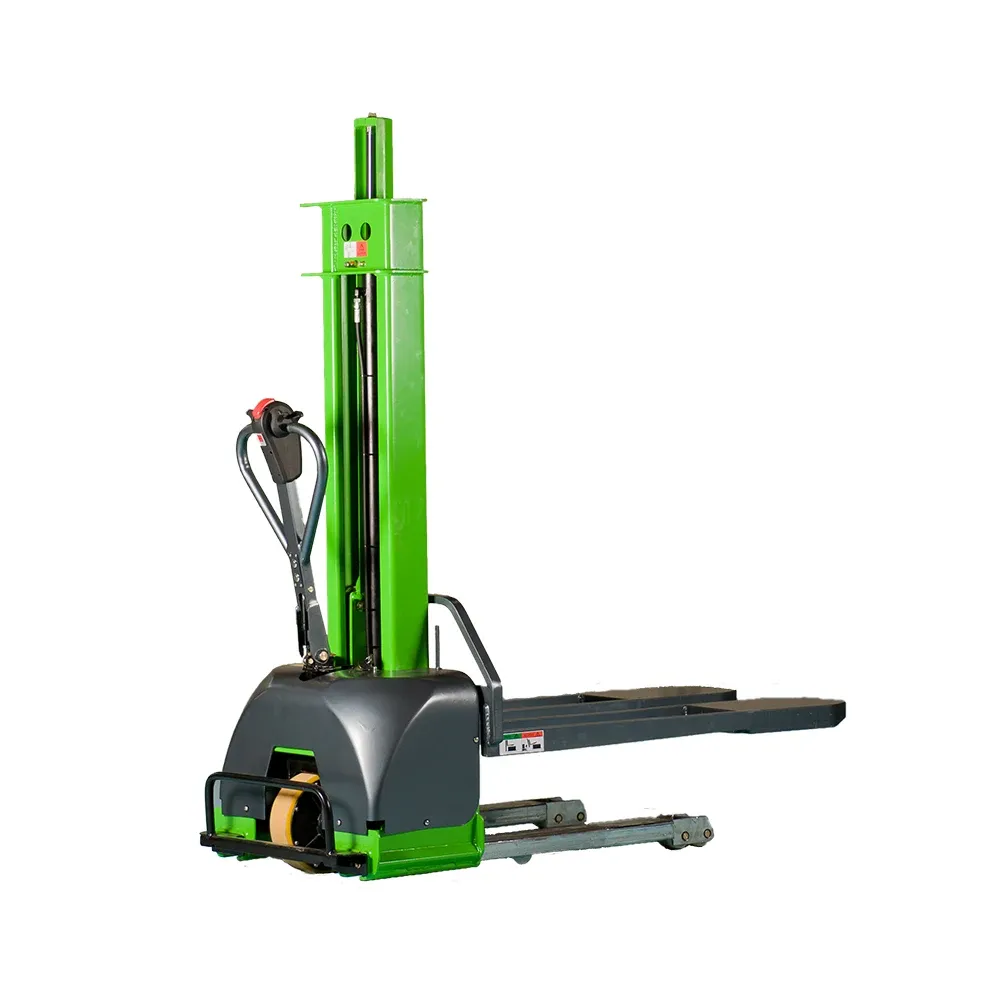

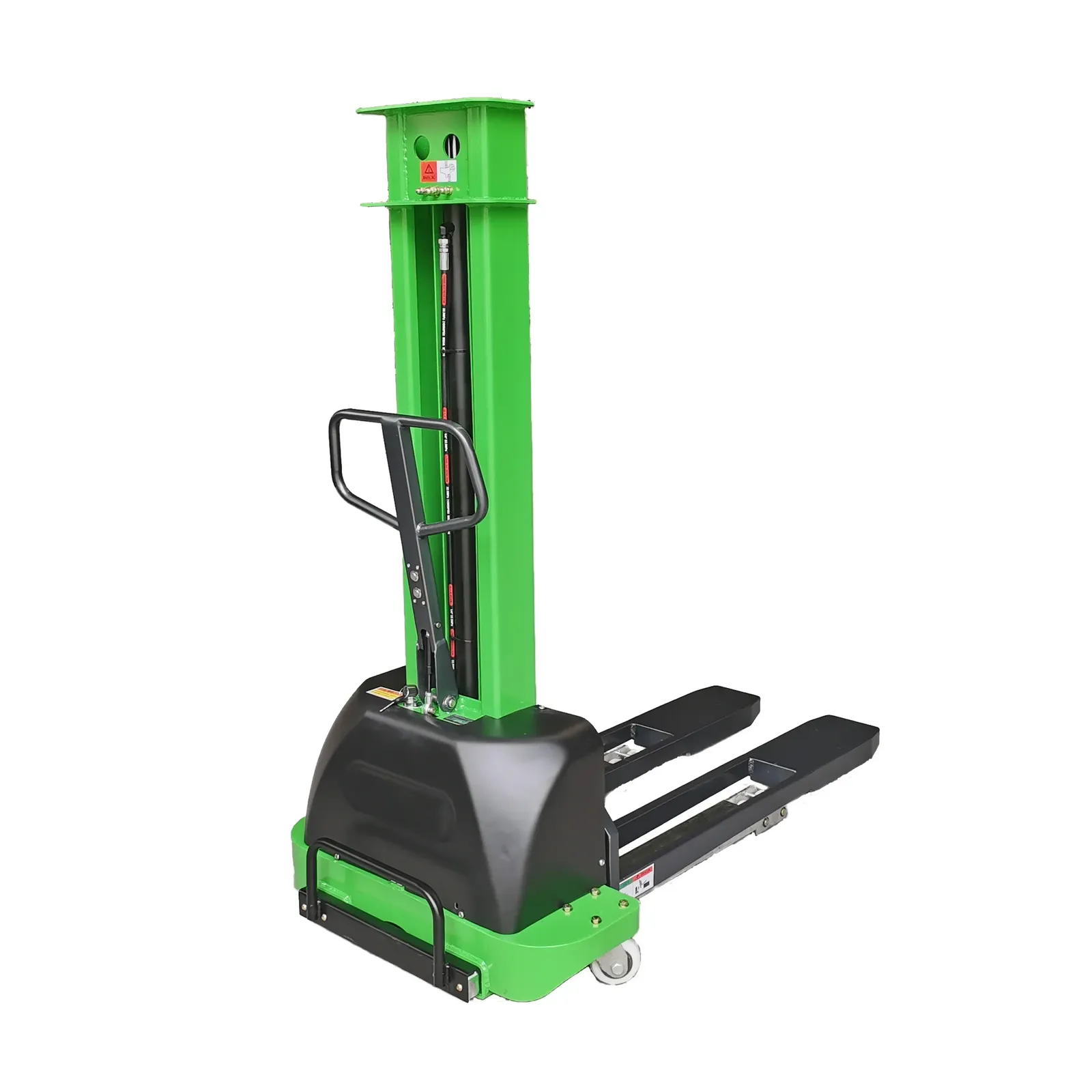

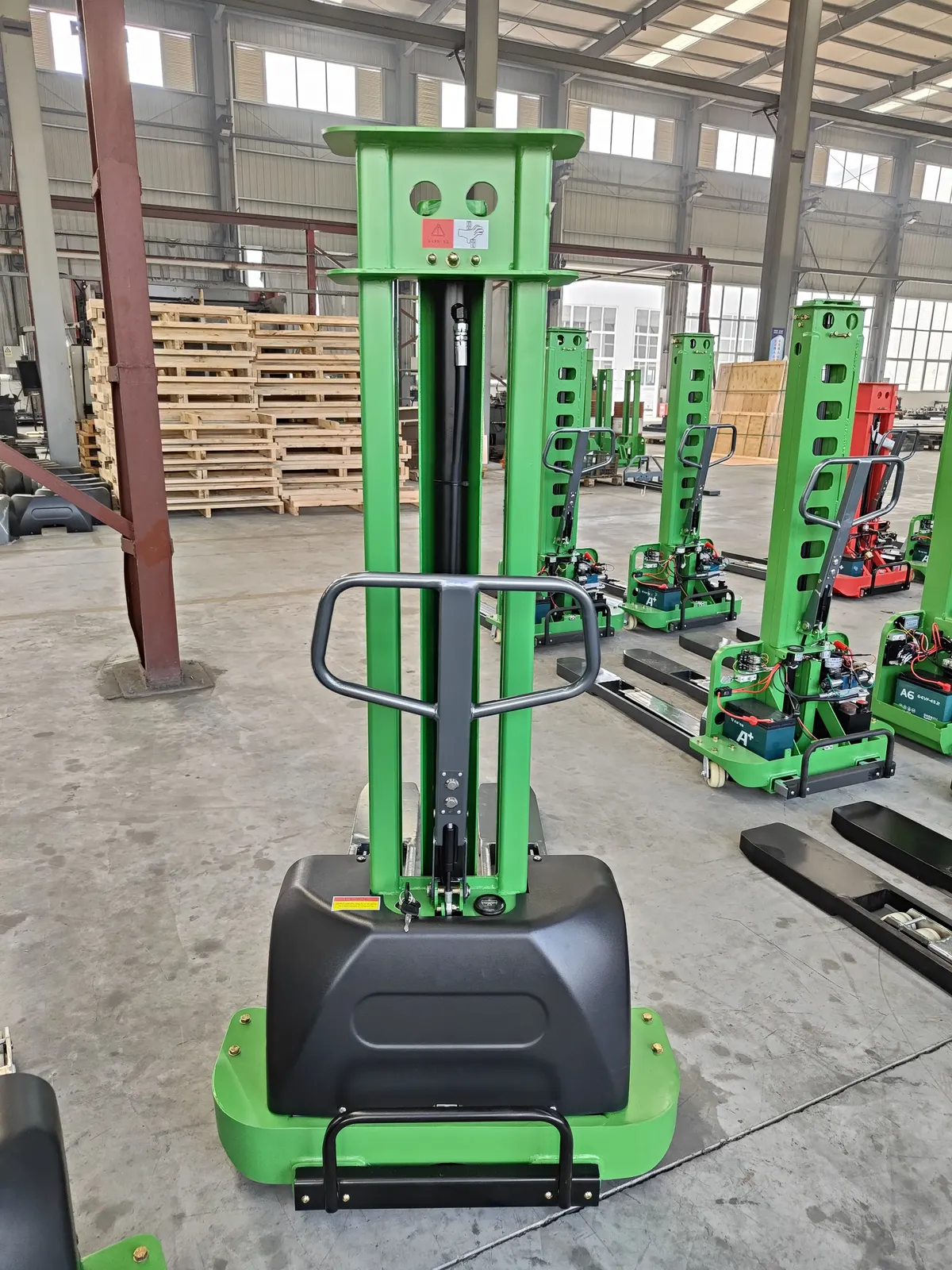

Half Electric Self Loading Stacker 500 to 1000 kg
0.5 to 1 tSemi-electricForks 1150 mm
Price on requestwritten quote
Minimum order 1 unit from the factory; any range minimum is confirmed on your quote. Prices in GBP per unit, ex VAT. We convert the factory list at a buffered exchange rate, so normal day-to-day currency movement does not change the price you see. Your written quote adds freight, duty and VAT and is valid for 30 days.
Max. Lifting Height1300mm
Truck TypeStacker Forklift
Line total
No online payment. The basket becomes an order request and we reply with a written GBP quote, deposit 30% on order, lead time 8 to 12 weeks.
Or email [email protected]Half Electric 500kg 1000kg Self Loading Stacker Self Lift Truck Van Used Portable Forklift
Company Profile

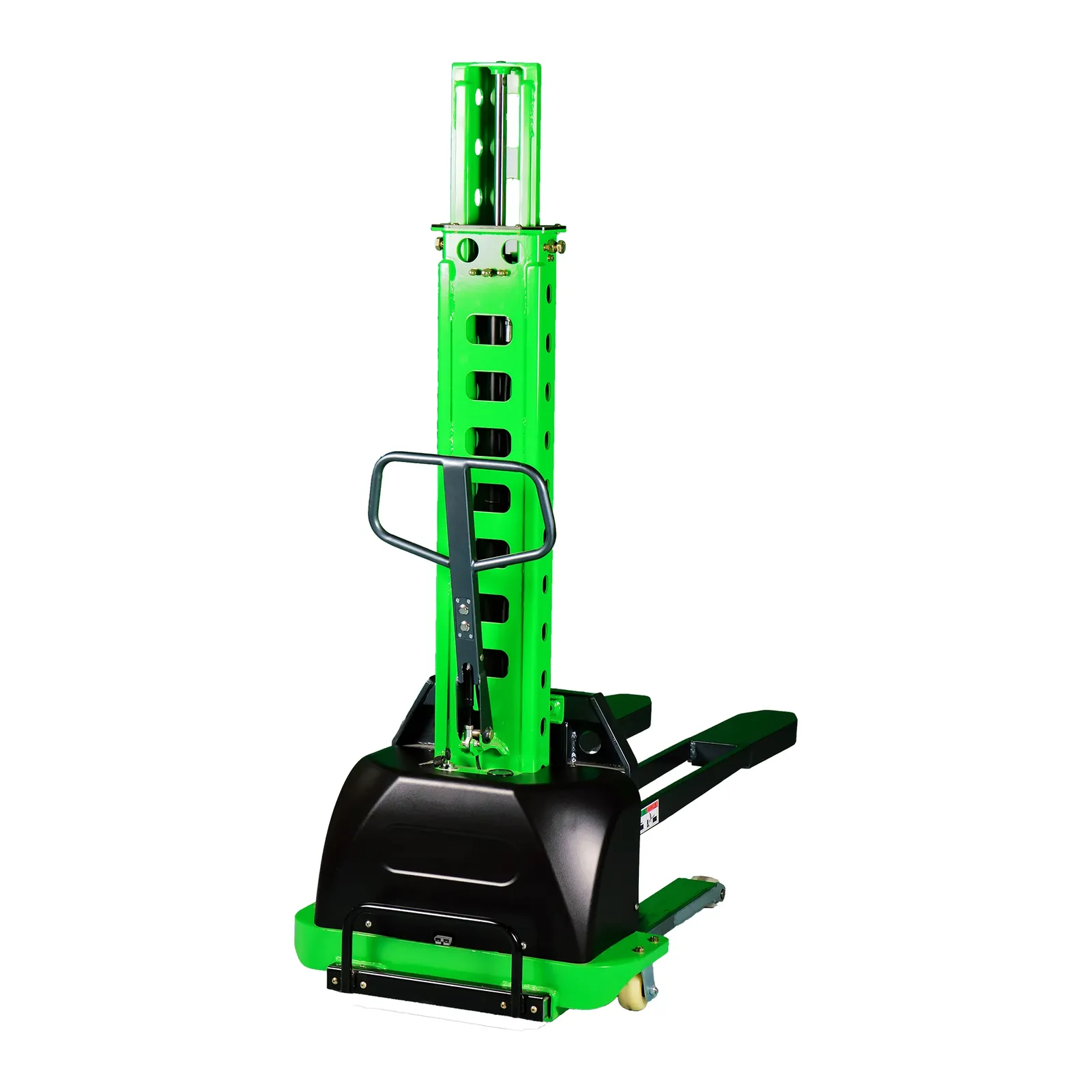

Battery Self Lift Stacker 500 1000KG max 800-1600mm
Advantage :
1. Optional lifting height from 800 to 1300 mm
2. Battery metres easy to see the battery left
3. Compact body can work in narrow space, Light main structure for easy self lifting.
4. Gel free maintenance battery,optional Lithium battery
5. Strong drive motor and lift motor, easy to operate.
6. Adjustable 2 speed button, Emergency stop switch, Key switch.
ELES-10EA
ELES-10D
1000
1000
563
Overall height Mast closed
1750
1.6
1.6
45
305
350
Semi-Electric Model
Optional side legs use for two faced closed pallet
| Condition | New |
|---|---|
| Side Shifter | Electric Side Shifter |
| Drive Type | AWD |
| Fork Length | 1150mm |
| Forklift Tyre | Solid Tyre |
| Terrain Adaptability | Rough Terrain, Outdoor Pavement, Offroad, Indoor Flooring |
| Load centre distance | 500 mm |
| Mast Type | Single-Stage Mast, Three-Stage Mas, Two-Stage Mast |
| Fork Width | 535 mm |
| Operating Mode | Standing Operation |
| Travel speed ( laden) | 4 km/h |
| Grade ability laden) | 0.4 |
| Travel speed ( unladen) | 5 km/h |
| Grade abilityunladen) | 0.4 |
| Forklift Wheelbase | 1487mm |
| Mast Tilt Angle (Forward Tilt-Rear Tilt) | 6-12° |
| Type | Lifting Tools |
| Power type | AC Power |
| Key words | Stacker Lifter |
| Loading Capacity | 300-1000 KG |
| Mast | Single mast |
| Keywords | STACKER |
| Max. Lifting Height options | 1300mm |
| Truck Type options | Stacker Forklift |
| Rated Loading Capacity options | 0.5 Ton, 1 Ton |
| Manufacturer | Ningbo Machinery Co., Ltd. | ||
|---|---|---|---|
| Model | ELES-05C | ELES-05C(F) | |
| Operation type | Hand drive, electric lifting | Electric drive and lifting | |
| Load capacity | KG | 500 | 500 |
| Load centre | MM | 400 | |
| Max lift height | MM | 800 /900 /1000 /1100 /1200 /1300 /1400 /1500 /1600 | |
| Max fork width | MM | 550 / 685 | |
| Fork length | MM | 1150 | |
| Total width | MM | 535 | 685 |
| Overall height Mast closed | MM | 1100/1200/1300/1400/1500/1600/1700/1800/1900 | |
| Overall length | MM | 1600 | 1676 |
| Lifting motor power | Kw | 0.8 | 0.8 |
| Driving motor power | Kw | / | 0.6 |
| Battery type | Gel free maintenance | Lithium | |
| Battery voltage | V | 24 | 48 |
| Battery capacity | AH | 33 | 12 |
| Operating weight | KG | 200 | 300 |
| Certificate | Number | Valid |
|---|---|---|
| CE | 3N251031.NEMS093 | 30/10/2025 - 29/10/2030 |
| EAC | — | 22/10/2023 - 22/10/2028 |
| CE | M.2023.206.C83216 | 22/03/2023 - 21/03/2028 |
| CE | M.2023.206.C83222 | 22/03/2023 - 21/03/2028 |
| CE | M.2023.206.C83221 | 22/03/2023 - 21/03/2028 |
Certificates are supplied with your quote on request.
