Manual & Semi-Electric Stackers · Ref LPT-15980
Self-Semi Electric Forklifts 500 kg
0.5 tLithium-ionForks 1150 mm
from £1,115per unit, ex VAT
| Quantity | Price per unit |
|---|---|
| 1 to 9 units | £1,155 |
| 10+ units | £1,115 |
Minimum order 1 unit from the factory; any range minimum is confirmed on your quote. Prices in GBP per unit, ex VAT. We convert the factory list at a buffered exchange rate, so normal day-to-day currency movement does not change the price you see. Your written quote adds freight, duty and VAT and is valid for 30 days.
Rated Loading Capacity500kg
Max. Lifting Height1100mm 1300mm
Truck TypePallet Jack
Line total
No online payment. The basket becomes an order request and we reply with a written GBP quote, deposit 30% on order, lead time 8 to 12 weeks.
Or email [email protected]Model SES500 SES-500
Capacity Q(Kg) 500 500
Load centre C(mm) 400 400
Type of lifting Electric Electric
Operating type Walkie Walkie
Material PU/Nylon PU/Nylon
Wheel base y(mm) 860 860
Front wheel base b11(mm) 380 380
Back wheel base b10(mm) 670 670
Quantity Steering/Bearing/Balance 2002-2-6 2002-2-6
Bearing wheel size mm Φ70×60 Φ70×60
Steering wheel size mm Φ100×50 Φ100×50
Balance wheel size mm Φ40×26 Φ40×26
Training wheel size mm Φ30×26 Φ30×26
Min.fork height mm 90 90
Max.fork height h3(mm) 1100 1300
Fork outside width mm 535 535
Fork inside width mm 225 225
Fork length l2(mm) 1150 1150
Single fork size e/s(mm) 155/60 155/60
Overall length L1(mm) 1600 1600
Overall width b1(mm) 790 790
Overall height h1(mm) 1400 1600
Whole height(after tape file shelf) h4(mm) 2700 2900
Min.turning radius Wa(mm) 1100 1120
Lifting speed(laden/unladen) mm/s 80/110 80/110
Lowering speed(laden/unladen) mm/s 80/80 80/80
Lift motor Kw 12V0.8 12V0.8
Battery capacity V/Ah 12/33 12/33
Battery weight Kg 10 10
Net weight Kg 197 219

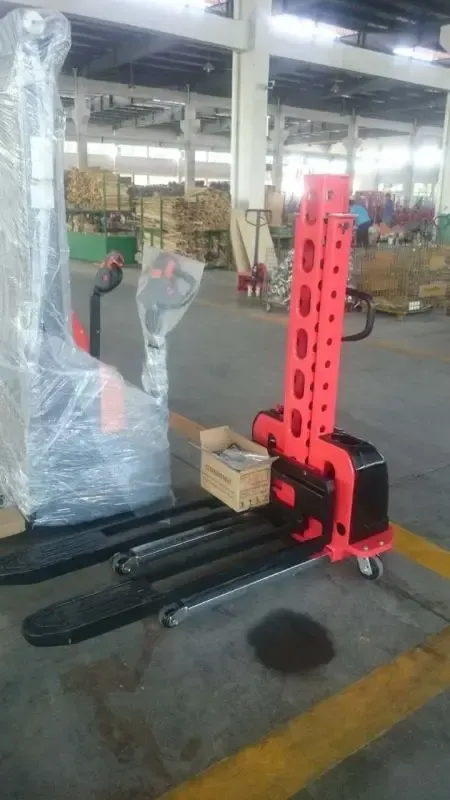

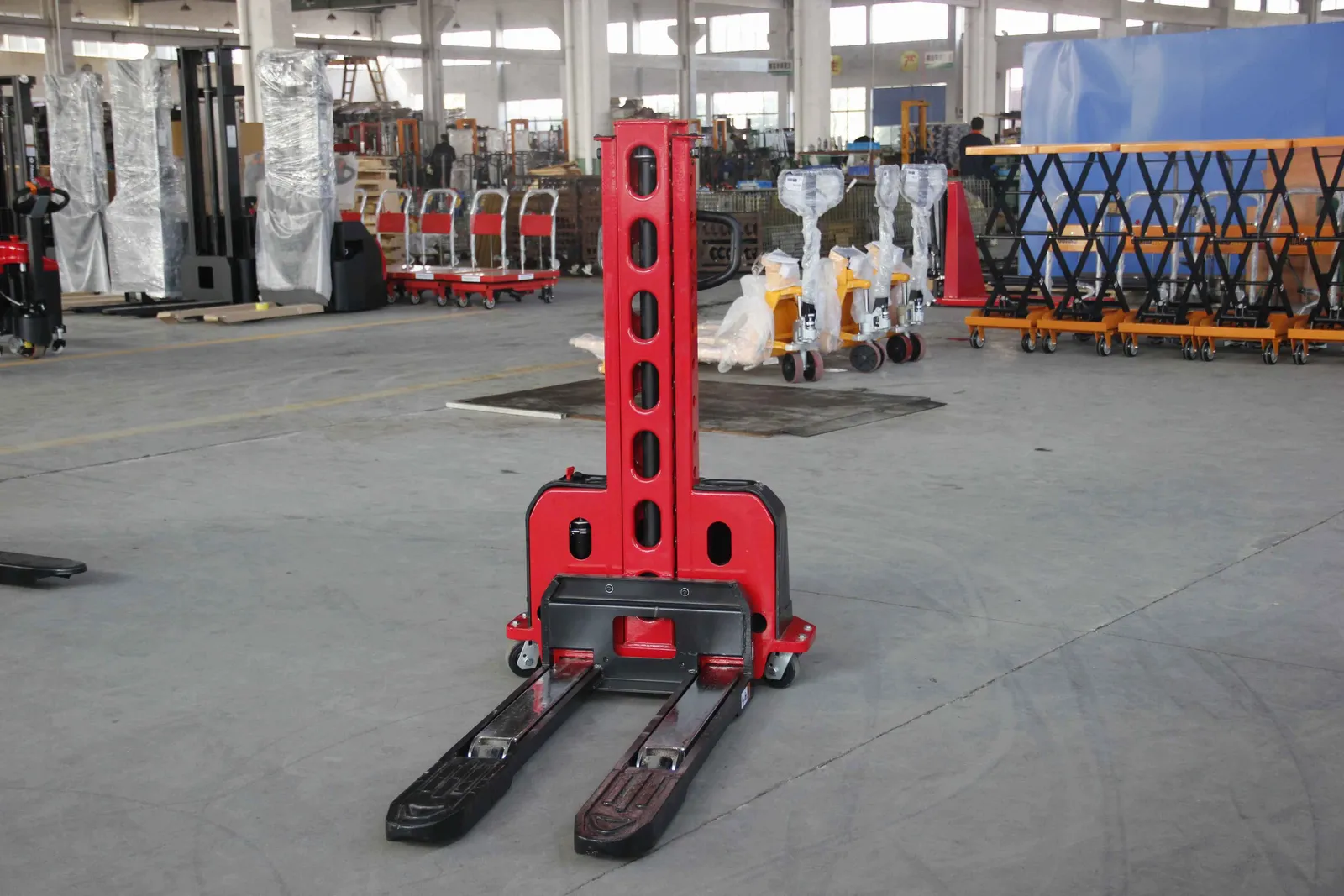

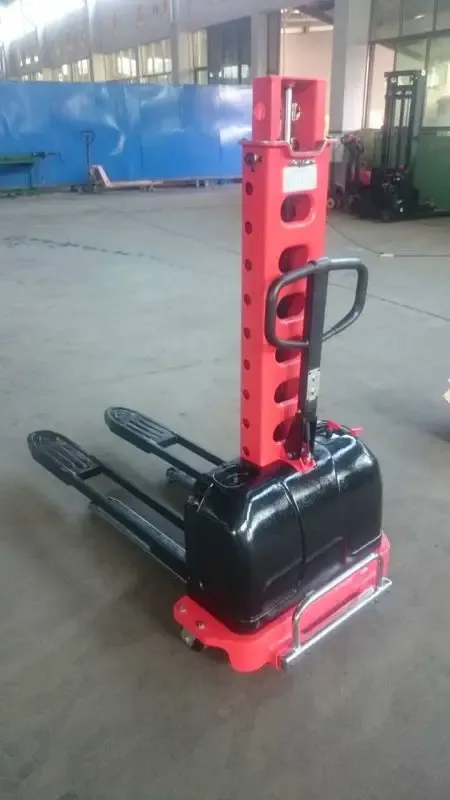

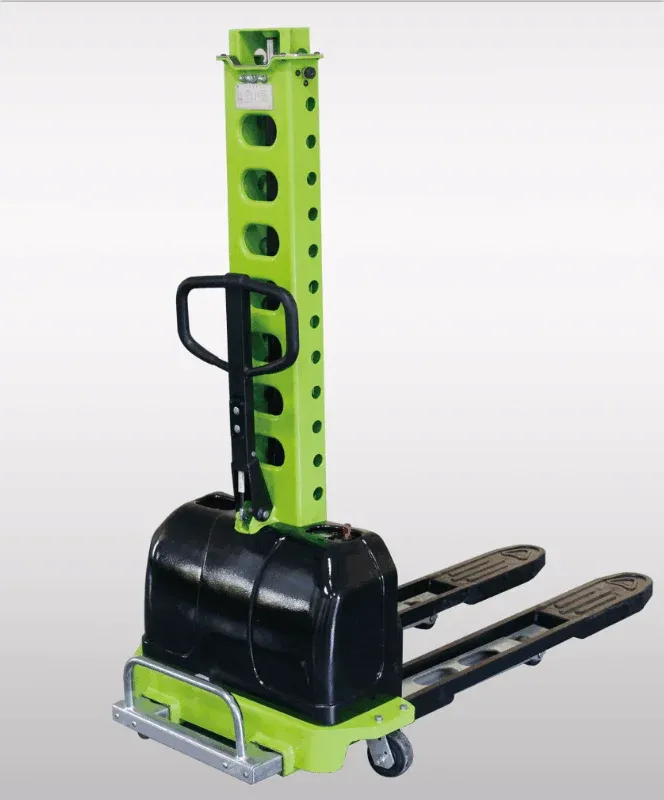

500kg 800mm 1100mm 1300m Self Semi Electric lift stacker
| Condition | New |
|---|---|
| Forklift Battery Type | Lithium-Ion Battery |
| Drive Type | AWD |
| Fork Length | 1150mm |
| Forklift Tyre | Solid Tyre |
| Terrain Adaptability | Indoor Flooring |
| Load centre distance | 600 mm |
| Mast Type | Single-Stage Mast |
| Forklift Turning radius | 1950 mm |
| Fork Width | 535mm |
| Operating Mode | Standing Operation |
| Travel speed ( laden) | 14 km/h |
| Grade ability laden) | 0.4 |
| Travel speed ( unladen) | 14 km/h |
| Grade abilityunladen) | 0.4 |
| Forklift Wheelbase | 1335 mm |
| Battery voltage (V/AH) | 48V/30AH |
| Fork height,lowered | 85 mm |
| Fork Size | 535*1150mm |
| Capacity | 500KG |
| Load Centre | 400mm |
| Battery | 33AH |
| Drive Motor | DC12V/0.8Kw |
| Mast | 1 Stage |
| Rated Loading Capacity options | 500kg |
| Max. Lifting Height options | 1100mm 1300mm |
| Truck Type options | Pallet Jack |
| Model | SES500 | SES-500 | |
|---|---|---|---|
| Capacity | Q(Kg) | 500 | 500 |
| Load centre | C(mm) | 400 | 400 |
| Type of lifting | Electric | Electric | |
| Operating type | Walkie | Walkie | |
| Material | PU/Nylon | PU/Nylon | |
| Wheel base | y(mm) | 860 | 860 |
| Front wheel base | b11(mm) | 380 | 380 |
| Back wheel base | b10(mm) | 670 | 670 |
| Quantity Steering/Bearing/Balance | 2002-2-6 | 2002-2-6 | |
| Bearing wheel size | mm | Φ70×60 | Φ70×60 |
| Steering wheel size | mm | Φ100×50 | Φ100×50 |
| Balance wheel size | mm | Φ40×26 | Φ40×26 |
| Training wheel size | mm | Φ30×26 | Φ30×26 |
| Min.fork height | mm | 90 | 90 |
| Max.fork height | h3(mm) | 1100 | 1300 |
| Fork outside width | mm | 535 | 535 |
| Fork inside width | mm | 225 | 225 |
| Fork length | l2(mm) | 1150 | 1150 |
| Single fork size | e/s(mm) | 155/60 | 155/60 |
| Overall length | L1(mm) | 1600 | 1600 |
| Overall width | b1(mm) | 790 | 790 |
| Overall height | h1(mm) | 1400 | 1600 |
| Whole height(after tape file shelf) | h4(mm) | 2700 | 2900 |
| Min.turning radius | Wa(mm) | 1100 | 1120 |
| Lifting speed(laden/unladen) | mm/s | 80/110 | 80/110 |
| Lowering speed(laden/unladen) | mm/s | 80/80 | 80/80 |
| Lift motor | Kw | 12V0.8 | 12V0.8 |
| Battery capacity | V/Ah | 12/33 | 12/33 |
| Battery weight | Kg | 10 | 10 |
| Net weight | Kg | 197 | 219 |
| Certificate | Number | Valid |
|---|---|---|
| CE | 3N251031.NEMS093 | 30/10/2025 - 29/10/2030 |
| EAC | — | 22/10/2023 - 22/10/2028 |
| CE | M.2023.206.C83216 | 22/03/2023 - 21/03/2028 |
| CE | M.2023.206.C83215 | 22/03/2023 - 21/03/2028 |
| CE | M.2023.206.C83222 | 22/03/2023 - 21/03/2028 |
| CE | M.2023.206.C83221 | 22/03/2023 - 21/03/2028 |
Certificates are supplied with your quote on request.
