Manual & Semi-Electric Stackers · Ref LPT-31496

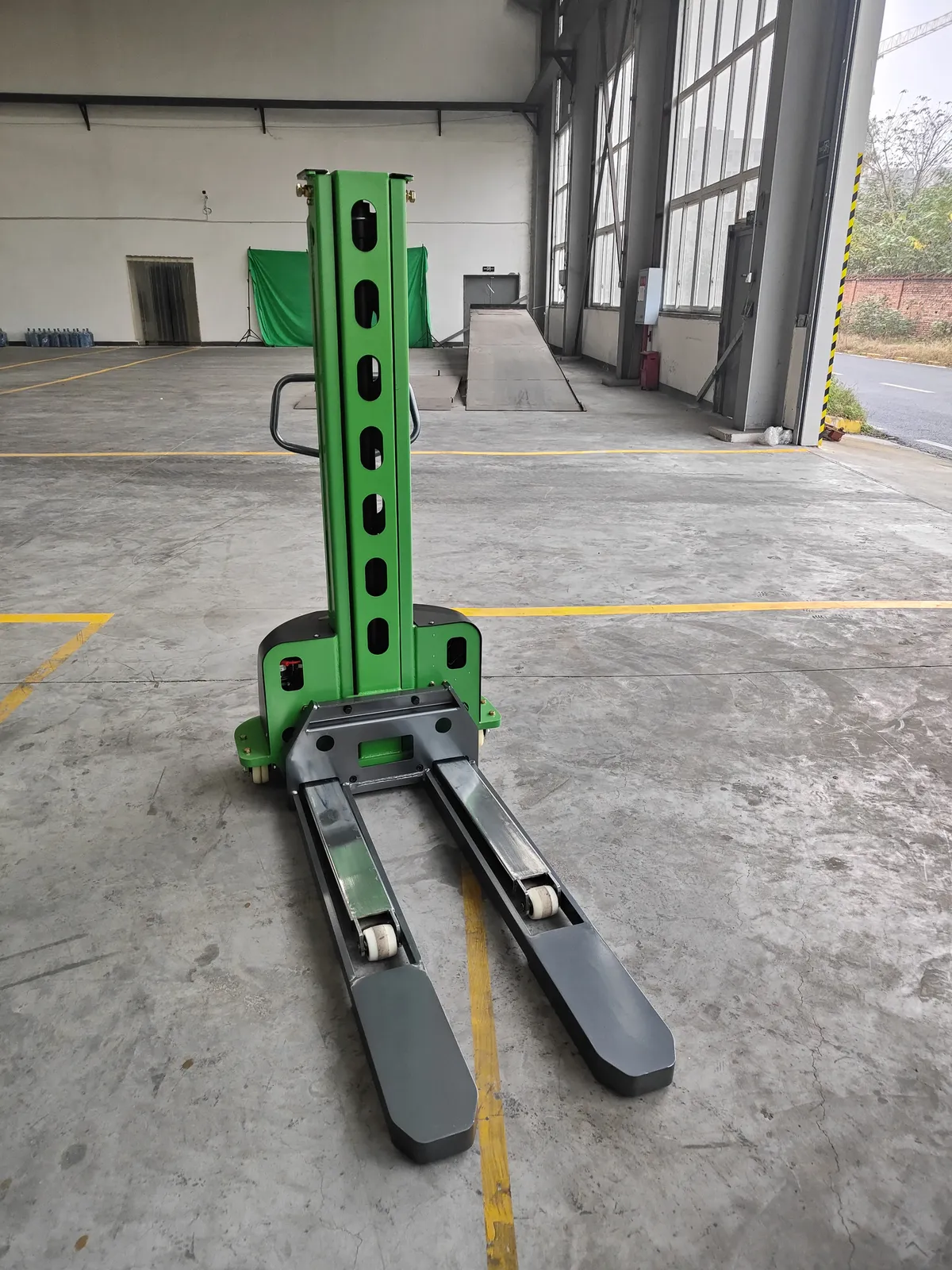

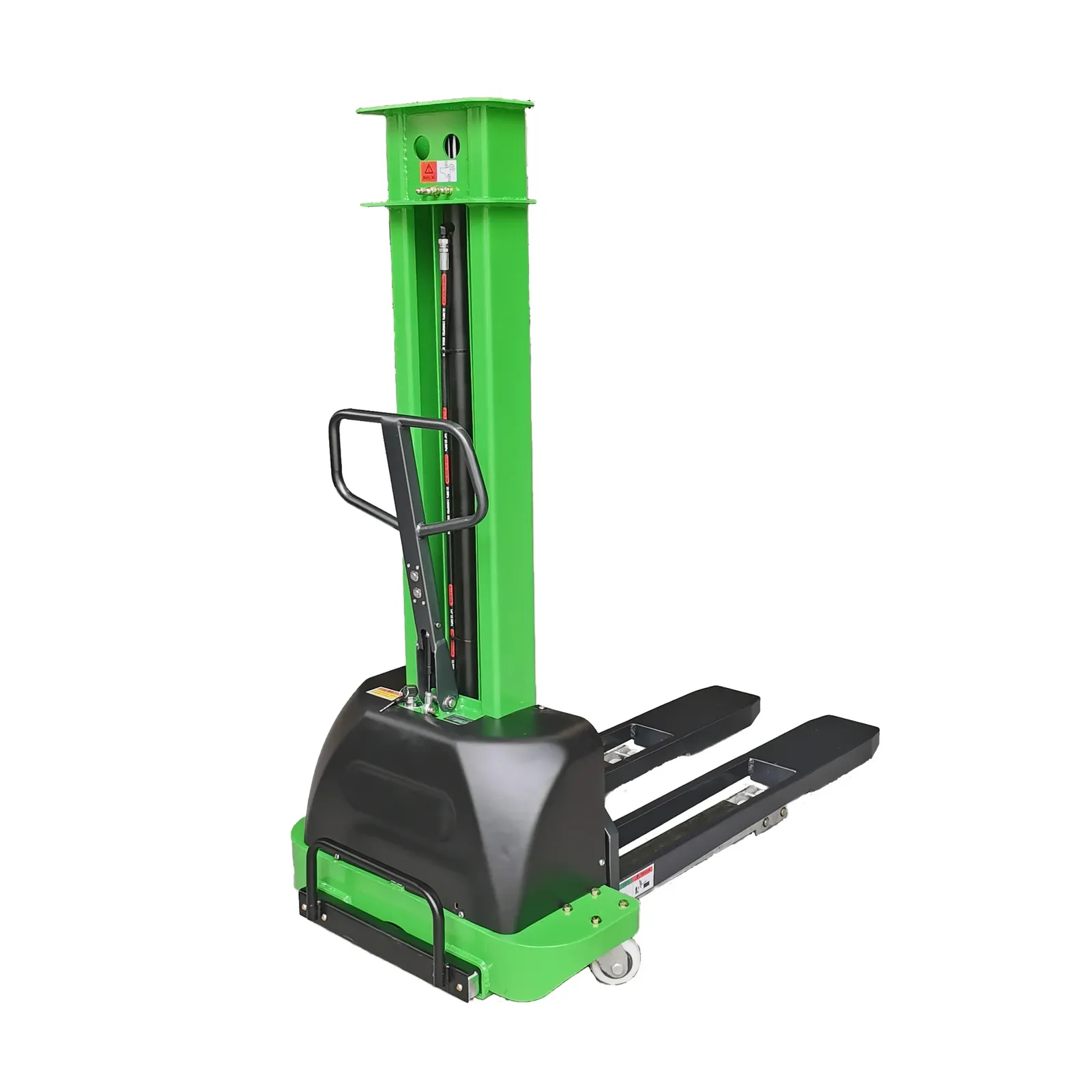

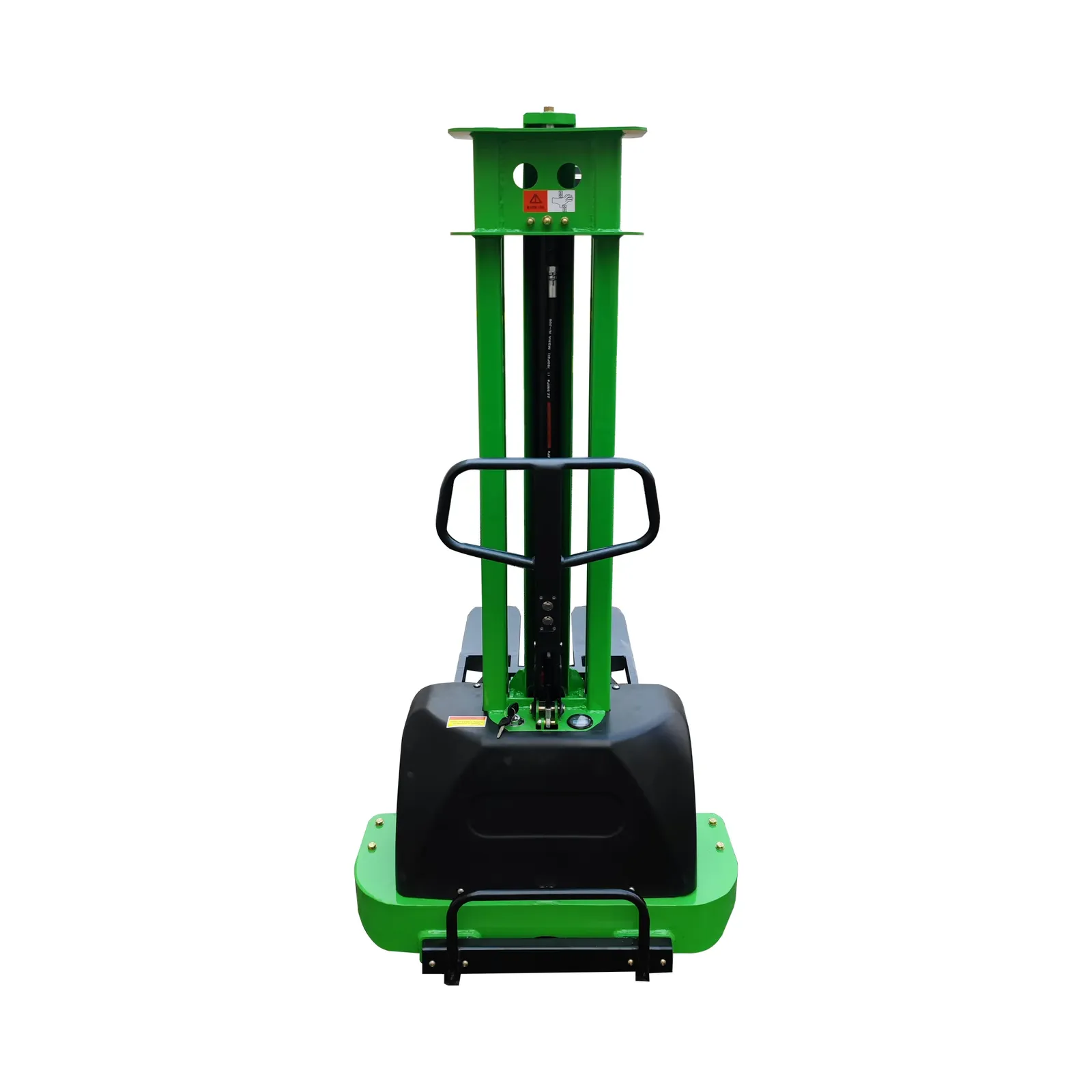

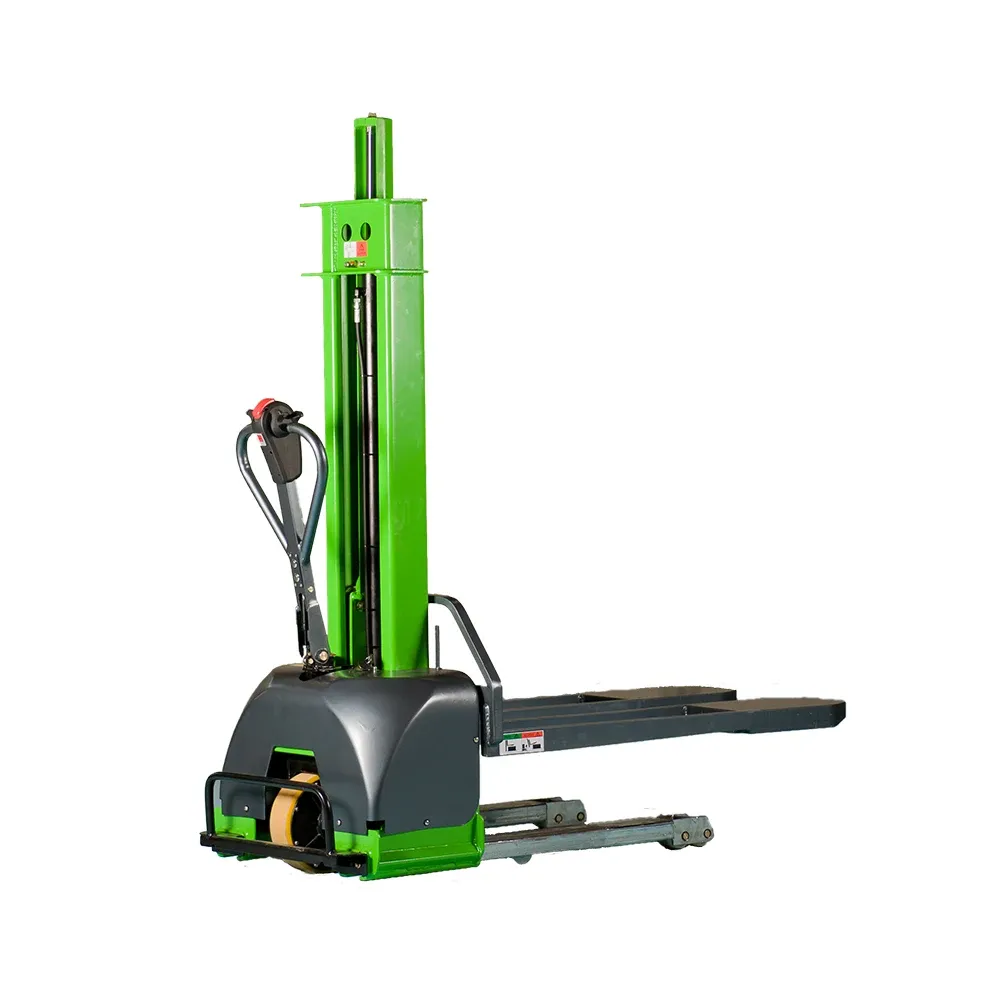

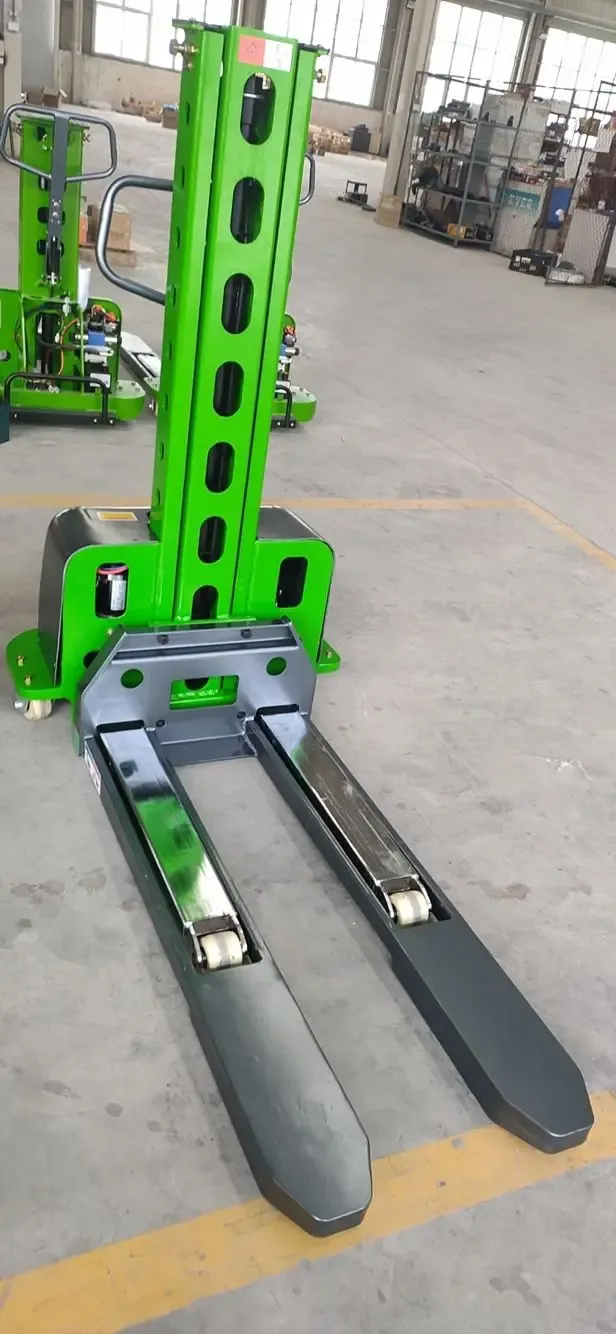

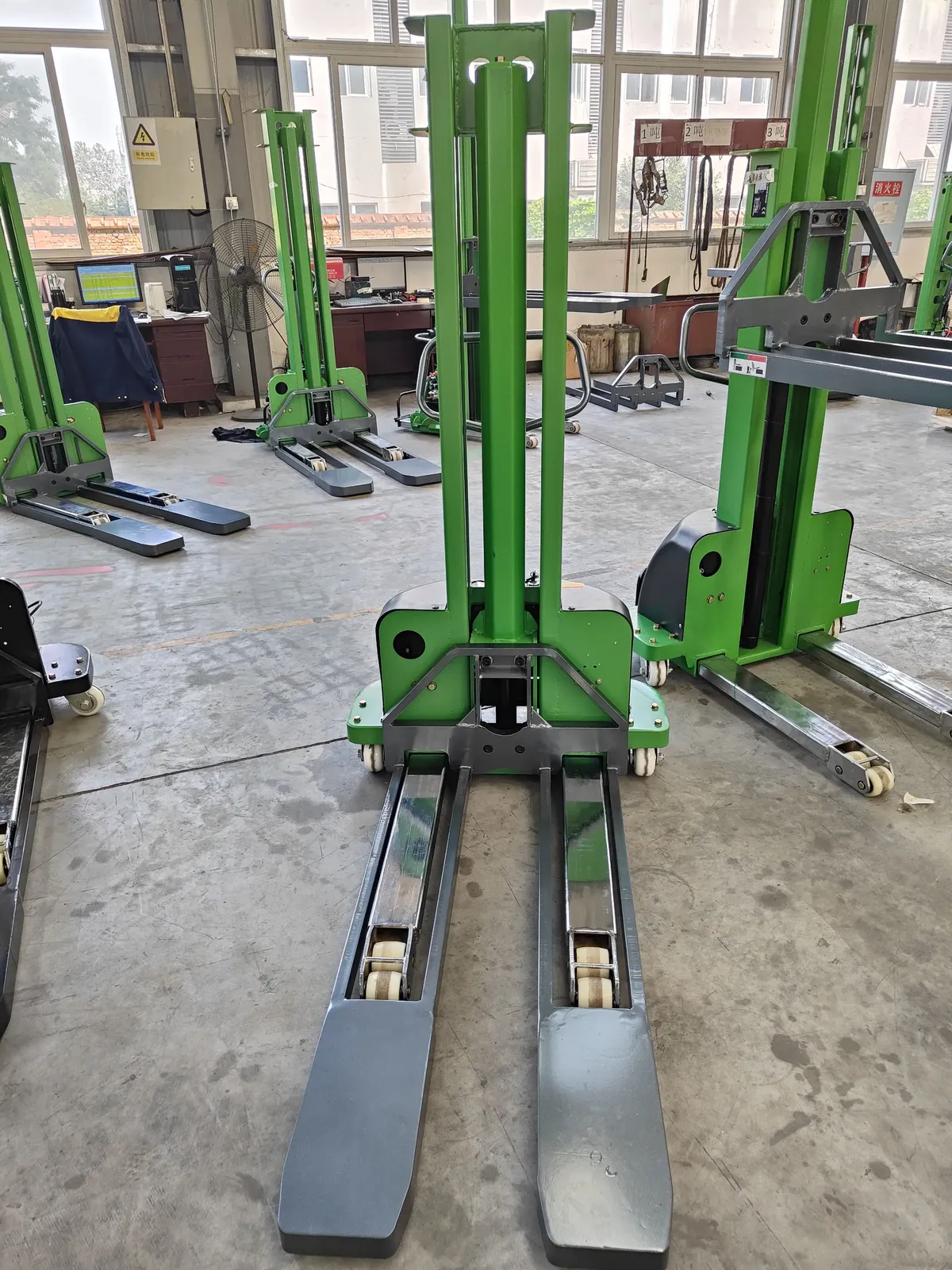

Semi Electric 500 to 1000 kg Stacker
0.5 to 1 tSemi-electricForks 1150 mm
Price on requestwritten quote
Minimum order 1 unit from the factory; any range minimum is confirmed on your quote. Prices in GBP per unit, ex VAT. We convert the factory list at a buffered exchange rate, so normal day-to-day currency movement does not change the price you see. Your written quote adds freight, duty and VAT and is valid for 30 days.
Max. Lifting Height1300mm
Line total
No online payment. The basket becomes an order request and we reply with a written GBP quote, deposit 30% on order, lead time 8 to 12 weeks.
Or email [email protected]Company Profile

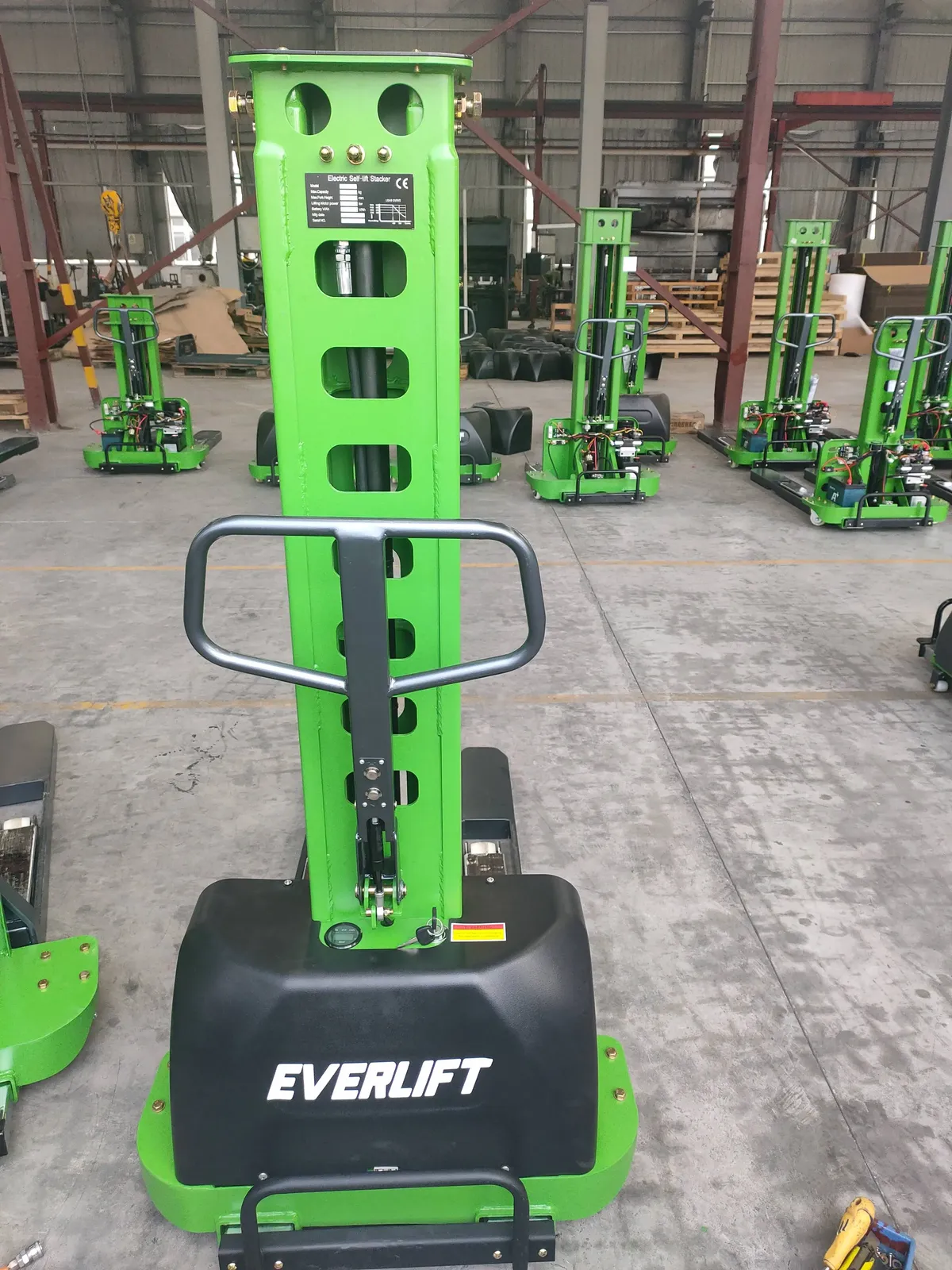

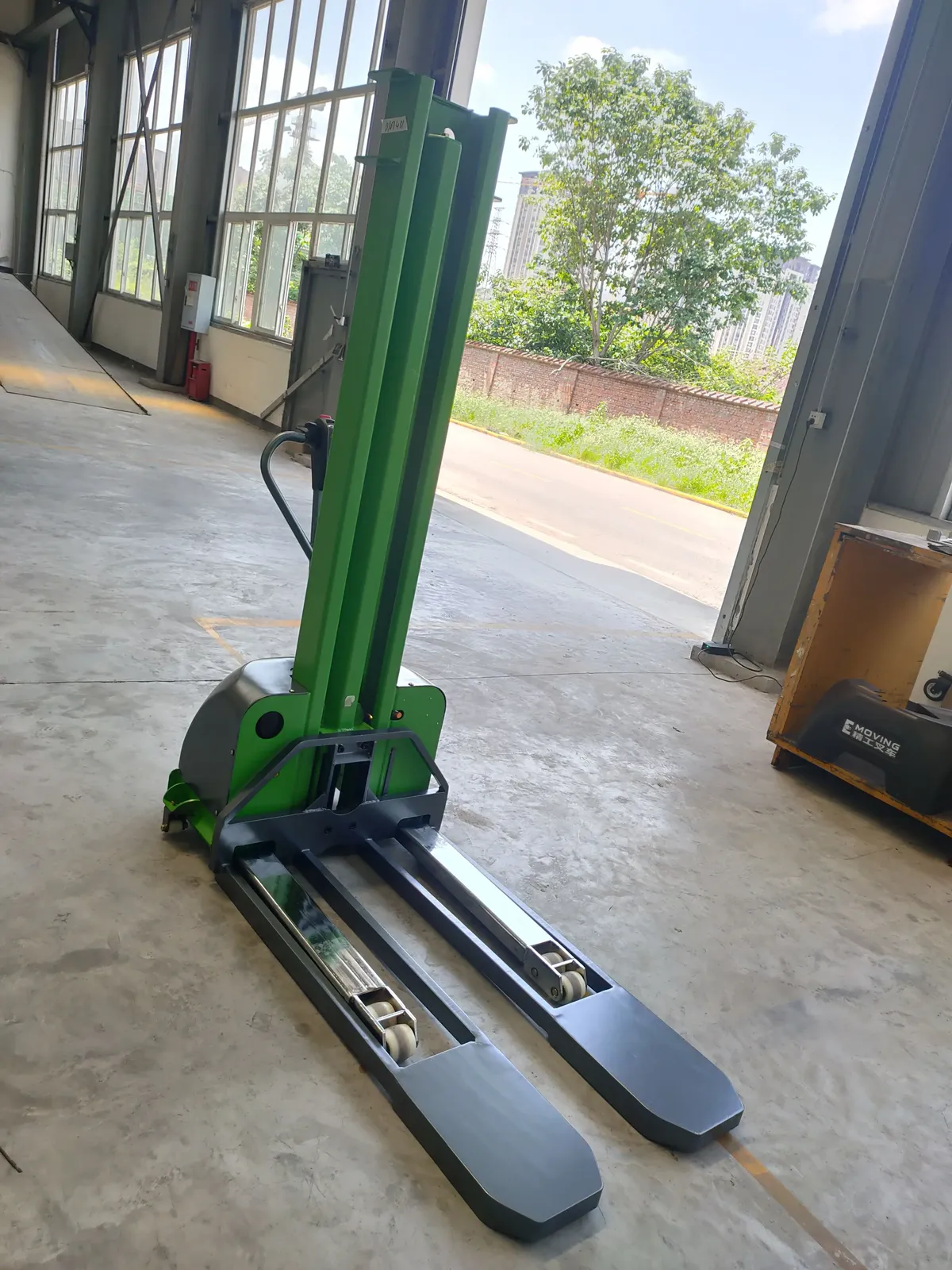

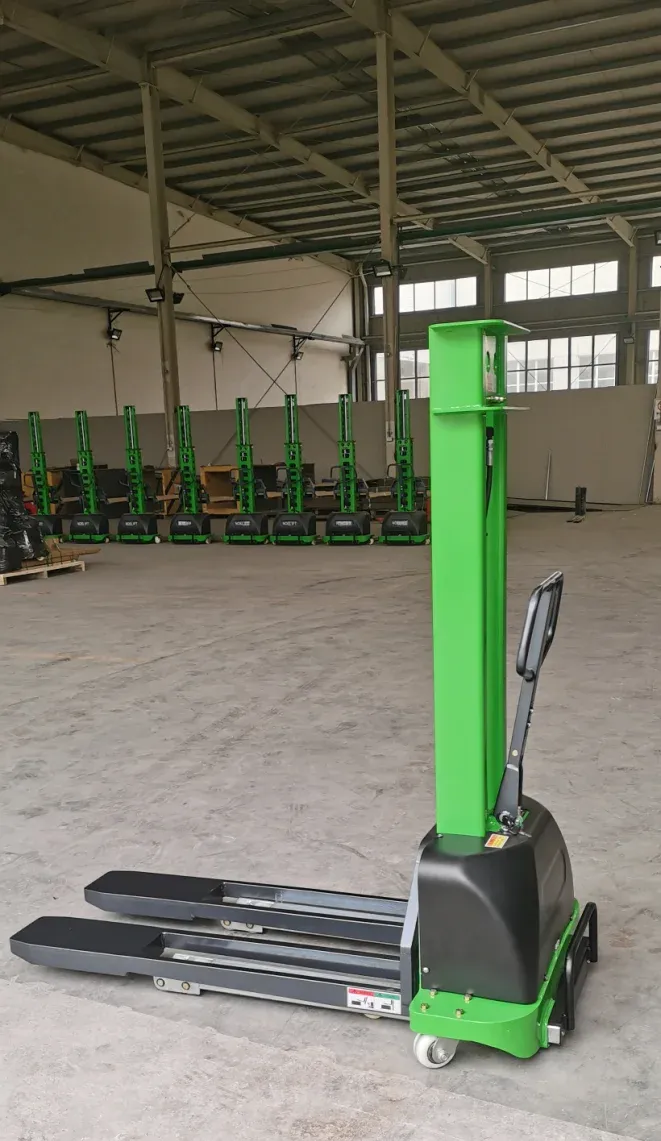

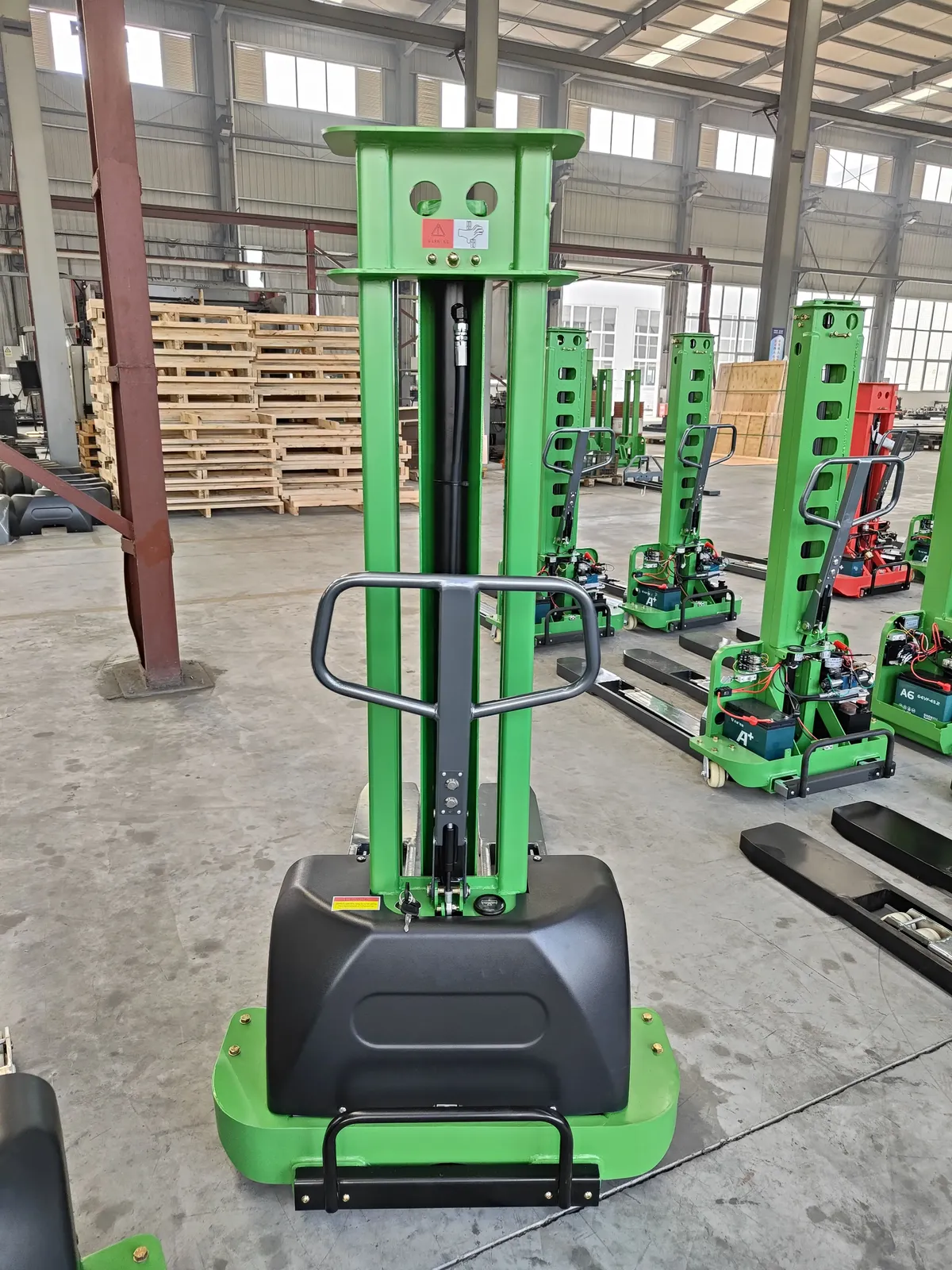

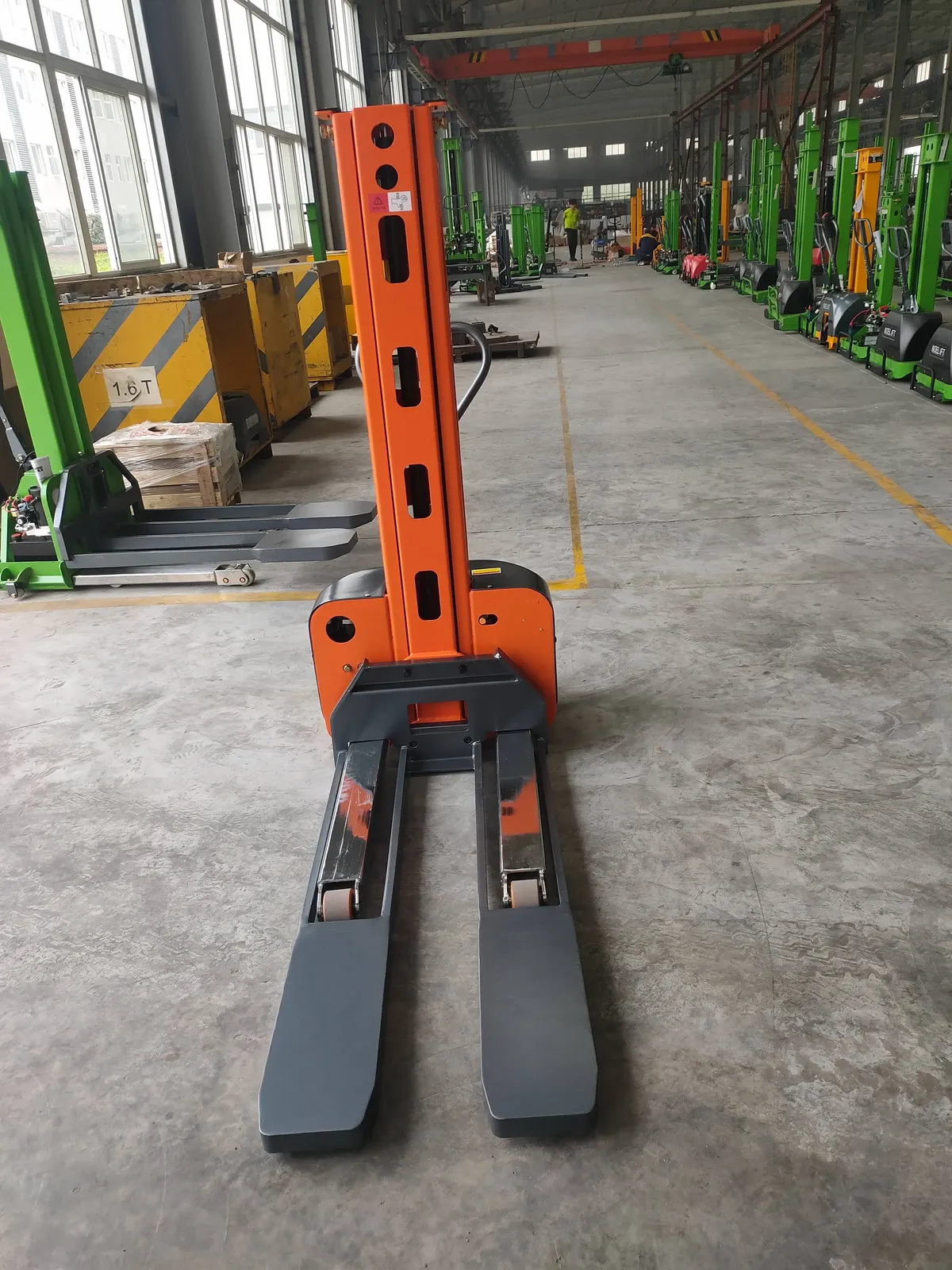

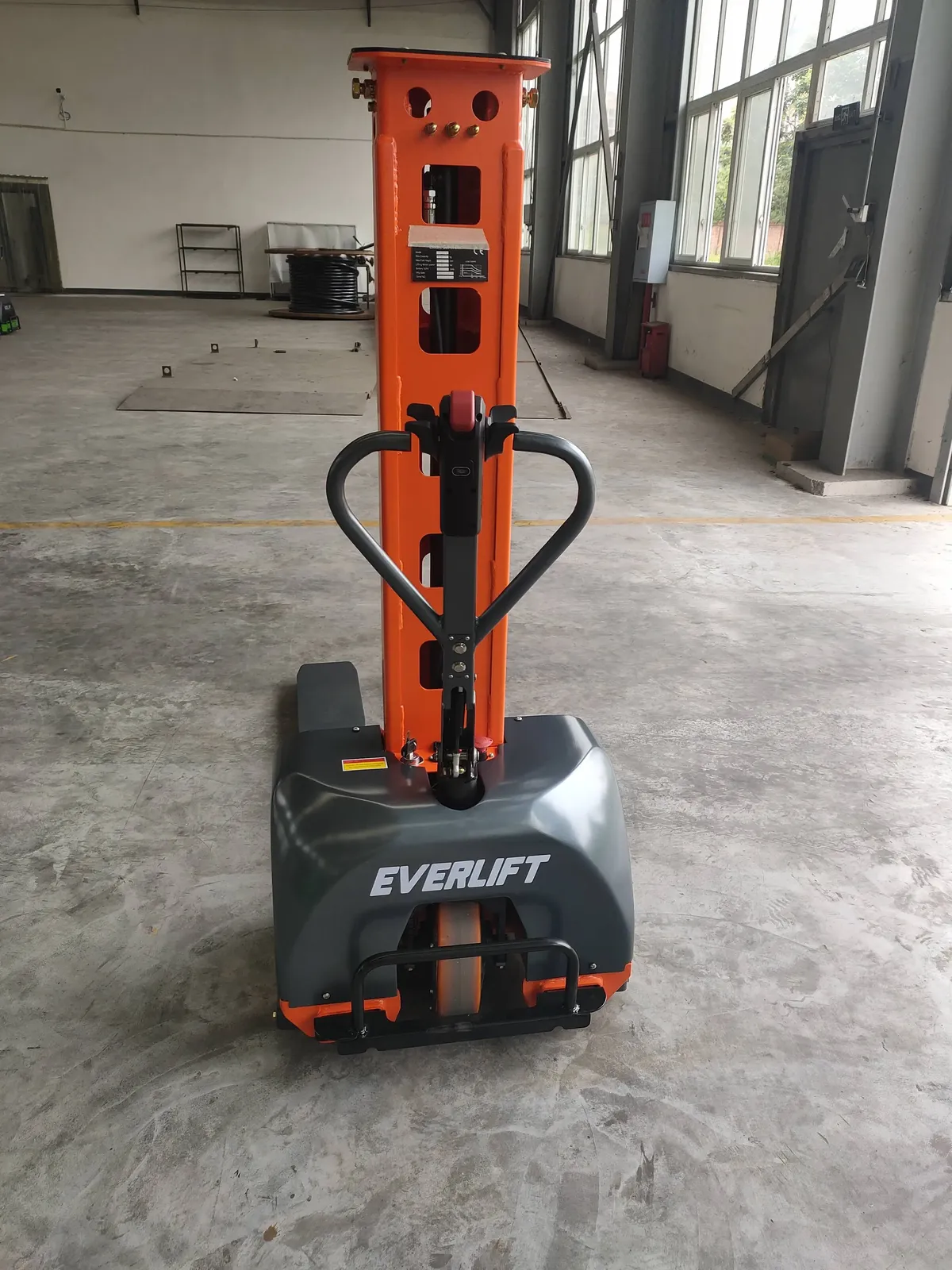

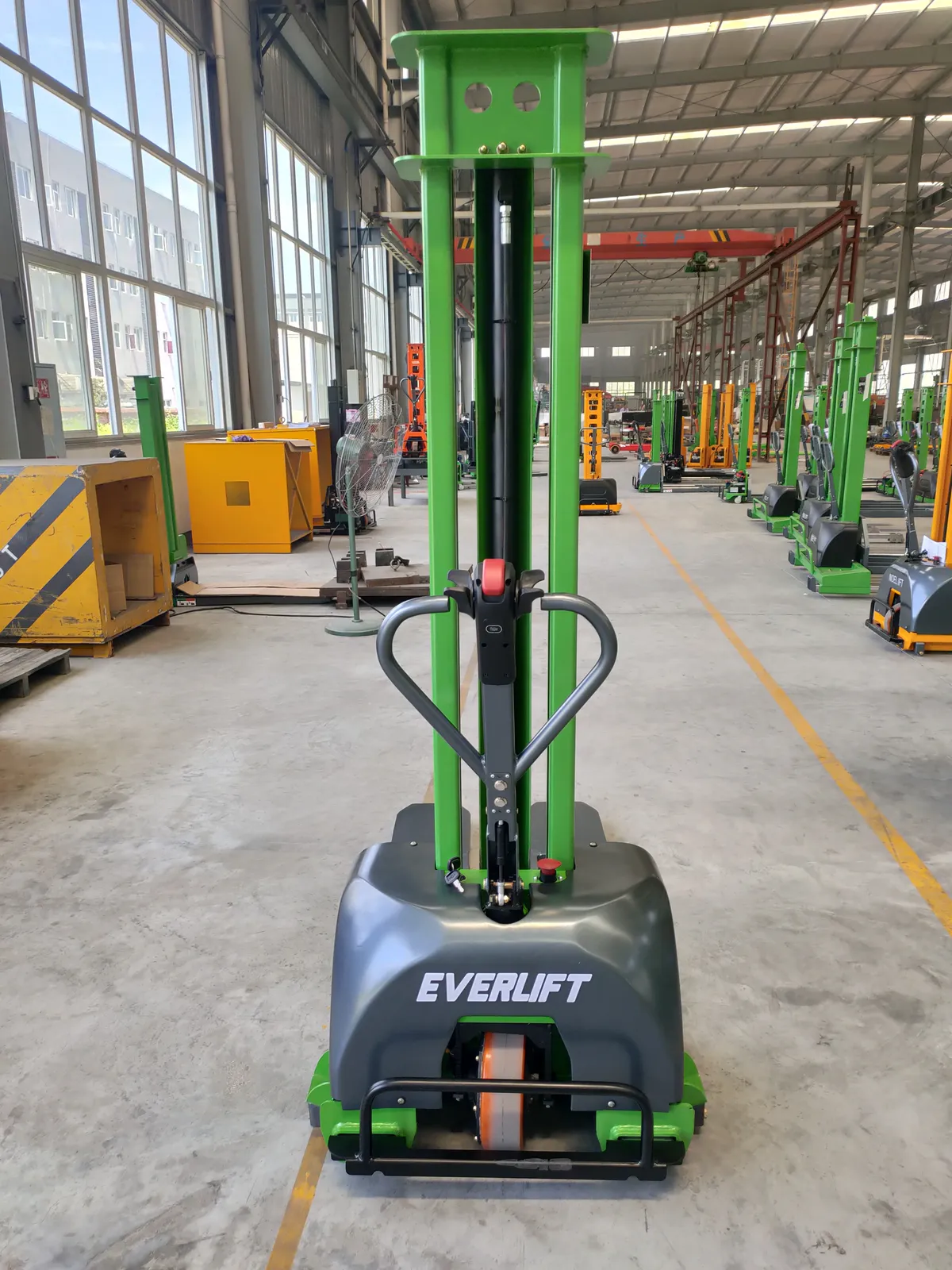

Battery Self Lift Stacker 500 1000KG max 800-1600mm
Advantage :
1. Optional lifting height from 800 to 1300 mm
2. Battery metres easy to see the battery left
3. Compact body can work in narrow space, Light main structure for easy self lifting.
4. Gel free maintenance battery,optional Lithium battery
5. Strong drive motor and lift motor, easy to operate.
6. Adjustable 2 speed button, Emergency stop switch, Key switch.
ELES-10EA
ELES-10D
1000
1000
563
Overall height Mast closed
1750
1.6
1.6
45
305
350
Semi-Electric Model

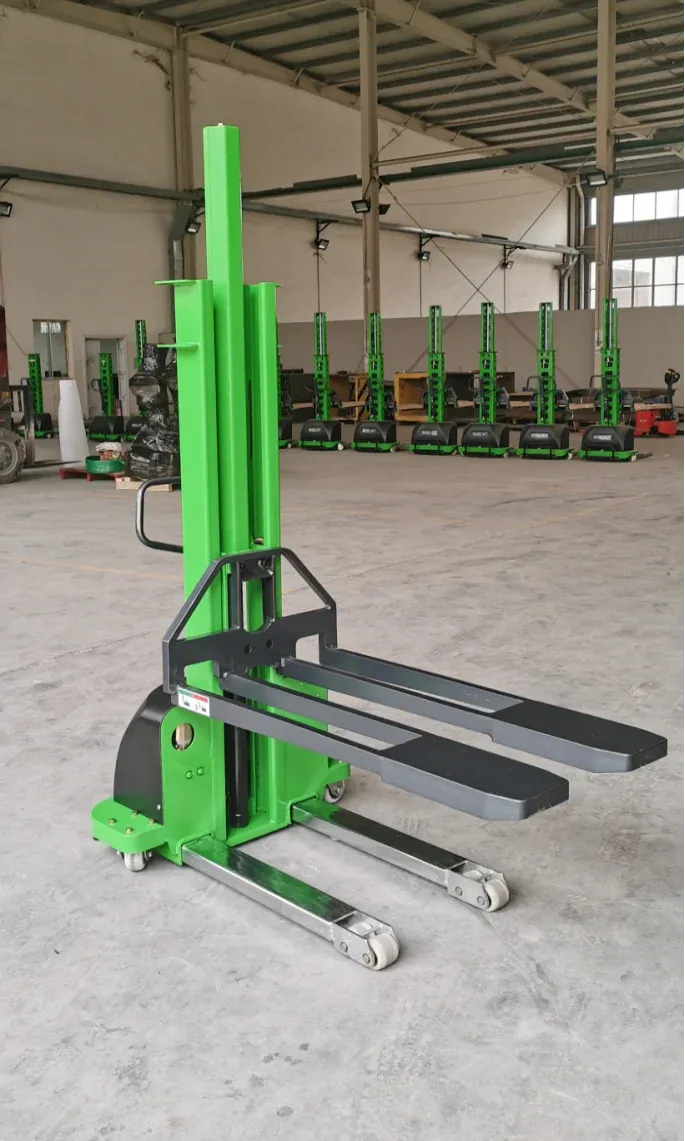

Optional side legs use for two faced closed pallet
| Condition | New |
|---|---|
| Fork Length | 1150mm |
| Fork Width | 535 mm |
| Type | Lifting Tools |
| Power type | AC Power |
| Key words | Stacker Lifter |
| Loading Capacity | 300-1000 KG |
| Mast | Single mast |
| Keywords | STACKER |
| Weight (KG) | 300 |
| Min. Lifting Height | 0mm |
| Overall Dimensions | 1544mm*835mm*1666mm |
| Rated Loading Capacity options | 0.5 Ton, 1 Ton |
| Max. Lifting Height options | 1300mm |
| Model Number options | ELES-05C, ELES-10EA |

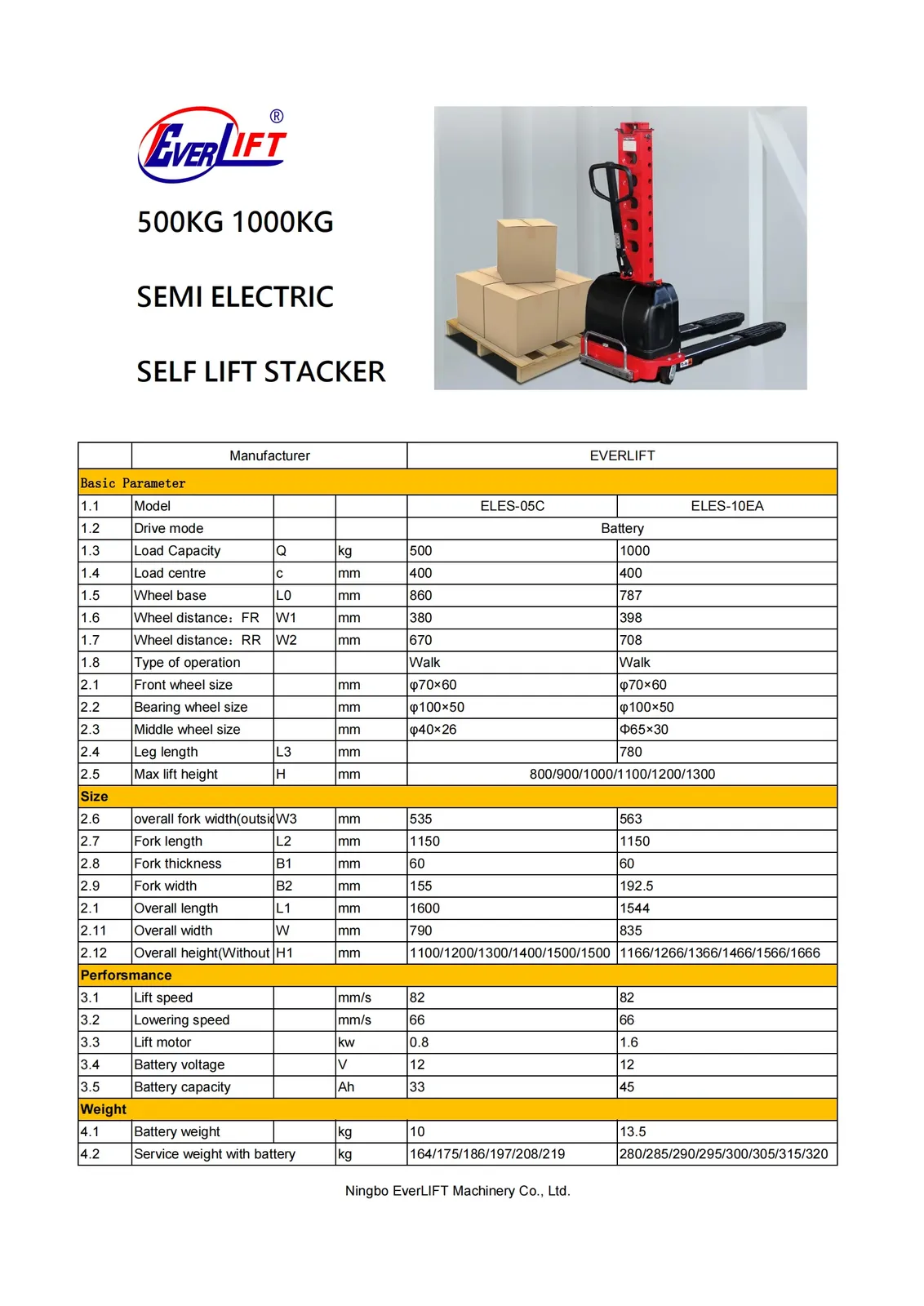

| Manufacturer | Ningbo Machinery Co., Ltd. | ||
|---|---|---|---|
| Model | ELES-05C | ELES-05C(F) | |
| Operation type | Hand drive, electric lifting | Electric drive and lifting | |
| Load capacity | KG | 500 | 500 |
| Load centre | MM | 400 | |
| Max lift height | MM | 800 /900 /1000 /1100 /1200 /1300 /1400 /1500 /1600 | |
| Max fork width | MM | 550 / 685 | |
| Fork length | MM | 1150 | |
| Total width | MM | 535 | 685 |
| Overall height Mast closed | MM | 1100/1200/1300/1400/1500/1600/1700/1800/1900 | |
| Overall length | MM | 1600 | 1676 |
| Lifting motor power | Kw | 0.8 | 0.8 |
| Driving motor power | Kw | / | 0.6 |
| Battery type | Gel free maintenance | Lithium | |
| Battery voltage | V | 24 | 48 |
| Battery capacity | AH | 33 | 12 |
| Operating weight | KG | 200 | 300 |
| Certificate | Number | Valid |
|---|---|---|
| CE | 3N251031.NEMS093 | 30/10/2025 - 29/10/2030 |
| EAC | — | 22/10/2023 - 22/10/2028 |
| CE | M.2023.206.C83216 | 22/03/2023 - 21/03/2028 |
| CE | M.2023.206.C83222 | 22/03/2023 - 21/03/2028 |
| CE | M.2023.206.C83221 | 22/03/2023 - 21/03/2028 |
Certificates are supplied with your quote on request.
