Semi Electric Stacker 500 kg

0.5 tSemi-electricForks 1150 mm

from £955per unit, ex VAT

Quantity	Price per unit
1 to 9 units	£1,075
10+ units	£955

Minimum order 1 unit from the factory; any range minimum is confirmed on your quote. Prices in GBP per unit, ex VAT. We convert the factory list at a buffered exchange rate, so normal day-to-day currency movement does not change the price you see. Your written quote adds freight, duty and VAT and is valid for 30 days.

Rated Loading Capacity500KG

Model NumberSES-500

Max. Lifting Height

1000mm800mm900mm1100mm

Quantity

Line total

No online payment. The basket becomes an order request and we reply with a written GBP quote, deposit 30% on order, lead time 8 to 12 weeks.

Details Images

Product advantages

1. Simple, flexible, light weight and small turning radius make the truck suitable use

in extremely narrow aisle. 2. Strong structure and open layout make the maintenance easy

3. Same hydraulic pump with the hand pallet, simple and reliable

4. Integrated handle integrates key and metre make the operation easy and confortable.

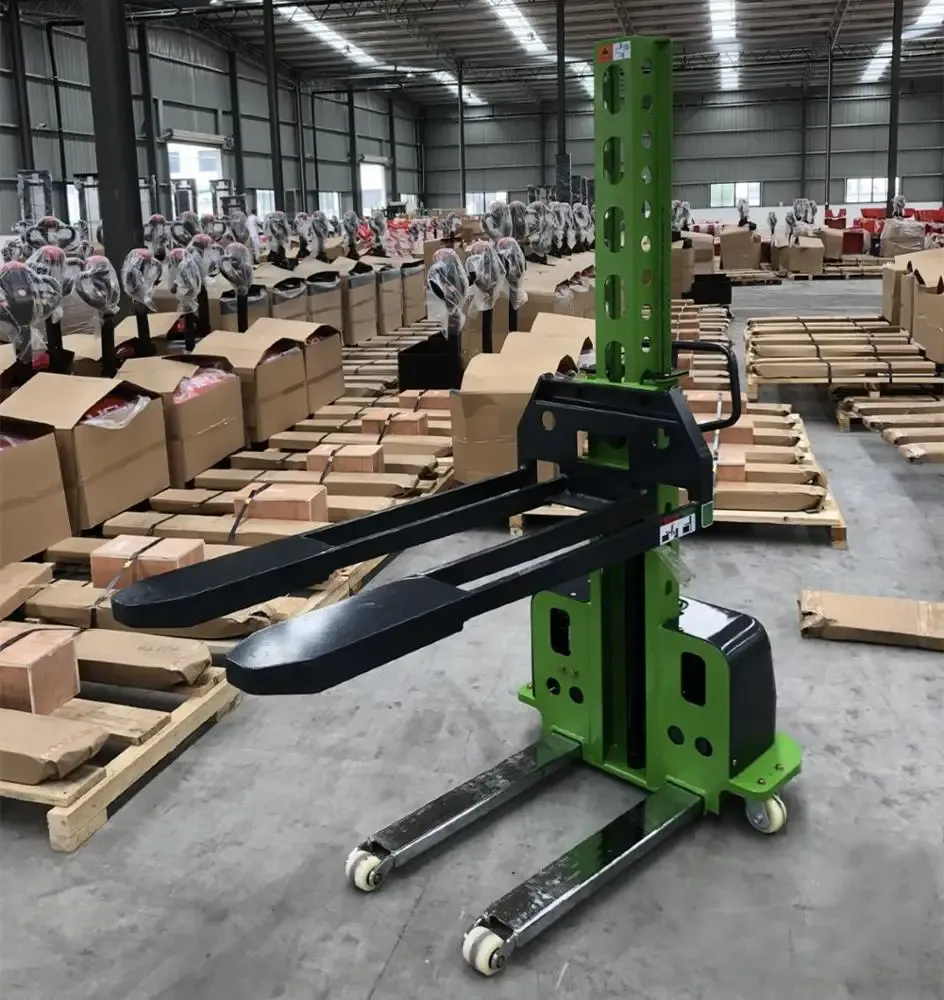

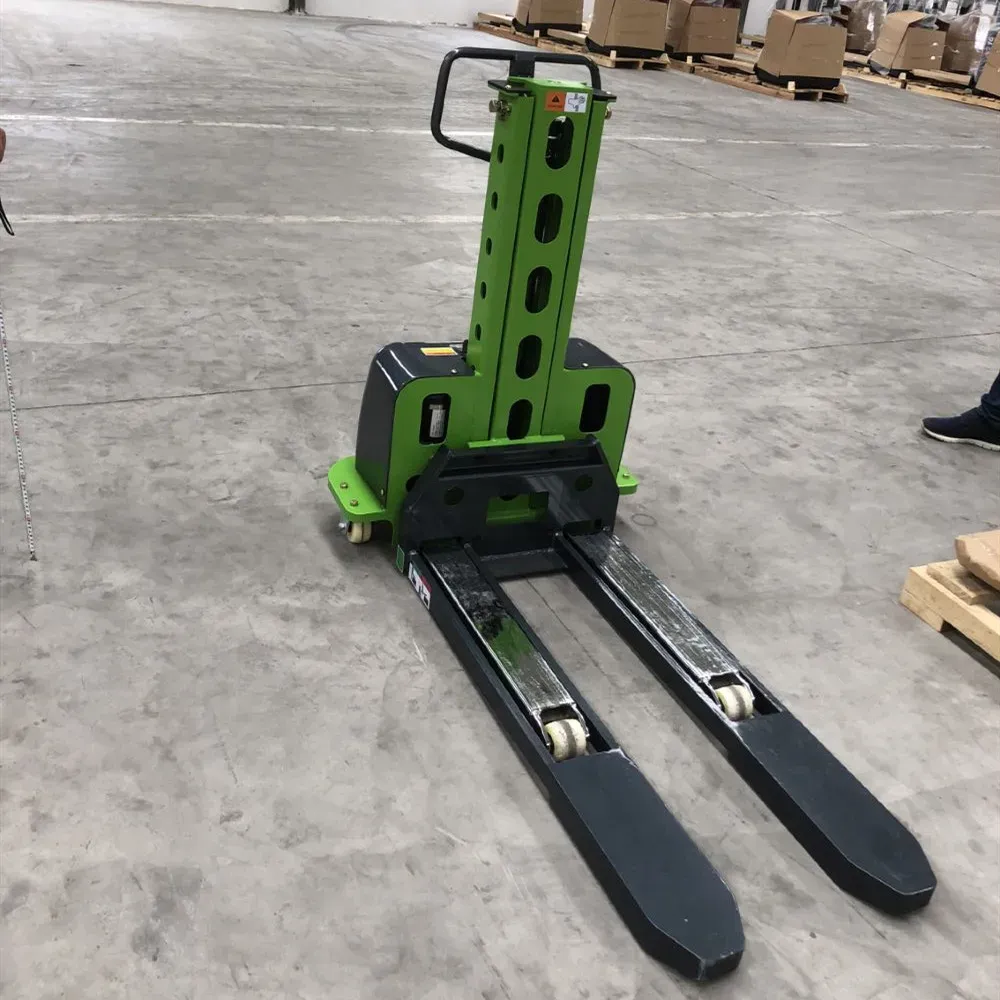

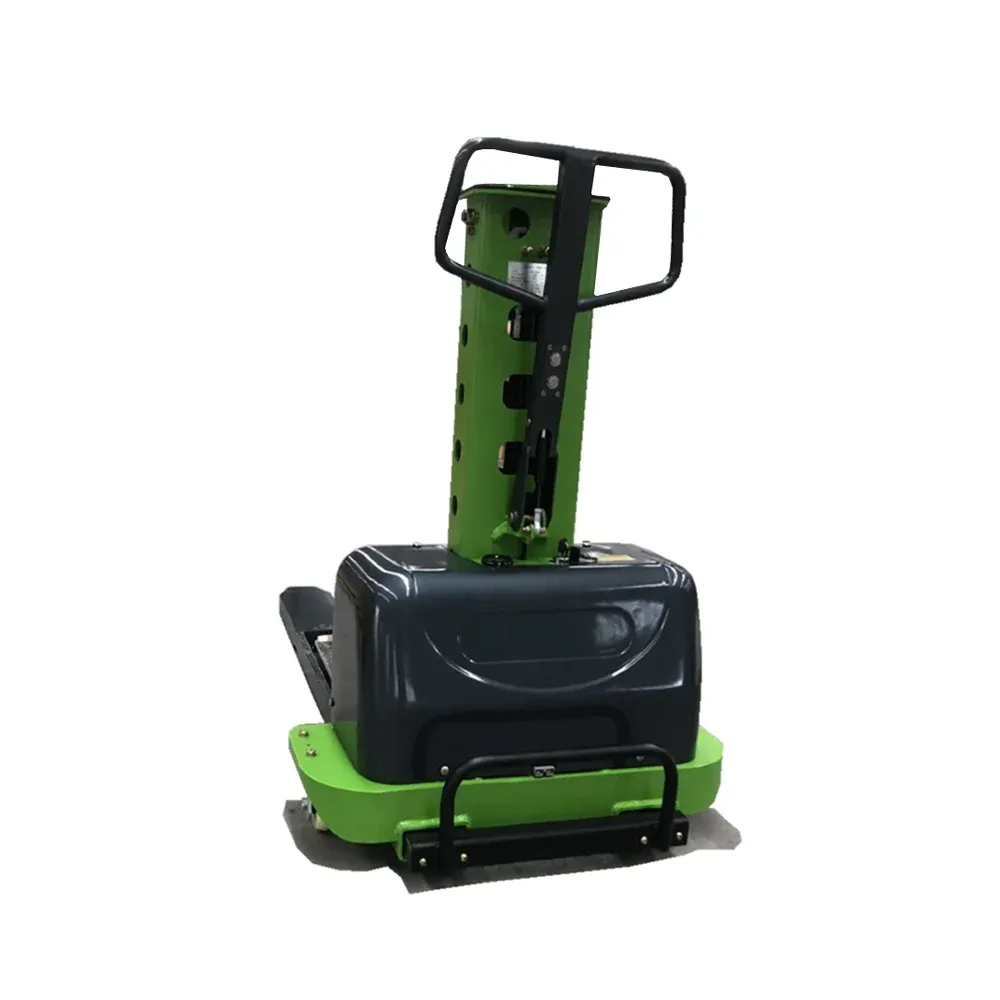

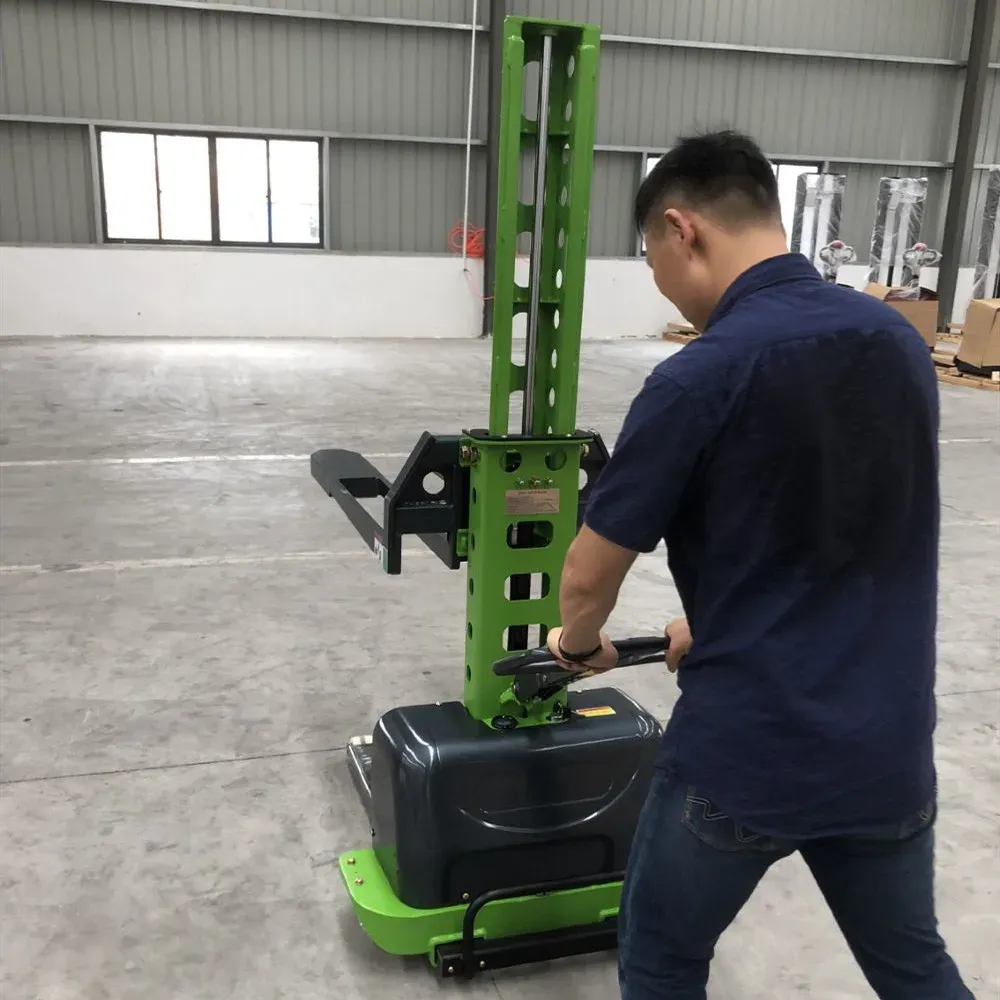

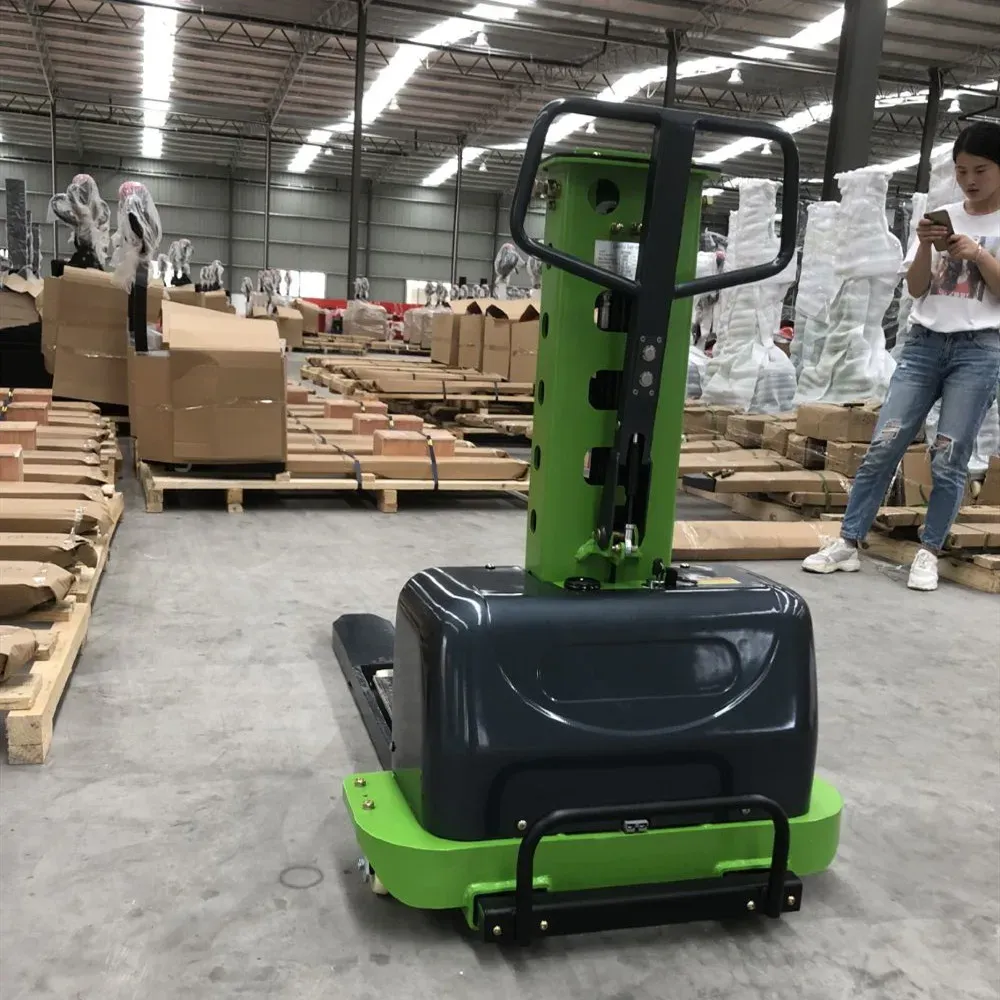

Semi Self-lifting Stacker SES-500

capacity:500kg

fork size: 535*1150mm

lifting height is 1100mm, 1300mm

battery 12V/33Ah, turning radius 1120mm, stable quality, low noise, smart turnning and easy operation

Product Description

Company Profile

Certifications

Customers Visiting

Packaging &Shipping

Related Products

Condition	New
Fork Length	1150 mm
Fork Width	160mm
Type	Powered Pallet Truck
Lifting height	120mm
Overall Dimensions	16155501212mm
Min. Lifting Height	85mm
Max. Lifting Height	115mm
Power Souce	DC Motor
Capacity	1500kg
Battery voltage/capacity	24V/35AH
Load Centre	60mm
Model	SES-500
Packaging Details	Standard Export Package for walkie electric pallet truck
Rated Loading Capacity options	500KG
Model Number options	SES-500
Max. Lifting Height options	1000mm, 800mm, 900mm, 1100mm

Model		SES500	SES-500
Capacity	Q(Kg)	500	500
Load centre	C(mm)	400	400
Type of lifting		Electric	Electric
Operating type		Walkie	Walkie
Material		PU/Nylon	PU/Nylon
Wheel base	y(mm)	860	860
Front wheel base	b11(mm)	380	380
Back wheel base	b10(mm)	670	670
Quantity Steering/Bearing/Balance		2002-2-6	2002-2-6
Bearing wheel size	mm	Φ70×60	Φ70×60
Steering wheel size	mm	Φ100×50	Φ100×50
Balance wheel size	mm	Φ40×26	Φ40×26
Training wheel size	mm	Φ30×26	Φ30×26
Min.fork height	mm	90	90
Max.fork height	h3(mm)	1100	1300
Fork outside width	mm	535	535
Fork inside width	mm	225	225
Fork length	l2(mm)	1150	1150
Single fork size	e/s(mm)	155/60	155/60
Overall length	L1(mm)	1600	1600
Overall width	b1(mm)	790	790
Overall height	h1(mm)	1400	1600
Whole height(after tape file shelf)	h4(mm)	2700	2900
Min.turning radius	Wa(mm)	1100	1120
Lifting speed(laden/unladen)	mm/s	80/110	80/110
Lowering speed(laden/unladen)	mm/s	80/80	80/80
Lift motor	Kw	12V0.8	12V0.8
Battery capacity	V/Ah	12/33	12/33
Battery weight	Kg	10	10
Net weight	Kg	197	219

Certificate	Number	Valid
CE	3N251031.NEMS093	30/10/2025 - 29/10/2030
EAC	—	22/10/2023 - 22/10/2028
CE	M.2023.206.C83216	22/03/2023 - 21/03/2028
CE	M.2023.206.C83222	22/03/2023 - 21/03/2028
CE	M.2023.206.C83221	22/03/2023 - 21/03/2028

Certificates are supplied with your quote on request.
