Vertical Order Picker 136 kg

Product Highlights

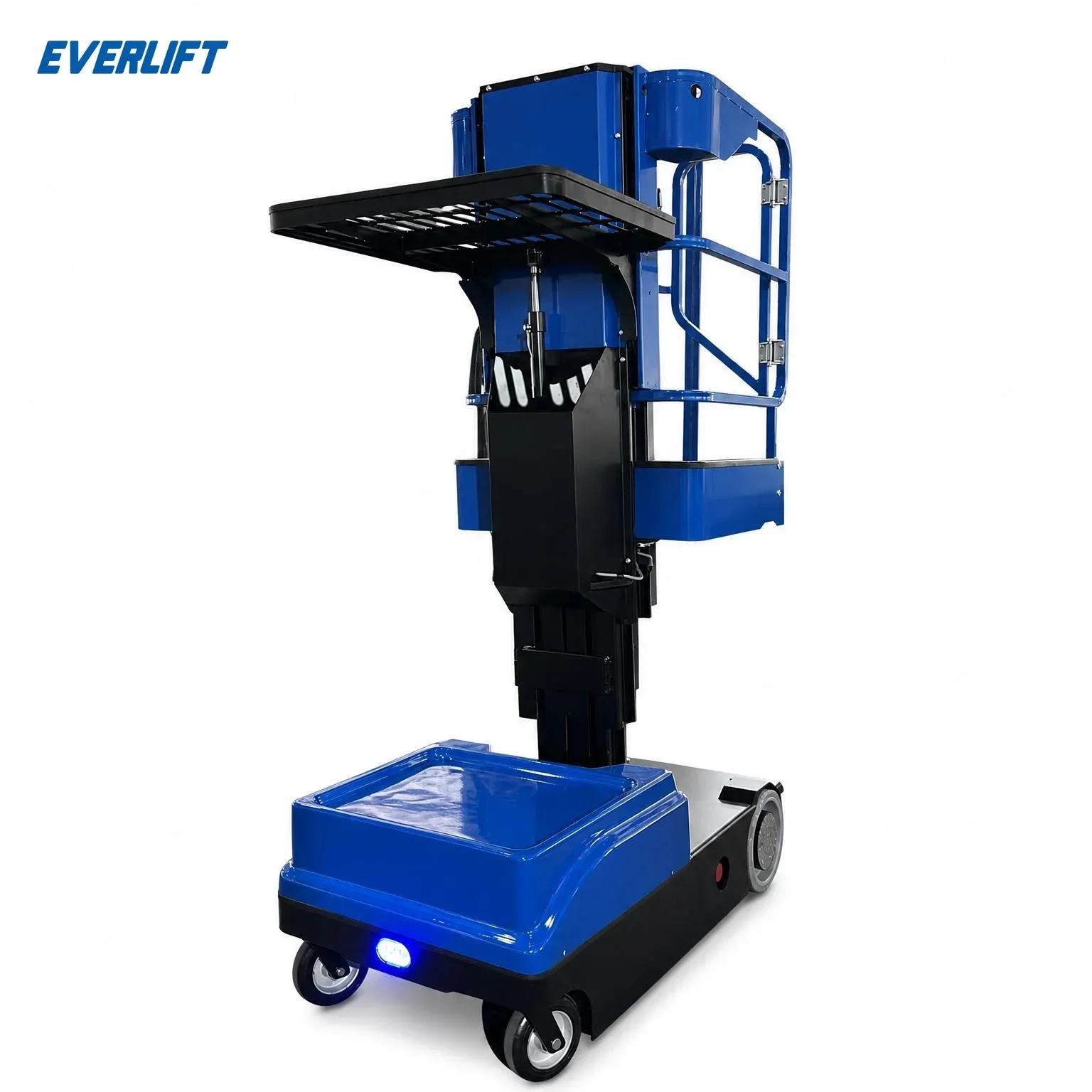

① Fully Electric Vertical Order Picker with robust steel frame and anti-corrosion powder coating, engineered in a compact 750mm width chassis with 1480mm length for narrow aisle warehouse navigation.

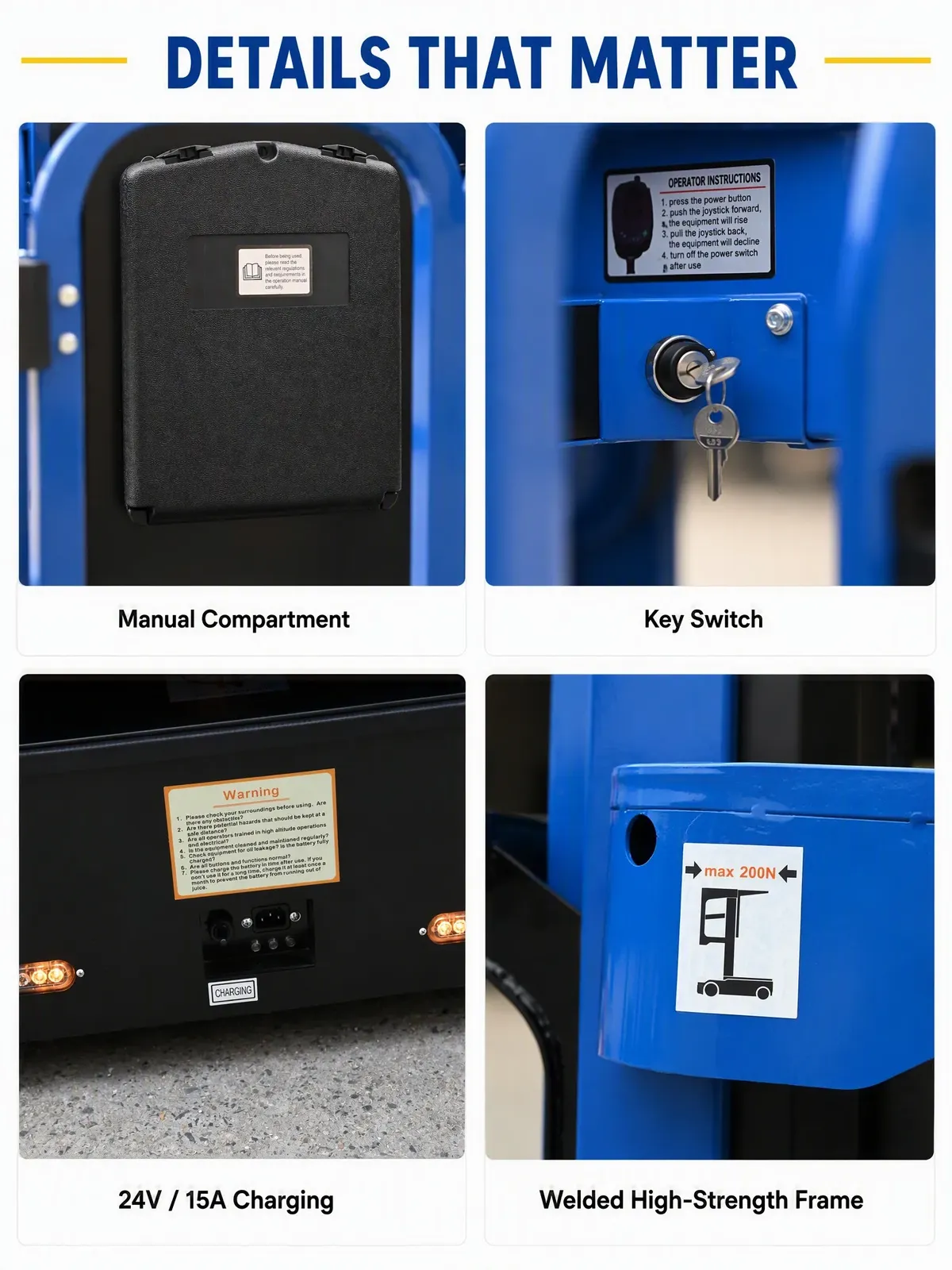

② Professional Vertical Order Picker with 24V/0.8kW lifting motor, 24V/0.5kW drive motor, 2×12V/108Ah battery system, 24V/15A charger, front Φ200×50mm and rear Φ305×100mm durable tyres.

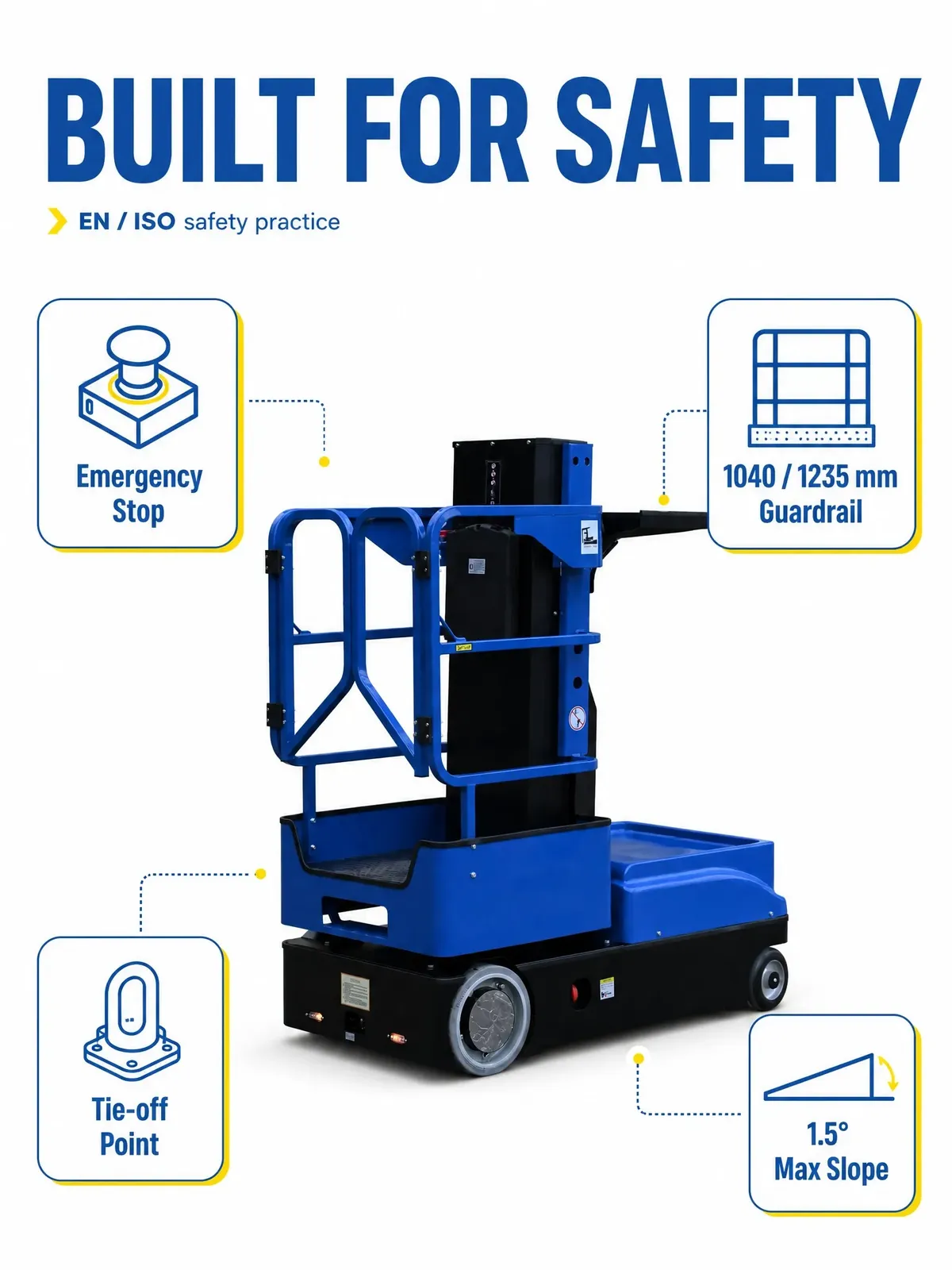

③ Safe Electric Stock Picker with guardrail enclosure at 1040-1235mm height, proportional drive speed control, and RoHS compliant components ensuring operator safety and environmental compliance.

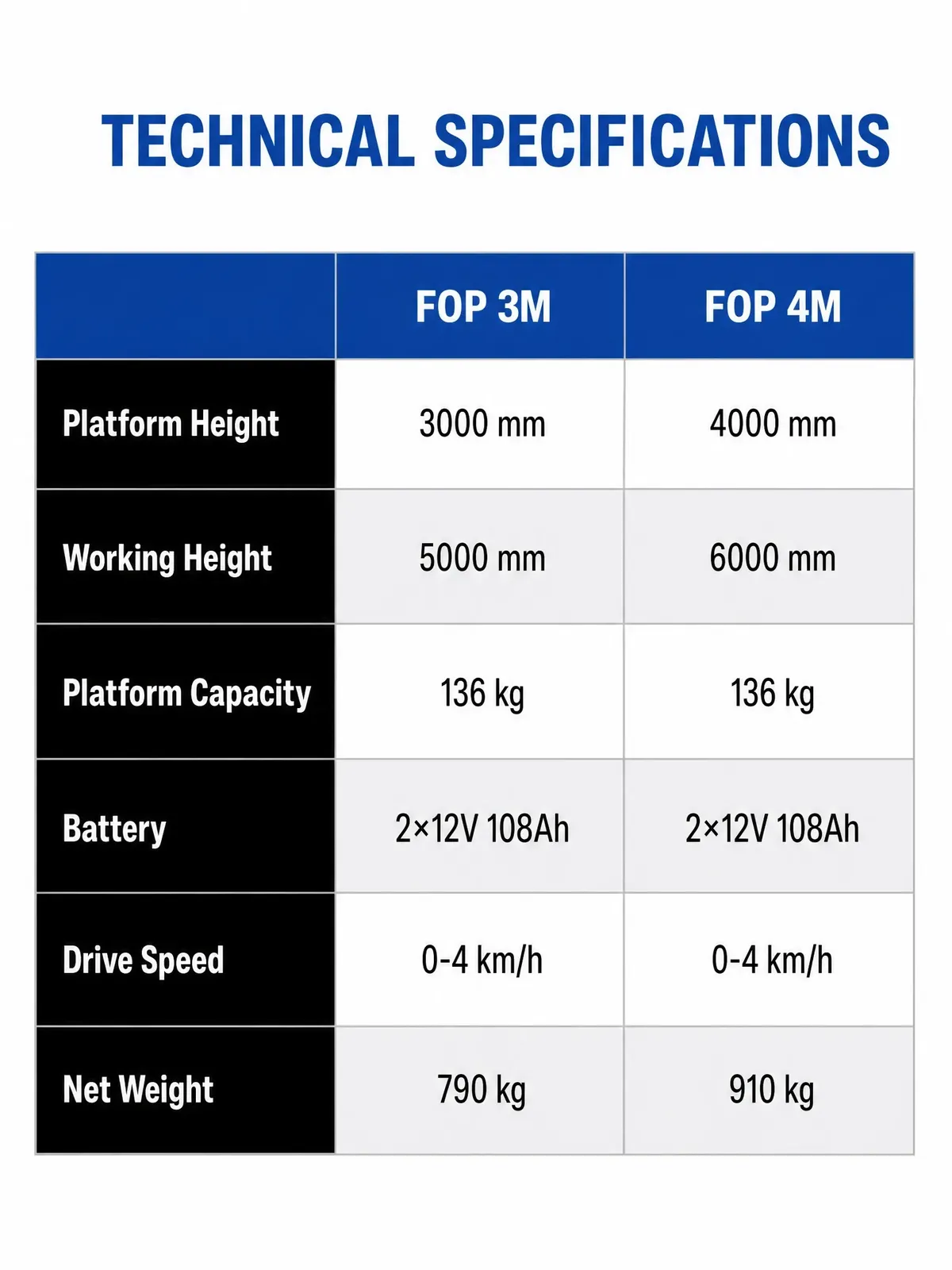

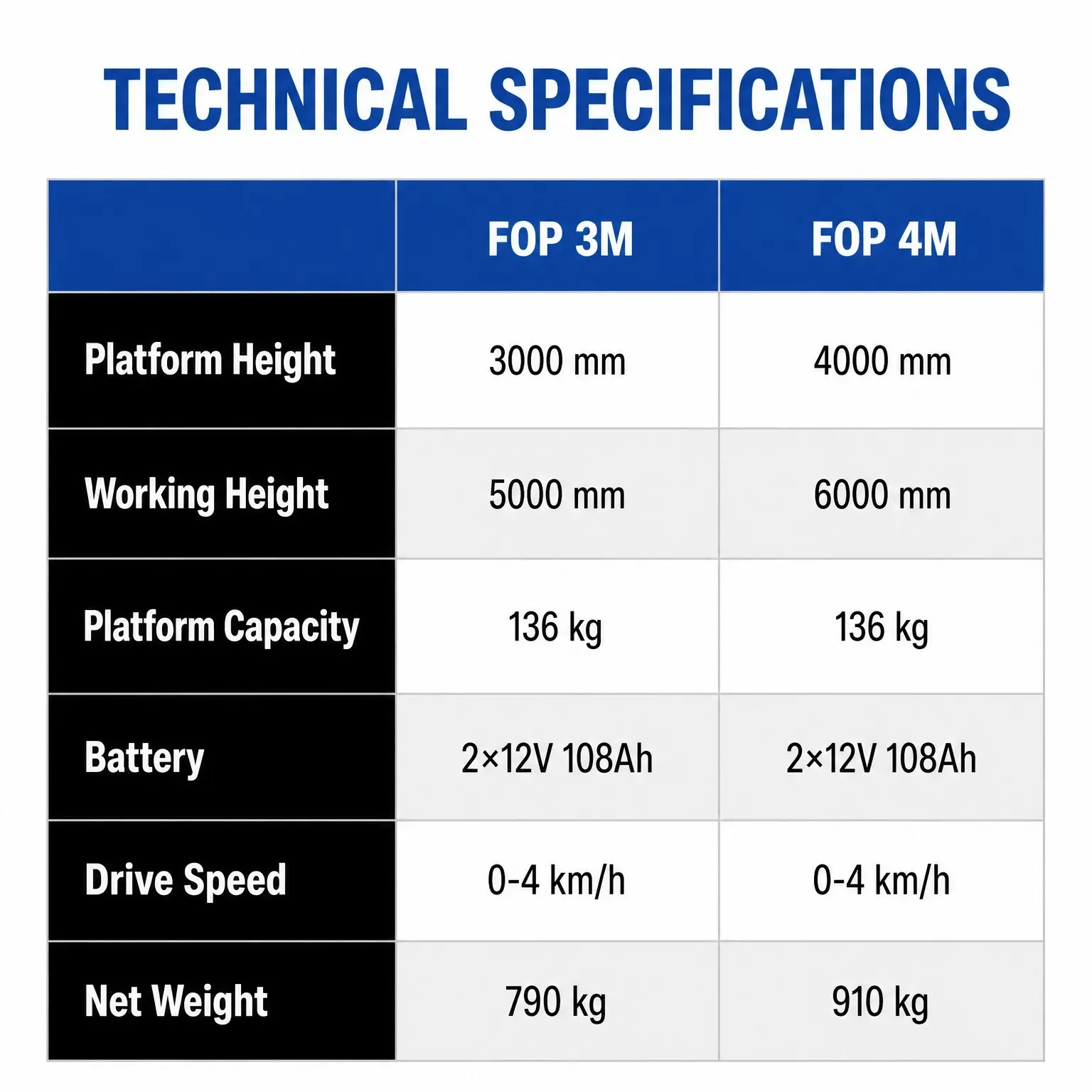

④ High-performance Vertical Order Picker delivering 136kg platform capacity, 90kg cargo tray and 110kg carry deck capacity, 5000-6000mm working height with 3000-4000mm max platform height.

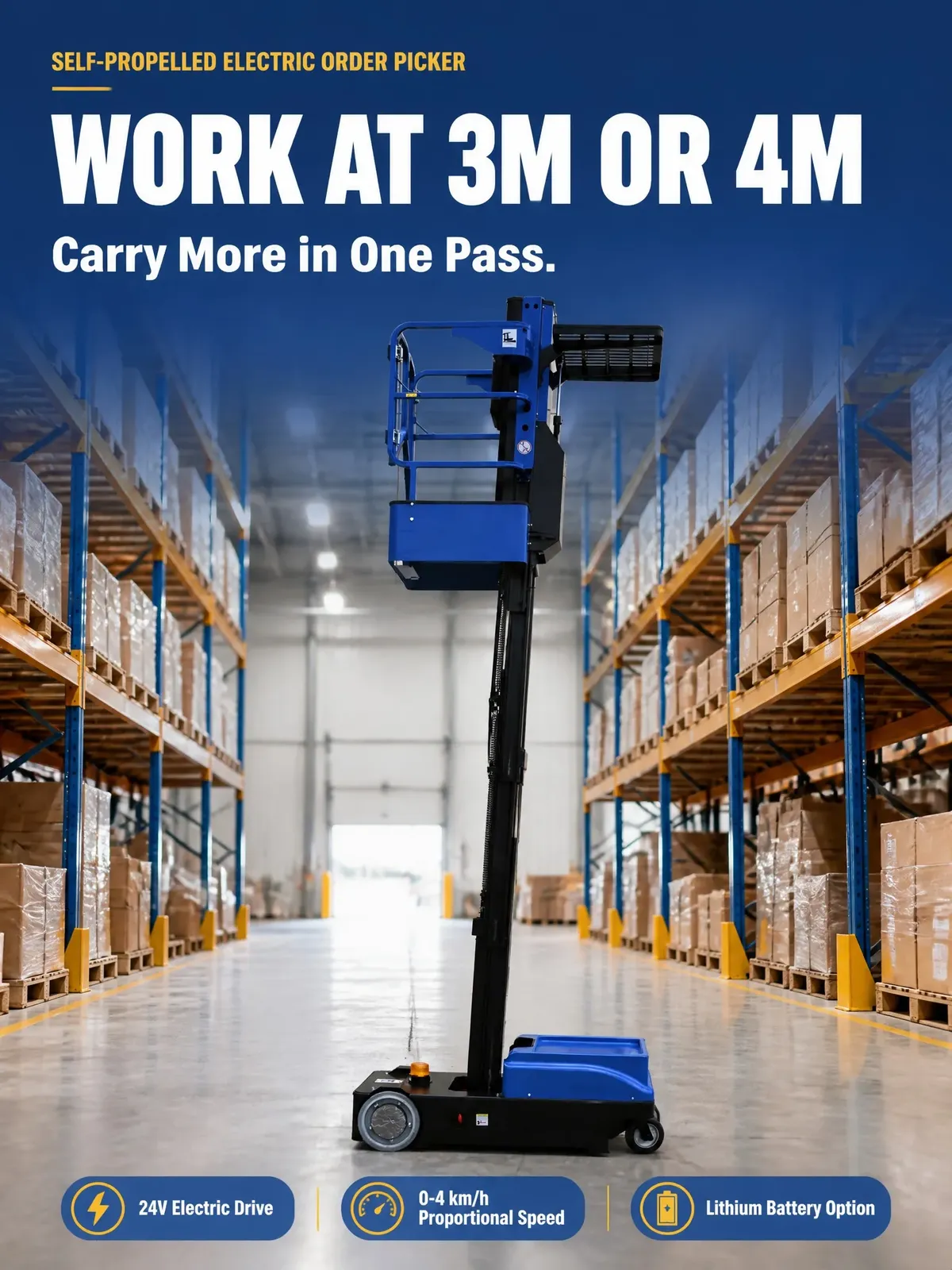

⑤ Efficient 24V Battery Order Picker with 2×12V/108Ah power providing long picking shifts, 0.22 m/s raise and 0.31 m/s lower speed, proportional 0-4 km/h drive for precise positioning.

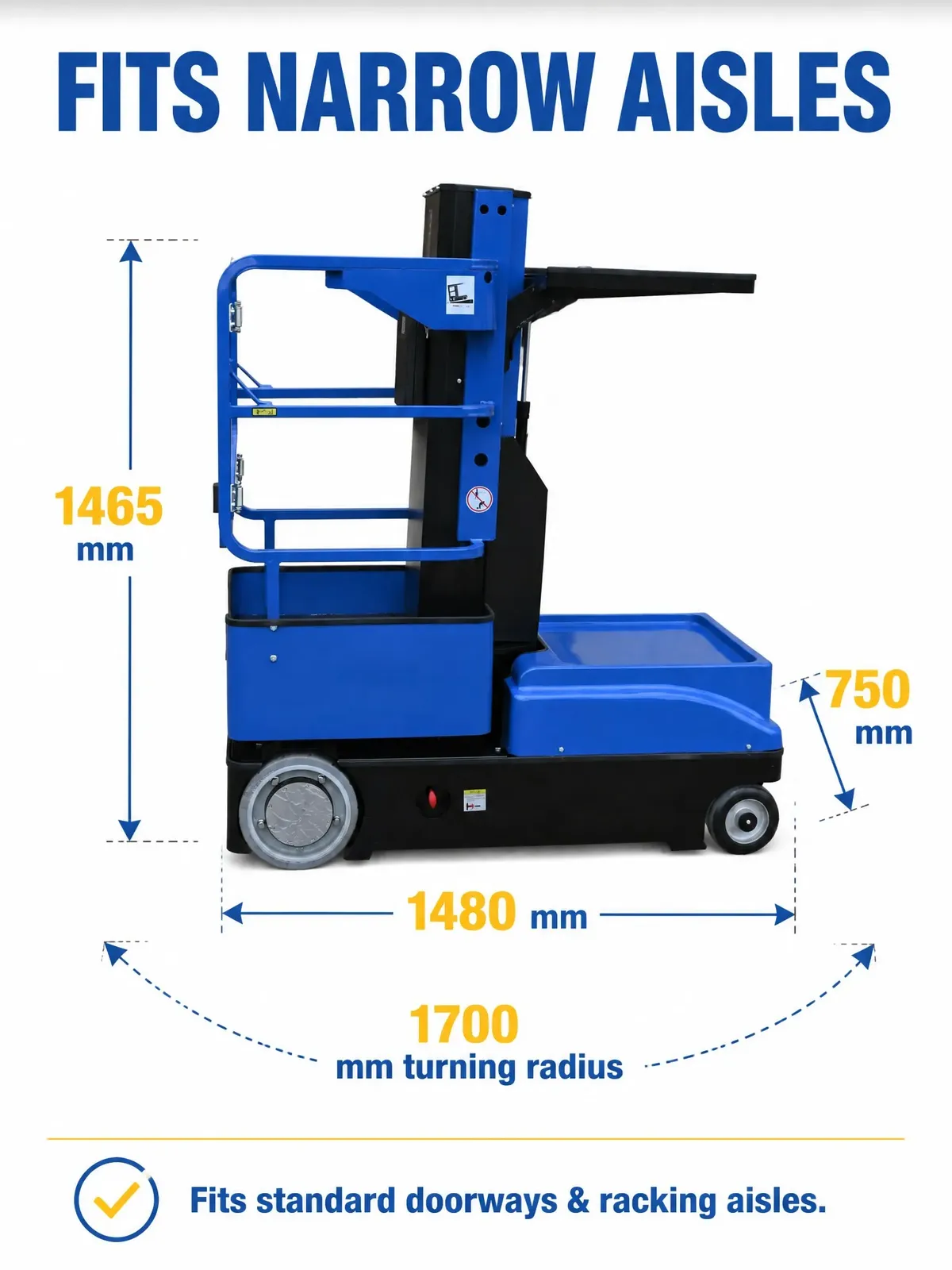

⑥ Versatile Dual Capacity Order Picker with 685mm platform and 550mm extension, 550×620mm cargo tray, 550×730mm carry deck, 750mm width fitting standard warehouse aisles and epoxy floors.

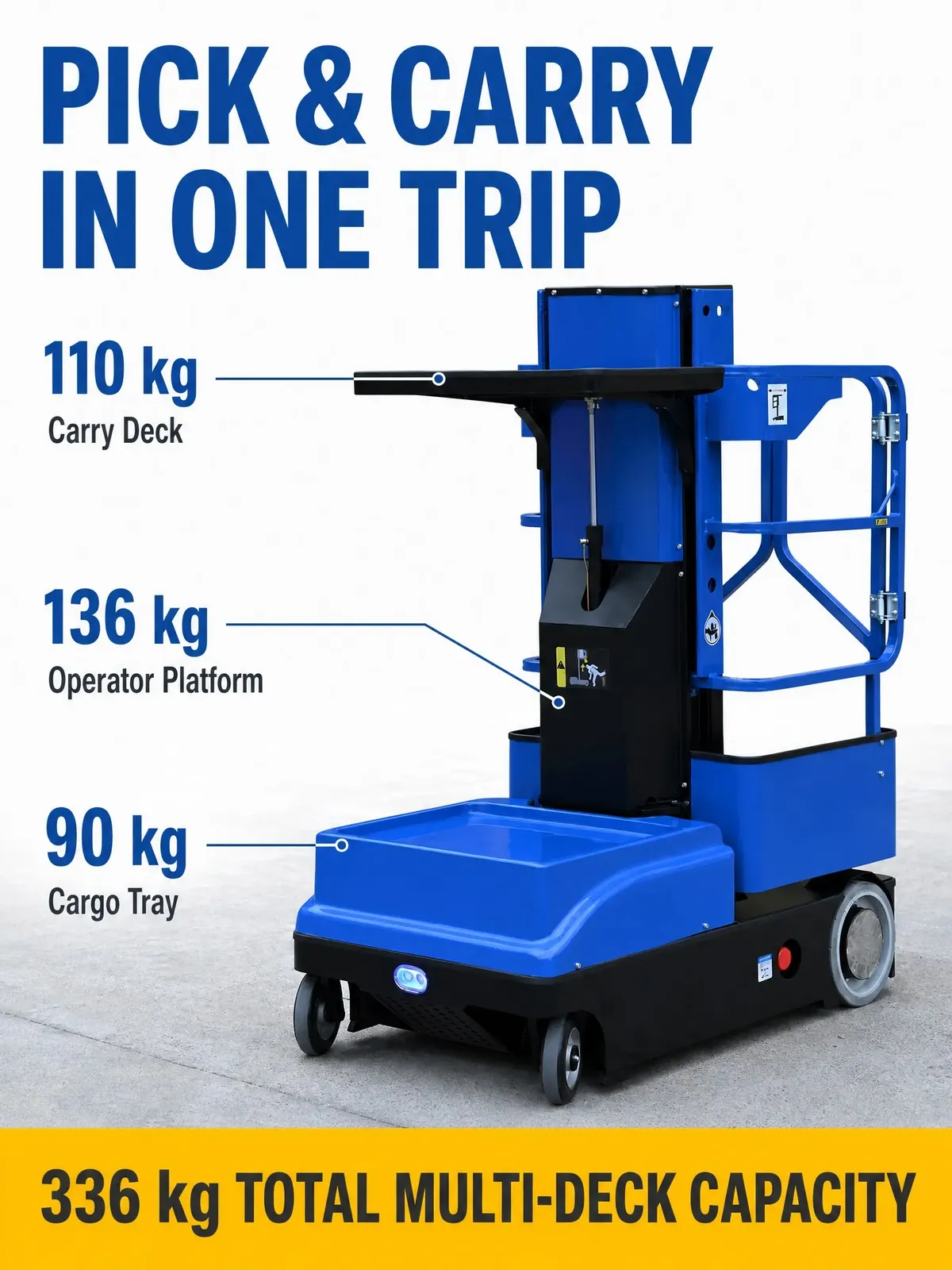

⑦ Order pickers without cargo platforms force multiple trips between racks and packing stations. Dual Capacity Vertical Picker carries goods on both platform and cargo tray simultaneously, cutting picking cycle time and improving operator efficiency.

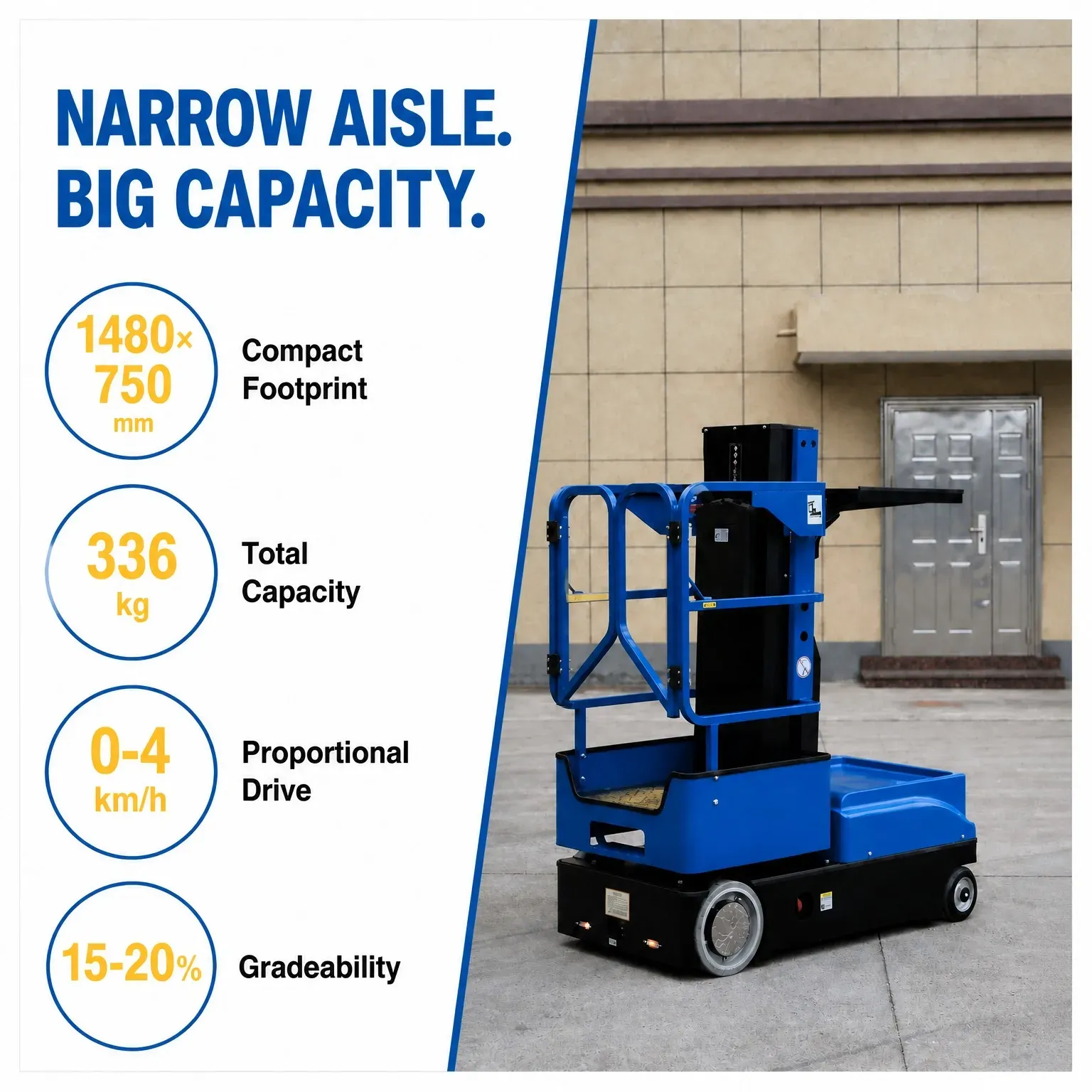

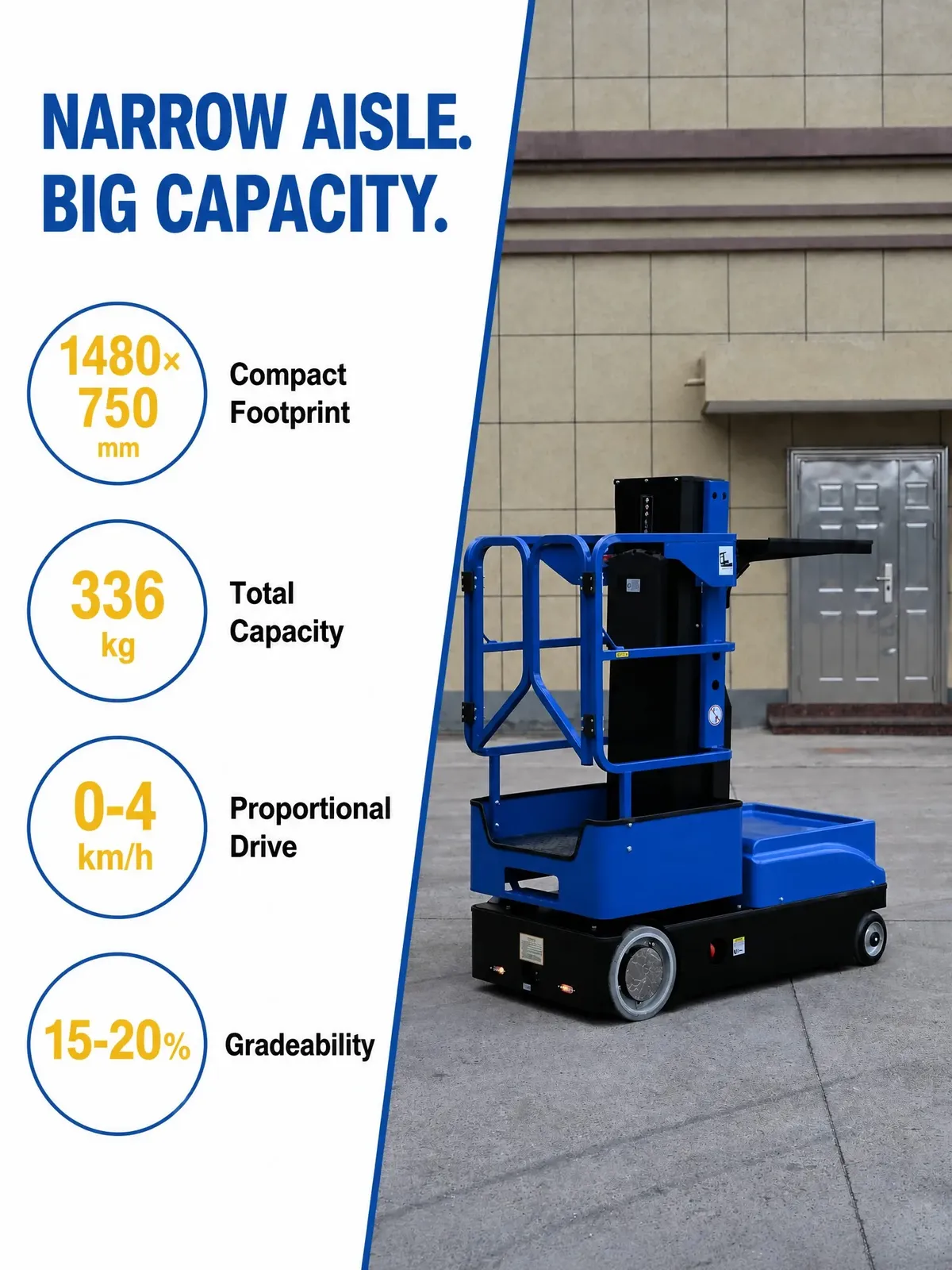

⑧ Standard pickers struggle on warehouse ramps and loading bay inclines. Vertical Order Picker with 15-20% gradeability and 1700mm turning radius handles slope transitions and tight aisle corners, expanding usable picking zones across the facility.

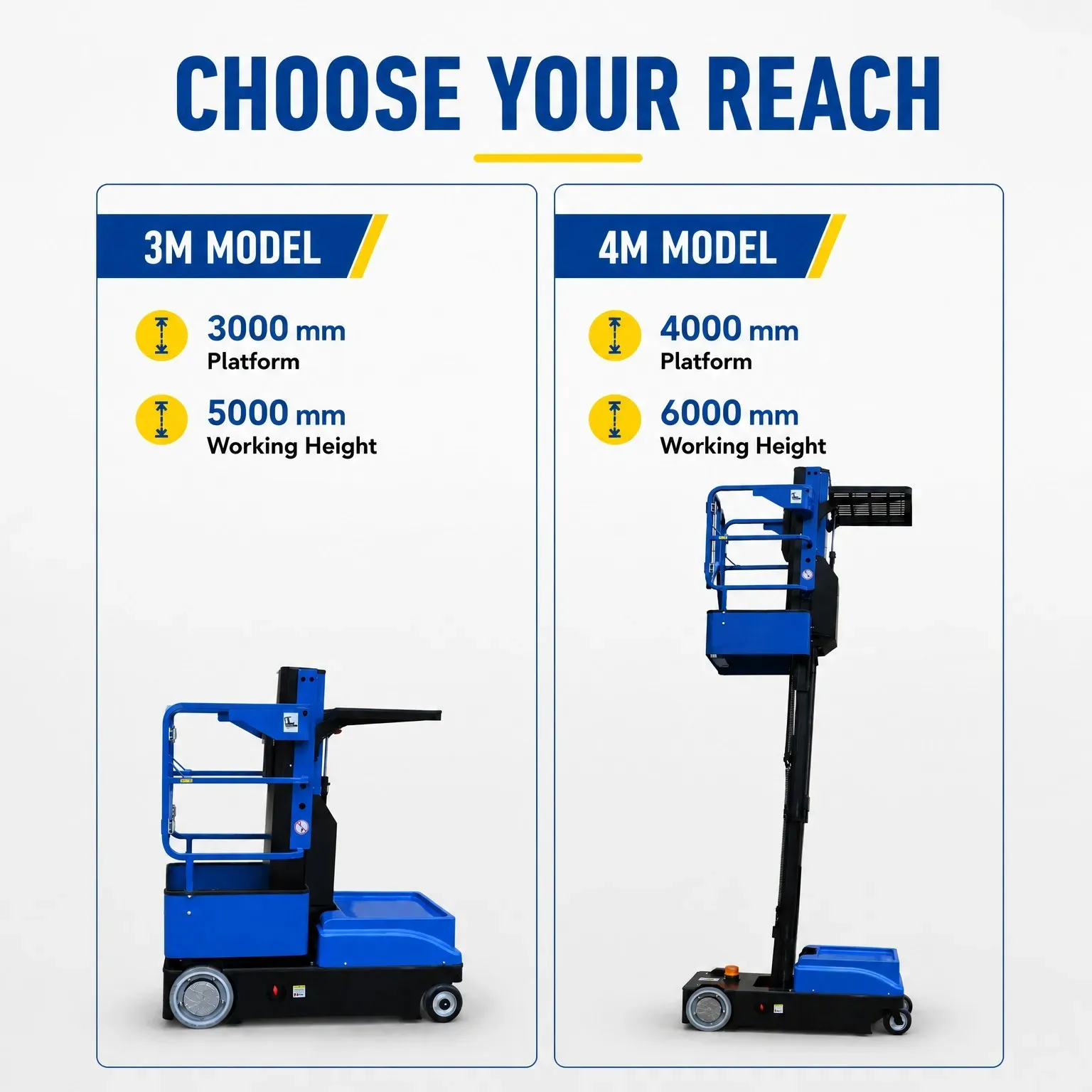

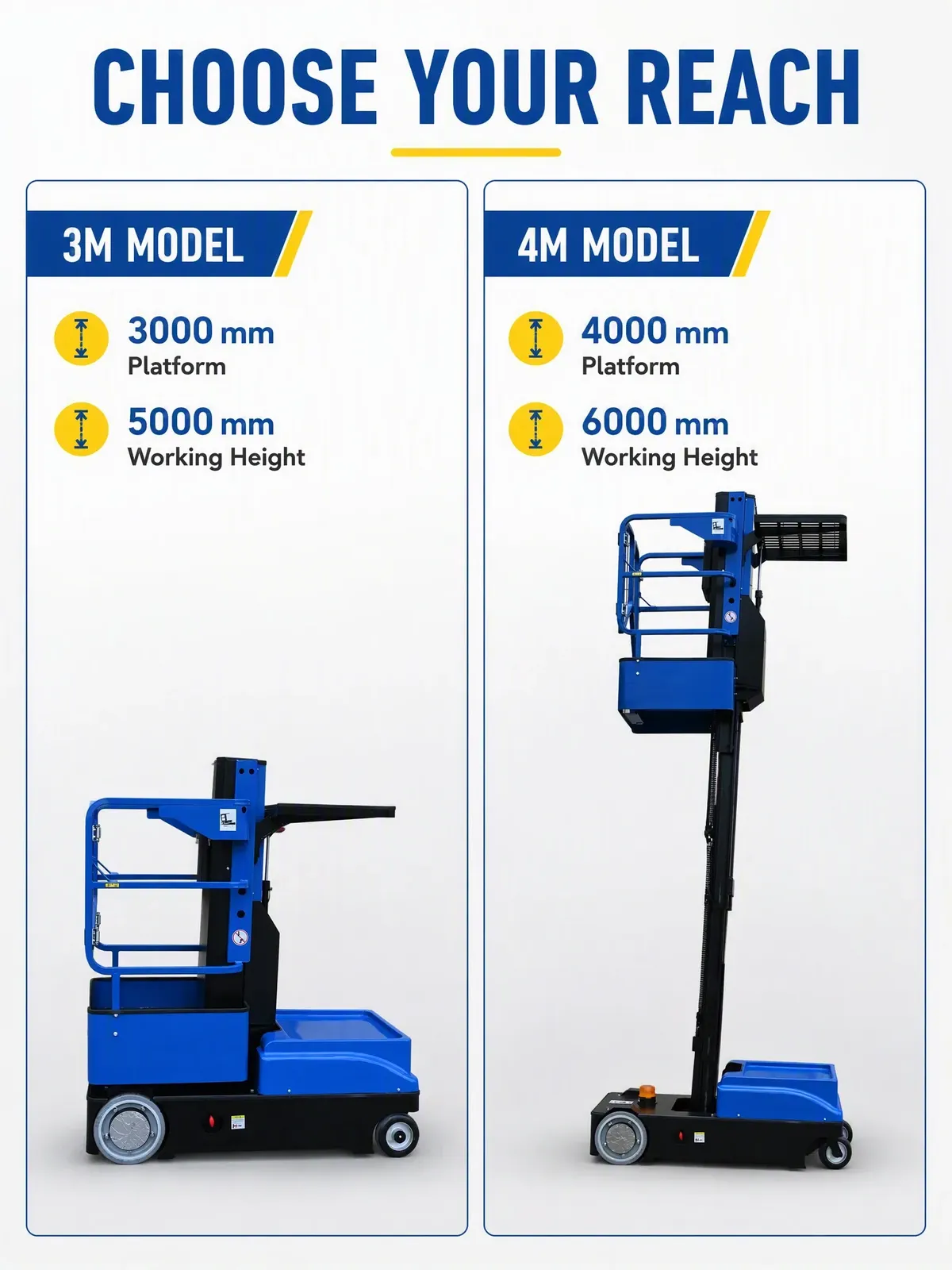

⑨ Export plywood packed Vertical Order Picker in two configurations from 5000mm to 6000mm working height, OEM colour and logo customisation available, lead-acid standard with optional lithium battery upgrade.
