Electric Pallet Trucks · Ref LPT-91850
Electric Pallet Truck, Lithium Pallet Jack, 2 Ton
1.5 to 2 tLithium-ionForks 1150 to 1200 mm
from £1,315per unit, ex VAT
| Quantity | Price per unit |
|---|---|
| 1+ units | £1,315 |
Minimum order 1 unit from the factory; any range minimum is confirmed on your quote. Prices in GBP per unit, ex VAT. We convert the factory list at a buffered exchange rate, so normal day-to-day currency movement does not change the price you see. Your written quote adds freight, duty and VAT and is valid for 30 days.
Truck TypePallet Jack
Line total
No online payment. The basket becomes an order request and we reply with a written GBP quote, deposit 30% on order, lead time 8 to 12 weeks.

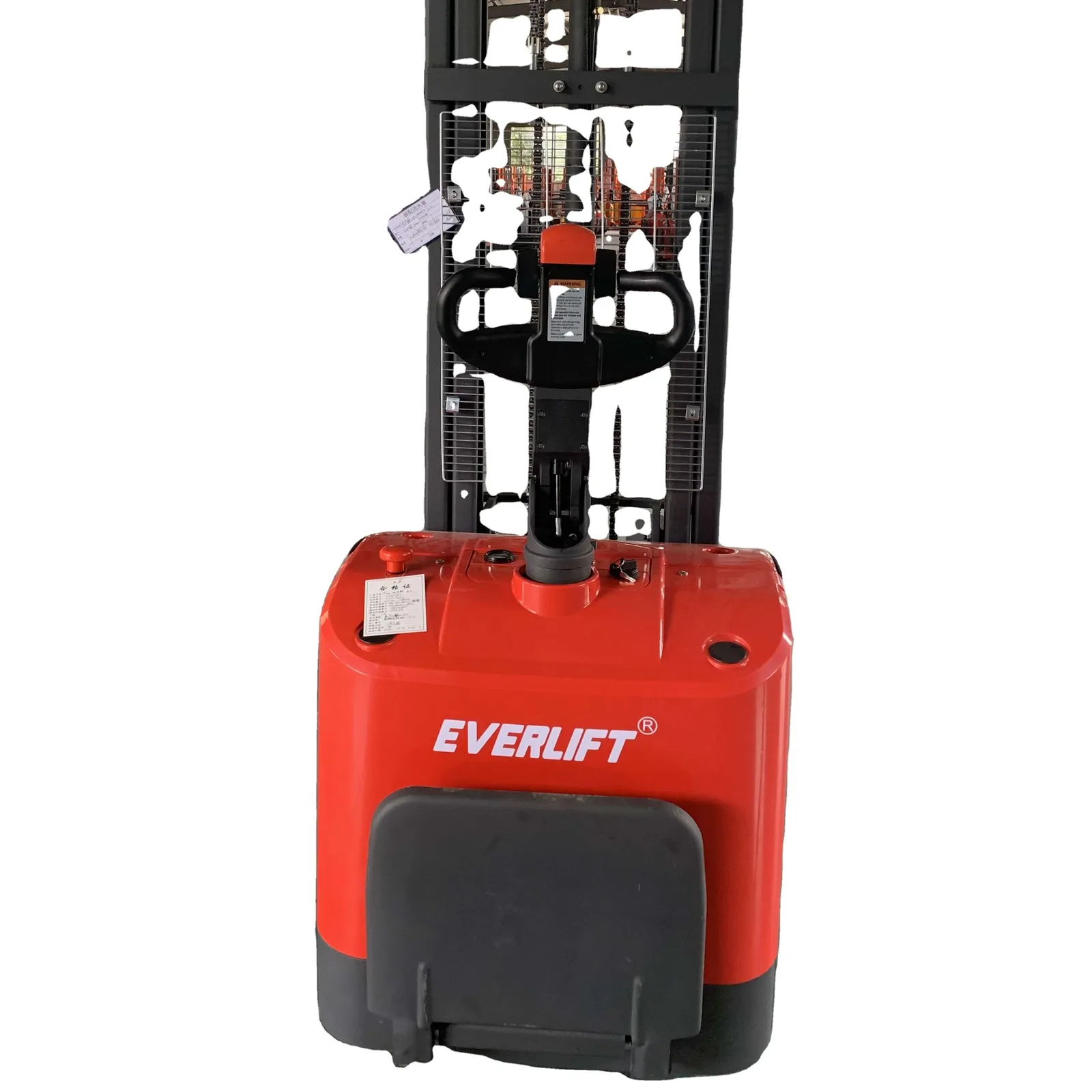

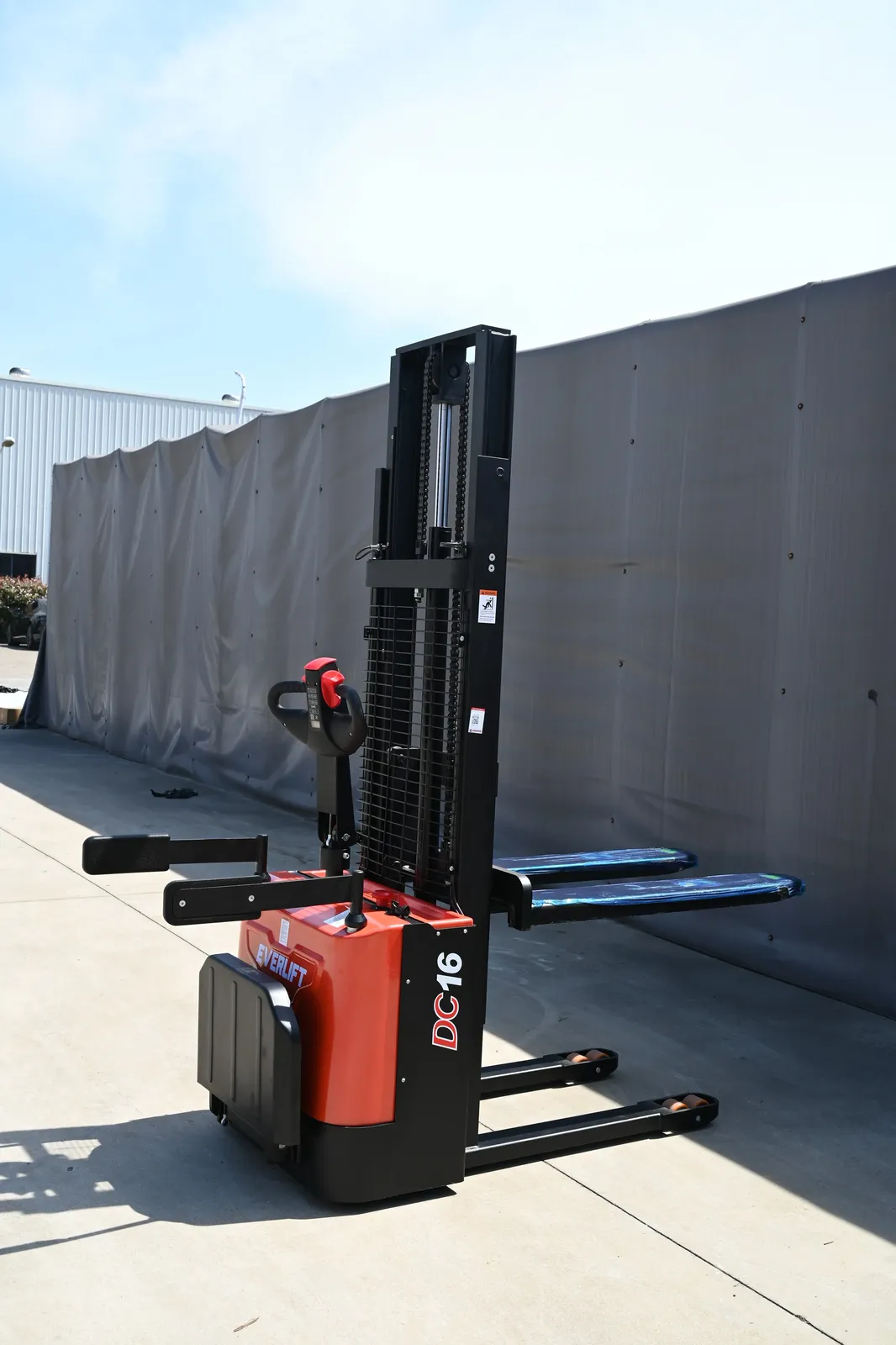

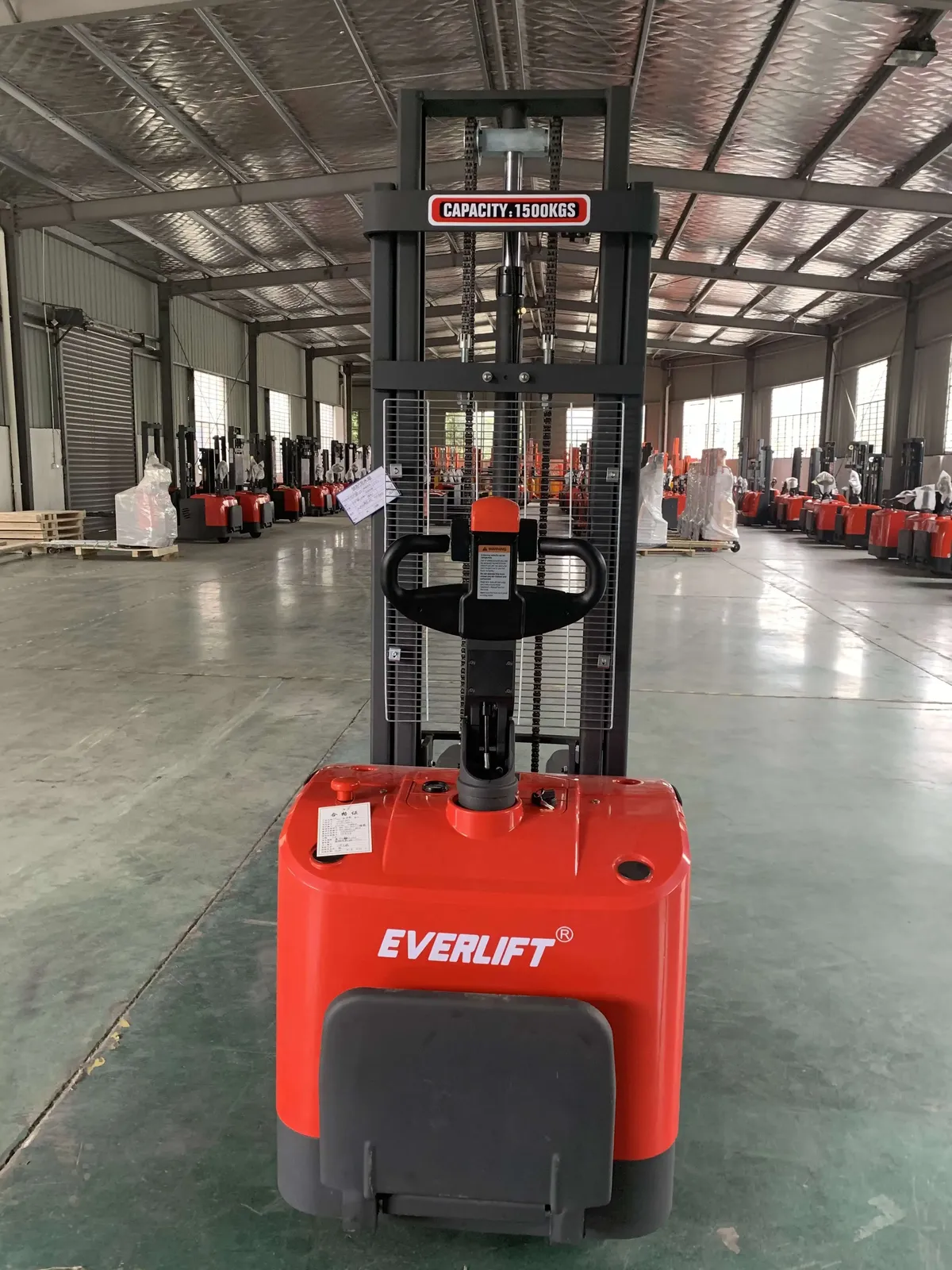

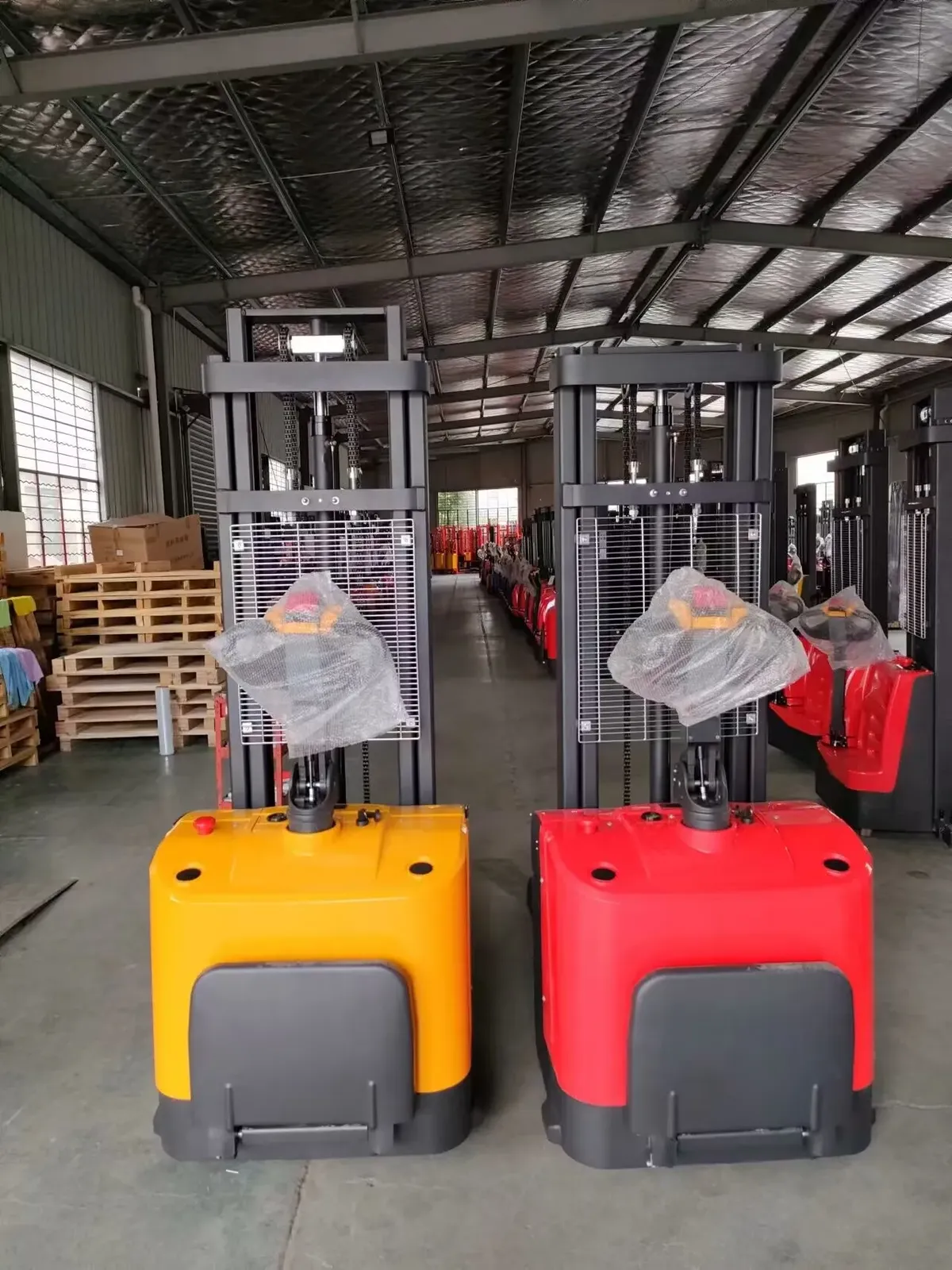

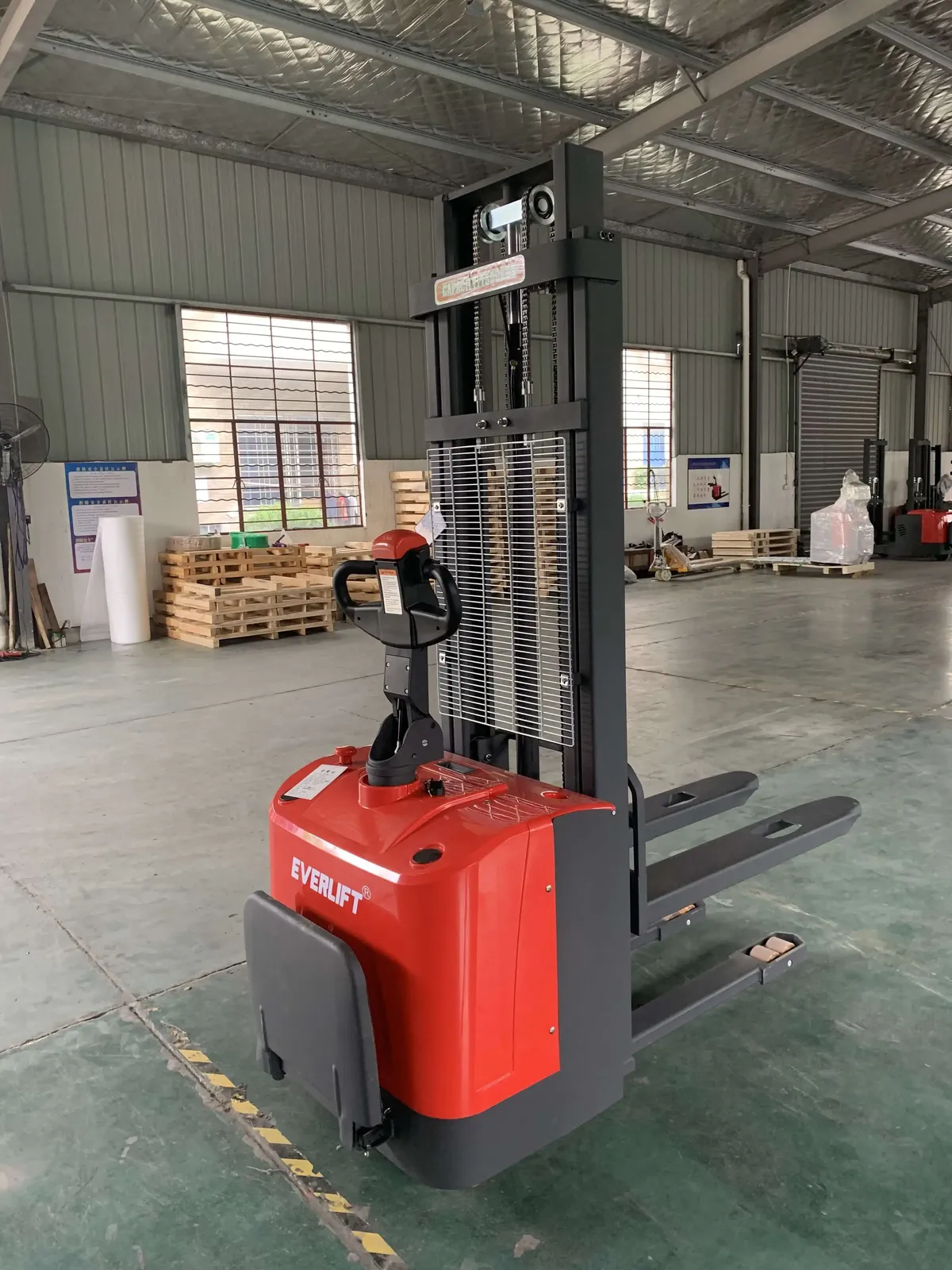

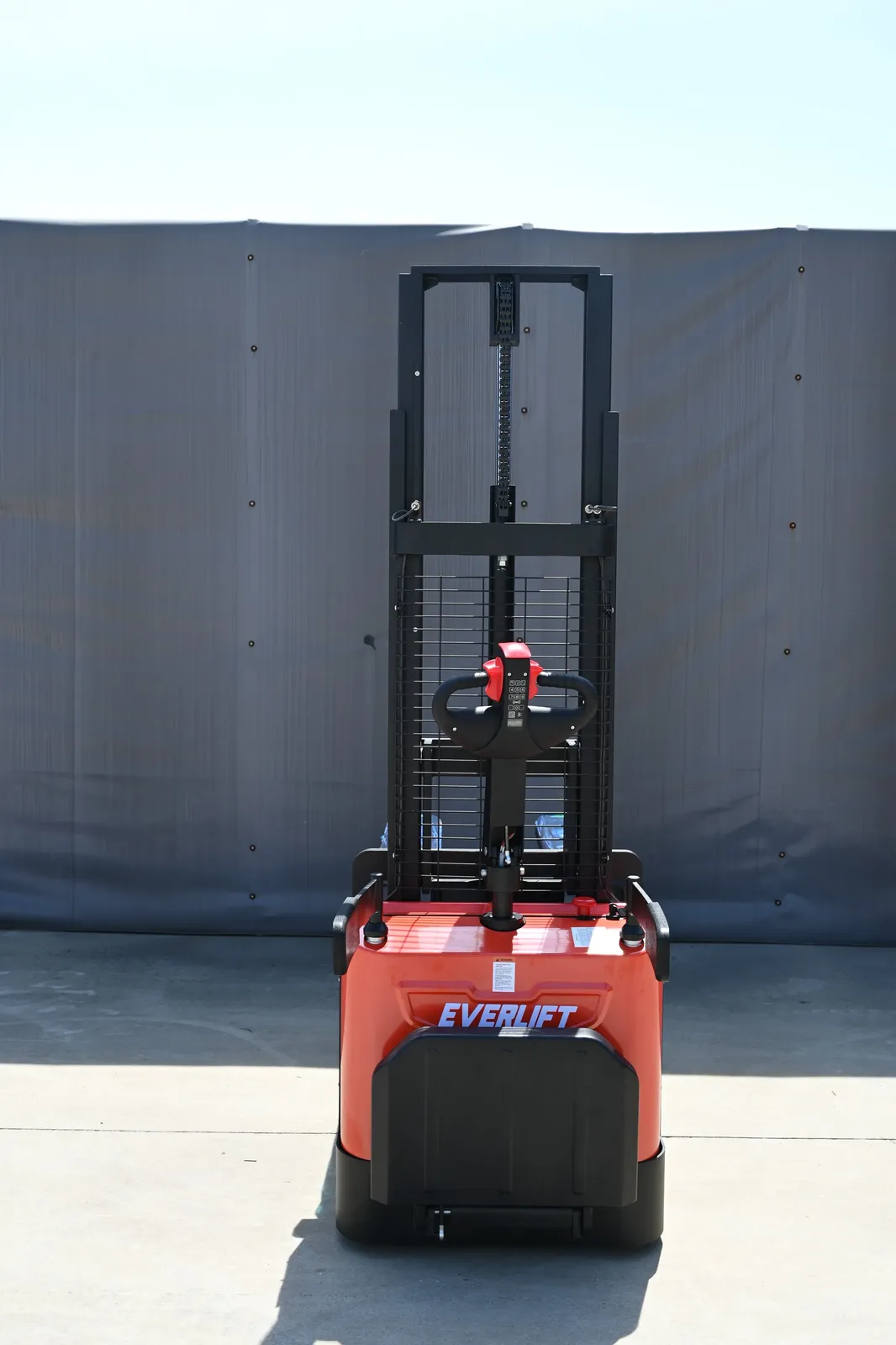

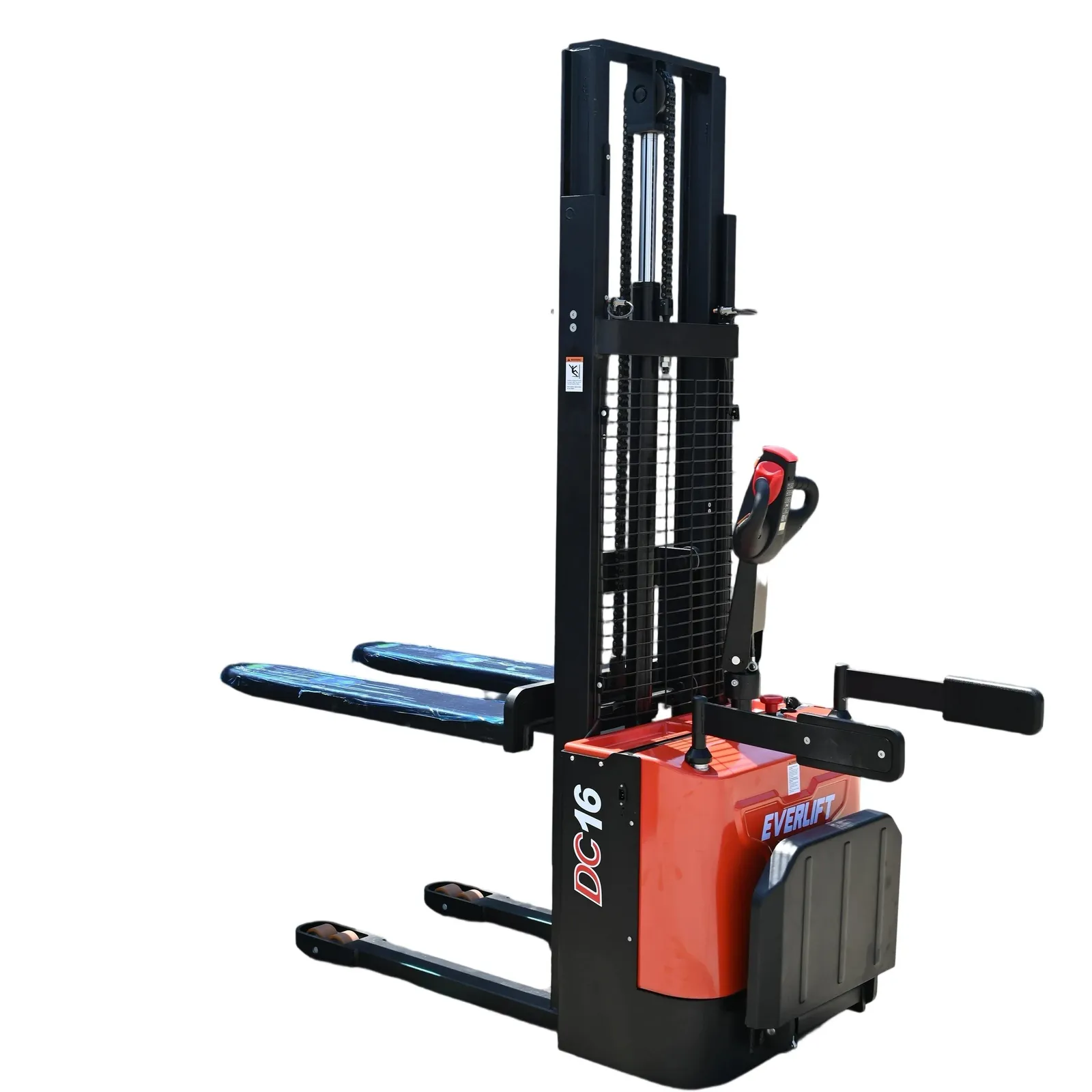

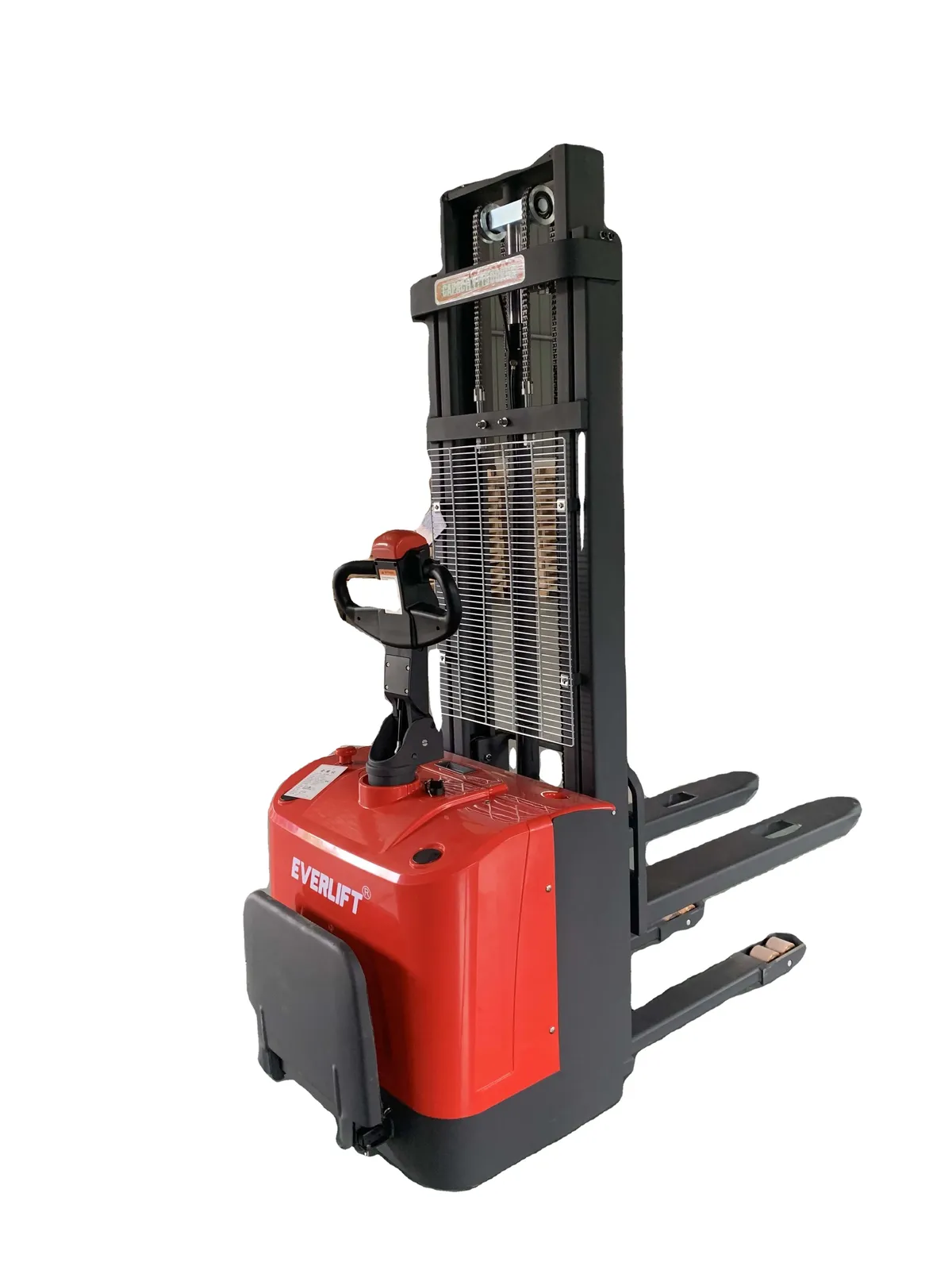

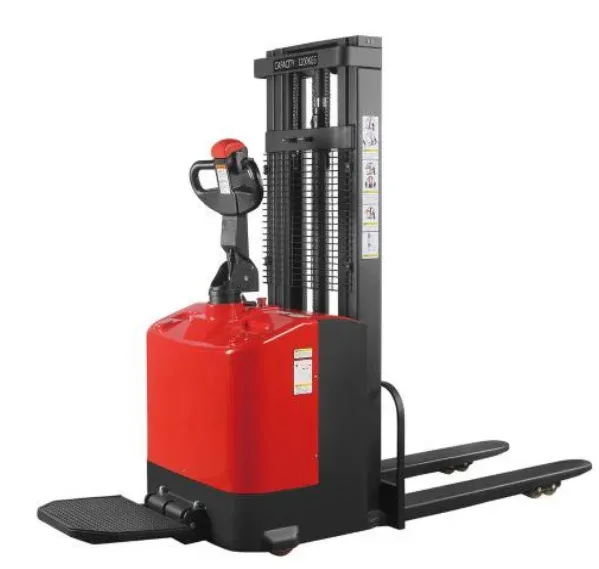

Or email [email protected]2 Ton Stand-on Electric Stacker, Ride-on Pallet Stacker 3m, 2000kg Electric Forklift Stacker, 48V Electric Stacker, Industrial
Pallet Stacker.
Powerful 2000kg Capacity: Industrial 2 ton stand-on electric pallet stacker for heavy loading task.
3m High Level Stacking: 3000mm ride-on forklift stacker perfect for warehouse racking and storage.

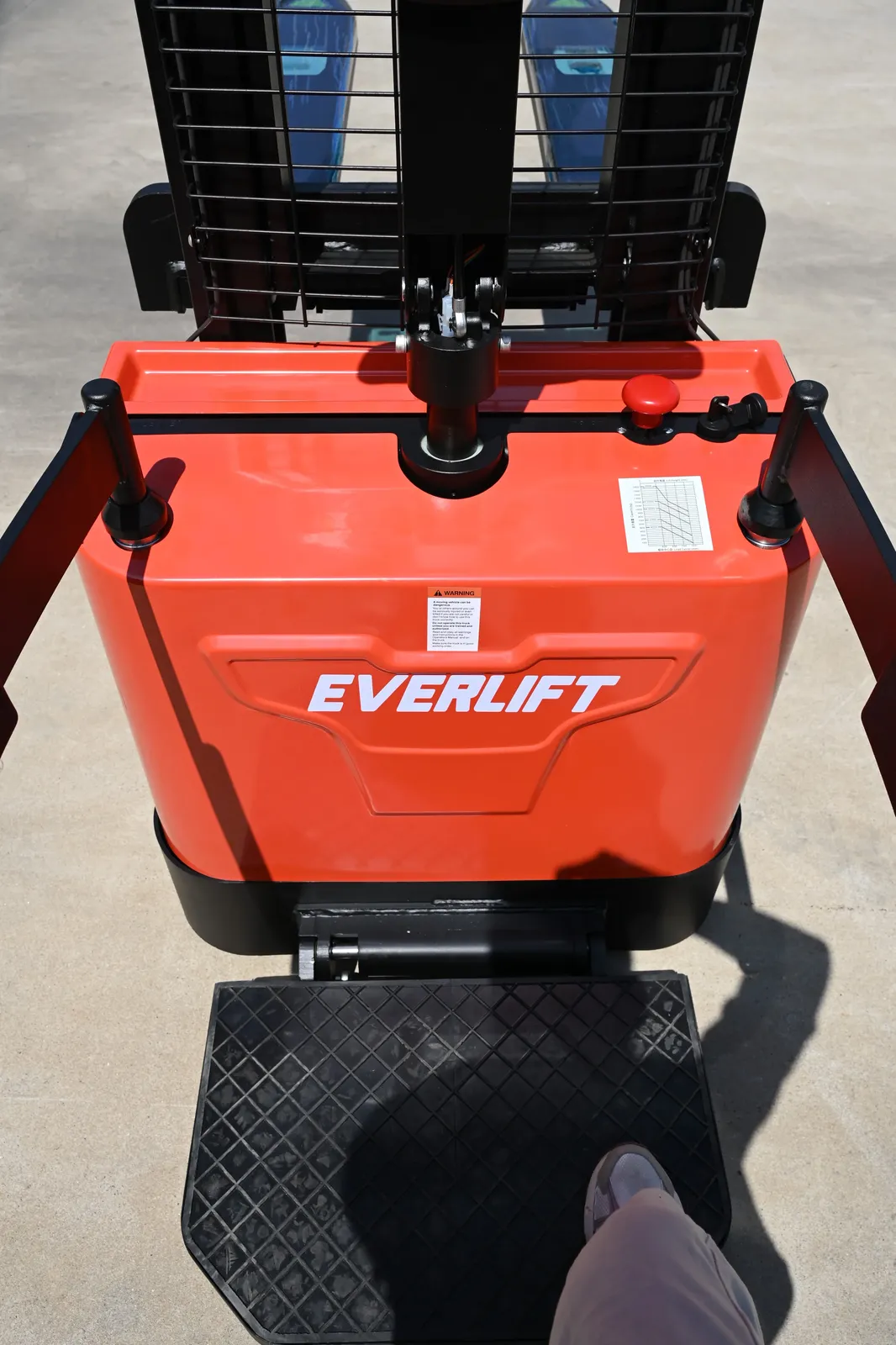

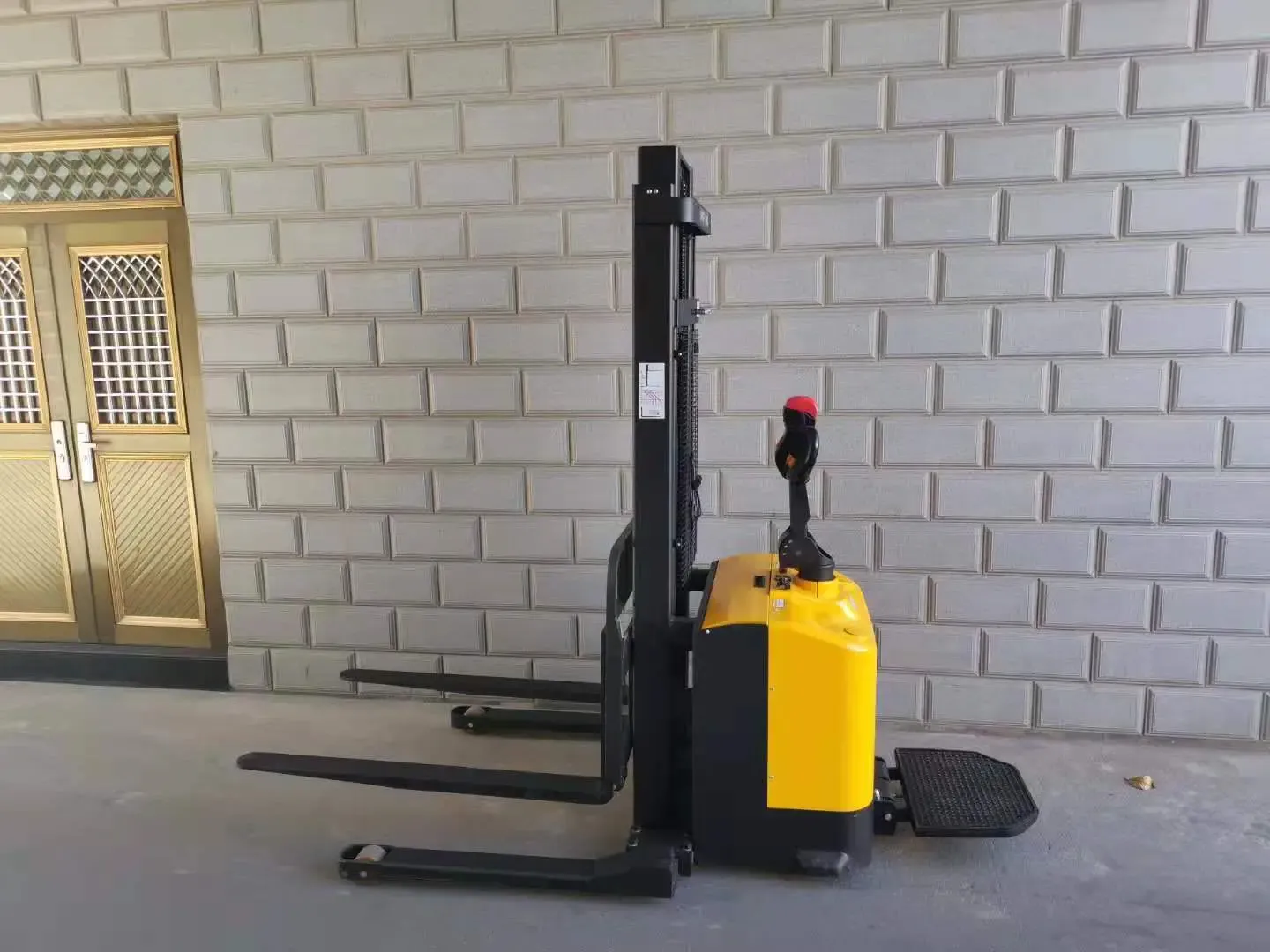

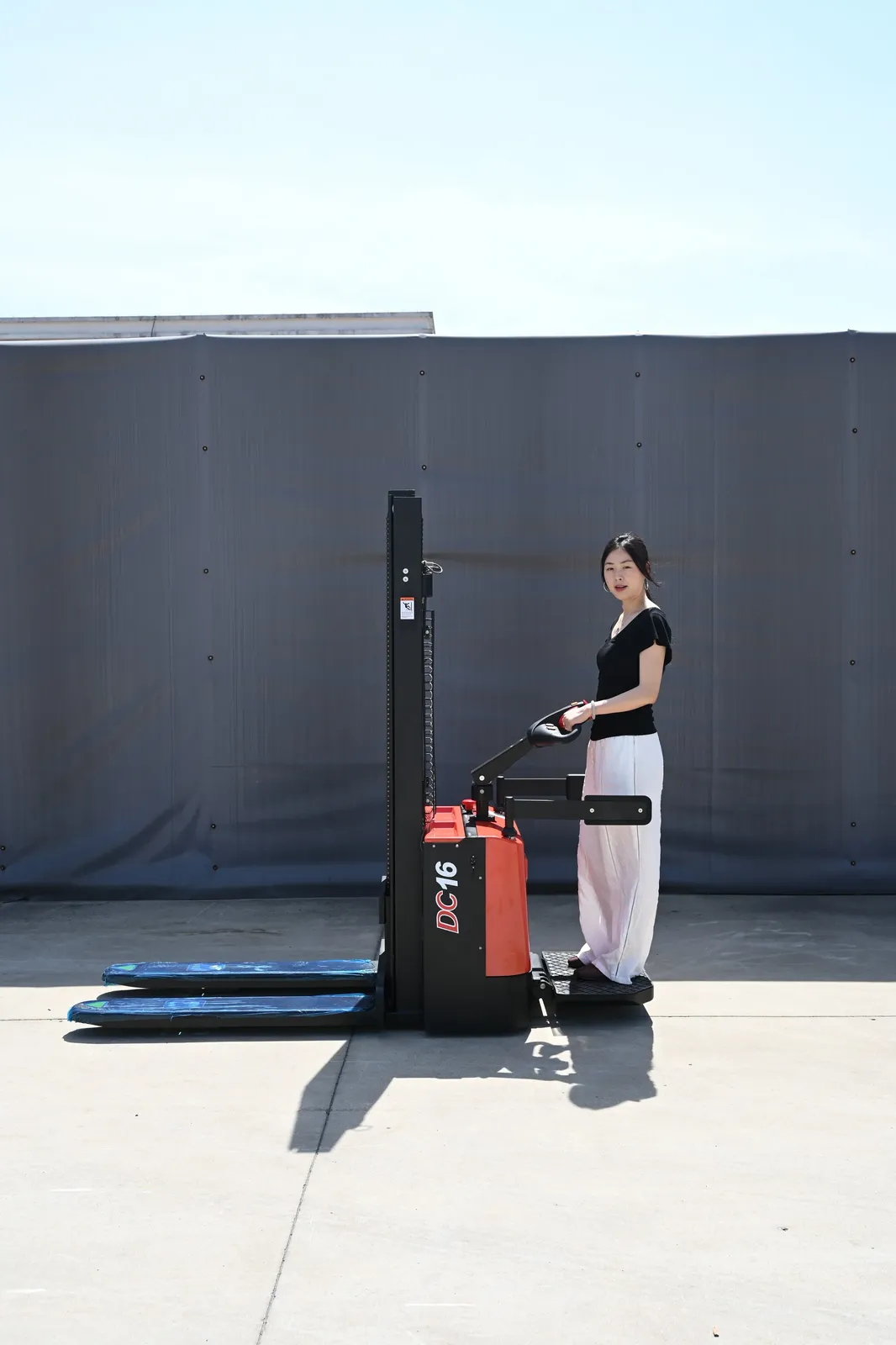

Ergonomic Stand-on Design: Foldable platform and protective side arms for comfortable ride-on operation.
Advanced BLDC Motor: 48V brushless DC motor ensures powerful driving and low maintenance costs.

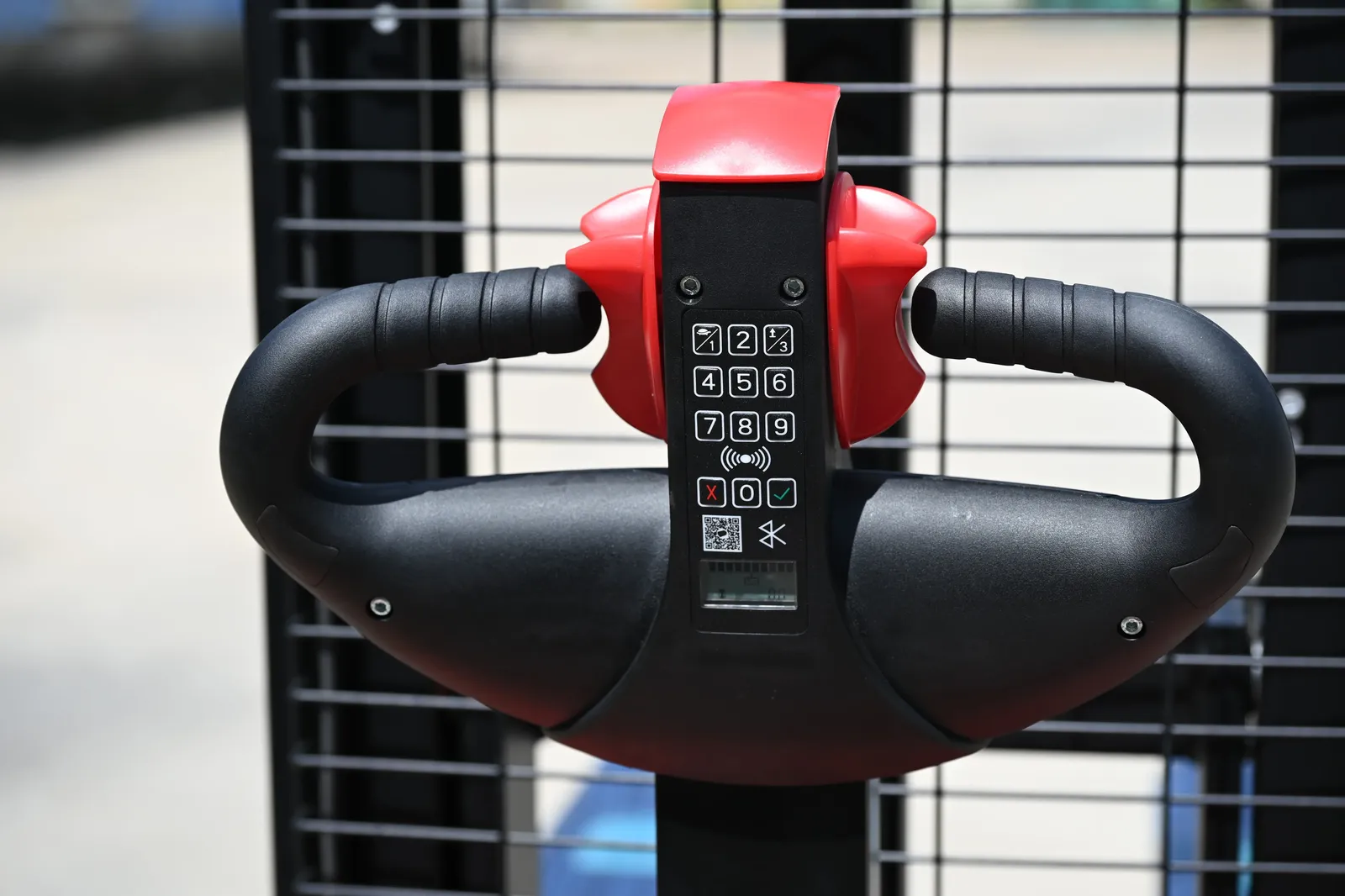

Intelligent Control System: High performance controller provides precise lifting and smooth braking.
Compact Narrow Aisle Mover: Agile ride-on stacker with 1393mm turning radius for tight aisle stacking.
Reliable 48V Battery Power: Heavy duty stacker with 48V/65Ah battery for long-lasting daily work shift.
Enhanced Safety Braking: Electromagnetic regenerative brake system ensures safe stop during handling.
| Condition | New |
|---|---|
| Fork Specifications( L*W*H) | 1150*185*60 |
| Forklift Battery Type | Lithium-Ion Battery |
| Side Shifter | Electric Side Shifter, Hydraulic Side Shifter |
| Drive Type | Fwd |
| Terrain Adaptability | Indoor Flooring, Offroad, Outdoor Pavement, Rough Terrain, Other |
| Load centre distance | 600 mm |
| Mast Type | Single-Stage Mast, Three-Stage Mas, Two-Stage Mast |
| Forklift Turning radius | 1393mm |
| Fork Length | 1200mm, 1150 mm |
| Operating Mode | Standing Operation |
| Forklift Tyre | Polyurethane Tyre |
| Forklift Wheelbase | 1145mm |
| Mast Tilt Angle (Forward Tilt-Rear Tilt) | 6-12° |
| Model Number | ELEP-15/16/20F |
| Battery voltage (V/AH) | 48V/65AH |
| Model | ELEP-15/16/20F |
| Capacity | 2000KG |
| Certification | CE/ISO9001 |
| Tyre | Solid PU |
| Colour | Customer Demanded |
| Feature | High Efficiency |
| Fork Size | 550*1150/685*1220mm |
| Rated Loading Capacity options | 1.5 Ton, 2 Ton |
| Truck Type options | Pallet Jack |
| Max. Lifting Height options | 1 600 mm, 4000 mm |
| Model | ELEL-15F | ELEL-20F | |
|---|---|---|---|
| Operating type | Stand on | Stand on | |
| Load capacity | kg | 1600 | 2000 |
| Load centre | mm | 600 | 600 |
| Wheel base | mm | 1145 | 1145 |
| () Wheels type | PU | PU | |
| Wheel quantity | 01-2-4 | 01-2-4 | |
| Driving wheel size | mm | φ195×70 | φ195×70 |
| Balance wheel size | mm | φ116×55 | φ116×55 |
| Bearing wheel size | mm | φ73×60 | φ73×60 |
| Standard lift height | mm | 3000 | 3000 |
| Max extend height | mm | 5012 | 5012 |
| Mast lowered height | mm | 2012 | 2012 |
| Min.fork lowered height | mm | 80 | 80 |
| Outside width between forks | mm | 550/600/650/685 | 550/600/650/685 |
| Inside width between forks | mm | 180/230/280/315 | 180/230/280/315 |
| Fork size(length/width | mm | 1150/185/60 | 1150/185/60 |
| () Overall length | mm | 2214/1812 | 2214/1812 |
| Overall width | mm | 780 | 780 |
| Min.Turning radius | mm | 1393 | 1393 |
| (800×1200,1200)Min.Aisle width for pallets 800×1200 | mm | 2224 | 2224 |
| (1000×1200,1200)Min.Aisle width for pallets 1000×1200 | mm | 2291 | 2291 |
| Travel speed,laden/unladen | km/h | 4.2/5 | 4.2/5 |
| Lift speed,laden/unladen | mm/s | 85/155 | 105/175 |
| Lowering speed,laden/unladen | mm/s | 144/104 | 115/110 |
| Gradeability,laden/unladen | % | 6-10 | 6-10 |
| Drive motor/Lift motor | BLDC1.0/DC | BLDC1.2/DC | |
| 2.Battery voltage/capacity | V/AB.2 | 48/65 | 48/65 |
| Charger specification | V/Ah | 48-8 | 48-8 |
| Controller | () | () | |
| Brake | Electromagnetic/Regenerative | ||
| Battery weight | 15×4 | 15×4 | |
| () Service weight with battery | 710 | 725 | |
| Steering type | Mechanical | Mechanical |
| Certificate | Number | Valid |
|---|---|---|
| 2006/42/EC | M.2026.206.C137529 | 30/03/2026 - 29/03/2031 |
| CE | M.2026.206.C134736 | 04/02/2026 - 03/02/2031 |
| CE | 3N251031.NEMS093 | 30/10/2025 - 29/10/2030 |
| EAC | — | 22/10/2023 - 22/10/2028 |
| CE | M.2023.206.C83216 | 22/03/2023 - 21/03/2028 |
| CE | M.2023.206.C83215 | 22/03/2023 - 21/03/2028 |
| CE | M.2023.206.C83222 | 22/03/2023 - 21/03/2028 |
| CE | M.2023.206.C83221 | 22/03/2023 - 21/03/2028 |
Certificates are supplied with your quote on request.
