Electric Stackers · Ref LPT-14011

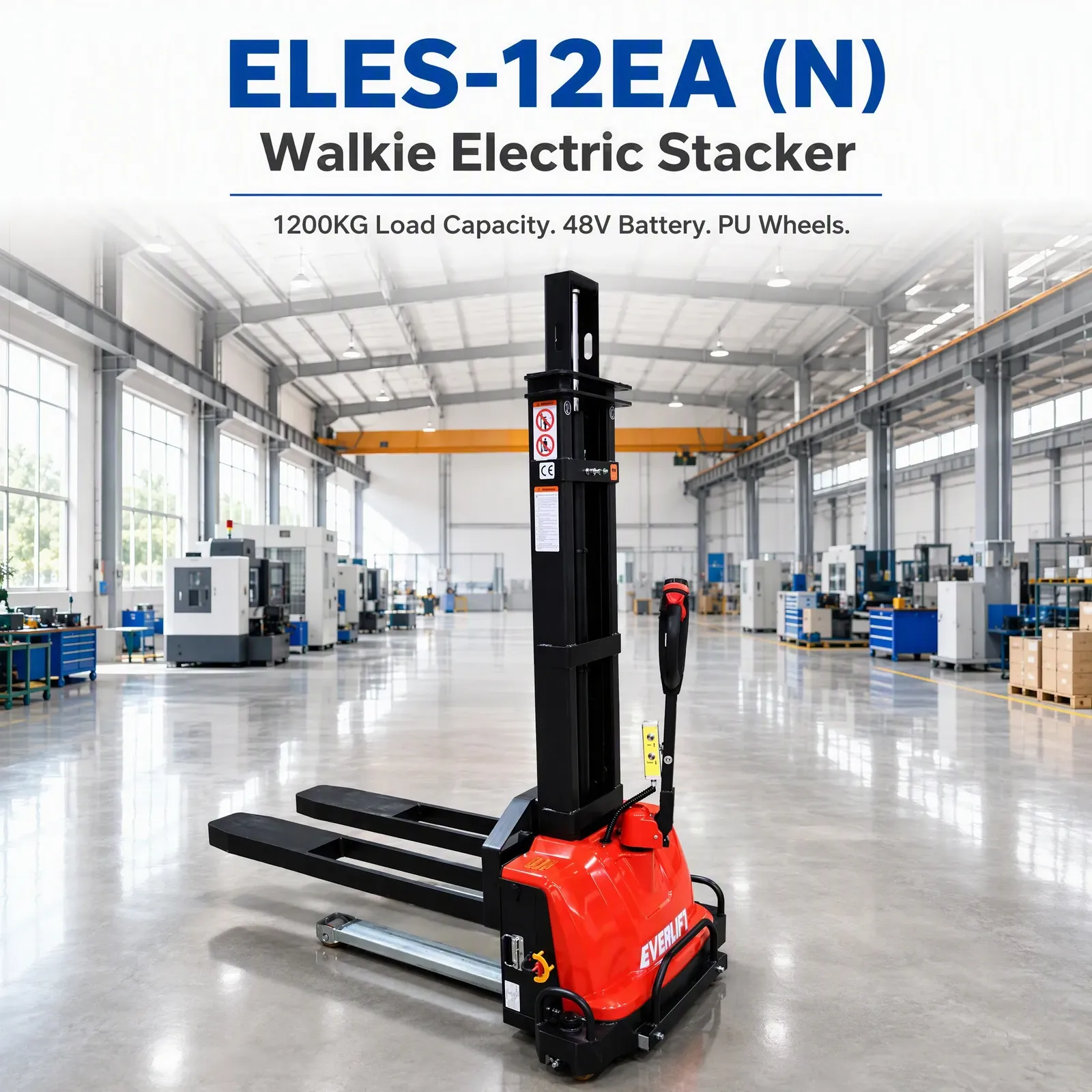

1200 kg Electric Walkie Stacker Electromagnetic Brake
1.2 tElectricForks 1220 mm
from £1,830per unit, ex VAT
| Quantity | Price per unit |
|---|---|
| 1 to 9 units | £1,870 |
| 10+ units | £1,830 |
Minimum order 1 unit from the factory; any range minimum is confirmed on your quote. Prices in GBP per unit, ex VAT. We convert the factory list at a buffered exchange rate, so normal day-to-day currency movement does not change the price you see. Your written quote adds freight, duty and VAT and is valid for 30 days.
load capacity1.2 Ton
Max. Lifting Height1 600 mm
Model NumberELES-10EA(N)
Line total
No online payment. The basket becomes an order request and we reply with a written GBP quote, deposit 30% on order, lead time 8 to 12 weeks.
Or email [email protected]Product Highlights
① Full Electric Pallet Stacker with reinforced steel frame and anti-corrosion powder coating, engineered in a 400kg sturdy chassis with 920mm width for reliable warehouse stacking and logistics operations.

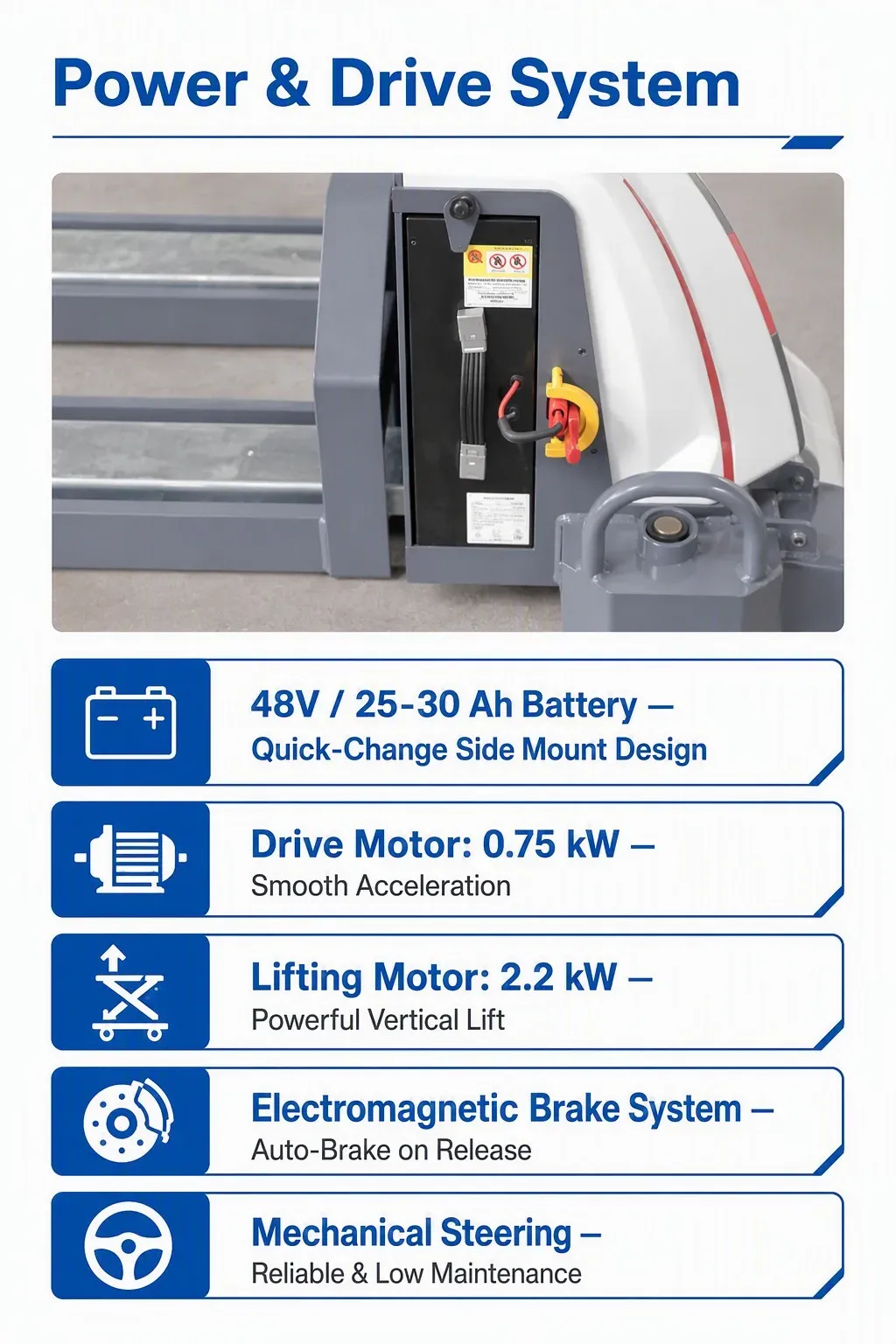

② Professional 1000-1500kg Walkie Electric Stacker with 2.2kW lift motor, 0.75kW drive motor, 48V/25-30Ah battery system, Φ190×70mm PU driving wheels and Φ80×70mm bearing wheels for stable movement.

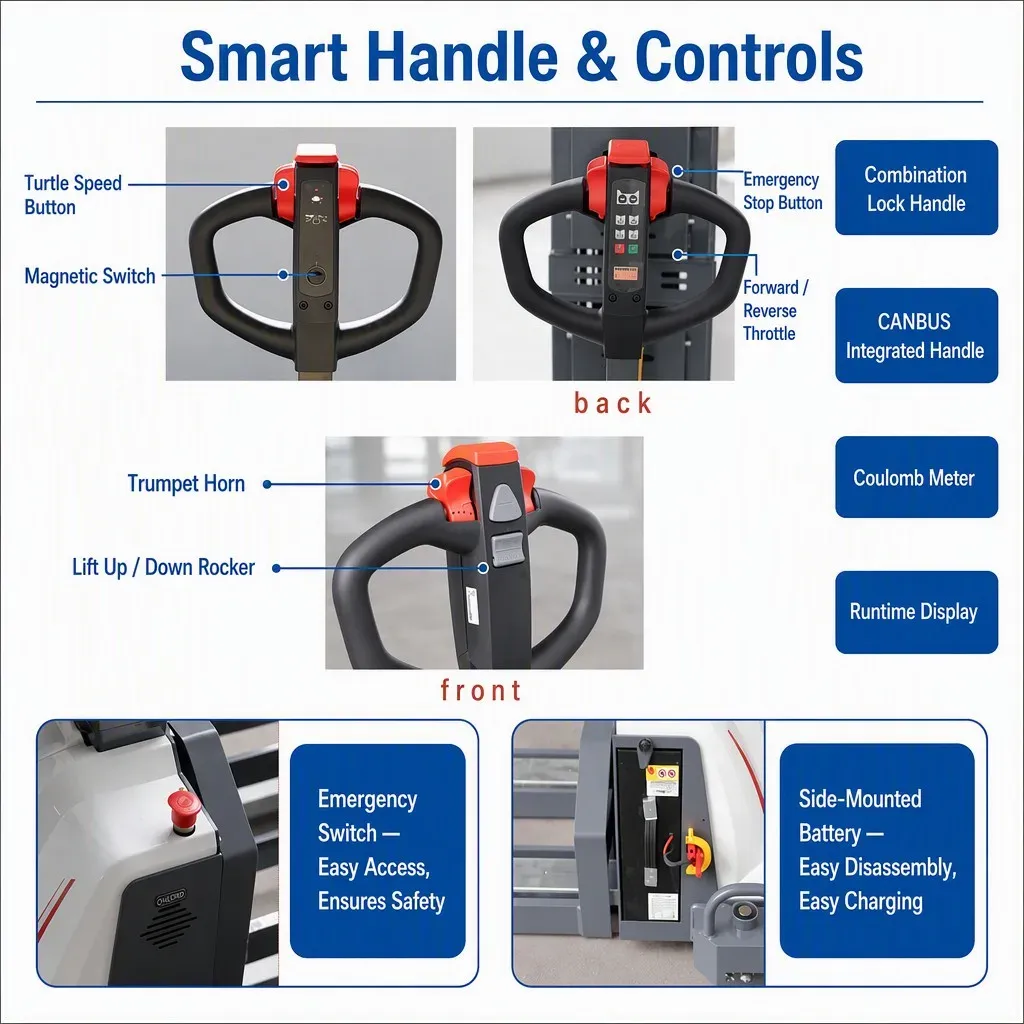

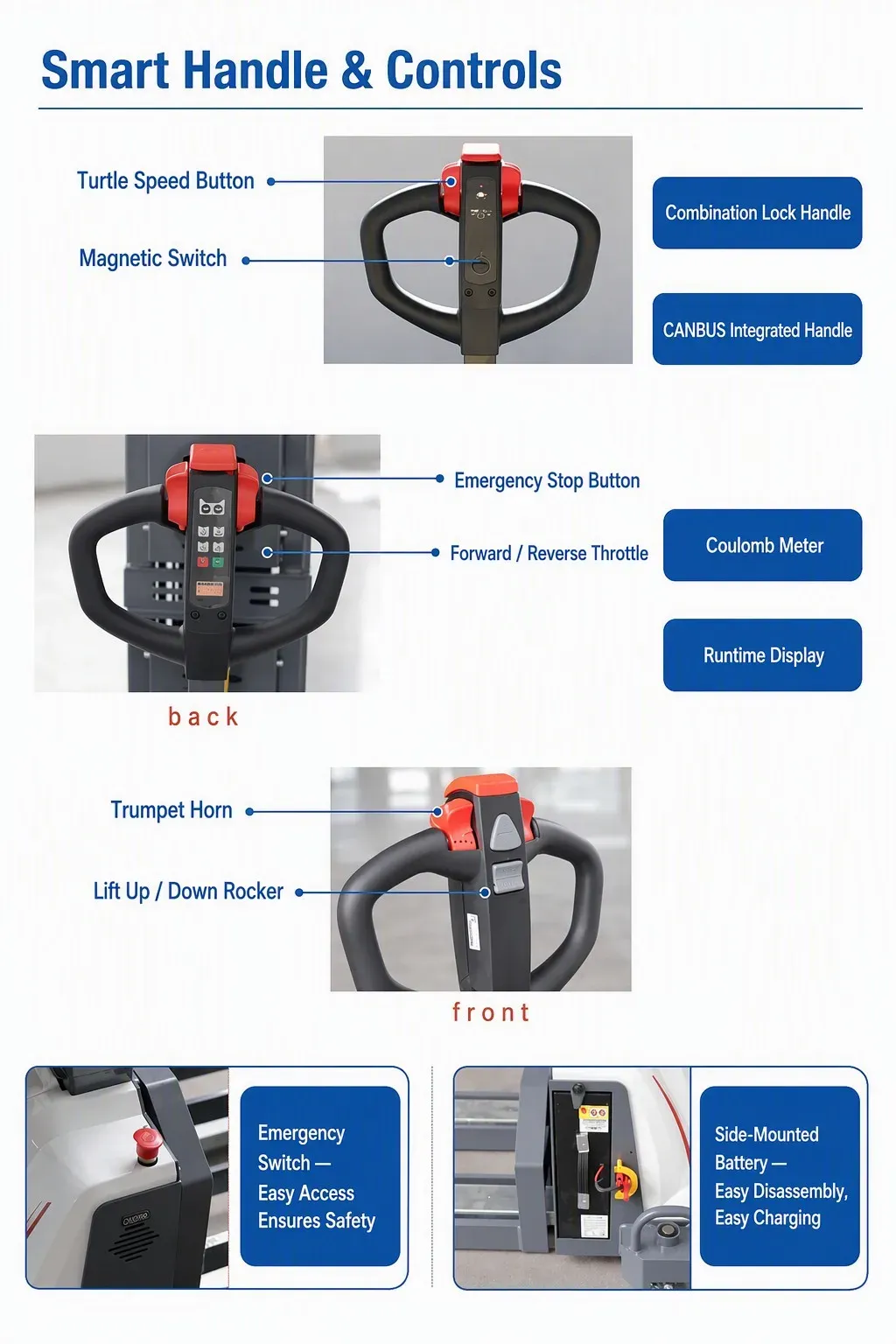

③ Safe Walkie Pallet Stacker with electromagnetic braking system, mechanical steering for precise directional control, and RoHS compliant components ensuring workplace safety for industrial material handling.
④ Efficient Full Electric Walkie Stacker delivering 1000-1500kg rated capacity, 900-1600mm lift height range with 400mm load centre, 1180mm tight turning radius for narrow aisle warehouse stacking.
⑤ Powerful 48V Battery Pallet Stacker with 30kg battery providing extended operation, 2.2kW lift motor for rapid 900-1600mm lifting, 0.75kW drive motor for smooth walkie travel speed.

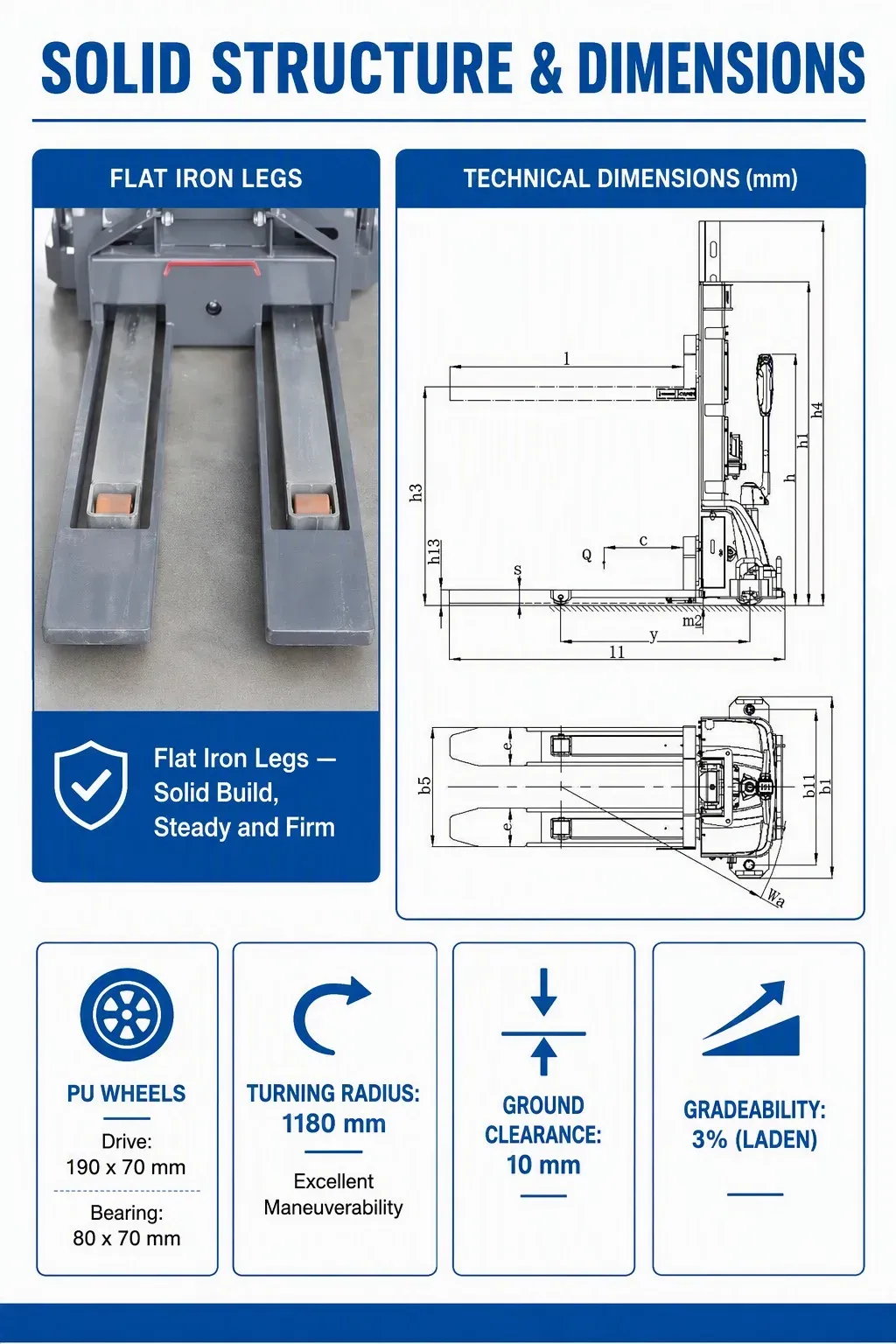

⑥ Versatile Electric Pallet Stacker with 560/600mm fork width options and 1220mm fork length, Φ75×35mm balance wheels for smooth movement on warehouse concrete and epoxy floor surfaces.
⑦ Manual lifting of 1500kg pallets creates injury risk and fatigue in high-frequency operations. Full Electric Walkie Stacker with 2.2kW powered lift eliminates manual pumping, enabling single-operator handling of heavy loads throughout the shift.
⑧ Warehouse space constraints demand equipment that combines compact size with high stacking capability. 1180mm Turning Radius Electric Stacker at 920mm width manoeuvrs narrow aisles while lifting 1500kg to 1600mm, maximising vertical storage density.
⑨ Export plywood packed Full Electric Walkie Stacker in five lift configurations from 900mm to 1600mm, OEM colour and logo customisation available, 48V battery and charger included as standard accessories.

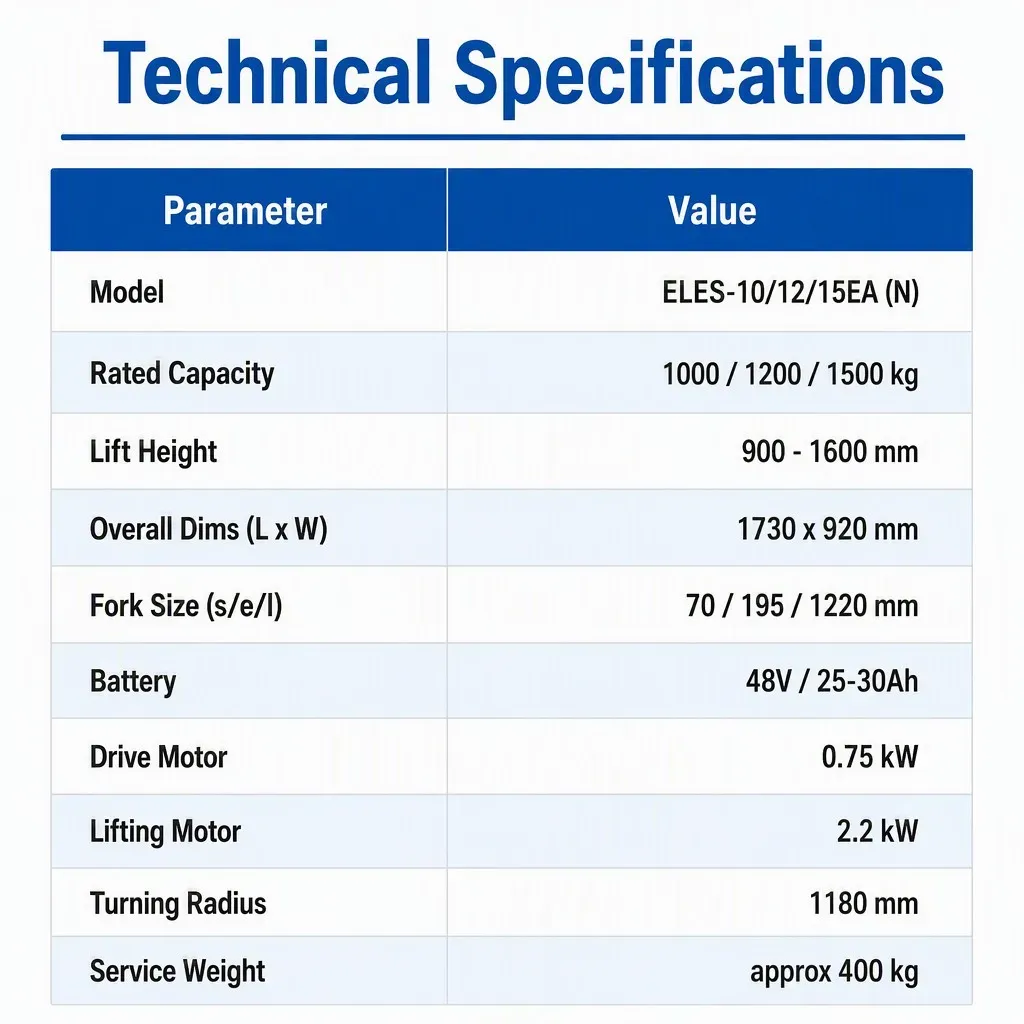

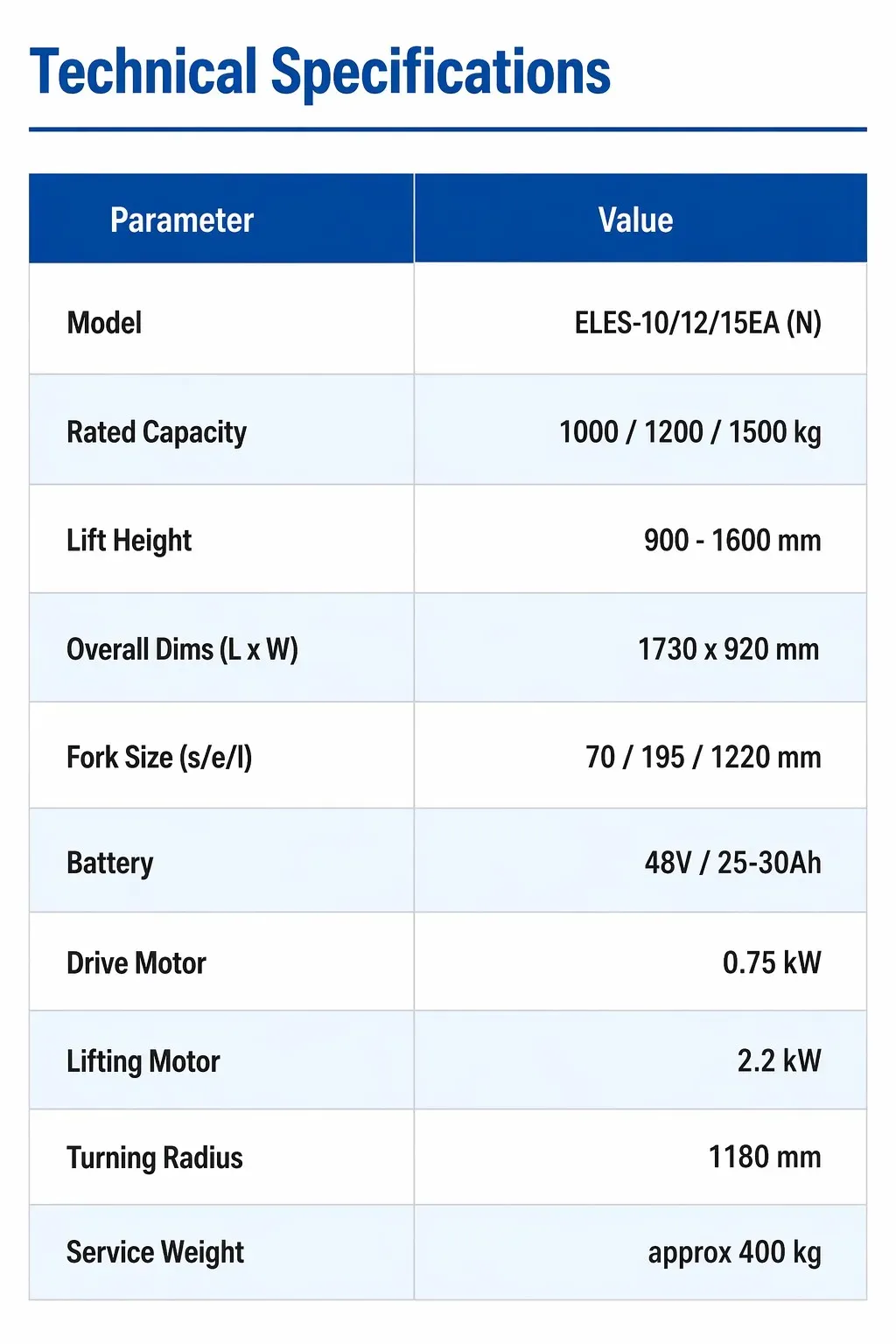

| Drive Type | Electric |
|---|---|
| Fork Length | 1220 mm |
| Fork Width | 195 mm |
| Power Source | Electric |
| Type | Full Electric Self-Lifting Stacker |
| Condition | New |
| Load Capacity | 1200 kg |
| Terrain Adaptability | Indoor Flat Floor |
| Operating Mode | Walkie |
| Loading Centre | 400 mm |
| Lifting Height Range | 900-1600 mm |
| Fork Size (T*W*L) | 70*195*1220 mm |
| Fork Outer Width | 560/600 mm |
| Wheel Base | 980 mm |
| Turning Radius | 1180 mm |
| Drive Motor | 0.75 kW |
| Lifting Motor | 2.2 kW |
| Battery | 48V / 25-30Ah |
| Brake Type | Electromagnetic Brake |
| load capacity options | 1.2 Ton |
| Max. Lifting Height options | 1 600 mm |
| Model Number options | ELES-10EA(N) |
| Certificate | Number | Valid |
|---|---|---|
| 2006/42/EC | M.2026.206.C137529 | 30/03/2026 - 29/03/2031 |
| CE | M.2026.206.C134736 | 04/02/2026 - 03/02/2031 |
Certificates are supplied with your quote on request.
