Electric Stackers · Ref LPT-10941

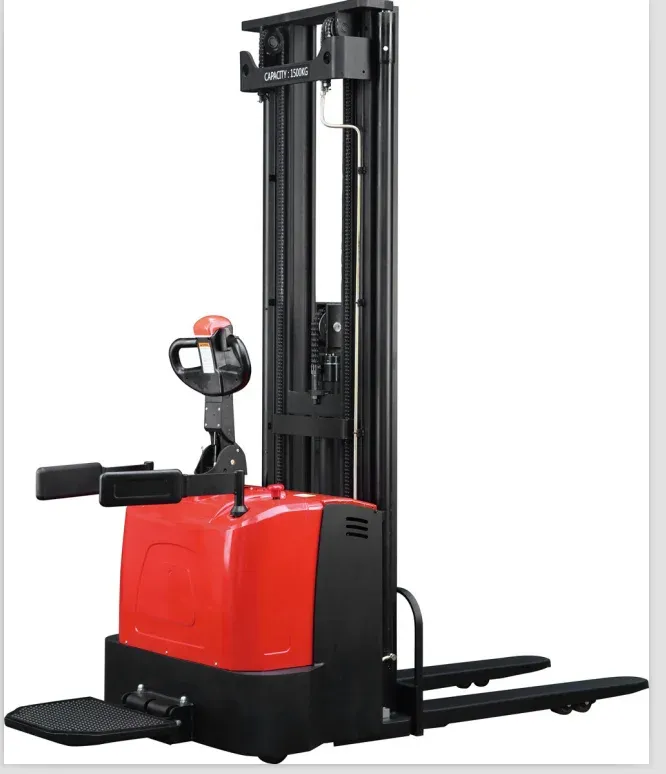

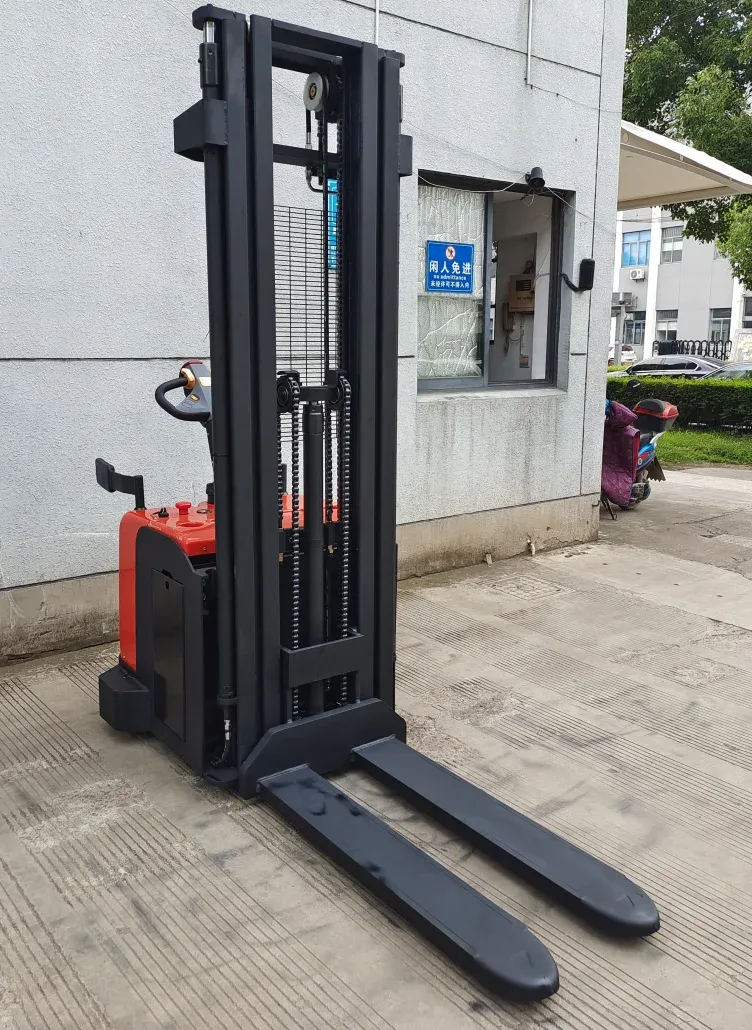

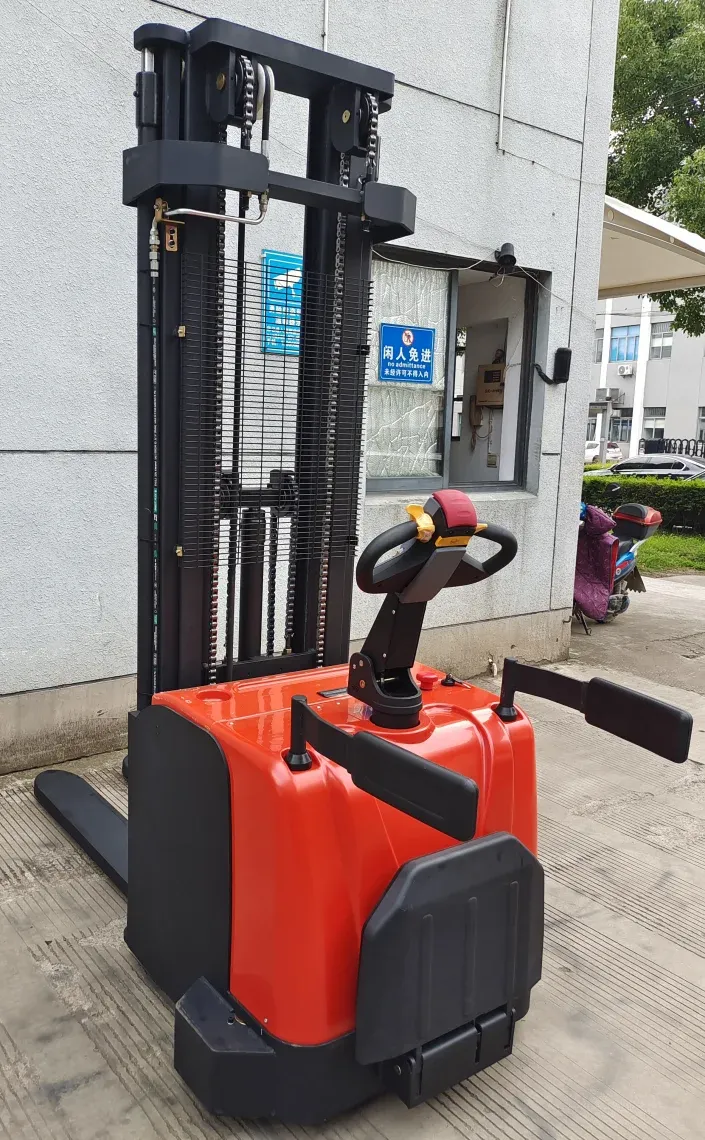

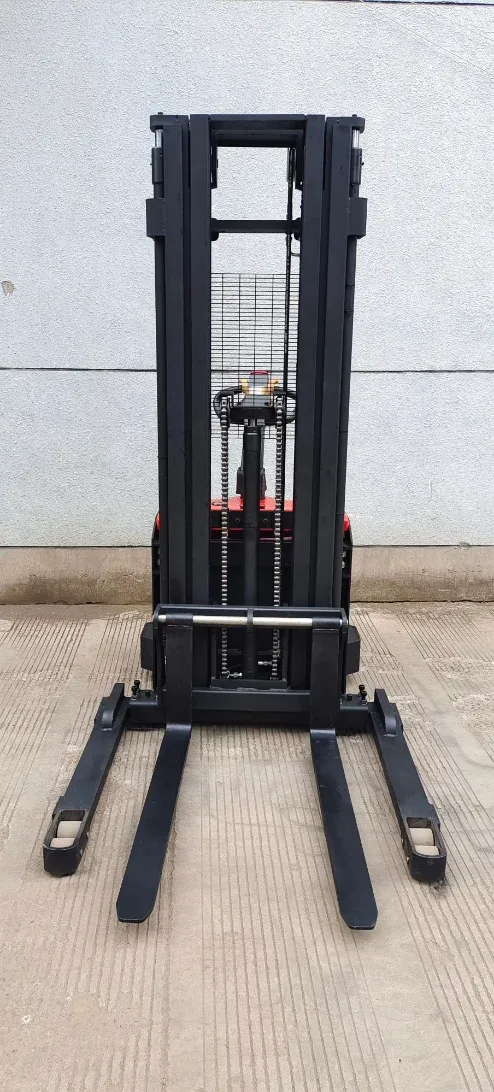

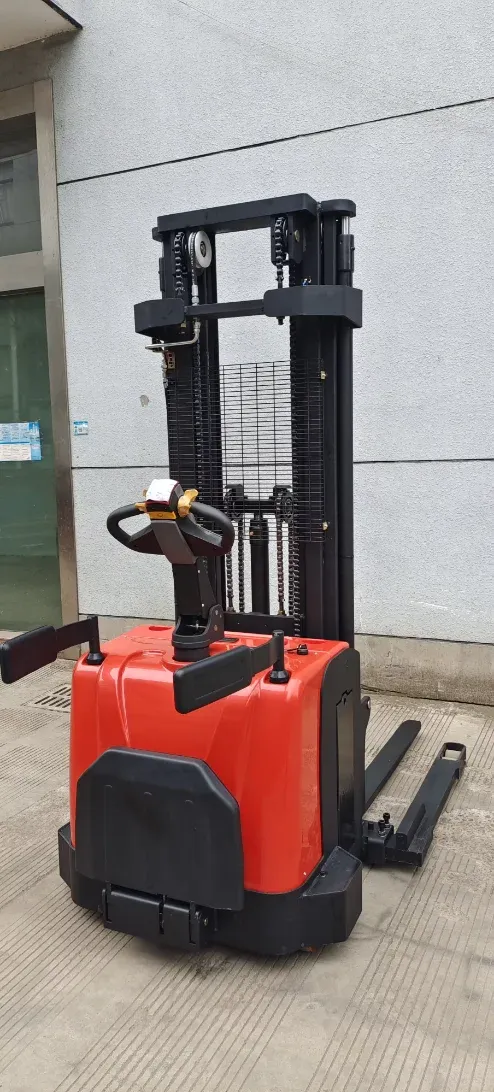

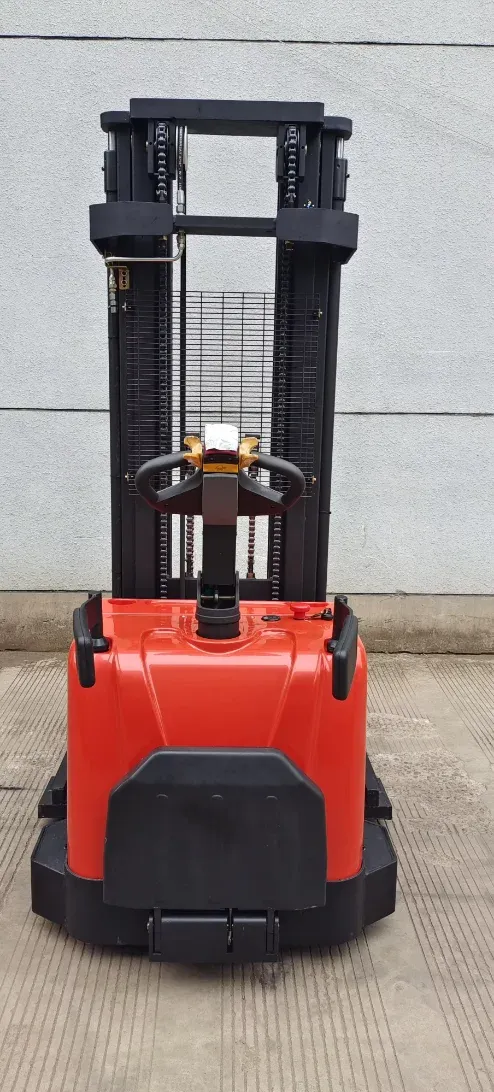

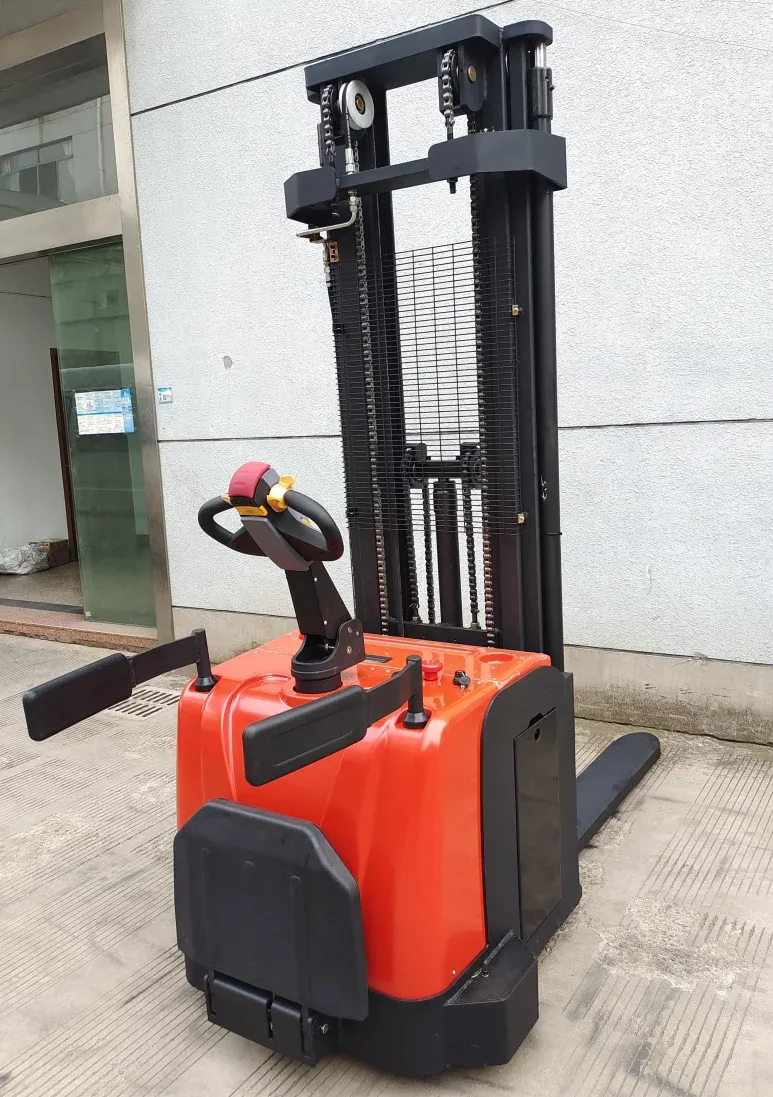

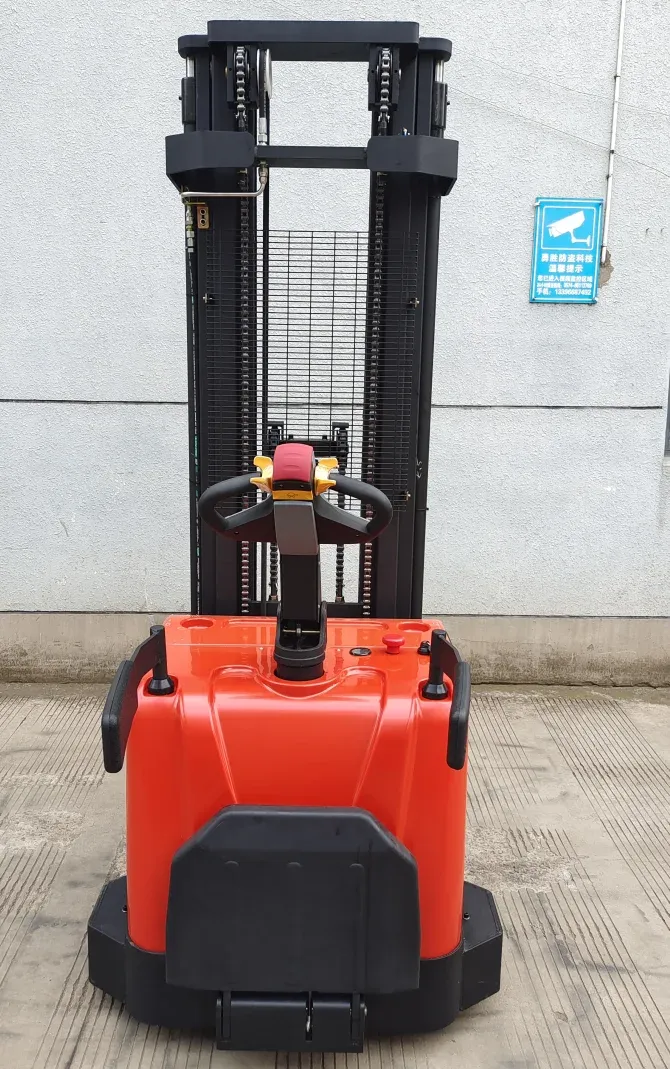

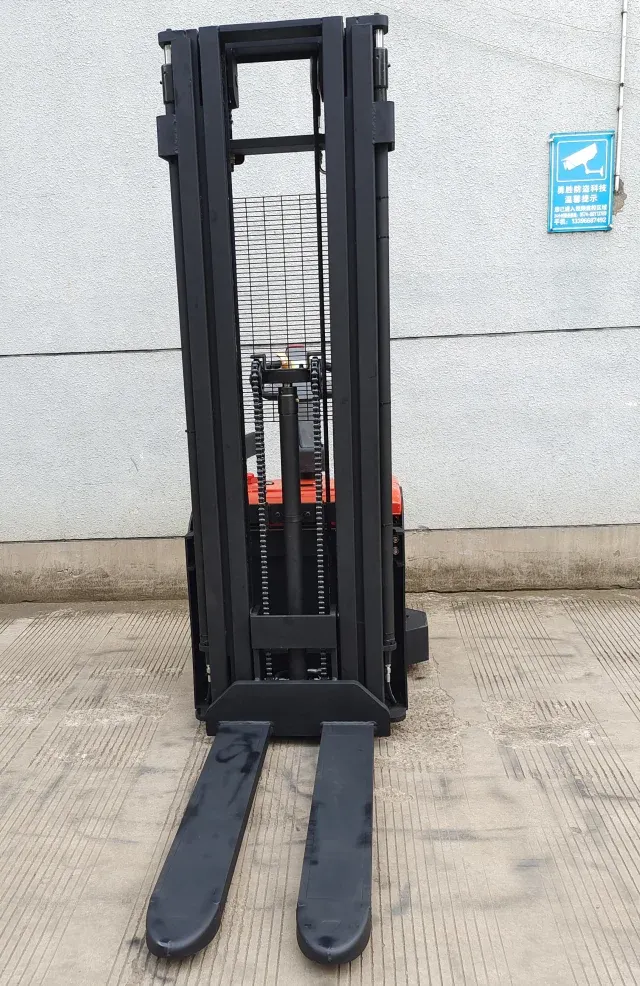

1500 to 2000 kg Walkie Full Free Lift 4300mm Mast 24V 210Ah
1.5 to 2 tLithium-ionForks 1150 to 1200 mm
Price on requestwritten quote
Minimum order 1 unit from the factory; any range minimum is confirmed on your quote. Prices in GBP per unit, ex VAT. We convert the factory list at a buffered exchange rate, so normal day-to-day currency movement does not change the price you see. Your written quote adds freight, duty and VAT and is valid for 30 days.
Truck TypePallet Jack
Line total
No online payment. The basket becomes an order request and we reply with a written GBP quote, deposit 30% on order, lead time 8 to 12 weeks.
Or email [email protected]Product Highlights
- High Performance AC Motor and Curtis Controller Powered by a high efficiency 1.5kW brushless AC drive motor and an original imported US Curtis 1230 AC controller, it delivers consistent travel speed of up to 6 km per hour and exceptional acceleration without power decay.
- Full Free Lift and High Reach Mast Featuring an outstanding 1500mm full free lift capability and a maximum lift height of 4300mm, it allows operators to stack goods in containers and low ceiling areas before the mast extends, maximising space utility.
- Heavy Duty Lift Motor and Quick Response Equipped with a powerful 3.0kW hoisting motor, it achieves swift lifting speed up to 0.15m per second and smooth lowering control, ensuring high efficiency for heavy duty warehouse operations.
- Industrial Battery Power for Continuous Shifts Standardised with a heavy duty 24V 210Ah high capacity industrial battery and electromagnetic braking, it supports steady energy release and responsive stopping power for long shifts.

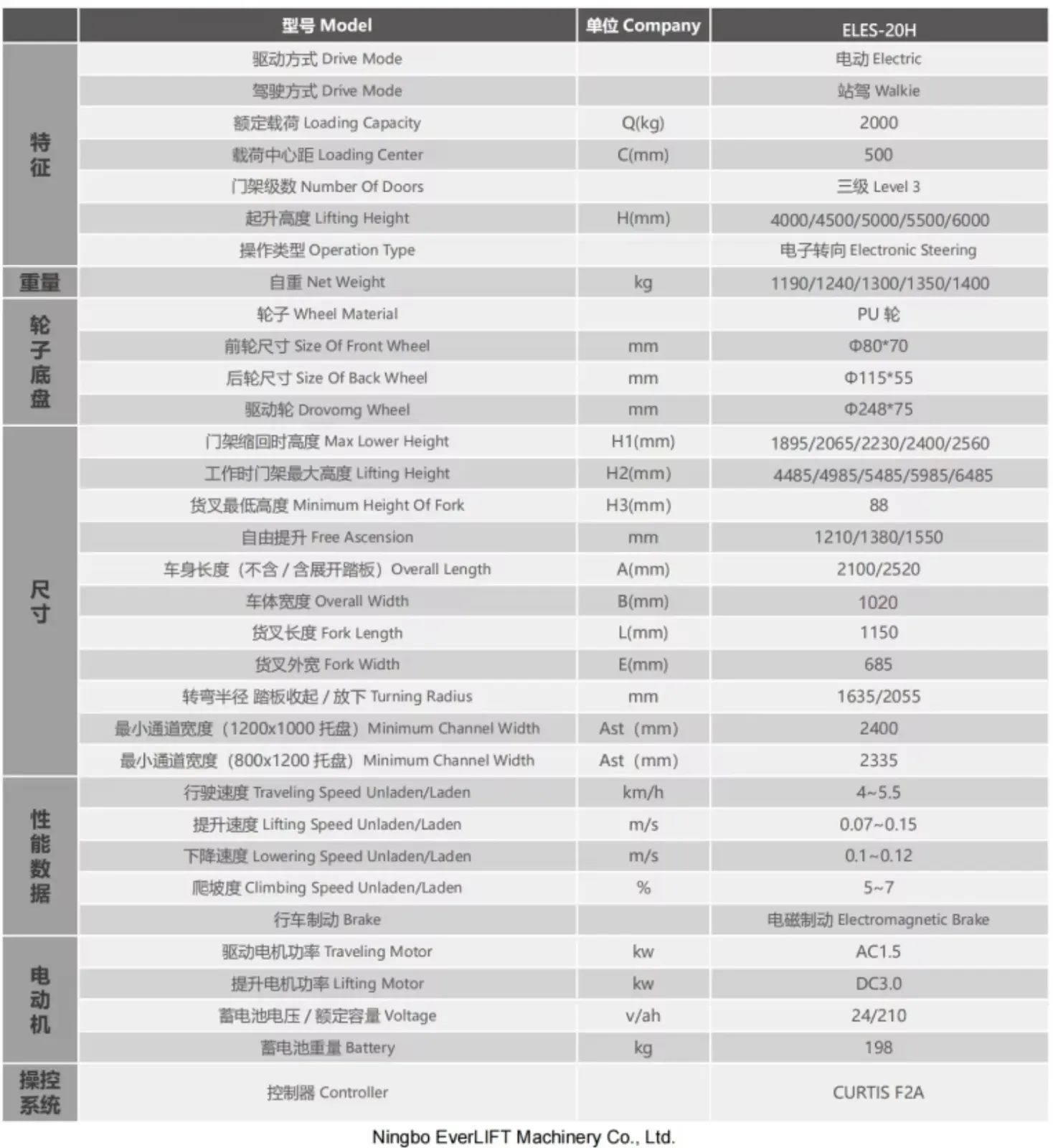

| Condition | New |
|---|---|
| Fork Specifications( L*W*H) | 1220*125*50, 1350*160*100, 1500*160*125 |
| Forklift Battery Type | Lithium-Ion Battery |
| Side Shifter | no |
| Drive Type | Fwd |
| Terrain Adaptability | Indoor Flooring |
| Load centre distance | 500MM |
| Mast Type | Three-Stage Mas |
| Forklift Turning radius | 1680mm |
| Fork Width | 550 mm/685 mm |
| Fork Length | 1200mm, 1150 mm |
| Operating Mode | Standing Operation |
| Forklift Tyre | Pneumatic Tyre |
| Travel speed ( laden) | 5 km/h |
| Grade ability laden) | 5 |
| Travel speed ( unladen) | 7km/h |
| Grade abilityunladen) | 7 |
| Forklift Wheelbase | 1280 mm |
| Aisle width | 2.5m |
| Model Number | ELES-15/20h |
| Battery voltage (V/AH) | 24v/210AH |
| Fork height,lowered | 85mm |
| Load centre | 500MM |
| Fork length | 1150MM |
| Ground height | 85MM |
| Turning radius | 1680MM |
| Wheel material | pu |
| Full width | 870mm |
| Overall length | 2080mm |
| Fork width | 560mm |
| Key words | Electric Stacker |
| Rated Loading Capacity options | 1.5 Ton, 2 Ton |
| Truck Type options | Pallet Jack |
| Max. Lifting Height options | 4000 mm, 4500 mm, 5000 mm, 5500 mm, 6000mm |
| Certificate | Number | Valid |
|---|---|---|
| 2006/42/EC | M.2026.206.C137529 | 30/03/2026 - 29/03/2031 |
| CE | M.2026.206.C134736 | 04/02/2026 - 03/02/2031 |
| CE | 3N251031.NEMS093 | 30/10/2025 - 29/10/2030 |
| EAC | — | 22/10/2023 - 22/10/2028 |
| CE | M.2023.206.C83216 | 22/03/2023 - 21/03/2028 |
| CE | M.2023.206.C83215 | 22/03/2023 - 21/03/2028 |
| CE | M.2023.206.C83222 | 22/03/2023 - 21/03/2028 |
Certificates are supplied with your quote on request.
