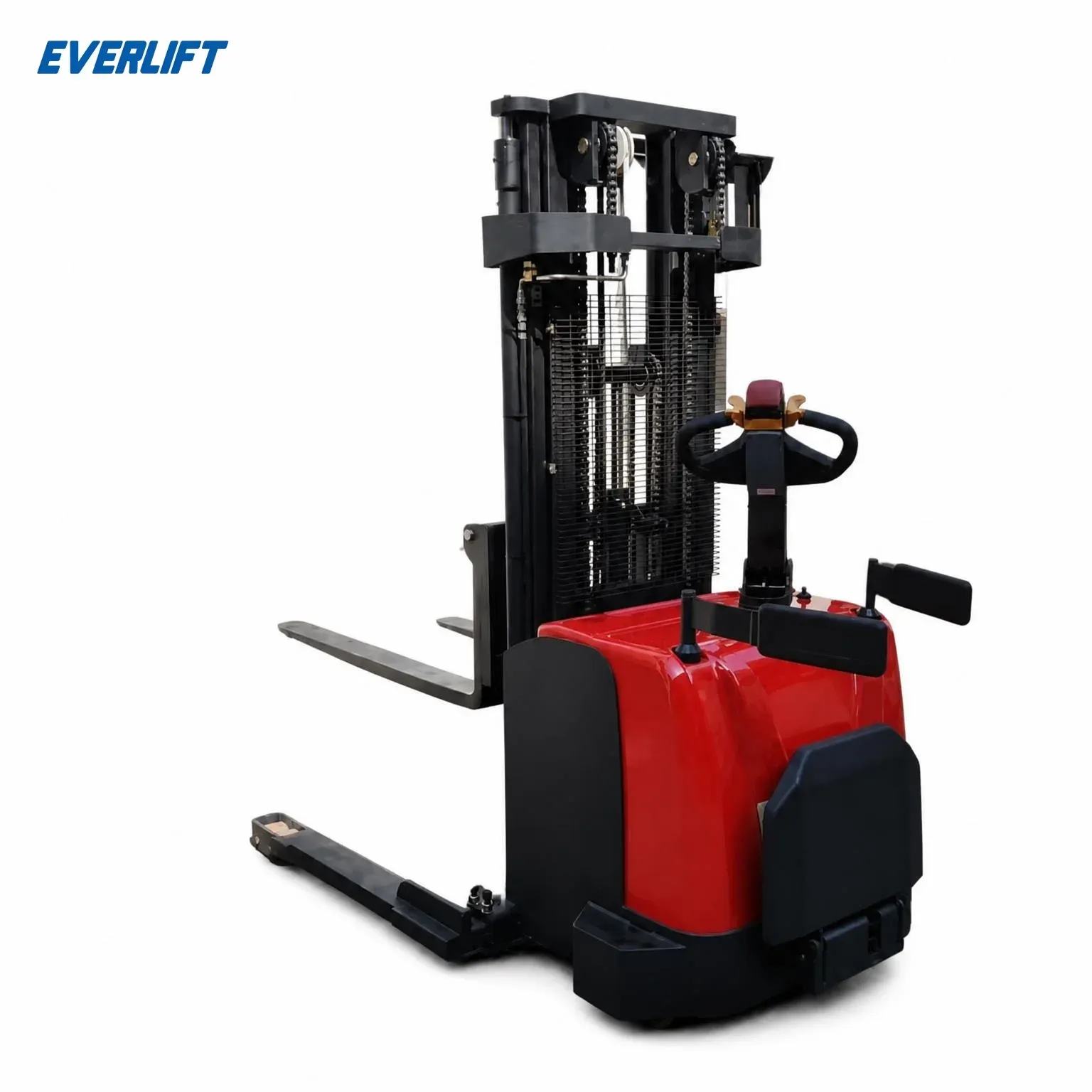

2000 kg Heavy Duty Stand-on Electric Stacker with Free
2 tElectricForks 1150 mm
from £4,220per unit, ex VAT
| Quantity | Price per unit |
|---|---|
| 1 to 9 units | £4,600 |
| 10+ units | £4,220 |
Minimum order 1 unit from the factory; any range minimum is confirmed on your quote. Prices in GBP per unit, ex VAT. We convert the factory list at a buffered exchange rate, so normal day-to-day currency movement does not change the price you see. Your written quote adds freight, duty and VAT and is valid for 30 days.
load capacity2 Ton
Max. Lifting Height6000mm

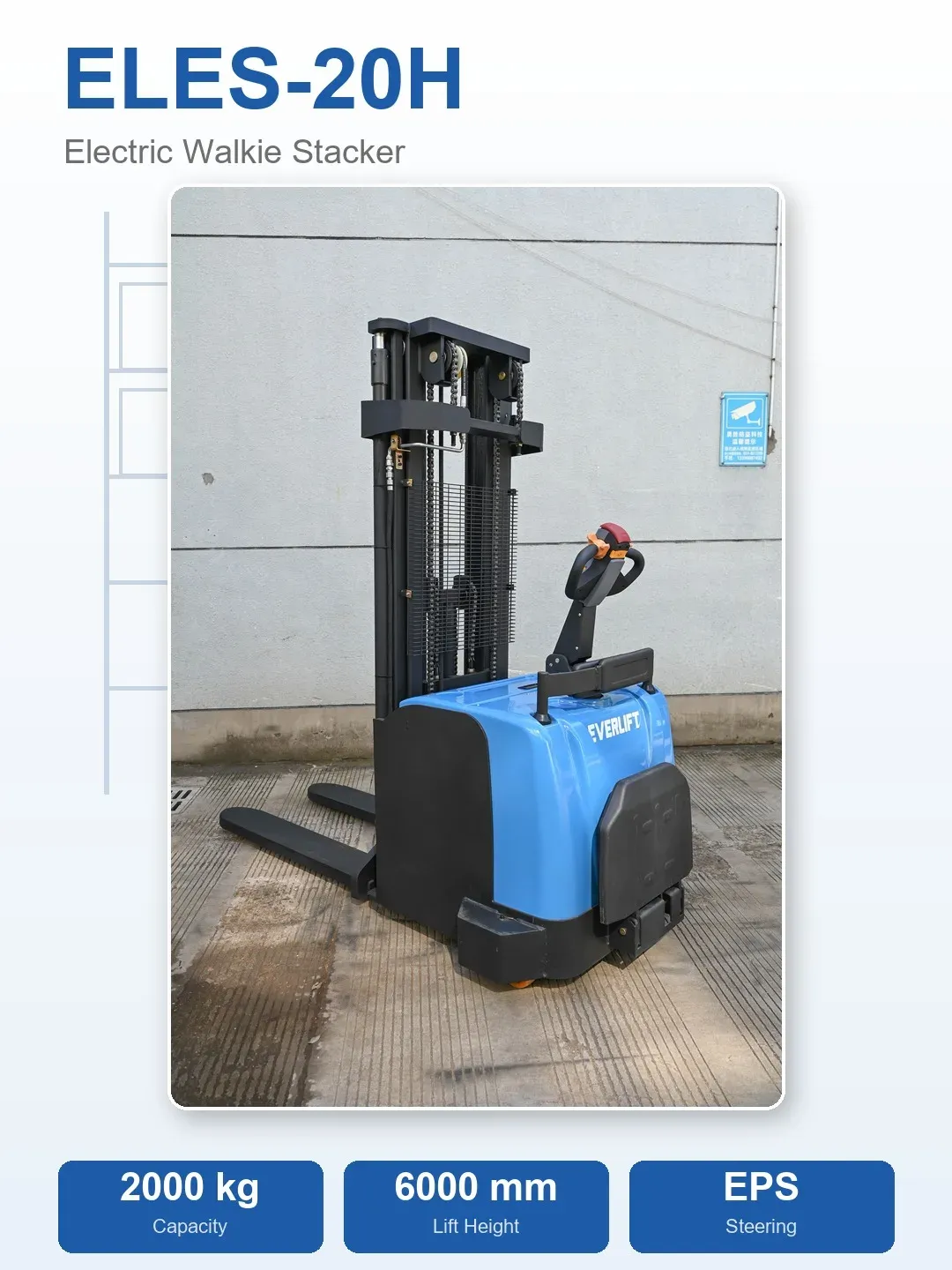

Model NumberELES-20H
Line total
No online payment. The basket becomes an order request and we reply with a written GBP quote, deposit 30% on order, lead time 8 to 12 weeks.
Or email [email protected]Product Highlights

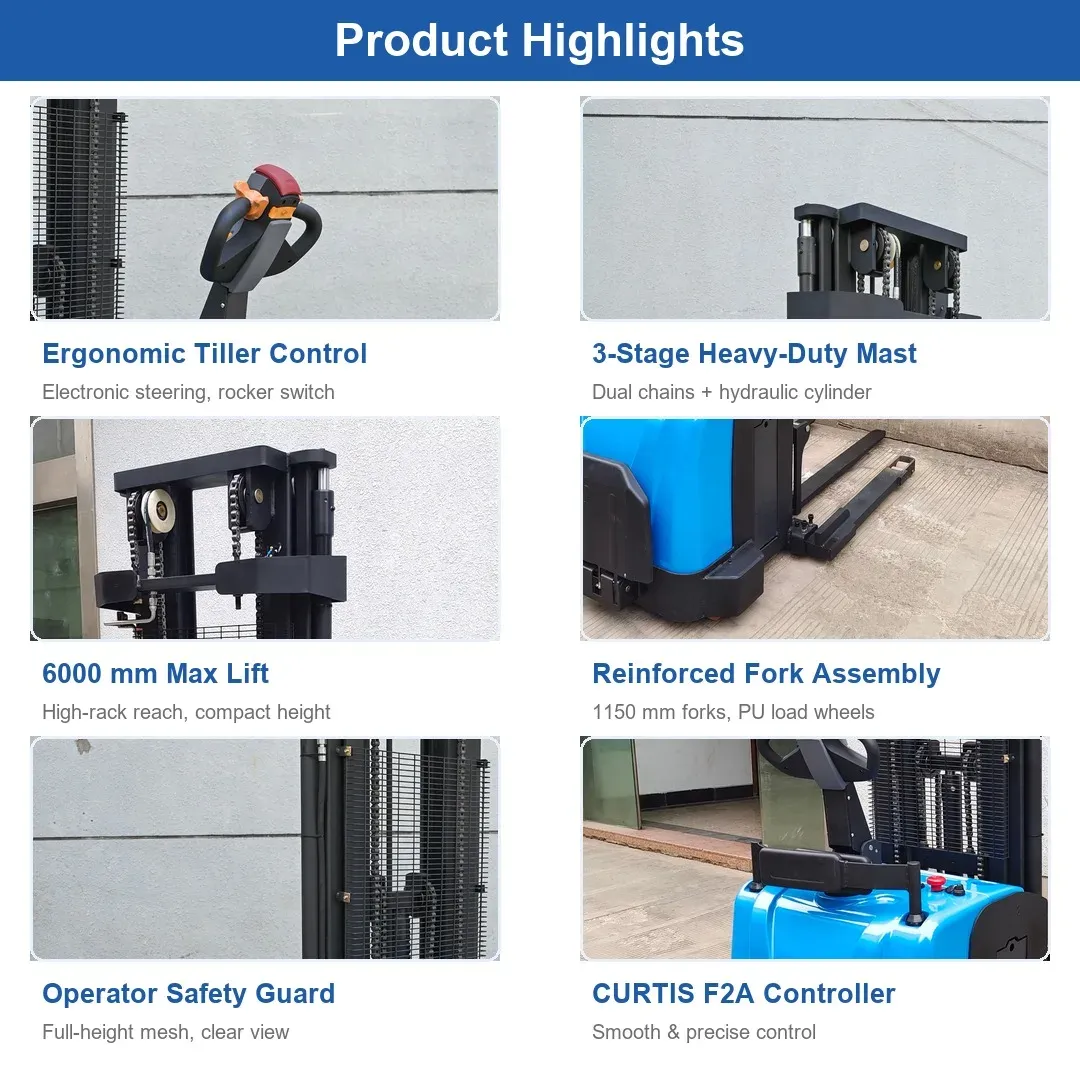

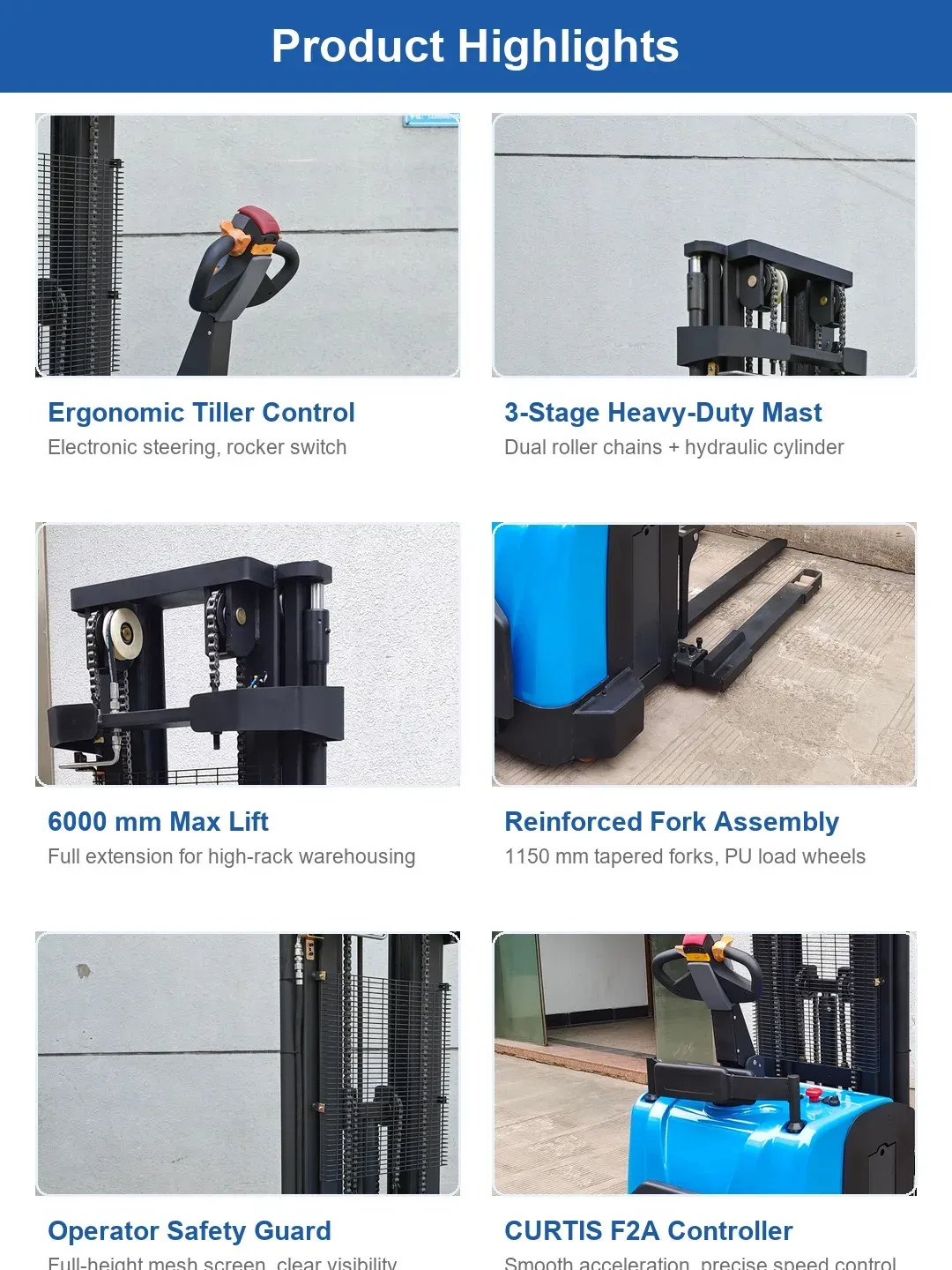

① Heavy Duty Stand-on Electric Stacker with reinforced steel frame and anti-corrosion coating, engineered in a substantial 1190-1400kg chassis with 1020mm width for stable high-bay industrial racking operations.
② Professional 2000kg Heavy Stand-on Stacker with AC 1.5kW drive motor, DC 3.0kW lift motor, CURTIS F2A controller, 24V/210Ah battery system, Φ248×75mm PU driving wheel, Φ80×70mm front and Φ115×55mm rear wheels.
③ Safe Heavy Duty Stand-on Pallet Stacker with electromagnetic braking, CURTIS F2A precision speed control, electronic steering for effortless manoeuvring, and RoHS compliant components for industrial workplace safety.
④ High-performance Heavy Stand-on Electric Stacker delivering 2000kg rated capacity, 4000-6000mm lift height with 3-stage mast, 500mm load centre, 1635mm turning radius and 2335mm aisle width for 800×1200mm pallets.
⑤ Long-endurance 24V/210Ah Battery Stand-on Stacker with 198kg battery, AC 1.5kW drive 4-5.5 km/h travel, 0.07-0.15 m/s lift speed, 5-7% gradeability for demanding multi-shift high-rack operations.
⑥ Versatile Heavy Duty Stand-on Stacker with 1150mm fork length, 685mm fork width, 1210-1550mm free lift before mast extension, electronic steering for responsive narrow aisle high-bay pallet handling.

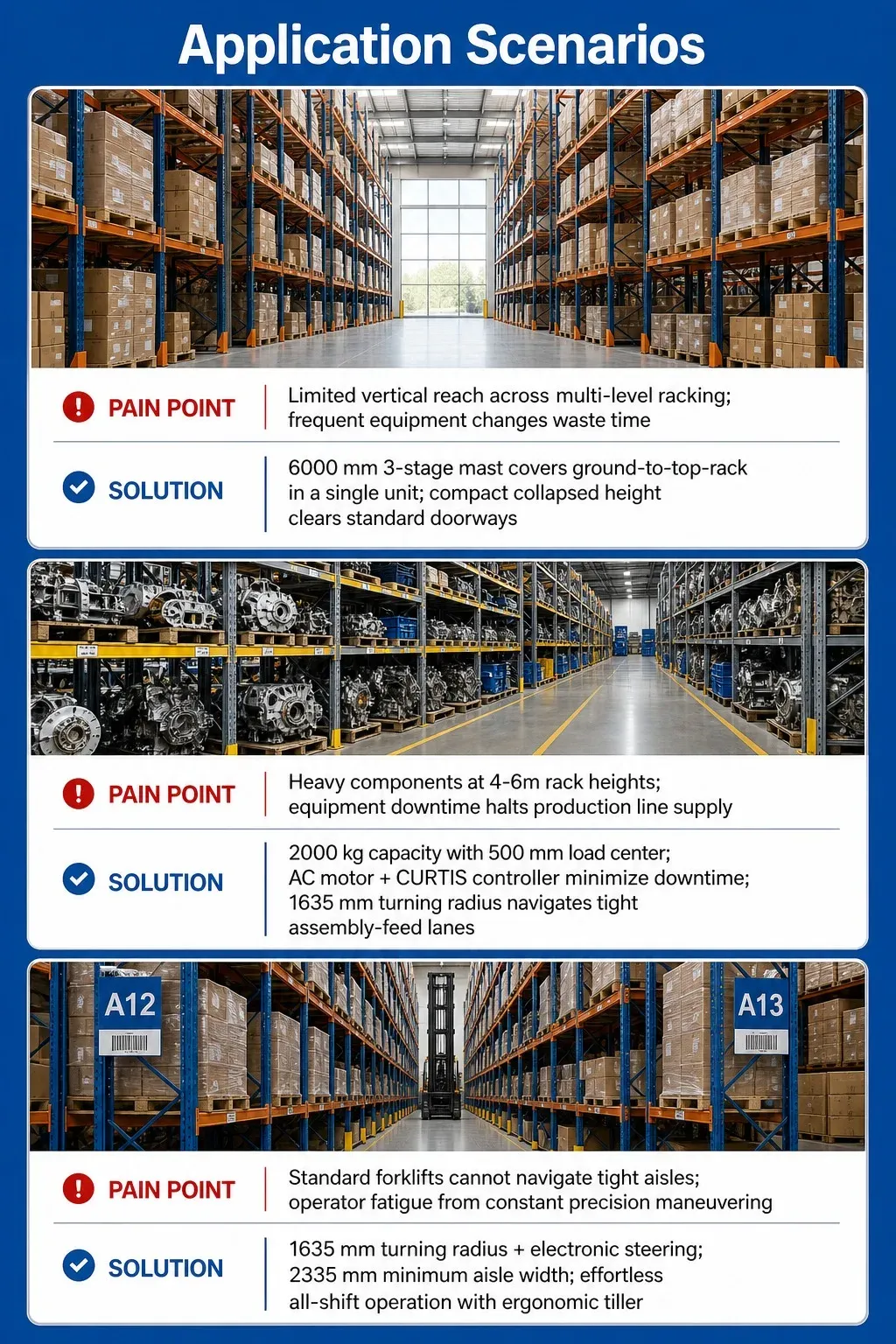

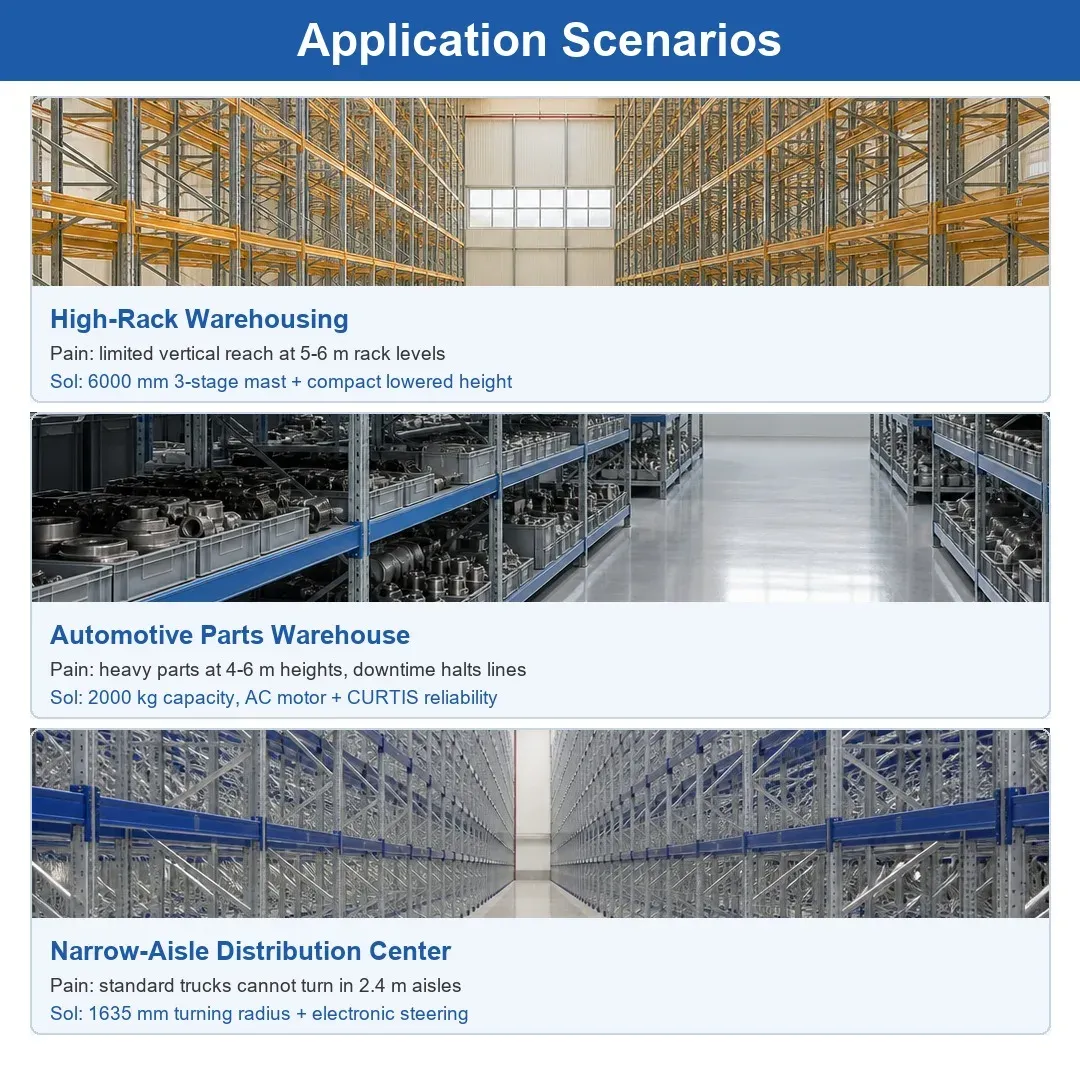

⑦ Standard stackers cannot reach upper rack tiers above 3000mm in high-bay warehouses. Heavy Stand-on Stacker with 3-stage mast extends to 6000mm lift height, enabling full vertical utilisation of warehouse cube space without upgrading to a full-size forklift.
⑧ Operating heavy equipment with mechanical steering increases fatigue in tight high-rack aisles. CURTIS F2A Electronic Steering Stand-on Stacker reduces turning effort, improving operator precision and throughput in dense narrow-aisle facilities.
⑨ Export plywood packed Heavy Stand-on Electric Stacker in five mast configurations from 4000mm to 6000mm lift height, OEM colour and logo customisation available, CURTIS F2A controller and 24V/210Ah battery included as standard.

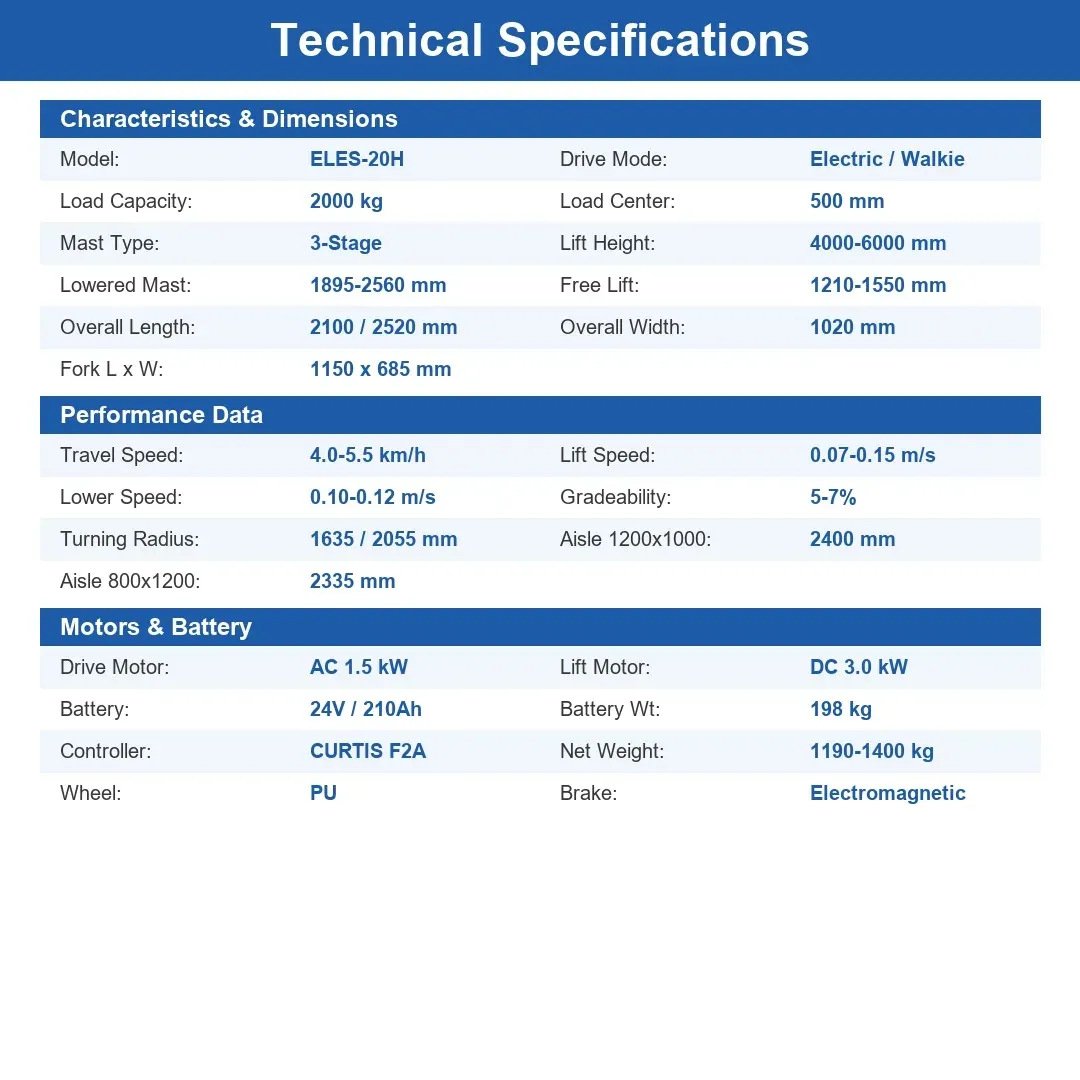

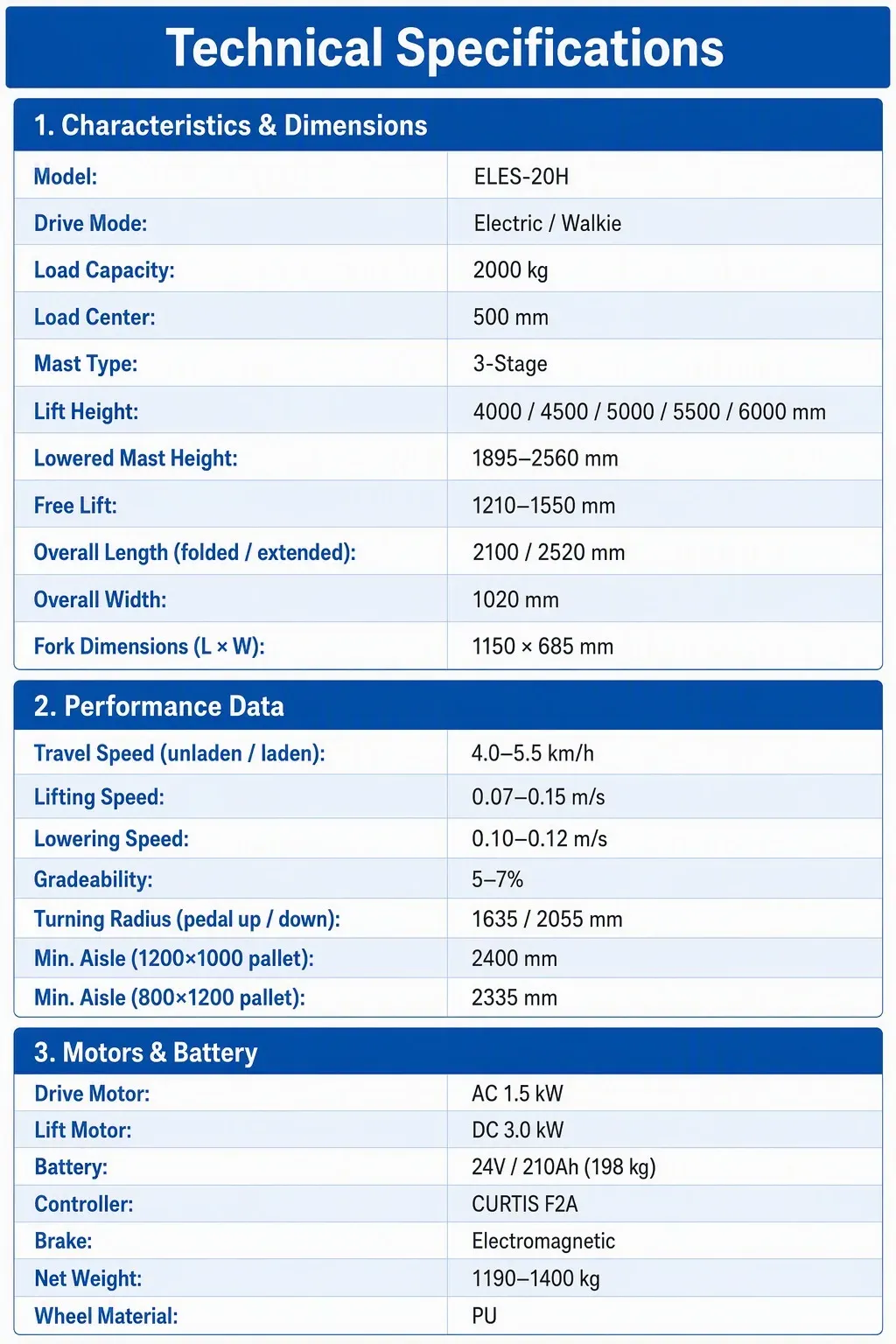

| Fork Length | 1150 mm |
|---|---|
| Power Source | Battery |
| Type | Stacker Forklift |
| Load Capacity | 2000kg |
| Condition | New |
| Terrain Adaptability | Indoor Flooring |
| Operating Mode | Standing Operation |
| Load Centre | 500 mm |
| Mast Type | 3-Stage Mast |
| Lifting Height | 4000-6000 mm |
| Free Ascension | 1210-1550 mm |
| Fork Outer Width | 685 mm |
| Turning Radius | 1635/2055 mm |
| Travel Motor | AC 1.5 kW |
| Lifting Motor | DC 3.0 kW |
| Battery | 24V/210Ah |
| Steering Type | Electronic Steering |
| load capacity options | 2 Ton |
| Max. Lifting Height options | 6000mm |
| Model Number options | ELES-20H |
| Certificate | Number | Valid |
|---|---|---|
| 2006/42/EC | M.2026.206.C137529 | 30/03/2026 - 29/03/2031 |
| CE | M.2026.206.C134736 | 04/02/2026 - 03/02/2031 |
| CE | 3N251031.NEMS093 | 30/10/2025 - 29/10/2030 |
| EAC | — | 22/10/2023 - 22/10/2028 |
Certificates are supplied with your quote on request.
