Electric Stackers · Ref LPT-86336

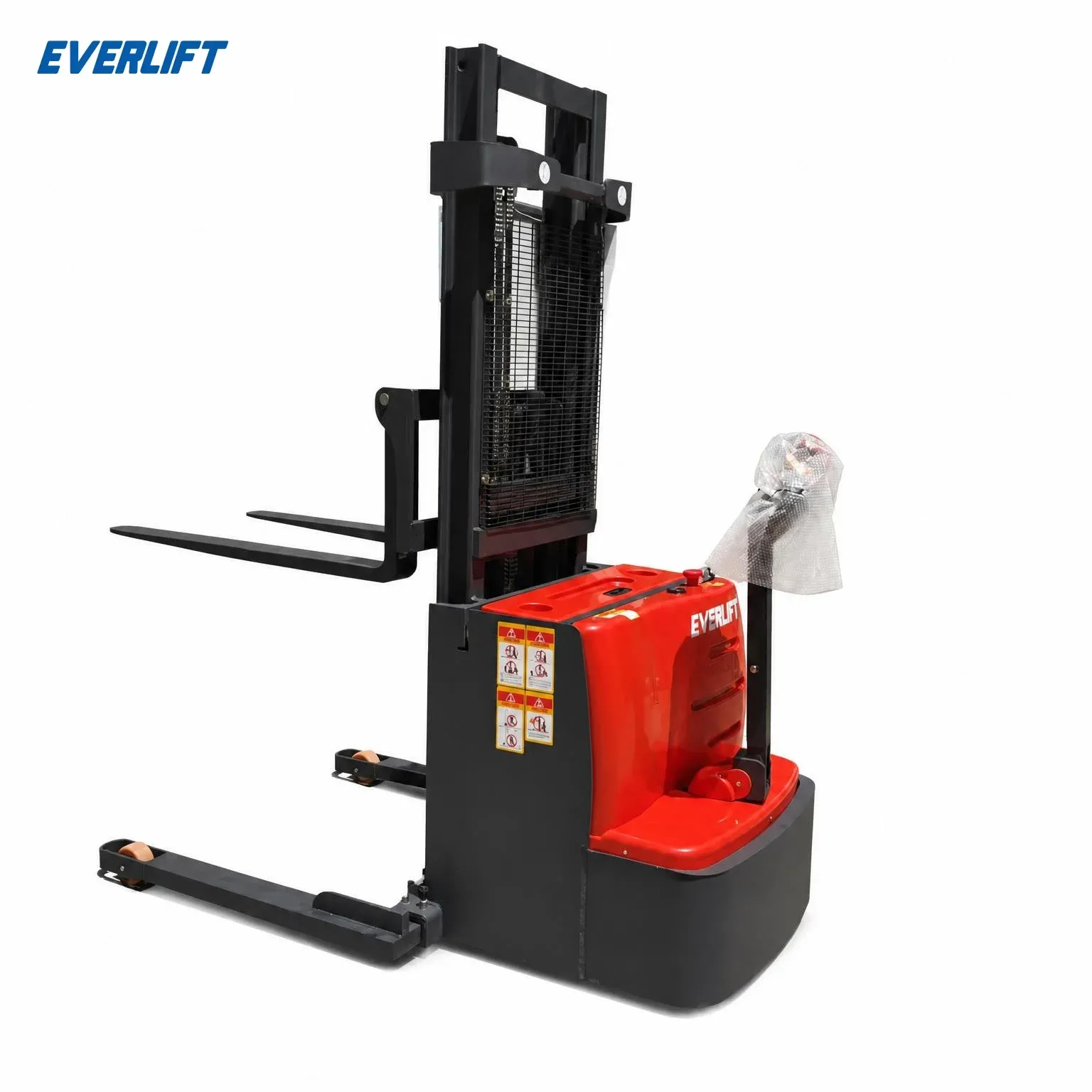

2000 kg Triplex Mast Electric Stacker 4500mm Lift Free
2 tElectricForks 1150 mm
from £2,670per unit, ex VAT
| Quantity | Price per unit |
|---|---|
| 1 to 9 units | £2,910 |
| 10+ units | £2,670 |
Minimum order 1 unit from the factory; any range minimum is confirmed on your quote. Prices in GBP per unit, ex VAT. We convert the factory list at a buffered exchange rate, so normal day-to-day currency movement does not change the price you see. Your written quote adds freight, duty and VAT and is valid for 30 days.
load capacity2 Ton
Max. Lifting Height4500 mm

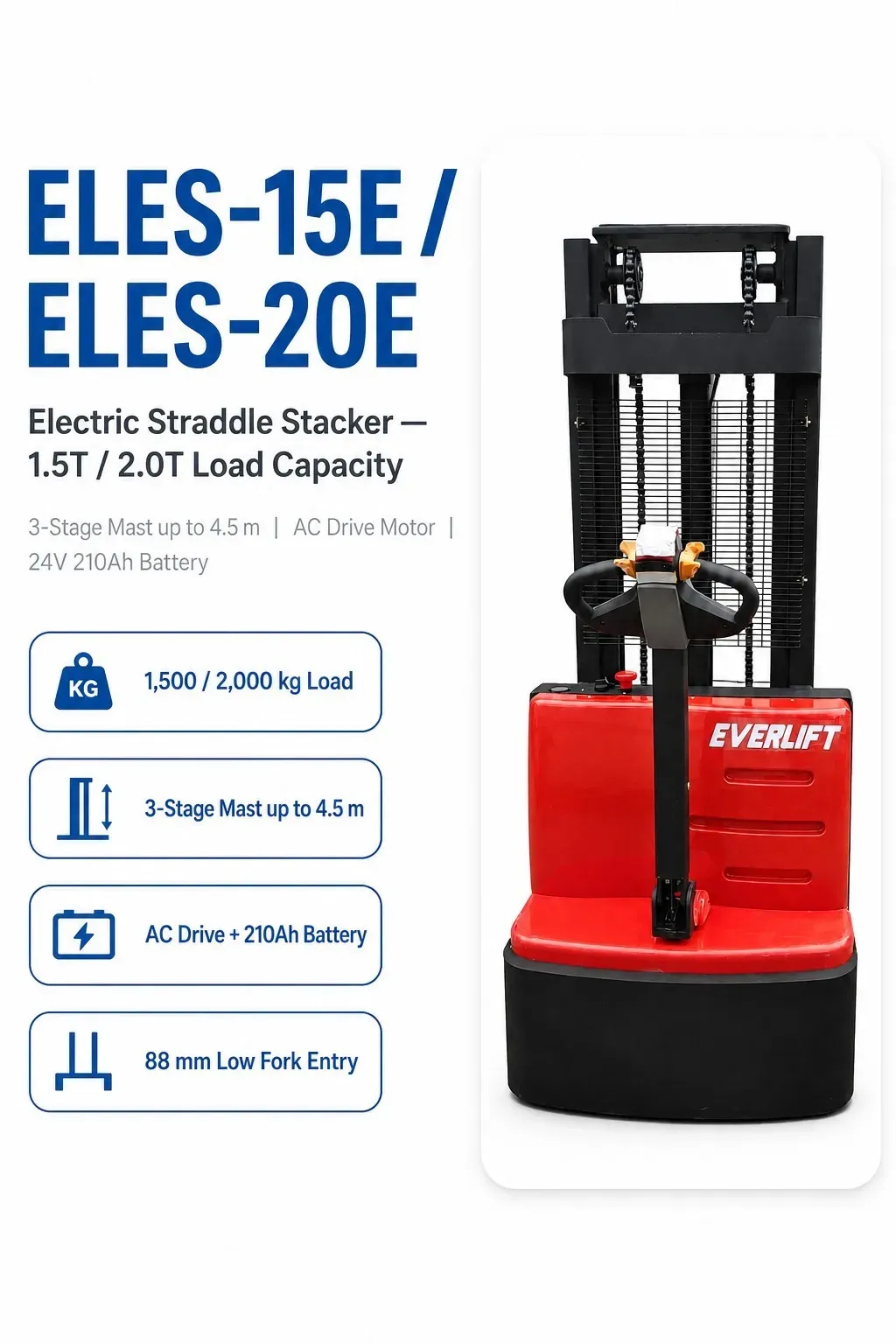

Model NumberELES-20E
Line total
No online payment. The basket becomes an order request and we reply with a written GBP quote, deposit 30% on order, lead time 8 to 12 weeks.
Or email [email protected]Product Highlights
① 3-Stage Mast Electric Stacker with heavy-duty steel frame and anti-corrosion powder coating, engineered in a robust 886mm width chassis for stable high-capacity industrial racking and container operations.

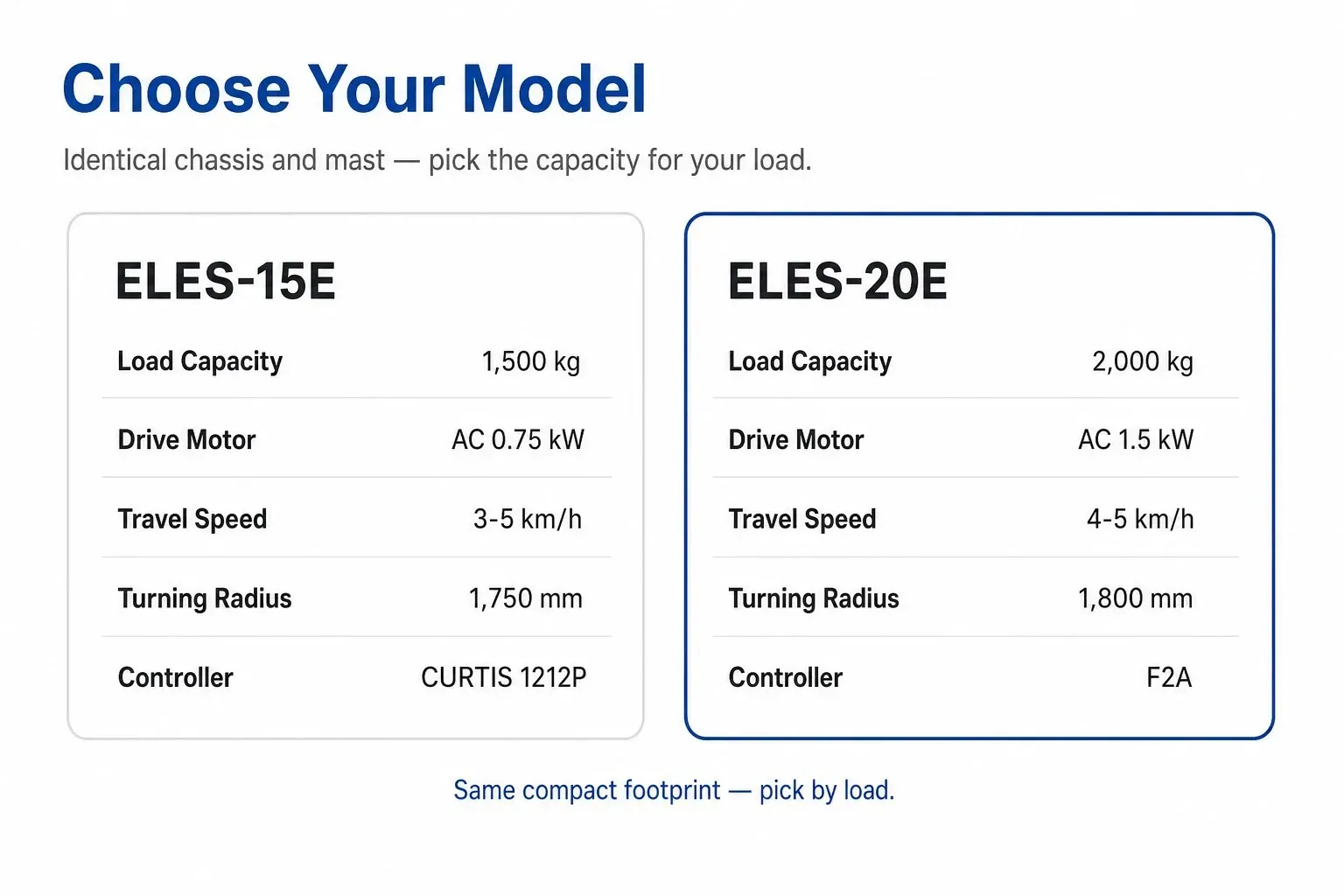

② Professional 2000kg Triplex Mast Stacker with AC 1.5kW drive motor, DC 2.2kW lift motor, F2A controller, 24V/210Ah battery, Φ250×80mm PU driving wheel, Φ80×70mm bearing wheels and Φ115×55mm balancing wheels.

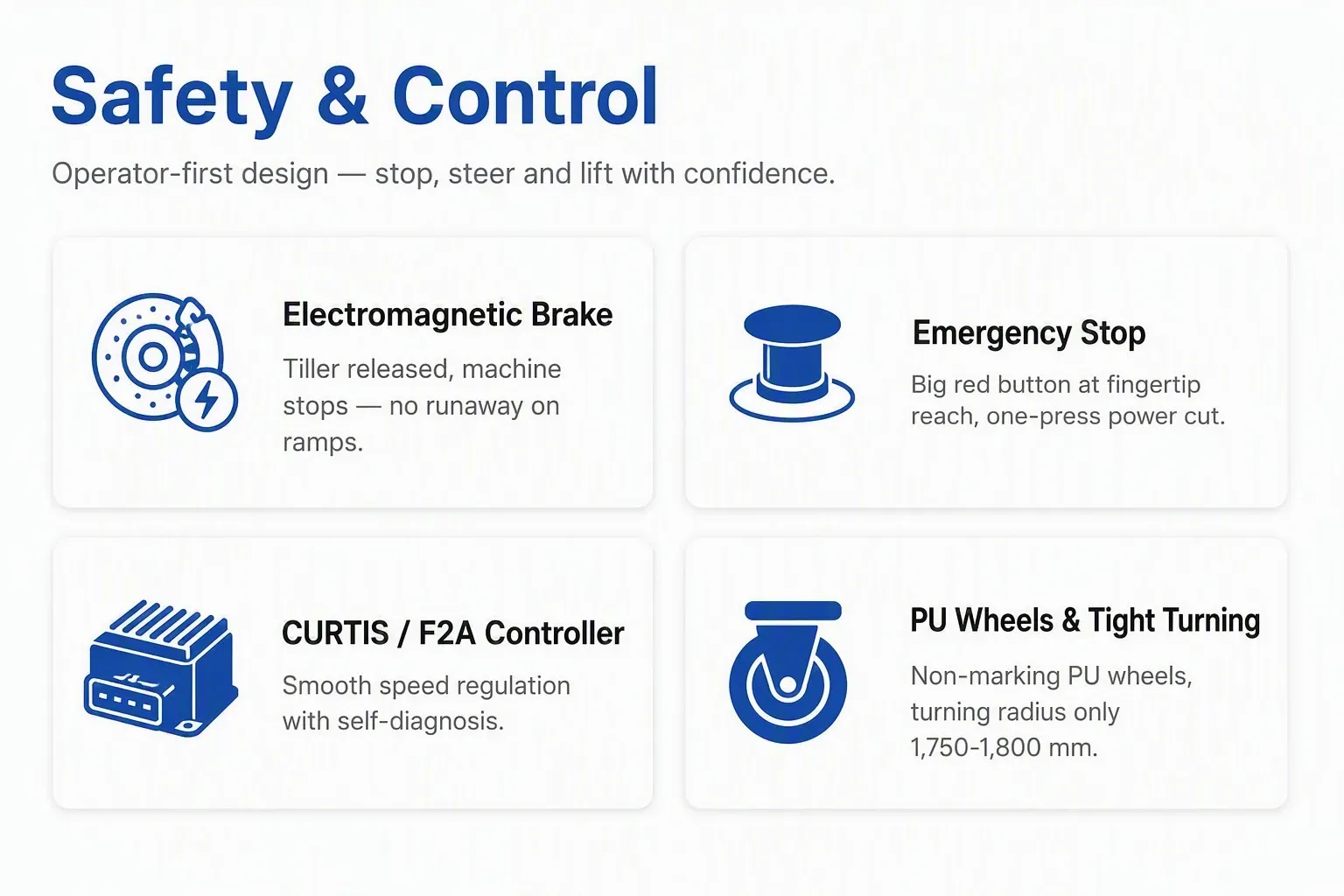

③ Safe 3-Stage Electric Stacker with electromagnetic braking, F2A controller precision speed control, emergency stop protection, and RoHS compliant components for workplace electrical and mechanical safety.
④ High-performance Triplex Mast Electric Stacker delivering 2000kg rated capacity, 3500-4500mm lift height, 1800mm turning radius, 5-7% gradeability and 88mm lowered fork height for versatile racking.
⑤ Efficient 24V/210Ah Battery 3-Stage Stacker with 4-5 km/h travel speed, 0.1-0.15 m/s lift speed, 0.11-0.12 m/s lowering speed, electromagnetic brake for responsive high-frequency logistics operation.
⑥ Versatile Triplex Mast Walkie Stacker with 680mm fork outside width, 1150mm fork length, 180mm fork width, 886mm body width for narrow aisle pallet handling on concrete and epoxy warehouse surfaces.

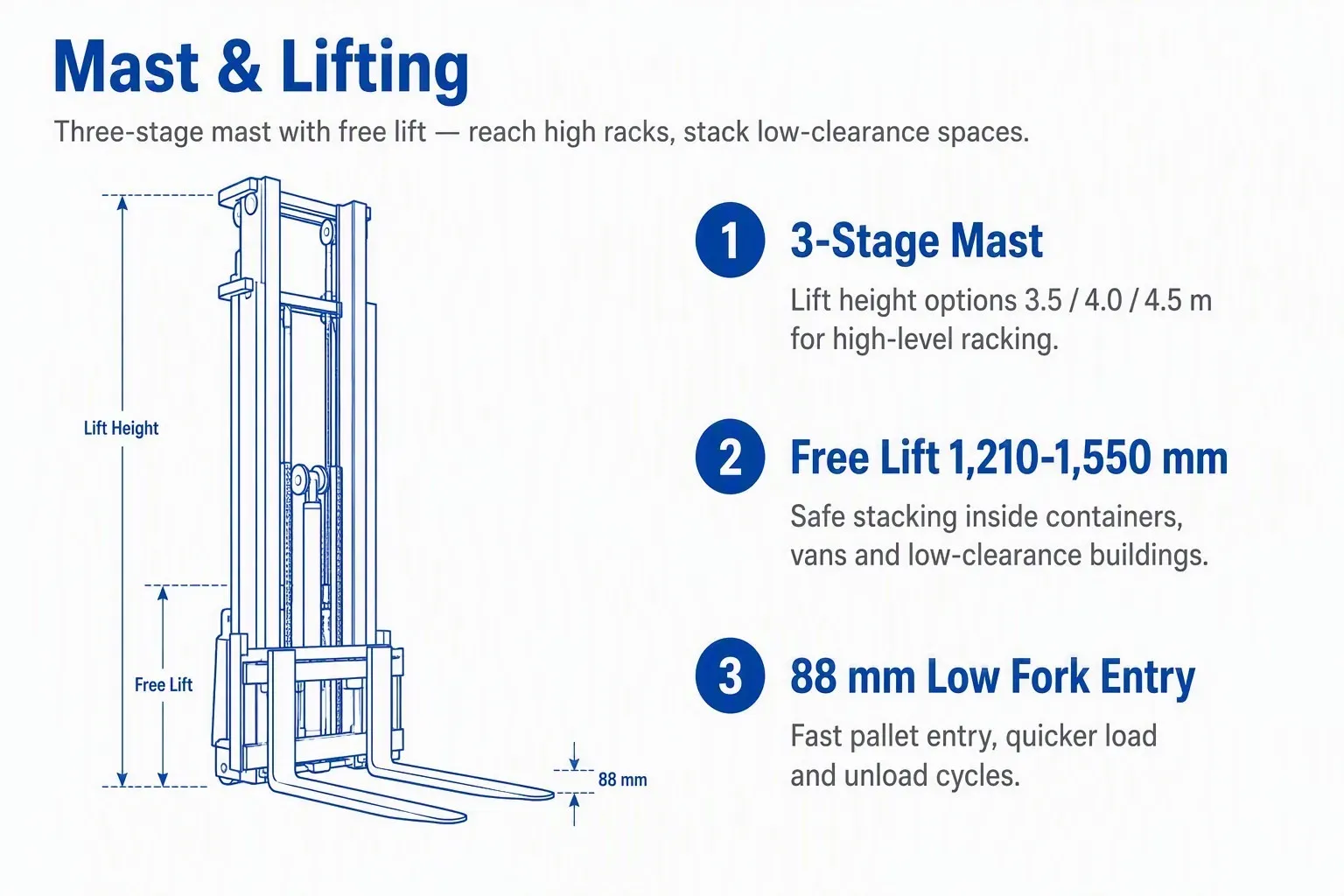

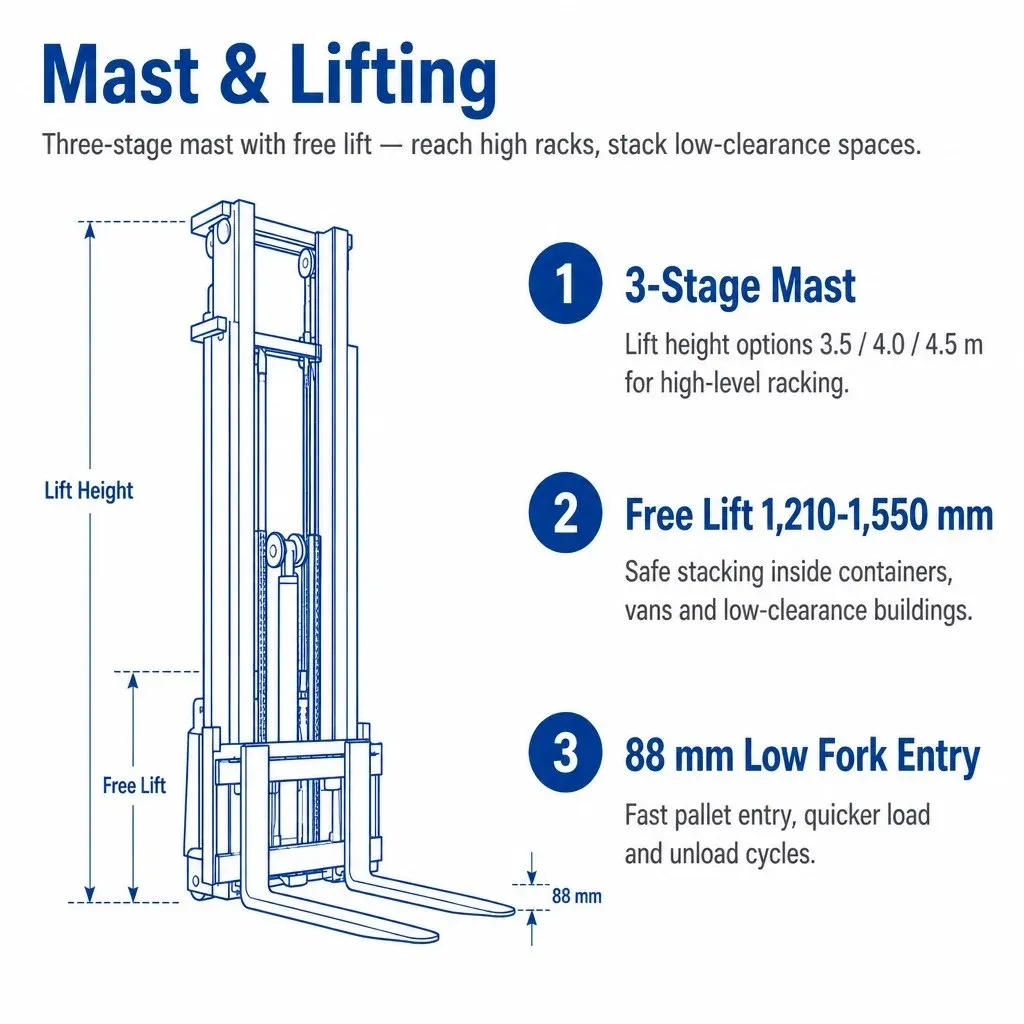

⑦ Loading 2000kg pallets into containers with standard mast stackers is blocked by low door frames. 3-Stage Mast Stacker with 1210-1550mm free lift raises full loads before mast extension, clearing low clearance and completing confined-space loading efficiently.
⑧ Heavy 2000kg loads on slopes cause standard stackers to lose control and productivity. AC 1.5kW Drive Triplex Stacker with 5-7% gradeability and electromagnetic braking maintains stable ascent and descent on warehouse ramps, improving safety and throughput.
⑨ Export plywood packed Triplex Mast Electric Stacker in three mast configurations from 3500mm to 4500mm lift height, OEM colour and logo customisation available, F2A controller and 24V/210Ah battery included as standard.

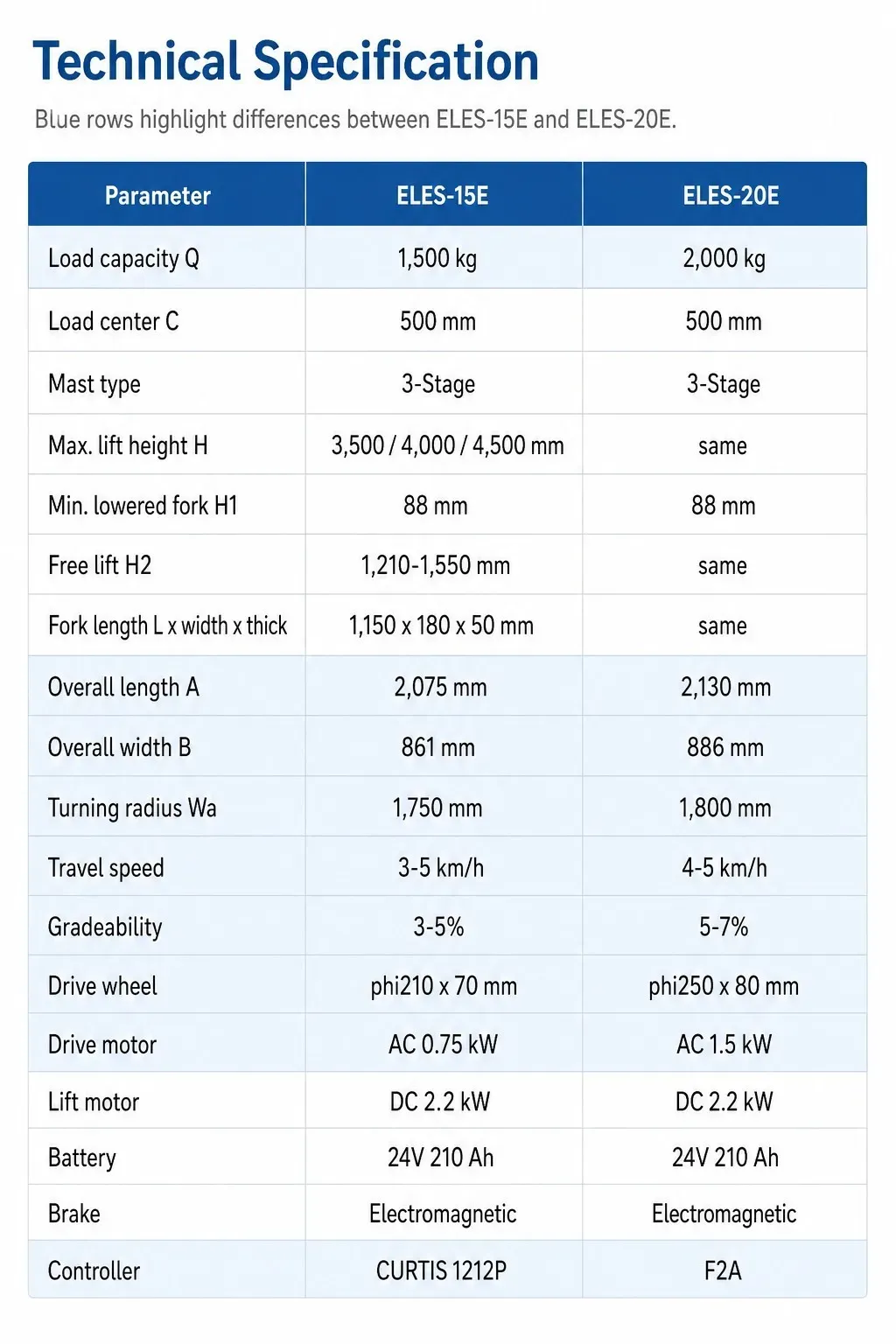

| Fork Length | 1150 mm |
|---|---|
| Fork Width | 180 mm |
| Power Source | AC Motor |
| Type | Stacker Forklift |
| Load Capacity | 2000kg |
| Condition | New |
| Terrain Adaptability | Indoor Flooring |
| Load Centre | 500 mm |
| Mast Type | 3-Stage Mast |
| Max Lift Height | 3500-4500 mm |
| Free Lift Height | 1210-1550 mm |

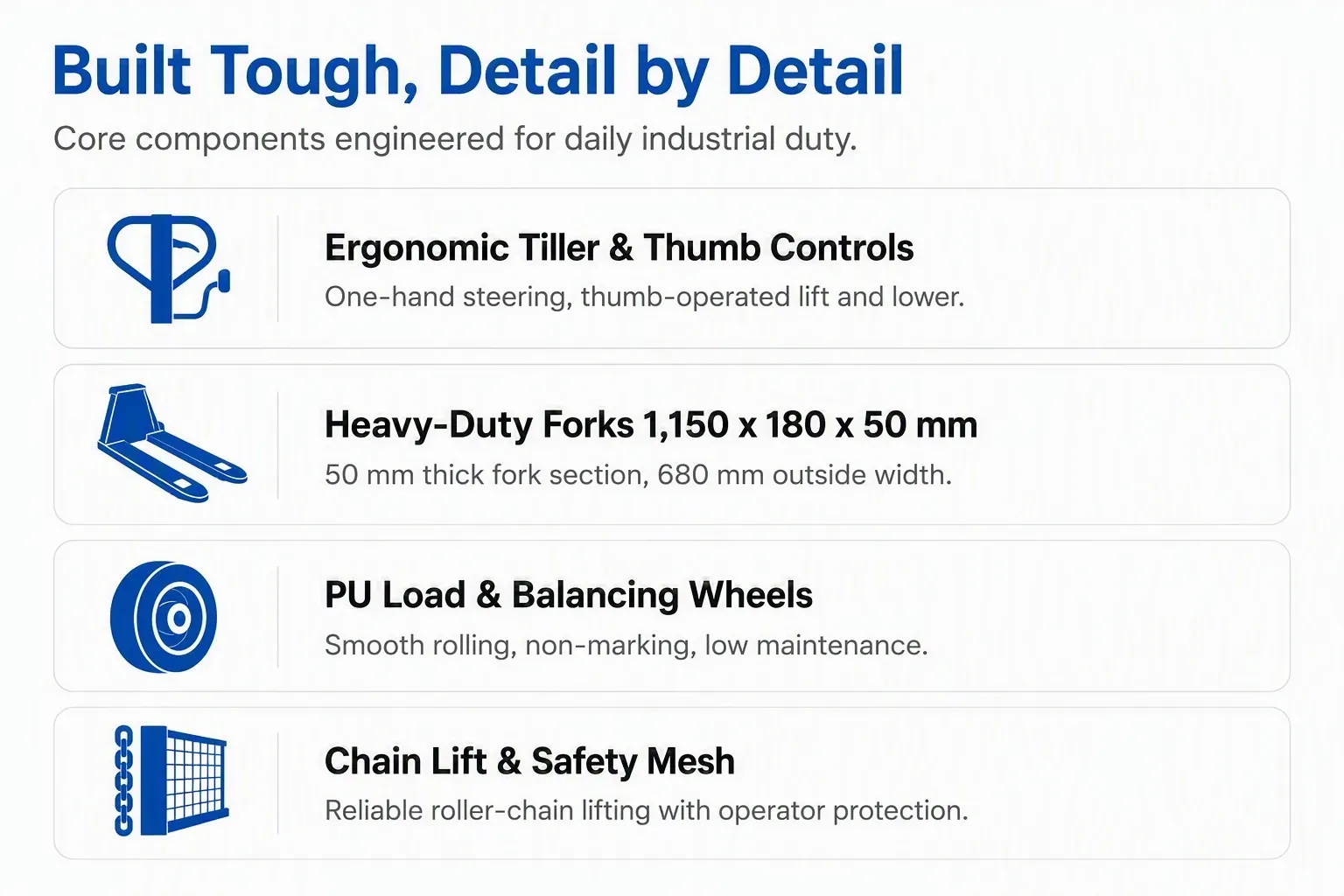

| Fork Size (L*W*T) | 1150*180*50 mm |
| Outside Fork Width | 680 mm |
| Turning Radius | 1800 mm |
| Drive Motor | AC 1.5 kW |
| Lift Motor | DC 2.2 kW |
| Battery | 24V/210Ah |
| load capacity options | 2 Ton |
| Max. Lifting Height options | 4500 mm |
| Model Number options | ELES-20E |
| Certificate | Number | Valid |
|---|---|---|
| 2006/42/EC | M.2026.206.C137529 | 30/03/2026 - 29/03/2031 |
| CE | M.2026.206.C134736 | 04/02/2026 - 03/02/2031 |
| CE | 3N251031.NEMS093 | 30/10/2025 - 29/10/2030 |
| EAC | — | 22/10/2023 - 22/10/2028 |
Certificates are supplied with your quote on request.
