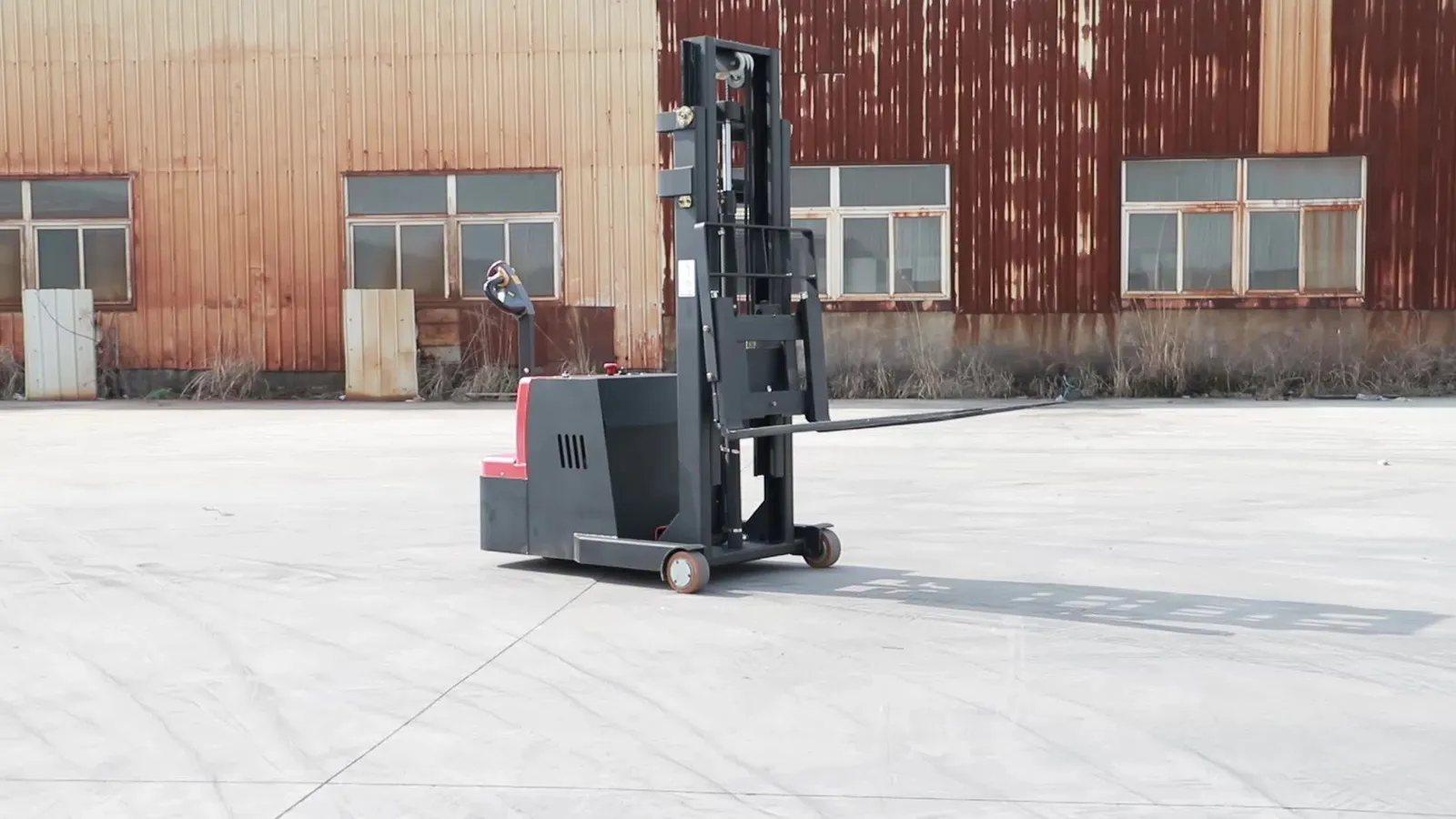

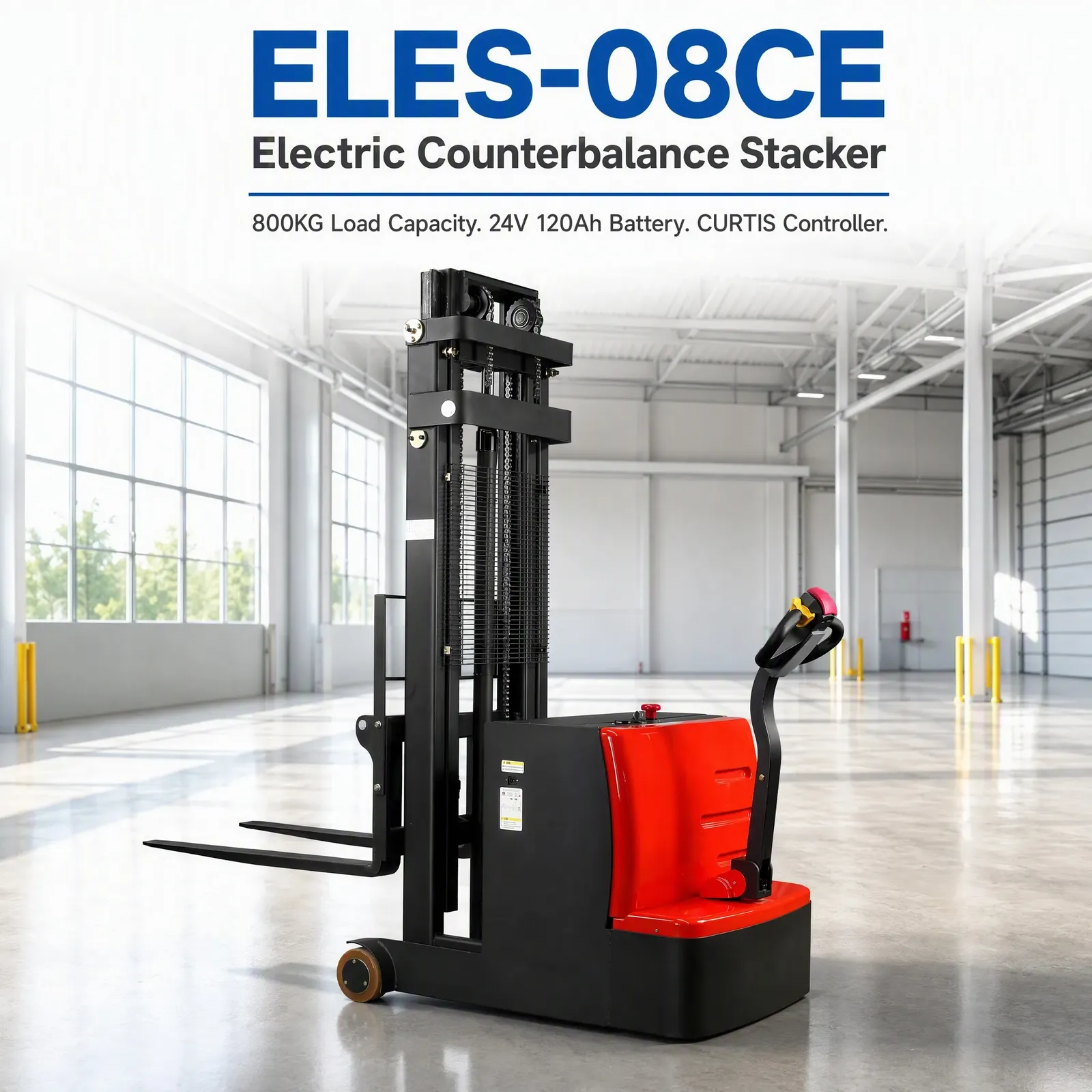

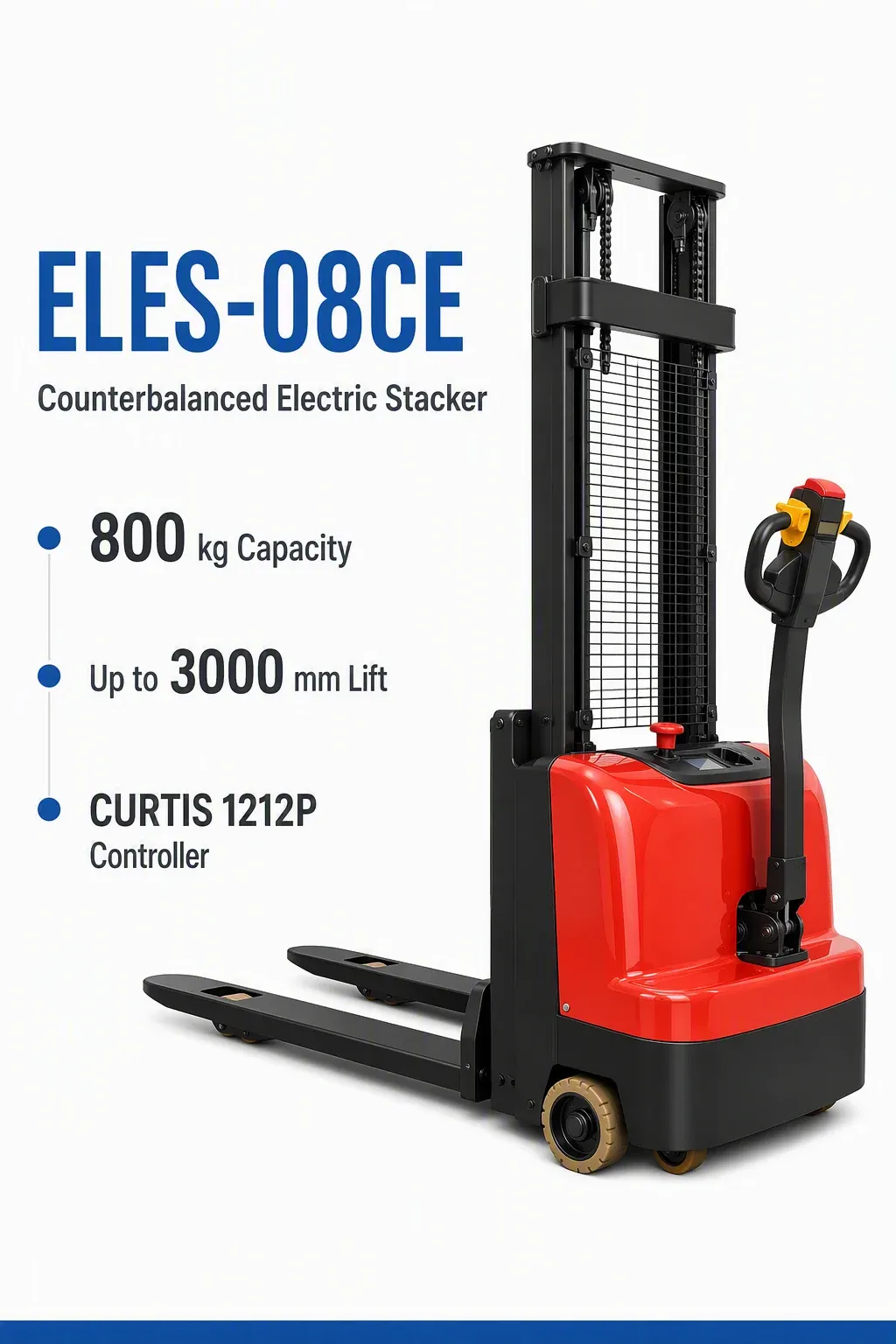

800 kg Counterbalance Electric Stacker No Straddle Leg (LPT-61096)
0.8 tElectricForks 1070 mm
from £2,500per unit, ex VAT
| Quantity | Price per unit |
|---|---|
| 1 to 9 units | £2,750 |
| 10+ units | £2,500 |
Minimum order 1 unit from the factory; any range minimum is confirmed on your quote. Prices in GBP per unit, ex VAT. We convert the factory list at a buffered exchange rate, so normal day-to-day currency movement does not change the price you see. Your written quote adds freight, duty and VAT and is valid for 30 days.
load capacity800 kg
Max. Lifting Height3000mm
Model NumberELES-08CE
Line total
No online payment. The basket becomes an order request and we reply with a written GBP quote, deposit 30% on order, lead time 8 to 12 weeks.
Or email [email protected]Product Highlights

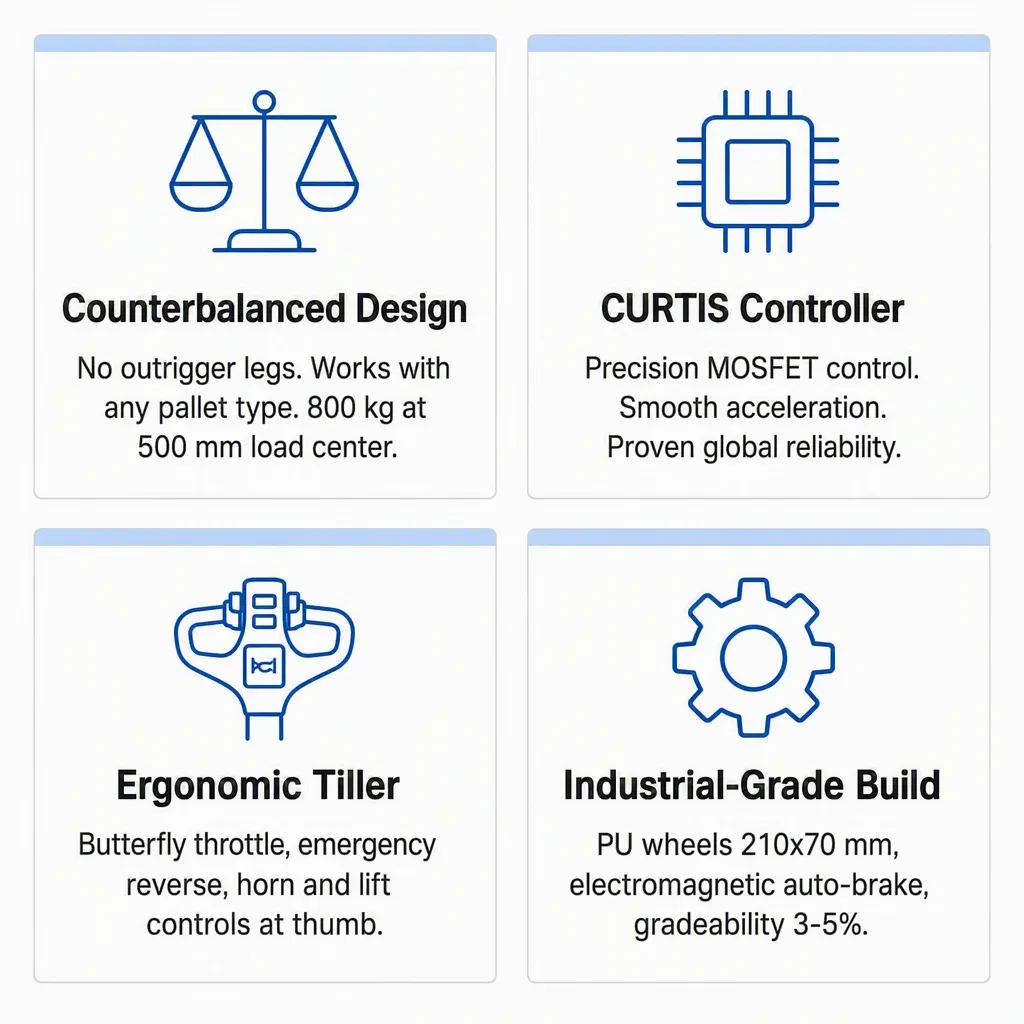

① Counterbalance Electric Stacker with heavy-duty steel frame and anti-corrosion coating, engineered with a rear counterweight design eliminating straddle legs for unrestricted pallet access and deep rack entry.

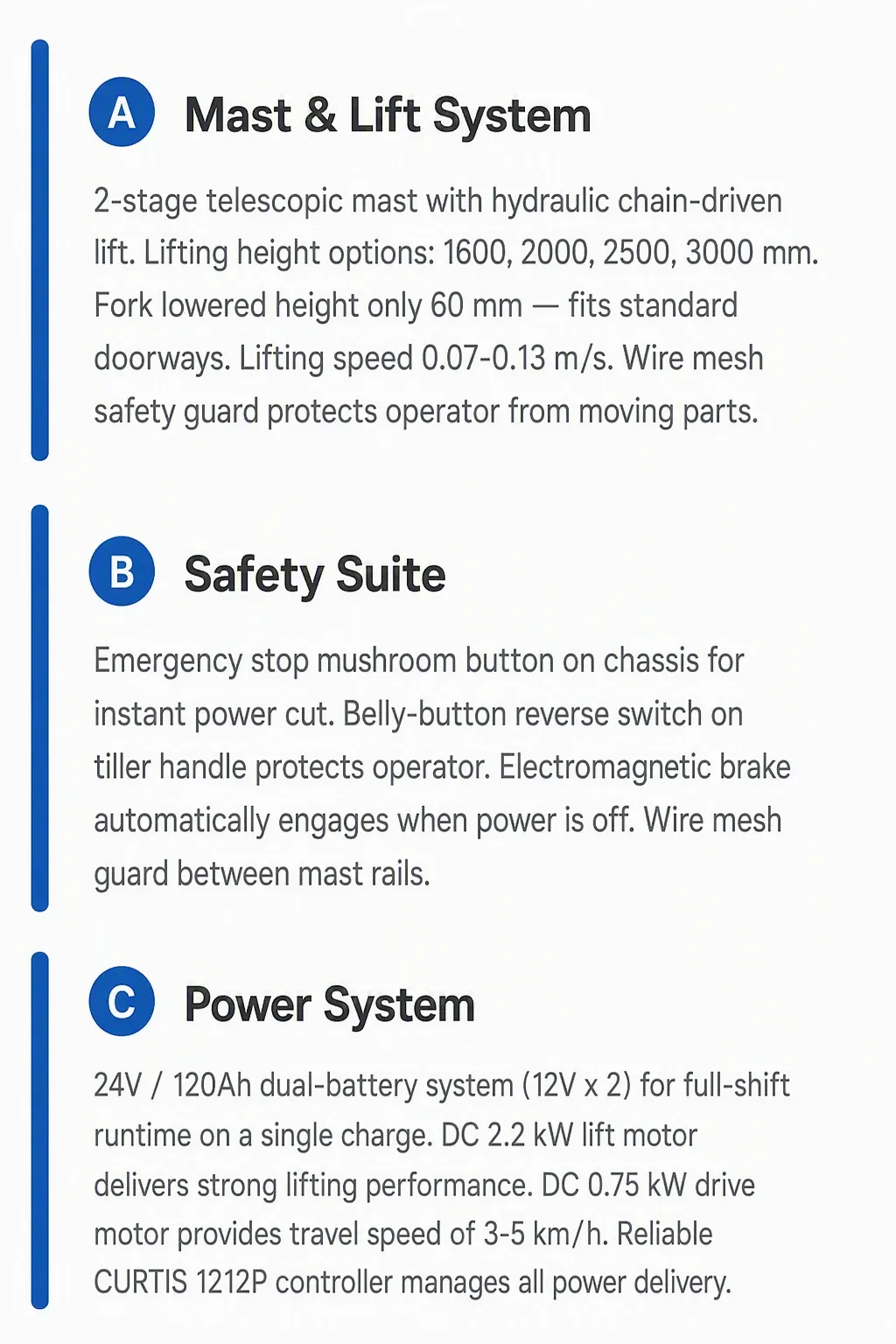

② Professional 800kg Counterbalance Walkie Stacker with DC 0.75kW travel motor, DC 2.2kW lift motor, CURTIS 1212P controller, 24V/120Ah dual battery system, Φ210×70mm PU driving wheel and Φ160×72mm loading wheels.
③ Safe Counterbalance Pallet Stacker with electromagnetic braking system, CURTIS 1212P precision speed control, emergency stop protection, and RoHS compliant components for workplace electrical and mechanical safety.
④ Compact Counterbalance Electric Stacker delivering 800kg rated capacity, 1600-3000mm lift height range with 500mm load centre, 1210mm tight turning radius for narrow aisle and double-deep racking operations.
⑤ Efficient 24V/120Ah Battery Counterbalance Stacker with 3-5 km/h travel speed, 0.07-0.13 m/s lift speed, and 3-5% gradeability for responsive multi-shift warehouse logistics.
⑥ Versatile Counterbalance Walkie Stacker with 680mm fork outer width and 1070mm fork length, 940mm body width requiring 2770mm aisle for 800×1200mm pallets, suitable for warehouse concrete and epoxy surfaces.

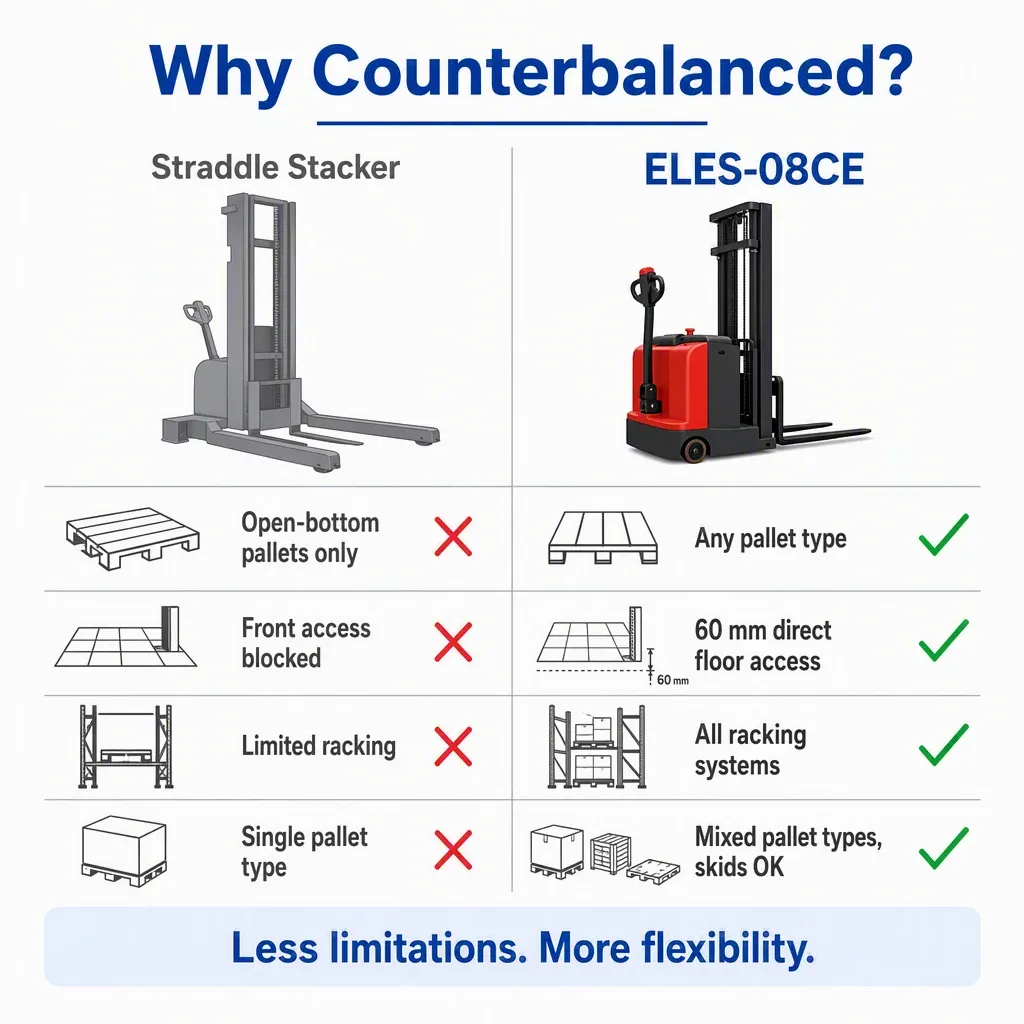

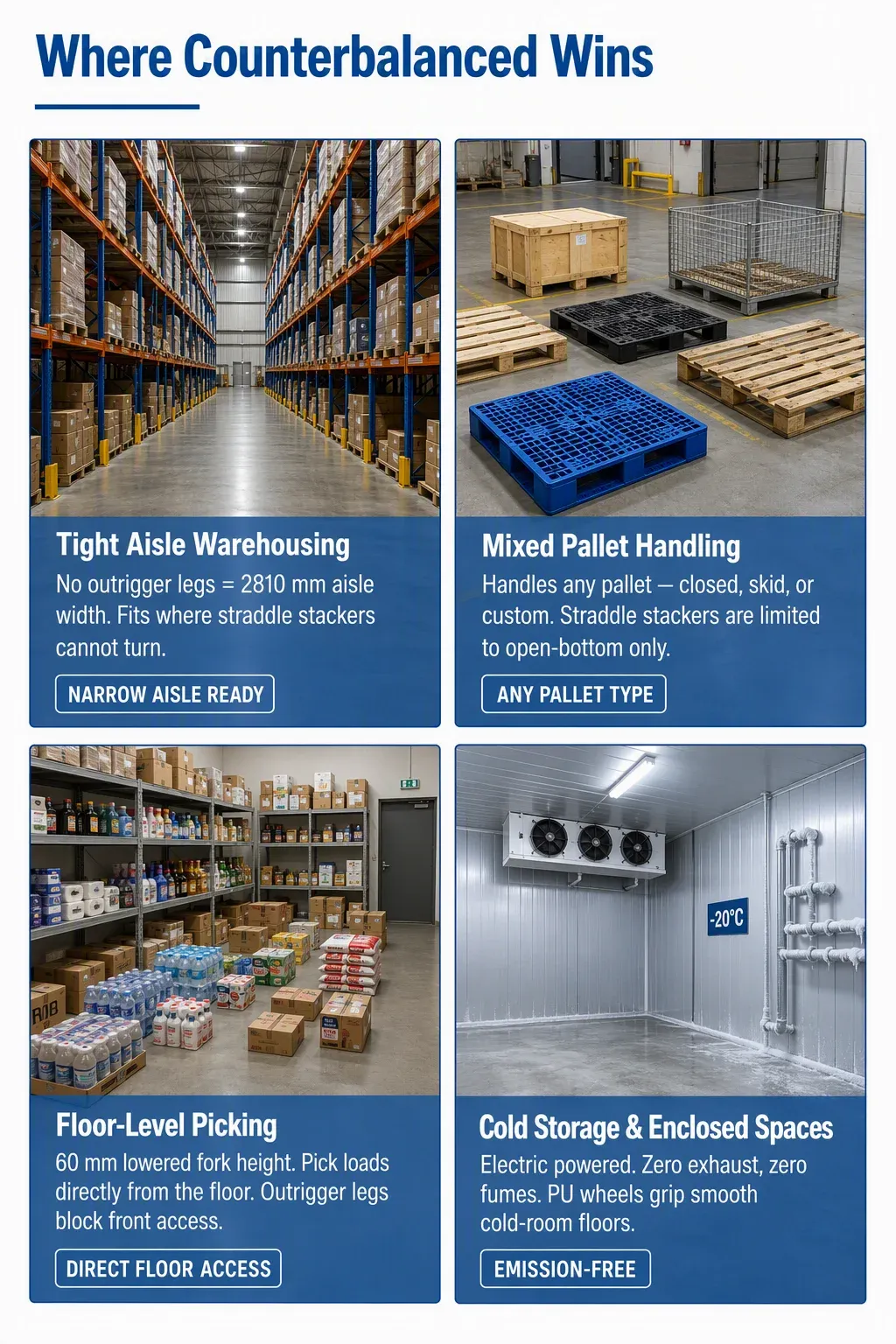

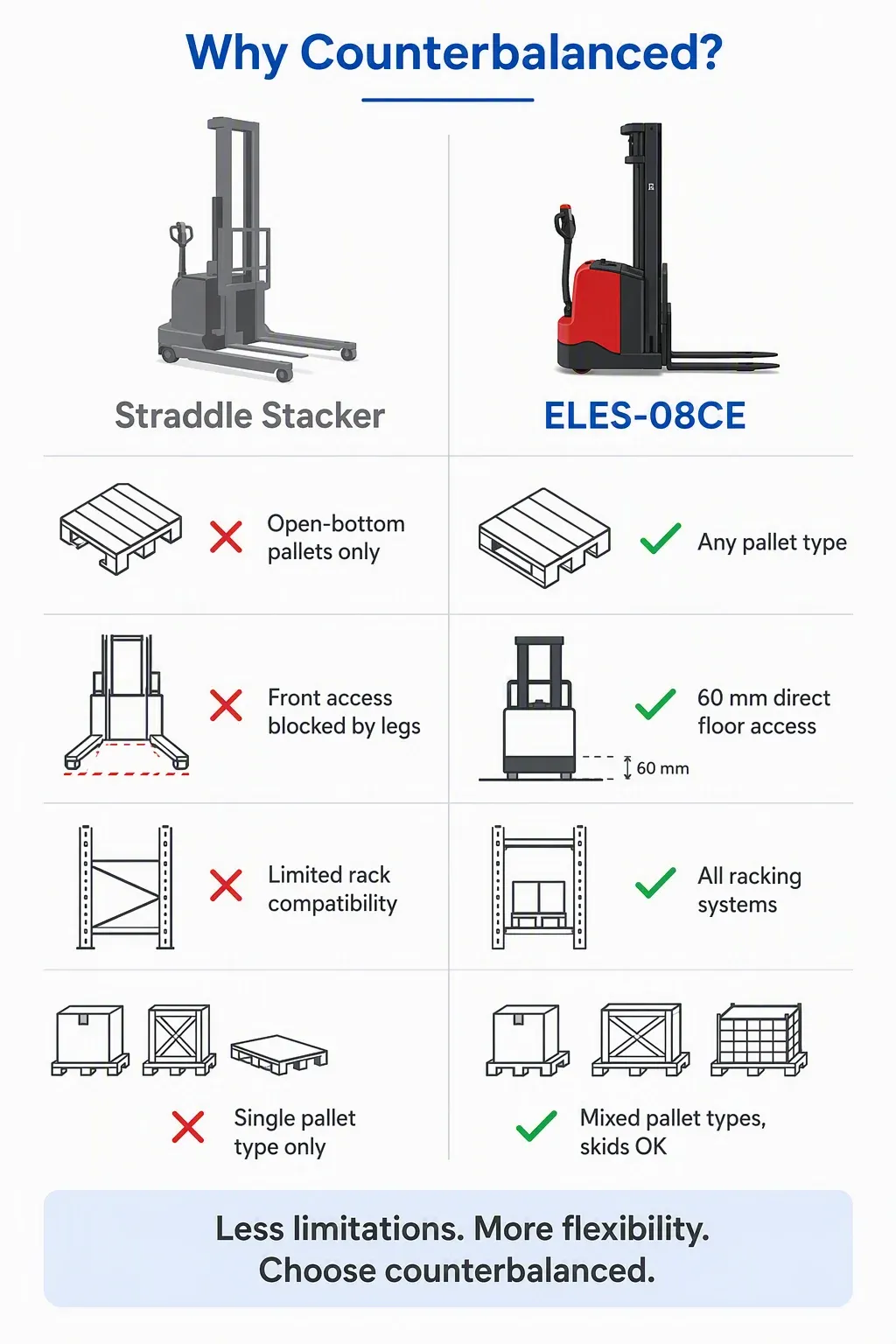

⑦ Straddle-leg stackers cannot access closed-bottom or double-deep pallets without fork repositioning. Counterbalance Stacker with no straddle legs enters any pallet configuration directly, eliminating wasted time on approach adjustments.
⑧ Changing between straddle-leg and counterbalance equipment for different rack types doubles fleet costs. 800kg Counterbalance Walkie Stacker handles both standard and deep racking with a single machine, reducing capital investment and training overhead.
⑨ Export plywood packed Counterbalance Electric Stacker in four mast configurations from 1600mm to 3000mm lift height, OEM colour and logo customisation available, CURTIS 1212P controller and 24V battery included as standard.

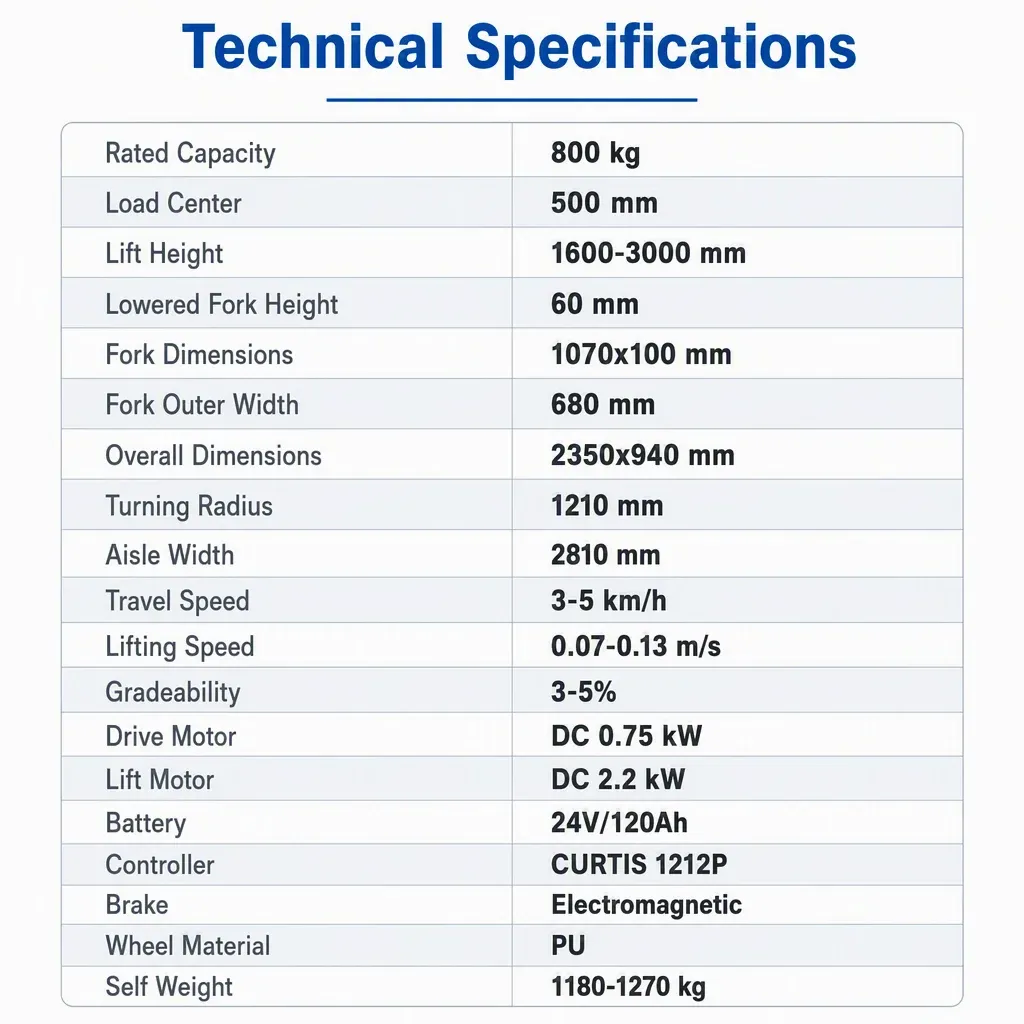

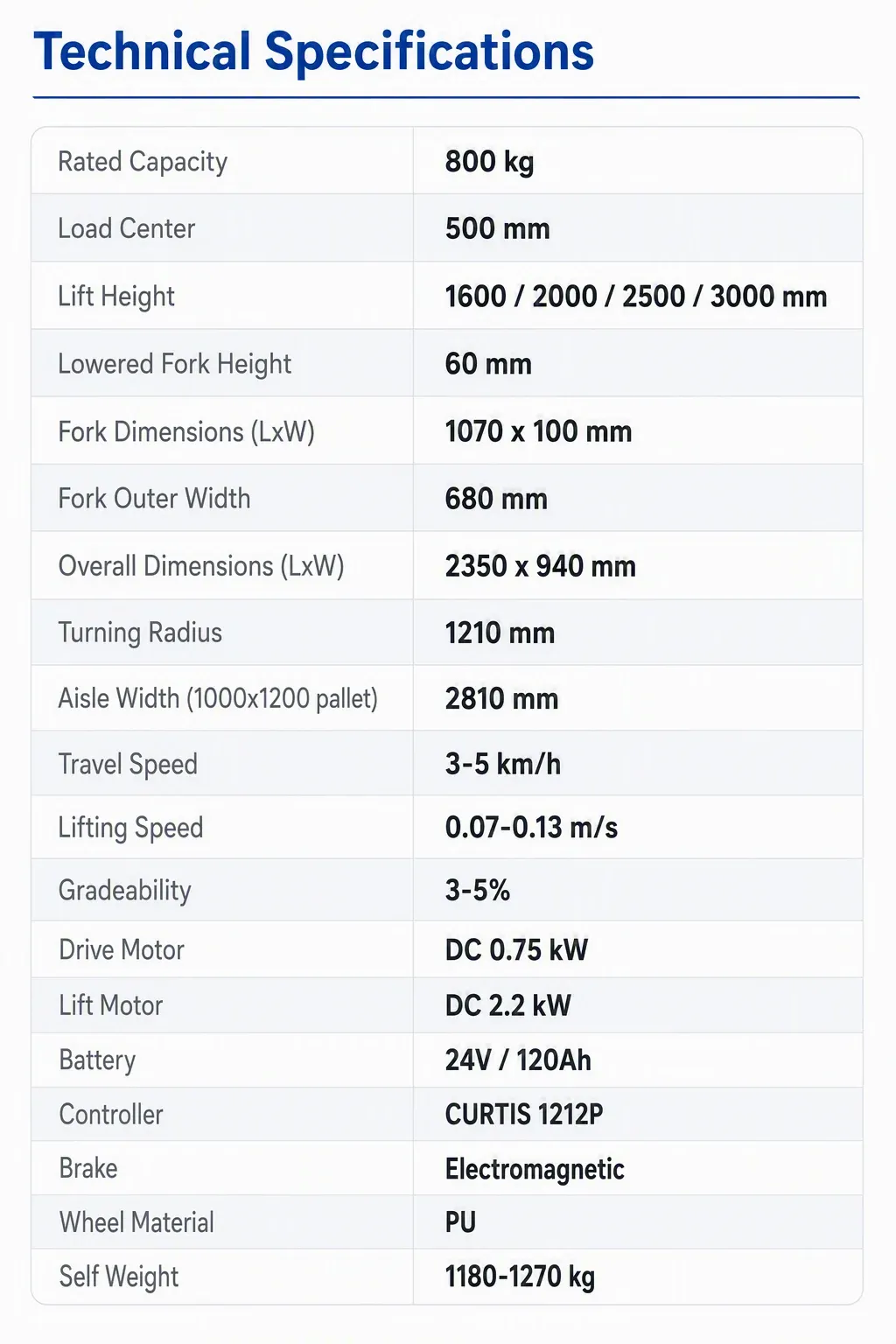

| Drive Type | Electric |
|---|---|
| Fork Length | 1070 mm |
| Fork Width | 100 mm |
| Power Source | Electric |
| Type | Counterbalance Electric Stacker |
| Condition | New |
| Load Capacity | 800 kg |
| Terrain Adaptability | Indoor Flat Floor |
| Operating Mode | Walkie |
| Load Centre | 500 mm |
| Structure Type | Counterbalance |
| Lifting Height | 1600-3000 mm |
| Fork Size (L*W) | 1070*100 mm |
| Fork Outer Width | 680 mm |
| Turning Radius | 1210 mm |
| Travel Motor | DC 0.75 kW |
| Lifting Motor | DC 2.2 kW |
| Battery | 24V/120Ah |
| Controller | CURTIS 1212P |
| load capacity options | 800 kg |
| Max. Lifting Height options | 3000mm |
| Model Number options | ELES-08CE |
| Certificate | Number | Valid |
|---|---|---|
| 2006/42/EC | M.2026.206.C137529 | 30/03/2026 - 29/03/2031 |
| CE | M.2026.206.C134736 | 04/02/2026 - 03/02/2031 |
| CE | 3N251031.NEMS093 | 30/10/2025 - 29/10/2030 |
| EAC | — | 22/10/2023 - 22/10/2028 |
Certificates are supplied with your quote on request.
