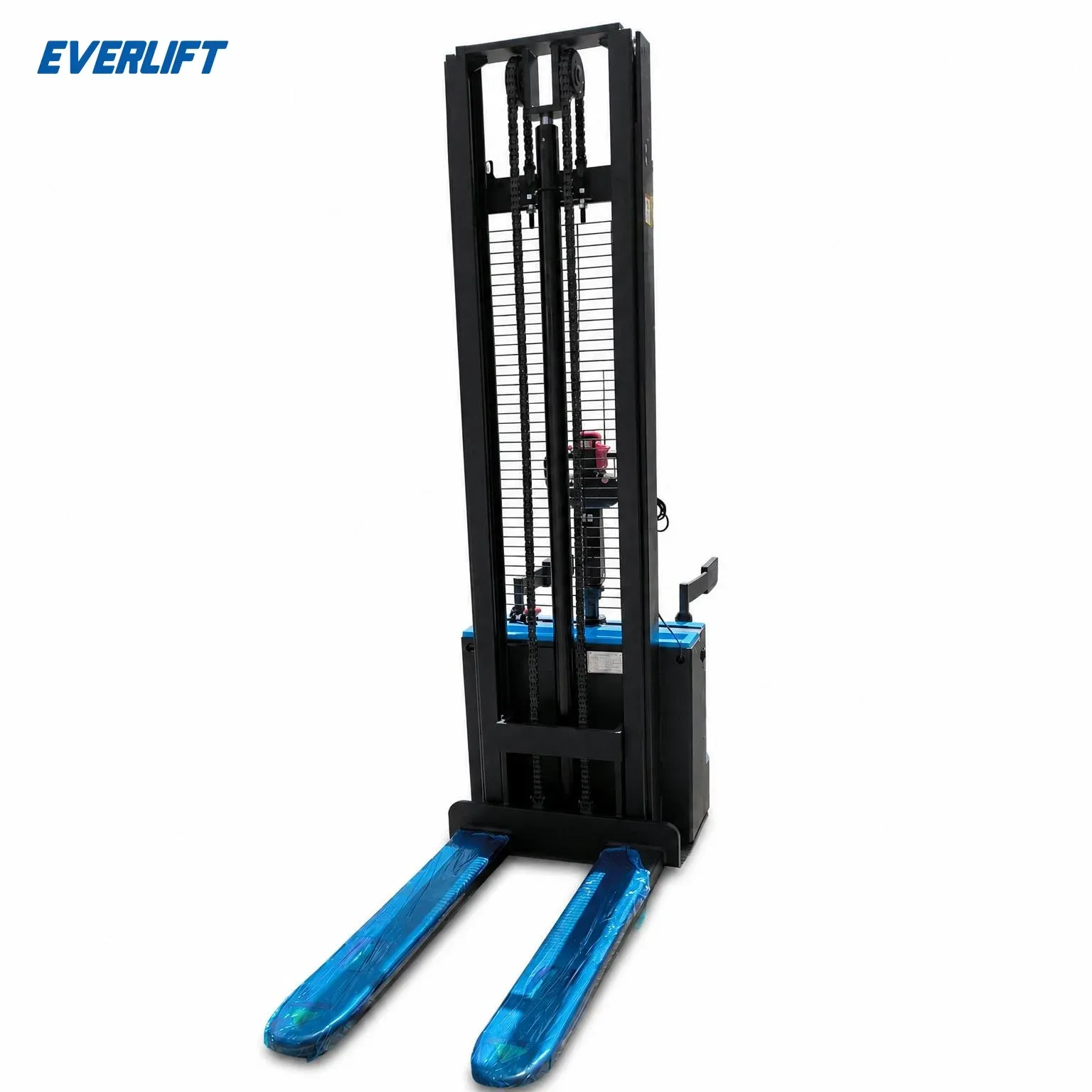

Brushless Motor Stand-on Pallet Stacker 1500 kg

Product Highlights

① Stand-on Electric Pallet Stacker with heavy-gauge steel frame and anti-corrosion finish, engineered in a compact 780mm narrow width with foldable platform for agile warehouse manoeuvring and operator comfort.

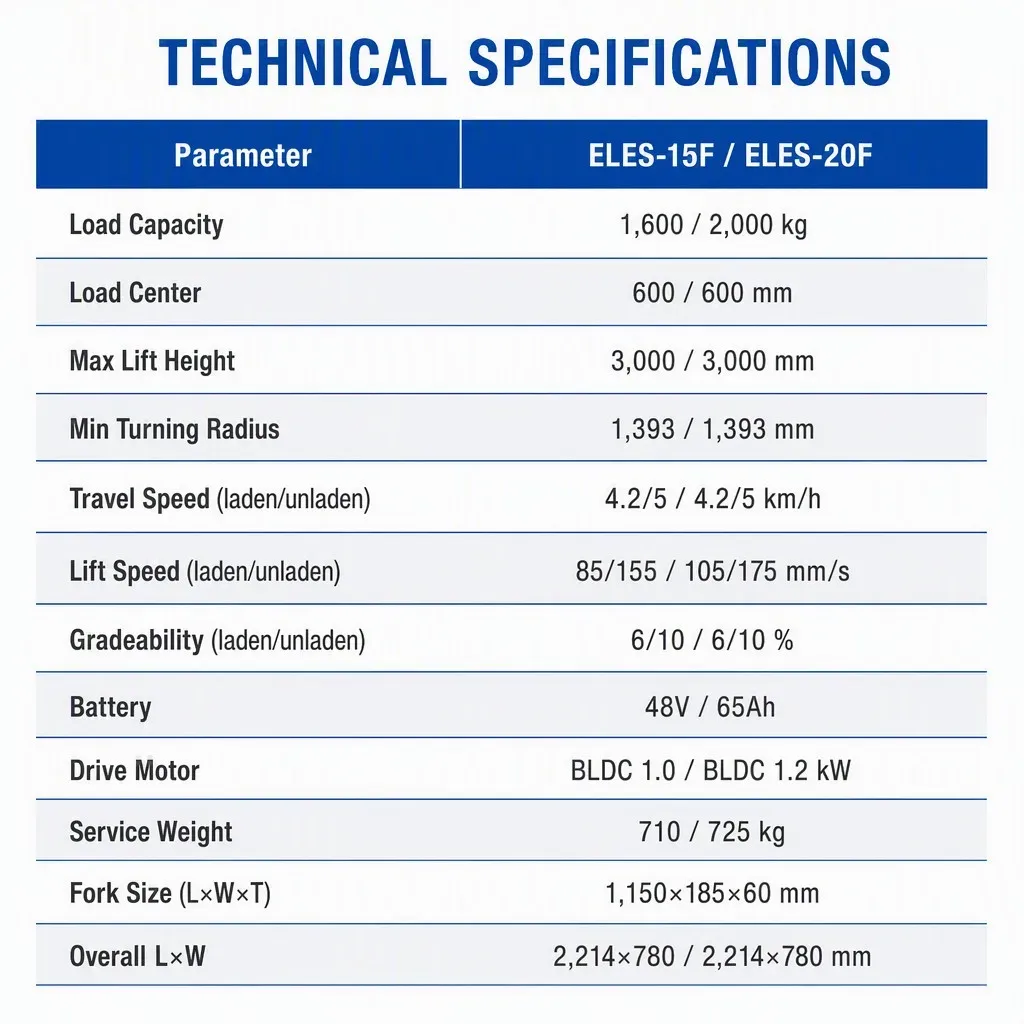

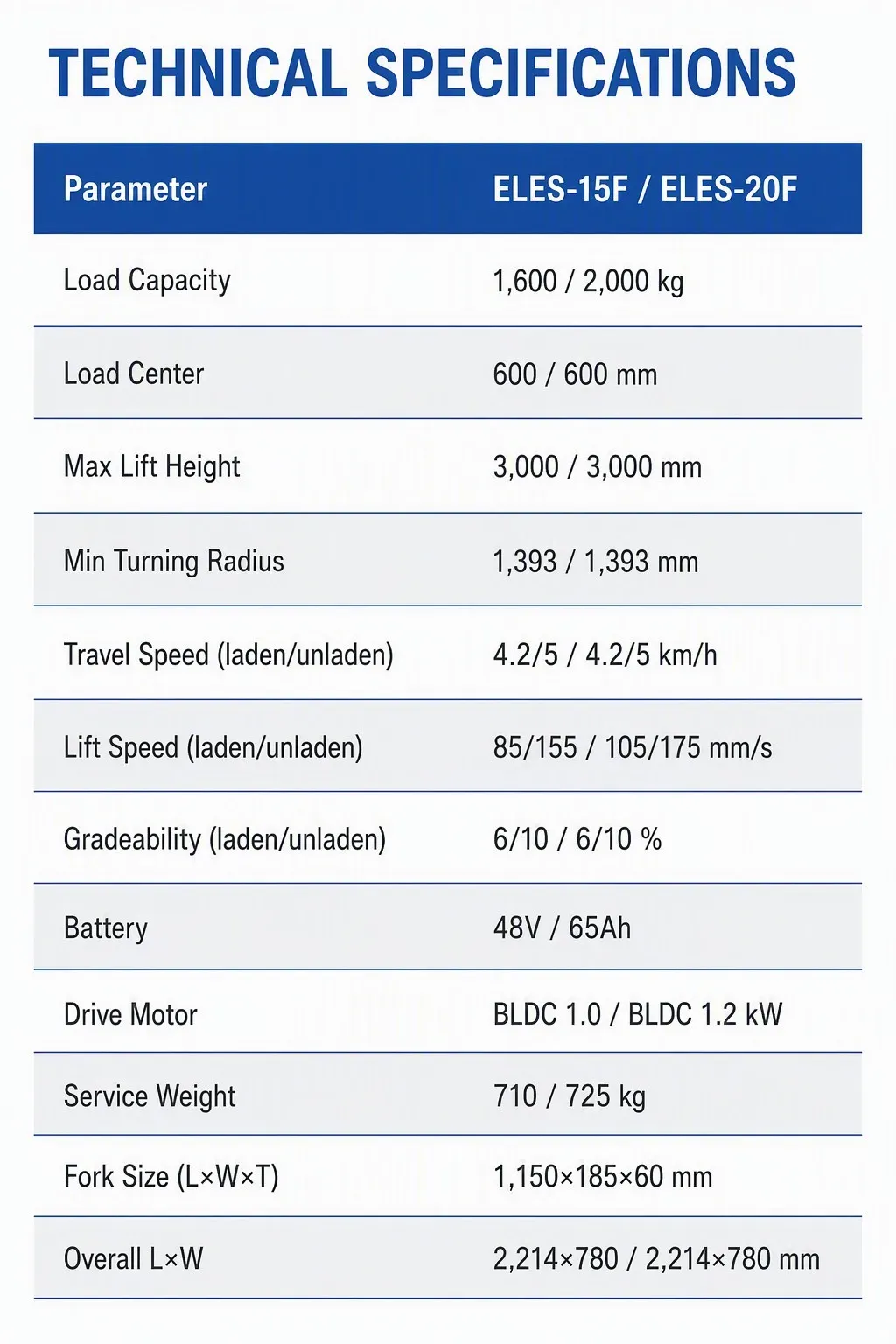

② Professional 1500-2000kg Stand-on Electric Stacker with BLDC 1.0-1.2kW brushless drive motor, DC 1.2kW lift motor, 48V/65Ah battery system, Φ195×70mm PU driving wheels and Φ73×60mm bearing wheels.

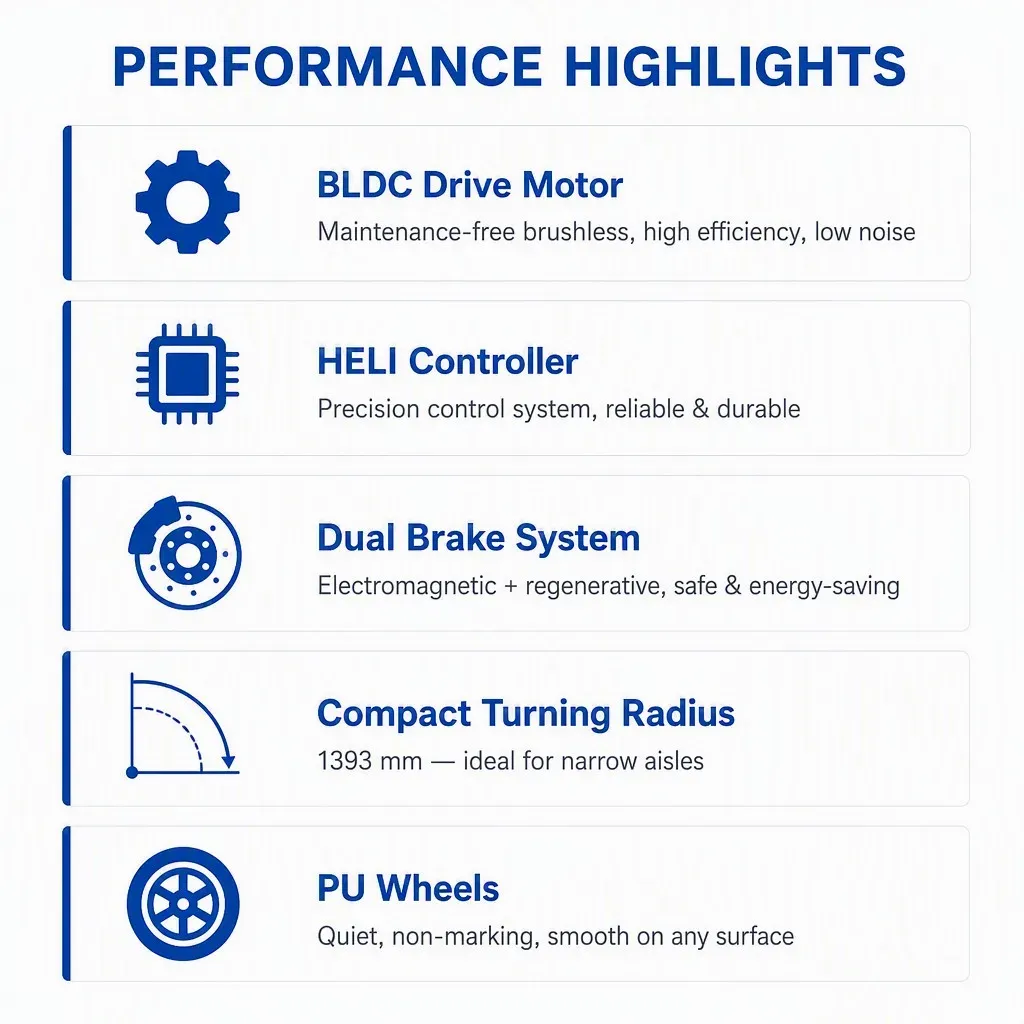

③ Safe Stand-on Walkie Stacker with electromagnetic and regenerative dual braking, emergency stop protection, mechanical steering precision, and RoHS compliant components for workplace electrical and mechanical safety.

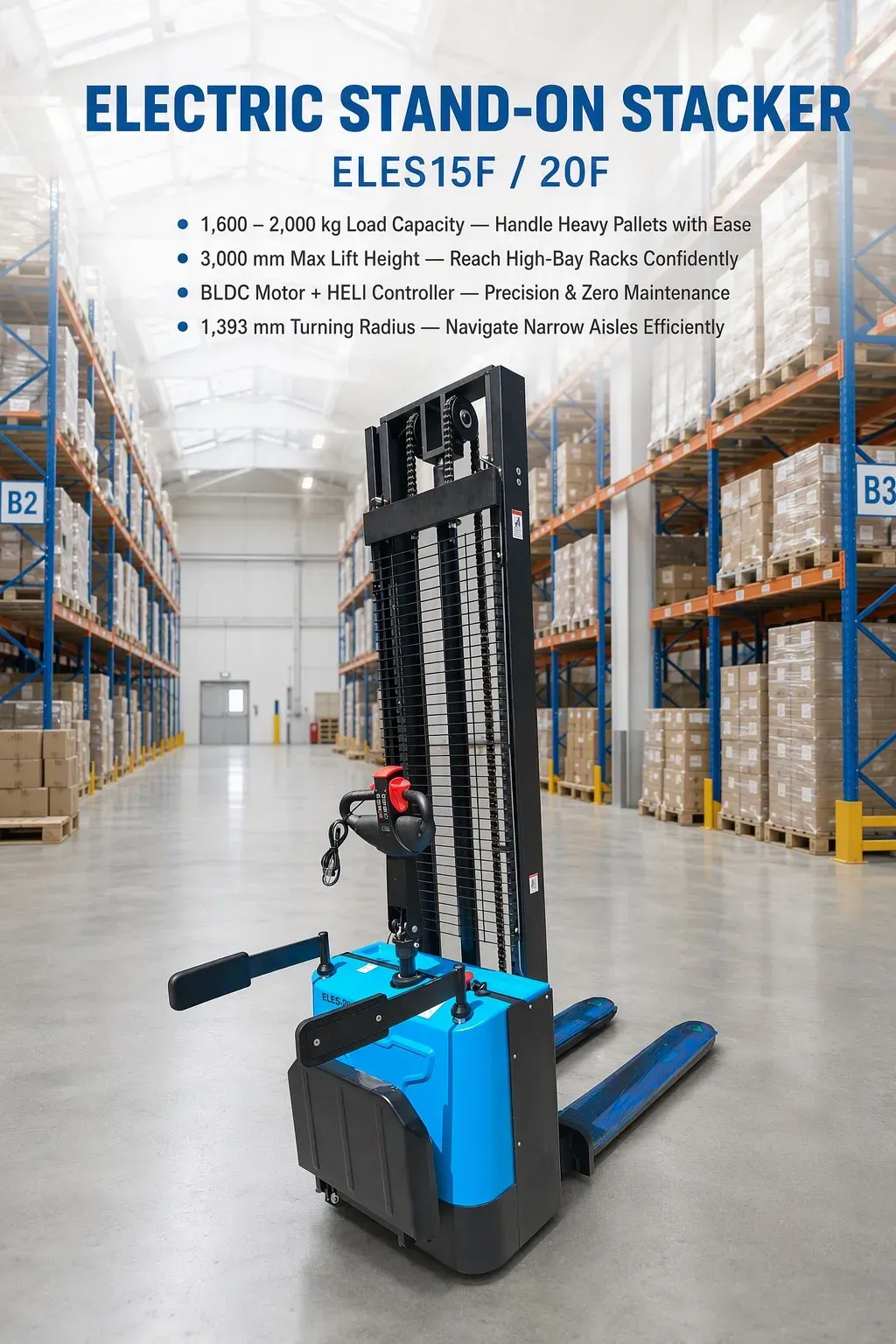

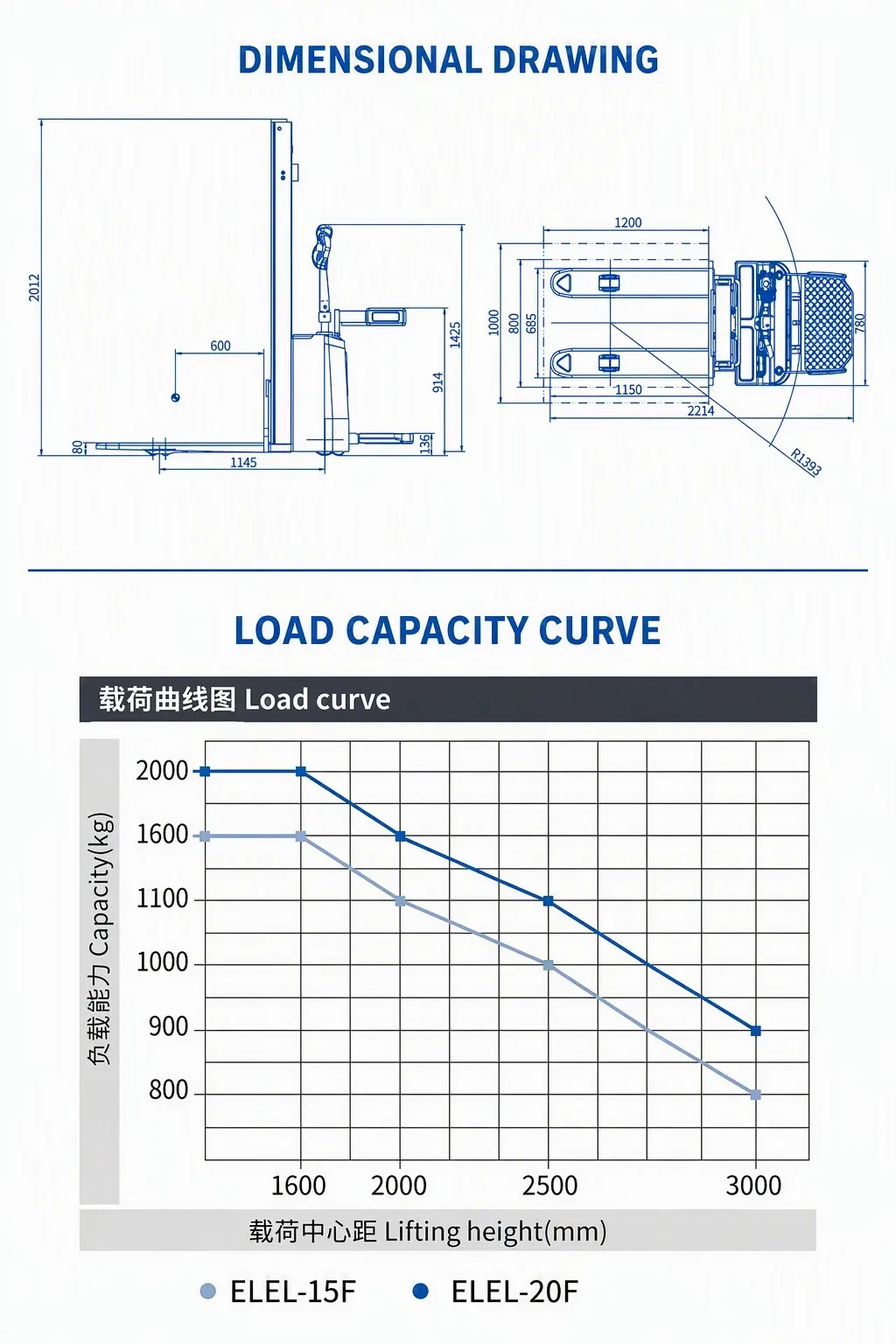

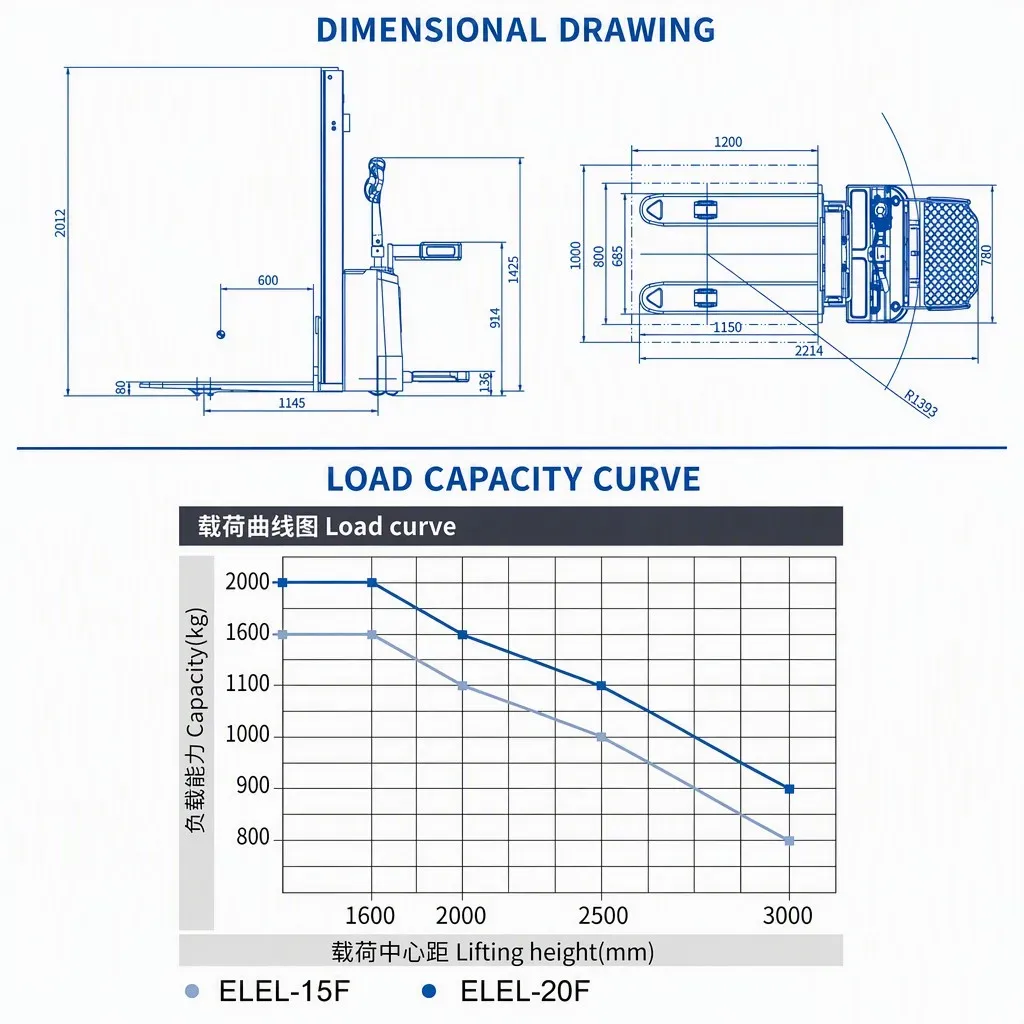

④ Compact Stand-on Electric Stacker delivering 1600-2000kg rated capacity, 3000mm standard lift with 5012mm max mast height, 1393mm turning radius and 2224mm aisle width for 800×1200mm pallets.

⑤ Efficient 48V/65Ah Battery Stand-on Stacker with BLDC brushless drive motor energy savings, 4.2/5 km/h travel speed, 85-105/155-175 mm/s lift speed for responsive narrow aisle logistics.

⑥ Versatile Stand-on Pallet Stacker with 550/600/650/685mm four-stage adjustable fork widths, 1150mm fork length, 80mm minimum fork height for open and closed pallet handling on warehouse floors.

⑦ Walking behind a stacker for entire shifts increases operator fatigue and reduces productivity. Stand-on Platform Stacker with foldable riding platform enables quick operator boarding for long-distance aisles, improving throughput in medium-to-large warehouses.

⑧ Brushless DC motors in standard stackers require frequent carbon brush replacement causing downtime. BLDC Motor Stand-on Stacker with regenerative braking eliminates brush maintenance and recovers energy during deceleration, lowering total cost of ownership.

⑨ Export plywood packed Stand-on Electric Stacker in 1500kg and 2000kg configurations, four fork width options from 550mm to 685mm, OEM colour and logo customisable, BLDC motor and 48V battery charger included.
