Electric Stackers · Model CQD15J 1500

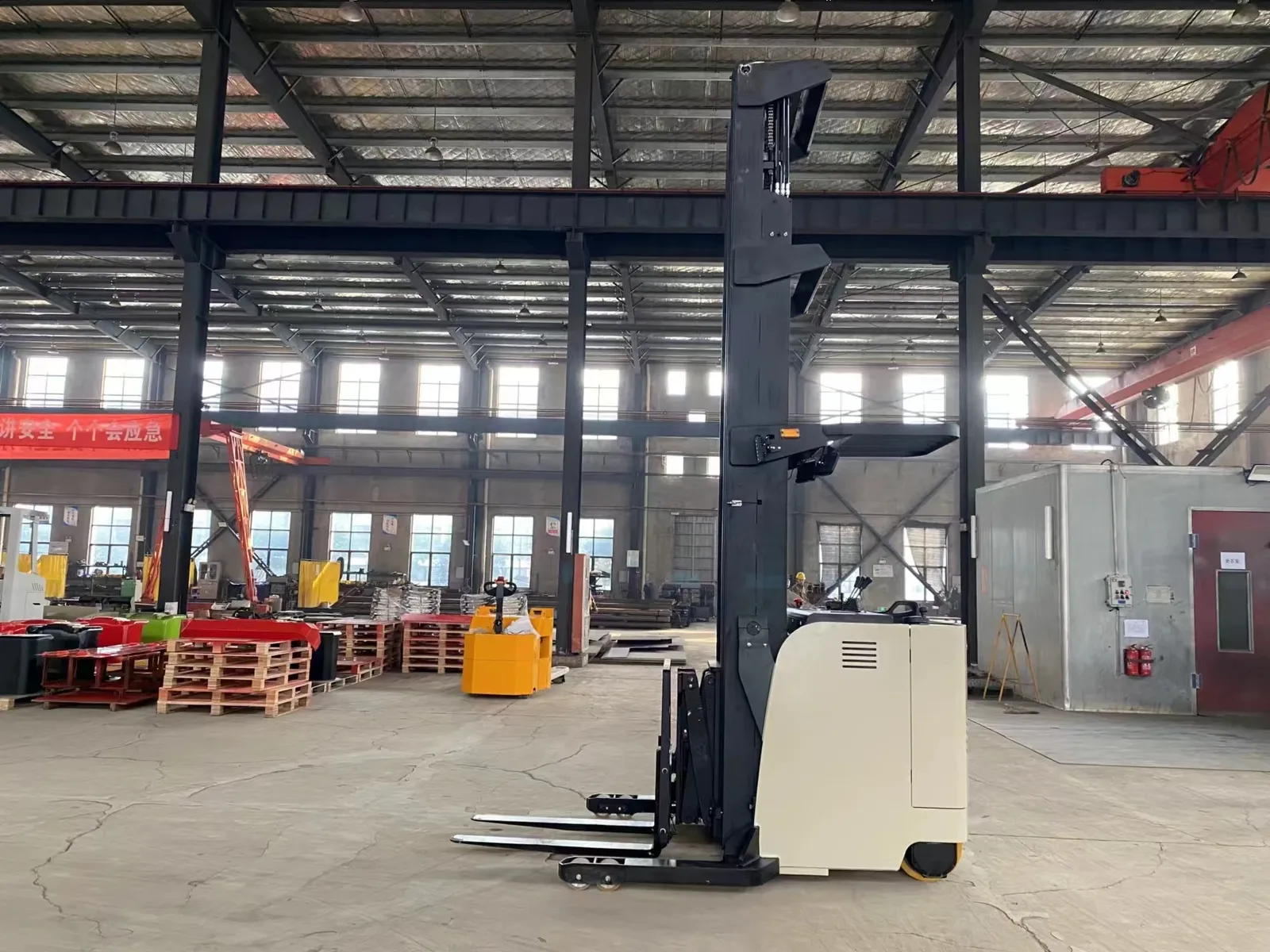

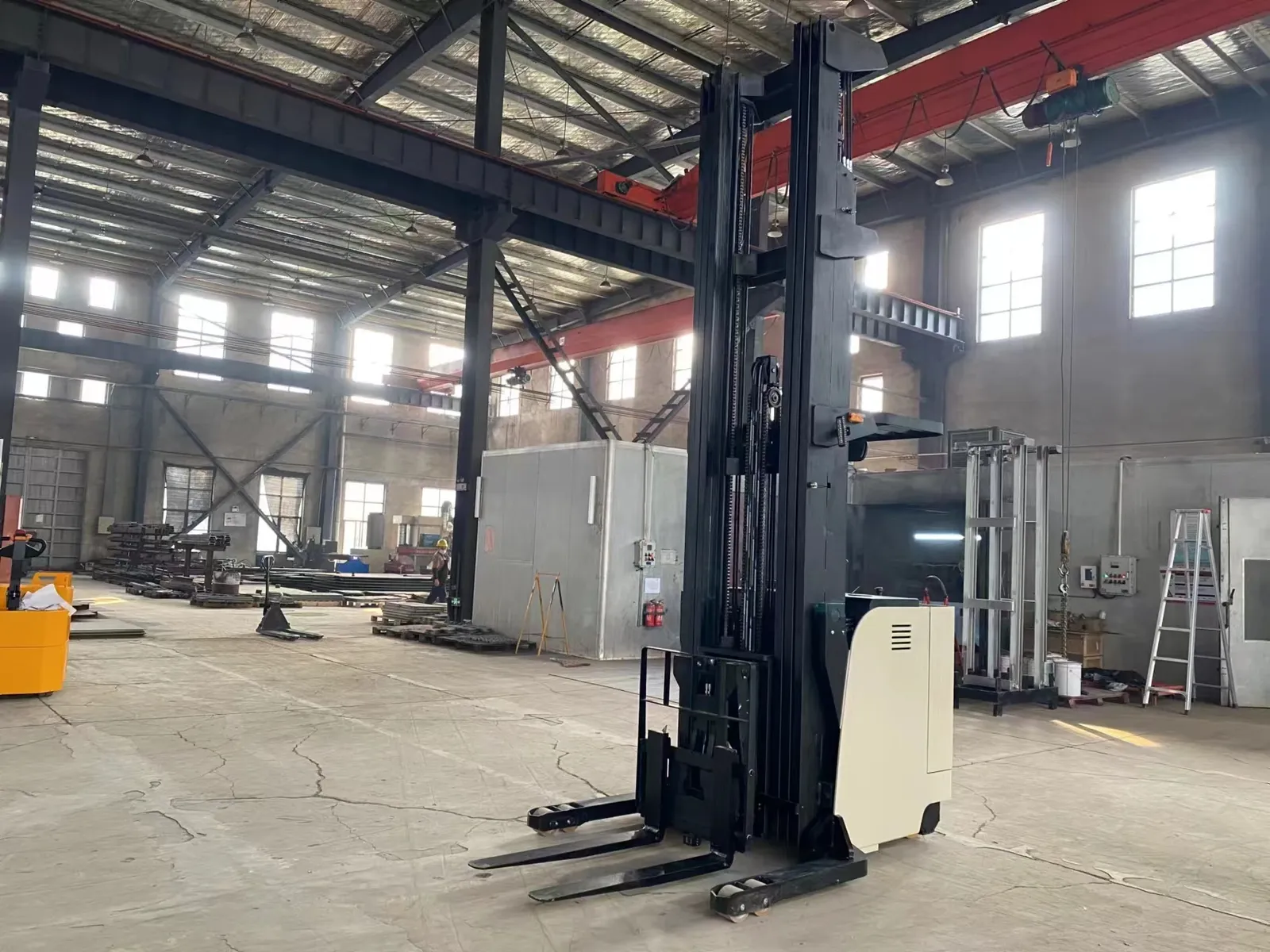

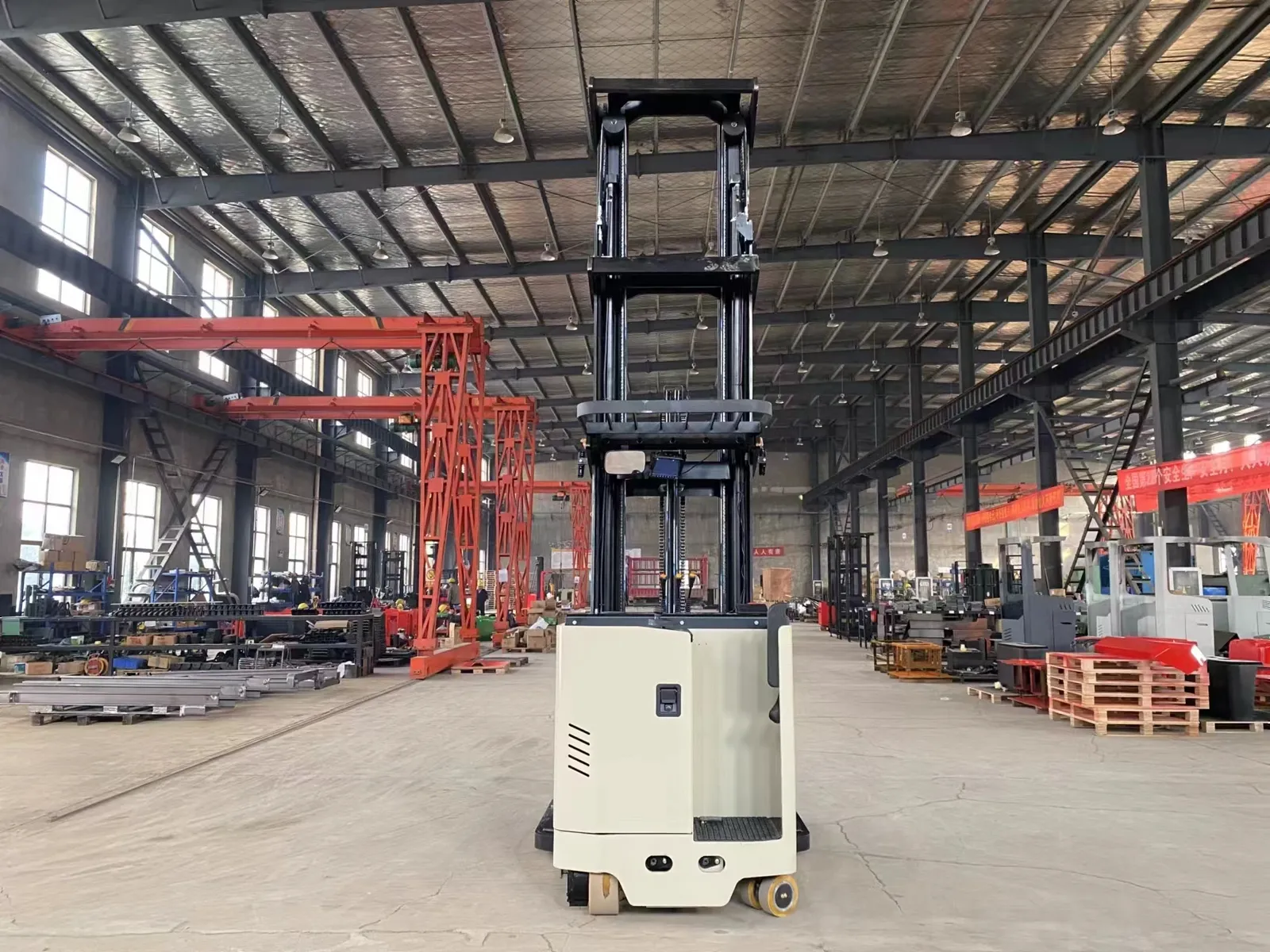

CQD15J 1500 kg Standing Double Scissor Reach Forklift
1.5 tLead-acidForks 1070 mm
from £11,560per unit, ex VAT
| Quantity | Price per unit |
|---|---|
| 1+ units | £11,560 |
Minimum order 1 unit from the factory; any range minimum is confirmed on your quote. Prices in GBP per unit, ex VAT. We convert the factory list at a buffered exchange rate, so normal day-to-day currency movement does not change the price you see. Your written quote adds freight, duty and VAT and is valid for 30 days.
Rated Loading Capacity1.5 Ton
Max. Lifting Height10m
Truck TypeElectric Reach Battery Forklift
Line total
No online payment. The basket becomes an order request and we reply with a written GBP quote, deposit 30% on order, lead time 8 to 12 weeks.
Or email [email protected]Product Highlights

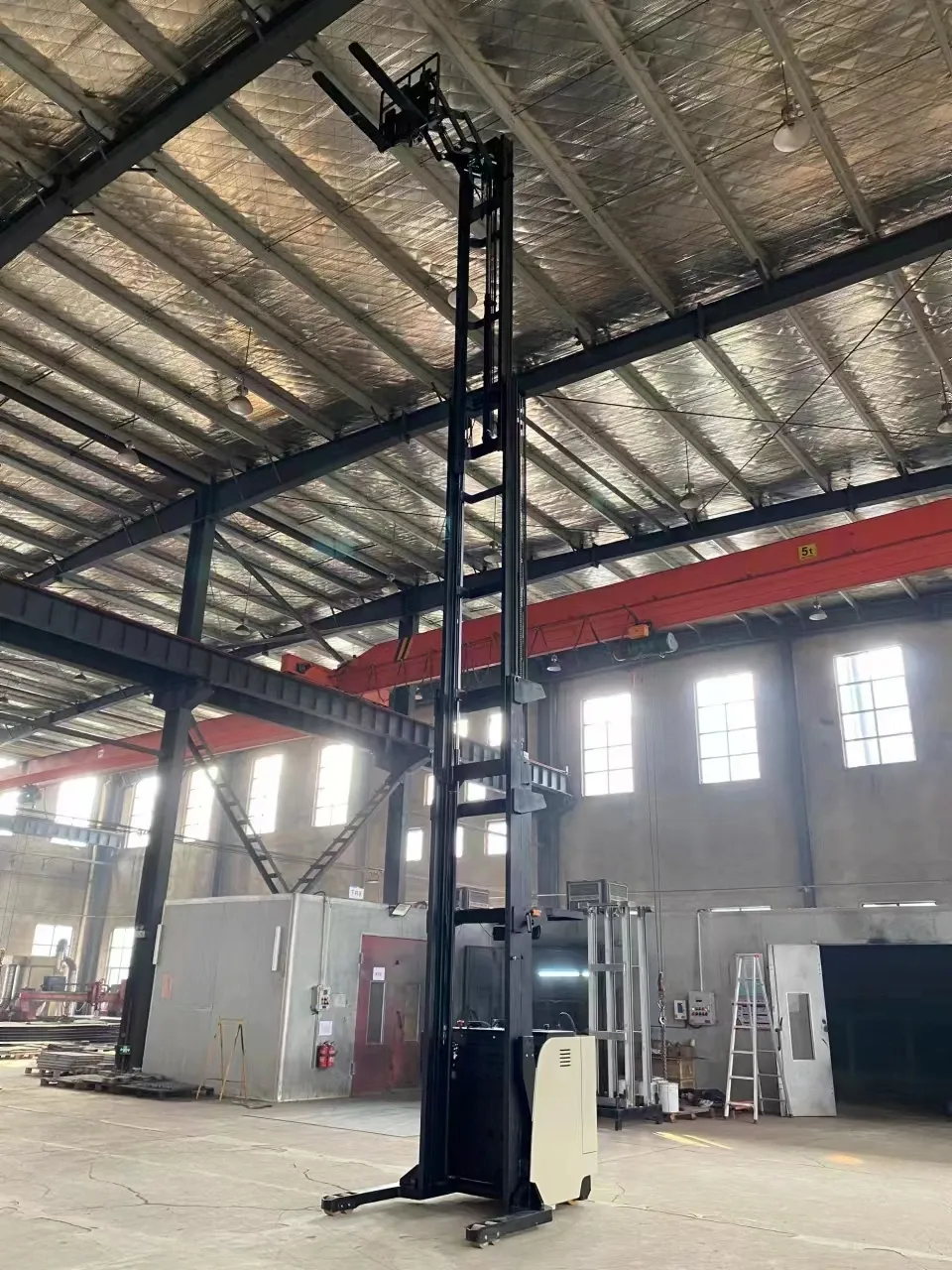

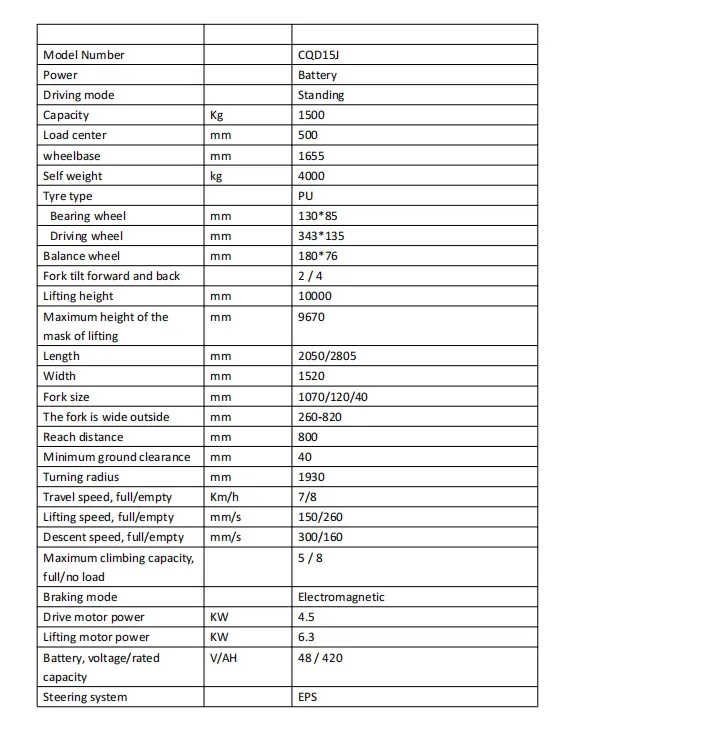

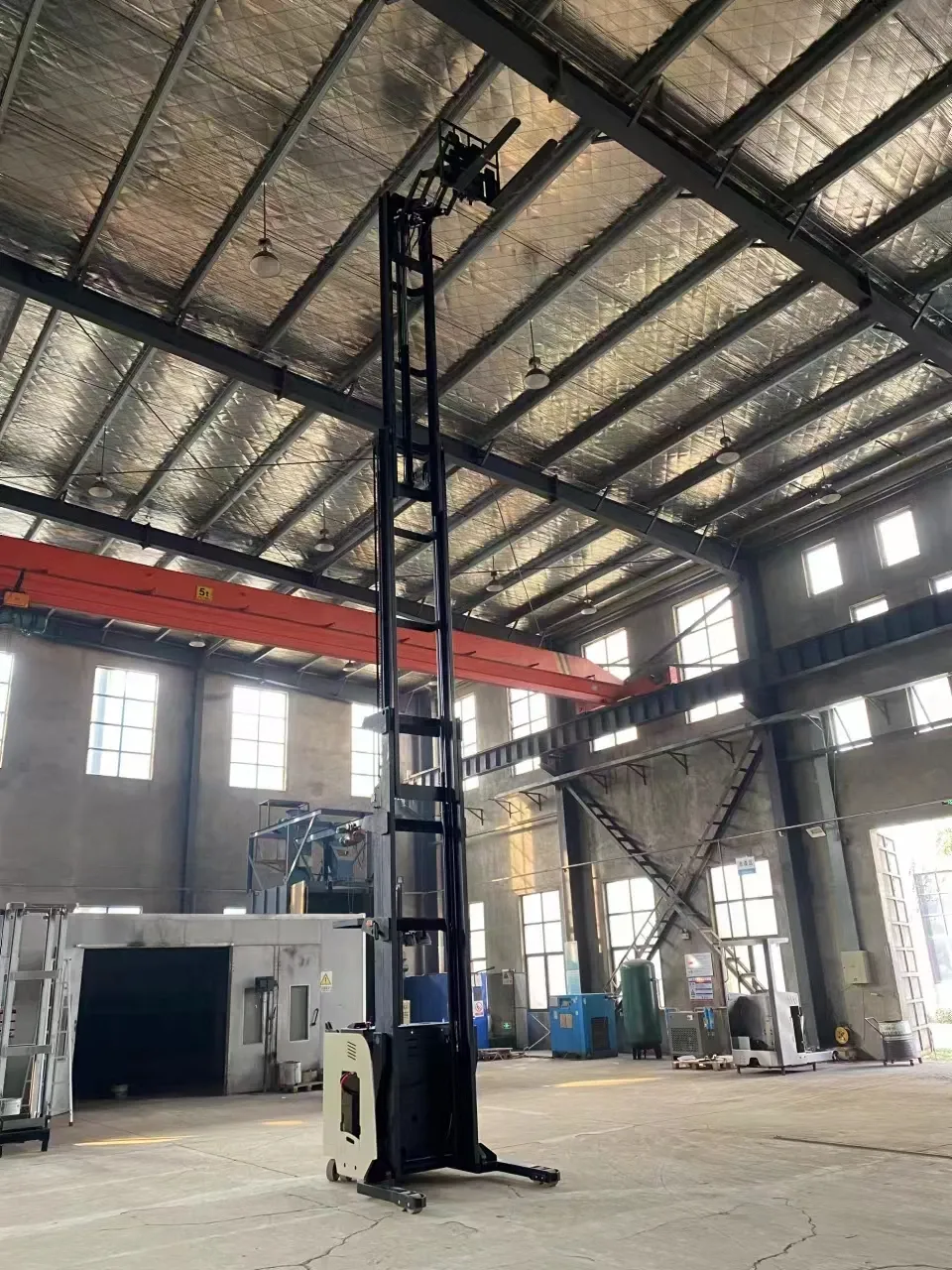

1. 1500 kg rated load capacity with 500mm load centre; ultra-high 10000 mm lifting height for high-rack storage and multi-level warehouse stacking.

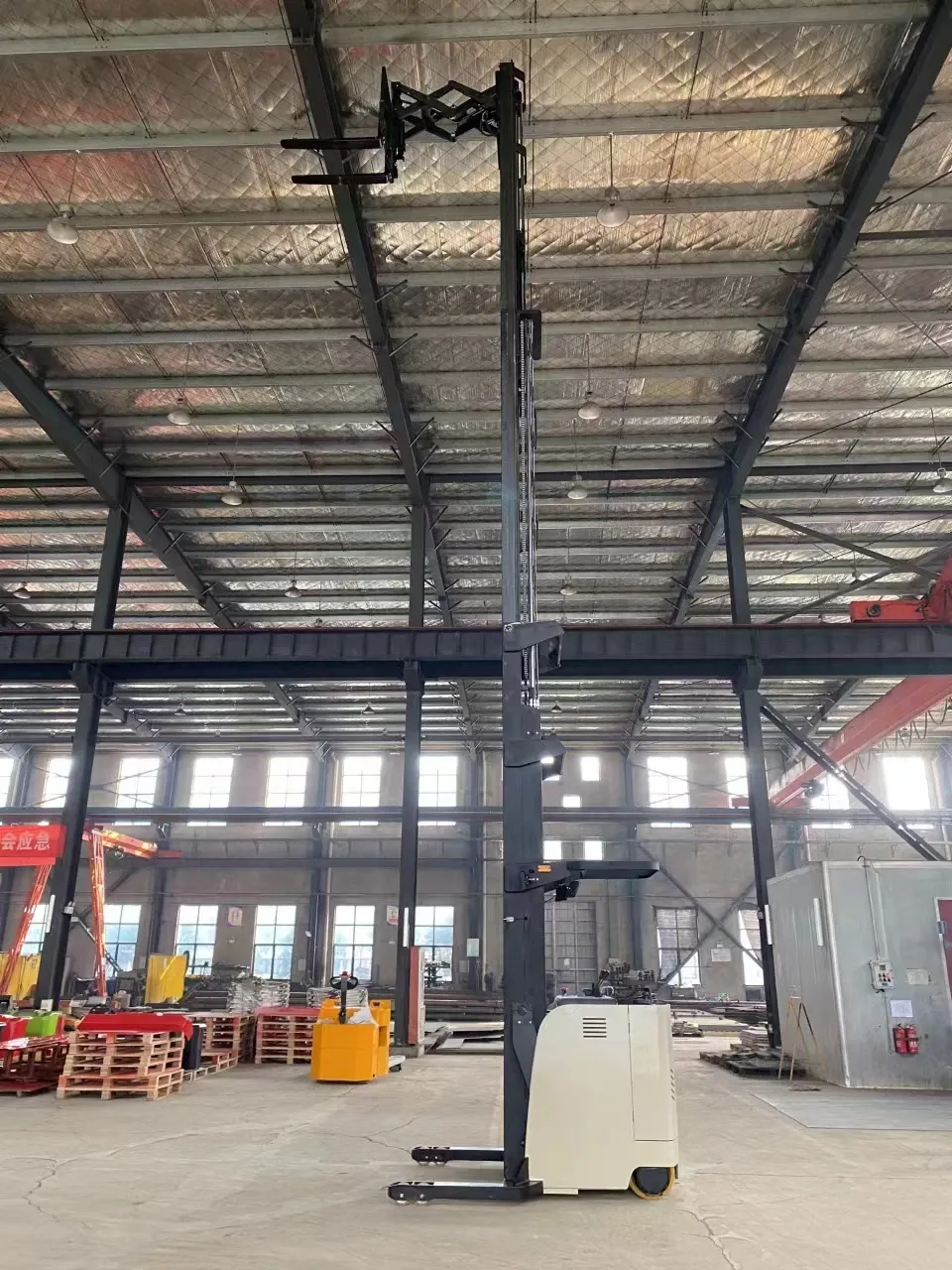

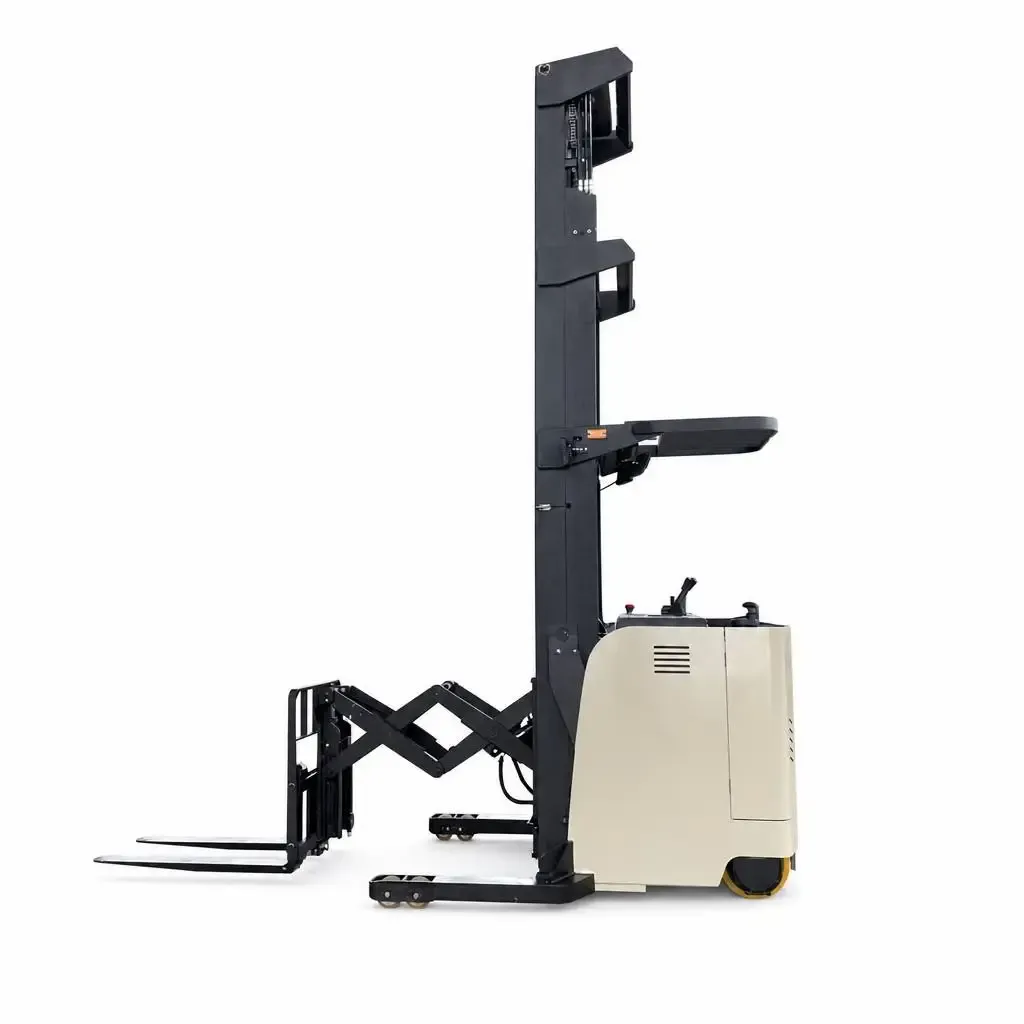

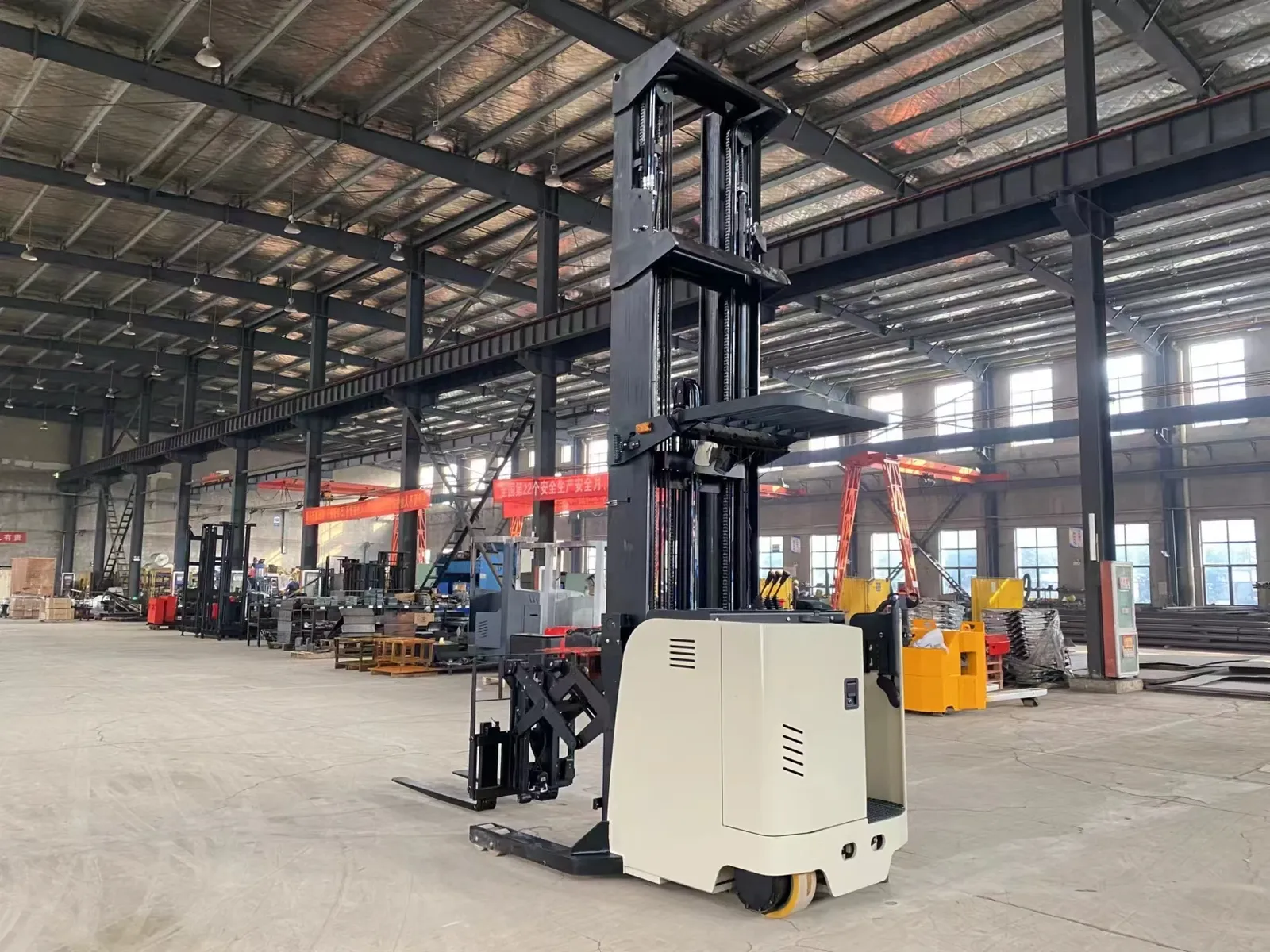

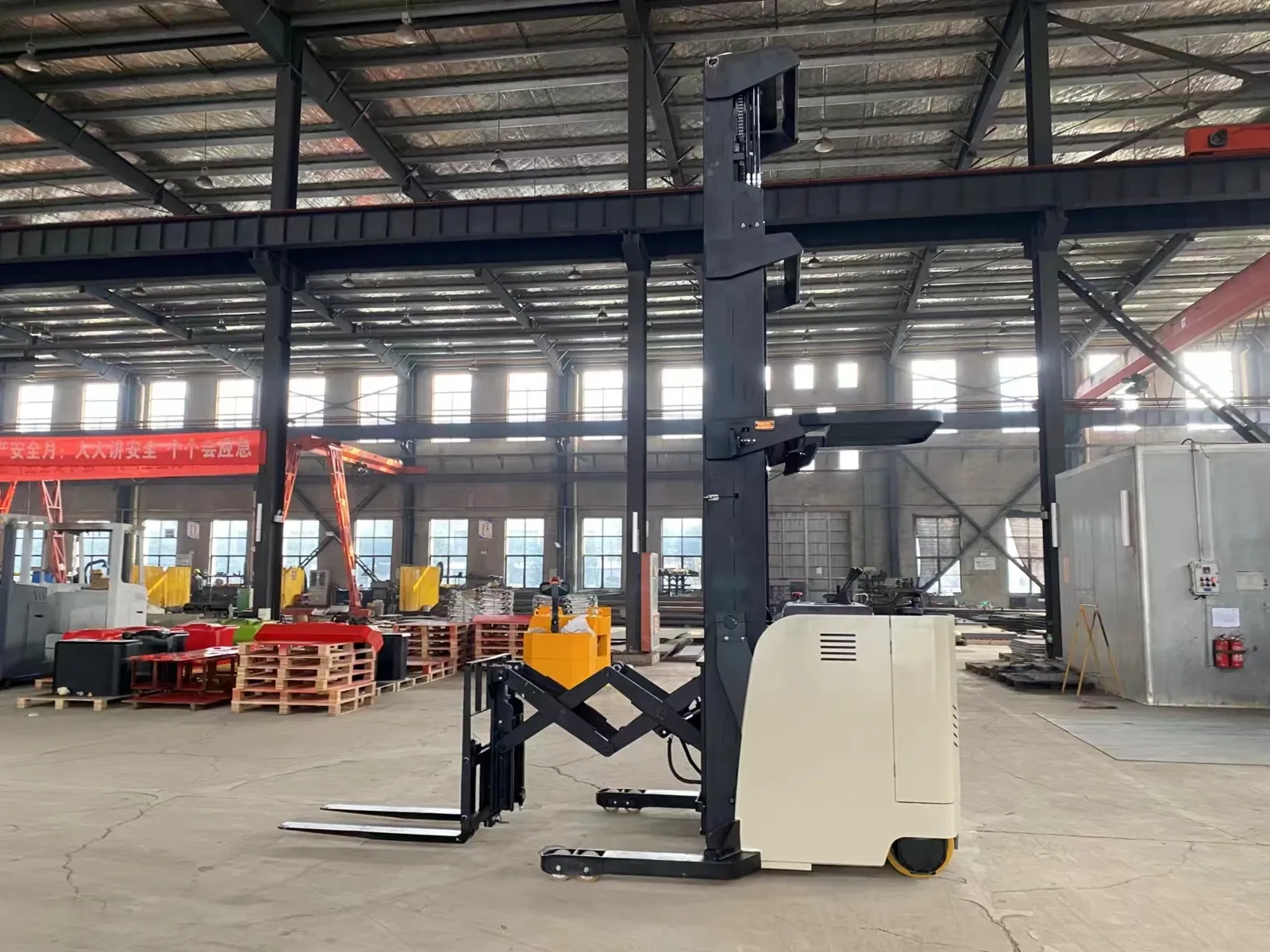

2. Double scissor reach mechanism extends 800 mm forward, enabling deep racking pallet pick and place without repositioning the truck.
3. Powerful 48V / 420Ah battery system with 4.5 kW drive motor and 6.3 kW lifting motor, delivering stable 7/8 km/h travel speed and 260 mm/s empty lift speed.

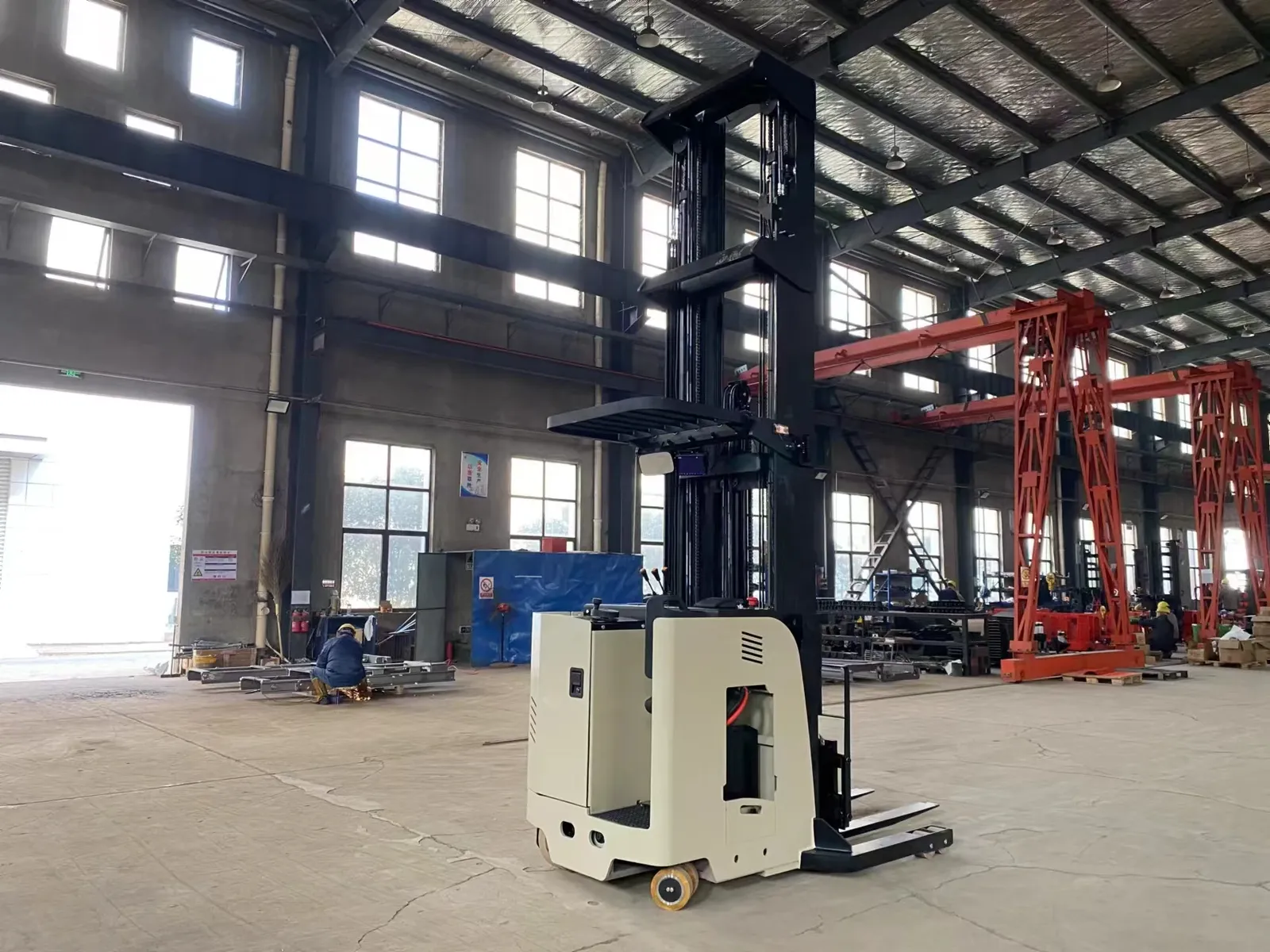

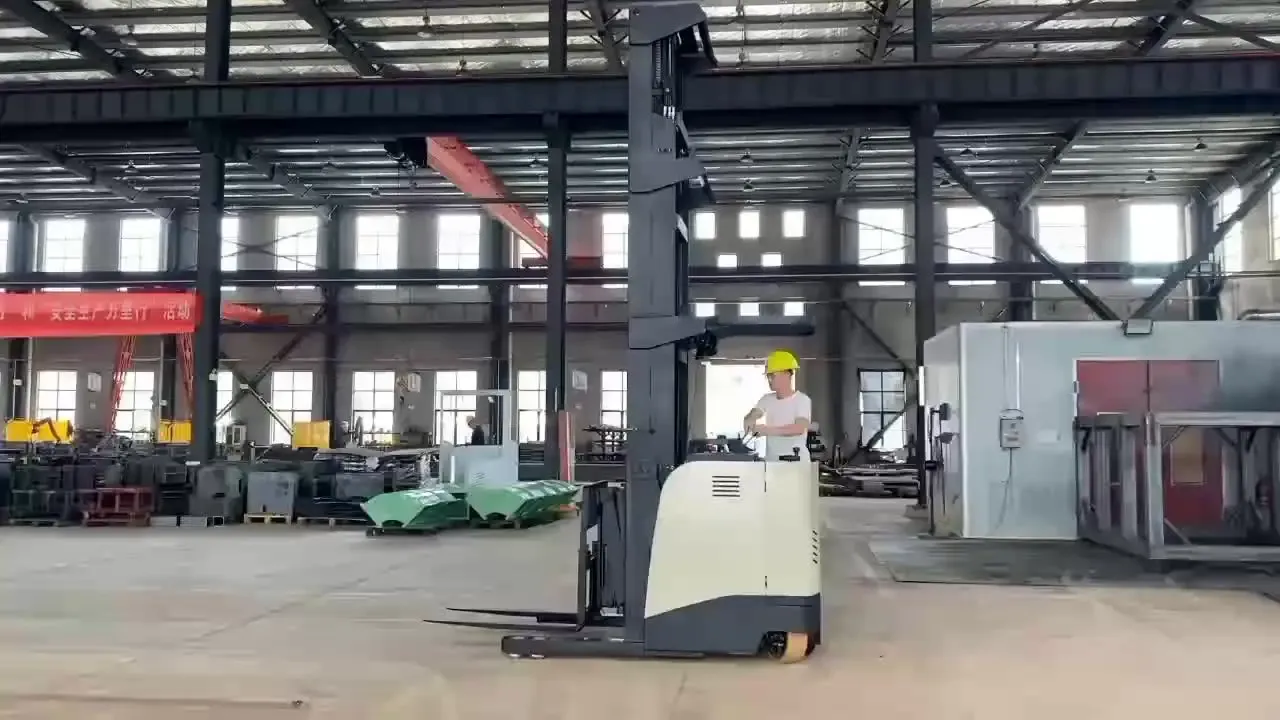

4. EPS (Electric Power Steering) system with electromagnetic braking makes operation light, precise and safe; standing driving mode offers wider visibility and faster operator access.
5. Compact 1930 mm turning radius and 1520 mm overall width allow smooth operation in narrow aisles and tight warehouse spaces.
6. PU tyres (load 130x85, drive 343x135, balance 180x76) protect floor surfaces and reduce noise; 4000 kg sturdy self-weight ensures stability at high lifting positions.
| Condition | New |
|---|---|
| Fork Specifications( L*W*H) | 1070*120*40mm |
| Forklift Battery Type | Lead–Acid Battery |
| Side Shifter | Electric Side Shifter, Hydraulic Side Shifter |
| Drive Type | Fwd |
| Terrain Adaptability | Other, Rough Terrain, Outdoor Pavement, Offroad, Indoor Flooring |
| Load centre distance | 500 mm |
| Mast Type | Two-Stage Mast, Three-Stage Mas, Single-Stage Mast |
| Fork Length | 1070 mm |
| Operating Mode | Standing Operation |
| Forklift Tyre | Polyurethane Tyre |
| Mast Tilt Angle (Forward Tilt-Rear Tilt) | 6-12° |
| Model Number | CQD15J |
| Battery voltage (V/AH) | 48V / 420Ah |
| Type | Electric Reach Battery Forklift |
| Battery | 48V / 420Ah |
| Application | Warehouse Material Handling |
| Colour | Customised Colour |
| Operator type | Driver |
| Capacity | 1.5t |
| Lifting height | 10m |
| Wheels | PU Wheels |
| Certification | CE/ISO9001 |
| Rated Loading Capacity options | 1.5 Ton |
| Max. Lifting Height options | 10m |
| Truck Type options | Electric Reach Battery Forklift |
| Certificate | Number | Valid |
|---|---|---|
| 2006/42/EC | M.2026.206.C137529 | 30/03/2026 - 29/03/2031 |
| CE | M.2026.206.C134736 | 04/02/2026 - 03/02/2031 |
| CE | 3N251031.NEMS093 | 30/10/2025 - 29/10/2030 |
| EAC | — | 22/10/2023 - 22/10/2028 |
| CE | M.2023.206.C83216 | 22/03/2023 - 21/03/2028 |
| CE | M.2023.206.C83215 | 22/03/2023 - 21/03/2028 |
| CE | M.2023.206.C83222 | 22/03/2023 - 21/03/2028 |
| CE | M.2023.206.C83221 | 22/03/2023 - 21/03/2028 |
Certificates are supplied with your quote on request.
