Electric Stackers · Model CQD16J

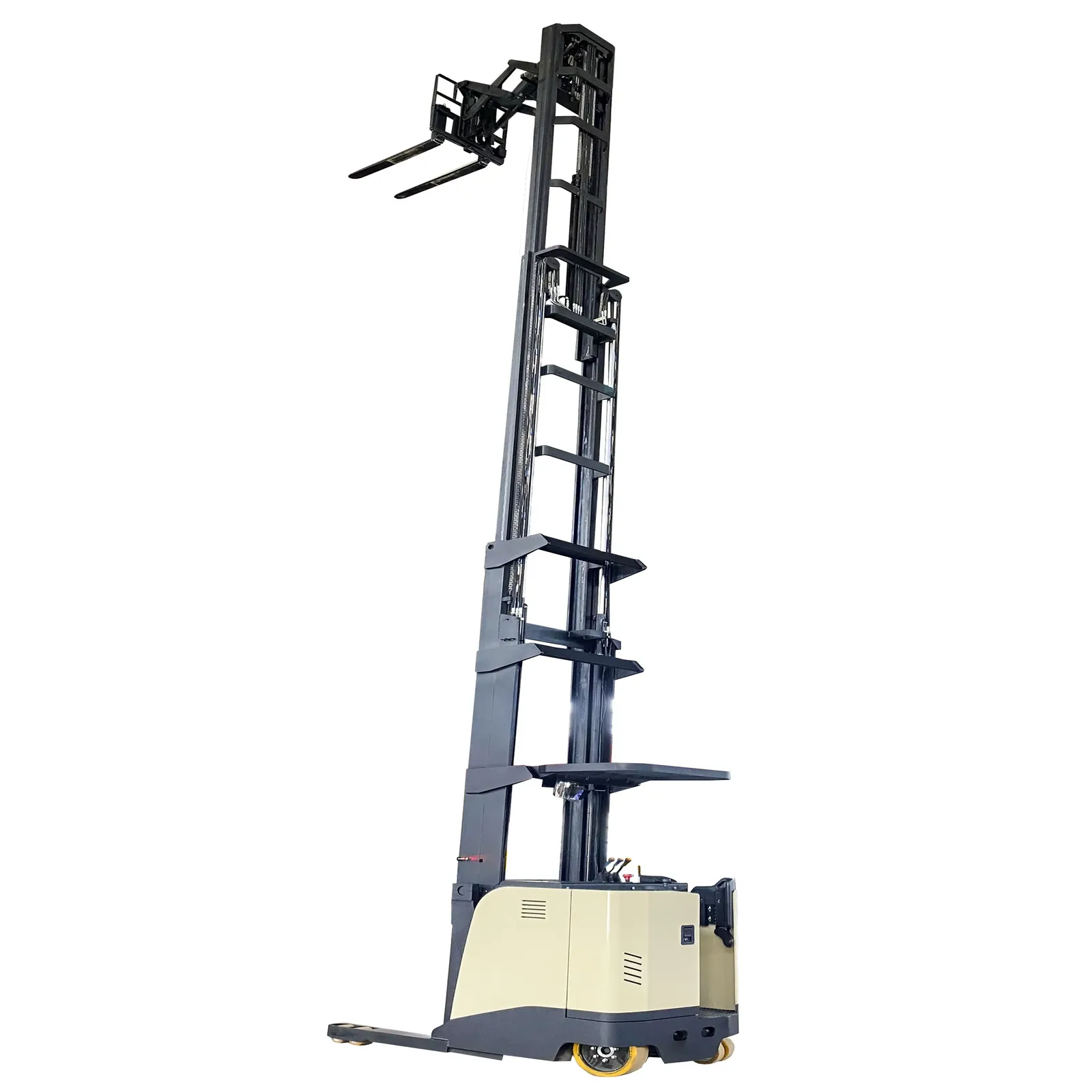

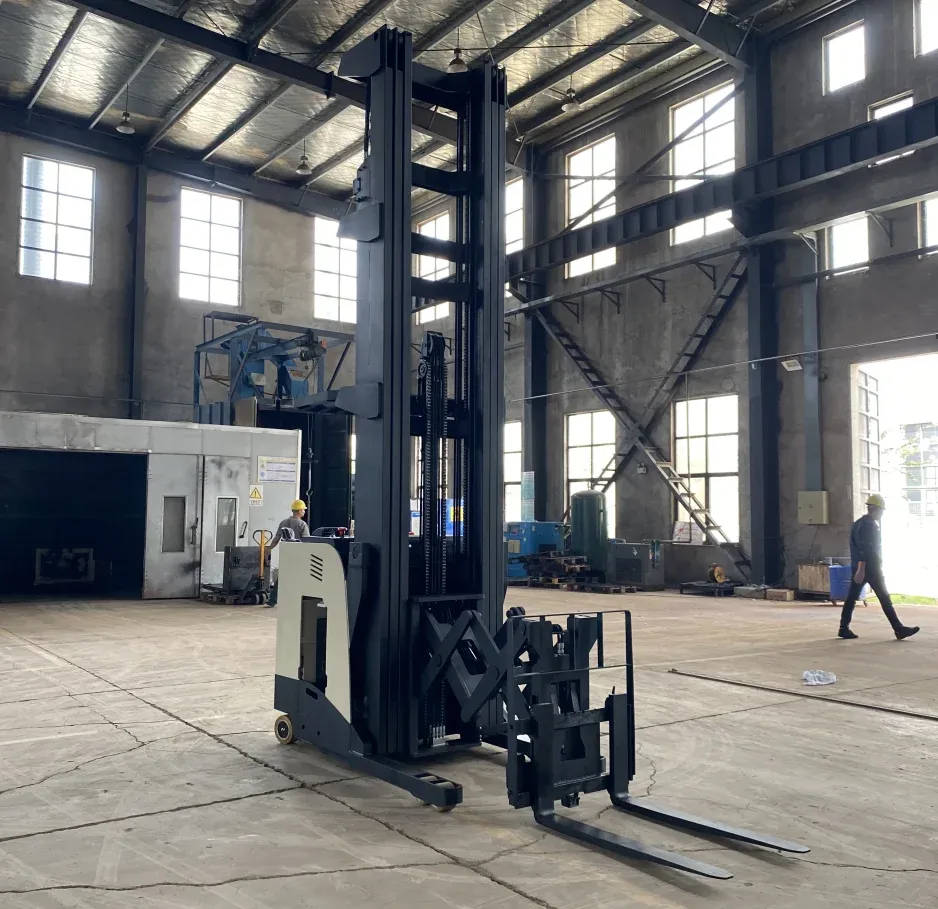

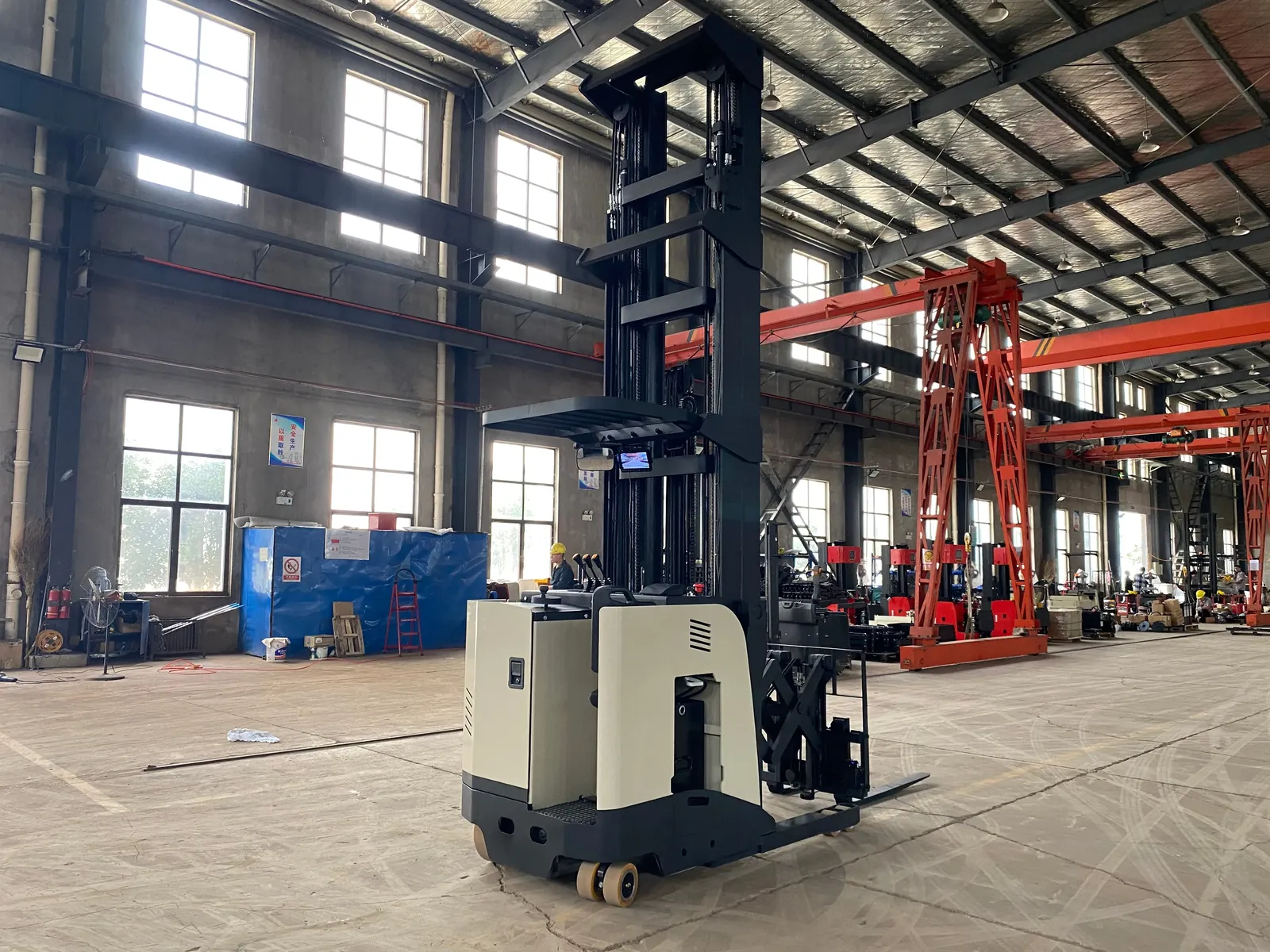

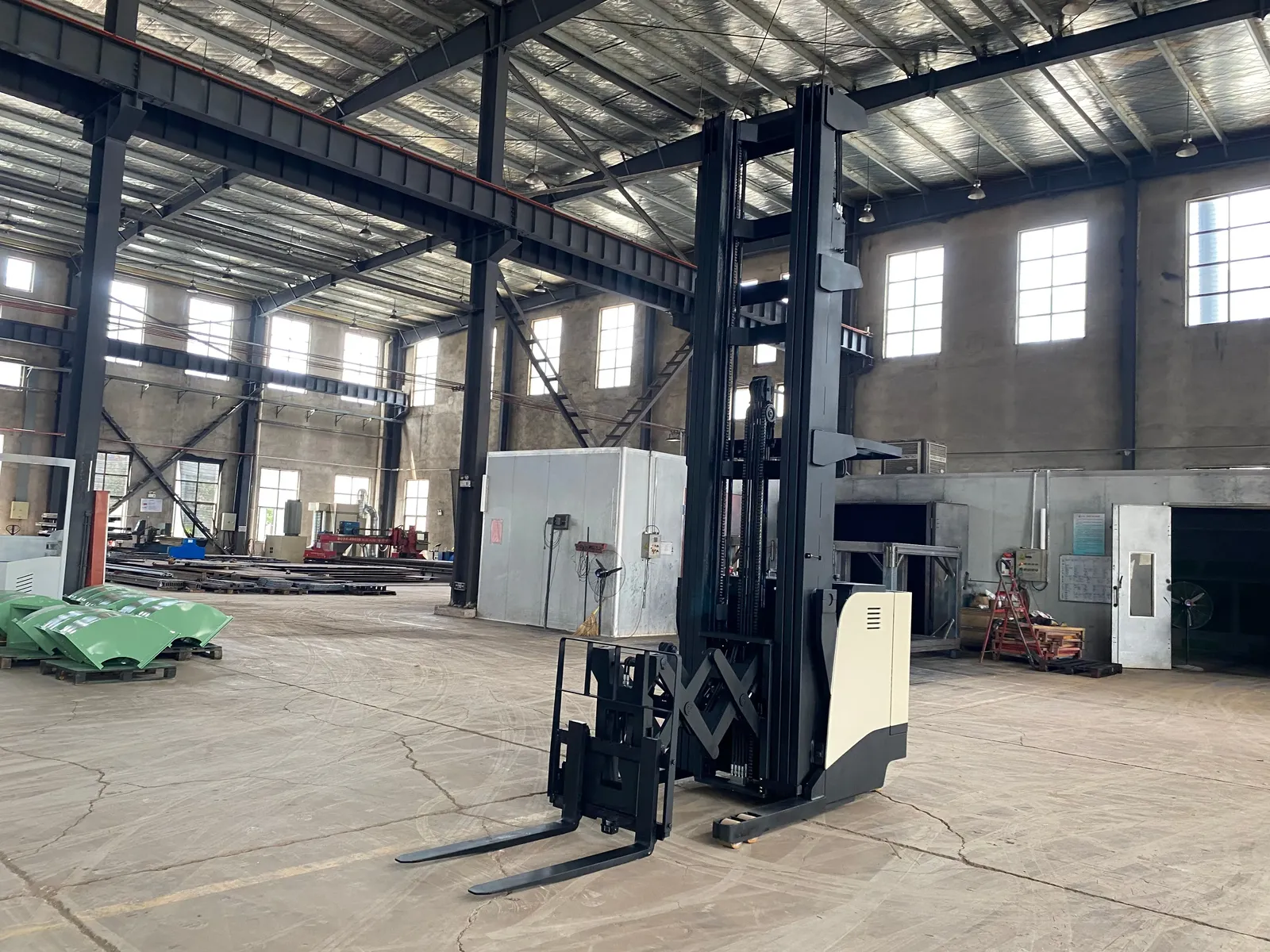

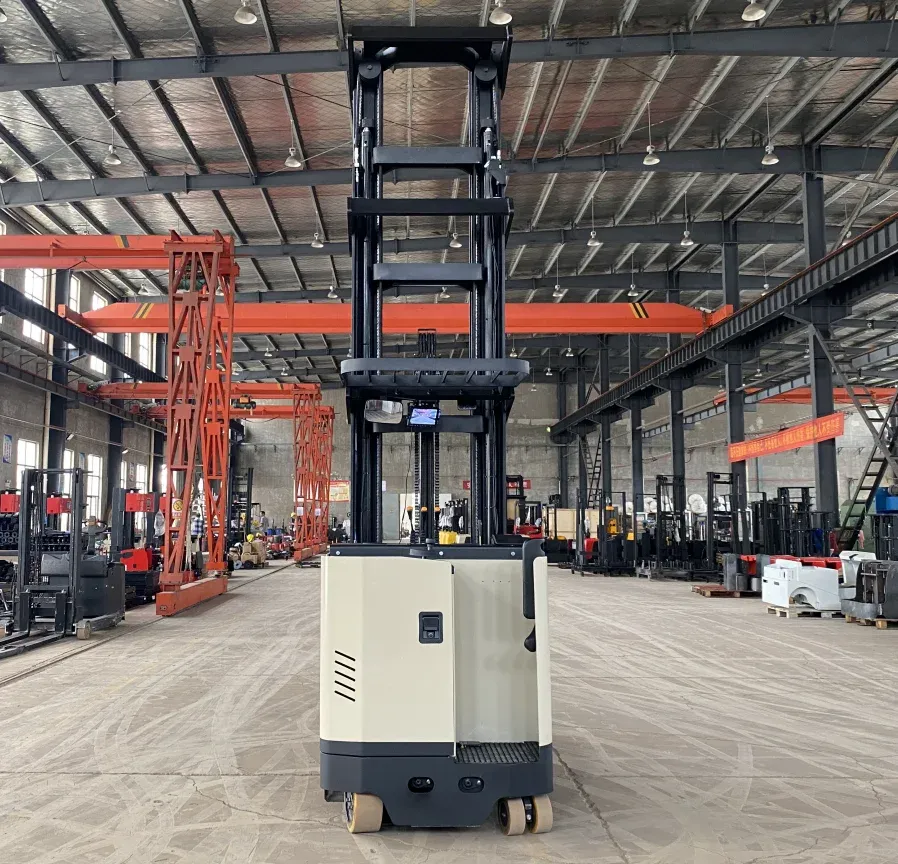

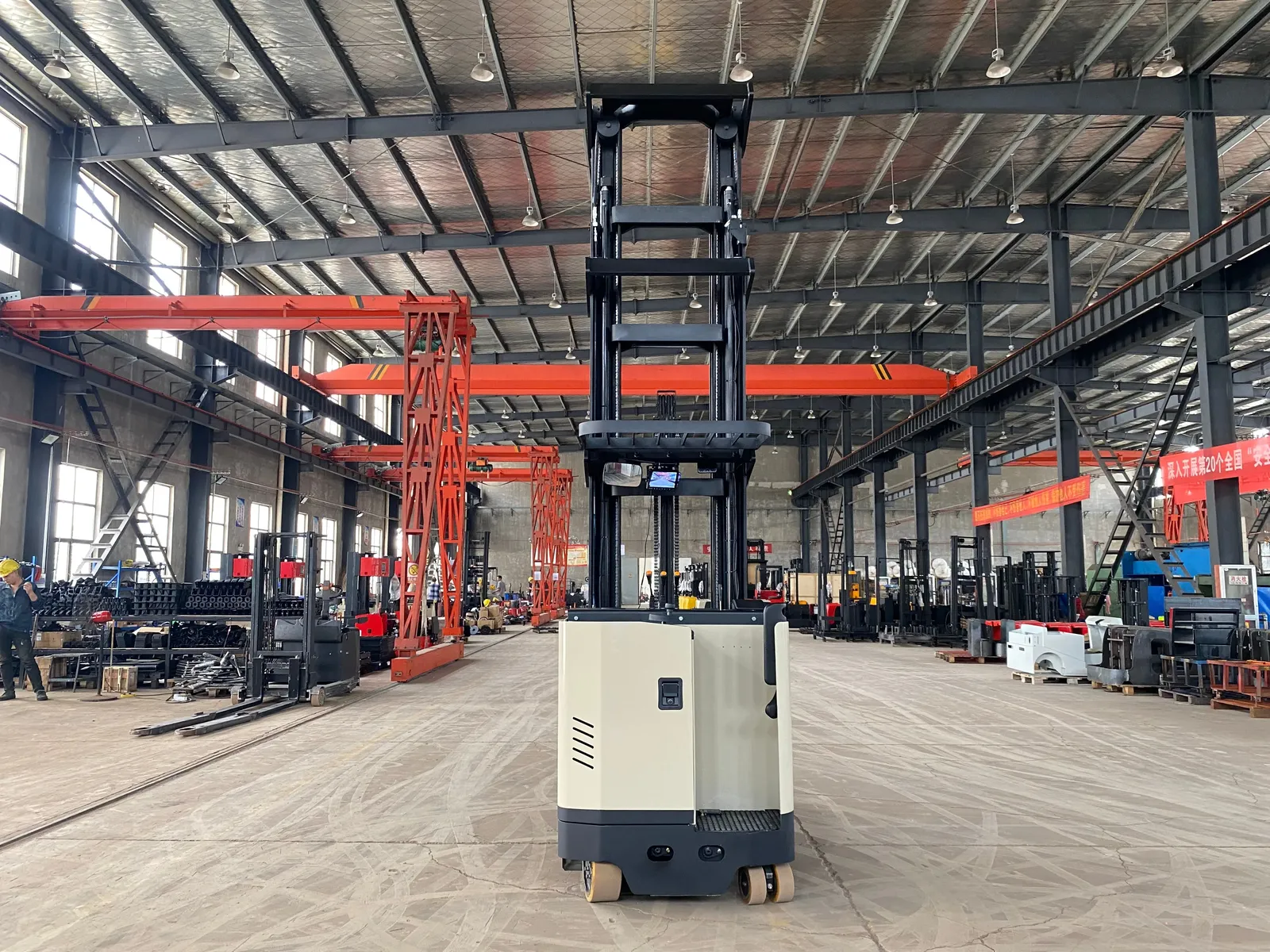

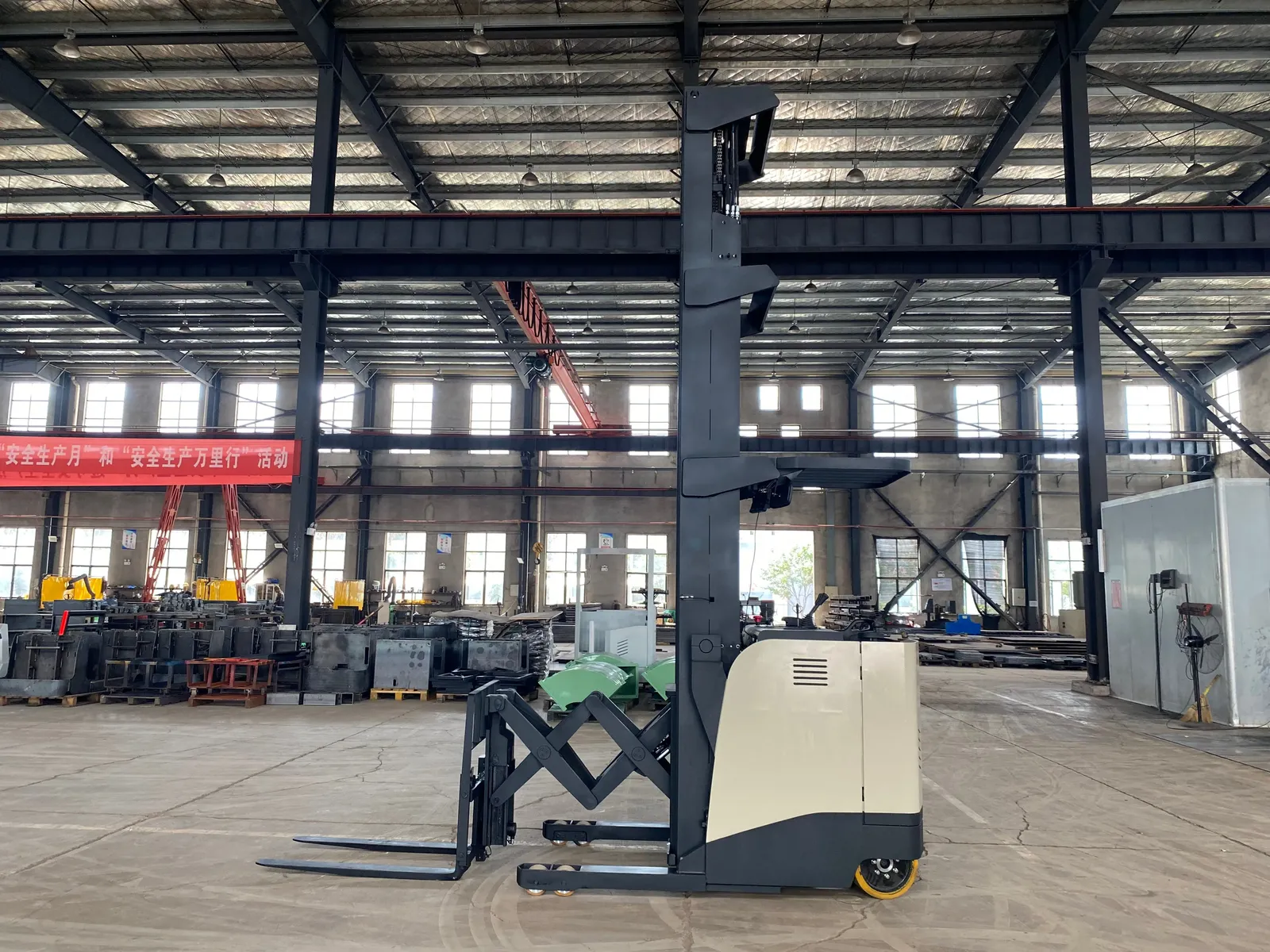

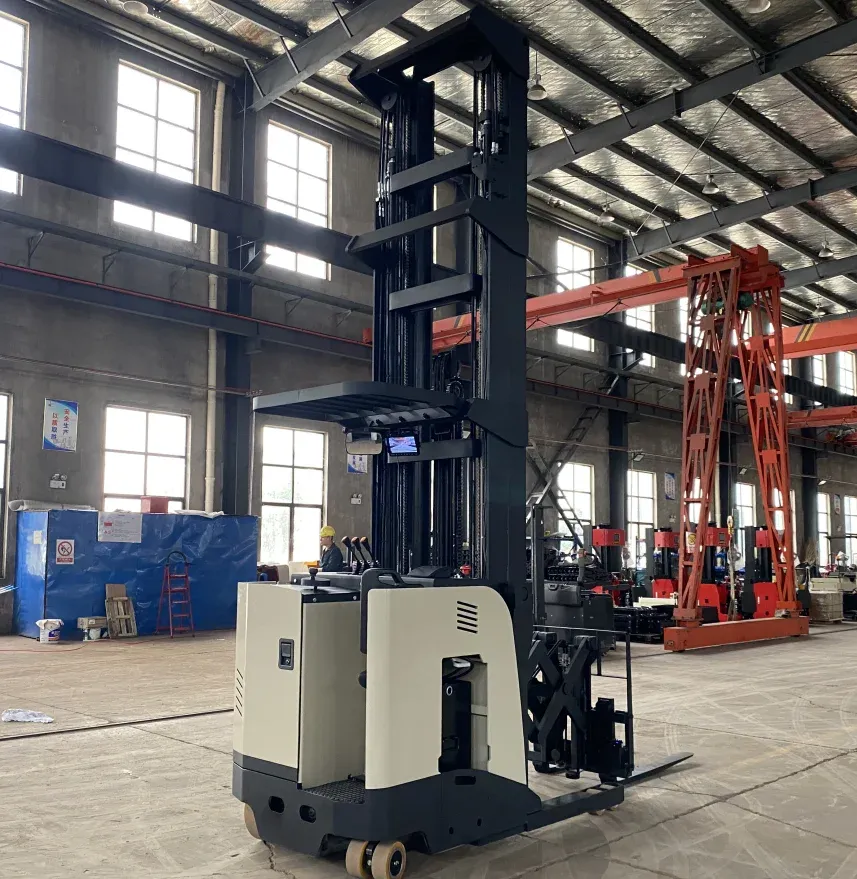

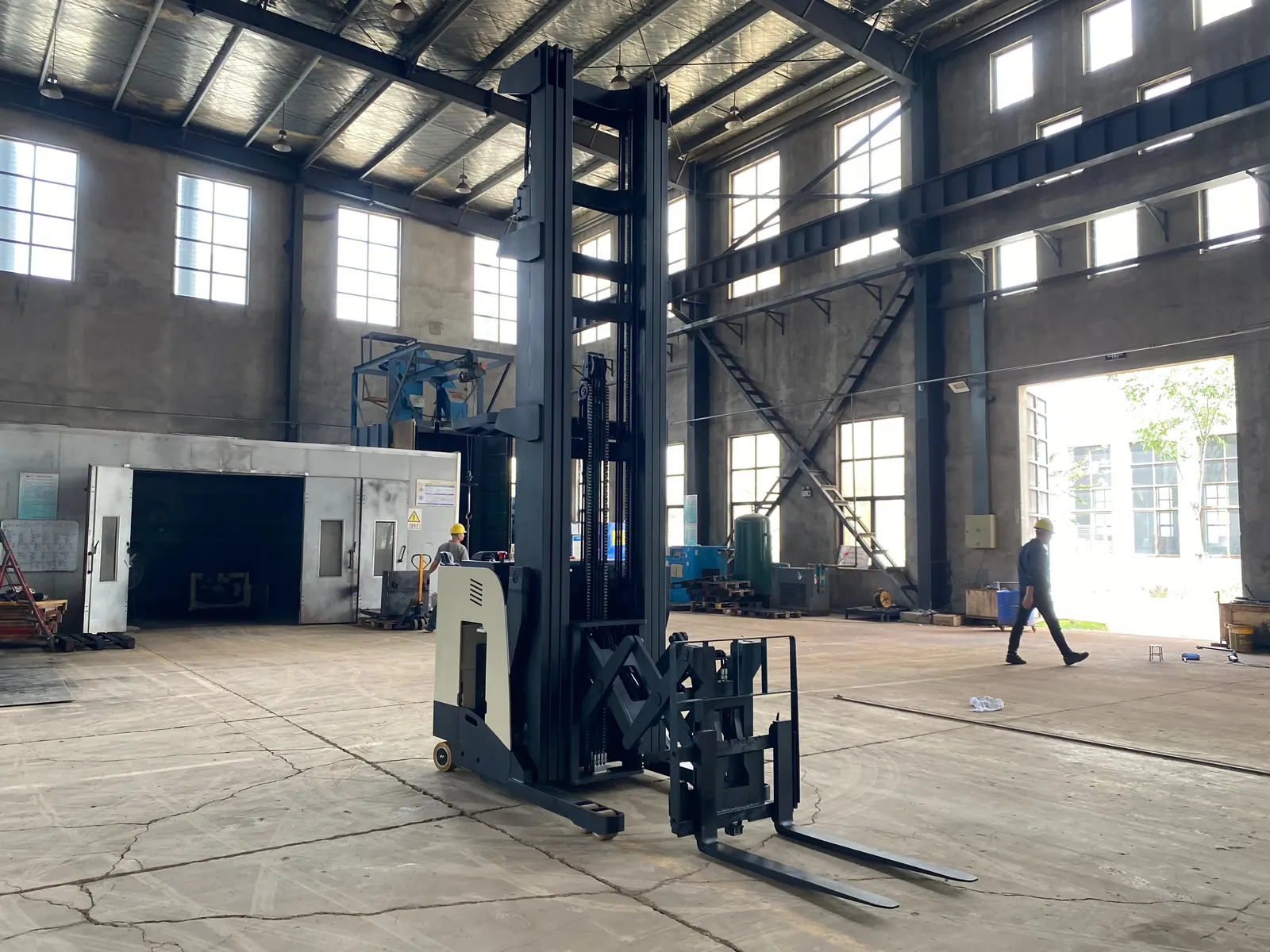

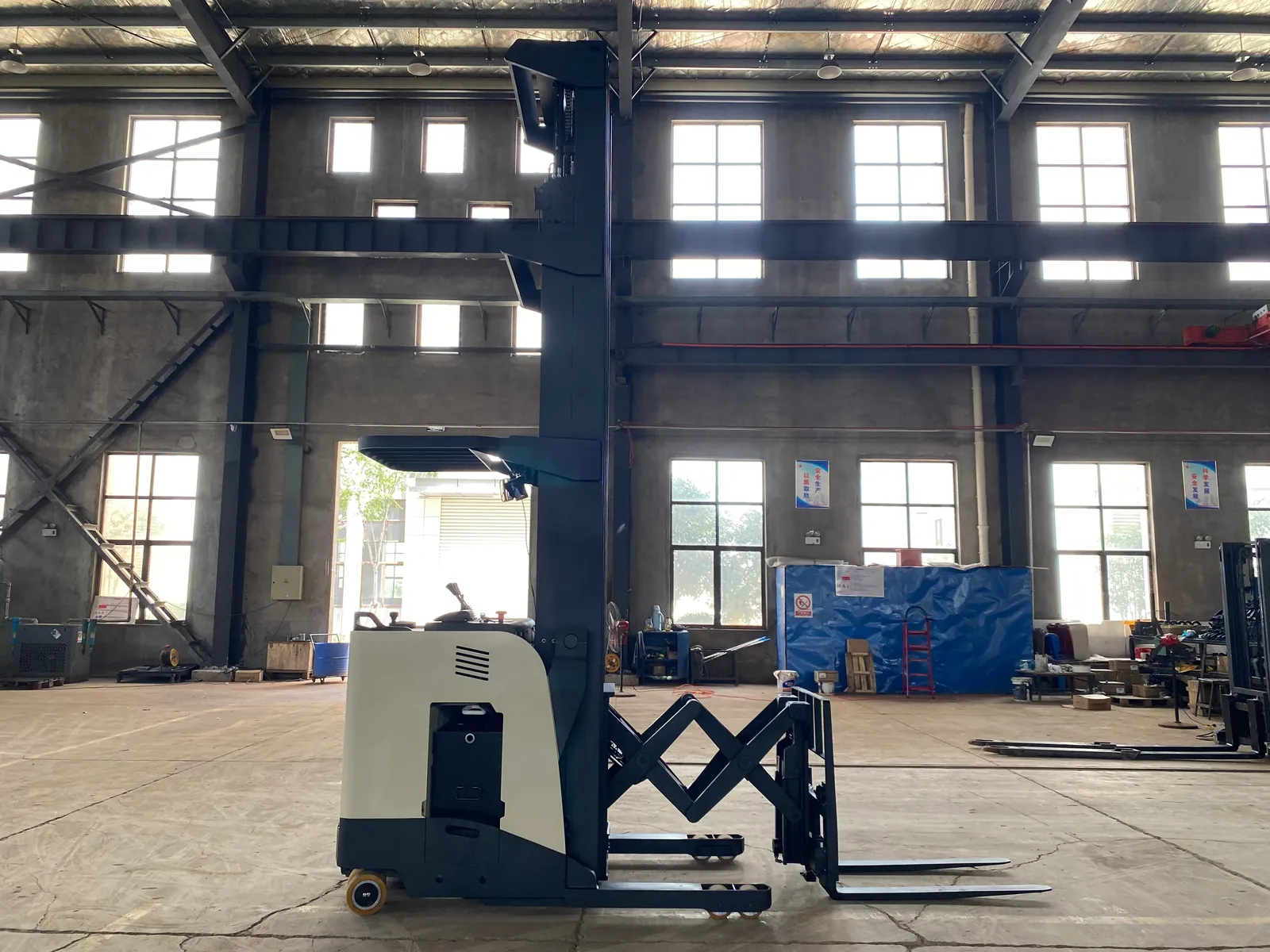

CQD16J Stand on High Mast Electric Reach Truck 1500 kg
1.6 tLead-acidForks 1150 mm
from £11,560per unit, ex VAT
| Quantity | Price per unit |
|---|---|
| 1+ units | £11,560 |
Minimum order 1 unit from the factory; any range minimum is confirmed on your quote. Prices in GBP per unit, ex VAT. We convert the factory list at a buffered exchange rate, so normal day-to-day currency movement does not change the price you see. Your written quote adds freight, duty and VAT and is valid for 30 days.
Rated Loading Capacity1.6T
Truck TypeStacker Forklift
Line total
No online payment. The basket becomes an order request and we reply with a written GBP quote, deposit 30% on order, lead time 8 to 12 weeks.
Or email [email protected]Product Highlights

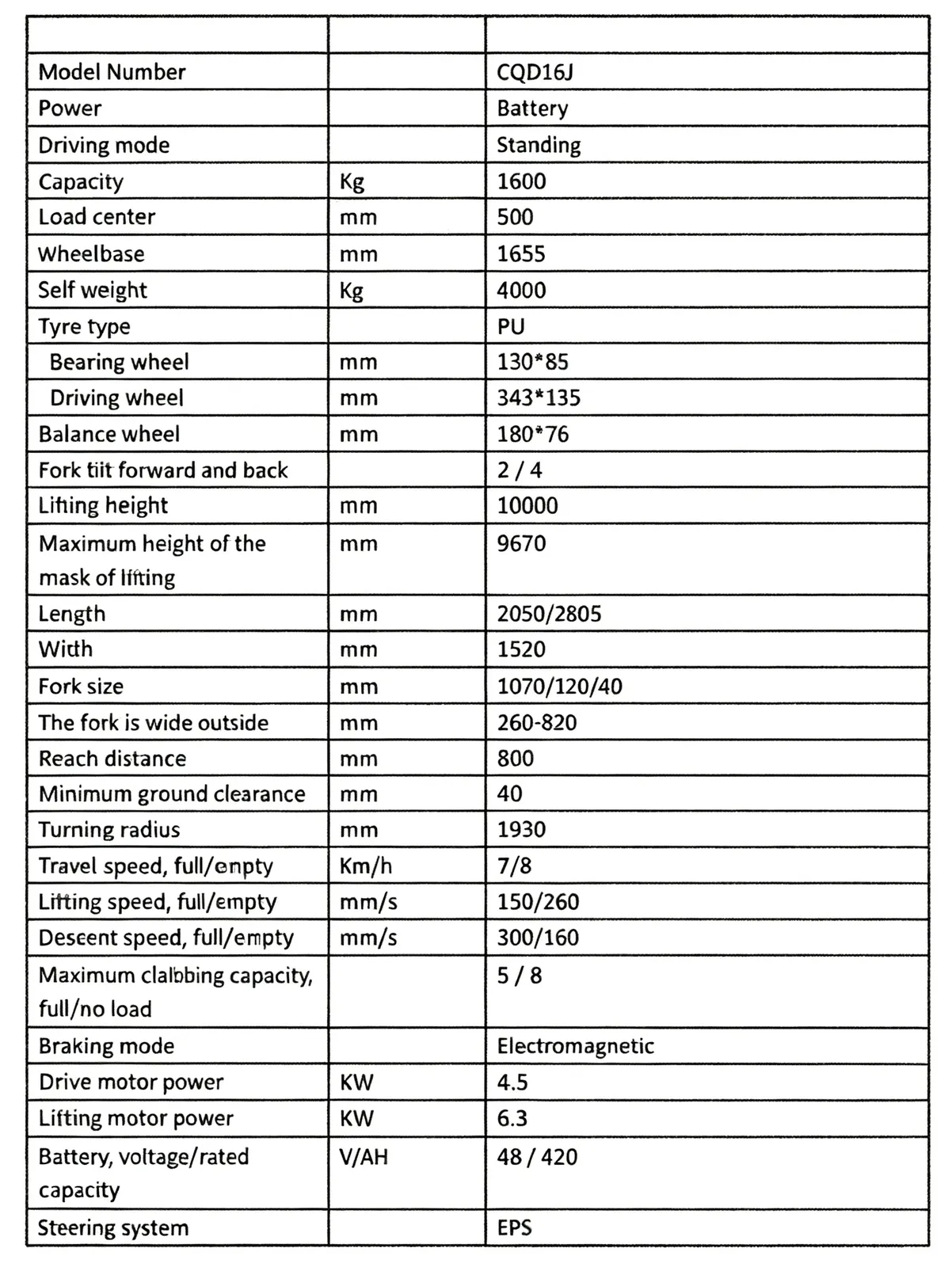

1.6 ton rated load, max lifting height up to 10000mm with 800mm forward reach distance, triple-stage mast design adapts to ultra-high rack storage, greatly improving warehouse vertical space utilisation.
Stand-on driving mode with EPS electric power steering system, 1930mm small turning radius, flexible operation in medium narrow aisles; multi-type PU wheels including drive, bearing and balance wheels ensure stable running on concrete ground.
Equipped with 4.5kW drive motor and 6.3kW lifting motor; full load travel speed reaches 7km/h, empty load up to 8km/h, stable lifting & descending speed effectively boosts daily pallet stacking efficiency.
48V 420Ah large traction battery supports long continuous working hours; electromagnetic braking system provides stable parking and travel braking, effectively avoiding sliding risks during high-position operation.
Fork forward/backward tilt angle 2°/4°, fork outer width adjustable from 260mm to 820mm to fit different pallet sizes; maximum climbing capacity 5% full load /8% empty load, ideal for logistics distribution centres, cold storage and high-density rack warehouses.
| Condition | New |
|---|---|
| Fork Specifications( L*W*H) | 1070*120*40 |
| Forklift Battery Type | Lead–Acid Battery |
| Side Shifter | Electric Side Shifter, Hydraulic Side Shifter |
| Drive Type | Fwd |
| Terrain Adaptability | Indoor Flooring, Offroad, Outdoor Pavement, Rough Terrain, Other |
| Load centre distance | 500 mm |
| Mast Type | Single-Stage Mast, Three-Stage Mas, Two-Stage Mast |
| Fork Length | 1150 mm |
| Operating Mode | Standing Operation |
| Forklift Tyre | Polyurethane Tyre |
| Forklift Wheelbase | 1655 mm |
| Mast Tilt Angle (Forward Tilt-Rear Tilt) | 6-12° |
| Model Number | CQD16J |
| Battery voltage (V/AH) | 48V/420AH |
| Type | Stacker Forklift |
| Mast | 2 Stage /3 Stage Optional |
| Model | CQD16J |
| Capacity | 1.6T |
| Battery | Lead-acid Battery |
| Certification | CE/ISO9001 |
| Colour | Accept Customised |
| Wheels | PU Wheels |
| Rated Loading Capacity options | 1.6T |
| Truck Type options | Stacker Forklift |
| Max. Lifting Height options | 2500 mm, 3000mm, 3500 mm, 4000 mm, 4500 mm, 5000 mm, 6000mm, 7000mm, 8000 mm, 11500 mm |
| Certificate | Number | Valid |
|---|---|---|
| 2006/42/EC | M.2026.206.C137529 | 30/03/2026 - 29/03/2031 |
| CE | M.2026.206.C134736 | 04/02/2026 - 03/02/2031 |
| CE | 3N251031.NEMS093 | 30/10/2025 - 29/10/2030 |
| EAC | — | 22/10/2023 - 22/10/2028 |
| CE | M.2023.206.C83216 | 22/03/2023 - 21/03/2028 |
| CE | M.2023.206.C83215 | 22/03/2023 - 21/03/2028 |
| CE | M.2023.206.C83222 | 22/03/2023 - 21/03/2028 |
| CE | M.2023.206.C83221 | 22/03/2023 - 21/03/2028 |
Certificates are supplied with your quote on request.
