Electric Stackers · Ref LPT-09246

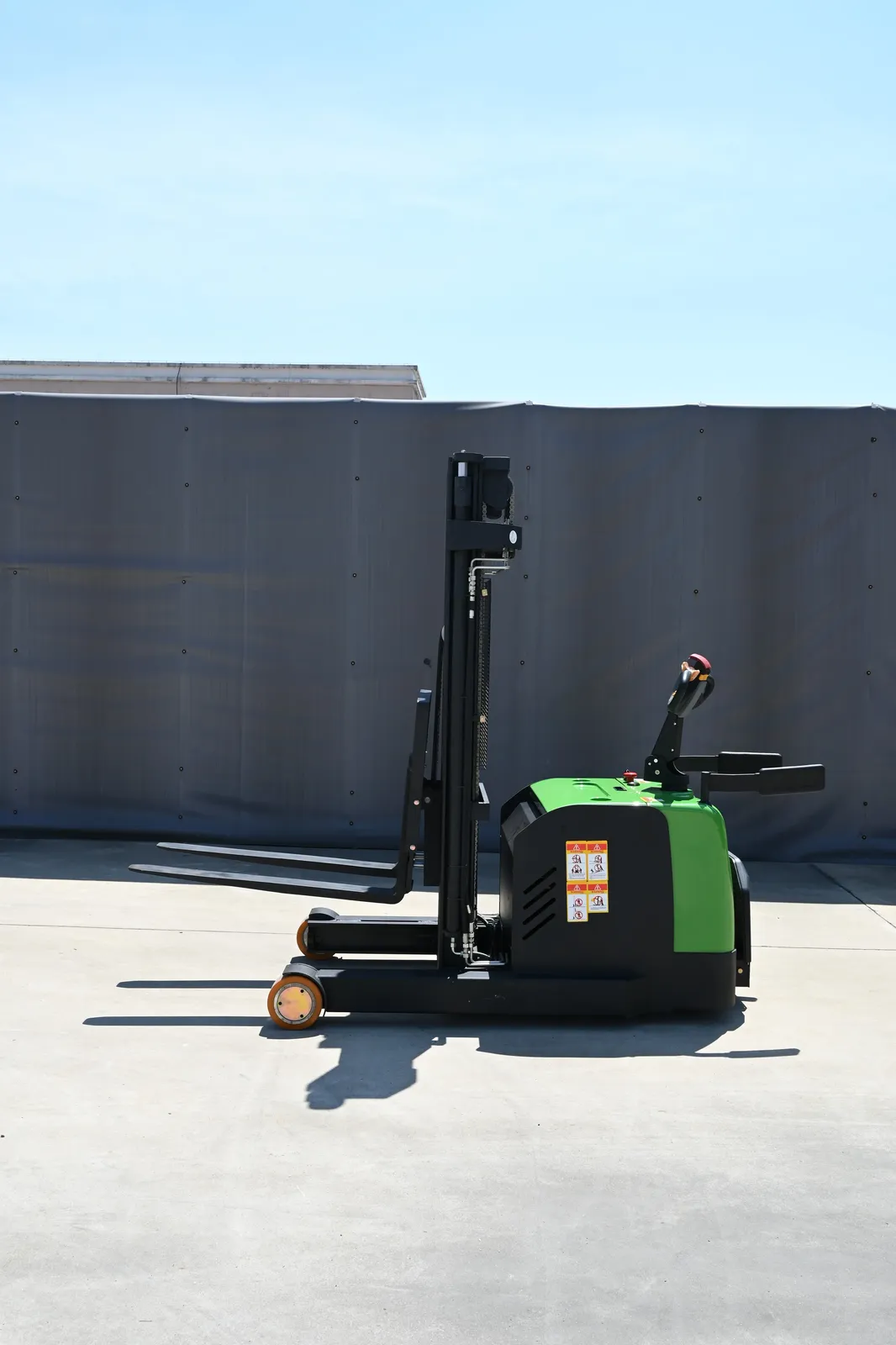

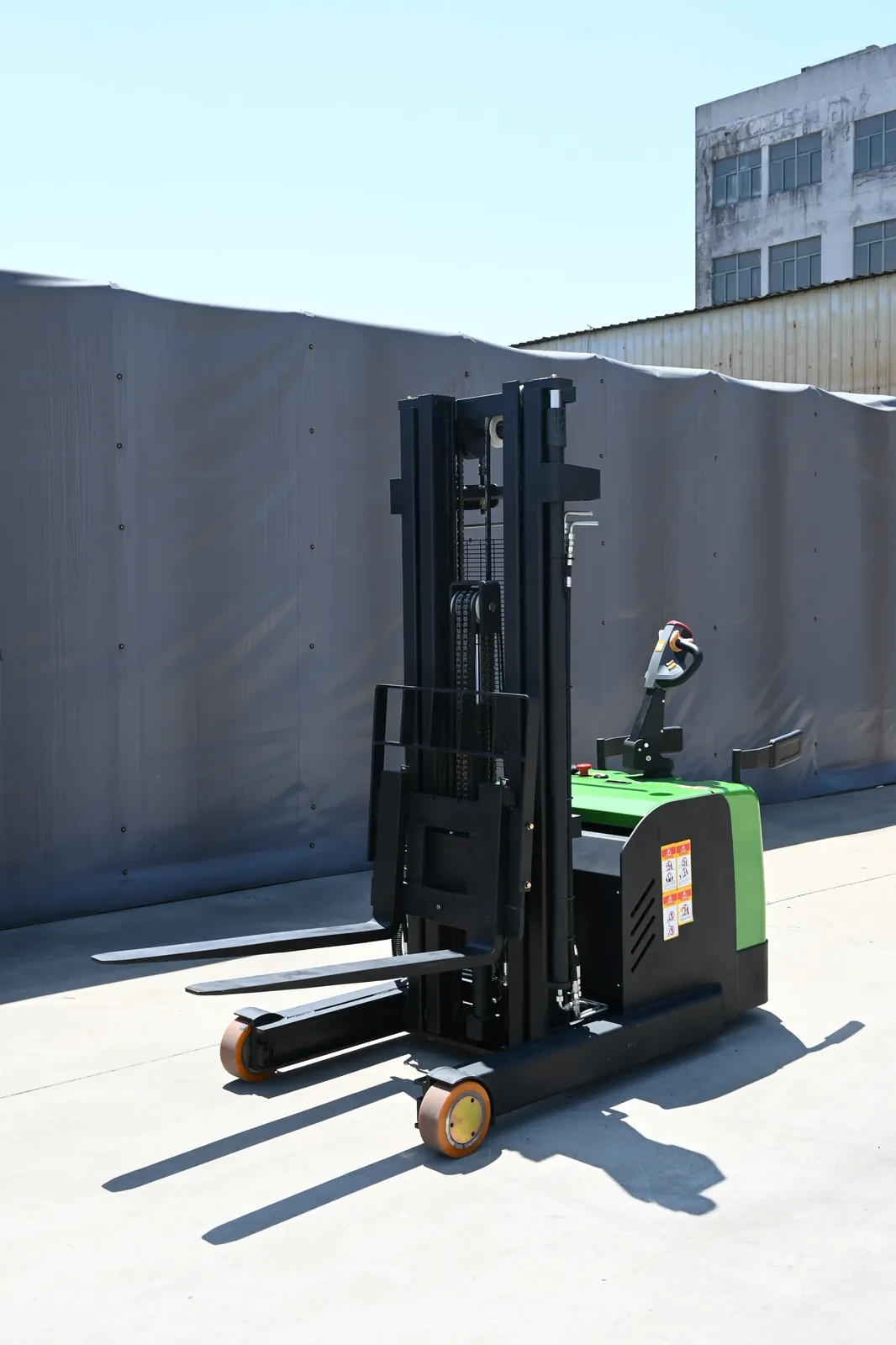

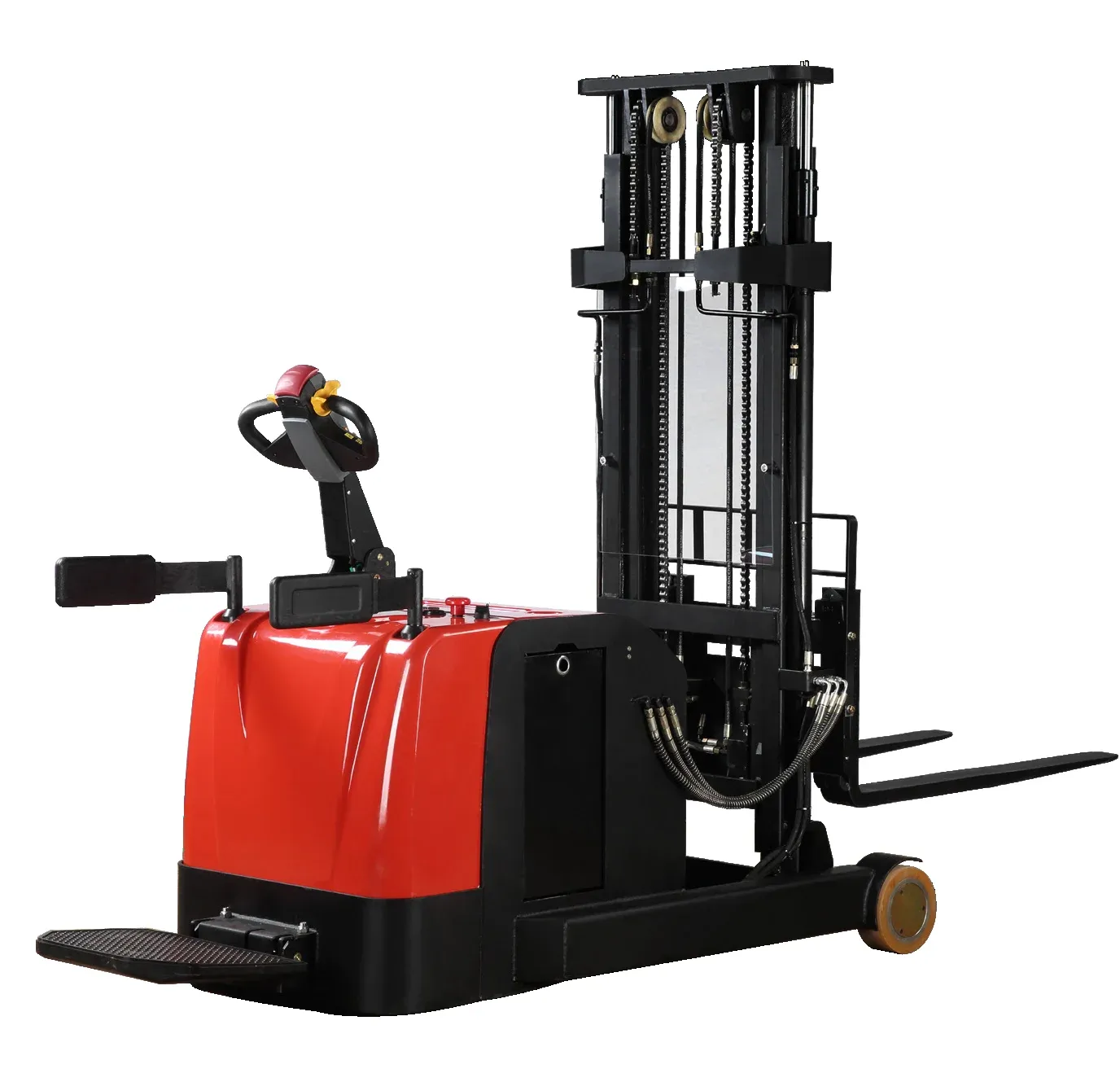

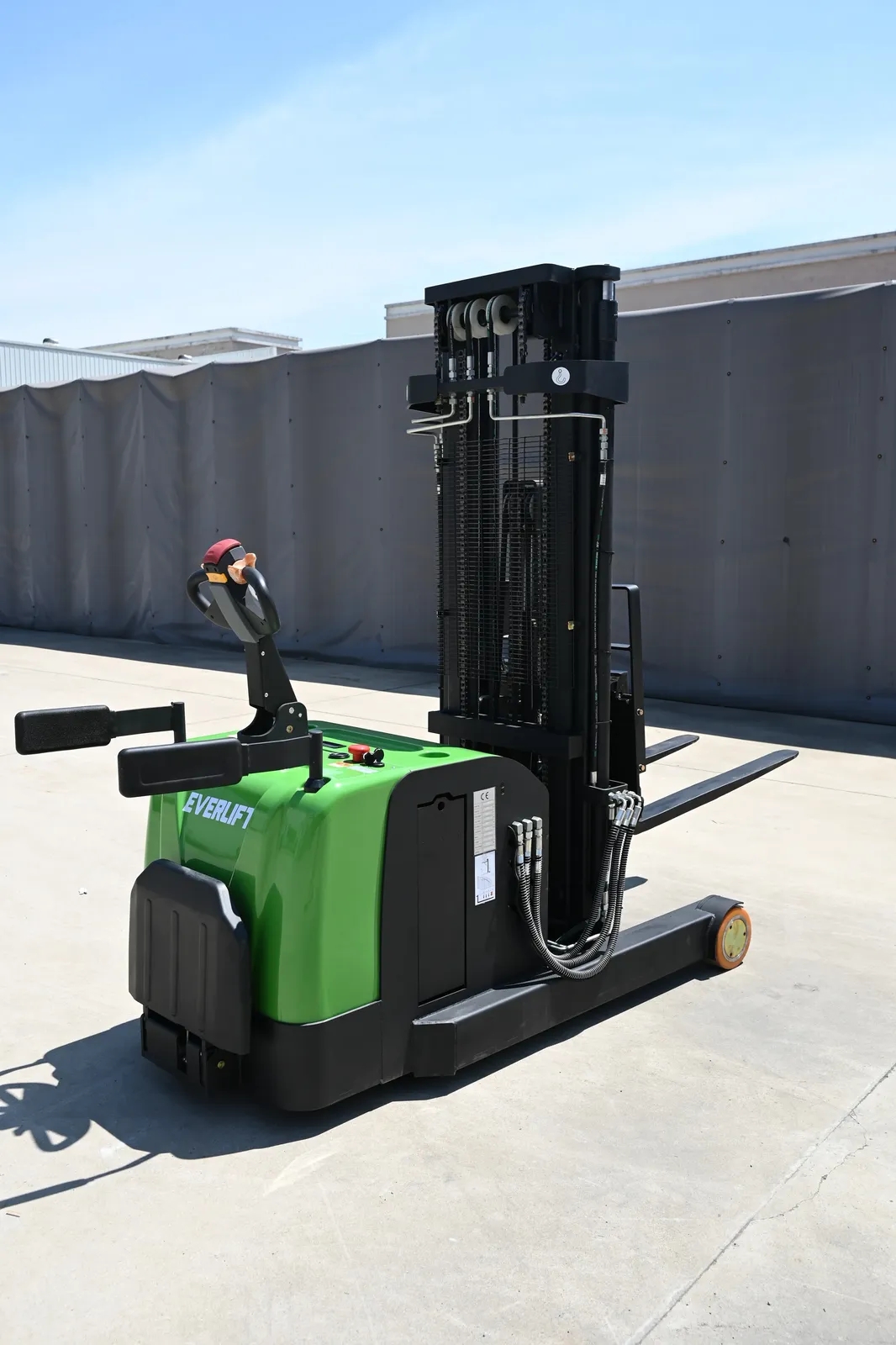

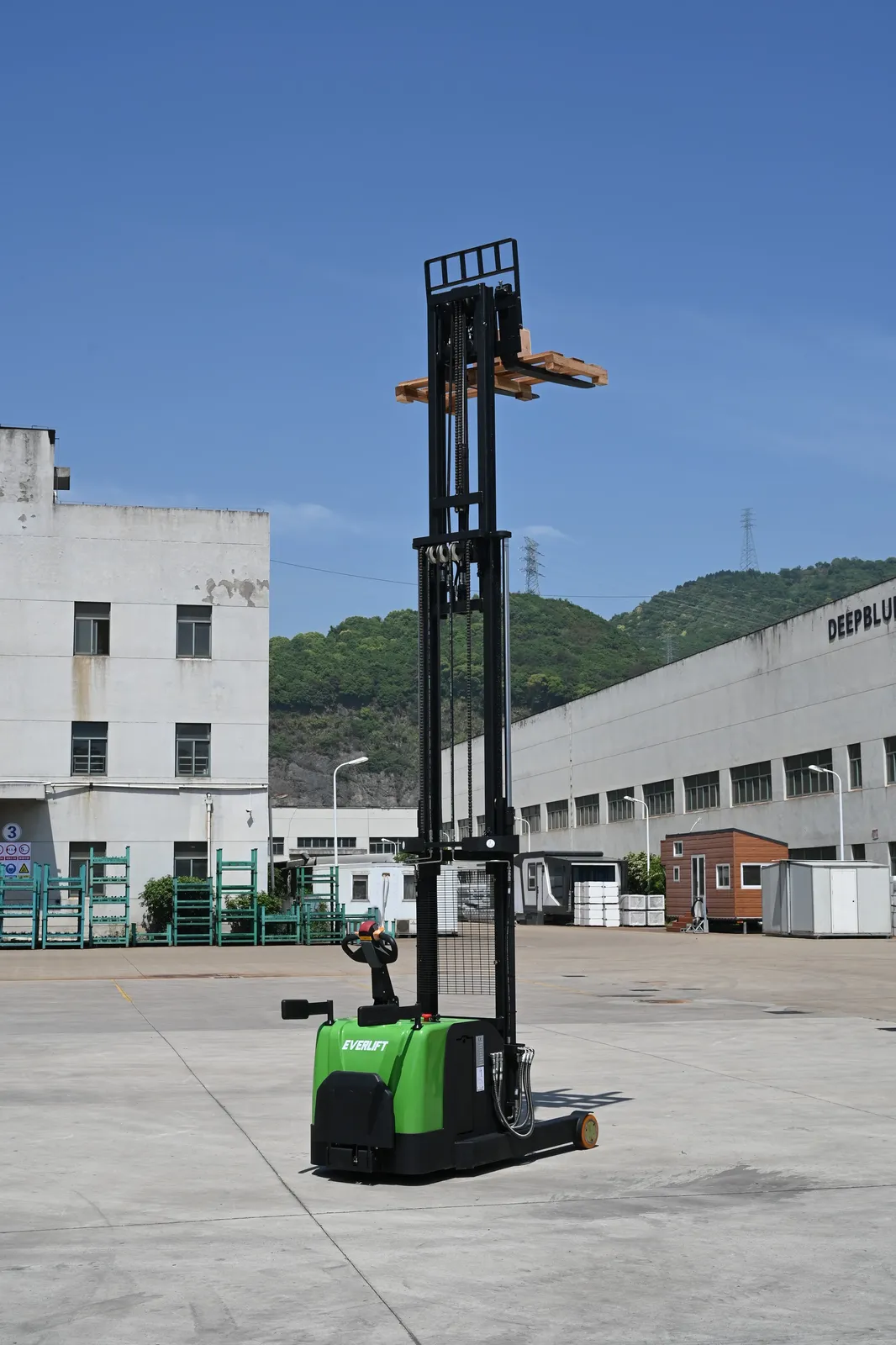

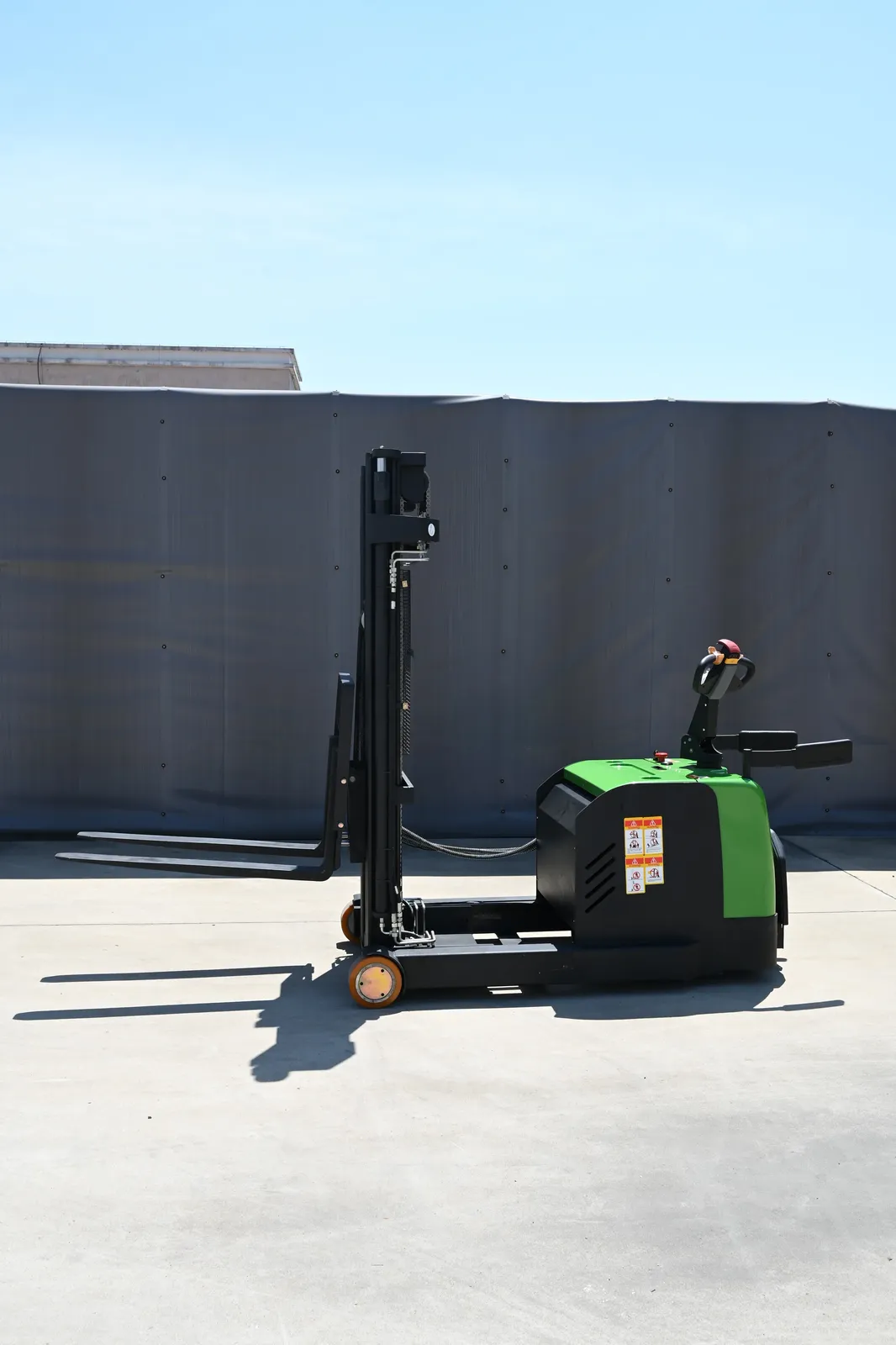

Electric Pallet Stacker 1200 to 2000 kg
1.2 to 2 tLead-acidForks 1070 to 1220 mm
from £2,860per unit, ex VAT
| Quantity | Price per unit |
|---|---|
| 1+ units | £2,860 |
Minimum order 1 unit from the factory; any range minimum is confirmed on your quote. Prices in GBP per unit, ex VAT. We convert the factory list at a buffered exchange rate, so normal day-to-day currency movement does not change the price you see. Your written quote adds freight, duty and VAT and is valid for 30 days.
Truck TypeReach Truck
Line total
No online payment. The basket becomes an order request and we reply with a written GBP quote, deposit 30% on order, lead time 8 to 12 weeks.
Or email [email protected]Product Highlights
- Electric Power Operates silently and efficiently for indoor use.
- Heavy Duty Capacity Supports up to 2000 kg, ideal for heavy loads.
- Wide Fork Width 125 mm fork width ensures stable lifting.
- High Lifting Height Reaches up to 6 metres, saving space in high-rise storage.
- CE/ISO Certified Ensures safety and reliability for professional operations.

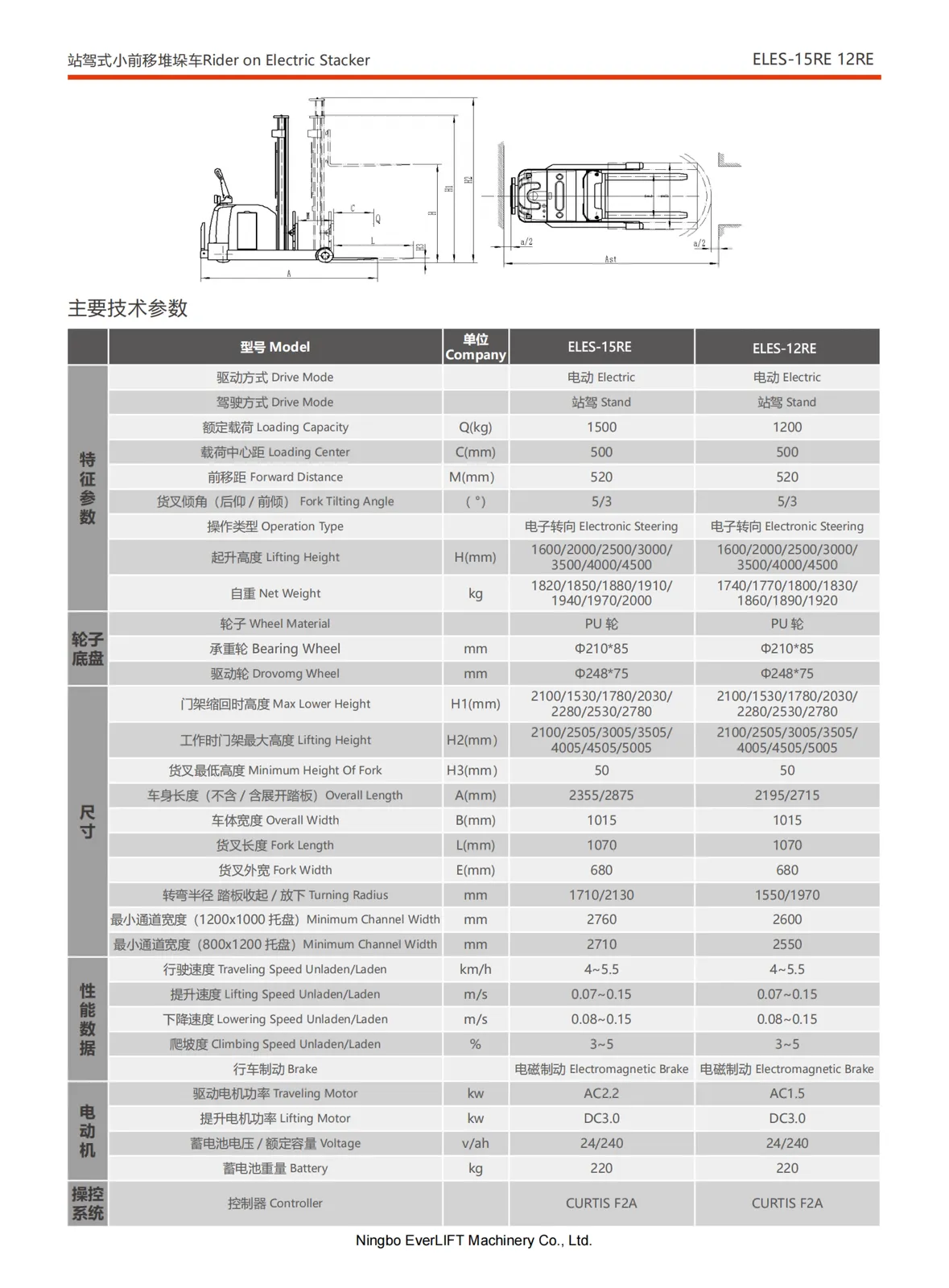

Specifications
ELES-15RE/ELES-20RE
1500/2000
1800/2100/2050/2220
| Condition | New |
|---|---|
| Fork Specifications( L*W*H) | 1220*125*50, 1350*160*100 |
| Forklift Battery Type | Lead–Acid Battery |
| Side Shifter | Electric Side Shifter, Hydraulic Side Shifter |
| Drive Type | electric |
| Terrain Adaptability | Indoor Flooring, Offroad, Outdoor Pavement, Rough Terrain, Other |
| Load centre distance | 500 mm, 600 mm |
| Mast Type | Single-Stage Mast, Three-Stage Mas, Two-Stage Mast |
| Forklift Turning radius | 1710MM |
| Fork Width | 110 mm, 125 mm, 100 mm, 150 mm |
| Fork Length | 1070 mm, 1200mm, 1220 mm |

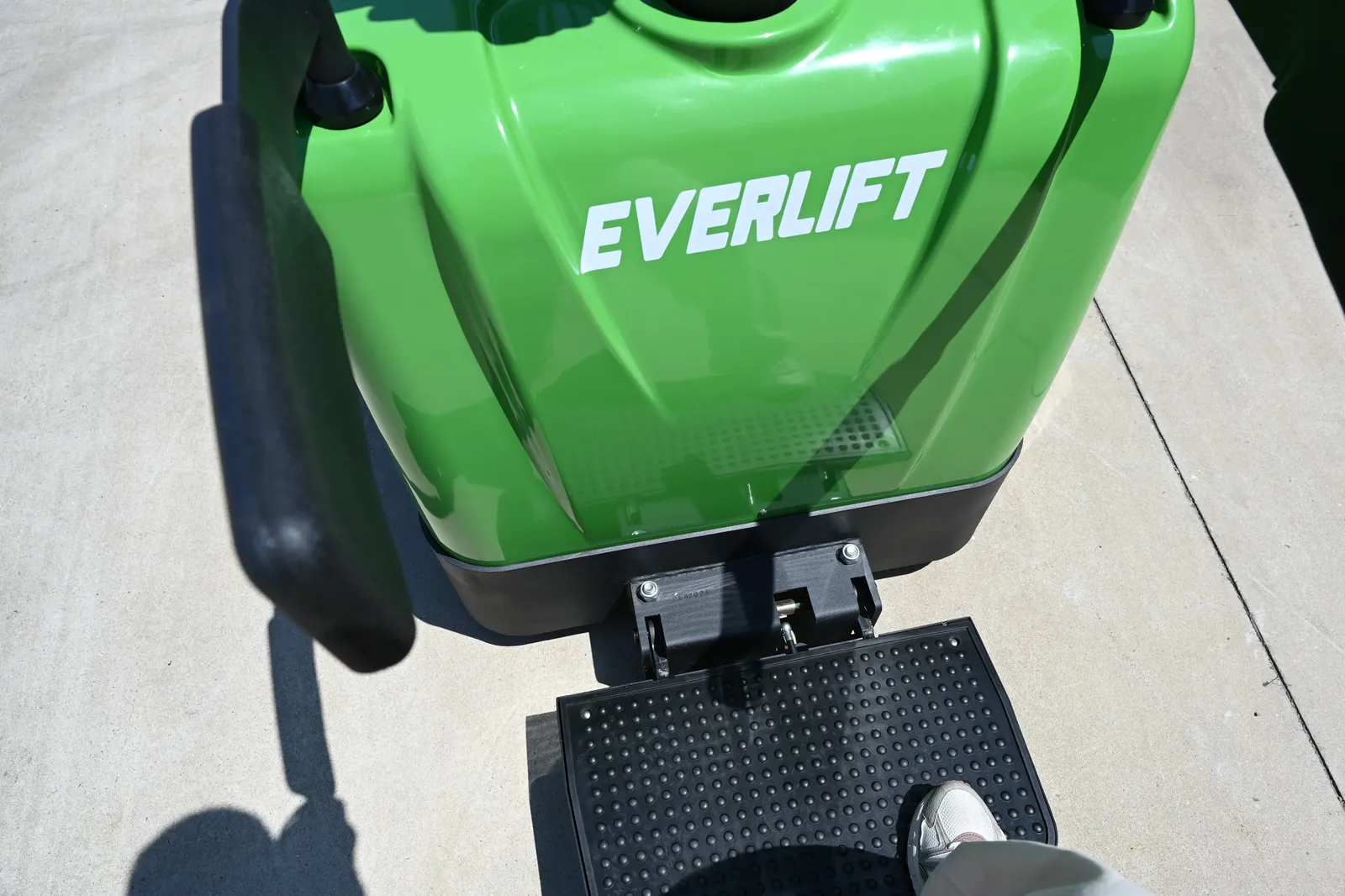

| Operating Mode | Standing Operation |
| Forklift Tyre | Polyurethane Tyre, Pneumatic Tyre, Solid Tyre |
| Travel speed ( laden) | 5 km/h |
| Grade ability laden) | 0.05 |
| Travel speed ( unladen) | 5 km/h |
| Grade abilityunladen) | 0.05 |
| Forklift Wheelbase | 1335 mm |
| Mast Tilt Angle (Forward Tilt-Rear Tilt) | 6-12° |
| Aisle width | 3M |
| Model Number | ELES-15/20RE |

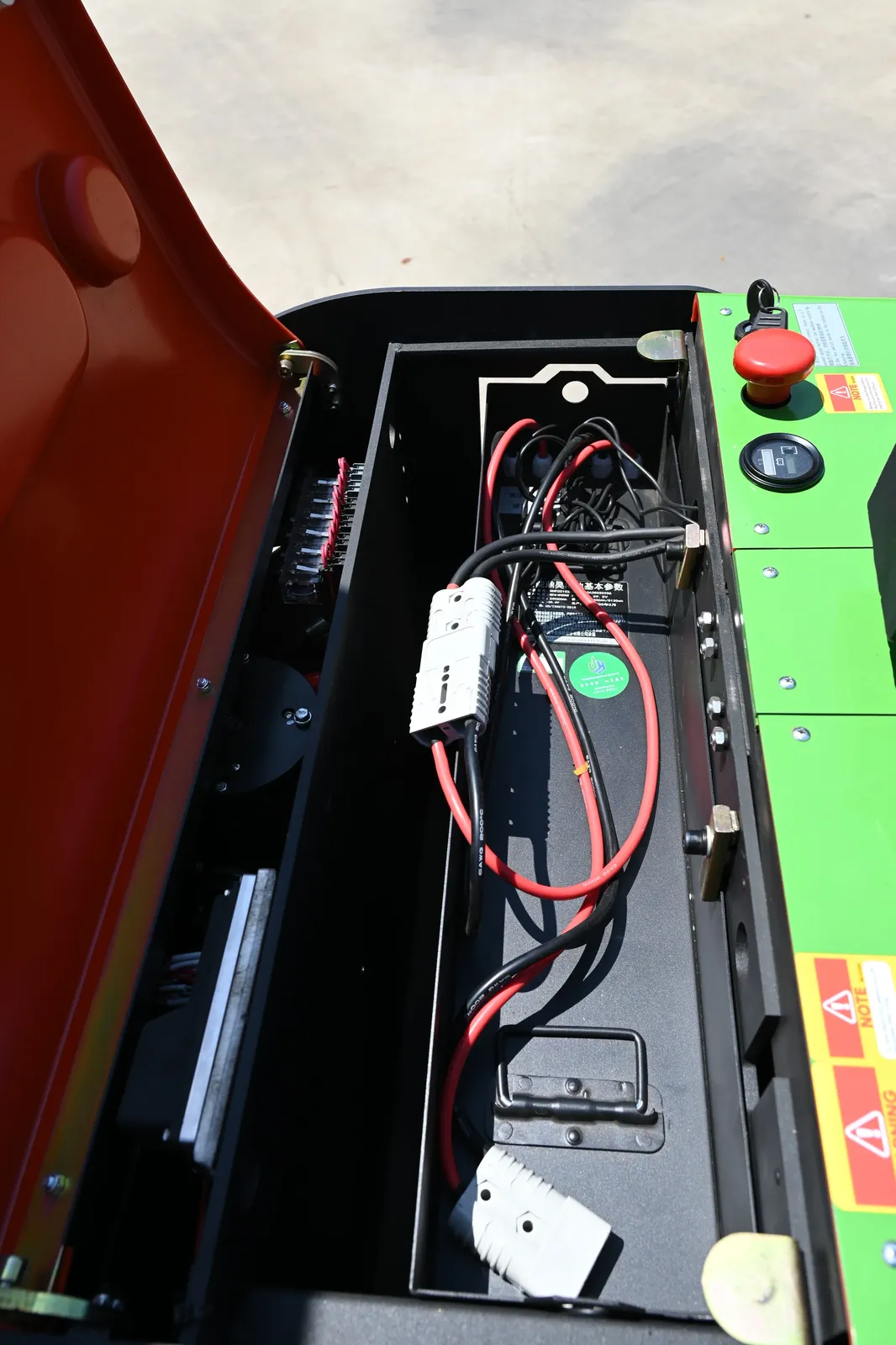

| Battery voltage (V/AH) | 24V/280AH |
| Model | ELES-15/20RE |
| Capacity | 1200/1500/2000KG |

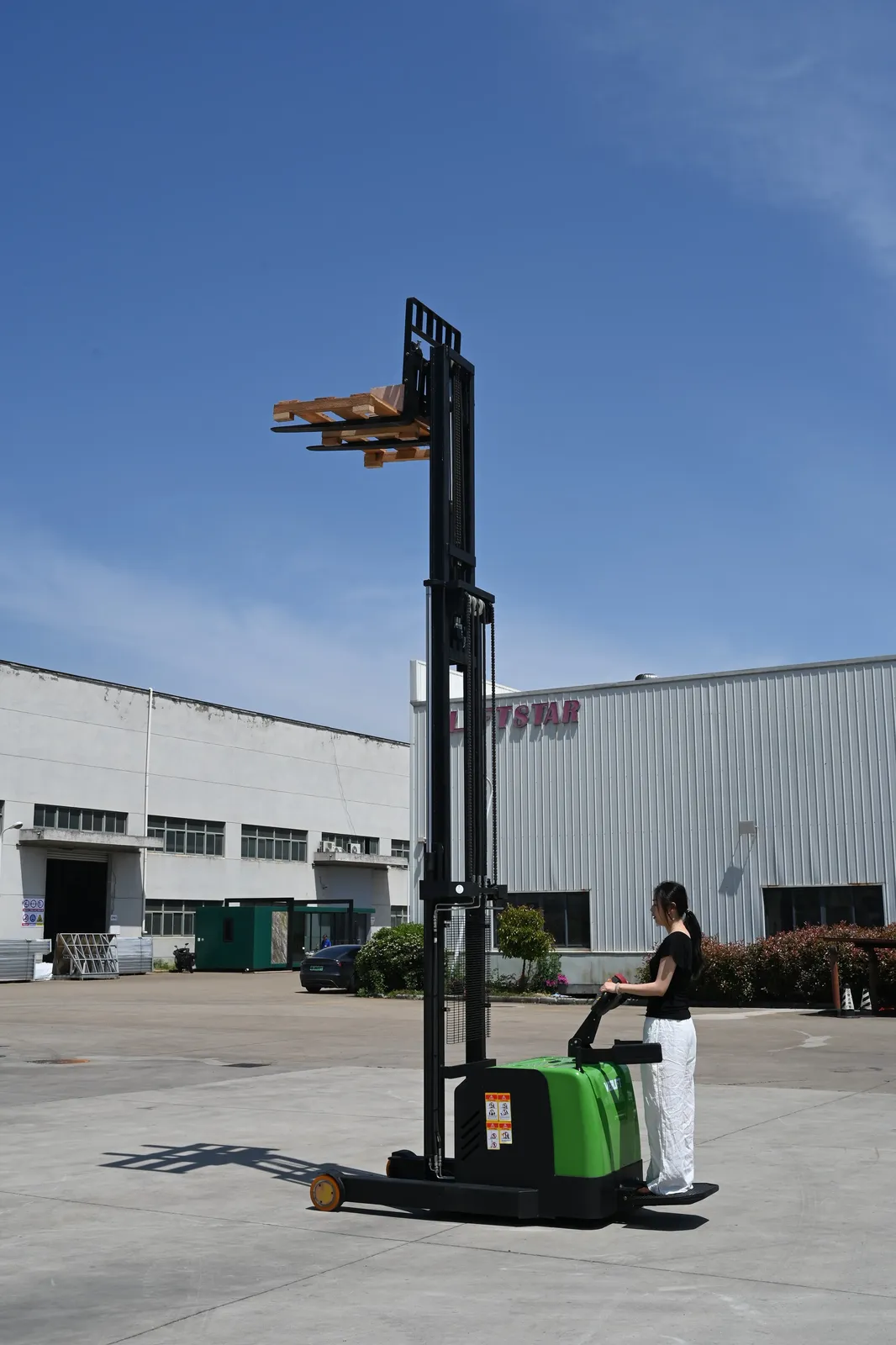

| Lifting height | 1.6-5.5M |
| Battery | 24v/280Ah |
| Wheels | PU Wheels |
| Certification | CE/ISO9001 |
| Colour | Customer Demanded |
| Rated Loading Capacity options | 1.2 Ton, 1.5 Ton, 2 Ton |
| Truck Type options | Reach Truck |
| Max. Lifting Height options | 1 600 mm, 2 000 mm, 3000mm, 3500 mm, 4000 mm, 4500 mm, 5000 mm, 5500 mm |
| Feature | ||
|---|---|---|

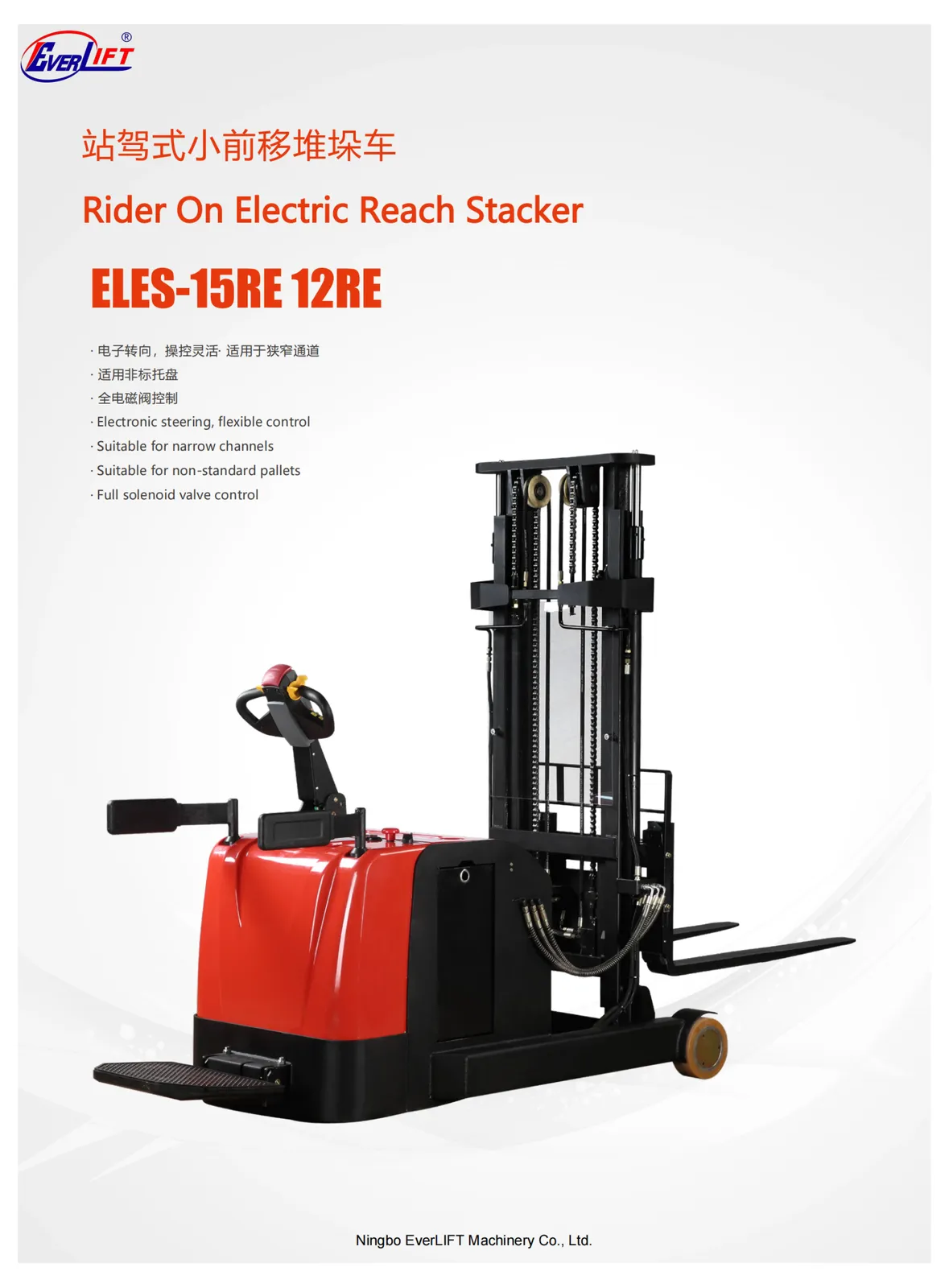

| Model | ELES-10RE/ELES-12RE | |
| Driving style | Standing pedal | |
| Load capacity | kg | 1000/1200 |
| Load centre | mm | 500 |
| Min. overall length | mm | 2010 |
| Max. overall length | mm | 2560 |
| Reach distanceofmastsx | mm | 550 |
| Overall width | mm | 1060 |
| Min. overall height | mm | 1800/2050/210/02220 |
| Fork dimension | mm | 920×100×35 |
| Outside width of forks | mm | 240 ~700 |
| Ground clearance | mm | 90 |
| Base distance | mm | 1280 |
| Wheel material | mm | PU |
| Driving wheel ize | mm | 230×80 |
| Front wheel size | mm | 200×80 |
| Min. steering radius | mm | 1510 |
| Min. width of aisle | mm | 2500 |
| Max.height of forks H3 | mm | 2500/3000/4500/5000 |
| max.overall height | mm | 3360/3860/5360/5860 |
| Max.travel speed | km/h | 5.5 |
| Gradeability(laden) | % | 5 |
| Brake style | Electromagnetic | |
| Power of driving motor | kw | 1.2 |
| Power of lift motor | kw | 2.2/2.2/3.0 |
| Powe rof steeringmotor | kw | 0.2 |
| Battery capacity/voltage | Ah/V | 240/24 |
| Weight of battery | kg | 240 |
| Net weight without battery | kg | 1480/1520/1670/1720/1650/1690/1870/1920 |
| Certificate | Number | Valid |
|---|---|---|
| 2006/42/EC | M.2026.206.C137529 | 30/03/2026 - 29/03/2031 |
| CE | M.2026.206.C134736 | 04/02/2026 - 03/02/2031 |
| CE | 3N251031.NEMS093 | 30/10/2025 - 29/10/2030 |
| EAC | — | 22/10/2023 - 22/10/2028 |
| CE | M.2023.206.C83216 | 22/03/2023 - 21/03/2028 |
| CE | M.2023.206.C83215 | 22/03/2023 - 21/03/2028 |
| CE | M.2023.206.C83222 | 22/03/2023 - 21/03/2028 |
| CE | M.2023.206.C83221 | 22/03/2023 - 21/03/2028 |
Certificates are supplied with your quote on request.
