Electric Stackers · Model ELES-12

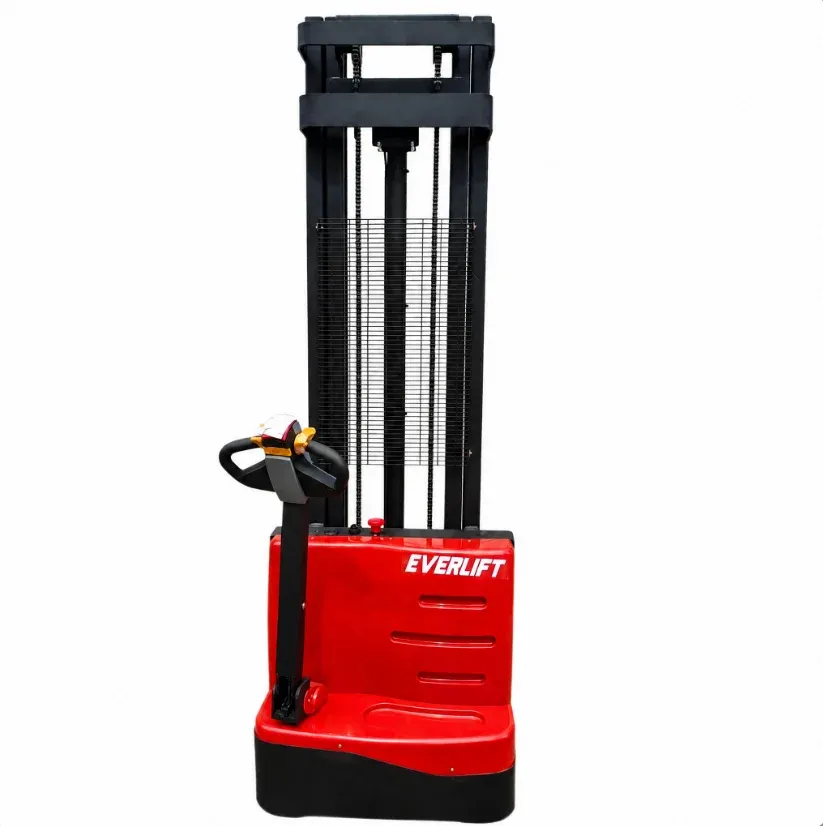

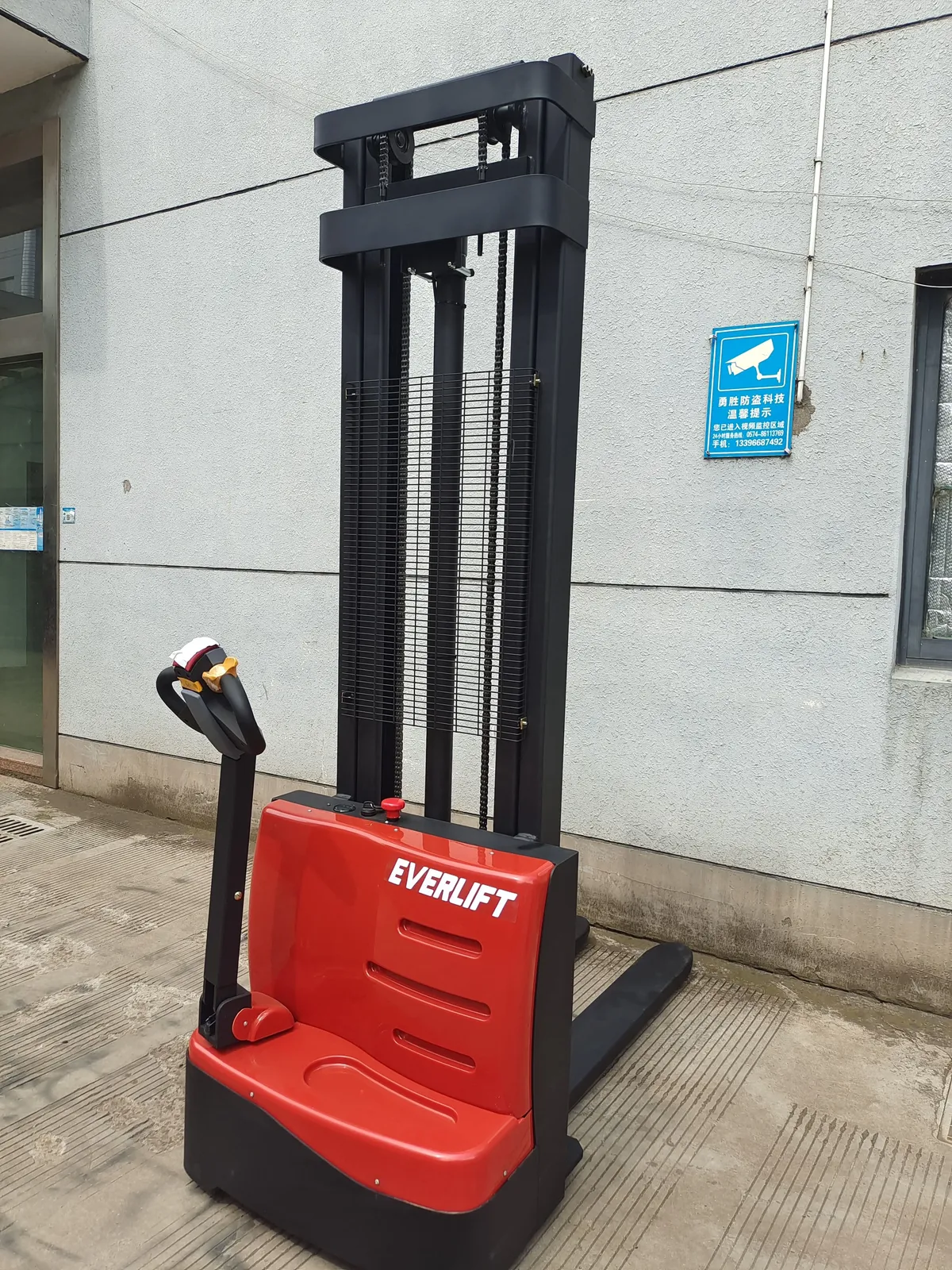

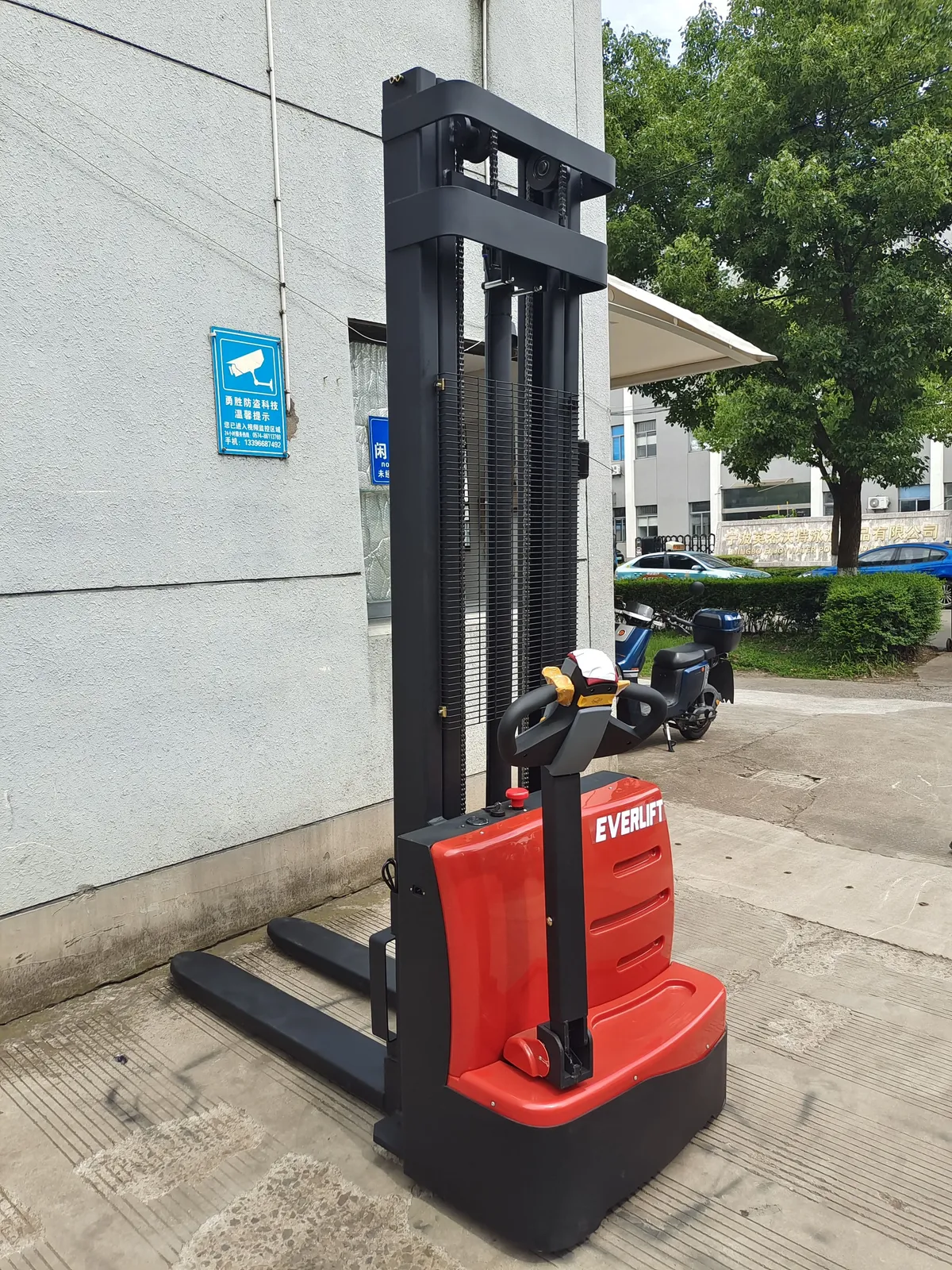

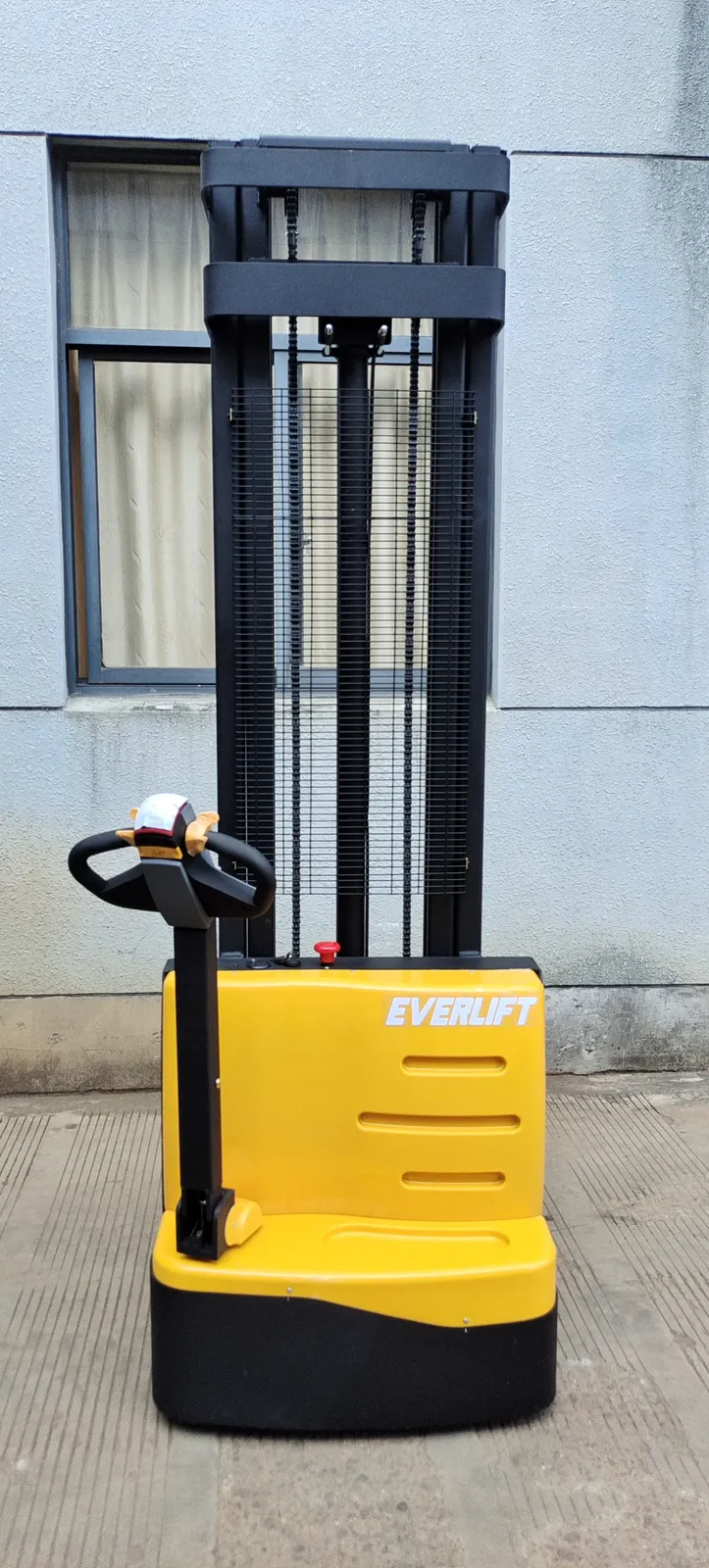

ELES-12/15E Mini Electric Pallet Stacker 1200 to 1500 kg
1.2 to 1.5 tLead-acidForks 1150 mm
from £1,210per unit, ex VAT
| Quantity | Price per unit |
|---|---|
| 1+ units | £1,210 |
Minimum order 1 unit from the factory; any range minimum is confirmed on your quote. Prices in GBP per unit, ex VAT. We convert the factory list at a buffered exchange rate, so normal day-to-day currency movement does not change the price you see. Your written quote adds freight, duty and VAT and is valid for 30 days.
Truck TypeElectric Stacker
Line total
No online payment. The basket becomes an order request and we reply with a written GBP quote, deposit 30% on order, lead time 8 to 12 weeks.
Or email [email protected]Product Highlights

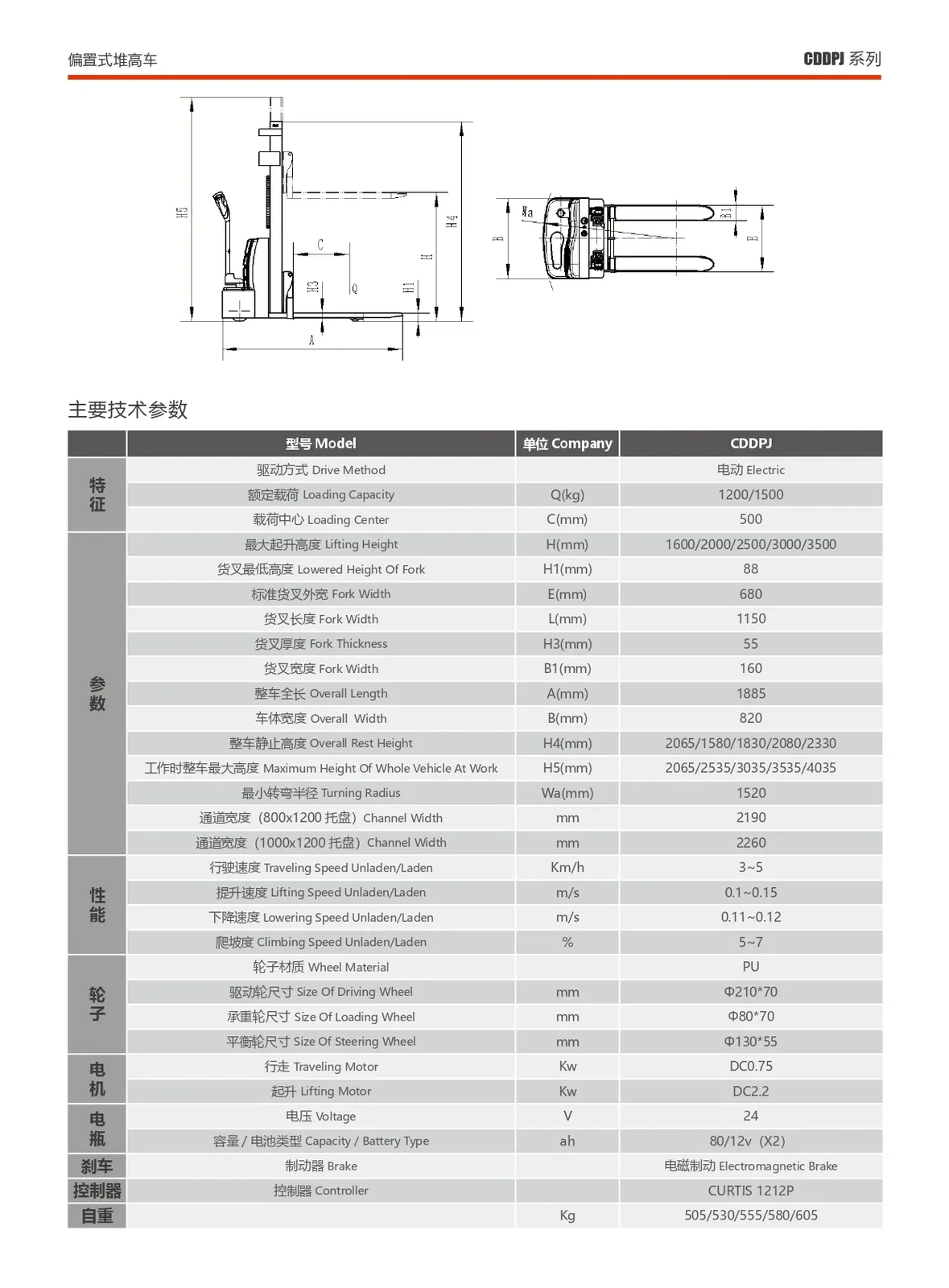

Dual capacity ratings of 1200kg and 1500kg (500mm load centre) — one compact stacker covers light and medium warehouse duties.
Five mast height options from 1600mm to 3500mm, with fork lowered height as low as 88mm for easy entry into low pallets and skids, plus reliable high-rack stacking.

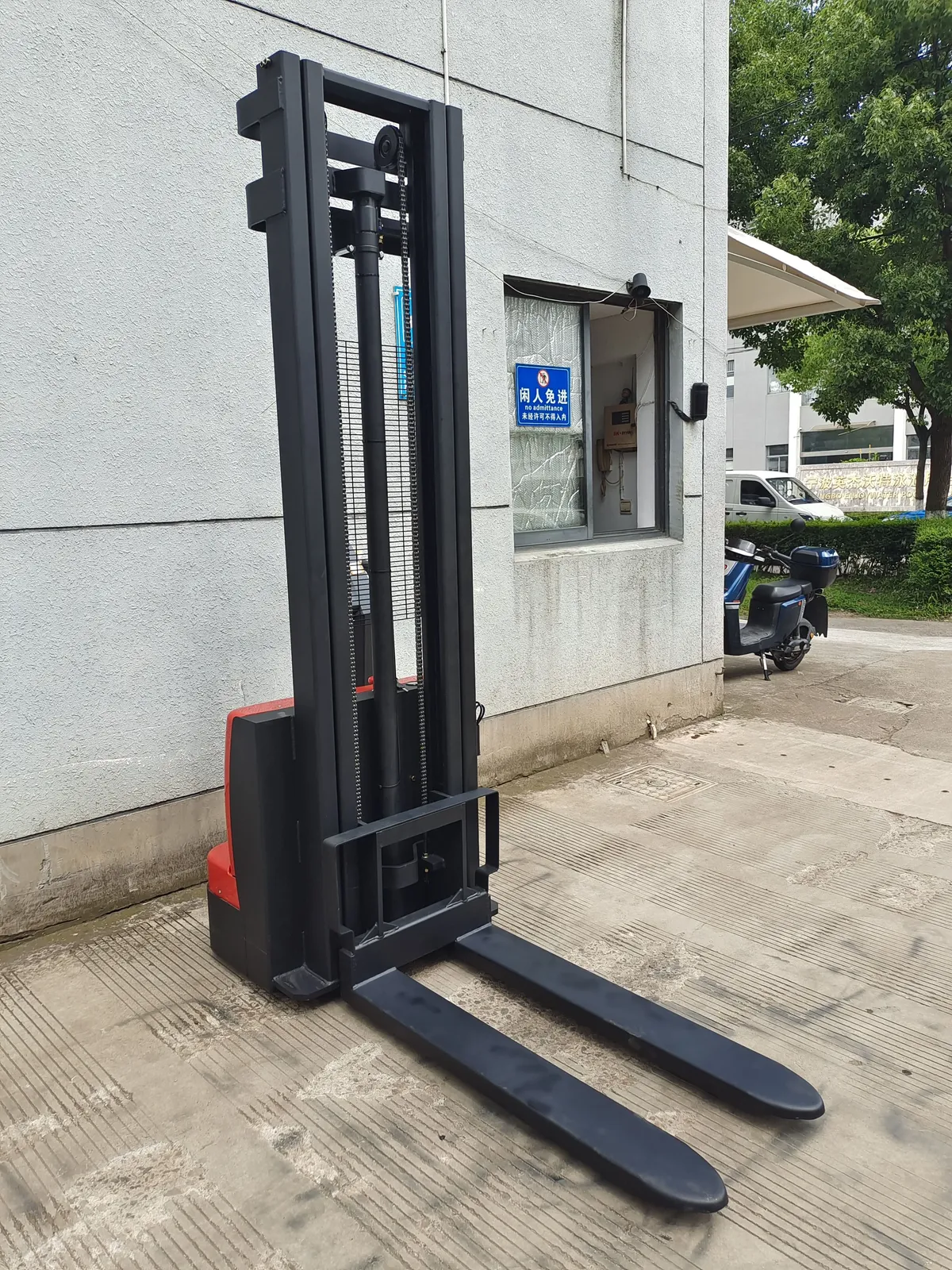

Oversized forks of 1150×160×55mm (680mm fork spread) match standard pallets perfectly — wide load surface and high bending strength for stable lifting.
Powerful yet efficient drive train: DC 2.2kW lift motor and DC 0.75kW travel motor with CURTIS 1212P controller and electromagnetic brake — 3–5 km/h travel, 0.1–0.15 m/s lifting, 5–7% gradeability.
Dependable 24V/80Ah battery system (2×12V 80Ah) and full PU wheel package: Φ210×70 drive wheel, Φ80×70 load wheels, Φ130×55 steering wheel — wear-resistant, quiet, floor-friendly.
Ultra-compact design — only 820mm body width, 1520mm turning radius and 2190–2260mm stacking aisle width — manoeuvrs easily in narrow aisles; service weight 505–605kg by mast option.
| Condition | New |
|---|---|
| Fork Specifications( L*W*H) | 1150*160*55mm |
| Forklift Battery Type | Lead–Acid Battery |
| Side Shifter | Electric Side Shifter, Hydraulic Side Shifter |
| Drive Type | Fwd |
| Terrain Adaptability | Indoor Flooring, Offroad, Other, Rough Terrain, Outdoor Pavement |
| Load centre distance | 500 mm |
| Mast Type | Single-Stage Mast, Three-Stage Mas, Two-Stage Mast |
| Forklift Turning radius | 1520mm |
| Fork Width | 160 mm |
| Fork Length | 1150 mm |
| Operating Mode | Standing Operation |
| Forklift Tyre | Polyurethane Tyre |
| Mast Tilt Angle (Forward Tilt-Rear Tilt) | 6-12° |
| Model Number | ELES-12/15E |
| Battery voltage (V/AH) | 24v/80ah |
| Type | Stacker Forklift |
| Product Type | Electric Stacker |
| Colour | Customer Demanded |
| Battery | 48V/80AH |
| Capacity | 1.2/1.5t |
| Operator type | Walik |
| Lifting height | 1.6m-3.5m |
| Certification | CE/ISO9001 |
| Wheels | PU Wheels |
| Rated Loading Capacity options | 1.2 Ton, 1.5 Ton |
| Truck Type options | Electric Stacker |
| Max. Lifting Height options | 1 600 mm, 2 000 mm, 2500 mm, 3000mm, 3500 mm |
| Certificate | Number | Valid |
|---|---|---|
| 2006/42/EC | M.2026.206.C137529 | 30/03/2026 - 29/03/2031 |
| CE | M.2026.206.C134736 | 04/02/2026 - 03/02/2031 |
| CE | 3N251031.NEMS093 | 30/10/2025 - 29/10/2030 |
| EAC | — | 22/10/2023 - 22/10/2028 |
| CE | M.2023.206.C83216 | 22/03/2023 - 21/03/2028 |
| CE | M.2023.206.C83215 | 22/03/2023 - 21/03/2028 |
| CE | M.2023.206.C83222 | 22/03/2023 - 21/03/2028 |
| CE | M.2023.206.C83221 | 22/03/2023 - 21/03/2028 |
Certificates are supplied with your quote on request.
