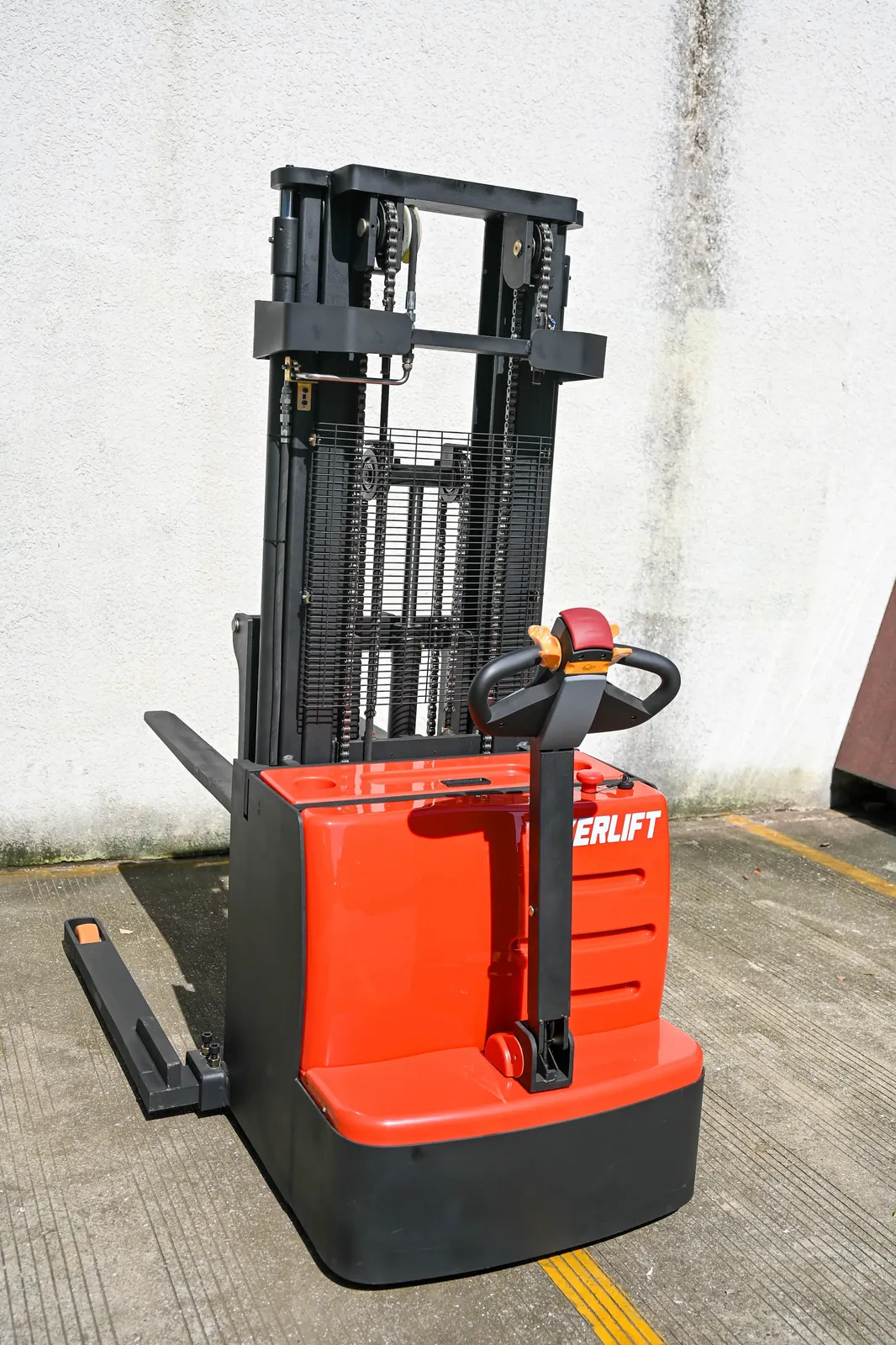

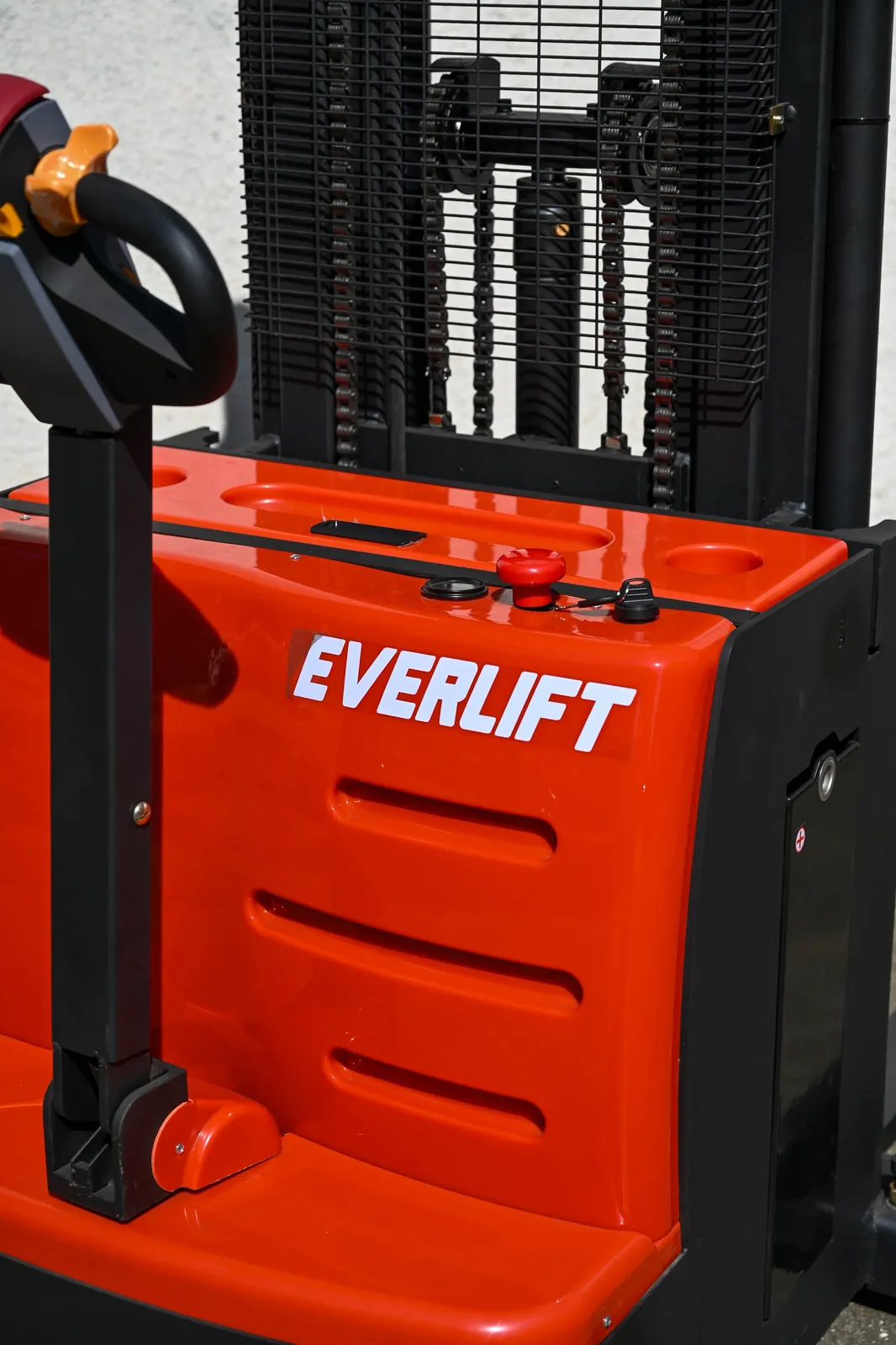

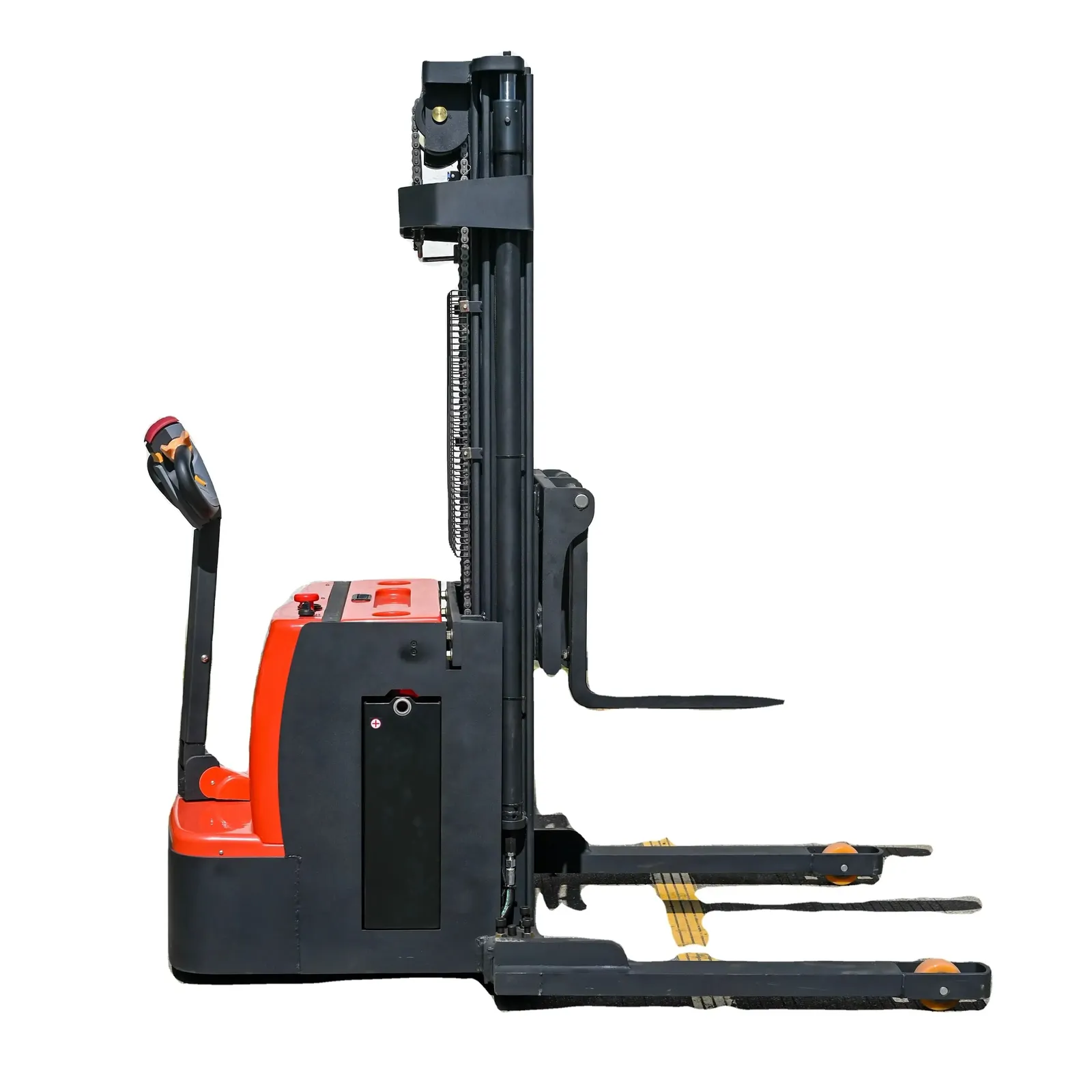

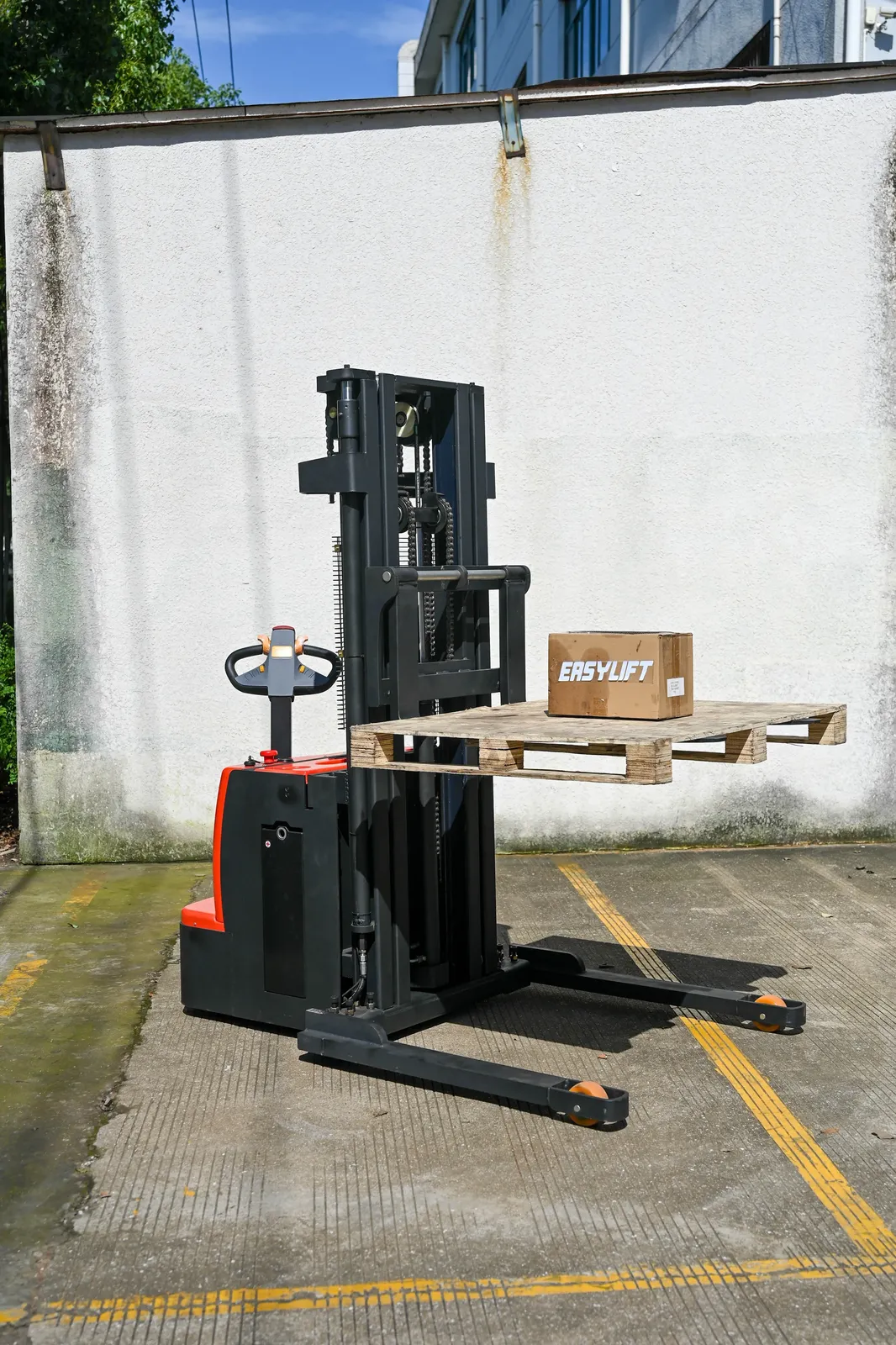

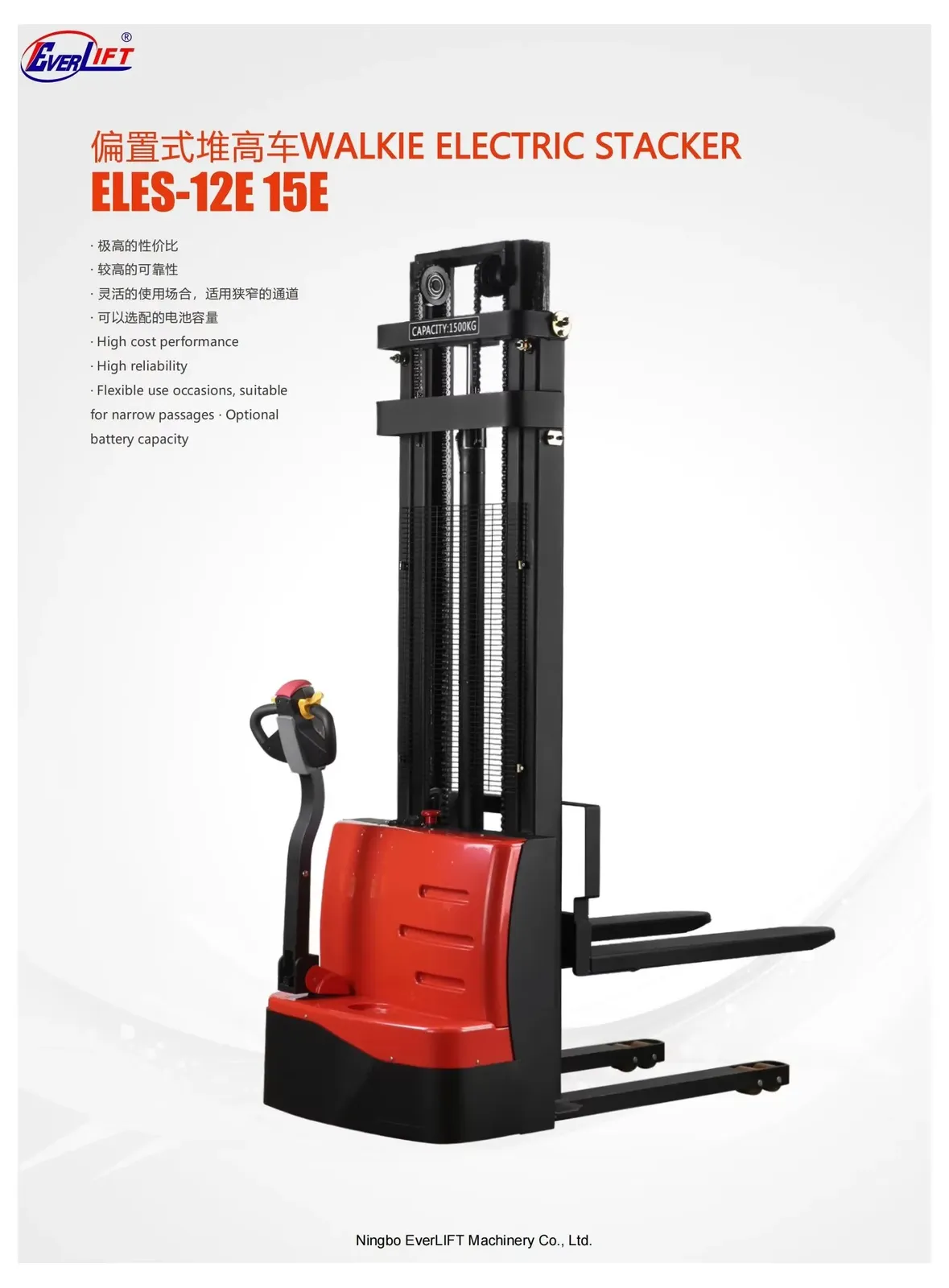

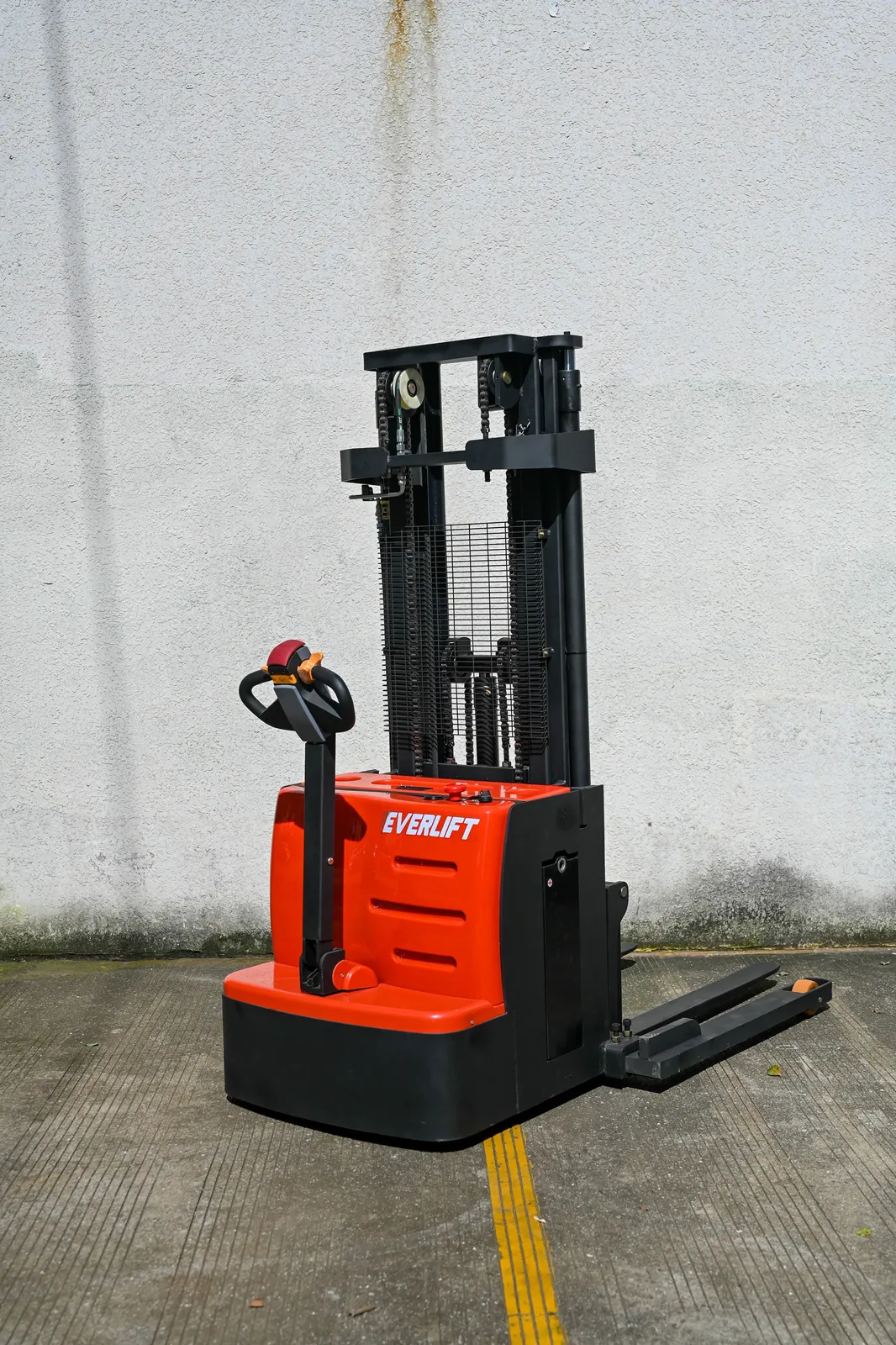

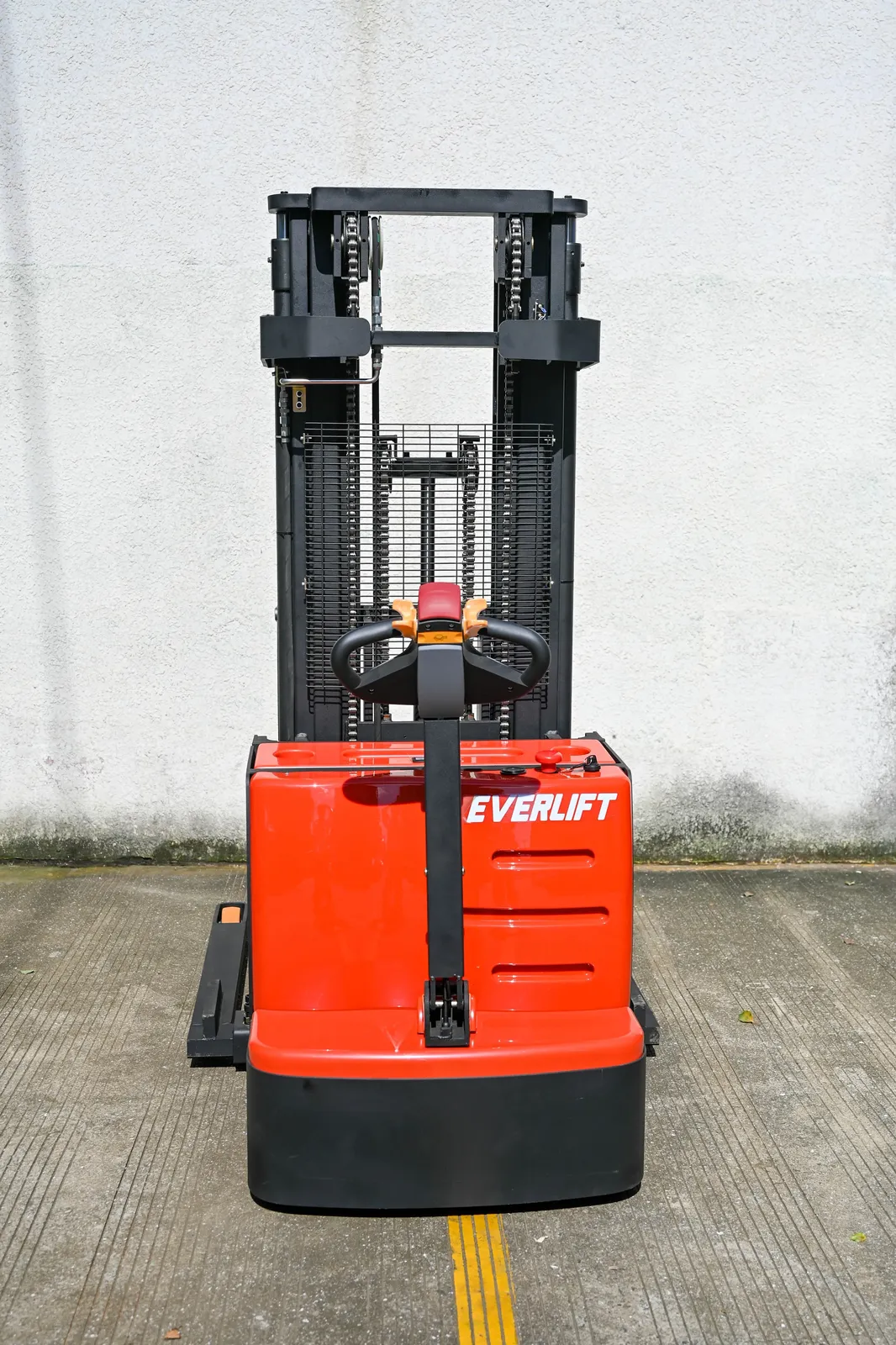

ELES-15E 1500 kg Walkie Electric Straddle Stacker 4500mm 3
1.5 tLead-acidForks 1150 to 1220 mm
from £3,170per unit, ex VAT
| Quantity | Price per unit |
|---|---|
| 1+ units | £3,170 |
Minimum order 1 unit from the factory; any range minimum is confirmed on your quote. Prices in GBP per unit, ex VAT. We convert the factory list at a buffered exchange rate, so normal day-to-day currency movement does not change the price you see. Your written quote adds freight, duty and VAT and is valid for 30 days.
Rated Loading Capacity1.5 Ton
Max. Lifting Height3985 mm
Truck TypeStacker Forklift
Line total
No online payment. The basket becomes an order request and we reply with a written GBP quote, deposit 30% on order, lead time 8 to 12 weeks.
Or email [email protected]Product Highlights
It comes with a rated loading capacity of 1500kg, and multiple lifting height options ranging from 1600mm to 3500mm. It can match different rack heights and pallet cargo stacking requirements in various warehouse scenarios.
Equipped with famous CURTIS 1212P controller, matched with stable DC traction and lifting motors. The electromagnetic brake delivers quick and reliable stopping performance to enhance operational safety during daily stacking work.Its turning radius is only 1520mm.
It only requires 2160mm aisle width for 800×1200 pallets and 2230mm for 1000×1200 pallets, allowing flexible travel and stacking even in compact warehouse lanes.
All driving, load and steering wheels adopt high-quality PU material, which features great wear resistance, floor protection and shock absorption.The mature motor and control structure lowers breakdown frequency and daily maintenance expenses.
It reaches a traveling speed of 3-5km/h, with adjustable lifting/lowering speed and 5%-7% grade climbing ability.It strikes a good balance between operating efficiency and running stability for regular warehouse loading and unloading tasks.

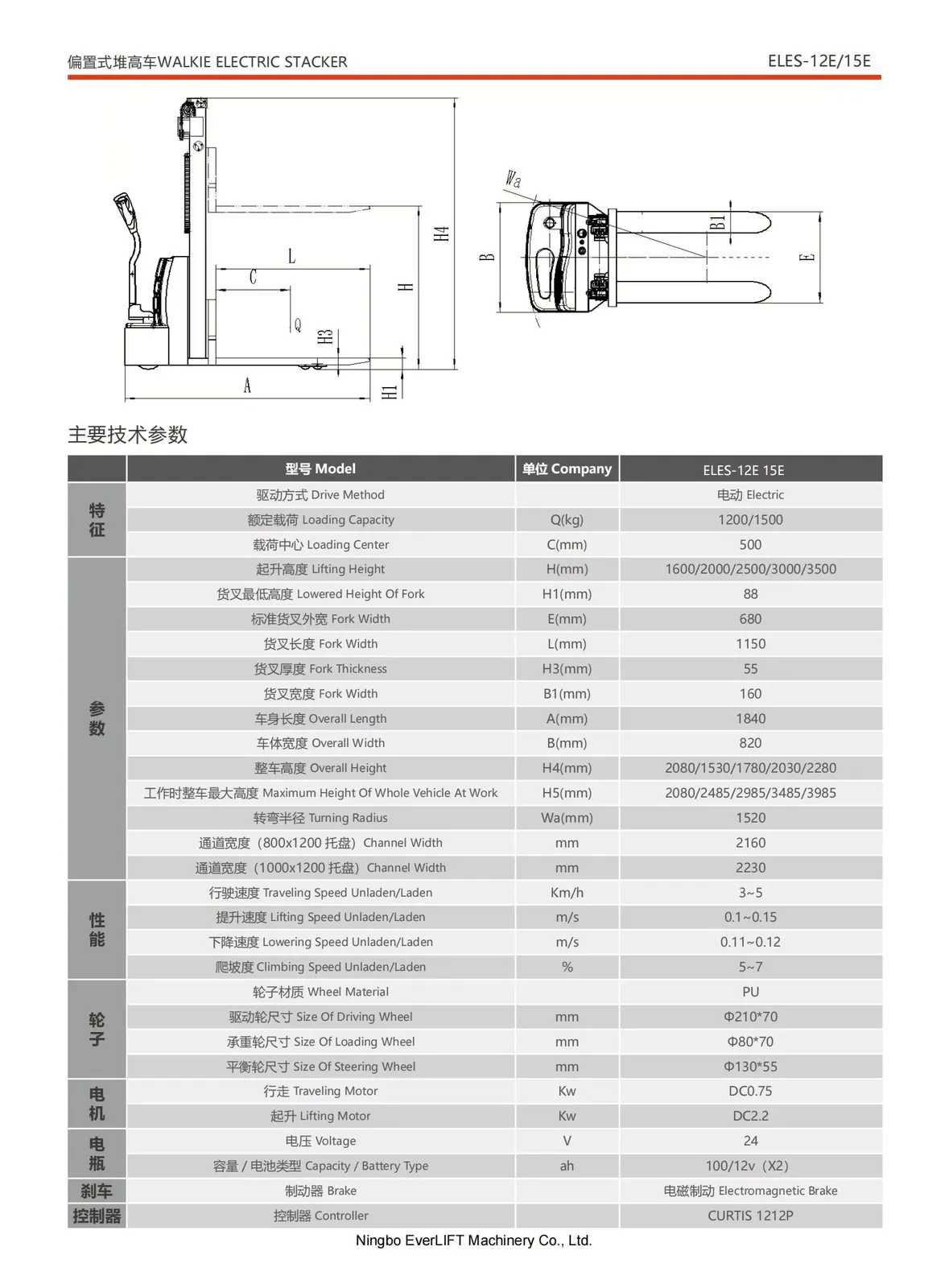

| Condition | New |
|---|---|
| Fork Specifications( L*W*H) | 1150*160*88 |
| Forklift Battery Type | Lead–Acid Battery |
| Side Shifter | Electric Side Shifter, Hydraulic Side Shifter |
| Drive Type | Fwd |
| Terrain Adaptability | Other, Rough Terrain, Outdoor Pavement, Offroad, Indoor Flooring |
| Load centre distance | 500 mm, 600 mm |
| Mast Type | Single-Stage Mast, Three-Stage Mas, Two-Stage Mast |
| Fork Length | 1150 mm, 1220 mm |
| Operating Mode | Standing Operation |
| Forklift Tyre | Polyurethane Tyre |
| Mast Tilt Angle (Forward Tilt-Rear Tilt) | 6-12° |
| Model Number | ELES-15E |
| Battery voltage (V/AH) | 24V165AH |
| Product Type | Electric Stacker |
| Mast | 2 Stage/3 Stage |
| Battery | 48V/165Ah |
| Model | ELES-15E |
| Capacity | 1.5t |
| Colour | Customised Colour |
| Wheels | PU Wheels |
| Certification | CE/ISO9001 |
| Rated Loading Capacity options | 1.5 Ton |
| Max. Lifting Height options | 3985 mm |
| Truck Type options | Stacker Forklift |
| Certificate | Number | Valid |
|---|---|---|
| 2006/42/EC | M.2026.206.C137529 | 30/03/2026 - 29/03/2031 |
| CE | M.2026.206.C134736 | 04/02/2026 - 03/02/2031 |
| CE | 3N251031.NEMS093 | 30/10/2025 - 29/10/2030 |
| EAC | — | 22/10/2023 - 22/10/2028 |
| CE | M.2023.206.C83216 | 22/03/2023 - 21/03/2028 |
| CE | M.2023.206.C83215 | 22/03/2023 - 21/03/2028 |
| CE | M.2023.206.C83222 | 22/03/2023 - 21/03/2028 |
| CE | M.2023.206.C83221 | 22/03/2023 - 21/03/2028 |
Certificates are supplied with your quote on request.
