Electric Stackers · Model ELES-15F

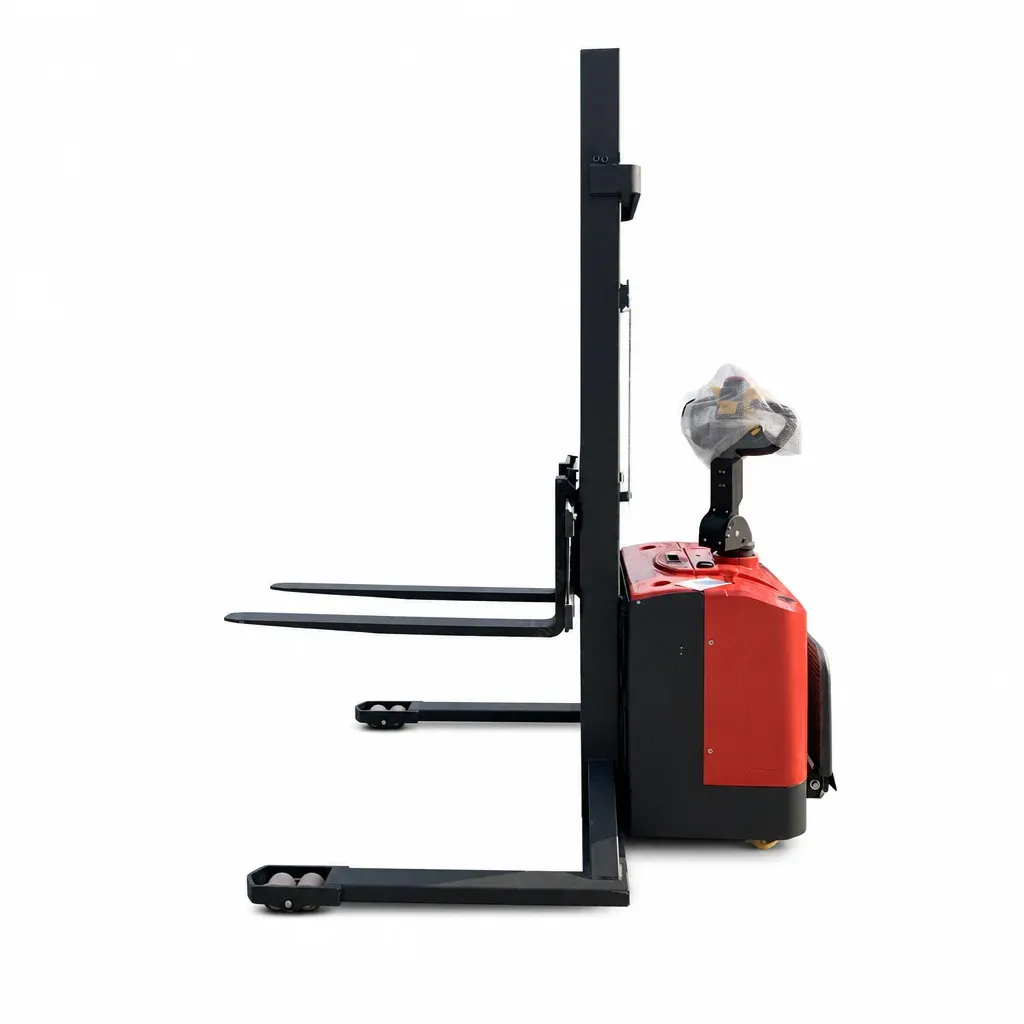

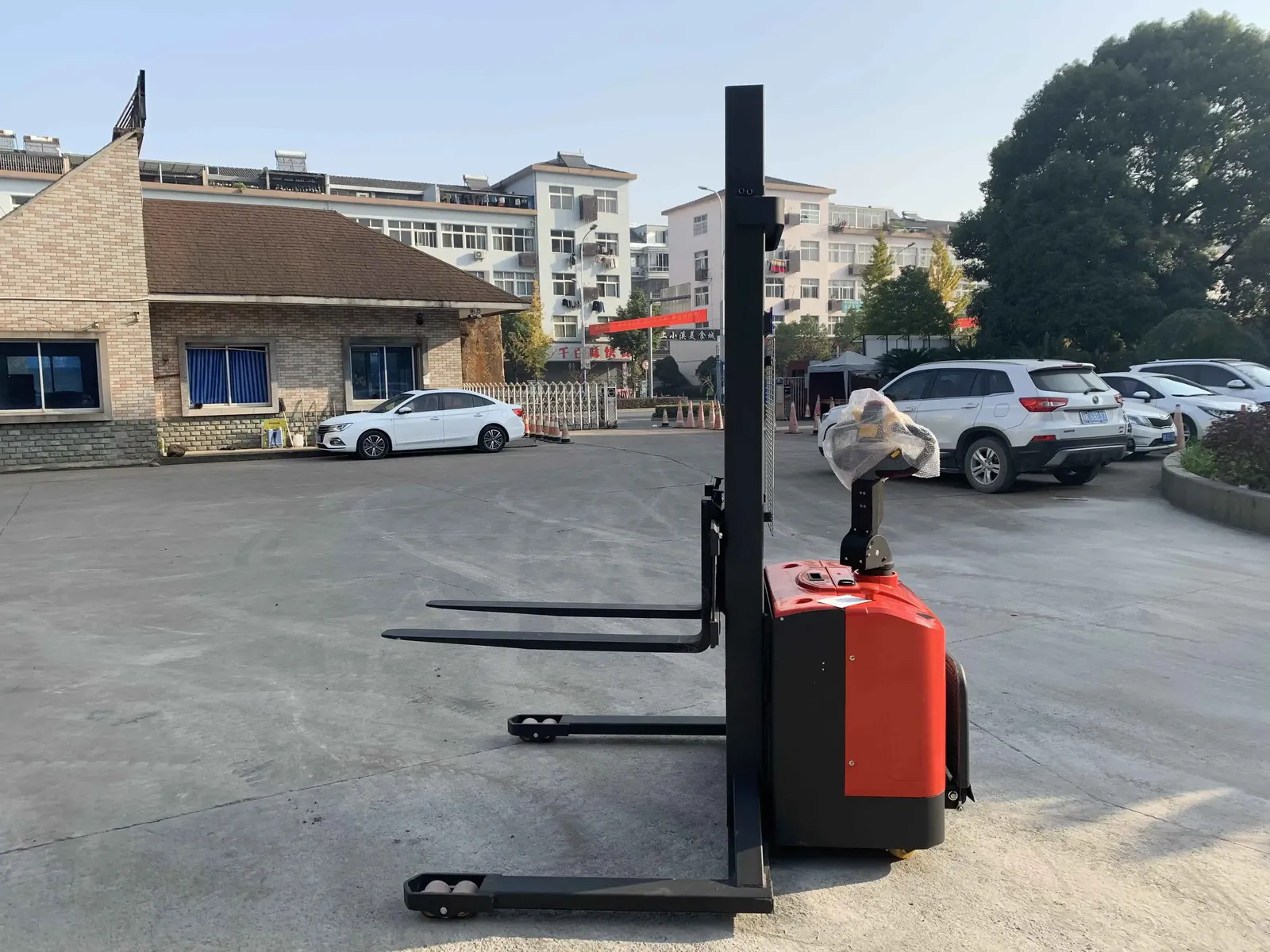

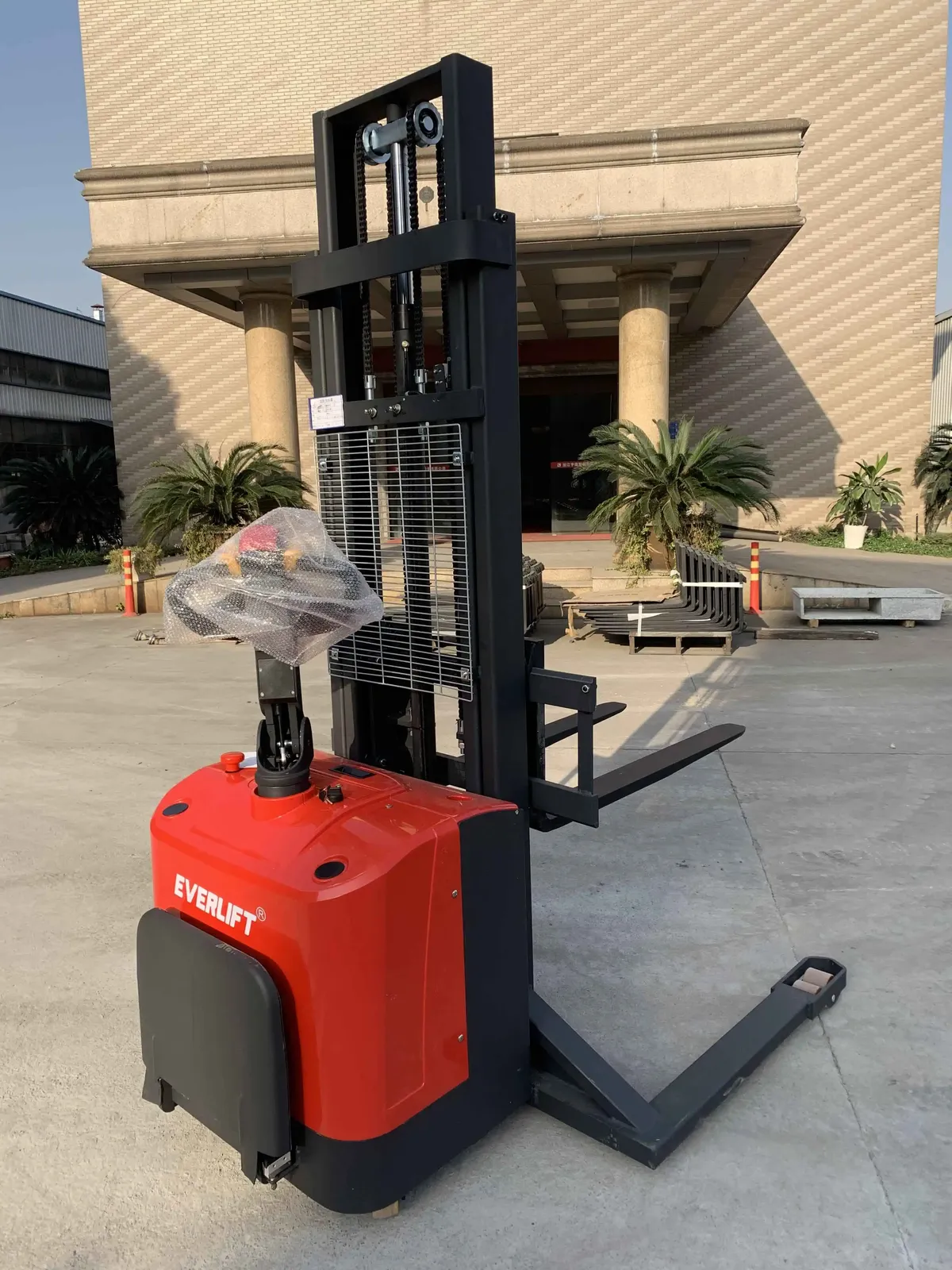

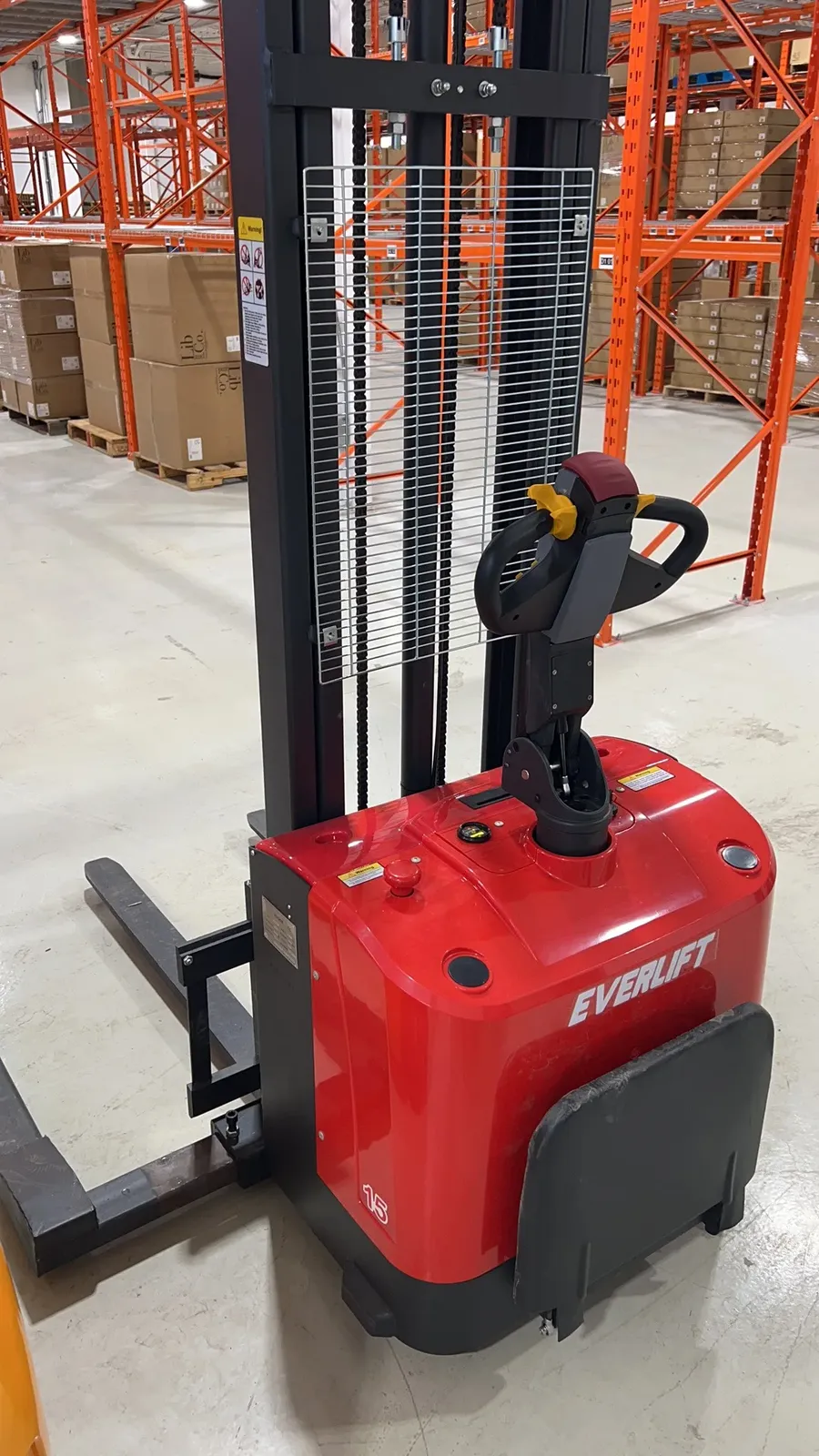

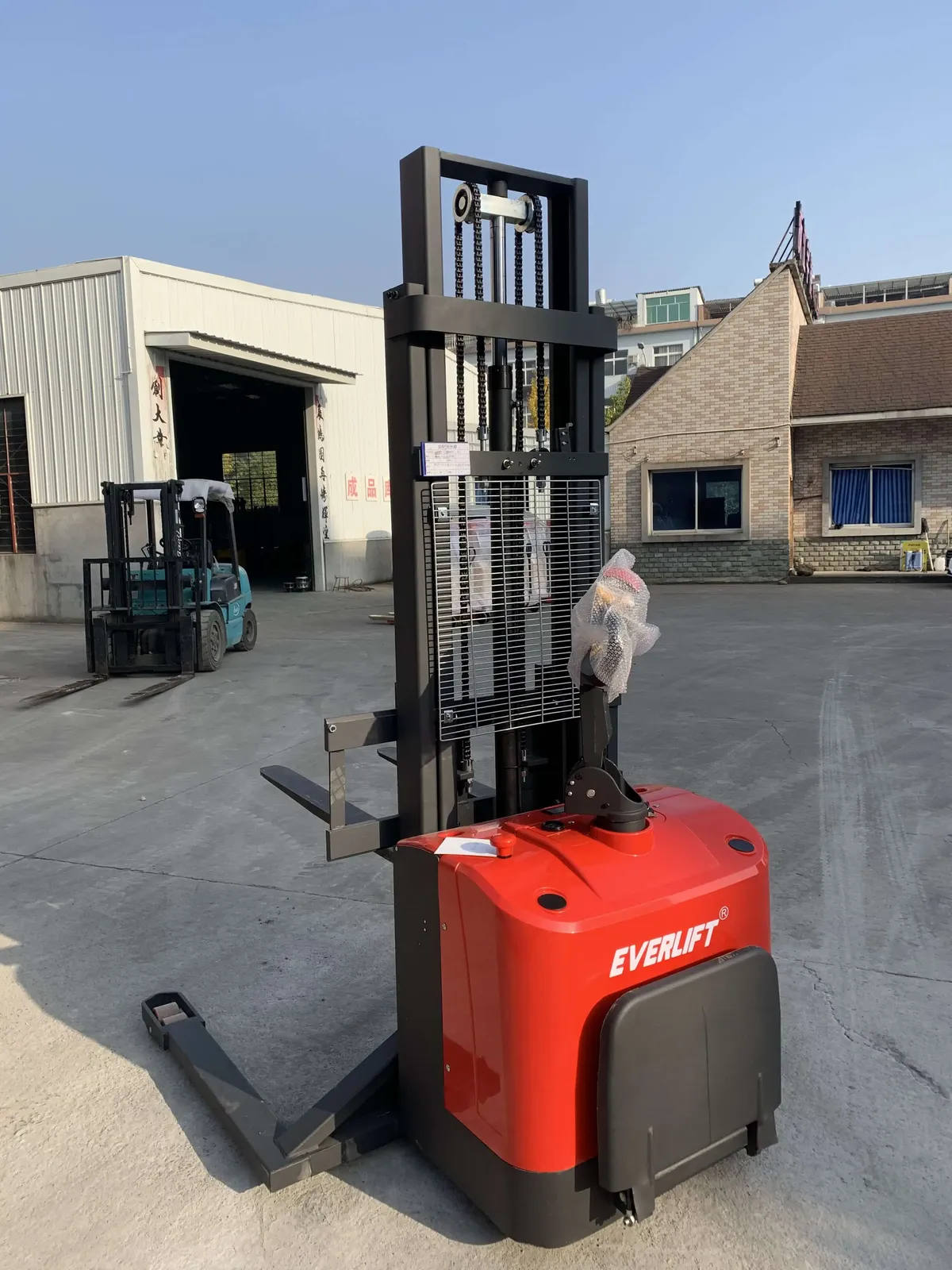

ELES-15F Wide Leg Electric Stacker 1500 kg
1.5 tLead-acidForks 1150 mm
from £1,530per unit, ex VAT
| Quantity | Price per unit |
|---|---|
| 1+ units | £1,530 |
Minimum order 1 unit from the factory; any range minimum is confirmed on your quote. Prices in GBP per unit, ex VAT. We convert the factory list at a buffered exchange rate, so normal day-to-day currency movement does not change the price you see. Your written quote adds freight, duty and VAT and is valid for 30 days.
Rated Loading Capacity1.5 Ton
Truck TypeStacker Forklift
Line total
No online payment. The basket becomes an order request and we reply with a written GBP quote, deposit 30% on order, lead time 8 to 12 weeks.
Or email [email protected]Product Highlights
The ELES-15F wide leg electric stacker delivers a solid 1500kg load capacity with a 500mm load centre, while its wide straddle leg design provides exceptional stability during lifting and travel, making it a dependable choice for warehouse pallet handling.

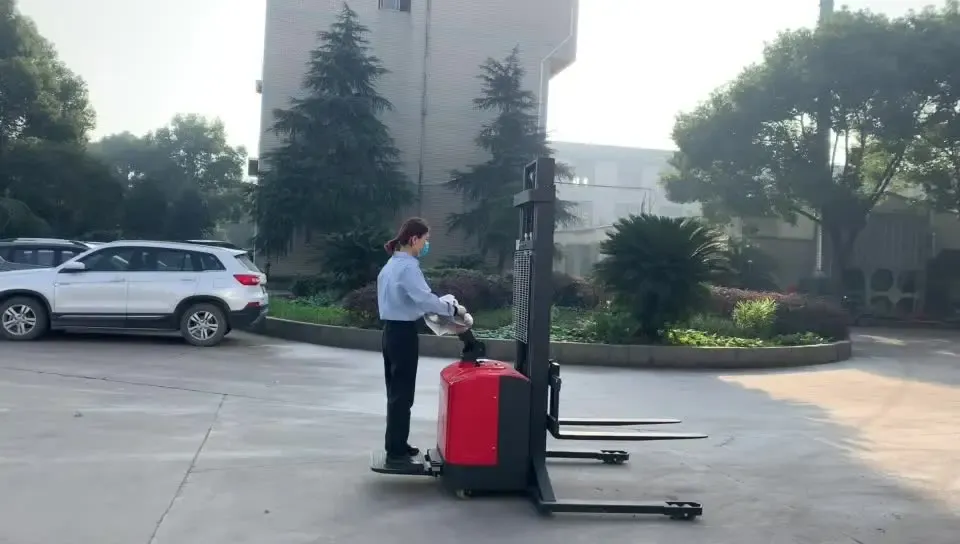

Operated in stand-on mode with a thoughtfully added pedal, this stacker significantly reduces operator fatigue during long working shifts, improving both comfort and daily efficiency on the job.
Powered by an original imported CURTIS controller with stepless speed regulation and reverse braking, the ELES-15F ensures smooth, precise control in narrow aisles, while the floating bracket drive system with balance wheels on both sides keeps the vehicle steady even on uneven floors.
With lifting heights available from 1600mm up to 3500mm, a 24V/100Ah battery and a lightweight 720kg service weight, it adapts to different racking systems and shift patterns, and the mast material, battery capacity and protection arm can all be customised to your specific needs.
Engineered for low noise operation at just 70dB(A) and meeting DIN 12053 standard, the ELES-15F combines high performance, stable handling and operator-friendly design in one economical, reliable electric stacker.

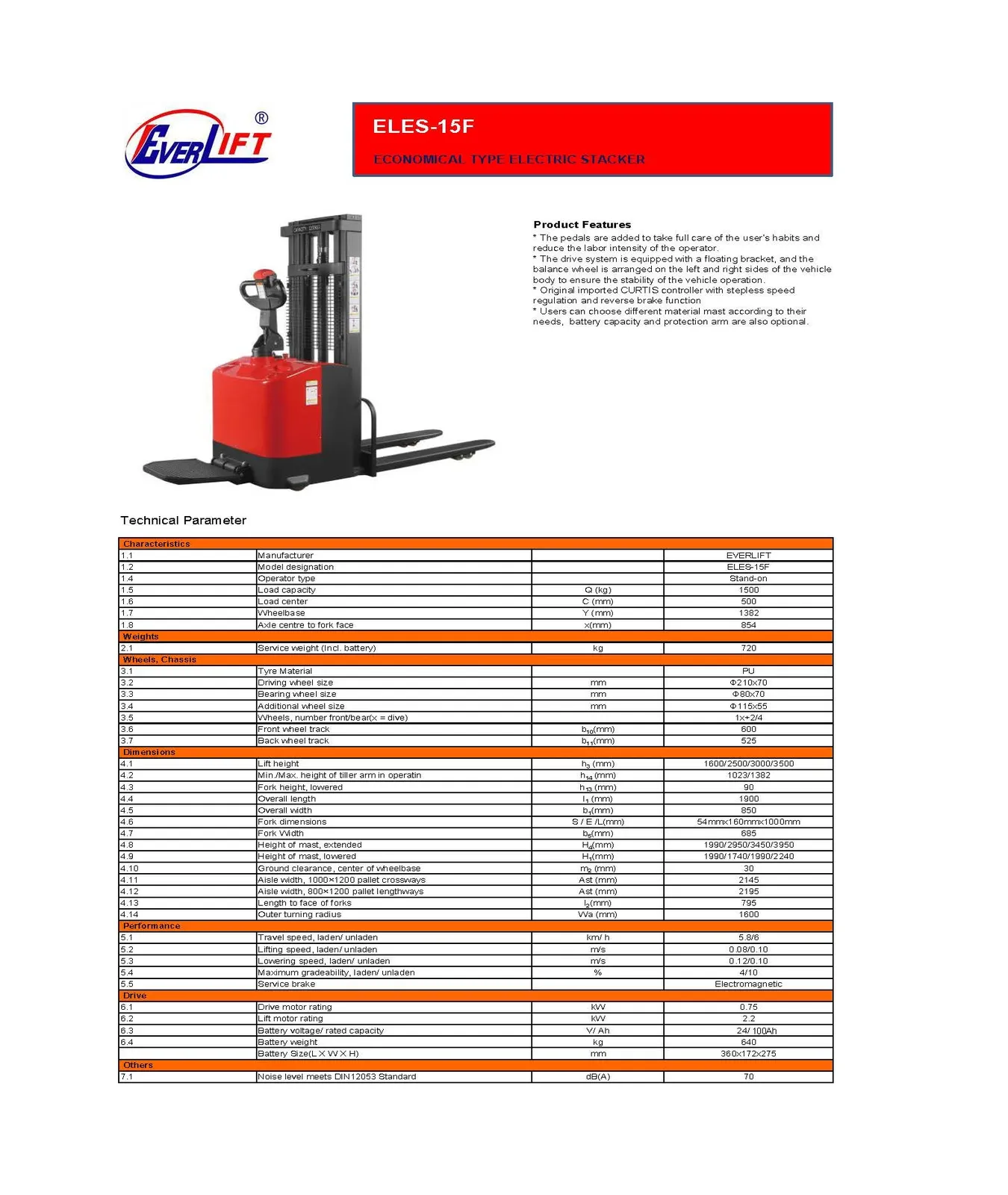

| Condition | New |
|---|---|
| Fork Specifications( L*W*H) | 1000*160*54mm |
| Forklift Battery Type | Lead–Acid Battery |
| Side Shifter | Electric Side Shifter, Hydraulic Side Shifter |
| Drive Type | Fwd |
| Terrain Adaptability | Indoor Flooring, Offroad, Outdoor Pavement, Rough Terrain, Other |
| Load centre distance | 500 mm |
| Mast Type | Single-Stage Mast, Three-Stage Mas, Two-Stage Mast |
| Forklift Turning radius | 1600mm |
| Fork Width | 160mm |
| Fork Length | 1150 mm |
| Operating Mode | Standing Operation |
| Forklift Tyre | Polyurethane Tyre |
| Forklift Wheelbase | 1382mm |
| Mast Tilt Angle (Forward Tilt-Rear Tilt) | 6-12° |
| Model Number | ELES-15F |
| Battery voltage (V/AH) | 24V /100Ah |
| Product Type | Electric Pallet Stacker |
| Colour | Accept Customised |
| Battery | 24V/100AH |
| Capacity | 1.5T |
| Operator type | Stand-up |
| Mast | 2 Stage /3 Stage Optional |
| Lifting height | 1600-4000mm |
| Wheels | PU Wheels |
| Rated Loading Capacity options | 1.5 Ton |
| Truck Type options | Stacker Forklift |
| Max. Lifting Height options | 1 600 mm, 2 000 mm, 2500 mm, 3000mm, 3500 mm, 4000 mm |
| Certificate | Number | Valid |
|---|---|---|
| 2006/42/EC | M.2026.206.C137529 | 30/03/2026 - 29/03/2031 |
| CE | M.2026.206.C134736 | 04/02/2026 - 03/02/2031 |
| CE | 3N251031.NEMS093 | 30/10/2025 - 29/10/2030 |
| EAC | — | 22/10/2023 - 22/10/2028 |
| CE | M.2023.206.C83216 | 22/03/2023 - 21/03/2028 |
| CE | M.2023.206.C83215 | 22/03/2023 - 21/03/2028 |
| CE | M.2023.206.C83222 | 22/03/2023 - 21/03/2028 |
| CE | M.2023.206.C83221 | 22/03/2023 - 21/03/2028 |
Certificates are supplied with your quote on request.
