Electric Stackers · Model ELES12J 1200

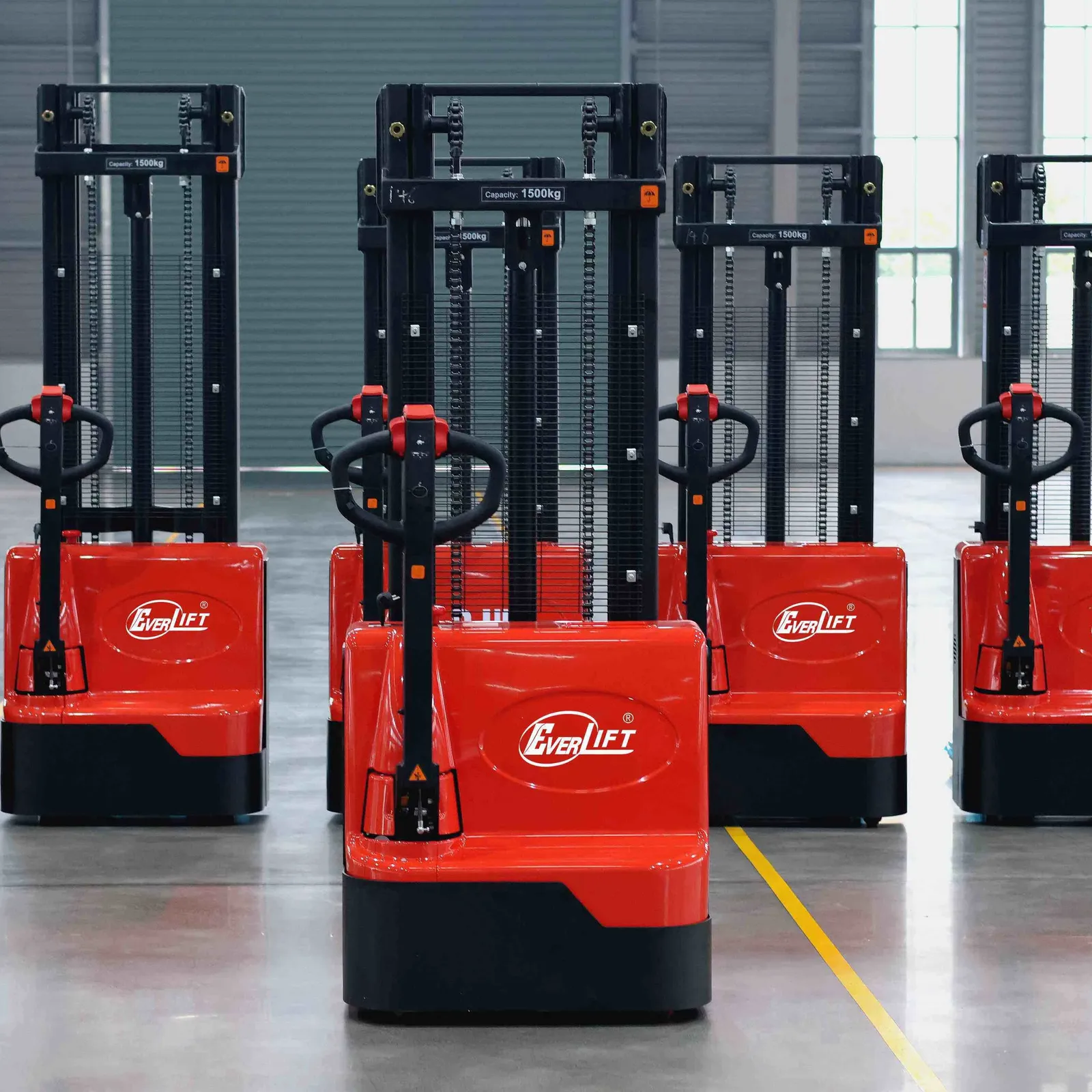

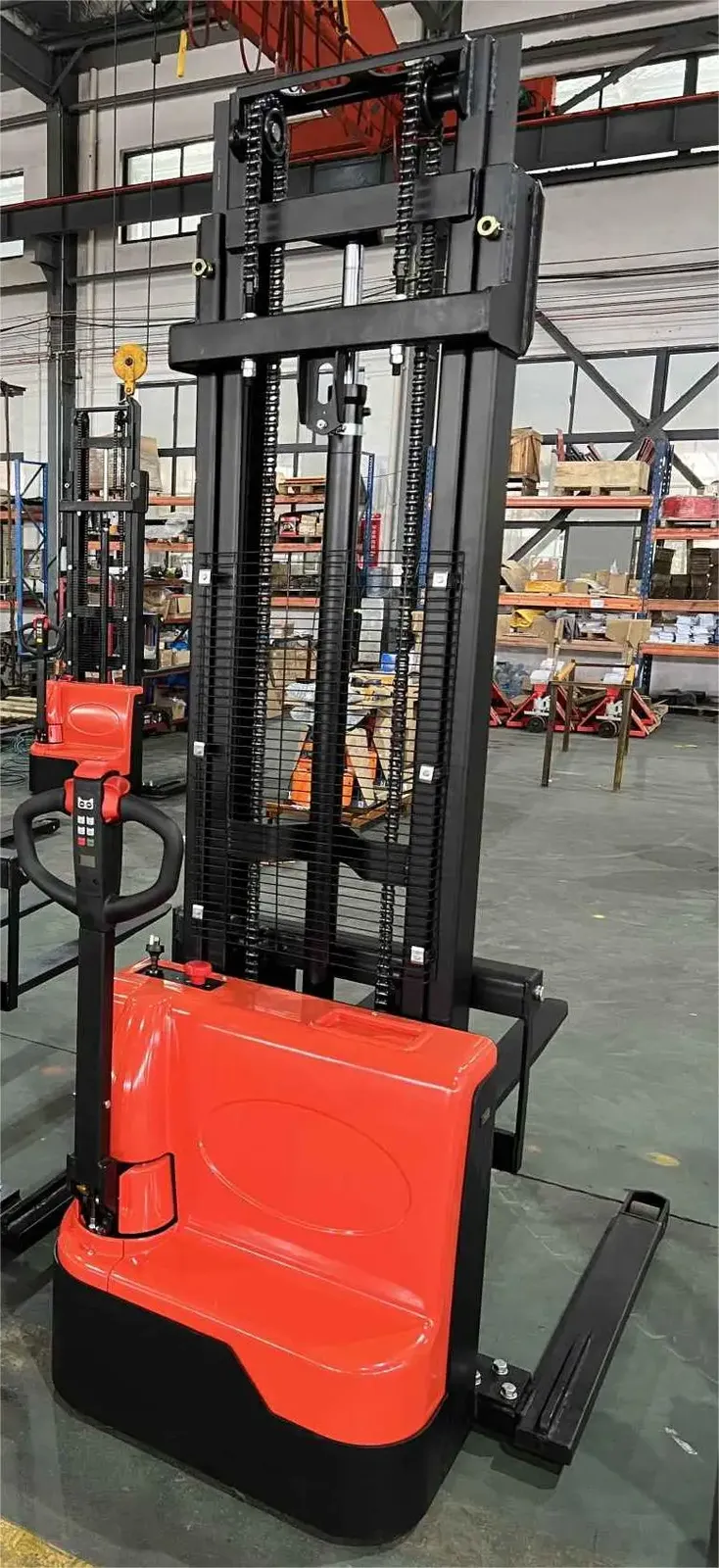

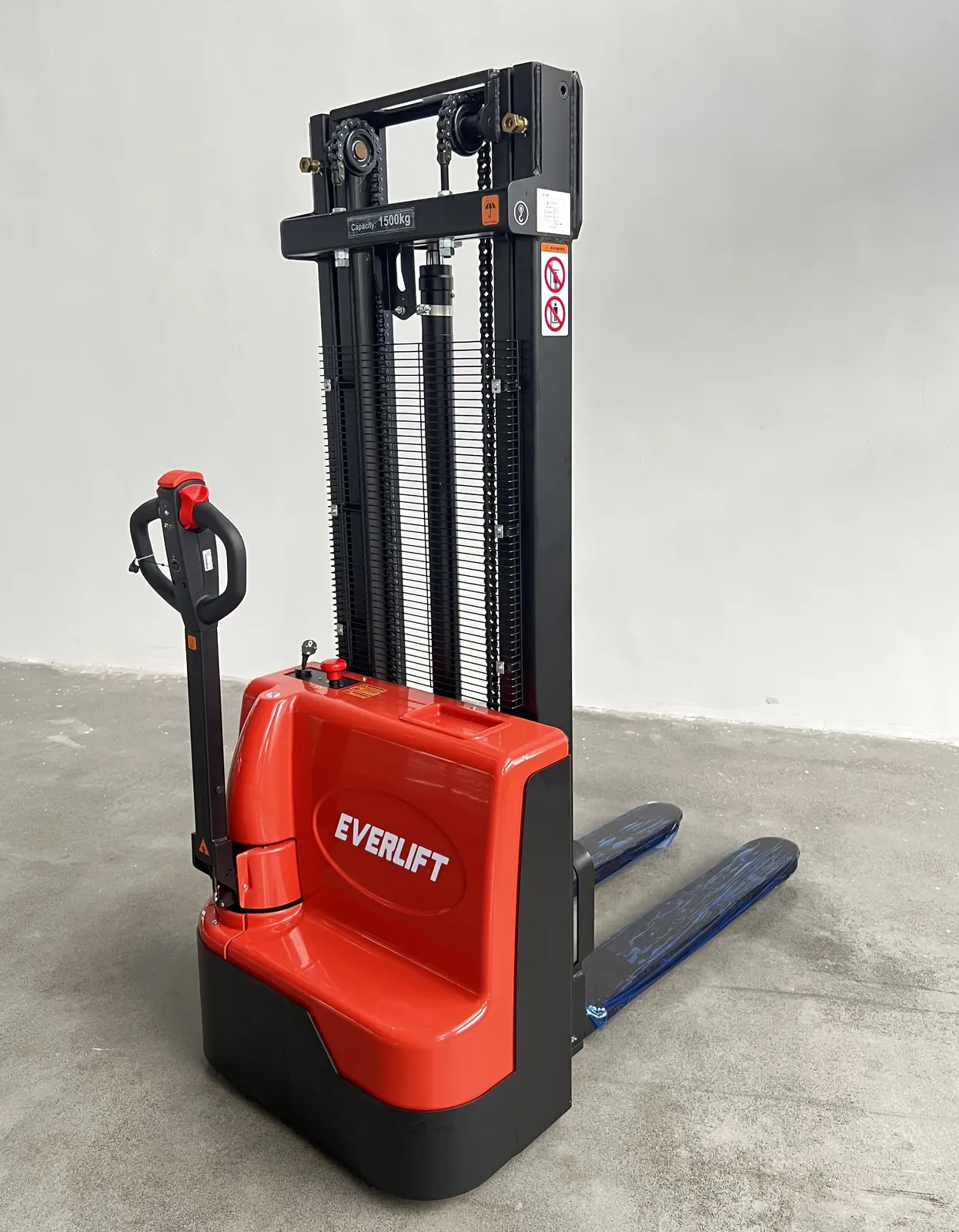

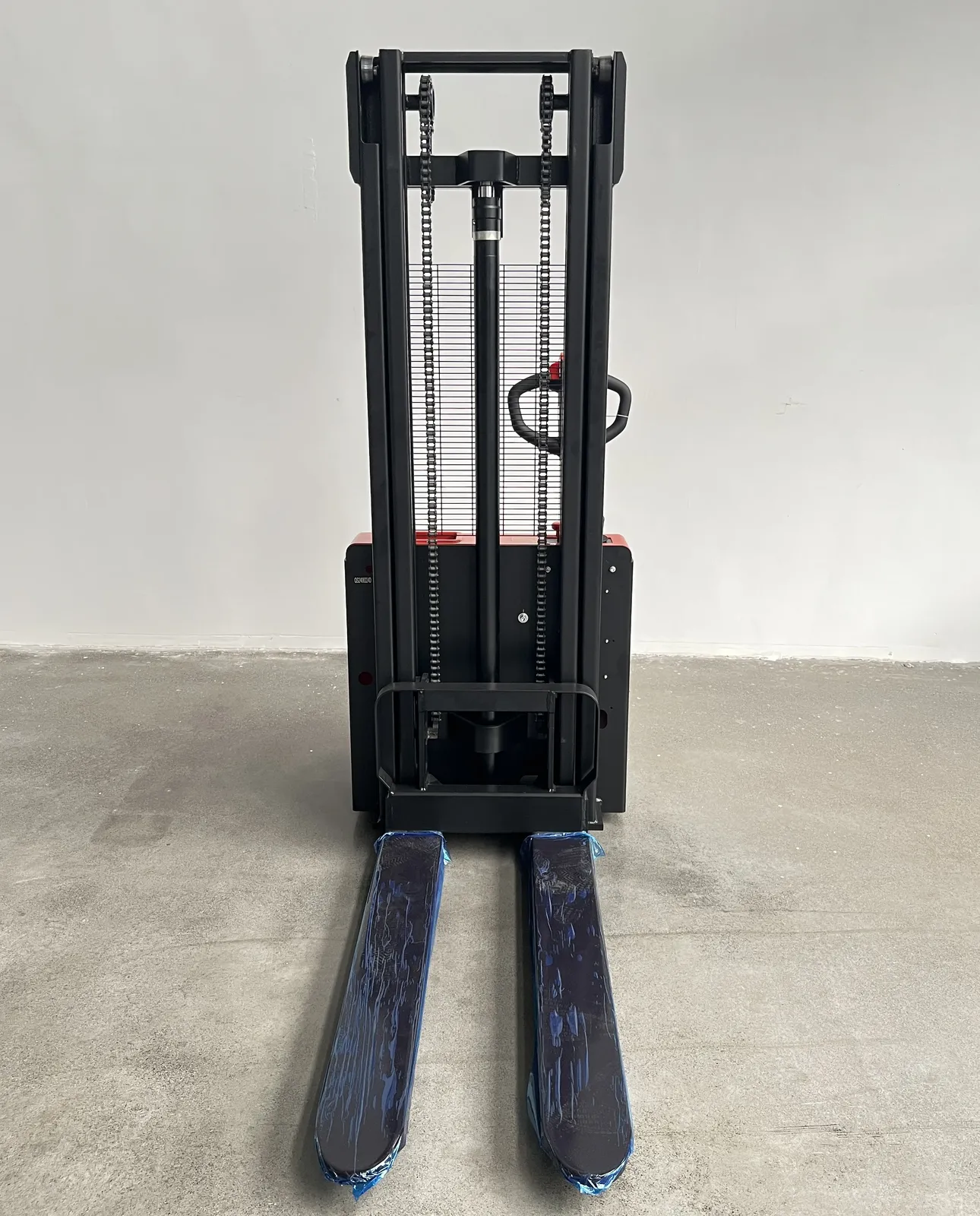

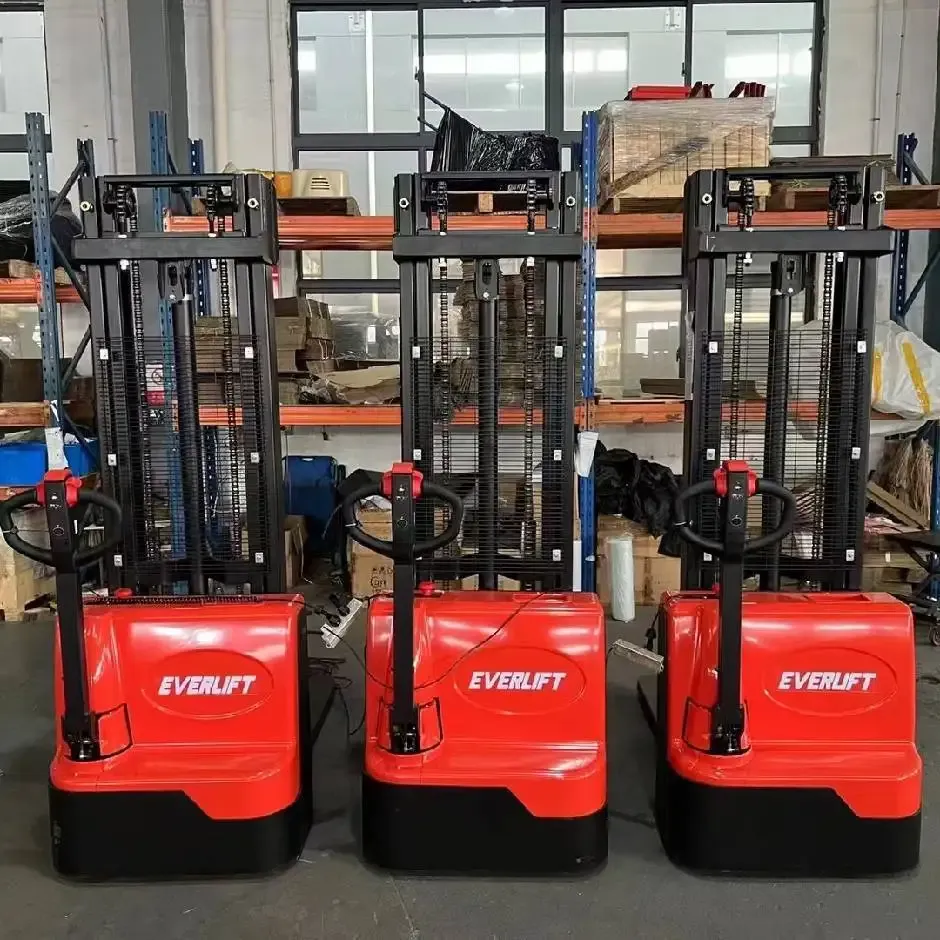

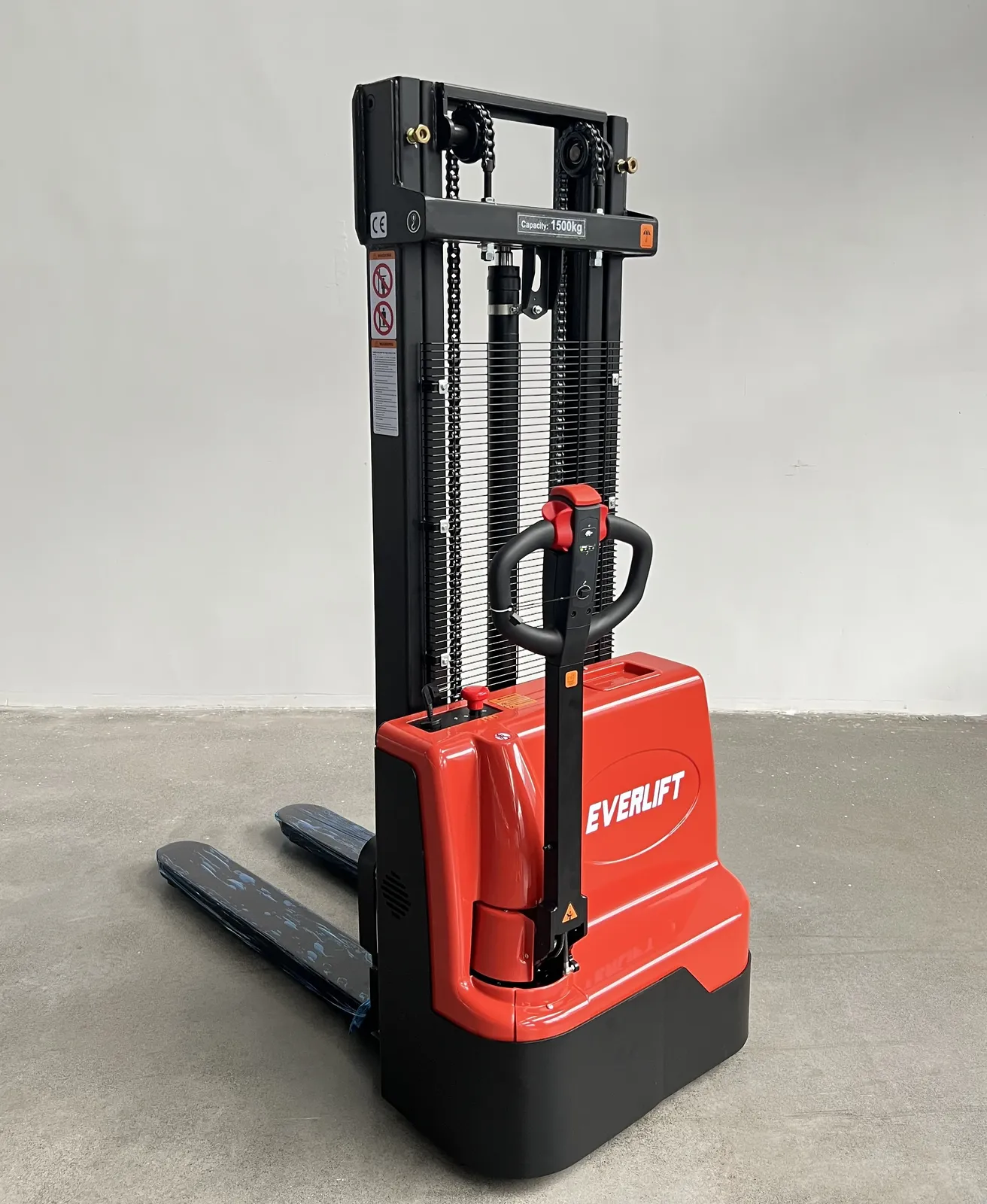

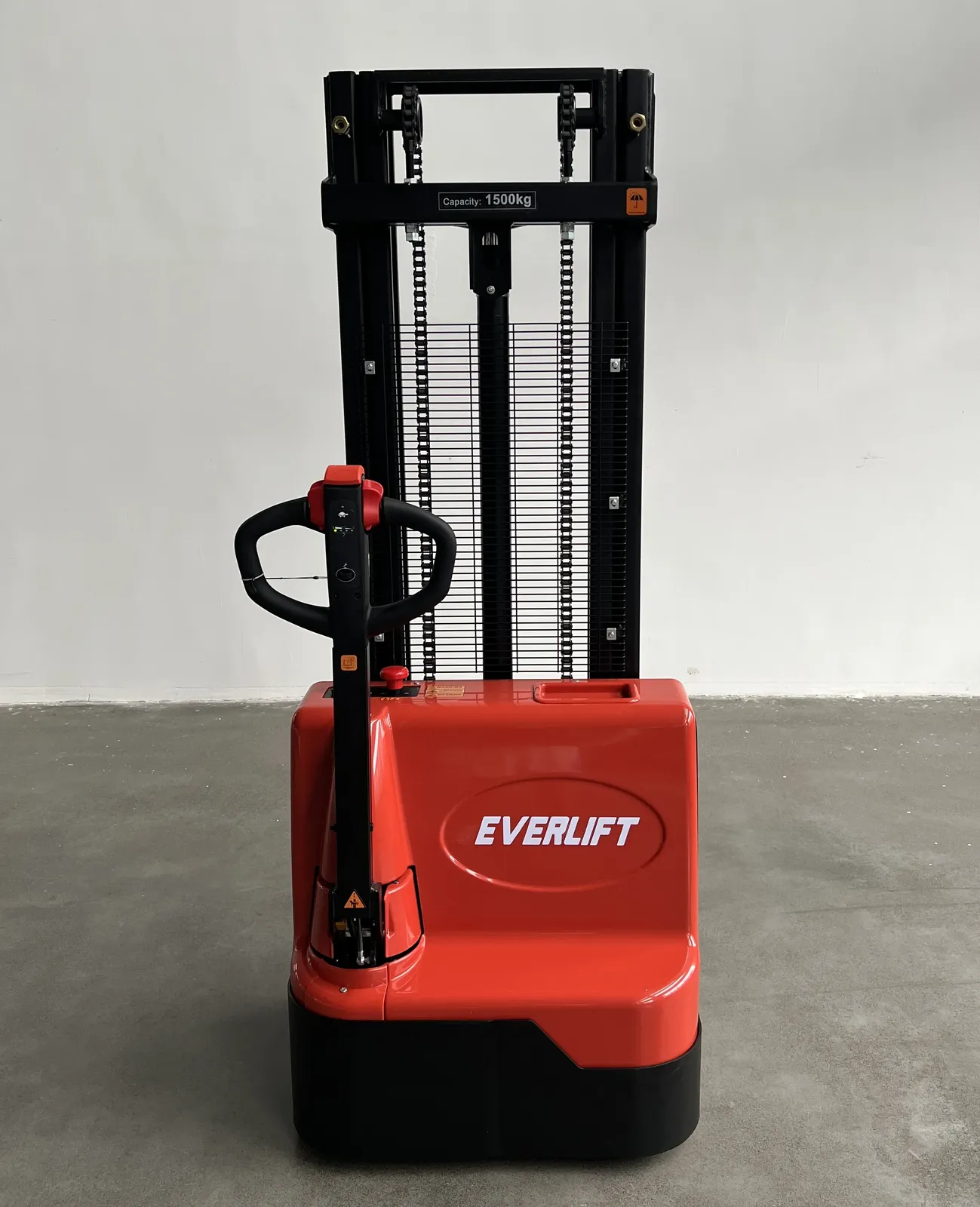

ELES12J 1200 kg Walk Behind Electric Pallet Stacker
1.2 to 1.5 tLead-acidForks 1150 to 1200 mm
Price on requestwritten quote
Minimum order 1 unit from the factory; any range minimum is confirmed on your quote. Prices in GBP per unit, ex VAT. We convert the factory list at a buffered exchange rate, so normal day-to-day currency movement does not change the price you see. Your written quote adds freight, duty and VAT and is valid for 30 days.
Max. Lifting Height3000mm
Truck TypePallet stacker
Line total
No online payment. The basket becomes an order request and we reply with a written GBP quote, deposit 30% on order, lead time 8 to 12 weeks.
Or email [email protected]Product Highlights

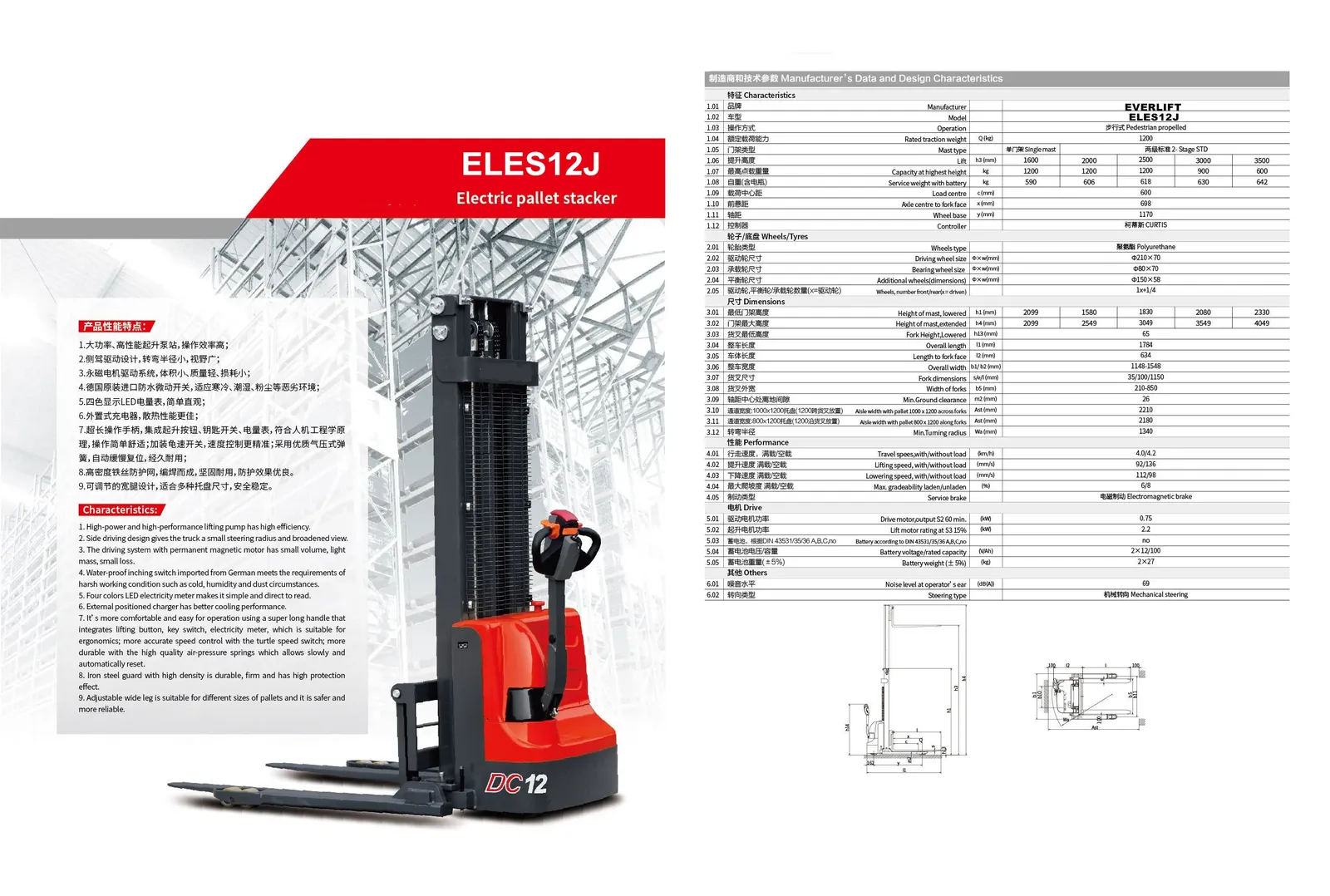

1. High-power and high-performance lifting pump has high efficiency.
2. Side driving design gives the truck a small steering radius and broadened view.
3. The driving system with permanent magnetic motor has small volume, light mass, smallloss.
4. Water-proof inching switch imported from German meets the requirements ofharsh working condition such as cold, humidity and dust circumstances.
5. Four colours LED electricity metre makes it simple and direct to read
.6. Extemal positioned charger has better cooling performance.

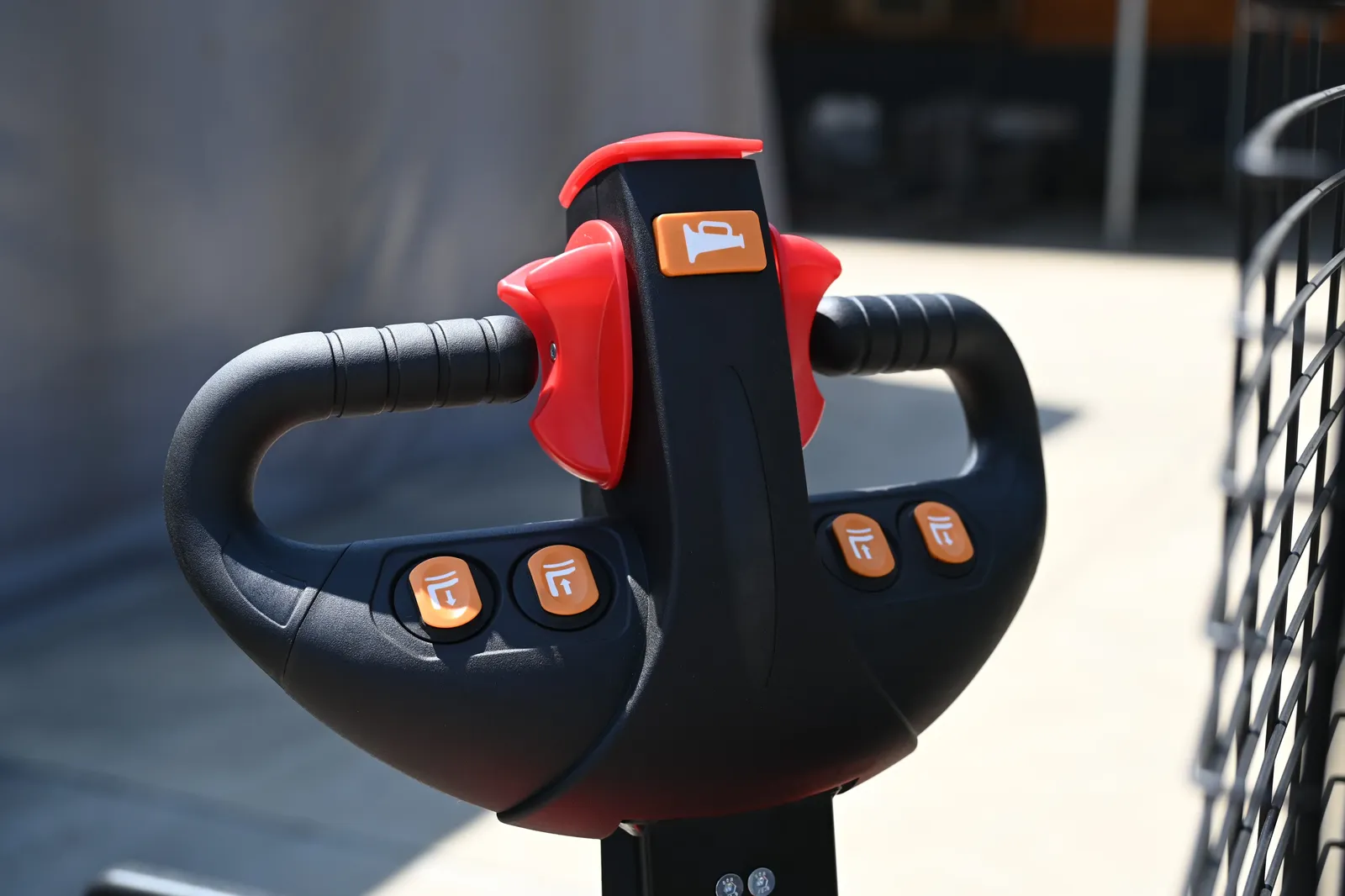

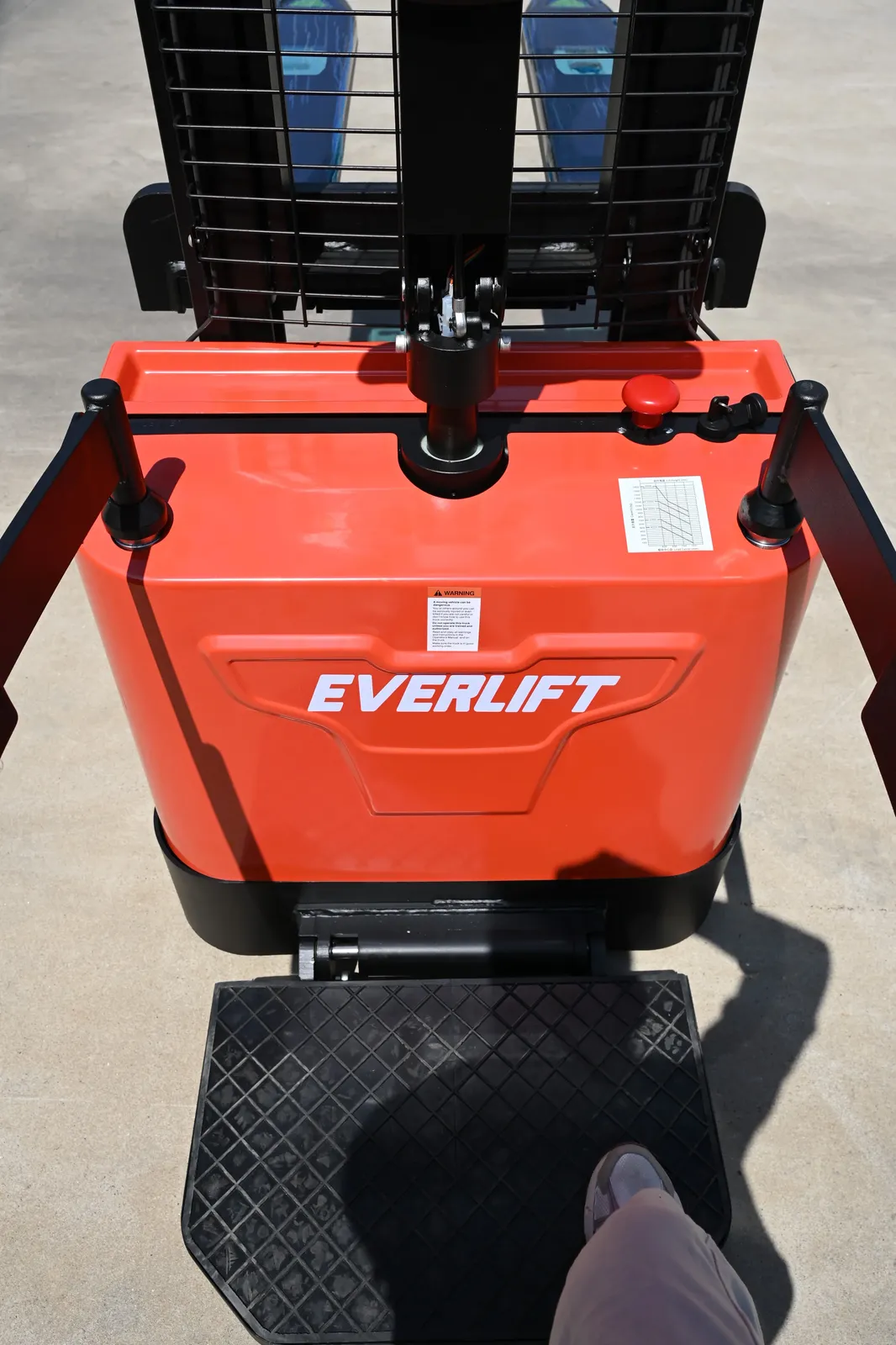

7. It' s more comfortable and easy for operation using a super long handle thatintegrates lifting button, key switch, electricity metre, which is suitable forergonomics; more accurate speed control with the turtle speed switch; moredurable with the high quality air-pressure springs which allows slowly and automatically reset.
8. Iron steel guard with high density is durable, firm and has high protection effect.

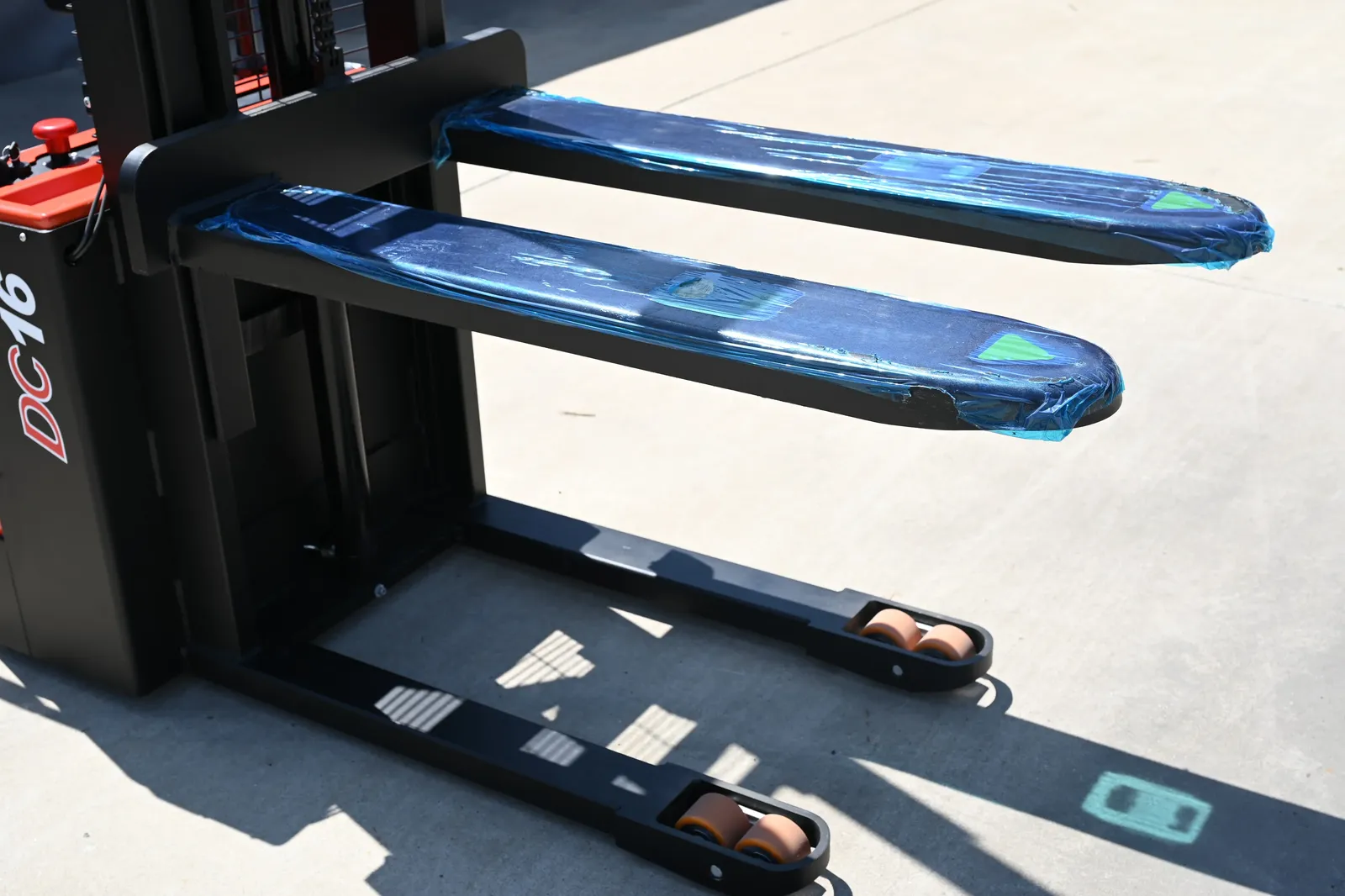

9. Adjustable wide leg is suitable for different sizes of pallets and it is safer and more reliable.

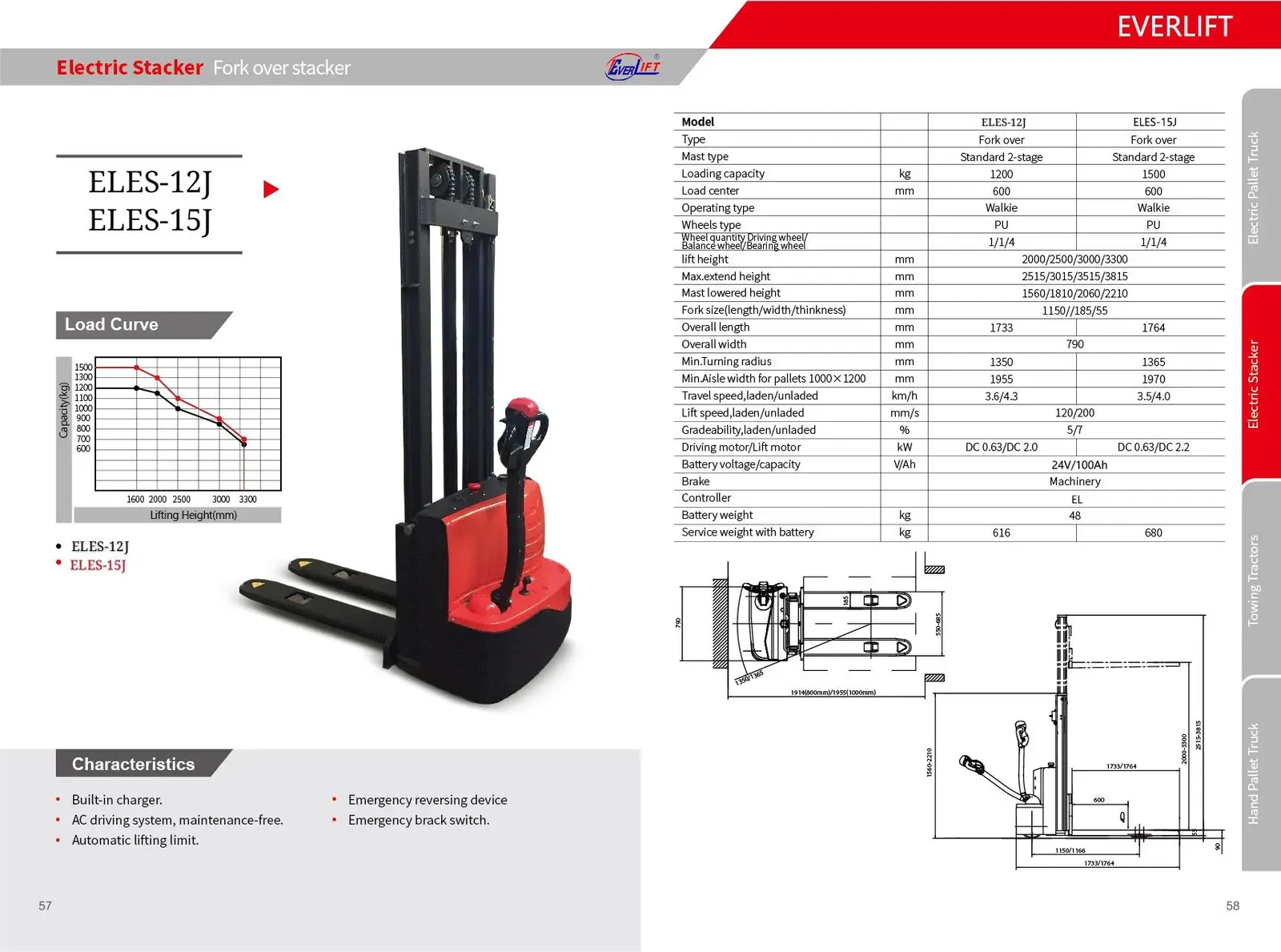

| Condition | New |
|---|---|
| Fork Specifications( L*W*H) | 1220*125*50, 1350*160*100, 1500*160*125 |
| Forklift Battery Type | Lead–Acid Battery |
| Side Shifter | no |
| Drive Type | Fwd |
| Terrain Adaptability | Indoor Flooring |
| Load centre distance | 600 mm |
| Mast Type | Two-Stage Mast, Single-Stage Mast |
| Forklift Turning radius | 1366mm |
| Fork Width | 550 mm/685 mm |
| Fork Length | 1200mm, 1150 mm |
| Operating Mode | walkie |
| Forklift Tyre | Pneumatic Tyre |
| Travel speed ( laden) | 4km/h |
| Travel speed ( unladen) | 4.2km/h |
| Forklift Wheelbase | 1145mm |
| Aisle width | 2.5m |
| Model Number | ELEP-12/15J |
| Battery voltage (V/AH) | 24V/100AH |
| Fork height,lowered | 85mm |
| Type | Electric Stacker |
| Battery | 24V/100AH |
| fork size | 550*1150/685*1200mm |
| Overall height | 1755mm |
| lowered height | 85mm |
| Min.Turning Radius | 1366mm |
| Standard lift height | 3000mm |
| Max. Lifting Height options | 3000mm |
| Truck Type options | Pallet stacker |
| Rated Loading Capacity options | 1.2 Ton, 1.5 Ton |
| Certificate | Number | Valid |
|---|---|---|
| 2006/42/EC | M.2026.206.C137529 | 30/03/2026 - 29/03/2031 |
| CE | M.2026.206.C134736 | 04/02/2026 - 03/02/2031 |
| CE | 3N251031.NEMS093 | 30/10/2025 - 29/10/2030 |
| EAC | — | 22/10/2023 - 22/10/2028 |
| CE | M.2023.206.C83216 | 22/03/2023 - 21/03/2028 |
| CE | M.2023.206.C83215 | 22/03/2023 - 21/03/2028 |
| CE | M.2023.206.C83222 | 22/03/2023 - 21/03/2028 |
Certificates are supplied with your quote on request.
