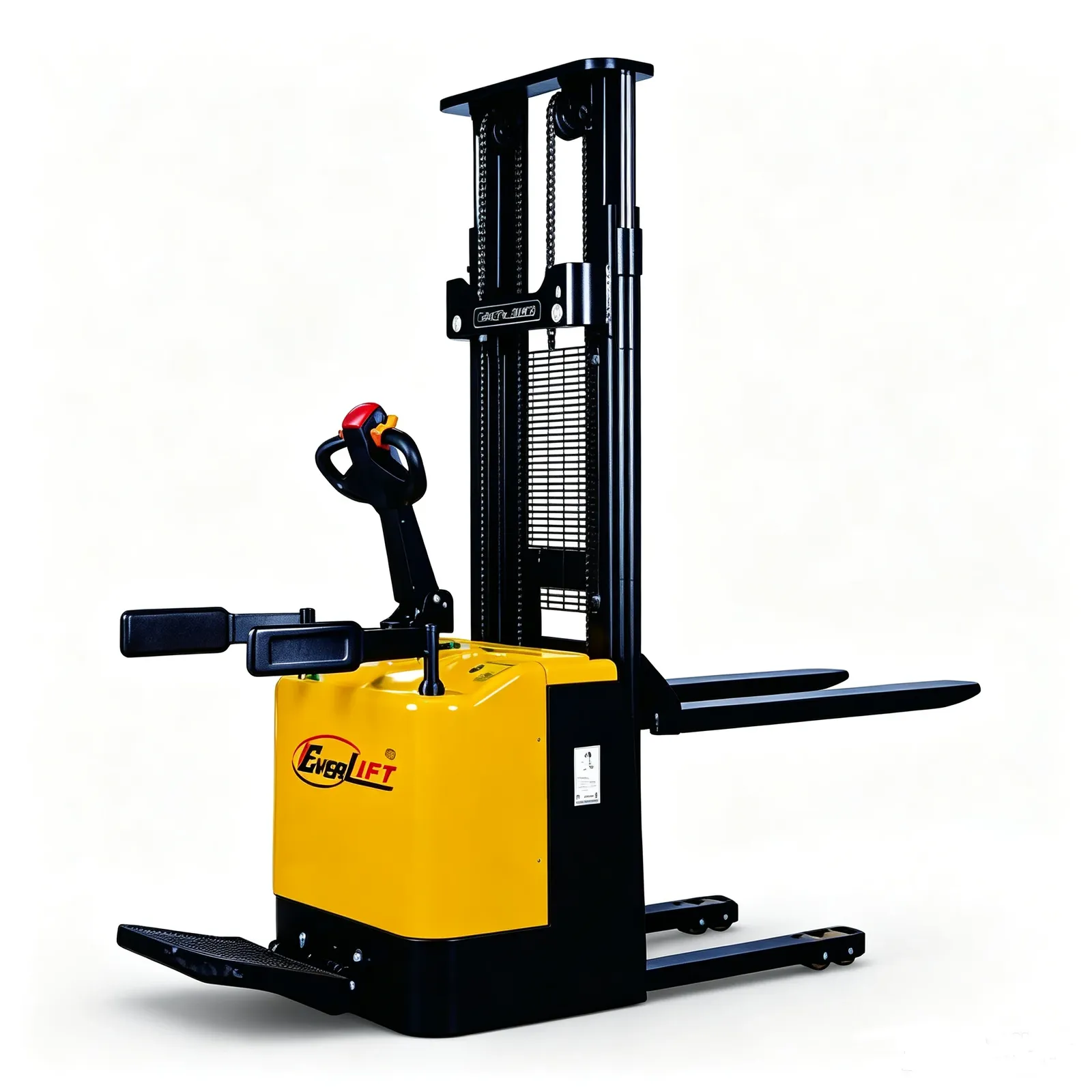

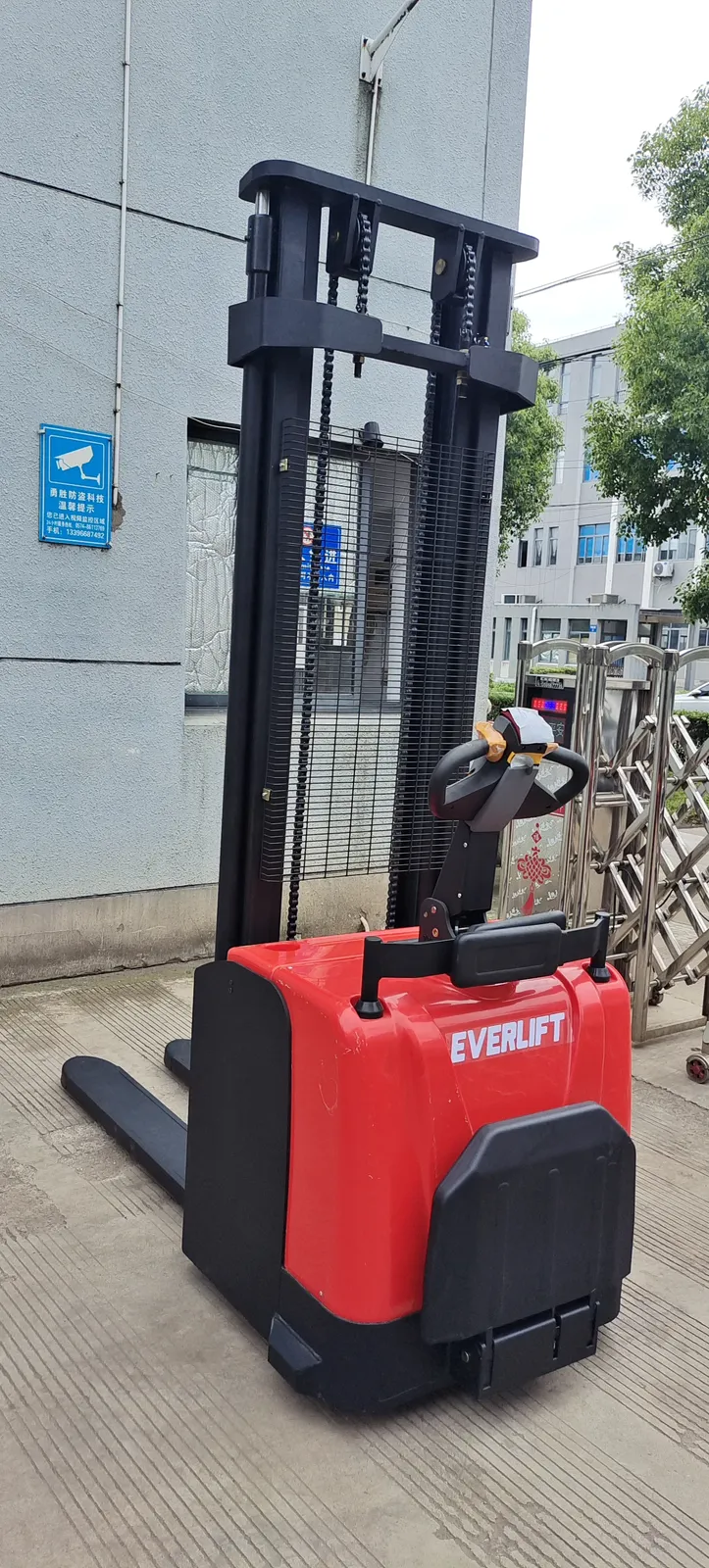

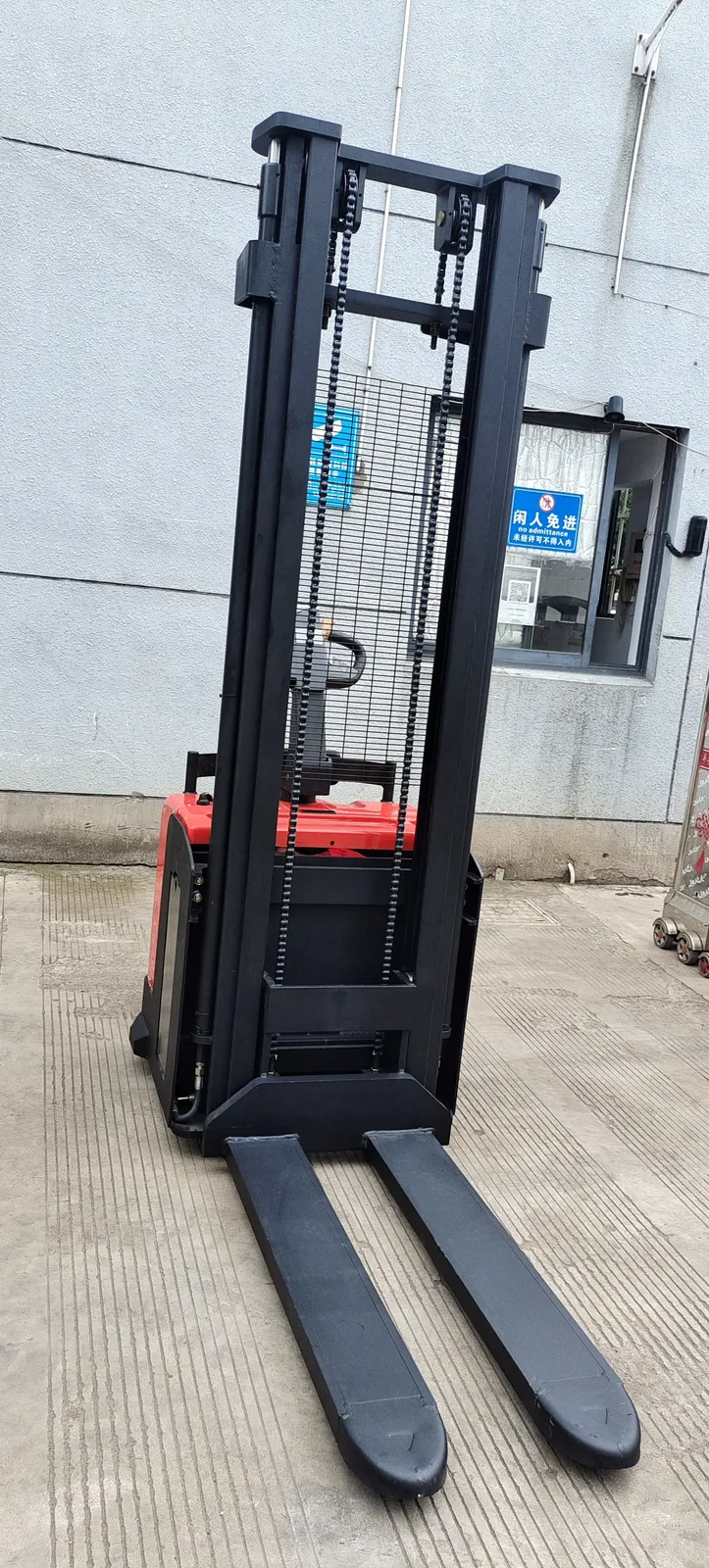

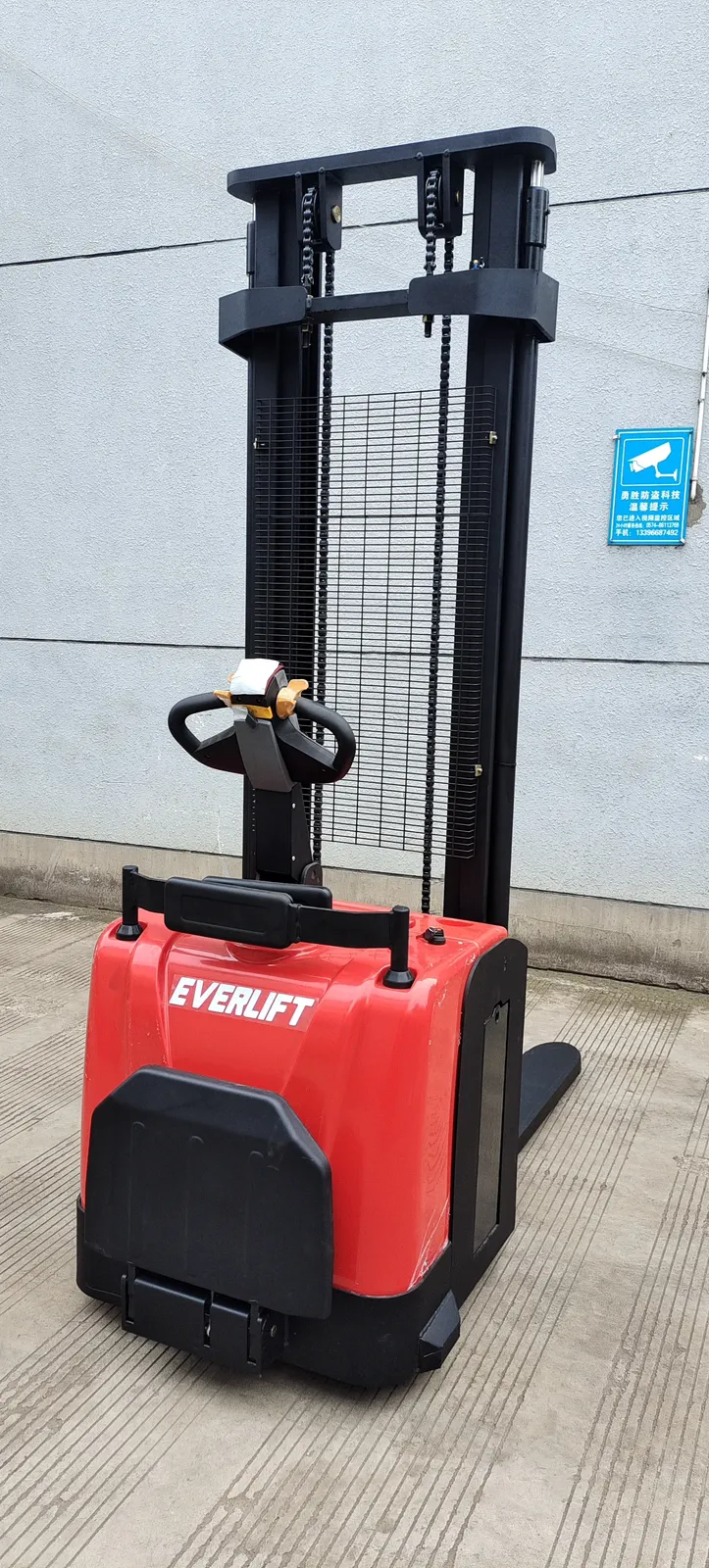

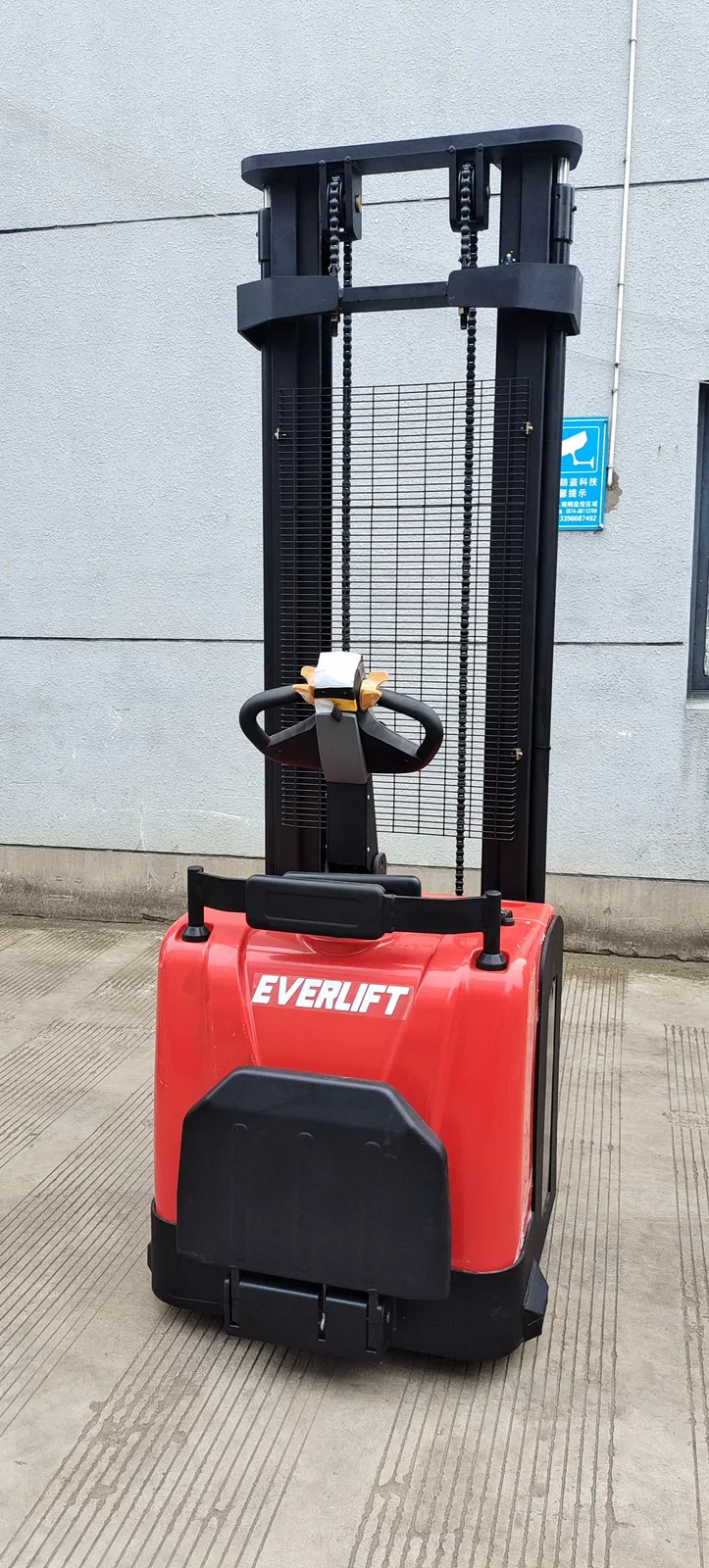

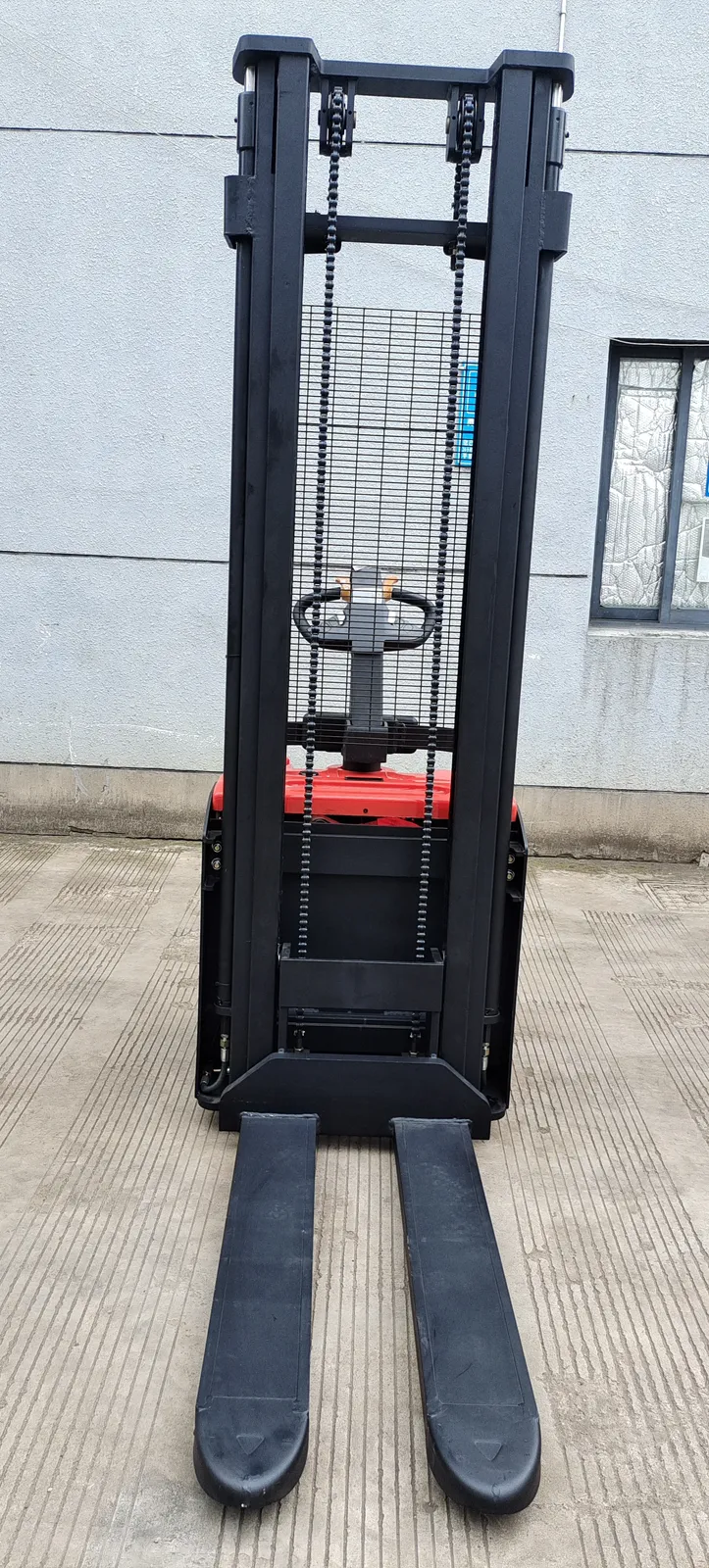

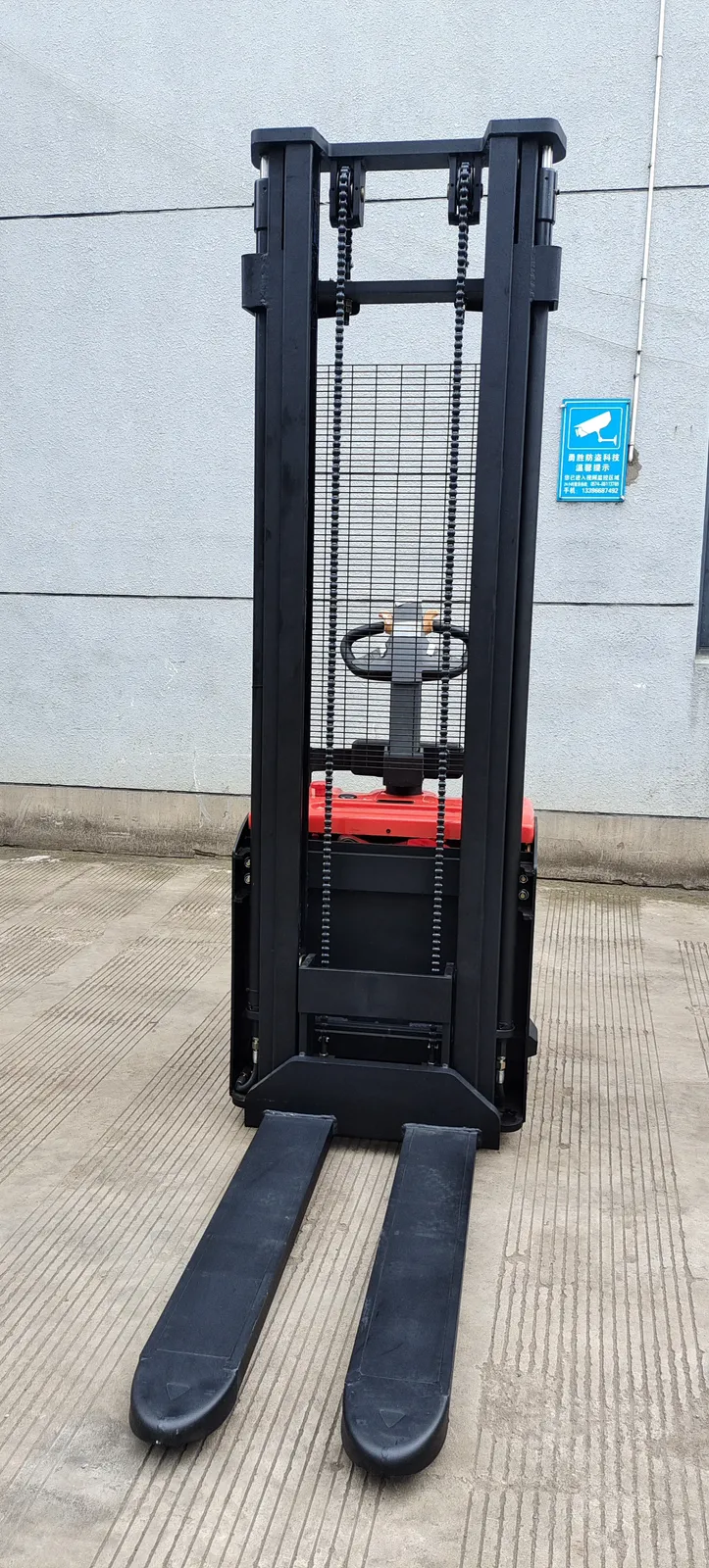

Stand on Electric Pallet Stacker ELES-20P 2000 kg
2 tLead-acidForks 1150 to 1220 mm
from £3,650per unit, ex VAT
| Quantity | Price per unit |
|---|---|
| 1+ units | £3,650 |
Minimum order 1 unit from the factory; any range minimum is confirmed on your quote. Prices in GBP per unit, ex VAT. We convert the factory list at a buffered exchange rate, so normal day-to-day currency movement does not change the price you see. Your written quote adds freight, duty and VAT and is valid for 30 days.
Rated Loading Capacity2 Ton
Truck TypeStacker Forklift
Line total
No online payment. The basket becomes an order request and we reply with a written GBP quote, deposit 30% on order, lead time 8 to 12 weeks.
Or email [email protected]Product Highlights
1. This stand-on electric stacker supports 2000kg rated load and flexible lifting height options from 1600mm to 3600mm, matching the mainstream medium rack storage demands of most warehouse equipment distributors.
2. The machine is equipped with standard EPS electric power steering system, which brings lightweight and flexible operation and greatly eases long-hour working fatigue, a highly sought-after humanized design among global buyers.
3. It adopts imported CURTIS controller, stable AC drive assembly and dual lifting cylinders, delivering smooth speed regulation and steady lifting performance, effectively reducing maintenance troubles for end warehouse users.
4. Matched with 24V 240Ah large-capacity traction battery, the stacker supports long continuous operation and convenient quick charging. The robust heavy-duty body and reinforced fork ensure durable service for high-frequency logistics work.
5. Complete safety configurations including electromagnetic braking, emergency stop function and ergonomic protective arm fully meet international industrial operation standards, which is a core evaluation factor for factory purchasers and regional dealers.

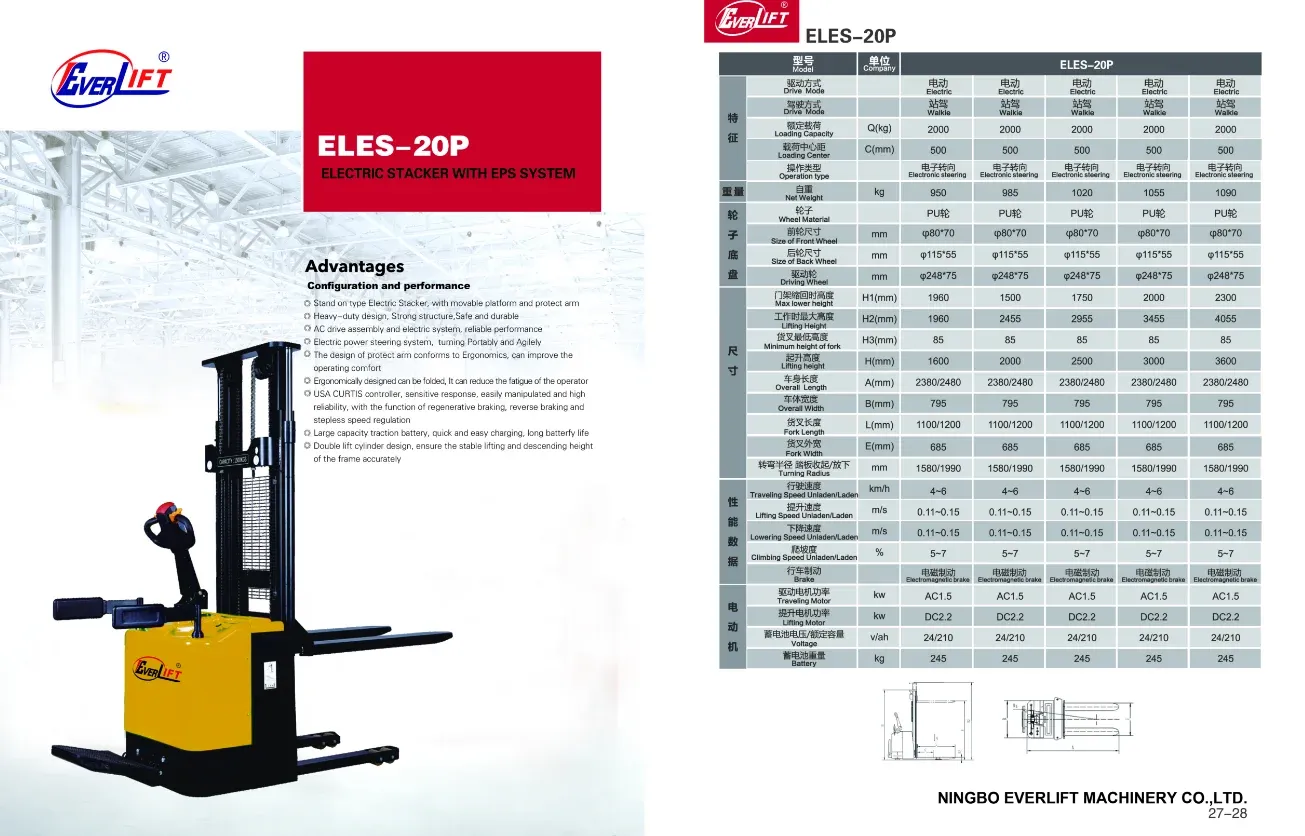

| Condition | New |
|---|---|
| Fork Specifications( L*W*H) | 1200*685*85 |
| Forklift Battery Type | Lead–Acid Battery |
| Side Shifter | Electric Side Shifter, Hydraulic Side Shifter |
| Drive Type | Fwd |
| Terrain Adaptability | Indoor Flooring, Offroad, Rough Terrain, Other, Outdoor Pavement |
| Load centre distance | 500 mm, 600 mm |
| Mast Type | Single-Stage Mast, Three-Stage Mas, Two-Stage Mast |
| Fork Length | 1150 mm, 1220 mm |
| Operating Mode | Standing Operation |
| Forklift Tyre | Polyurethane Tyre |
| Mast Tilt Angle (Forward Tilt-Rear Tilt) | 6-12° |
| Model Number | ELES-20P |
| Battery voltage (V/AH) | 24v/240ah |
| Type | Stacker Forklift |
| Mast | 2 Stage /3 Stage Optional |
| Battery | Lead-acid Batterry |
| Model | ELES-20P |
| Wheels | PU Wheels |
| Certification | CE/ISO9001 |
| Battery capacity | 24V/240AH |
| Operator type | Stand-up |
| Rated Loading Capacity options | 2 Ton |
| Truck Type options | Stacker Forklift |
| Max. Lifting Height options | 2 000 mm, 2500 mm, 3000mm, 3500 mm, 4000 mm |
| Certificate | Number | Valid |
|---|---|---|
| 2006/42/EC | M.2026.206.C137529 | 30/03/2026 - 29/03/2031 |
| CE | M.2026.206.C134736 | 04/02/2026 - 03/02/2031 |
| CE | 3N251031.NEMS093 | 30/10/2025 - 29/10/2030 |
| EAC | — | 22/10/2023 - 22/10/2028 |
| CE | M.2023.206.C83216 | 22/03/2023 - 21/03/2028 |
| CE | M.2023.206.C83215 | 22/03/2023 - 21/03/2028 |
| CE | M.2023.206.C83222 | 22/03/2023 - 21/03/2028 |
Certificates are supplied with your quote on request.
