Mobile Yard Ramp 6 t to 15 t
| Capacity | Length | Truck-end height |
|---|---|---|
| 6 t | 10,500 mm | On your drawing |
| 8 t | 11,200 mm | On your drawing |
| 10 t | 11,200 mm | Up to 1,800 mm |
| 15 t | 11,200 mm | 1,150 to 1,800 mm |
For forklifts into containers and lorries. Your quote drawing confirms the width and heights.
- 12-month warranty
- Photos and video before it ships
- No online payment, nothing is charged
Any quantity is welcome. Your price depends on the quantity and is confirmed on your written quote. Delivered price to a UK mainland site, ex VAT. Your written quote confirms it and is valid for 30 days.
Line total
Nothing is sent yet: add the products you need, then send your quote request. We reply within 2 hours, Monday to Friday, 9am to 5pm.

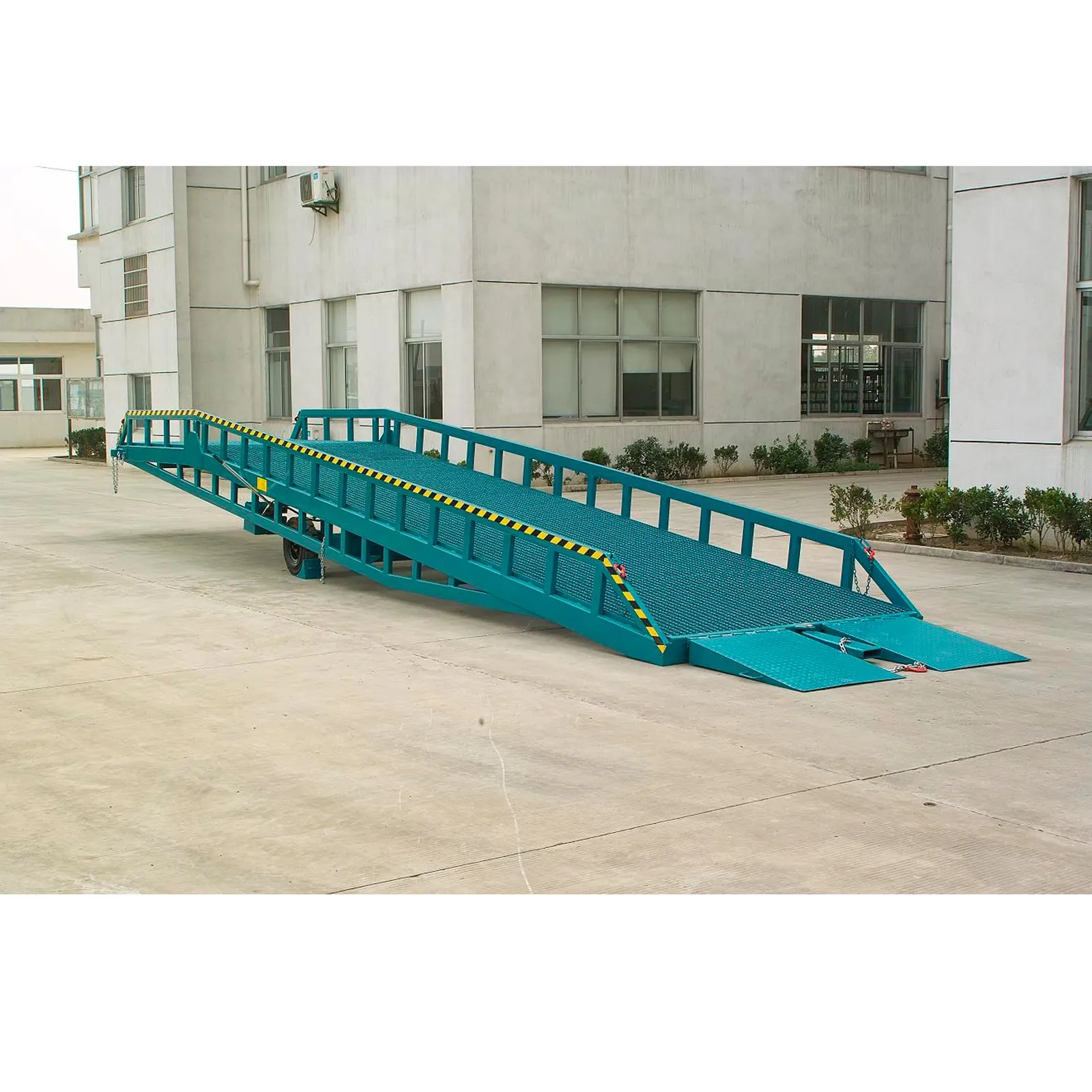

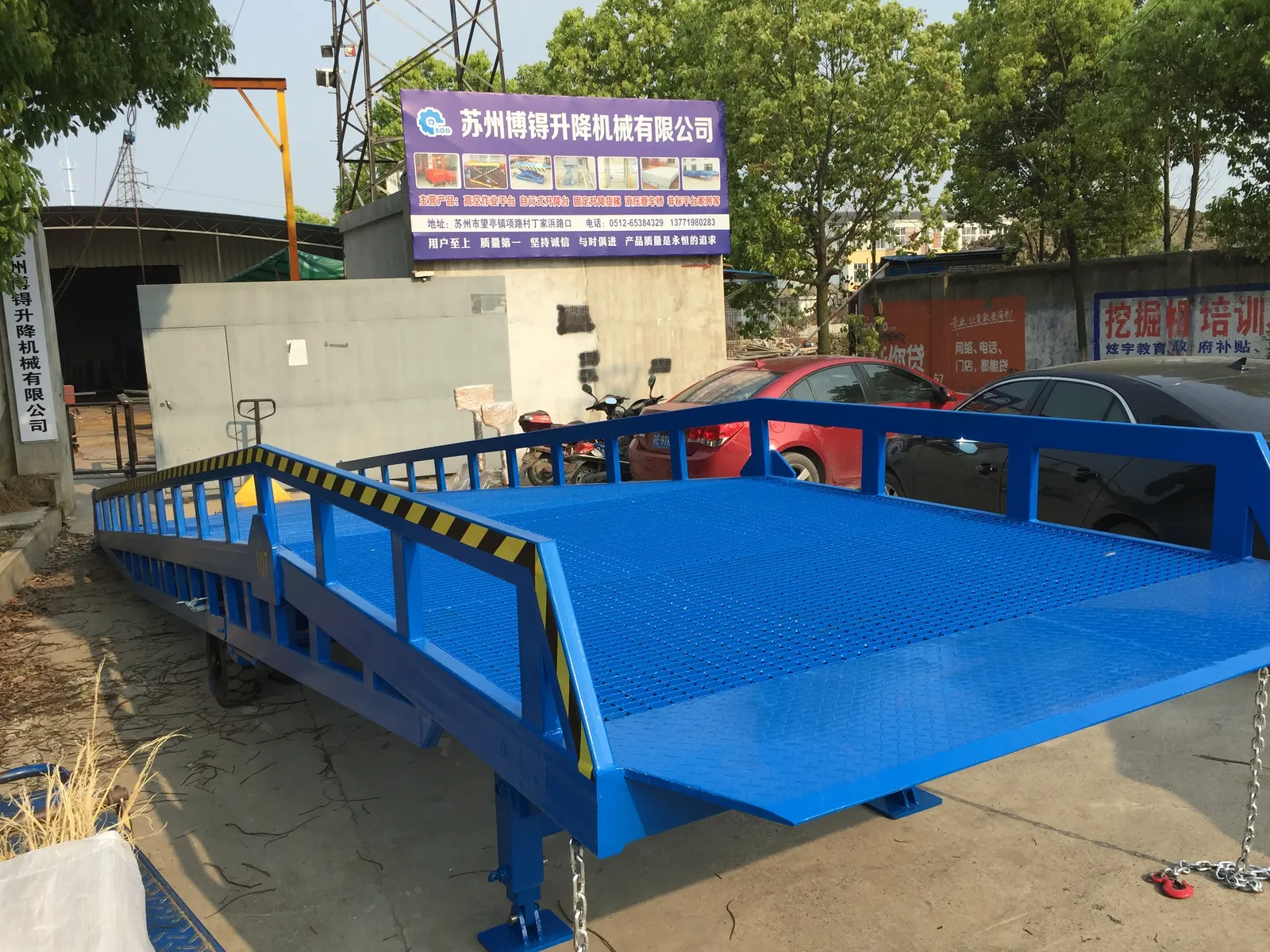

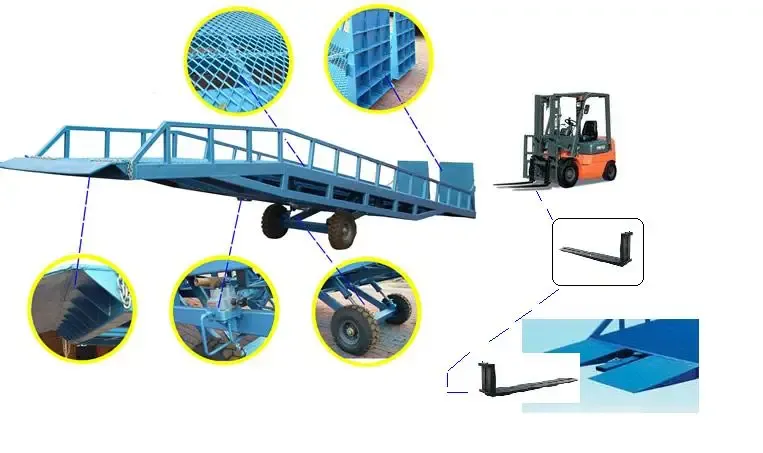

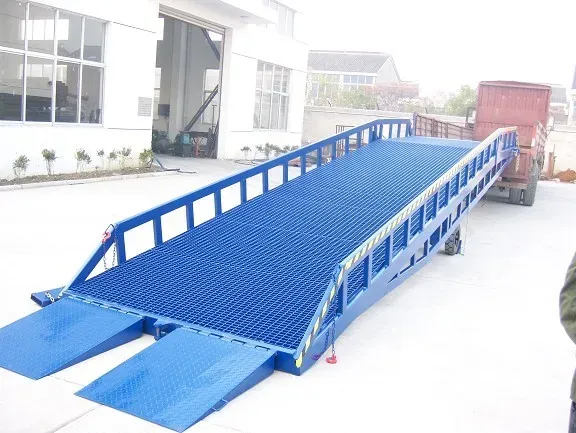

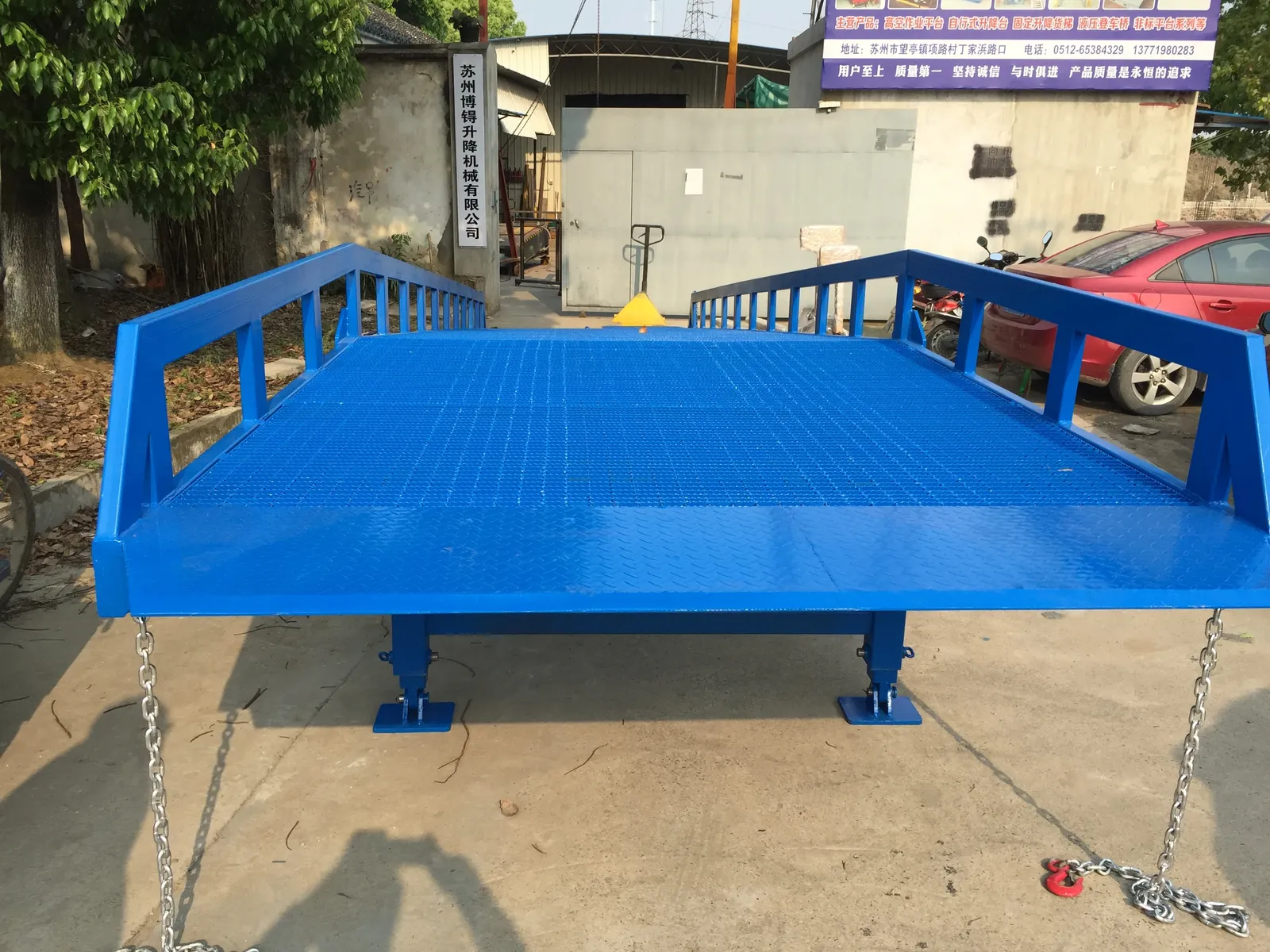

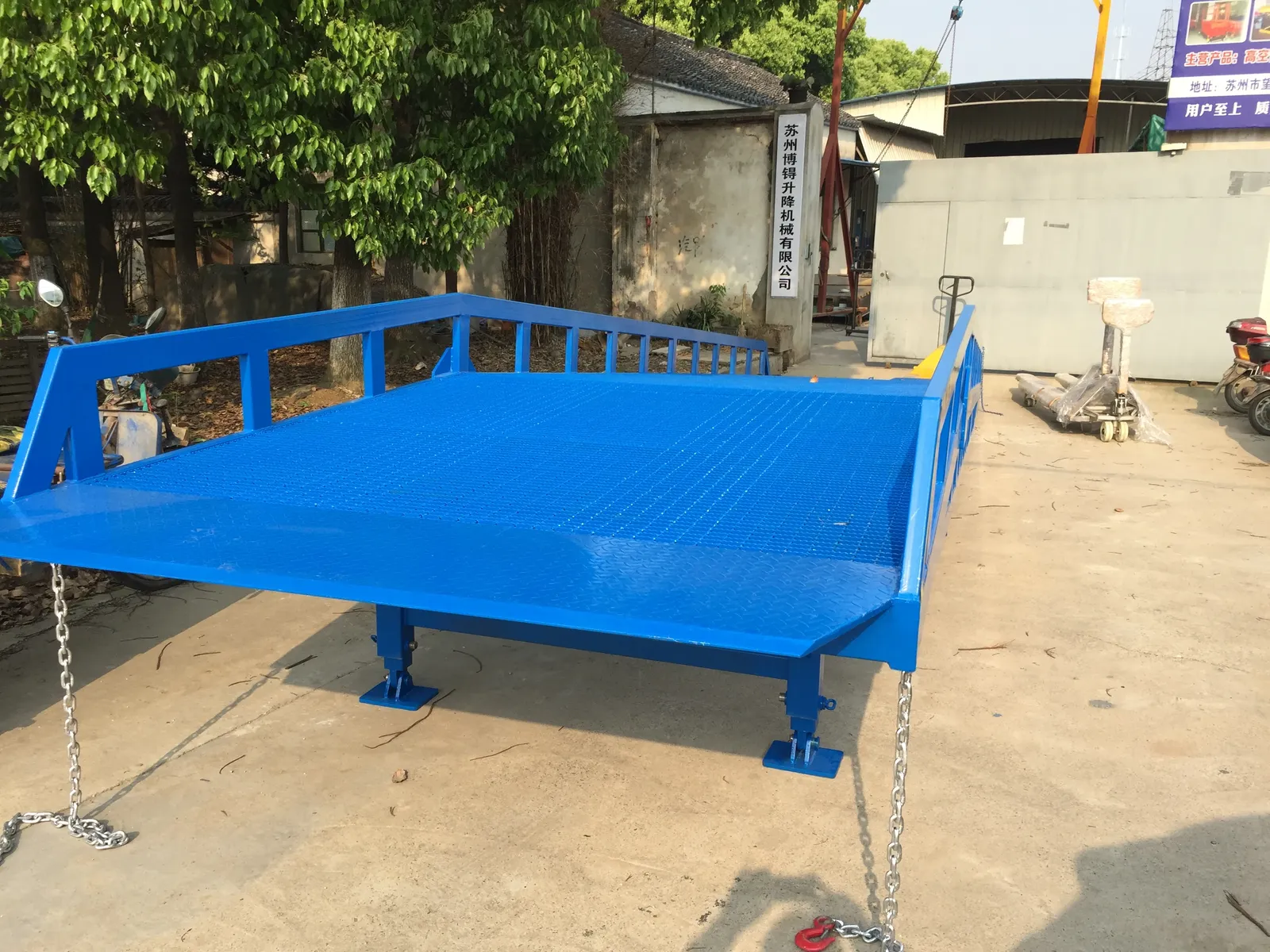

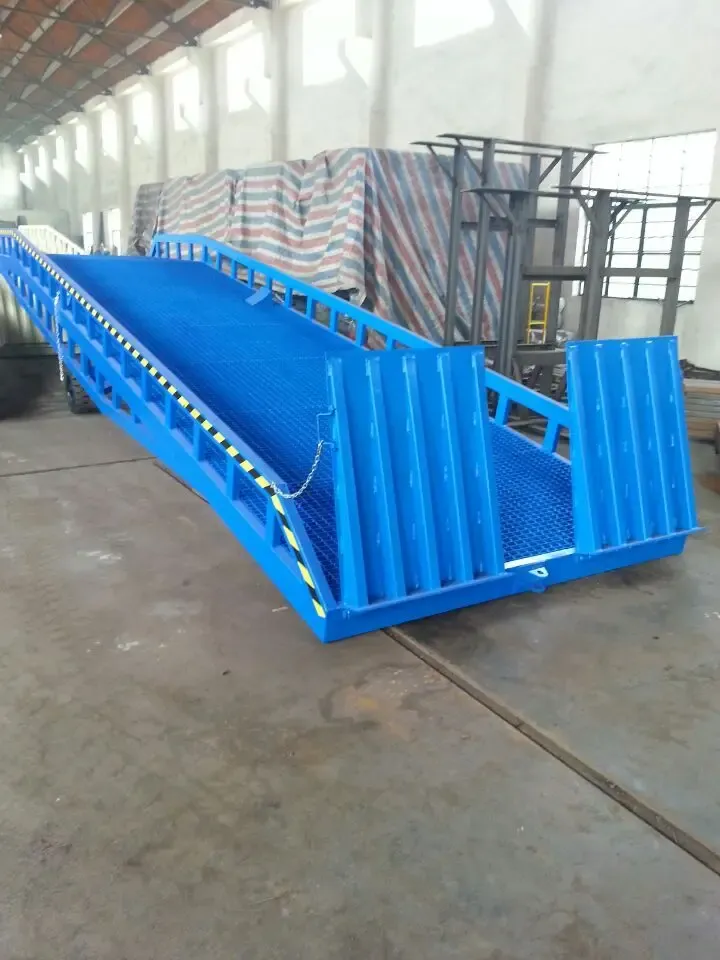

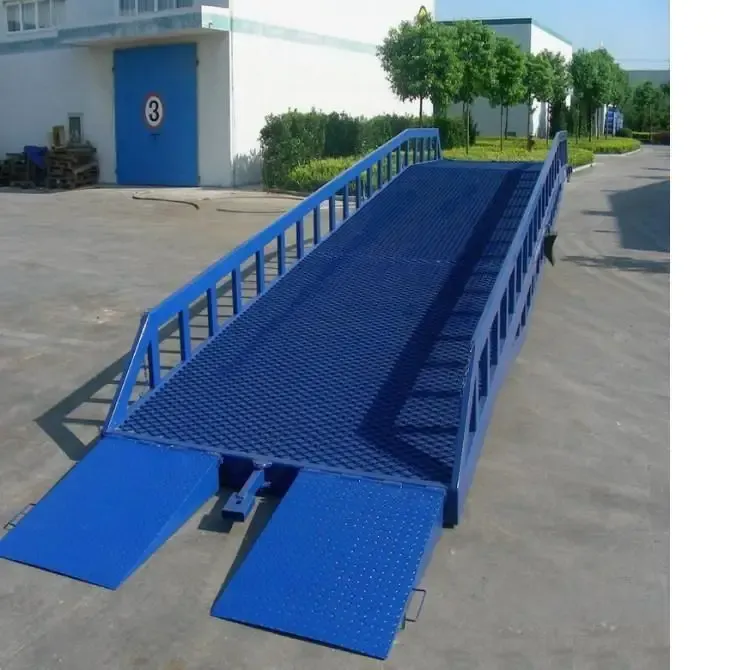

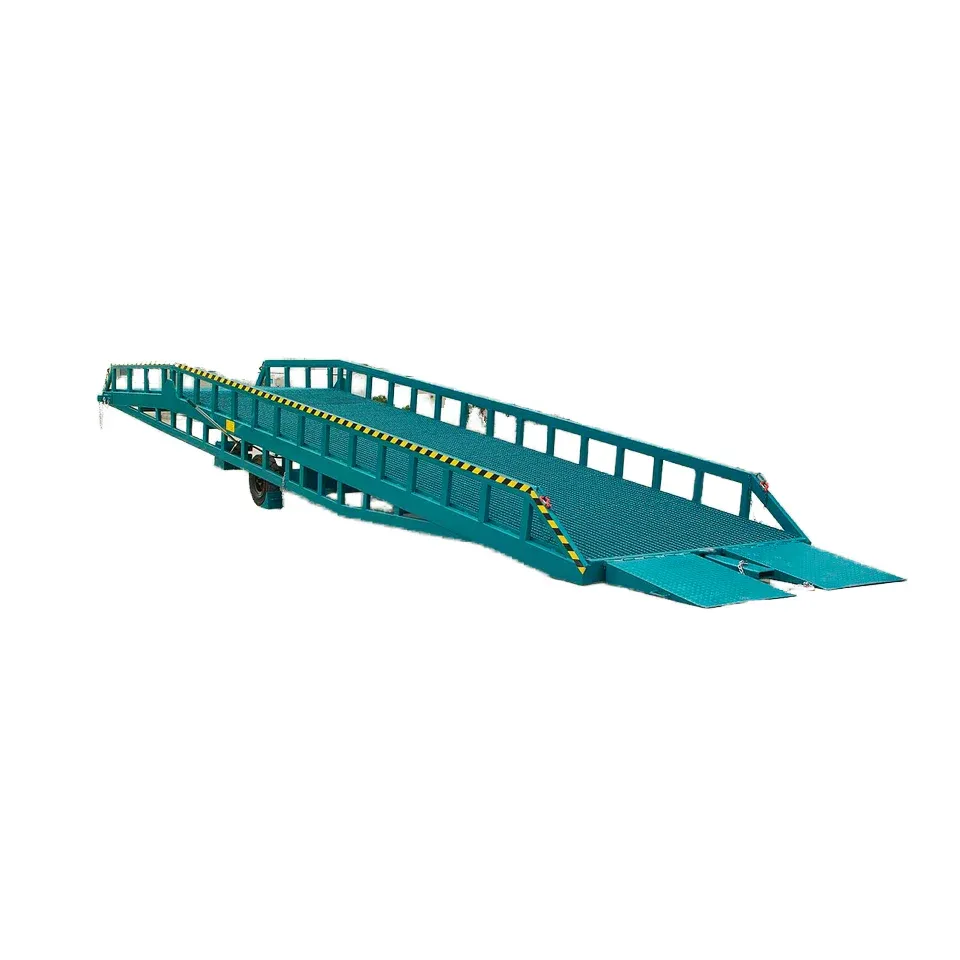

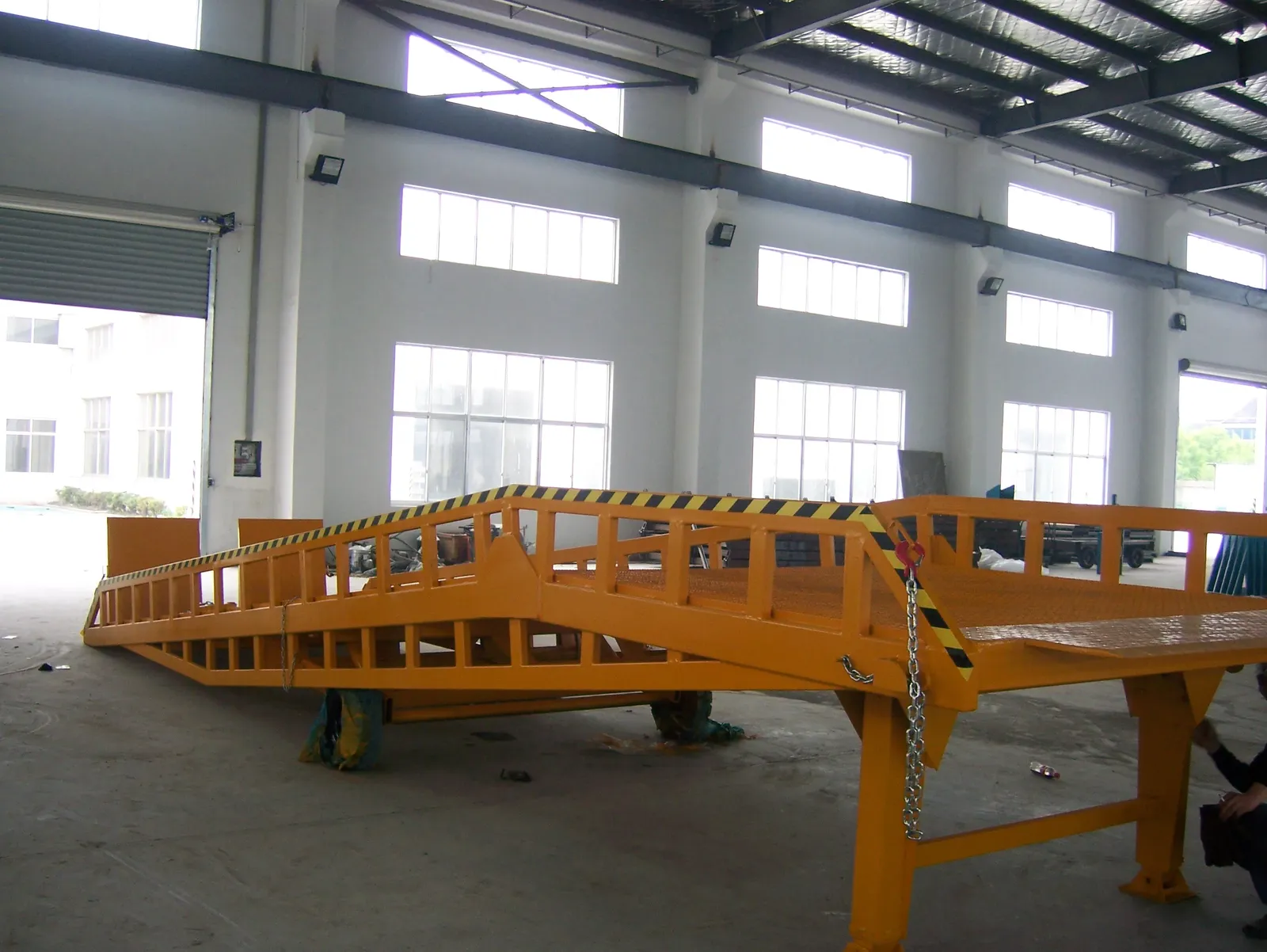

Or email sales@londonpallettrucks.co.ukA mobile yard ramp gives a forklift a drive-on route from the yard into a container or the back of a lorry, where there is no loading dock.

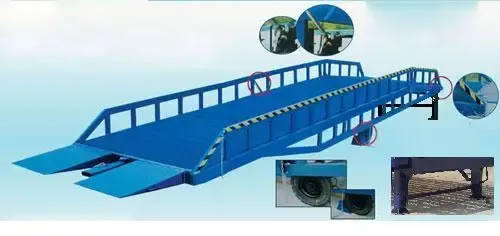

Height is set with a hand hydraulic pump, so no power supply is needed, and a parking brake holds the ramp in place while you load.
Dimensions for the 15 t model come with your written quote.

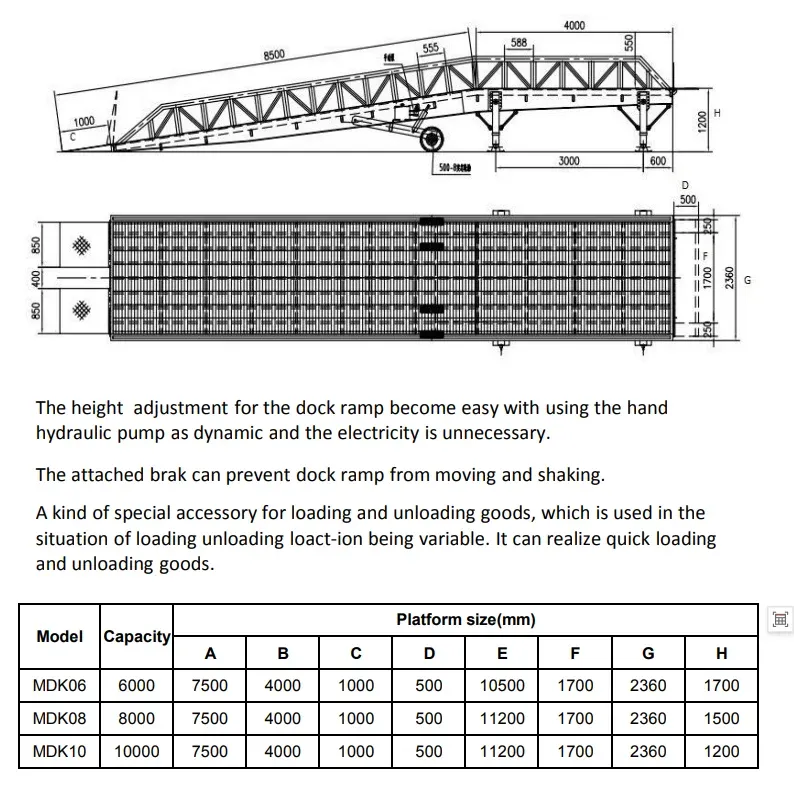

| Type | Mobile yard ramp on wheels |
|---|---|
| Overall length | 10500 mm (6 t), 11200 mm (8 t and 10 t) |
| Overall width | 2360 mm |
| Overall height | 1700 mm (6 t), 1500 mm (8 t), 1200 mm (10 t) |
| Sloped section | 7500 mm |
| Level platform | 4000 mm |
| Ground-end lip | 1000 mm |
| Truck-end lip | 500 mm |
| Height adjustment | Hand hydraulic pump, no power supply needed |

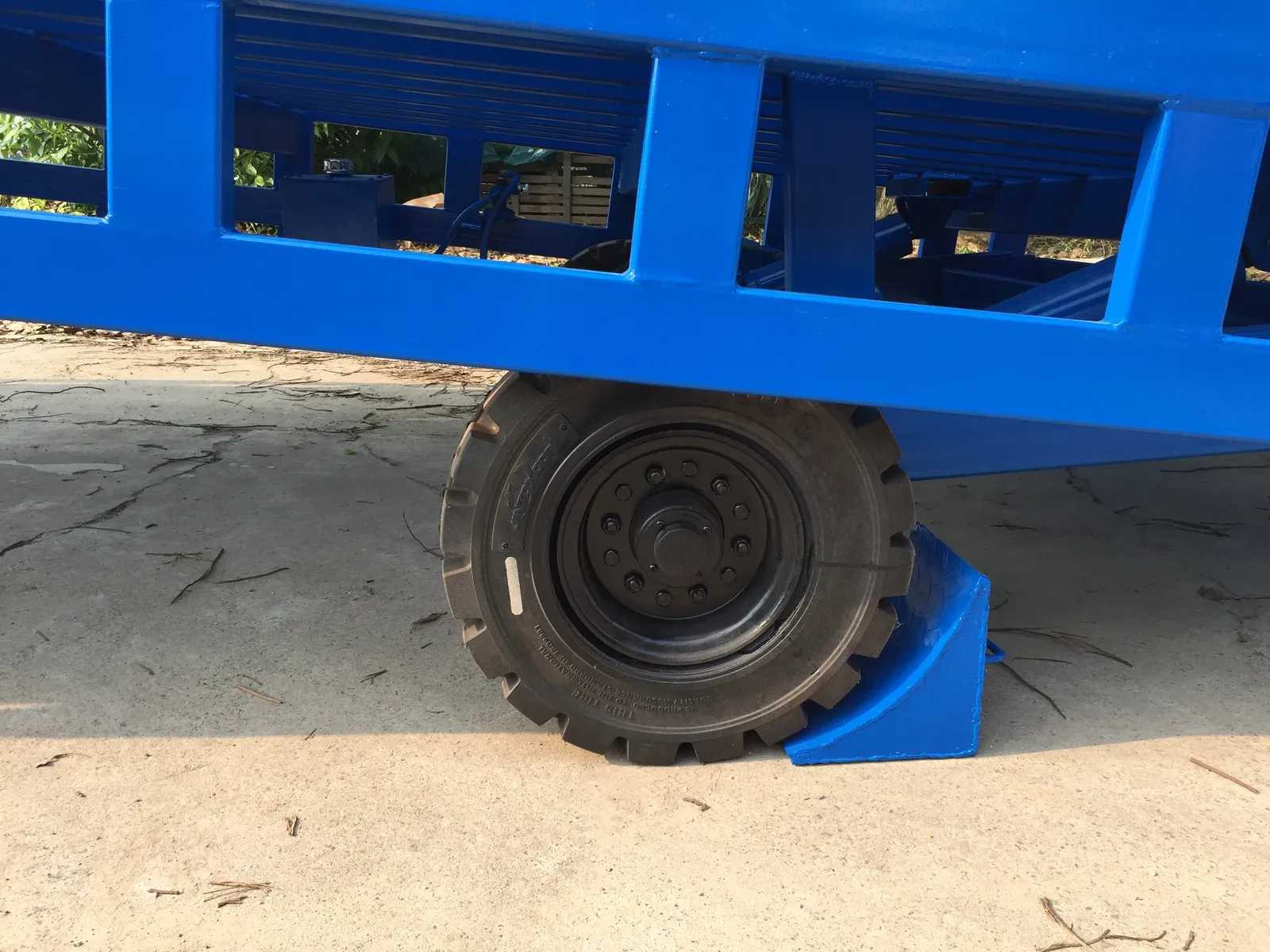

| Brake | Parking brake holds the ramp in place |
| Capacity options | 6 t, 8 t, 10 t, 15 t |
| Certificate | Number | Valid |
|---|---|---|
| EAC | 22/10/2023 - 22/10/2028 |
Certificates are supplied with your quote on request.
Spare parts for this model
All spare parts. Send the model and the part you need if it is not listed.
