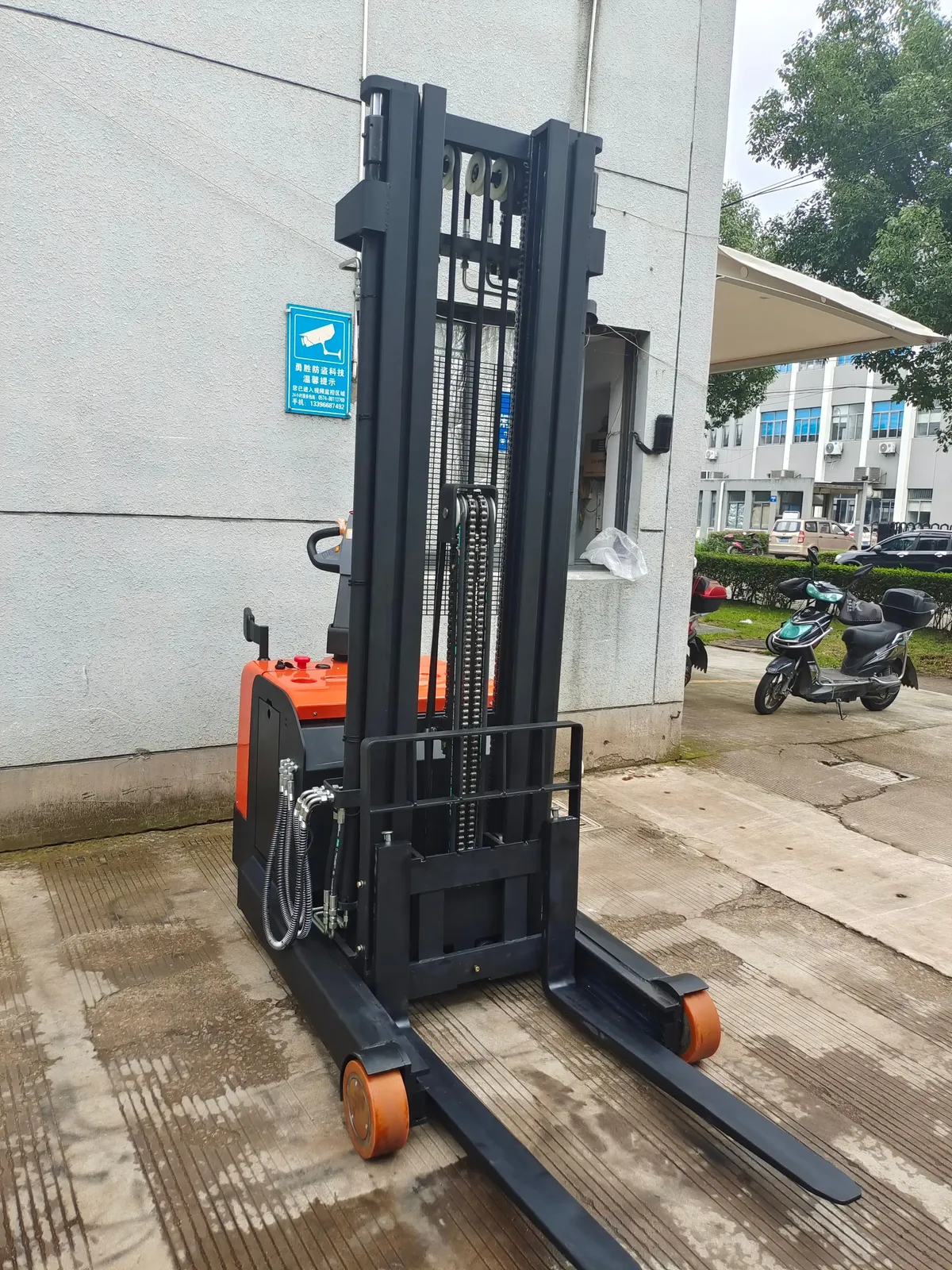

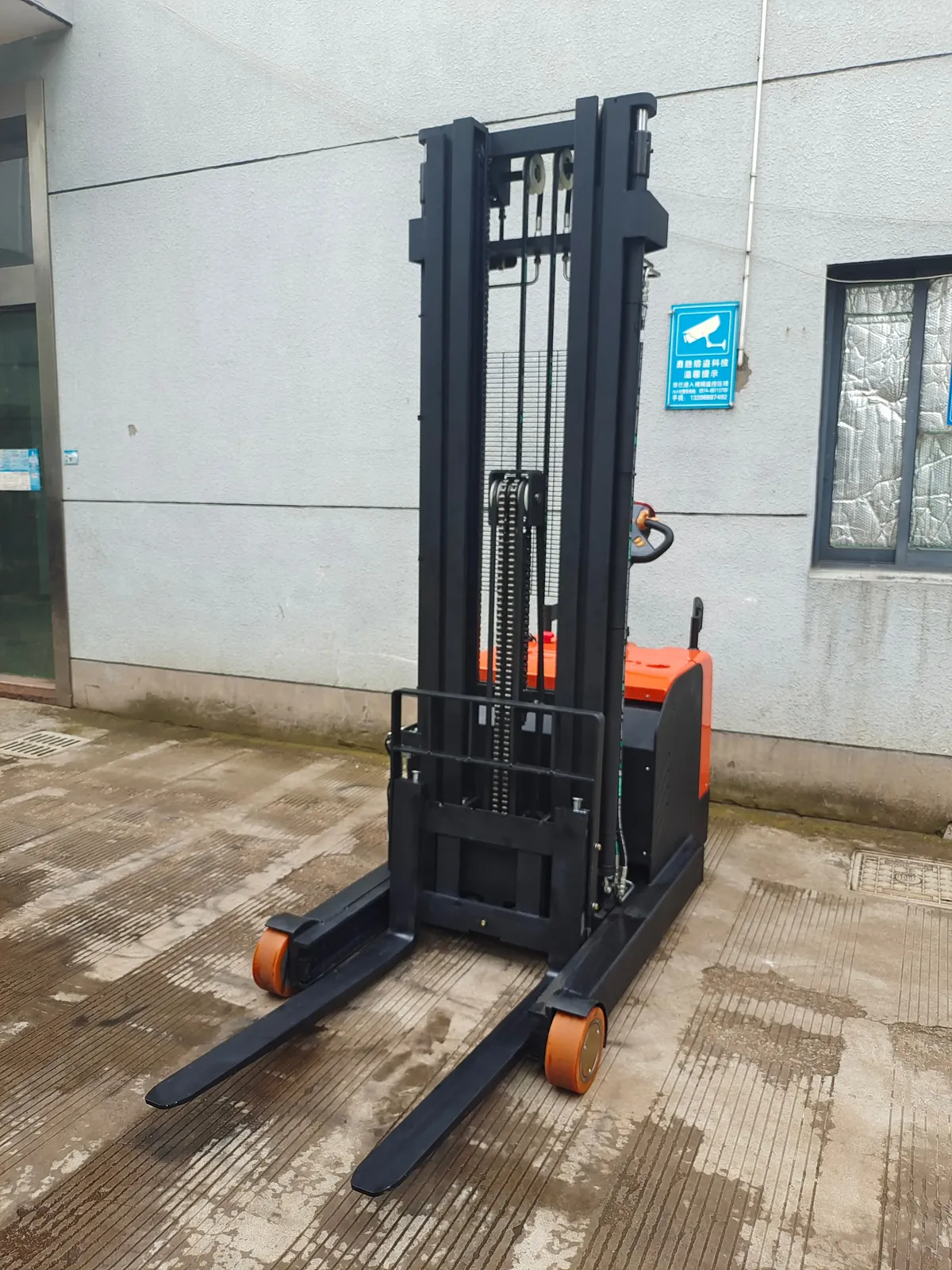

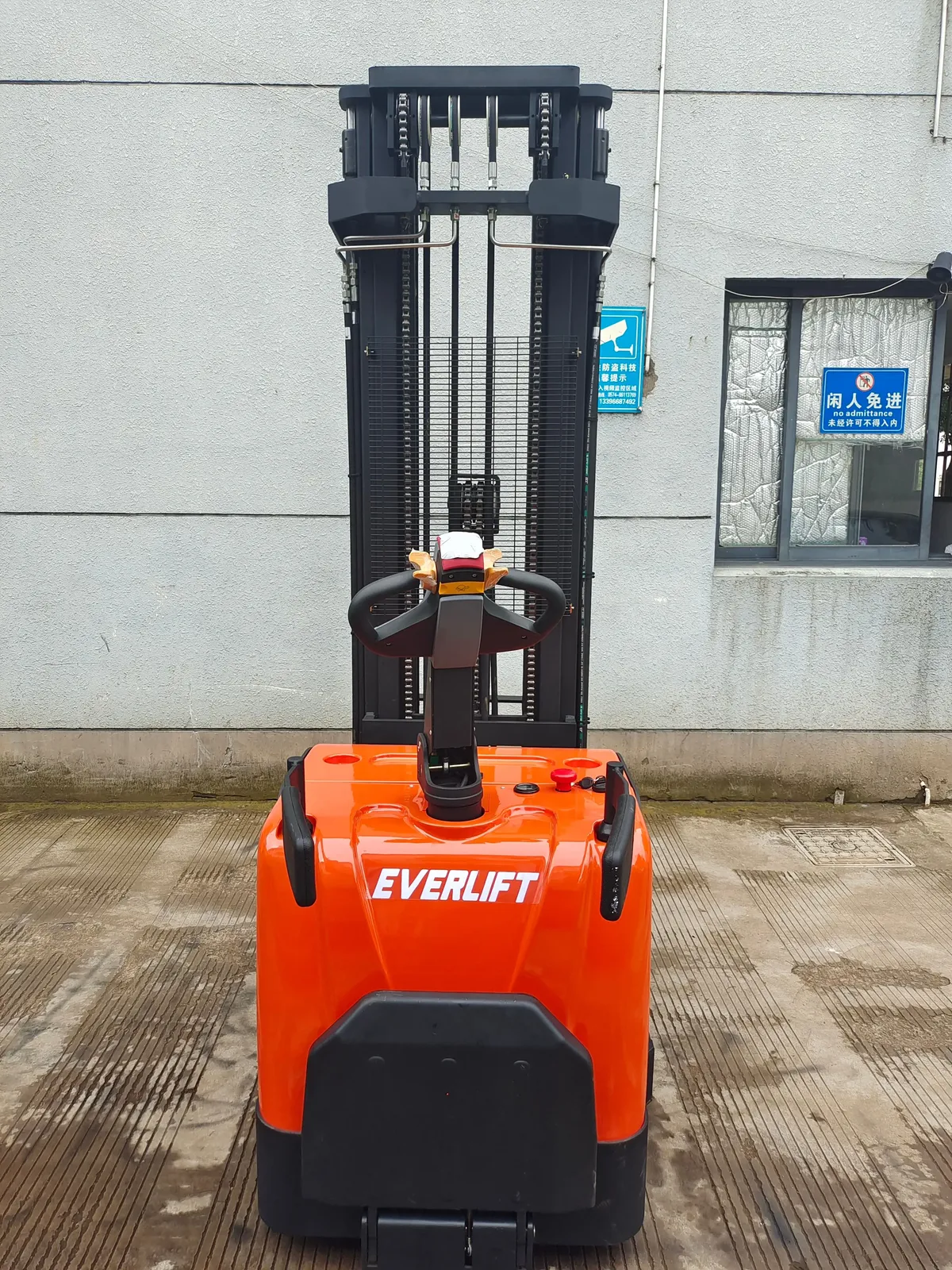

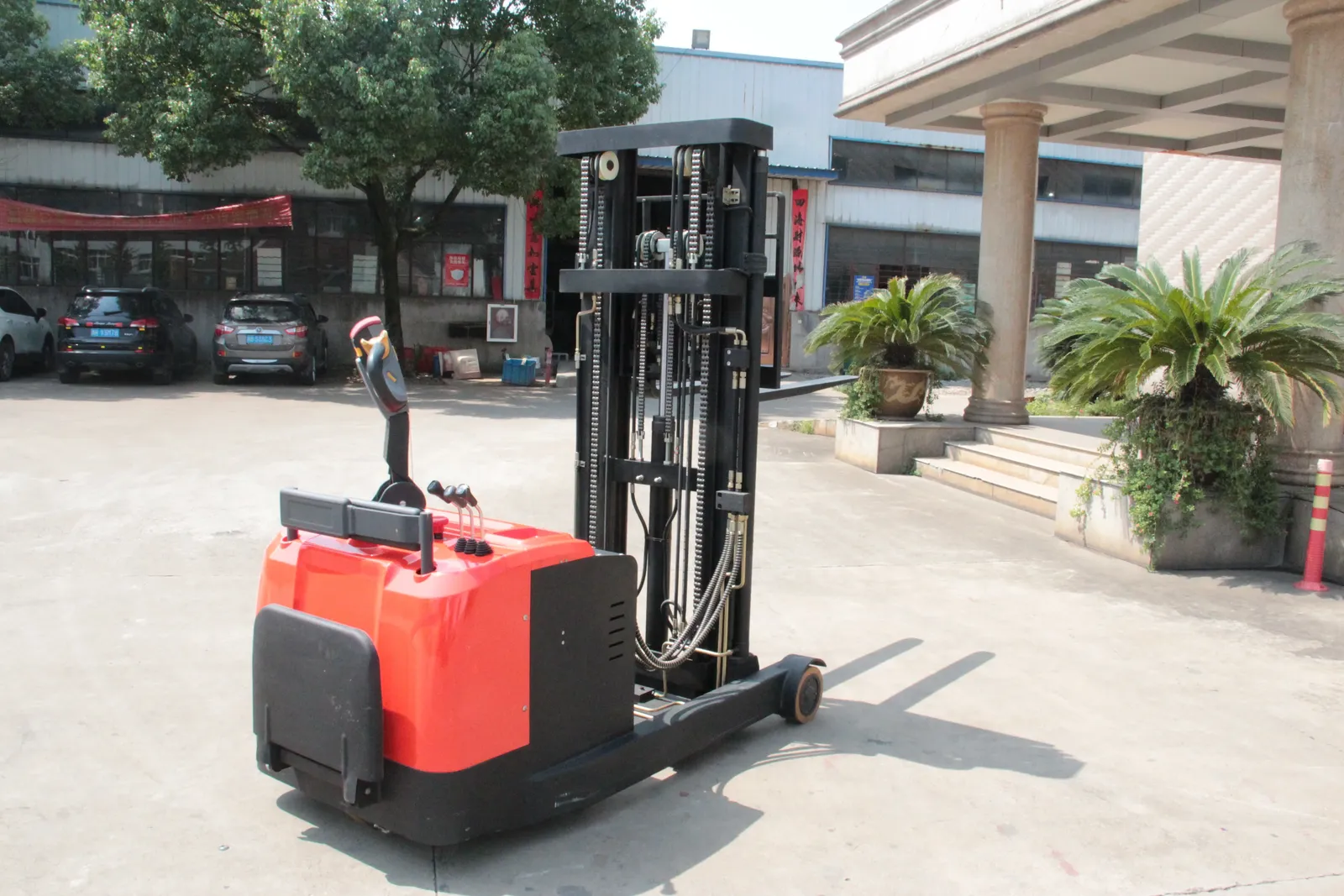

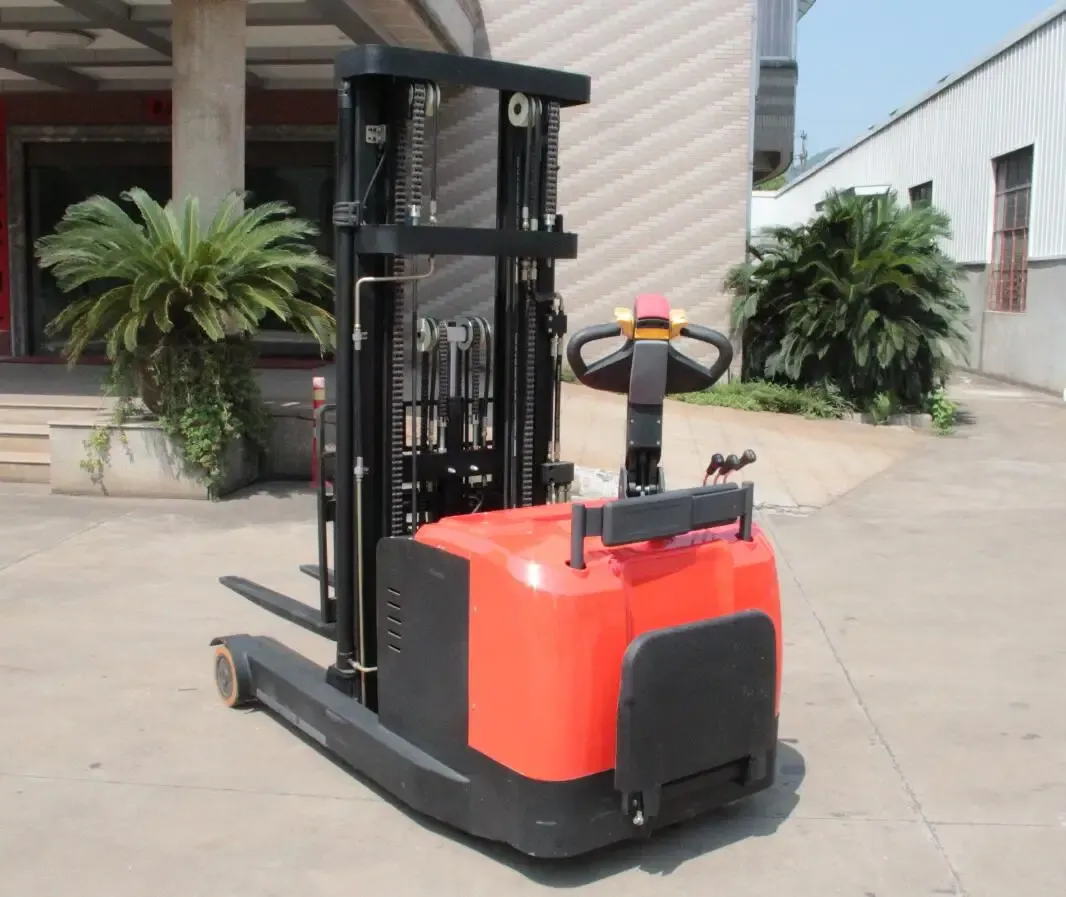

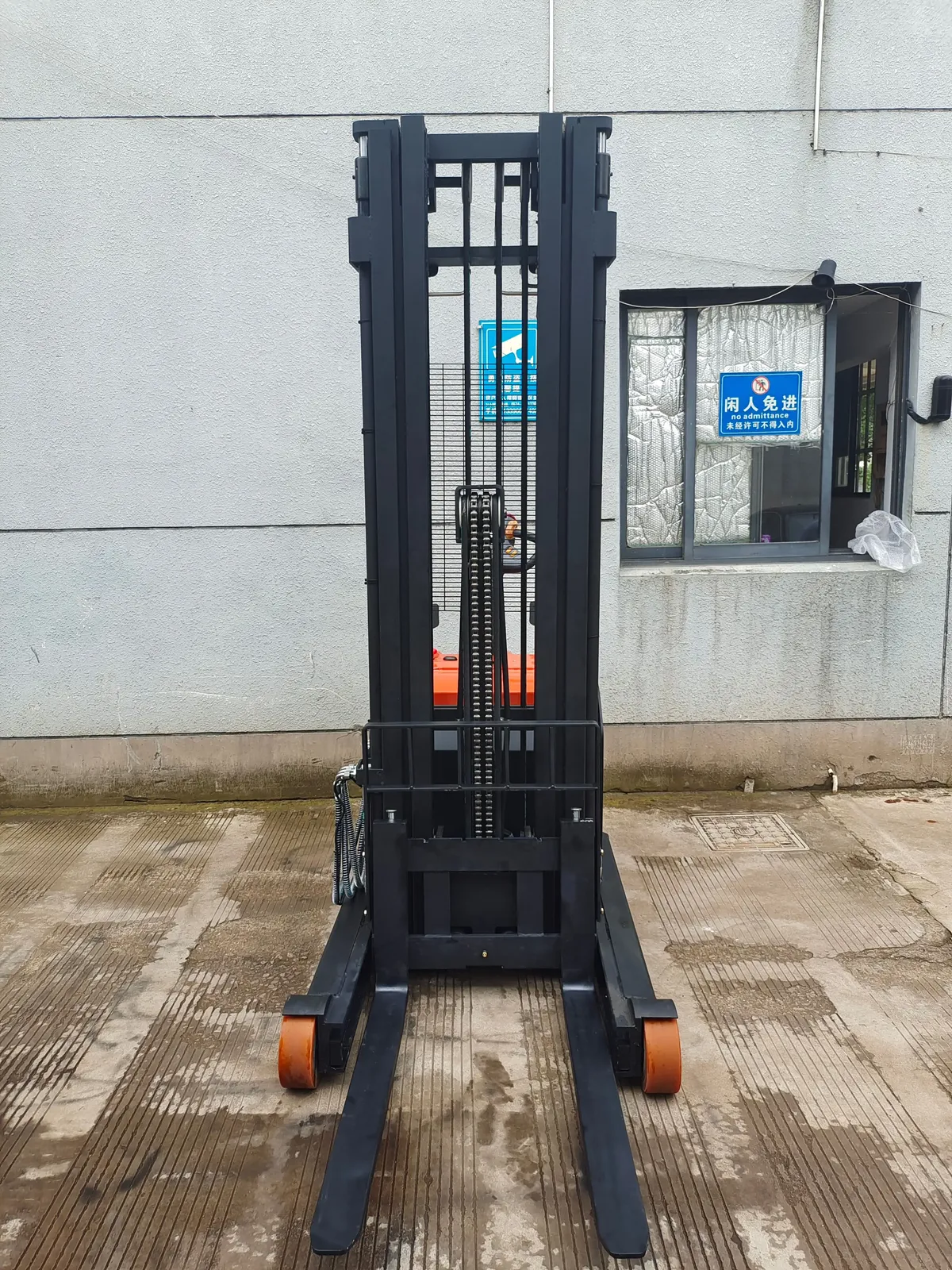

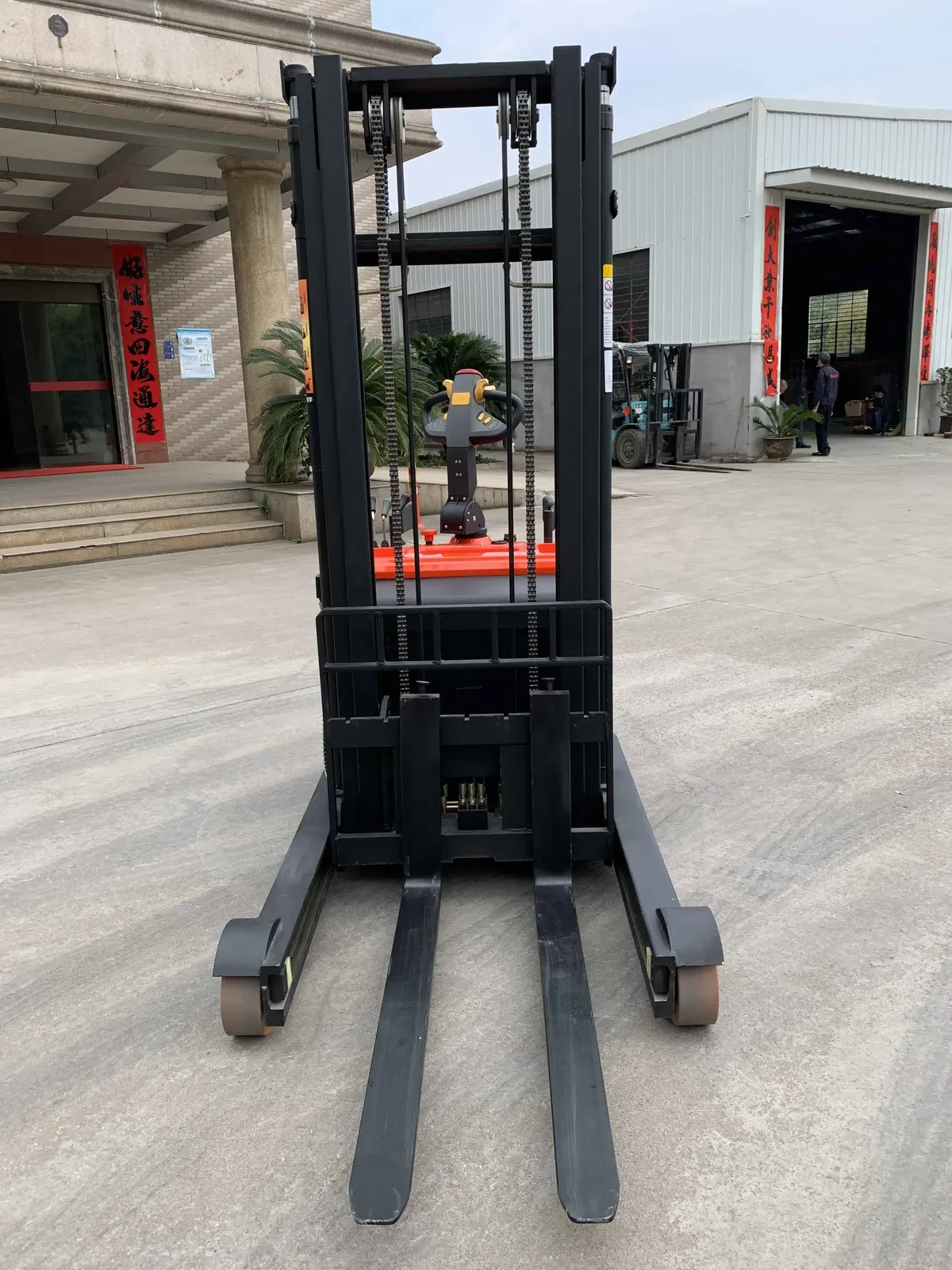

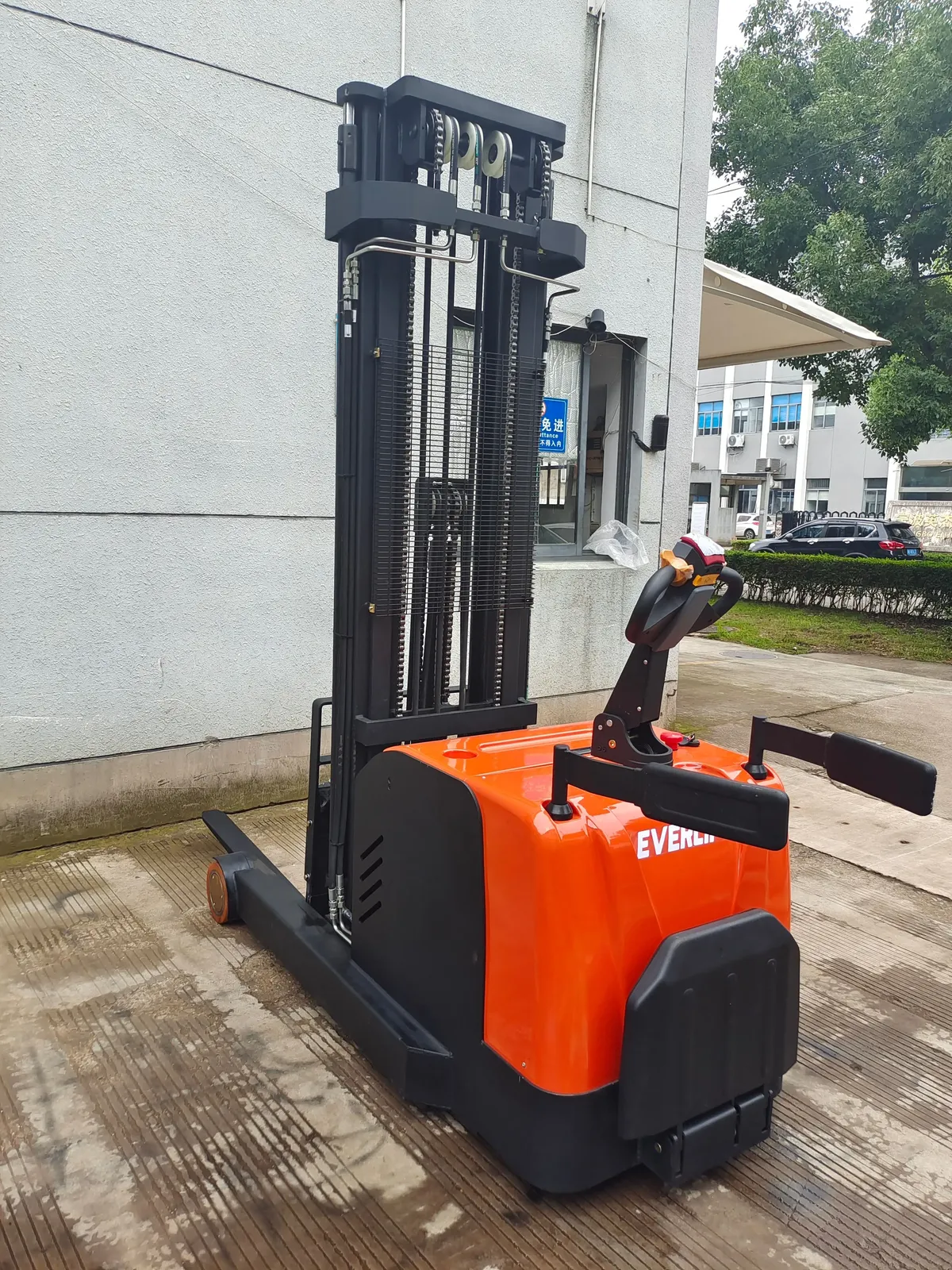

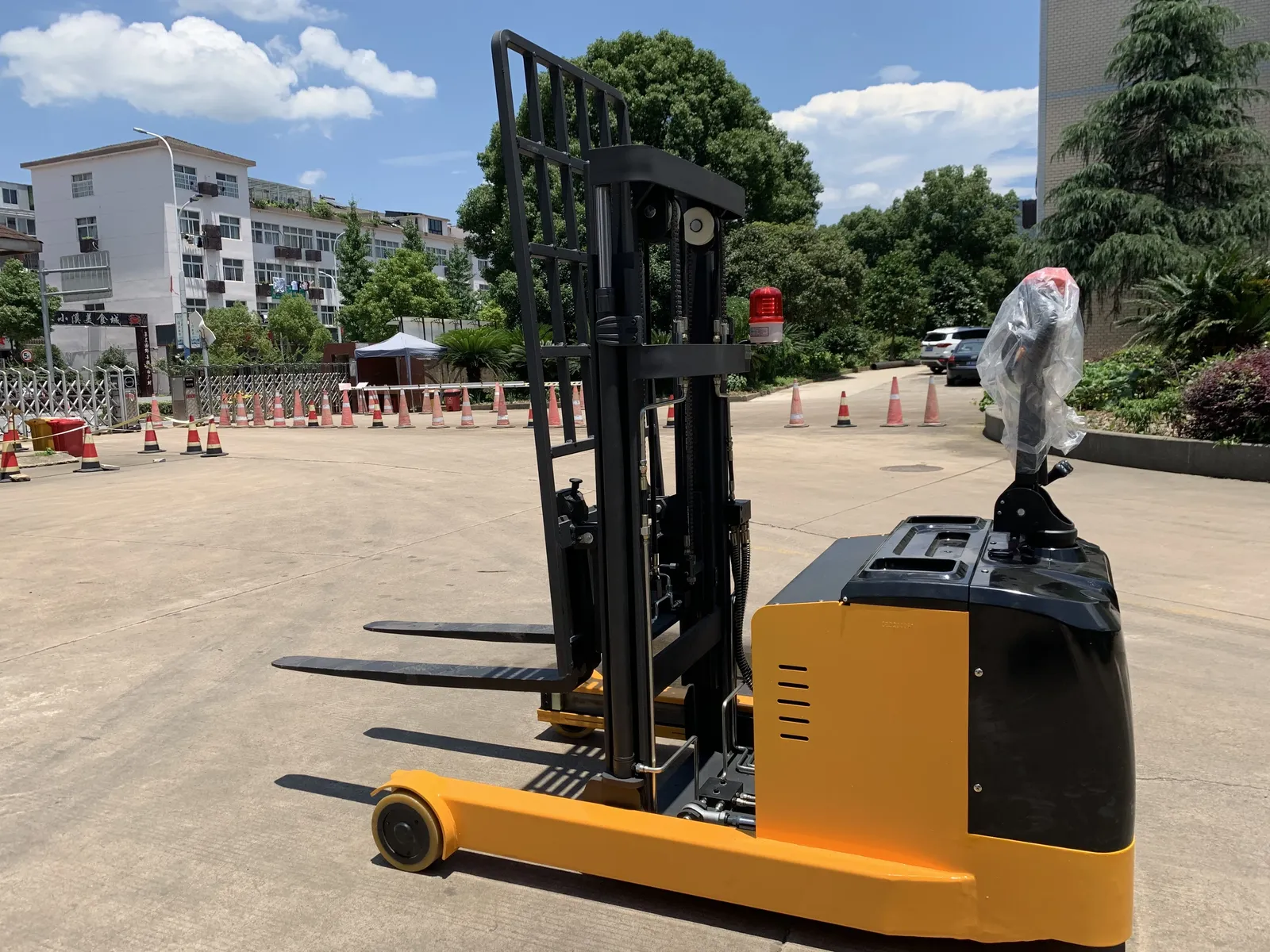

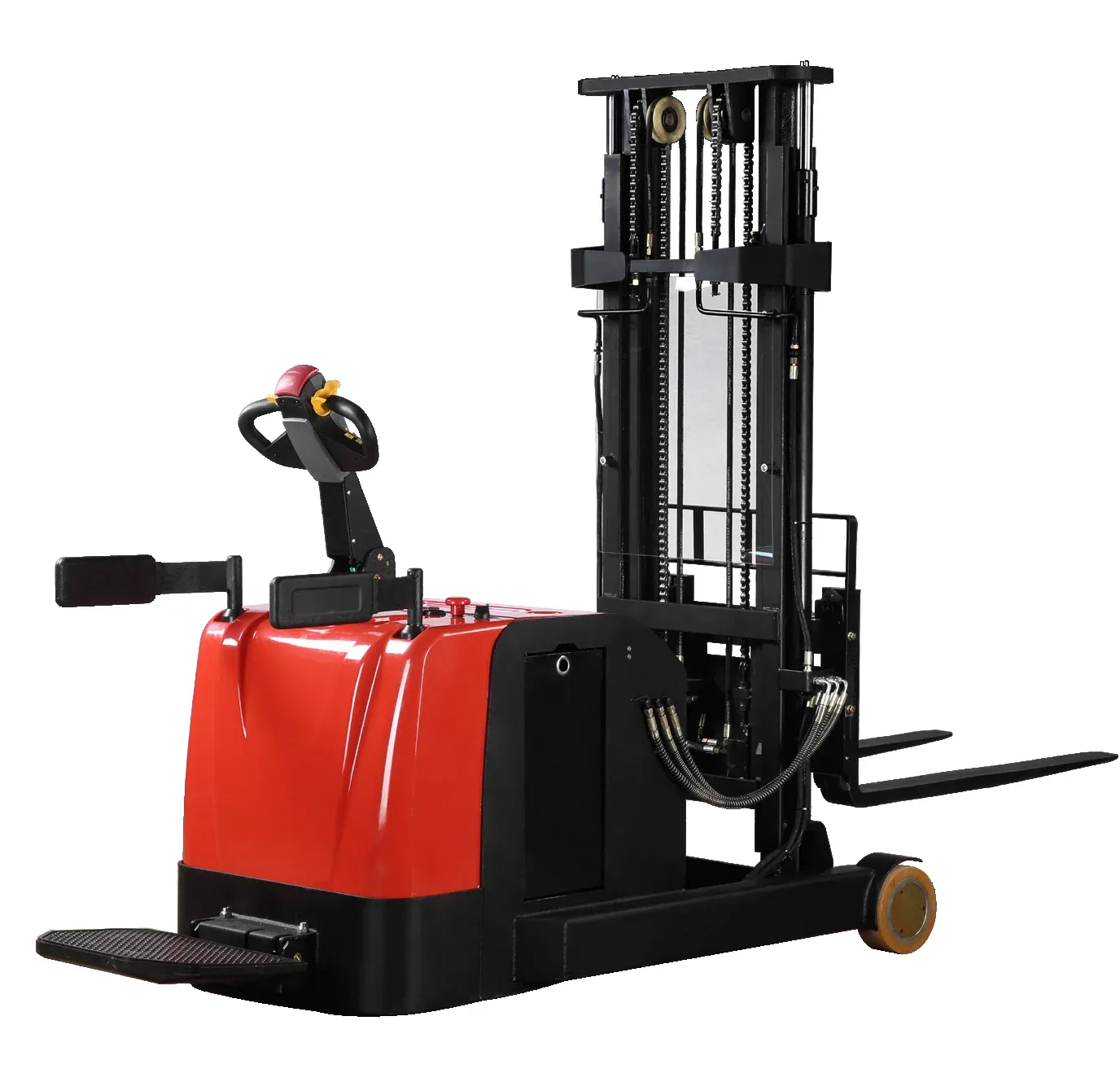

Electric Small Reach Truck, 1.2 to 2 t
1.2 to 2 tLithium-ionForks 1150 to 1220 mm marked
markedfrom£4,210per unit, ex VAT
Get a quote, reply in 2 hours
- 12-month warranty
- Photos and video before it ships
- No online payment, nothing is charged
Any quantity is welcome. Your price depends on the quantity and is confirmed on your written quote. Prices in GBP per unit, ex VAT. We convert the factory list at a buffered exchange rate, so normal day-to-day currency movement does not change the price you see. Your written quote adds freight, duty and VAT and is valid for 30 days.
Max. Lifting Height6000mm
Truck TypeReach Truck
Line total
Nothing is sent yet: add the products you need, then send your quote request. We reply within 2 hours, Monday to Friday, 9am to 5pm.
Or email sales@londonpallettrucks.co.ukProduct Highlights
Welded steel mast and chassis with anti‑corrosion pretreatment and electrostatic powder coating. The frame of this electric reach truck maintains stable performance in humid warehouse environments. Fitted with AC traction motor, low‑noise hydraulic power unit, sealed oil joints, polyurethane wheels and electromagnetic brake, this reach forklift features smooth operation, low noise and low‑maintenance requirements.
Equipped with emergency stop device, lifting limit switch, load backrest and low‑voltage protection. Materials comply with REACH and RoHS substance control standards. Optional explosion‑proof structure is available.
Rated capacity: 1200 kg for ELES‑12RE, 1500 kg for ELES‑15RE, 2000 kg for ELES‑20RE. The 6000 mm mast and a travel speed of 6 km/h suit rack stacking operations.

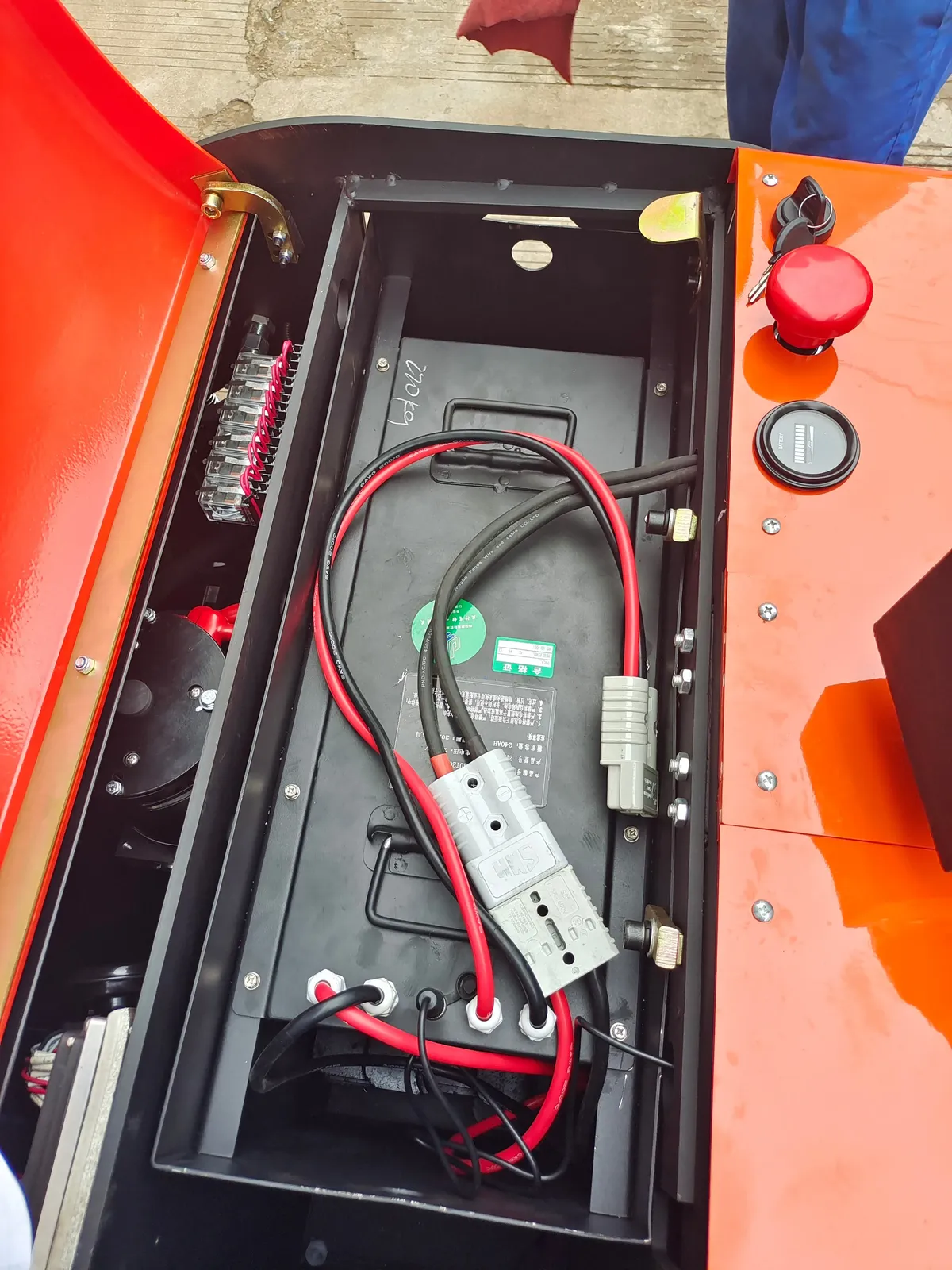

Powered by 24 V lead‑acid battery or lithium battery. The lithium battery pack supports opportunity charging and 2‑3‑hour fast charging for extended continuous operation with low running noise.
Suitable for flat concrete or epoxy floors in indoor warehouses, workshops and dock areas. Forks fit 1200×1000 mm pallets. Adjustable fork spread and various attachments can be configured.

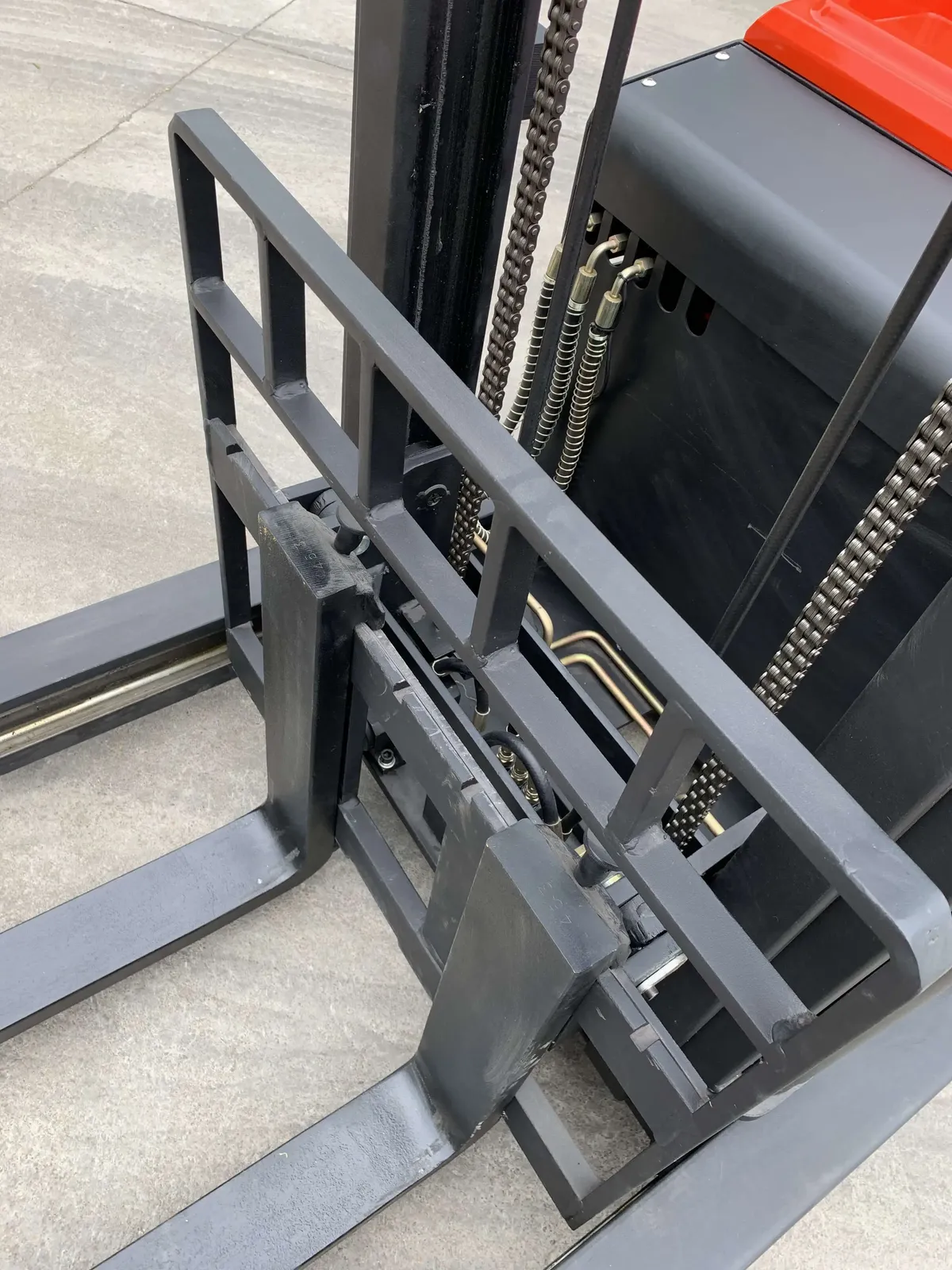

Pain point: Placing pallets into rack positions requires wide aisles and complicated manoeuvring. Solution: The extendable forks stretch forward, enabling this reach truck to complete racking operations within narrow aisles.
Pain point: Upper rack bays remain unused, resulting in warehouse space waste. Solution: Multi‑stage lifting reaches high‑level shelves. Thanks to its compact body, the truck still operates efficiently in narrow lanes.
Certified with ISO9001 quality management system, CE certificates and test reports.
Fork Specifications(L*W*H)
Min. overall length
Max. overall length
CE/CE/ISO9001
2010mm
2560mm
| Condition | New |
|---|---|
| Forklift Battery Type | Lithium-Ion Battery |
| Side Shifter | Hydraulic Side Shifter |
| Drive Type | 4Wd |
| Terrain Adaptability | Indoor Flooring, Outdoor Pavement |
| Load centre distance | 600 mm |
| Mast Type | Three-Stage Mas, Two-Stage Mast |
| Forklift Turning radius | 2170 mm |
| Fork Width | 550mm 685mm |
| Fork Length | 1150 mm, 1220 mm |
| Operating Mode | Standing Operation |
| Forklift Tyre | Polyurethane Tyre |
| Travel speed ( laden) | 5.5 km/h |
| Grade ability laden) | 0.05 |
| Travel speed ( unladen) | 5.5 km/h |
| Grade abilityunladen) | 0.06 |
| Forklift Wheelbase | 1060mm |
| Mast Tilt Angle (Forward Tilt-Rear Tilt) | 6-12° |
| Aisle width | 2500mm |
| Battery voltage (V/AH) | 24V/240AH |
| Fork height,lowered | 85mm |
| Capacity | 1200 kg 1500 kg 2000 kg |
| Reach Distance | 590mm |
| Load Centre | 600mm |
| Battery | 24V/240Ah |
| Colour | Red Yellow |
| Max. Lifting Height options | 6000mm |
| Truck Type options | Reach Truck |
| Rated Loading Capacity options | 1.2 Ton, 1.5 Ton, 2 Ton |
| Certificate | Number | Valid |
|---|---|---|
| 2006/42/EC | M.2026.206.C137529 | 30/03/2026 - 29/03/2031 |
| CE | M.2026.206.C134736 | 04/02/2026 - 03/02/2031 |
| CE | 3N251031.NEMS093 | 30/10/2025 - 29/10/2030 |
| EAC | 22/10/2023 - 22/10/2028 | |
| CE | M.2023.206.C83216 | 22/03/2023 - 21/03/2028 |
| CE | M.2023.206.C83215 | 22/03/2023 - 21/03/2028 |
| CE | M.2023.206.C83222 | 22/03/2023 - 21/03/2028 |
| CE | M.2023.206.C83221 | 22/03/2023 - 21/03/2028 |
Certificates are supplied with your quote on request.
