ELES-14RS 1.5 Ton Electric Reach Stacker Narrow Aisle

Product Highlights

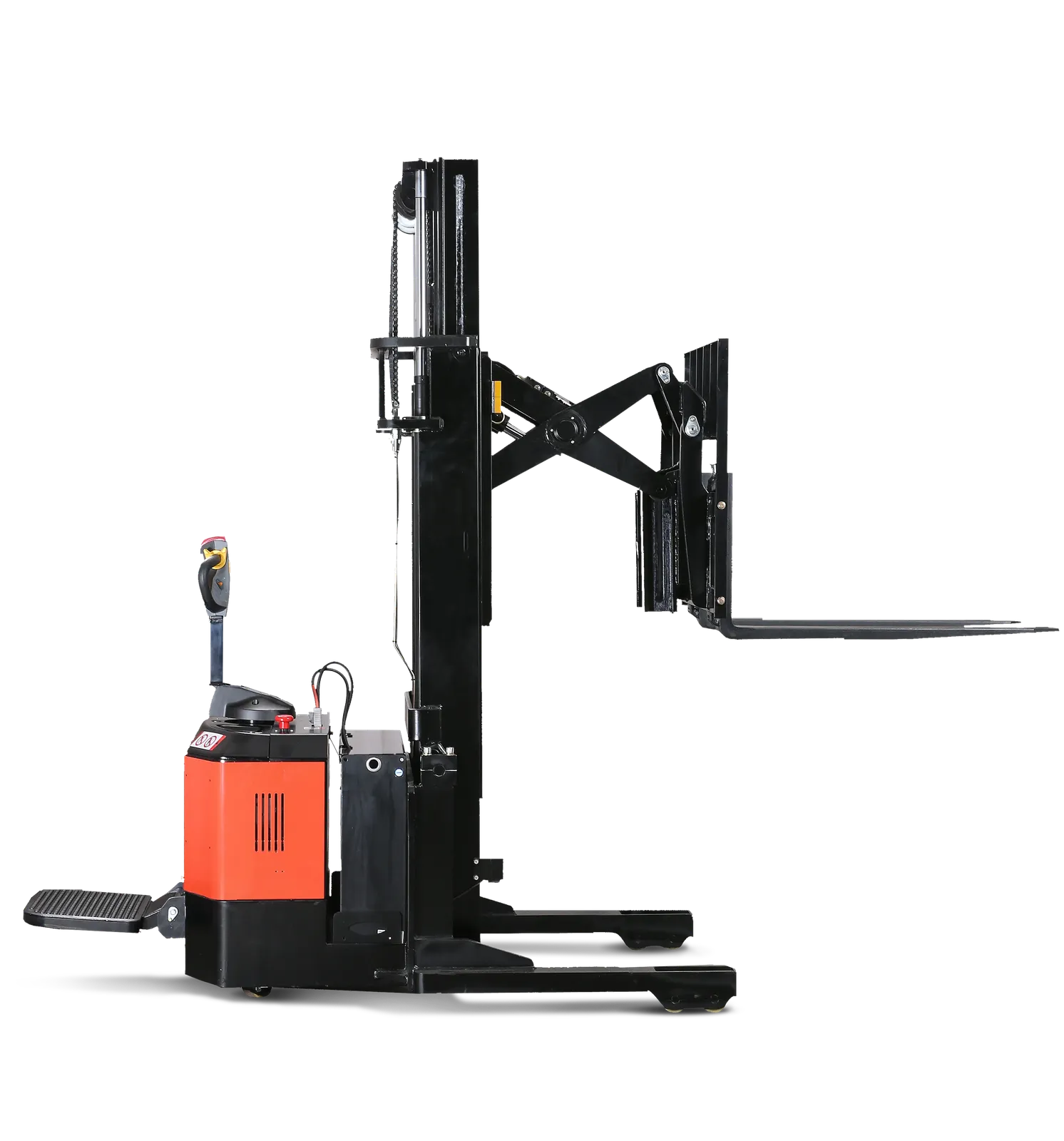

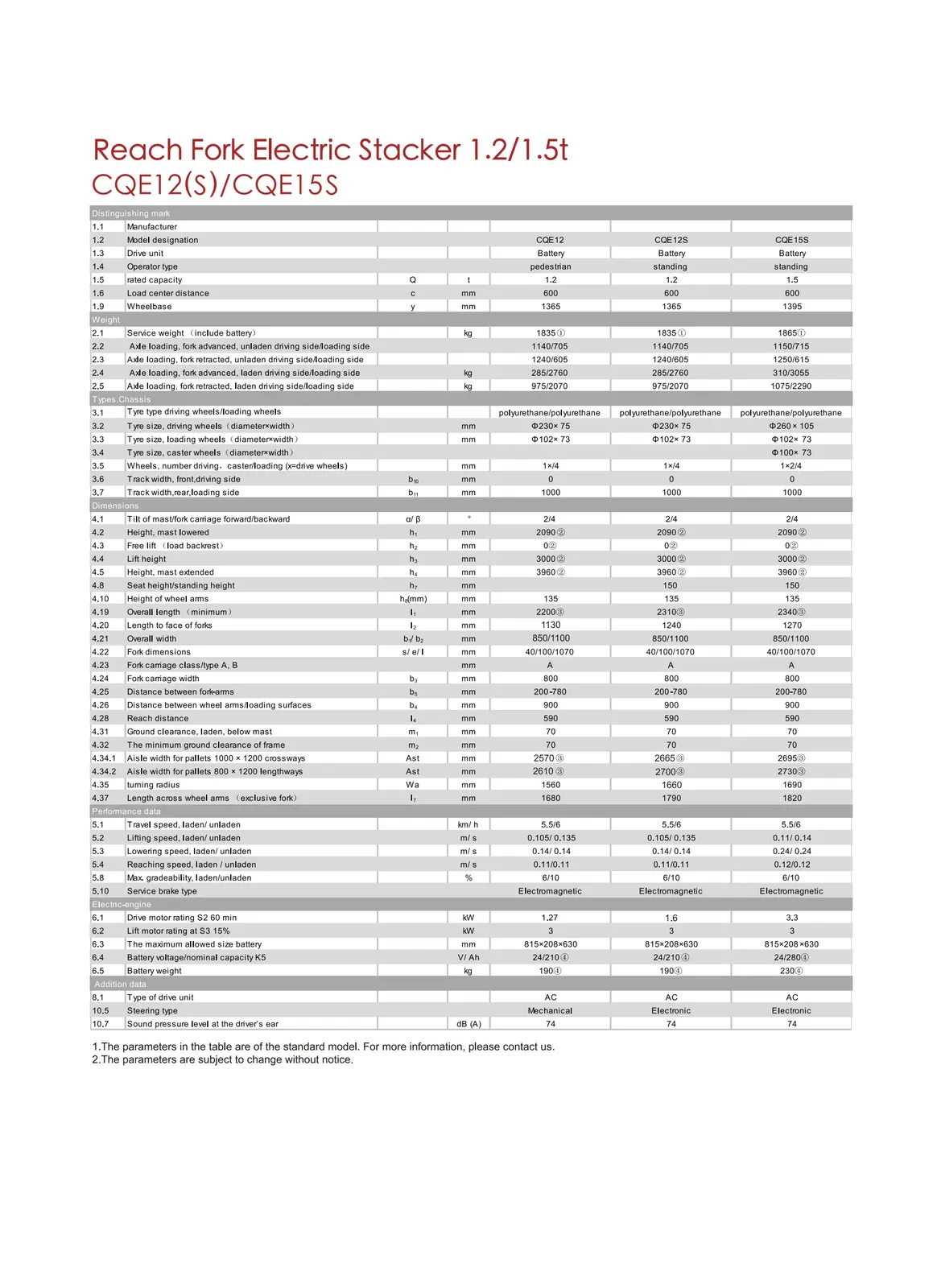

1,500 kg rated capacity at 600 mm load centre with 590 mm pantograph reach, lifts and reaches deep into racking, easily handling non-standard pallets and long loads that ordinary stackers cannot.

Specially designed for narrow aisles, compact body of 850 mm width and only 1,690 mm turning radius, with right-angle stacking aisle from 2,695 mm (1000×1200 pallet), maximising warehouse storage density.

24V/280Ah lead-acid battery with side-open compartment, quick and easy battery replacement for multi-shift operation; optional maintenance-free 224Ah battery; low-voltage cutoff setting protects battery and extends its service life.

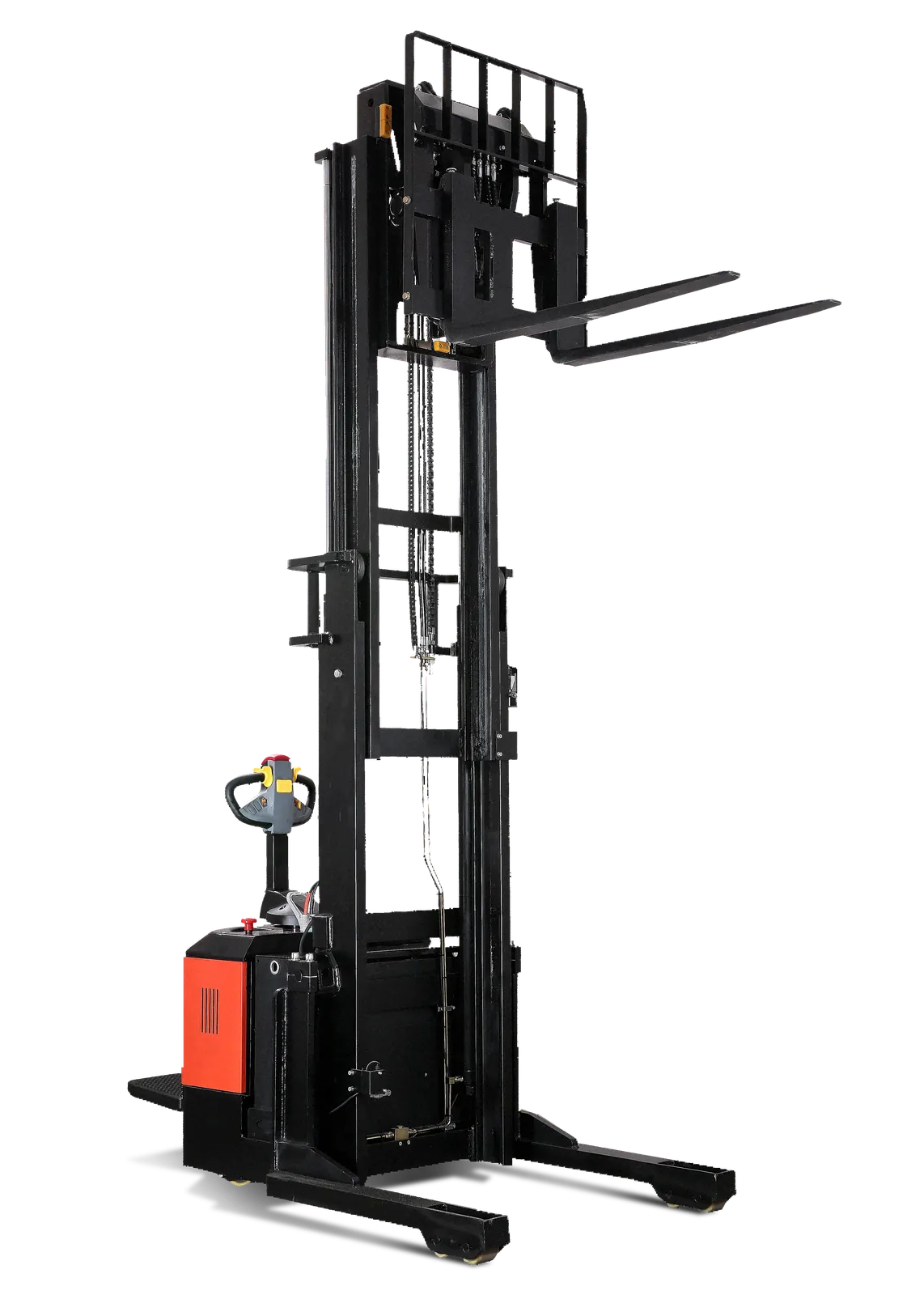

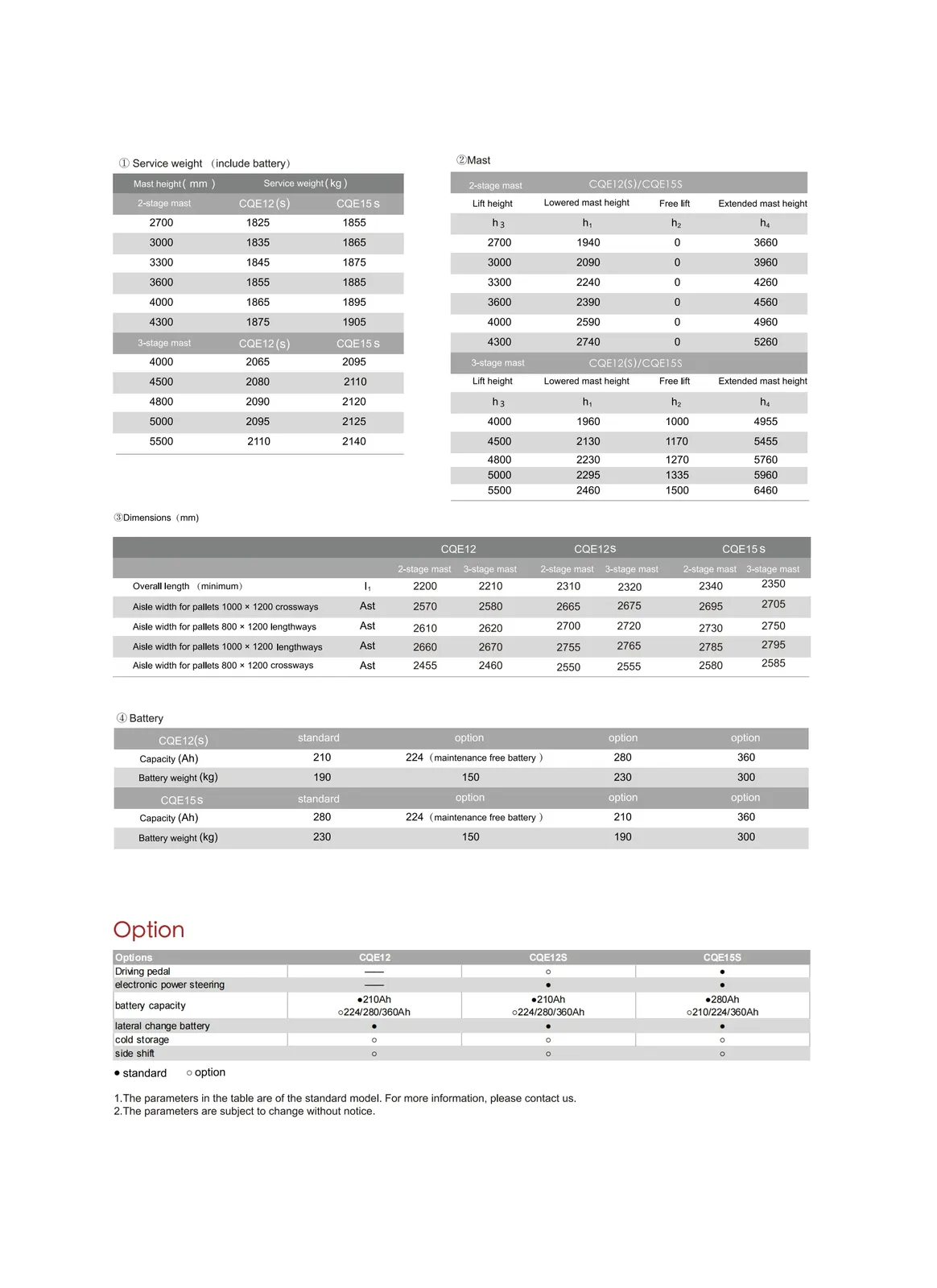

3,000 mm standard lift height, up to 5,500 mm with optional masts, 2-stage mast options 2.7 to 4.3 m and 3-stage full options 4.0 to 5.5 m with free lift, adapting to any racking height.

Full AC drive system, low maintenance, 3.3 kW maintenance-free AC traction motor plus 3 kW lift motor, electric proportional valve as standard, electromagnetic service brake with anti-roll-back brake for safe operation on ramps.

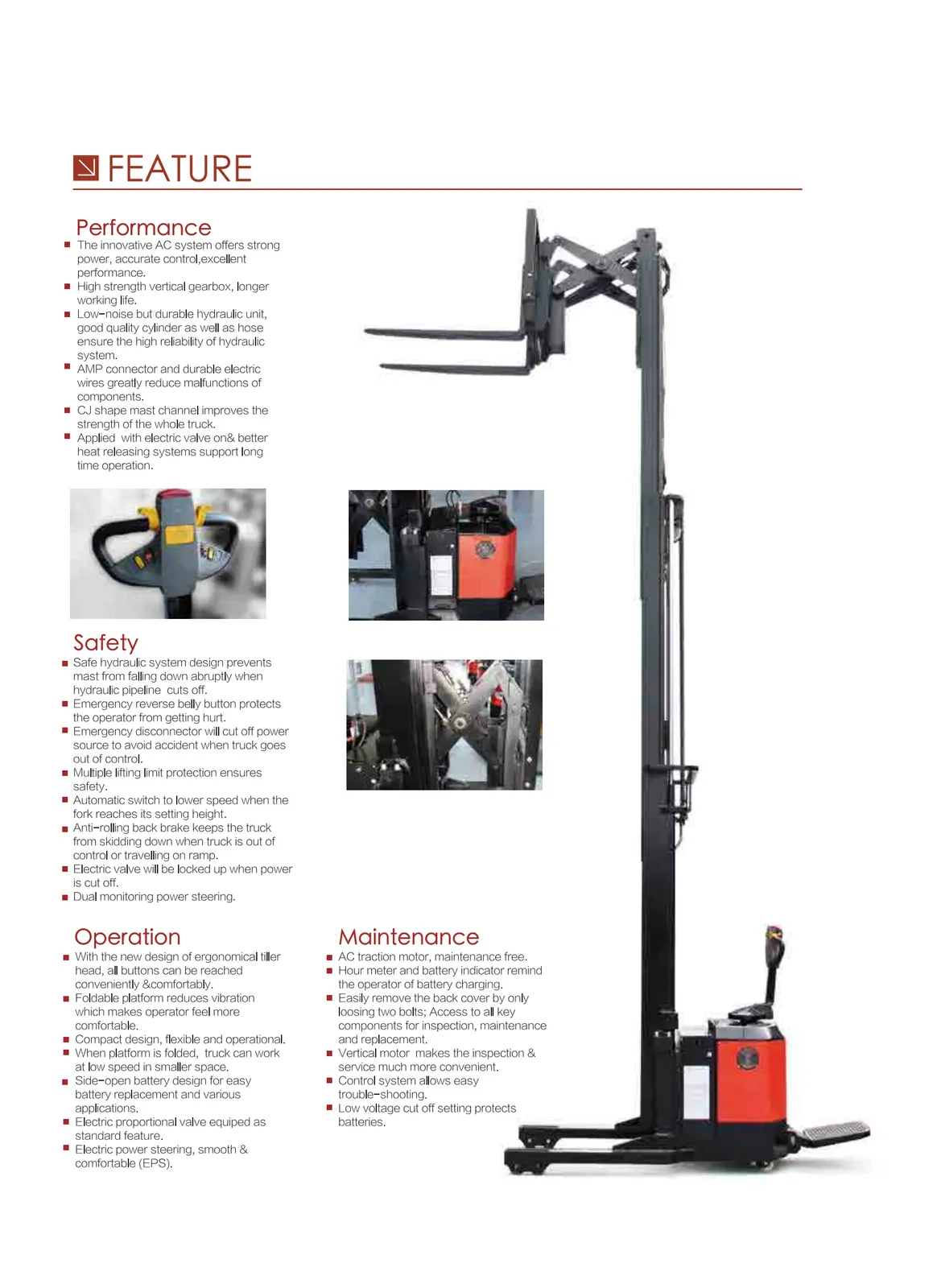

Operator comfort & safety first, ergonomic tiller head with all controls within easy reach, foldable anti-vibration platform, EPS electronic power steering, emergency reverse belly button, emergency power disconnect, and hydraulic pipeline failure protection prevent the mast from falling abruptly; quiet operation at only 74 dB(A).
