Electric Stackers · Model ELES-20CE 2

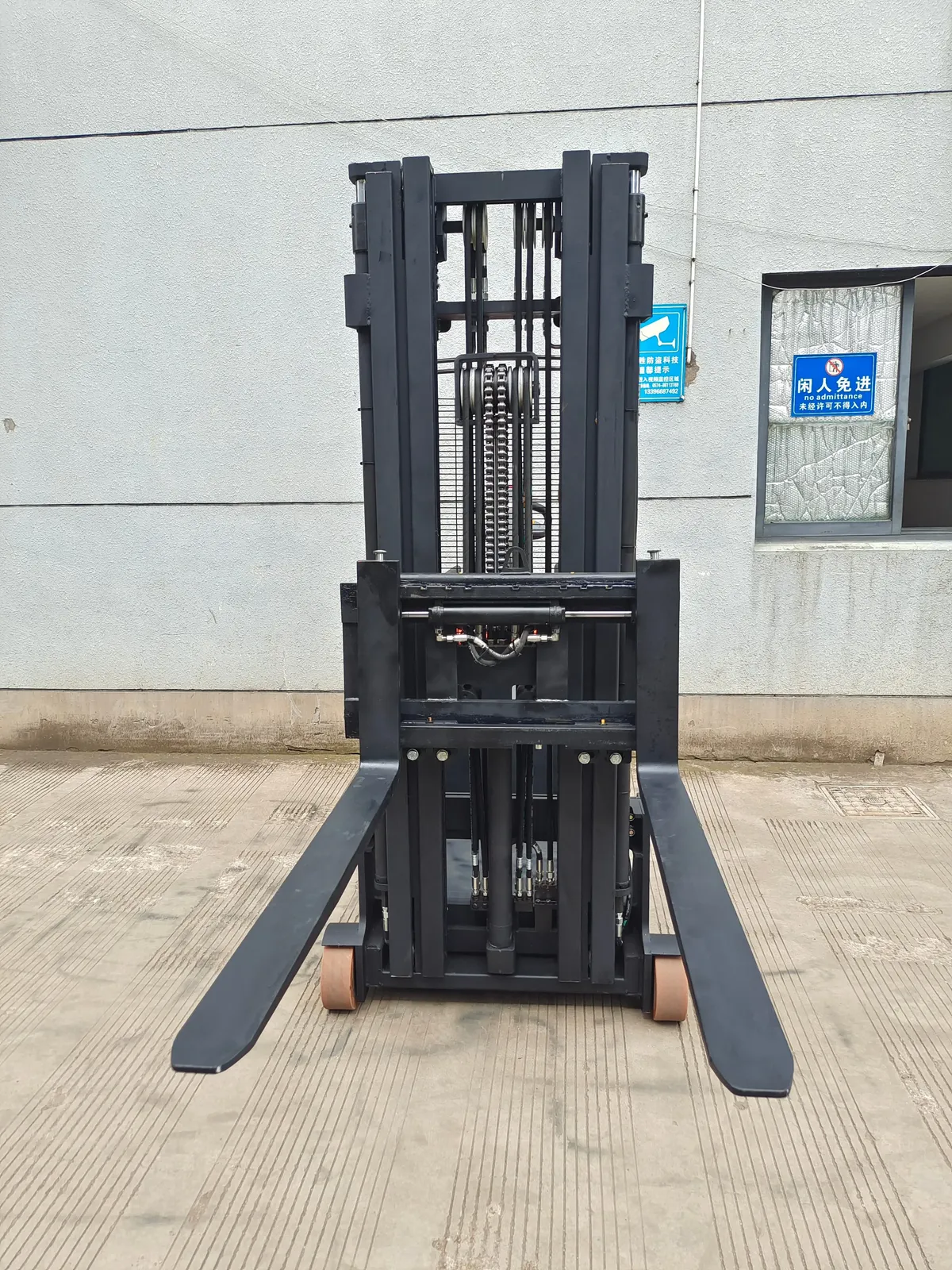

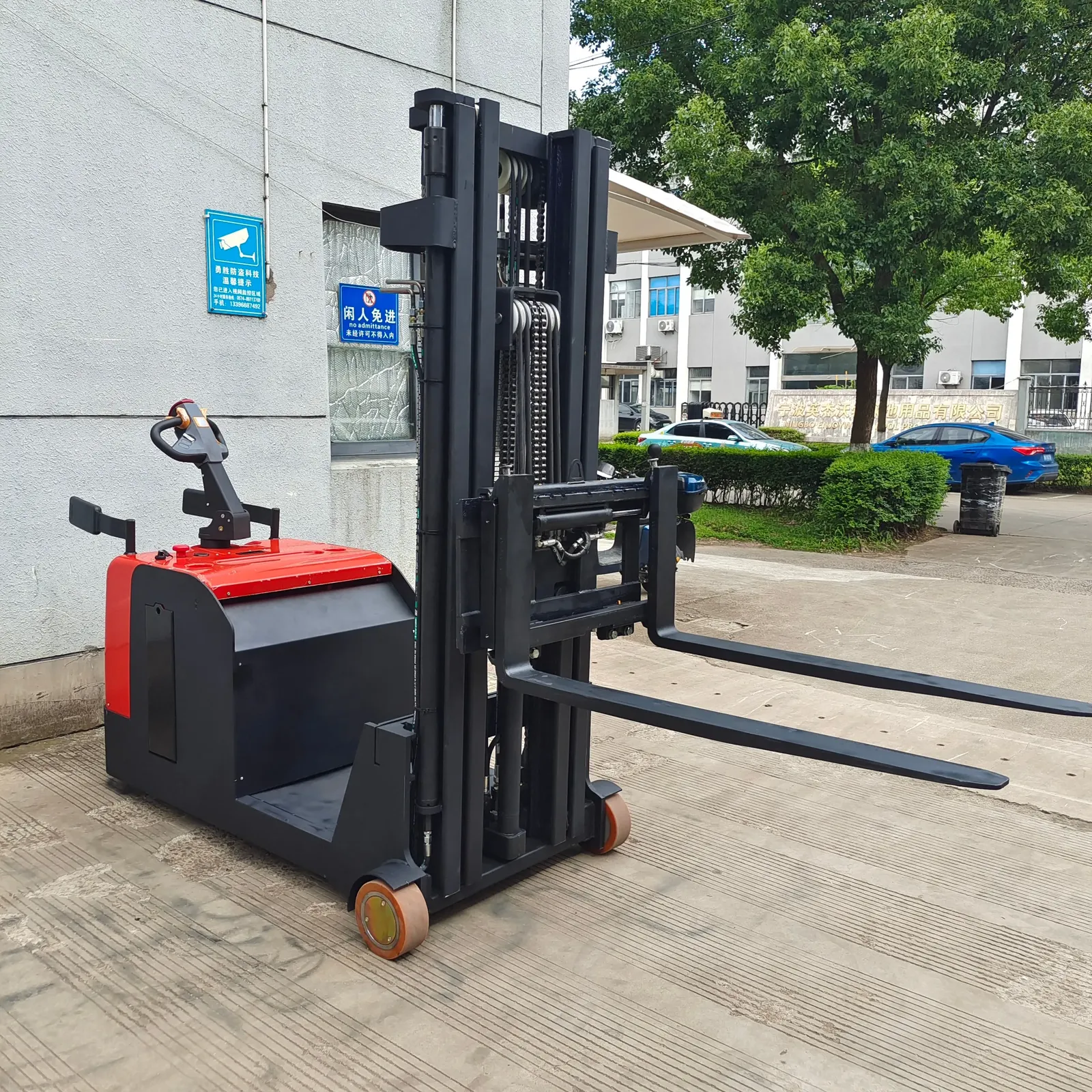

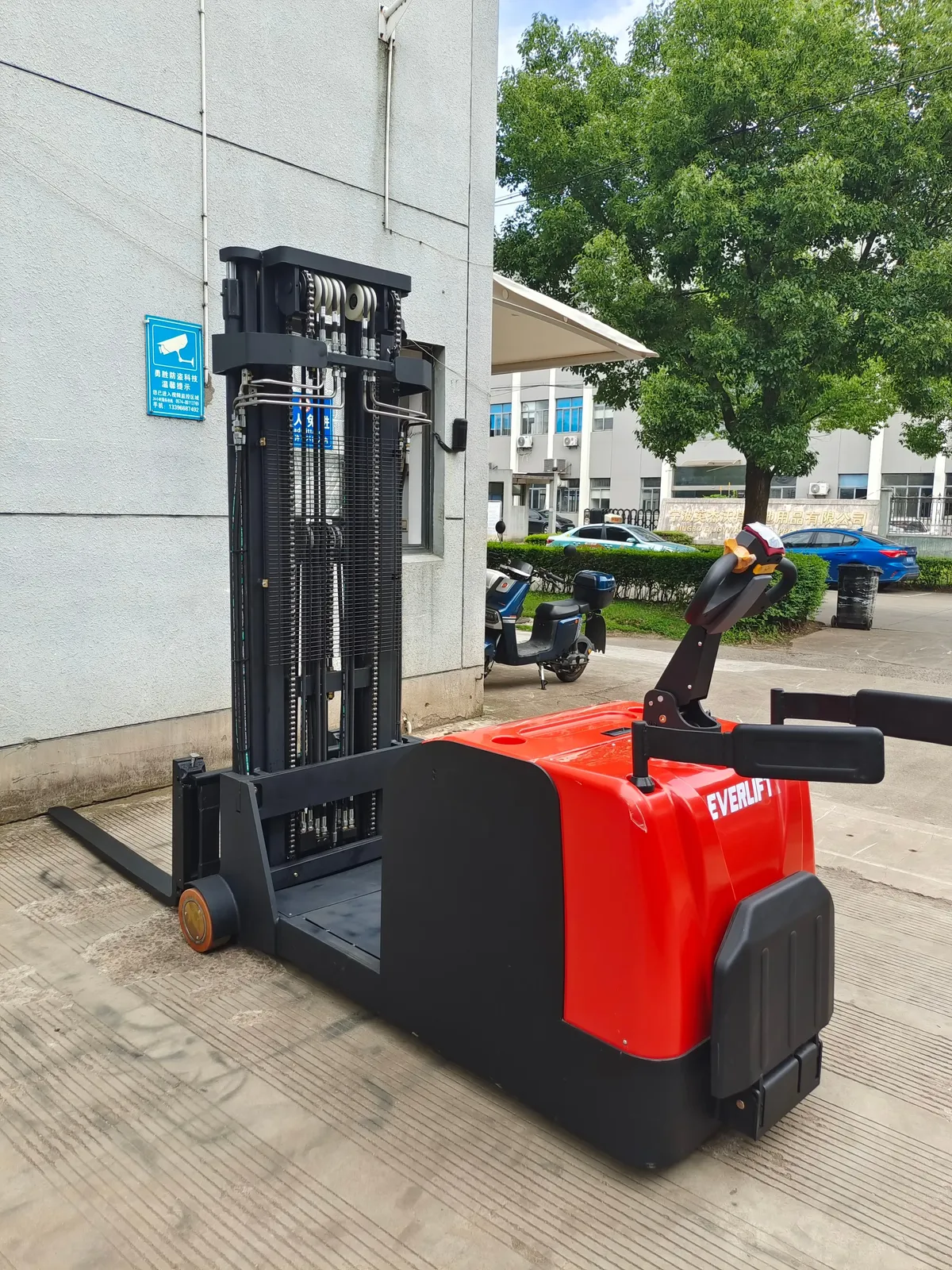

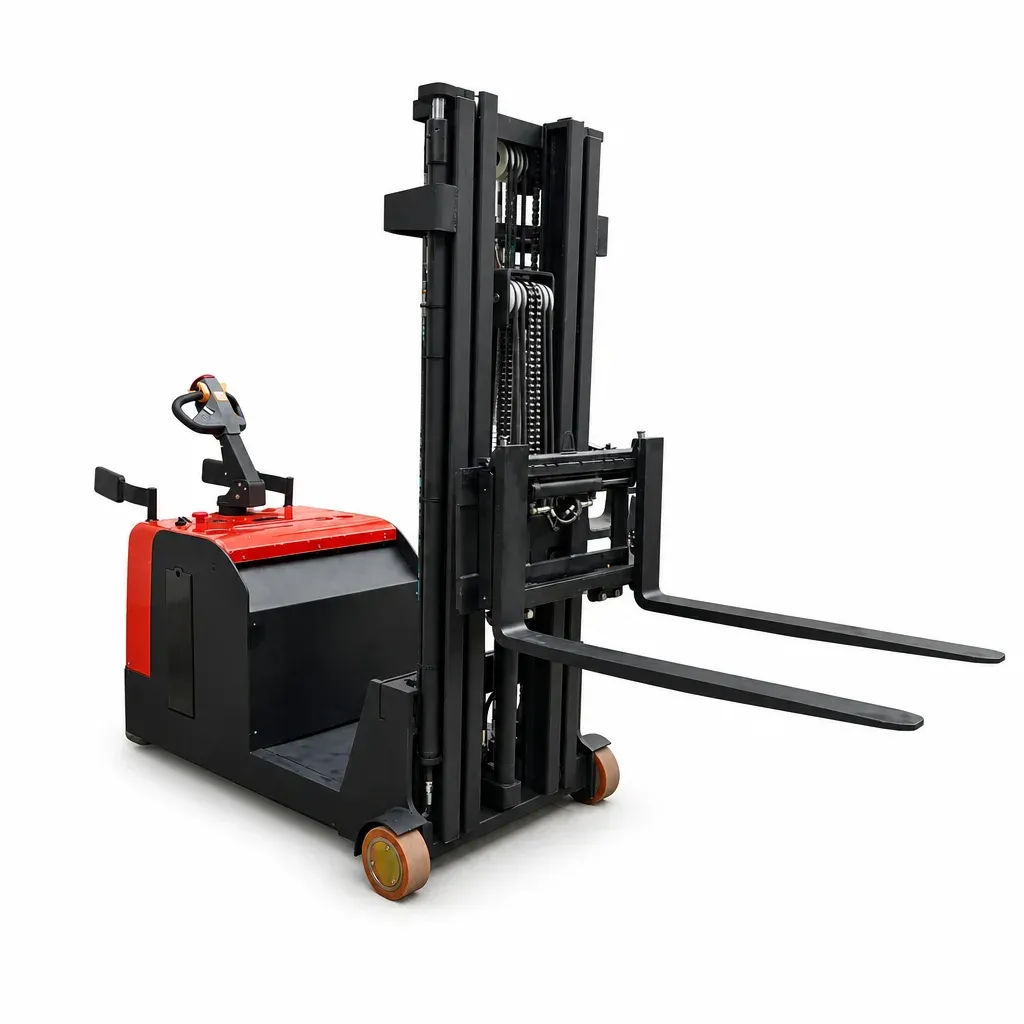

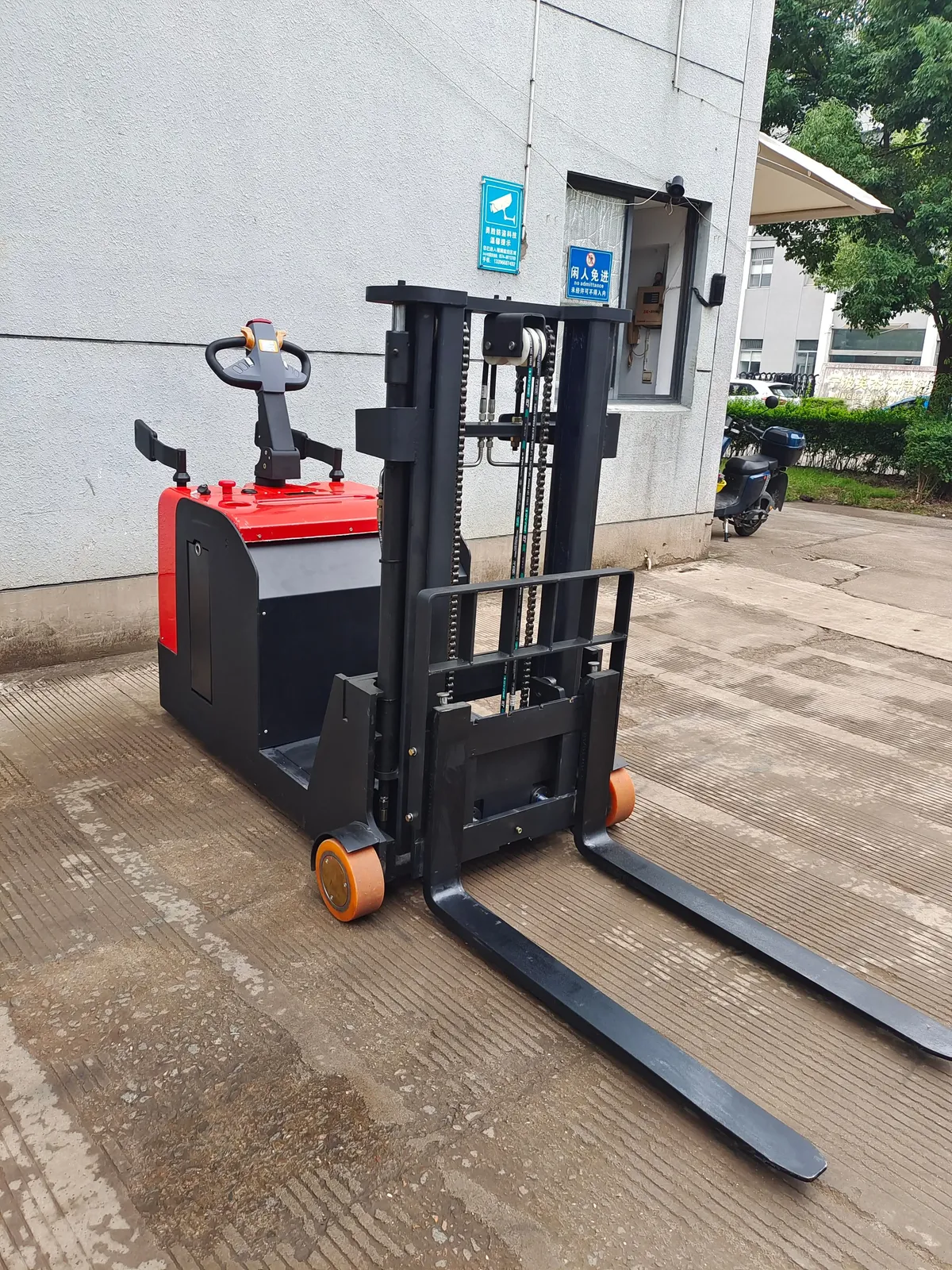

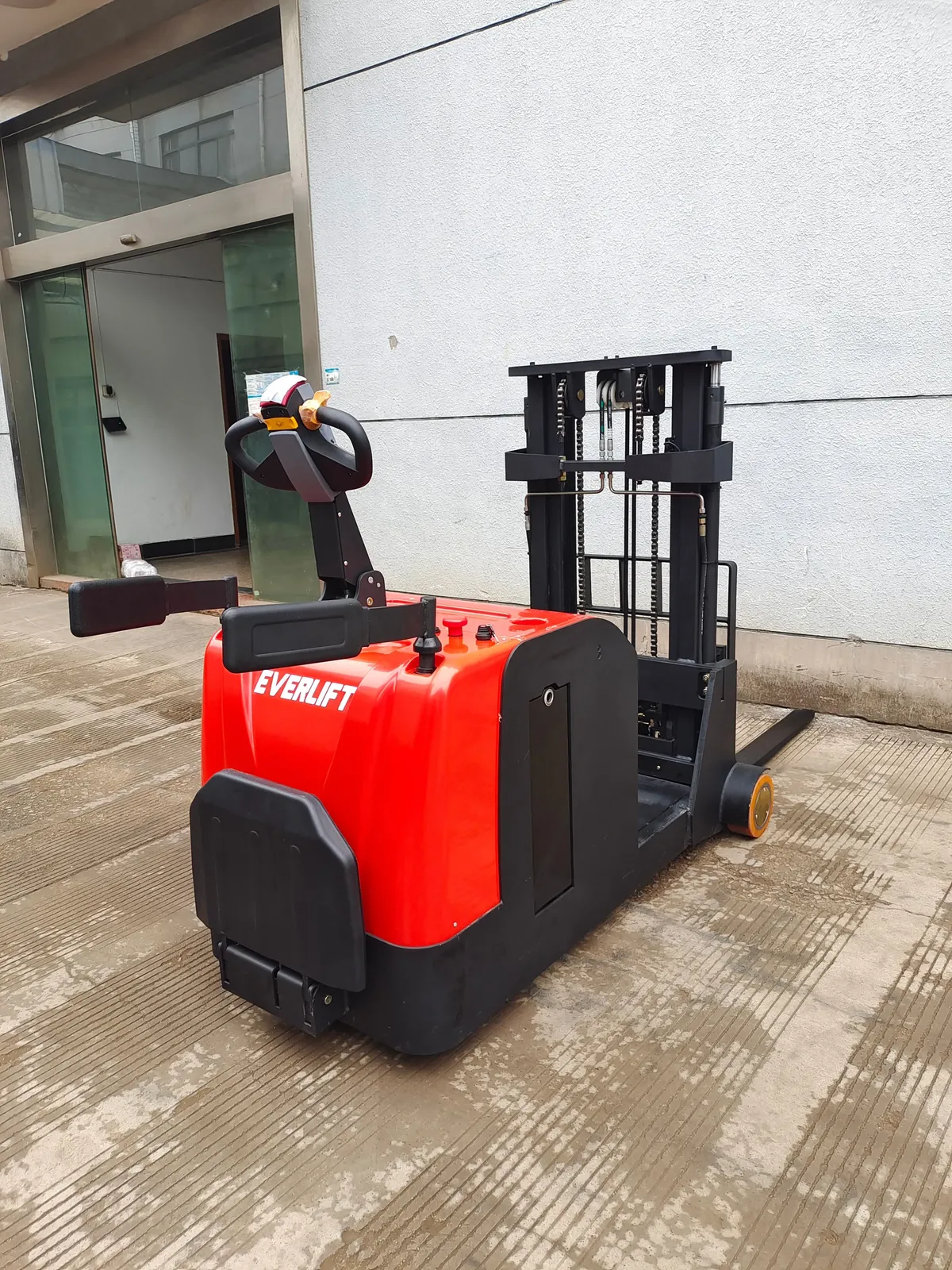

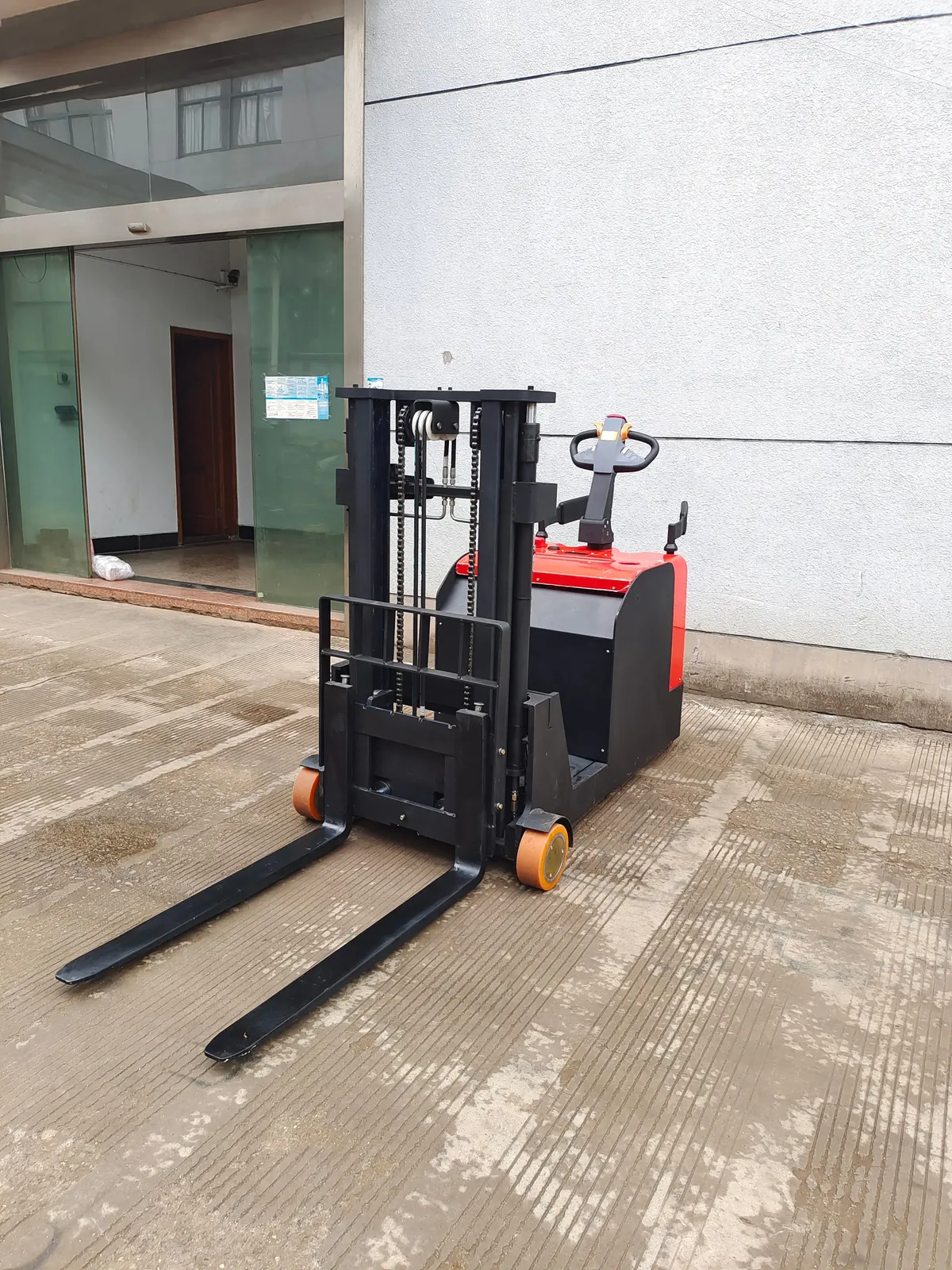

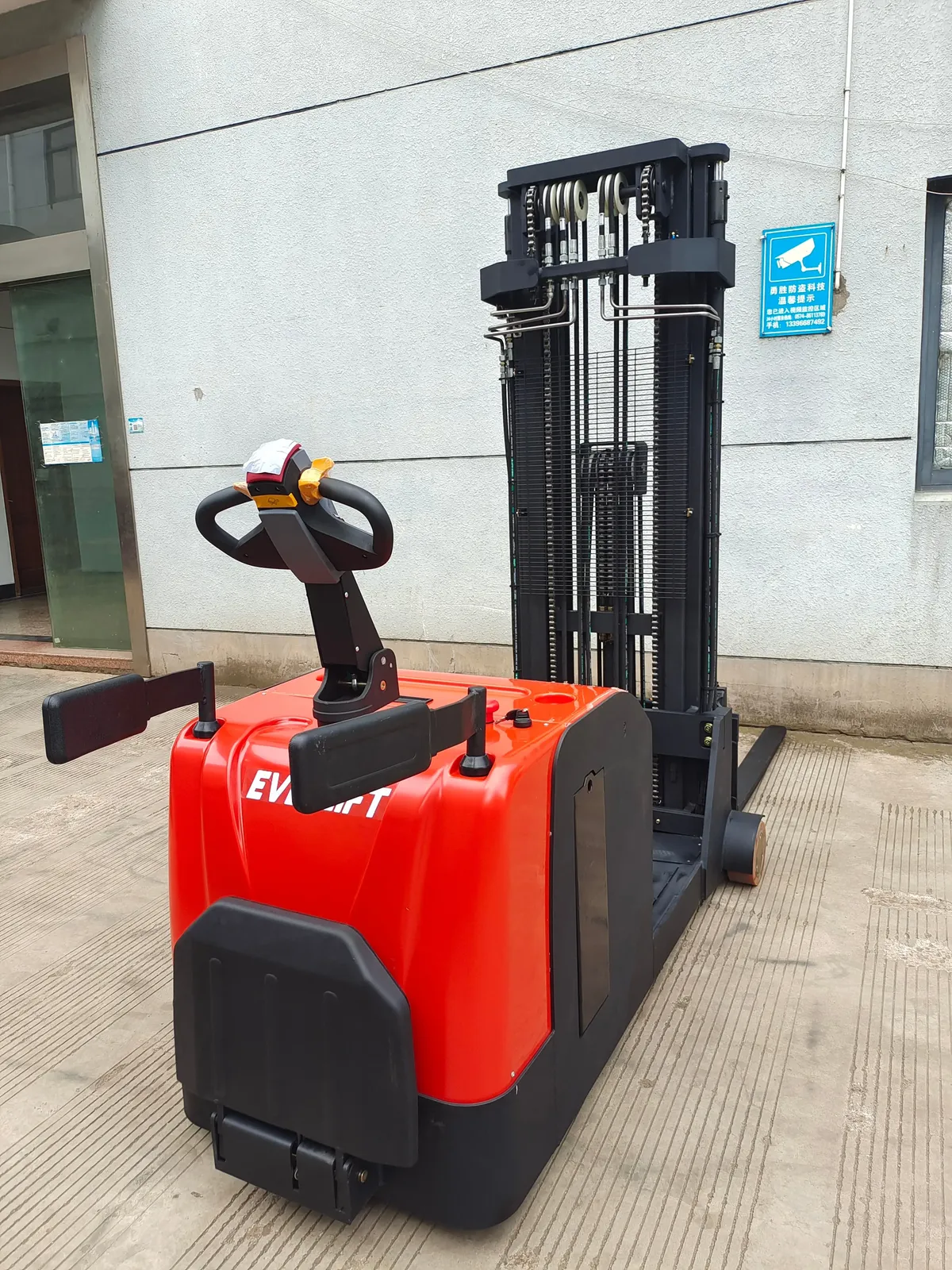

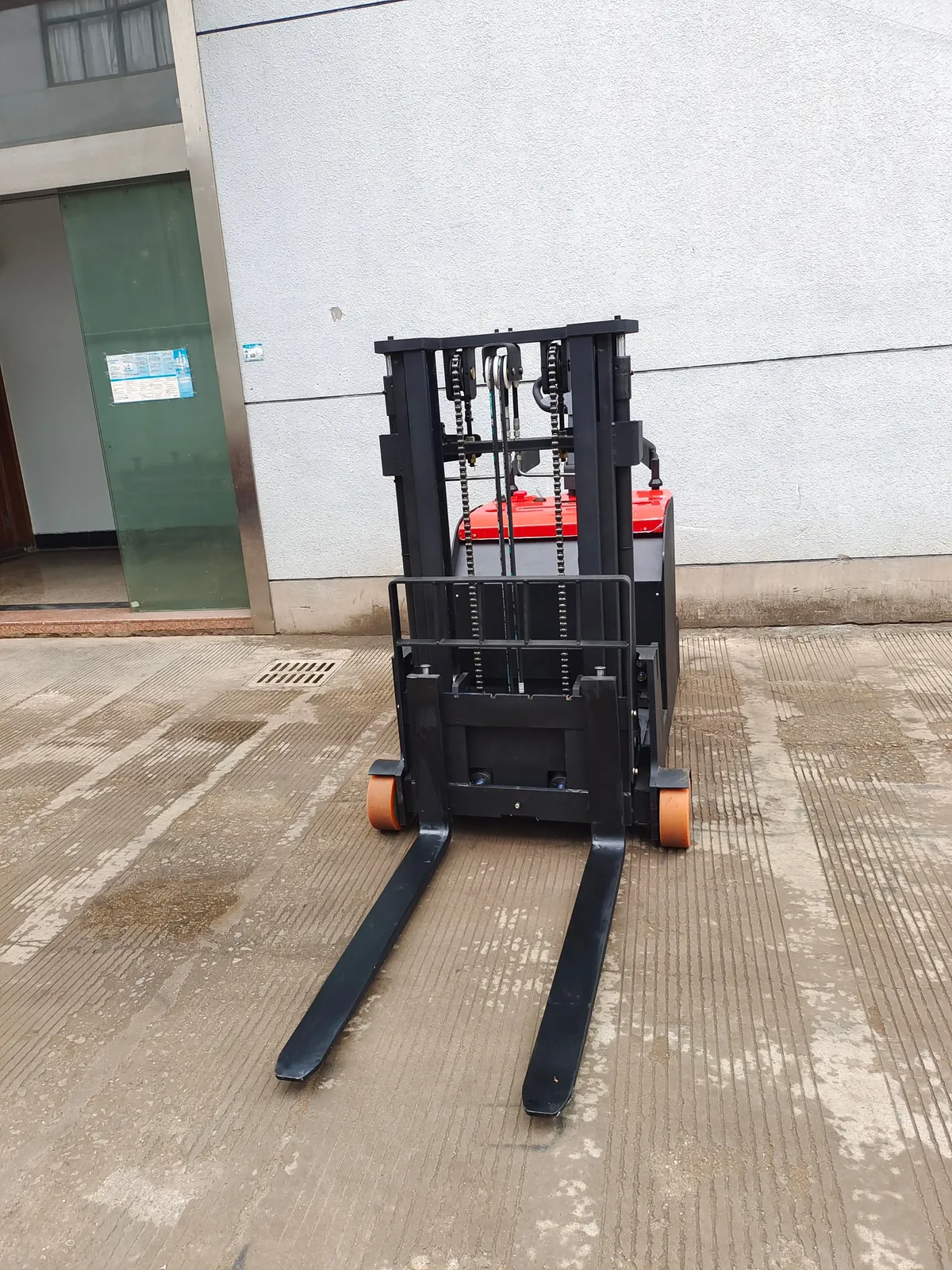

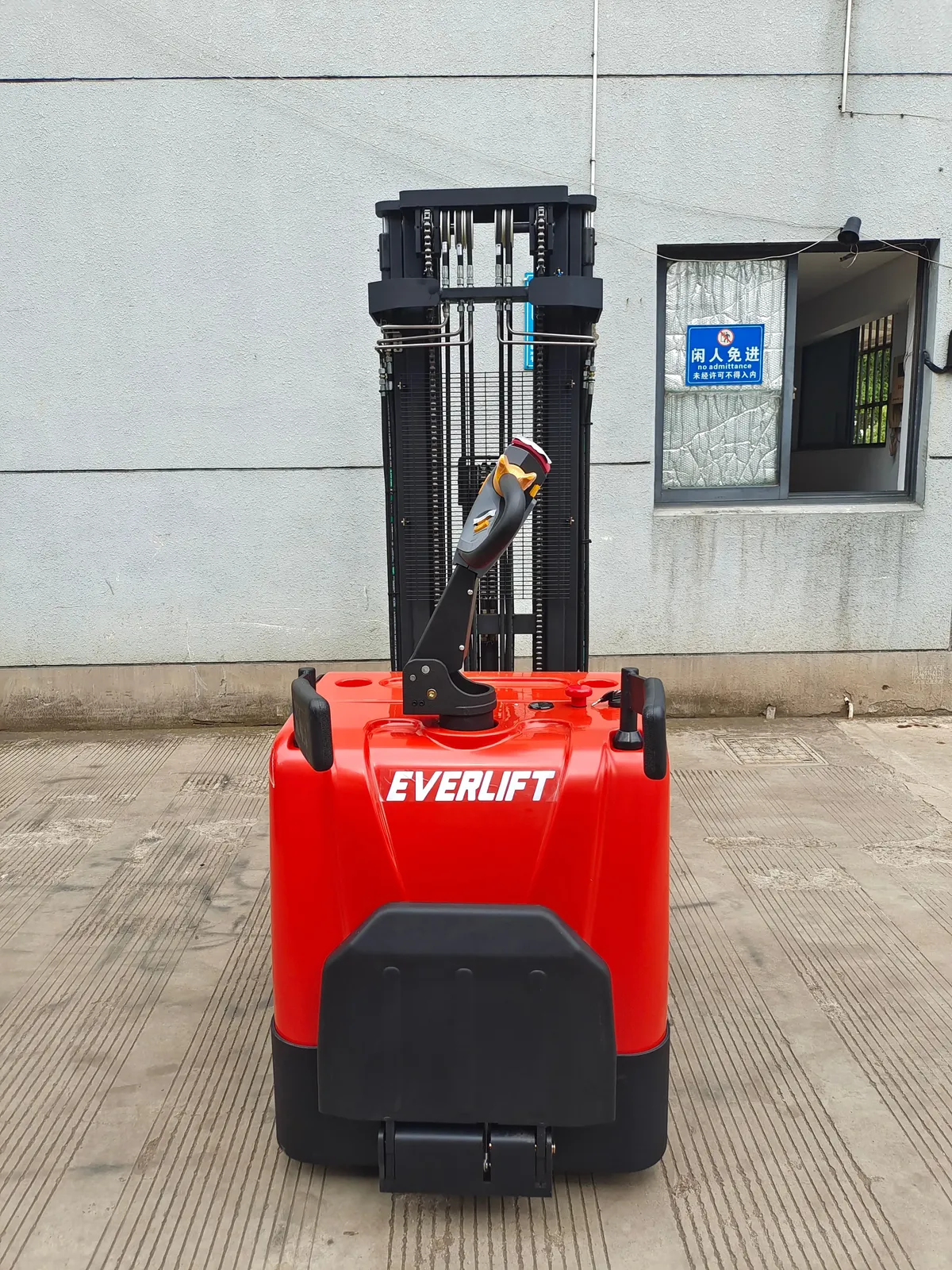

ELES-20CE 2T Electric Reach Stacker Stand-on
2 tLead-acidForks 1070 mm
from £4,240per unit, ex VAT
| Quantity | Price per unit |
|---|---|
| 1+ units | £4,240 |
Minimum order 1 unit from the factory; any range minimum is confirmed on your quote. Prices in GBP per unit, ex VAT. We convert the factory list at a buffered exchange rate, so normal day-to-day currency movement does not change the price you see. Your written quote adds freight, duty and VAT and is valid for 30 days.

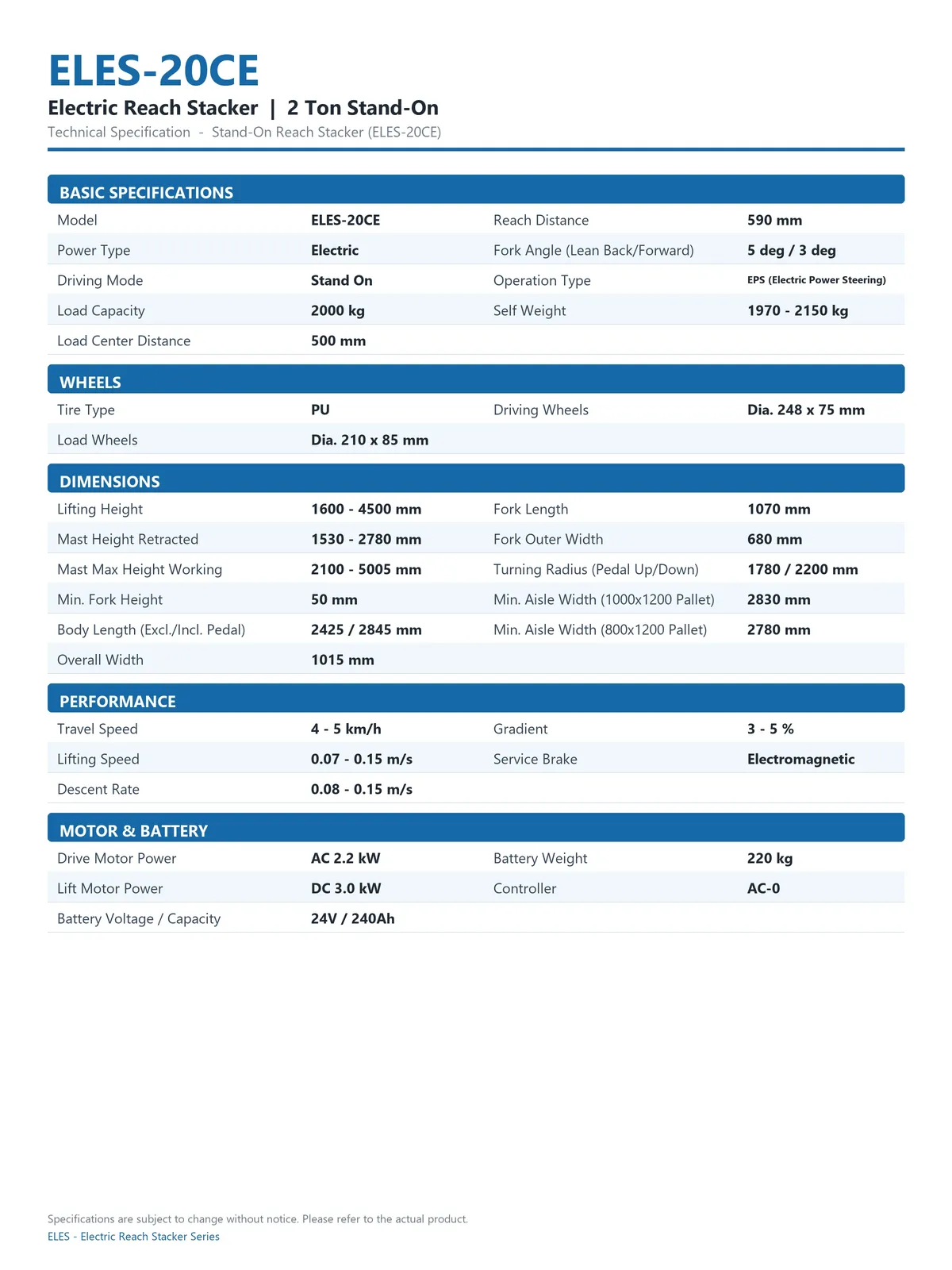

Rated Loading Capacity2 Ton
Truck TypeStacker Forklift
Line total
No online payment. The basket becomes an order request and we reply with a written GBP quote, deposit 30% on order, lead time 8 to 12 weeks.
Or email [email protected]Product Highlights
2000 kg rated load capacity with 500mm load centre; legless counterbalance design with 590 mm reach distance allows deep racking access and easy pallet handling.
Seven mast options cover lifting heights from 1600 mm to 4500 mm (H2 up to 5005 mm), adapting to different racking and warehouse storage layouts.
24V / 240Ah battery (220 kg) with AC 2.2 kW drive motor and DC 3.0 kW lift motor delivers 4-5 km/h travel speed and 0.15 m/s lifting speed.
EPS (Electric Power Steering) system and electromagnetic service brake ensure precise control, stable braking and safe operation in busy warehouses.
Compact 1780 mm turning radius (pedal up) and 2830 mm aisle width for 1000x1200 pallet enable efficient work in narrow aisles; 1015 mm overall width fits tight spaces.
PU wheels (load Dia.210x85, drive Dia.248x75) protect floors and reduce noise; 1970-2150 kg self-weight with stand-on driving mode ensures stability at high lift positions.
| Condition | New |
|---|---|
| Fork Specifications( L*W*H) | 1070*680*50mm |
| Forklift Battery Type | Lead–Acid Battery |
| Side Shifter | Hydraulic Side Shifter, Electric Side Shifter |
| Drive Type | Fwd |
| Terrain Adaptability | Other, Rough Terrain, Outdoor Pavement, Offroad, Indoor Flooring |
| Load centre distance | 500 mm |
| Mast Type | Two-Stage Mast, Three-Stage Mas, Single-Stage Mast |
| Fork Length | 1070 mm |
| Operating Mode | Standing Operation |
| Forklift Tyre | Polyurethane Tyre |
| Mast Tilt Angle (Forward Tilt-Rear Tilt) | 6-12° |
| Model Number | ELES-20CE |
| Product Type | Electric Battery Stacker |
| Mast | 2 Stage |
| Colour | Accept Customised |
| Operator type | Rider |
| Capacity | 2t |
| Wheels | PU Wheels |
| Certification | CE/ISO9001 |
| Battery | Lead-acid Batteries |
| Rated Loading Capacity options | 2 Ton |
| Truck Type options | Stacker Forklift |
| Max. Lifting Height options | 1 600 mm, 2 000 mm, 2500 mm, 3000mm, 3500 mm, 4000 mm |
| Certificate | Number | Valid |
|---|---|---|
| 2006/42/EC | M.2026.206.C137529 | 30/03/2026 - 29/03/2031 |
| CE | M.2026.206.C134736 | 04/02/2026 - 03/02/2031 |
| CE | 3N251031.NEMS093 | 30/10/2025 - 29/10/2030 |
| EAC | — | 22/10/2023 - 22/10/2028 |
| CE | M.2023.206.C83216 | 22/03/2023 - 21/03/2028 |
| CE | M.2023.206.C83215 | 22/03/2023 - 21/03/2028 |
| CE | M.2023.206.C83222 | 22/03/2023 - 21/03/2028 |
| CE | M.2023.206.C83221 | 22/03/2023 - 21/03/2028 |
Certificates are supplied with your quote on request.
