Scissor Lifts & Access Platforms · Ref LPT-25134

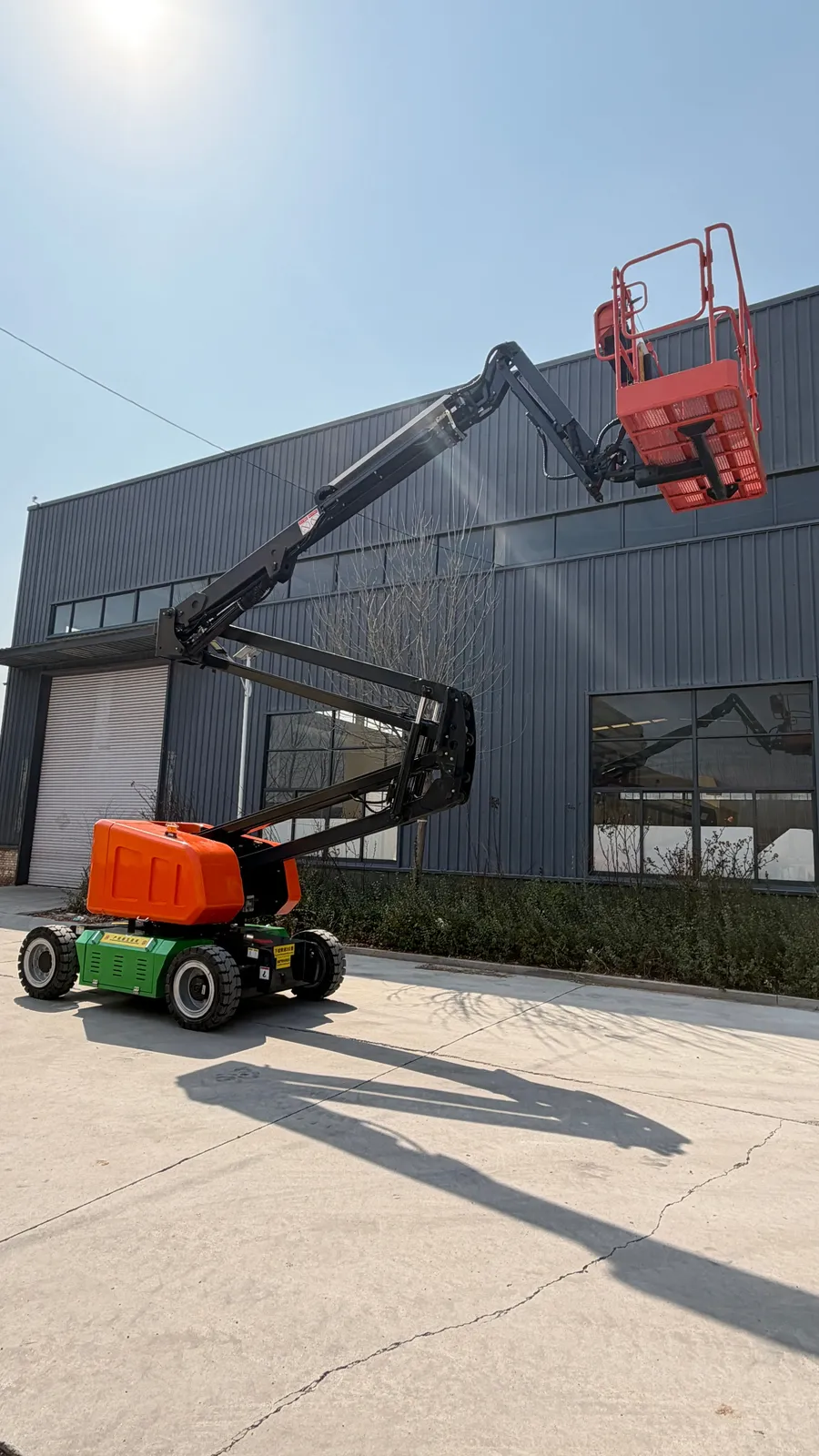

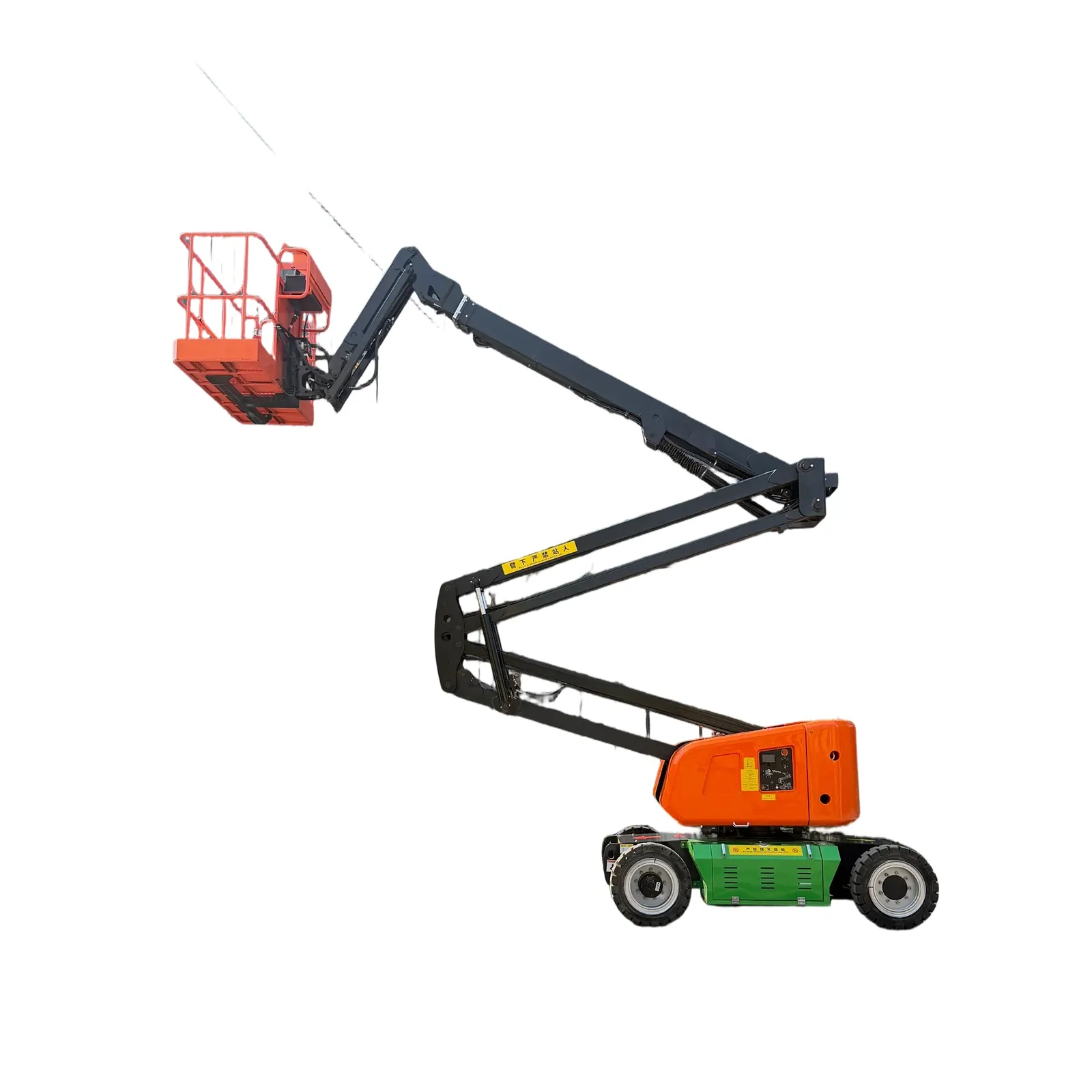

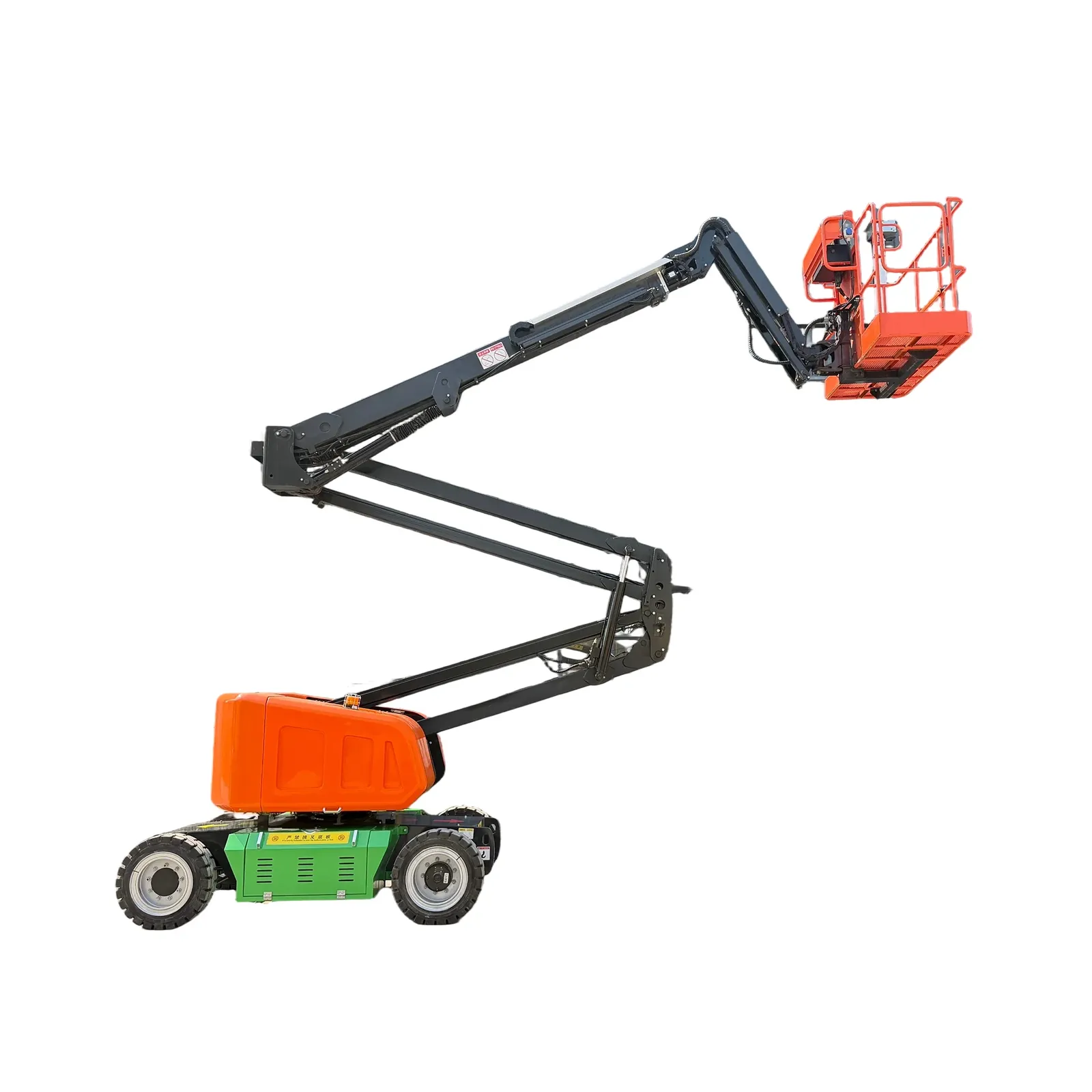

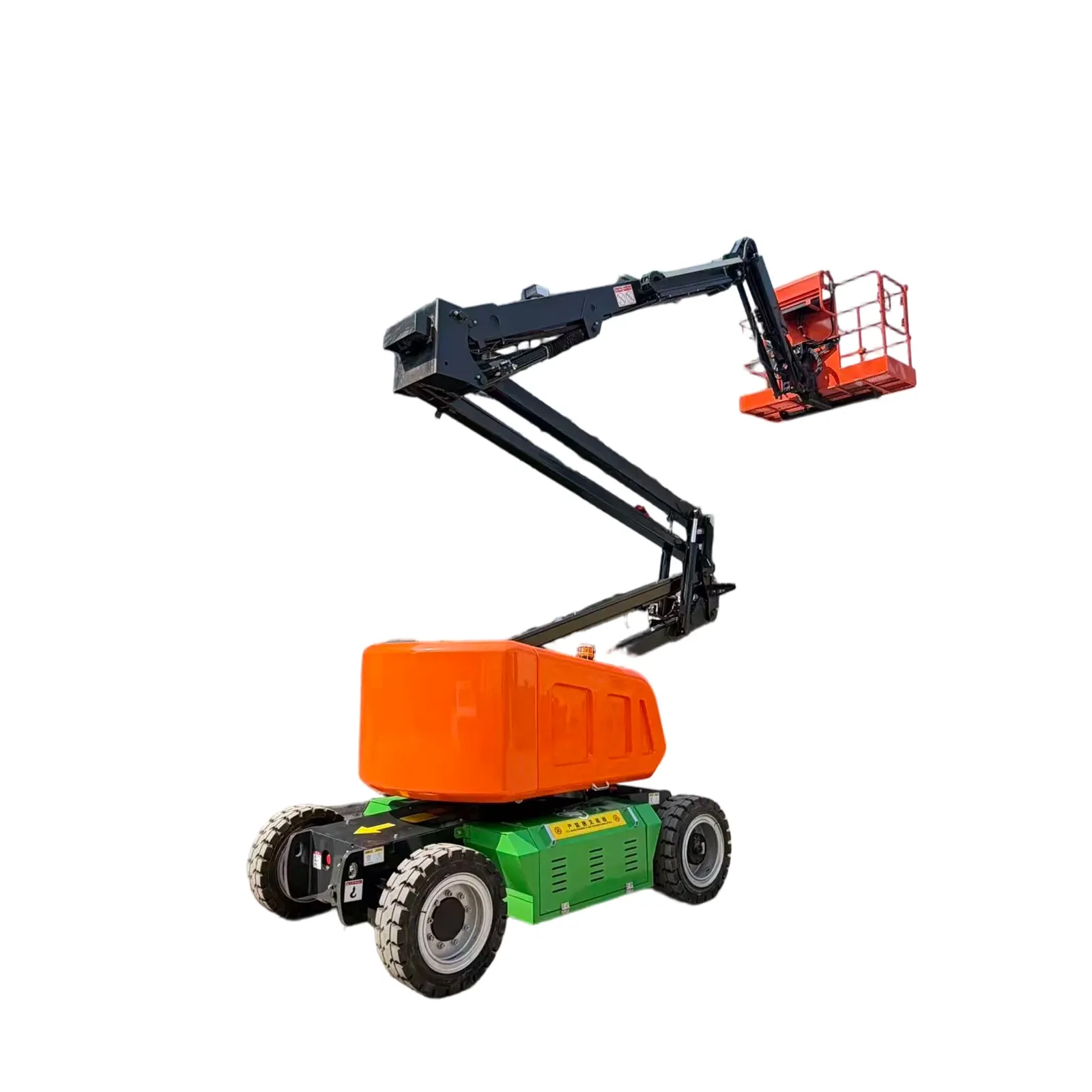

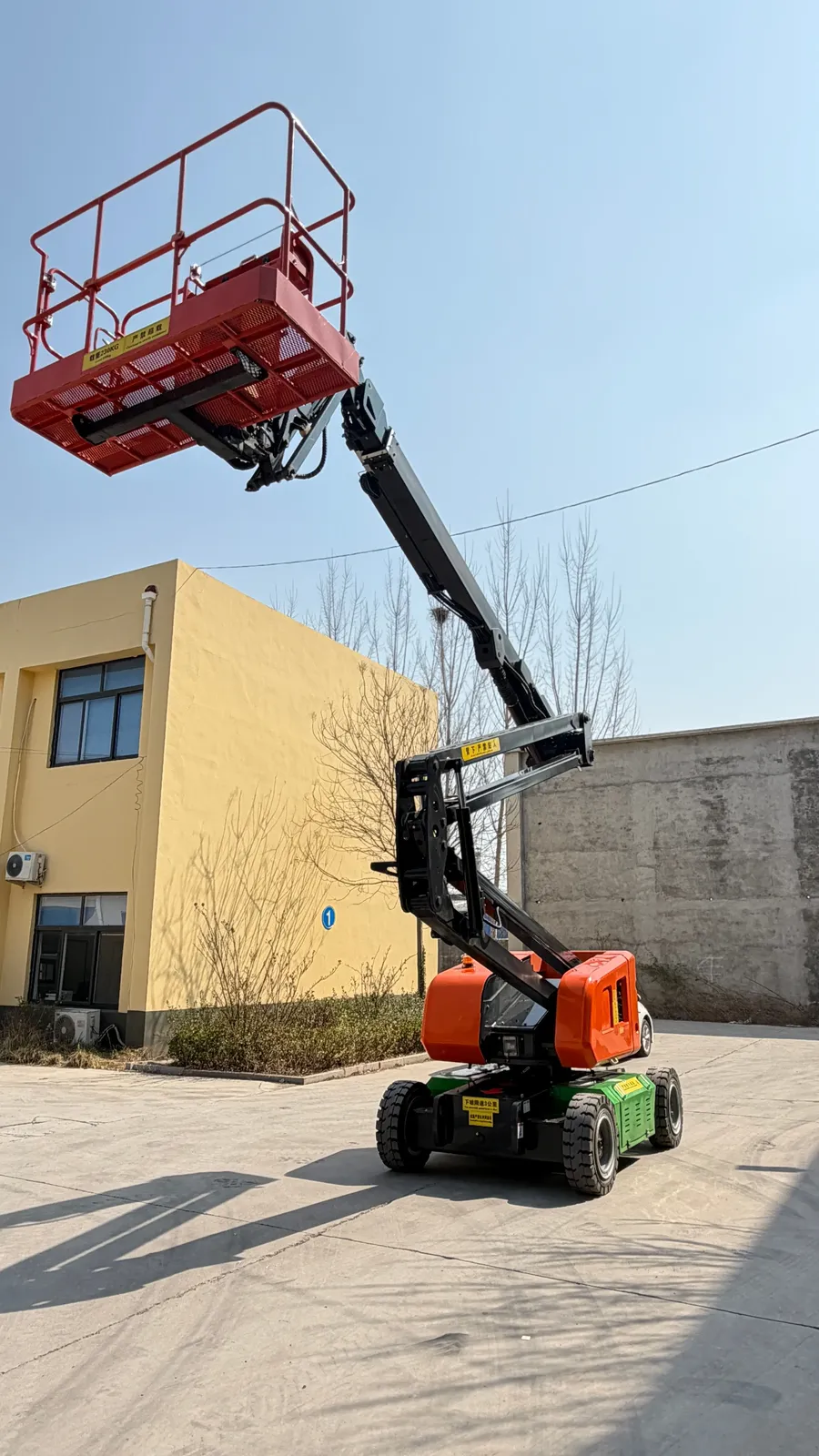

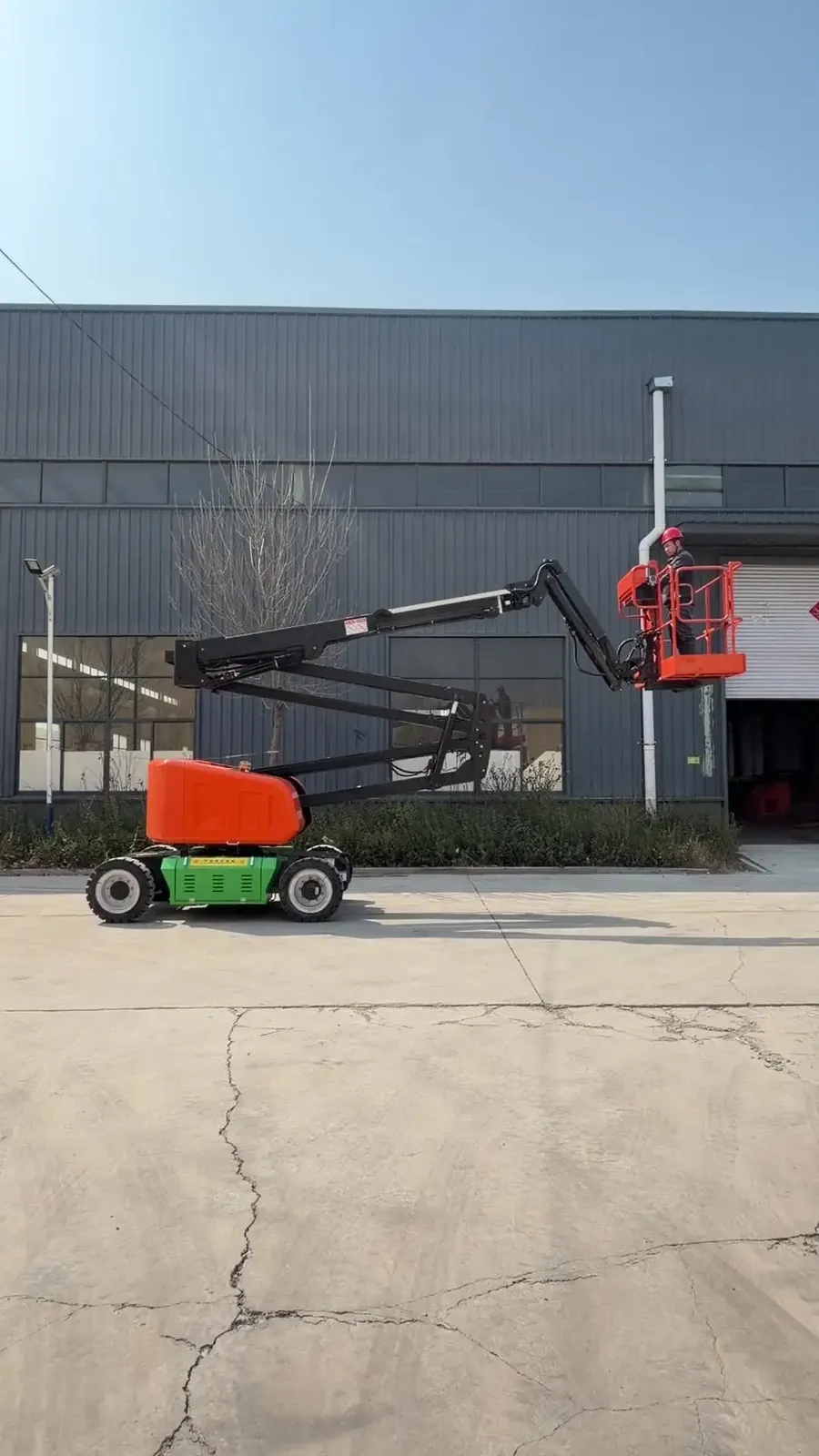

Self-Propelled Electric Articulated Boom Lift, 17 or 19 m Working Height
230 kgElectric
Price on requestwritten quote
Get a quote, reply in 2 hours- 12-month warranty
- Photos and video before it ships
- No online payment, nothing is charged
Any quantity is welcome. Your price depends on the quantity and is confirmed on your written quote. Your written quote gives the price in GBP ex VAT, adds freight, duty and VAT, and is valid for 30 days.
Gradeability0.35
Max. lift Capacity230 kg
Line total
Nothing is sent yet: add the products you need, then send your quote request. We reply within 2 hours, Monday to Friday, 9am to 5pm.
Or email sales@londonpallettrucks.co.ukSelf-Propelled Electric Articulated Boom Lift, 17 or 19 m Working Height. Full specification sheet supplied with your quote.
| Condition | New |
|---|---|
| Power Source | Electric |
| Wheelbase | 2440 mm |
| Lift Drive / Actuation | Hydraulic |
| Ground clearance | 0.3 m |
| Max. Horizontal reach | 11 m |
| Altitude Machine Type | High Altitude Working Platform |
| Leg Structure | Folding |
| Min.Turning radius (outside) | 3.30 M |
| Min.Turning radius (inside) | 0.35 m |
| Table Size | 1830*760MM |
| Drive speed-stowed | 4.8 km/h |
| Drive speed-raised | 2.4 km/h |
| Load Capacity | 320 kg |
| Maximum operating height | 17-19m |
| Controller on platform | 360 Degree Rotation |
| Platform Size | 1.86*0.76m |
| Device length | 5.5m |
| Gradeability options | 0.35 |
| Max. lift Capacity options | 230 kg |
| Max. Working height options | 17m, 19m |
| Certificate | Number | Valid |
|---|---|---|
| EAC | 22/10/2023 - 22/10/2028 |
Certificates are supplied with your quote on request.
- 1. Add to quote listPick the model, capacity option and quantity.
- 2. Send the requestEmail or the quote request form. No online payment, nothing is charged.
- 3. Written GBP quoteFreight, duty and VAT included, with the lead time for your order.
