Electric Stacker
Electric Pallet Stacker, 3.5 m Lift, 1.5 t
1.5 tLead-acidForks 1150 to 1220 mm
marked
markedfrom£2,630per unit, ex VAT
Electric Pallet Stackers · Ref LPT-47389

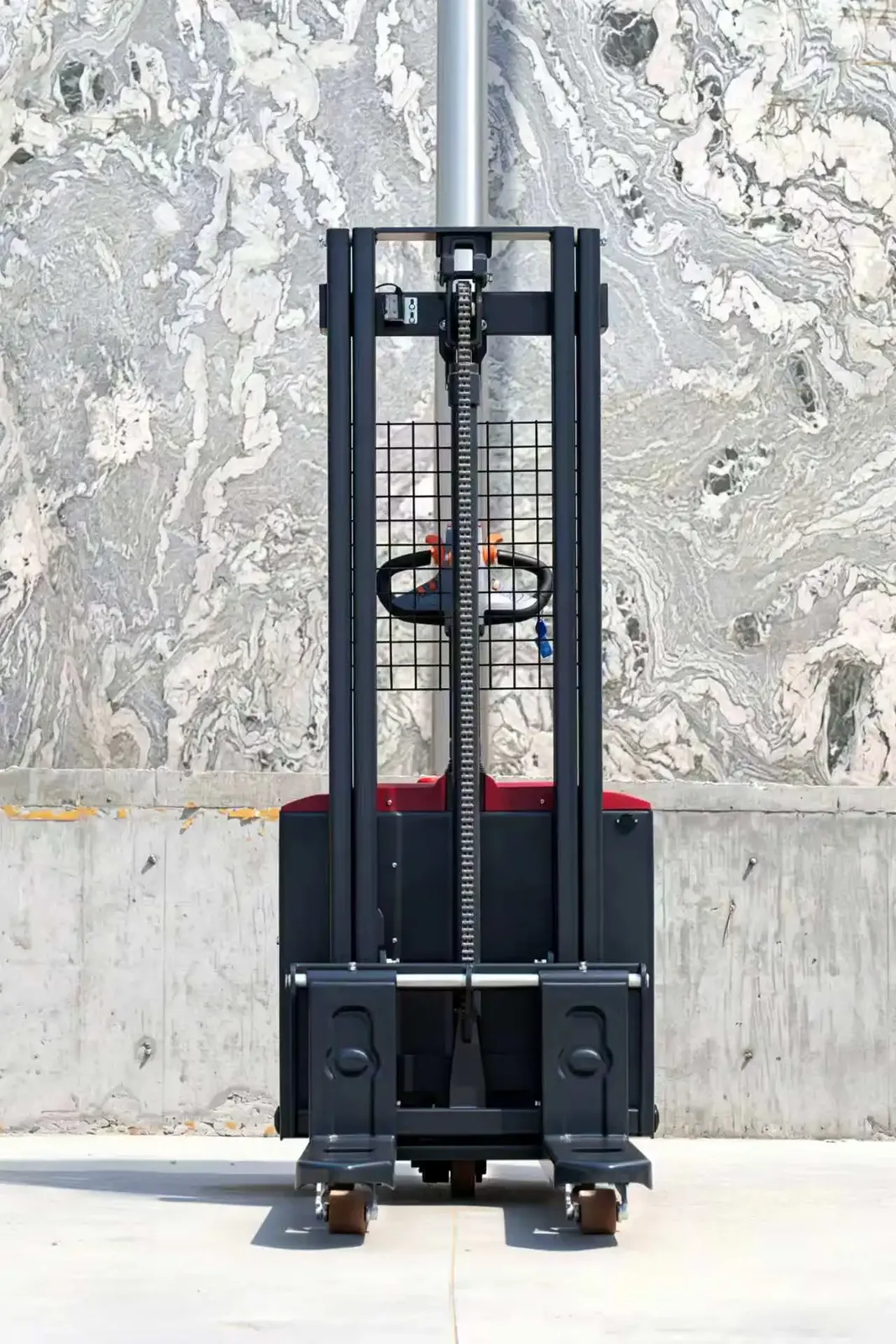

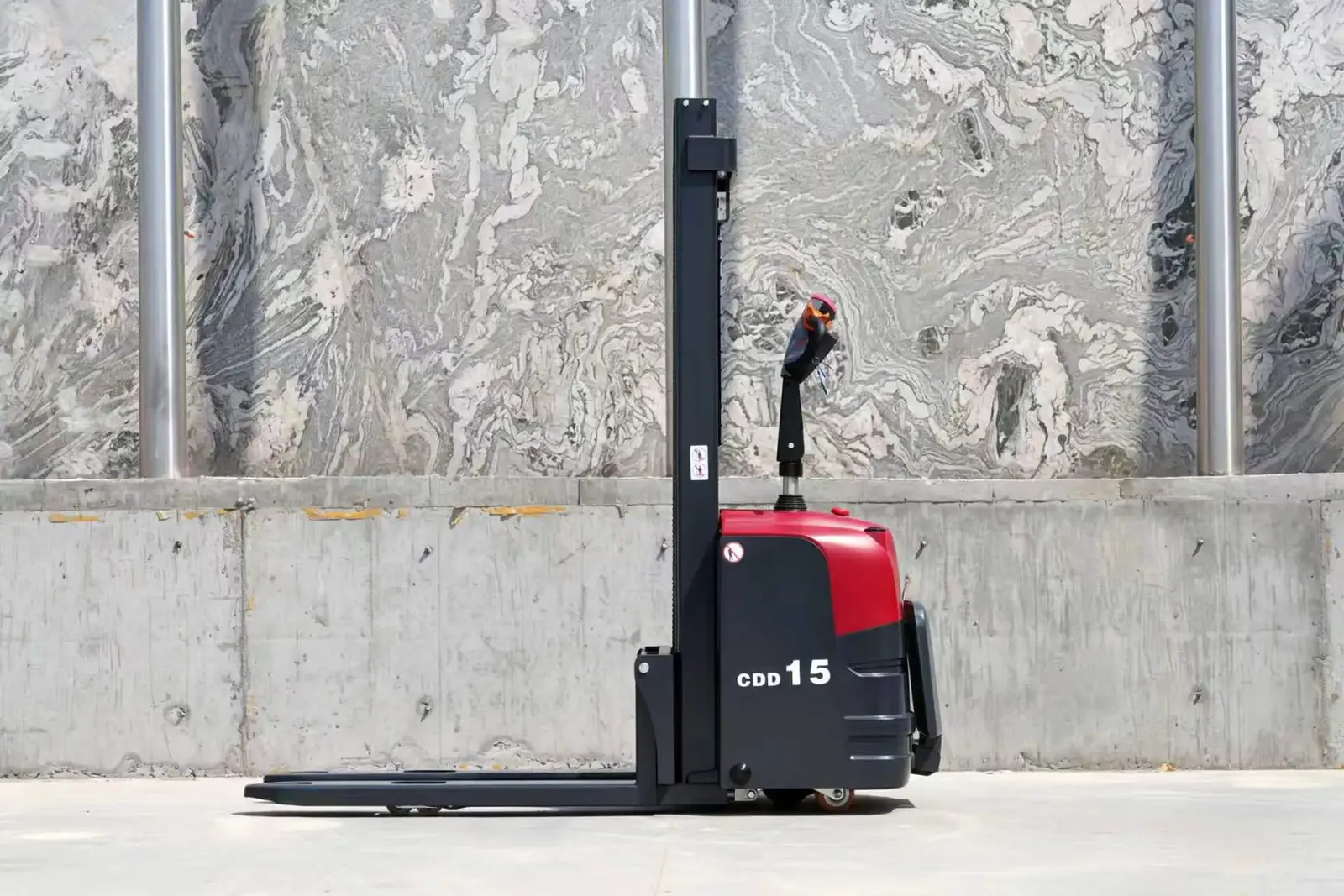

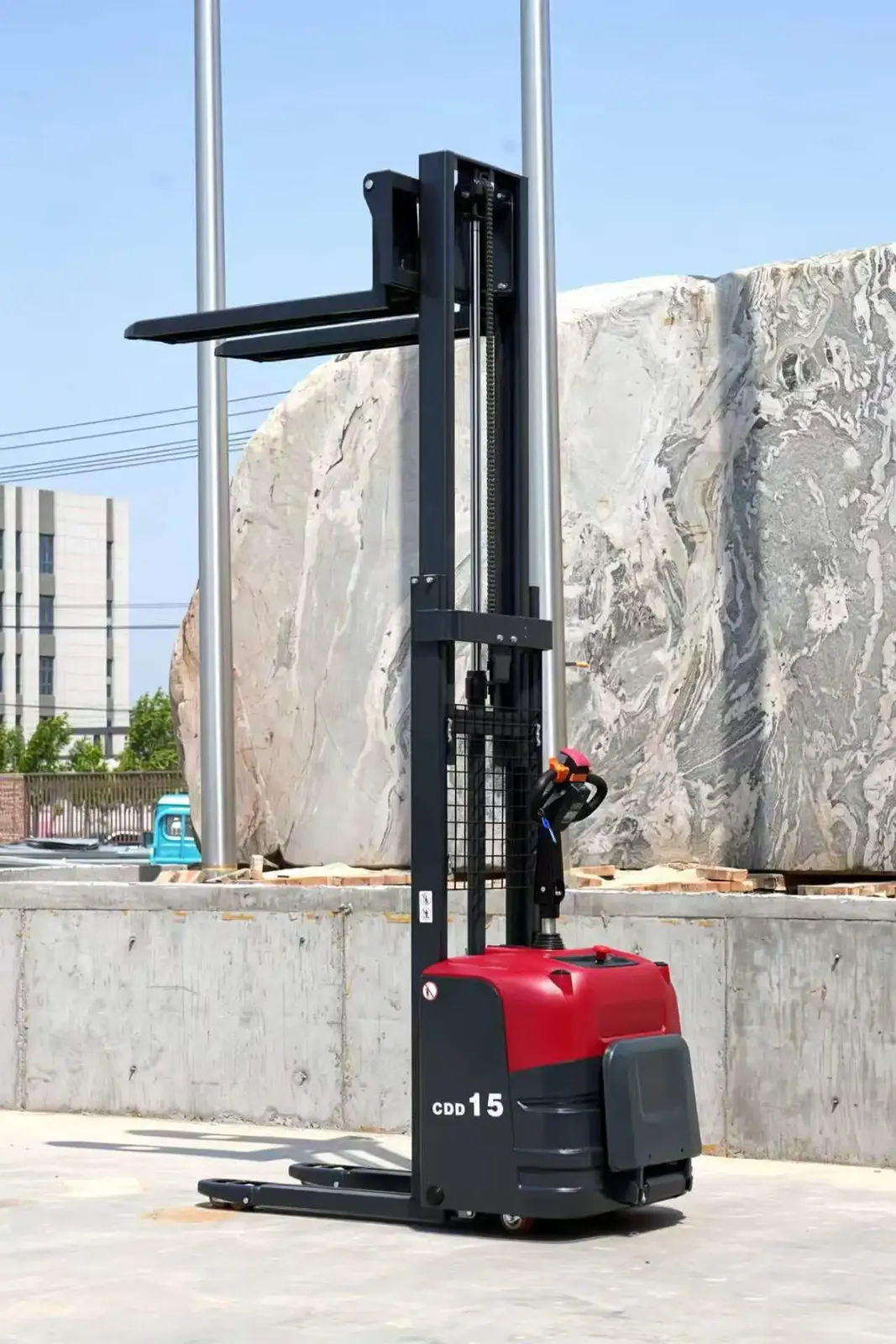

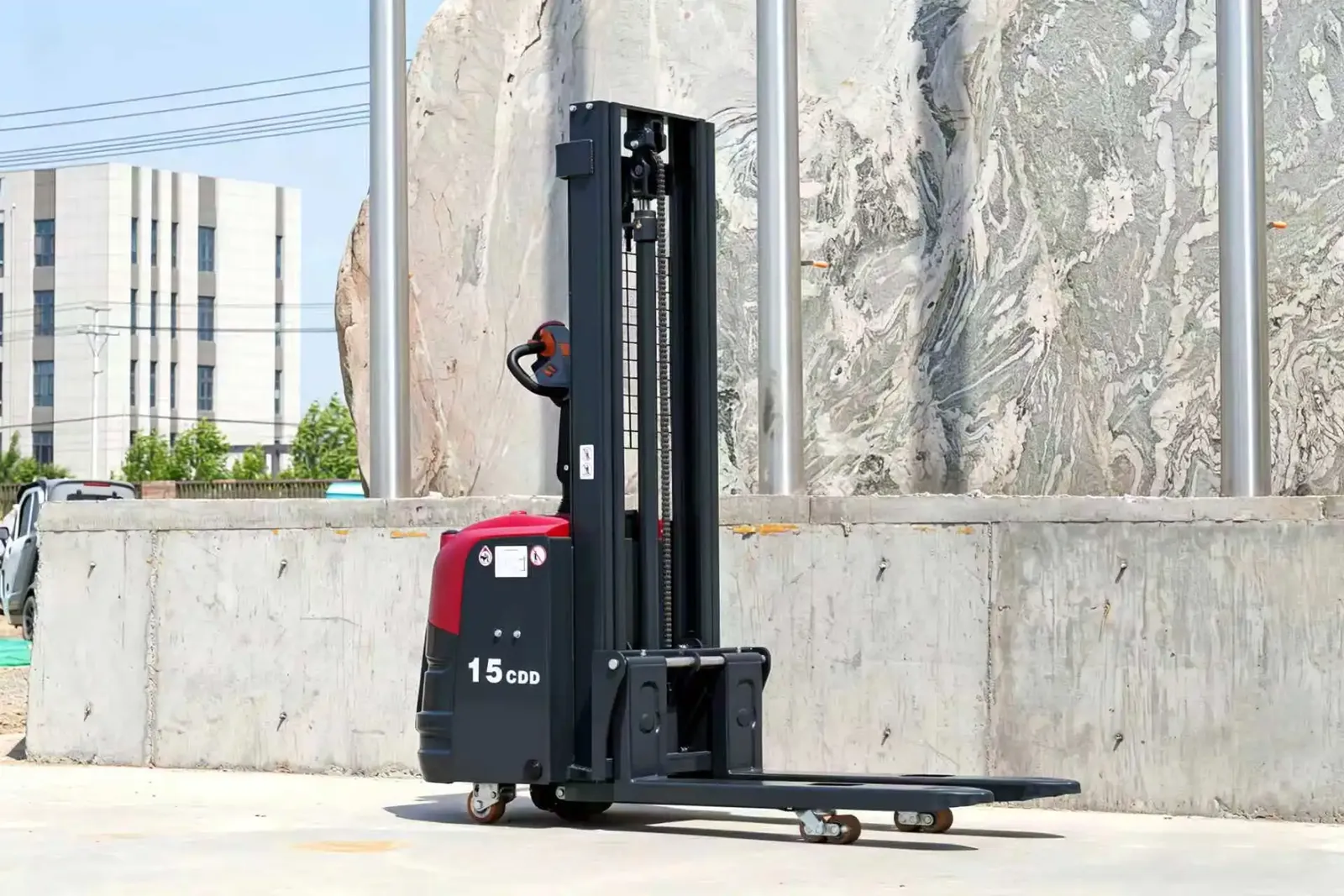

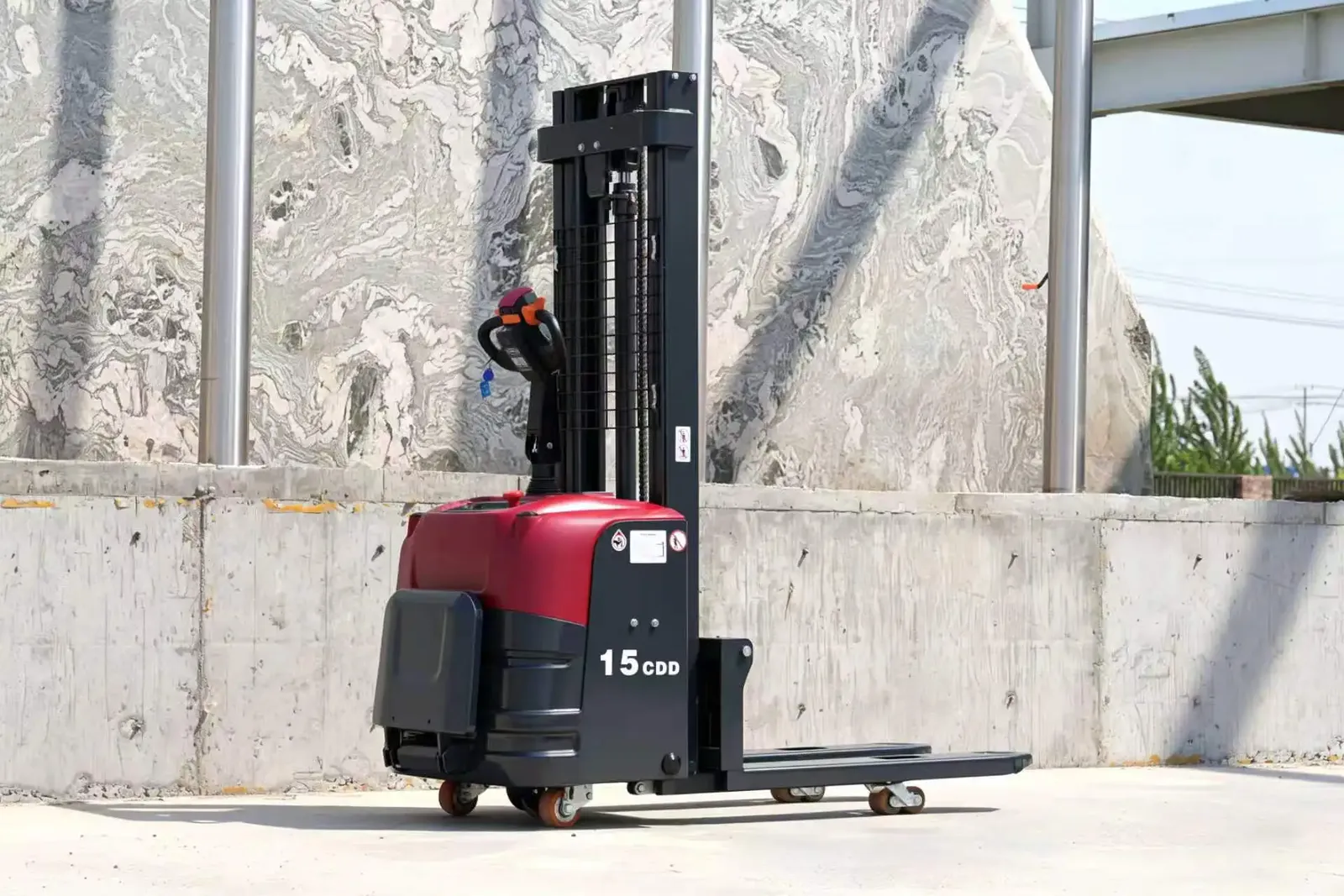

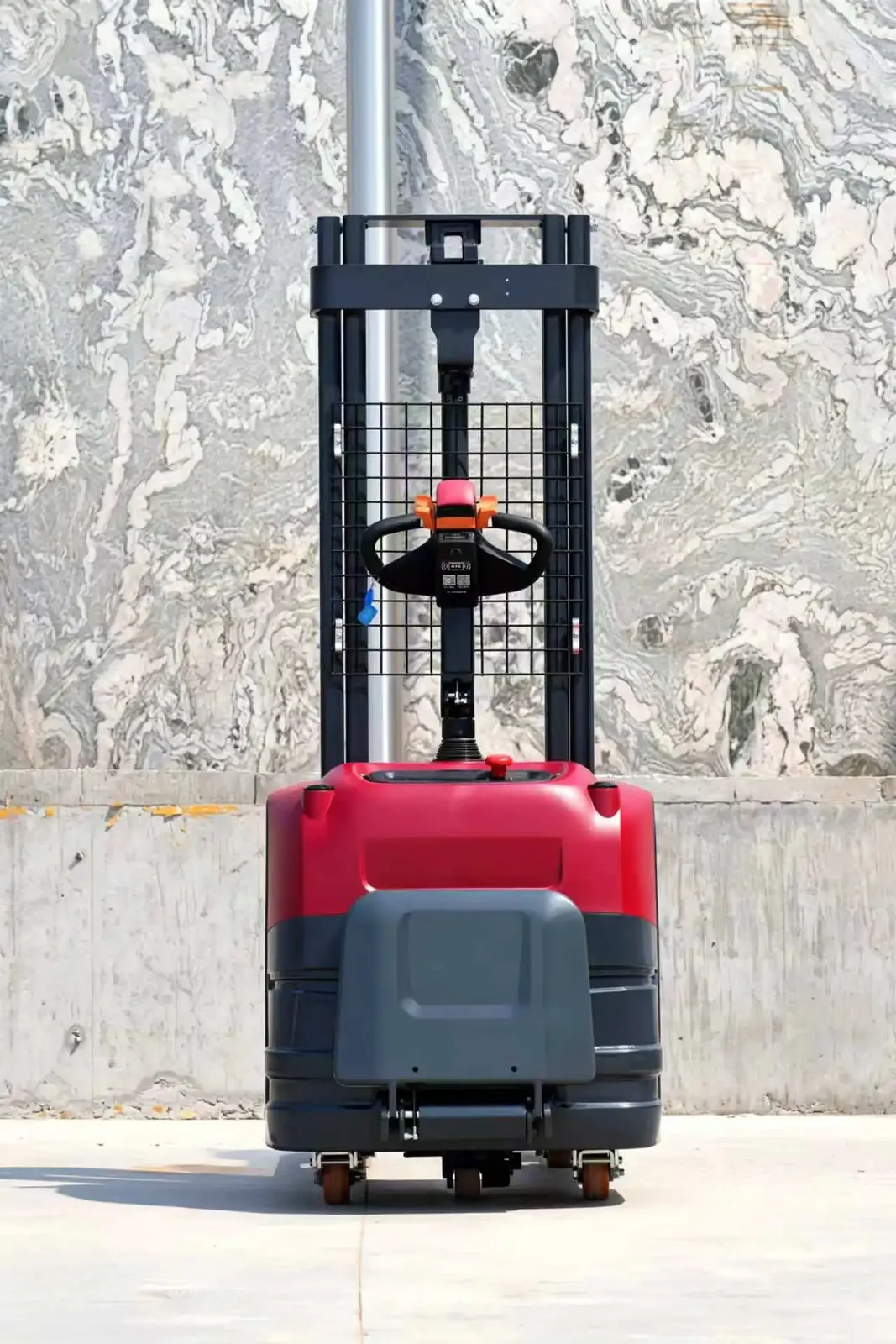

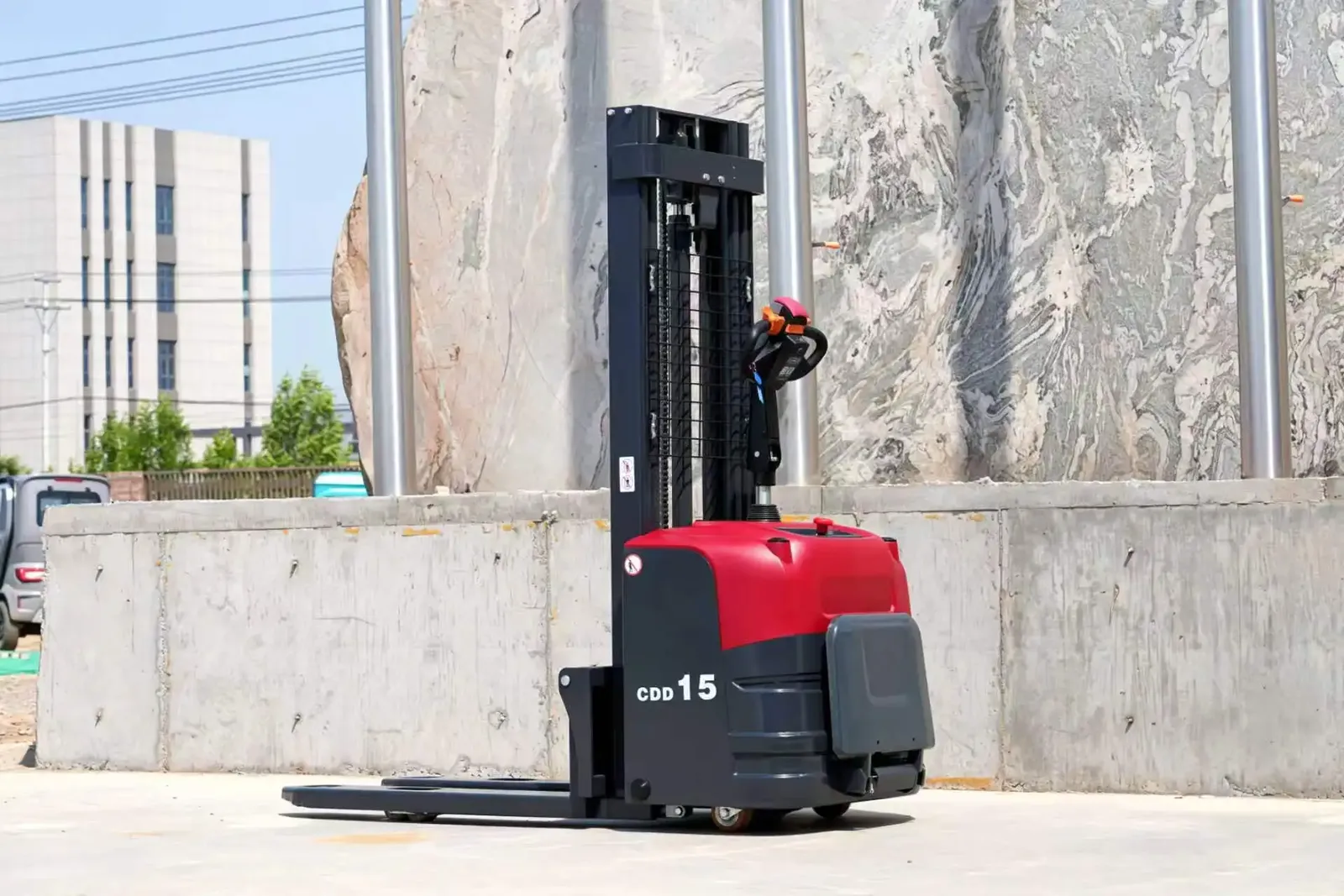

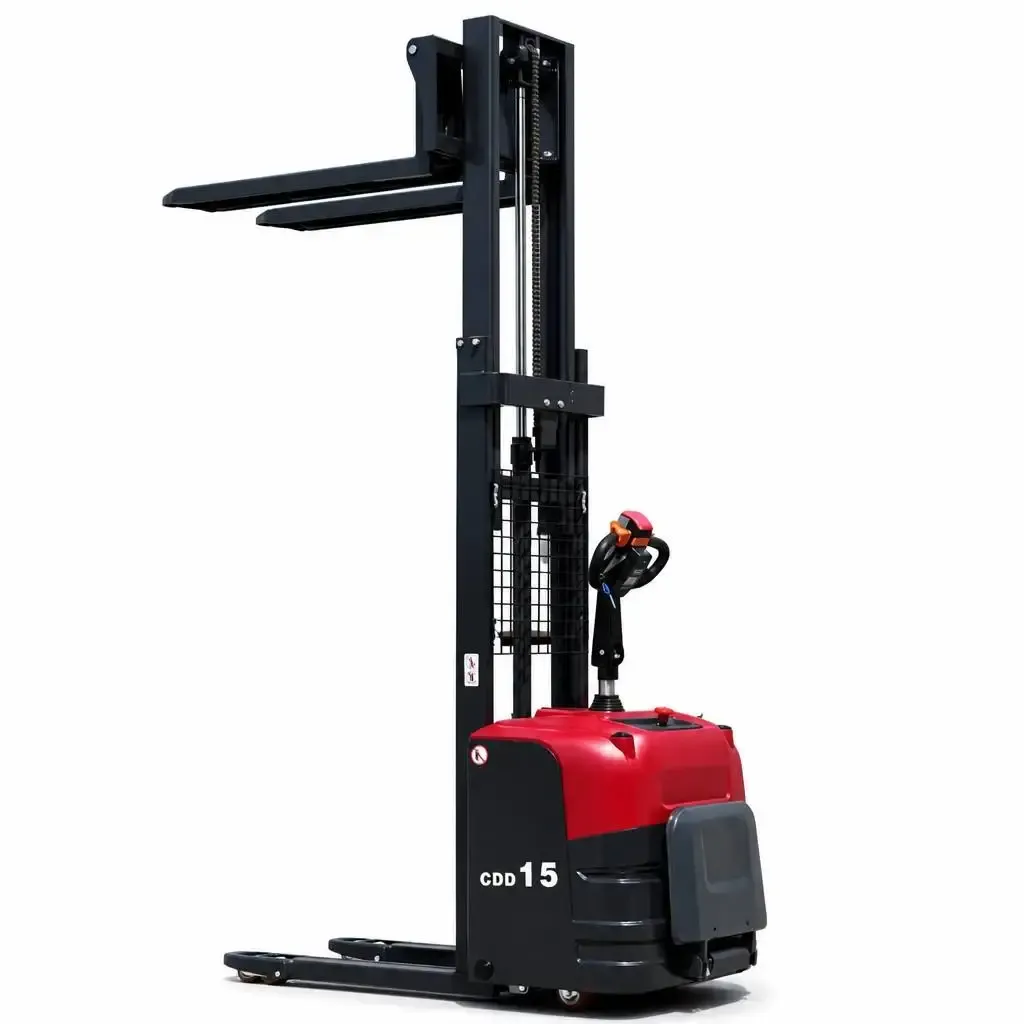

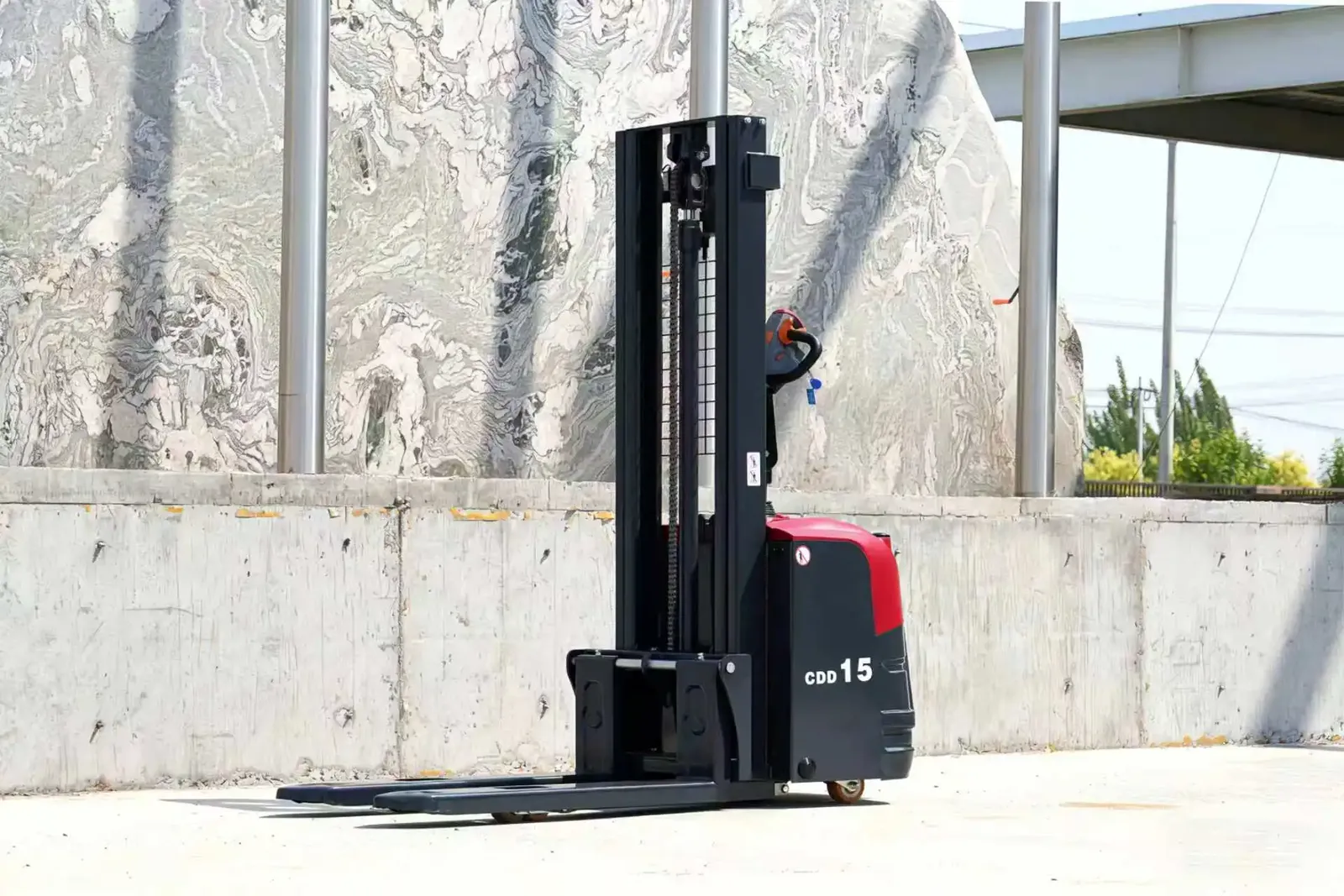

Electric Stacker 1.5T
1.5 tLead-acidForks 1150 mm marked
markedfrom£2,630per unit, ex VAT
Get a quote, reply in 2 hours
- 12-month warranty

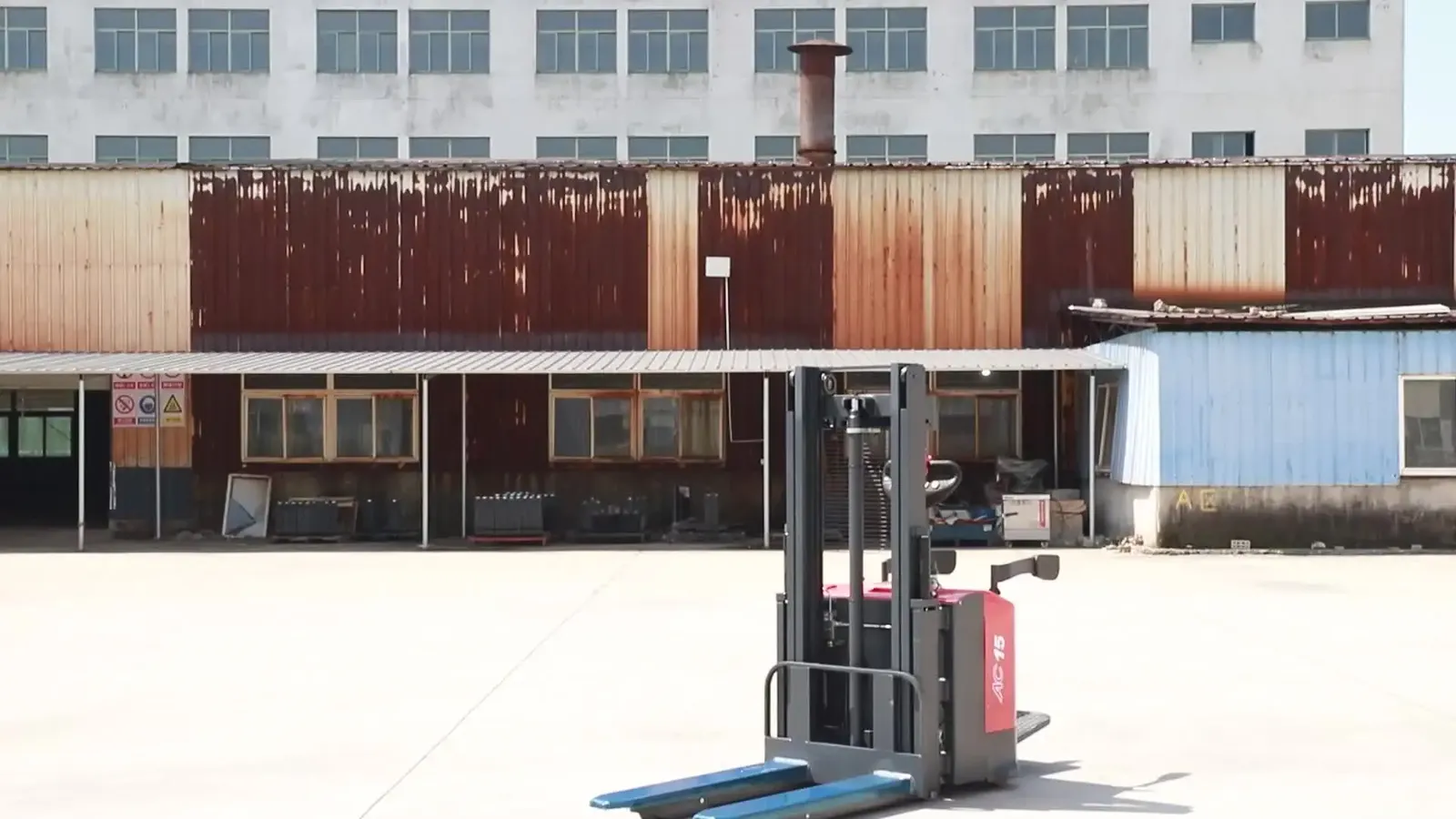

- Photos and video before it ships
- No online payment, nothing is charged
Any quantity is welcome. Your price depends on the quantity and is confirmed on your written quote. Prices in GBP per unit, ex VAT. We convert the factory list at a buffered exchange rate, so normal day-to-day currency movement does not change the price you see. Your written quote adds freight, duty and VAT and is valid for 30 days.
Rated Loading Capacity1.5 Ton
Max. Lifting Height4000 mm
Truck TypeStacker Forklift
Line total
Nothing is sent yet: add the products you need, then send your quote request. We reply within 2 hours, Monday to Friday, 9am to 5pm.
Or email sales@londonpallettrucks.co.ukProduct Highlights

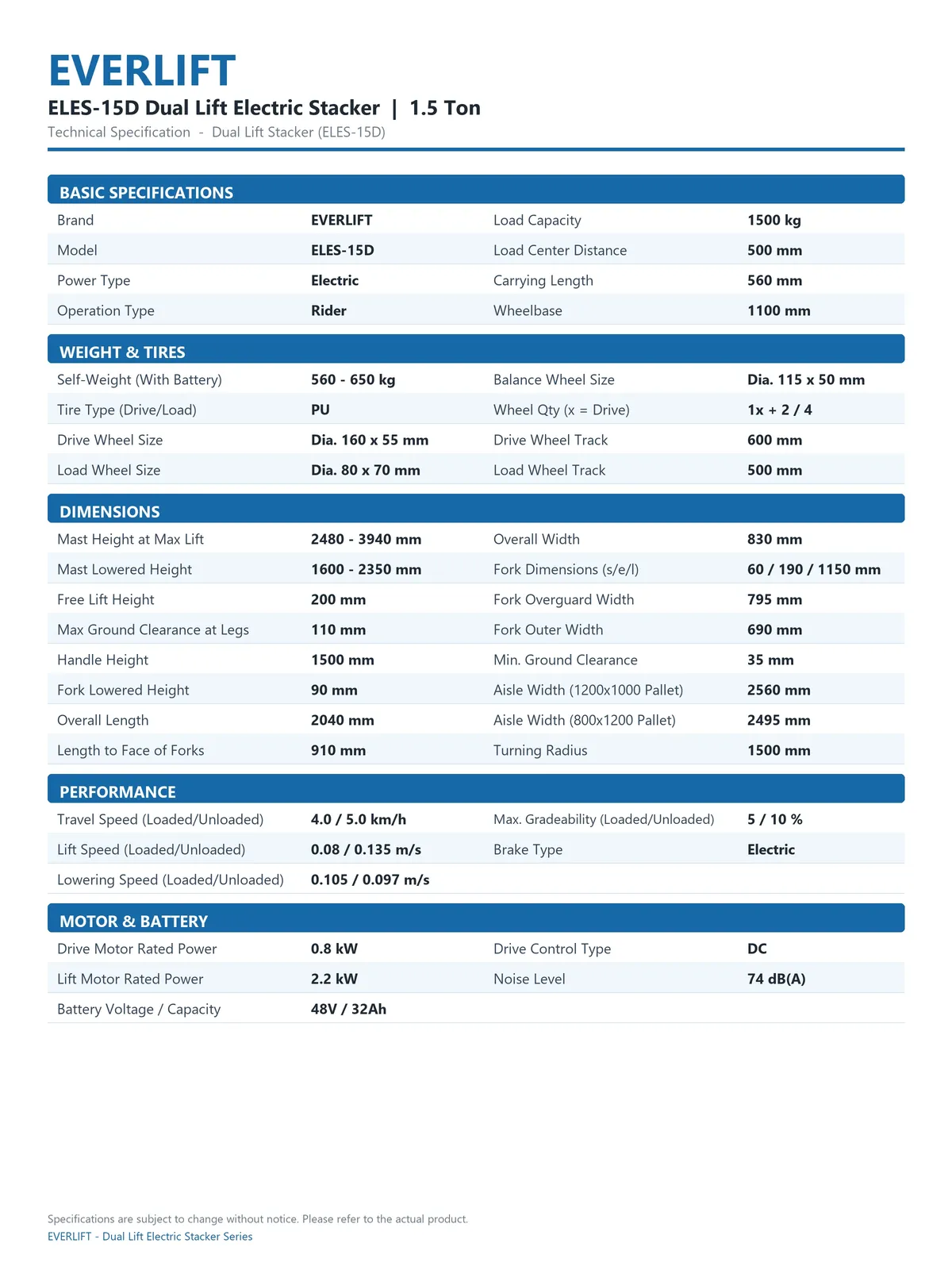

Dual lift mechanism delivers higher stacking efficiency for double pallet handling; 1500 kg rated load capacity with 500mm load centre.

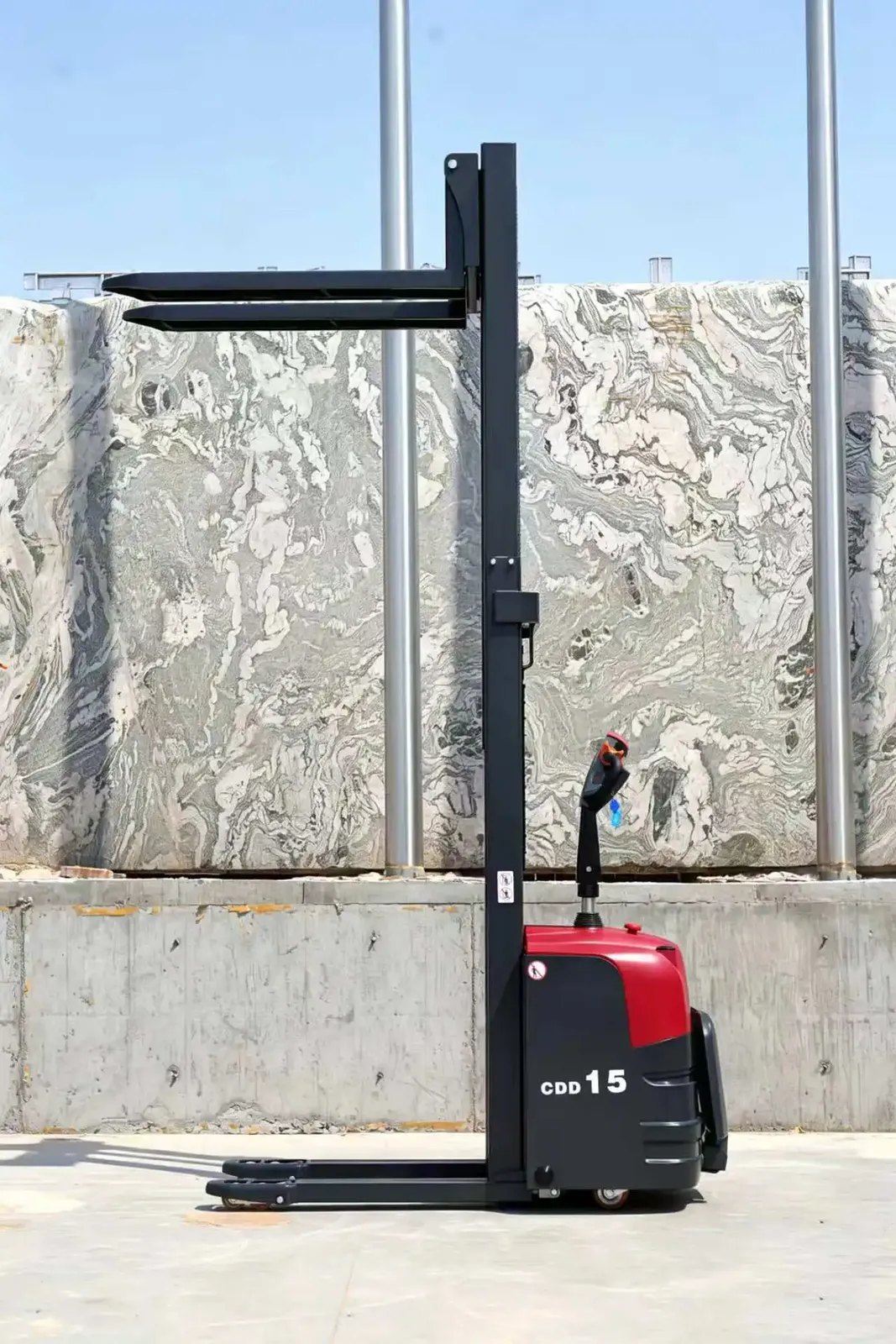

The 3940 mm mast gives a 4 m stacking height.
Powerful 48V / 32Ah battery system with 2.2 kW lift motor and 0.8 kW drive motor, offering 0.135 m/s unloaded lift speed and 5.0 km/h travel speed.
Compact design: 1500 mm turning radius and 2560 mm aisle width (1200x1000 pallet) enable efficient operation in narrow aisles and limited spaces.
PU tyres (drive Dia.160x55, load Dia.80x70, balance Dia.115x50) protect floor surfaces; only 74 dB(A) noise level creates a quiet working environment.
Lightweight 560-650 kg self-weight with rider operation type and electric brake; ideal for factories, warehouses, supermarkets and printing industries.
| Condition | New |
|---|---|
| Fork Specifications( L*W*H) | 1150 × 190 × 60 mm |
| Forklift Battery Type | Lead-Acid Battery |
| Side Shifter | Hydraulic Side Shifter, Electric Side Shifter |
| Drive Type | Fwd |
| Terrain Adaptability | Other, Rough Terrain, Outdoor Pavement, Offroad, Indoor Flooring |
| Load centre distance | 500 mm |
| Mast Type | Two-Stage Mast, Three-Stage Mas, Single-Stage Mast |
| Fork Length | 1150 mm |
| Operating Mode | Standing Operation |
| Forklift Tyre | Polyurethane Tyre |
| Mast Tilt Angle (Forward Tilt-Rear Tilt) | 6-12° |
| Battery voltage (V/AH) | 48V/32Ah |
| Type | Electric Battery Forklift |
| Mast | 2 Stage |
| Operator type | Rider |
| Application | Warehouse Material Handling |
| Capacity | 1.5t |
| Battery | 48V/32Ah |
| Wheels | PU Wheels |
| Rated Loading Capacity options | 1.5 Ton |
| Max. Lifting Height options | 4000 mm |
| Truck Type options | Stacker Forklift |
| Certificate | Number | Valid |
|---|---|---|
| 2006/42/EC | M.2026.206.C137529 | 30/03/2026 - 29/03/2031 |
| CE | M.2026.206.C134736 | 04/02/2026 - 03/02/2031 |
| CE | 3N251031.NEMS093 | 30/10/2025 - 29/10/2030 |
| EAC | 22/10/2023 - 22/10/2028 | |
| CE | M.2023.206.C83216 | 22/03/2023 - 21/03/2028 |
| CE | M.2023.206.C83215 | 22/03/2023 - 21/03/2028 |
| CE | M.2023.206.C83222 | 22/03/2023 - 21/03/2028 |
| CE | M.2023.206.C83221 | 22/03/2023 - 21/03/2028 |
Certificates are supplied with your quote on request.
Spare parts for this model
Pallet truck and stacker load rollers, 80 x 70 mm polyurethane, set of 4from £41 per set ex VAT
Self lifting stacker and pallet truck battery 12 V 33 Ah, sealed deep cyclefrom £95 per battery ex VAT · check your battery first
Stacker mast lift chain, leaf chain cut to length, per metrefrom £22 per metre ex VAT · check your old part first
Electric pallet truck and stacker horn, 24 V or 48 V, 100 dBfrom £14 per horn ex VAT · check your old part first
Electric stacker and pallet truck lowering valve, 08 size normally closed cartridgefrom £32 per valve cartridge ex VAT · check your old part first
Electric stacker power unit motor relay, 48 V, 200 Afrom £24 per relay ex VAT · check your old part first
Electric stacker pump motor, 48 V 2.2 kW DCfrom £74 per motor ex VAT · check your old part first
All spare parts. Send the model and the part you need if it is not listed.
