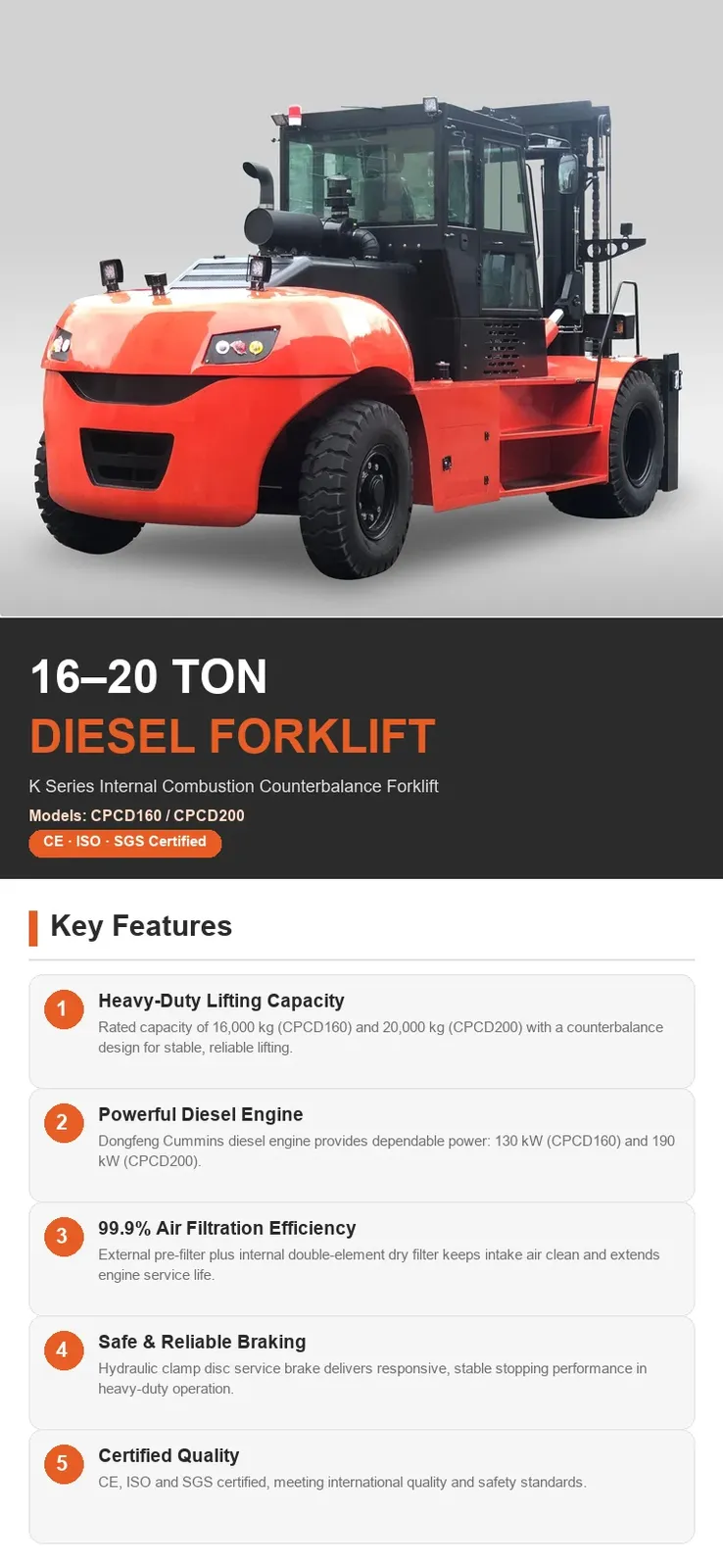

20 Ton Diesel Forklift Heavy Duty Counterbalance
marked
- 12-month warranty
- Photos and video before it ships
- No online payment, nothing is charged
Any quantity is welcome. Your price depends on the quantity and is confirmed on your written quote. Prices in GBP per unit, ex VAT. We convert the factory list at a buffered exchange rate, so normal day-to-day currency movement does not change the price you see. Your written quote adds freight, duty and VAT and is valid for 30 days.
Line total
Nothing is sent yet: add the products you need, then send your quote request. We reply within 2 hours, Monday to Friday, 9am to 5pm.
Or email sales@londonpallettrucks.co.ukProduct Highlights
(1) 20000 kg Ultra-Heavy Load Capacity: purpose-built for extreme heavy-duty material handling in ports, steel mills, construction sites and heavy industrial facilities.
(2) Lift heights from 3000 to 7000 mm with 6° forward and 12° rearward mast tilt, for stable and precise handling of oversized and heavy loads.

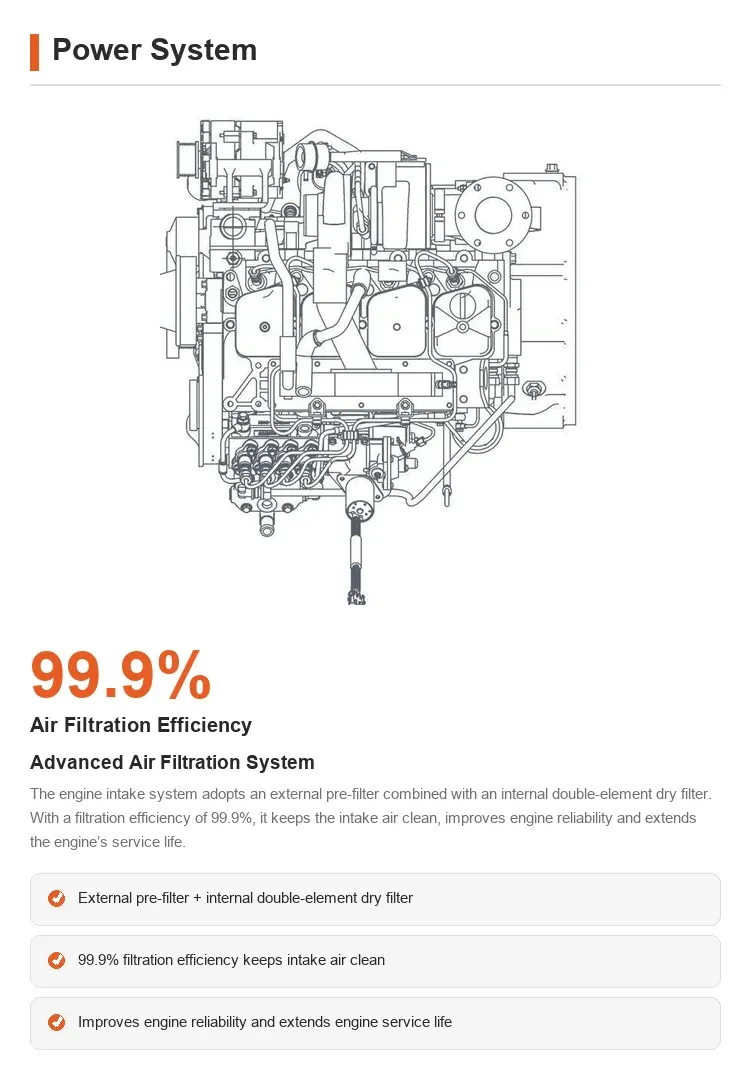

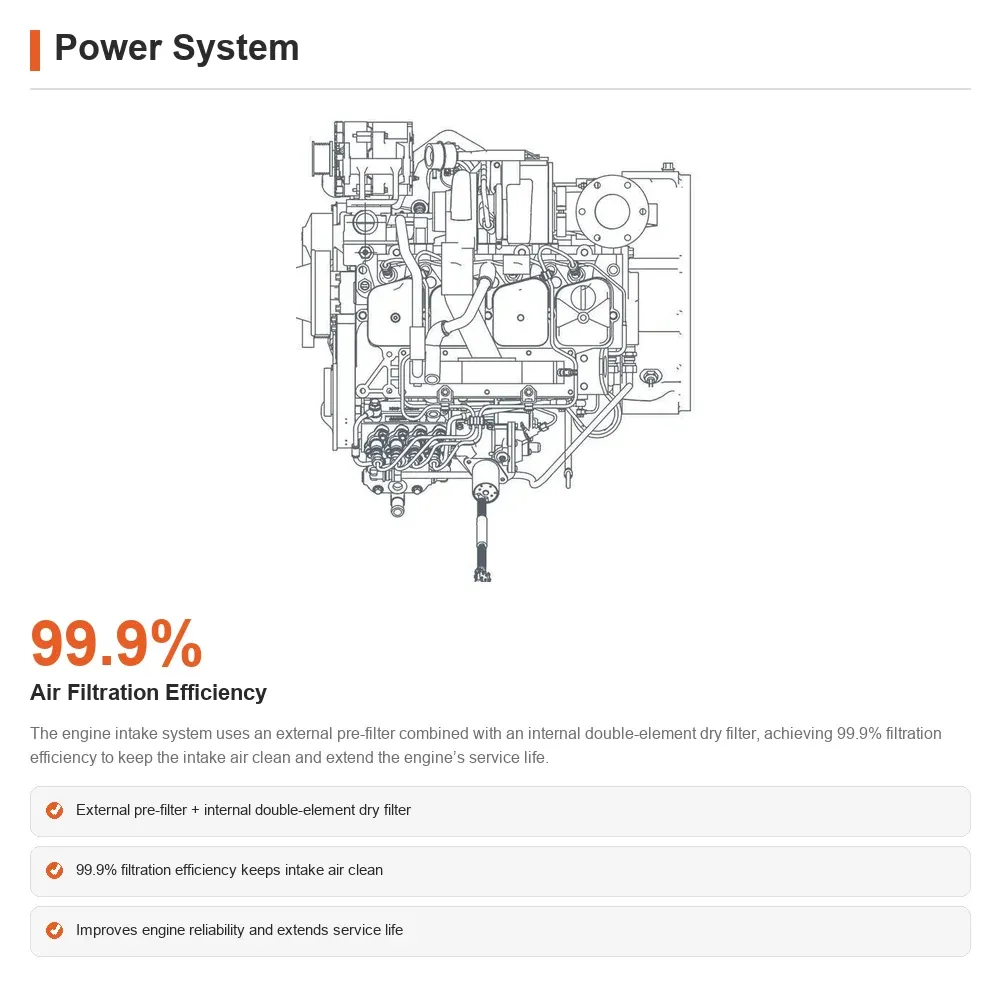

(3) Powerful Dongfeng Cummins Engine with 130kW to 190kW Output: Powered by Dongfeng Cummins 6BT5.9-C130 or 6BTAAS.9-C190 diesel engines delivering 130kW to 190kW, ensuring dependable performance for continuous heavy-duty operations.
(4) 22-30km/h Travel Speed for Efficient Transport: Achieves travel speeds up to 30km/h unloaded, significantly reducing transport time across large industrial sites and improving overall operational productivity.
(5) Heavy-Duty Vacuum Tyres for Exceptional Stability: Equipped with large 12.00-20 or 12.00-24 vacuum tyres providing superior traction, stability, and shock absorption on rough terrain, uneven surfaces, and demanding industrial environments.
(6) 4880-5340mm Turning Radius for Large-Scale Manoeuvrability: Offers a turning radius up to 5340mm, designed for stable and controlled manoeuvring in spacious industrial sites while maintaining heavy-load handling capability.
(7) 2-Forward/2-Reverse Power Shift Transmission: Equipped with a durable power shift transmission, enabling smooth gear changes and responsive acceleration for efficient heavy-load operations.
(8) 20% Gradeability for Ramps and Inclines: Delivers reliable climbing performance with 20% gradeability on full load and 22% unloaded, ensuring stable operation on ramps and inclined surfaces in ports and industrial yards.
(9) Hydraulic Clamp Disc Brakes for Superior Stopping Power: Features hydraulic clamp disc service brakes, providing exceptional braking performance and safety even under extreme load conditions.
(10) Heavy-Duty Construction with 18000 kg to 27000 kg Service Weight: Built with a reinforced frame, heavy-duty axles, and oversized forks (1800×180×90mm to 1800×200×100mm), delivering outstanding stability and long-term durability in the most demanding material handling environments.

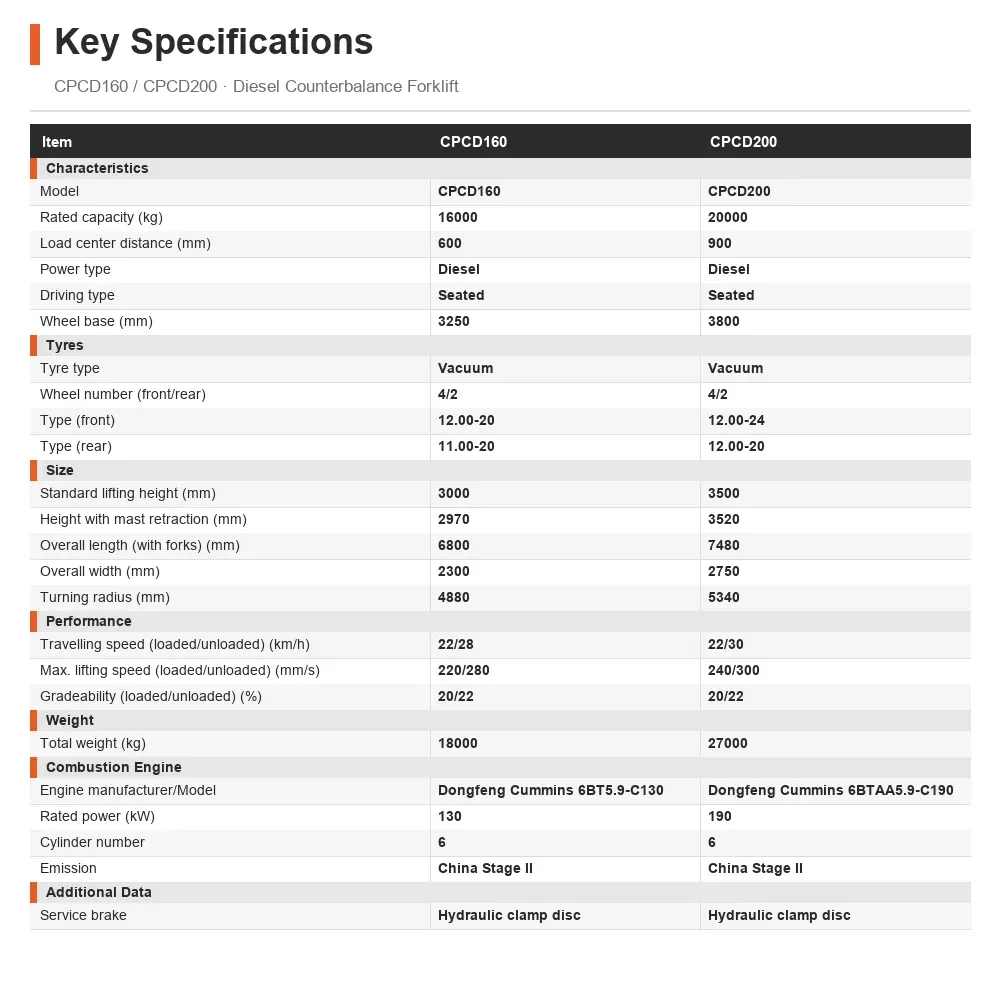

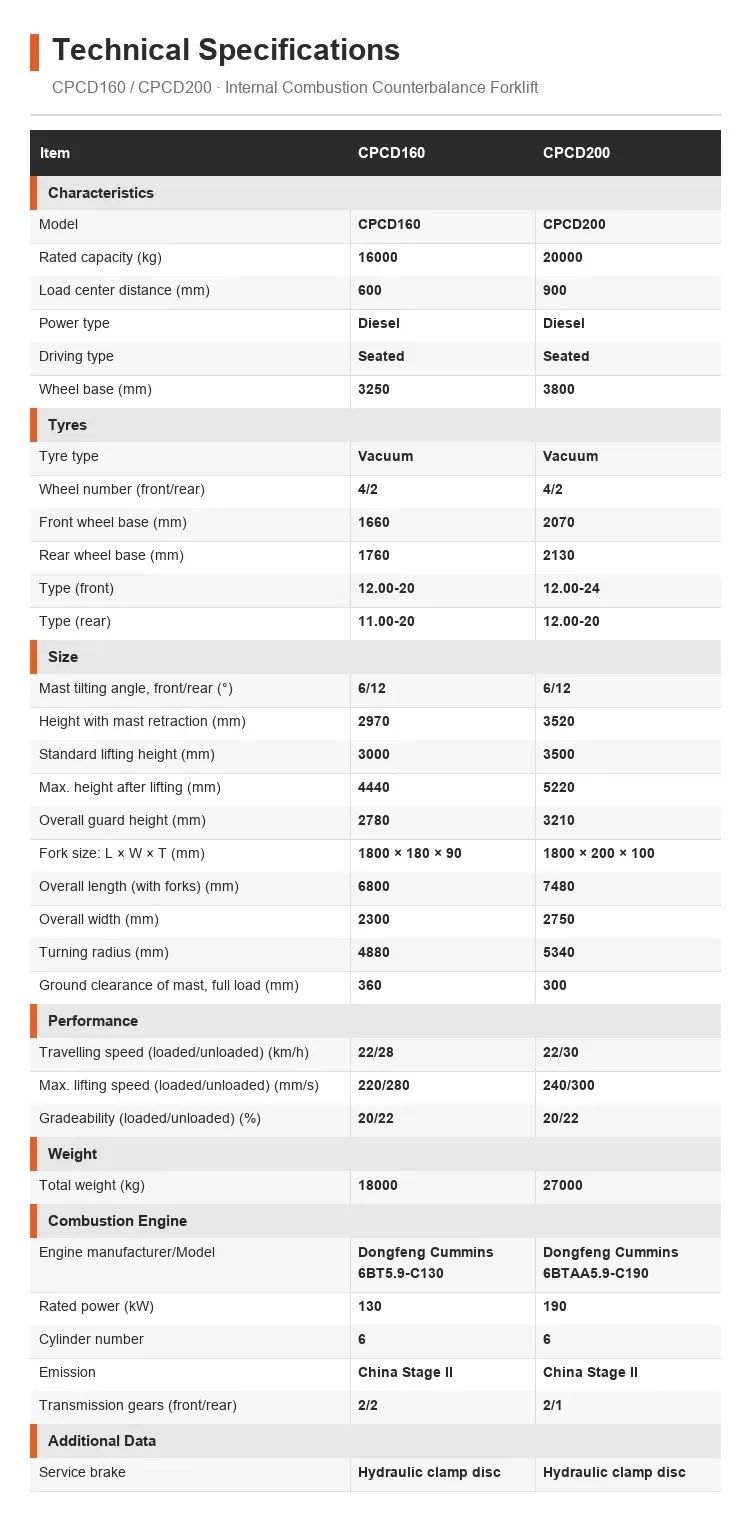

| Condition | New |
|---|---|
| Fork Specifications( L*W*H) | 1800 × 200 × 100 mm |
| Fork Length | 1800 mm |
| Fork Width | 200 mm |
| Forklift Turning radius | 5340 mm |
| Power Source | Diesel |
| Mast Type | Two Stage Mast |

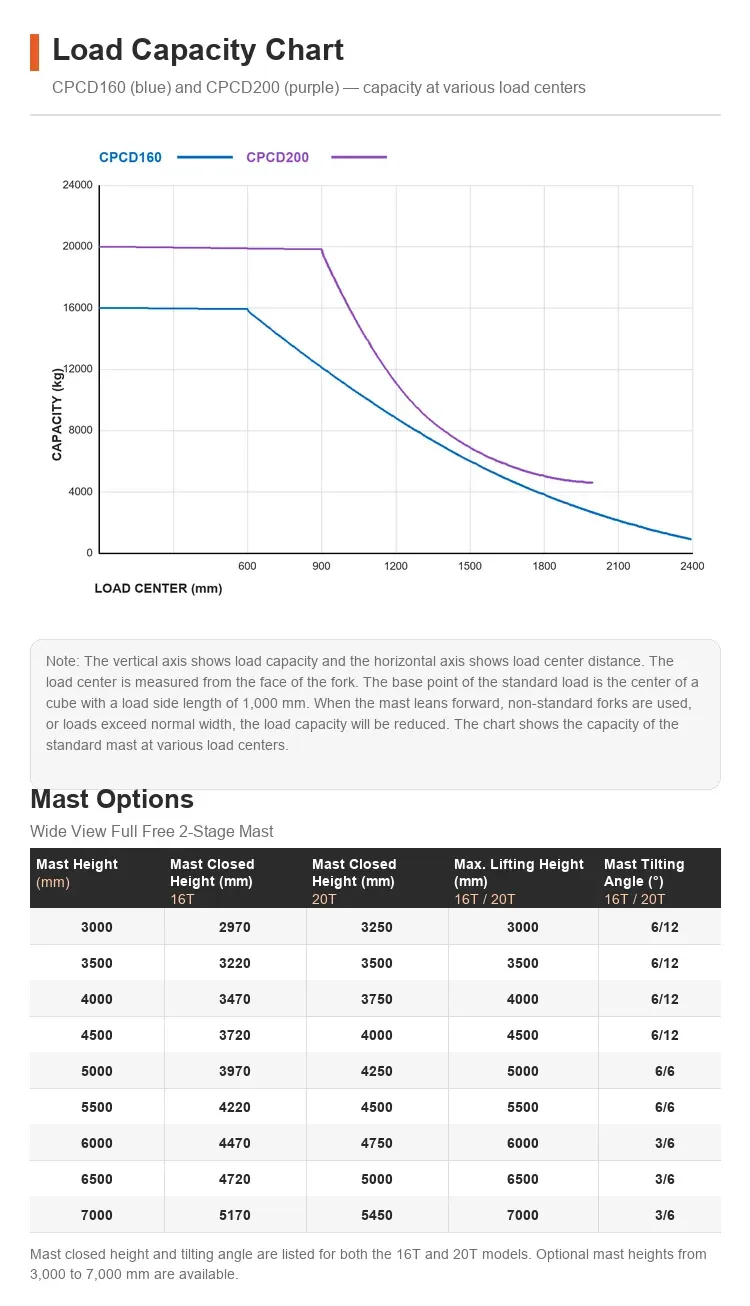

| Load centre distance | 900 mm |
| Forklift Wheelbase | 3800 mm |
| Travel speed ( laden) | 22 km/h |
| Drive Type | Fwd |
| Operating Mode | Seated Operation |
| Forklift Tyre | Solid Tyre, Pneumatic Tyre |
| Mast Tilt Angle (Forward Tilt-Rear Tilt) | 6-12° |
| Travel speed ( unladen) | 30 km/h |
| Grade ability laden) | 20% |
| Grade ability unladen) | 22% |
| Rated Power | 190 kW |
| Lifting Speed | 240/300 mm/s |
| Total Weight | 27000 kg |
| Transmission | Powershift 2/1 |
| Brake System | Hydraulic Clamp Disc |
| Mast Lowered Height | 3520 mm |
| Max Height After Lifting | 5220 mm |
| Rated Loading Capacity options | 20 ton |
| Truck Type options | Counterbalance Forklift |
| Max. Lifting Height options | 6000mm, 3000mm, 5000 mm, 4500 mm, 5500 mm, 3500 mm, 7000mm, 6500mm |
| Certificate | Number | Valid |
|---|---|---|
| 2006/42/EC | M.2026.206.C137529 | 30/03/2026 - 29/03/2031 |
| CE | M.2026.206.C134736 | 04/02/2026 - 03/02/2031 |
| CE | 3N251031.NEMS093 | 30/10/2025 - 29/10/2030 |
| EAC | 22/10/2023 - 22/10/2028 | |
| CE | M.2023.206.C83216 | 22/03/2023 - 21/03/2028 |
| CE | M.2023.206.C83222 | 22/03/2023 - 21/03/2028 |
| CE | M.2023.206.C83221 | 22/03/2023 - 21/03/2028 |
Certificates are supplied with your quote on request.
