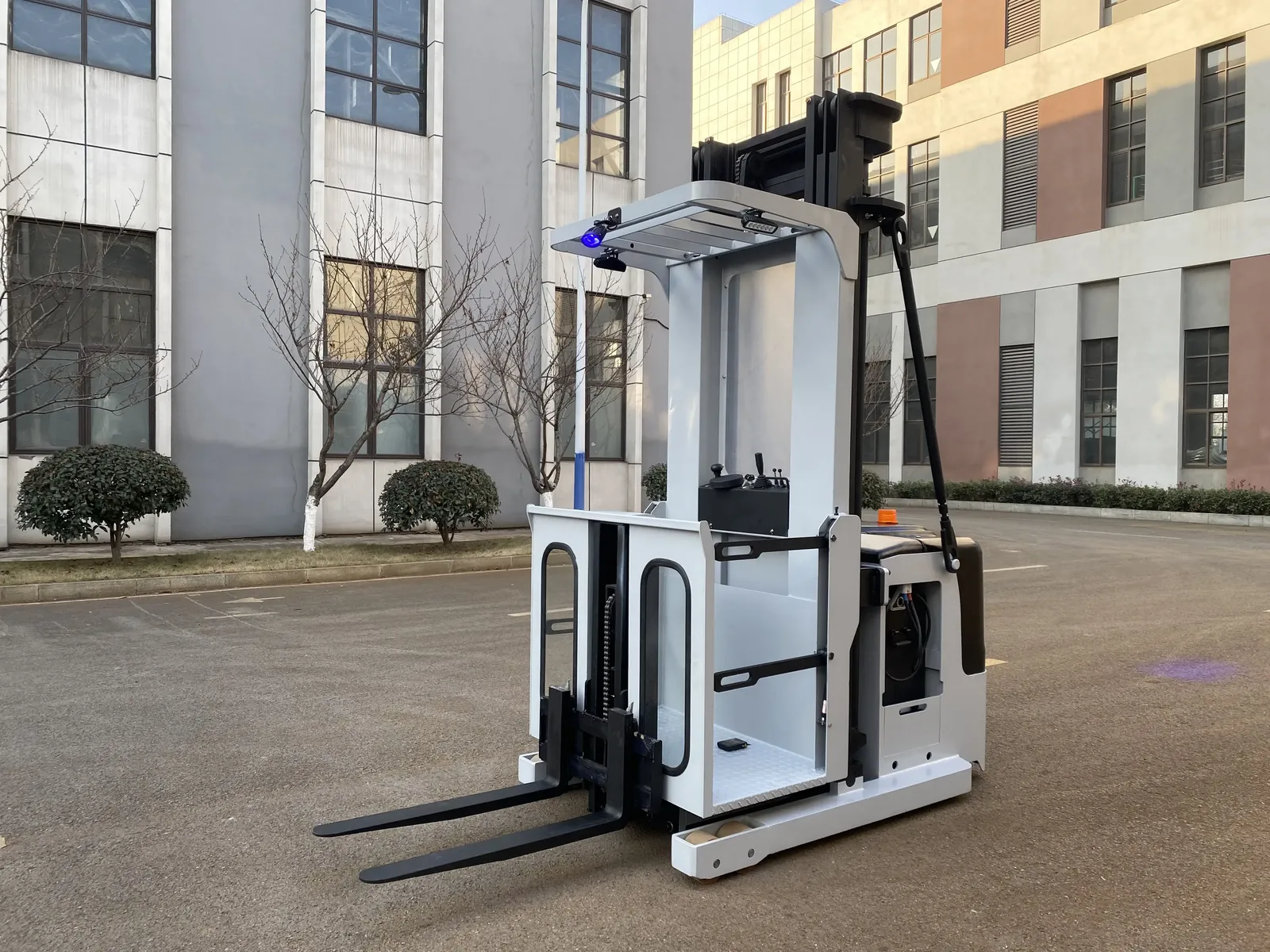

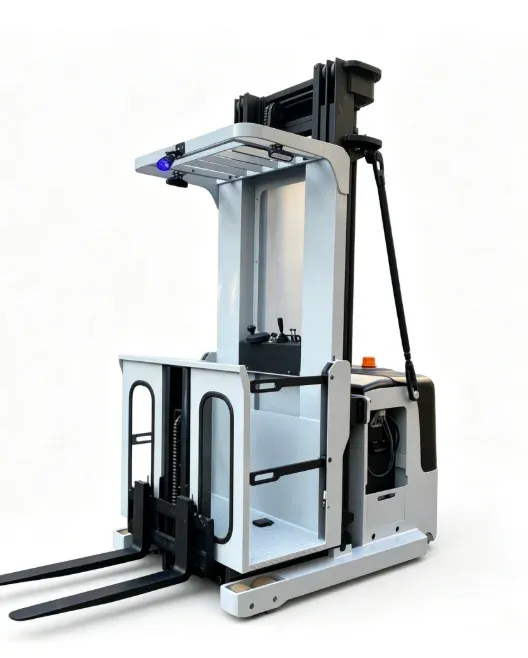

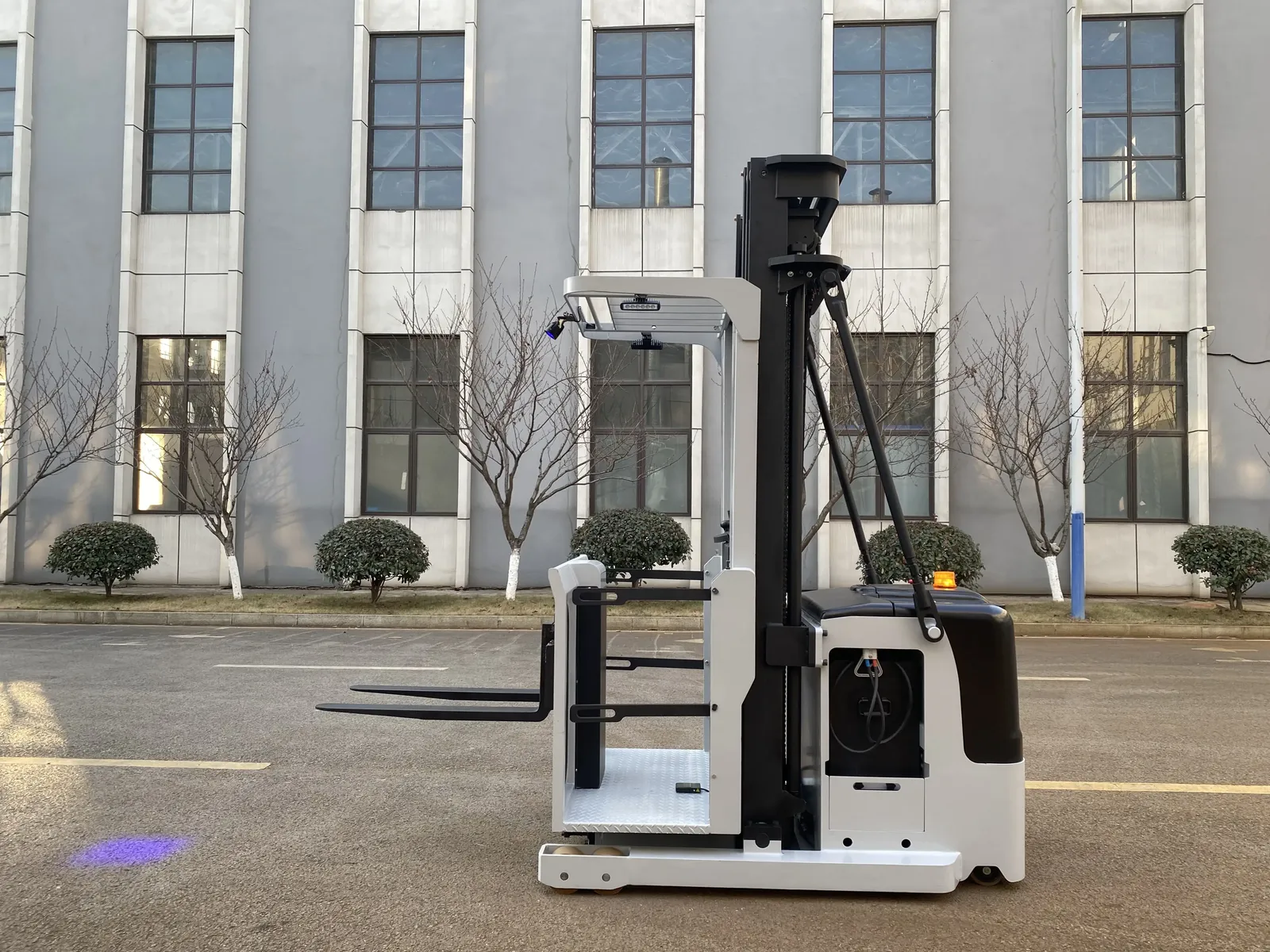

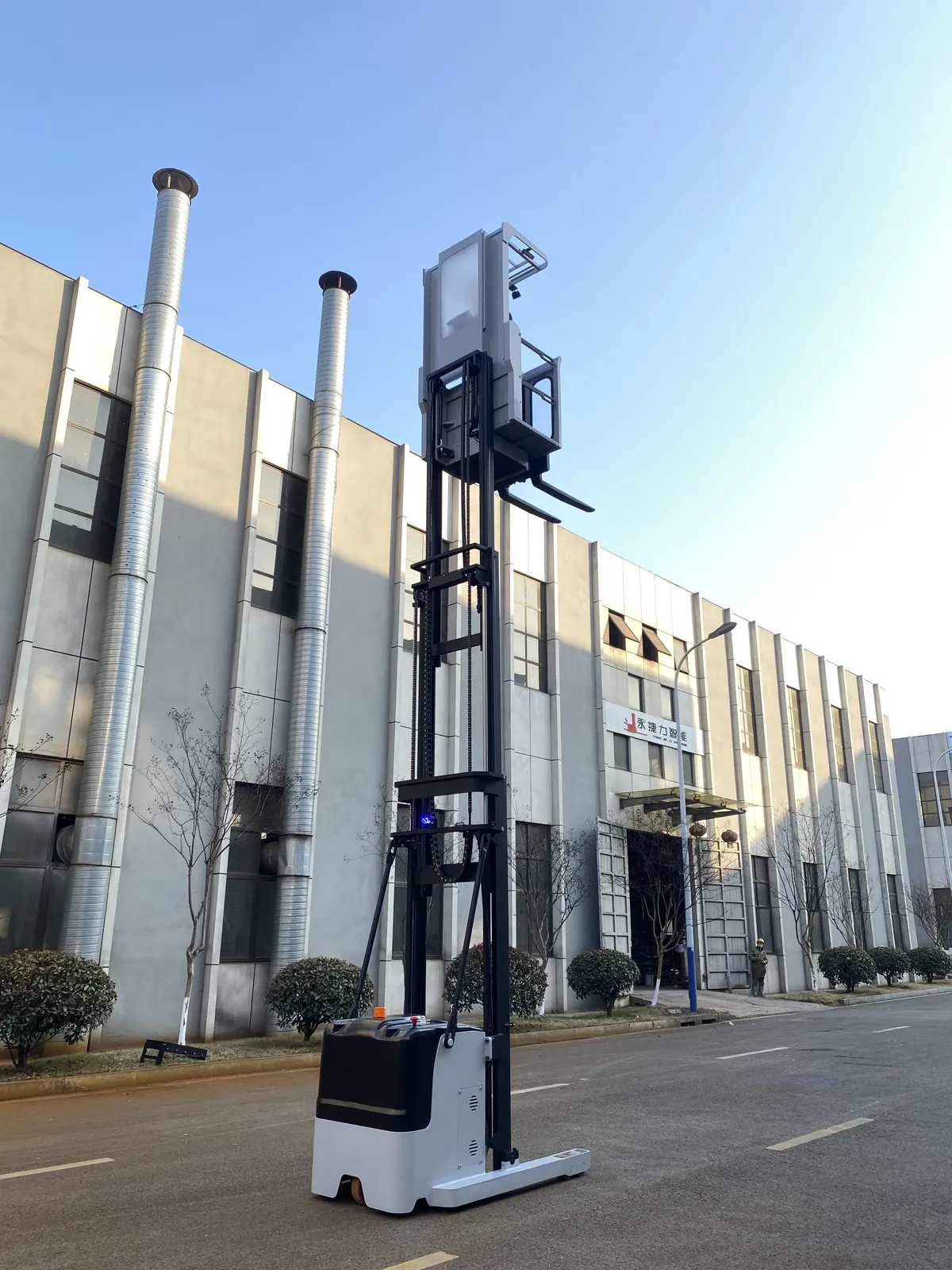

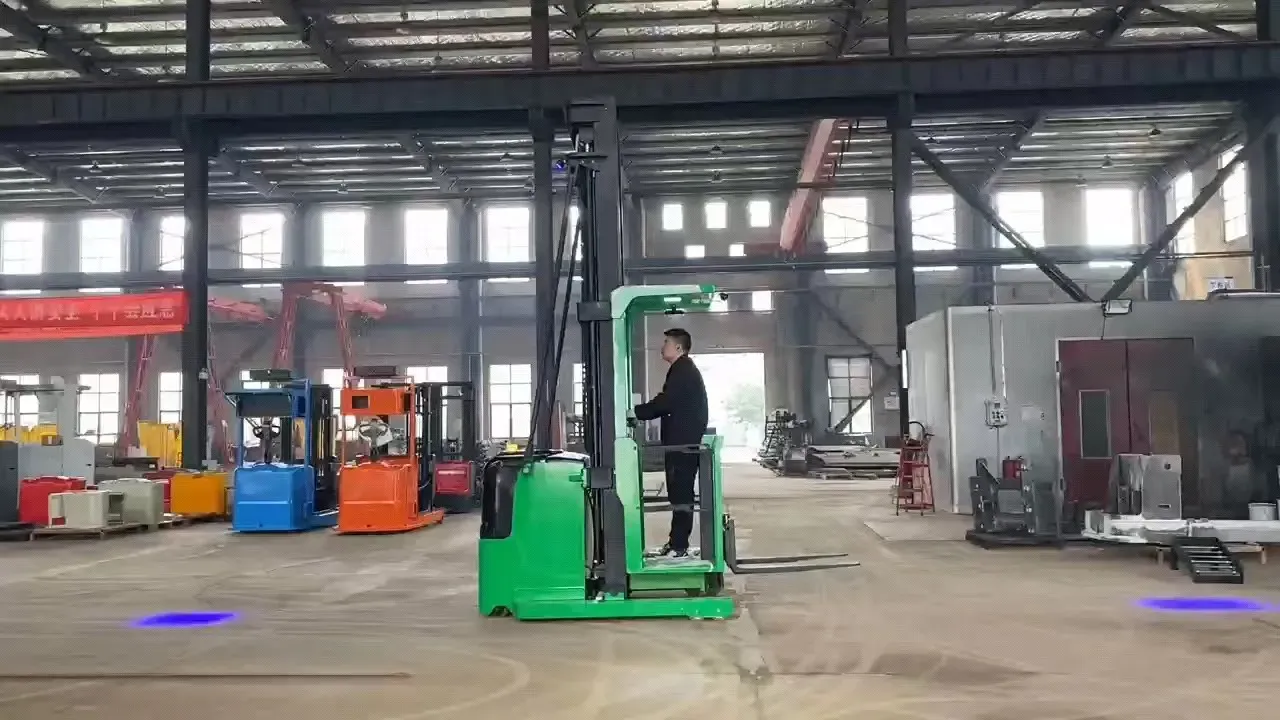

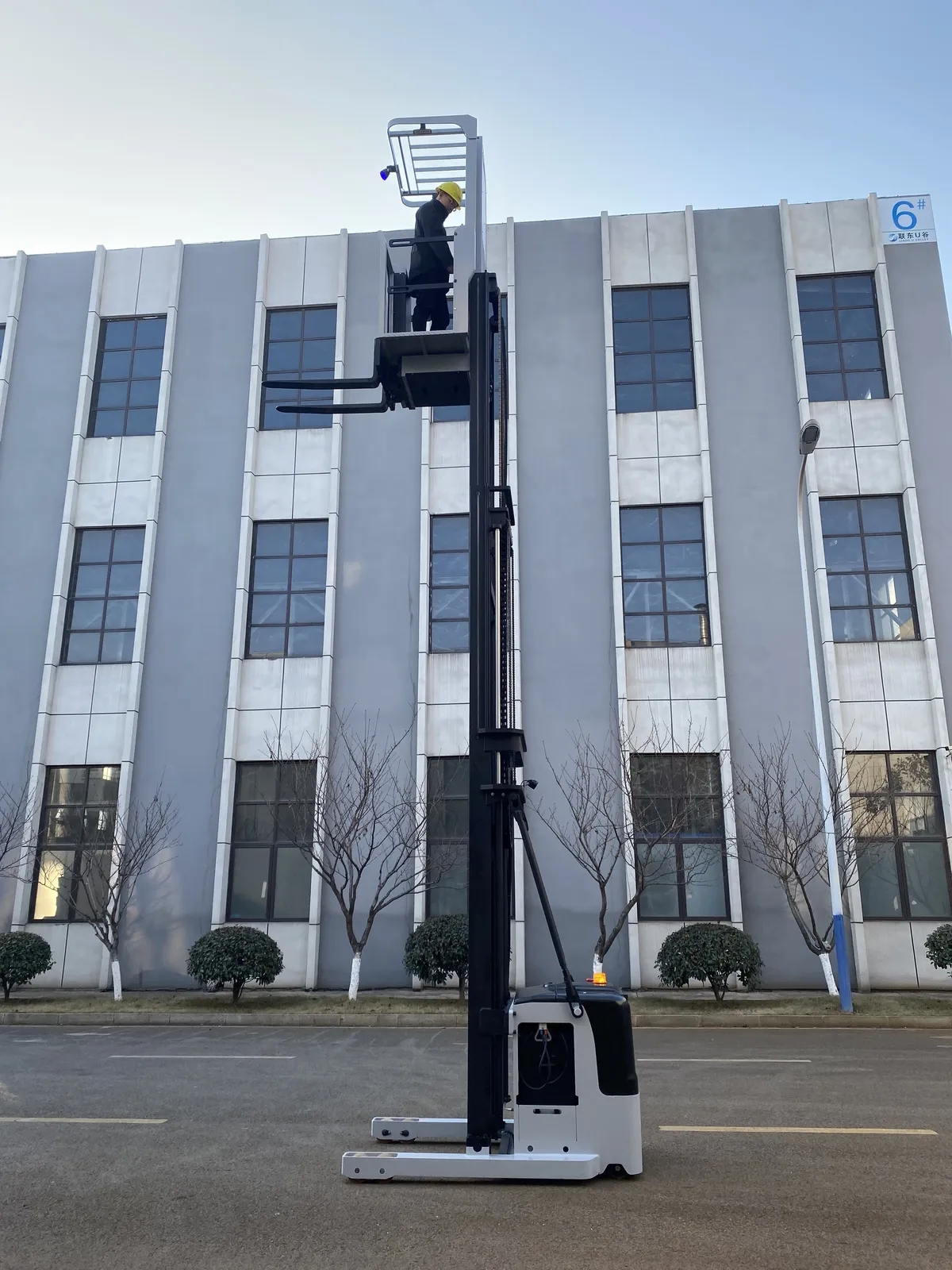

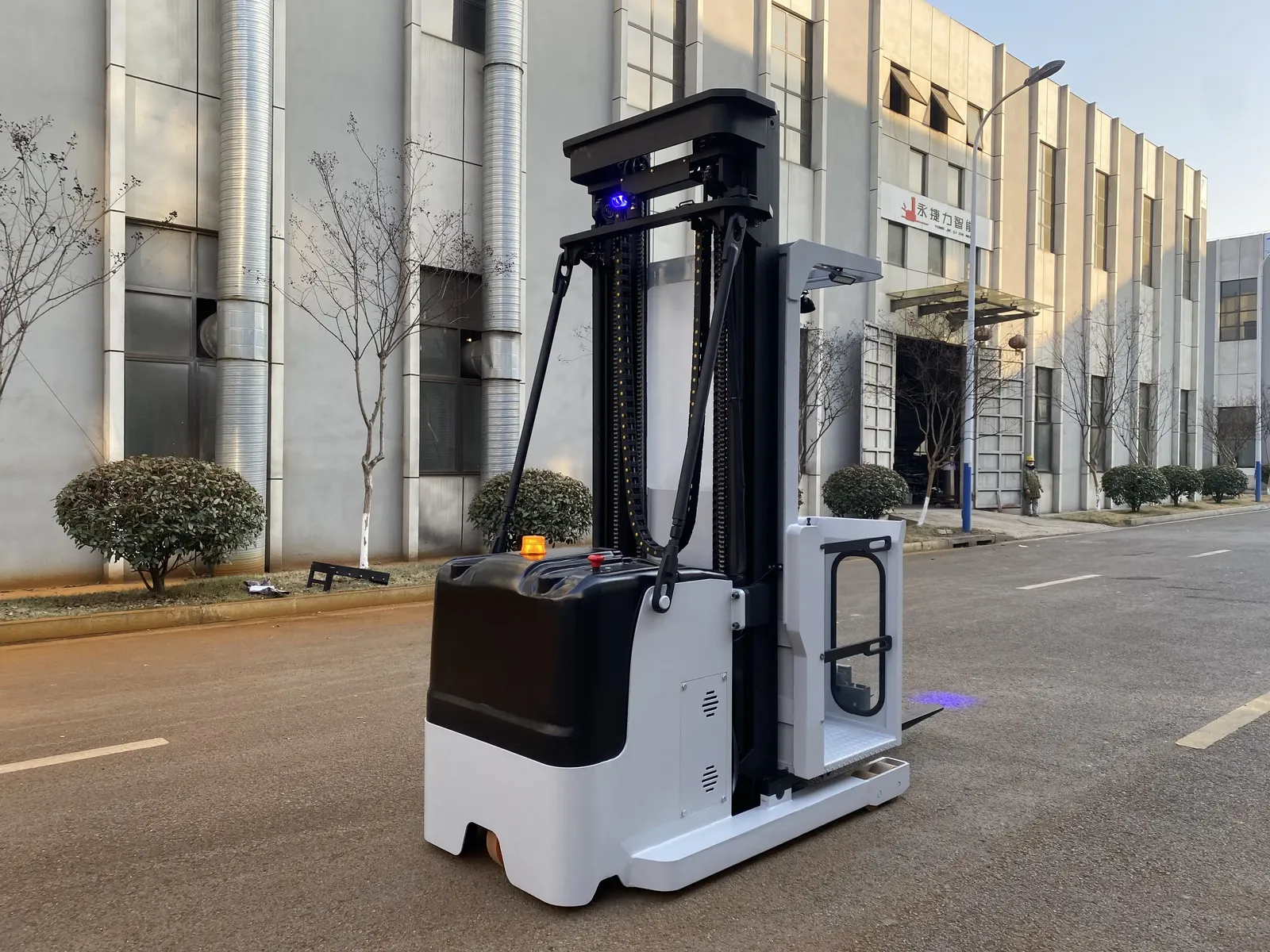

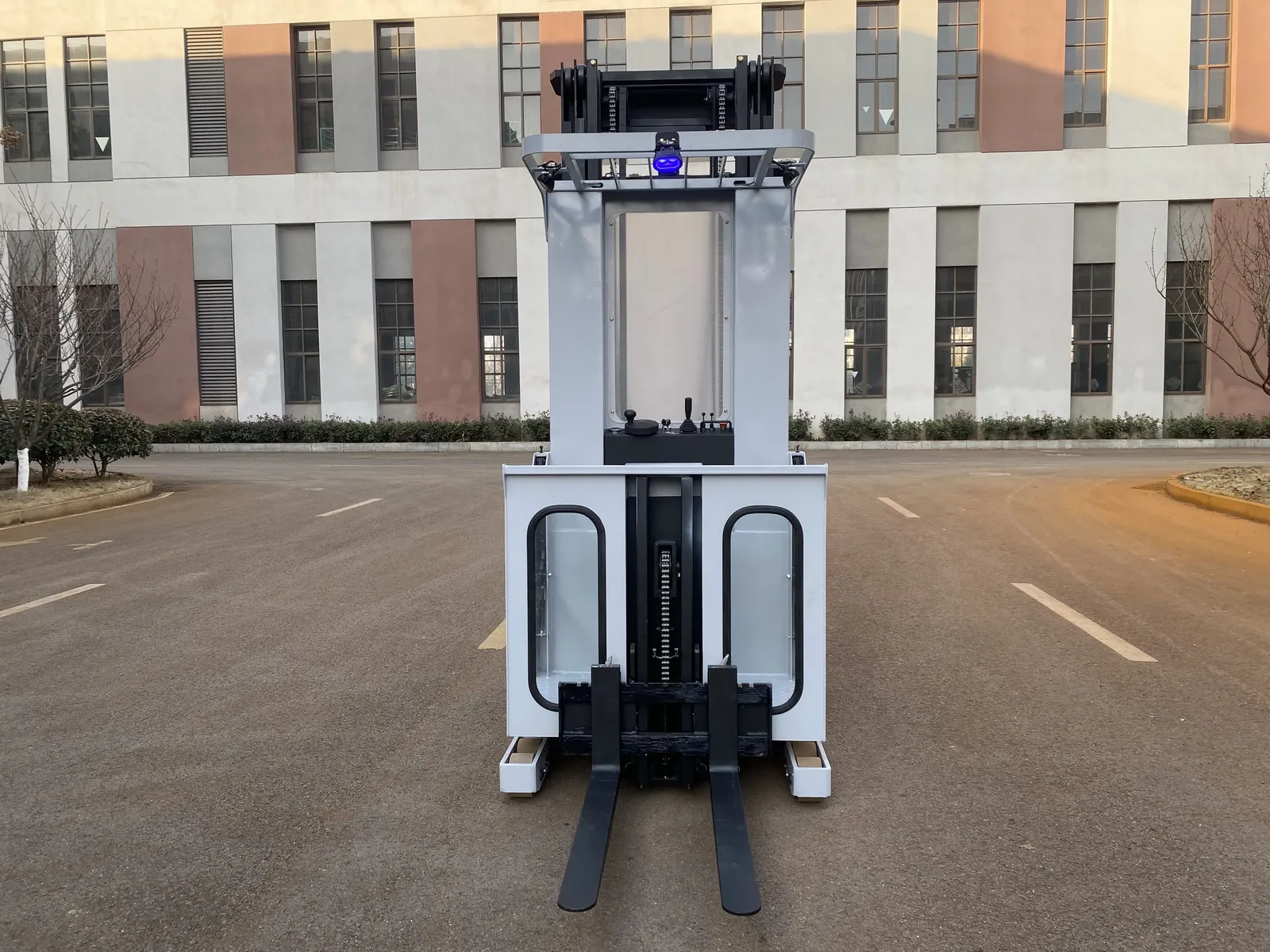

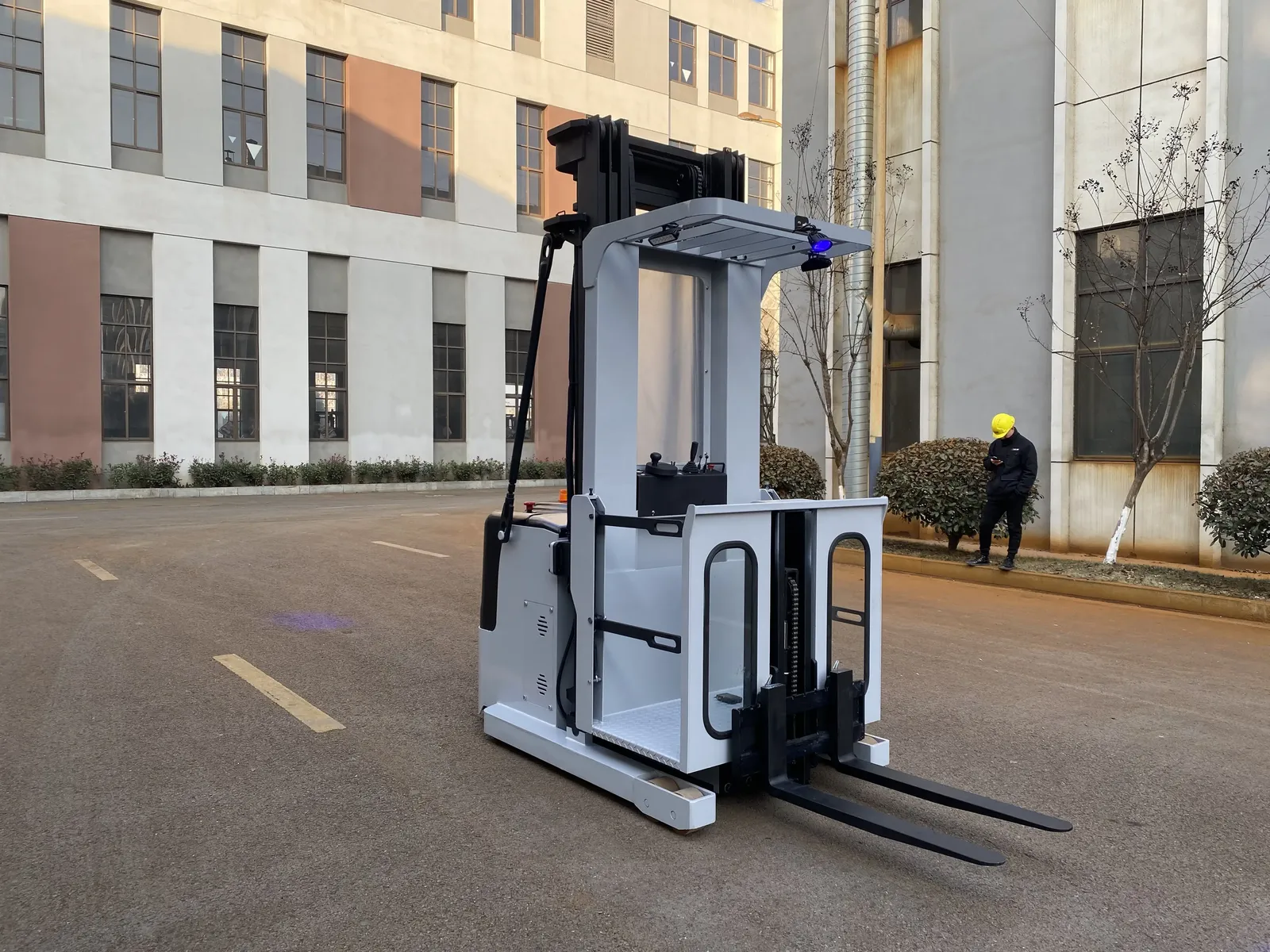

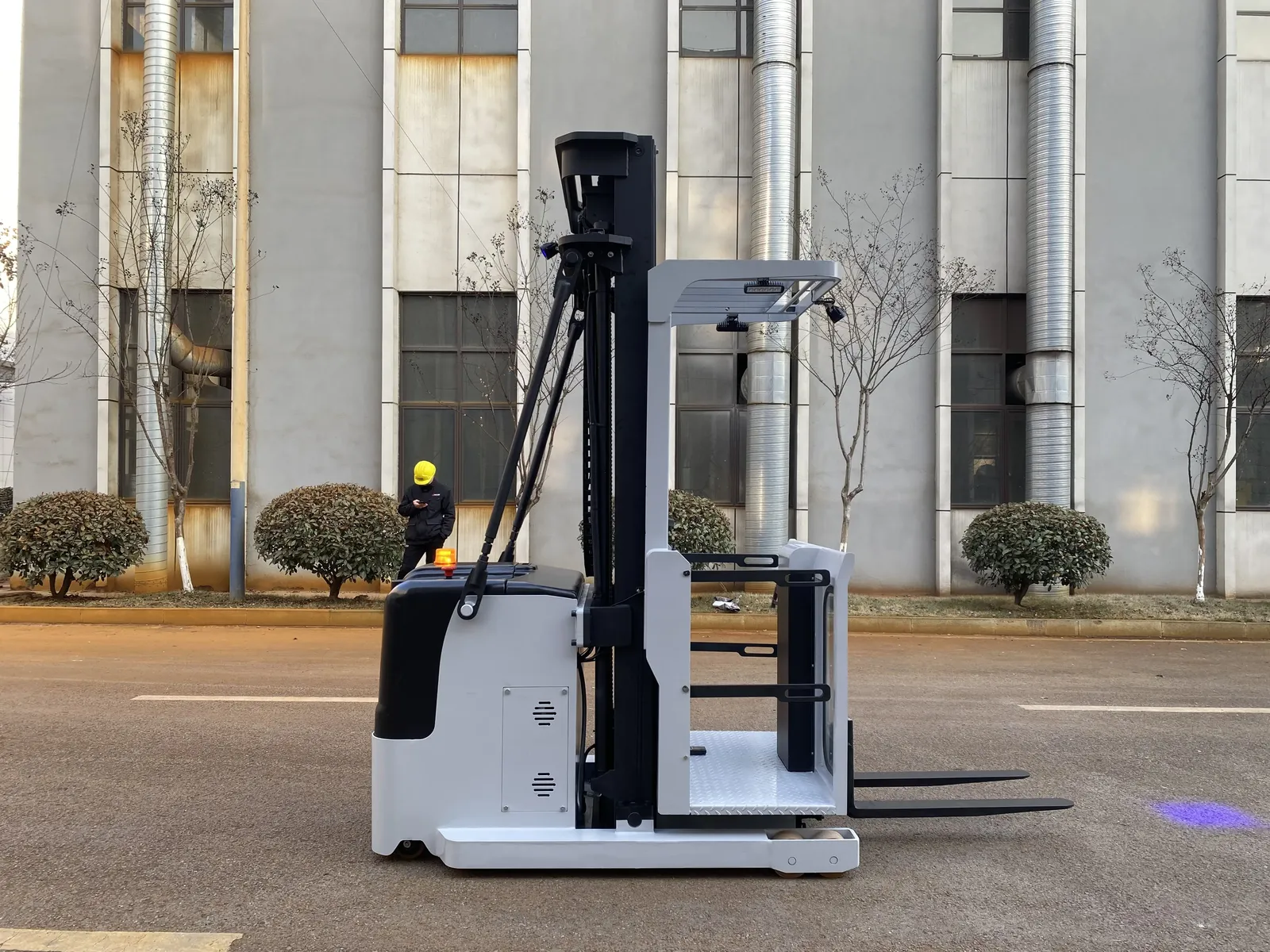

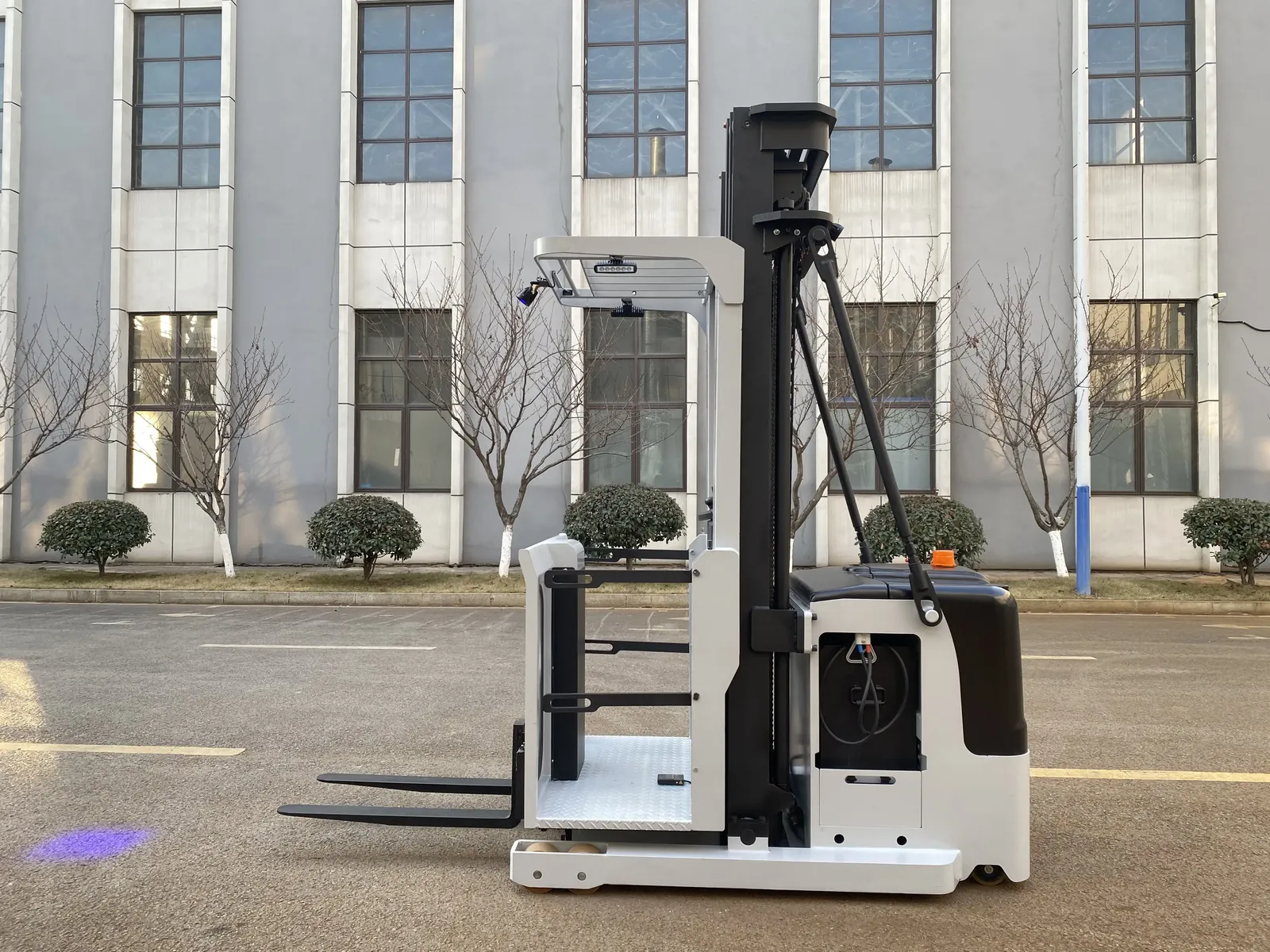

Electric Order Picker CXD10-45 Stand-On Reach Truck 1000 kg (LPT-71212)
1 to 1.5 tLithium-ionForks 1150 to 1220 mm
from £9,680per unit, ex VAT
| Quantity | Price per unit |
|---|---|
| 1+ units | £9,680 |
Minimum order 1 unit from the factory; any range minimum is confirmed on your quote. Prices in GBP per unit, ex VAT. We convert the factory list at a buffered exchange rate, so normal day-to-day currency movement does not change the price you see. Your written quote adds freight, duty and VAT and is valid for 30 days.
Truck TypeStacker Forklift
Line total
No online payment. The basket becomes an order request and we reply with a written GBP quote, deposit 30% on order, lead time 8 to 12 weeks.
Or email [email protected]Product Highlights
Wide-angle view High-strength mast.
Electronic steering, lightweight and silent.
Integrated low-noise hydraulic pump and electromagnetic hydraulic valve.
AC drive, no carbon brushes, motor maintenance-free.
Electromagnetic and regenerative braking system.
Lifting limit, integrated thumb switch.
Body damping system.
Automatic deceleration device for curves
Drive stepless speed regulation
Controller multiple braking protection system
Leisure backrest/emergency braking device
| Condition | New |
|---|---|
| Fork Specifications( L*W*H) | 920*100*40 mm |
| Forklift Battery Type | Lithium-Ion Battery |
| Side Shifter | Hydraulic Side Shifter |
| Drive Type | electric |
| Terrain Adaptability | Outdoor Pavement, Indoor Flooring |
| Load centre distance | 450 mm |
| Mast Type | Three-Stage Mas, Two-Stage Mast |
| Forklift Turning radius | 1635-1735 mm |
| Fork Width | 550/685 mm |
| Fork Length | 1150 mm, 1220 mm |
| Operating Mode | Standing Operation |
| Forklift Tyre | Polyurethane Tyre |
| Travel speed ( laden) | 4 km/h |
| Grade ability laden) | 0.08 |
| Travel speed ( unladen) | 5 km/h |
| Grade abilityunladen) | 0.18 |
| Forklift Wheelbase | 3285 mm |
| Mast Tilt Angle (Forward Tilt-Rear Tilt) | 6-12° |
| Aisle width | 2040 mm |
| Model Number | CXD-10-45 CXD10-60 CXD15-60 |
| Fork height,lowered | 85 mm |
| Mast | 2 Stage/3 Stage |
| Battery | 48V |
| Colour | Customised Colour |
| Capacity | 1-1.5Ton |
| Wheels | Polyurethane Tyres |
| Load Centre | 450 mm |
| Certification | CE/ISO 9001 |
| Rated Loading Capacity options | 1 Ton, 1.5 Ton |
| Truck Type options | Stacker Forklift |
| Max. Lifting Height options | 6000mm, 7000mm, 8000 mm |
| Capacity | Load centre | Self Weight | Overall length | Overall width |
|---|---|---|---|---|
| 1000-1500 kg | 450 mm | 2600-3150 mm | 2760-3035 mm | 1160-1342 mm |
| Overhead guard height | Width overall forks | Turning radius | Turning radius | Maximum lifting height of operating table |
| 2250 mm | 680 mm | 1735-1832 mm | 3370 mm | 4500-6200 mm |
| Certificate | Number | Valid |
|---|---|---|
| 2006/42/EC | M.2026.206.C137529 | 30/03/2026 - 29/03/2031 |
| CE | M.2026.206.C134736 | 04/02/2026 - 03/02/2031 |
| CE | 3N251031.NEMS093 | 30/10/2025 - 29/10/2030 |
| EAC | — | 22/10/2023 - 22/10/2028 |
| CE | M.2023.206.C83216 | 22/03/2023 - 21/03/2028 |
| CE | M.2023.206.C83215 | 22/03/2023 - 21/03/2028 |
| CE | M.2023.206.C83222 | 22/03/2023 - 21/03/2028 |
| CE | M.2023.206.C83221 | 22/03/2023 - 21/03/2028 |
Certificates are supplied with your quote on request.
