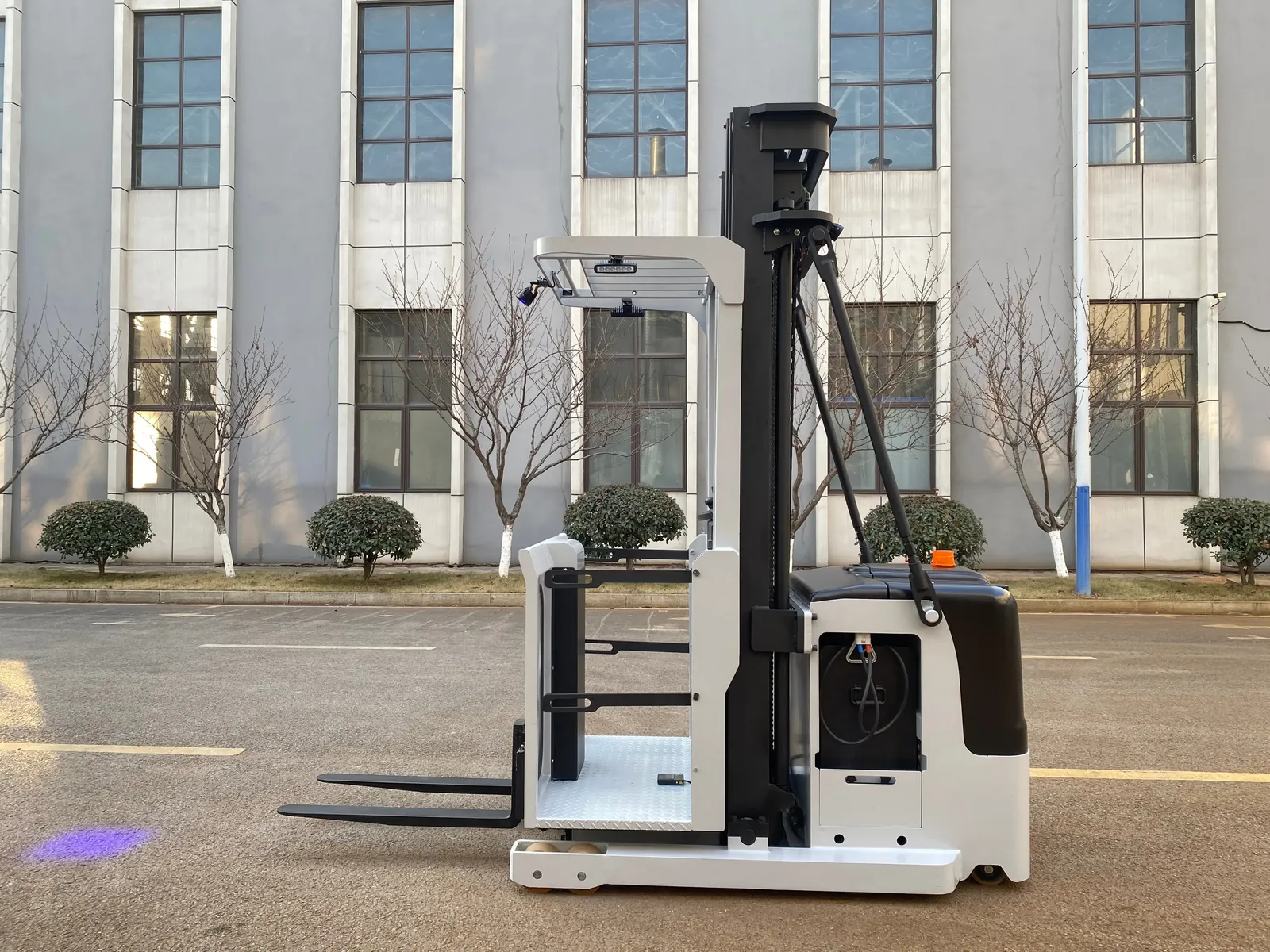

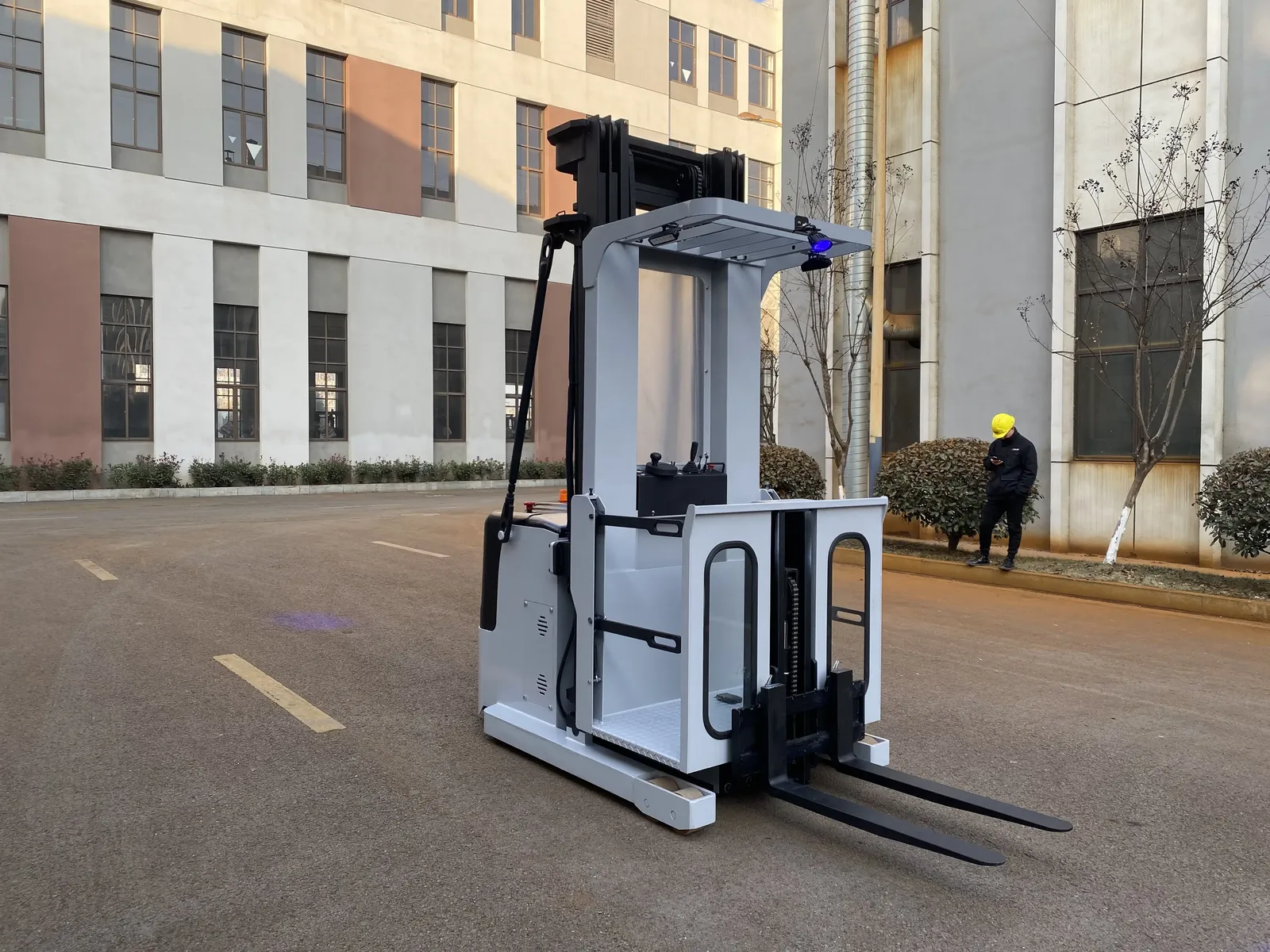

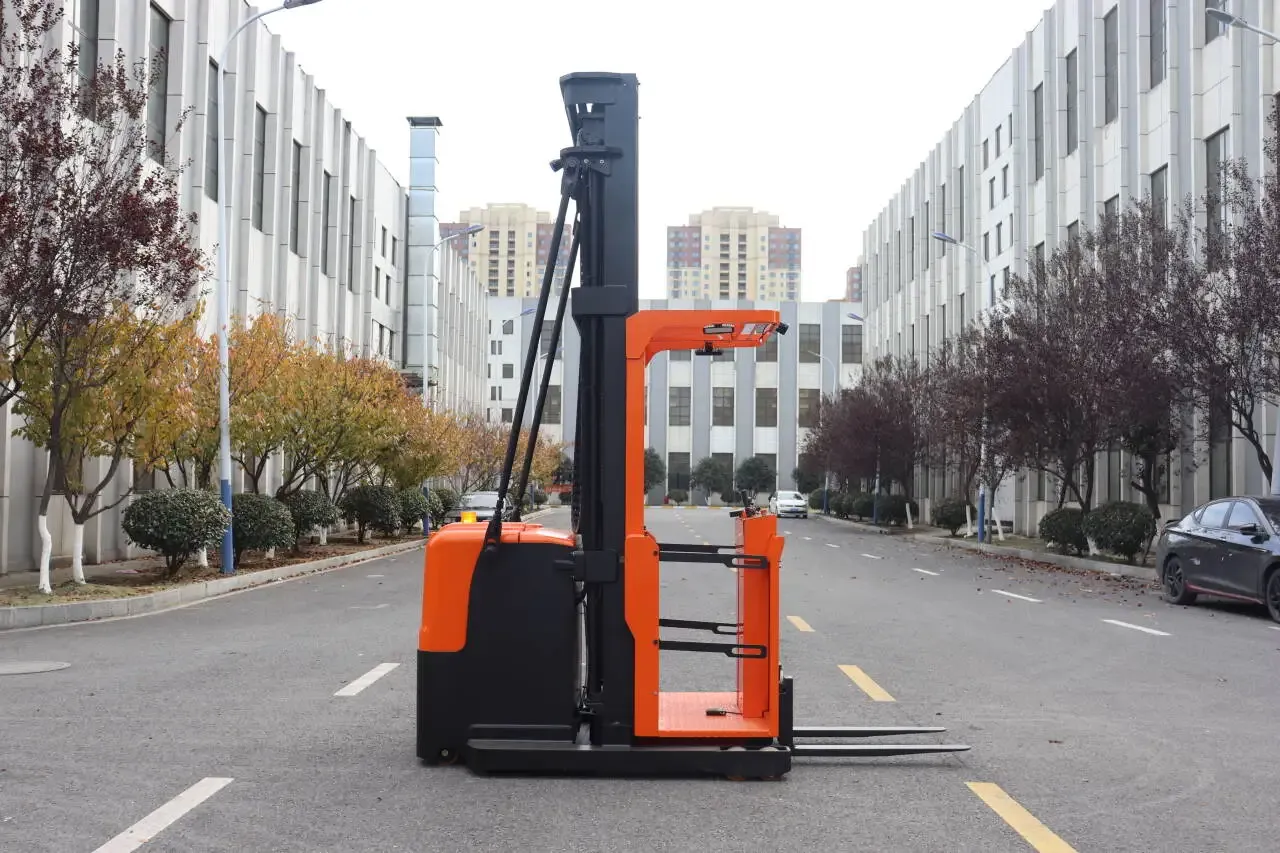

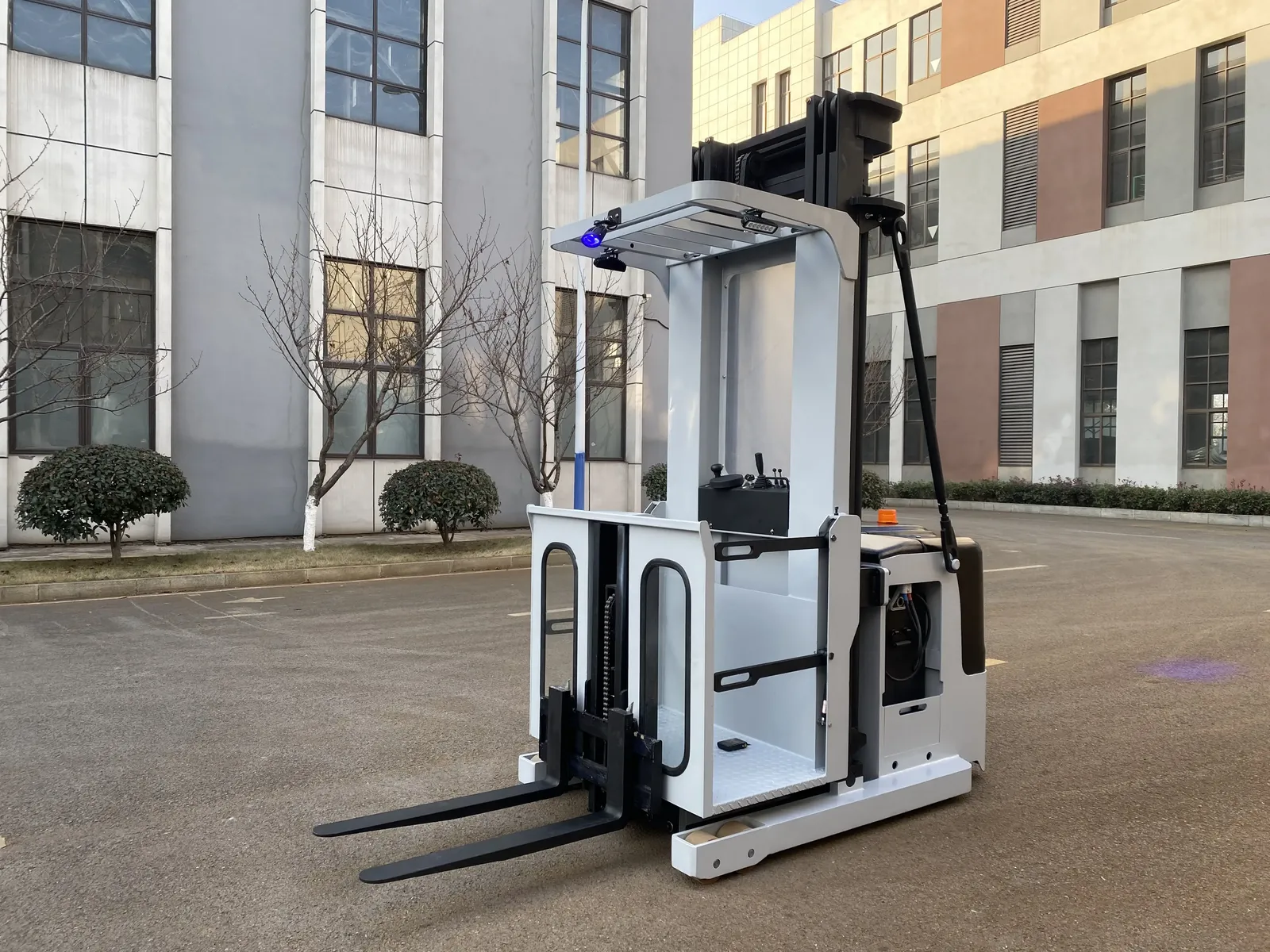

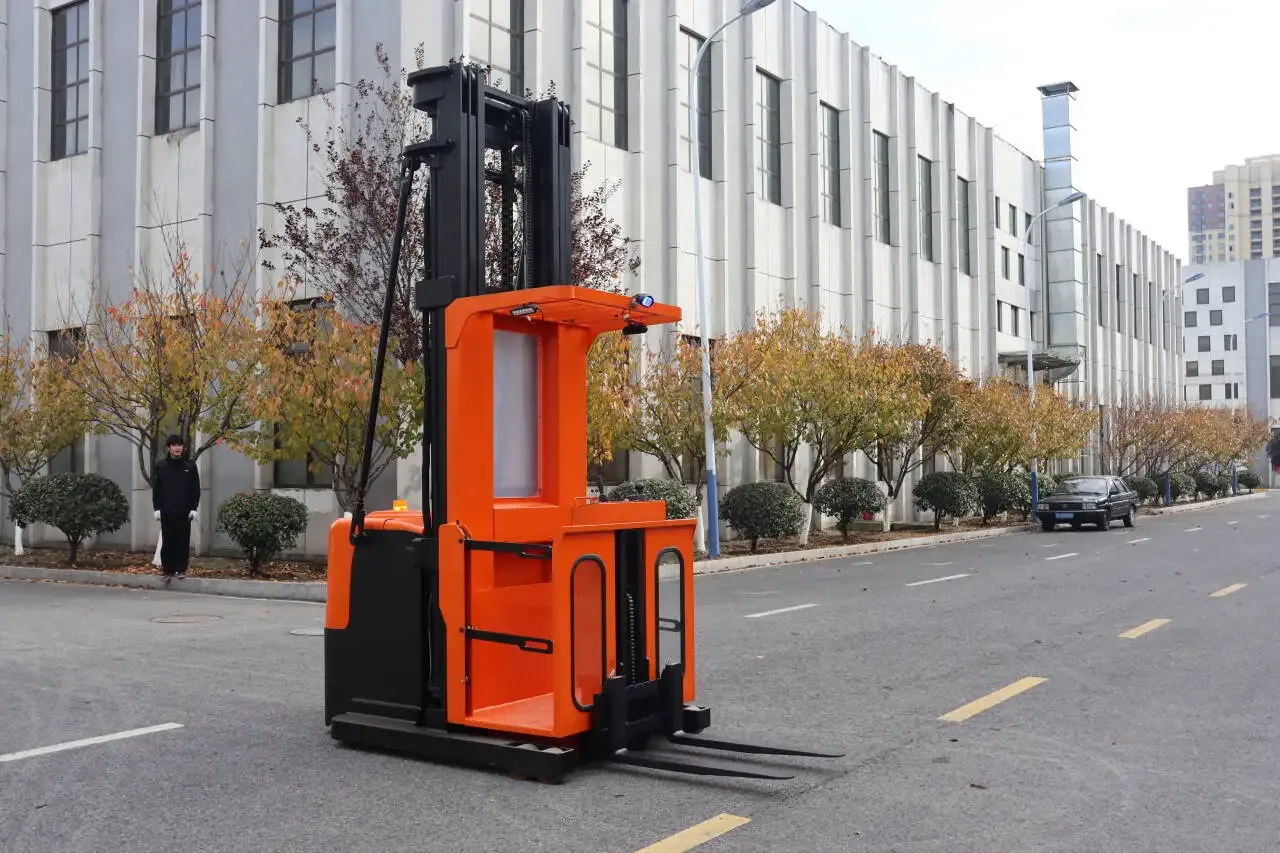

Electric Order Picker Man up Forklift High Level Order Picker 0.8-1.5T
1 to 1.5 tLead-acidForks 1000 to 1220 mm
from £9,550per unit, ex VAT
| Quantity | Price per unit |
|---|---|
| 1+ units | £9,550 |
Minimum order 1 unit from the factory; any range minimum is confirmed on your quote. Prices in GBP per unit, ex VAT. We convert the factory list at a buffered exchange rate, so normal day-to-day currency movement does not change the price you see. Your written quote adds freight, duty and VAT and is valid for 30 days.
Truck TypeVery Narrow Aisle Forklift
Line total
No online payment. The basket becomes an order request and we reply with a written GBP quote, deposit 30% on order, lead time 8 to 12 weeks.
Or email [email protected]Product Highlights

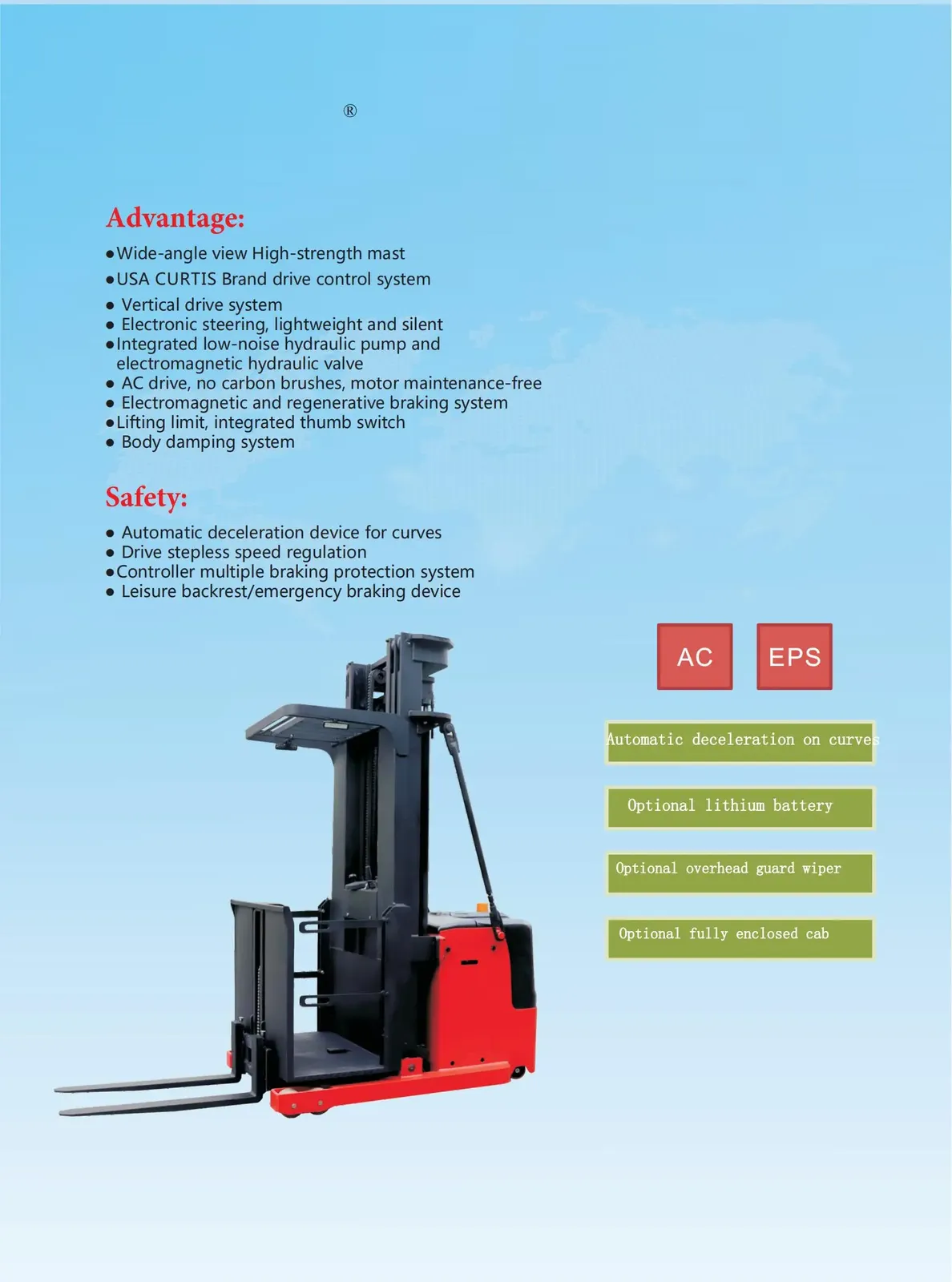

1. Engineered as a versatile electric lift and aerial work platform, the CXD10-45 order picker is powered by the USA CURTIS drive control system for precise, stable and responsive control in every operation.
2. The maintenance-free AC drive motor with no carbon brushes keeps this stand-on electric lifting platform quiet and highly efficient — built for continuous warehouse shifts.
3. Electronic power steering and a compact turning radius of 1735mm let this man lift glide effortlessly through narrow aisles, combining order picker agility with cherry-picker-style manoeuvrability.
4. Electromagnetic and regenerative braking with automatic curve deceleration delivers maximum safety and reliability — the trusted choice for daily manned aerial work platform operations.

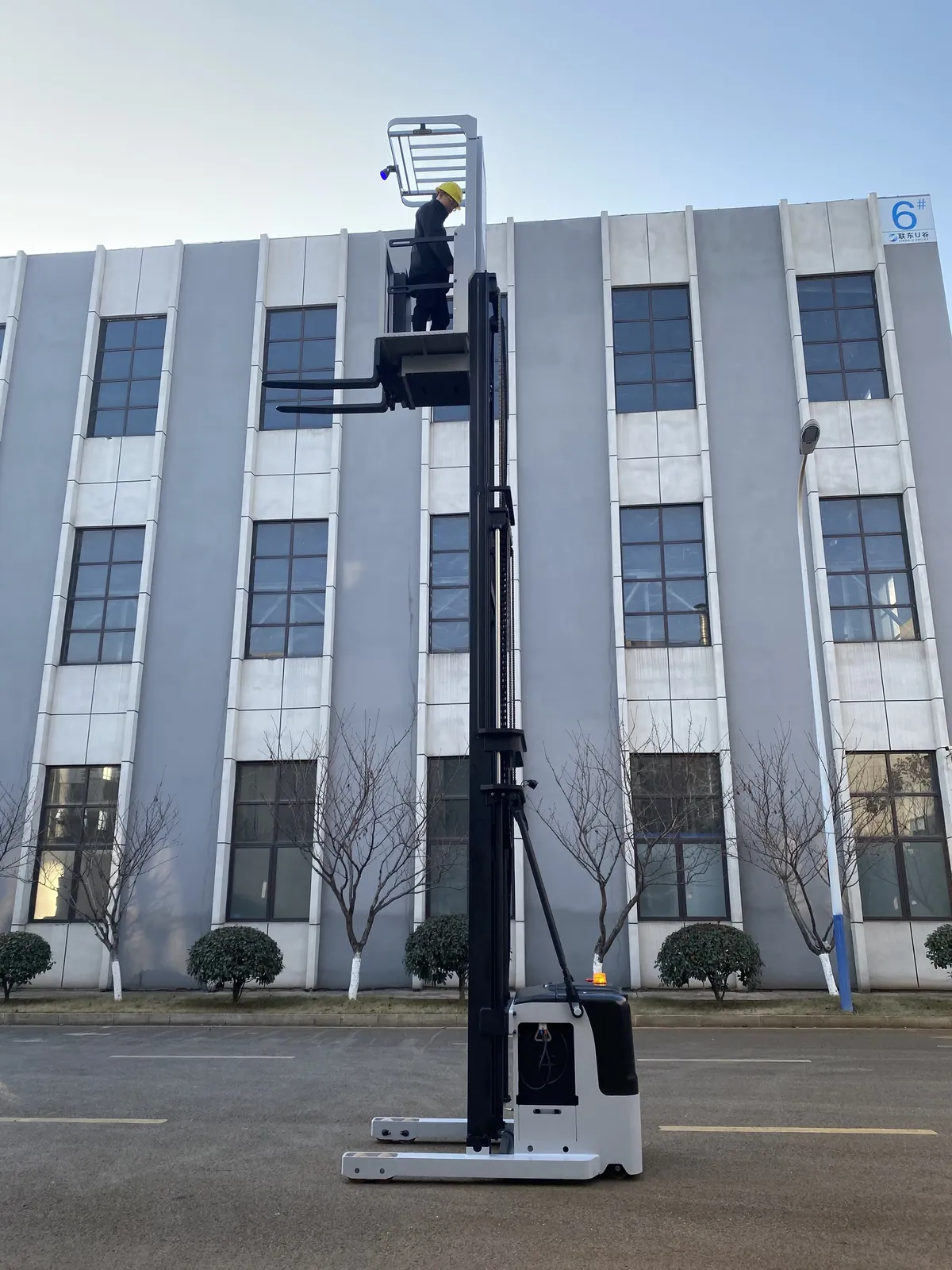

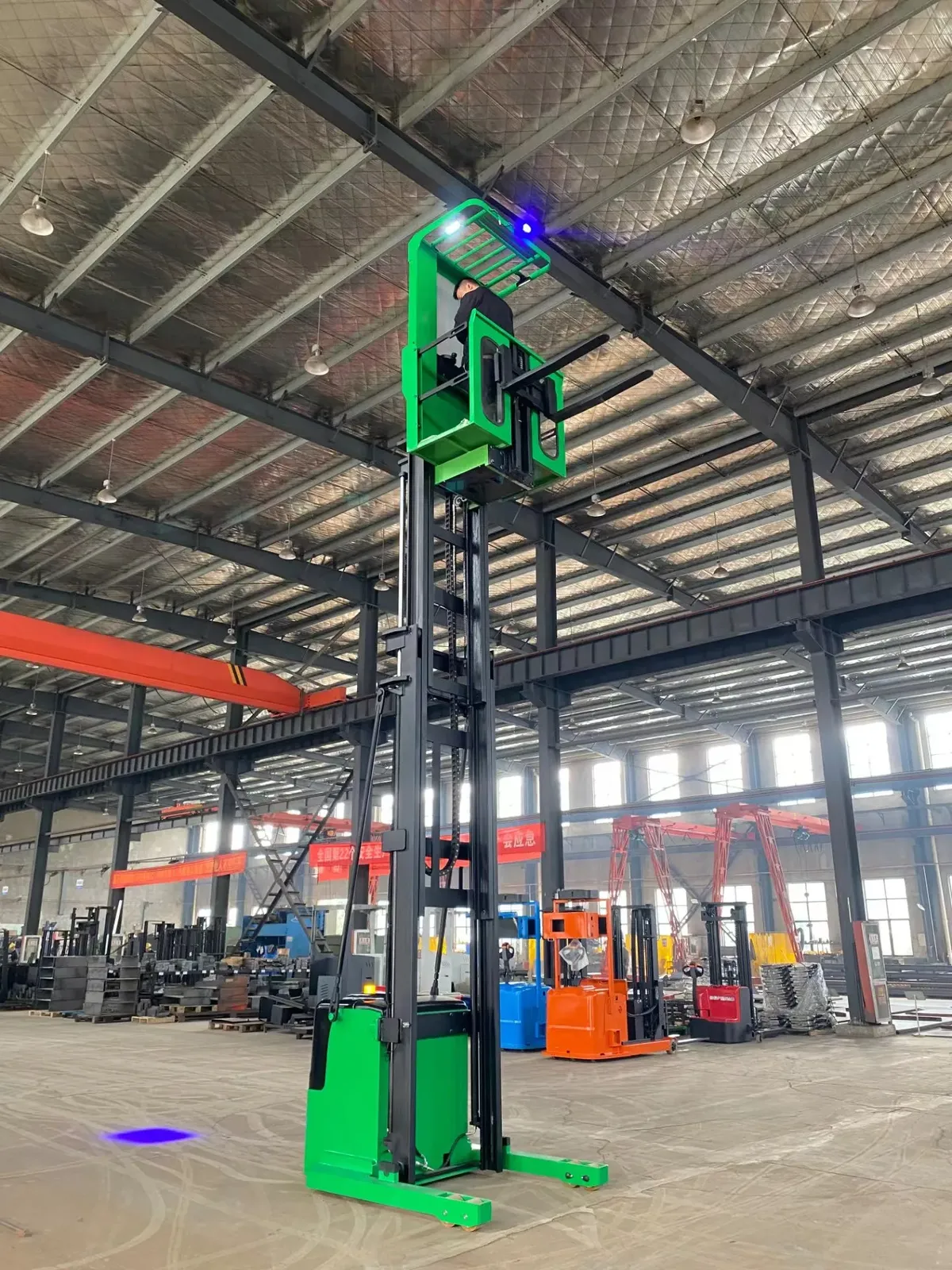

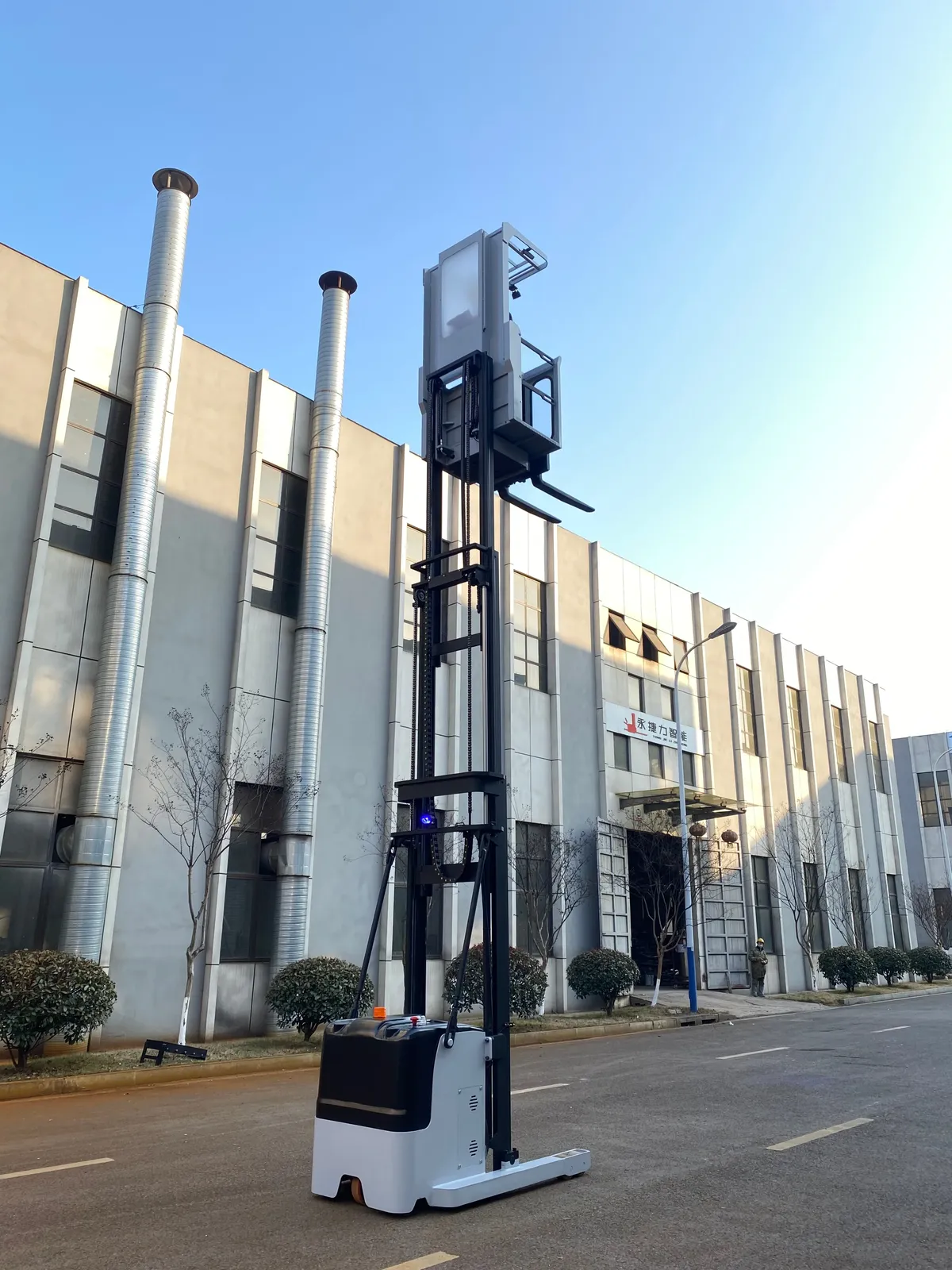

5. A high-strength mast with wide-angle visibility provides 1000kg capacity and 4260mm lifting height, turning this order picker into a true electric lifting platform; optional lithium battery delivers fast charging and longer working hours.
6. The integrated low-noise hydraulic pump and electromagnetic hydraulic valve ensure smooth, stable and quiet lifting, keeping operators comfortable during long hours on the lifting platform.
| Condition | New |
|---|---|
| Fork Specifications( L*W*H) | 1220*125*50, 1350*160*100, 1500*150*70 |
| Forklift Battery Type | Lead–Acid Battery |
| Side Shifter | Electric Side Shifter, Hydraulic Side Shifter |
| Drive Type | Fwd |
| Terrain Adaptability | Indoor Flooring, Offroad, Outdoor Pavement, Rough Terrain, Other |
| Load centre distance | 500 mm, 600 mm |
| Mast Type | Single-Stage Mast, Three-Stage Mas, Two-Stage Mast |
| Forklift Turning radius | 1695mm |
| Fork Width | 100 mm, 110 mm, 125 mm, 150 mm, 175 mm |
| Fork Length | 1000 mm, 1070 mm, 1150 mm, 1200mm, 1220 mm |
| Operating Mode | Standing Operation |
| Forklift Tyre | Foam Filled Pneumatic Tyre, Pneumatic Tyre, Non-Marking Tyre, Polyurethane Tyre, Solid Tyre |
| Travel speed ( laden) | 4 km/h |
| Grade ability laden) | 0.02 |
| Travel speed ( unladen) | 5 km/h |
| Grade abilityunladen) | 0.05 |
| Forklift Wheelbase | 1212mm |
| Mast Tilt Angle (Forward Tilt-Rear Tilt) | 6-12° |
| Aisle width | 3345mm |
| Model Number | CQD15 |
| Battery voltage (V/AH) | 24V/420Ah |
| Fork height,lowered | 50 mm |
| Type | Atuomatic |
| Certification | CE/ISO9001 |
| Function | Material collection |
| Capacity | 0.8-1.5t |
| Colour | Customised Colour |
| Model | CQD |
| Operation Type | Stand Driving |
| Lifting height | 3-8M |
| Battery | 24V/420Ah |
| Rated Loading Capacity options | 1 Ton, 1.2 Ton, 1.5 Ton |
| Truck Type options | Very Narrow Aisle Forklift |
| Max. Lifting Height options | 2 000 mm, 2500 mm, 3000mm, 3500 mm, 5000 mm, 6000mm, 7000mm, 8000 mm |
| Certificate | Number | Valid |
|---|---|---|
| 2006/42/EC | M.2026.206.C137529 | 30/03/2026 - 29/03/2031 |
| CE | M.2026.206.C134736 | 04/02/2026 - 03/02/2031 |
| CE | 3N251031.NEMS093 | 30/10/2025 - 29/10/2030 |
| EAC | — | 22/10/2023 - 22/10/2028 |
| CE | M.2023.206.C83216 | 22/03/2023 - 21/03/2028 |
| CE | M.2023.206.C83215 | 22/03/2023 - 21/03/2028 |
| CE | M.2023.206.C83222 | 22/03/2023 - 21/03/2028 |
| CE | M.2023.206.C83221 | 22/03/2023 - 21/03/2028 |
Certificates are supplied with your quote on request.
