Electric Scissor Lift, 5.8 to 15.8 m Working Height
240 to 450 kgElectric
from£3,660per unit, ex VAT
Get a quote, reply in 2 hours
- 12-month warranty
- Photos and video before it ships
- No online payment, nothing is charged
Any quantity is welcome. Your price depends on the quantity and is confirmed on your written quote. Prices in GBP per unit, ex VAT. We convert the factory list at a buffered exchange rate, so normal day-to-day currency movement does not change the price you see. Your written quote adds freight, duty and VAT and is valid for 30 days.
Line total
Nothing is sent yet: add the products you need, then send your quote request. We reply within 2 hours, Monday to Friday, 9am to 5pm.
Or email sales@londonpallettrucks.co.ukProduct Highlights

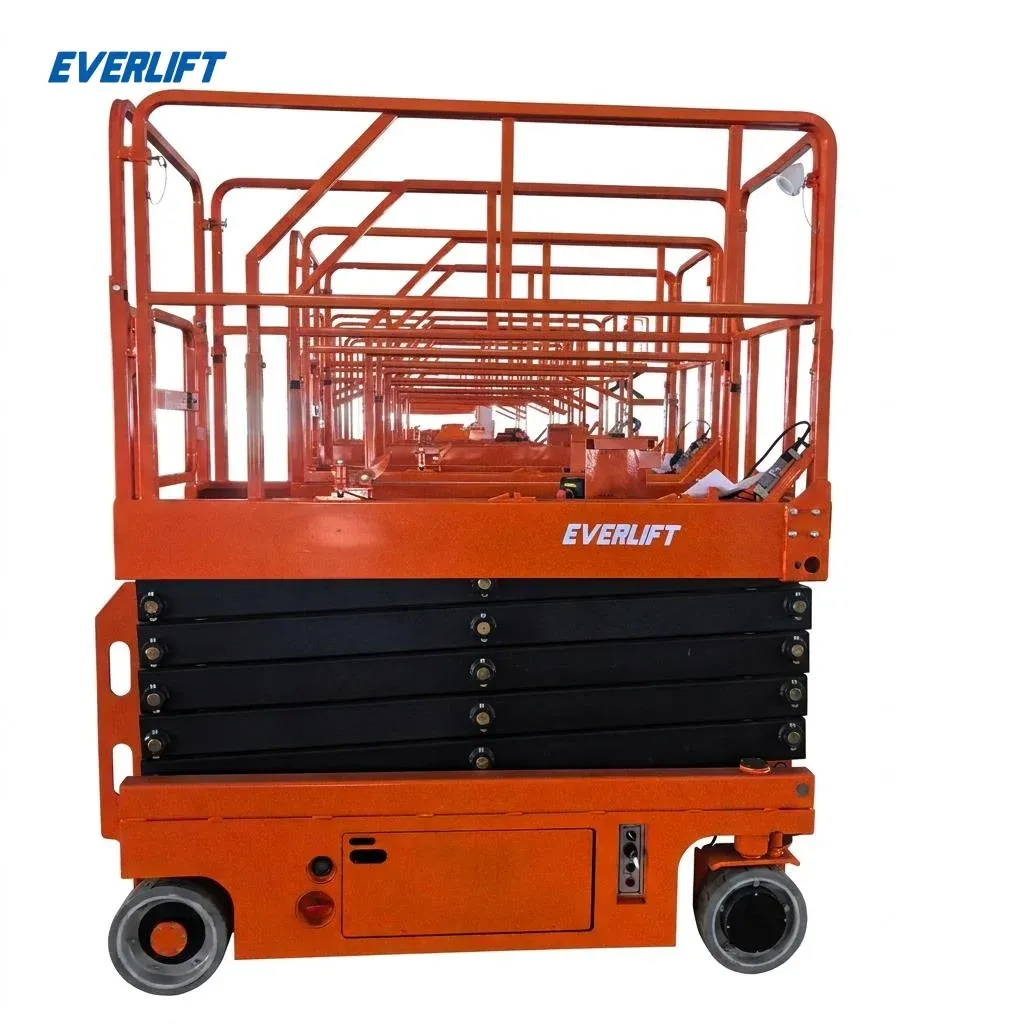

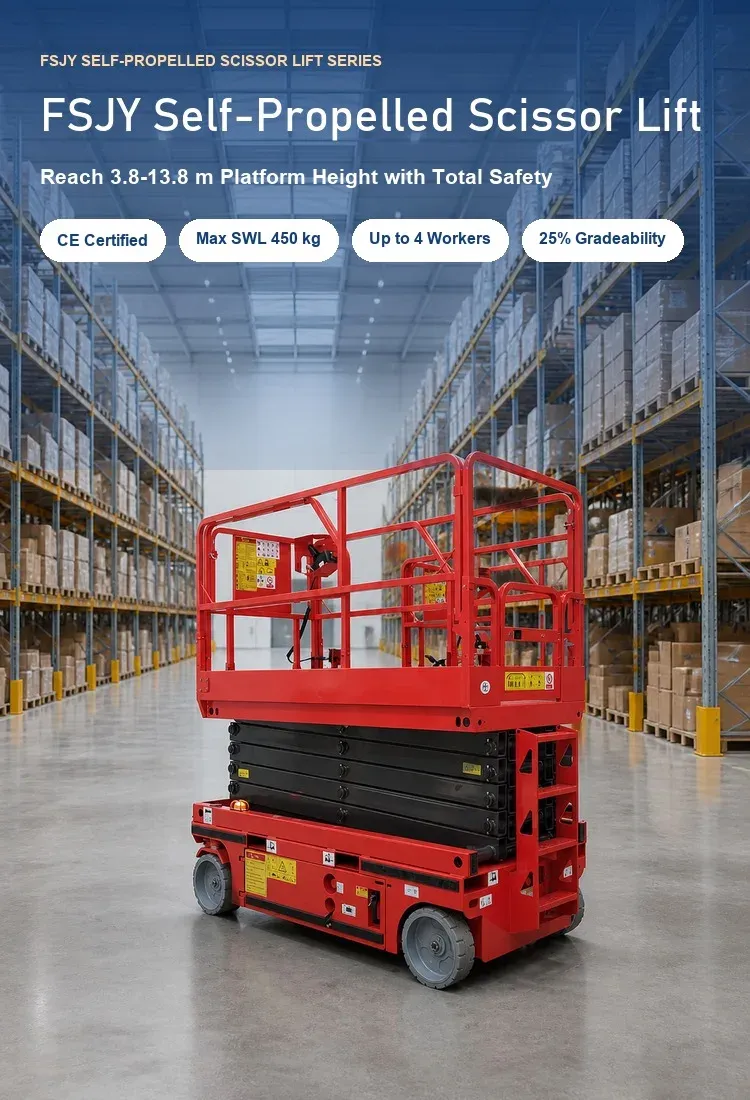

Self-Propelled Scissor Lift with heavy-duty steel scissor arms and anti-corrosion powder-coated chassis, engineered across nine platform configurations from 3.8m to 13.8m for versatile indoor and outdoor aerial work.
Professional Battery Scissor Lift with 24V/1.3-4.5kW lifting motor, 24V/200Ah to 4×6V/240Ah battery systems, 24V/15A or 30A charger, and φ230-φ381mm durable tyres across the series.

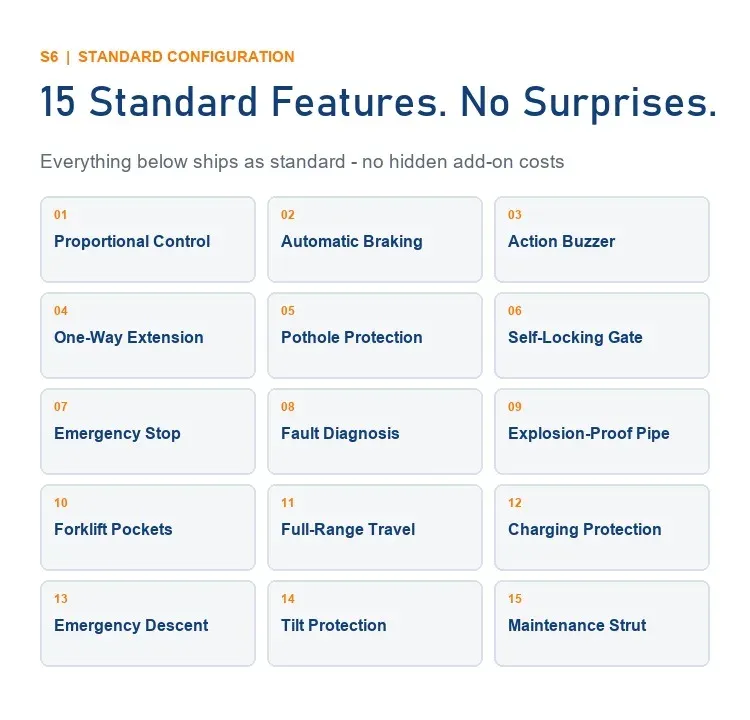

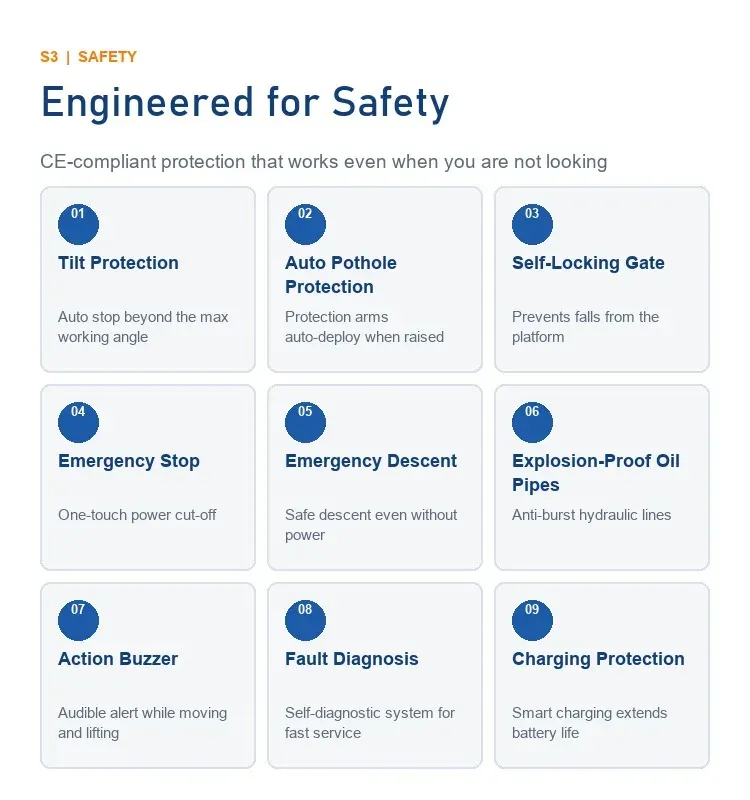

Safe Self-Propelled Aerial Platform with 15 standard safety features including pothole protection, tilt protection, emergency stop, emergency descent, self-locking gate, automatic braking, and RoHS compliant components.
High-performance Self-Propelled Scissor Lift delivering 230-450 kg safe working load, 2-4 person capacity, 3.8-13.8m platform height, 600-900mm platform extension, and 25% max gradeability.
Long-endurance Battery Scissor Lift with 24V power systems and charging protection, proportional control for smooth speed adjustment, full-range travel capability for continuous multi-shift aerial operations.
Versatile Scissor Lift Aerial Platform with platform sizes from 1290×700mm to 2700×1110mm, compact 760mm Mini width for narrow aisles, standard 1210mm width for open areas, suitable for concrete and leveled ground.

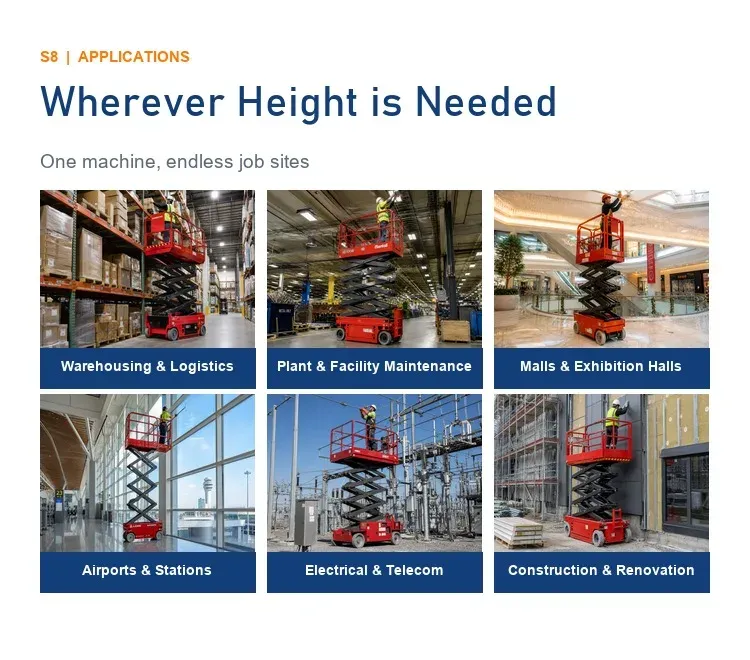

Traditional scaffolding for 8-13.8m ceiling work takes hours to erect and creates fall hazards. Self-Propelled Scissor Lift deploys in minutes with one-way platform extension and full-range travel, completing overhead installation and maintenance tasks safely.
Ramps and sloped factory floors disable many aerial platforms. FSJY Series with 25% gradeability, proportional drive and automatic braking operates reliably on warehouse bay inclines, expanding usable work zones without extra ground preparation.

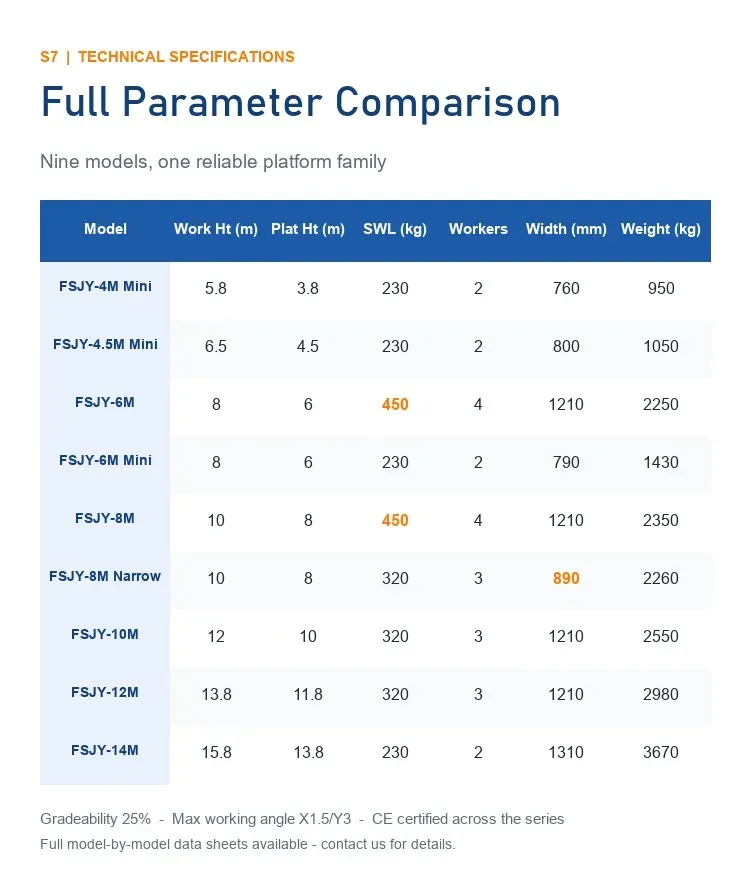

| Condition | New |
|---|---|
| Lift Drive / Actuation | Electric / Hydraulic |
| Gradeability | 25% |
| Max platform height | 3.8-13.8 m |
| Lift capacity on the extension | 110-113 kg |
| Power Source | Electric |
| Table Size | 1290*700 ~ 2700*1110 mm |
| Height- stowed | 1450-2060 mm |
| Max. platform occupancy | 2-4 Persons |
| Overall Length | 1460-2850 mm |
| Overall Width | 760-1310 mm |
| Platform length-extended | 600-900 mm |
| Total weight | 950-3670 kg |
| Weight | 950-3670 kg |
| Width | 760-1310 mm |
| Max Working Height | 5.8-15.8 m |
| Safe Working Load | 230-450 kg |
| Max Workers | 2-4 |
| Platform Size | 1290*700 ~ 2700*1110 mm |
| Platform Extension | 600-900 mm |
| Drive System | Electric / Hydraulic |
| Battery | 24V / 160-240Ah |
| Lifting Motor | 24V / 1.3-4.5 kW |

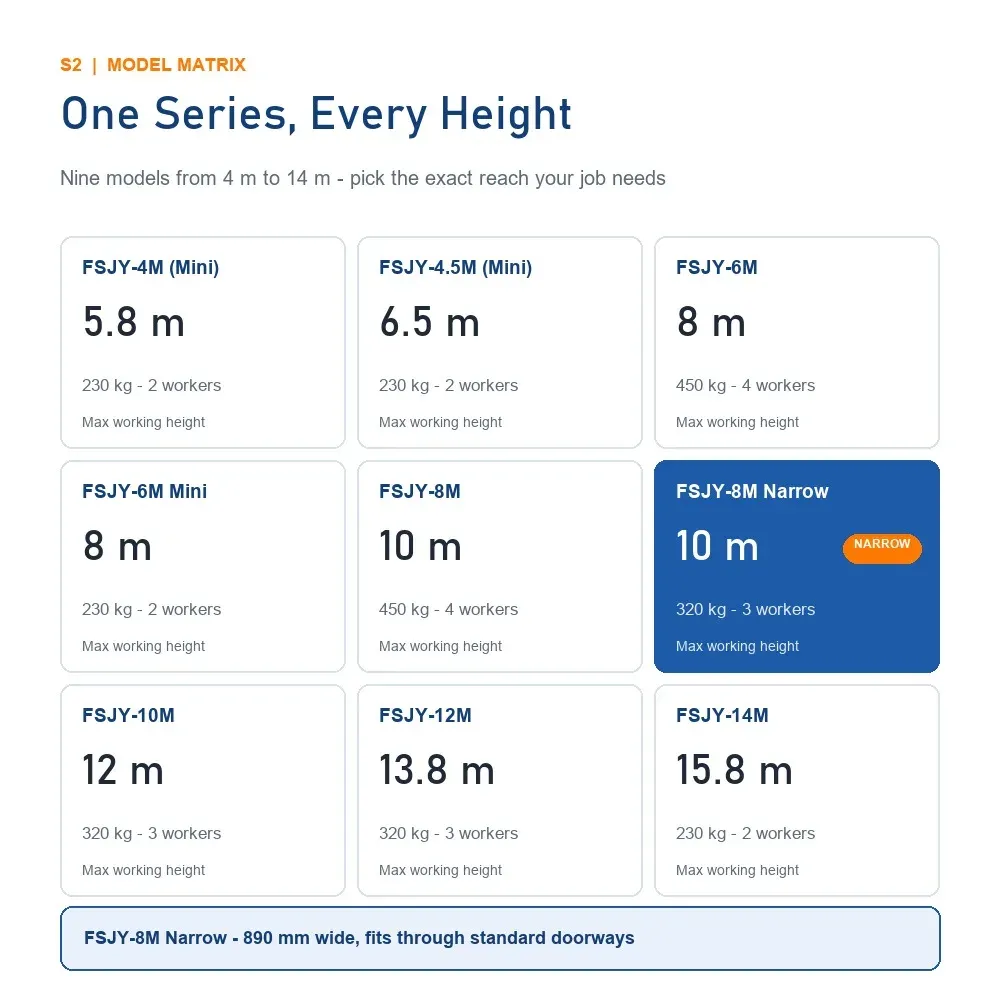

| Max. Working height options | 5.8 m, 6.5 m, 8 m, 10 m, 12 m, 13.8 m, 15.8 m |
| Max. lift capacity options | 240 kg, 320 kg, 450 kg |
| Certificate | Number | Valid |
|---|---|---|
| EAC | 22/10/2023 - 22/10/2028 |
Certificates are supplied with your quote on request.
Spare parts for this model
Order picker and scissor lift onboard charger, 24 V 15 A, lead acidfrom £108 per charger ex VAT · check your battery first
Scissor lift, mast lift and dock leveller lowering valve, 08 size cartridge, normally closedfrom £32 per valve ex VAT · check your old part first
Scissor lift, mast lift and dock leveller valve coil, 19 mm bore x 44 mm, 12 V or 24 V DCfrom £21 per coil ex VAT · check your old part first
Scissor lift and mast lift limit switch, adjustable roller leverfrom £13 per switch ex VAT · check the fit first
Scissor lift non marking wheel 381 x 127 mm (15 x 5), solid tyre on hubfrom £146 per wheel ex VAT · check the fixing first
Scissor lift battery 6 V 225 Ah, sealed deep cycle, 243 x 187 x 275 mmfrom £250 per battery ex VAT · check your battery first
All spare parts. Send the model and the part you need if it is not listed.
