Scissor Lifts & Access Platforms · Ref LPT-39619
Fully Electric Lift Platform Aerial Work Hoist Mobile
300 kgElectricLift 2.7 m, 3 m, 4 m, 5 m
from£2,230per unit, ex VAT
Get a quote, reply in 2 hours
- 12-month warranty
- Photos and video before it ships
- No online payment, nothing is charged
Any quantity is welcome. Your price depends on the quantity and is confirmed on your written quote. Prices in GBP per unit, ex VAT. We convert the factory list at a buffered exchange rate, so normal day-to-day currency movement does not change the price you see. Your written quote adds freight, duty and VAT and is valid for 30 days.
Line total
Nothing is sent yet: add the products you need, then send your quote request. We reply within 2 hours, Monday to Friday, 9am to 5pm.
Or email sales@londonpallettrucks.co.ukProduct Highlights

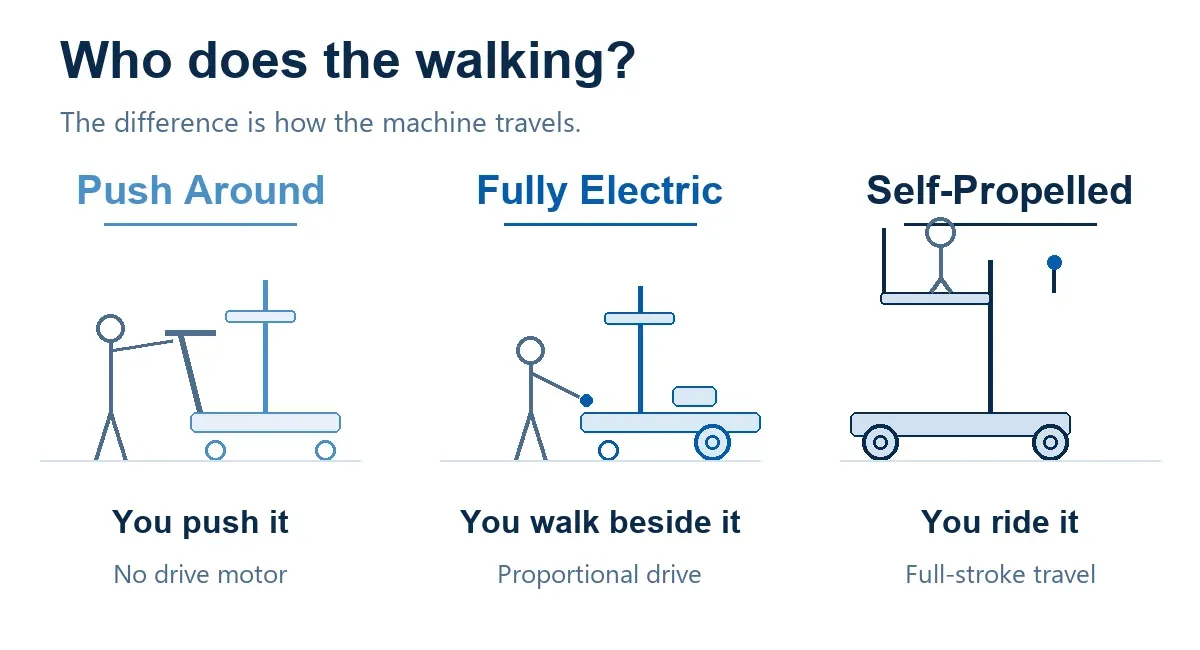

- Powered Travel That Removes Manual Pushing A 24 V 0.5 kW drive motor moves the unit at 0.8 to 4.0 km/h with proportional control, so one operator covers aisle-to-aisle picking without pushing. Gradeability of 15 to 20 percent handles dock ramps and gently sloped floors.

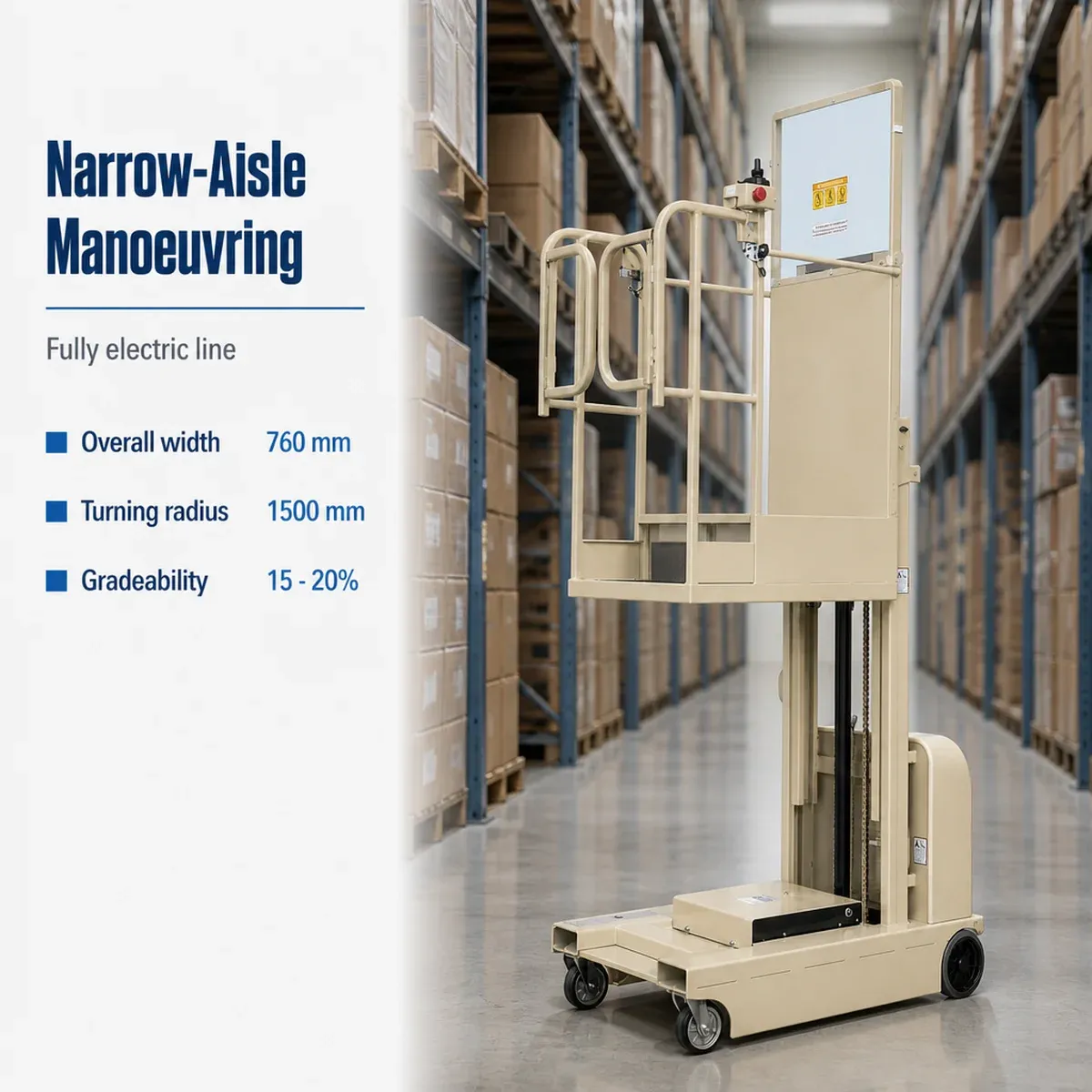

- Narrow Chassis For Tight Racking Aisles The chassis measures 760 mm wide and 1540 mm long, which is 80 mm narrower than the push-around line, and an outside turning radius of 1500 mm allows repositioning inside narrow racking aisles. Ground clearance of 40 mm clears thresholds and floor joints below that height.

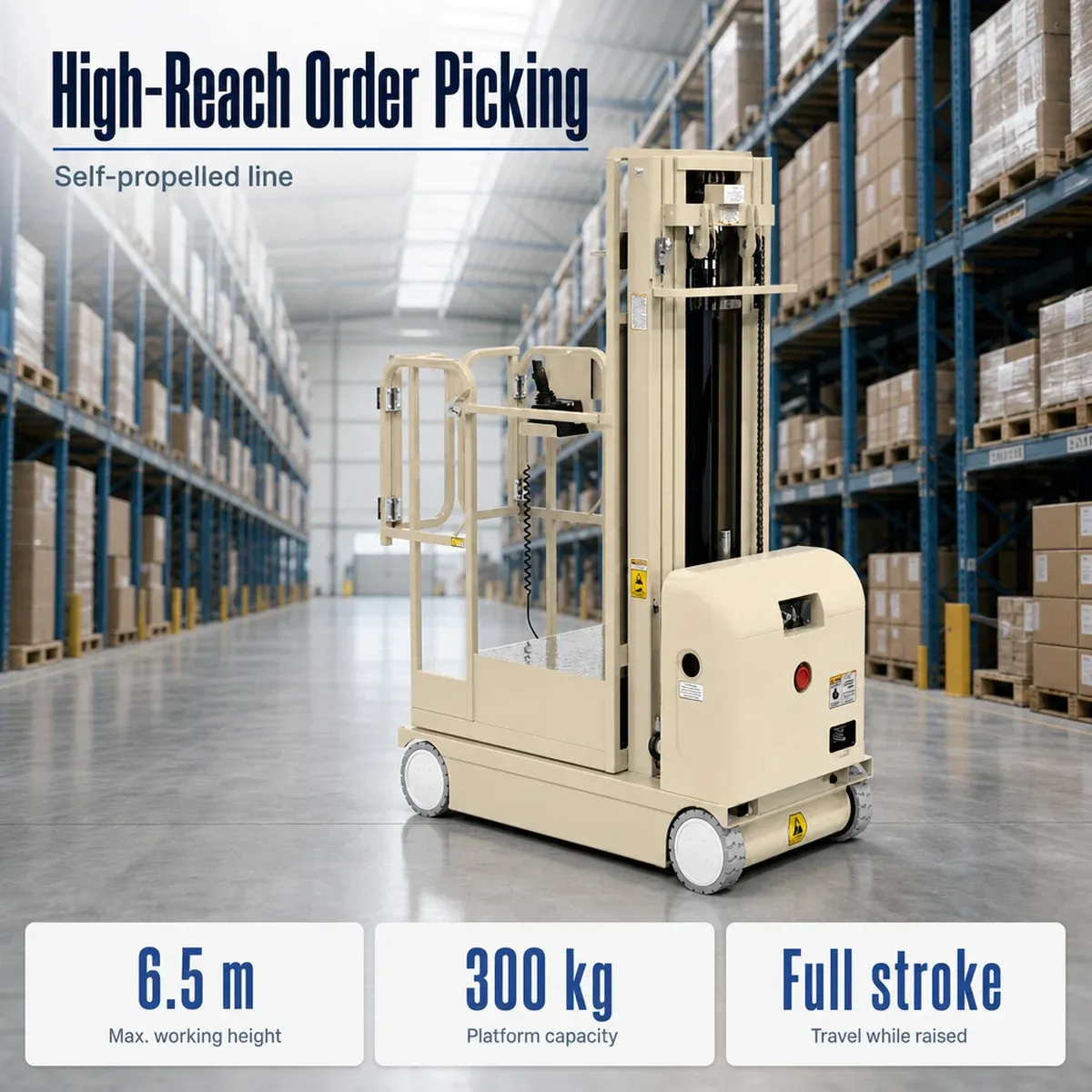

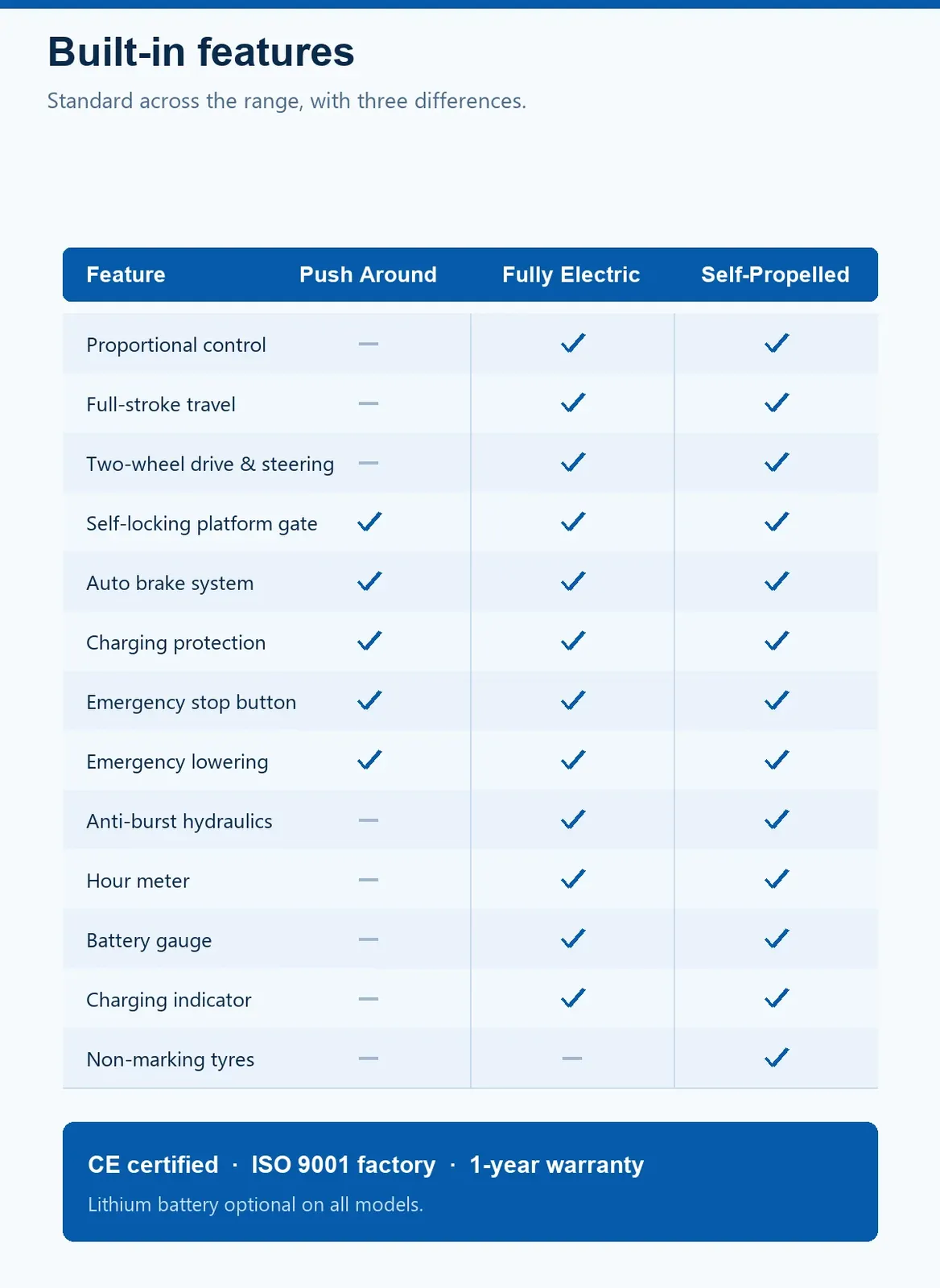

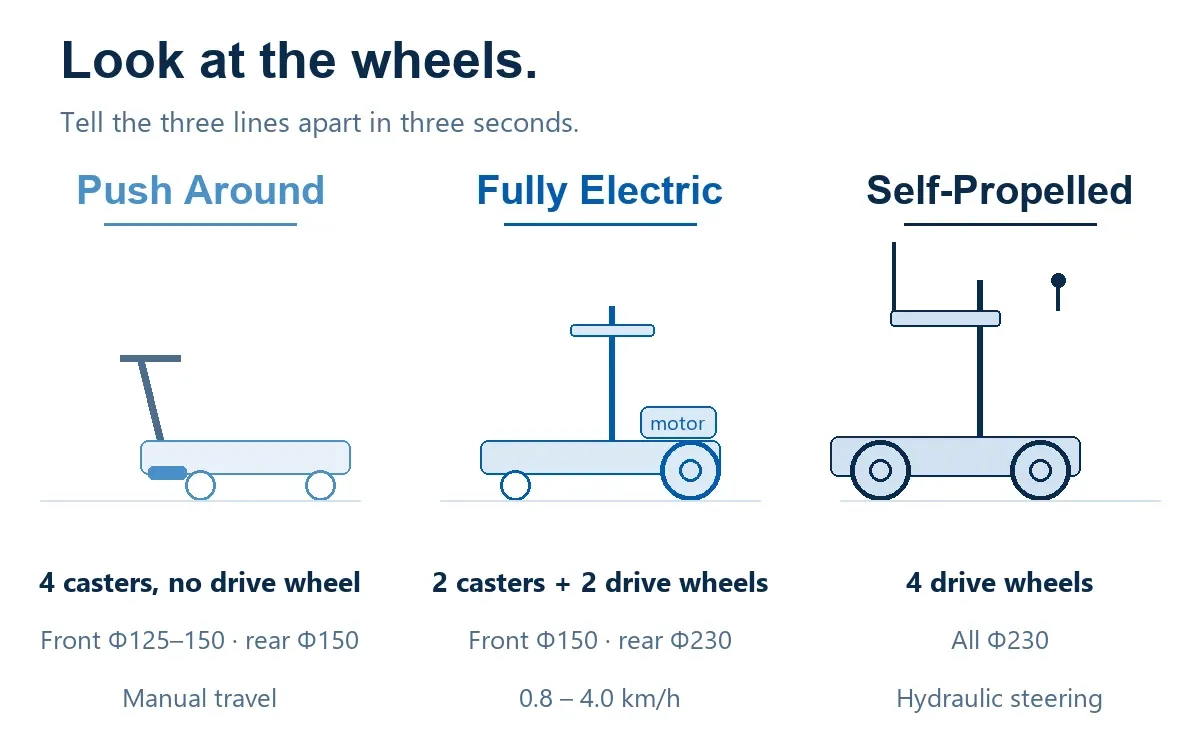

- Two-Wheel Drive With Full-Stroke Travel Two rear drive wheels and two front steering castors move the unit while the platform is raised, so picking continues at working height instead of descending at each level. An anti-burst hydraulic system and an emergency lowering system are fitted as standard.

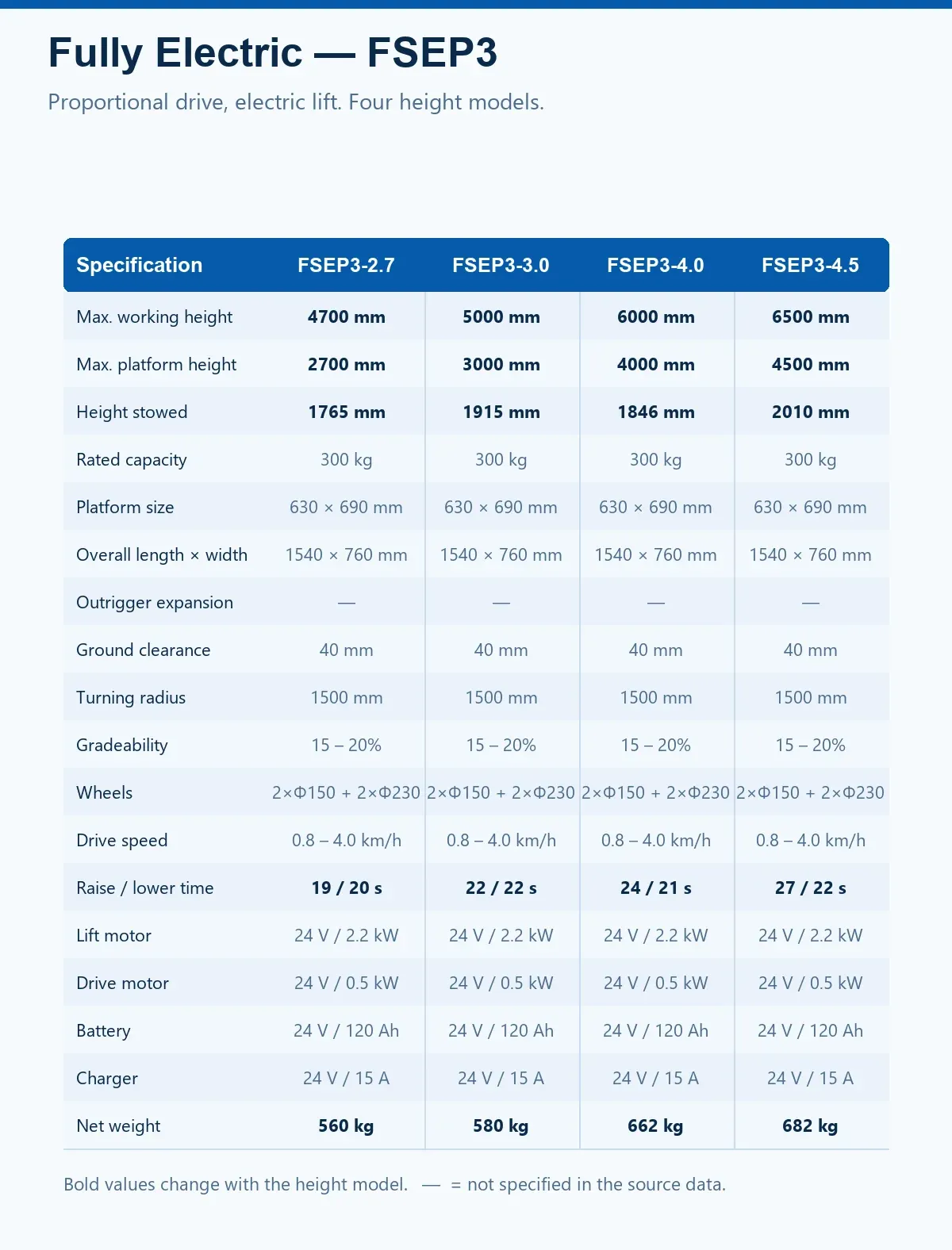

| Power Source | AC Motor |
|---|---|
| Operation Type | Fully Electric |
| Condition | New |
| Colour | beige |
| Type | Fully Electric |
| Platform Length | 630 mm |
| Platform Width | 690 mm |
| Height of Guardrail | 1070 mm |
| Overall Length | 1540 mm |
| Overall Width | 760 mm |
| Ground Clearance | 40 mm |
| Capacity | 300 kg |
| Lifting Motor | 24 V / 2.2 kw |
| Drive Motor | 24 V / 0.5 kw |
| Maximum Lifting Height options | 2.7 m, 3 m, 4 m, 5 m |
| Certificate | Number | Valid |
|---|---|---|
| EAC | 22/10/2023 - 22/10/2028 |
Certificates are supplied with your quote on request.
Spare parts for this model
Scissor lift, mast lift and dock leveller lowering valve, 08 size cartridge, normally closedfrom £32 per valve ex VAT · check your old part first
Scissor lift, mast lift and dock leveller valve coil, 19 mm bore x 44 mm, 12 V or 24 V DCfrom £21 per coil ex VAT · check your old part first
Scissor lift and mast lift limit switch, adjustable roller leverfrom £13 per switch ex VAT · check the fit first
All spare parts. Send the model and the part you need if it is not listed.
