Electric Pallet Truck · Model CBD-20 25
CBD-20 25 30 460 Electric Pallet Truck Standing Electric
2 to 3 tLithium-ionForks 1150 to 1200 mm
Price on requestwritten quote

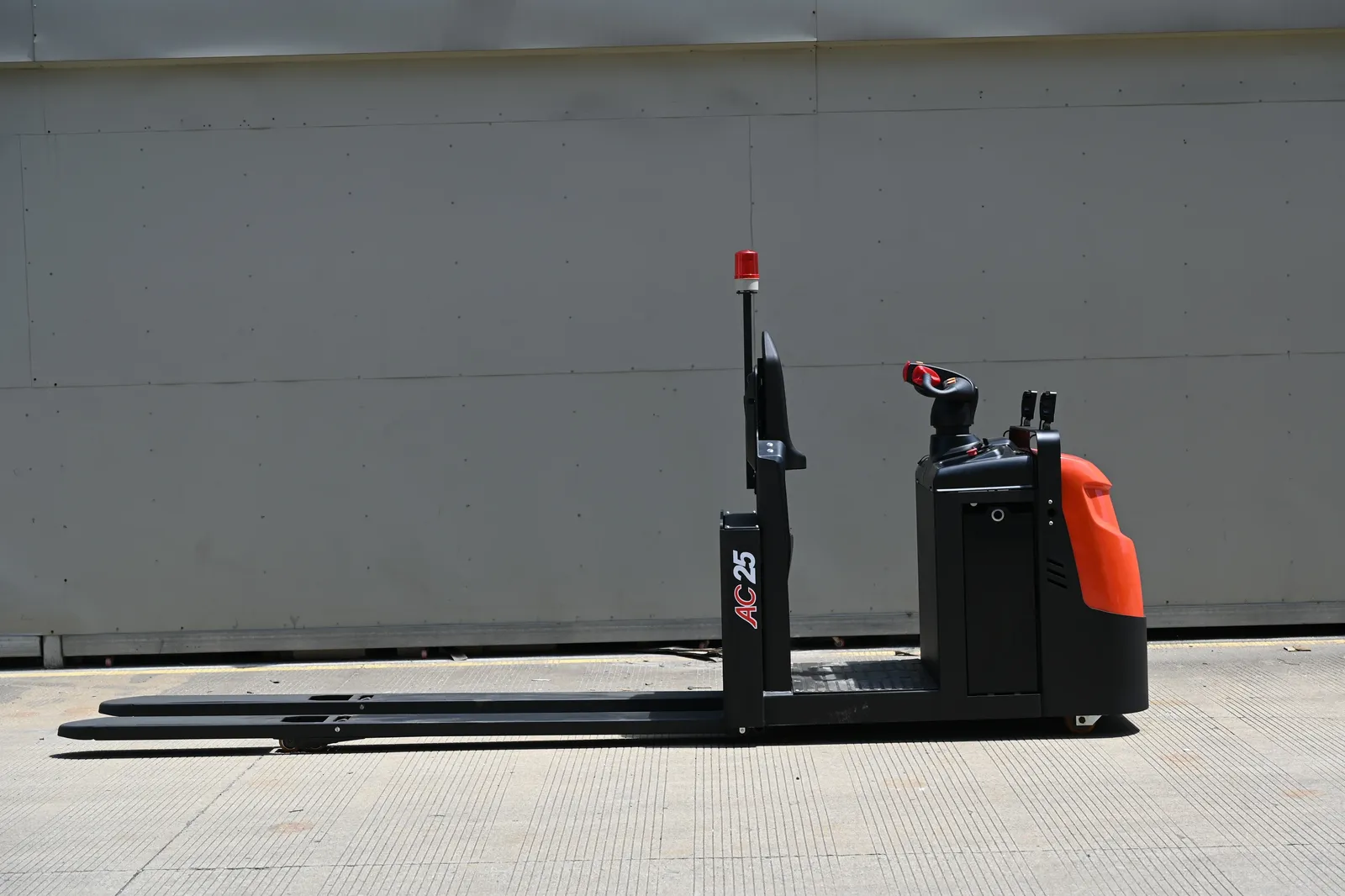

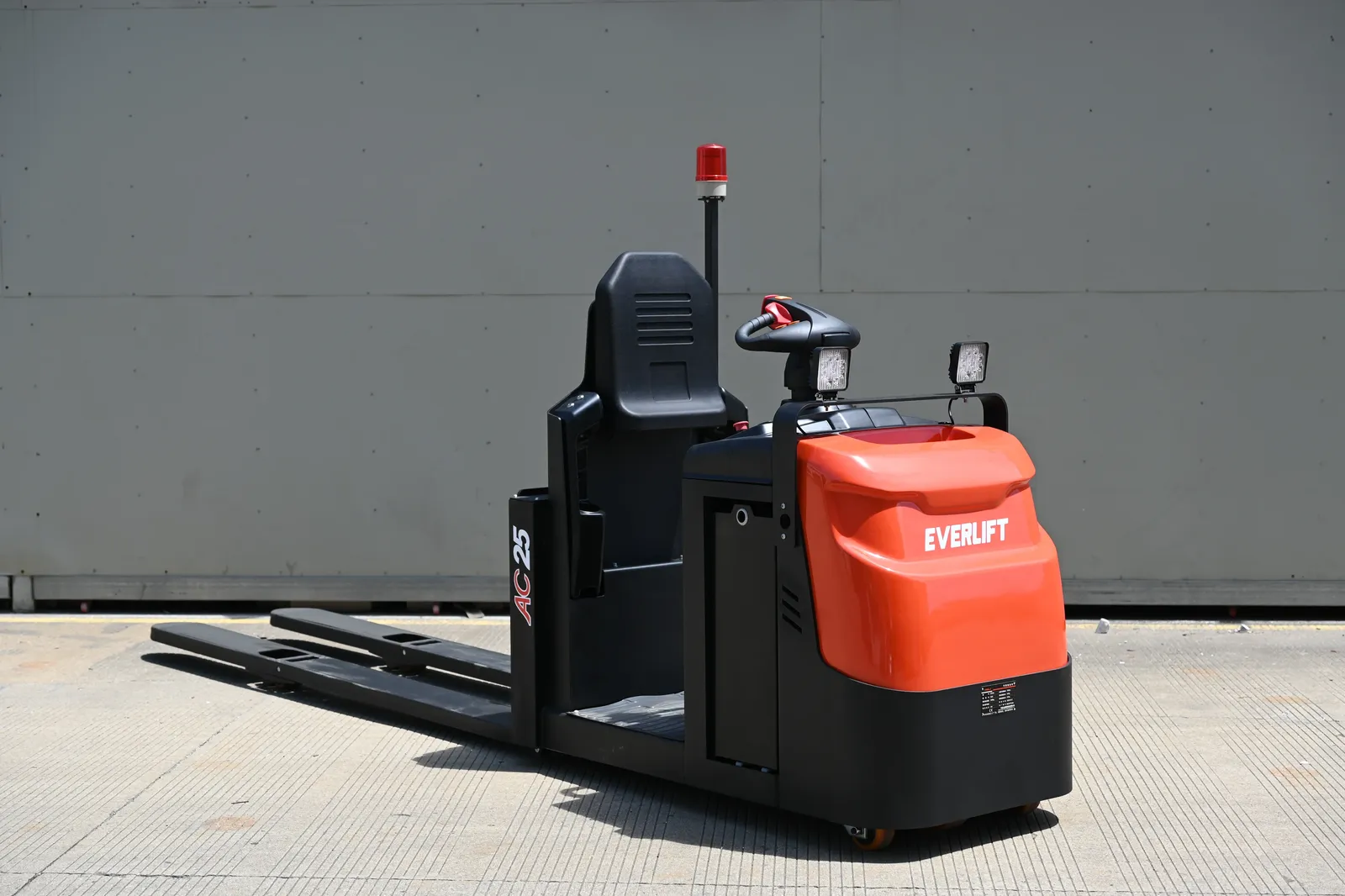

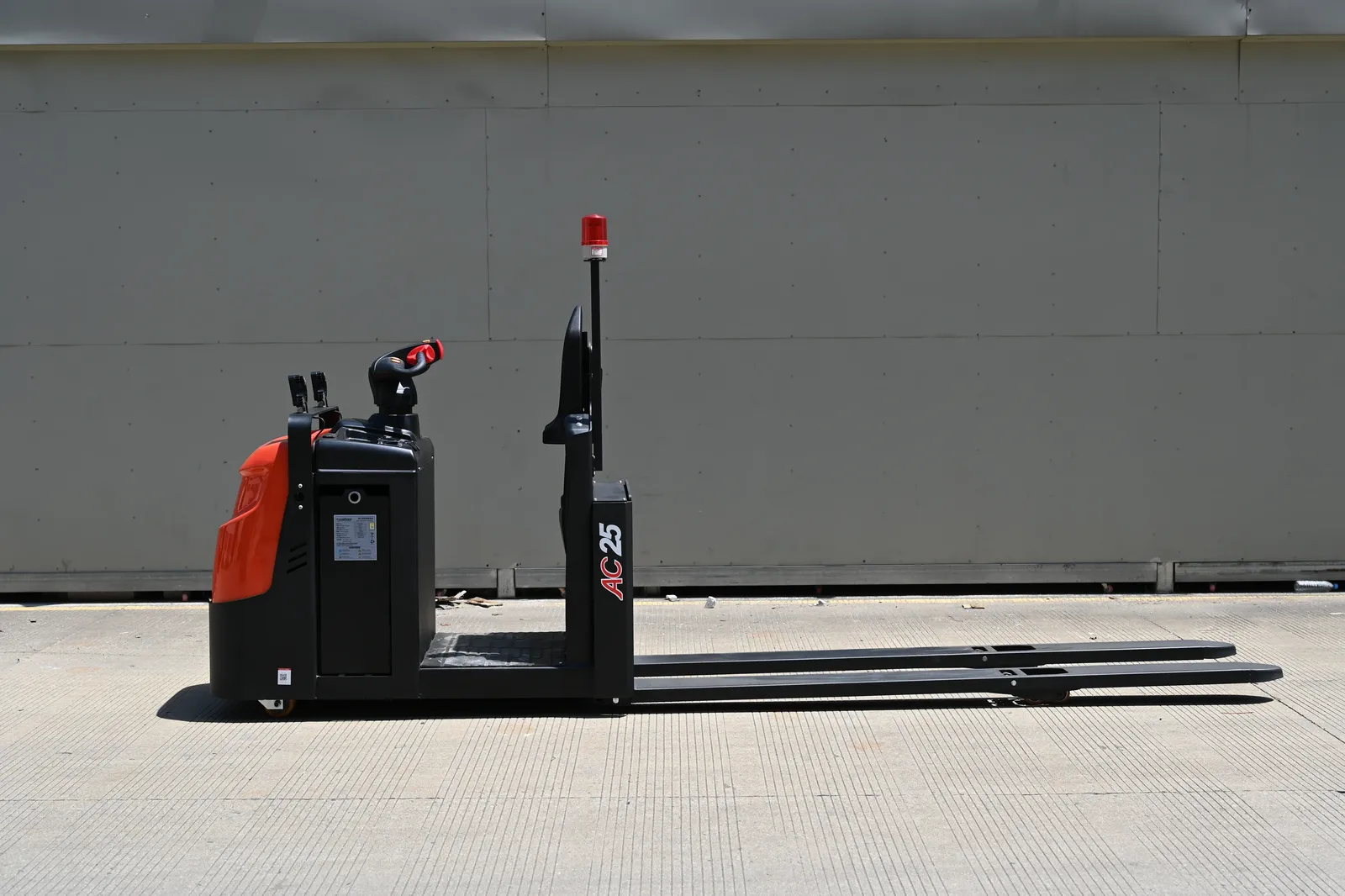

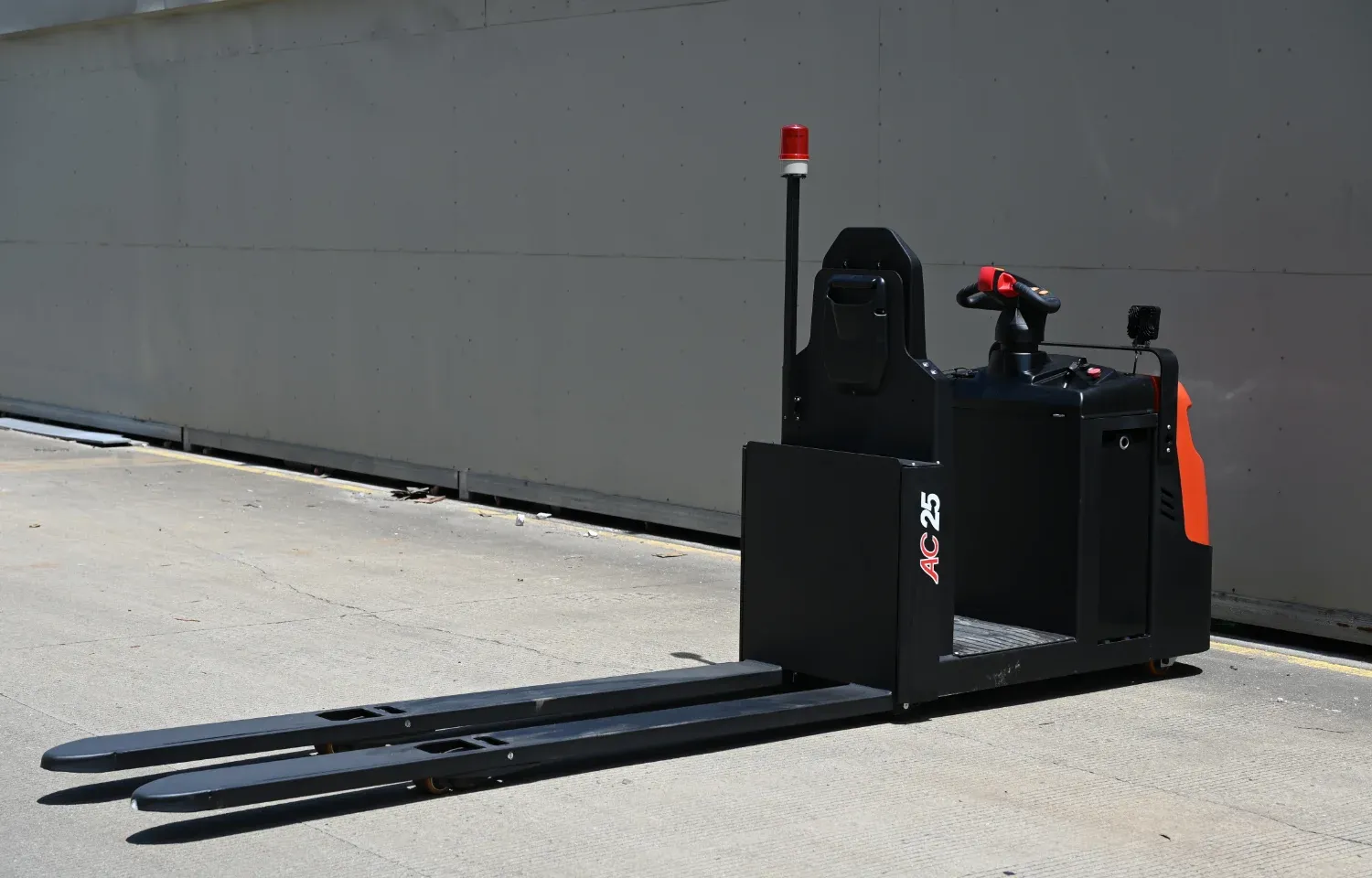

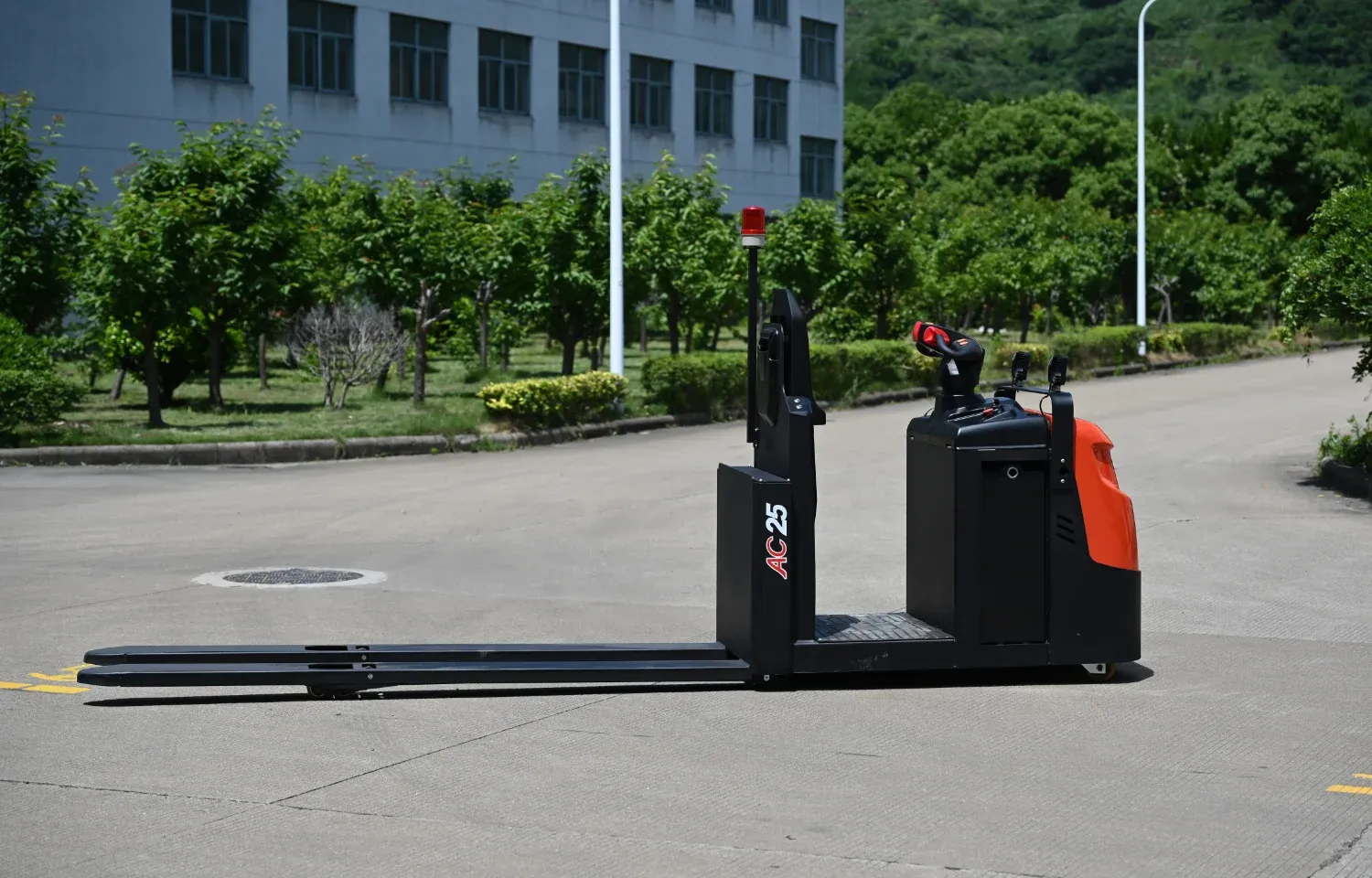

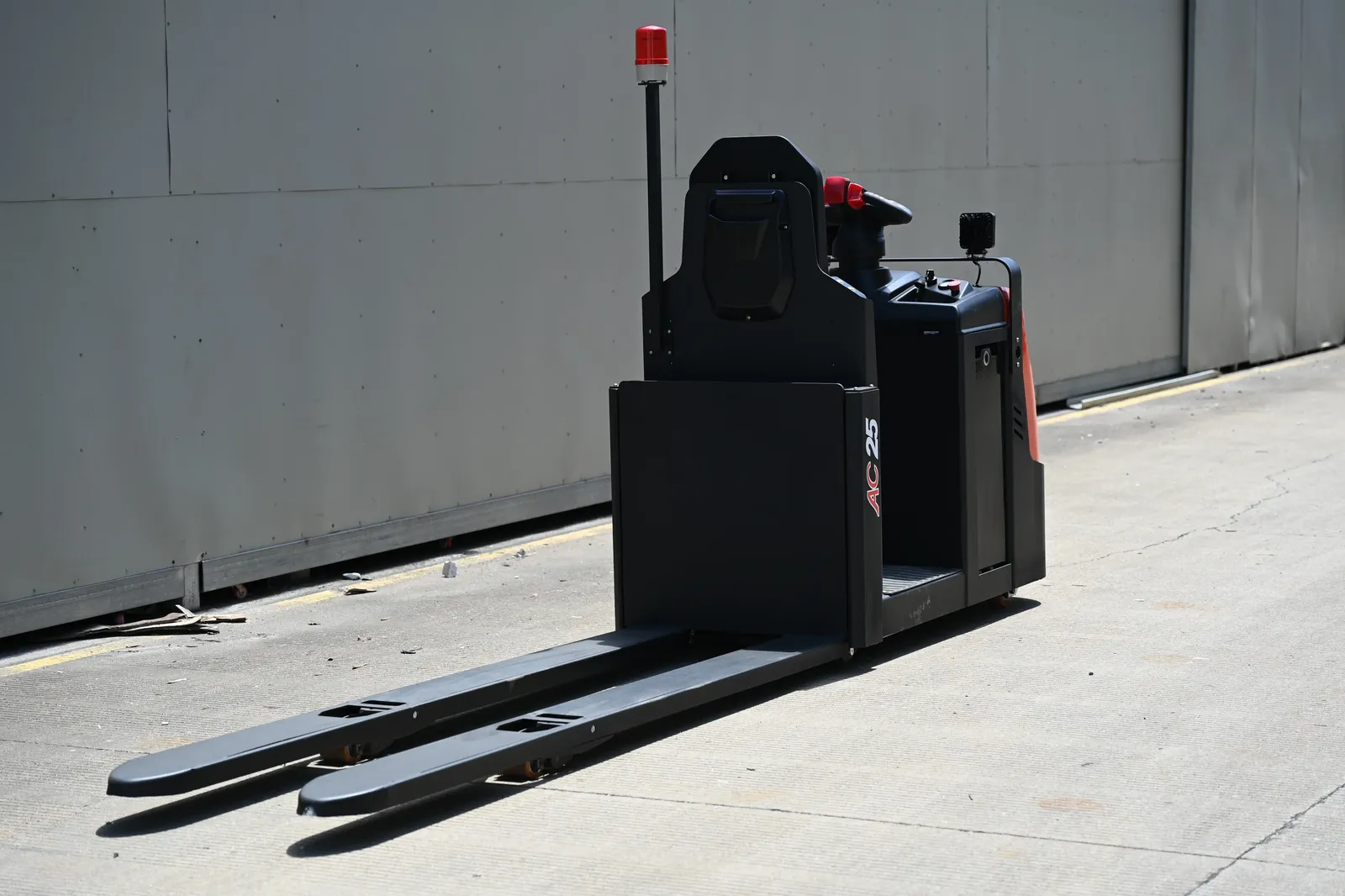

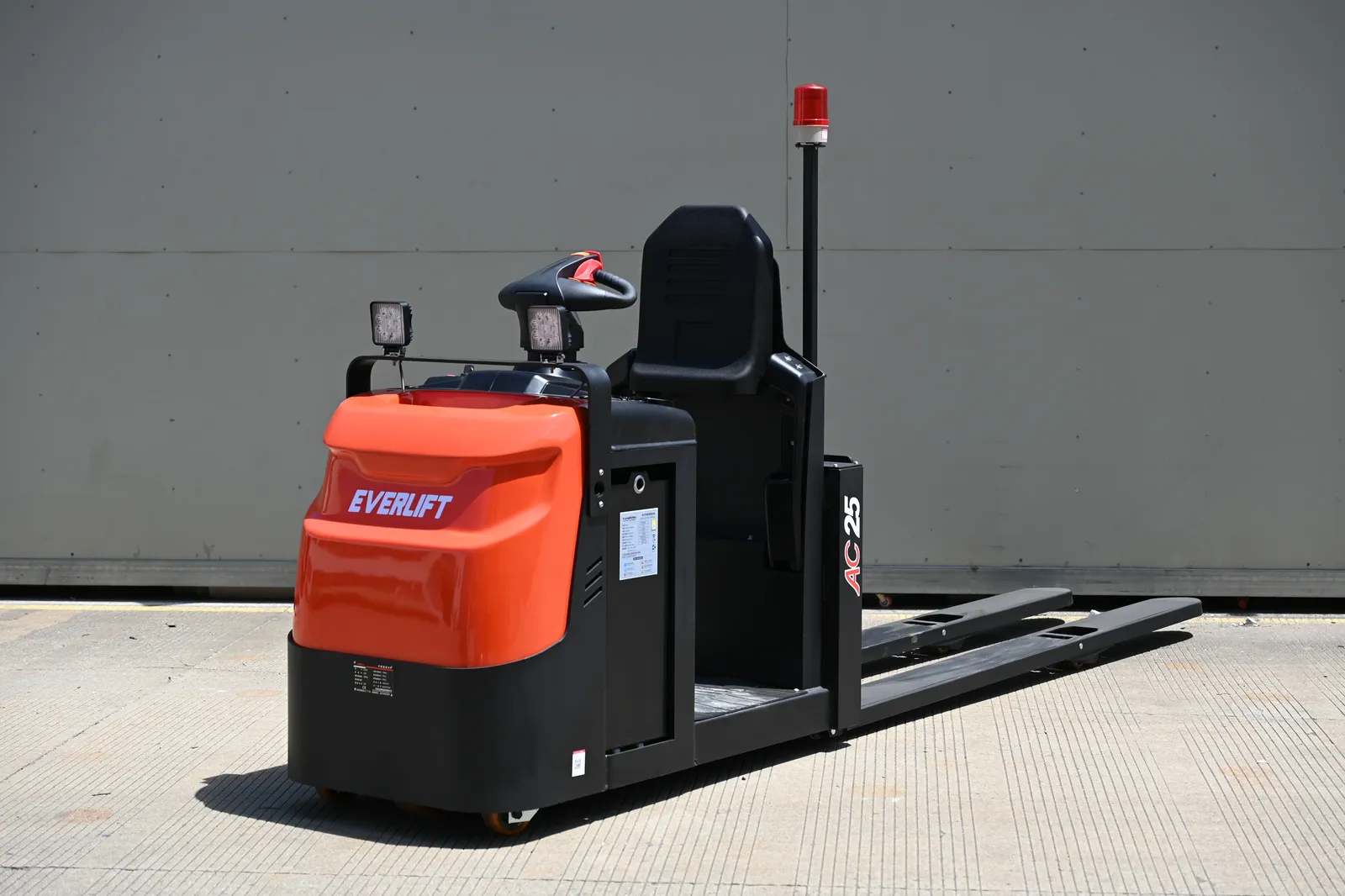

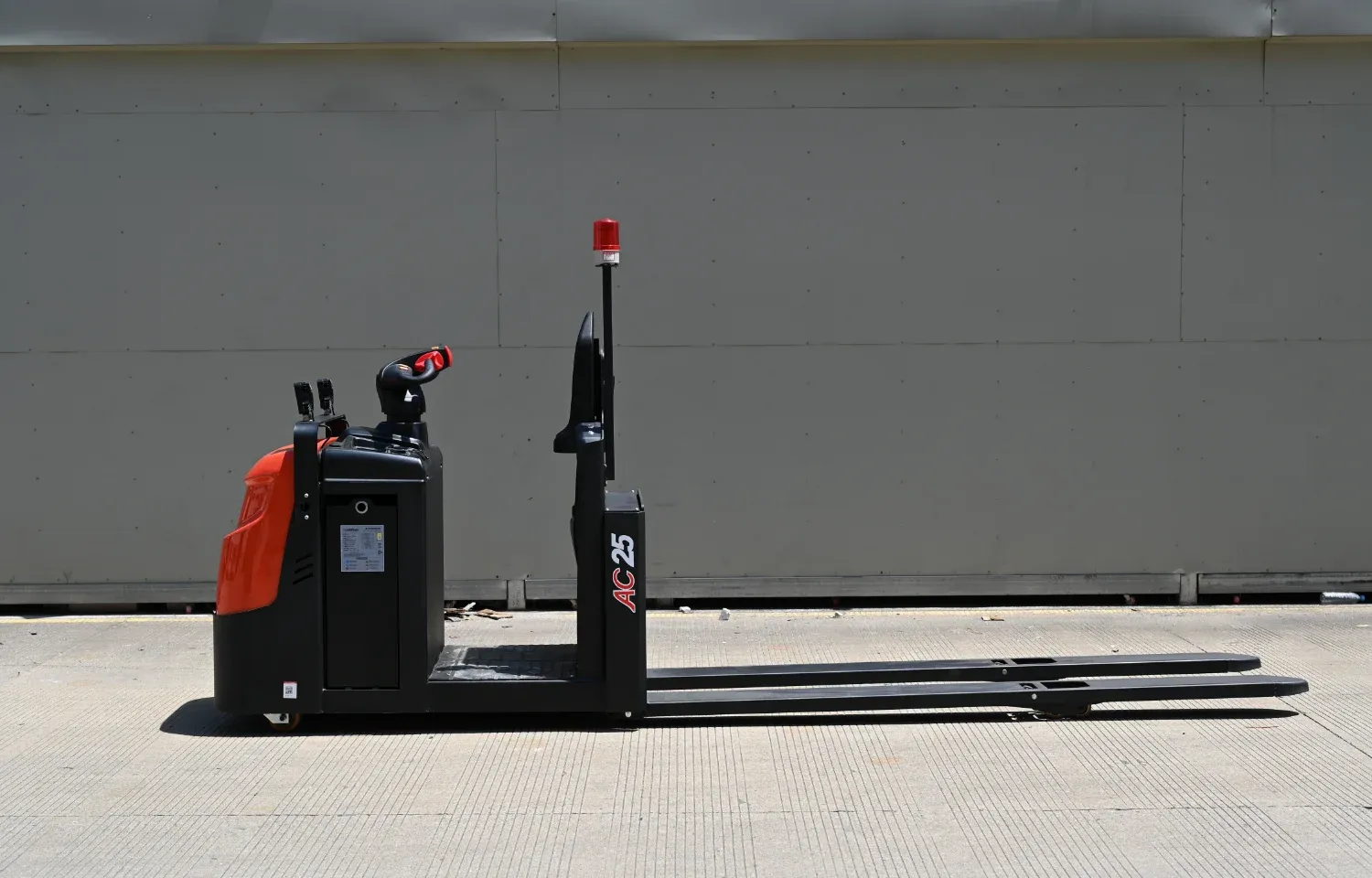

2T Stand on Full Electric Pallet Truck Lower Level Order
2 to 2.5 tLithium-ionForks 2400 mm
from £6,370per piece, ex VAT
| Quantity | Price per piece |
|---|---|
| 3+ pieces | £6,370 |
Minimum order 3 pieces from the factory; any range minimum is confirmed on your quote. Prices in GBP per unit, ex VAT. We convert the factory list at a buffered exchange rate, so normal day-to-day currency movement does not change the price you see. Your written quote adds freight, duty and VAT and is valid for 30 days.
Max. Lifting Height110mm
Truck TypePallet Jack
Line total
No online payment. The basket becomes an order request and we reply with a written GBP quote, deposit 30% on order, lead time 8 to 12 weeks.
Or email [email protected]Product Highlights
Unique energy-saving lifting mechanism - guide rail lifting mechanism, which does not lift the battery and is more energy-saving.
Standard battery side pull design, more convenient and efficient.
The operation handle returns to the centre position automatically. - The jogging walking design on both sides of the truck body provides sensitive feedback.
AC controller, stepless, strong power, multiple automatic protection.
The LFP model lithium batteries are fast charging and efficient.
Electronic power steering, light and low noise.
AC driving motor without carbon brush and free maintenance.
Curve automatic deceleration function, safer.
| Condition | New |
|---|---|
| Fork Specifications( L*W*H) | / |
| Forklift Battery Type | Lithium-Ion Battery |
| Side Shifter | / |
| Drive Type | / |
| Load centre distance | / |
| Forklift Turning radius | 3048mm |
| Fork Width | 185mm |
| Fork Length | 2400mm |
| Operating Mode | Standing Operation |
| Forklift Tyre | Solid Tyre |
| Model Number | OPD20/25-581(UGD) |
| Keywords | Electric pallet jack |
| Max. height of fork | 205mm |
| Turning radius | 3048mm |
| walking speed | 9/12km/h |
| Max. gradeability, full load/no load | 6/16% |
| Rated power of driving motor | 3kw |
| Rated power of hoisting motor | 2.2kw |
| Battery capacity/voltage | 24V/280AH |
| Min. Lifting Height | 85mm |
| Overall Dimensions | 3922*754*1743mm (L*W) |
| Single package size | 20X20X20 cm |
| Single gross weight | 900.000 kg |
| Max. Lifting Height options | 110mm |
| Truck Type options | Pallet Jack |
| Rated Loading Capacity options | 2 Ton, 2.5 Ton |
| Certificate | Number | Valid |
|---|---|---|
| 2006/42/EC | M.2026.206.C137529 | 30/03/2026 - 29/03/2031 |
| CE | M.2026.206.C134736 | 04/02/2026 - 03/02/2031 |
| CE | 3N251031.NEMS093 | 30/10/2025 - 29/10/2030 |
| EAC | — | 22/10/2023 - 22/10/2028 |
| CE | M.2023.206.C83216 | 22/03/2023 - 21/03/2028 |
| CE | M.2023.206.C83222 | 22/03/2023 - 21/03/2028 |
| CE | M.2023.206.C83221 | 22/03/2023 - 21/03/2028 |
Certificates are supplied with your quote on request.
