Electric Pallet Stackers · Ref LPT-43019

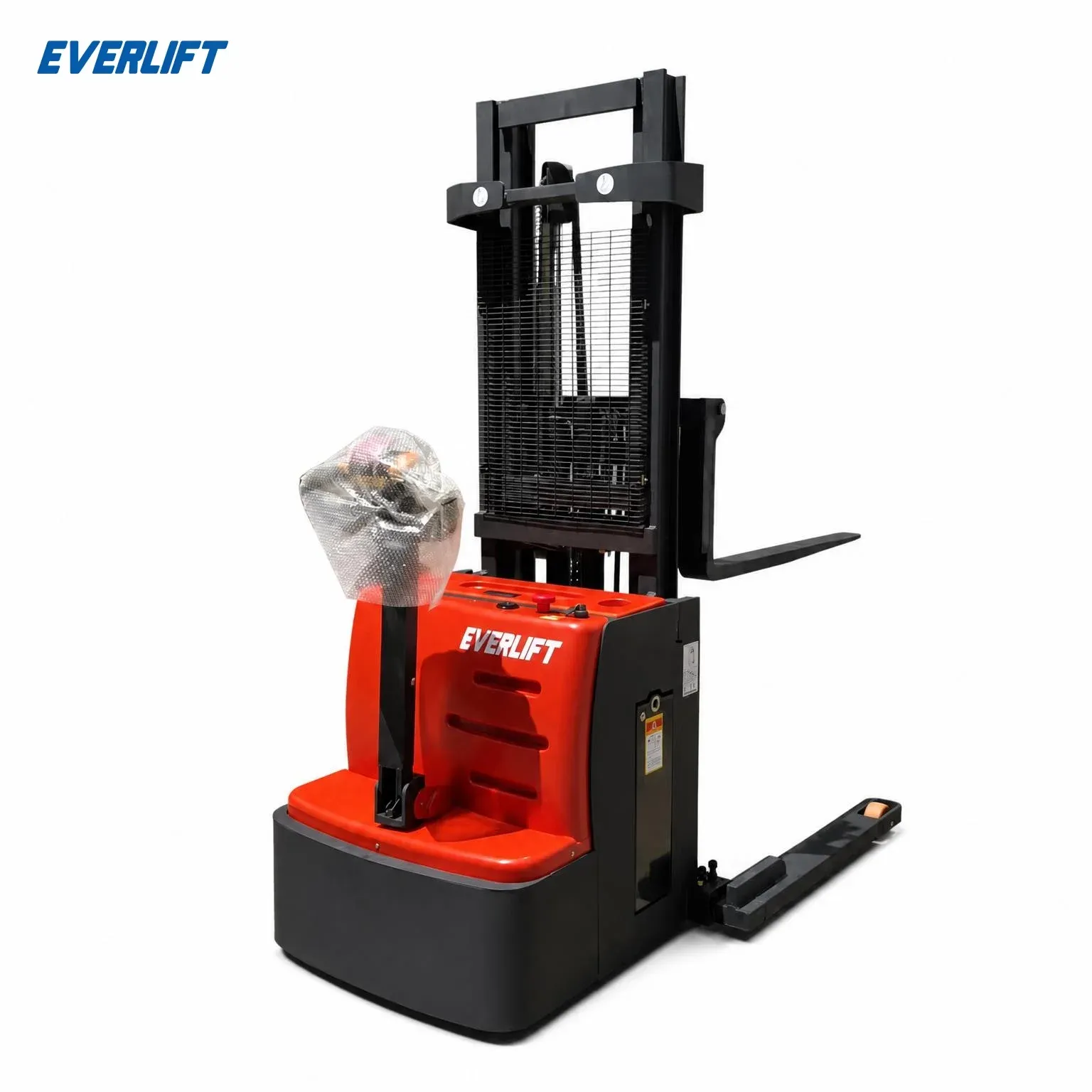

2 Ton 3-Stage Mast Electric Forklift Stacker High Lift
2 tElectricForks 1150 mm marked
markedfrom£2,910per unit, ex VAT
Get a quote, reply in 2 hours
- 12-month warranty
- Photos and video before it ships
- No online payment, nothing is charged
Any quantity is welcome. Your price depends on the quantity and is confirmed on your written quote. Prices in GBP per unit, ex VAT. We convert the factory list at a buffered exchange rate, so normal day-to-day currency movement does not change the price you see. Your written quote adds freight, duty and VAT and is valid for 30 days.
Load capacity2 Ton
Max. Lifting Height4500 mm
Line total
Nothing is sent yet: add the products you need, then send your quote request. We reply within 2 hours, Monday to Friday, 9am to 5pm.
Or email sales@londonpallettrucks.co.ukProduct Highlights
3-Stage Mast Electric Stacker with heavy-duty steel frame and anti-corrosion powder coating, engineered in a robust 886mm width chassis for stable high-capacity industrial racking and container operations.
Professional 2000 kg Triplex Mast Stacker with AC 1.5kW drive motor, DC 2.2kW lift motor, F2A controller, 24V/210Ah battery, Φ250×80mm PU driving wheel, Φ80×70mm bearing wheels and Φ115×55mm balancing wheels.
Safe 3-Stage Electric Stacker with electromagnetic braking, F2A controller precision speed control, emergency stop protection, and RoHS compliant components for workplace electrical and mechanical safety.
High-performance Triplex Mast Electric Stacker delivering 2000 kg rated capacity, 4500mm lift height, 1800mm turning radius, 5-7% gradeability and 88mm lowered fork height for versatile racking.
Efficient 24V/210Ah Battery 3-Stage Stacker with 4-5 km/h travel speed, 0.1-0.15 m/s lift speed, 0.11-0.12 m/s lowering speed, electromagnetic brake for responsive high-frequency logistics operation.

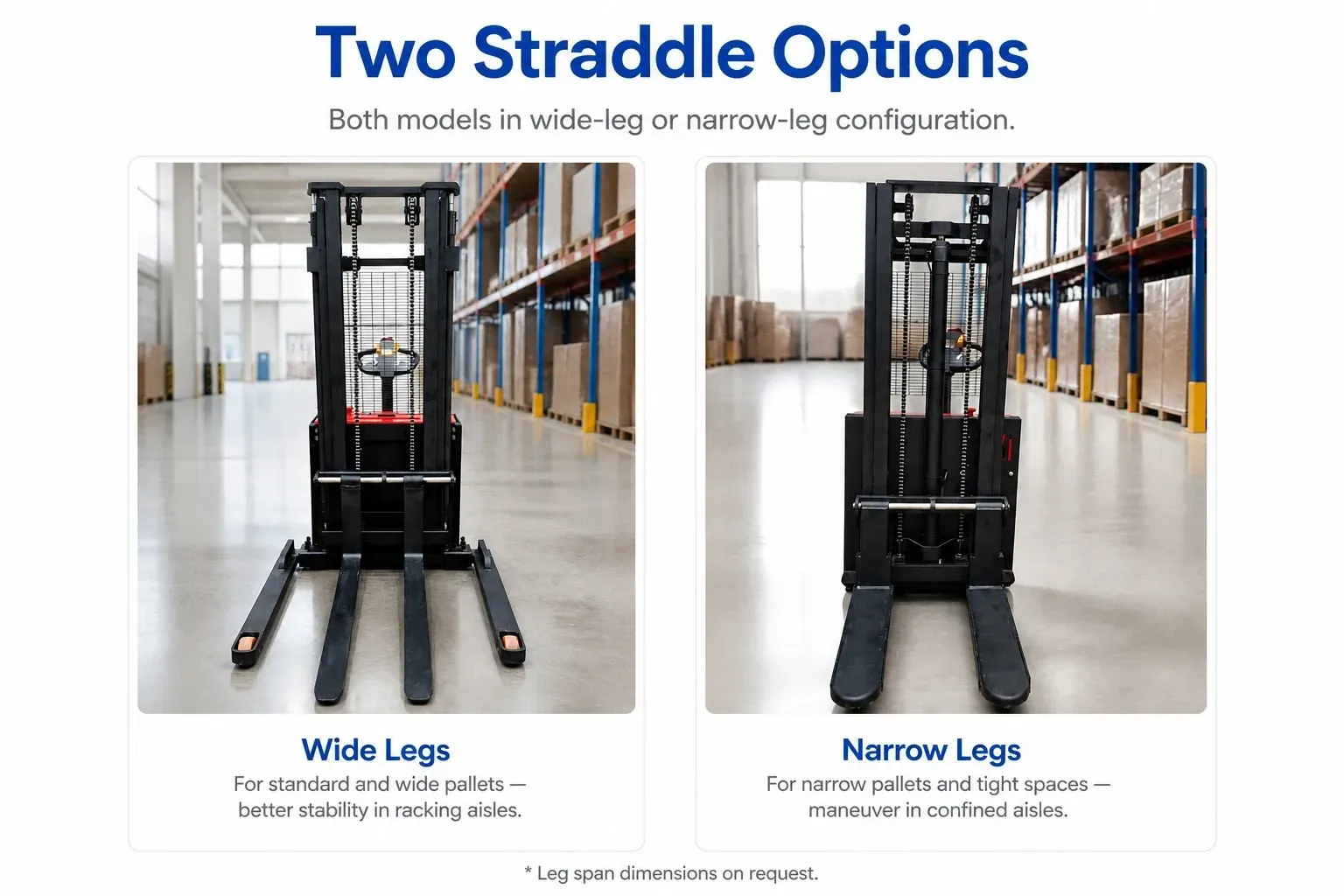

Versatile Triplex Mast Walkie Stacker with 680mm fork outside width, 1150mm fork length, 180mm fork width, 886mm body width for narrow aisle pallet handling on concrete and epoxy warehouse surfaces.

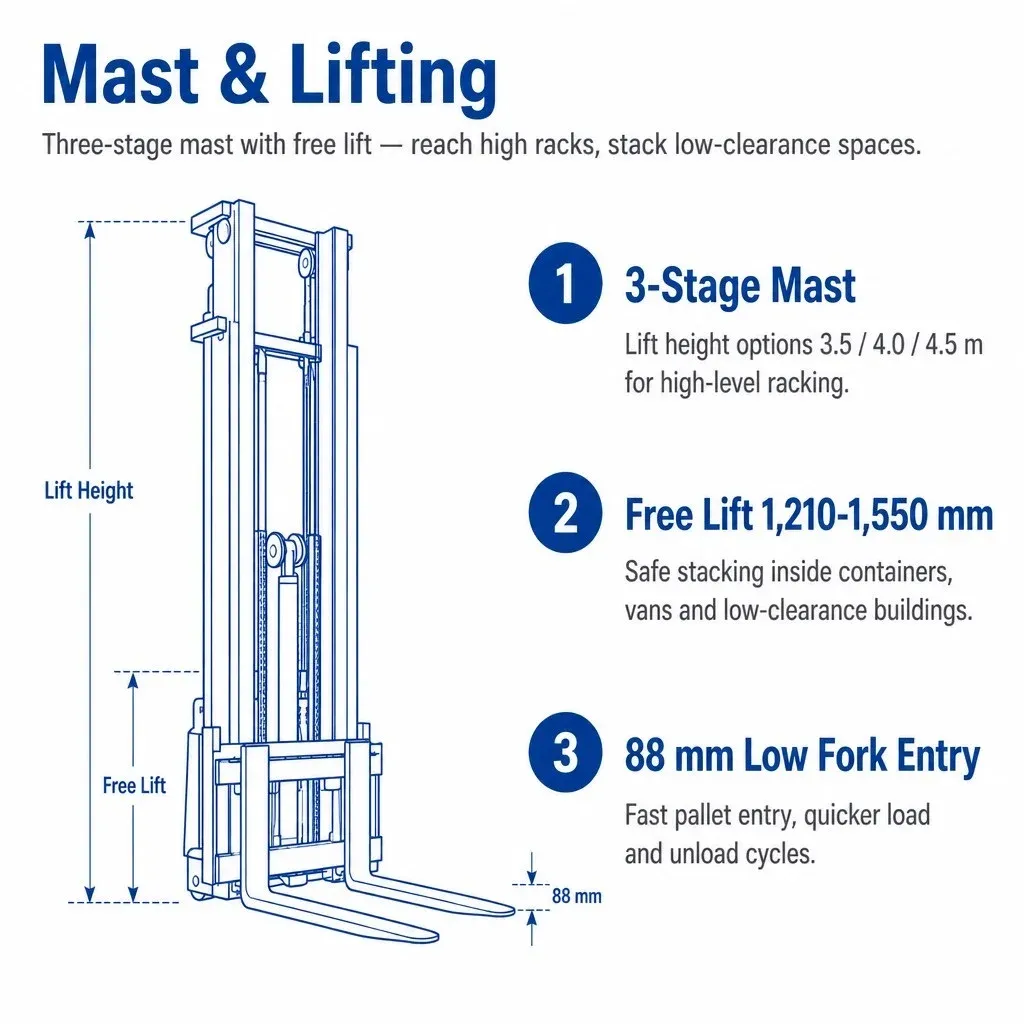

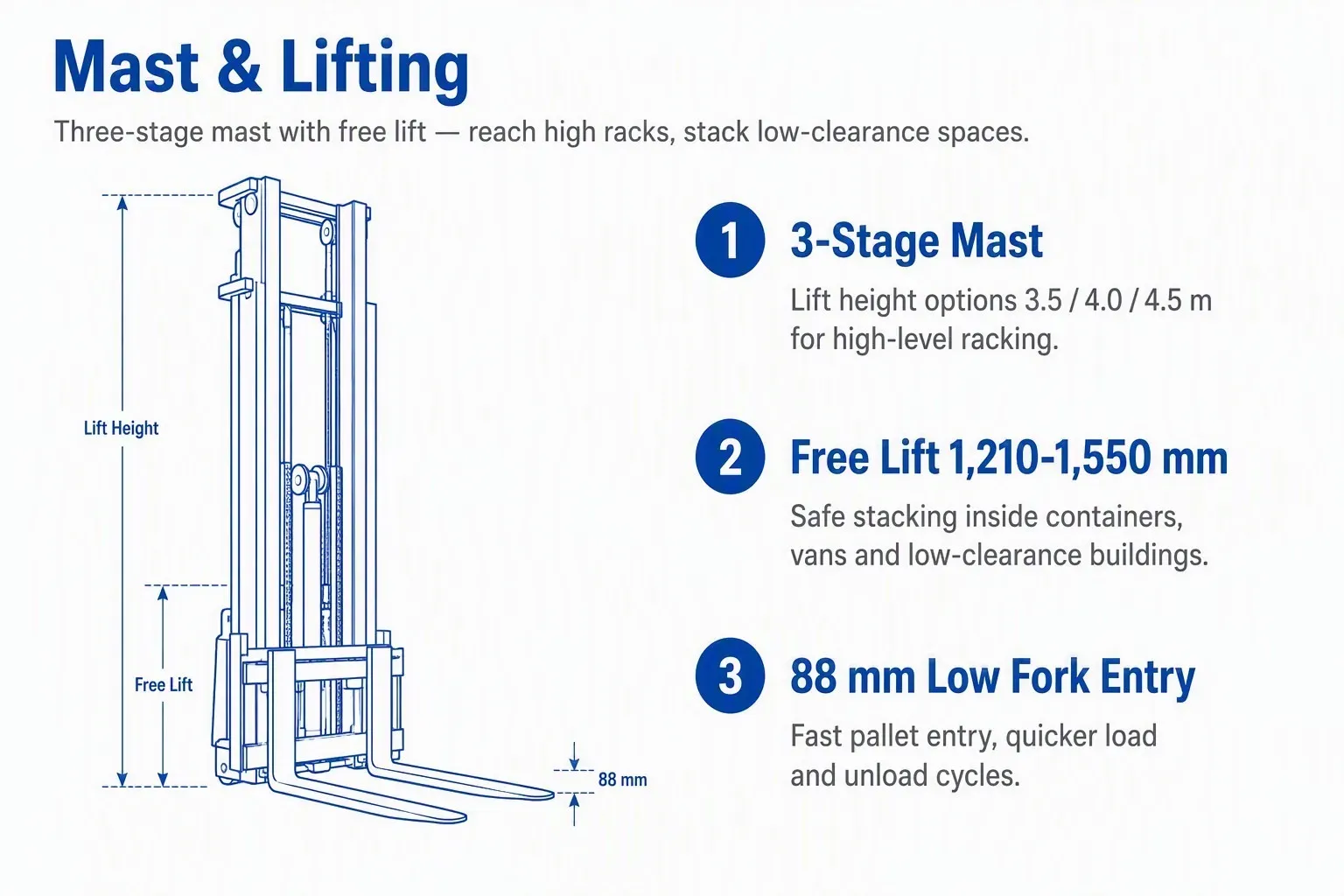

Loading 2000 kg pallets into containers with standard mast stackers is blocked by low door frames. 3-Stage Mast Stacker with 1550mm free lift raises full loads before mast extension, clearing low clearance and completing confined-space loading efficiently.
Heavy 2000 kg loads on slopes cause standard stackers to lose control and productivity. AC 1.5kW Drive Triplex Stacker with 5-7% gradeability and electromagnetic braking maintains stable ascent and descent on warehouse ramps, improving safety and throughput.

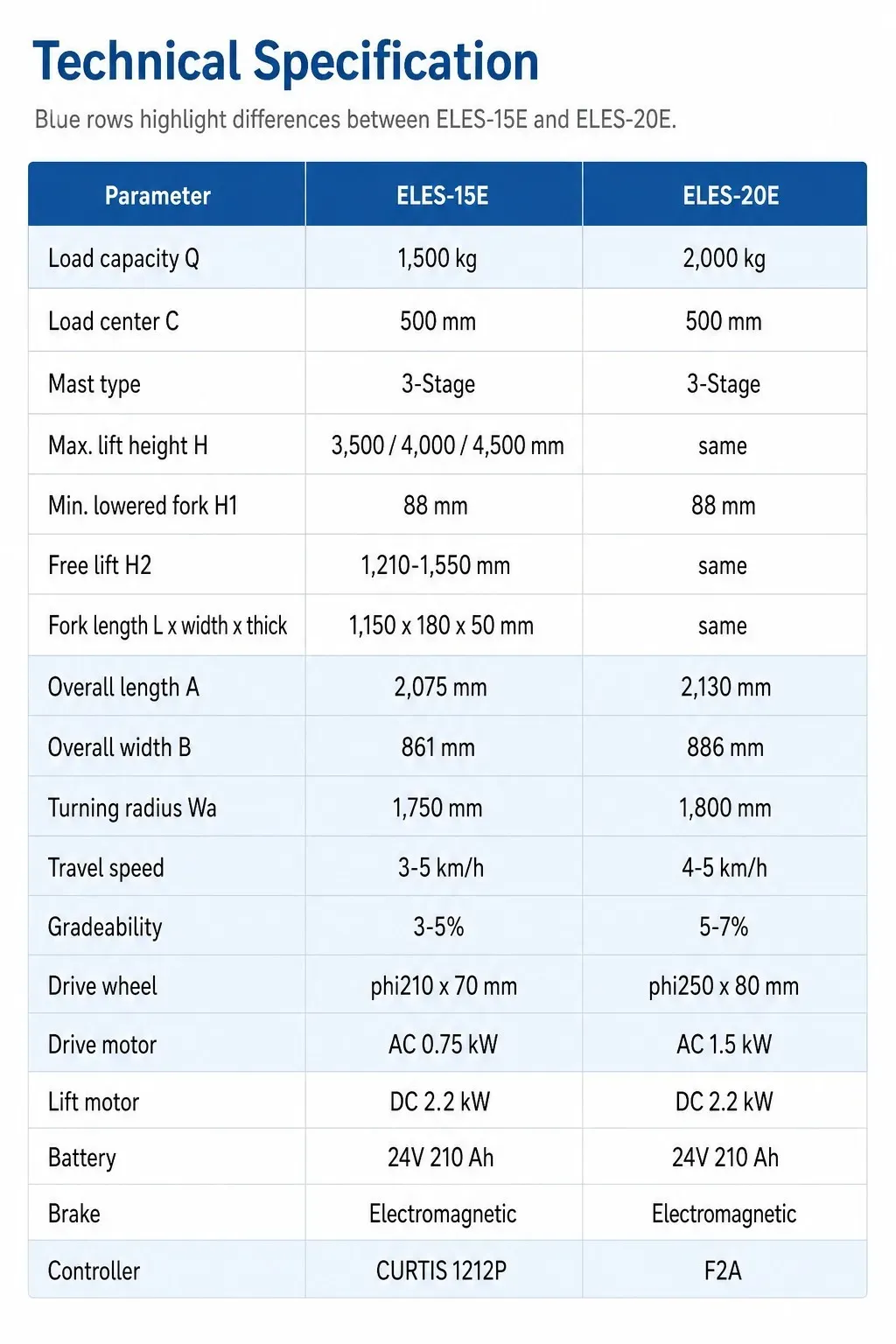

| Fork Length | 1150 mm |
|---|---|
| Fork Width | 180 mm |
| Power Source | AC Motor |
| Type | Stacker Forklift |
| Load Capacity | 2 Ton |
| Condition | New |
| Terrain Adaptability | Indoor Flooring |
| Load Centre | 500 mm |
| Mast Type | 3-Stage Mast |
| Free Lift Height | 1550 mm |
| Fork Size (L*W*T) | 1150 × 180 × 50 mm |
| Outside Fork Width | 680 mm |
| Turning Radius | 1800 mm |
| Drive Motor | AC 1.5 kW |
| Lift Motor | DC 2.2 kW |
| Battery | 24V/210Ah |
| Load capacity options | 2 Ton |
| Max. Lifting Height options | 4500 mm |
| Certificate | Number | Valid |
|---|---|---|
| 2006/42/EC | M.2026.206.C137529 | 30/03/2026 - 29/03/2031 |
| CE | M.2026.206.C134736 | 04/02/2026 - 03/02/2031 |
| CE | 3N251031.NEMS093 | 30/10/2025 - 29/10/2030 |
| EAC | 22/10/2023 - 22/10/2028 |
Certificates are supplied with your quote on request.
Spare parts for this model
Pallet truck and stacker load rollers, 80 x 70 mm polyurethane, set of 4from £41 per set ex VAT
Electric stacker stabiliser wheel, 115 x 55 mm polyurethanefrom £23 per wheel ex VAT
Electric stacker, reach truck and sweeper charger, 24 V 30 A, lead acid and gelfrom £108 per charger ex VAT · check your battery first
Electric pallet truck and stacker emergency stop switch, 125 Afrom £19 per unit ex VAT · check the fit first
Electric stacker drive wheel, 250 x 80 mm polyurethane, 6 bolt hubfrom £88 per wheel ex VAT · check the hub first
Stacker mast lift chain, leaf chain cut to length, per metrefrom £22 per metre ex VAT · check your old part first
Electric stacker hydraulic power unit, 24 V 2.2 kWfrom £210 per unit ex VAT · check your old part first
Electric pallet truck and stacker horn, 24 V or 48 V, 100 dBfrom £14 per horn ex VAT · check your old part first
Electric pallet truck and stacker main contactor, 24 V coil, 100 Afrom £35 per contactor ex VAT · check your old part first
Electric pallet truck and stacker tiller gas spring, 156 mm, 600 Nfrom £23 per gas spring ex VAT · check the fixing first
Electric stacker and pallet truck lowering valve, 08 size normally closed cartridgefrom £32 per valve cartridge ex VAT · check your old part first
Electric and semi electric stacker power unit motor relay, 12 V or 24 V, 200 Afrom £21 per relay ex VAT · check your old part first
All spare parts. Send the model and the part you need if it is not listed.
