Electric Pallet Stackers · Ref LPT-08061

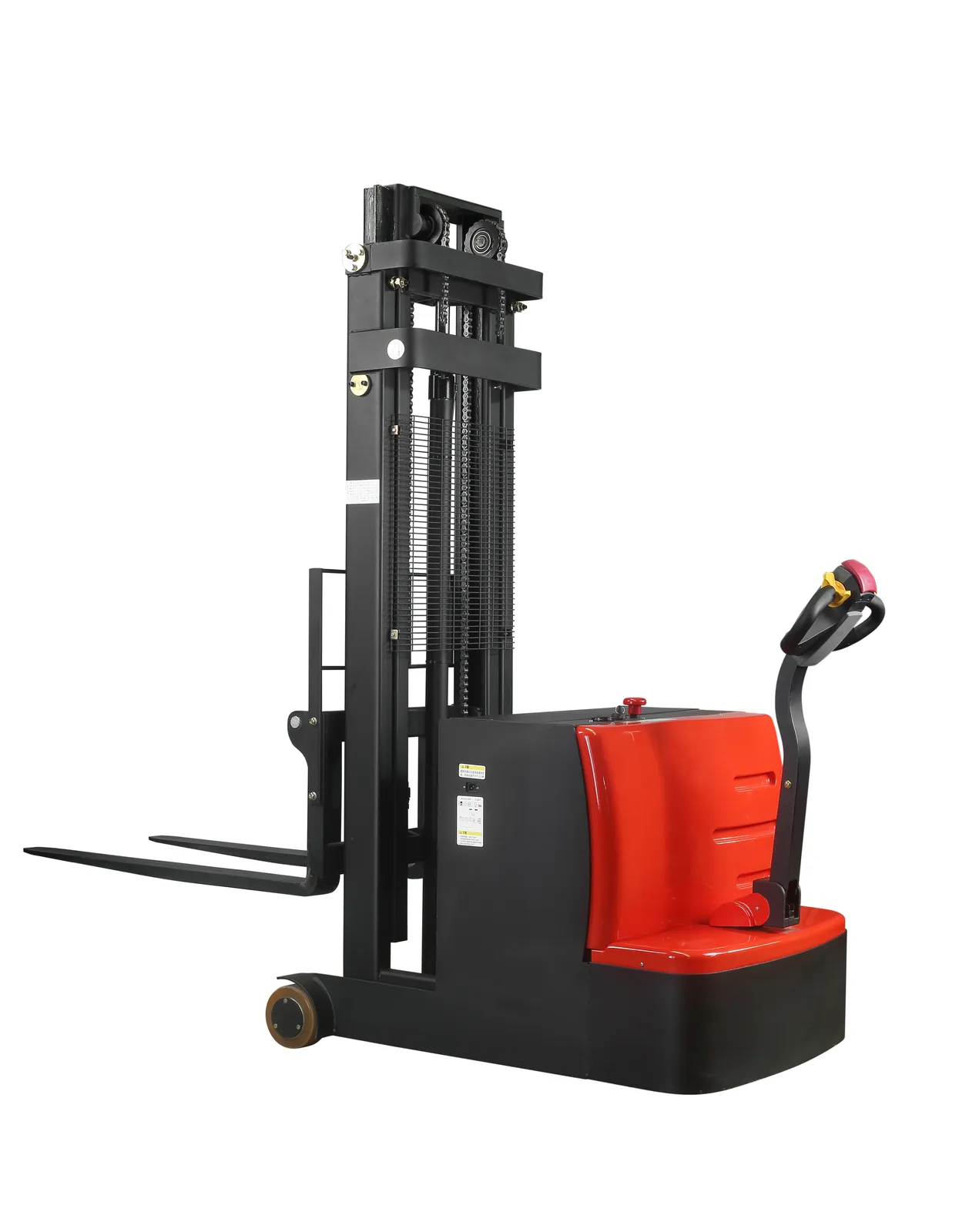

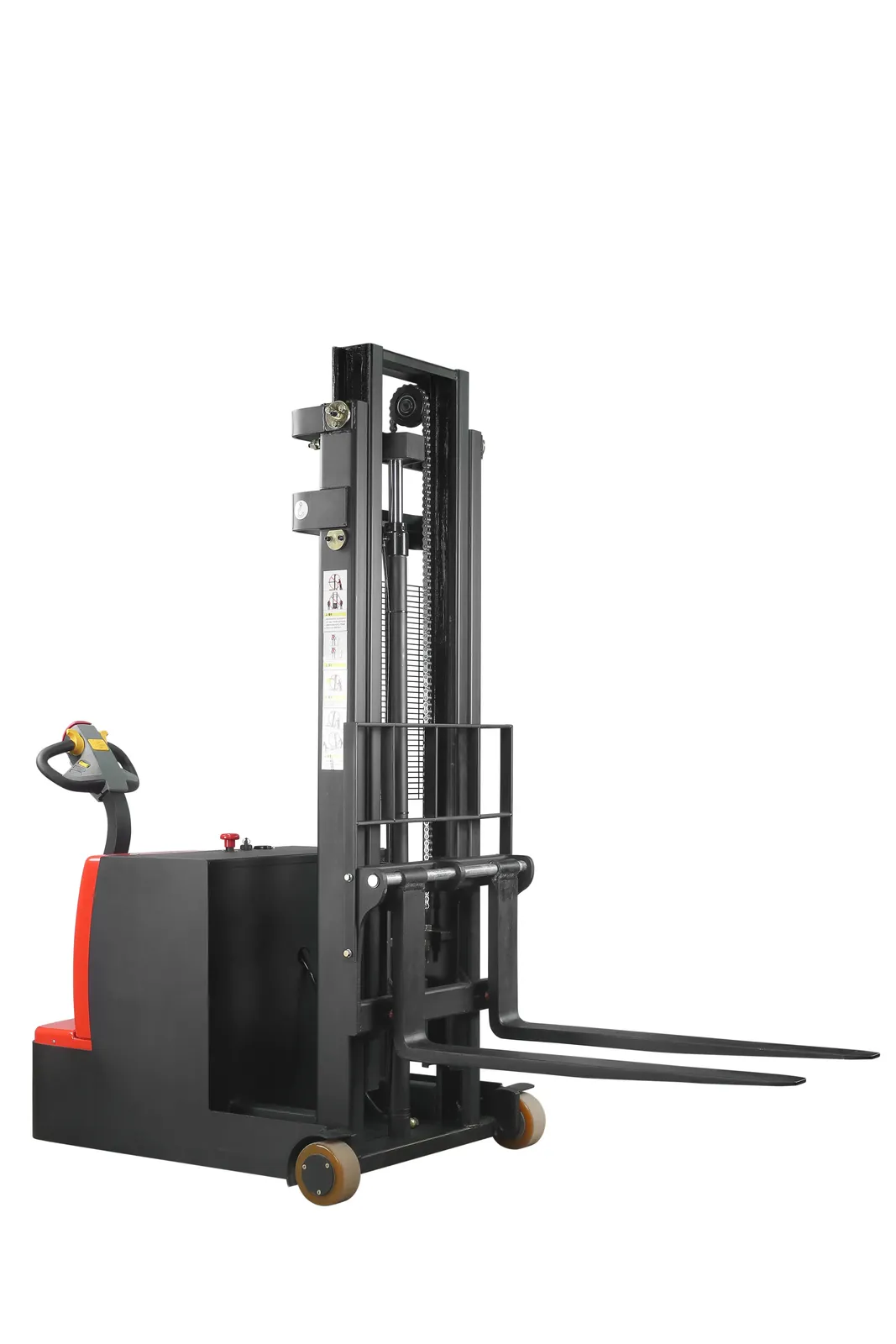

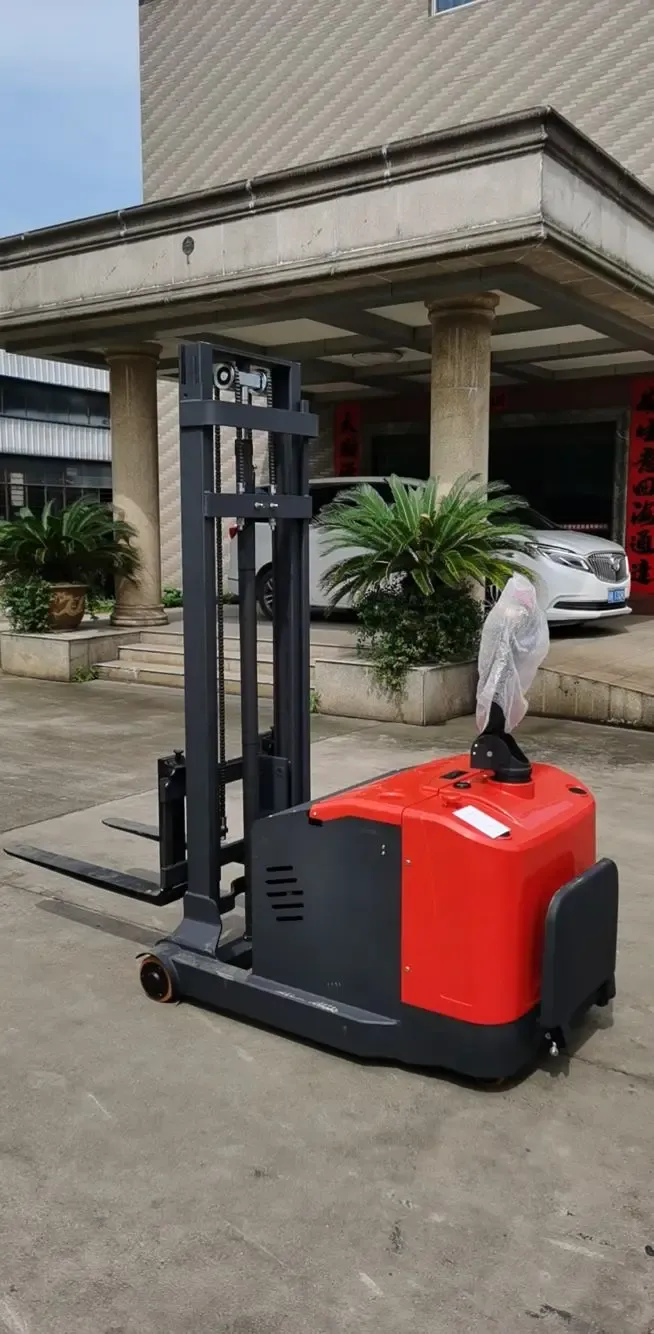

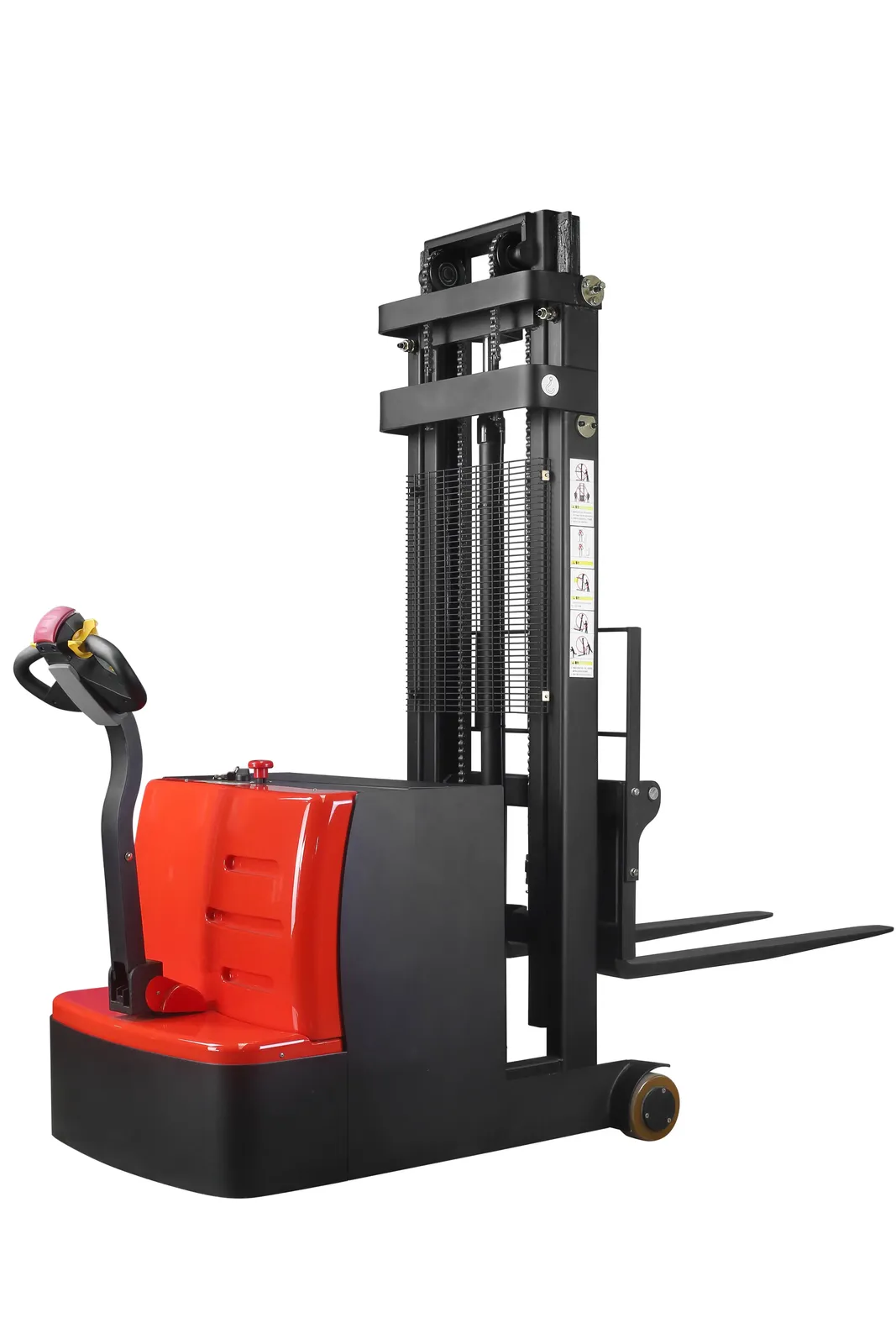

Small Counterbalanced Electric Pallet Stacker, 800 kg
800 kgLithium-ionForks 1070 mm marked
markedfrom£2,500per unit, ex VAT
Get a quote, reply in 2 hours
- 12-month warranty
- Photos and video before it ships
- No online payment, nothing is charged
Any quantity is welcome. Your price depends on the quantity and is confirmed on your written quote. Prices in GBP per unit, ex VAT. We convert the factory list at a buffered exchange rate, so normal day-to-day currency movement does not change the price you see. Your written quote adds freight, duty and VAT and is valid for 30 days.
Rated Loading Capacity800 kg
Truck TypeStacker Forklift
Line total
Nothing is sent yet: add the products you need, then send your quote request. We reply within 2 hours, Monday to Friday, 9am to 5pm.
Or email sales@londonpallettrucks.co.ukELES-08CE 800 kg Counterbalanced Electric Stacker 3m Small Electric Forklift for All Pallets Warehouse Handling
800 kg Counterbalanced Design: No outrigger design allows handling all pallet types, including closed pallets.
3.0m Max Lifting Height: Efficient 3000mm electric stacker for versatile stacking and warehouse loading.
Ultra-Low 60mm Forks: Low profile forks are perfect for special low-clearance pallets and equipment.
Small 1210mm Turning Radius: Agile counterbalanced stacker for easy manoeuvring in extremely narrow aisles.
Powerful 2.2kW Lift Motor: High performance DC motor ensures fast and stable vertical material handling.
Maintenance-Free Battery: Reliable 24V/120Ah battery provides consistent power for daily warehouse task.
Safe Electromagnetic Brake: Advanced braking system ensures immediate and safe stop for the 0.8t mover.
| Condition | New |
|---|---|
| Fork Specifications( L*W*H) | 1070 × 100 × 60 mm |
| Forklift Battery Type | Lithium-Ion Battery |
| Side Shifter | Electric Side Shifter, Hydraulic Side Shifter |
| Drive Type | Fwd |
| Terrain Adaptability | Indoor Flooring, Offroad, Outdoor Pavement, Rough Terrain, Other |
| Load centre distance | 500 mm, 600 mm |
| Mast Type | Single-Stage Mast, Three-Stage Mas, Two-Stage Mast |
| Forklift Turning radius | 1140mm |
| Fork Length | 1070 mm |
| Operating Mode | Standing Operation |
| Forklift Tyre | Polyurethane Tyre |
| Mast Tilt Angle (Forward Tilt-Rear Tilt) | 6-12° |
| Battery voltage (V/AH) | 24V/120Ah |
| Capacity | 800 kg |
| Tyre | Solid PU |
| Rated Loading Capacity options | 800 kg |
| Truck Type options | Stacker Forklift |
| Max. Lifting Height options | 1 600 mm, 2 000 mm, 2500 mm, 3000mm |
| Model | Company | ELES-08CE |
| Drive Method | Electric | |
| Loading Capacity | Q(kg) | 800 |
| Loading Centre | C(mm) | 500 |
| Lifting Height | H(mm) | 1600/2000/2500/3000 |
| Lowered Height Of Fork | H3(mm) | |
| Fork outer width | E(mm) | 680 |
| Fork Length | L(mm) | 1070 |
| Fork width | B1(mm) | 100 |
| Overall Length | A(mm) | 2350 |
| Overall Width | B(mm) | 940 |
| Overall Rest Height | H1(mm) | 2090/1560/1810/2060 |
| Maximum Height Of Whole Vehicle At Work | H2(mm | 2090/2530/3030/3530 |
| Turning Radius | Wa(mm) | 1210 |
| 1000x1200 Channel Width | mm | 2810 |
| 800x1200 Channel Width | mm | 2770 |
| Traveling Speed Unladen/Laden | Km/h | 3~5 |
| Lifting Speed Unladen/Laden | m/s | 0.07~0.13 |
| Lowering Speed Unladen/Laden | m/s | 0.1~0.13 |
| Climbing Speed Unladen/Laden | % | 3~5 |
| Wheel Material | PU | |
| Size Of Driving Wheel | mm | 210*70 |
| Size Of Loading Wheel | mm | Φ160*72 |
| Traveling Motor | Kw | DC0.75 |
| Lifting Motor | Kw | DC2.2 |
| Voltage | V | |
| Capacity / Battery Type | ah | 120/12vX2 |
| Brake | Electromagnetic Brake | |
| Controller | CURTIS 1212P | |
| Self weight | Kg | 1180/1210/1240/1270 |
| Certificate | Number | Valid |
|---|---|---|
| 2006/42/EC | M.2026.206.C137529 | 30/03/2026 - 29/03/2031 |
| CE | M.2026.206.C134736 | 04/02/2026 - 03/02/2031 |
| CE | 3N251031.NEMS093 | 30/10/2025 - 29/10/2030 |
| EAC | 22/10/2023 - 22/10/2028 | |
| CE | M.2023.206.C83216 | 22/03/2023 - 21/03/2028 |
| CE | M.2023.206.C83215 | 22/03/2023 - 21/03/2028 |
| CE | M.2023.206.C83222 | 22/03/2023 - 21/03/2028 |
| CE | M.2023.206.C83221 | 22/03/2023 - 21/03/2028 |
Certificates are supplied with your quote on request.
Spare parts for this model
Electric pallet truck and stacker drive wheel, 210 x 70 mm polyurethane, ring typefrom £41 per wheel ex VAT · check the hub first
Counterbalance stacker load wheel, 160 x 73 mm polyurethane, 6306 bearingfrom £46 per wheel ex VAT · check the size first
Stacker mast lift chain, leaf chain cut to length, per metrefrom £22 per metre ex VAT · check your old part first
Electric stacker hydraulic power unit, 24 V 2.2 kWfrom £210 per unit ex VAT · check your old part first
Electric stacker and pallet truck battery connector 175 A, grey, pairfrom £29 per pair ex VAT · check the plug first
Electric pallet truck and stacker horn, 24 V or 48 V, 100 dBfrom £14 per horn ex VAT · check your old part first
Electric pallet truck and stacker tiller gas spring, 156 mm, 600 Nfrom £23 per gas spring ex VAT · check the fixing first
Electric stacker and pallet truck lowering valve, 08 size normally closed cartridgefrom £32 per valve cartridge ex VAT · check your old part first
All spare parts. Send the model and the part you need if it is not listed.
