1.5Ton 1.6Ton 2.0Ton Lithium-Ion Battery Electric Pallet Stacker
1.5 to 2 tLithium-ionForks 1150 to 1220 mm
marked
markedfrom£1,645per unit, ex VAT
Electric Pallet Stackers · Ref LPT-73567

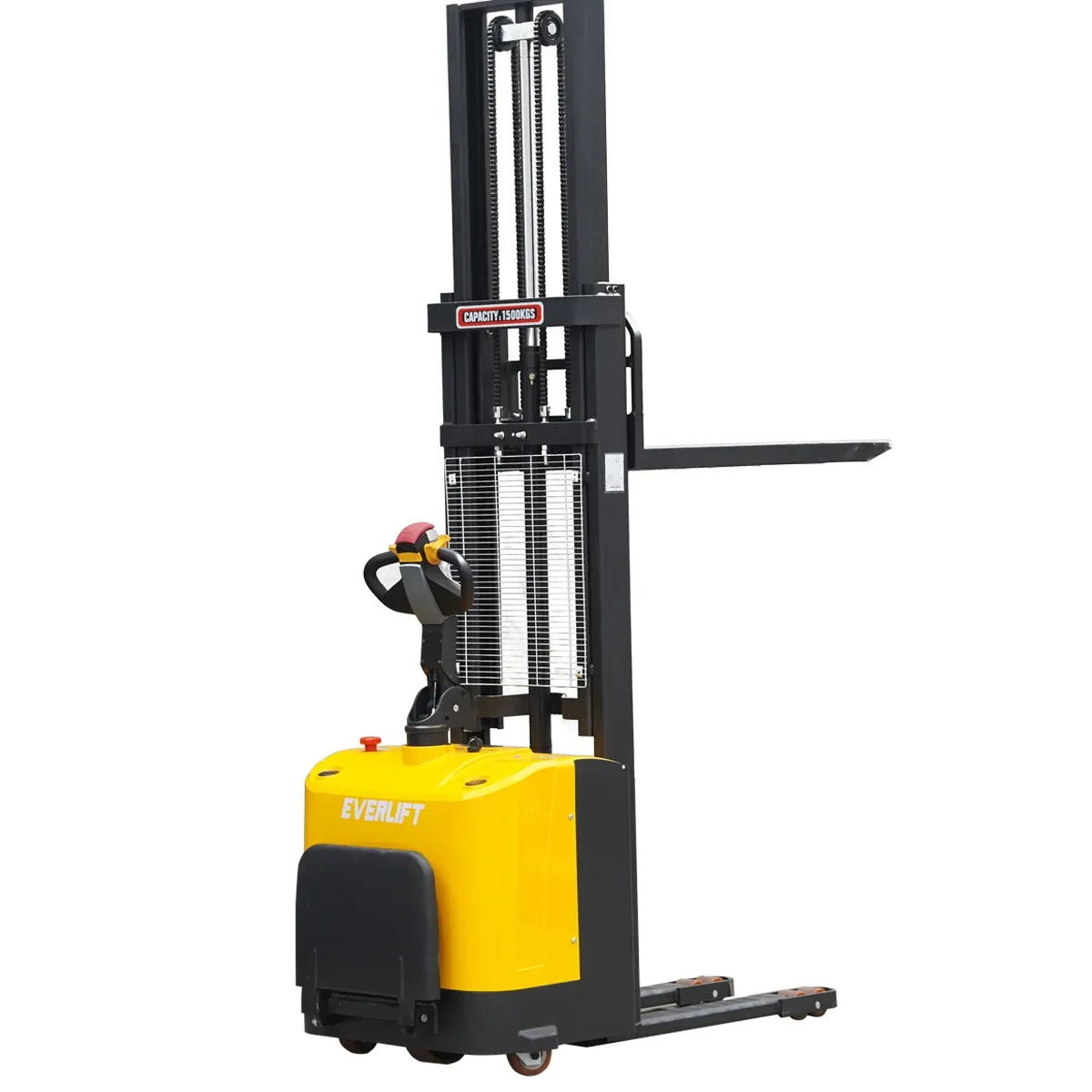

Stand-on Ride-on Electric Pallet Stacker, 1.5 t
1.5 tLithium-ionForks 1150 to 1220 mm
from£1,645per unit, ex VAT
Get a quote, reply in 2 hours
- 12-month warranty
- Photos and video before it ships
- No online payment, nothing is charged
Any quantity is welcome. Your price depends on the quantity and is confirmed on your written quote. Prices in GBP per unit, ex VAT. We convert the factory list at a buffered exchange rate, so normal day-to-day currency movement does not change the price you see. Your written quote adds freight, duty and VAT and is valid for 30 days.
Rated Loading Capacity1.5 Ton
Truck TypeStacker Forklift
Line total
Nothing is sent yet: add the products you need, then send your quote request. We reply within 2 hours, Monday to Friday, 9am to 5pm.
Or email sales@londonpallettrucks.co.ukELES-15F 1.5 Ton Stand-on Electric Pallet Stacker 3.5m Ride-on Forklift Stacker for Warehouse Logistics

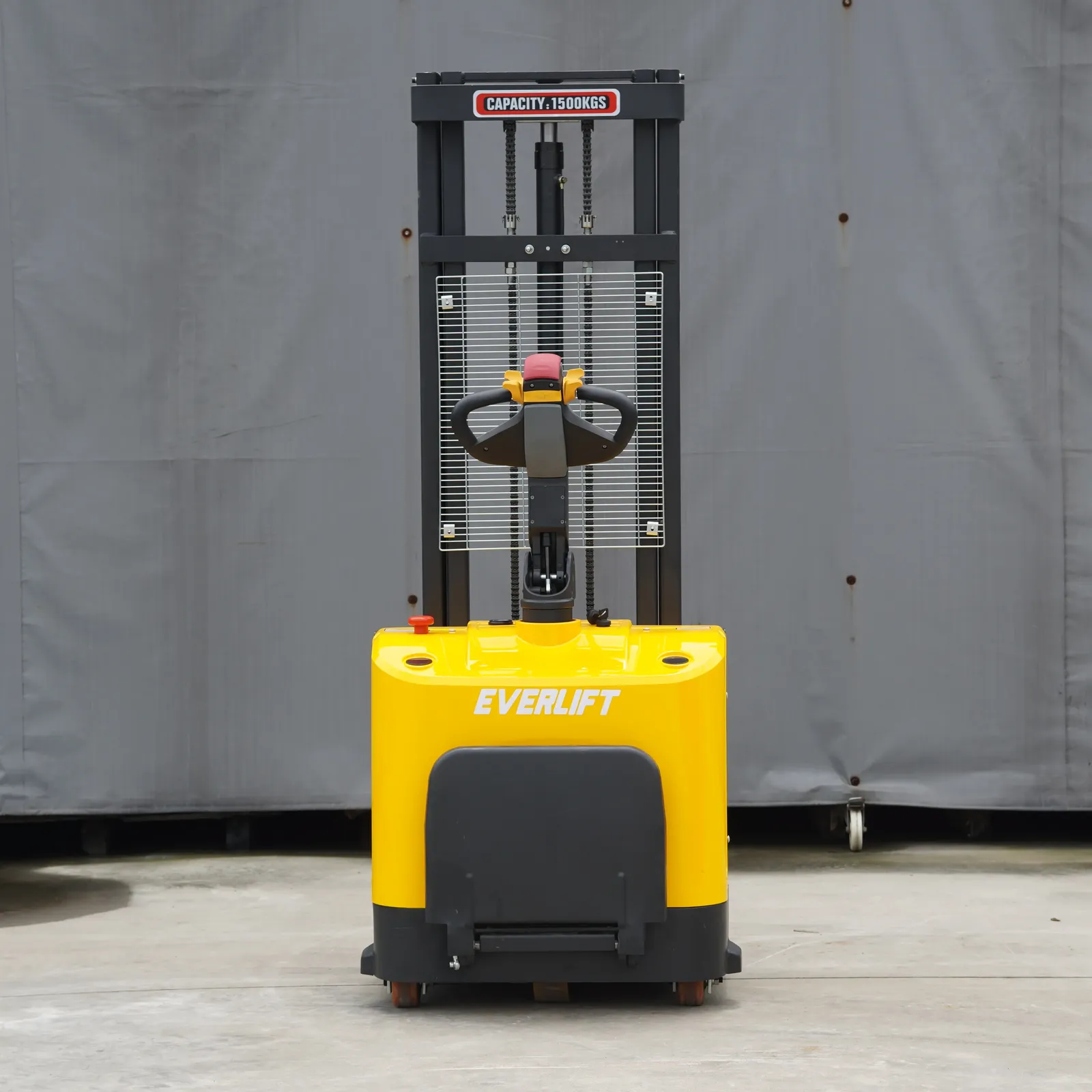

1500 kg Load Capacity: Reliable 1.5 ton electric pallet stacker designed for heavy industrial loading.

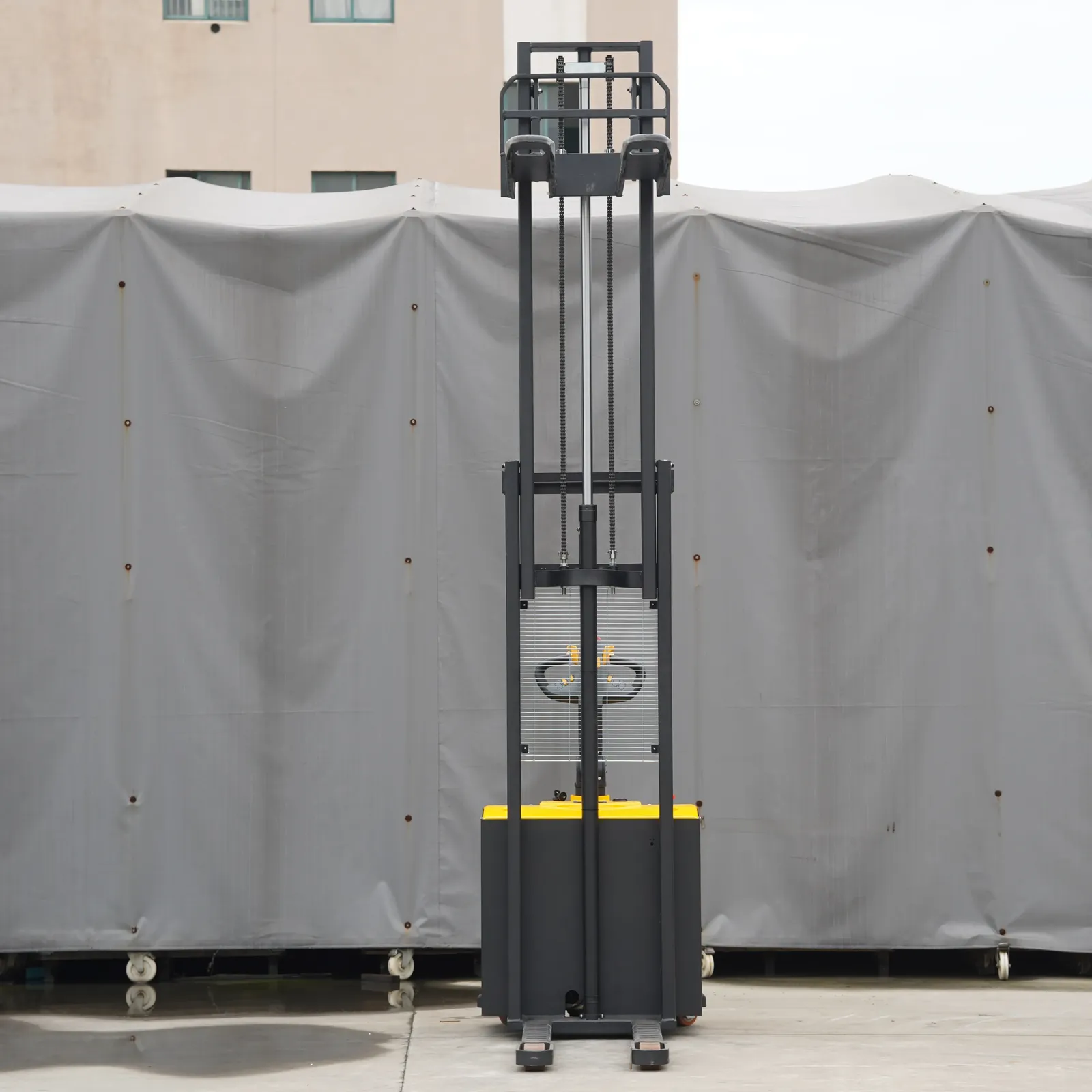

3.5m Max Lift Height: Efficient 3500mm ride-on forklift stacker for high-level racking and storage.

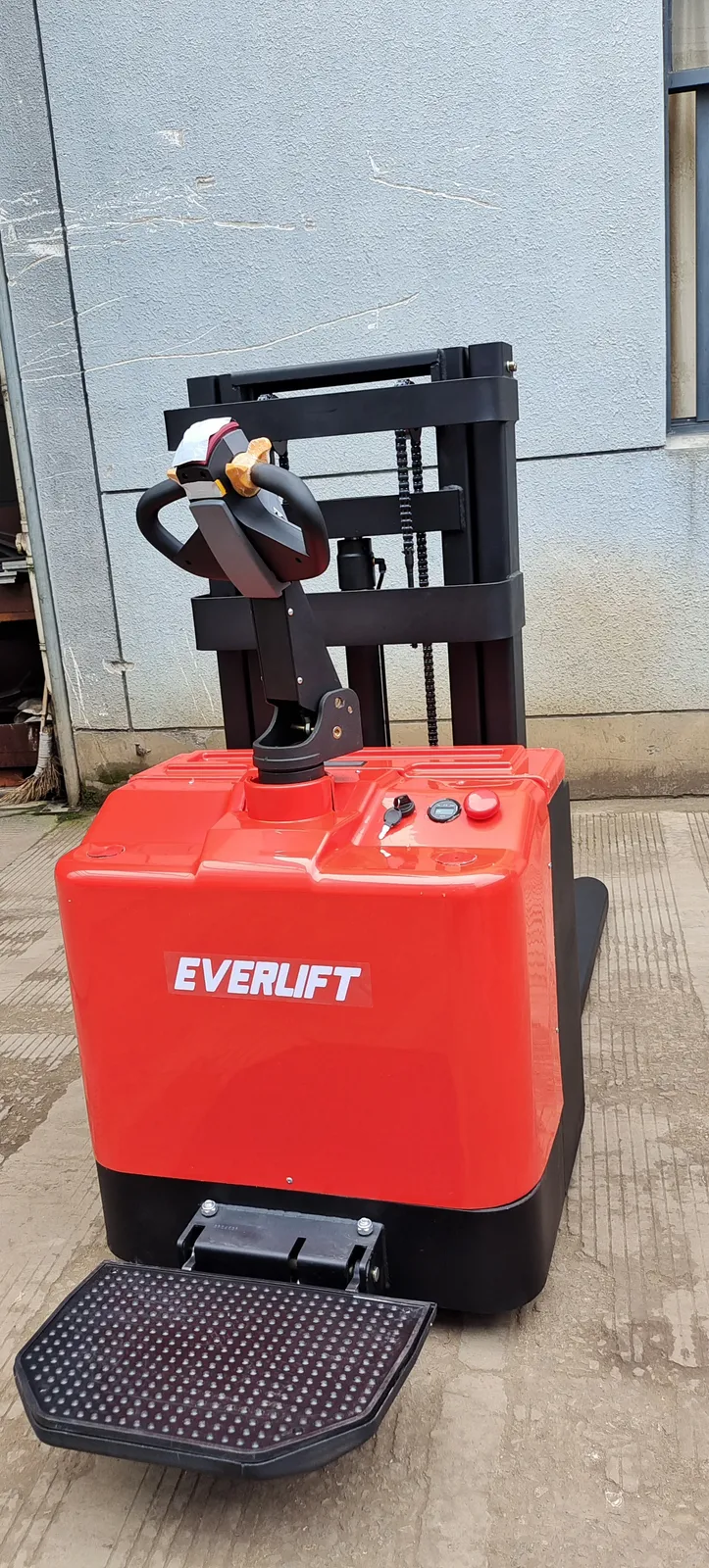

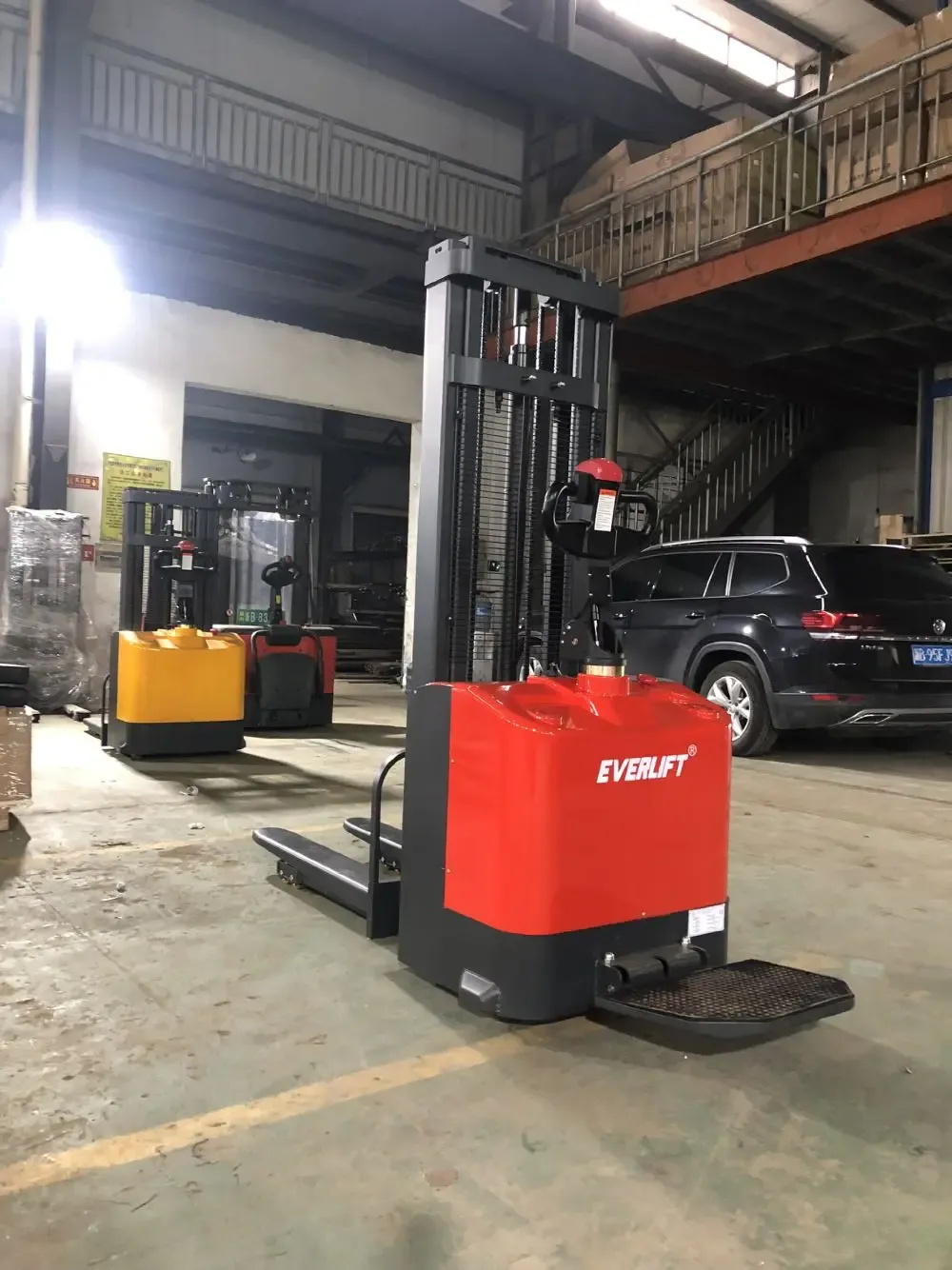

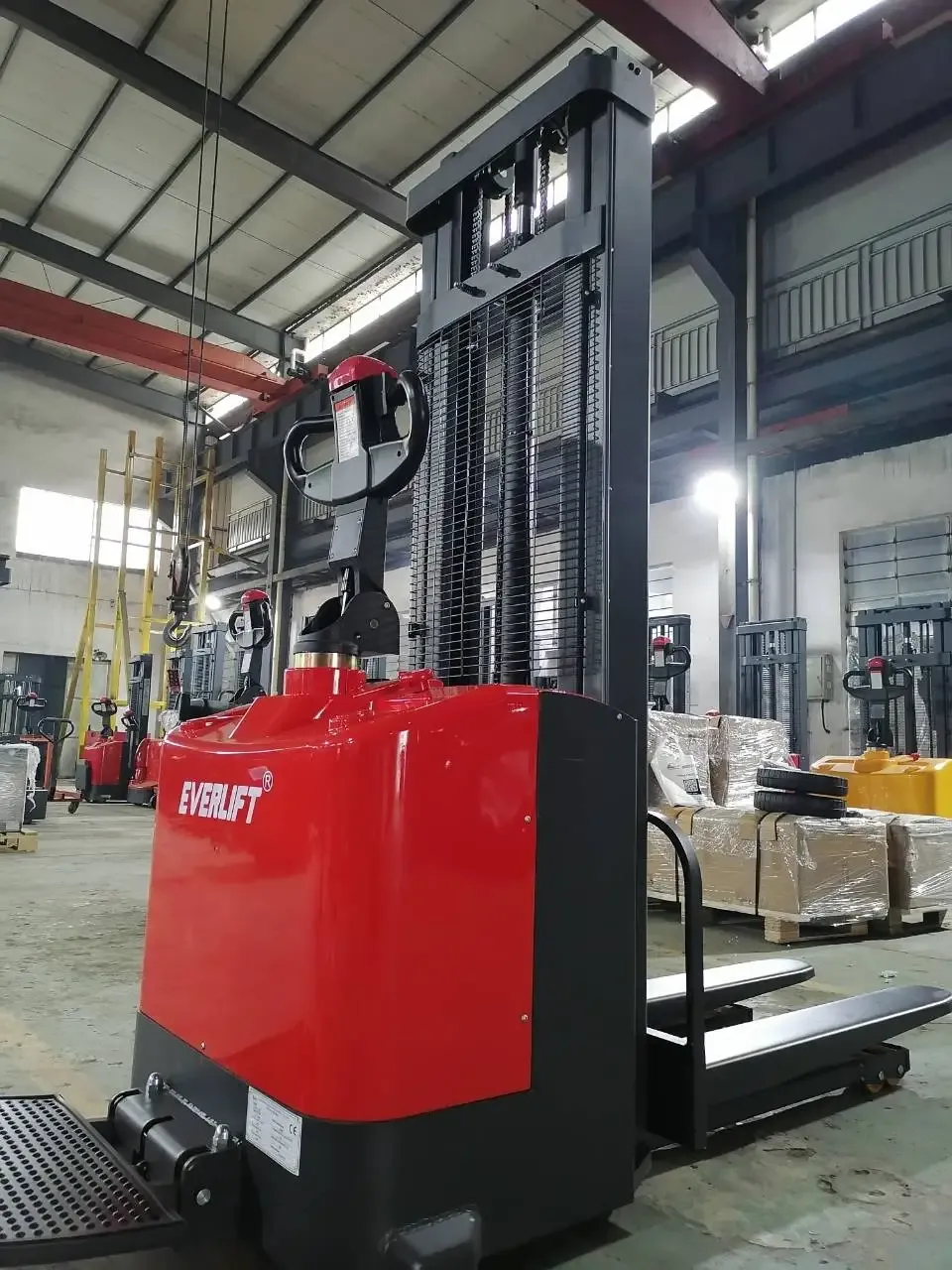

Ergonomic Stand-on Type: Ride-on pallet stacker with foldable platform to reduce operator fatigue.
Powerful 2.2kW Lift Motor: High performance motor ensures fast and stable vertical material handling.
Compact Narrow Aisle Mover: Agile stand-on stacker with 1600mm turning radius for tight spaces.
Reliable 24V Battery Power: Industrial battery powered stacker for consistent and long-lasting work.
Enhanced Safety Braking: Electromagnetic brake system ensures precise and safe stop during operation.
Durable Polyurethane Wheels: Quality PU wheels provide smooth travel and protect warehouse flooring.
720
| Condition | New |
|---|---|
| Fork Specifications( L*W*H) | 1000 × 169 × 54 mm |
| Forklift Battery Type | Lithium-Ion Battery |
| Side Shifter | Hydraulic Side Shifter, Electric Side Shifter |
| Drive Type | Fwd |
| Terrain Adaptability | Indoor Flooring, Offroad, Outdoor Pavement, Rough Terrain, Other |
| Load centre distance | 1600 mm |
| Mast Type | Single-Stage Mast, Three-Stage Mas, Two-Stage Mast |
| Fork Length | 1150 mm, 1220 mm |
| Operating Mode | Standing Operation |
| Forklift Tyre | Polyurethane Tyre |
| Mast Tilt Angle (Forward Tilt-Rear Tilt) | 6-12° |
| Capacity | 1500 kg |
| Tyre | Solid PU |
| Battery | 24V/100Ah |
| Rated Loading Capacity options | 1.5 Ton |
| Truck Type options | Stacker Forklift |
| Max. Lifting Height options | 1 600 mm, 2 000 mm, 2500 mm, 3000mm, 3500 mm |

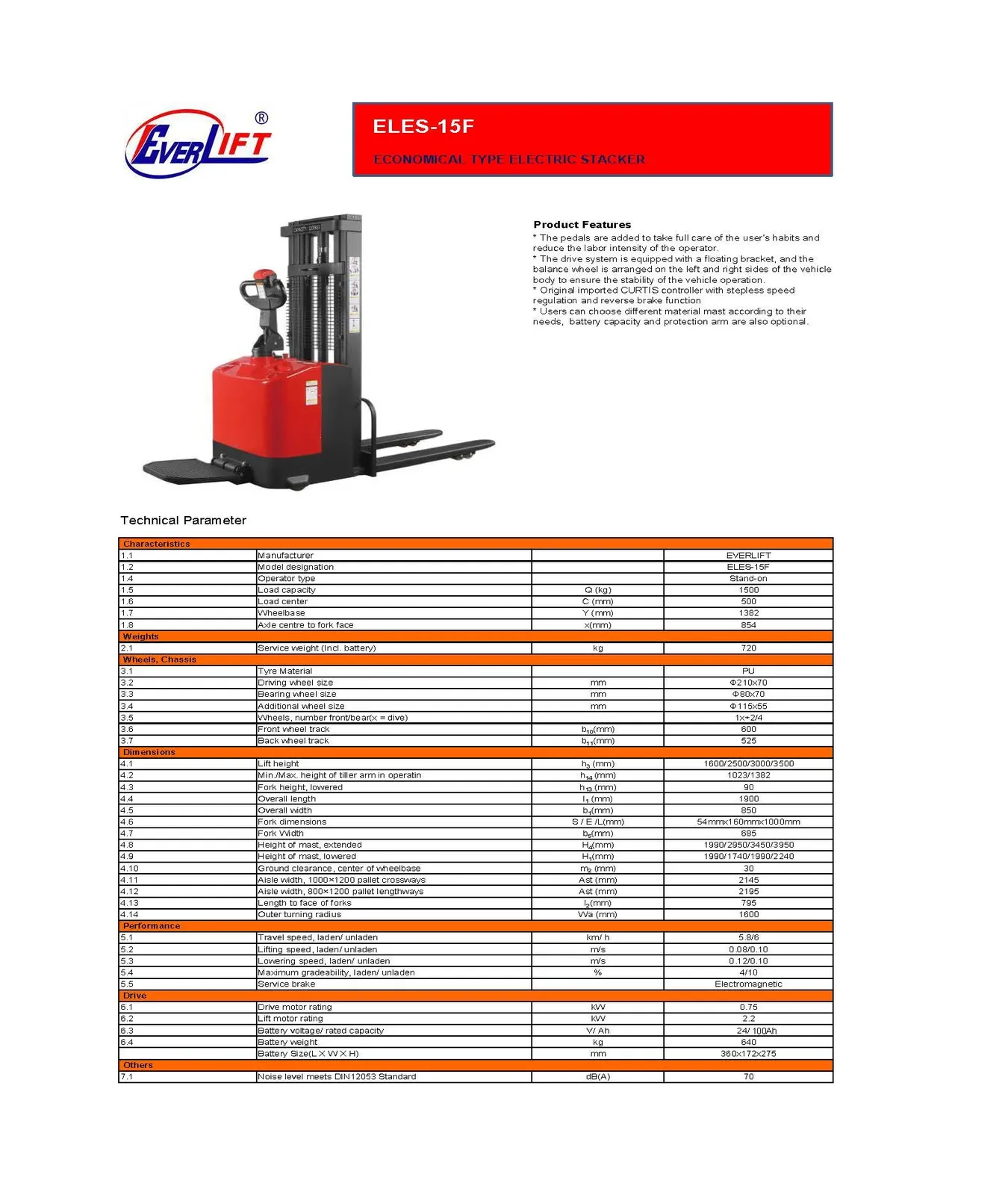

| Manufacturer | ||
|---|---|---|
| Model designation | ELES-15F | |
| Operator type | Stand-on | |
| Load capacity | Q(kg) | 1500 |
| Load centre | C(mm) | 500 |
| Wheelbase | Y(mm) | 1382 |
| Axle centre to fork face | x(mm) | 854 |
| Tyre Material | PU | |
| Driving wheel size | mm | φ210×70 |
| Bearing wheel size | mm | Φ80×70 |
| Additional wheel size | mm | φ115×55 |
| Wheels,number frontbean(x=dive) | 1×+2/4 | |
| Front wheel track | b₁₀ (mm) | 600 |
| Back wheel track | b1(mm) | 525 |
| Lift height | h₃ (mm) | 160D/2500/3000/3500 |

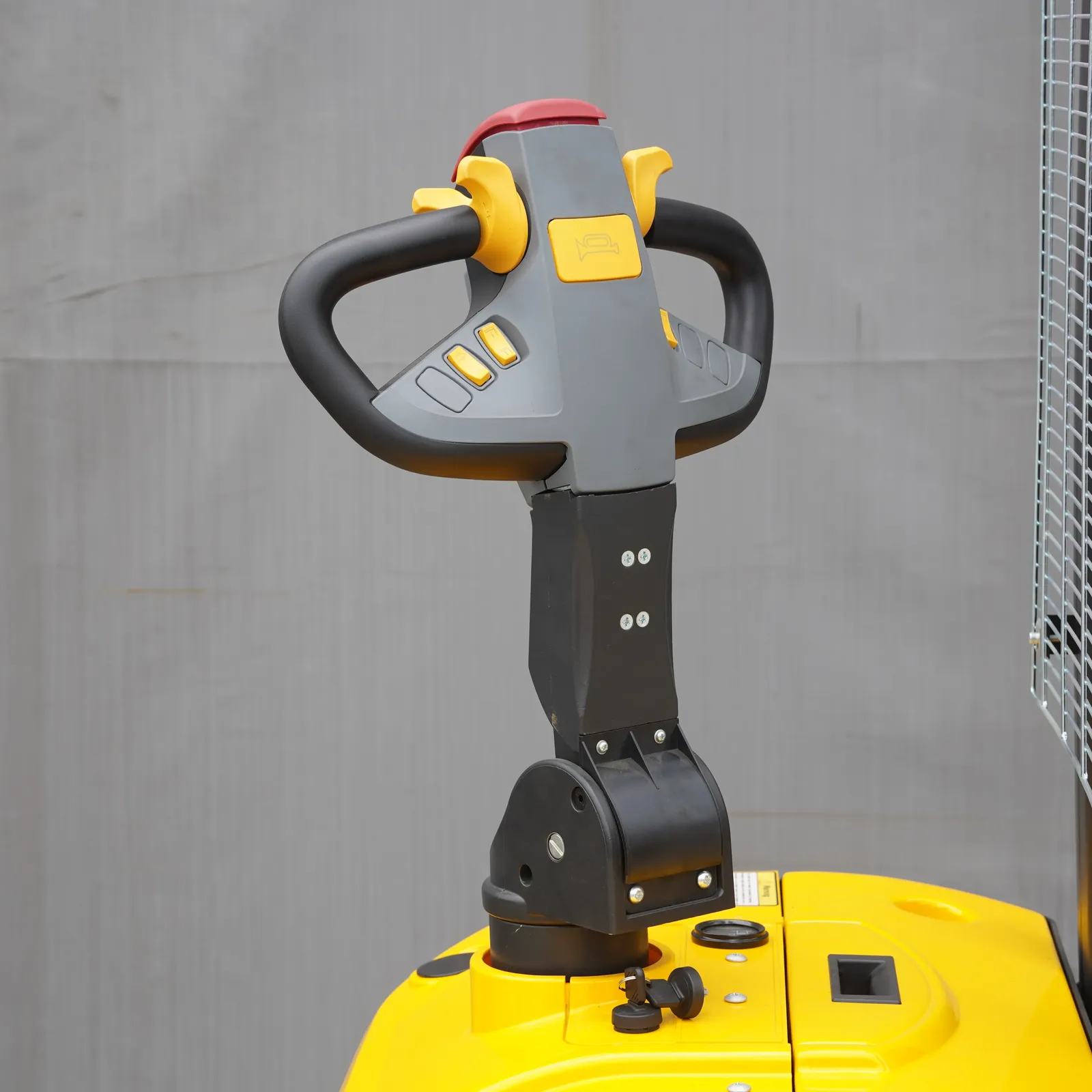

| Min./Max.height of tiller arm in operatin | h₁ (mm) | 1023/1382 |
| Fork height,lowered | h1₃ (mm) | |
| overall length | I₁ (mm) | 1900 |
| overall vidth | b₁ (mm) | 850 |

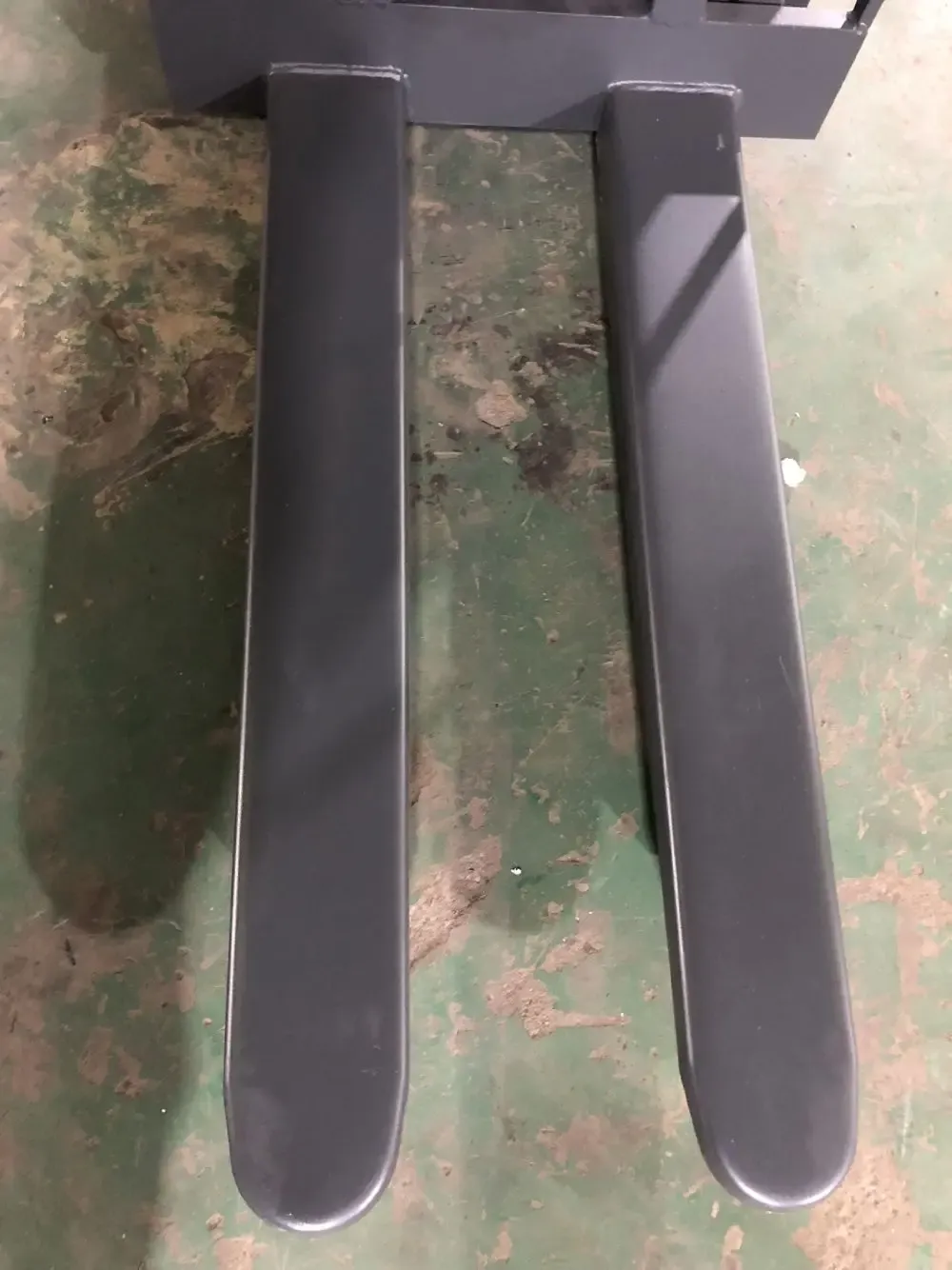

| Fork dimensions | S/E/L(mm) | 54mmx160mmx1000mm |
| Fork Vidth | b₅ (mm) | 685 |
| Height of mast,extended | H₄ (mm) | 1990/2950/3450/3950 |
| Height of mast,Ilowered | H₁ (mm) | 1990/1740/1990/2240 |
| Ground clearance,centre of wheelbase | m(mm) | |
| Aisle width,1000×1200 pallet crossways | Ast(mm) | 2145 |
| Aisle width,800×1200 pallet lengthways | Ast(mm) | 2195 |
| Length to face of forks | l₂ (mm) | 795 |
| outer turning radius | Wa(mm) | 1600 |
| Travel speed,laden/unladen | km/h | 5.8/6 |
| Lifting speed,laden/unladen | ms | 0.08/0.10 |
| Lowering speed,laden/unladen | ms | 0.12/0.10 |
| Maximum gradeability,laden/unladen | % | 4-10 |
| Drive motor rating | KW | 0.75 |
| Lift motor rating | kW | 2.2 |
| Battery voltage/rated capacity | V/Ah | 24/100Ah |
| Battery weight | kg | 640 |
| Battery Size(L×W×H) | mm | 360×172×275 |
Spare parts for this model
Pallet truck and stacker load rollers, 80 x 70 mm polyurethane, set of 4from £41 per set ex VAT
Electric stacker stabiliser wheel, 115 x 55 mm polyurethanefrom £23 per wheel ex VAT
Electric pallet truck charger, 48 V lithium, 5 Afrom £79 per charger ex VAT · check your battery first
Electric pallet truck and stacker drive wheel, 210 x 70 mm polyurethane, ring typefrom £41 per wheel ex VAT · check the hub first
Stacker mast lift chain, leaf chain cut to length, per metrefrom £22 per metre ex VAT · check your old part first
Electric pallet truck and stacker horn, 24 V or 48 V, 100 dBfrom £14 per horn ex VAT · check your old part first
Electric stacker and pallet truck lowering valve, 08 size normally closed cartridgefrom £32 per valve cartridge ex VAT · check your old part first
All spare parts. Send the model and the part you need if it is not listed.
