Electric Stacker
Stand-on Ride-on Electric Pallet Stacker, 1.5 t
1.5 tLithium-ionForks 1150 to 1220 mm
from£1,645per unit, ex VAT
Electric Pallet Stackers · Ref LPT-66027
1.5Ton 1.6Ton 2.0Ton Lithium-Ion Battery Electric Pallet Stacker
1.5 to 2 tLithium-ionForks 1150 to 1220 mm
marked
markedfrom£1,645per unit, ex VAT
Get a quote, reply in 2 hours
- 12-month warranty

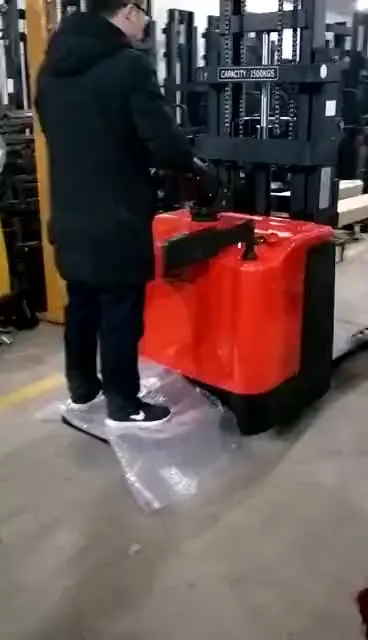

- Photos and video before it ships
- No online payment, nothing is charged
Any quantity is welcome. Your price depends on the quantity and is confirmed on your written quote. Prices in GBP per unit, ex VAT. We convert the factory list at a buffered exchange rate, so normal day-to-day currency movement does not change the price you see. Your written quote adds freight, duty and VAT and is valid for 30 days.
Max. Lifting Height4000 mm
Truck TypeElectric Stacker
Line total
Nothing is sent yet: add the products you need, then send your quote request. We reply within 2 hours, Monday to Friday, 9am to 5pm.
Or email sales@londonpallettrucks.co.ukProduct Highlights
Heavy‑duty welded steel frame. The electric pallet stacker body is treated with anti‑corrosion pretreatment and electrostatic powder coating for long‑term service in humid warehouse environments.
Equipped with maintenance‑free AC drive motor, low‑noise hydraulic unit, leak‑proof seals, polyurethane wheels and electromagnetic brake, this electric stacker delivers smooth operation and precise control.

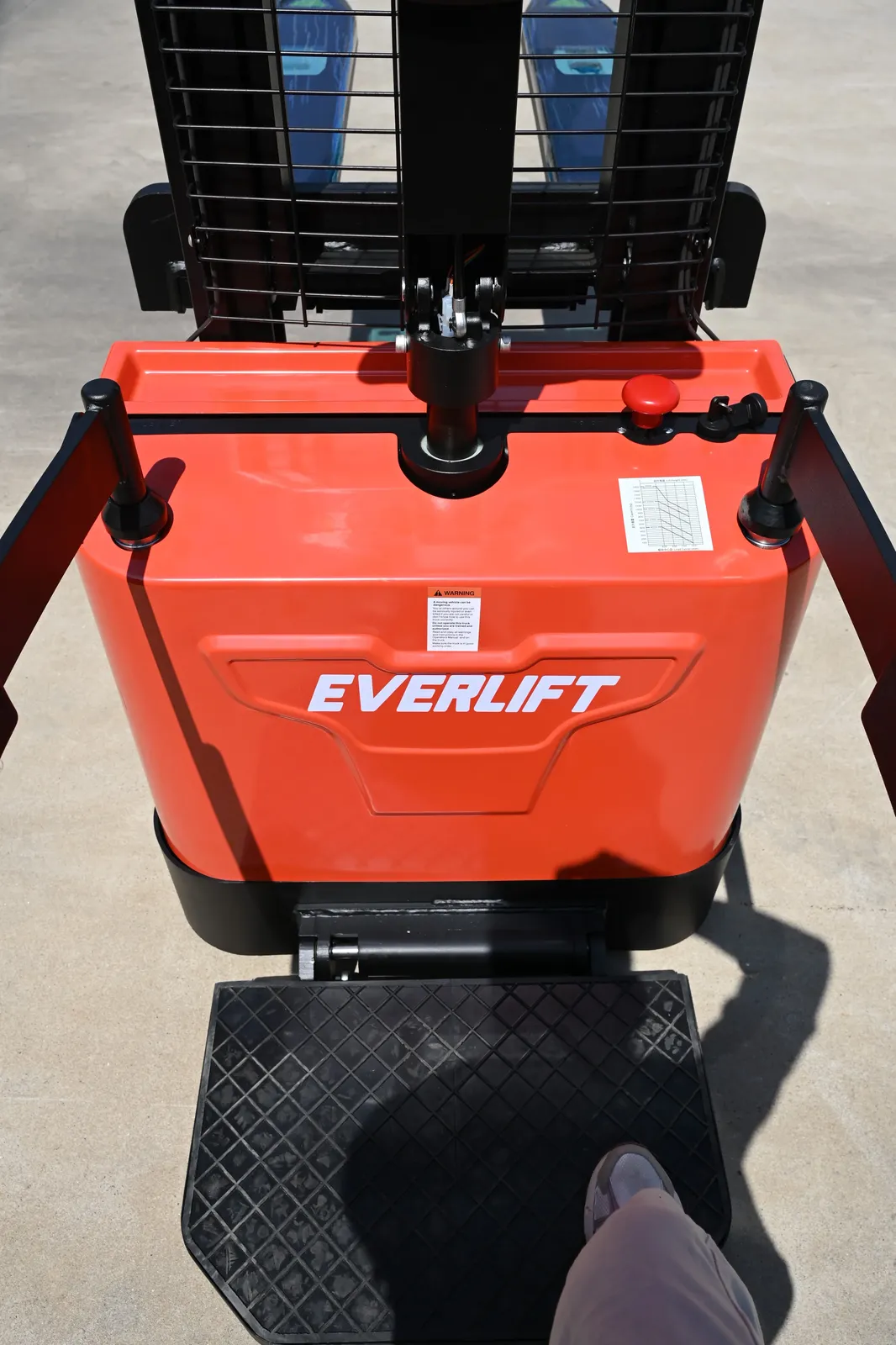

It features emergency stop button, lifting limit switch and low‑voltage protection. Materials comply with REACH and RoHS substance control standards. Optional explosion‑proof configuration is available for special work sites.
Rated capacity: 1500 kg for ELES‑15F, 1600 kg for ELES‑16F, 2000 kg for ELES‑20F. Travel speed: 5 km/h; compact turning radius for narrow‑aisle operation.
48 V lead‑acid battery or lithium battery optional. The lithium‑battery version supports opportunity charging and 2‑3 hours fast charging to full capacity, meeting full‑shift operation with low running noise.
Suitable for flat concrete or epoxy floors in indoor warehouses, workshops and docks. Compatible with 1200×1000 mm pallets. Adjustable forks and optional attachments are available for handling various goods.
Pain point: Manual lifting slows down goods flow and increases labour costs. Solution: Only one operator is required to drive this stacker to independently complete pallet lifting, transporting and racking, saving working hours and reducing labour burden.
Pain point: Insufficient racking height and narrow aisles result in waste of vertical space. Solution: This electric stacker can stack loads up to 4 metres layer by layer in tight aisles to improve storage density.
Certified with ISO9001 quality system and CE documentation. Supplied by an experienced stacker manufacturer.
48V/60AH
48V/65AH
| Condition | New |
|---|---|
| Fork Specifications( L*W*H) | 550 × 1150 × 85 mm, 685 × 1220 × 85 mm |
| Forklift Battery Type | Lithium-Ion Battery |
| Side Shifter | Hydraulic Side Shifter |
| Drive Type | 4Wd |
| Terrain Adaptability | Indoor Flooring, Outdoor Pavement |
| Load centre distance | 600 mm |
| Mast Type | Three-Stage Mas, Two-Stage Mast |
| Forklift Turning radius | 1393mm |
| Fork Width | 550mm, 685mm |
| Fork Length | 1150 mm, 1220 mm |
| Operating Mode | Standing Operation |
| Forklift Tyre | Polyurethane Tyre |
| Travel speed ( laden) | 4.8 km/h, 5.5 Km/h |
| Grade ability laden) | 0.06 |
| Travel speed ( unladen) | 4.8 km/h, 5.5c km/h |
| Grade abilityunladen) | 0.1 |
| Forklift Wheelbase | 1145mm |
| Mast Tilt Angle (Forward Tilt-Rear Tilt) | 6-12° |
| Aisle width | 550mm |
| Battery voltage (V/AH) | 48V/60AH, 48V/65AH |
| Fork height,lowered | 83-205mm |
| Capacity | 1.5/1.6/2.0 Ton |
| Battery | 48V/60AH 48V/65AH |
| Wheels | Polyurethane |
| Fork Size | 550*1150/685*1220mm |
| Max. Lifting Height options | 4000 mm |
| Truck Type options | Electric Stacker |
| Rated Loading Capacity options | 1.5 Ton, 1.6 Ton, 2 Ton |
| Certificate | Number | Valid |
|---|---|---|
| 2006/42/EC | M.2026.206.C137529 | 30/03/2026 - 29/03/2031 |
| CE | M.2026.206.C134736 | 04/02/2026 - 03/02/2031 |
| CE | 3N251031.NEMS093 | 30/10/2025 - 29/10/2030 |
| EAC | 22/10/2023 - 22/10/2028 | |
| CE | M.2023.206.C83216 | 22/03/2023 - 21/03/2028 |
| CE | M.2023.206.C83215 | 22/03/2023 - 21/03/2028 |
| CE | M.2023.206.C83222 | 22/03/2023 - 21/03/2028 |
| CE | M.2023.206.C83221 | 22/03/2023 - 21/03/2028 |
Certificates are supplied with your quote on request.
Spare parts for this model
Electric pallet truck and stacker emergency stop switch, 125 Afrom £19 per unit ex VAT · check the fit first
Stacker mast lift chain, leaf chain cut to length, per metrefrom £22 per metre ex VAT · check your old part first
Electric pallet truck and stacker horn, 24 V or 48 V, 100 dBfrom £14 per horn ex VAT · check your old part first
Electric pallet truck and stacker tiller gas spring, 156 mm, 600 Nfrom £23 per gas spring ex VAT · check the fixing first
Electric stacker and pallet truck lowering valve, 08 size normally closed cartridgefrom £32 per valve cartridge ex VAT · check your old part first
All spare parts. Send the model and the part you need if it is not listed.
