Electric Pallet Stackers · Ref LPT-72153

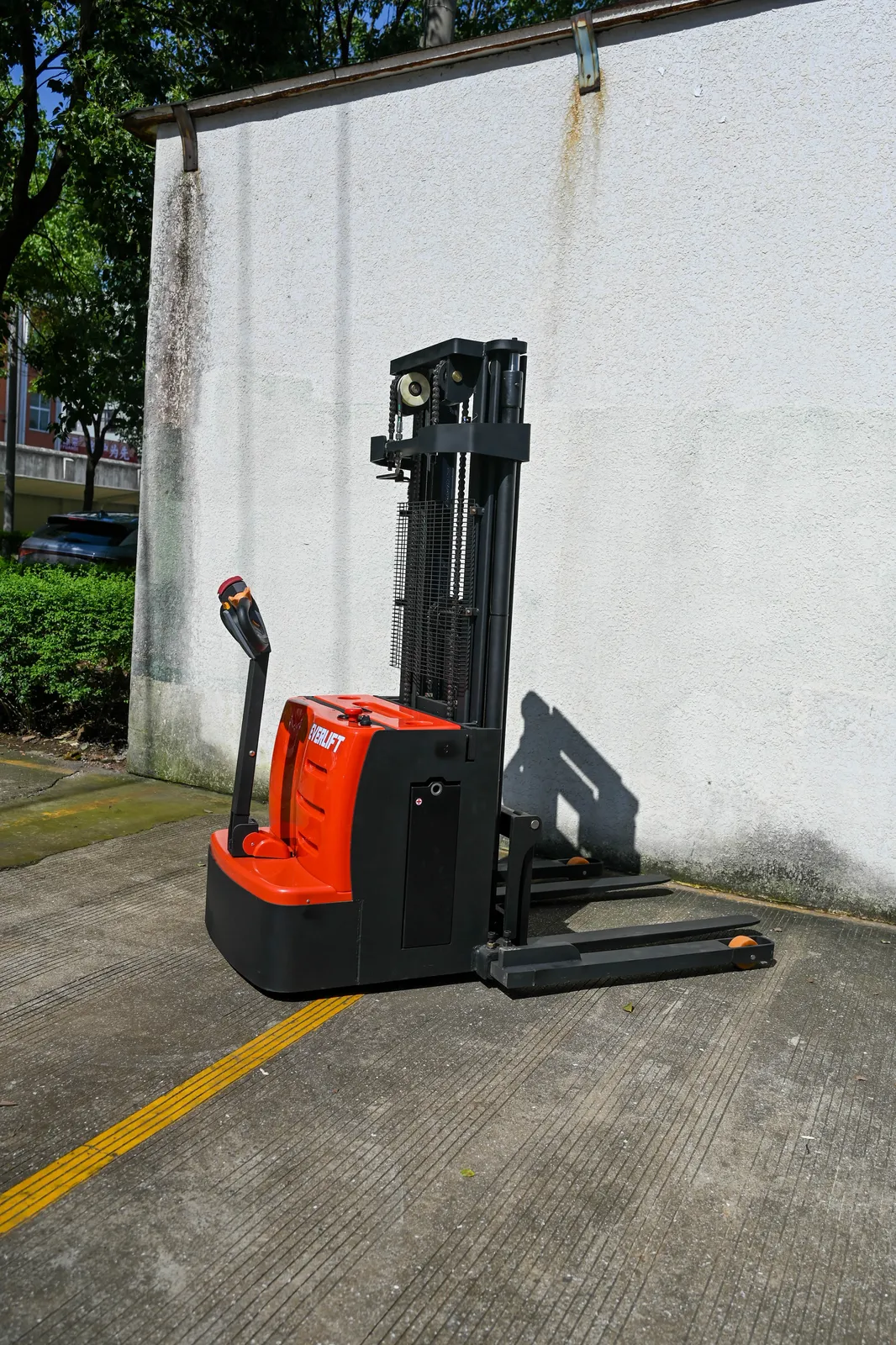

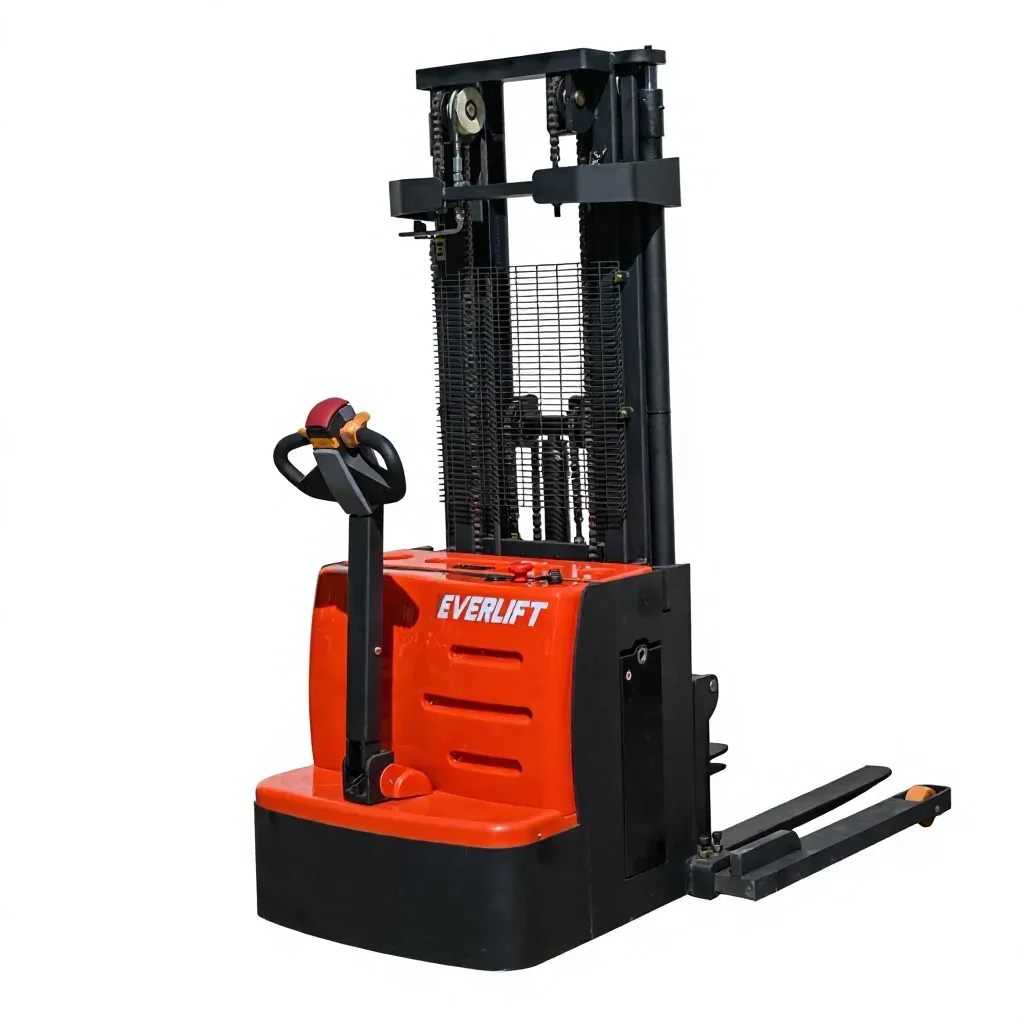

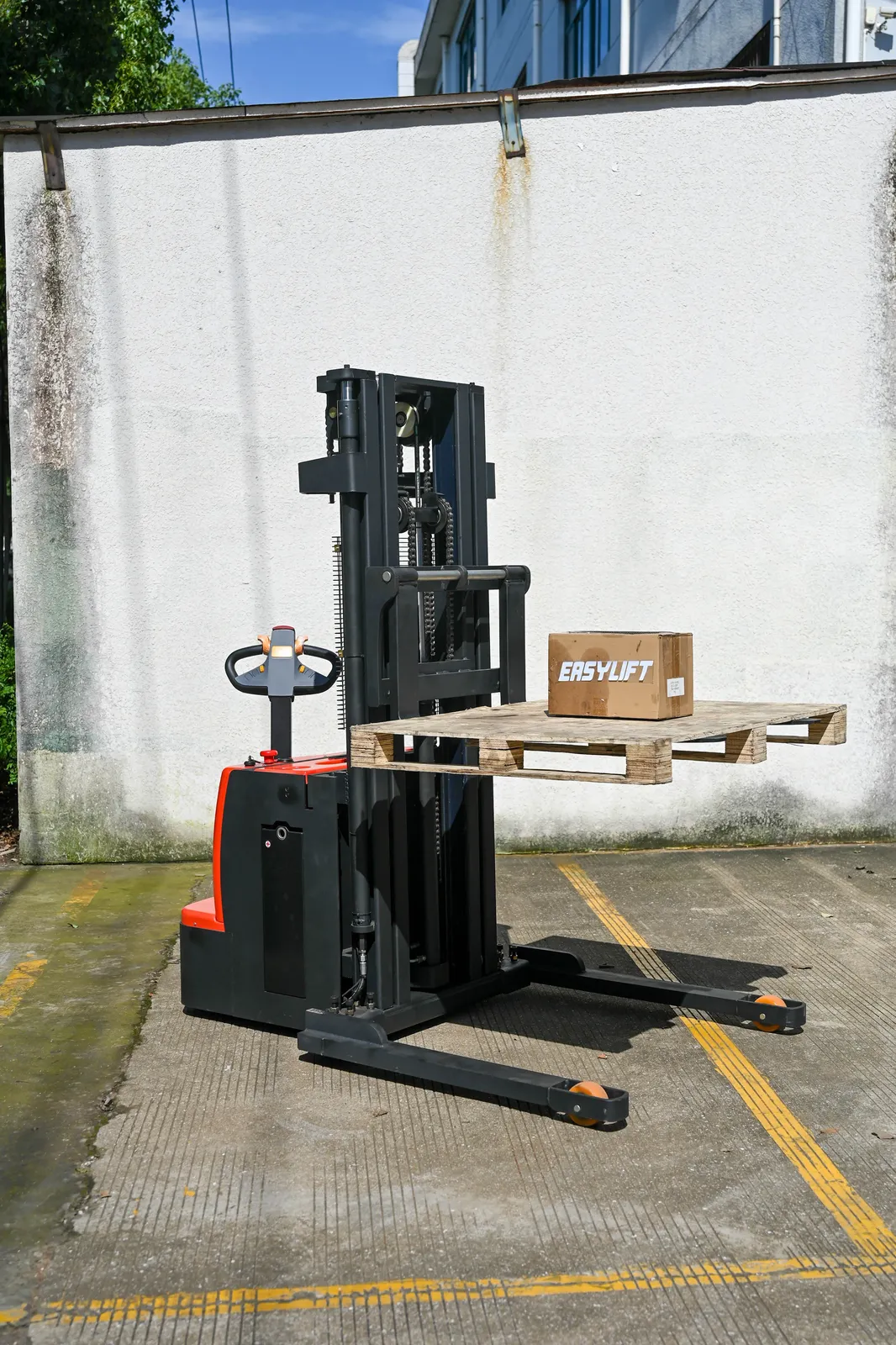

Electric Pallet Stacker, Triplex Mast, 1.2 to 2 t
1.2 to 2 tLithium-ionForks 1150 to 1220 mm marked
markedfrom£1,210per unit, ex VAT
Get a quote, reply in 2 hours
- 12-month warranty
- Photos and video before it ships
- No online payment, nothing is charged
Any quantity is welcome. Your price depends on the quantity and is confirmed on your written quote. Prices in GBP per unit, ex VAT. We convert the factory list at a buffered exchange rate, so normal day-to-day currency movement does not change the price you see. Your written quote adds freight, duty and VAT and is valid for 30 days.
Truck TypeStacker Forklift
Line total
Nothing is sent yet: add the products you need, then send your quote request. We reply within 2 hours, Monday to Friday, 9am to 5pm.
Or email sales@londonpallettrucks.co.ukELES-12/15/20E 1.2-2 Ton Triplex Mast Electric Stacker 1.6-5m Full Free Lift Forklift for Container Warehouse
1500 kg Load Capacity: Heavy duty 1.5 ton electric pallet stacker designed for intensive warehouse task.

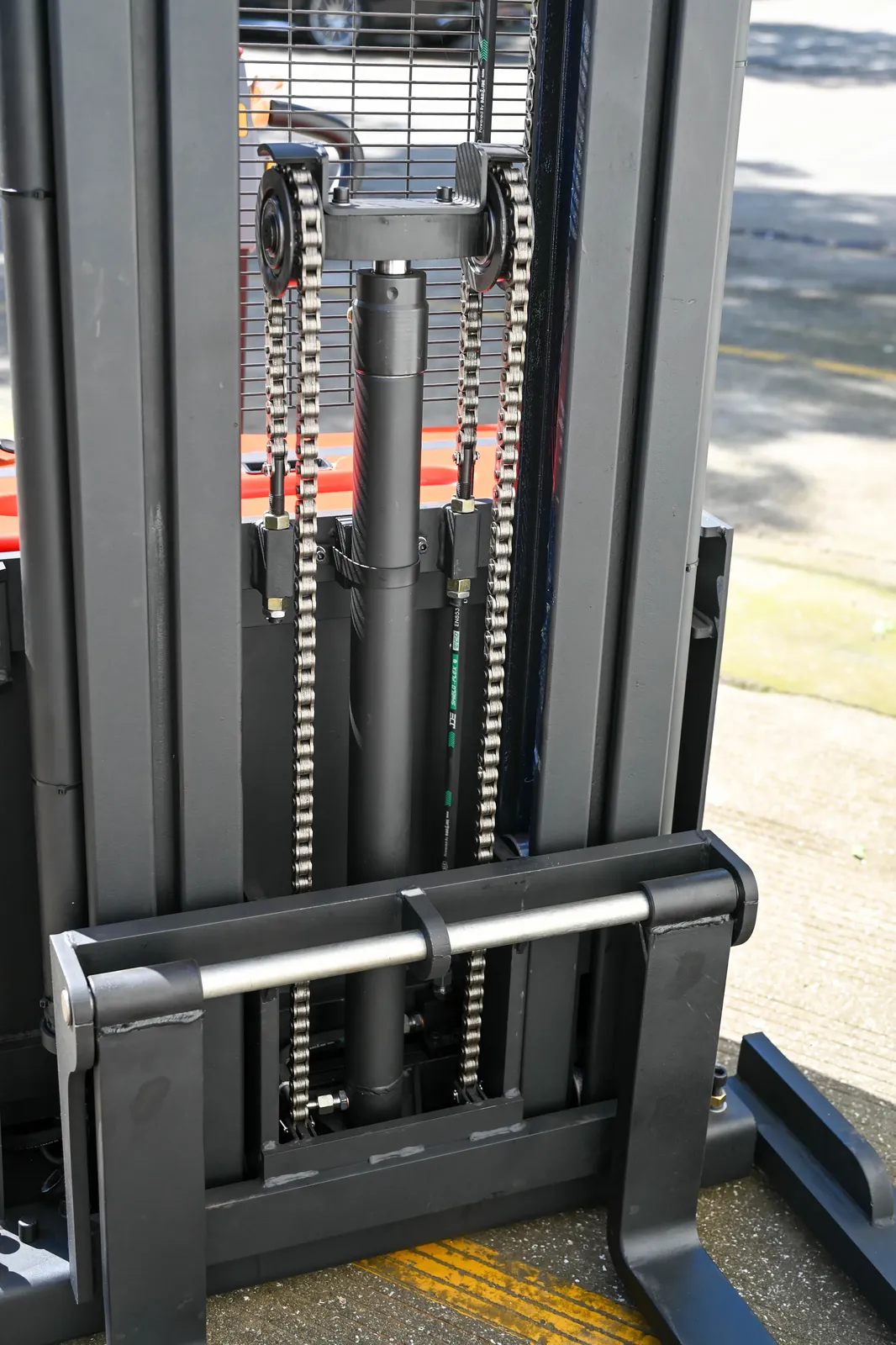

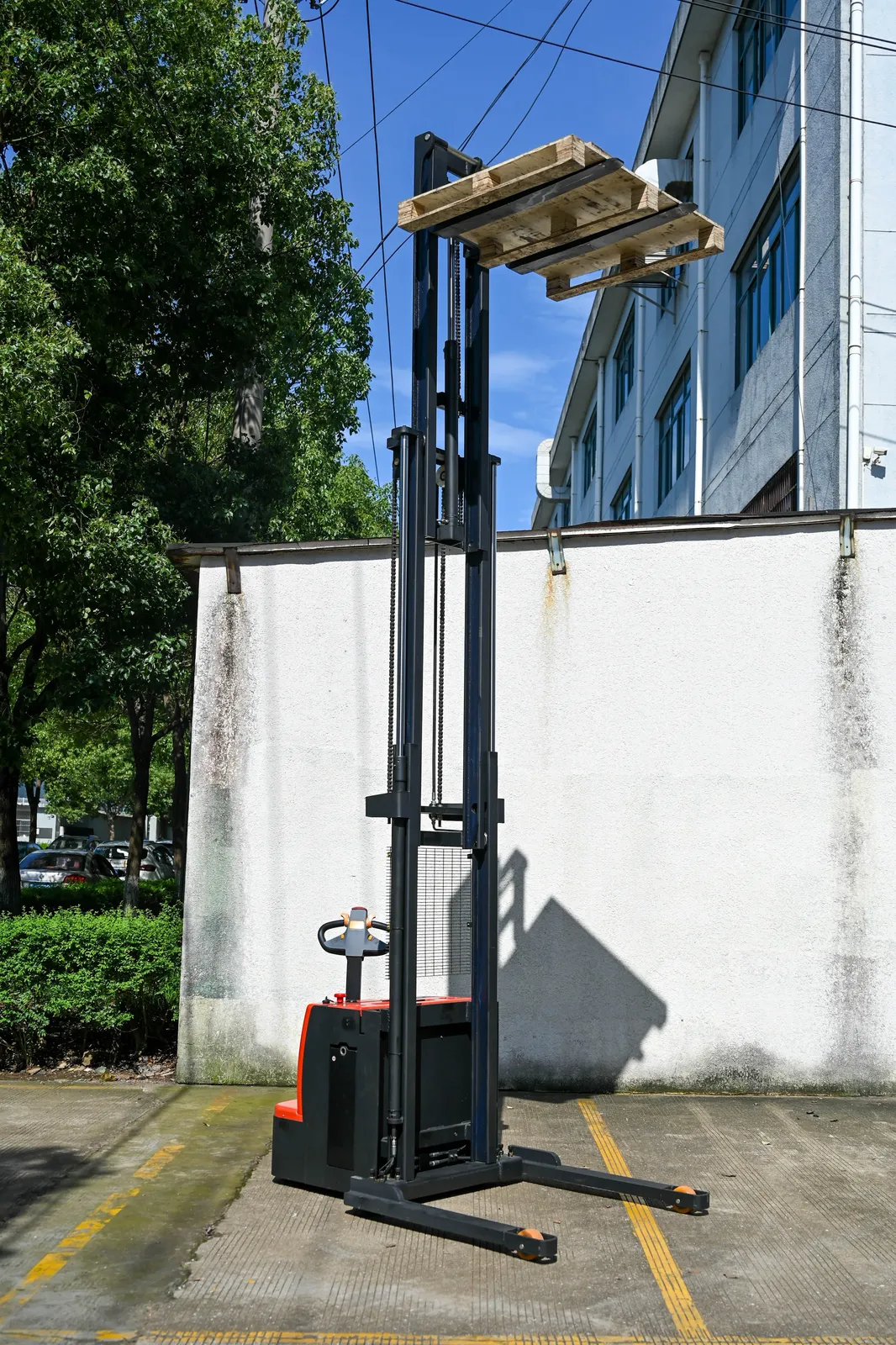

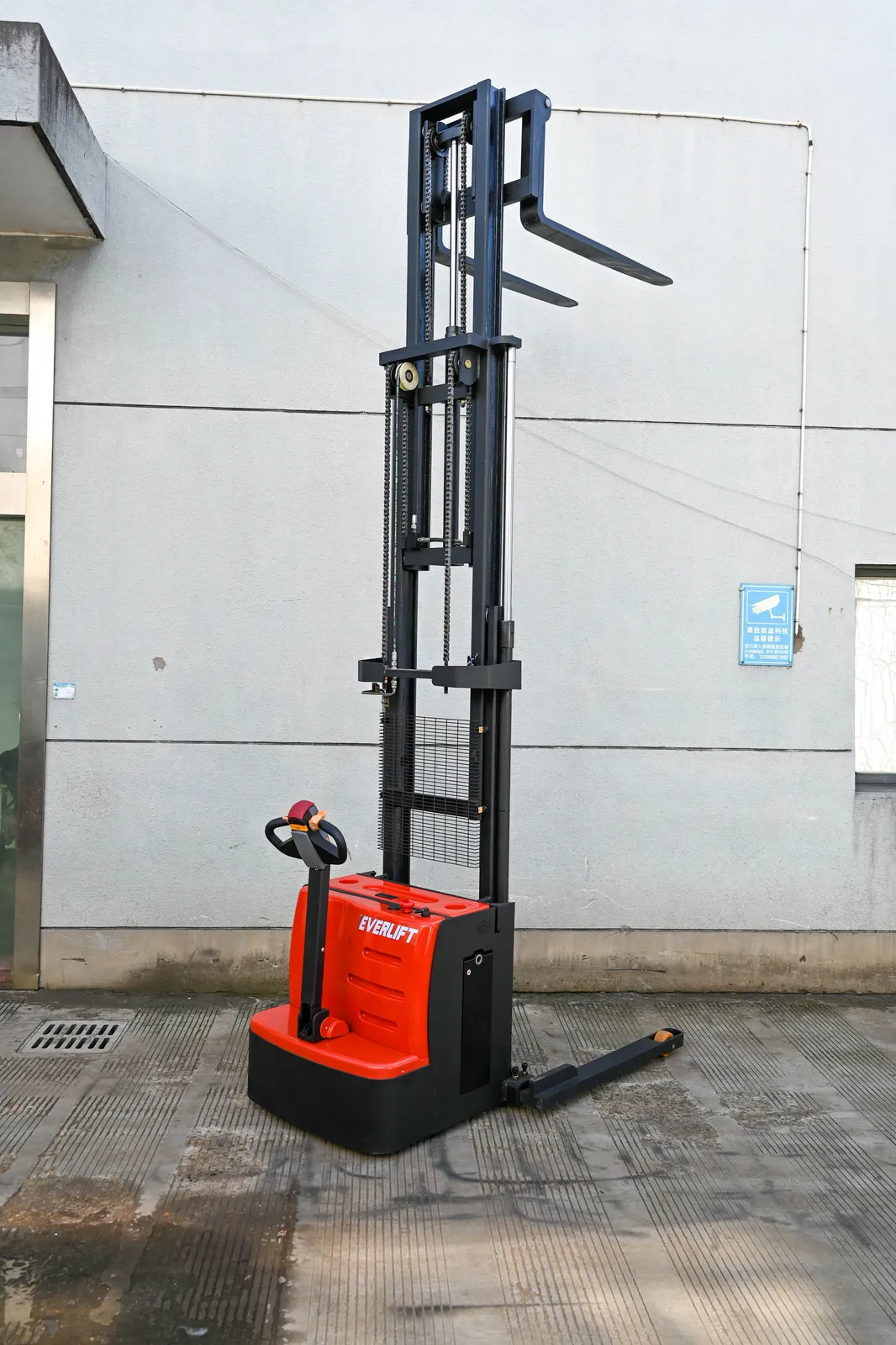

4.5m Triplex Mast: Professional 4500mm 3-stage mast pallet stacker for high-level racking storage.
Full Free Lift Height: Triplex mast stacker allows 1550mm free lift for low ceiling container entry.
Compact Narrow Aisle Mover: Agile electric stacker with 1750mm radius for tight space material handling.

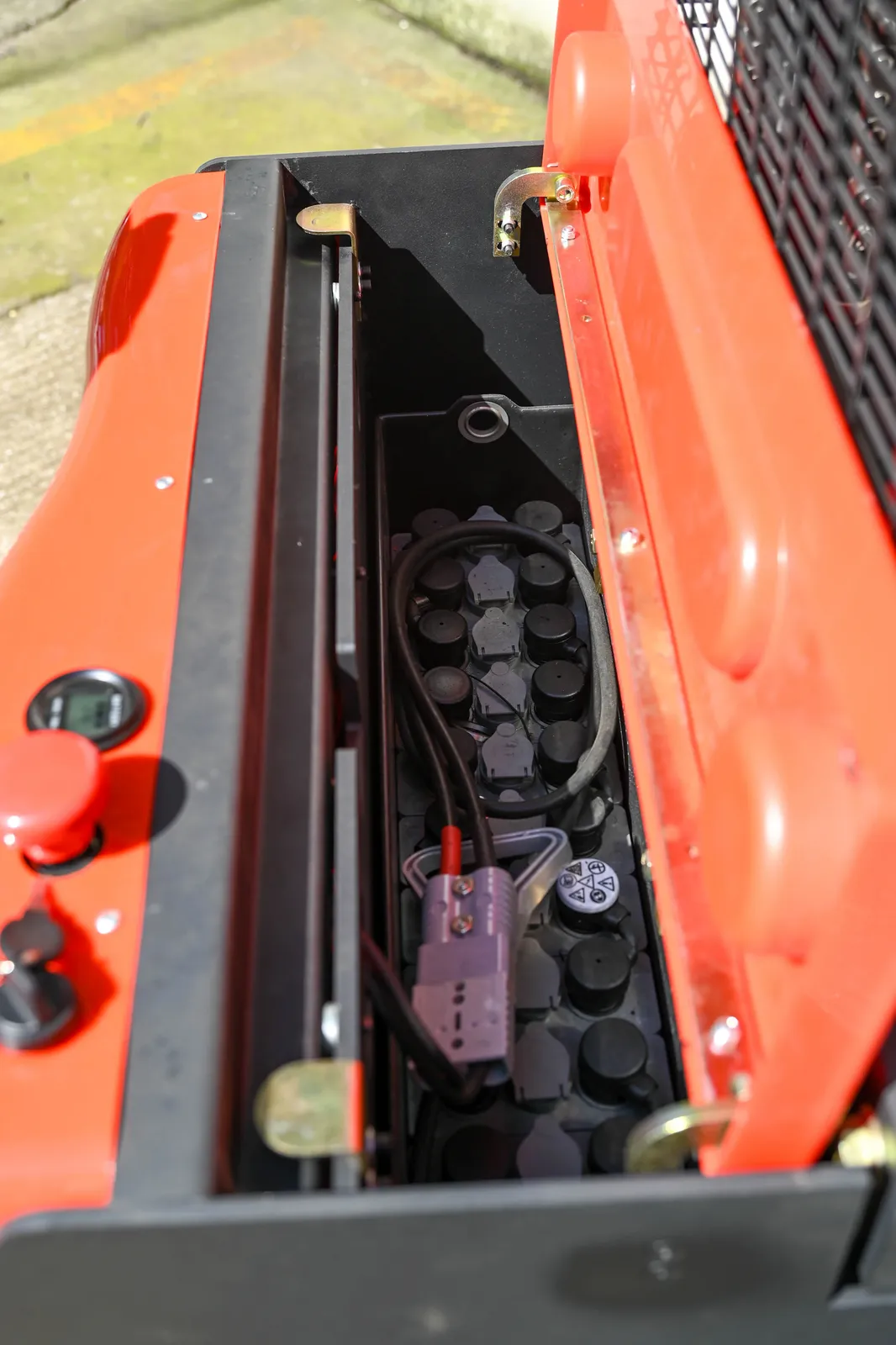

Durable Battery Power: Industrial battery powered stacker ensures reliable and long-lasting daily operation.

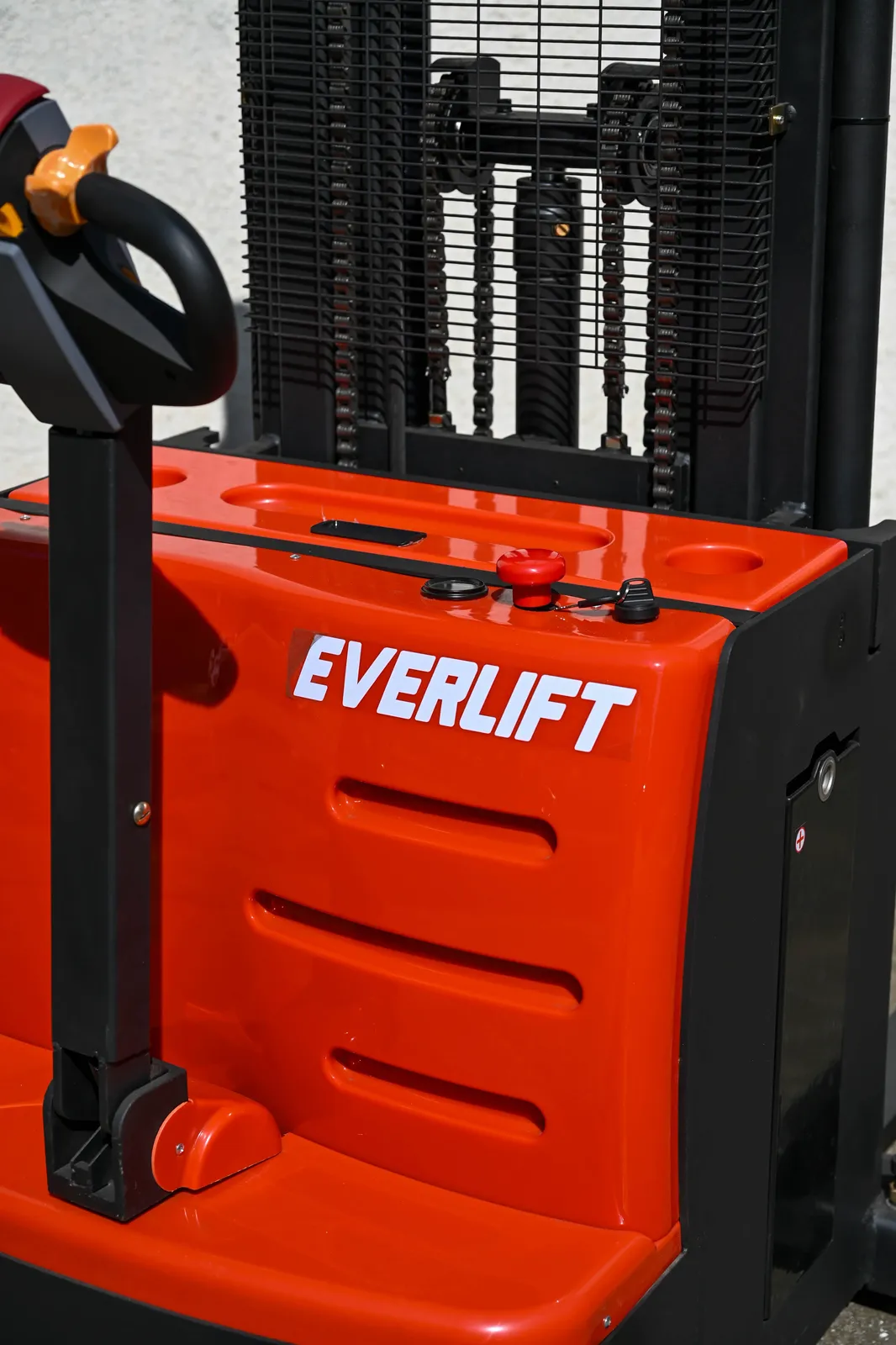

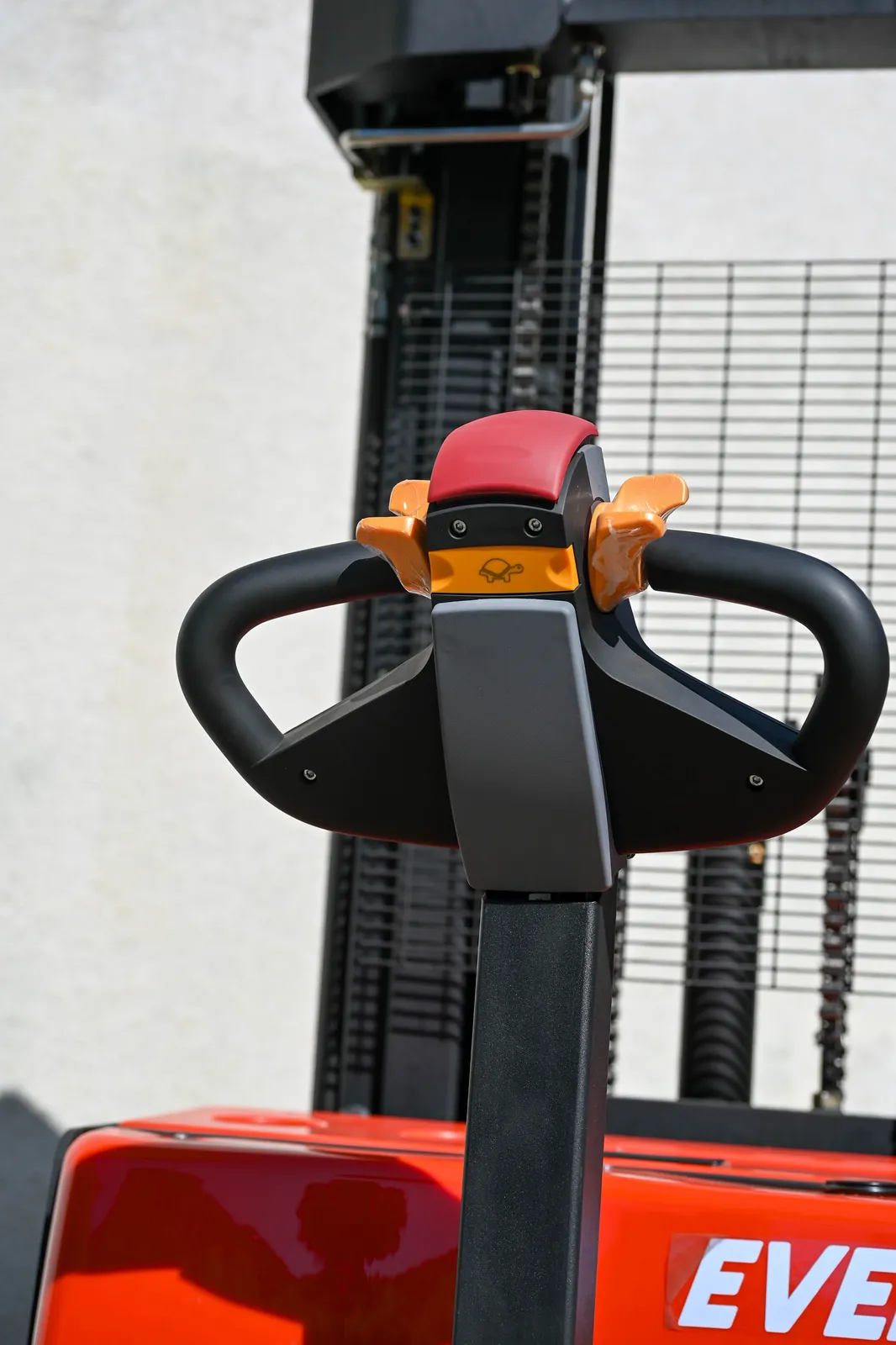

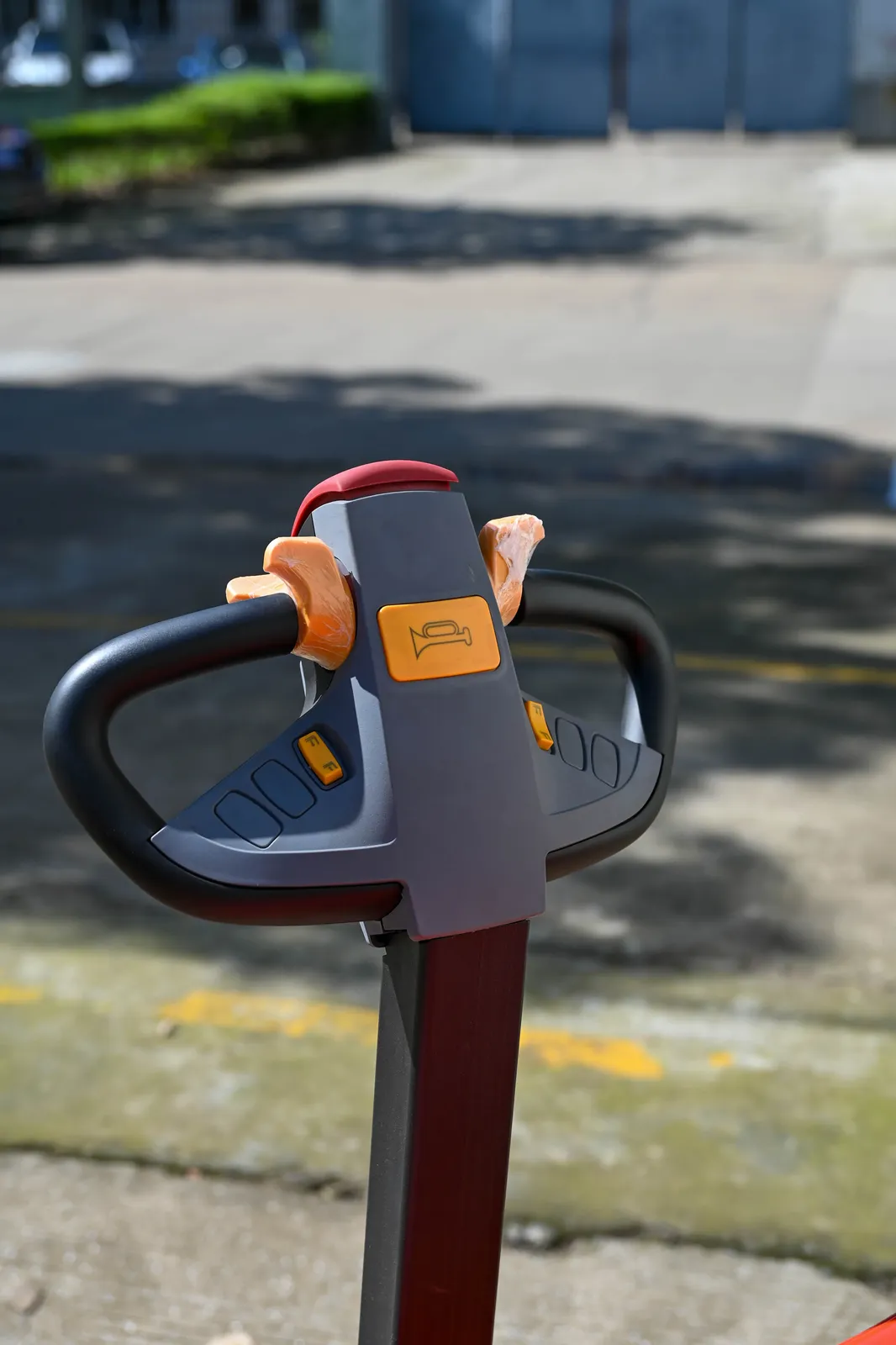

Ergonomic Handle Control: Smart walkie electric stacker with easy steering for effortless cargo transport.

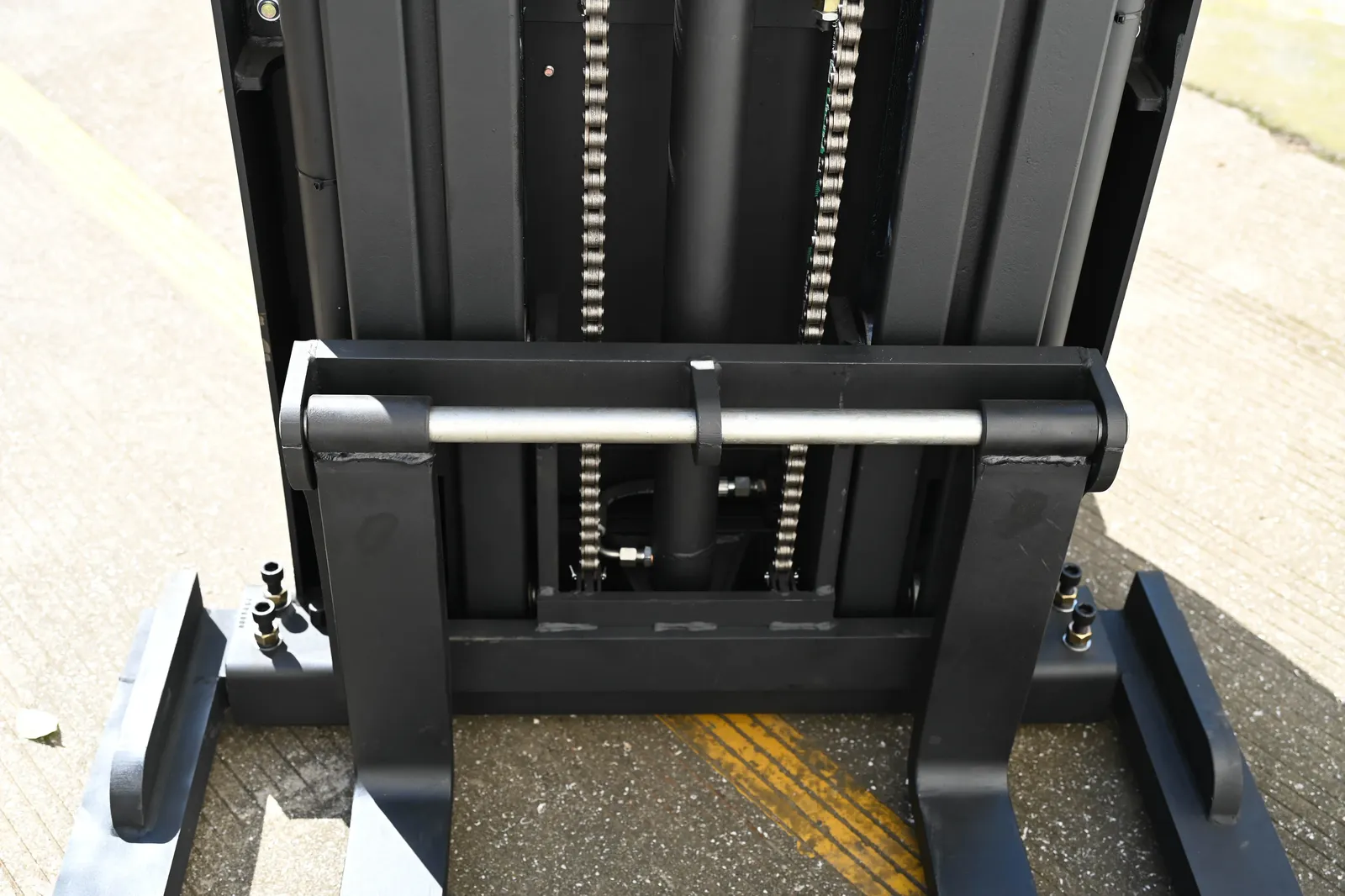

Stable Stacking Performance: Reinforced 3-stage mast ensures safety for the 4.5 metre vertical handling.
Efficient Logistics Solution: Full electric powered stacker boosts productivity in modern logistic centres.
Lowering speed,with/without
| Condition | New |
|---|---|
| Fork Specifications( L*W*H) | 1150 × 550 × 80 mm |
| Forklift Battery Type | Lithium-Ion Battery |
| Side Shifter | Electric Side Shifter, Hydraulic Side Shifter |
| Drive Type | Fwd |
| Terrain Adaptability | Indoor Flooring, Offroad, Outdoor Pavement, Rough Terrain, Other |
| Load centre distance | 500 mm, 600 mm |
| Mast Type | Three-Stage Mas, Single-Stage Mast, Two-Stage Mast |
| Fork Length | 1220 mm, 1150 mm |
| Operating Mode | Standing Operation |
| Forklift Tyre | Polyurethane Tyre |
| Mast Tilt Angle (Forward Tilt-Rear Tilt) | 6-12° |
| Tyre | Solid PU |
| Battery | Lithium Iron Phosphate Battery |
| Rated Loading Capacity options | 1.5 Ton, 1.2 Ton, 2 Ton |
| Truck Type options | Stacker Forklift |
| Max. Lifting Height options | 2 000 mm, 3000mm, 4000 mm, 5000 mm, 6000mm |
| Model | Unit | ELES-15E |
| Power type | Battery powered | |
| Load capacity | Q(kg) | 1500 |
| Load centre | C(mm) | 500 |
| Mast type | 3-Stages | |
| Max. Lift height | H(mm) | 3500/4000/4500 |
| Min. Lowered of fork height | H1(mm) | |
| Lift height | H2(mm) | 1210/1380/1550 |
| Outside width of forks | E(mm) | 680 |
| Length of fork | L(mm) | 1150 |
| Thickness of fork | H3(mm) | |
| Width of fork | B1(mm) | 180 |
| Overall length | A(mm) | 2075 |
| Overall width | B(mm) | 861 |
| Height of mast,lowered | H4(mm) | 1730/1895/2065 |
| Height of mast,extended | H5(mm | 3485/4485/4985 |
| Wa(mm) | 1750 | |
| Min.turning radius | ||
| Travel speed,with/without load | Km/h | 3-5 |
| Lift speed,with/without load | m/s | 0.1~0.15 |
| Lowering speed,with/without load | m/s | 0.11~0.12 |
| Max. Gradeability laden/unladen | % | 3-5 |
| Wheel type | PU | |
| Driving wheel size | mm | φ210*70 |
| Bearing wheel size | mm | φ80*70 |
| Balancing wheel size | mm | Φ 115*55 |
| Drive motor | Kw | AC0.75 |
| Lift motor | Kw | DC2.2 |
| Voltage | V | |
| Rated capacity | ah | 24V210AH |
| Service brake | Electromagnetic brake | |
| Controller | CURTIS 1212P |
| Certificate | Number | Valid |
|---|---|---|
| 2006/42/EC | M.2026.206.C137529 | 30/03/2026 - 29/03/2031 |
| CE | M.2026.206.C134736 | 04/02/2026 - 03/02/2031 |
| CE | 3N251031.NEMS093 | 30/10/2025 - 29/10/2030 |
| EAC | 22/10/2023 - 22/10/2028 | |
| CE | M.2023.206.C83216 | 22/03/2023 - 21/03/2028 |
| CE | M.2023.206.C83215 | 22/03/2023 - 21/03/2028 |
| CE | M.2023.206.C83222 | 22/03/2023 - 21/03/2028 |
| CE | M.2023.206.C83221 | 22/03/2023 - 21/03/2028 |
Certificates are supplied with your quote on request.
Spare parts for this model
Pallet truck and stacker load rollers, 80 x 70 mm polyurethane, set of 4from £41 per set ex VAT
Electric stacker stabiliser wheel, 115 x 55 mm polyurethanefrom £23 per wheel ex VAT
Electric pallet truck and stacker drive wheel, 210 x 70 mm polyurethane, ring typefrom £41 per wheel ex VAT · check the hub first
Stacker mast lift chain, leaf chain cut to length, per metrefrom £22 per metre ex VAT · check your old part first
Electric stacker hydraulic power unit, 24 V 2.2 kWfrom £210 per unit ex VAT · check your old part first
Electric pallet truck and stacker horn, 24 V or 48 V, 100 dBfrom £14 per horn ex VAT · check your old part first
Electric pallet truck and stacker tiller gas spring, 156 mm, 600 Nfrom £23 per gas spring ex VAT · check the fixing first
Electric stacker and pallet truck lowering valve, 08 size normally closed cartridgefrom £32 per valve cartridge ex VAT · check your old part first
All spare parts. Send the model and the part you need if it is not listed.
