Forklifts · Ref LPT-57354

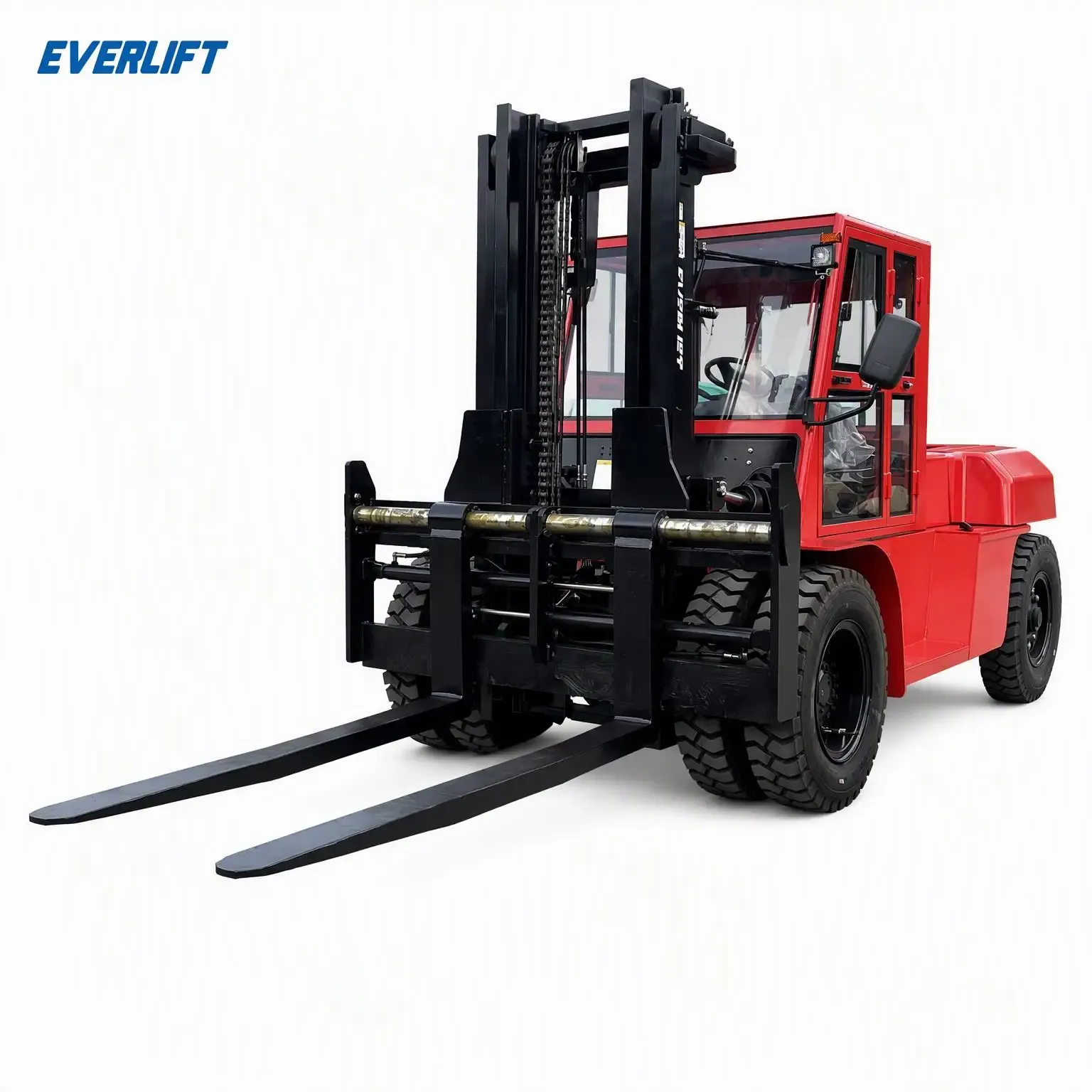

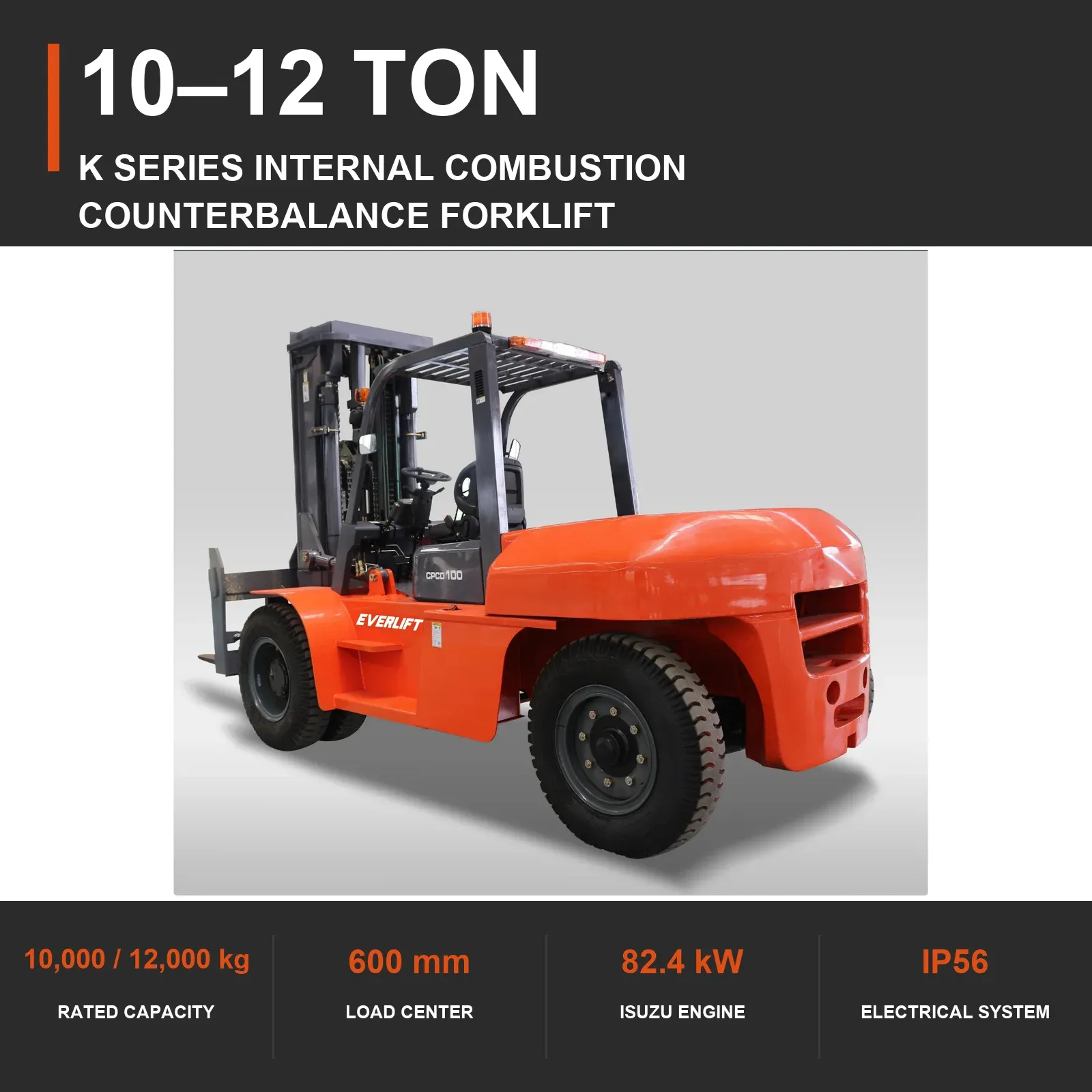

10 Ton Diesel Forklift Heavy Duty Counterbalance
10 tDieselForks 1220 mm marked
markedfrom£5,250per unit, ex VAT
Get a quote, reply in 2 hours
- 12-month warranty
- Photos and video before it ships
- No online payment, nothing is charged
Any quantity is welcome. Your price depends on the quantity and is confirmed on your written quote. Prices in GBP per unit, ex VAT. We convert the factory list at a buffered exchange rate, so normal day-to-day currency movement does not change the price you see. Your written quote adds freight, duty and VAT and is valid for 30 days.
Rated Loading Capacity10 Ton
Truck TypeCounterbalance Forklift
Line total
Nothing is sent yet: add the products you need, then send your quote request. We reply within 2 hours, Monday to Friday, 9am to 5pm.
Or email sales@londonpallettrucks.co.ukProduct Highlights

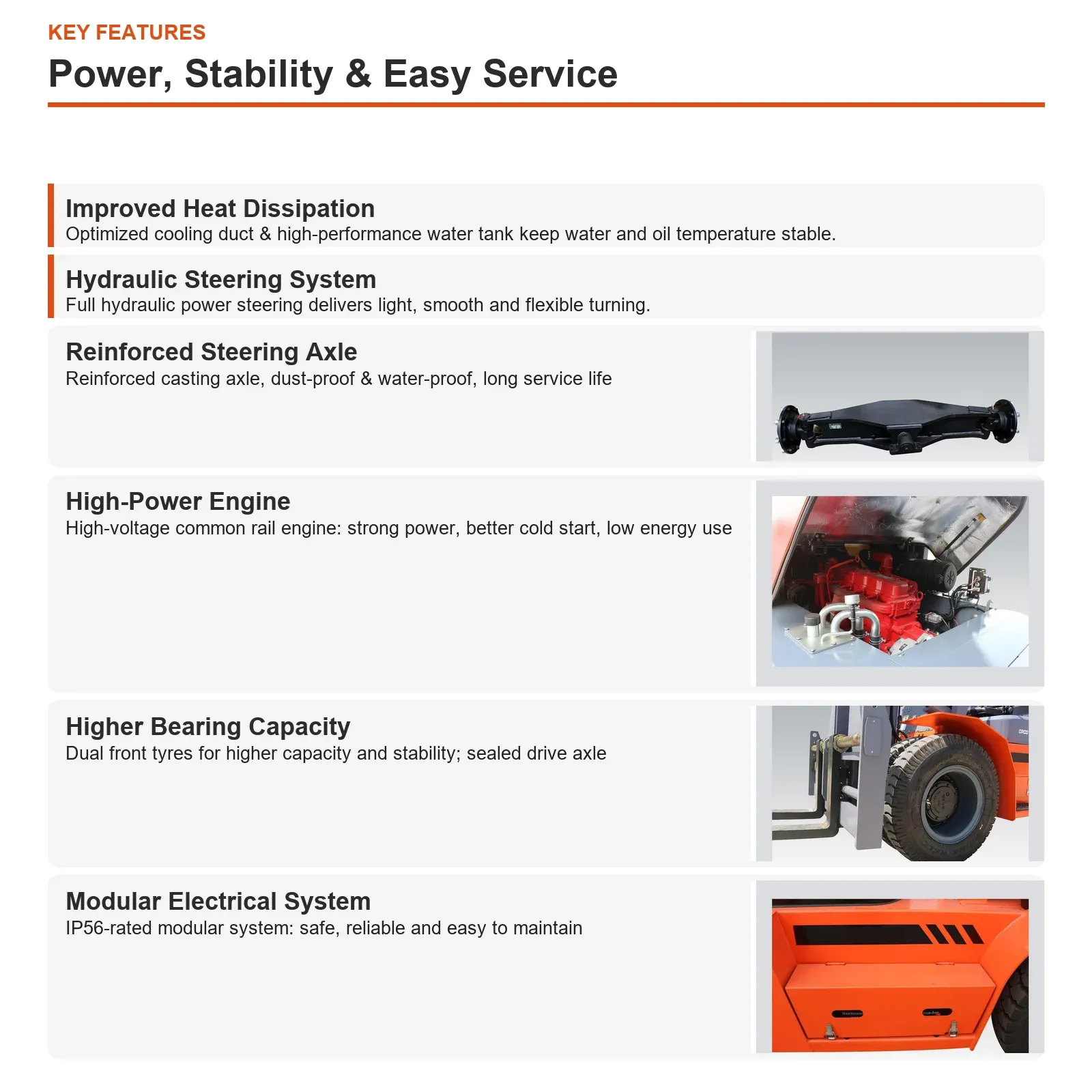

Heavy-duty welded steel frame with anti-corrosion painted surface and reinforced 3000mm mast build the base of this 10 ton diesel forklift for continuous rough work.
6-cylinder 6.494L diesel engine, 82.4kW rated power, powershift 2-forward 2-reverse transmission, 20MPa hydraulic system and 9.00-20 pneumatic tyres form a solid component package for heavy duty forklift.

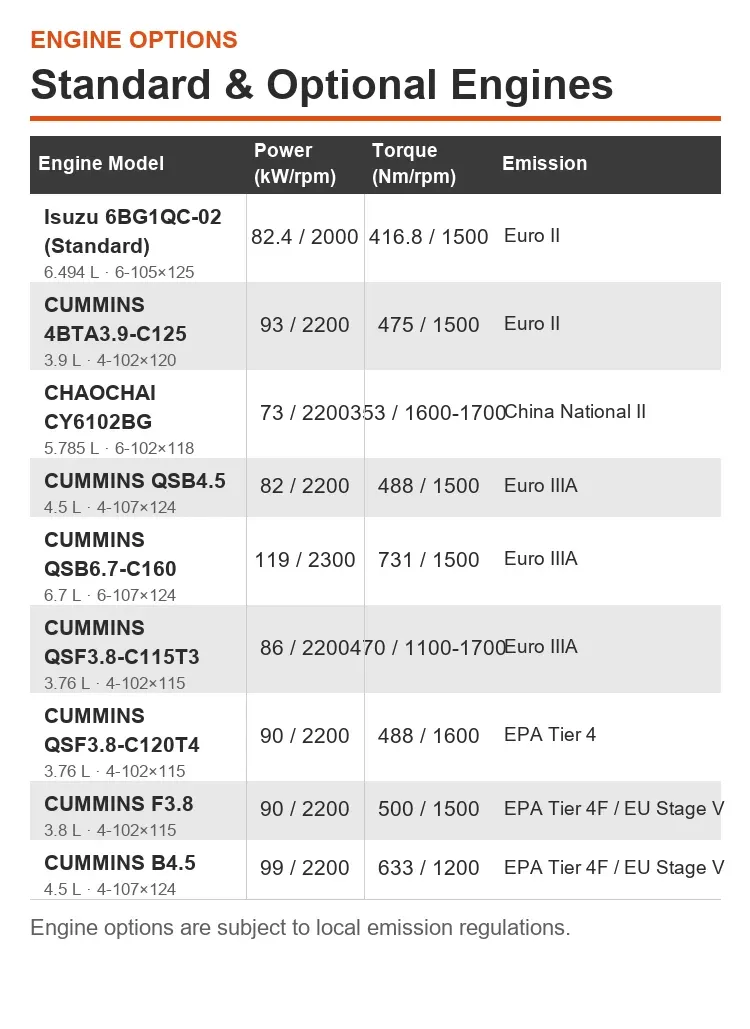

Emission-compliant engine options up to EU Stage V and EPA Tier 4F are available, hydraulic service brake plus mechanical parking brake and stable counterweight structure ensure safe 10 ton diesel forklift operation.

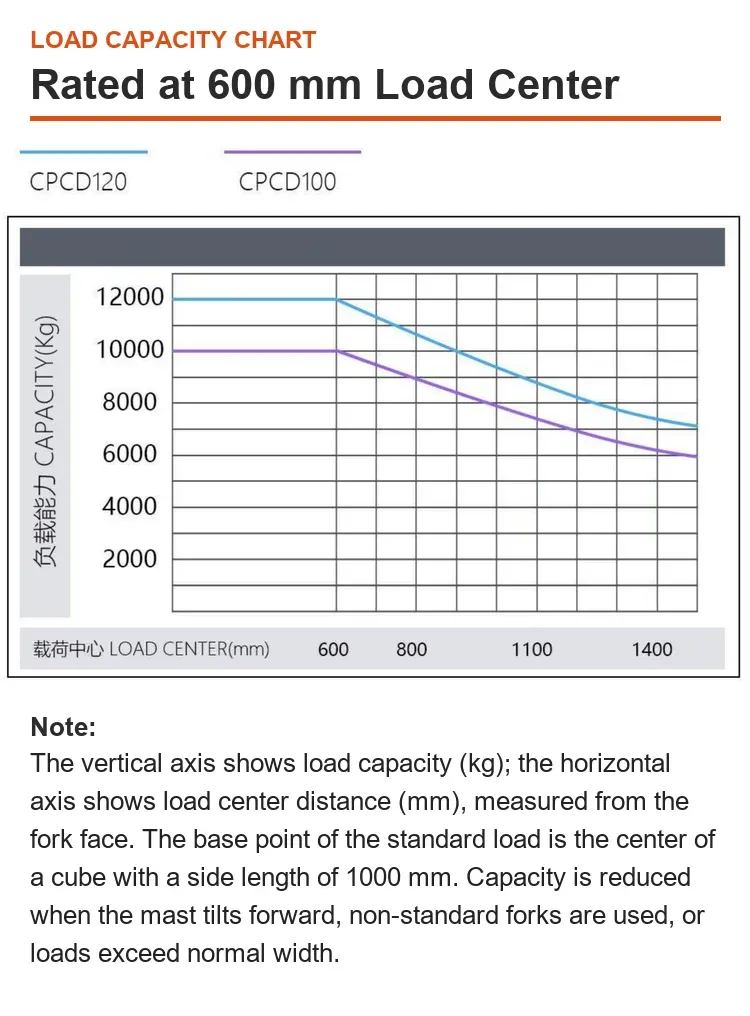

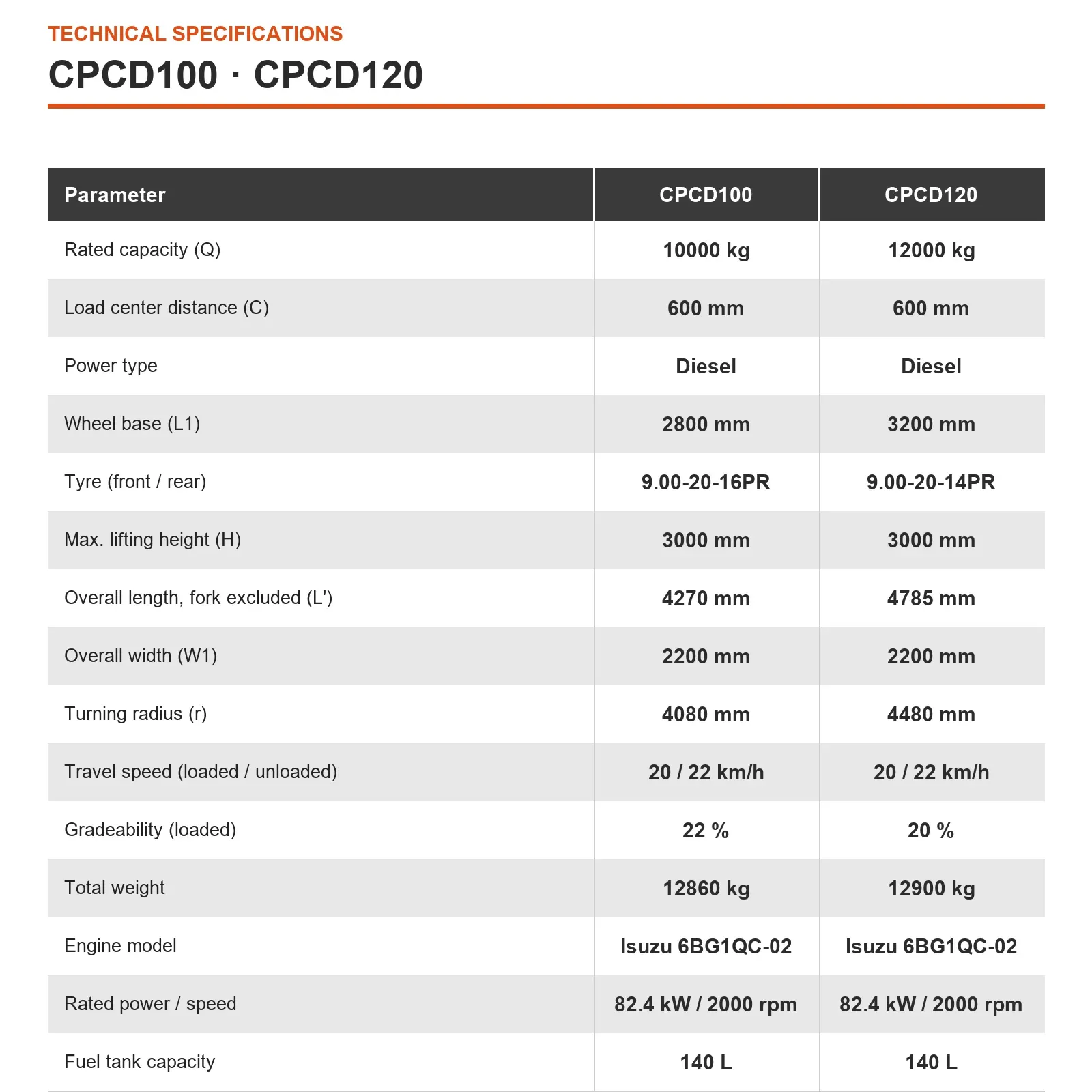

Rated 10000 kg for CPCD100 and 12000 kg for CPCD120 at 600mm load centre with 3000mm lifting height, 20/22km/h travel speed, up to 22% gradeability and 58kN traction force deliver strong load performance.
The 6-cylinder engine outputs 416.8Nm max torque at 1500rpm, while the 140L large fuel tank supports long working hours with fewer refuelling stops for diesel forklift fleet operation.
Pneumatic tyres, 285mm ground clearance and 22%/20% gradeability adapt this counterbalance forklift to outdoor yards, container depots and uneven concrete floors with flexible 4080mm/4480mm turning radius.
Problem: moving 10-12 ton steel coils or containers all day strains engine and frame. Solution: reinforced mast, 6.494L engine and 20MPa hydraulics keep the diesel forklift lifting smoothly without power drop.
Problem: gravel yards and wet ramps cause wheel slip and slow work cycles. Solution: 9.00-20 pneumatic tyres plus strong traction force keep this internal combustion forklift productive on rough outdoor ground.
SKU models: CPCD100 10 ton and CPCD120 12 ton diesel forklift for bulk orders.

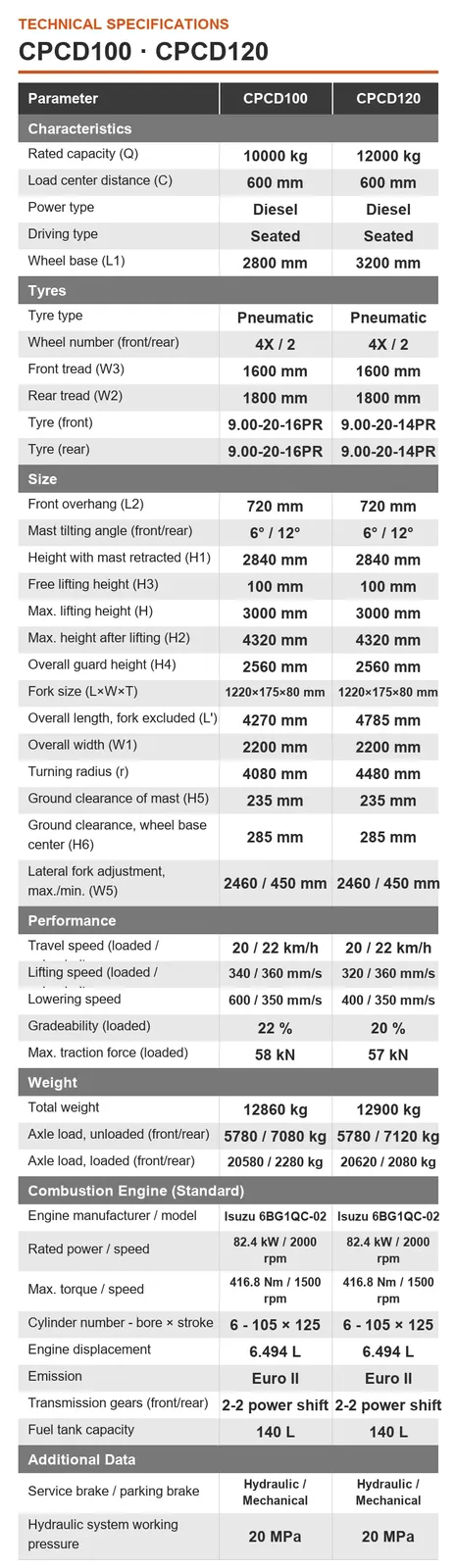

| Condition | New |
|---|---|
| Fork Specifications( L*W*H) | 1220 × 175 × 80 mm |
| Fork Length | 1220 mm |
| Fork Width | 175 mm |
| Forklift Turning radius | 4080 mm |
| Power Source | Diesel |
| Mast Type | Two Stage Mast |
| Load centre distance | 600 mm |
| Forklift Wheelbase | 2800 mm |
| Travel speed ( laden) | 20 km/h |
| Drive Type | Rwd |
| Operating Mode | Seated Operation |
| Forklift Tyre | Pneumatic Tyre |
| Mast Tilt Angle (Forward Tilt-Rear Tilt) | 6° / 12° |
| Travel speed ( unladen) | 22 km/h |
| Grade ability laden) | 22% |
| Engine Model | ISUZU 6BG1QC-02 |
| Rated Power | 82.4 kW / 2000 rpm |
| Max Torque | 416.8 Nm / 1500 rpm |
| Displacement | 6.494 L |
| Emission Standard | Euro II( Euro IIIA / EPA Tier 4F / EU Stage V optional) |
| Transmission | Powershift 2/2 |
| Lifting Speed | 340 / 360 mm/s |
| Total Weight | 12860 kg(10T) |
| Fuel Tank Capacity | 140 L |
| Rated Loading Capacity options | 10 Ton |
| Truck Type options | Counterbalance Forklift |

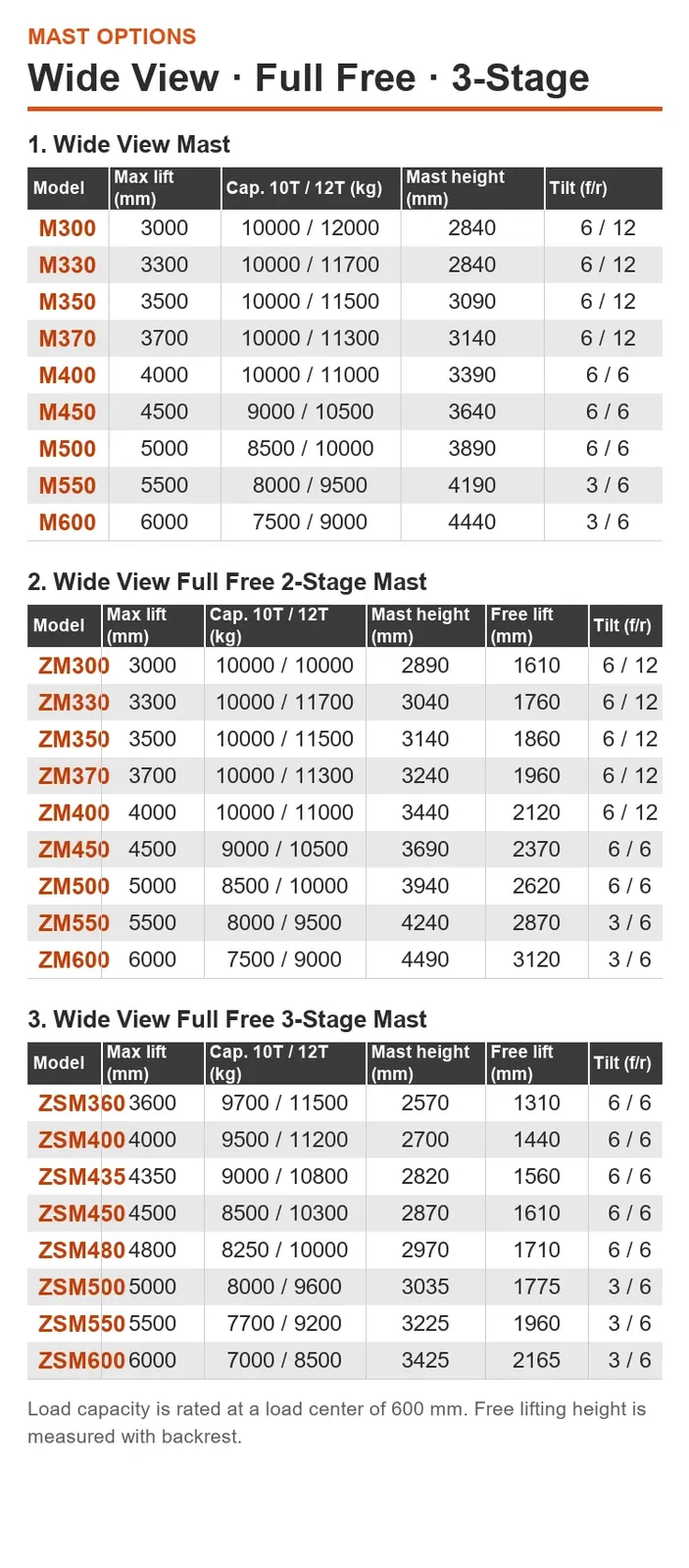

| Max. Lifting Height options | 3000mm, 3500 mm, 4000 mm, 4500 mm, 5000 mm, 6000mm, 3300mm |
| Certificate | Number | Valid |
|---|---|---|
| CE | M.2026.206.C134736 | 04/02/2026 - 03/02/2031 |
| CE | 3N251031.NEMS093 | 30/10/2025 - 29/10/2030 |
| EAC | 22/10/2023 - 22/10/2028 | |
| CE | M.2023.206.C83216 | 22/03/2023 - 21/03/2028 |
| CE | M.2023.206.C83222 | 22/03/2023 - 21/03/2028 |
| CE | M.2023.206.C83221 | 22/03/2023 - 21/03/2028 |
Certificates are supplied with your quote on request.
