Diesel Counterbalance Forklift with Imported Gearbox, 3 t
3 tDieselForks 1070 mm
marked
markedfrom£5,560per unit, ex VAT
Forklifts · Ref LPT-10762

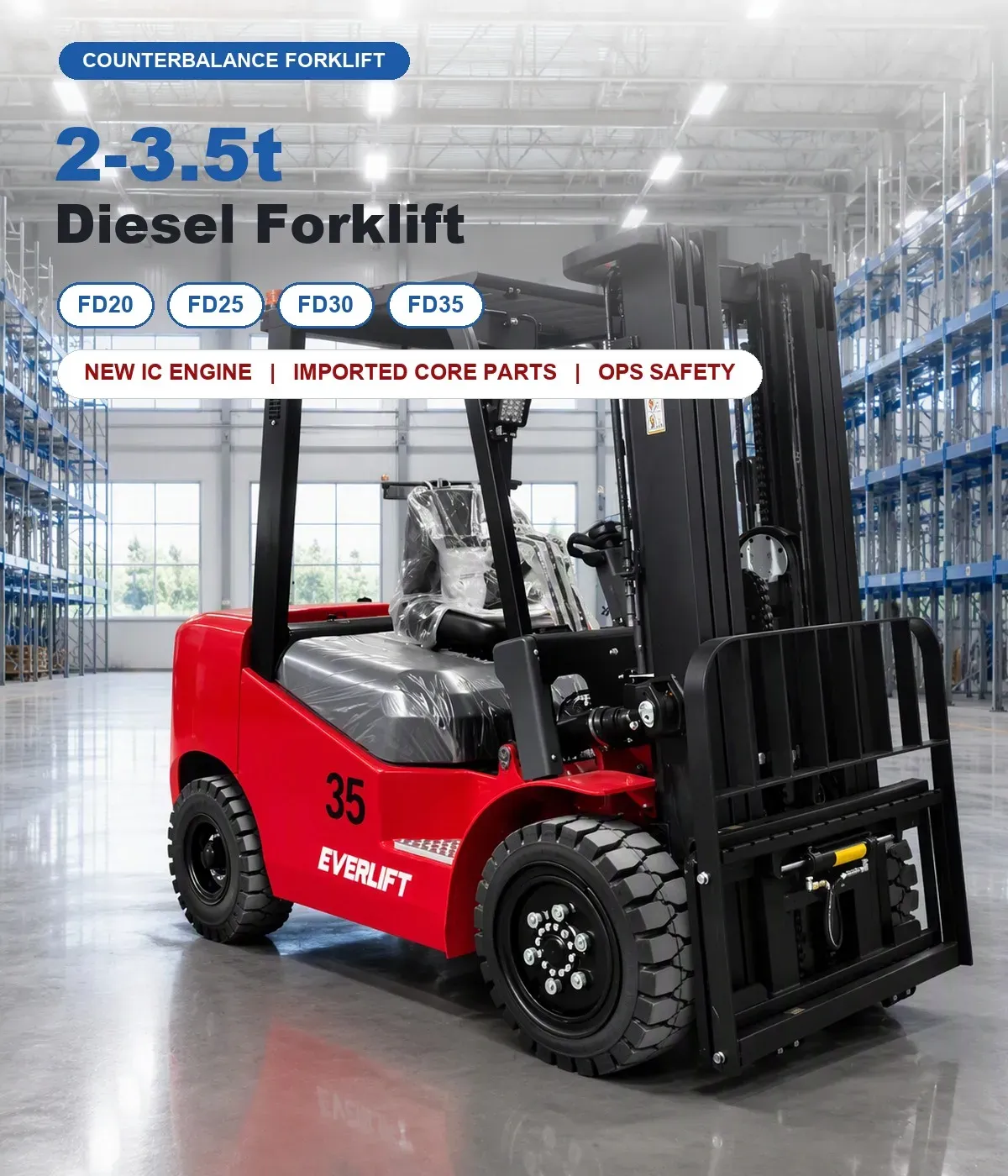

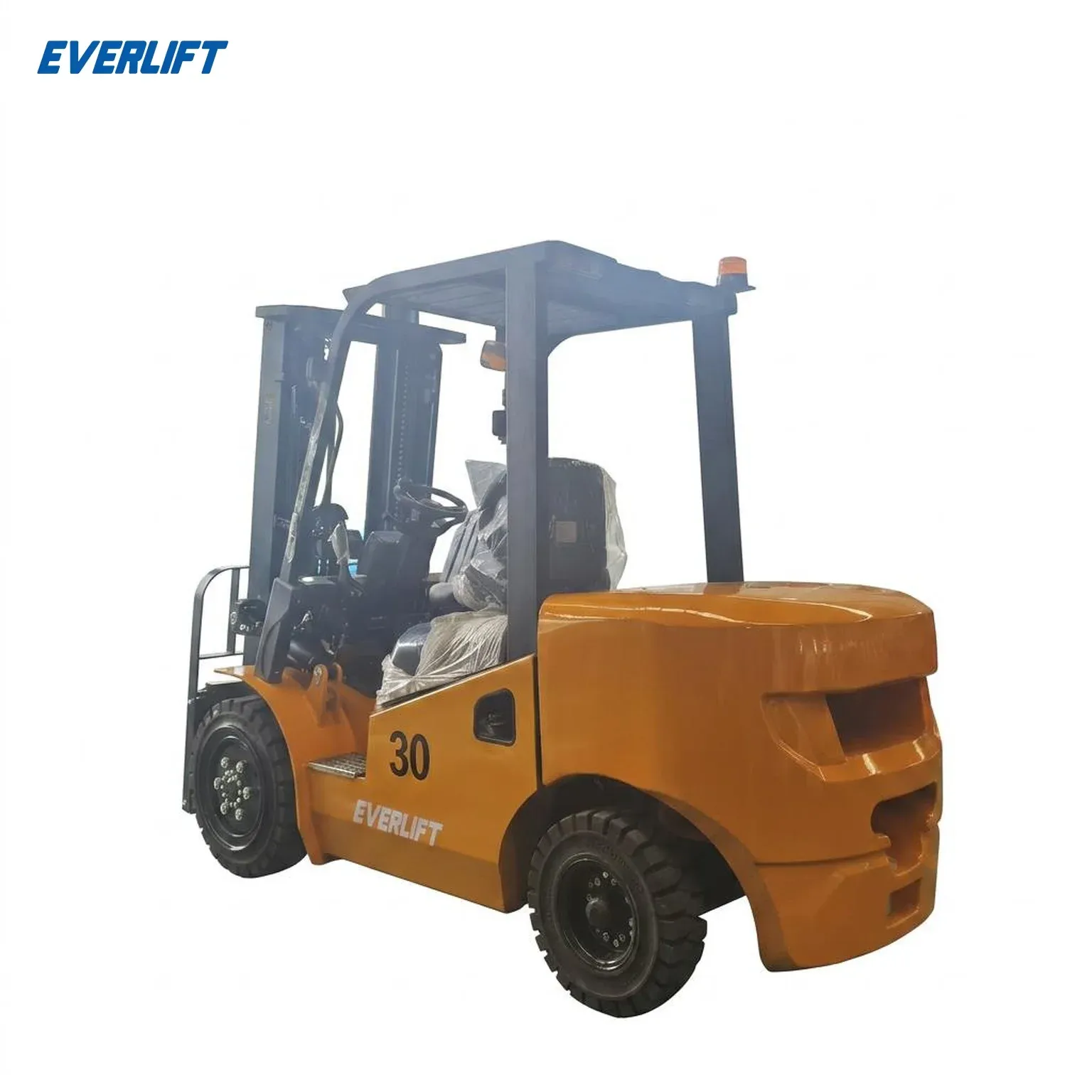

Heavy Duty 3 Ton Diesel Forklift Counterbalance
3 tDieselForks 1070 mm marked
markedfrom£5,560per unit, ex VAT
Get a quote, reply in 2 hours
- 12-month warranty
- Photos and video before it ships
- No online payment, nothing is charged
Any quantity is welcome. Your price depends on the quantity and is confirmed on your written quote. Prices in GBP per unit, ex VAT. We convert the factory list at a buffered exchange rate, so normal day-to-day currency movement does not change the price you see. Your written quote adds freight, duty and VAT and is valid for 30 days.
Rated Loading Capacity3 Ton
Truck TypeDiesel Counterbalance Forklift
Line total
Nothing is sent yet: add the products you need, then send your quote request. We reply within 2 hours, Monday to Friday, 9am to 5pm.
Or email sales@londonpallettrucks.co.ukProduct Highlights

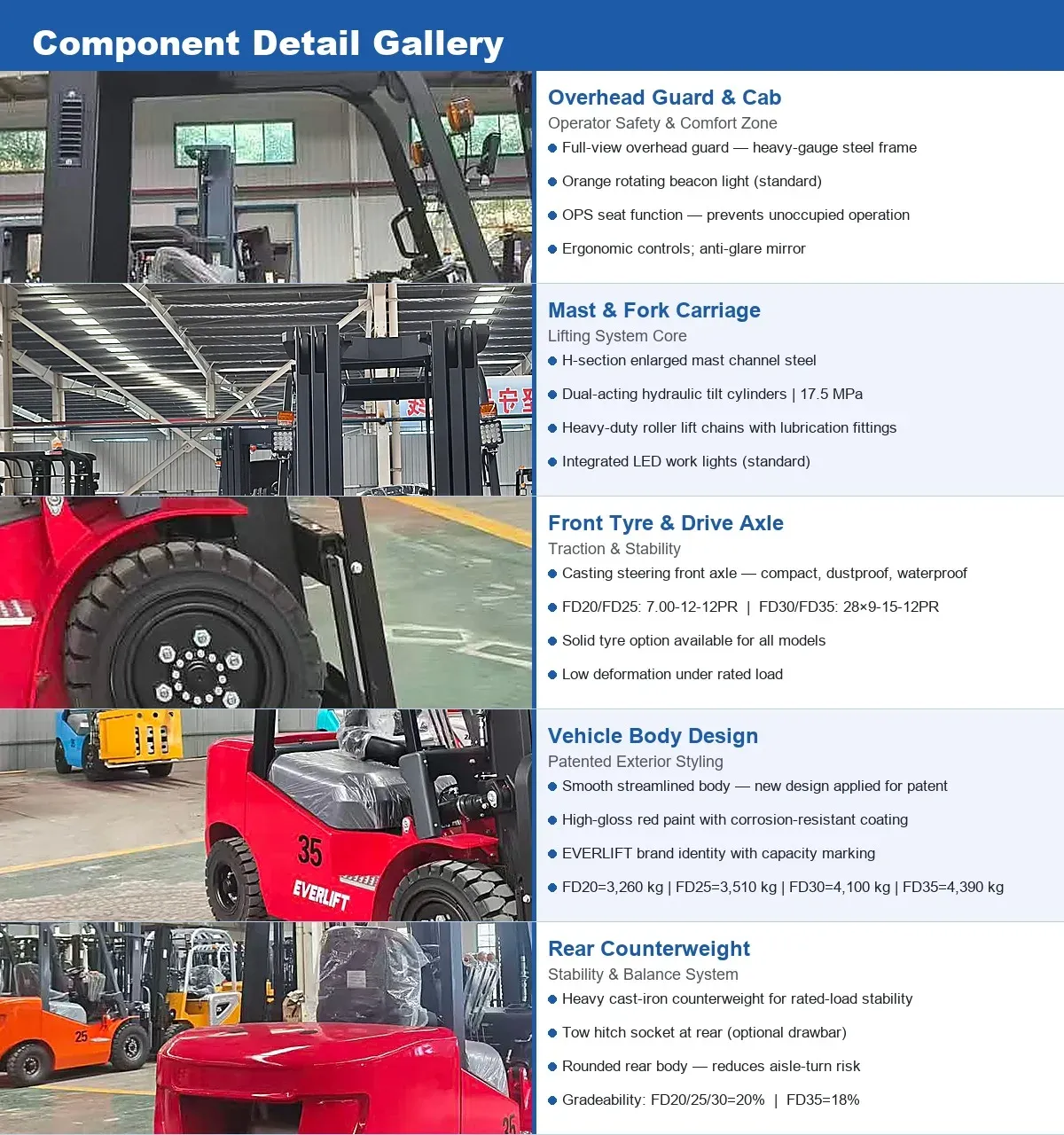

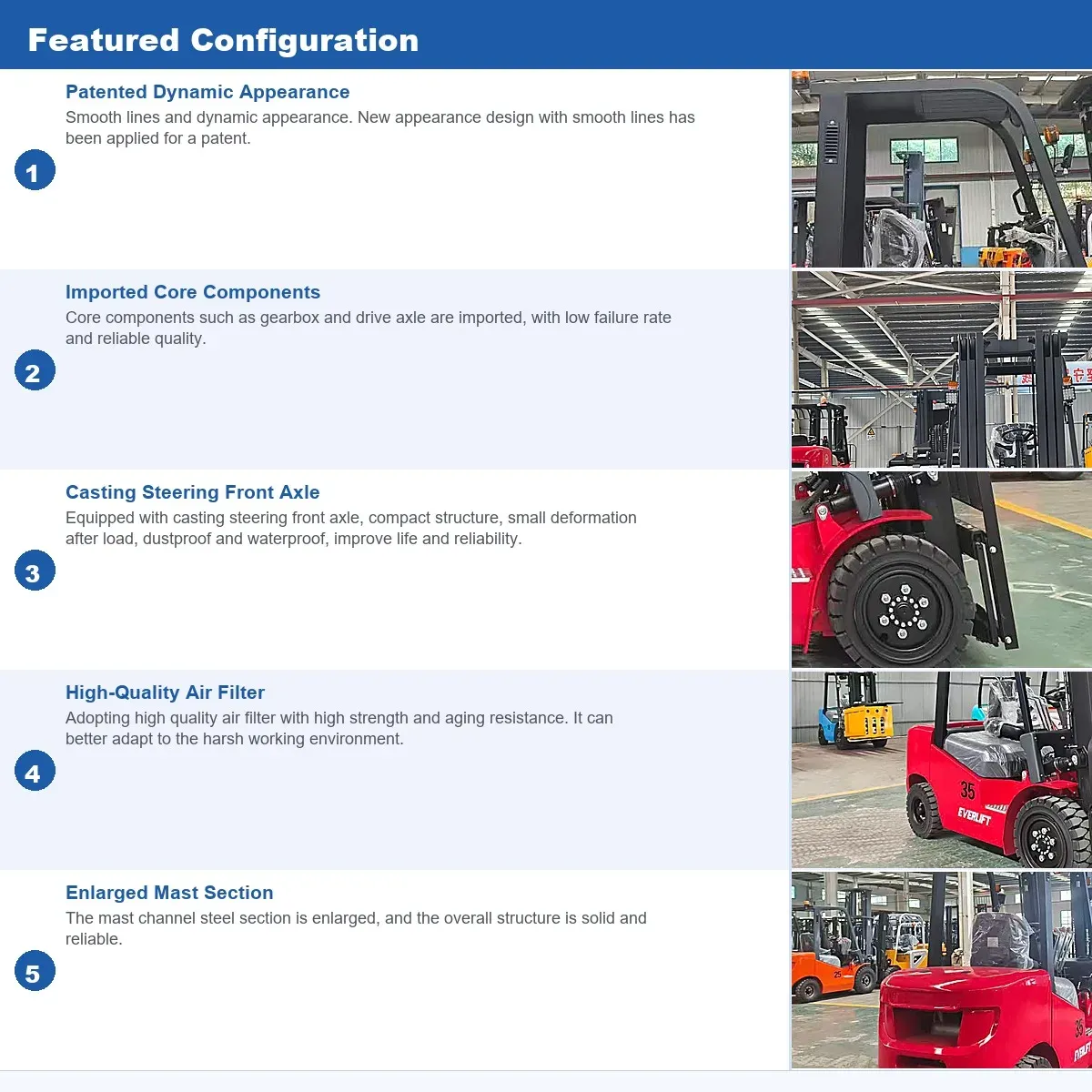

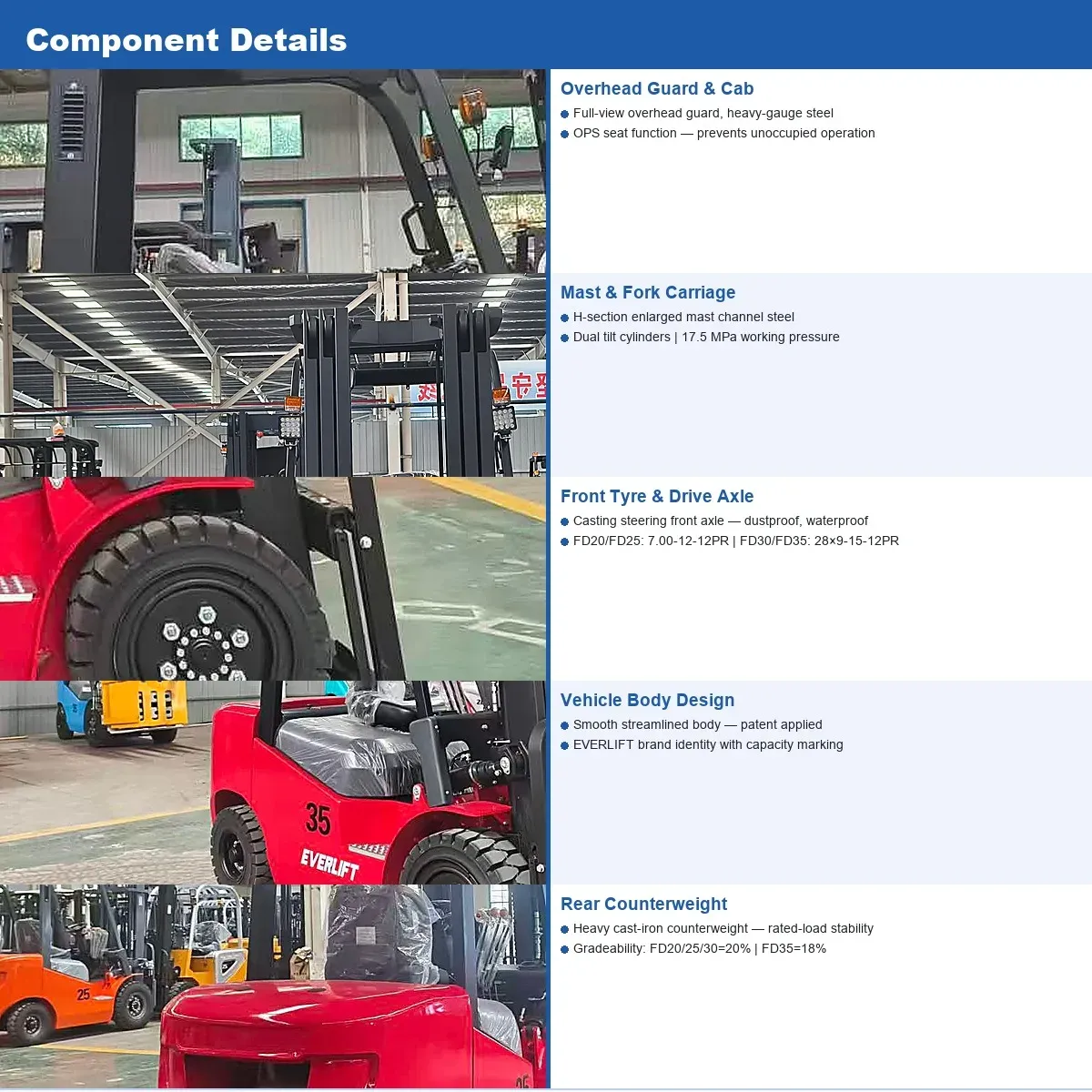

Diesel counterbalance forklift with heavy-duty steel frame; electrostatic powder coating resists corrosion; enlarged mast section ensures solid structure.
Quanchai / Xinchai QC490BPG engine: 39 kW @ 2650 rpm, 160 N·m max torque, 4-cylinder 2540 cc; imported gearbox and drive axle; 17.5 MPa hydraulic system.

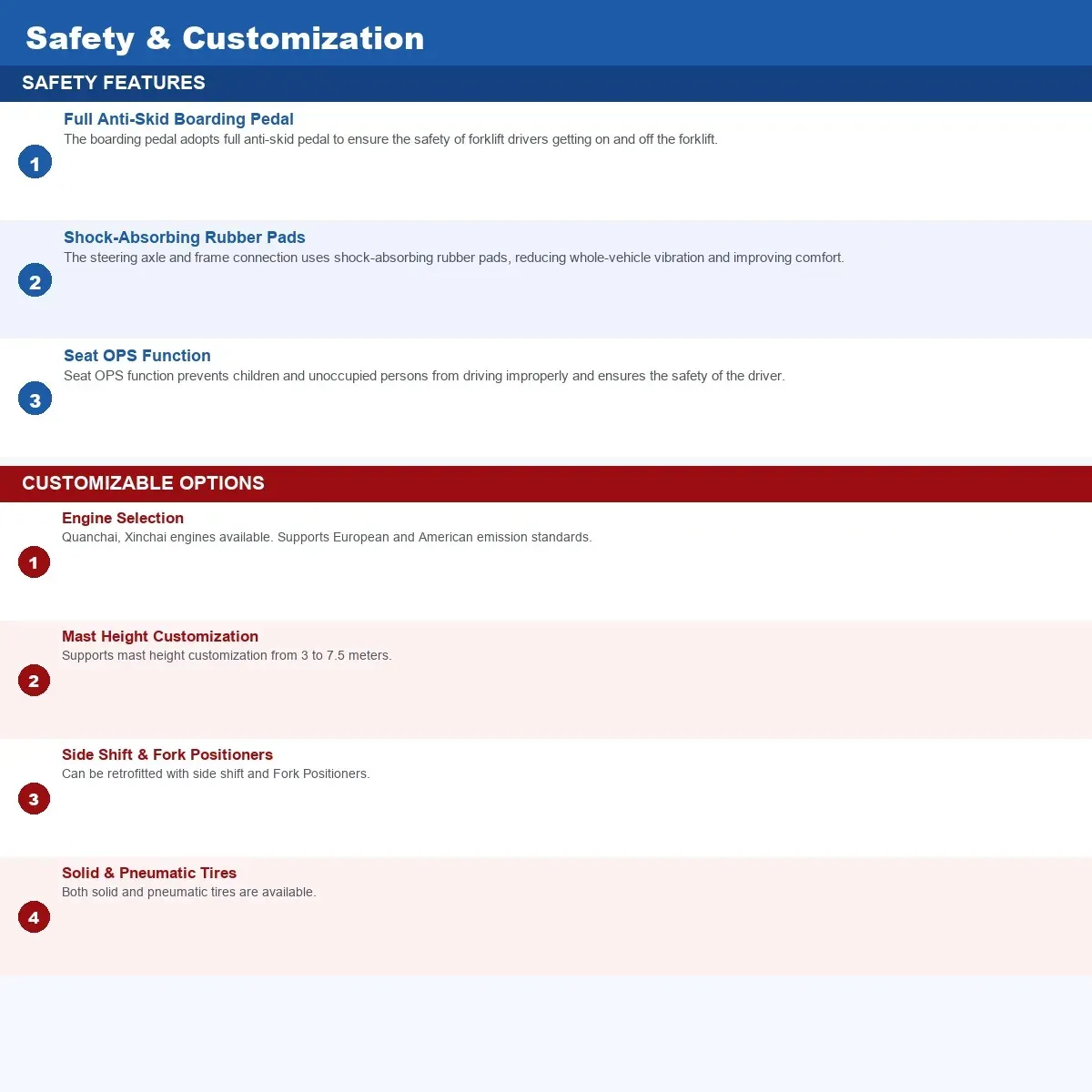

OPS seat function, full anti-skid boarding pedal and shock-absorbing rubber pads built in; REACH/RoHS-compliant materials with optional explosion-proof configuration.
Rated capacity 3000 kg; lift heights from 3000 to 6000 mm; 19 km/h travel speed; 2600 mm turning radius; 20% gradeability.
39 kW diesel engine with 60 L fuel tank supports long continuous operation; 12 V / 80 Ah battery; 450 mm/s lowering speed for efficient work cycles.
Suitable for warehouses, ports, construction sites and heavy industry; solid or pneumatic tyres; outdoor uneven terrain and indoor loading docks both covered.
Problem: electric trucks lose power in long outdoor shifts. Solution: diesel engine forklift delivers continuous torque and fast refuelling for all-day heavy duty work.
Problem: a wide turning radius slows work in tight aisles. Solution: a 2600 mm turning radius and a 430 mm/s laden lift speed keep material handling quick and precise.

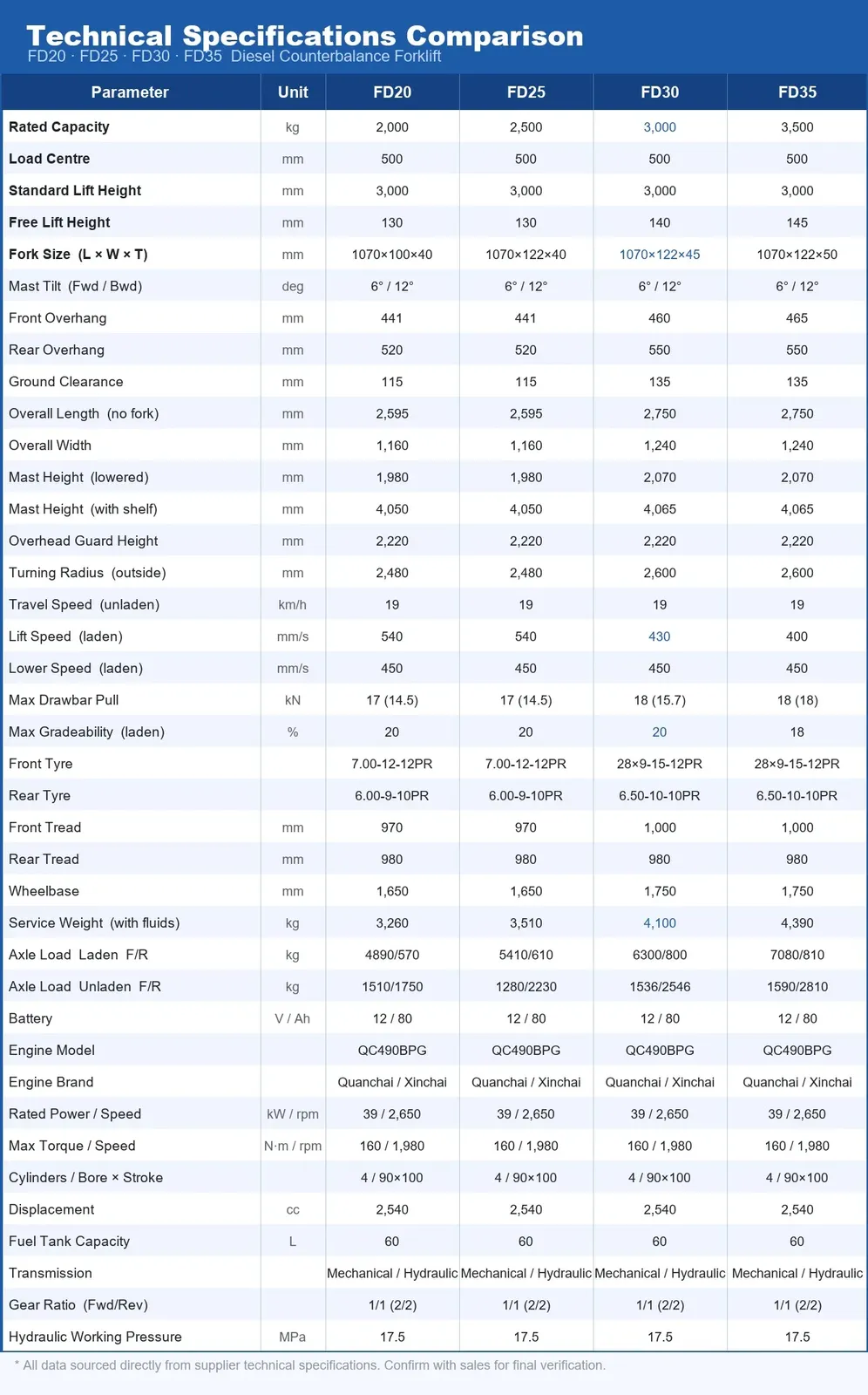

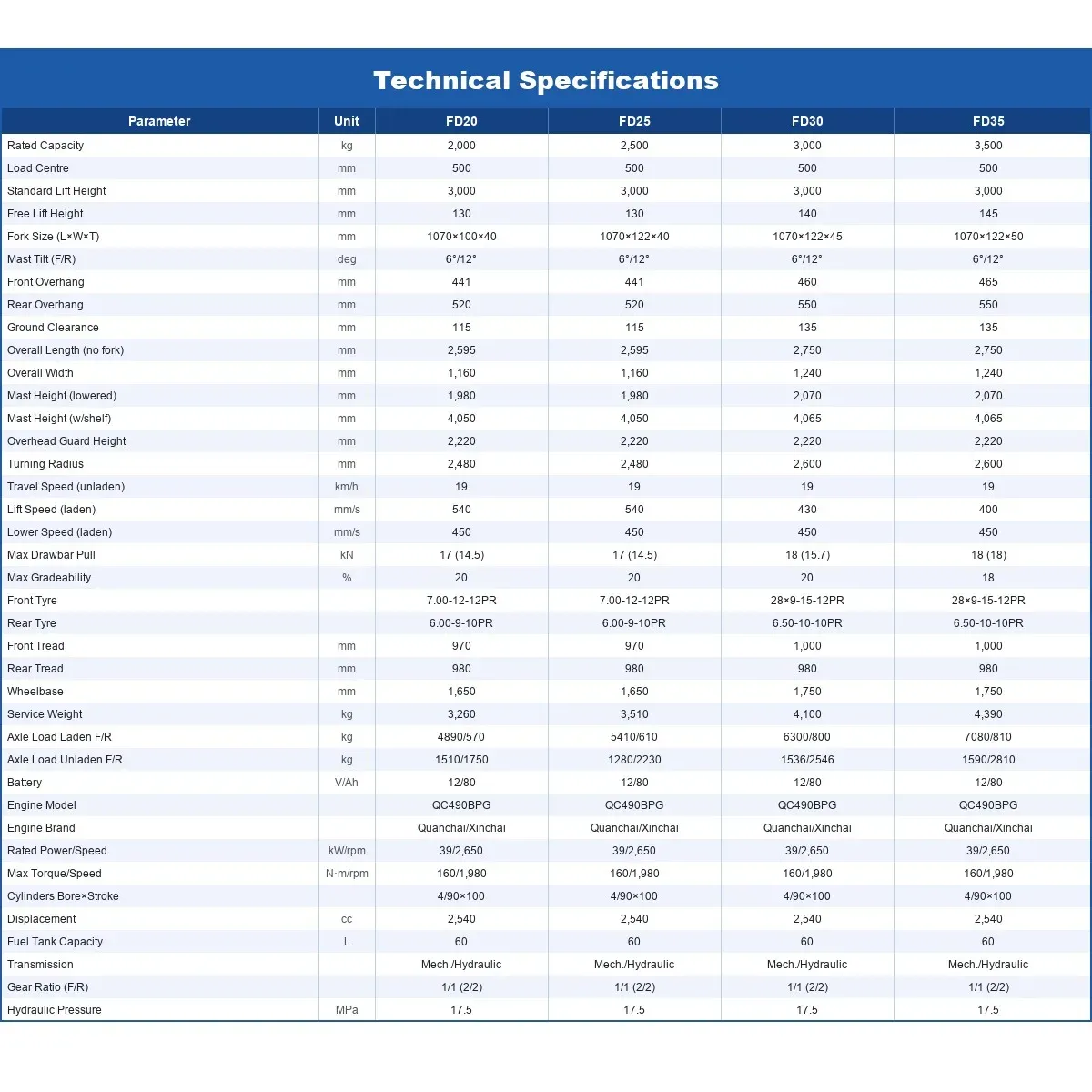

| Condition | New |
|---|---|
| Fork Specifications( L*W*H) | 1070 × 122 × 45 mm |
| Fork Length | 1070 mm |
| Fork Width | 122 mm |
| Forklift Turning radius | 2600 mm |
| Power Source | Diesel |
| Mast Type | Two Stage Mast, Three Stage Mast |
| Load centre distance | 500 mm |
| Forklift Wheelbase | 1750 mm |
| Terrain Adaptability | Outdoor Pavement |
| Operating Mode | Seated Operation |
| Forklift Tyre | Pneumatic Tyre |
| Mast Tilt Angle (Forward Tilt-Rear Tilt) | 6° / 12° |
| Travel speed ( unladen) | 19 km/h |
| Fork height,lowered | 2070 mm |
| Engine Power | 39 kW @ 2650 rpm |
| Engine Displacement | 2540 cc, 4-cylinder (90*100 mm) |
| Fuel Tank Capacity | 60 L |
| Lift Speed (laden) | 430 mm/s |
| Lowering Speed (laden) | 450 mm/s |
| Max Drawbar Pull | 18 kN (15.7 kN) |
| Ground Clearance | 135 mm |
| Overhead Guard Height | 2220 mm |
| Mast Height (with load backrest) | 4065 mm |
| Battery | 12 V / 80 Ah |
| Rated Loading Capacity options | 3 Ton |
| Truck Type options | Diesel Counterbalance Forklift |
| Max. Lifting Height options | 3000mm, 4000 mm, 5000 mm, 6000mm |
| Certificate | Number | Valid |
|---|---|---|
| 2006/42/EC | M.2026.206.C137529 | 30/03/2026 - 29/03/2031 |
| CE | M.2026.206.C134736 | 04/02/2026 - 03/02/2031 |
| CE | 3N251031.NEMS093 | 30/10/2025 - 29/10/2030 |
| EAC | 22/10/2023 - 22/10/2028 |
Certificates are supplied with your quote on request.
