Forklift

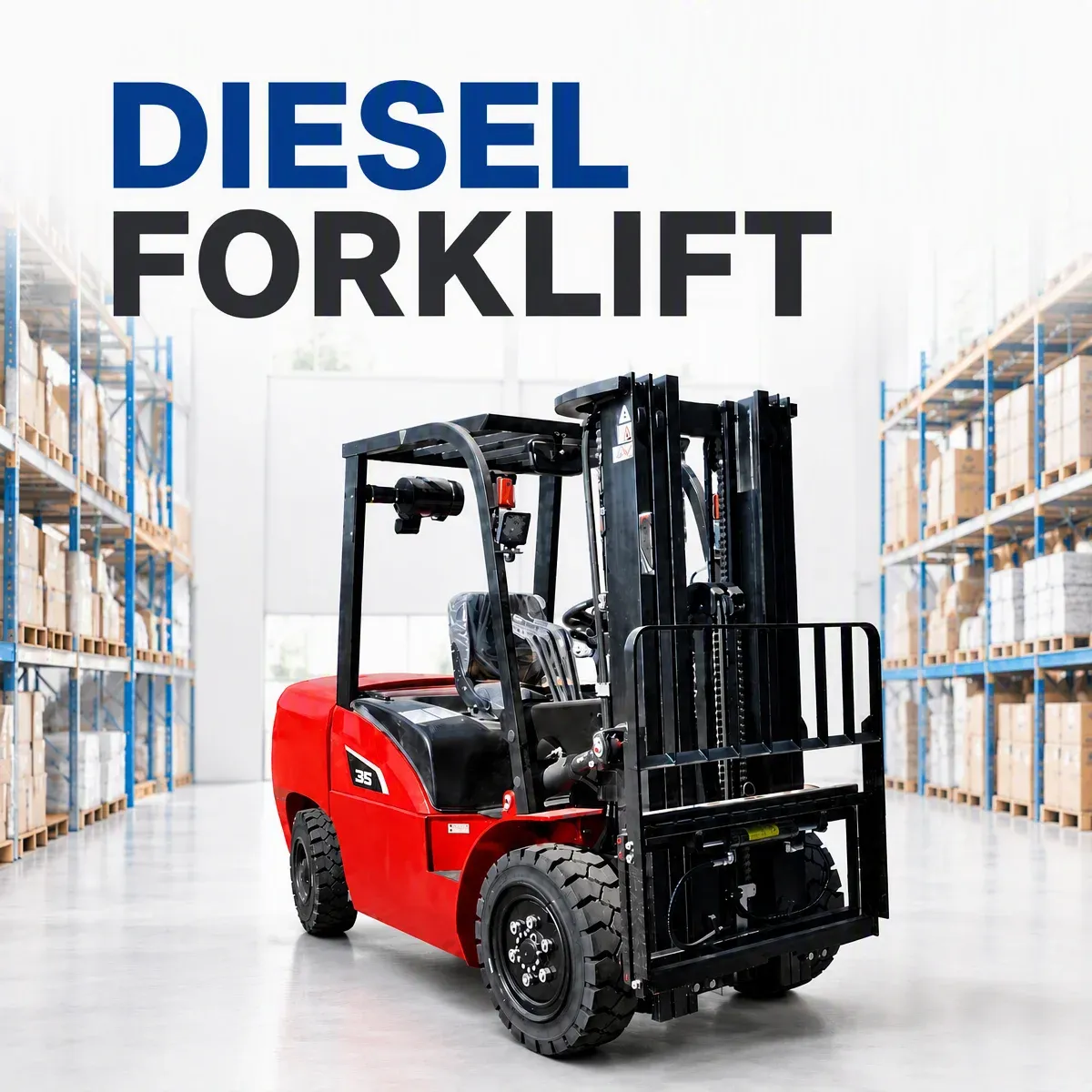

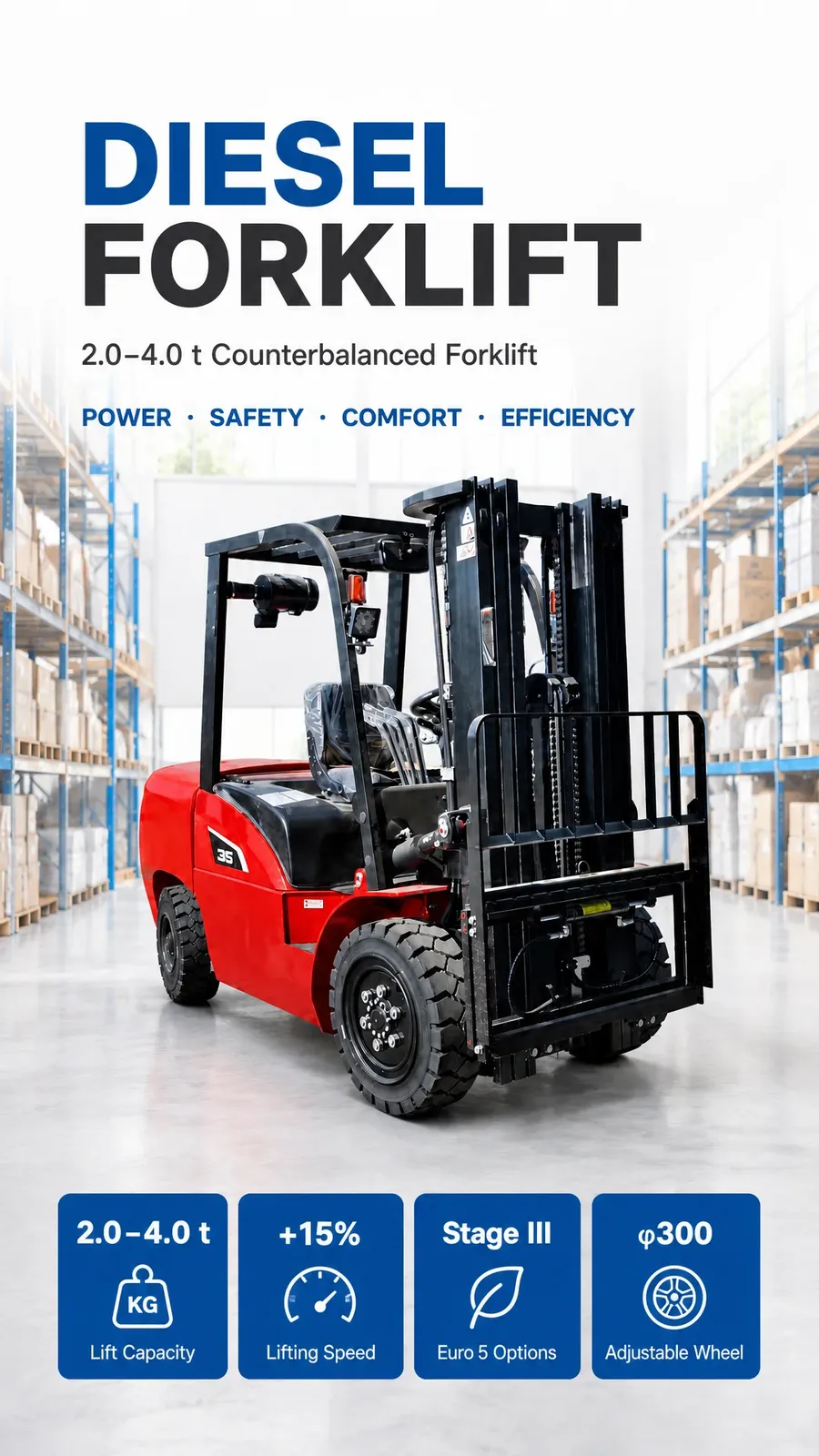

Counterbalance Diesel Forklift 3.5 Tons
3.5 tDieselForks 1220 mm
marked
markedfrom£7,190per unit, ex VAT
Forklifts · Ref LPT-72266
Internal Combustion Forklift 3.5 Ton
3.5 tDieselForks 1220 mm marked
markedfrom£7,190per unit, ex VAT
Get a quote, reply in 2 hours
- 12-month warranty
- Photos and video before it ships
- No online payment, nothing is charged
Any quantity is welcome. Your price depends on the quantity and is confirmed on your written quote. Prices in GBP per unit, ex VAT. We convert the factory list at a buffered exchange rate, so normal day-to-day currency movement does not change the price you see. Your written quote adds freight, duty and VAT and is valid for 30 days.
Rated Loading Capacity3.5 Ton
Truck TypeCounterbalance Forklift
Max. Lifting Height3000mm
Line total
Nothing is sent yet: add the products you need, then send your quote request. We reply within 2 hours, Monday to Friday, 9am to 5pm.
Or email sales@londonpallettrucks.co.ukProduct Highlights

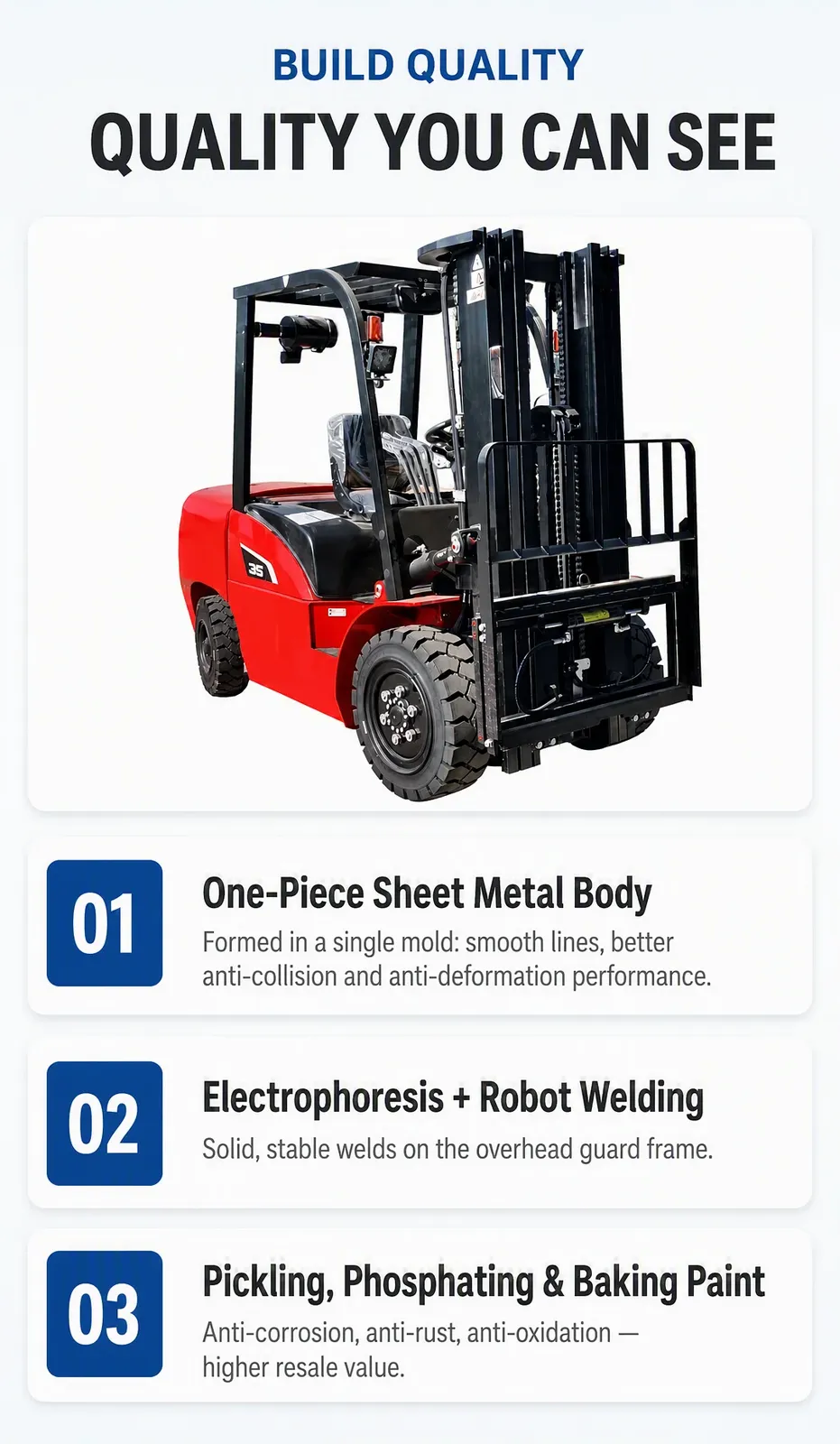

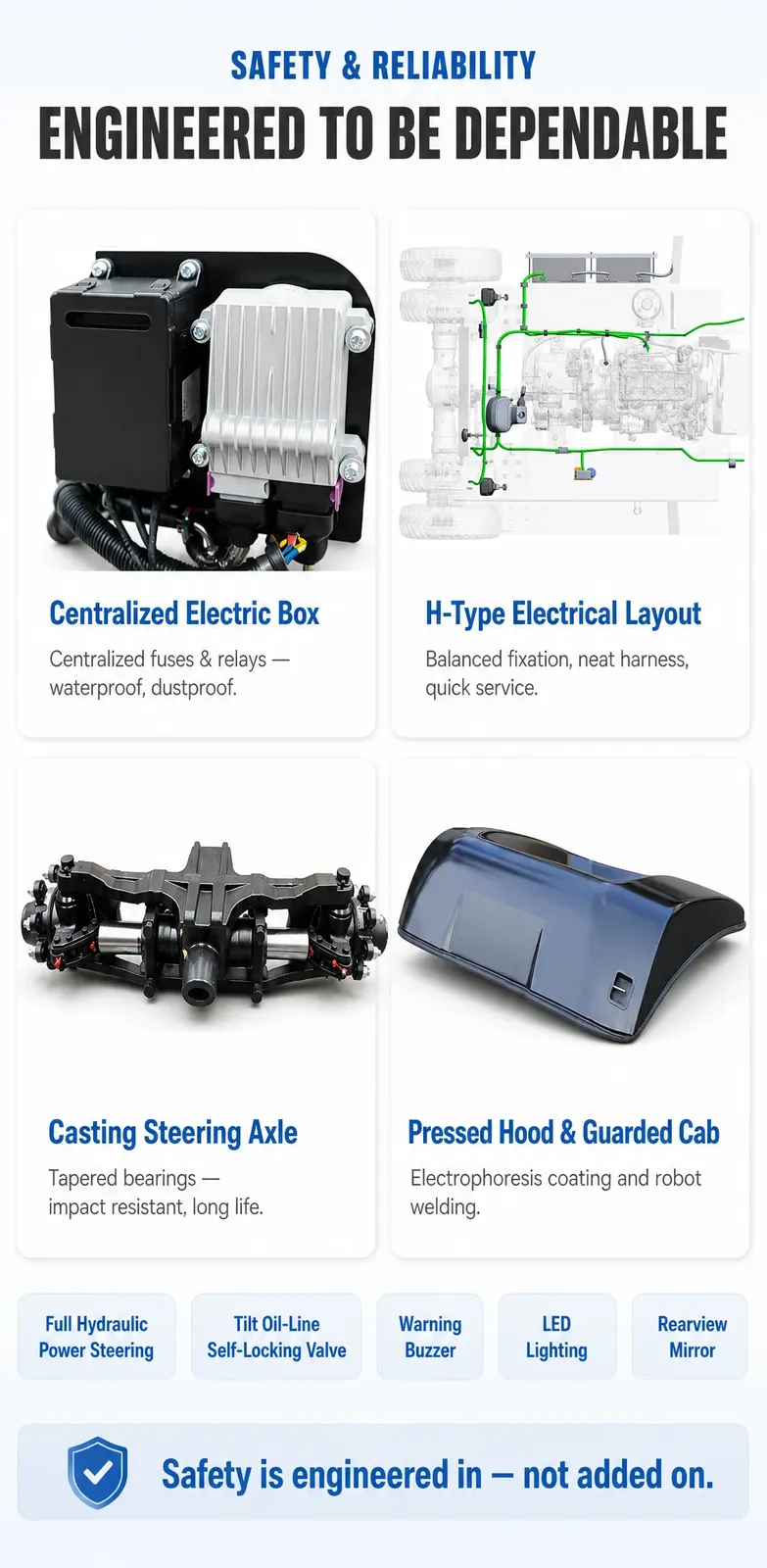

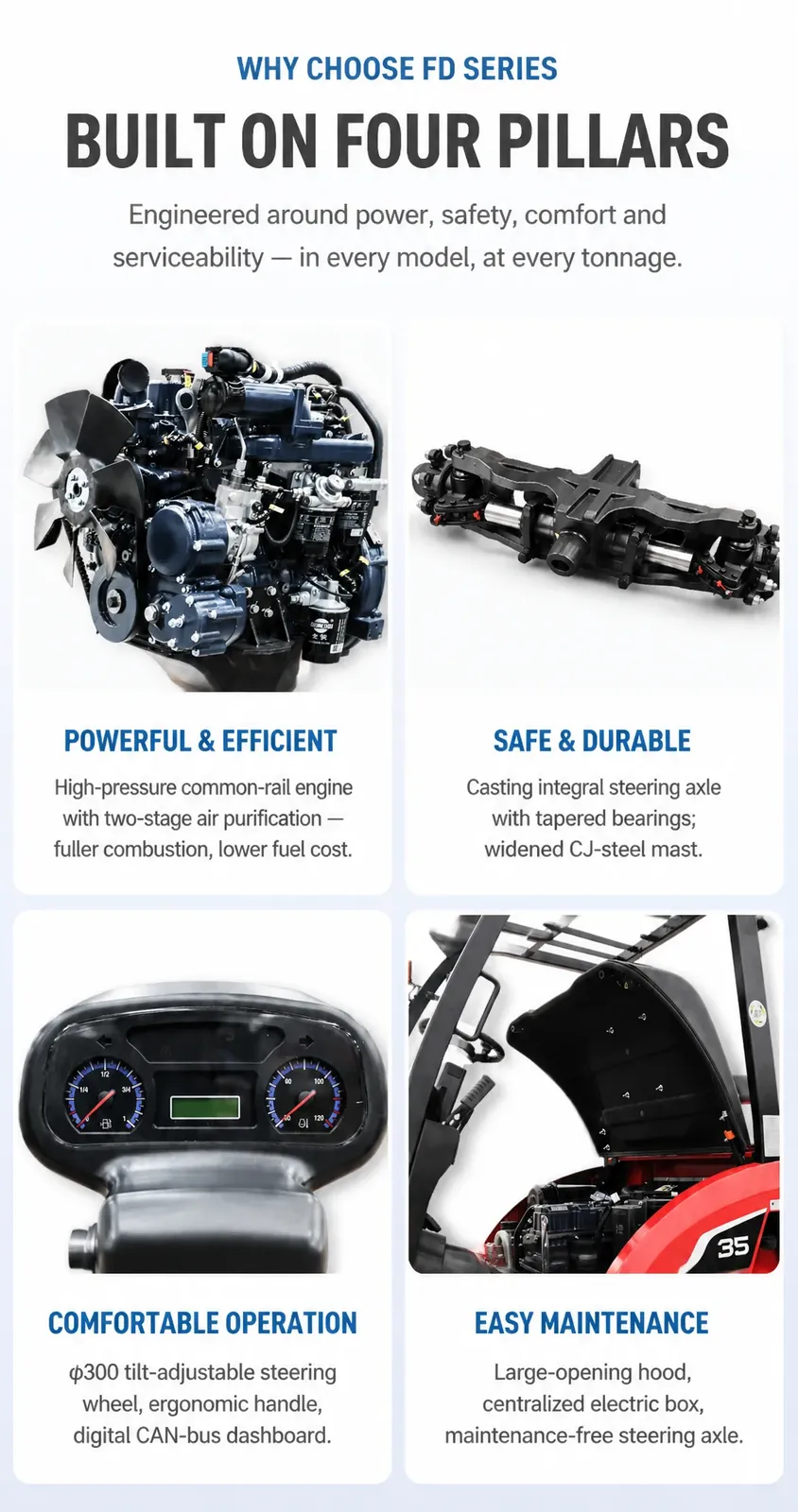

Cast integral steering axle with tapered bearings resists impact. Baking paint finish after pickling and phosphating gives corrosion resistance and high resale value.

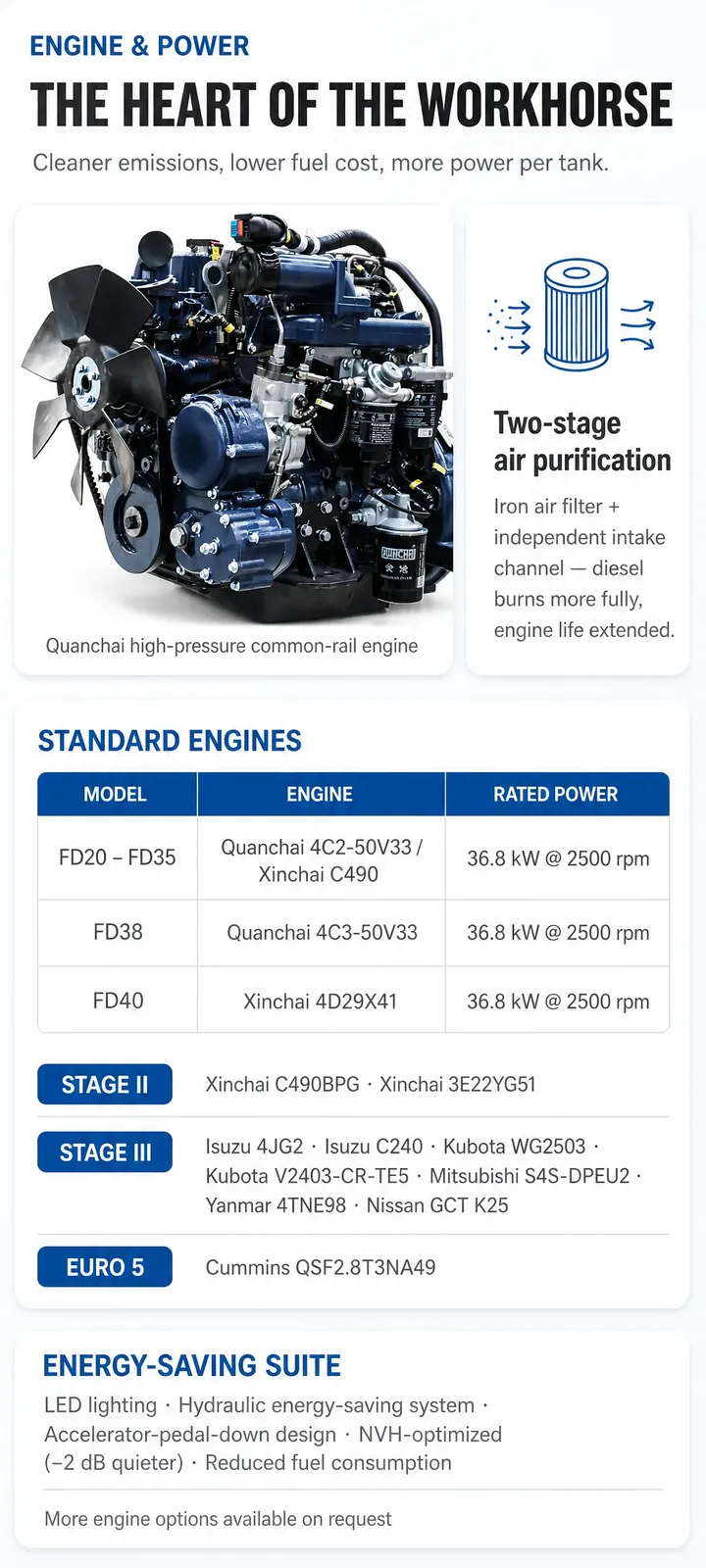

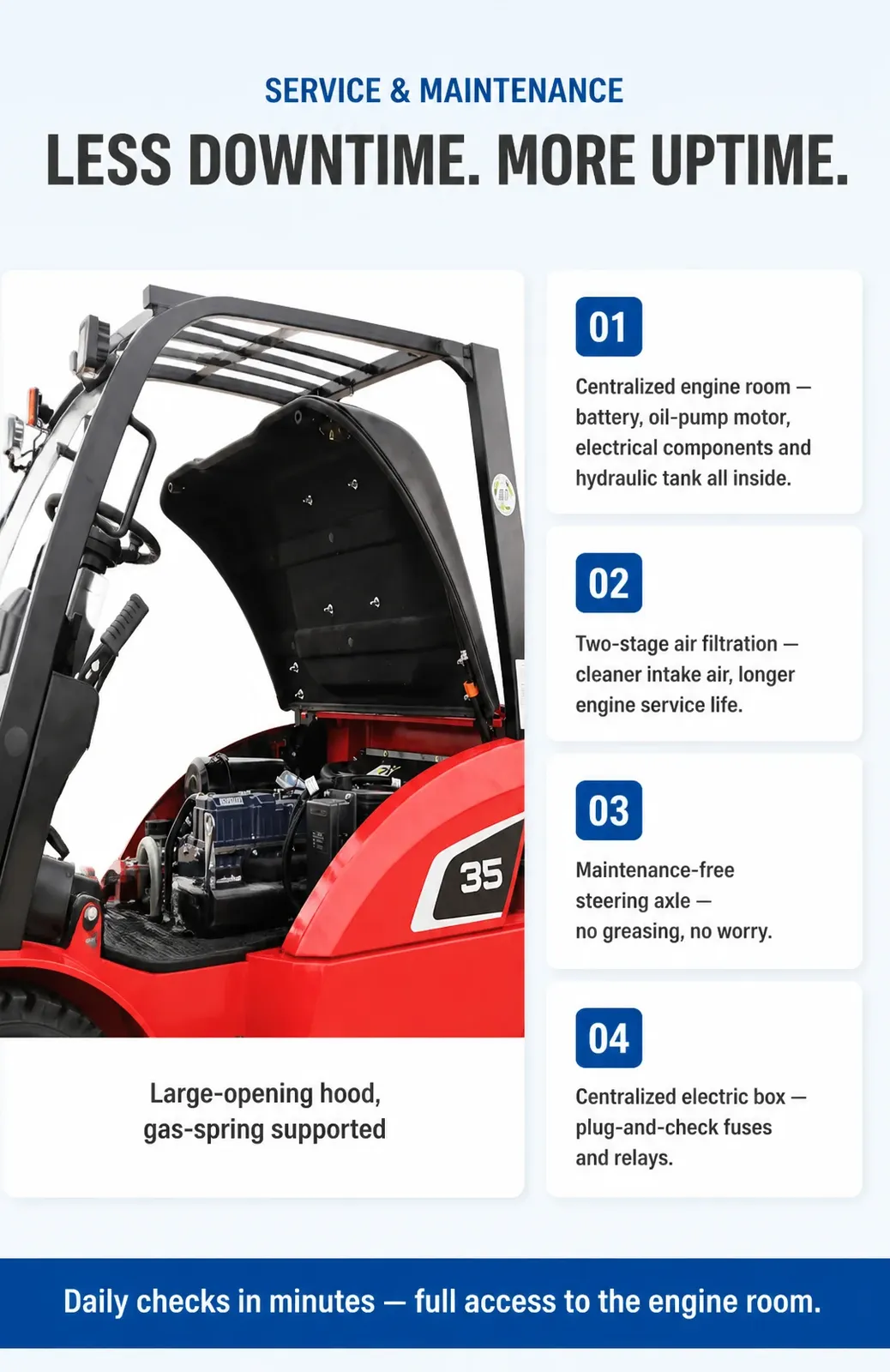

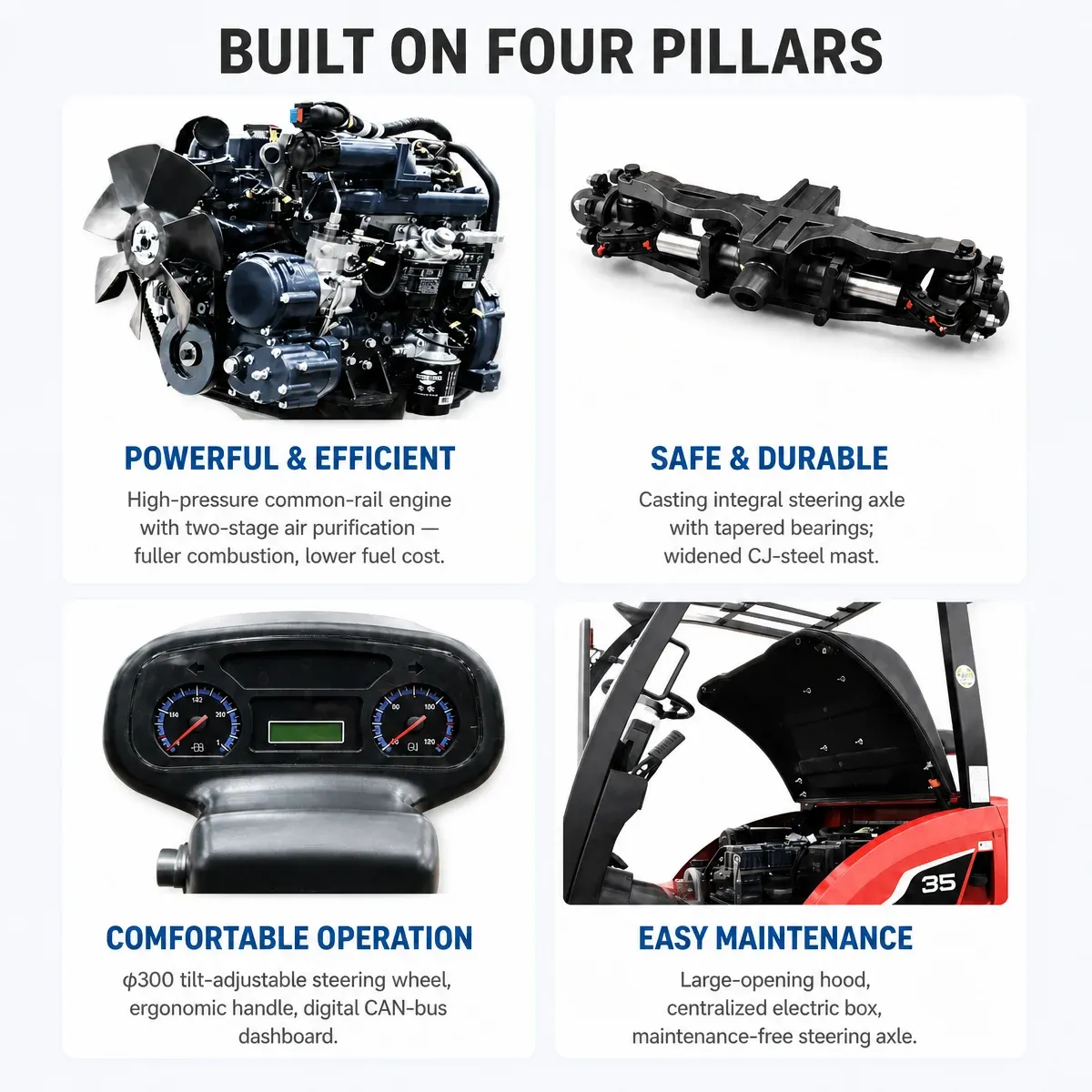

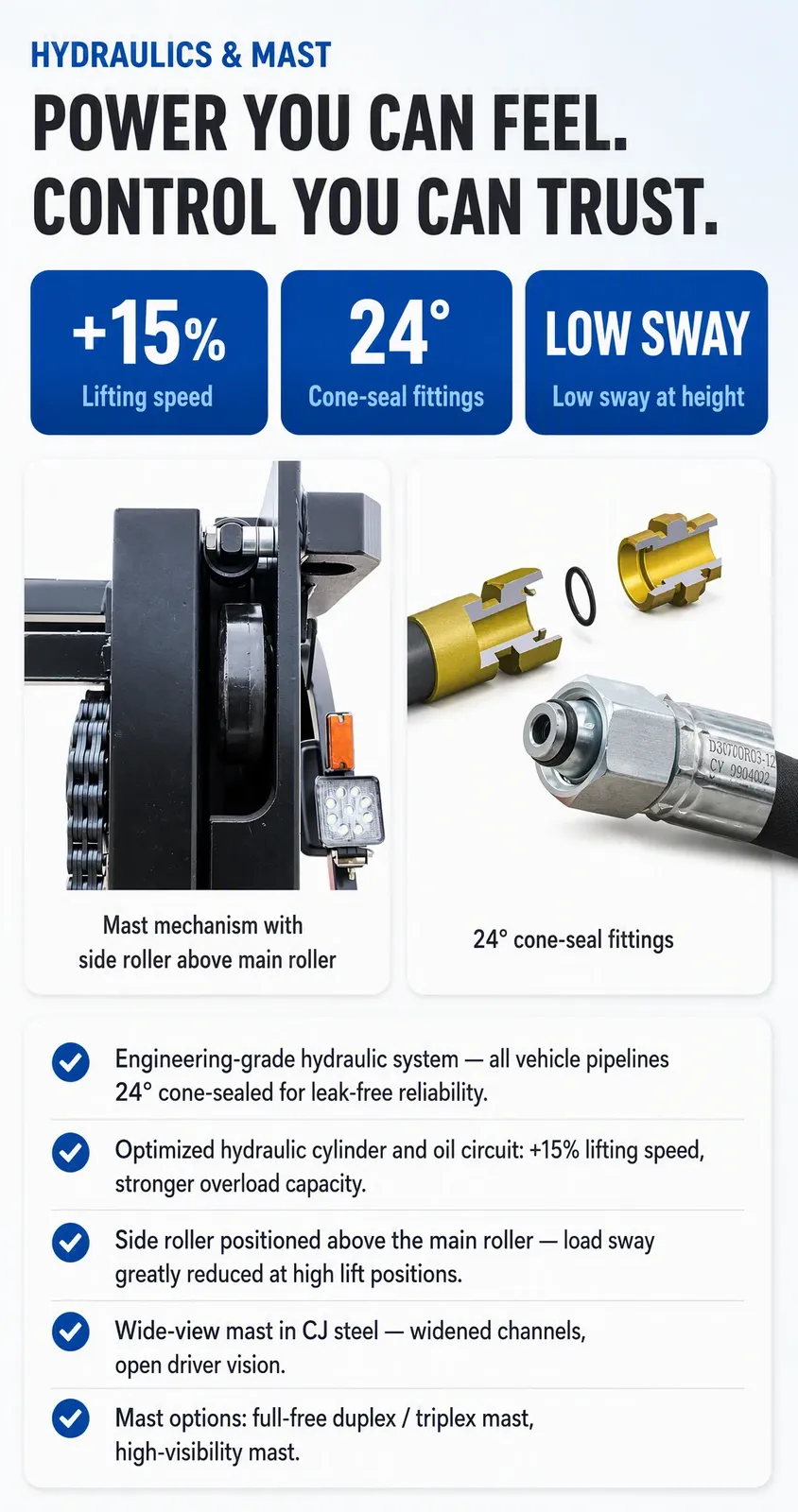

QuanChai 4C4-50V31 common rail diesel engine (36.8kW, Stage III); 24-degree cone seal hydraulics, digital CAN bus panel, maintenance-free cast steering axle.
Stage III emission with two-stage iron air purification. Anti-slip pedal, welded handle, overhead guard, warning buzzer and rearview mirror enhance safety.

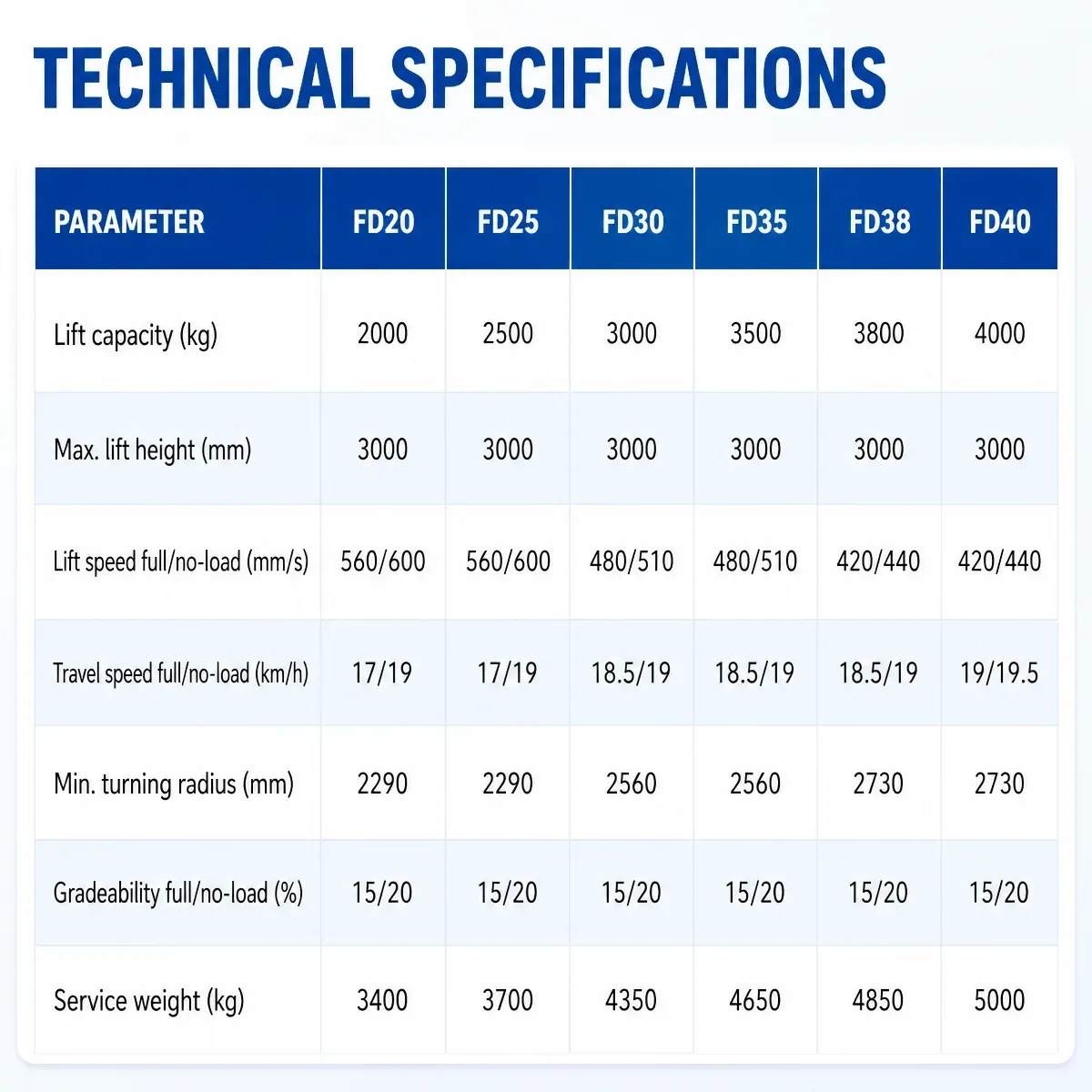

3.5-ton rated load at 500mm load centre, 3m lift height, 480mm/s lifting speed, 18.5/19km/h travel speed, 2560mm turning radius, 15/20% gradeability.

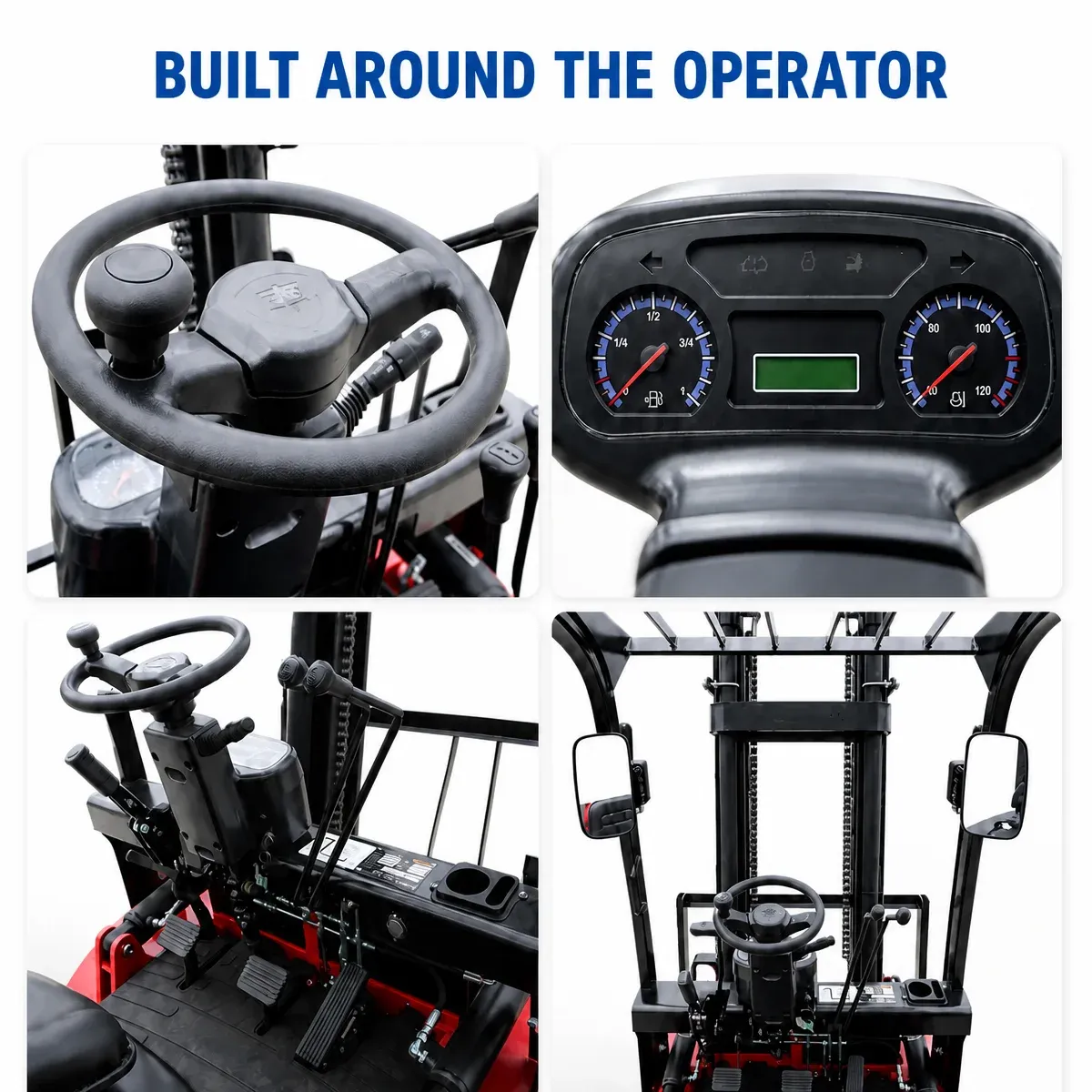

12V/80Ah battery, digital dashboard. NVH optimisation cuts noise by 2dB; common rail injection, energy-saving hydraulics and LED lighting reduce fuel use.

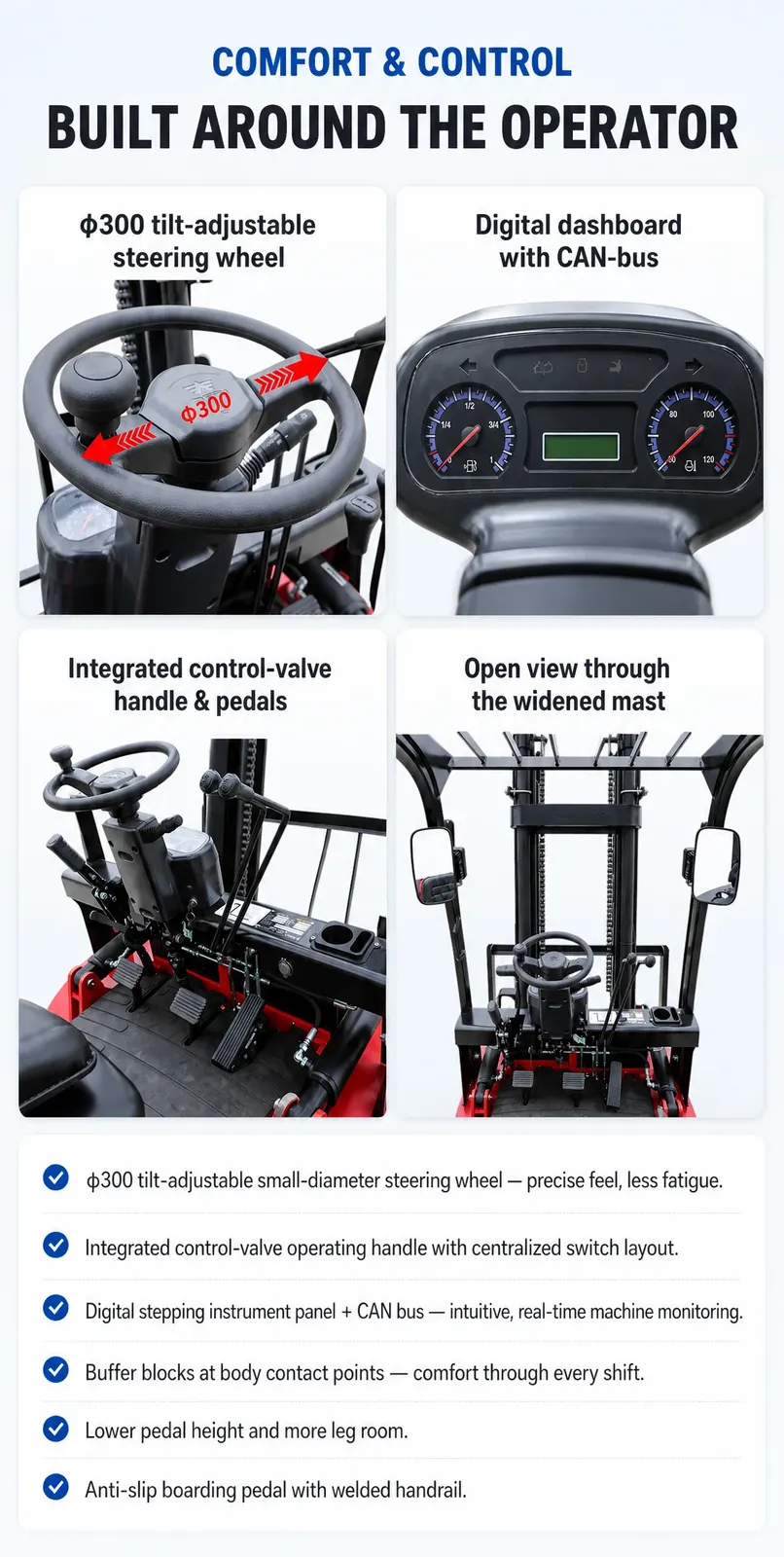

Wide view CJ steel mast, 300mm adjustable steering wheel, hydraulic power steering option, pneumatic tyres (solid optional); for warehouses, factories, docks.

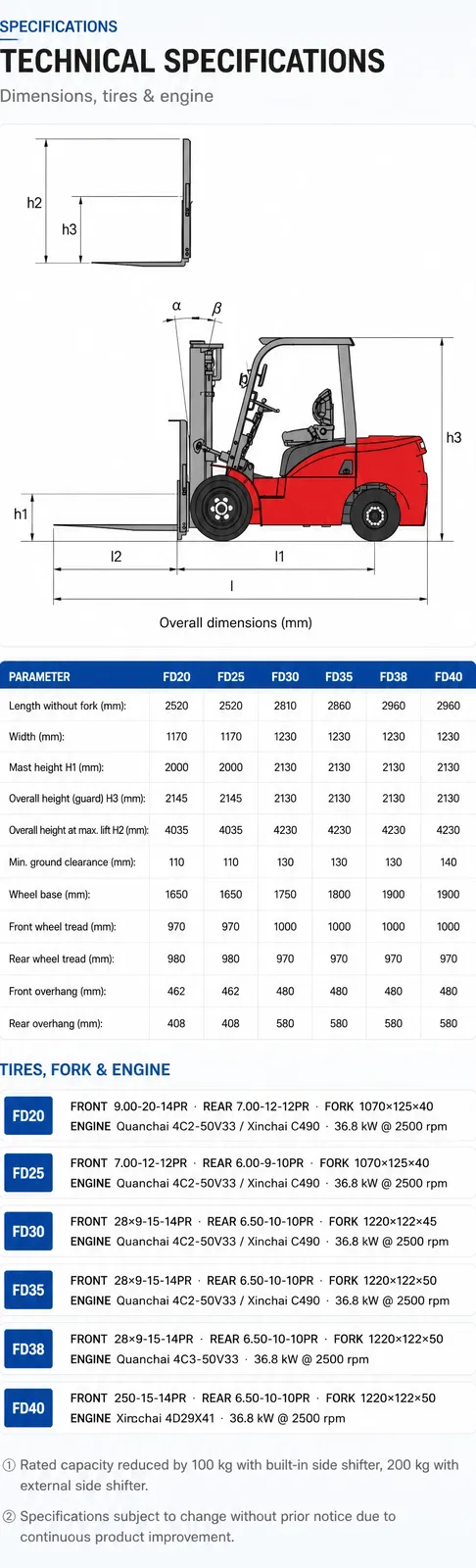

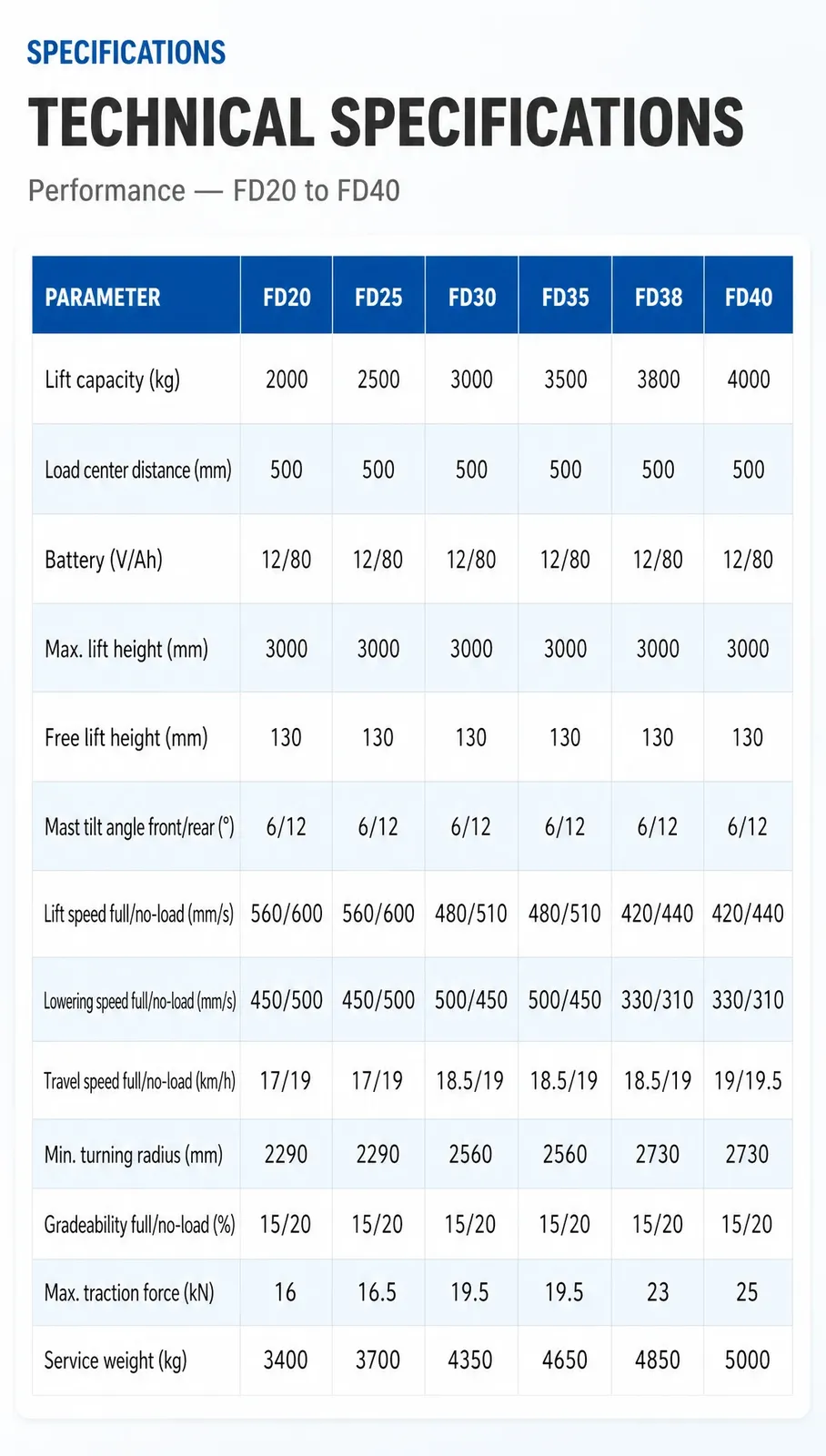

| Condition | New |
|---|---|
| Fork Specifications( L*W*H) | 1220 × 122 × 50 mm |
| Fork Length | 1220mm |
| Fork Width | 122mm |
| Forklift Turning radius | 2560mm |
| Power Source | Diesel |
| Mast Type | Single Stage Mast, Two Stage Mast, Three Stage Mast |
| Load centre distance | 500mm |
| Forklift Wheelbase | 1800mm |
| Travel speed ( laden) | 18.5 km/h |
| Mast Tilt Angle (Forward Tilt-Rear Tilt) | 6° / 12° |
| Travel speed ( unladen) | 19 km/h |
| Grade ability laden) | 15% |
| Grade ability unladen) | 20% |
| Rated Load Capacity | 3500 kg |
| Max. Lifting Height | 3000mm |
| Rated Power | 36.8kW @ 2500rpm |
| Rated Torque | 190Nm @ 1500-1850rpm |
| Max. Traction Force | 19.5kN |
| Free Lift Height | 130mm |
| Lifting Speed (Full Load) | 480mm/s |
| Min Ground Clearance | 130mm |
| Battery (Voltage/Capacity) | 12V / 80Ah |
| Rated Loading Capacity options | 3.5 Ton |
| Truck Type options | Counterbalance Forklift |
| Max. Lifting Height options | 3000mm |
| Certificate | Number | Valid |
|---|---|---|
| 2006/42/EC | M.2026.206.C137529 | 30/03/2026 - 29/03/2031 |
| CE | M.2026.206.C134736 | 04/02/2026 - 03/02/2031 |
| CE | 3N251031.NEMS093 | 30/10/2025 - 29/10/2030 |
| EAC | 22/10/2023 - 22/10/2028 |
Certificates are supplied with your quote on request.
