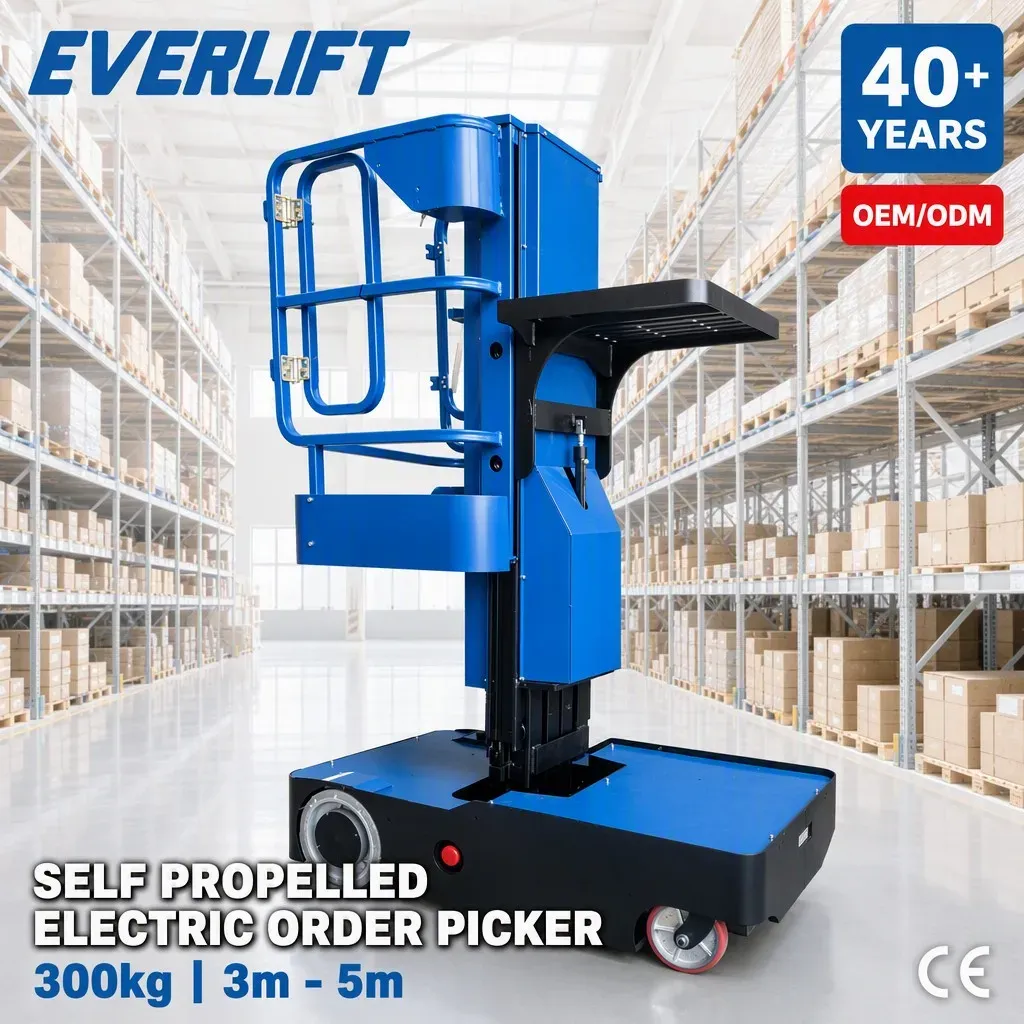

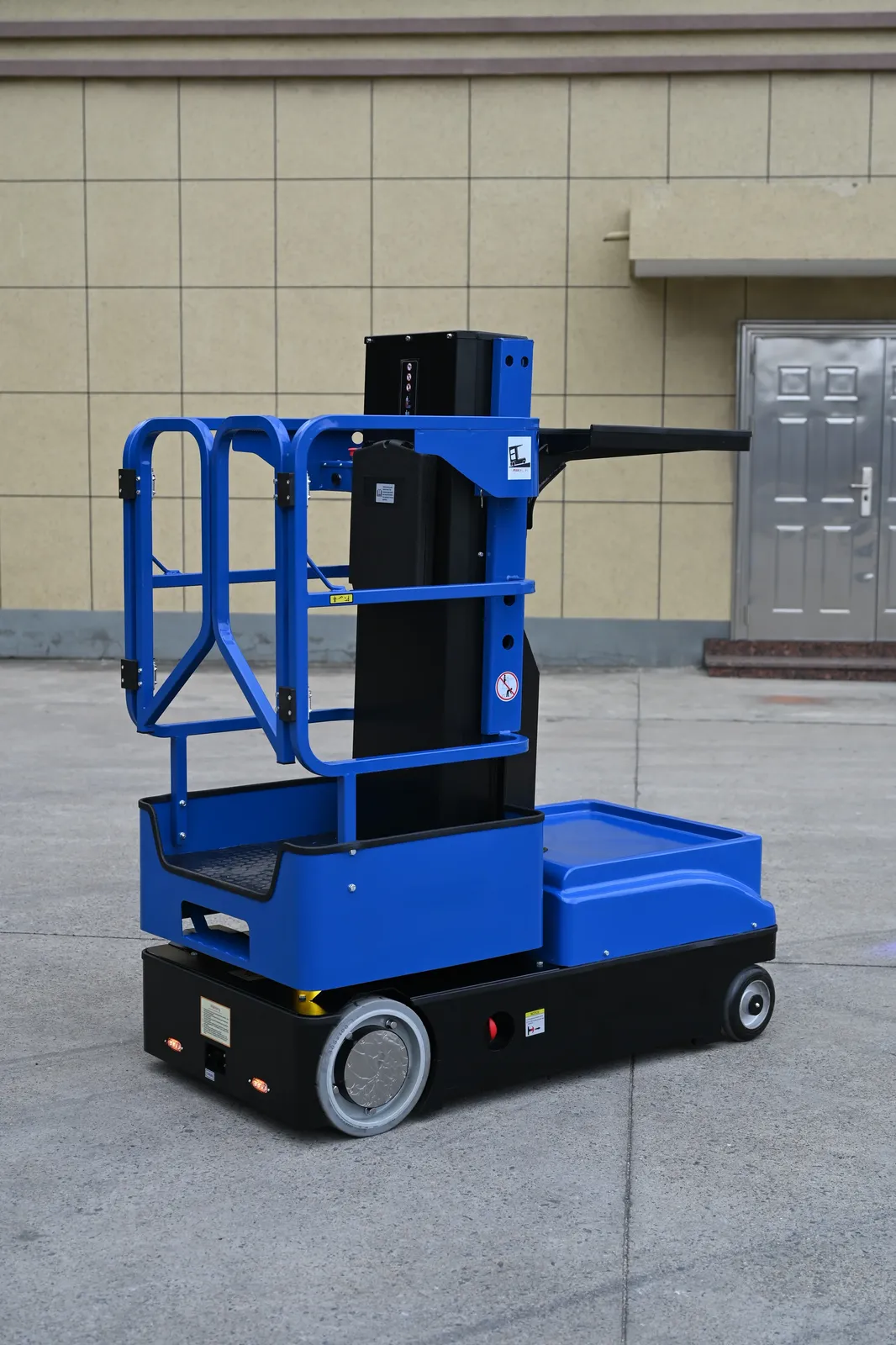

Order Picker All Electric High-altitude Picking Vehicle

Product Highlights

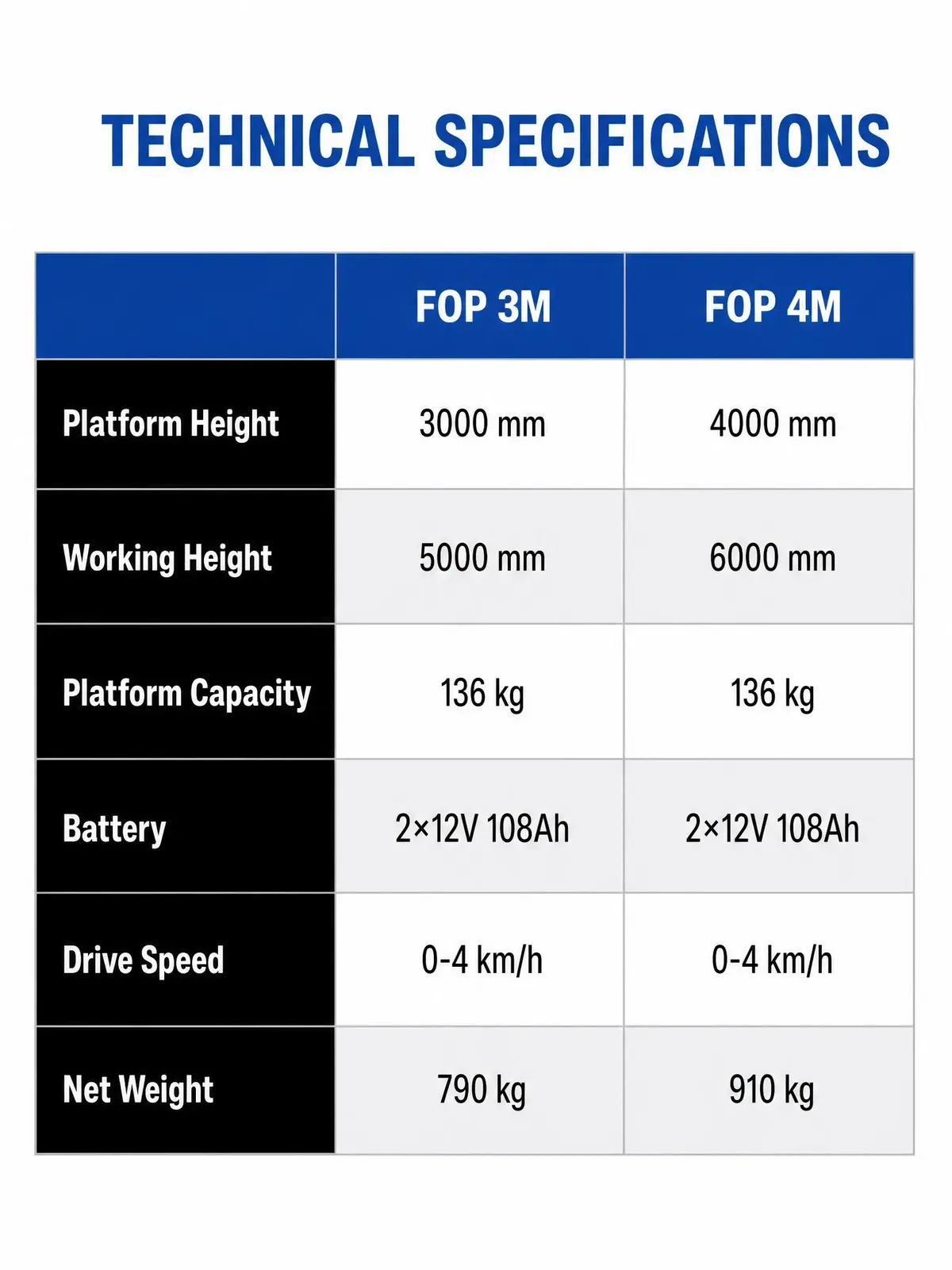

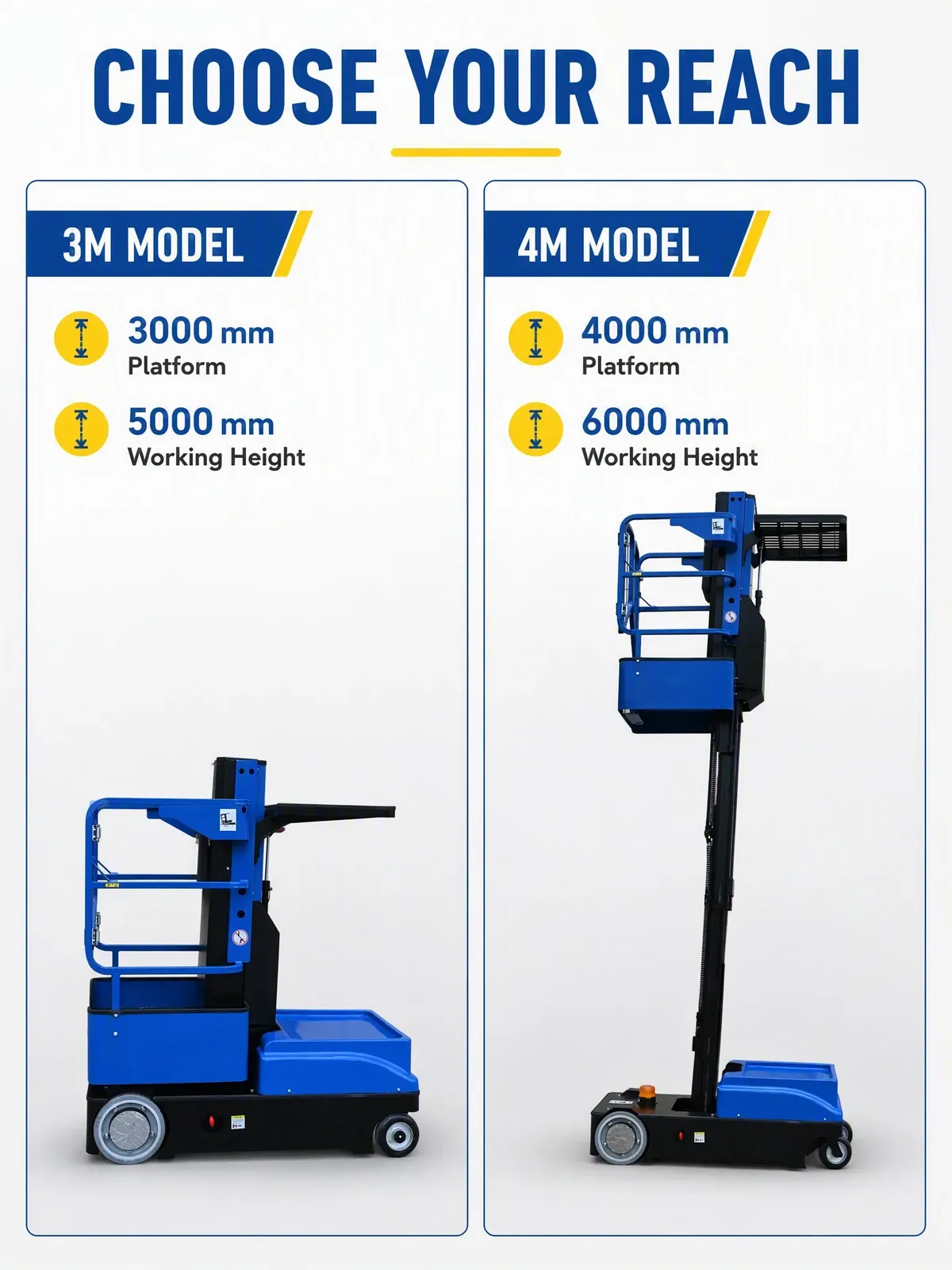

• (1) 3000mm and 4000mm Maximum Platform Height Options Available in two working height configurations — 3000mm (FOP03M) and 4000mm (FOP04M) — providing flexible solutions for different high-level access needs in warehouses, retail stores, and maintenance facilities.

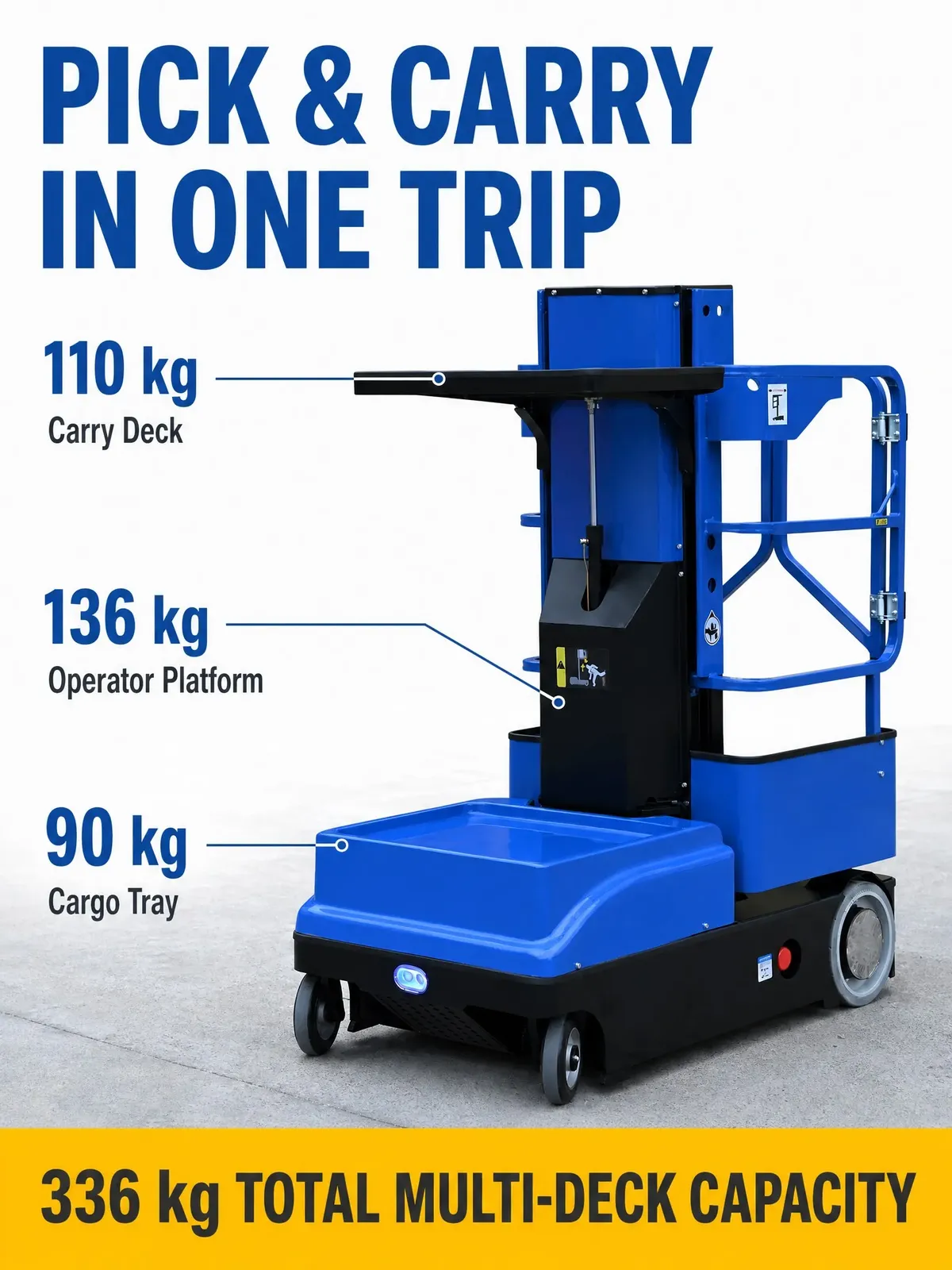

• (2) 136kg Platform Capacity with 90kg Cargo Tray and 110kg Carry Deck Supports a main platform capacity of 136kg, a cargo tray capacity of 90kg, and a carry deck capacity of 110kg, allowing operators to carry tools and materials directly to the work position for enhanced efficiency.

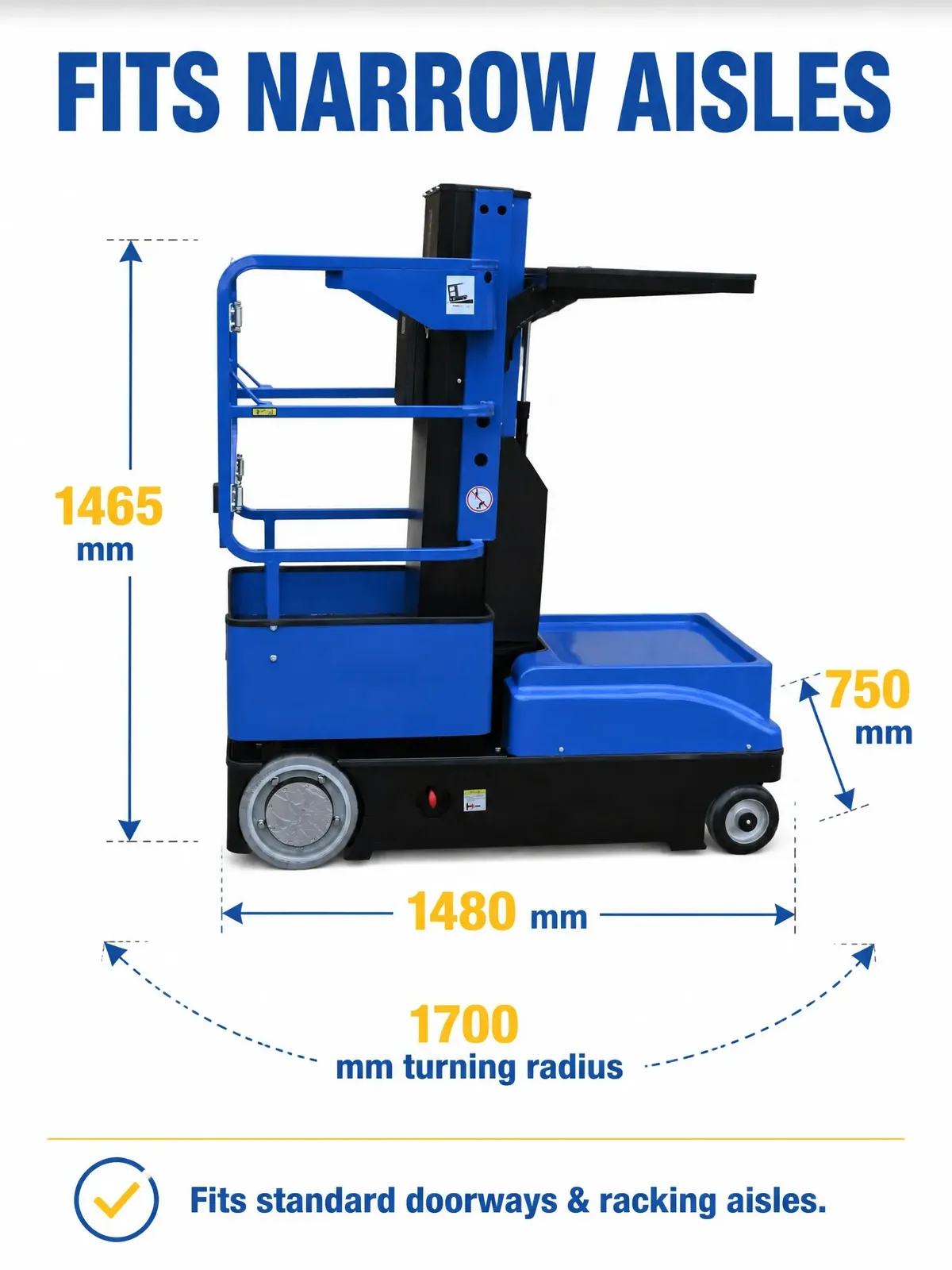

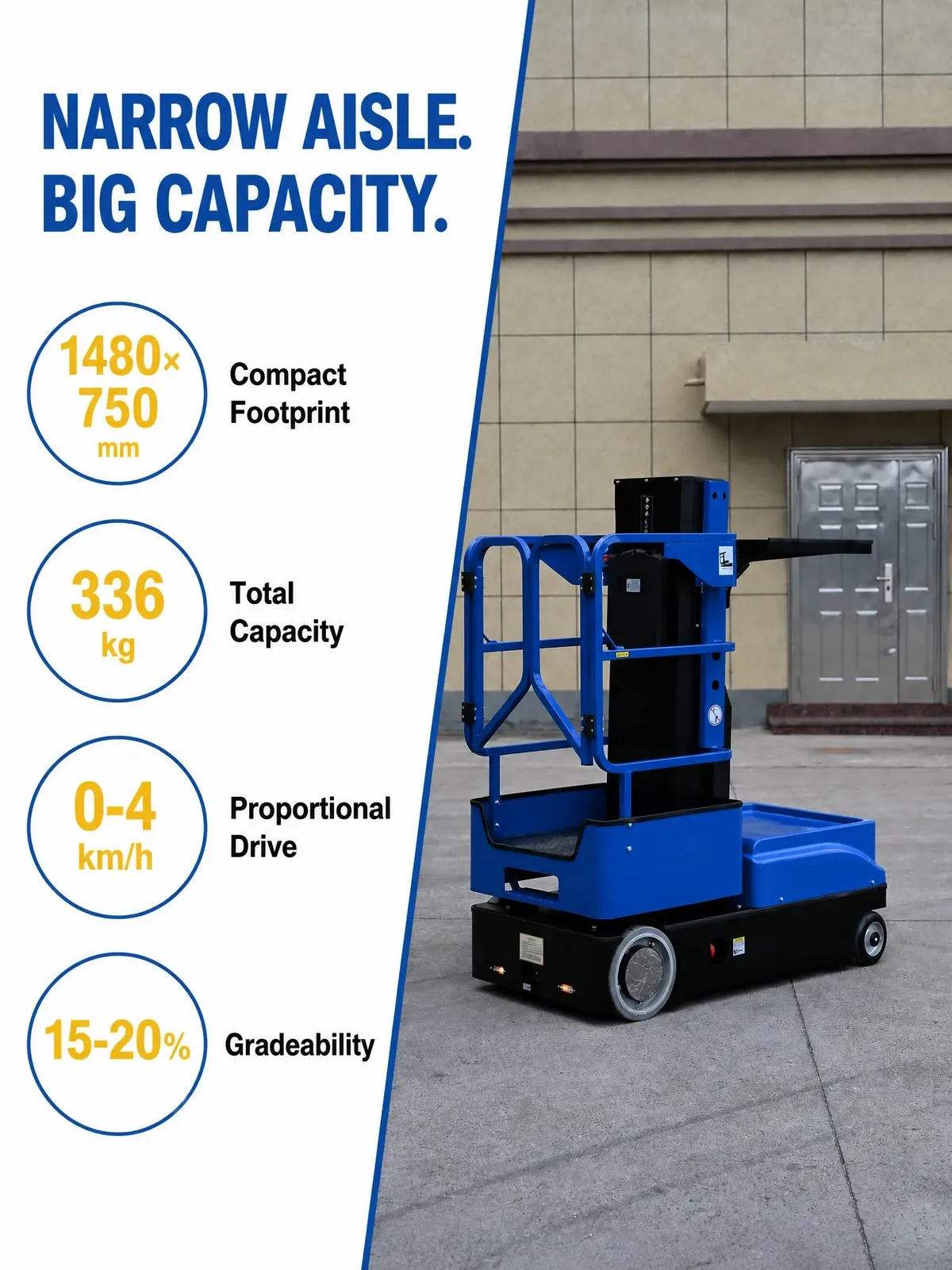

• (3) 1480mm Overall Length with 750mm Ultra-Narrow Width Features a compact overall length of 1480mm and width of just 750mm, enabling easy manoeuvring through standard doorways, narrow aisles, and confined workspaces.
• (4) 1700mm Tight Turning Radius for Excellent Manoeuvrability With a small turning radius of 1700mm, this lift navigates tight corners and congested areas with ease, reducing the time and effort required for repositioning.
• (5) 0-4 km/h Proportional Drive Speed Control Equipped with proportional drive speed control, allowing smooth and precise speed adjustment from 0 to 4 km/h for safe and accurate positioning in busy work environments.
• (6) 2×12V / 108Ah Lead-Acid Battery with Extended Range Powered by dual 12V/108Ah batteries, providing long-lasting operation for full work shifts. Optional lithium battery upgrade available for lighter weight and faster charging.
• (7) 24V / 0.8kW Lifting Motor with 0.22m/s Lift Speed Delivers reliable lifting performance with a 0.8kW lifting motor, achieving a raise speed of 0.22m/s and lower speed of 0.31m/s for efficient up-and-down movement.
• (8) 15-20% Gradeability for Versatile Terrain Offers strong gradeability of 15-20%, ensuring stable climbing performance on ramps and inclined surfaces commonly found in warehouses and loading docks.
• (9) Large Polyurethane Tyres for Stable and Quiet Movement Equipped with two front wheels (φ200×50mm) and two rear wheels (φ305×100mm) with polyurethane tyres, providing smooth, durable, and quiet operation with excellent floor protection.
• (10) 790kg and 910kg Lightweight Design with 50mm Ground Clearance Weighing only 790kg (FOP03M) and 910kg (FOP04M), these lifts are easy to transport and reposition, with a ground clearance of 50mm for smooth movement over minor floor irregularities.
