Electric Pallet Trucks · Ref LPT-95803

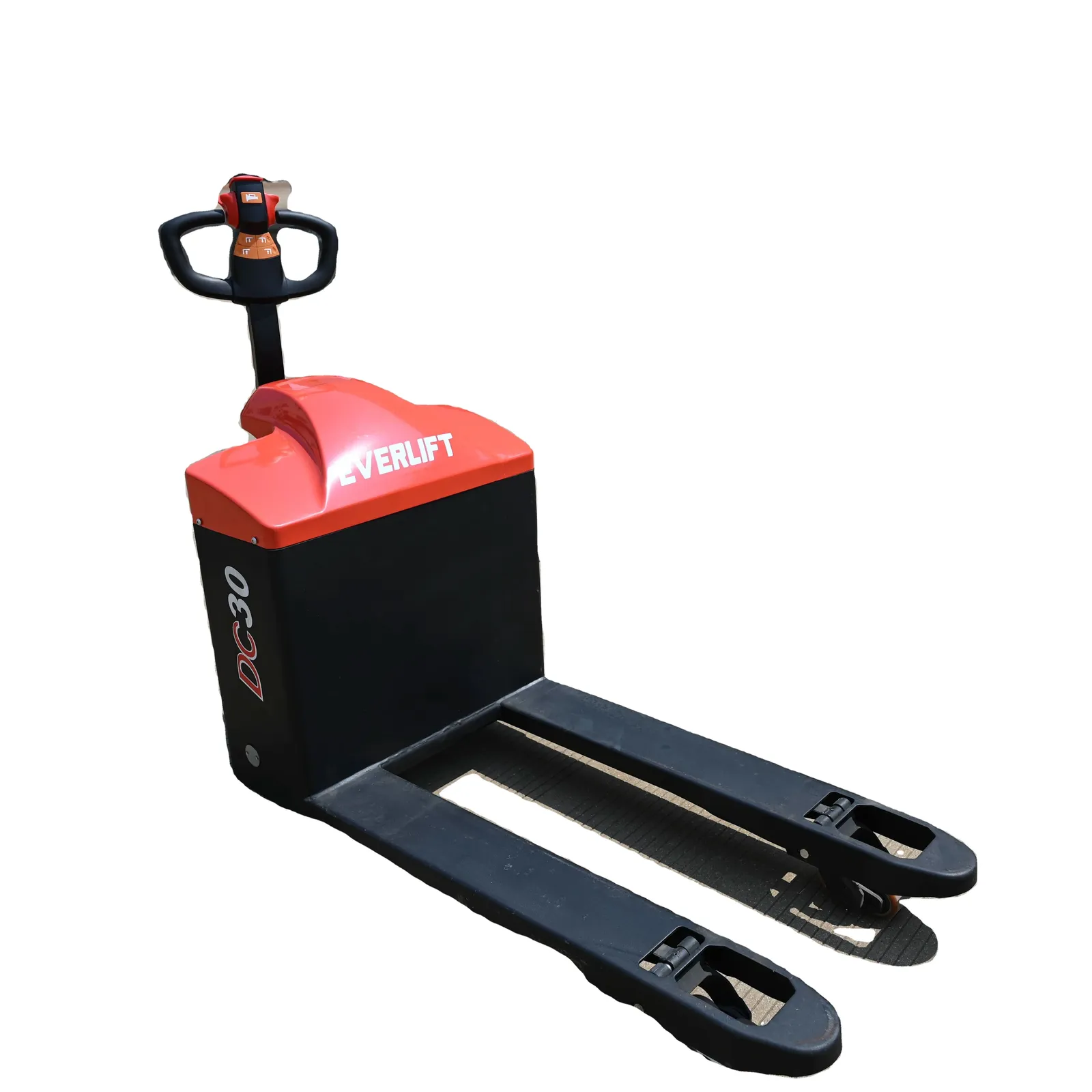

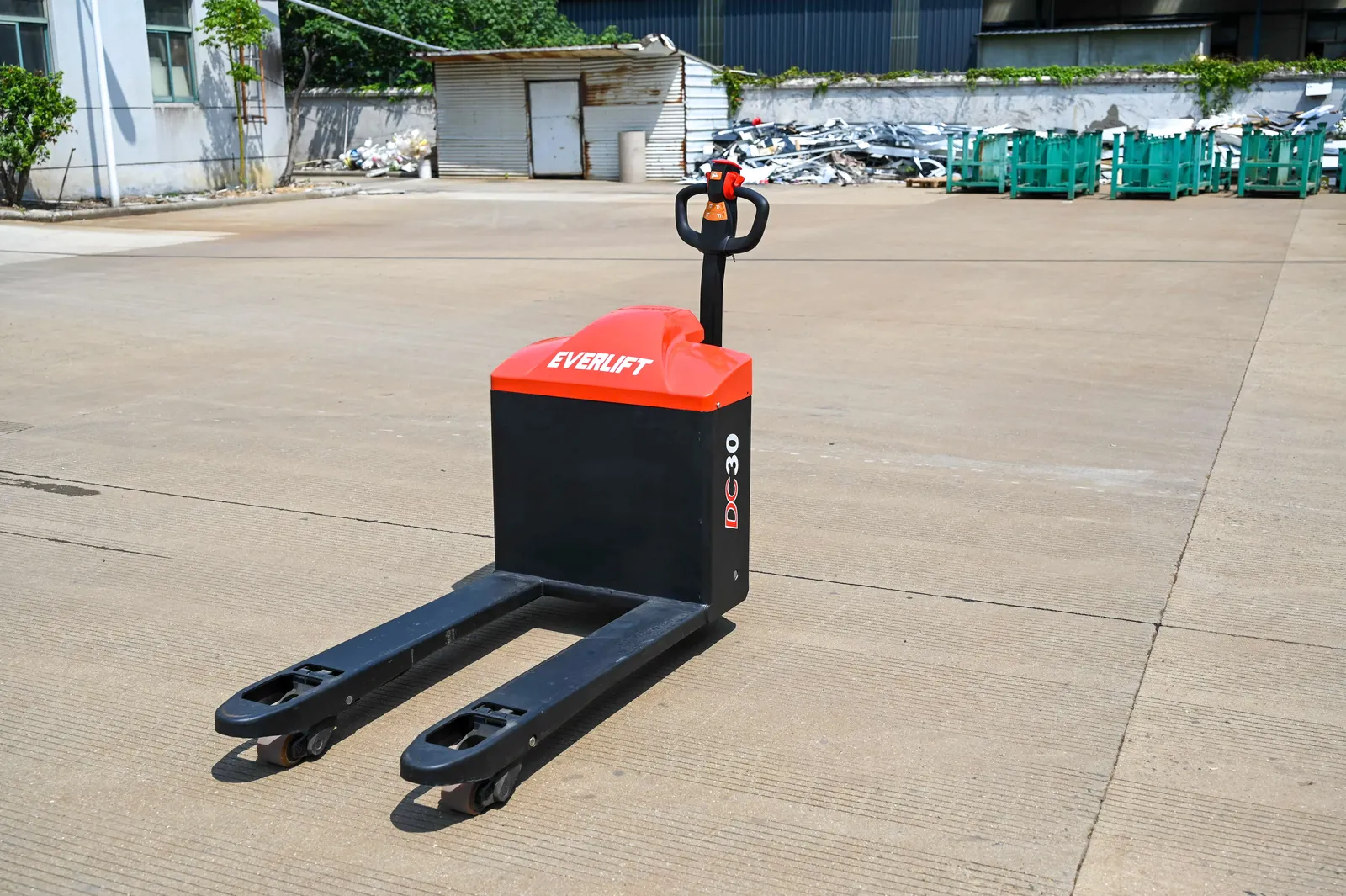

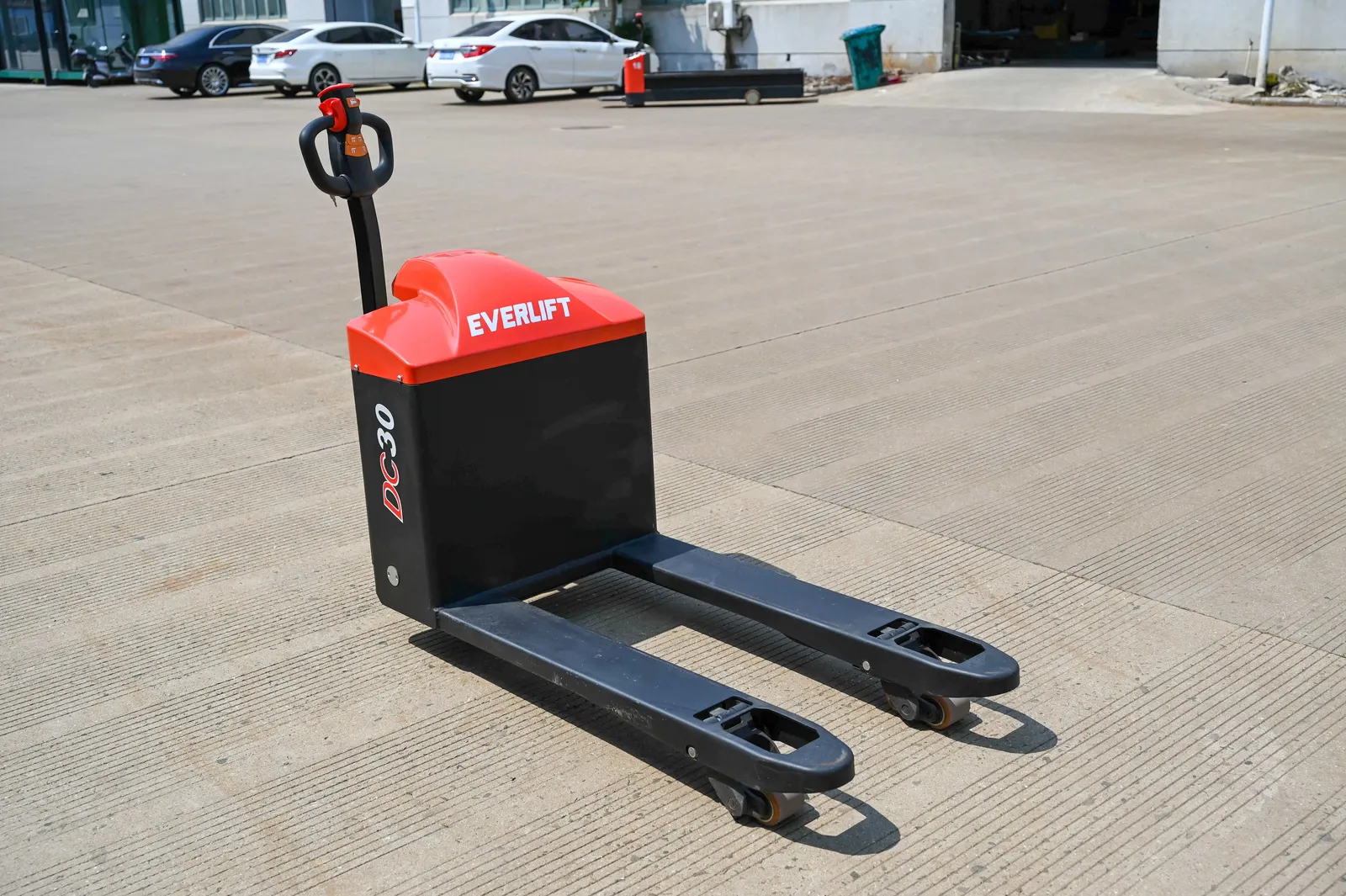

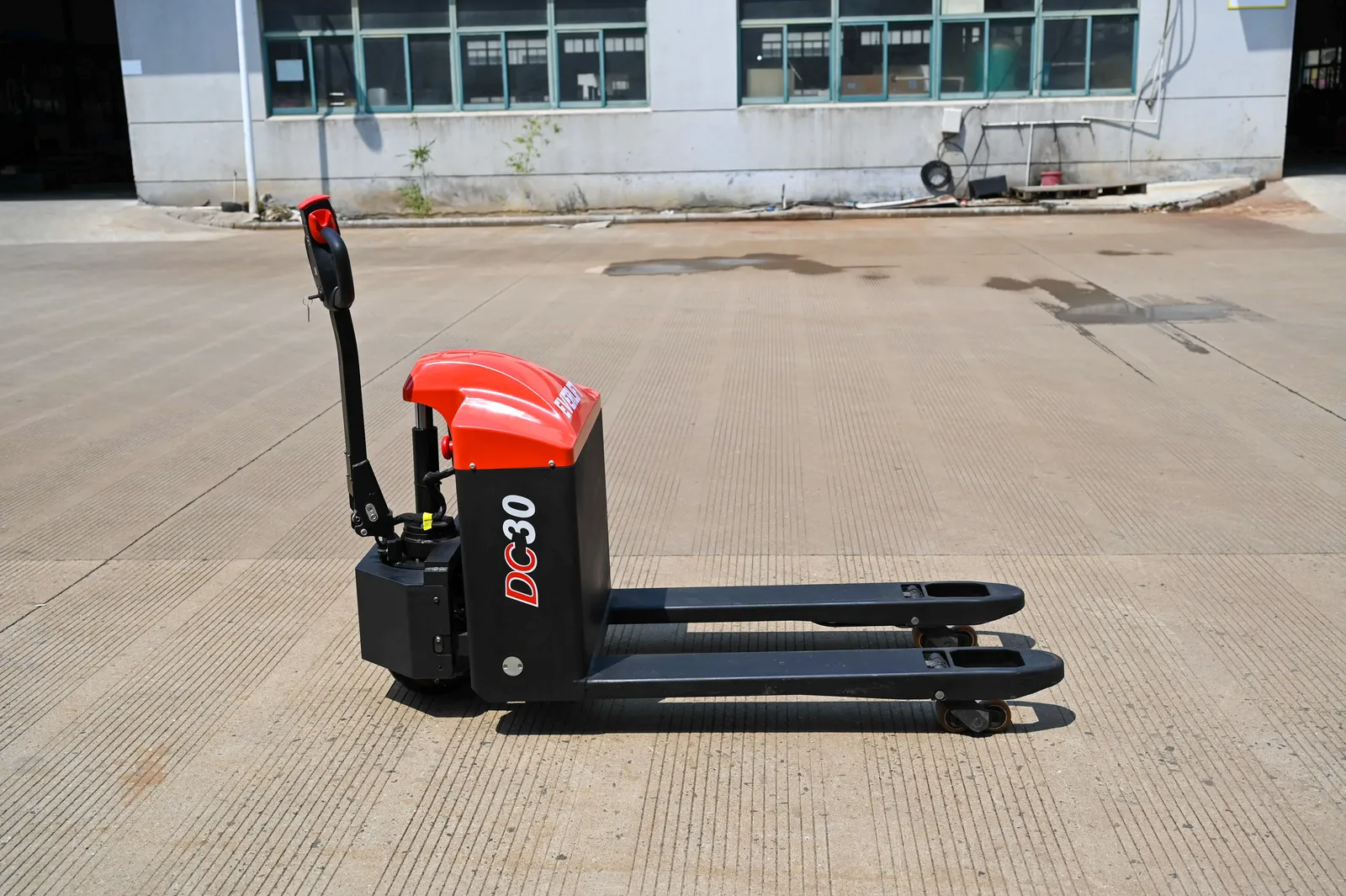

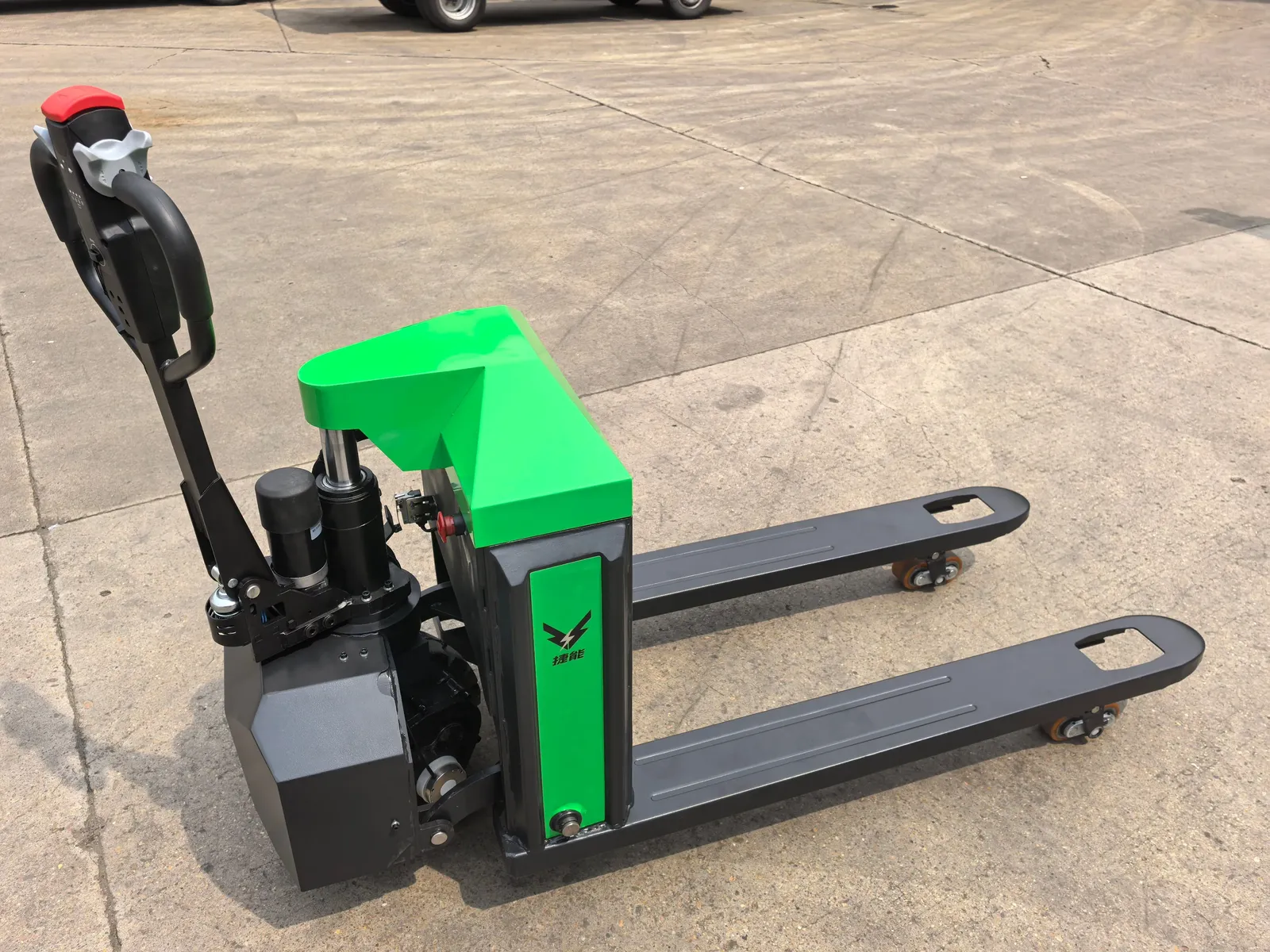

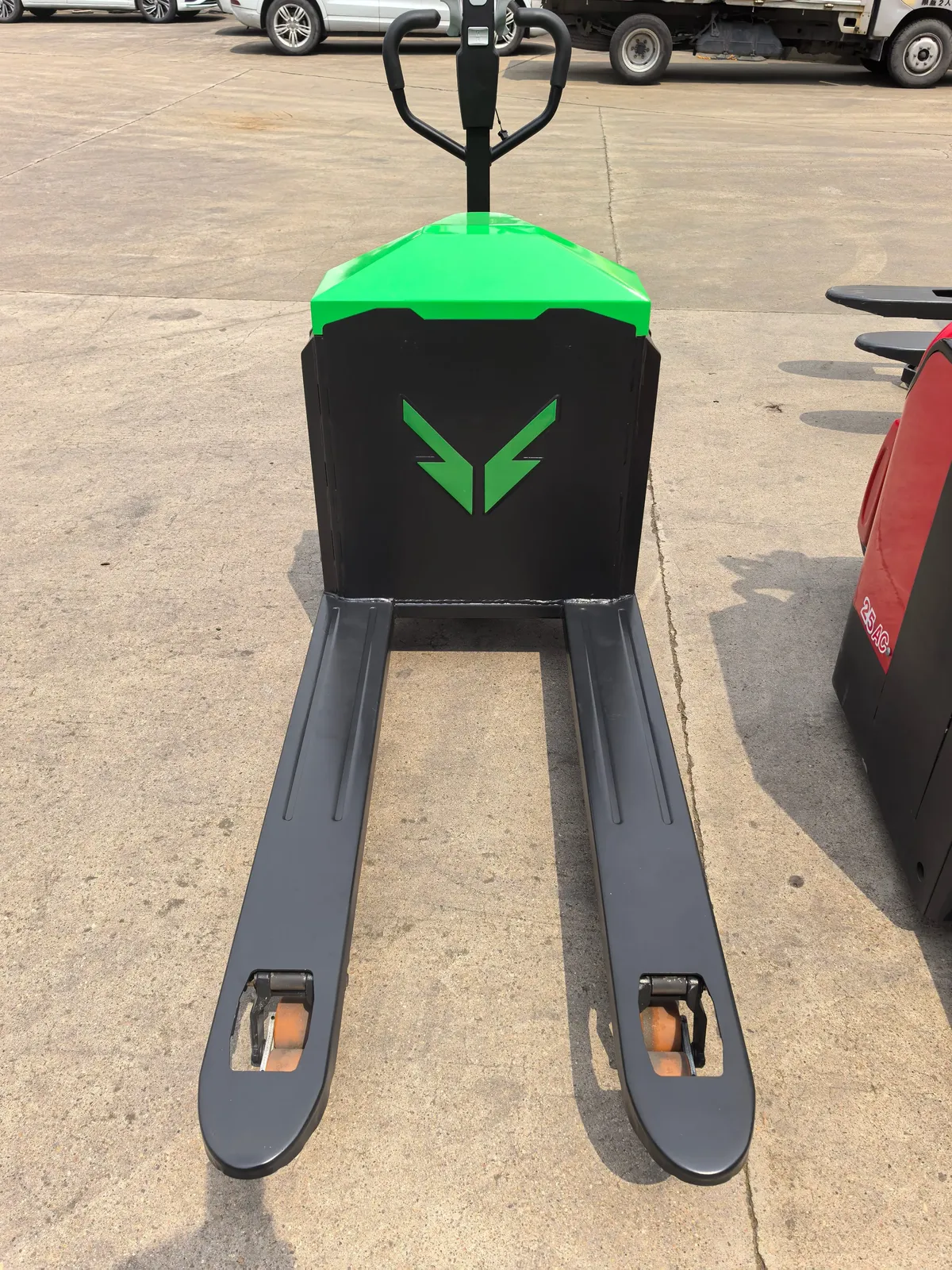

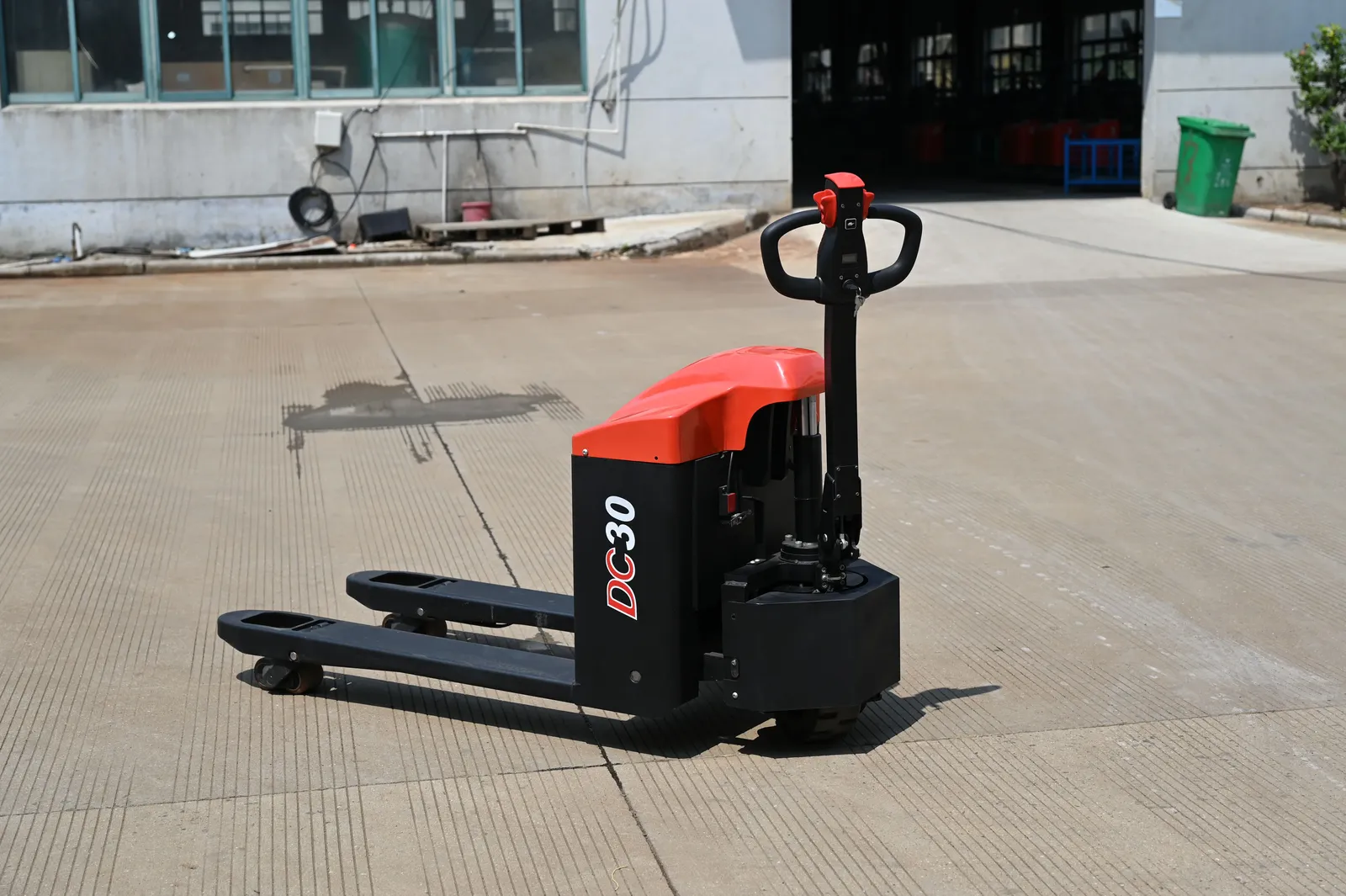

3 Ton Heavy Duty Rough Terrain Electric Pallet Jack
3 tLead-acidForks 1150 mm
Price on requestwritten quote
Minimum order 1 unit from the factory; any range minimum is confirmed on your quote. Prices in GBP per unit, ex VAT. We convert the factory list at a buffered exchange rate, so normal day-to-day currency movement does not change the price you see. Your written quote adds freight, duty and VAT and is valid for 30 days.
Rated Loading Capacity3 Ton
Max. Lifting Height200mm
Truck TypePallet Jack
Line total
No online payment. The basket becomes an order request and we reply with a written GBP quote, deposit 30% on order, lead time 8 to 12 weeks.
Or email [email protected]Product Highlights

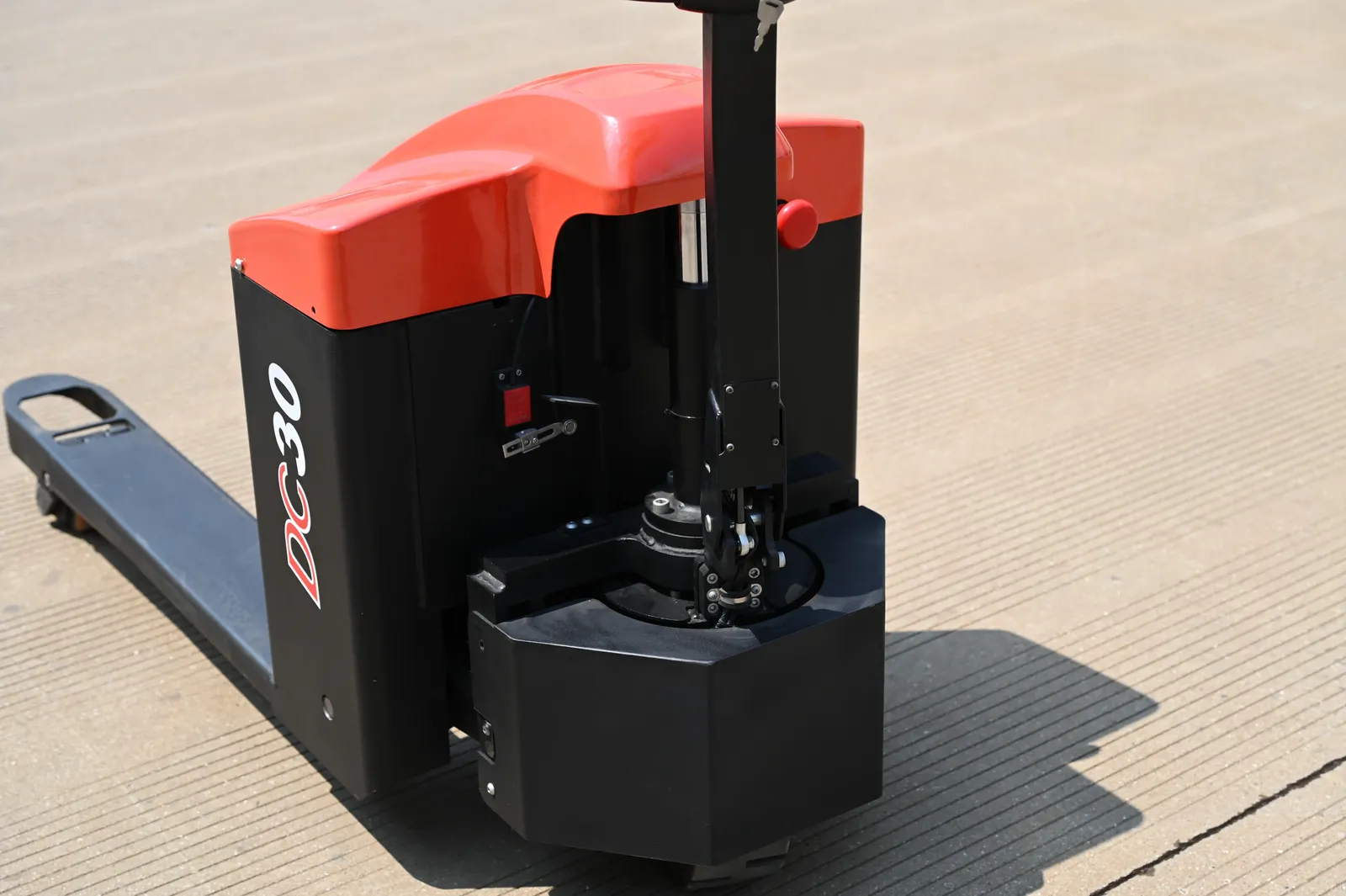

Compact and flexible,suitable for narrow place operations Standard configuration of emergency stop switch,emergency reverse safety device and built-in charger.

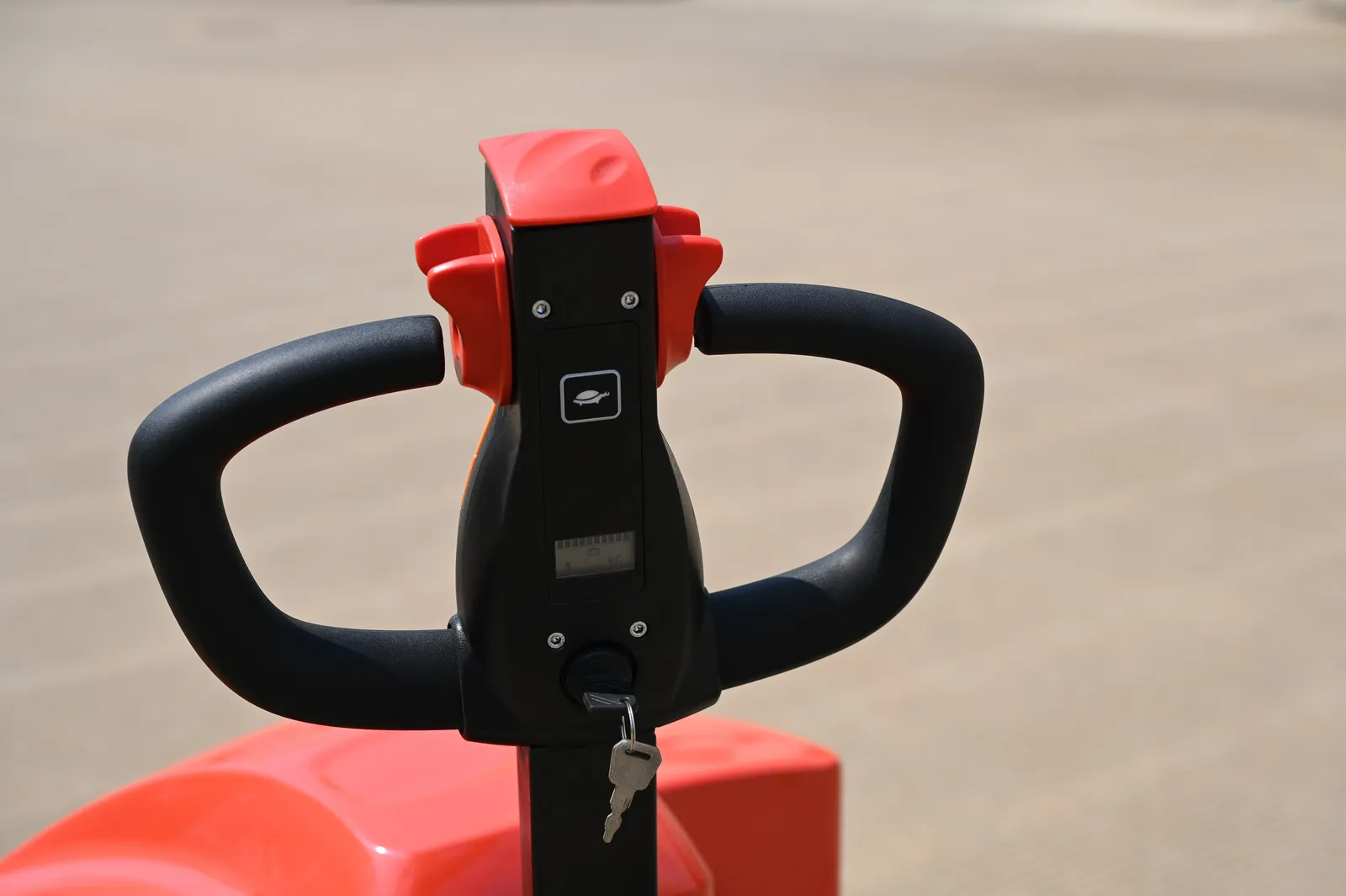

Multifunction handle,key,upright walking
.LCD screen(can display battery,working time,fault code),Optional intergrated combination lock and turtle climbing.contributes to easy and comfortable operation.
Metal shell-High strength,safer.

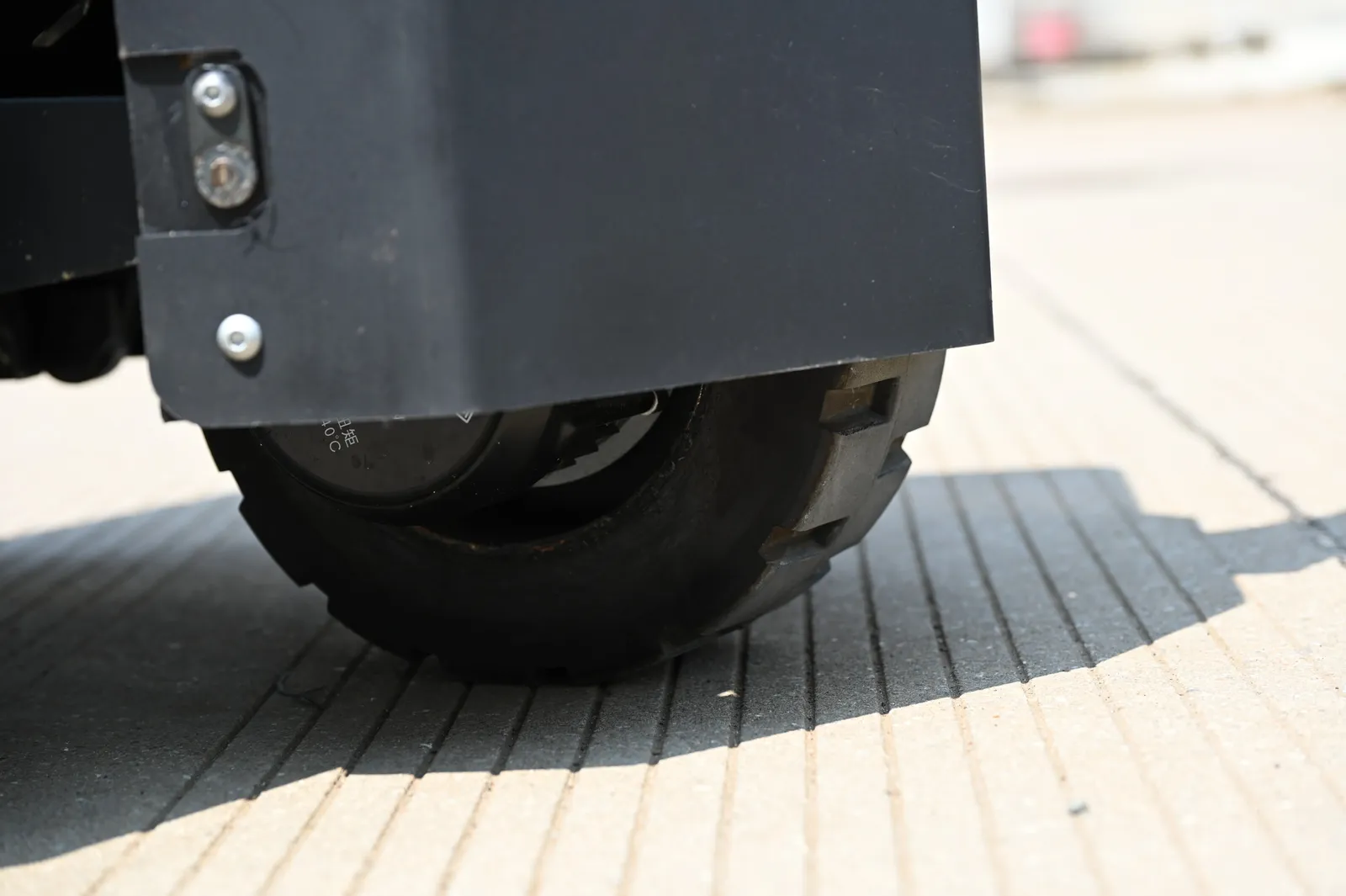

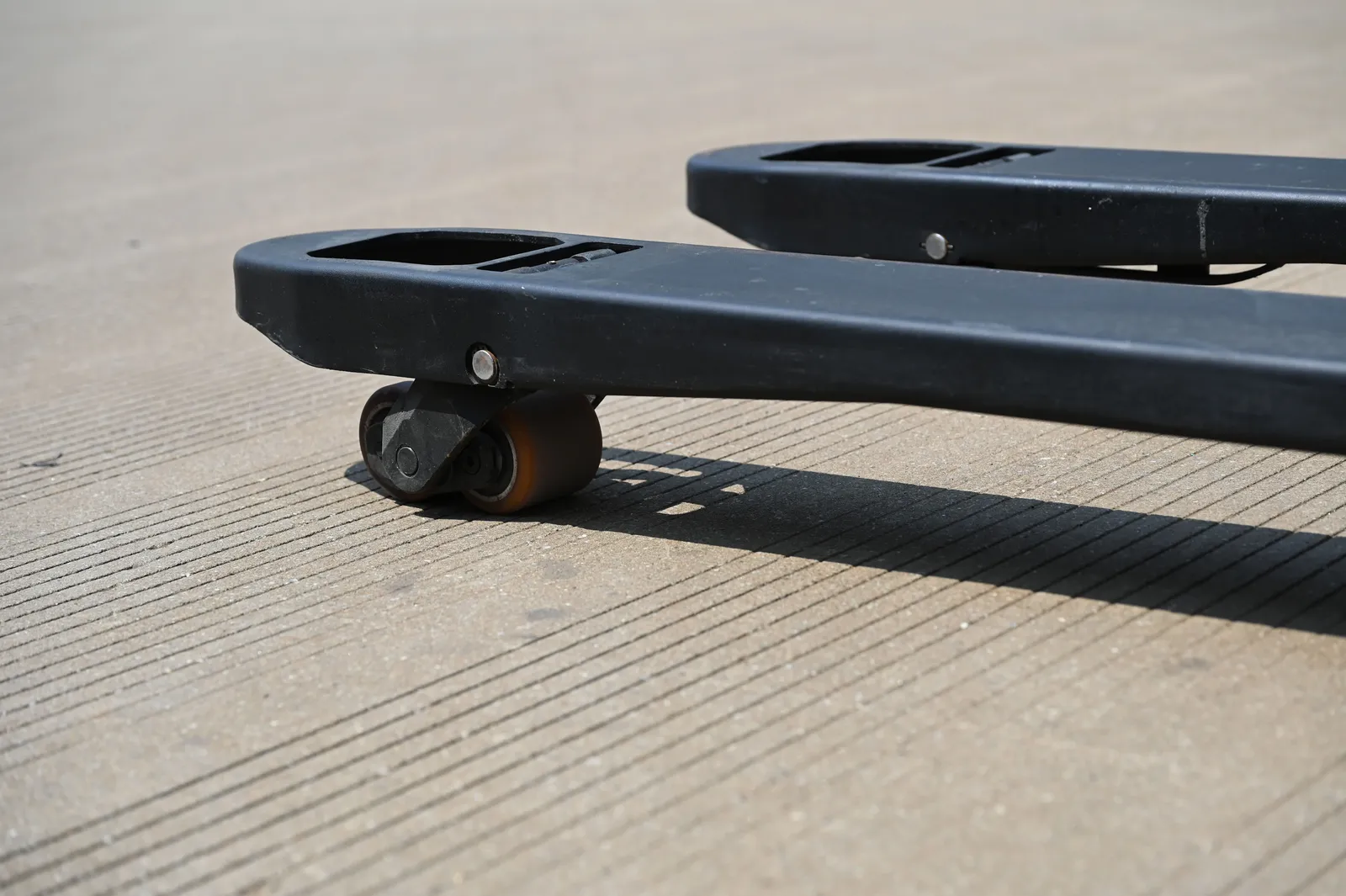

Standard nylon load-bearing wheels, more durable in off-road condition.
Fully sealed design, meets operational requirements Adaptable to a variety of environments.stronger passability in complex conditions.

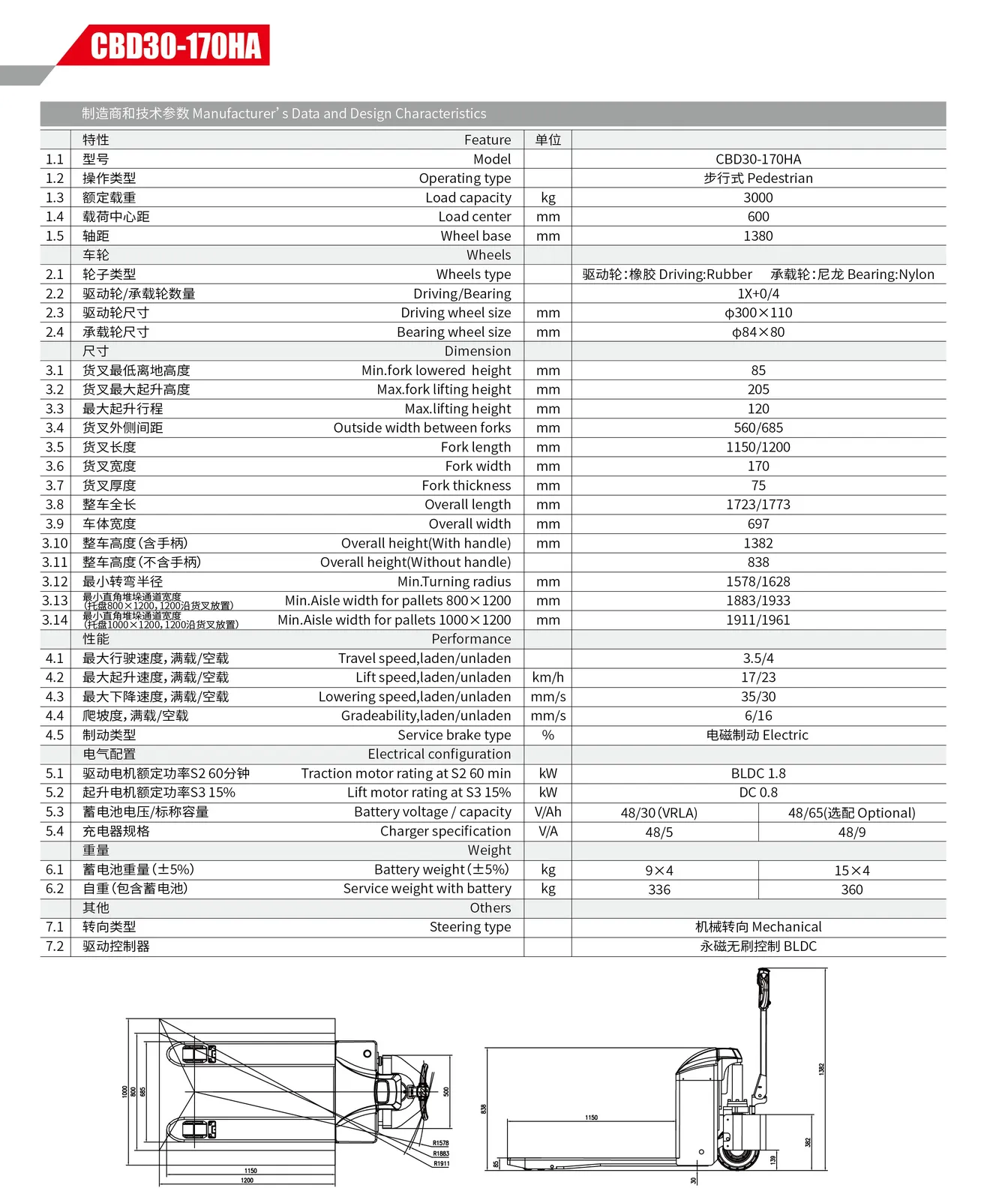

| Condition | New |
|---|---|
| Fork Specifications( L*W*H) | 1220*125*50 |
| Forklift Battery Type | Lead–Acid Battery |
| Side Shifter | no |
| Drive Type | Rwd |
| Terrain Adaptability | Offroad, Indoor Flooring, Outdoor Pavement, Rough Terrain |
| Load centre distance | 600mm |
| Forklift Turning radius | 1950 mm, 1600MM |
| Fork Width | 160mm |
| Fork Length | 1150 mm |
| Operating Mode | walkie |
| Forklift Tyre | Polyurethane Tyre |
| Travel speed ( laden) | 4 km/h |
| Grade ability laden) | 0.4 |
| Travel speed ( unladen) | 4.5km/h |
| Grade abilityunladen) | 0.4 |
| Forklift Wheelbase | 1360mm |
| Mast Tilt Angle (Forward Tilt-Rear Tilt) | 6-12° |
| Aisle width | 1800MM |
| Model Number | ELEP-30T |
| Battery voltage (V/AH) | 48v/32ah |
| Fork height,lowered | 85MM |
| Type | Powered Pallet Truck |
| Tyre Type | PU Wheel |
| Battery Type | Battery 48v/32Ah |
| Loading Capacity | 3000kg |
| Load Centre | 600mm |
| Fork length/Width | 1150/1200mm 550/685mm |
| Model | ELEP-30T |
| turning radius | 1600mm |
| Overall length | 1890mm |
| Rated Loading Capacity options | 3 Ton |
| Max. Lifting Height options | 200mm |
| Truck Type options | Pallet Jack |
| Certificate | Number | Valid |
|---|---|---|
| 2006/42/EC | M.2026.206.C137529 | 30/03/2026 - 29/03/2031 |
| CE | M.2026.206.C134736 | 04/02/2026 - 03/02/2031 |
| CE | 3N251031.NEMS093 | 30/10/2025 - 29/10/2030 |
| EAC | — | 22/10/2023 - 22/10/2028 |
| CE | M.2023.206.C83216 | 22/03/2023 - 21/03/2028 |
| CE | M.2023.206.C83215 | 22/03/2023 - 21/03/2028 |
| CE | M.2023.206.C83222 | 22/03/2023 - 21/03/2028 |
| CE | M.2023.206.C83221 | 22/03/2023 - 21/03/2028 |
Certificates are supplied with your quote on request.
