Electric Stacker
Walkie on Electric Pallet Stacker ELES-20H 2tLoad 4m-6.2m
2 tLead-acidForks 1150 to 1220 mm
marked
markedfrom£3,830per unit, ex VAT
Electric Pallet Stackers · Ref LPT-00361

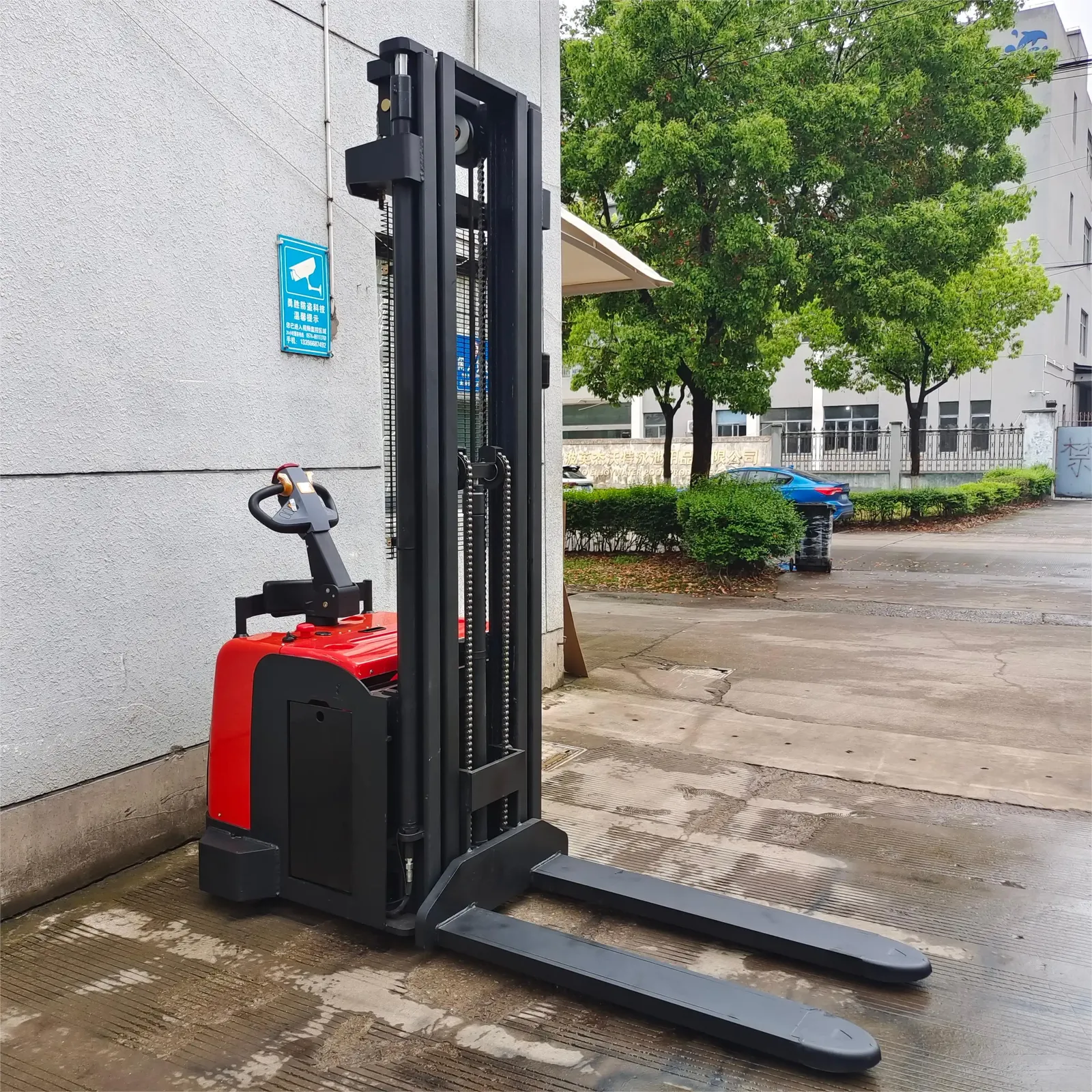

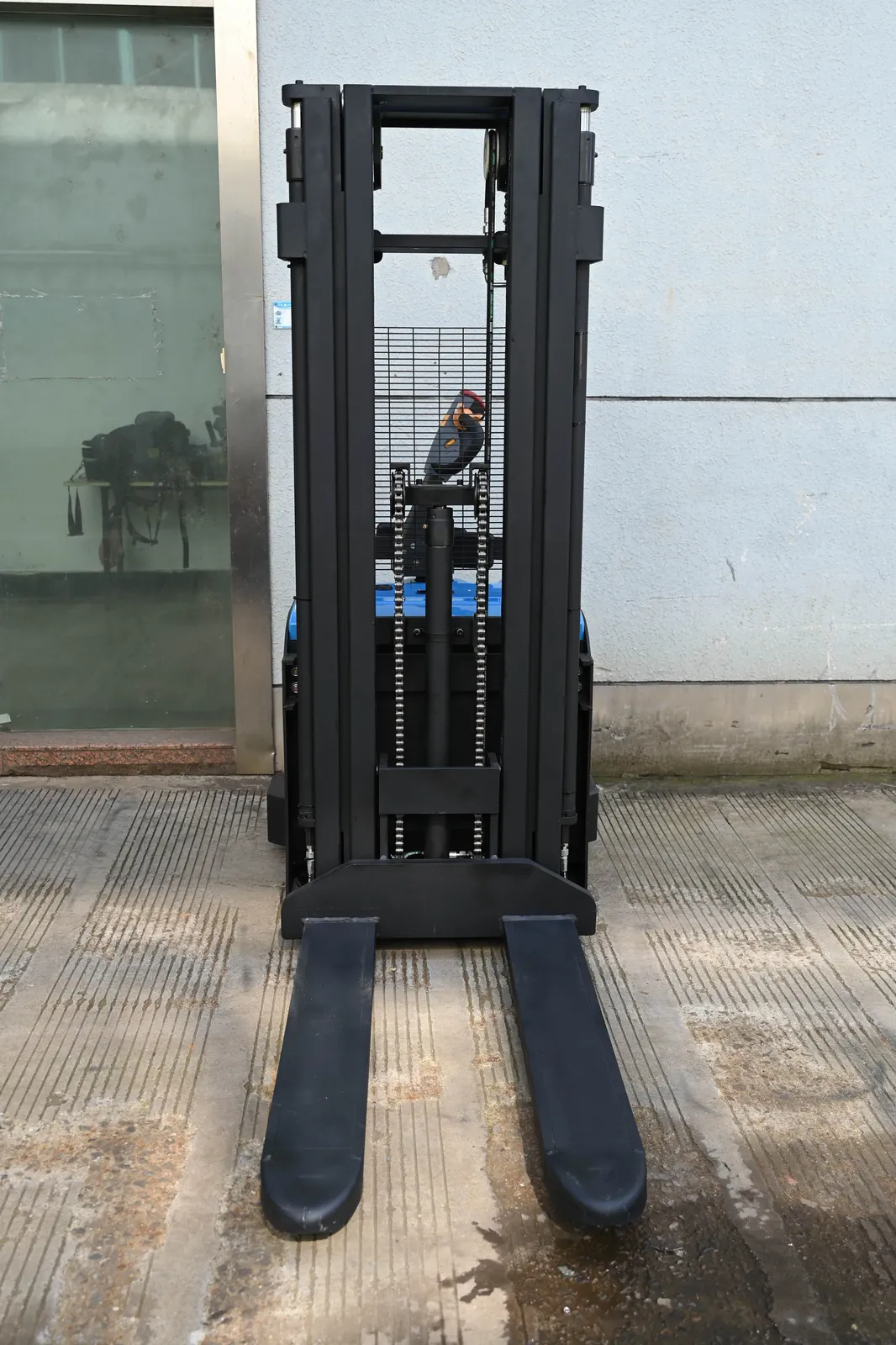

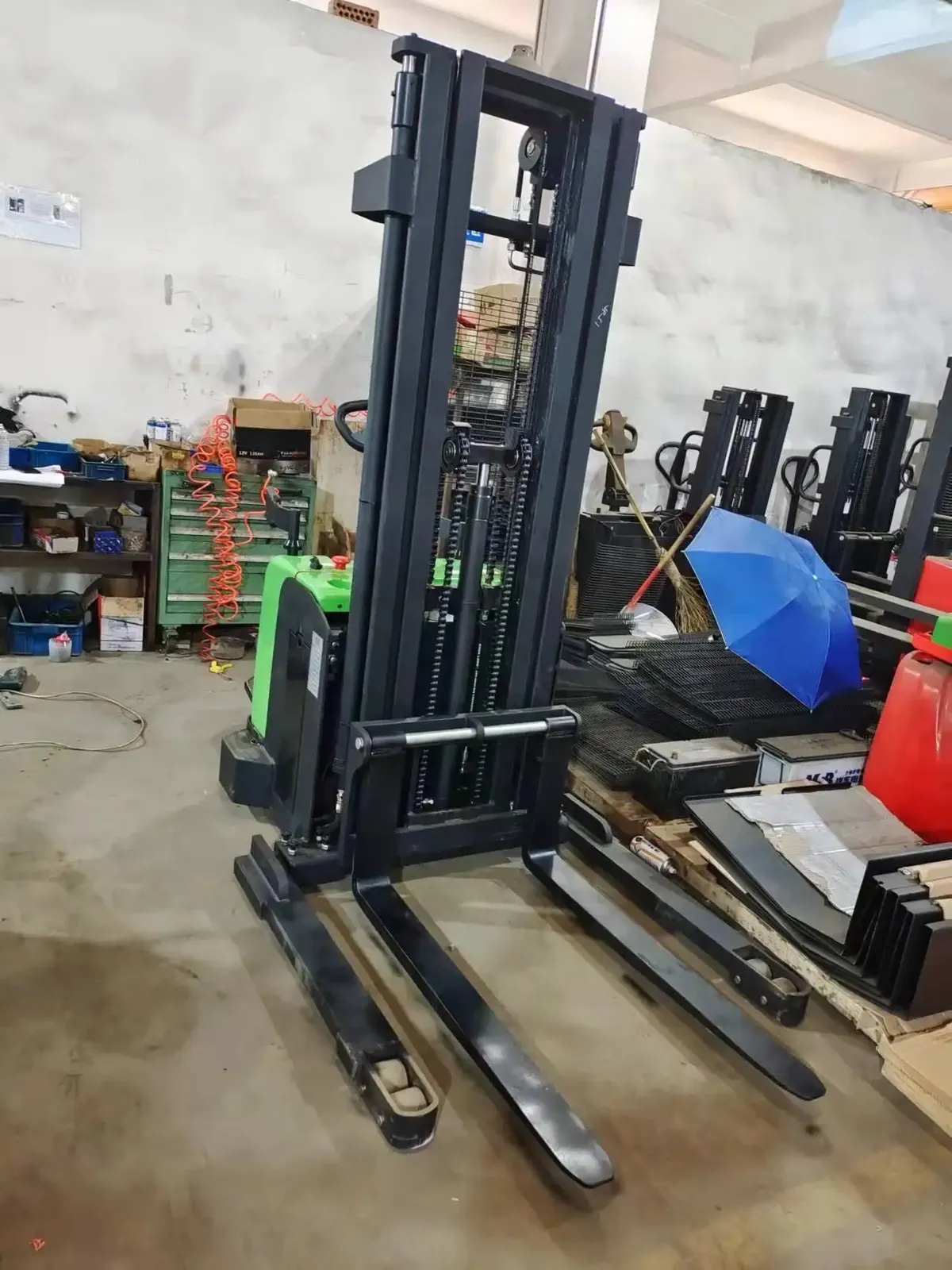

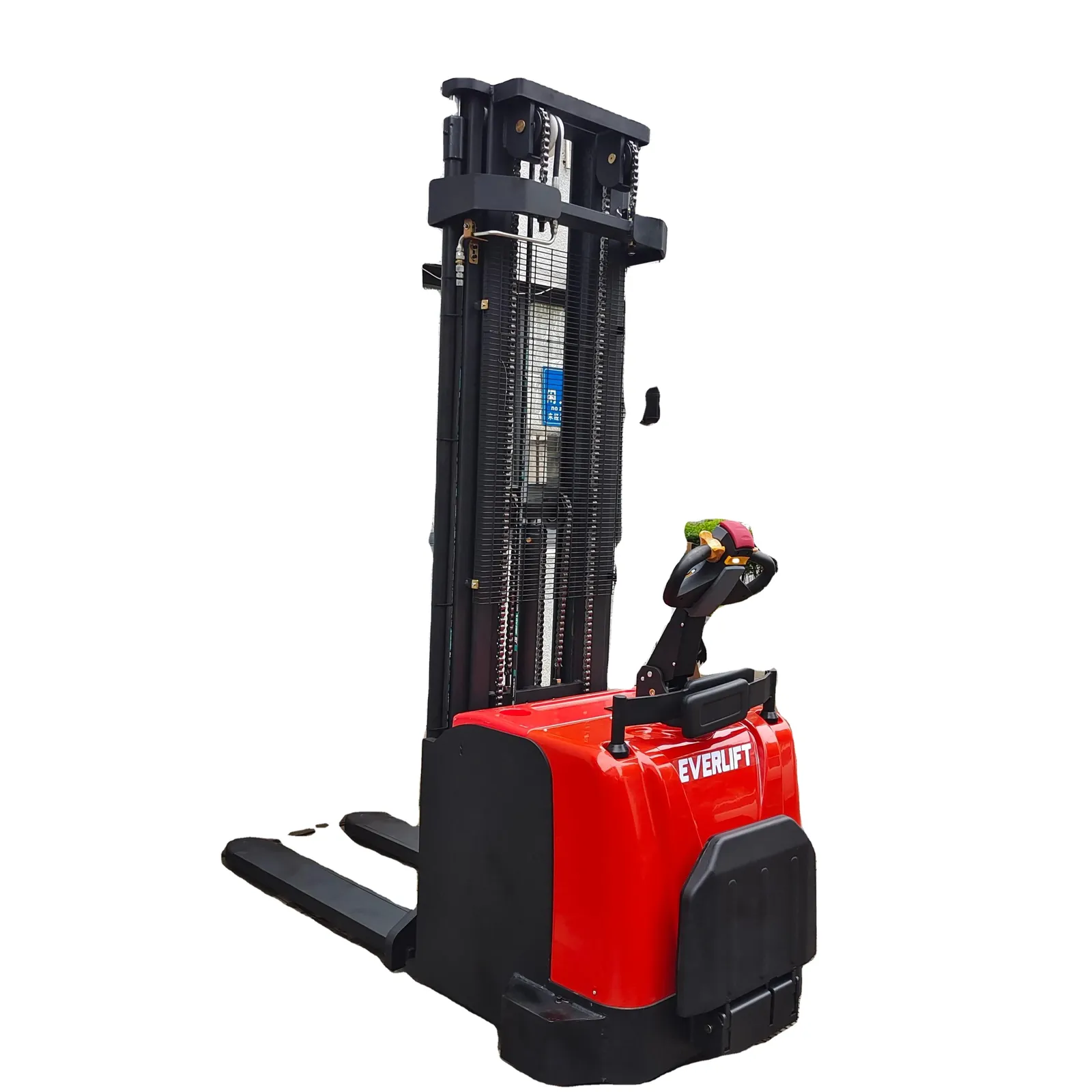

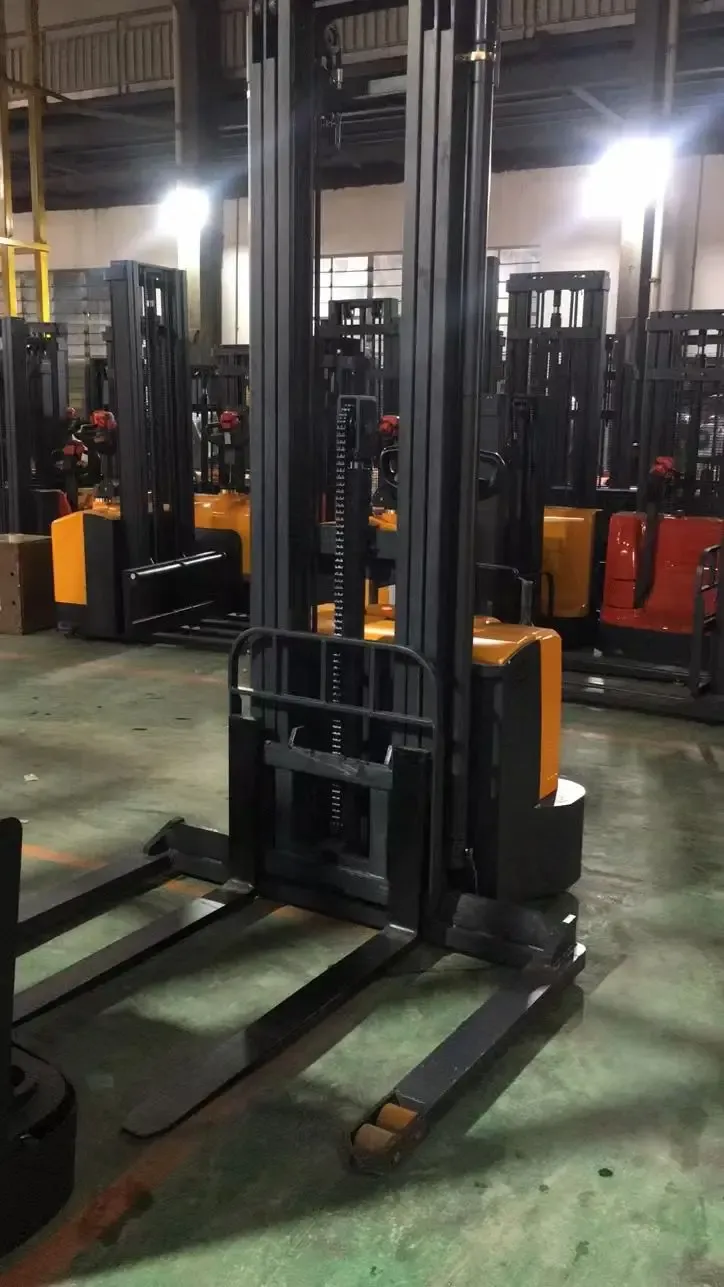

Electric Pallet Stacker, Triplex Mast, Lift 4 to 6 m, 2 t
2 tLithium-ionForks 1150 to 1220 mm marked
markedfrom£3,830per unit, ex VAT
Get a quote, reply in 2 hours
- 12-month warranty
- Photos and video before it ships
- No online payment, nothing is charged
Any quantity is welcome. Your price depends on the quantity and is confirmed on your written quote. Prices in GBP per unit, ex VAT. We convert the factory list at a buffered exchange rate, so normal day-to-day currency movement does not change the price you see. Your written quote adds freight, duty and VAT and is valid for 30 days.
Rated Loading Capacity2 Ton
Truck TypeStacker Forklift
Line total
Nothing is sent yet: add the products you need, then send your quote request. We reply within 2 hours, Monday to Friday, 9am to 5pm.

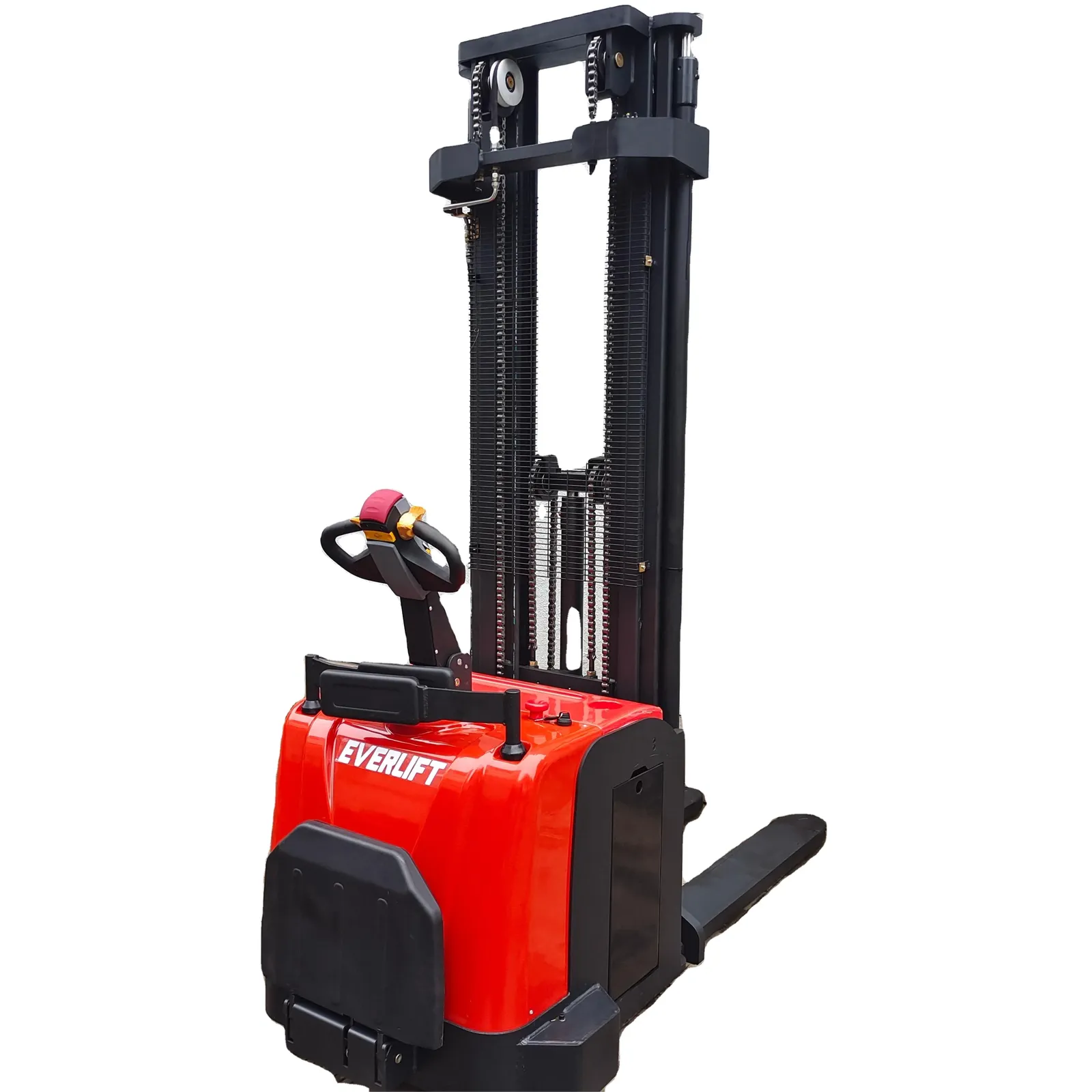

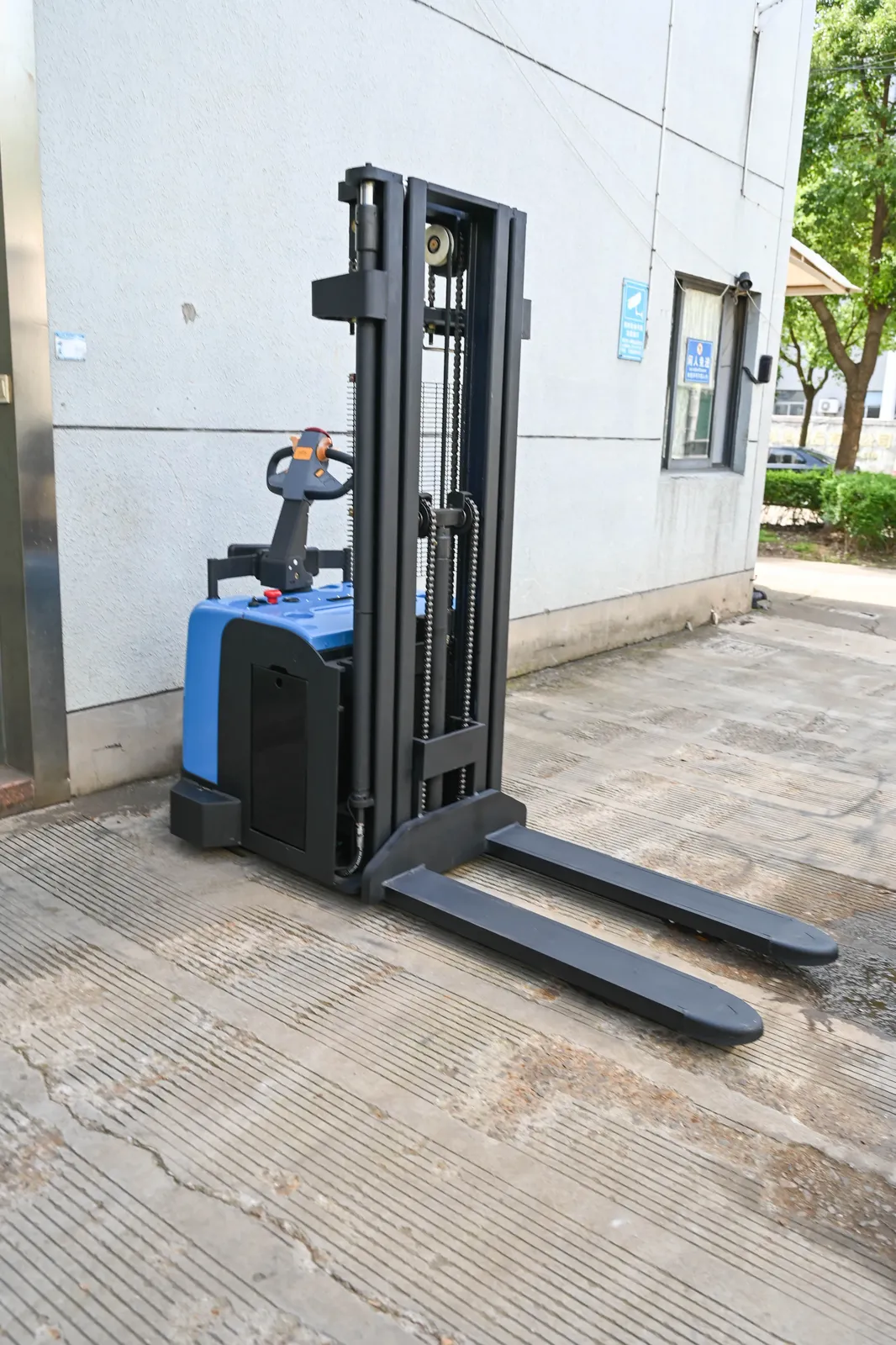

Or email sales@londonpallettrucks.co.ukELES-20H 2 Ton 6m Triplex Mast Electric Stacker EPS Electronic Steering Ride-on Forklift for High Racking Warehouse
Powerful 2000 kg Capacity: Heavy duty 2 ton electric pallet stacker designed for intensive industrial loading.
6m High Level Stacking: Professional 6000mm triplex mast stacker for high-shelf racking and storage tasks.
Advanced EPS Steering: Electronic power steering ensures precise and effortless manoeuvring in warehouses.
Container Access Design: Triplex mast with full free lift height allows easy container loading and unloading.
Efficient Stand-on Type: Ride-on pallet stacker with foldable platform to reduce operator fatigue for long shift.
Robust AC/DC Motor System: 1.5kW AC drive and 3.0kW DC lift motors provide strong power for 6m vertical work.
High Capacity Battery: Industrial 24V/210Ah battery ensures long-lasting operation for heavy load stacking.
| Condition | New |
|---|---|
| Fork Specifications( L*W*H) | 1150 × 685 × 88 mm |
| Forklift Battery Type | Lithium-Ion Battery |
| Side Shifter | Electric Side Shifter, Hydraulic Side Shifter |
| Drive Type | Fwd |
| Terrain Adaptability | Indoor Flooring, Offroad, Outdoor Pavement, Rough Terrain, Other |
| Load centre distance | 500 mm, 600 mm |
| Mast Type | Two-Stage Mast, Three-Stage Mas, Single-Stage Mast |
| Fork Length | 1150 mm, 1220 mm |
| Operating Mode | Standing Operation |
| Forklift Tyre | Polyurethane Tyre |
| Mast Tilt Angle (Forward Tilt-Rear Tilt) | 6-12° |
| Capacity | 2T |
| Lifting height | 4000mm-6000mm |
| Tyre | Solid PU |
| Rated Loading Capacity options | 2 Ton |
| Truck Type options | Stacker Forklift |
| Max. Lifting Height options | 4000 mm, 4500 mm, 5000 mm, 5500 mm, 6000mm |

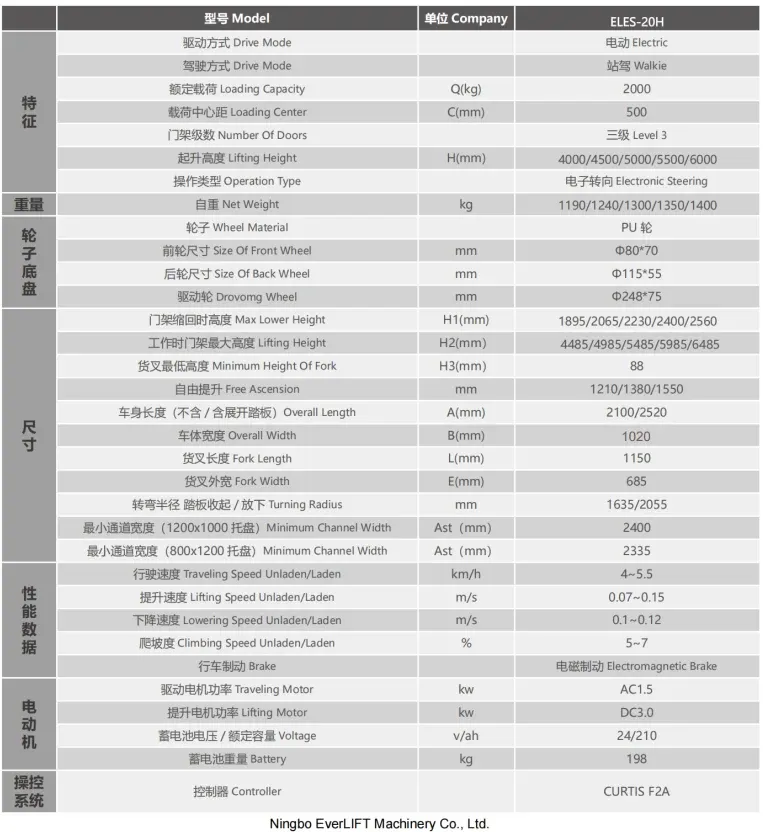

| Model | Company | ELES-20H |
| Drive Mode | Electric | |
| Drive Mode | Walkie | |
| Loading Capacity | Q(kg) | 2000 |
| Loading Centre | C(mm) | 500 |
| Number Of Doors | Level 3 | |
| Liting Height | H(mm) | 4000/4500/5000/5500/6000 |
| Operation Type | Electronic Steering | |
| Net Weight | kg | 1190/1240/1300/1350/1400 |
| Wheel Material | PU | |
| Size Of Front Wheel | mm | φ80*70 |
| Size Of Back Wheel | mm | φ115*55 |
| Drovomg Wheel | mm | φ248*75 |
| Max Lower Height | H1(mm) | 1895/2065/2230/2400/2560 |
| Lifting Height | H2(mm) | 4485/4985/5485/5985/6485 |
| Minimum Height O Fork | H3(mm) | |
| Free Ascension | mm | 1210/1380/1550 |
| Overall Length | A(mm) | 2100/2520 |
| Overall Width | B(mm) | 1020 |
| Fork Length | L(mm) | 1150 |
| Fork Width | E(mm) | 685 |
| Turning Radius | mm | 1635/2055 |
| (1200x1000)Minimum Channel Width | Ast(mm) | 2400 |
| (800x1200)Minmum Channel Width | Ast(mm) | 2335 |
| TravelingSpeed Unladen/Laden | km/h | 4~5.5 |
| Lifting Speed Unladen/Laden | m/s | 0.07~0.15 |
| Lowering Speed Unaden/Laden | m/s | 0.1~0.12 |
| Climbing Speed Unladen/Laden | % | 5~7 |
| Brake | Electromagnetic Brake | |
| Traveling Motor | kw | AC1.5 |
| Liting Motor | kw | DC3.0 |
| Voltage | v/ah | 24/210 |
| Battery | kg | 198 |
| Controller | CURTIS F2A |
| Certificate | Number | Valid |
|---|---|---|
| 2006/42/EC | M.2026.206.C137529 | 30/03/2026 - 29/03/2031 |
| CE | M.2026.206.C134736 | 04/02/2026 - 03/02/2031 |
| CE | 3N251031.NEMS093 | 30/10/2025 - 29/10/2030 |
| EAC | 22/10/2023 - 22/10/2028 | |
| CE | M.2023.206.C83216 | 22/03/2023 - 21/03/2028 |
| CE | M.2023.206.C83215 | 22/03/2023 - 21/03/2028 |
| CE | M.2023.206.C83222 | 22/03/2023 - 21/03/2028 |
| CE | M.2023.206.C83221 | 22/03/2023 - 21/03/2028 |
Certificates are supplied with your quote on request.
Spare parts for this model
Pallet truck and stacker load rollers, 80 x 70 mm polyurethane, set of 4from £41 per set ex VAT
Electric stacker stabiliser wheel, 115 x 55 mm polyurethanefrom £23 per wheel ex VAT
Electric stacker drive wheel, 250 x 75 mm polyurethane, 5 bolt hubfrom £66 per wheel ex VAT · check the hub first
Stacker mast lift chain, leaf chain cut to length, per metrefrom £22 per metre ex VAT · check your old part first
Electric pallet truck and stacker horn, 24 V or 48 V, 100 dBfrom £14 per horn ex VAT · check your old part first
Electric pallet truck and stacker tiller gas spring, 156 mm, 600 Nfrom £23 per gas spring ex VAT · check the fixing first
Electric stacker and pallet truck lowering valve, 08 size normally closed cartridgefrom £32 per valve cartridge ex VAT · check your old part first
Electric and semi electric stacker power unit motor relay, 12 V or 24 V, 200 Afrom £21 per relay ex VAT · check your old part first
Electric stacker pump motor, 24 V 3 kW DC, square flangefrom £167 per motor ex VAT · check your old part first
All spare parts. Send the model and the part you need if it is not listed.
