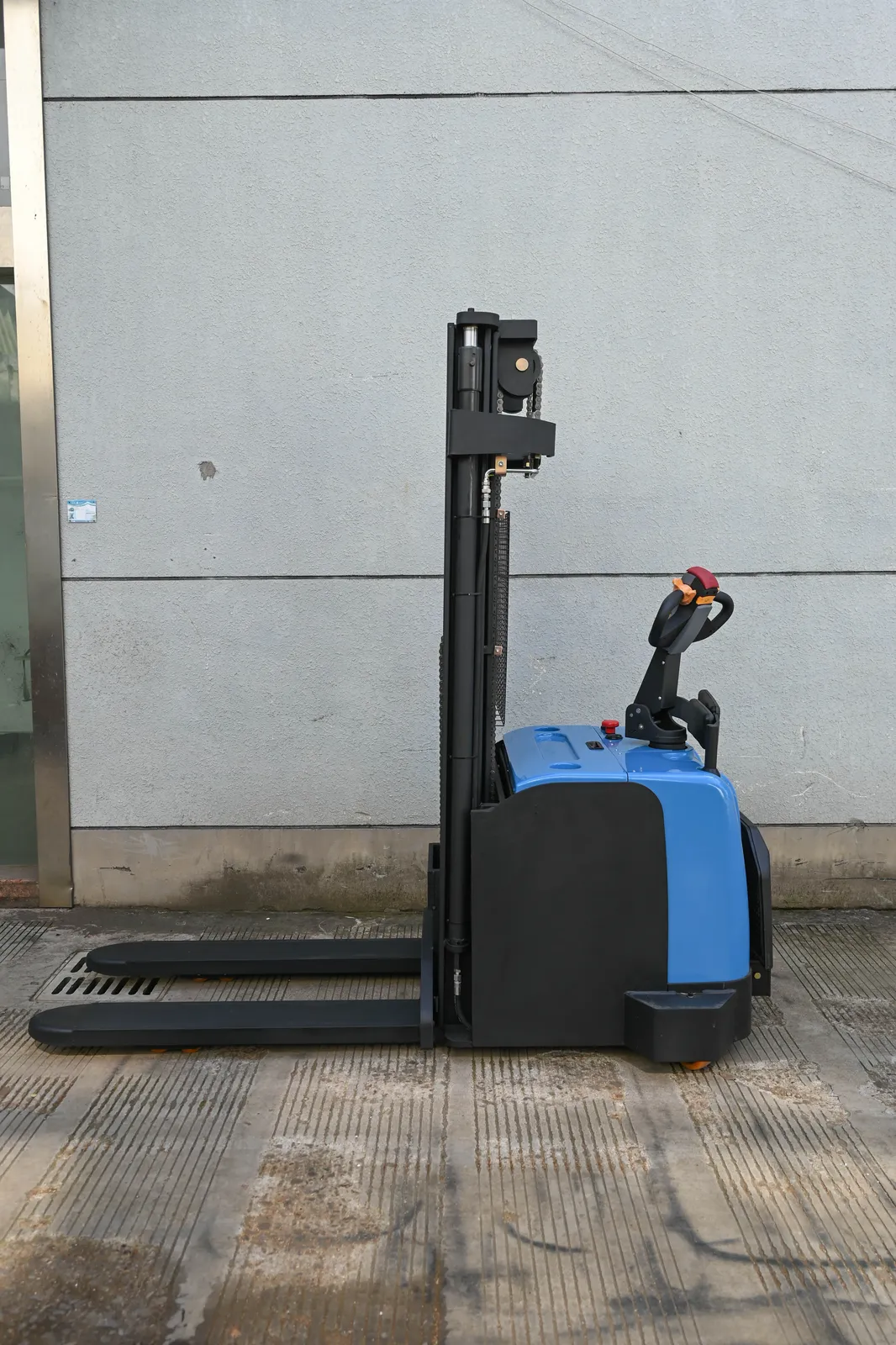

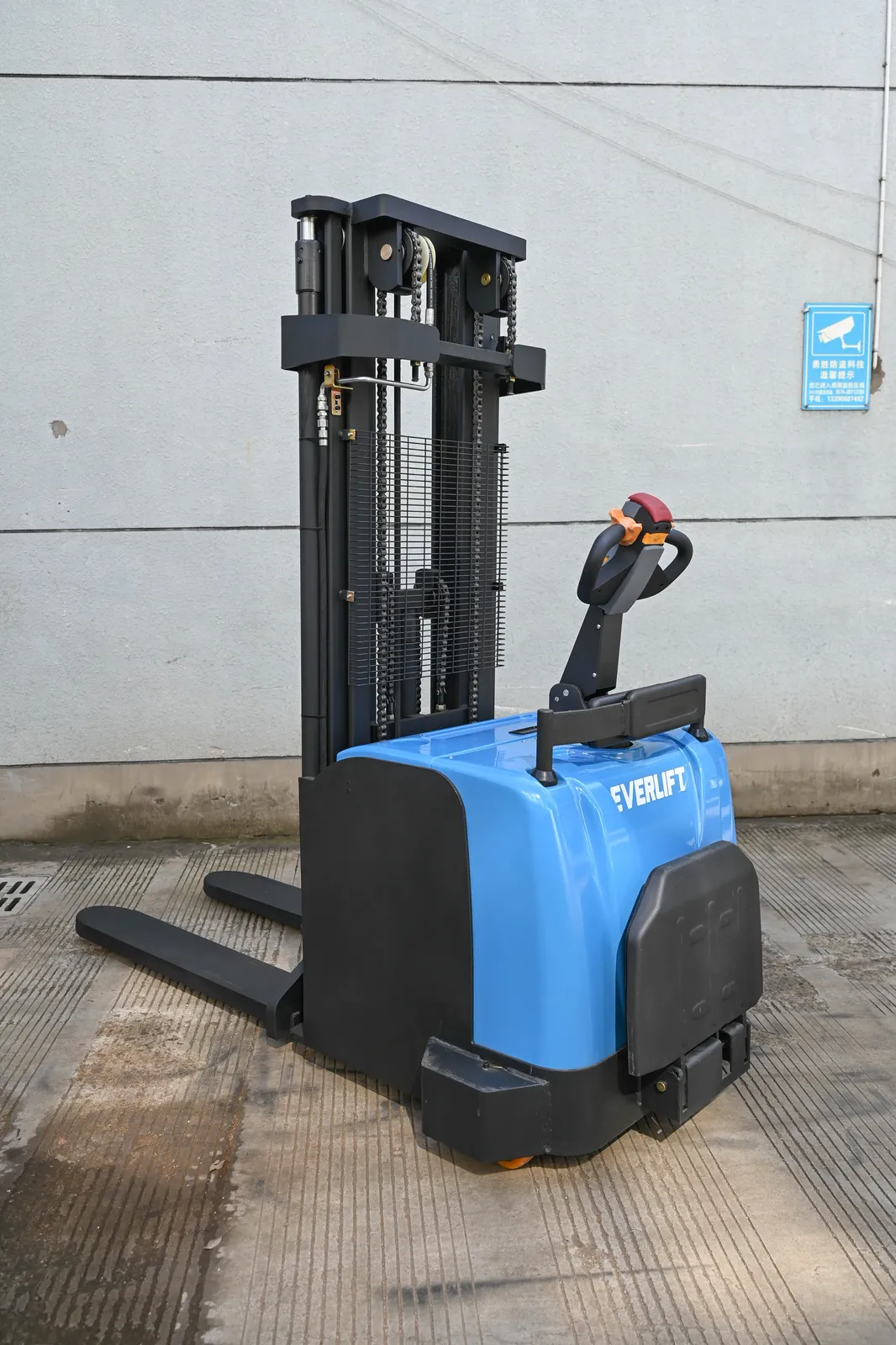

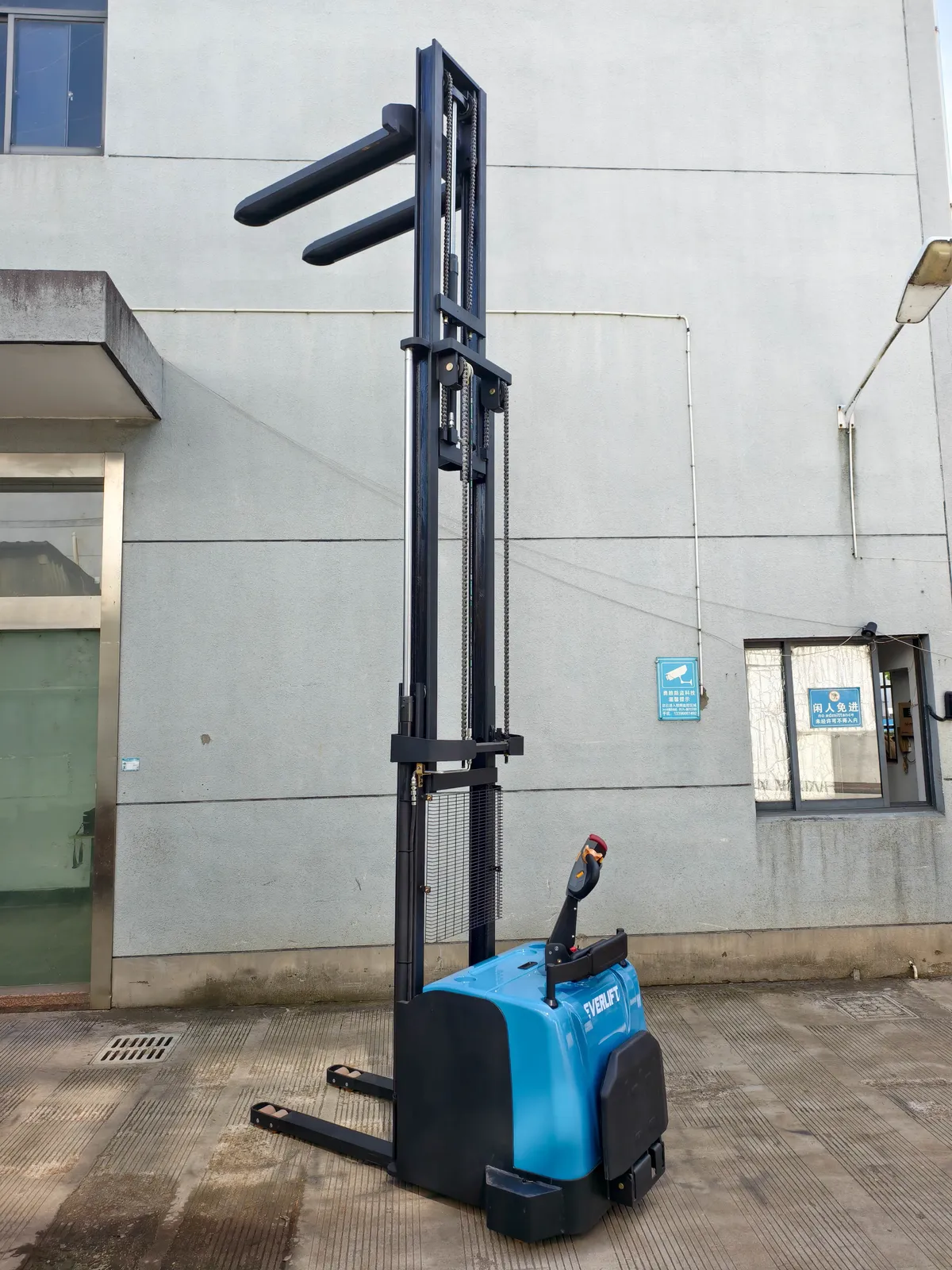

Walkie on Electric Pallet Stacker ELES-20H 2tLoad 4m-6.2m
2 tLead-acidForks 1150 to 1220 mm
from £3,830per unit, ex VAT
| Quantity | Price per unit |
|---|---|
| 1+ units | £3,830 |
Minimum order 1 unit from the factory; any range minimum is confirmed on your quote. Prices in GBP per unit, ex VAT. We convert the factory list at a buffered exchange rate, so normal day-to-day currency movement does not change the price you see. Your written quote adds freight, duty and VAT and is valid for 30 days.
Rated Loading Capacity2 Ton
Truck TypeStacker Forklift
Line total
No online payment. The basket becomes an order request and we reply with a written GBP quote, deposit 30% on order, lead time 8 to 12 weeks.
Or email [email protected]Product Highlights

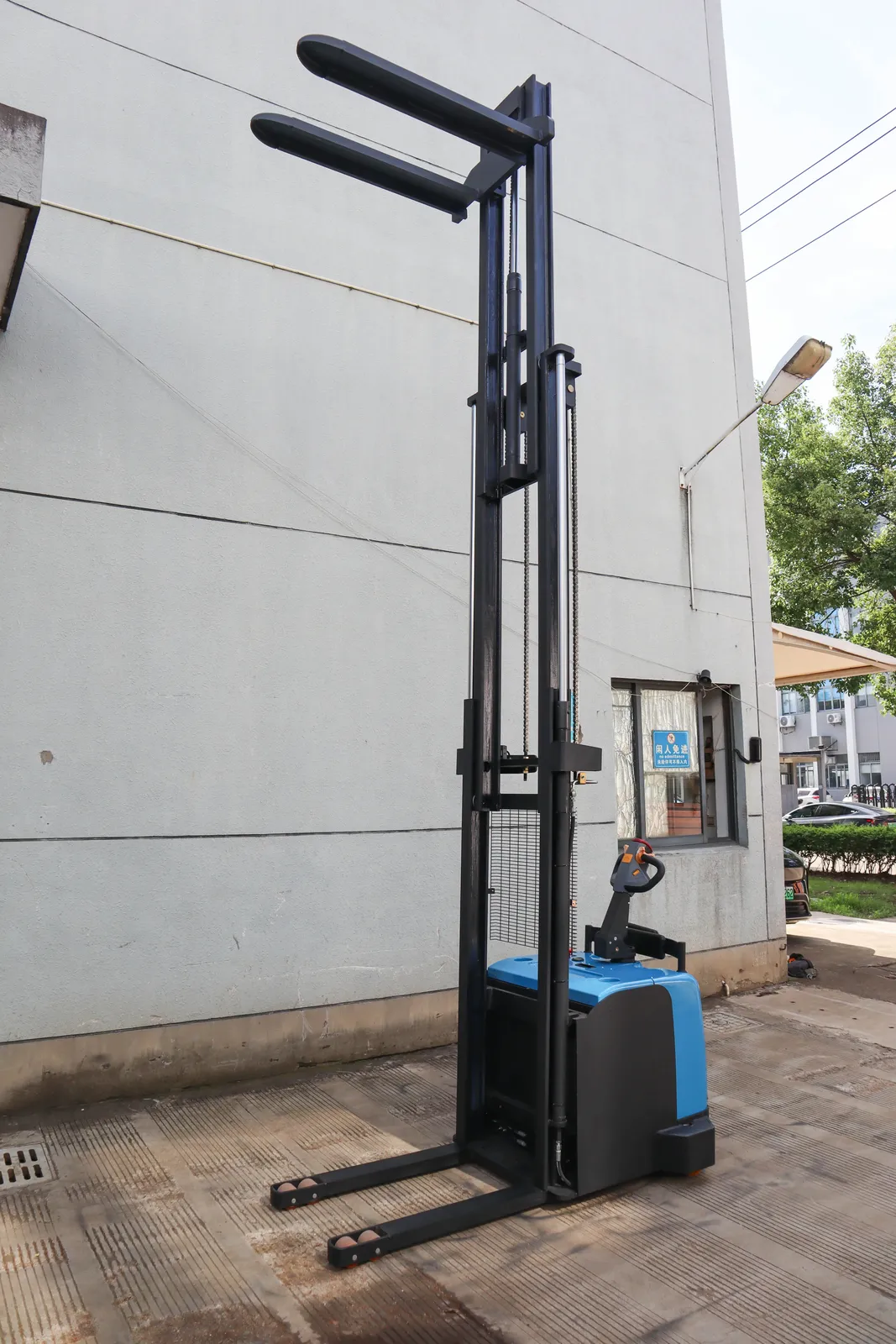

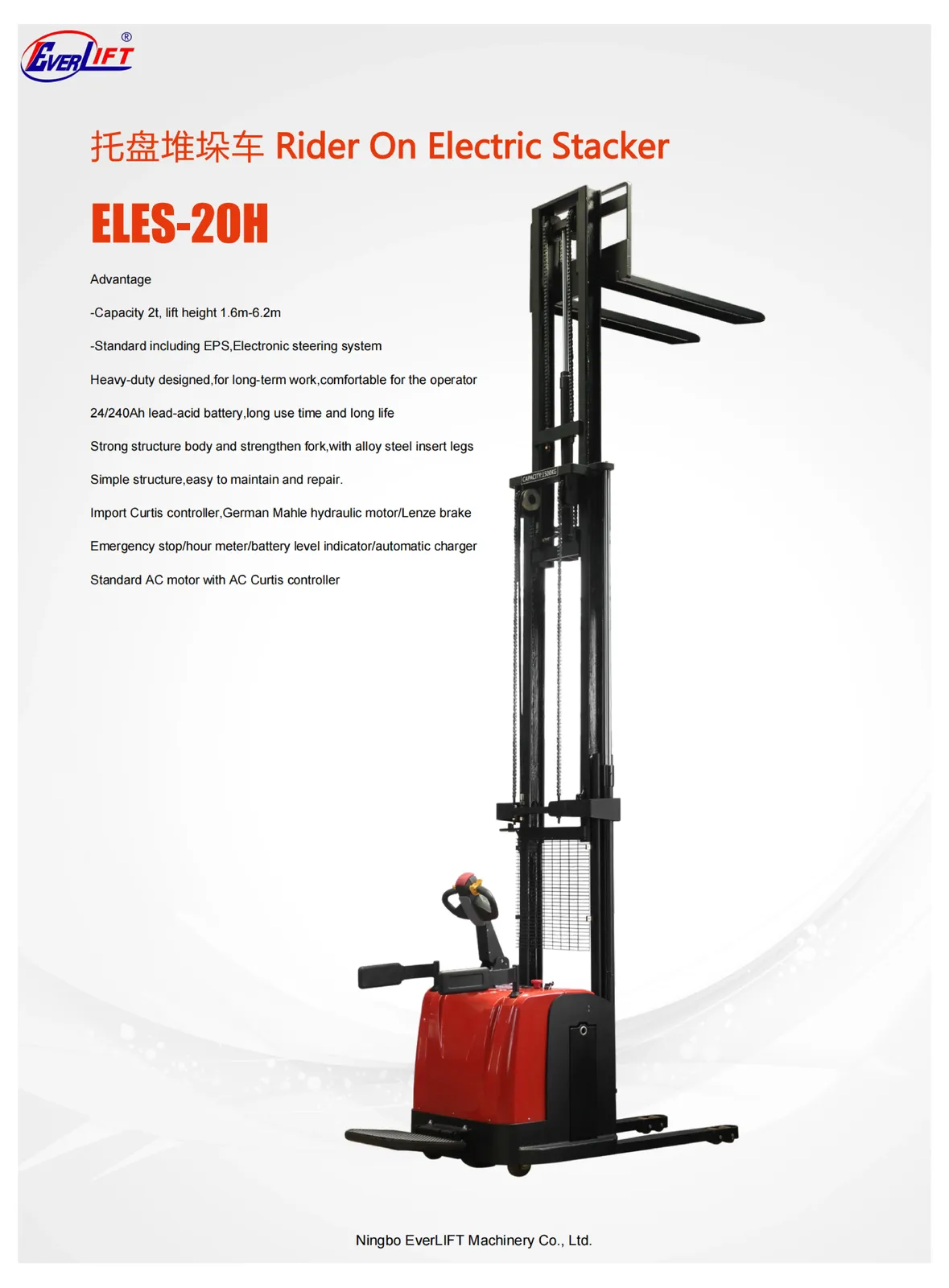

1. This rider-on electric stacker comes with 2000kg rated load capacity and optional lifting height ranging from 4000mm to 6200mm, perfectly fitting high rack warehouse storage demands that most logistics importers focus on.
2. It is equipped with standard EPS electronic steering system, which effectively cuts down operation fatigue and becomes one of the most popular humanized configurations sought by global warehouse equipment dealers.
3. The whole machine adopts imported CURTIS F2A controller, German Mahle hydraulic motor and Lenze brake, these well-known brand core parts are highly favored by buyers for stable long-term operation.
4. Matched with 24V 240Ah lead-acid battery, the stacker supports long continuous working hours; its sturdy alloy steel reinforced fork and solid body structure satisfy the heavy-duty working requirement of large distribution warehouses.
5. Designed with electromagnetic braking, emergency stop button and battery level indicator, the complete safety configuration meets mainstream global industrial safety standards, which is a key priority for factory and distributor purchasers.

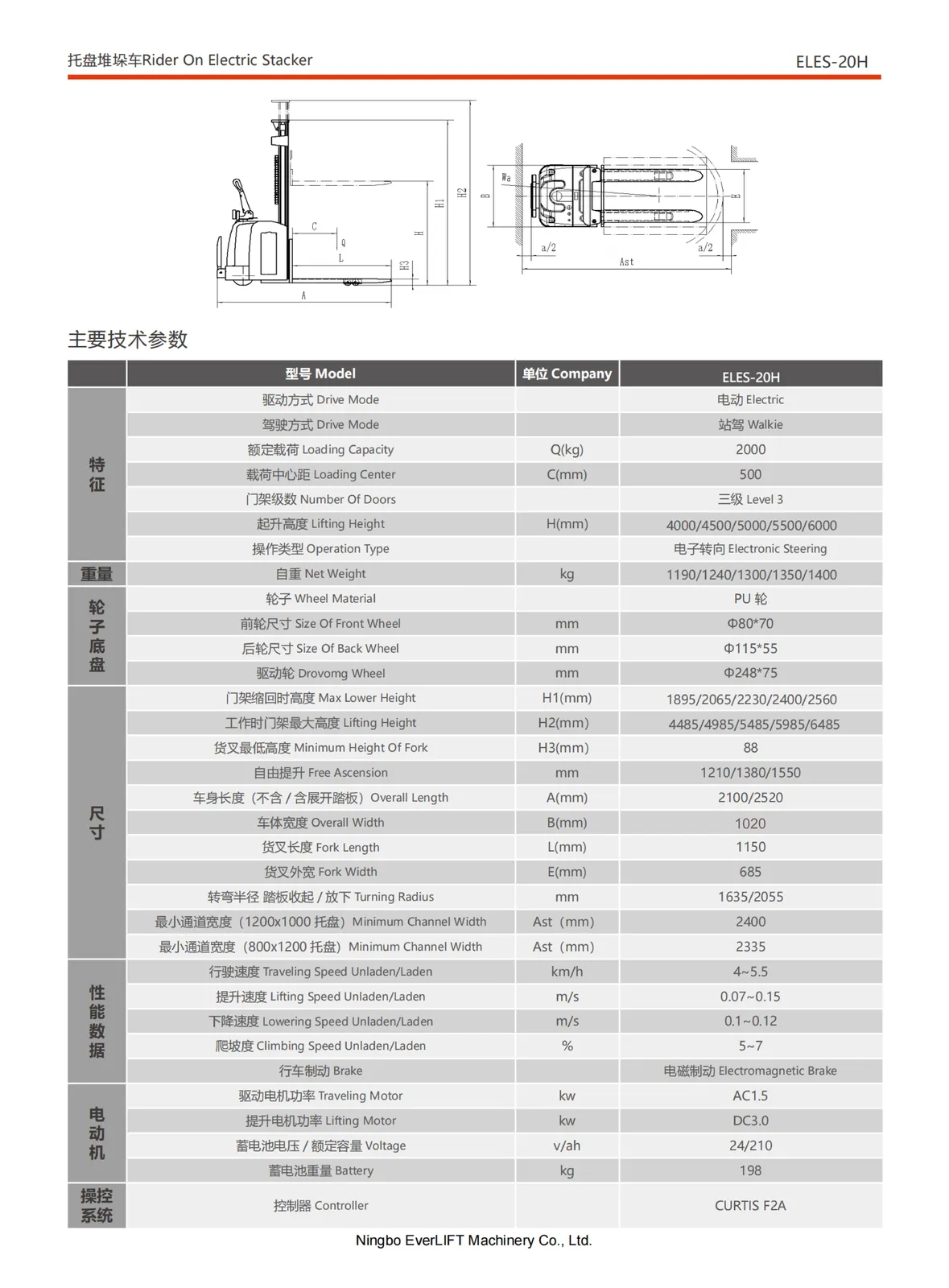

| Condition | New |
|---|---|
| Fork Specifications( L*W*H) | 1150*680*88 |
| Forklift Battery Type | Lead–Acid Battery |
| Side Shifter | Electric Side Shifter, Hydraulic Side Shifter |
| Drive Type | Fwd |
| Terrain Adaptability | Indoor Flooring, Outdoor Pavement, Offroad, Rough Terrain, Other |
| Load centre distance | 500 mm, 600 mm |
| Mast Type | Single-Stage Mast, Three-Stage Mas, Two-Stage Mast |
| Fork Length | 1150 mm, 1220 mm |
| Operating Mode | Standing Operation |
| Forklift Tyre | Polyurethane Tyre |
| Mast Tilt Angle (Forward Tilt-Rear Tilt) | 6-12° |
| Model Number | ELES-20H |
| Battery voltage (V/AH) | 24V/240AH |
| Type | Stacker Forklift |
| Mast | 2 Stage /3 Stage Optional |
| Model | ELES-20H |
| Battery Type | Lead Aicd |
| Operator type | Stand-up |
| Wheels | PU Wheels |
| Certification | CE/ISO9001 |
| Battery capacity | 24V/240AH |
| Rated Loading Capacity options | 2 Ton |
| Truck Type options | Stacker Forklift |
| Max. Lifting Height options | 4000 mm, 4500 mm, 5000 mm, 5500 mm, 6000mm, 6200mm |
| Certificate | Number | Valid |
|---|---|---|
| 2006/42/EC | M.2026.206.C137529 | 30/03/2026 - 29/03/2031 |
| CE | M.2026.206.C134736 | 04/02/2026 - 03/02/2031 |
| CE | 3N251031.NEMS093 | 30/10/2025 - 29/10/2030 |
| EAC | — | 22/10/2023 - 22/10/2028 |
| CE | M.2023.206.C83216 | 22/03/2023 - 21/03/2028 |
| CE | M.2023.206.C83215 | 22/03/2023 - 21/03/2028 |
| CE | M.2023.206.C83222 | 22/03/2023 - 21/03/2028 |
| CE | M.2023.206.C83221 | 22/03/2023 - 21/03/2028 |
Certificates are supplied with your quote on request.
